LWPE · luxoⒶRCH ECO

Wedge LED Emergency Wall Pack

The entry light that stays on.

A compact wall pack for exit doors, entries and egress paths, 10 or 20 W. Every number carries a 4 W emergency battery that tests itself and a photocell with an ON/OFF switch; color temperature is a switch on the fixture. Over 700 lm on battery, IP65, wet location.

Specification Sheet IES Files Installation Guide Configure For Lead Time

Input Watts10 or 20 W

Lumensup to 2,660

Efficacyup to 140 lm/W

Ideal applications

Entryways

Walkways

Building Perimeters

Emergency 4 W

Photocell

3-CCTselect

Self-Test

wetⒶGUARD

cULus Listed

Wet Location

IP65

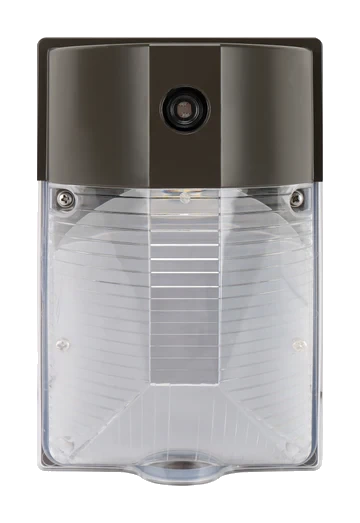

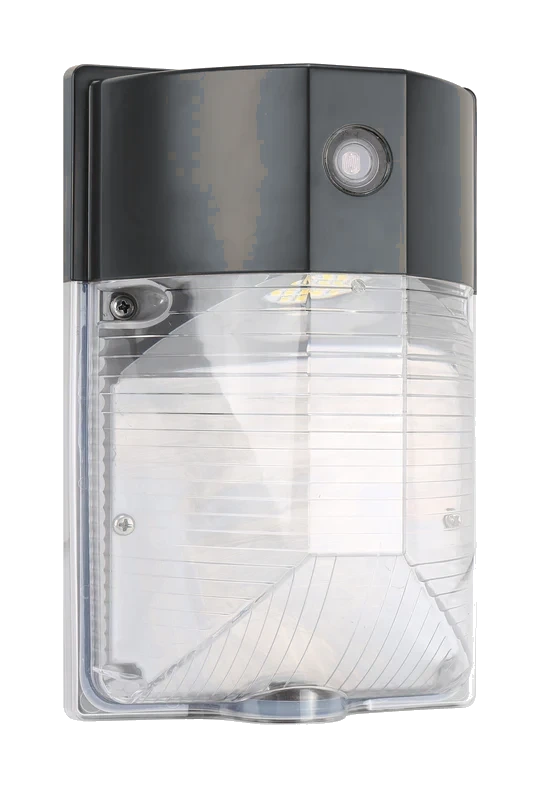

Wedge LED entryway wall pack, Black, clear lens, front

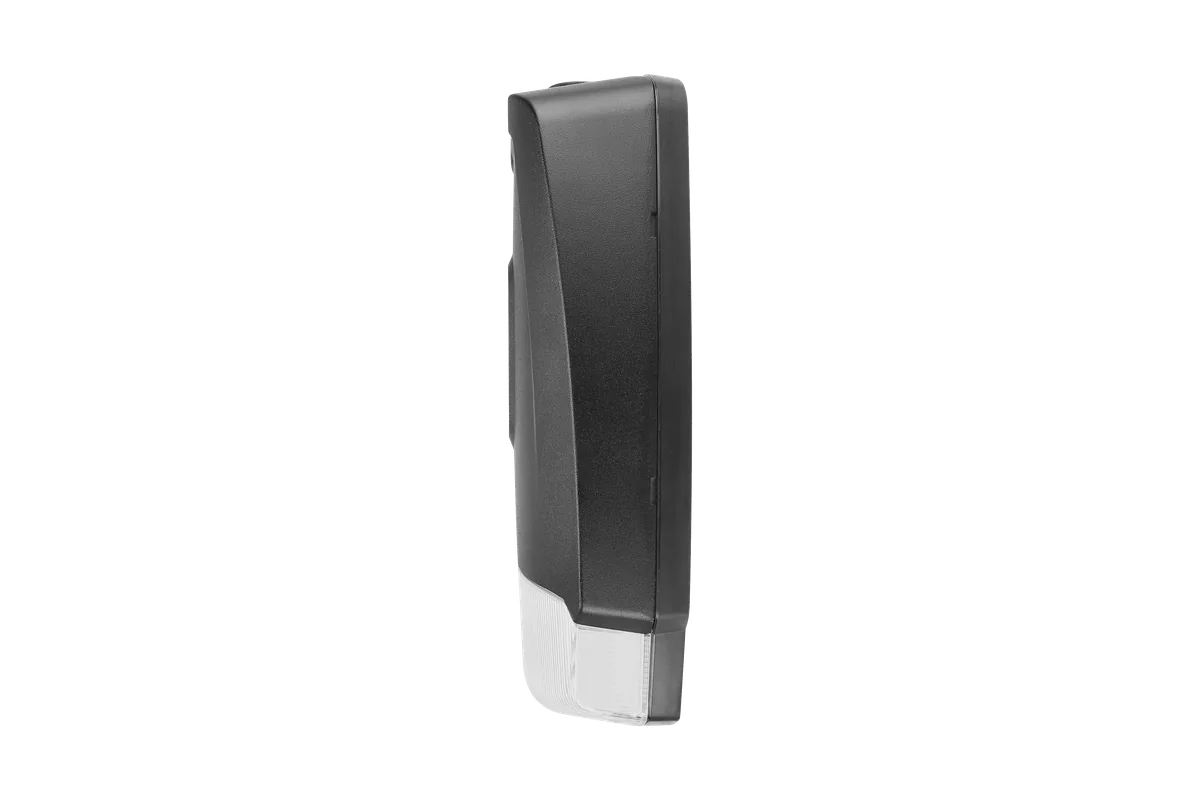

Wedge from the side: the clear lens wraps the base

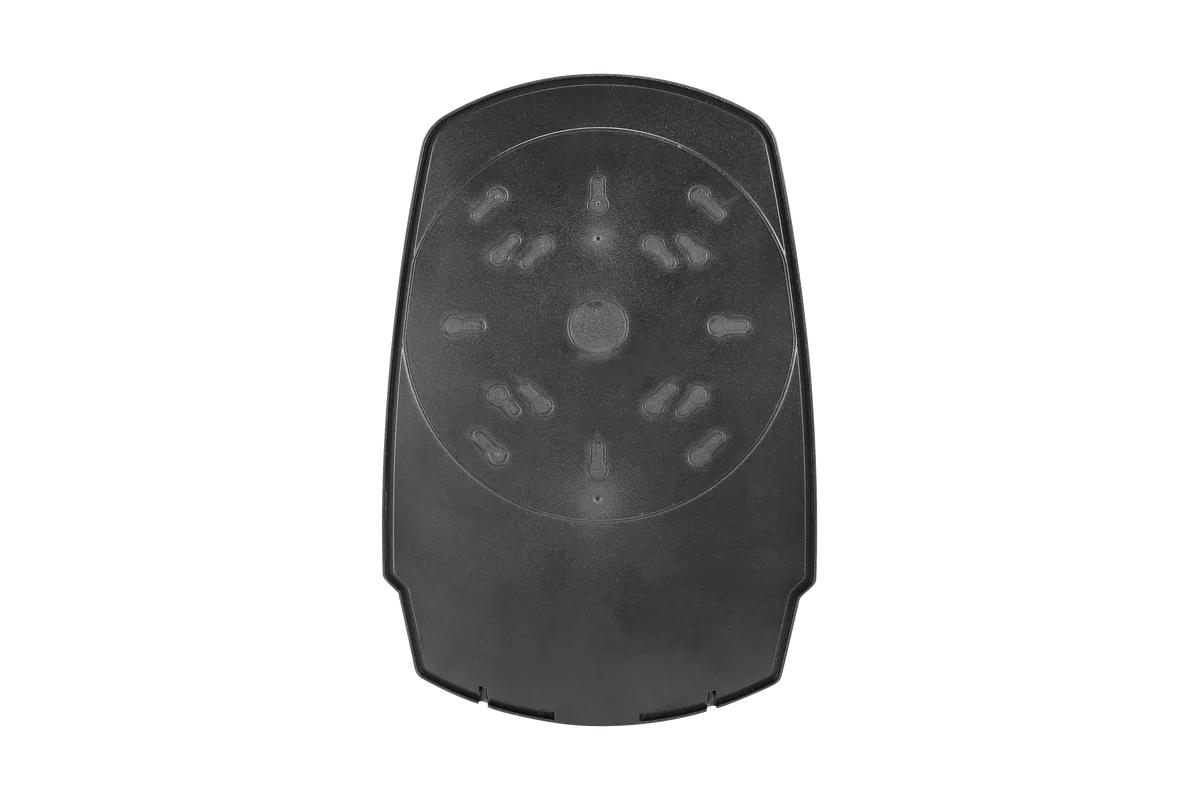

Wedge back plate: the outlet-box screw pattern

Documentation & Resources

Documents

Data SheetPDF Quick SheetPDF Sell SheetPDF Installation GuidePDF IES Photometric FilesIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the site plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

Output	Watts	Lumens	CCTselect	lm/W

★ Default color: 5000K. LWPE10 shows ALG's measured file (†), at or above its rating: 1,341 / 1,401 / 1,351 lm at 3000 / 4000 / 5000K (rated 1,300 / 1,400 / 1,350 lm, up to 140 lm/W at 4000K). LWPE20 shows the rating: 2,550 / 2,660 / 2,600 lm at 3000 / 4000 / 5000K. On battery, over 700 lm.

ApplicationOutdoor · wallExit doors, entries, egress paths, walkways, building perimeters

ConstructionDie-cast aluminum · two-piece mountBlack or Dark Bronze · clear high-impact lens

OpticsWide forward throw · clear lensCRI 80 · measured 87° × 112°

Dimensions—

Operating temp−4 °F to 104 °FSet by the battery · IP65 · wet location

Electrical120–277 V · PF >0.90 · THD <20 % · photocell with ON/OFF switch · no dimming

Emergency4 W battery, built in · over 700 lm190 min at 64–104 °F · 160 min at 32 °F · 100 min at −4 °F · self-test

Warranty5 yr · 50,000 hr

Full Data Sheet Installation Guide

Engineering

The battery that takes over when the power fails, the switches inside, and how it goes up.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

Full IES Library

Engineered Accessories

Configurator

Build Your Wedge.

Required *

Wattage—

Voltage—

Finish—

Built inin every number—

CCT switchset before install · not in the part number—

Optional

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingscULus Listed · wet location · IP65Rebate Center shows what your utility pays and the forms it needs, by ZIP.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

Wall Pack Family

Wedge is the entry light with its own battery. Ramparts is the compact ECO without one; Watchtower and Nightwatch light the whole wall.

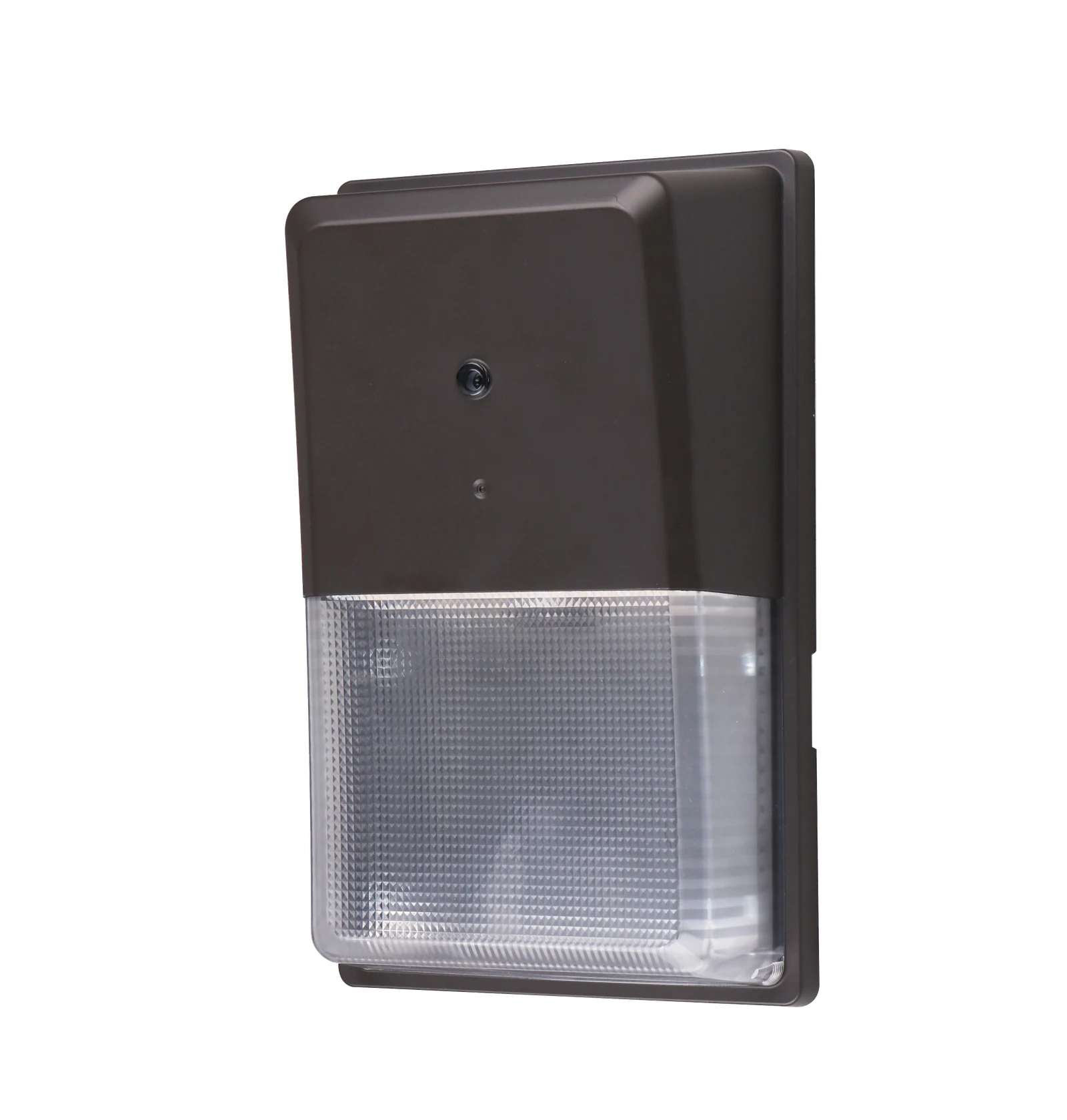

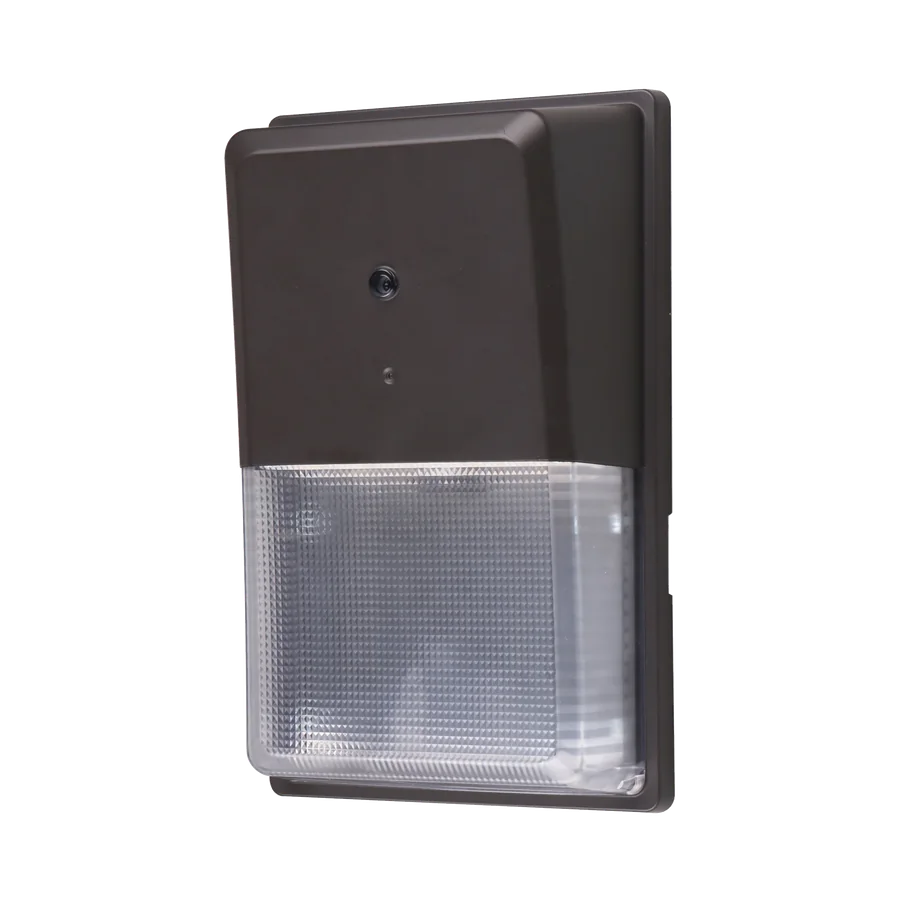

LWPE-S3R · ECO Ramparts The compact entry wall pack: 10 to 20 W on a switch, a photocell in both numbers. IP65 · 5 yr / 50,000 hr Specification Sheet → Product Details →

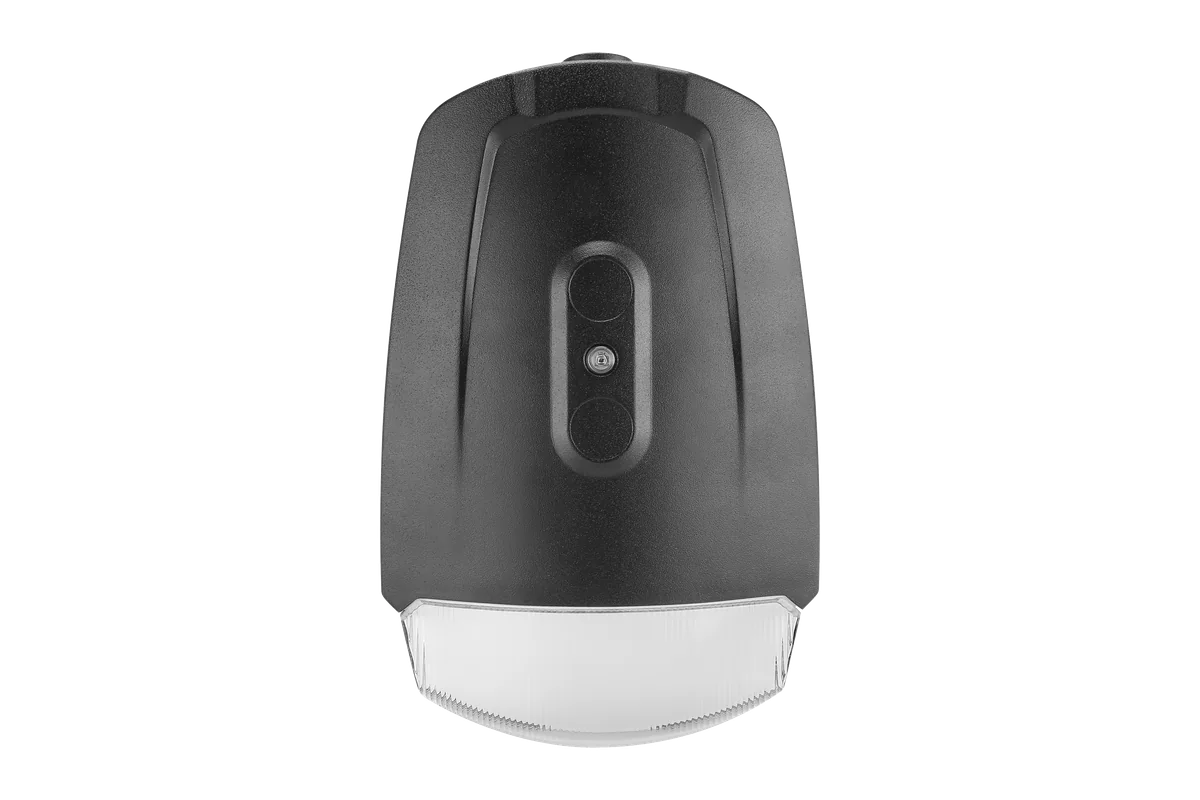

You are here Wedge LED entryway wall pack with emergency battery

LWPE-S3W · ECO Wedge The entry wall pack with a 4 W emergency battery and a photocell in every number. IP65 · 5 yr / 50,000 hr Specification Sheet → Product Details · this page

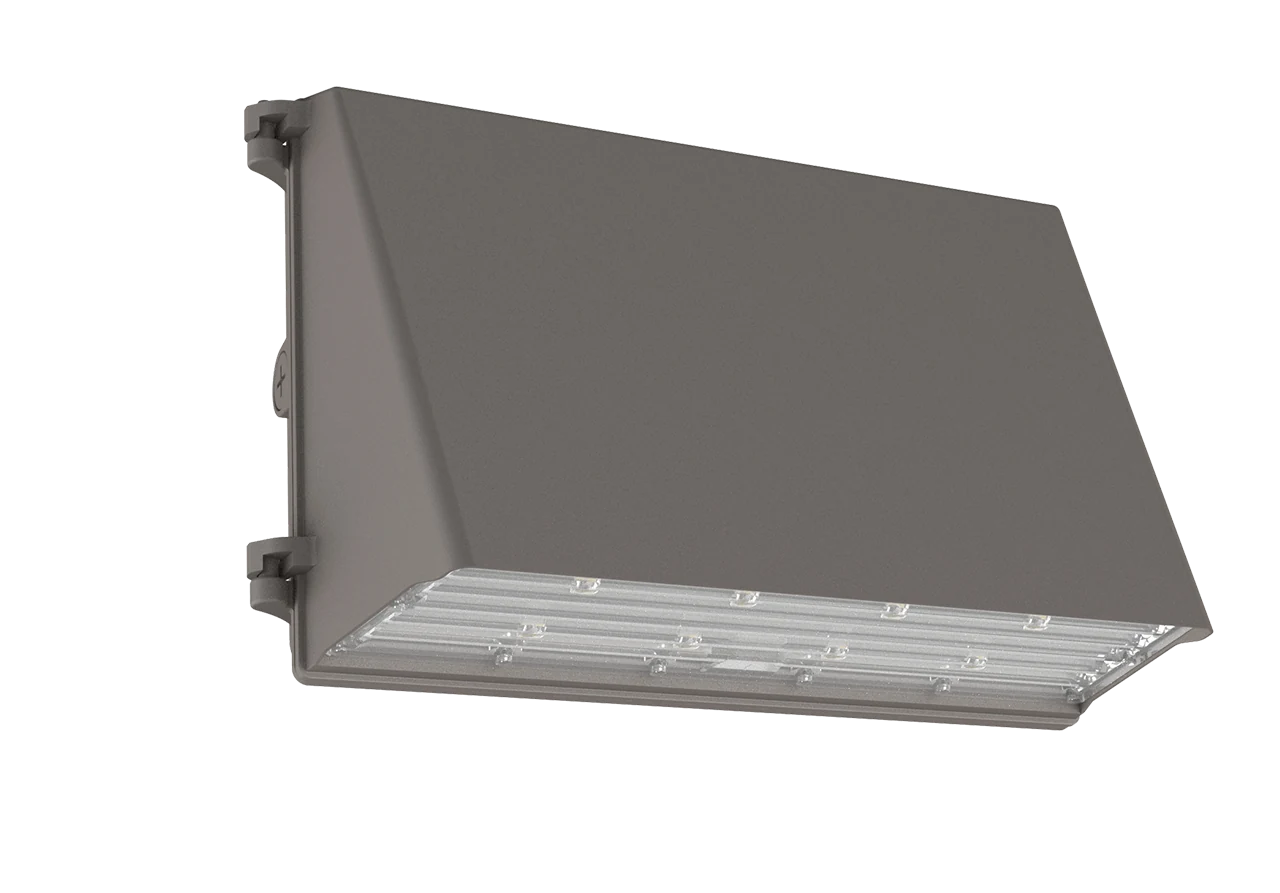

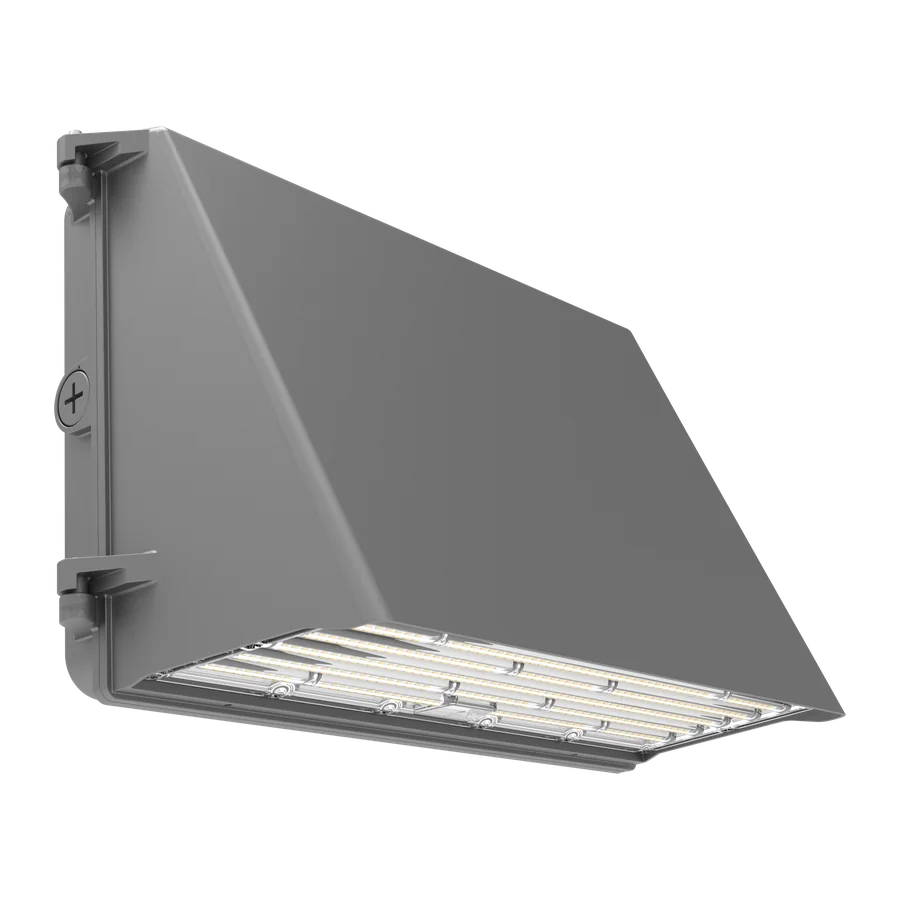

LWPC · ECO Watchtower The sloped-top wall pack: two housings, 40 to 120 W, photocell on every number. IP65 · 5 yr / 50,000 hr Specification Sheet → Product Details →

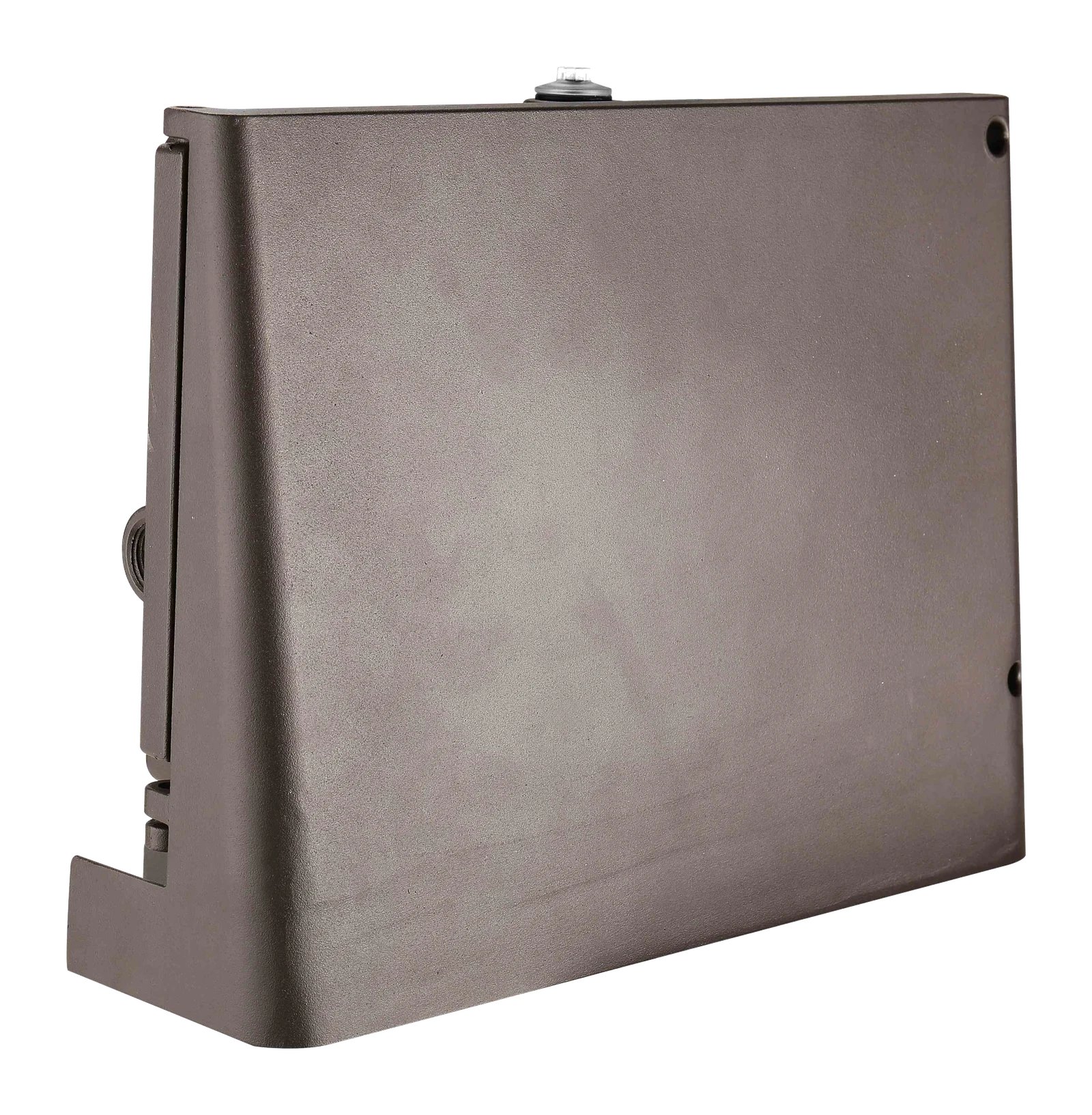

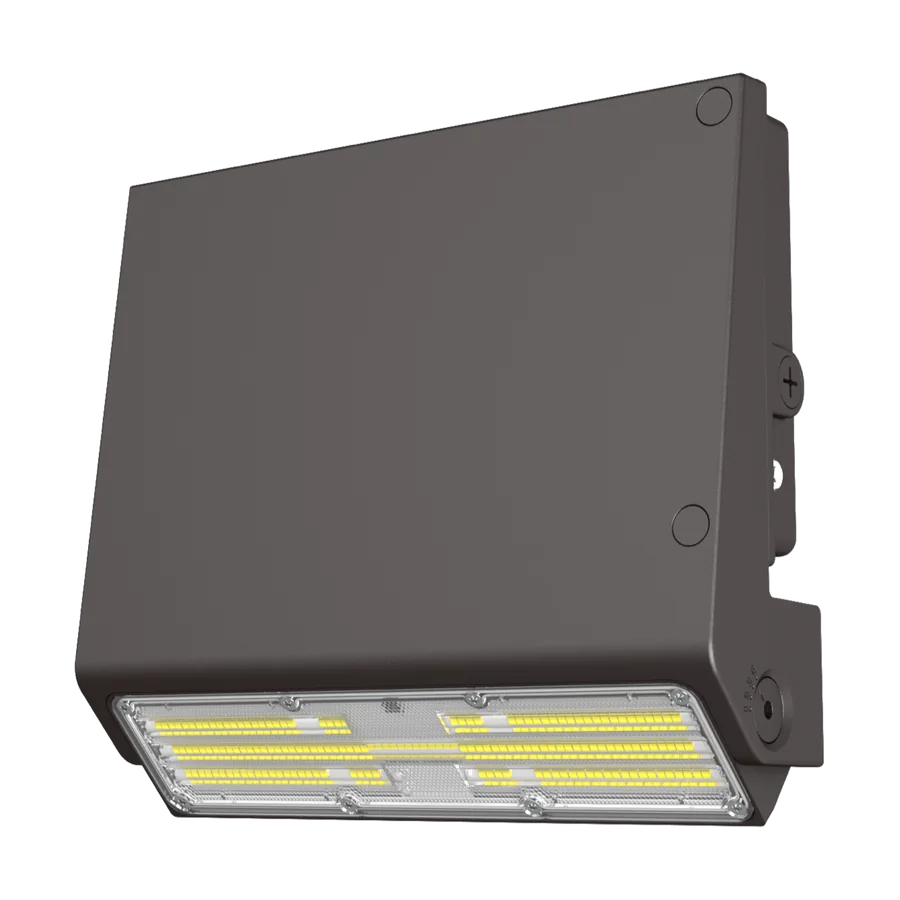

LWPC · PRO Nightwatch The PRO sloped-top wall pack: fixed or beamⒶDJUST throw, 12 to 100 W, a photocell in every number. IP65 · 5 yr / 50,000 hr Specification Sheet → Product Details →
