LWPA · luxoⒶRCH PRO

Atlanta LED Adjustable Wall Pack

Set the aim, the watts and the color on site.

An adjustable wall pack for entries, perimeters and service areas, 40 to 120 W in two housings. The head’s vertical aim adjusts on site; wattage and color temperature are switches on the fixture, and both catalog numbers carry a photocell. 0–10V dimming, wet location, −40 °F to 113 °F.

Specification Sheet IES Files · LWPA3W80 Installation Guide Configure For Lead Time

Input Watts40–120 W

Lumensup to 15,600

Efficacyup to 142 lm/W

Ideal applications

Building Perimeters

Entryways

Warehouses

3-WATTselect

3-CCTselect

Adjustable Aim

Dusk to Dawn

wetⒶGUARD

cULus Listed

Wet Location

FCC

RoHS

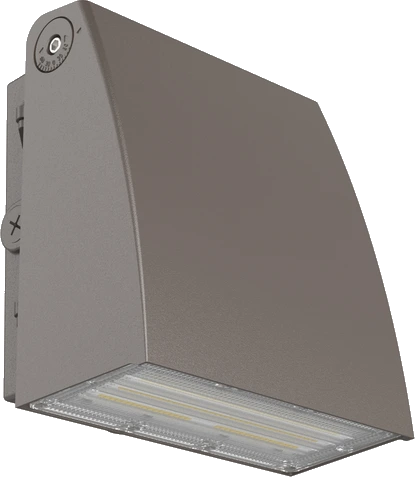

Atlanta LED adjustable wall pack, Dark Bronze, from below

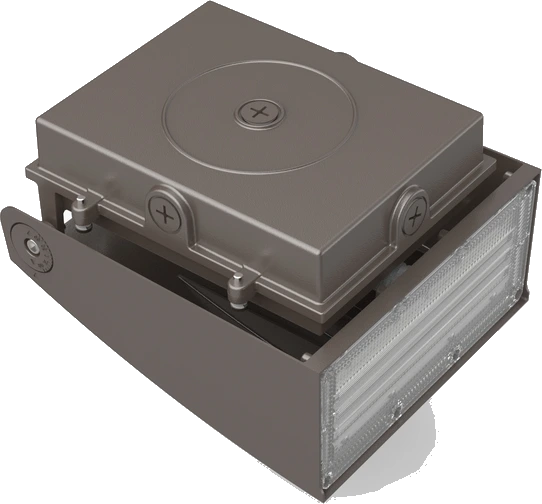

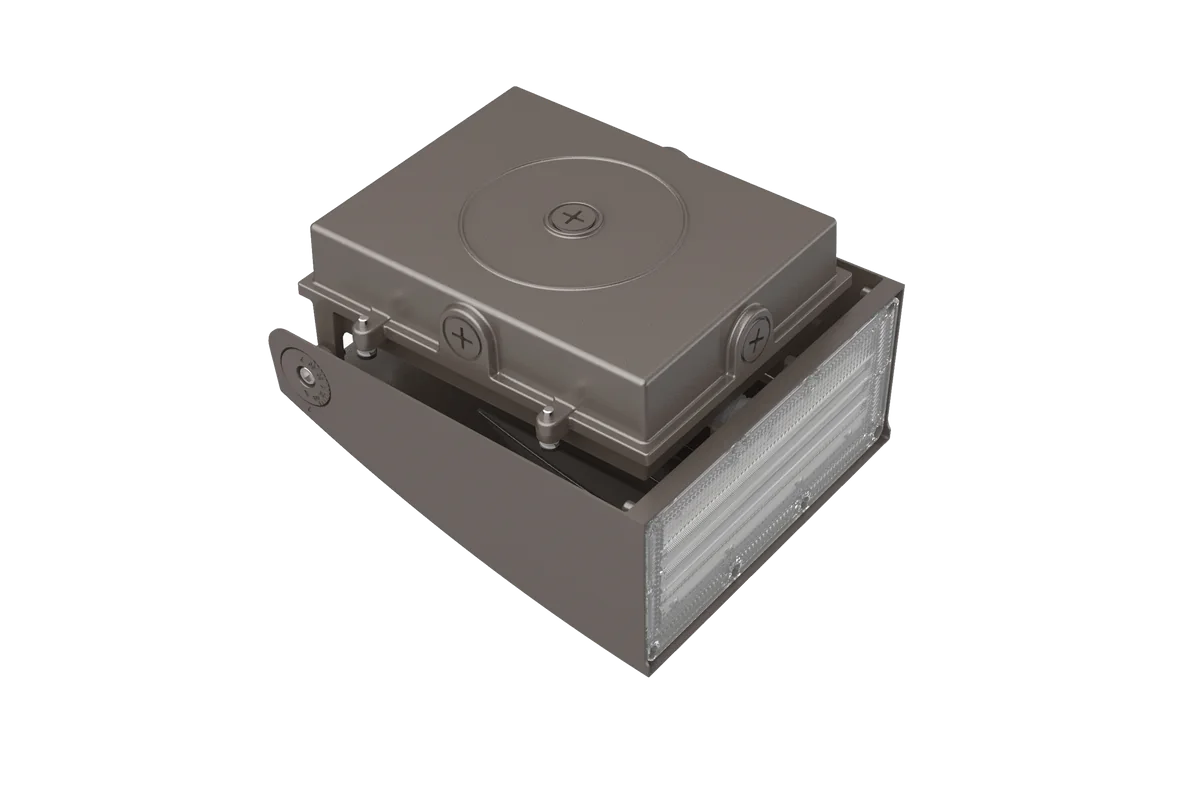

Atlanta from above: the back box that mounts over a junction box

Documentation & Resources

Documents

Data SheetPDF Quick SheetPDF Sell SheetPDF Installation GuidePDF IES Photometric Files · LWPA3W80IES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the site plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

WATTselect	Watts	Lumens	CCTselect	lm/W

★ Default settings. Lumens are at 5000K, the default setting. They are datasheet figures, except where † marks ALG's measured file reading higher: the 40 and 60 W steps of LWPA3W80. LWPA3W120 has no measured file. At 4000K the LWPA3W80 files read 10,781 lm at 80 W and 6,201 lm at 40 W (142 lm/W).

ApplicationOutdoor · wallBuilding entrances, perimeter and façade walls, loading and service areas, alleys, walkways

ConstructionDie-cast aluminum · silicone-ring sealDark Bronze · UV-stabilized prismatic polycarbonate lens · adjustable head

OpticsType II · forward throwCRI >70 · adjustable vertical aim

Dimensions—

Operating temp−40 °F to 113 °FWet location · storage −40 °F to 158 °F

Electrical120–277 V · 0–10V dimming, isolated driver · PF >0.9 · integrated photocell

Rated life50,000 hr

Warranty5 yr · 50,000 hrExtended warranty available

Full Data Sheet Installation Guide

Engineering

What you set on the fixture, how the head aims, and how it mounts and seals.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

IES Files · LWPA3W80

Engineered Accessories

Configurator

Build Your Atlanta.

Required *

Housing—

Voltage—

Finish—

Photocellbuilt in · in the number—

Dip switchesset before install · not in the part number—

Optional

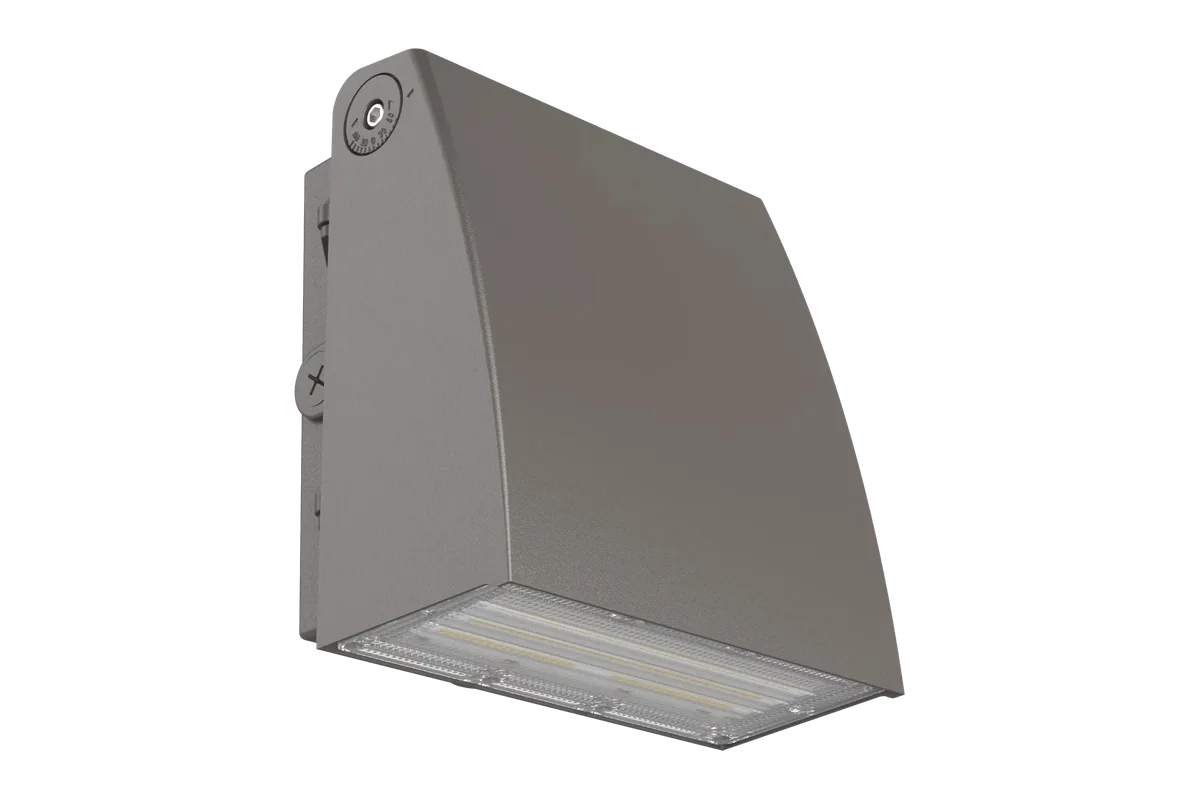

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingscULus Listed · wet location · FCC · RoHSLWPA3W80-3A1-UD/PS is DLC listed (QPL S-7C27ZZ); no DLC listing is claimed for LWPA3W120-3A1-UD/PS. Rebate Center shows what your utility pays and the forms it needs, by ZIP.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

Wall Pack Family

Atlanta is the PRO wall pack you aim, with watts and color on switches. Anaheim is the ECO adjustable; Guardian and Sentinel are the fixed forward-throw packs.

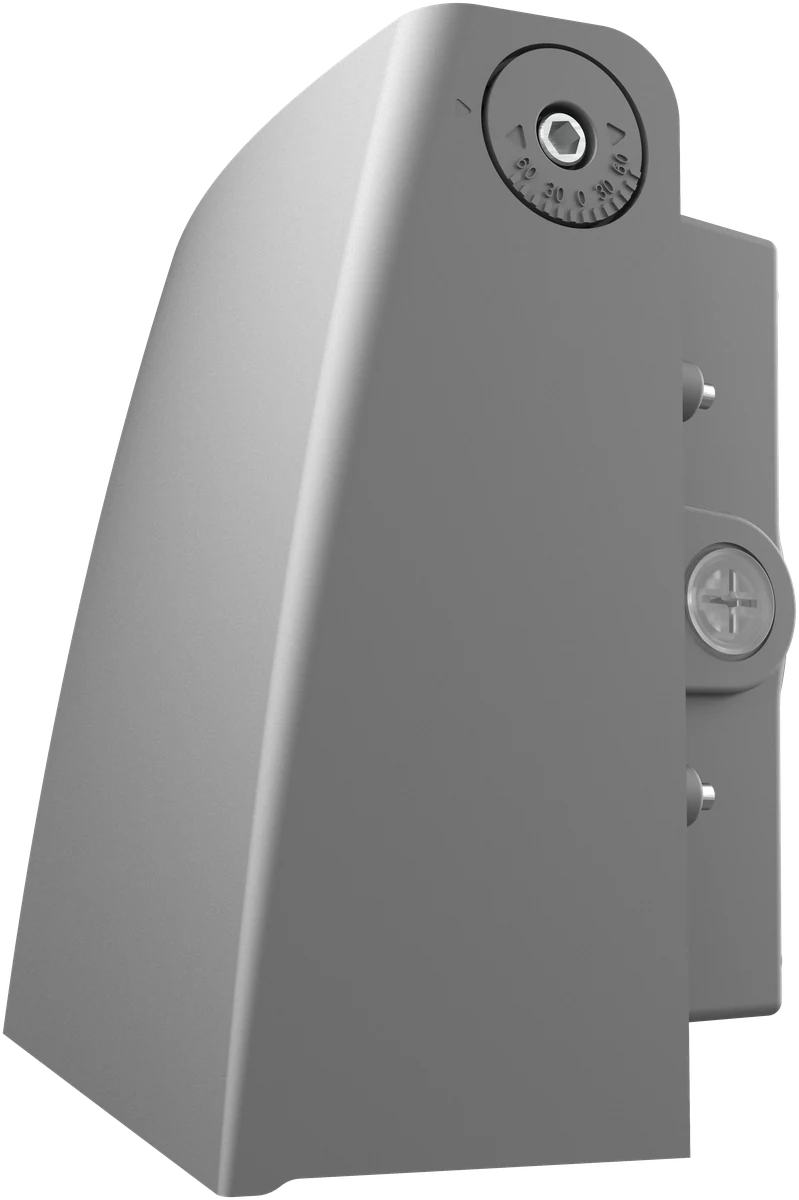

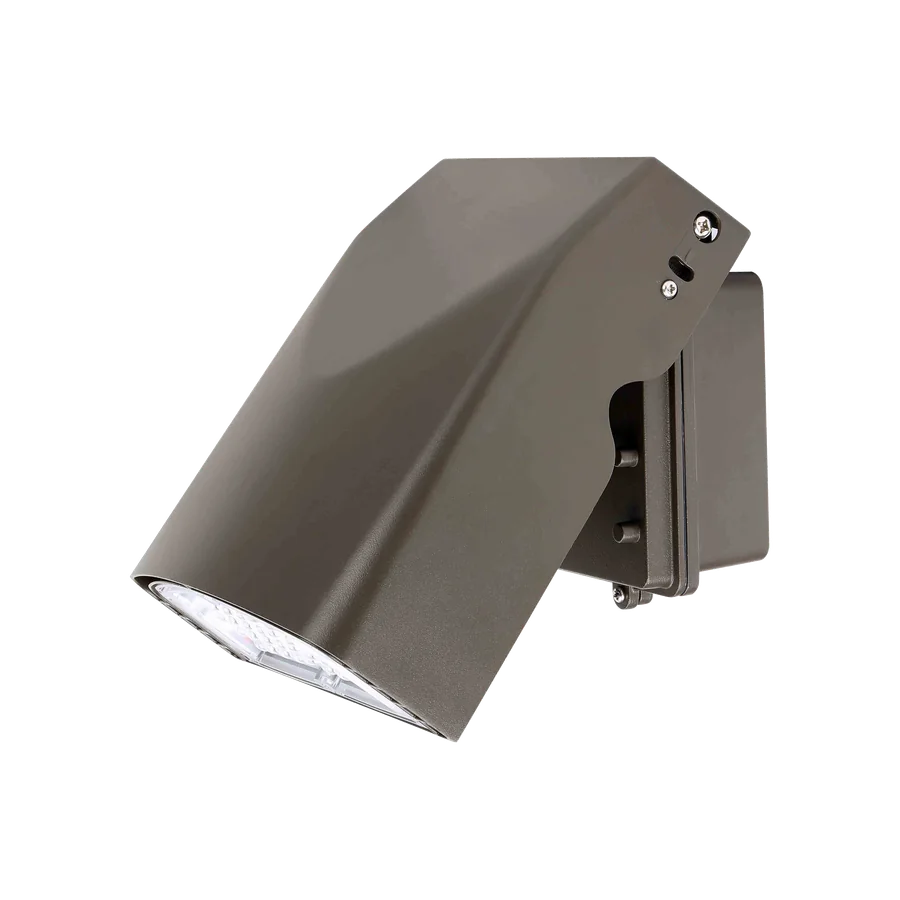

LWPA · ECO Anaheim The wall pack you aim: two housings, 20 to 80 W, a head that tilts 0° to +90°. Wet location · 7 yr / 75,000 hr Specification Sheet → Product Details →

You are here Atlanta LED adjustable wall pack

LWPA · PRO Atlanta The adjustable wall pack with watts and color on switches: two housings, 40 to 120 W, a photocell in both. Wet location · 5 yr / 50,000 hr Specification Sheet → Product Details · this page

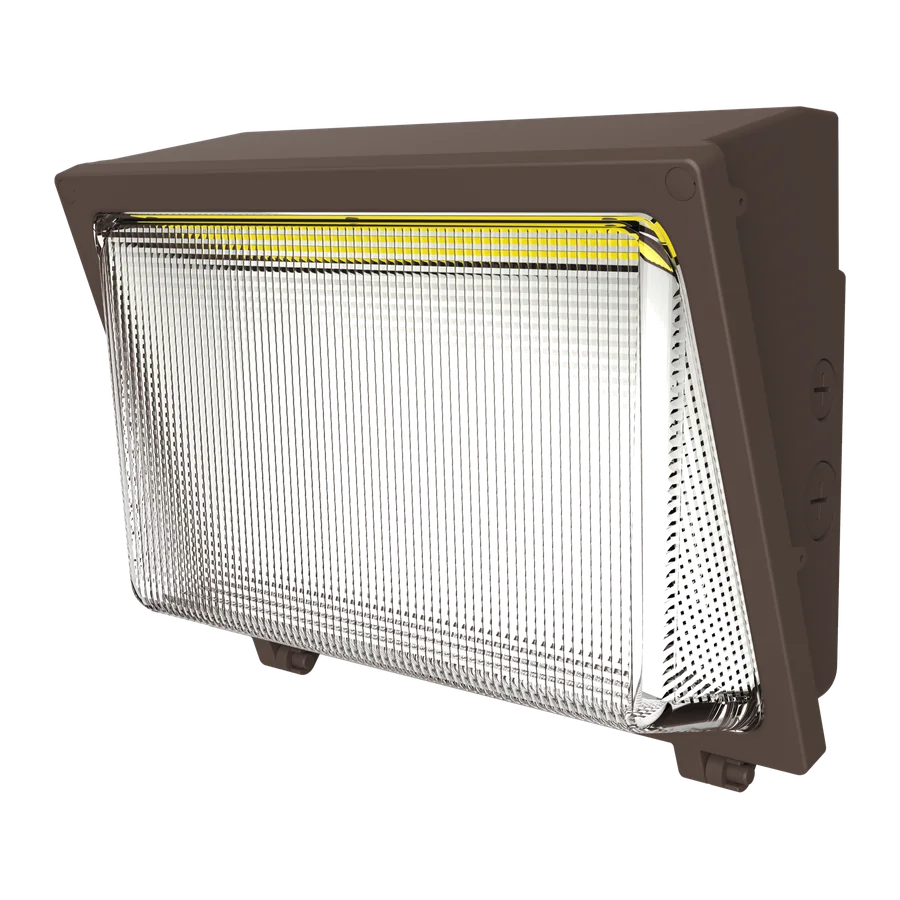

LWPF · ECO Guardian The slim classic wall pack: two housings, 40 to 120 W, a glass lens and a photocell on every number. IP65 · 5 yr / 50,000 hr Specification Sheet → Product Details →

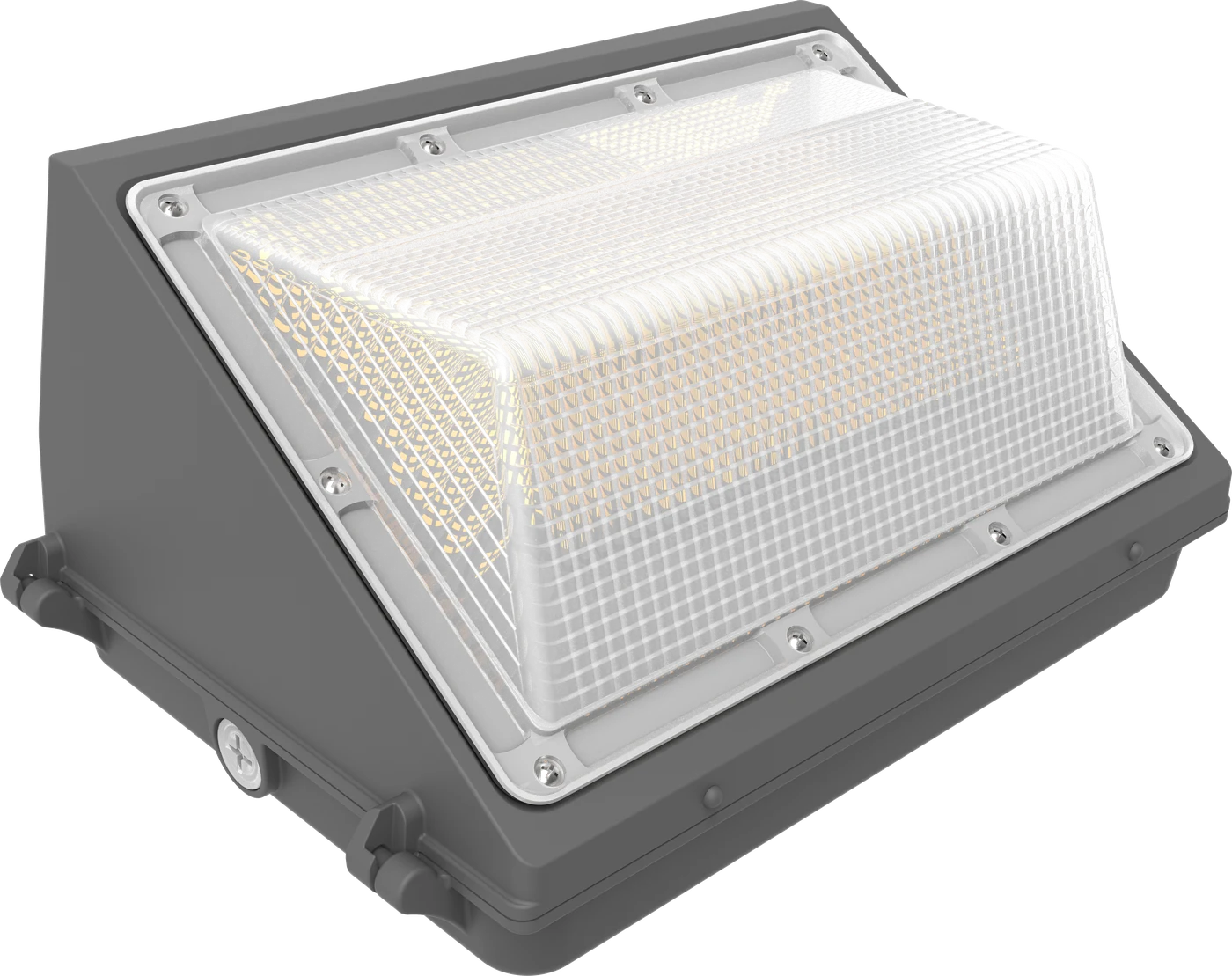

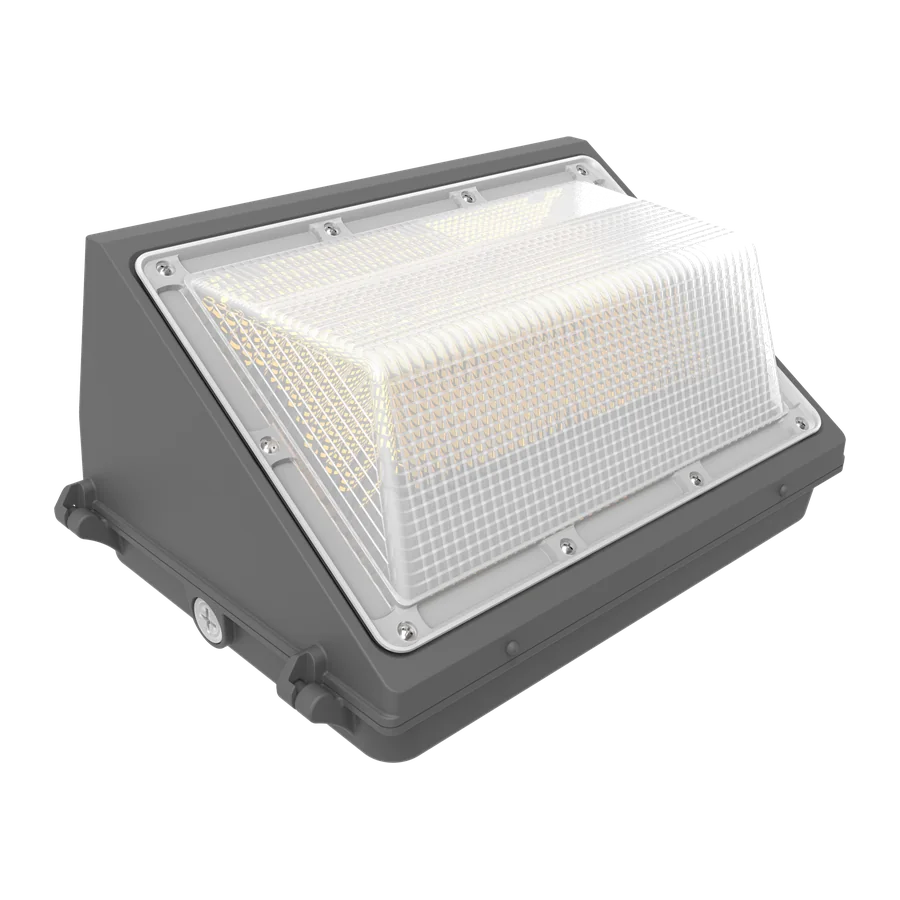

LWPF · PRO Sentinel The classic wall pack in three housings, 20 to 120 W, with 8 W emergency builds and a photocell on every number. IP65 · 5 yr / 50,000 hr Specification Sheet → Product Details →

Specifier Support

Send us the site plan.

We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.

3 BDLayout turnaround

FreePhotometric layout

Find A Rep Request A Layout

Rebates

Set the aim, the watts and the color on site.

An adjustable head, nine settings per catalog number and a photocell in both. Send us the site plan and ALG runs the layout.

120 Wmax · 3 steps

15,600 lmmax · rated

5 yr50,000 hr

Open Rebate Center
