LCDL · Solstice SafeZone PRO
Two-hour fire-rated. UL 263.

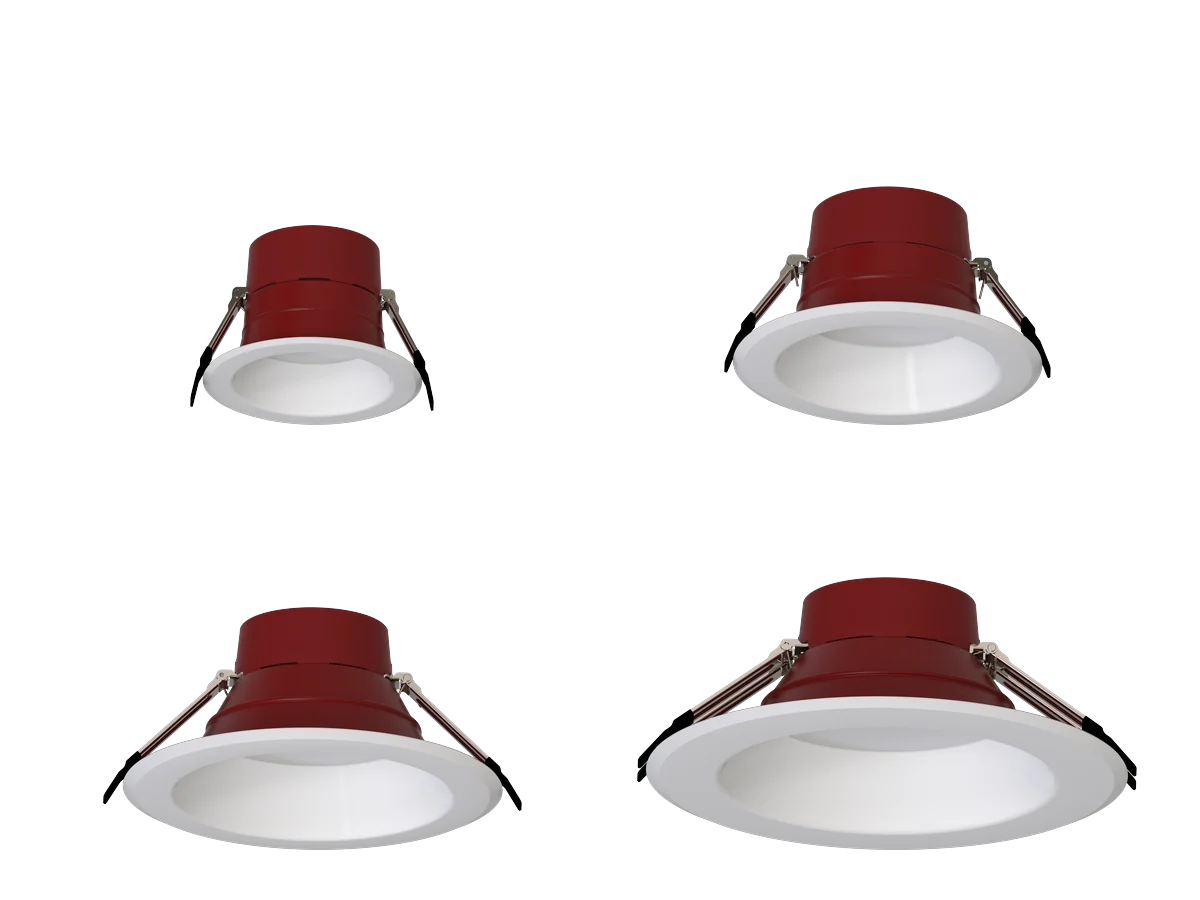

2-hour fire-resistance rated to UL 263 + ASTM E119 — the only can-less downlight that field-sets wattage and CCT inside a fire-rated assembly. 4 apertures × 3-WATTselect × 5-CCTselect = 15-in-1 from one SKU. 114 LM/W flat. Tri-Mode Dimming.
Model Specifications
Download Data Sheet| 3-WATTselect | Lumens | lm/W | 5-CCTselect | Voltage |
|---|

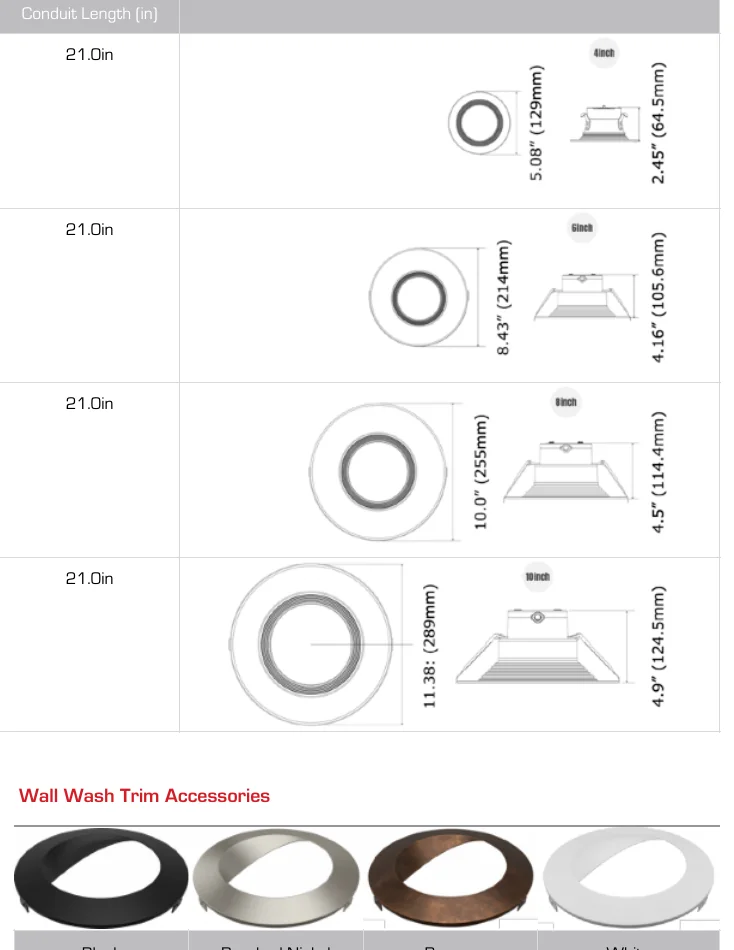

Dimensions
(For the selected length)
Set the watt. Pick the color. Stock one SKU.

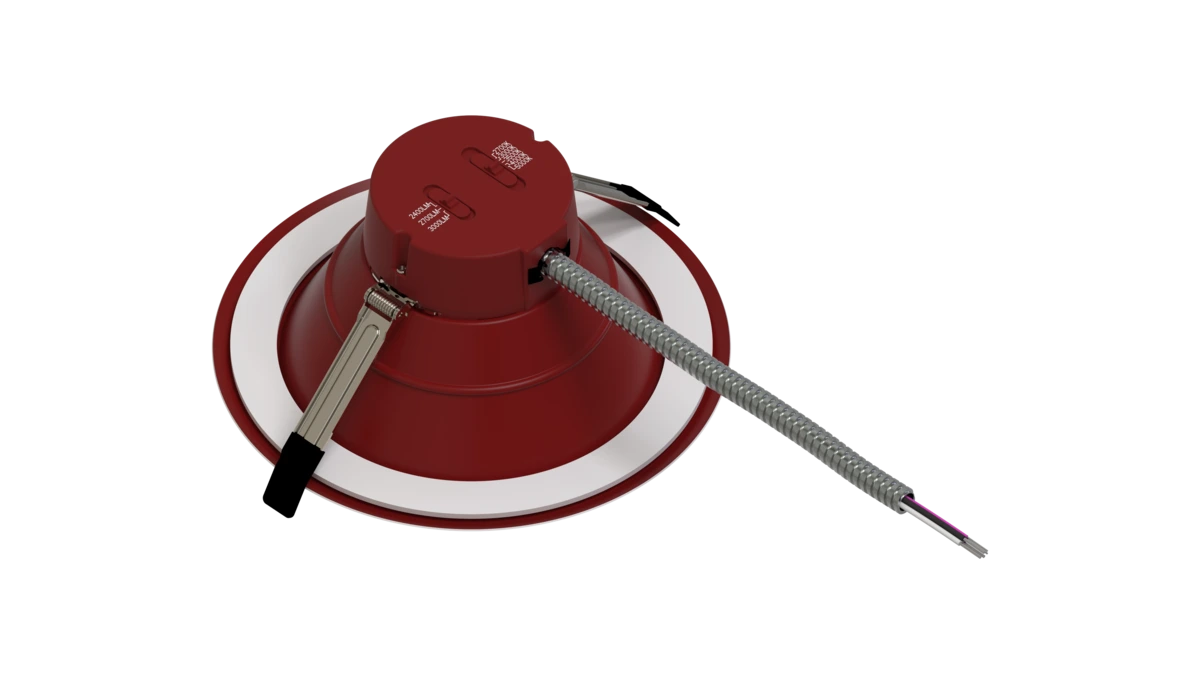

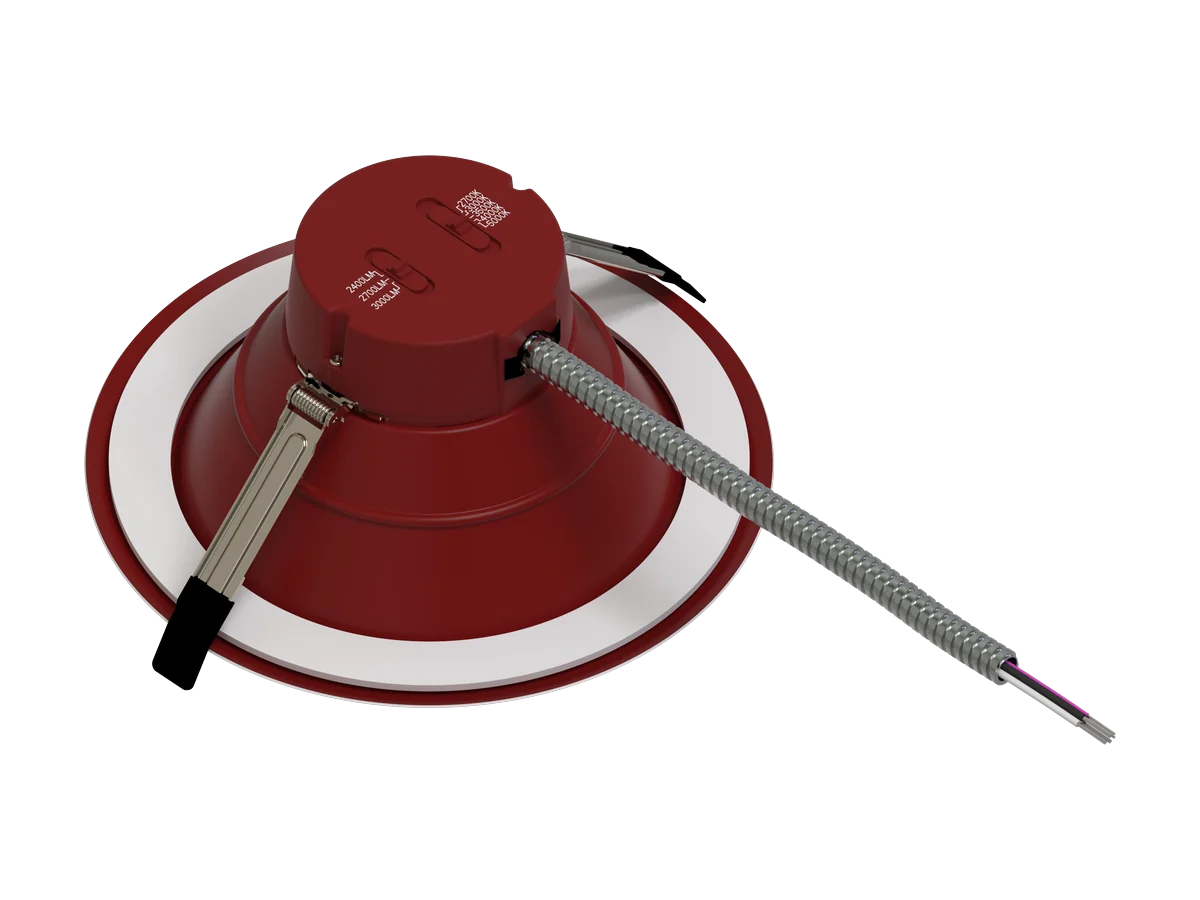

Three WATTselect positions × five CCTselect positions on every SafeZone fixture = 15 lighting outputs from one SKU. The contractor sets watt and color on-site with two DIP switches — no SKU change, no return trip to the supply house. Same 2-hour fire-rated ThermalⒶRMOR™ housing whichever watt × CCT pair gets dialed in.
Highlights & Features
SafeZone wins the fire-rated downlight bid sheet.
Seven highlights — 2-hour fire-rated to UL 263 + ASTM E119, 114 LM/W on the 8-inch, Tri-Mode Dimming from one SKU, truⒶCOLOR™ 90+ CRI, WetGuard™ + IC-Rated, and the full contrⒶLS by ⒶCS Bluetooth Mesh ecosystem.
contrⒶLS
Total Adaptive Control.

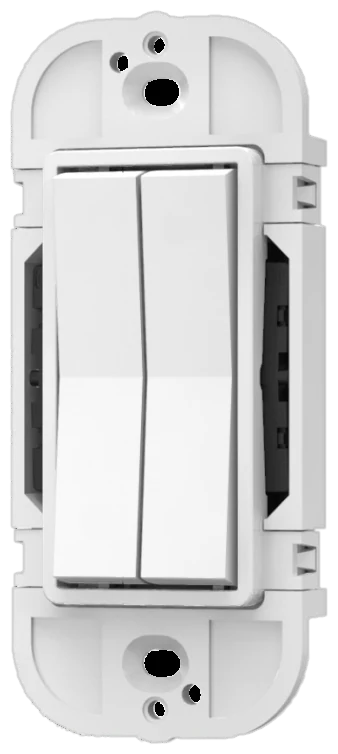

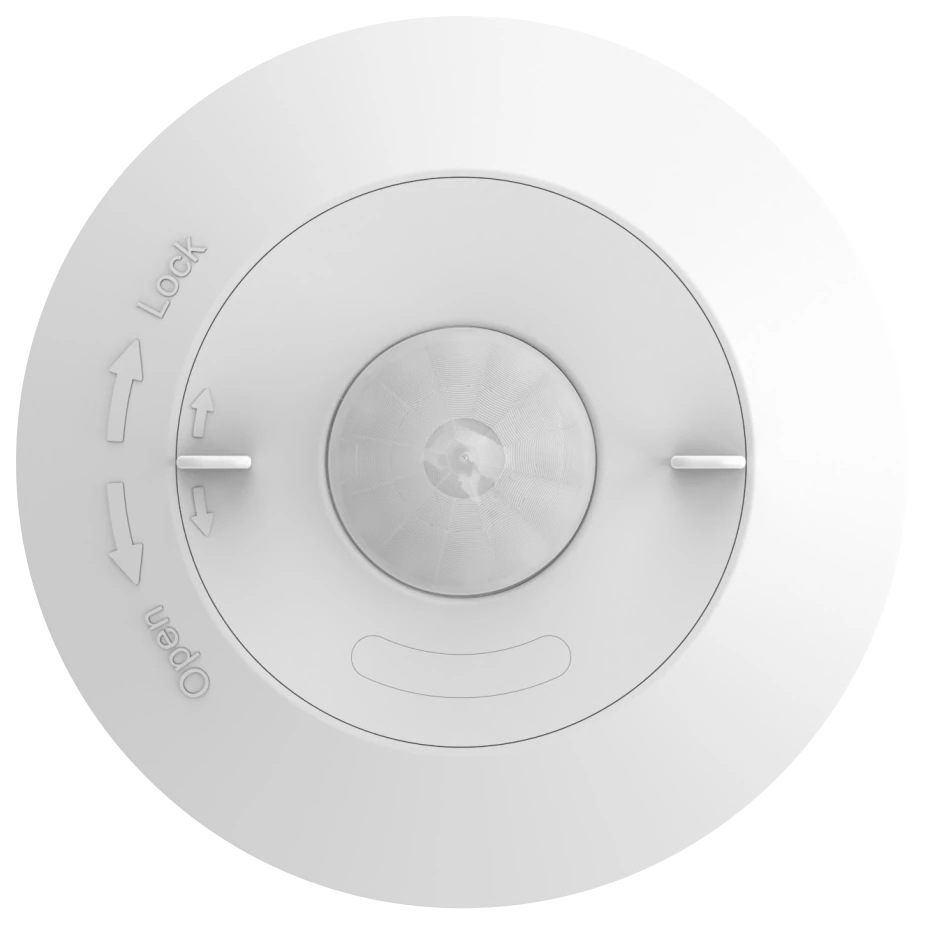

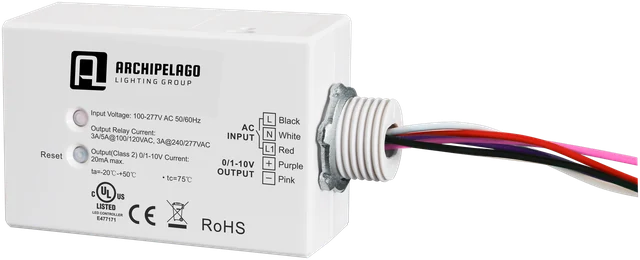

Every SafeZone ships contrⒶLS-Ready — the full ⒶCS Bluetooth Mesh platform with four ceiling, J-box, and kinetic-wall devices, plus 0-10V deep-dim from one SKU. DLC NLC-qualified for the Title 24 § 130.1 rebate adder.
Wide-angle PIR for ceilings up to 8 ft — office, school, corridor, retail, and hospitality default. UL-Listed · IP20 indoor · 120-277V universal. Bluetooth Mesh commissioning via the AURA app. Pre-paired to the SafeZone driver out of the box. Ships through the standard ⒶCS accessory line.
Discover contrⒶLS →Photometric Distribution
Beam shape, rendered from the LM-79 IES file.
Real luminous distribution rendered directly from the LM-79 measured IES candela tables — no synthesis. The bundle covers all four SafeZone apertures (LCDL4 / LCDL6 / LCDL8 / LCDL10) across the full 3-WATT × 5-CCT matrix — 60 files in total. 85° rotationally-symmetric beam shaped by the 2-hour fire-rated reflector geometry.
SAFEZONE-LCDL6-19W-5000K.IES
Engineered for the contractor-grade install.

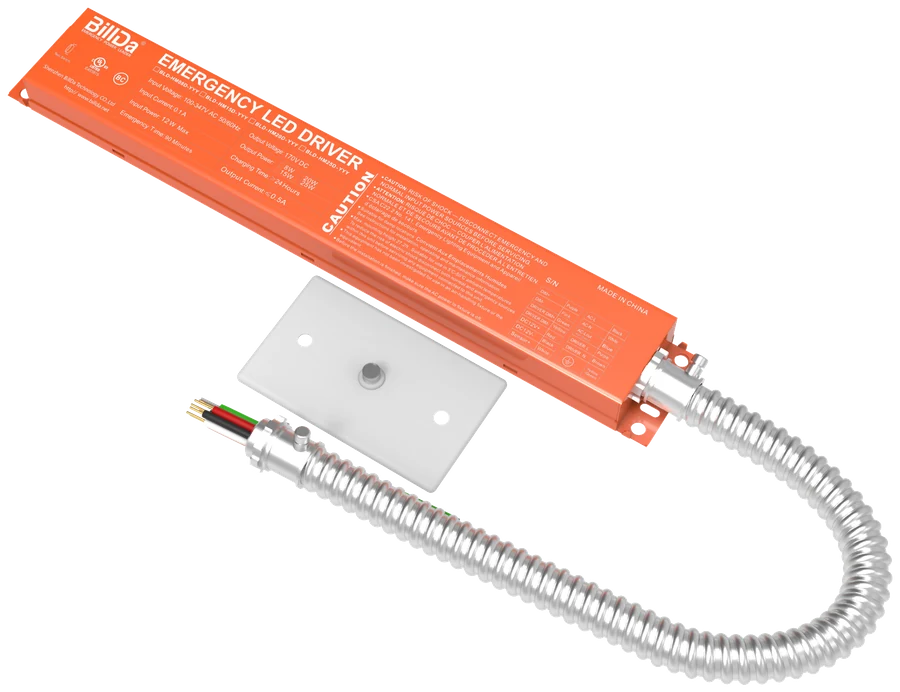

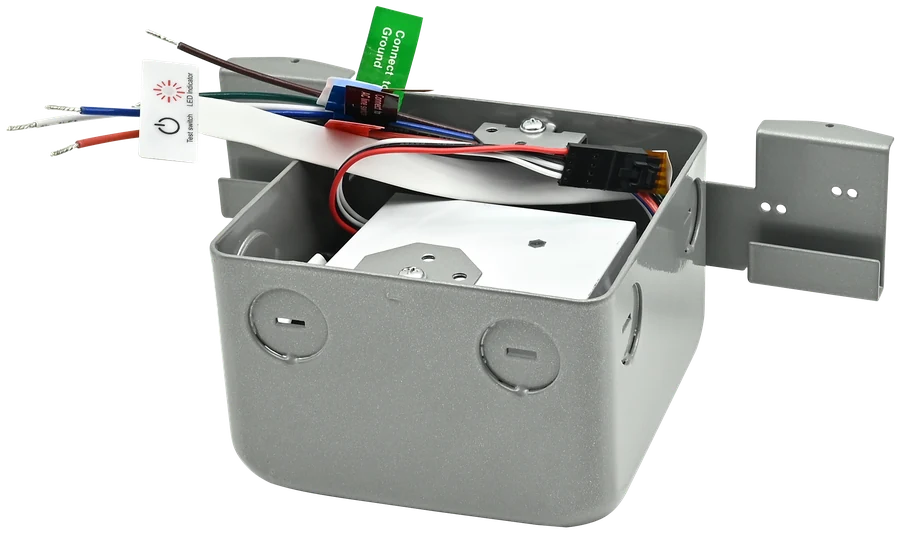

Ten factory-matched accessory categories complete the SafeZone install — round + wall-wash trims, NCP joist and JCB/NCP T-grid mounting plates, constNT emergency backup, and the full contrLS by CS Bluetooth Mesh ecosystem.
Configure Your SafeZone

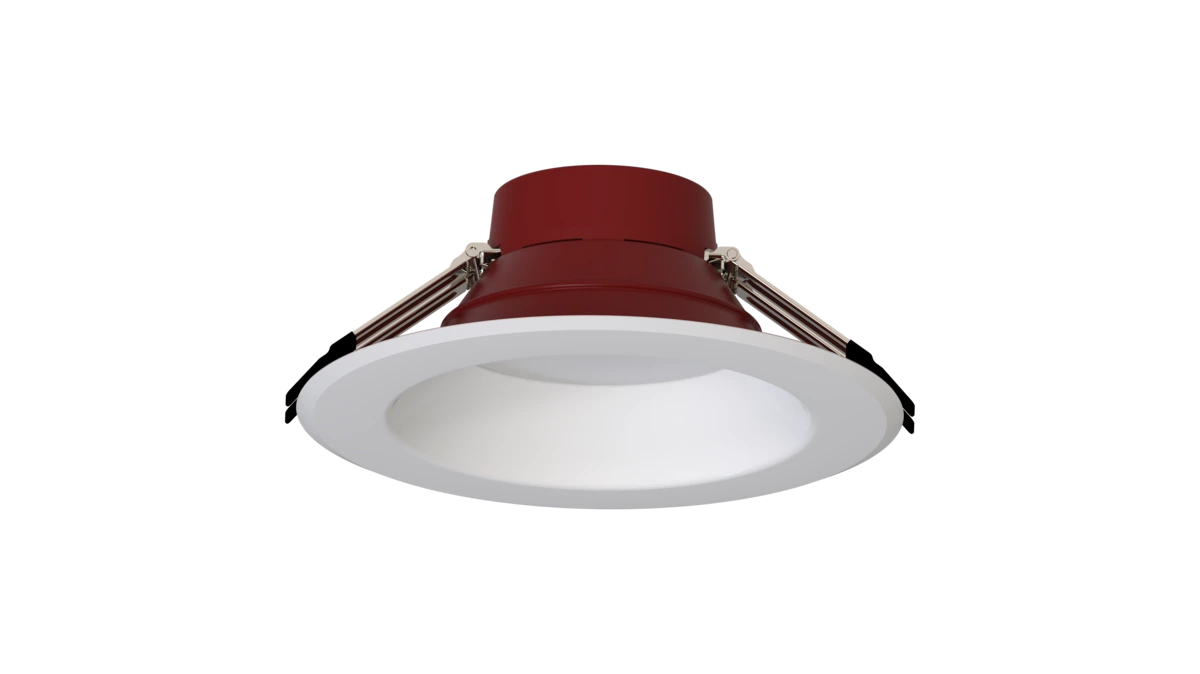

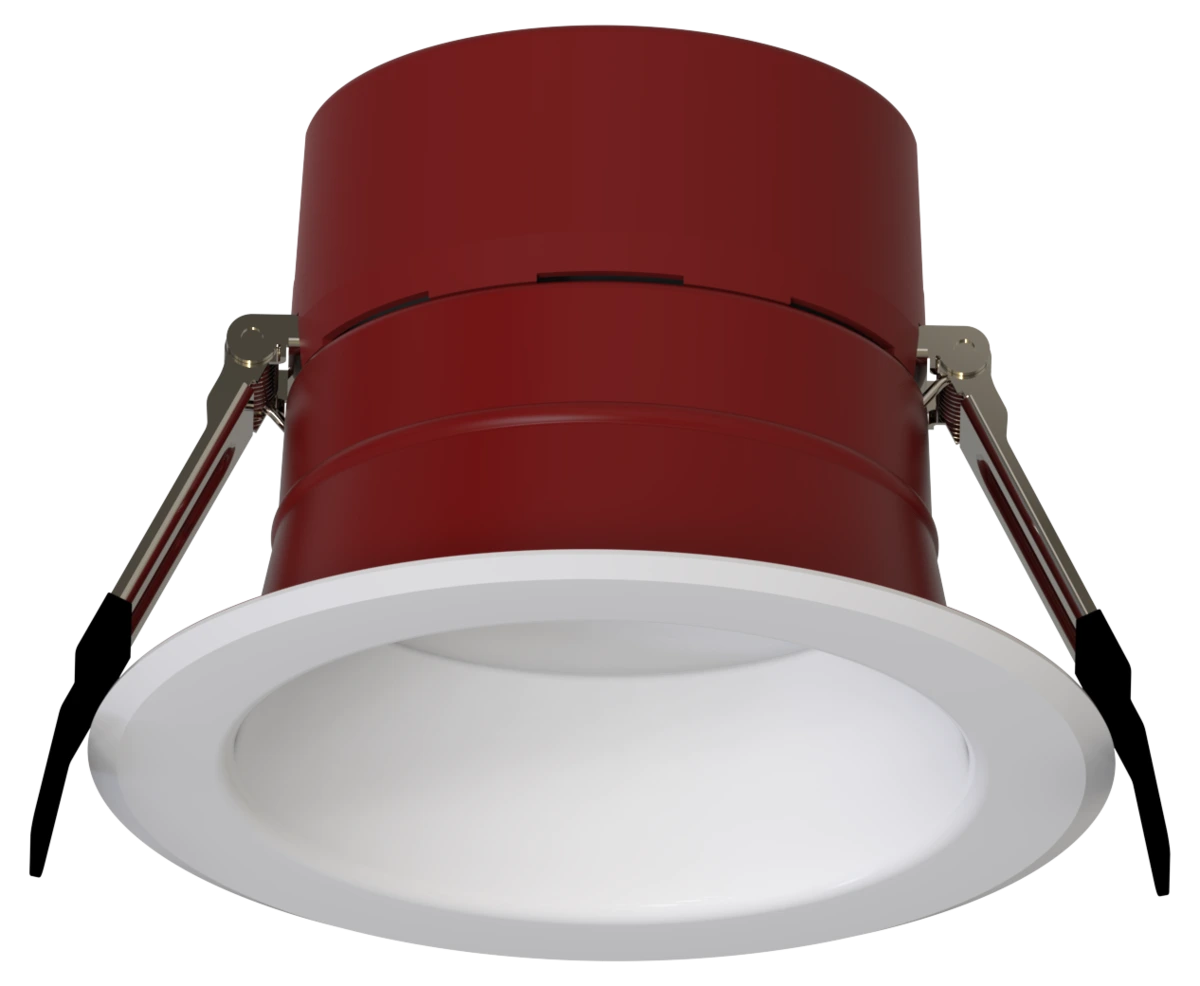

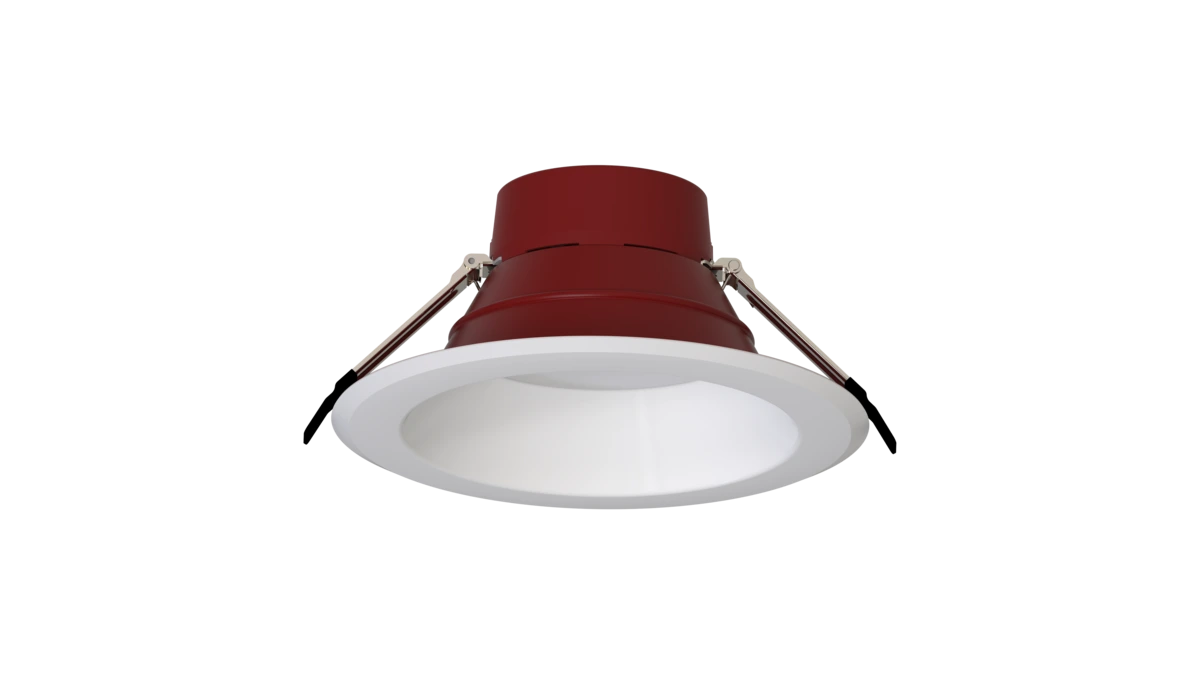

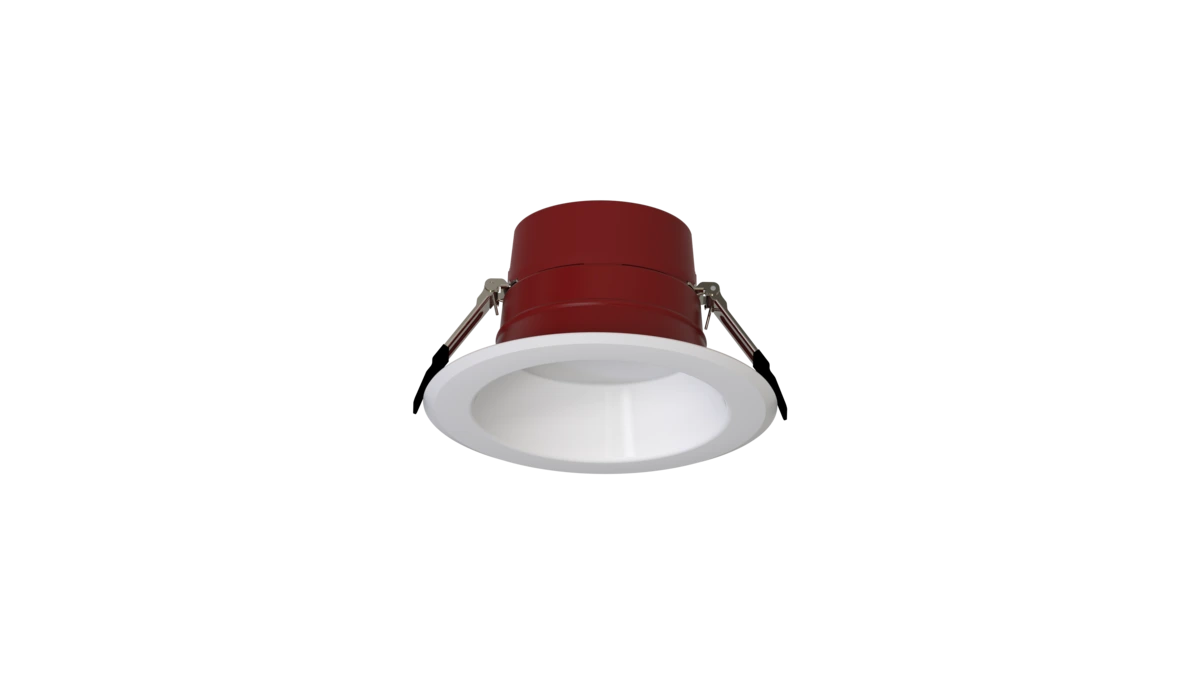

Pick an aperture size. The 3-WATTselect (per-size · 3-watt DIP) and 5-CCTselect (2700K / 3000K / 3500K / 4000K / 5000K) are field-tunable via DIP switch on the back of the housing — set on-site, not at order time. 15 lighting outputs from one fixture. SafeZone ships Round-trim only — the /RS suffix is baked into the SKU. Trim color kits sold separately. Required fields marked with *. See the legend below for ★ / QS / MTO meanings.
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify the SafeZone — datasheet, installation guide, IES bundle, and the configuration-stamped submittal PDF. All five primary documents are live on WorkDrive.
Meet the LCDL Commercial Downlight Family.
SafeZone is the 2-hour fire-rated workhorse of LCDL — UL 263 + ASTM E119 tested · ThermalⒶRMOR™ housing · 114 LM/W peak. If a project value-engineers down to the affordable can-less, or escalates to a spec-grade adjustable or high-output sibling, here are the LCDL options on either side — same 4-size aperture matrix, same constⒶNT EM ecosystem, same contrⒶLS by ⒶCS lineup.
