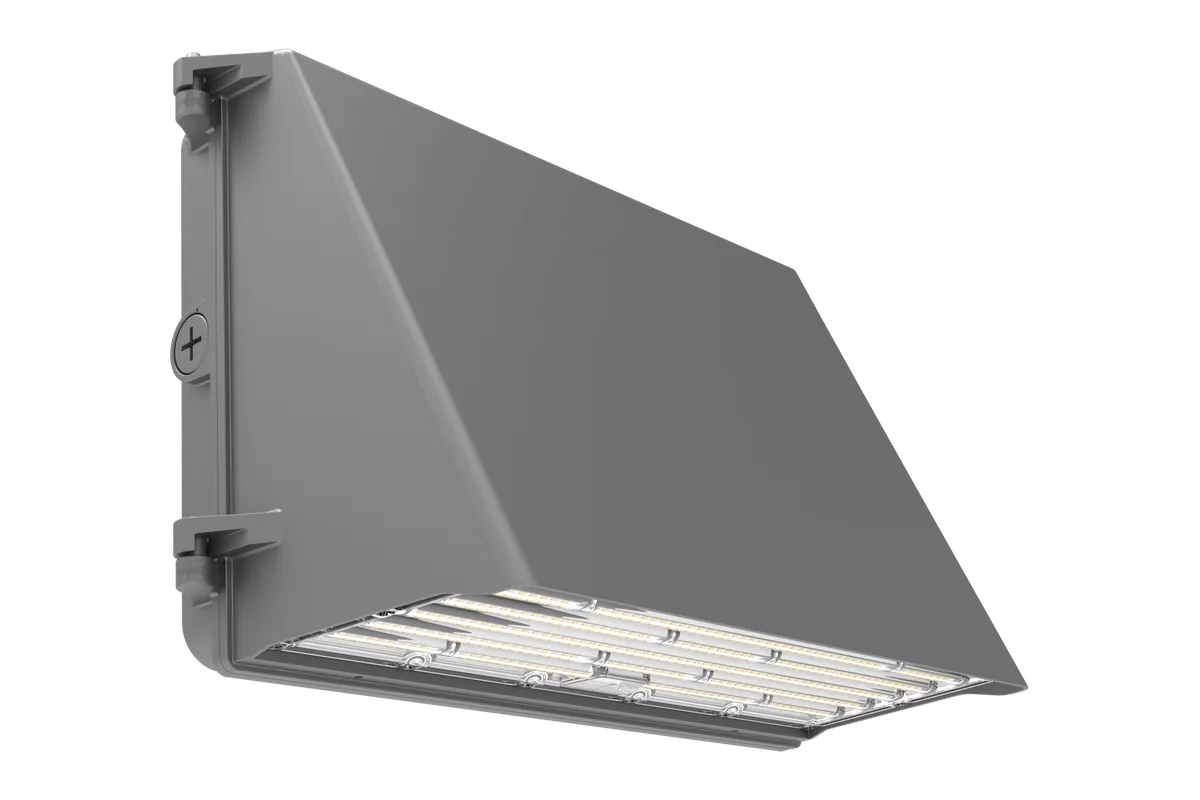

Watchtower Series PRO+

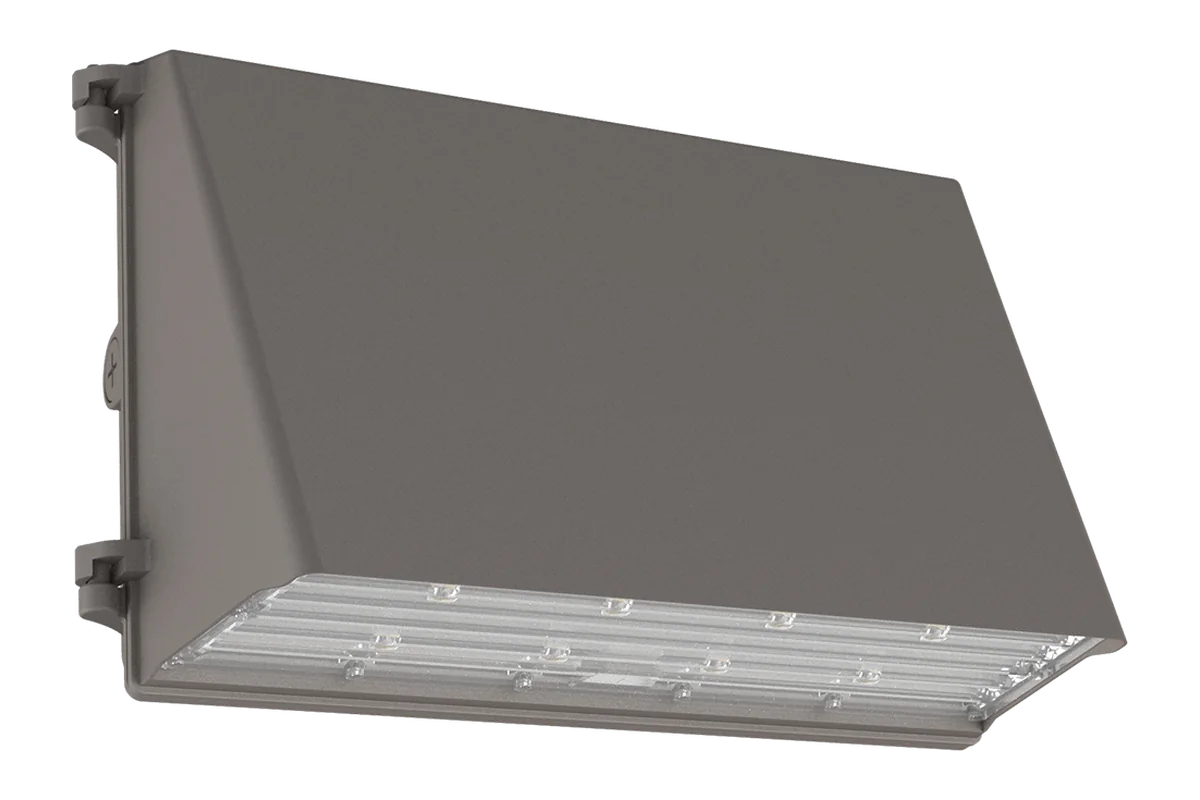

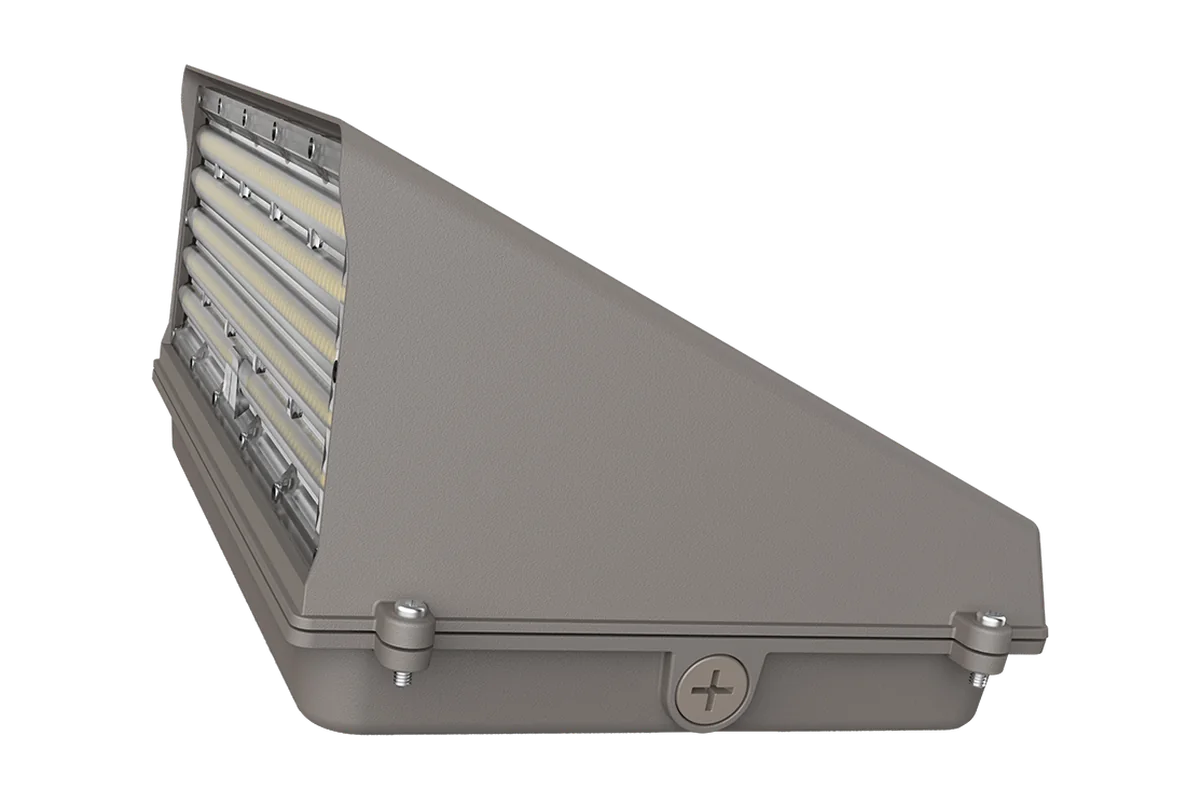

Watchtower: Full-cutoff. Zero uplight.

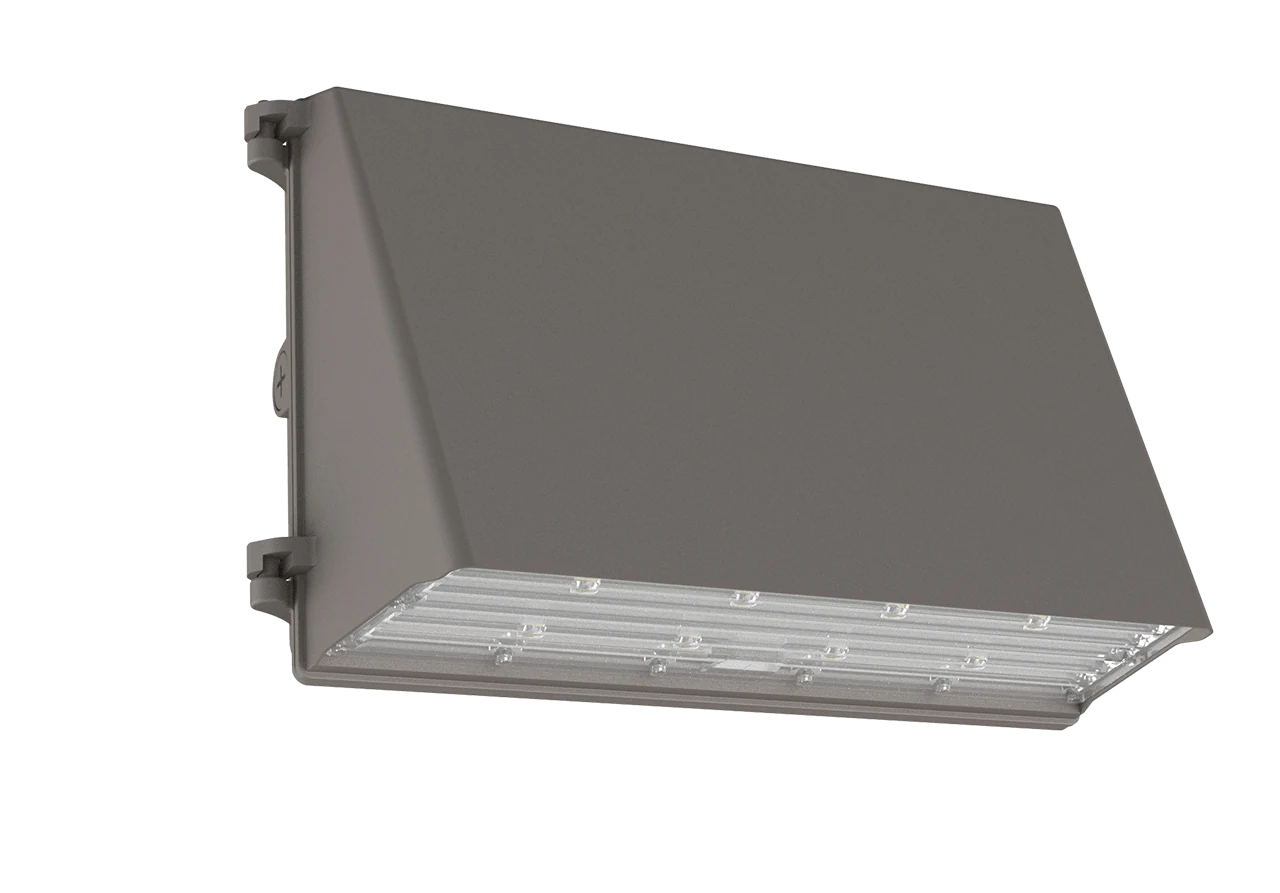

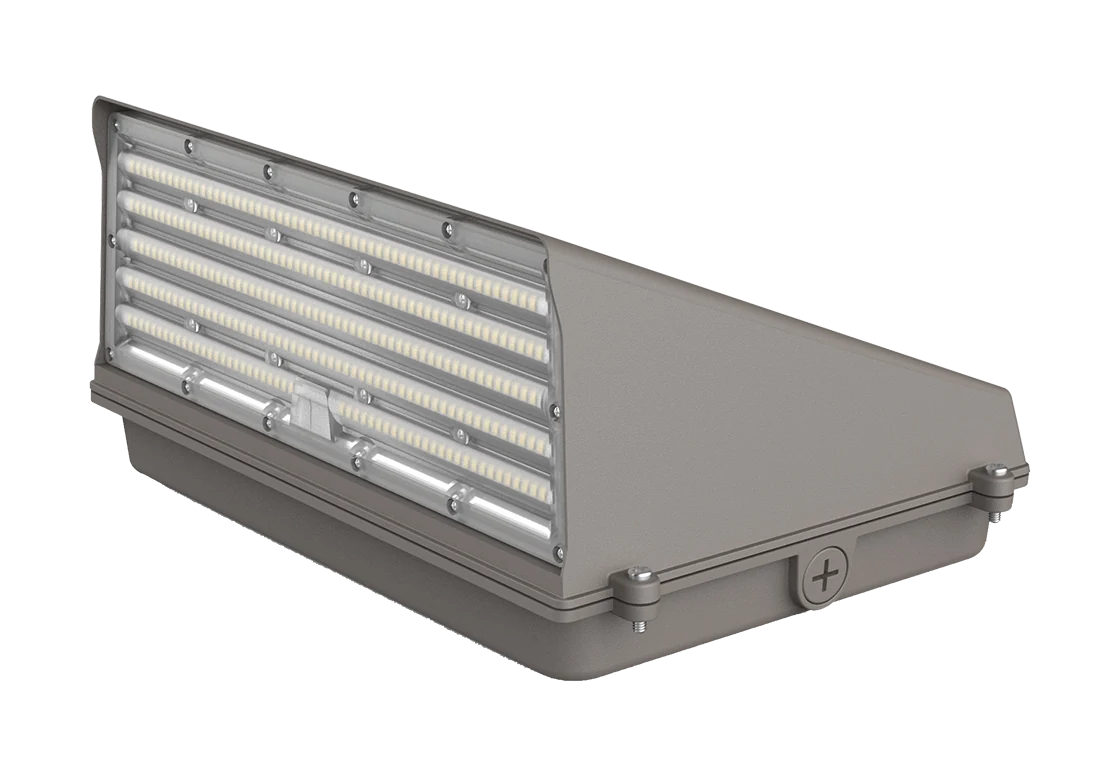

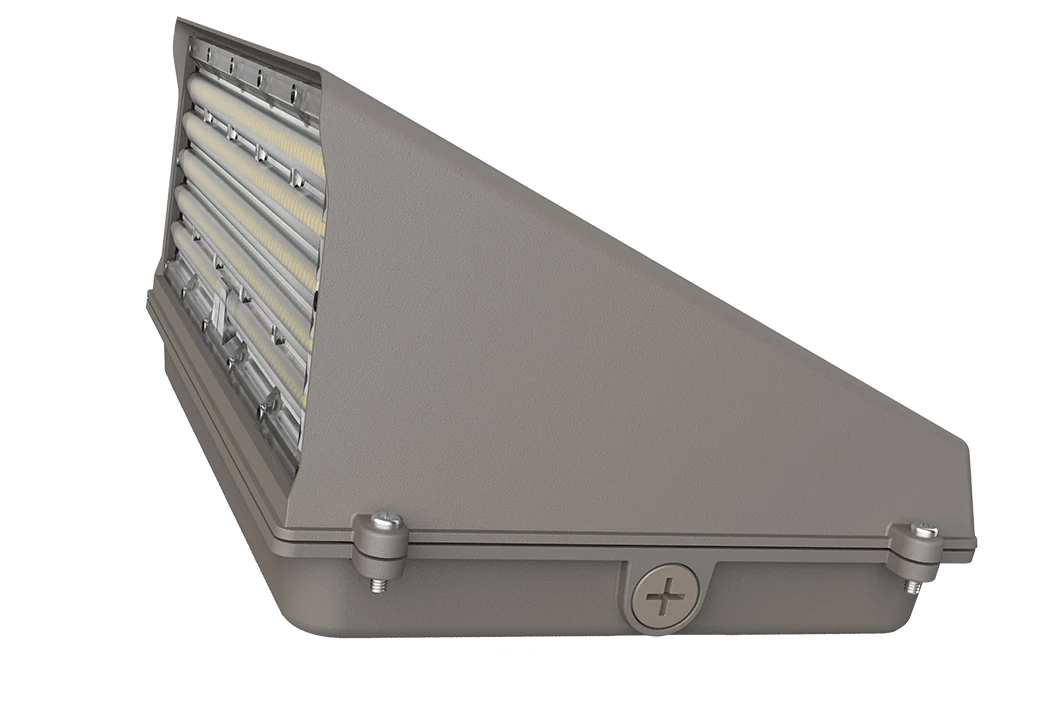

Dark-sky compliance built into the geometry — not bolted on with a shield. Watchtower's full-cutoff housing puts 100% of the light below horizontal, meeting the strictest IDA / DarkSky ordinances and zoning codes without an external visor. Premium SMD LEDs at CRI > 80 render skin tones, plate numbers, and camera detail above the ≥ 75 CRI competitors spec. Field-selectable wattage (40–120W) and CCT (3000K / 4000K / 5000K), Multi-Functional photocell standard, two-piece die-cast with WetGuard™ sealing, 3G vibration per ANSI C136.31.
Model Specifications
Download Data Sheet| Watt | Lumens (4000K) | lm/W | CCT | Voltage |
|---|
Dimensions
(Same for LWPC3W80 and LWPC3W120)
HIGHLIGHTS & FEATURES
Full-cutoff. Spec-grade everything.
Seven design choices that separate Watchtower from the generic full-cutoff wall packs you've been bid against — darkⒶRCH geometry that puts 100% of light below horizontal, > 80 CRI for camera-grade color rendering, and a Multi-Functional control center that ships on every fixture.
contrⒶLS
Energy code, on the back panel.

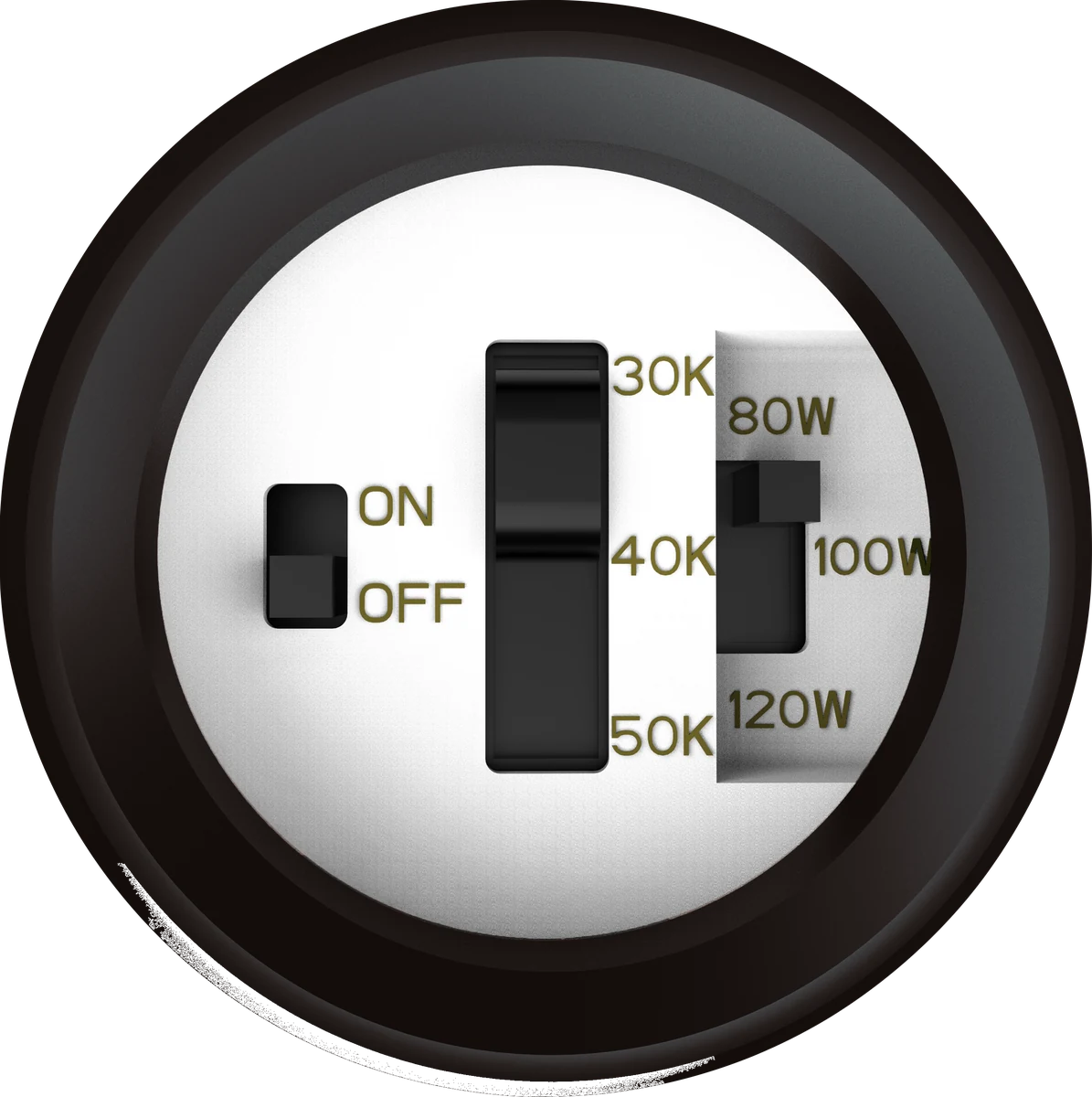

Every Watchtower ships with a Multi-Functional Operations Control Center on the back panel — integrated dusk-to-dawn photocell with ON/OFF toggle, 0–10V dimming standard, and sensor-ready terminals for occupancy / motion controls. Title 24 + ASHRAE 90.1 compliance with no separate controls package, no commissioning visit, no central panel — out of the box.
Built-in dusk-to-dawn photocell automates on/off at sundown — no controls package required for basic perimeter security automation. Add a snap-on PIR module to the sensor-ready terminals for occupancy-based dimming: at dusk the fixture brightens to full output; with no occupancy detected, dims to a low-level setting; motion triggers full output for the configured hold time, then steps back. Standalone — no commissioning, no network, no central panel.
Discover Bi-Level / Photocell controls →Photometric Distribution
Beam shape, generated from the IES file.
Real luminous distribution from Watchtower's certified IES test reports — peak candela, beam profile, and total lumen output update with the model + CCT selection. Both planes shown: C0–C180 (forward / back) and C90–C270 (side-to-side). Notice how the curves converge at the horizon — that's the full-cutoff geometry at work. BUG U0 inherent.
Accessories
Engineered Accessories

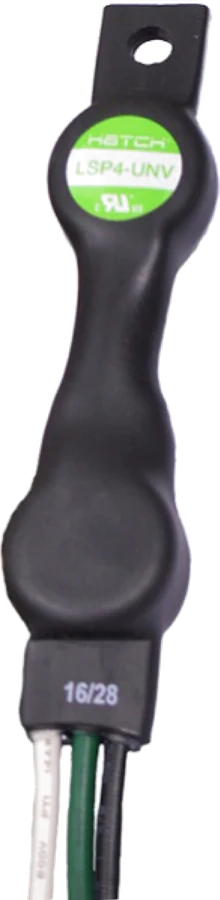

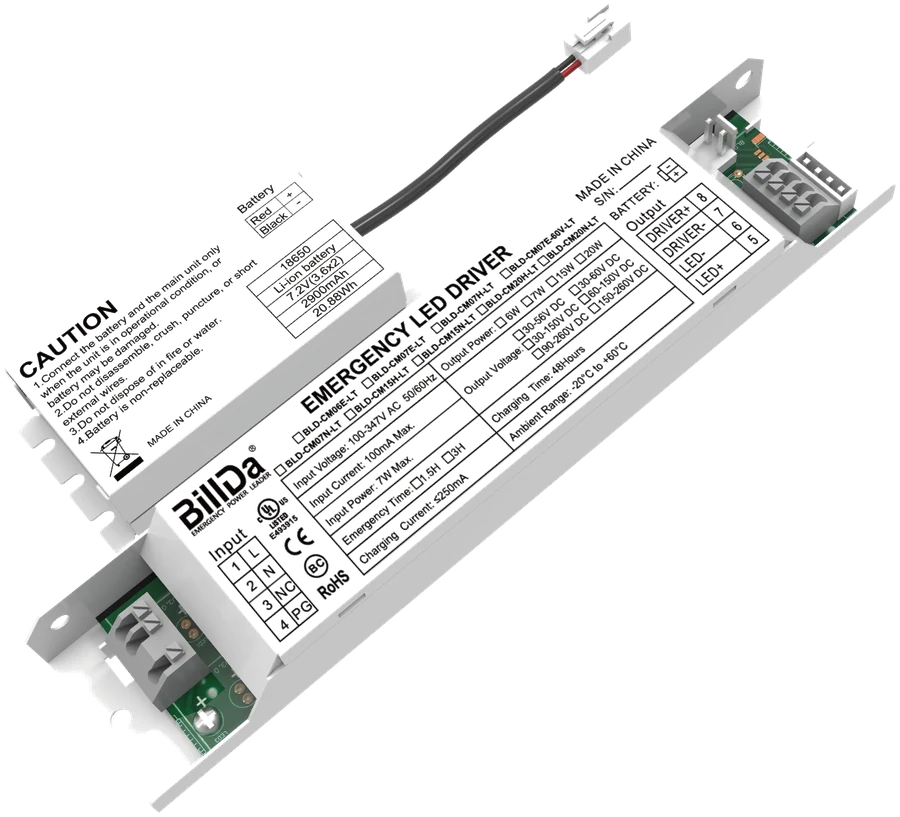

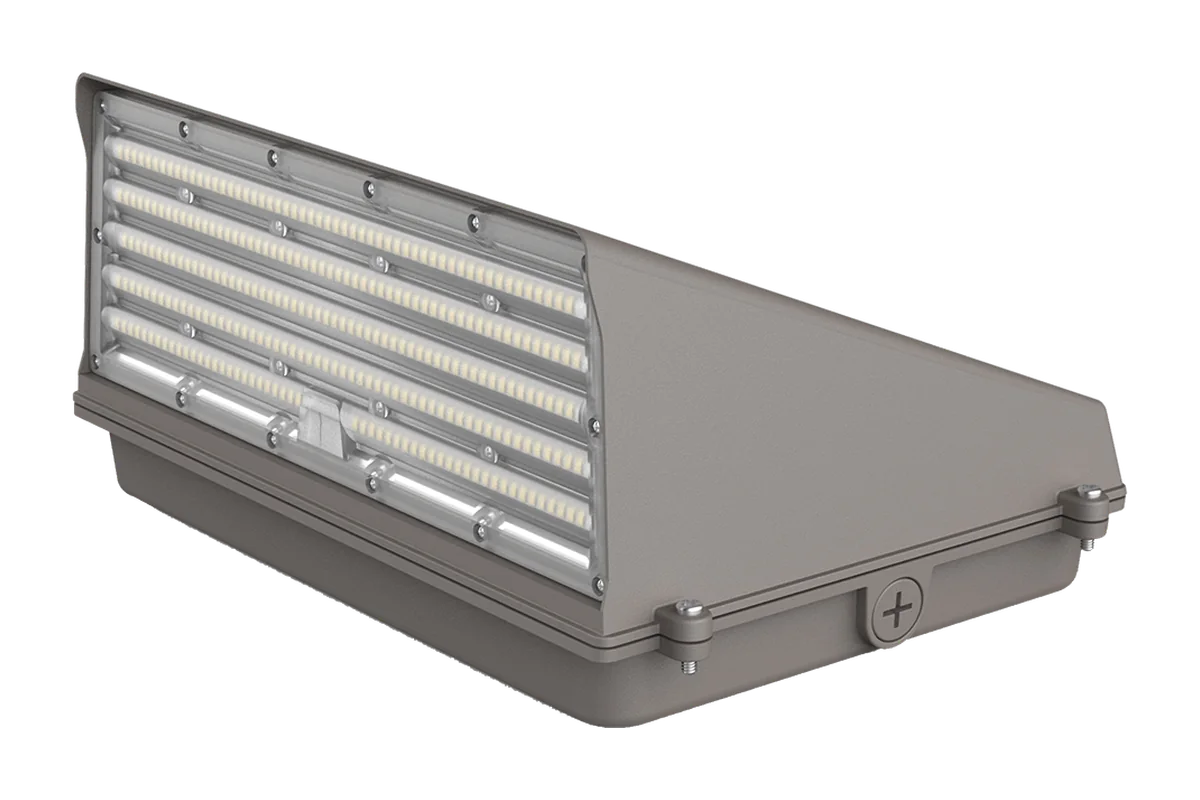

Four constⒶNT factory-install options for emergency backup and surge protection. All factory-matched, all DLC-compatible, all with the same 5-year warranty as the host fixture. No Dark Sky Shield needed — Watchtower is full-cutoff by design. No Wire Guard needed — the UV-stabilized polycarbonate prismatic lens is vandal-resistant out of the box.
Build Your Model
Configure Your Watchtower
Selections build the SKU live. WATTselect + CCTselect are DIP-set at install — they do not appear in the SKU. Required fields marked with *. See the legend for QS / MTO / WB meanings.
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify the Watchtower — datasheet on day one, IES files for AGi32 / DIALux / Visual / Revit, and the per-SKU submittal generator the moment Section 9 is configured.
Meet the Wall Pack Family.

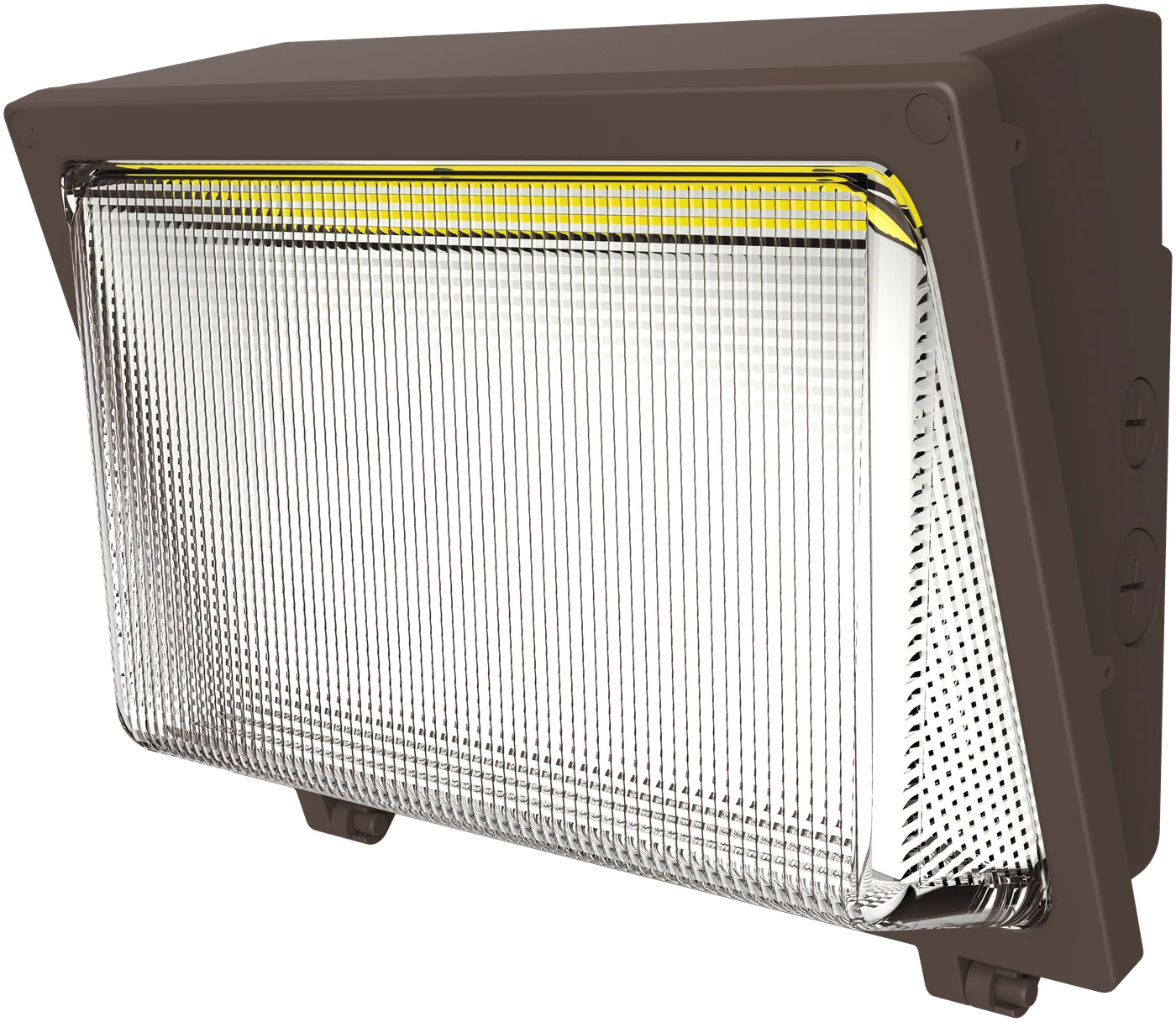

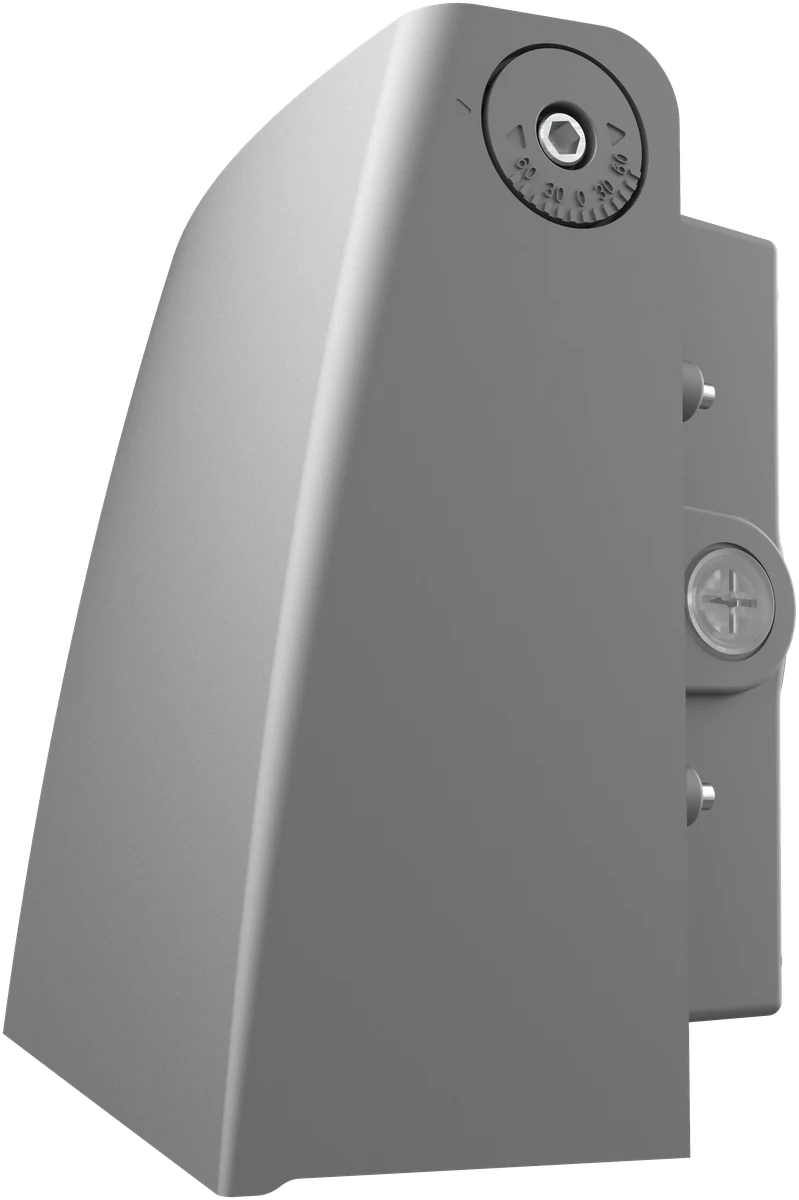

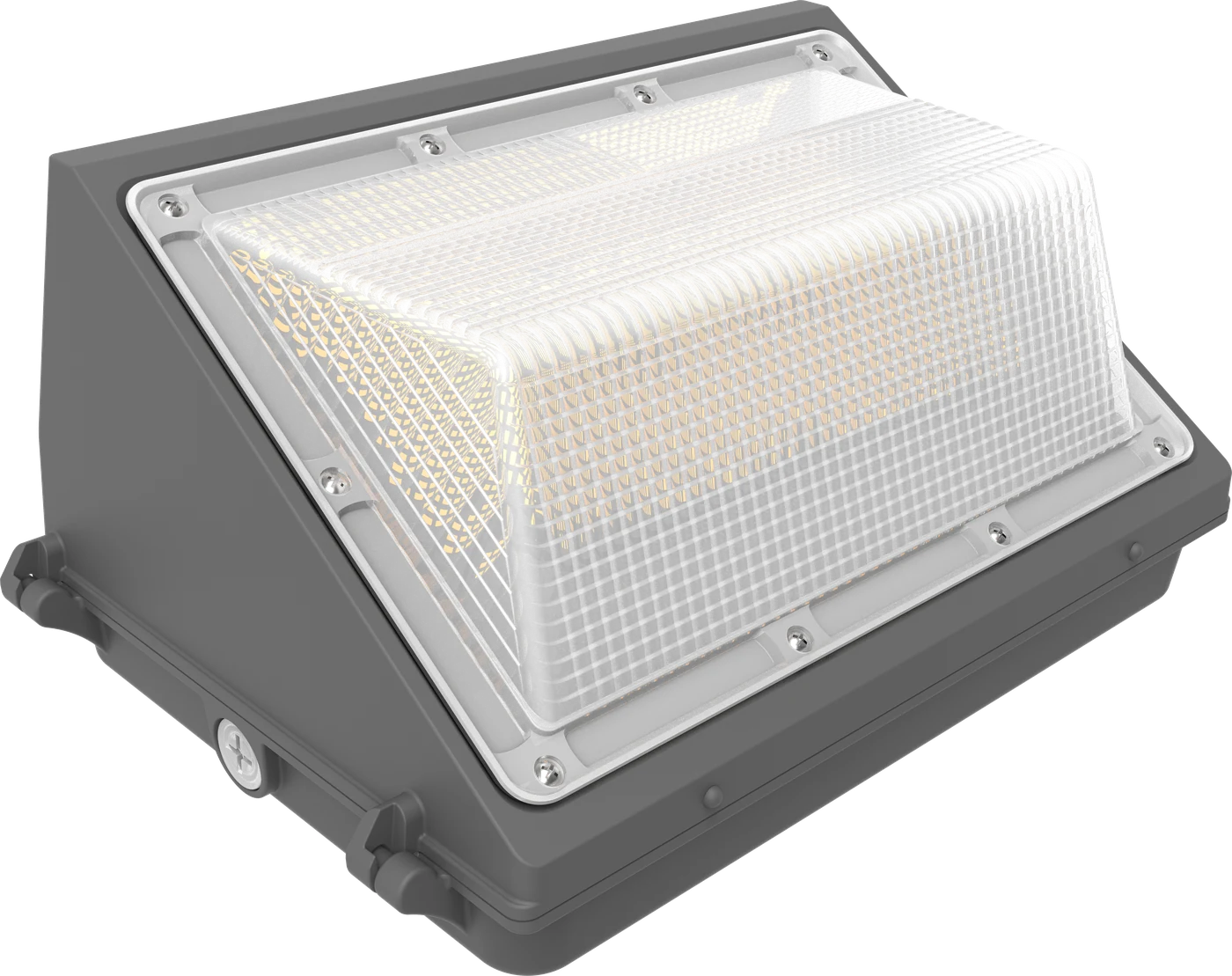

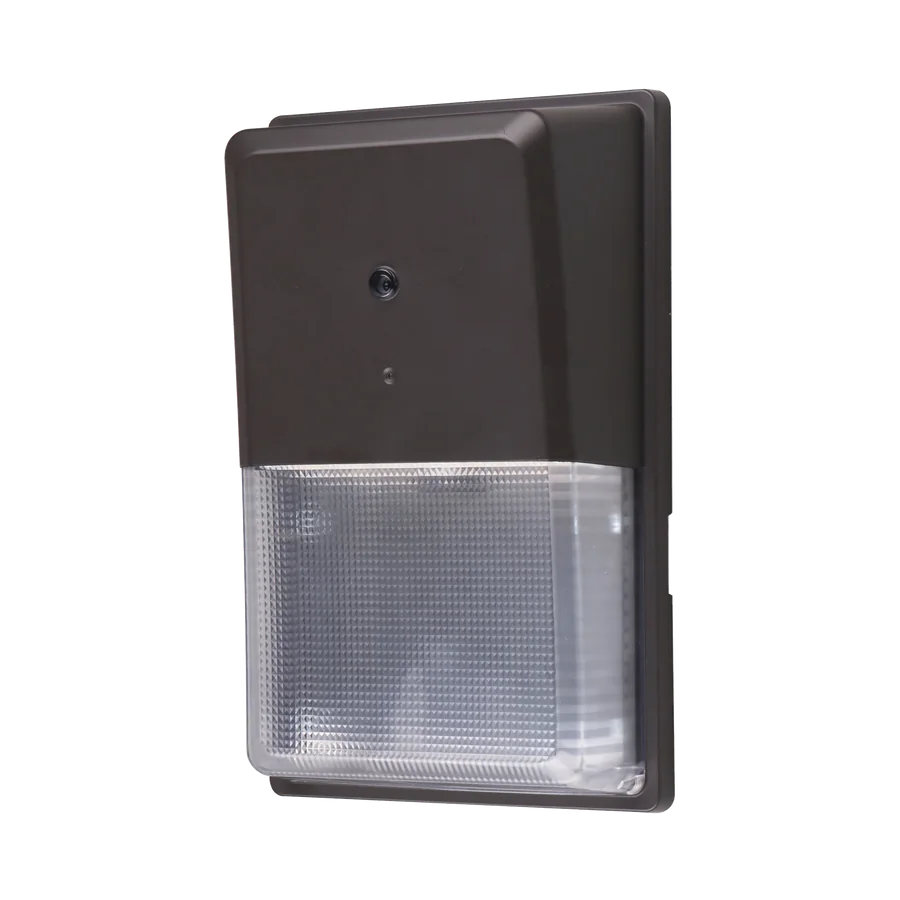

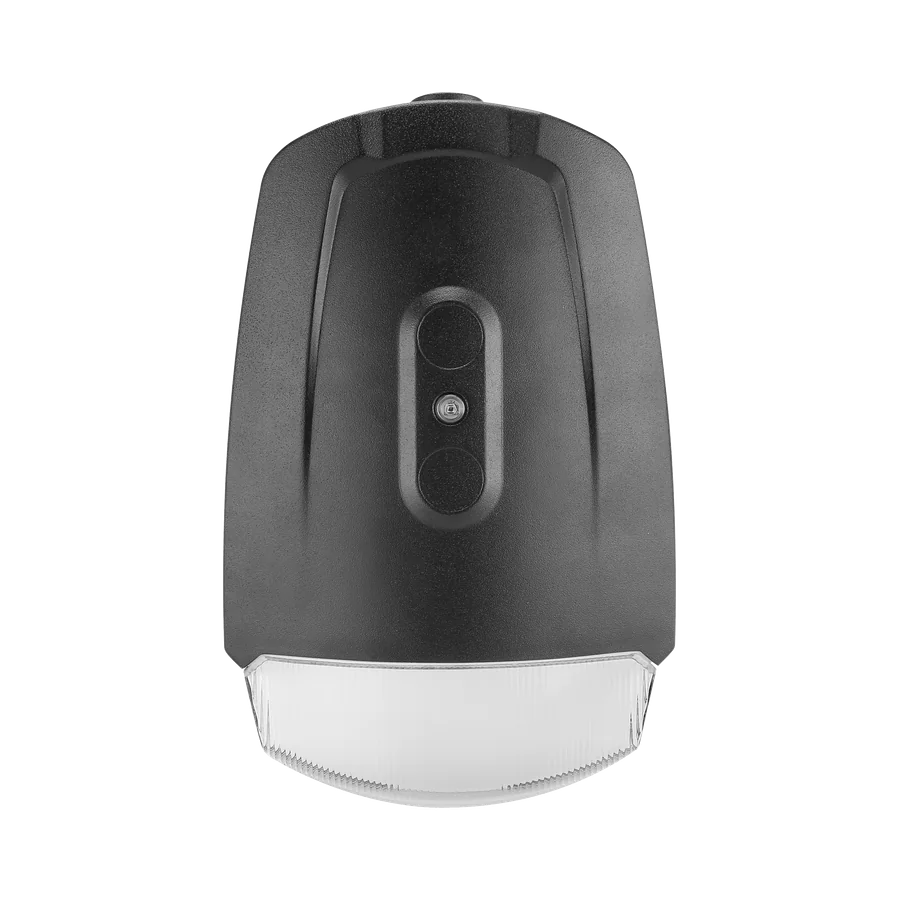

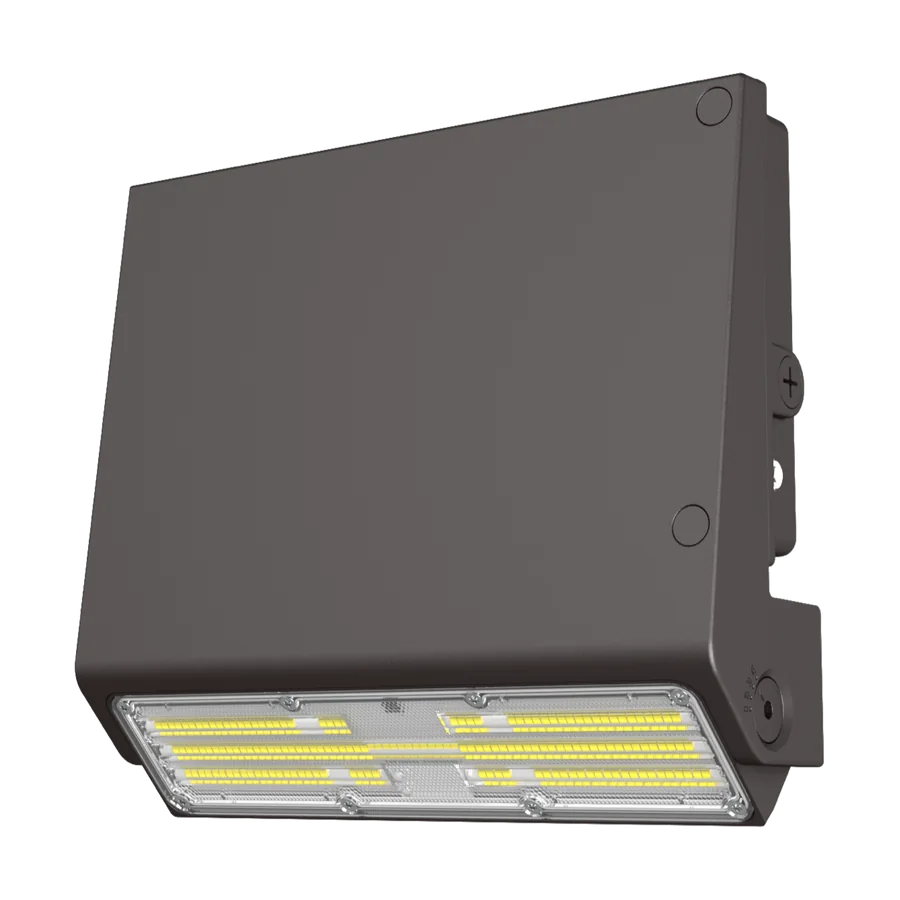

Watchtower is one of nine wall packs in the luxoⒶRCH line. Same engineering language, same controls platform, same factory — different optical strategies for different zoning codes. If Watchtower's strict full-cutoff isn't required, one of these likely is.
For the complete venue.
Watchtower handles the wall. These cross-line fixtures handle everything else — same controls platform, same warranty, same factory. Specify them together for a coherent lighting package across the whole property, with full-cutoff aesthetics wherever zoning codes apply.
Direct line to your regional rep.
Five US warehouses ship in 2–3 days. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. No portal-as-the-only-channel: you get a person.
Stack the rebates.
Watchtower is DLC-listed — qualifying for utility rebate programs that typically offset 15–40% of project cost. Full-cutoff distribution is also a frequent DarkSky / IDA-zone bonus on municipal and federal incentives. We'll match your project to active programs in your ZIP and pull the paperwork.
