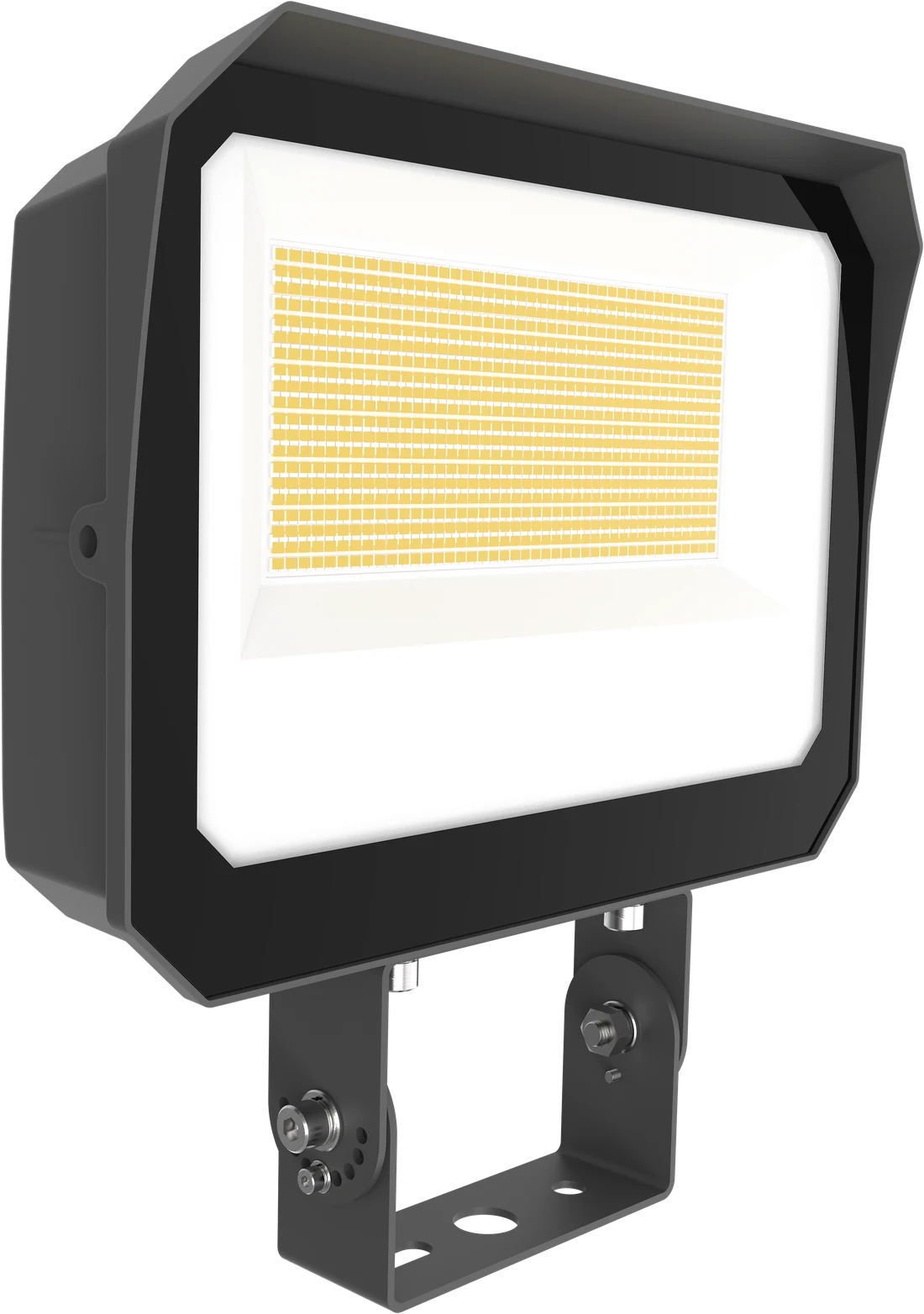

Everest Series ECO
The Summit for Flood Light.
ECO sister to LFLD Zion-Series (PRO). Three housings · 15-150W: Everest-I (15-35W) · Everest-II (25-80W ★) · Everest-III (100-150W). 3-WATTSELECT × 3-CCTSELECT dual-DIP at install · 140 lm/W flat · integrated photocell + 0-10V dim · 4 mounts (KN / SF / TN / YK) · 3E1 glass optic · 6kV surge · UL Wet · −40°F to 113°F · 120-277V · DLC Listed · 5-yr / 50k-hr.
Model Specifications
Download Data Sheet| WATT | CCT | Lumens | Lm/W | Voltage | CRI |
|---|
Dimensions
(Everest-II LFLD3W80 · 9.49 W × 7.25 H × 2.84 D in · placeholder · production drawing pending)
HIGHLIGHTS & FEATURES
Everest: Highlights & Features.
Five design choices that put Everest on the bid sheet for parking lots, façade wash, walkways, dealerships, and roadways. Mirrors the production page’s three lead headlines (Versatile Commercial Lighting Applications, All-Weather Protection, Dual Select Technology) plus two supporting tiles — mount versatility and contractor-grade controls.
contrⒶLS
Photocell-ready out of the box. 0-10V dimming on every driver.
Everest ships with the contractor-grade controls every parking-lot and façade spec calls for — nothing more, nothing less. Built-in button photocell with ON/OFF override switch handles dusk-to-dawn automatically — no NEMA receptacle to spec, no twist-lock photocell to add to the BOM. 0-10V analog dimming is baseline on the high-efficiency driver — pairs with any commercial BMS, occupancy sensor, or astronomical time clock for scheduled level reductions. No networked-controls lock-in. If your project needs networked mesh or DMX show-light scenes, spec the LFLD Zion-Series (PRO) or LSPL Radiator (sports) instead — Everest is honest about what it is: bread-and-butter contractor controls at contractor-grade pricing.
Button photocell standard on every Everest SKU. Integrated dusk-to-dawn sensor with ON/OFF override switch · pre-wired to the high-efficiency driver · no NEMA receptacle or twist-lock add-on to spec. Auto-switches the fixture at dusk and off at dawn for security and energy savings. Override switch lets electricians bypass the sensor for service or commissioning. Ships built-in — no /PS option, no add-on photocell SKU. Compliant with photocell control as required by site-lighting energy codes (Title 24, ASHRAE 90.1). For projects that need a NEMA twist-lock for centralized control rooms or ALC nodes, spec a LFLD Zion-Series instead — Zion is the PRO sister with NEMA receptacle.
How the photocell works →PHOTOMETRICS
Beam shape, by the WATTSELECT setting.
Real LM-79 measured photometric data for all 3 Everest housings — 27 IES test points staged across LFLD3W35 + LFLD3W80 + LFLD3W150 × 3-WATTSELECT × 3-CCTSELECT (3000K / 4000K / 5000K). Toggle the housing, the WATTSELECT setting, and the CCT below to see how the 3E1 forward-throw glass-optic distribution and lumen output change at each cell. Everest splits its 140 lm/W datasheet rating cell-by-cell — measured efficacy ranges from 117 lm/W (E3 150W @ 3000K) to 157 lm/W (E2 35W @ 4000K). 4000K is the peak-efficacy CCT across every wattage on every housing.
LFLD3W80-3E1-UD-PS-80W-50K_IESNA2002.IES (LM-79 measured) In the Box
Four components, factory-installed and ordered.

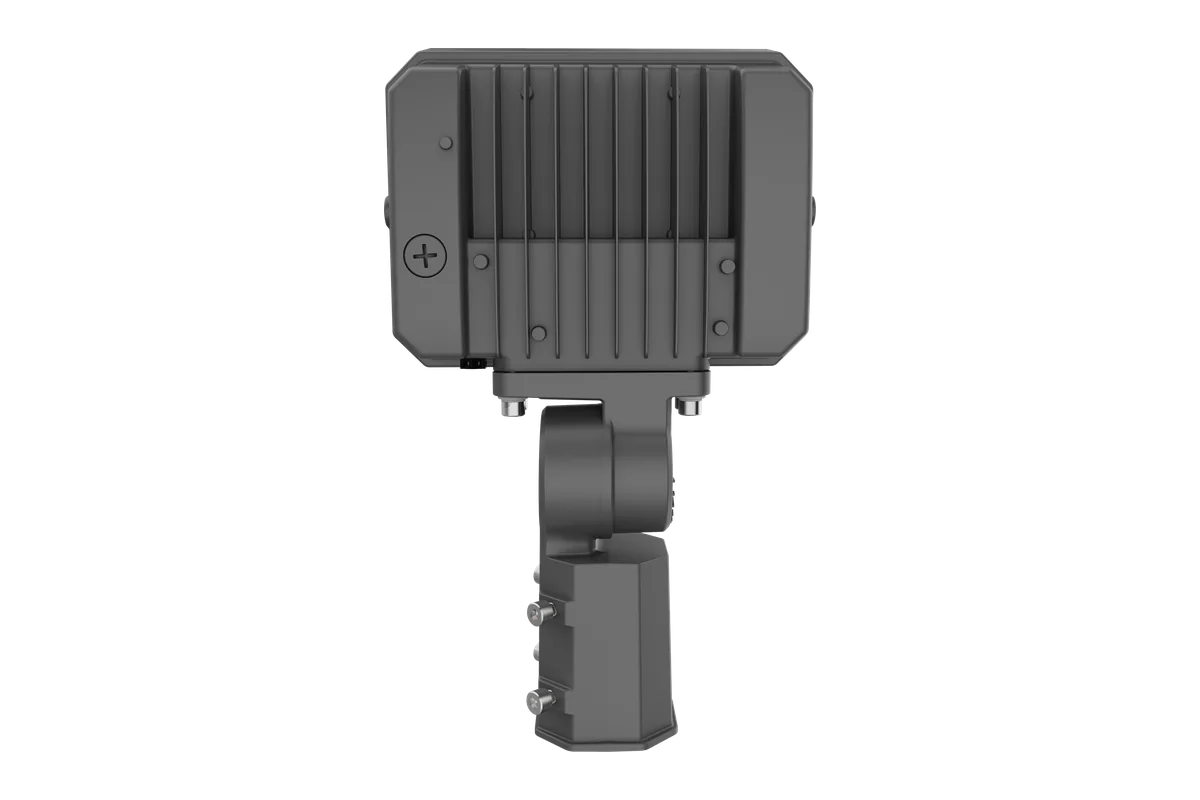

Datasheet pg 4 lists three carton items — Everest luminaire + Button Photocell + Appropriate Mount. Unpacked below into 4 cards: glass optic · die-cast housing · high-efficiency driver with 6kV surge + 0-10V · button photocell + ordered mount. Power up at 120-277V, DIP-set WATTSELECT and CCTSELECT, mount.
Mount Accessories
Four mount options. One housing.

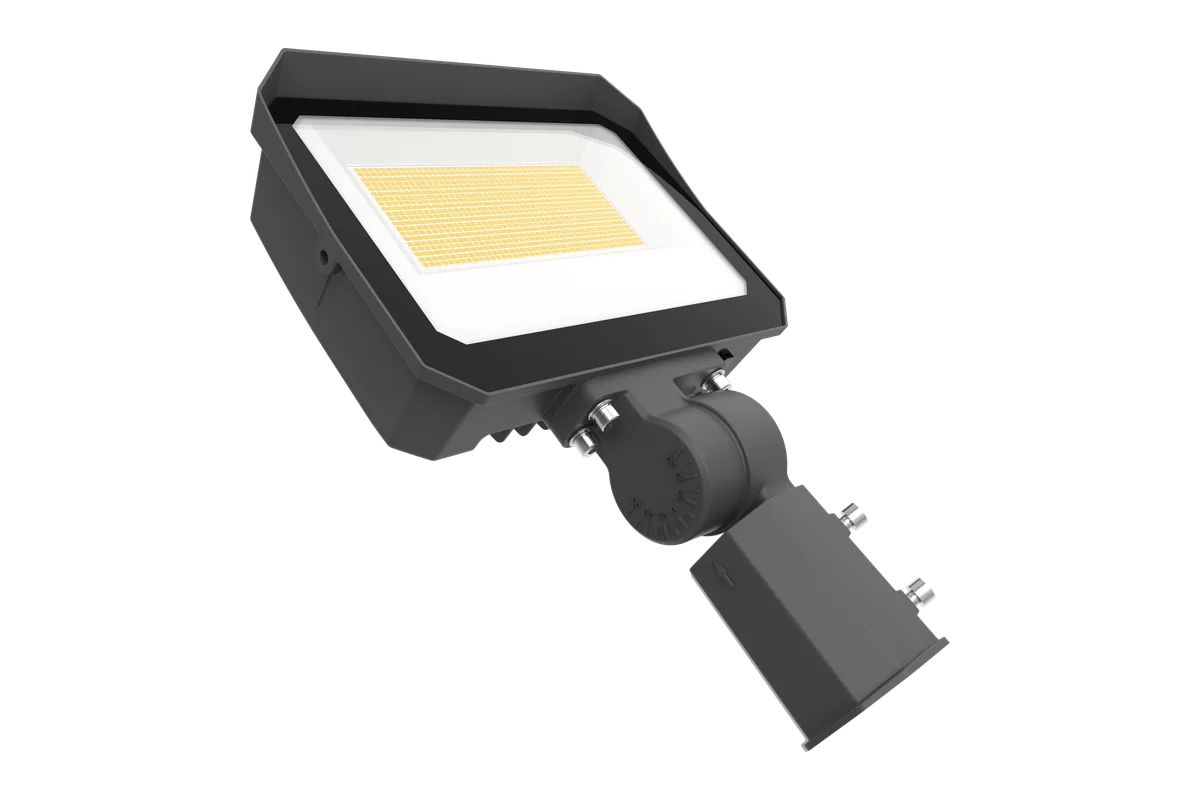

Every Everest housing accepts up to four mount accessories — Knuckle for stem-up tilt, Slip-Fitter for tenon-and-pole, Trunnion for U-bracket flush mount, Yoke for ground-stake or wall-bolt. Order the mount as a separate accessory SKU (LFLD-E1/{KN|SP|TN|YK}) per the housing-compatibility matrix below. All mounts QuickShip from CA inventory.
Build Your Model

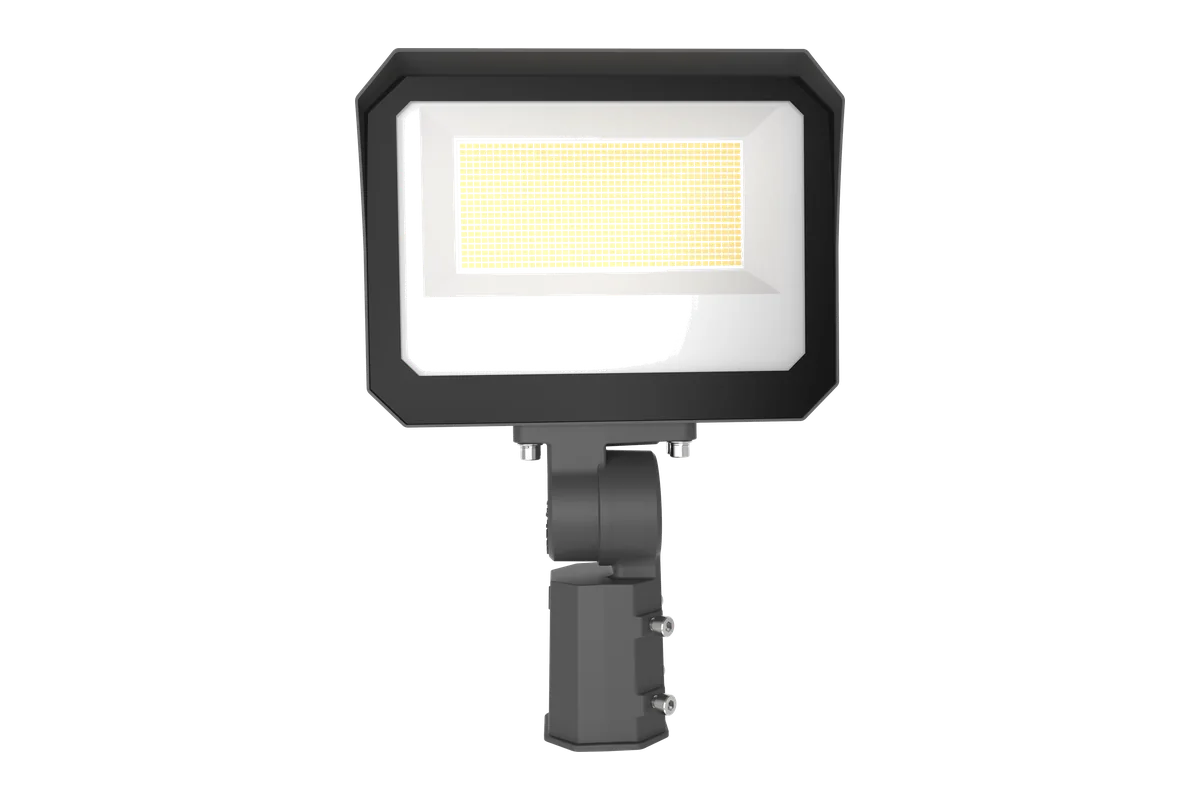

Configure Your Everest
Selections build the SKU live. WATTSELECT + CCTSELECT are DIP-set at install — they do not appear in the SKU. Required fields marked with *. See the legend for QS / MTO / DIP / LCK meanings.
Documentation & Resources
Three production-page documents are LIVE on Zoho WorkDrive — Datasheet, Installation Guide, Sales Sheet. The per-SKU submittal generator is LIVE. DLC Listed per the production-page compliance row. 5-year / 50,000-hour standard warranty — matches industry standard at the contractor-grade tier.
LFLD{housing}-3E1-U{finish}/PS), per-housing spec table, dimensions (production engineering drawing wired from the production CDN), photometric polar plot per the (housing × W × CCT) cell, certifications (UL Wet · DLC Listed · LM-79 · LM-80 · 5-yr / 50k-hr), and the 4-mount accessory matrix. Defaults to LFLD3W80-3E1-UD/PS (Everest-II 80W · 5000K · Dark Bronze · QuickShip) — your Section 9 selections override at runtime.Three housings. Same DIP-set spec.

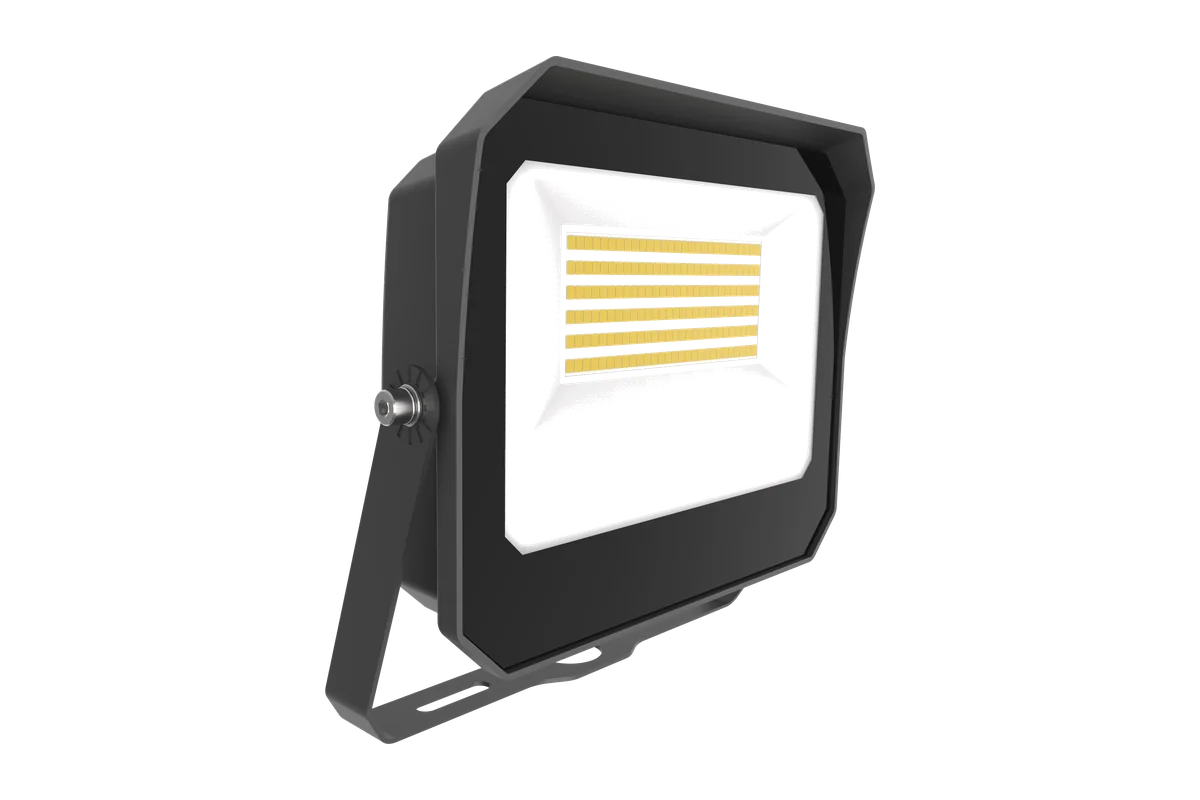

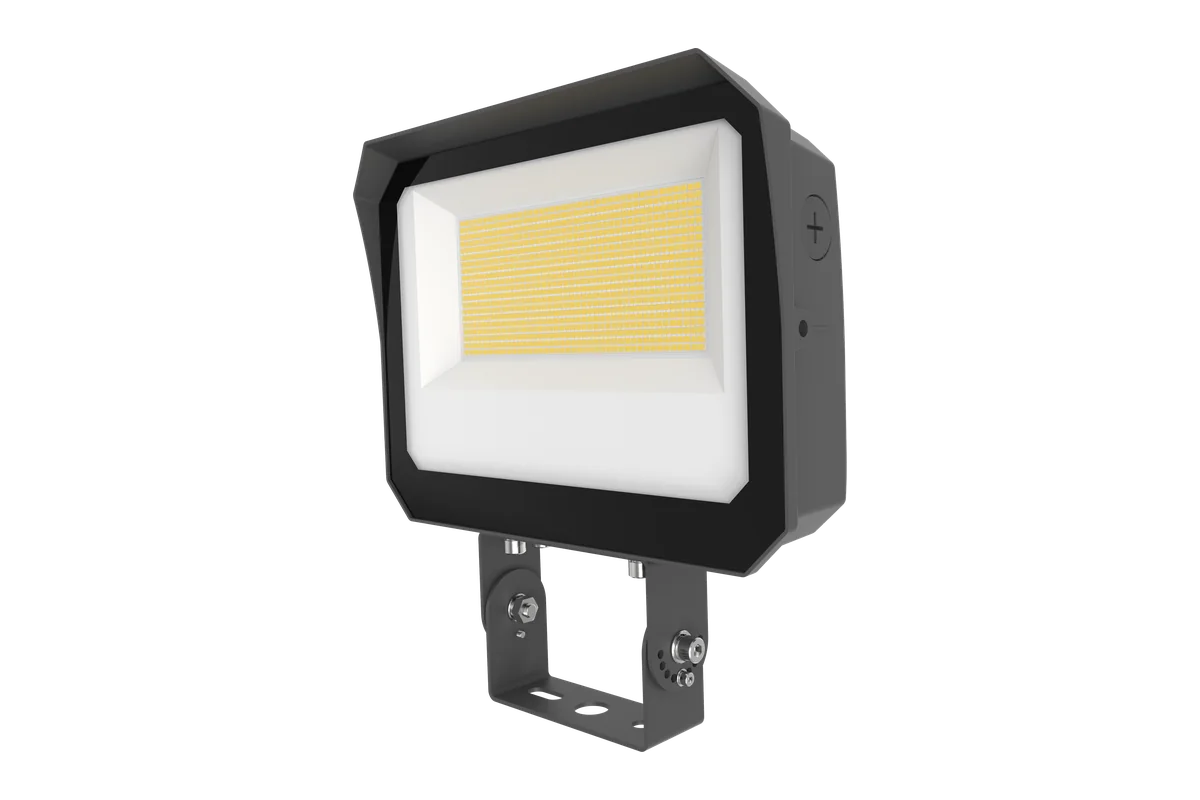

Everest ships in three housing sizes — Everest-I (15-35W · small façade and wall washing), Everest-II (35-80W · mid-tier parking lots and school perimeter · the bid-sheet workhorse), and Everest-III (100-150W · large parking lots and big façade flood). All three share the 3-WATTSELECT × 3-CCTSELECT dual-DIP field-set logic, the 140 lm/W efficacy floor, the built-in button photocell + 0-10V dim, the 5-year / 50,000-hour warranty, and the contractor-grade 4-mount accessory matrix (KN/SP/TN/YK per the housing-compatibility table in Section 8b). Pick by max wattage and lumen target.
From the parking-lot flood to the rest of the property.

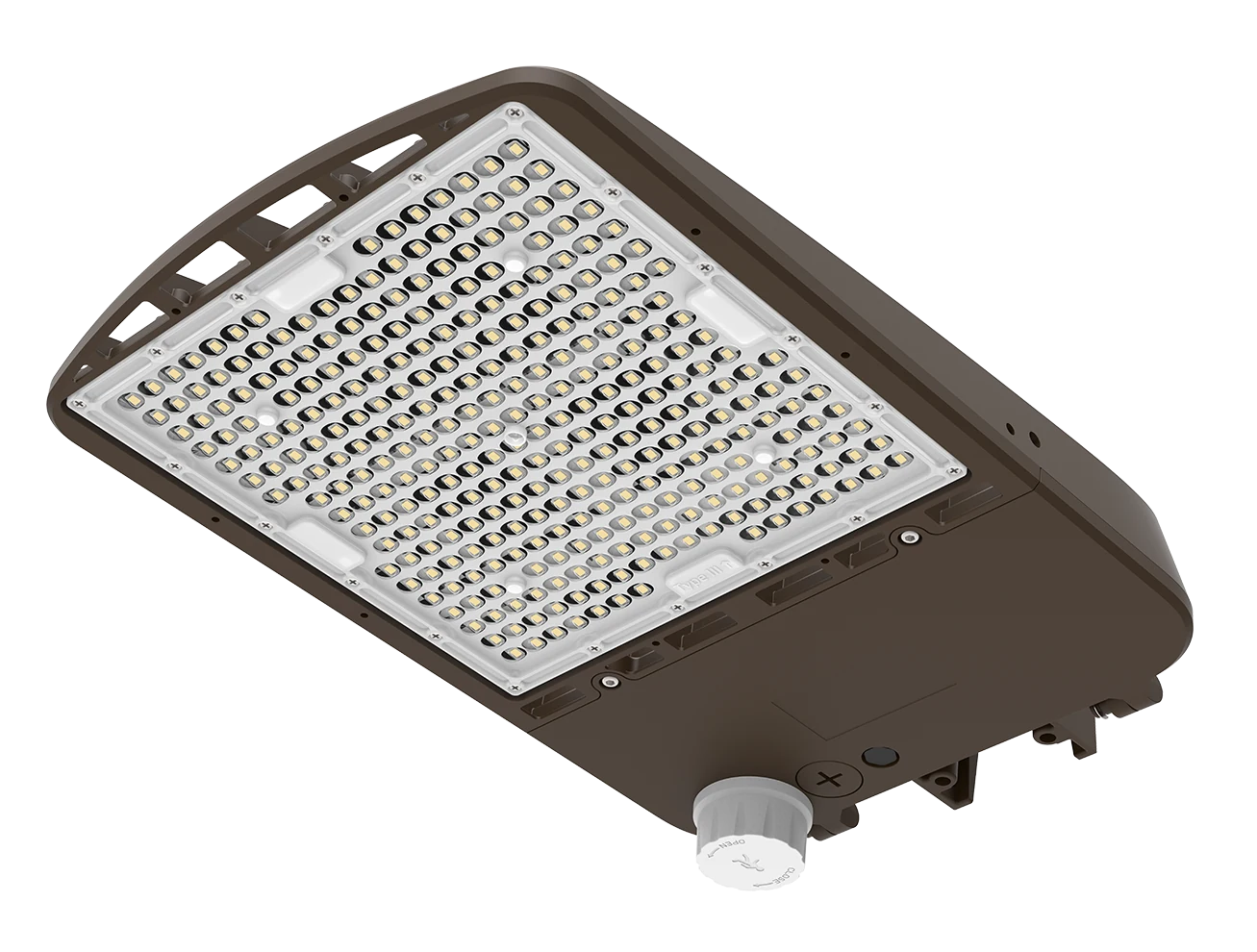

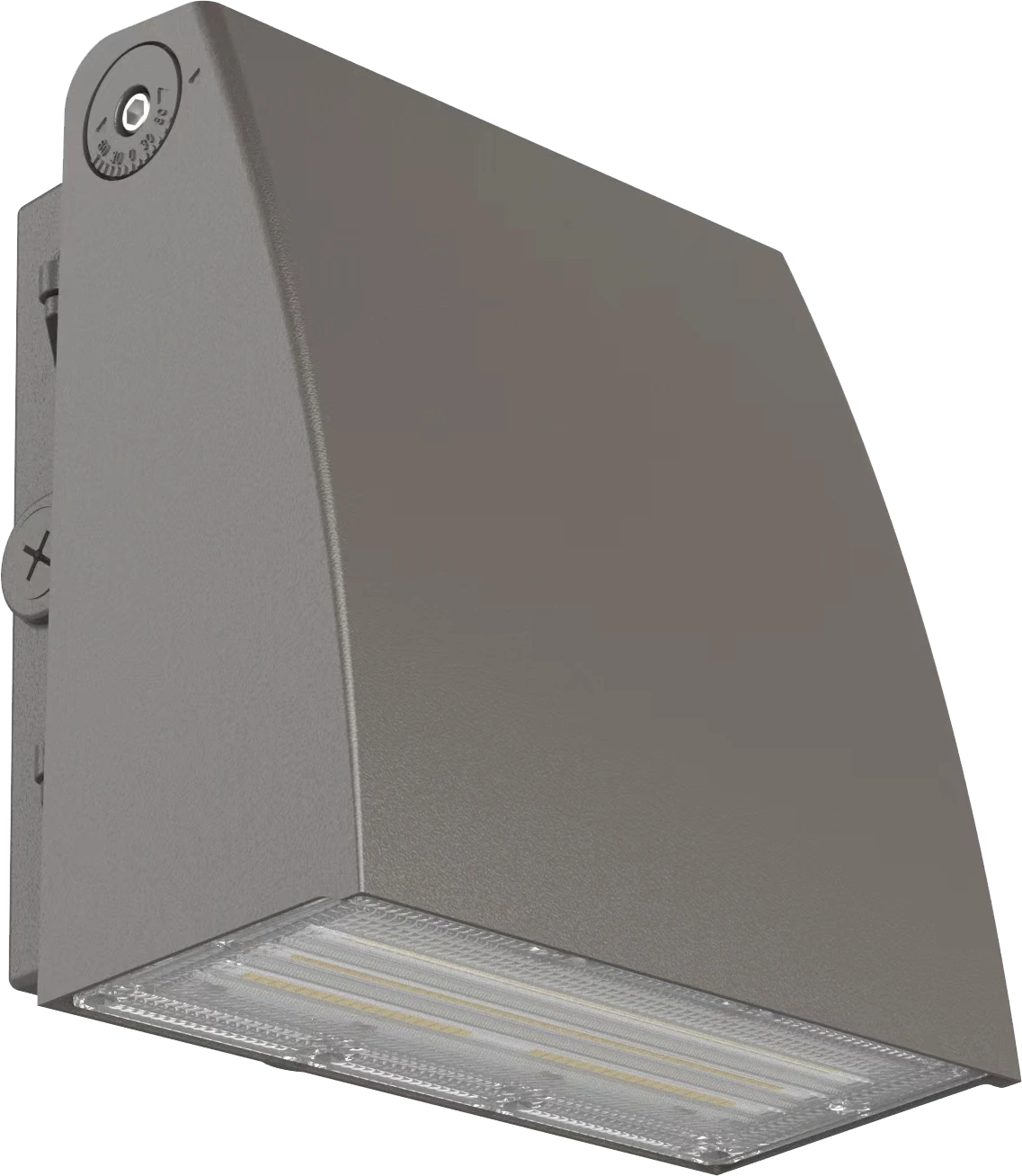

Everest covers façade and parking-lot flood. Four luxoⒶRCH siblings cover the rest — shoebox on the poles · wall pack on the building edge · PRO flood when contractor-grade doesn’t fit · bollard for walkways. One brand, one factory, one finish path. Spec the property kit on a single bid sheet.
Direct line to your regional rep.
Five US warehouses · 2–3 day ship. Photometric layouts back in 48 hours with LM-79 IES attached. Quotes, samples, rebate matches: same-day reply. Mount-per-housing reconciliation (KN / SF / TN / YK) + WATTSELECT / CCTSELECT field-set routes to your regional rep — a person, not a portal.
Contractor-grade output. Four mounts. Bread-and-butter pricing.
140 lm/W flat · 3-WATTSELECT × 3-CCTSELECT dual-DIP · integrated photocell + 0-10V · 4 mounts (KN / SF / TN / YK) · 15–150W in 3 housings · DLC Listed.
Honest CFG-RBT-1: Satco Nuvo Beam Selectable leads on lifespan (100,000 hr L70 + 150-157 LPW + adjustable optic). RAB FFLED holds DLC Premium 5.1. Everest’s 5-yr / 50k-hr is industry baseline — doesn’t lead. No 347V — spec LFLD Zion-Series (PRO).
