LLSN · lamparⒶRCH PRO+

Hallmark LED Linear Strip

One strip. Four lenses. Sixteen settings.

A spec-grade LED strip in 2, 4 and 8 ft, with four lenses that swap in the field: round, flat, wide, and flat with a reflector. Four wattages and four color temperatures are switches set at install, up to 12,500 lumens, in white or black. Sensor-ready end caps, DLC listed, 7-year warranty.

Specification Sheet IES Files Installation Guide Configure For Lead Time

Input Watts20–100 W

Lumensup to 12,500

Efficacy125 lm/W

Ideal applications

Warehouse & Distribution

Manufacturing

Low-Bay Aisles

4-WATTselect

4-CCTselect

4 Field Lenses

quickⒶDAPT

contrⒶLS-Ready

constⒶNT-Ready

DampGuard

cETLus Listed

DLC Listed

Damp Location

FCC

RoHS

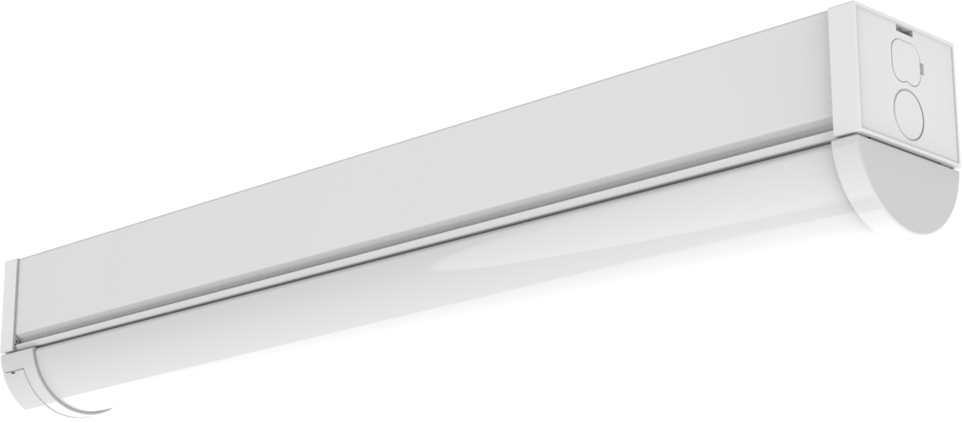

Hallmark LLSN LED linear strip with the round lens, white

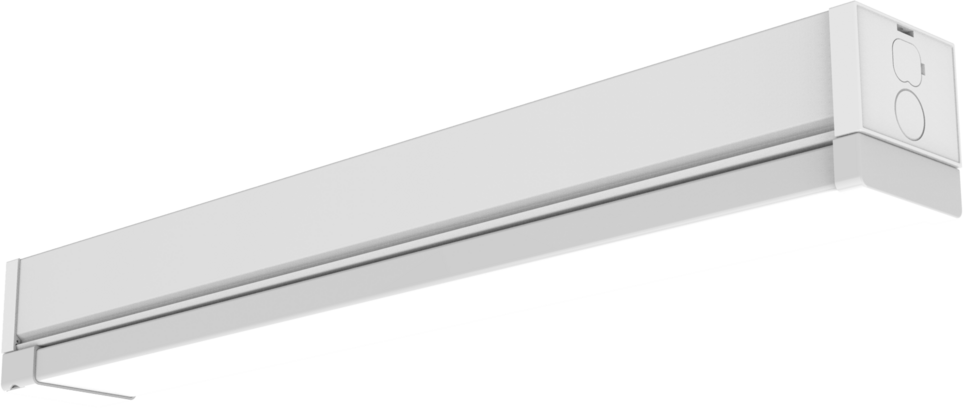

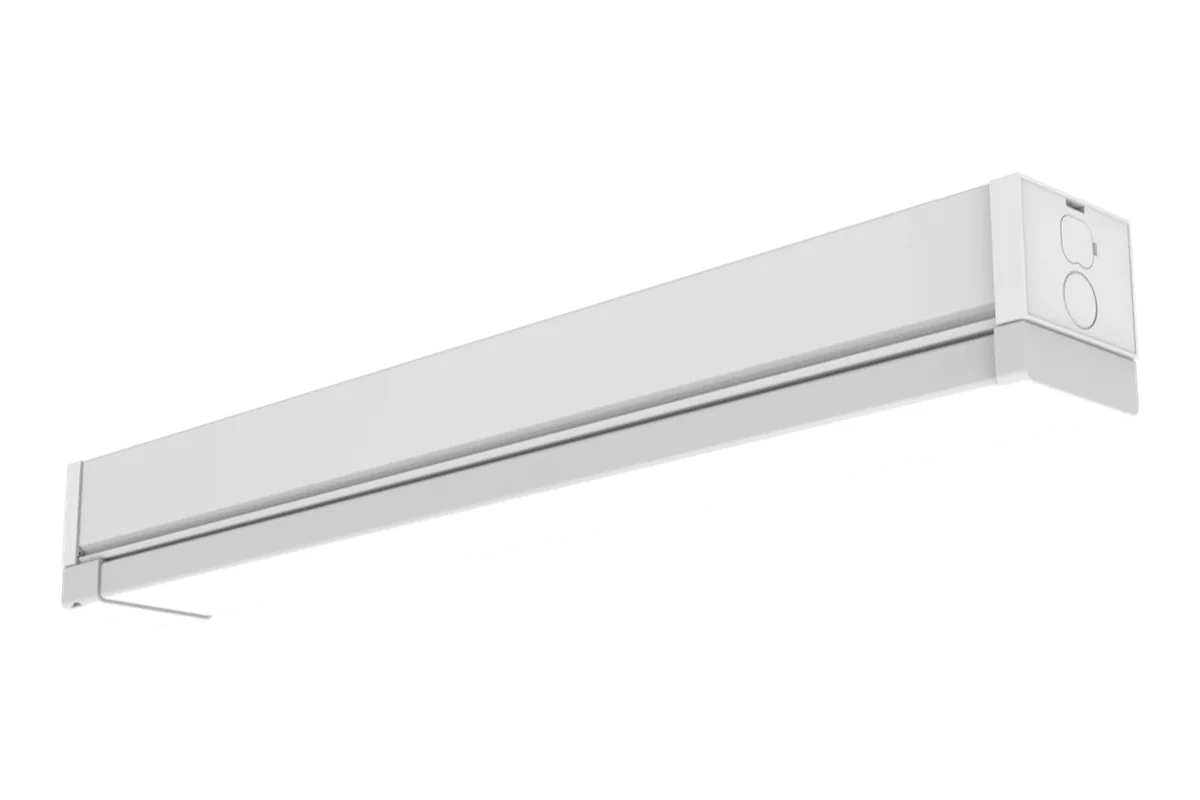

Hallmark LED linear strip with the flat lens

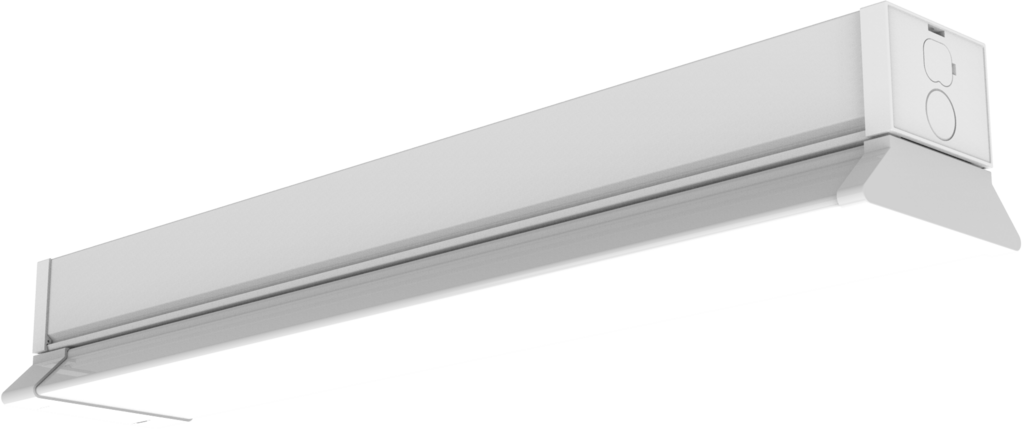

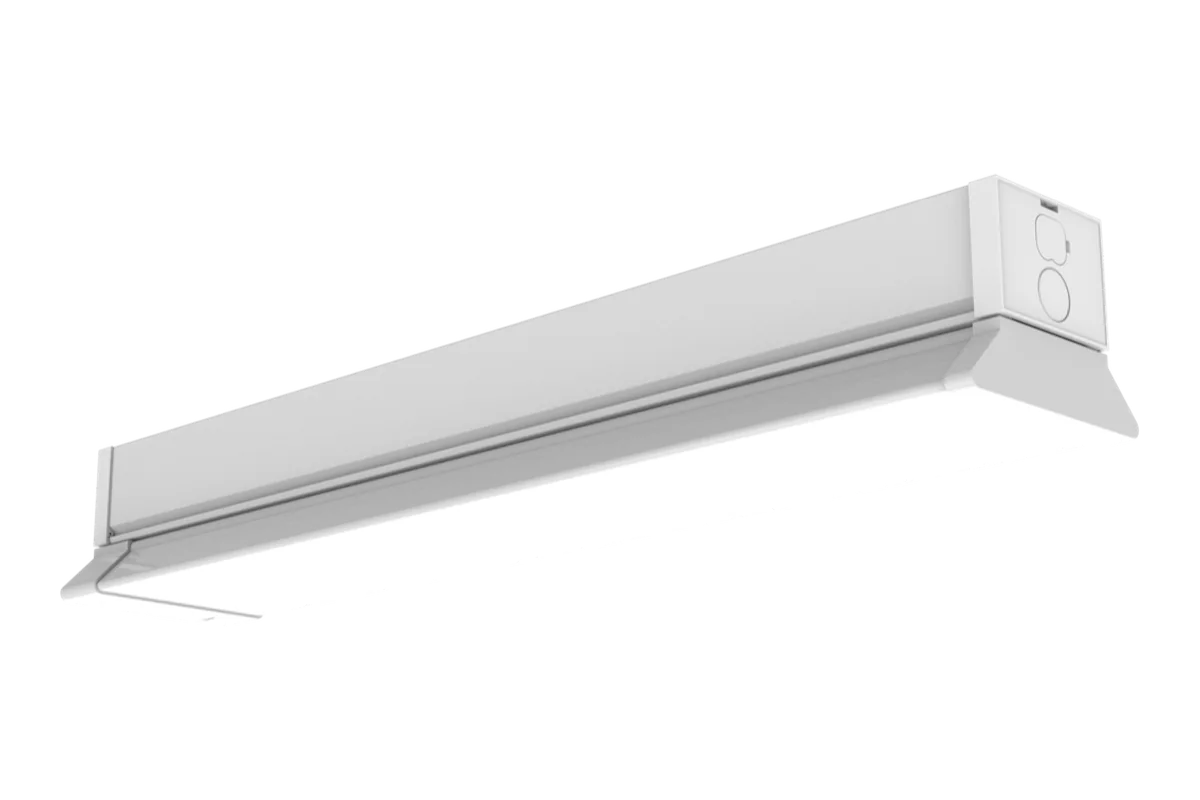

Hallmark LED linear strip with the wide lens

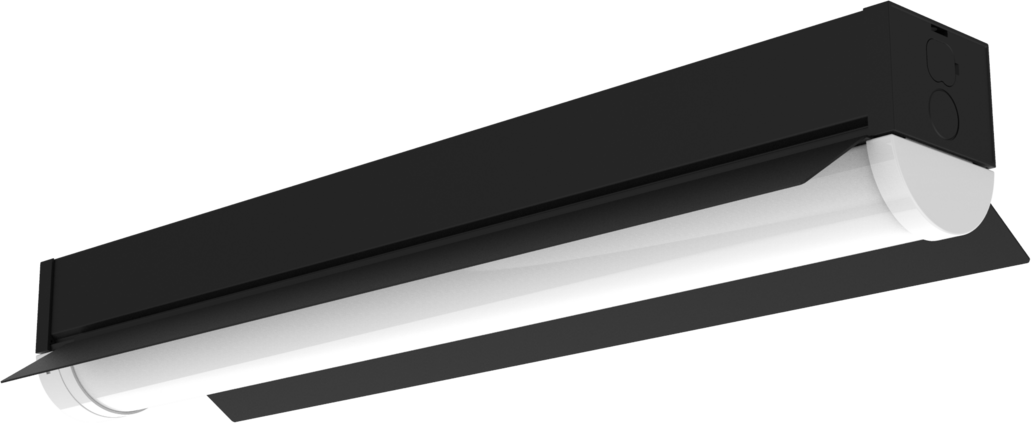

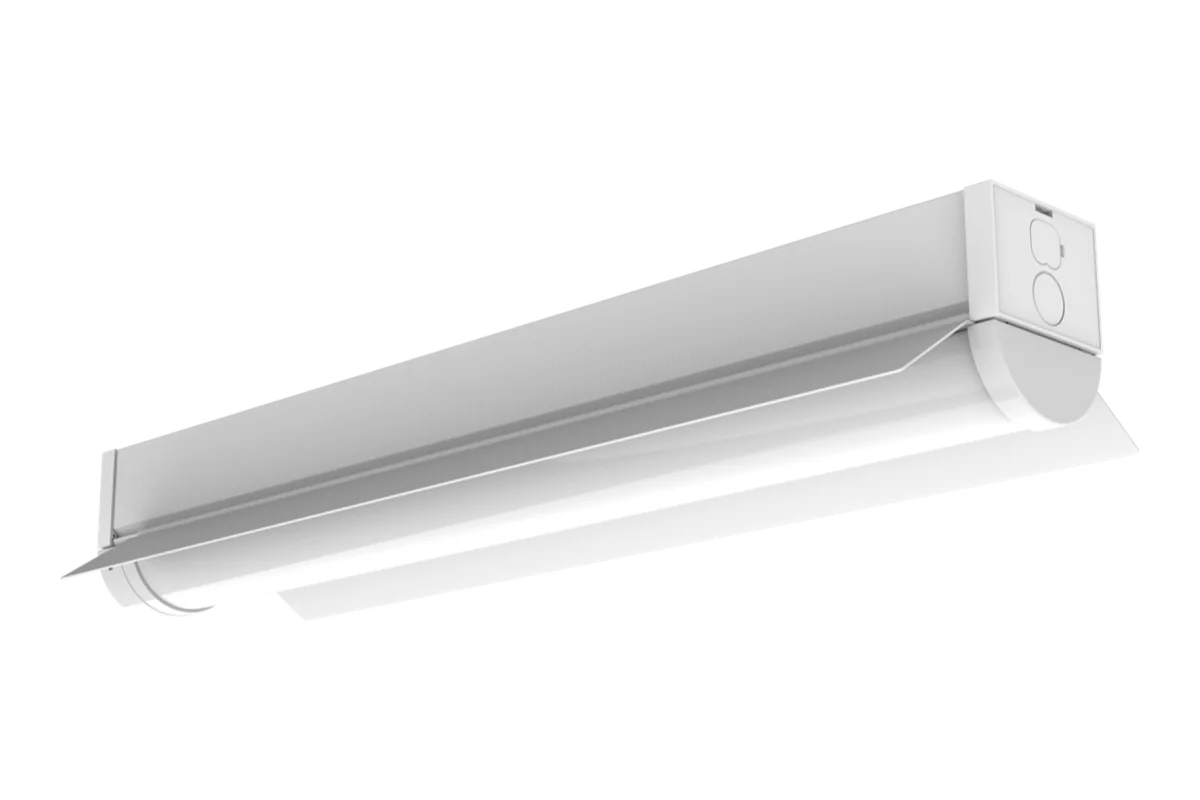

Hallmark LED linear strip with the flat lens and reflector

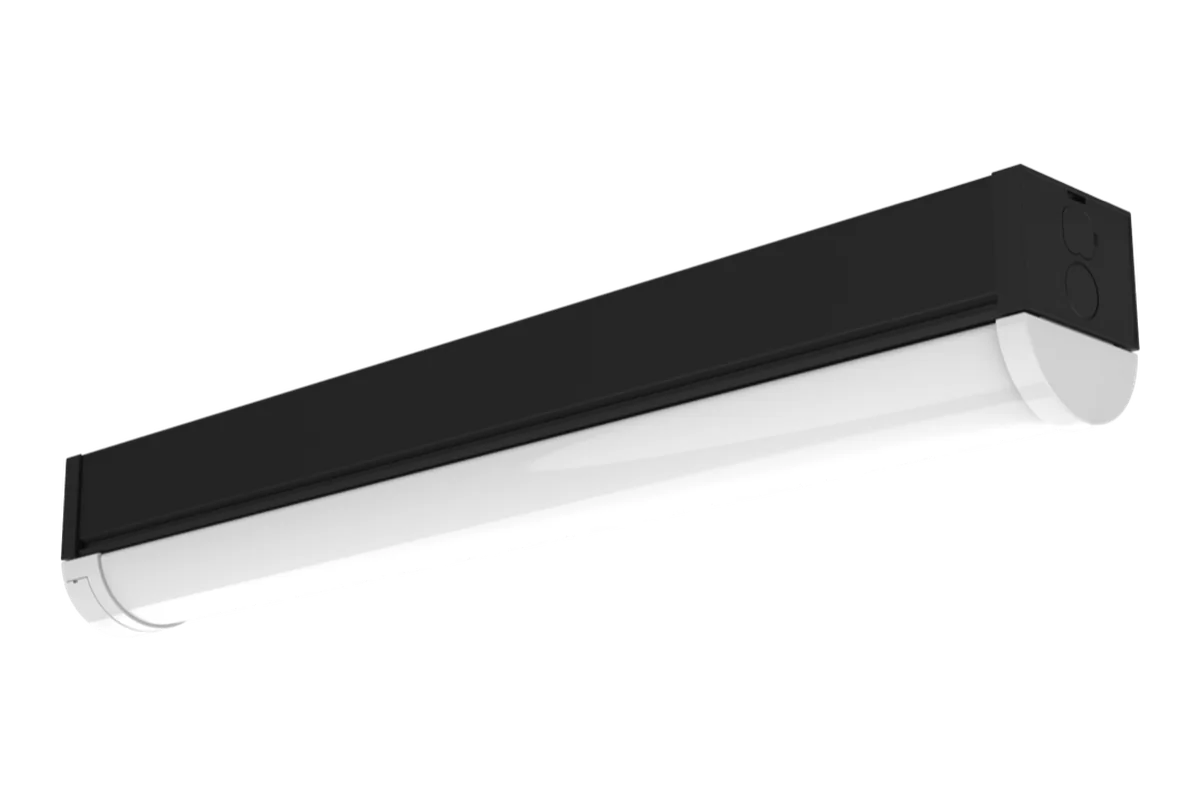

Hallmark LED linear strip, black housing (/B)

Documentation & Resources

Documents

Data SheetPDF Quick SheetPDF Sell SheetPDF Installation GuidePDF IES Photometric FilesIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the floor plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

WATTselect	Watts	Lumens	CCTselect	lm/W

★ Default settings. Lumens and lm/W are the datasheet's (125 lm/W in every row); the measured files read 131–145 lm/W (Photometrics). The lens does not change the datasheet figure.

ApplicationIndoor · low-bay, aisle and strip lightingWarehouse, manufacturing, gymnasiums, retail

Construction6063 aluminum frame · injection-molded end caps with a sensor portWhite, or black with /B · heat-resistant acrylic lenses

OpticsRound /RL ★ · flat /FL · wide /WL · flat with reflector /FRSwap in the field · measured 114–145° at 50 % of peak

Dimensions—

Operating temp−4 °F to 122 °FIP40 · damp location

Electrical120–277 V · 0–10V dimming · PF >0.9 · THD <15 % · CRI >80

Warranty7 yr · 75,000 hrExtended warranty available

Full Data Sheet Installation Guide

Engineering

What you set at install, what swaps in the field, and how a run goes up.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

Full IES Library

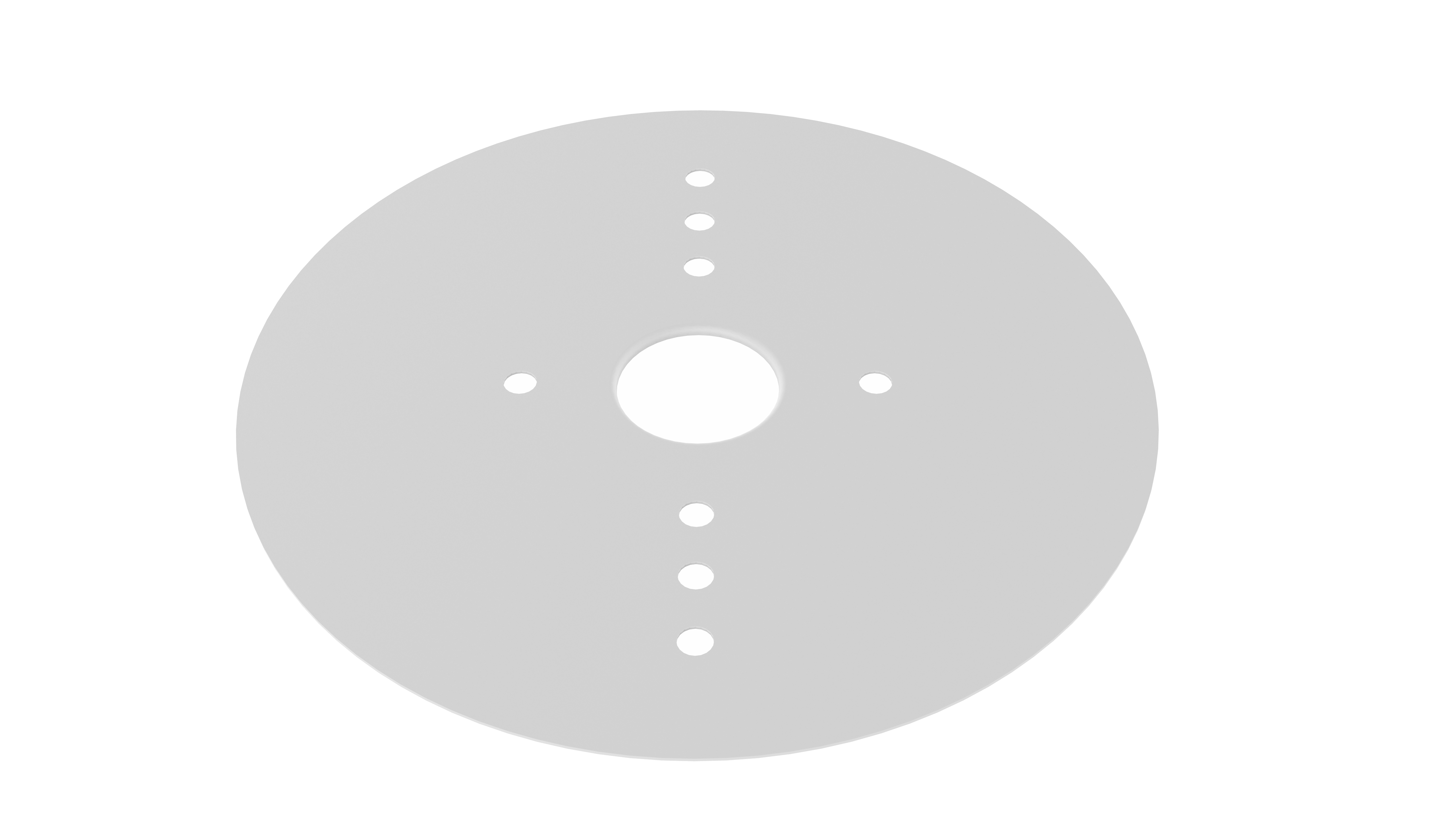

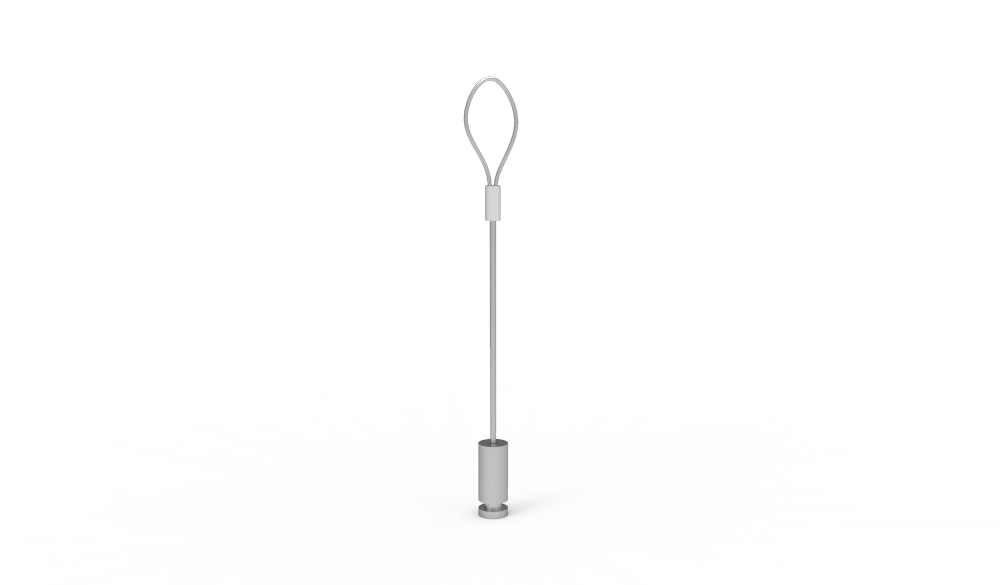

Engineered Accessories

Configurator

Build Your Hallmark.

Required *

Length—

Lensswaps in the field—

Finish—

Voltagethe one voltage built—

Dip switchesset in the fixture · not in the part number—

Optional

Emergencyfactory-installed—

Sensorplugs into the end-cap port—

Mountsurface hardware in the carton—

Run—

Spare lenskit · matched to the length—

Reflector4 ft · white—

Surgein-line · 277 V—

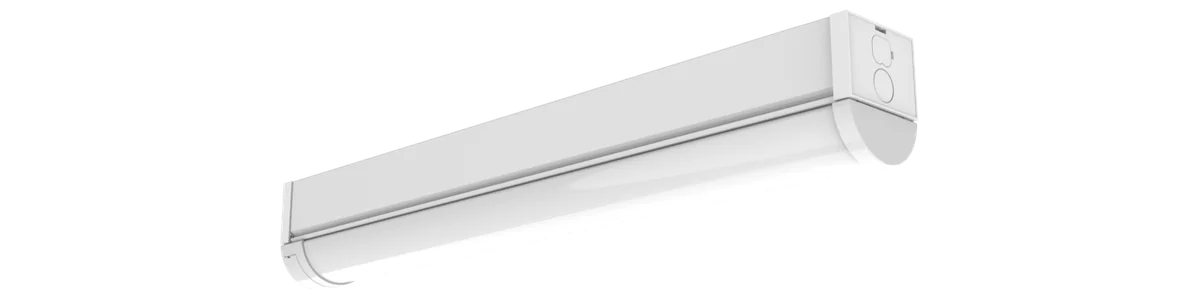

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingscETLus Listed (US & Canada) · damp location · DLC Listed (Standard) · FCC · RoHSThe DLC listings name the twelve white length and lens builds. Check Rebate Center for the DLC QPL ID of your catalog number, and any /B black build, before you specify.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

Strip Family

Hallmark is the PRO+ strip. Vanguard is the ECO strip. retroⒶRCH-L1 is the kit for a strip already on the ceiling.

You are here Hallmark LED linear strip

LLSN · PRO+ Hallmark The spec-grade strip. 2, 4 and 8 ft, four field-swap lenses, white or black, up to 12,500 lm. 7 yr / 75,000 hr Installation Guide → Product Details · this page

LLSN · ECO Vanguard Vanguard, the ECO strip. 2, 4 and 8 ft with a round frosted diffuser; the 8 ft folds to ship. 145 lm/W · 5 yr / 50,000 hr Downloads → Product Details →

LLSR · PRO retroⒶRCH-L1 The strip retrofit kit. It goes into a 4 or 8 ft fluorescent strip that stays on the ceiling. 7 yr / 75,000 hr Downloads → Product Details →

Specifier Support

Send us the floor plan.

We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.

3 BDLayout turnaround

FreePhotometric layout

Find A Rep Request A Layout

Rebates

DLC listed, every white build.

All twelve white length and lens builds of Hallmark are on the DLC QPL (Standard). Check Rebate Center for the DLC QPL ID of your catalog number before you specify. Send us the ZIP and we pull the active program and the forms.

125lm/W datasheet · 131–145 lm/W measured

DLCStandard

2 · 4 · 8 ftOne family
