CRC · multi-fⒶMILY ECO

Gehry IC-Rated Recessed Housing

The can the retrofits go into.

An IC-rated, air-tight recessed housing for 4 and 6 in, with preinstalled swivel bar hangers that lock anywhere in a 24 in joist span. Choose an E26 socket for a lamp or a T24 connector for an LED retrofit module. Thermally protected, for damp locations and feed-through wiring. The 6 in E26 also comes with an A19 or BR30 LED lamp. Trims, goof rings and emergency J-boxes are each their own line.

Specification Sheet Build A Submittal Configure For Lead Time

Sizes4 / 6 in

SocketE26 · T24

Ceiling1/2 – 1 3/8 in

Ideal applications

New Construction

Kitchens & Baths

Hallways

Garages & Utility

IC Rated

Air-Tight

E26 · T24

4 · 6 in

Damp Location

constⒶNT

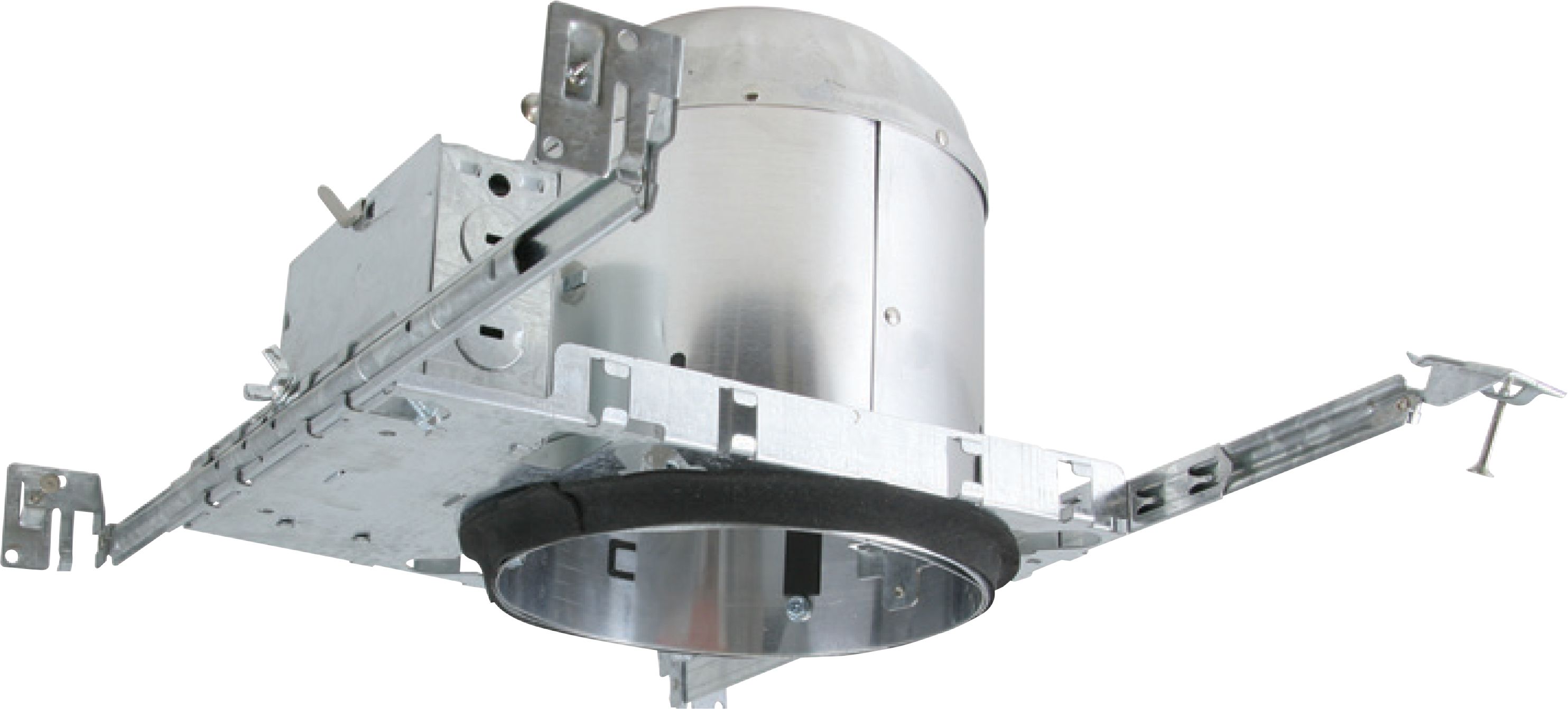

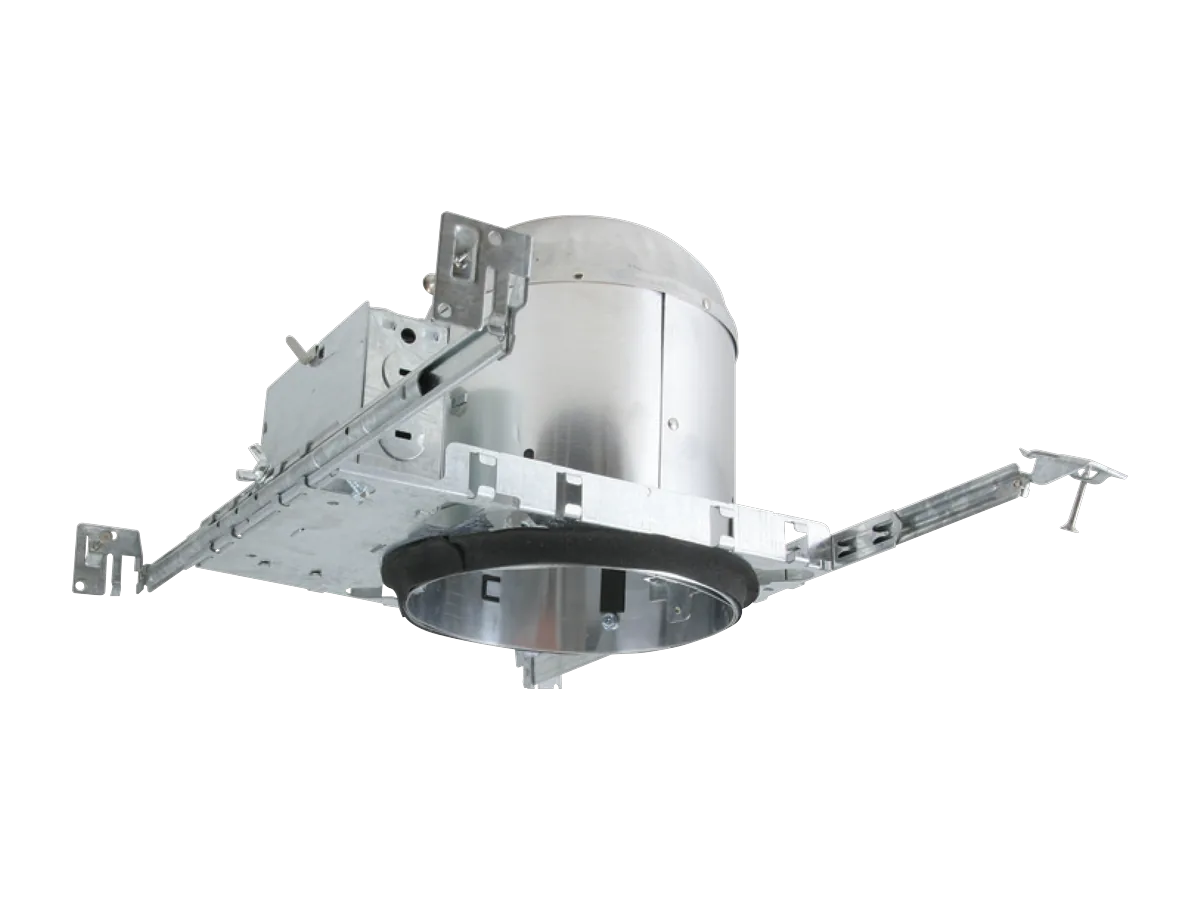

Gehry recessed housing with its swivel bar hangers

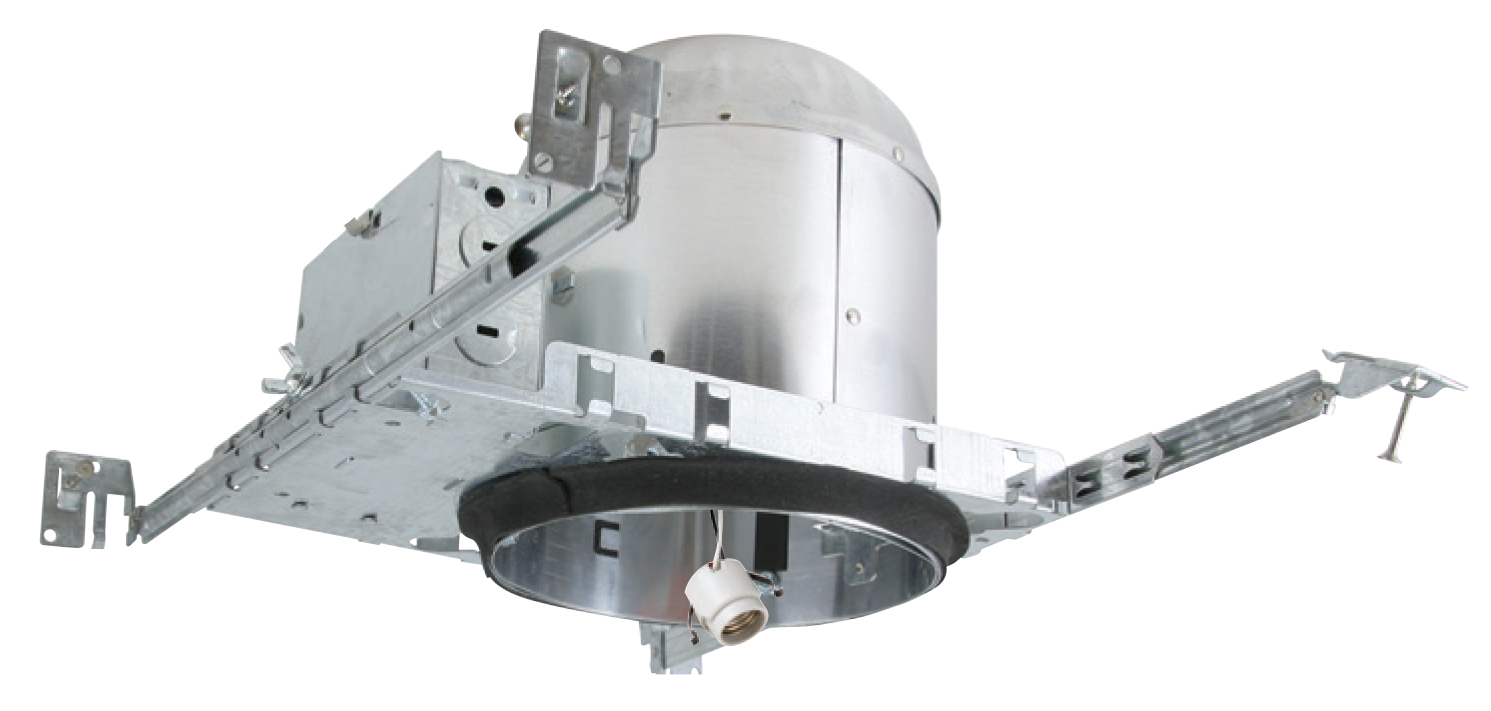

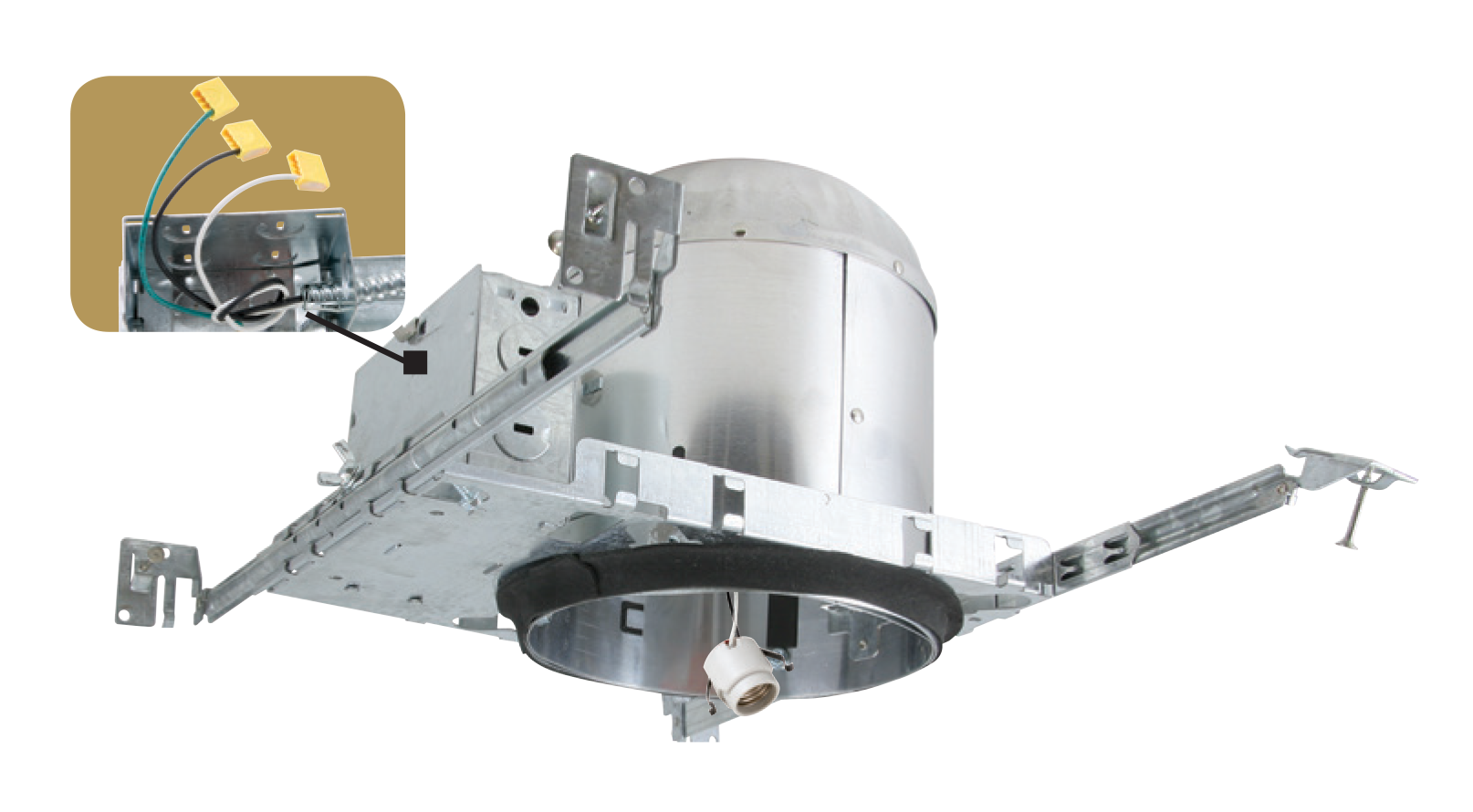

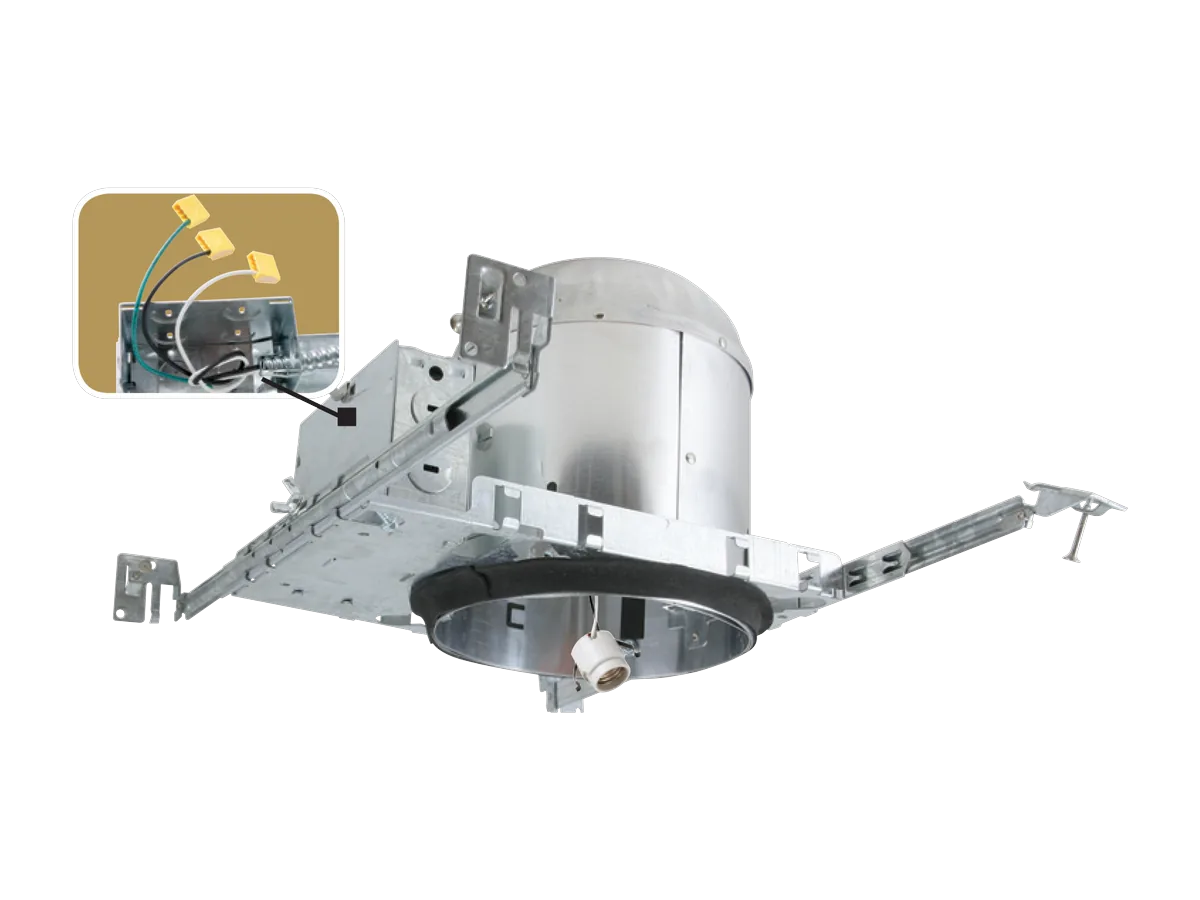

Gehry recessed housing with its junction box opened

Documentation & Resources

Documents

Data SheetPDF Quick SheetPDF Sell SheetPDF Installation GuidePDF Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the floor plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open What Goes In ItThe lamps, modules and ALG retrofits for each socket.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

Catalog number	Socket	Takes

The A19 and BR30 builds ship with the lamp in the carton.

ApplicationNew construction · damp locationsfeed-through wiring · direct contact with insulation

HousingDie-formed aluminumadjusts for a 1/2 to 1 3/8 in ceiling

HangersSwivel bar hangers, preinstalledlock anywhere in a 24 in joist span · shorten for 12 in joists

Junction boxThrough-branch wiringfour 1/2 in and one 3/4 in knockouts · four Romex knockouts · quick connectors

SocketE26 or T24, on an adjustable bracketsocket cap against dust, paint and overspray

InsulationIC rated · air-tight, air-shutthermal protector

Dimensions—

LampsA19 · BR30 · BR40 · PAR30 · PAR38or an RL-series LED retrofit module on T24

Listings—

Build A Submittal

Engineering

How it hangs, how it wires, and what goes in it.

Engineered Accessories

Configurator

Build Your Gehry.

Required *

Size4 or 6 in housing—

Socketa lamp or a retrofit module—

Lamp in the carton6 in E26 only—

Optional · each its own line

Goof ringits own line item · a size up—

Trimits own line item · 6 in—

Emergencyits own line item · recessed J-box—

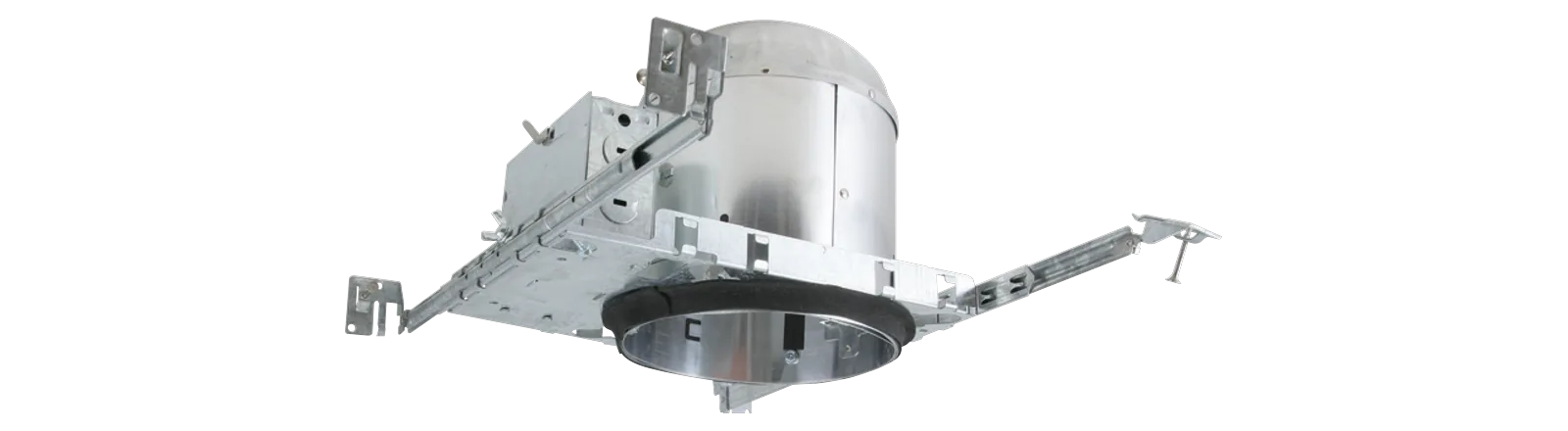

Your catalog number

Your Catalog Number

Catalog number

Socket—

Size—

Housing—

Dimensions—

Listings—

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

multi-fⒶMILY Family

The housing, the plate and the downlights that go with them.

You are here Gehry

CRC · ECO Gehry The IC-rated recessed can for 4 and 6 in, E26 or T24. 4″ / 6″ Product Details · this page

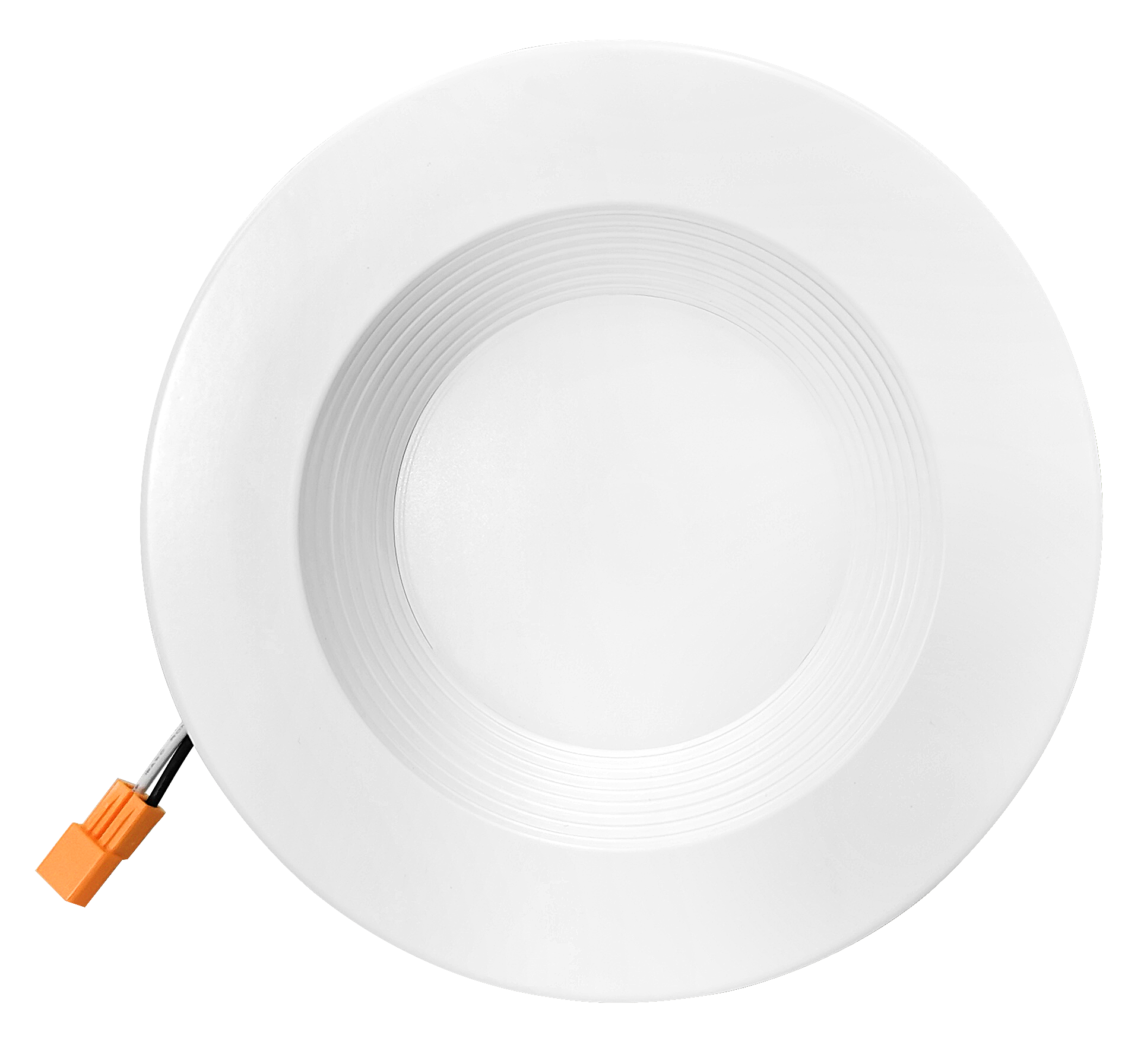

LDRR · ECO Nebula A baffled retrofit downlight on an E26 adapter, for the cans already in the ceiling. 4″ / 6″ Build A Submittal → Product Details →

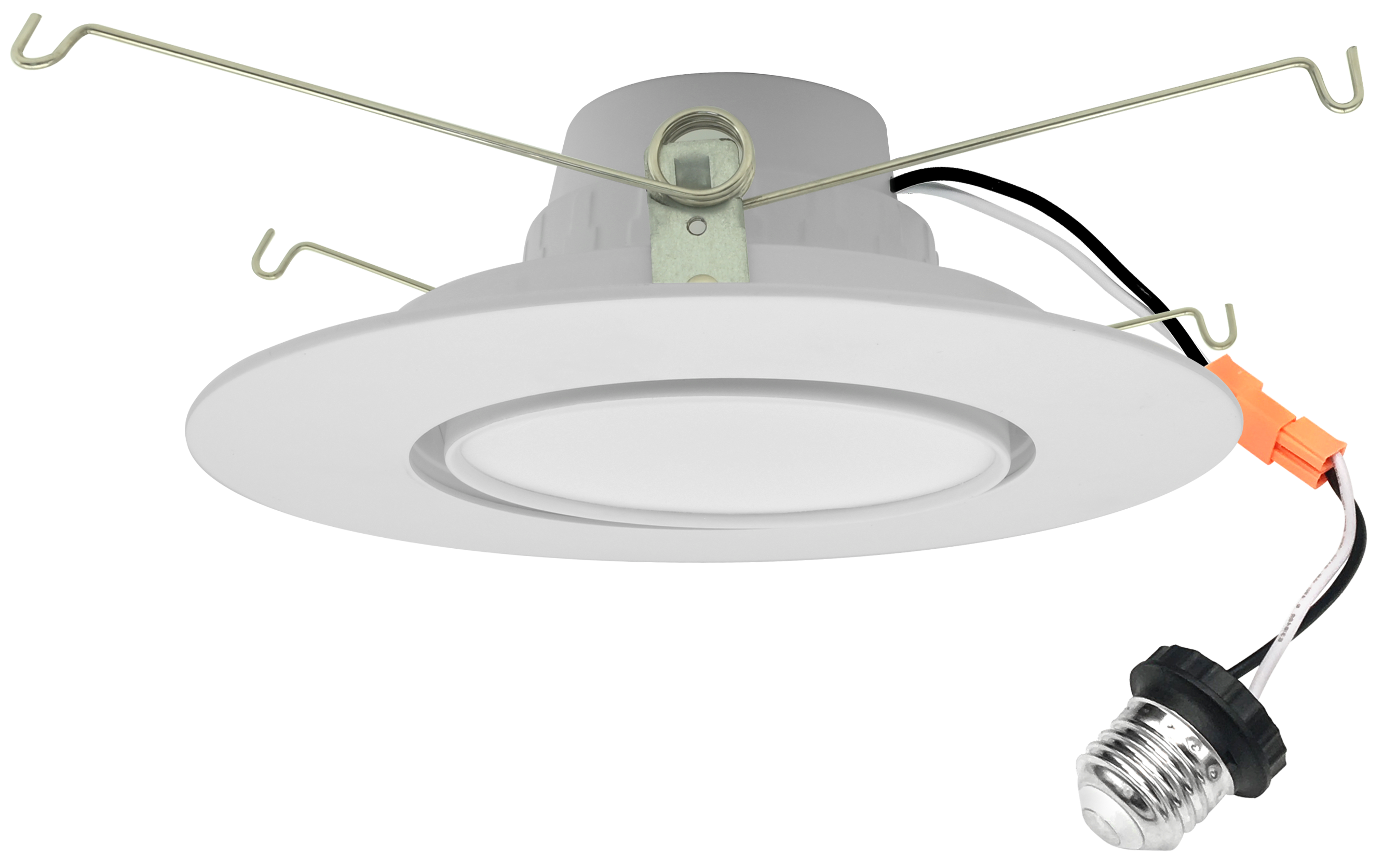

LDGR · ECO Orbit A gimbal retrofit that tilts 60° and turns 360°, for accent and wall wash. 4″ / 6″ Build A Submittal → Product Details →

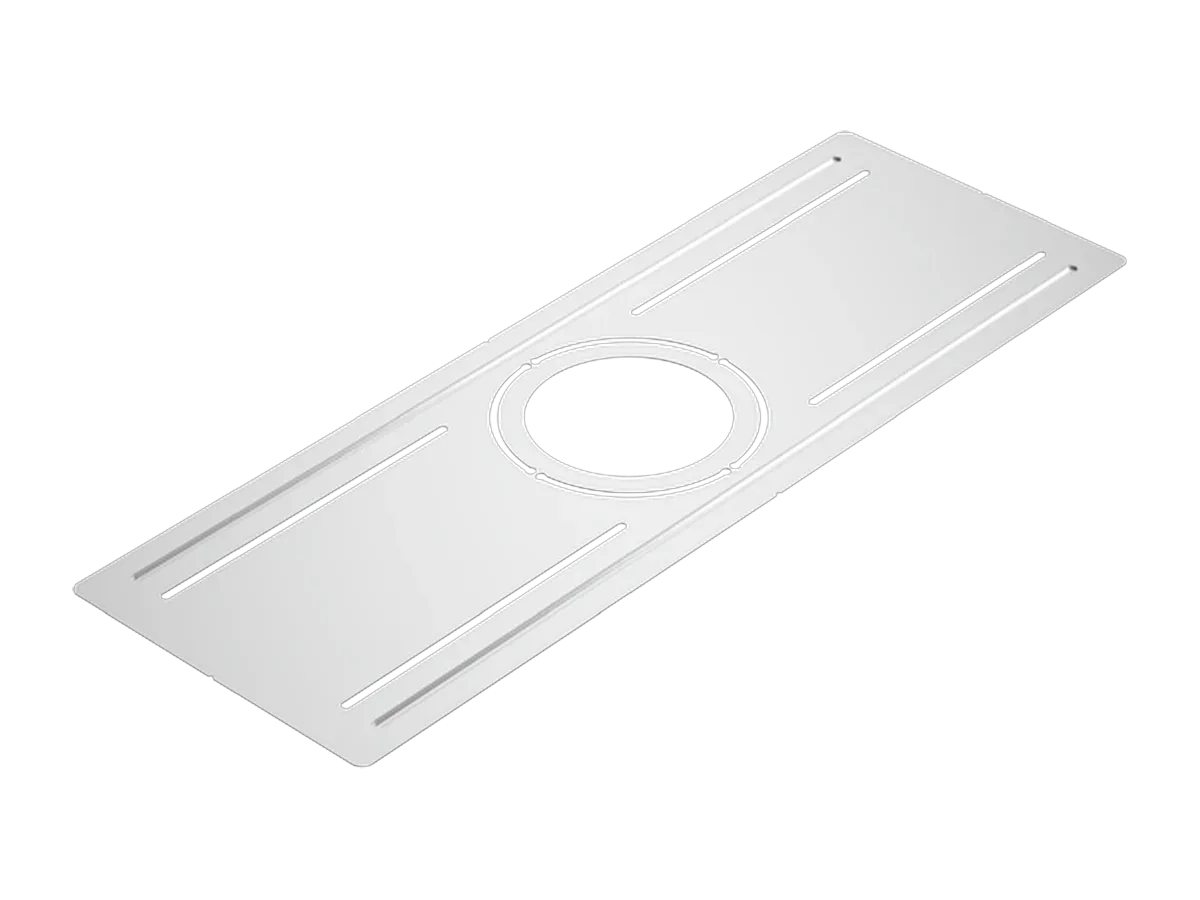

LCDL-SE · NCP New-Construction Plate Holds a downlight before the ceiling goes up, with its own J-box. 4″ – 10″ Build A Submittal → Product Details →

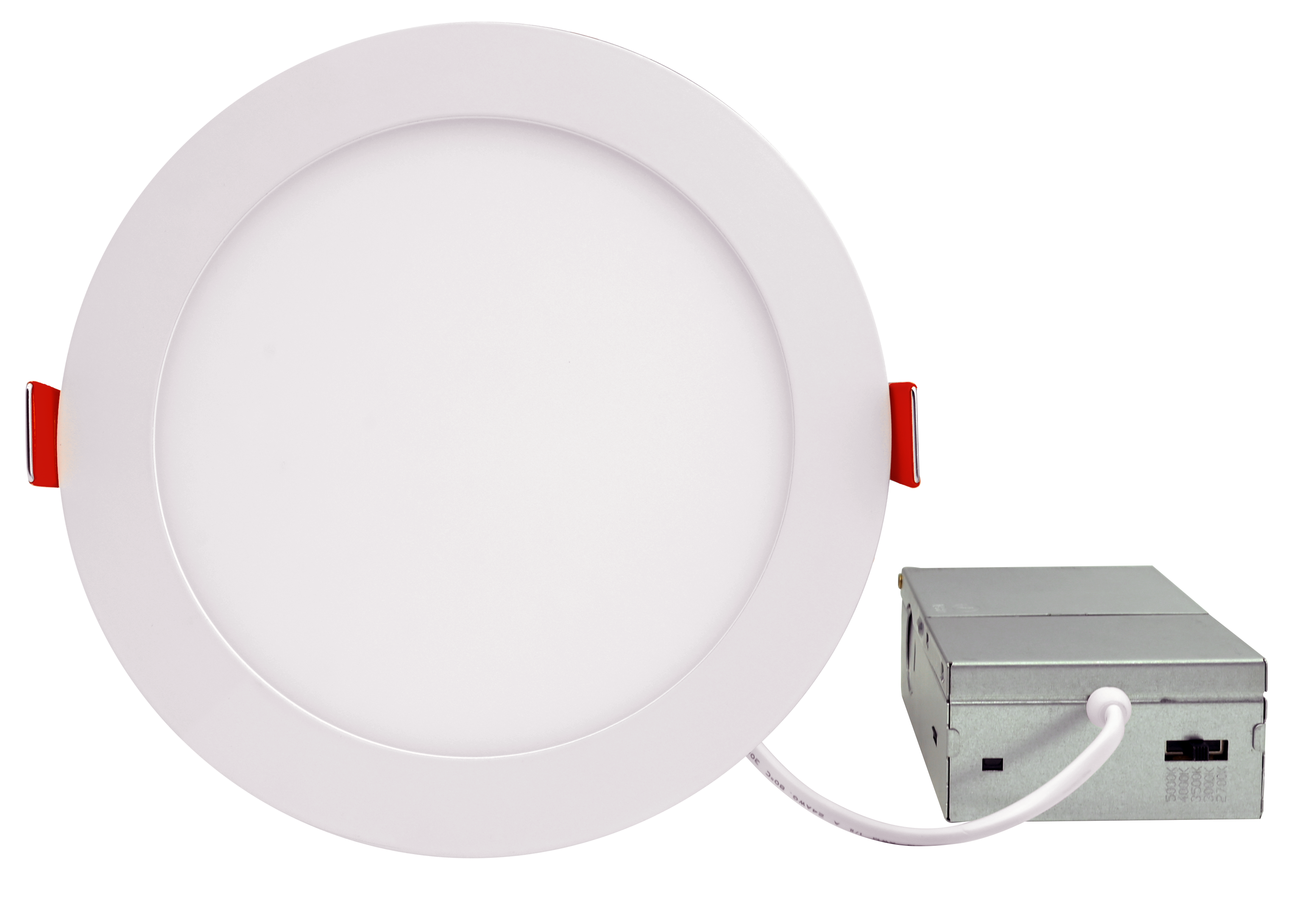

LDRS · PRO Radius An ultra-slim, wet-location downlight on a remote J-box, with no can needed. 4″ / 6″ / 8″ Build A Submittal → Product Details →
