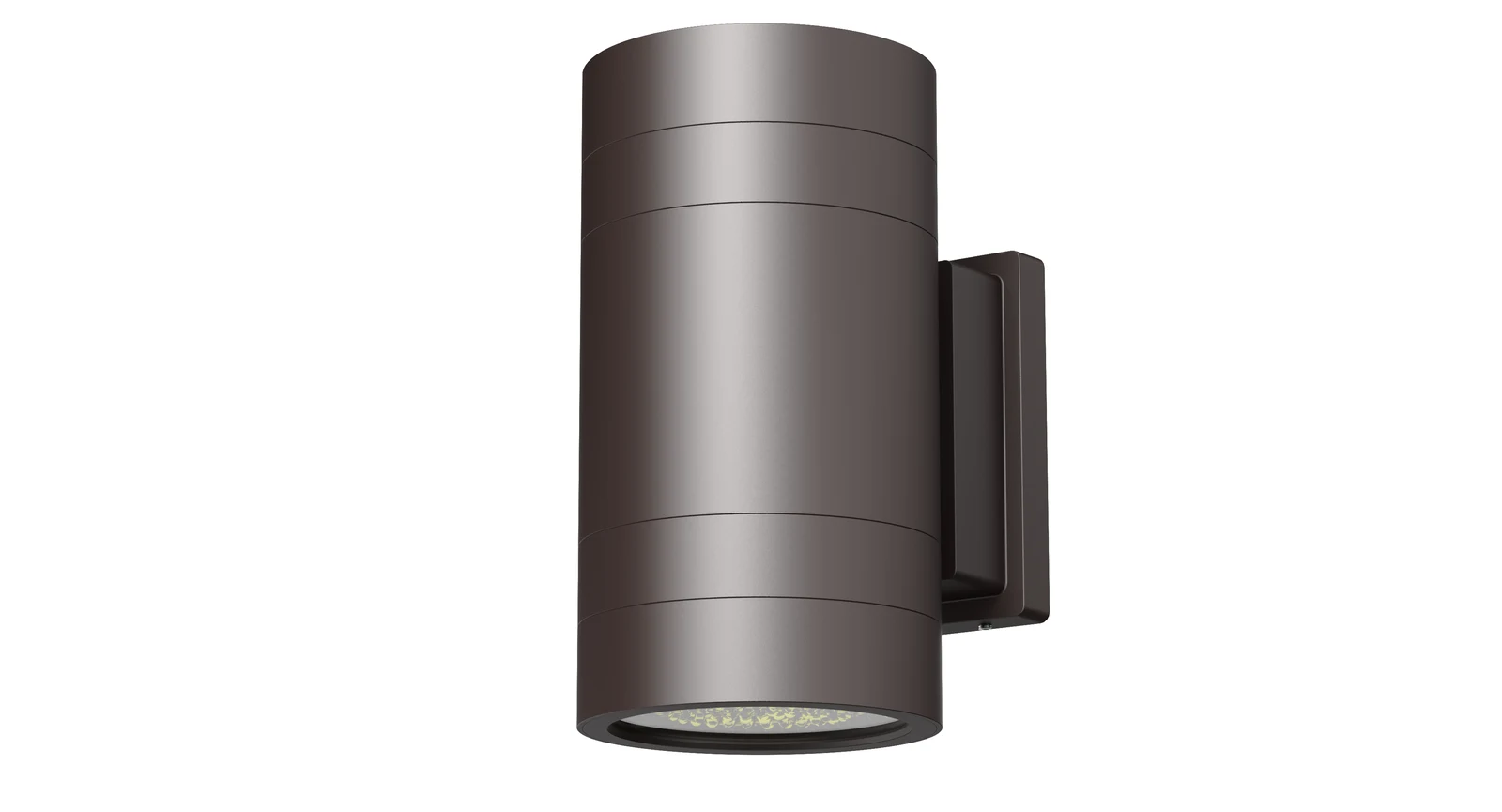

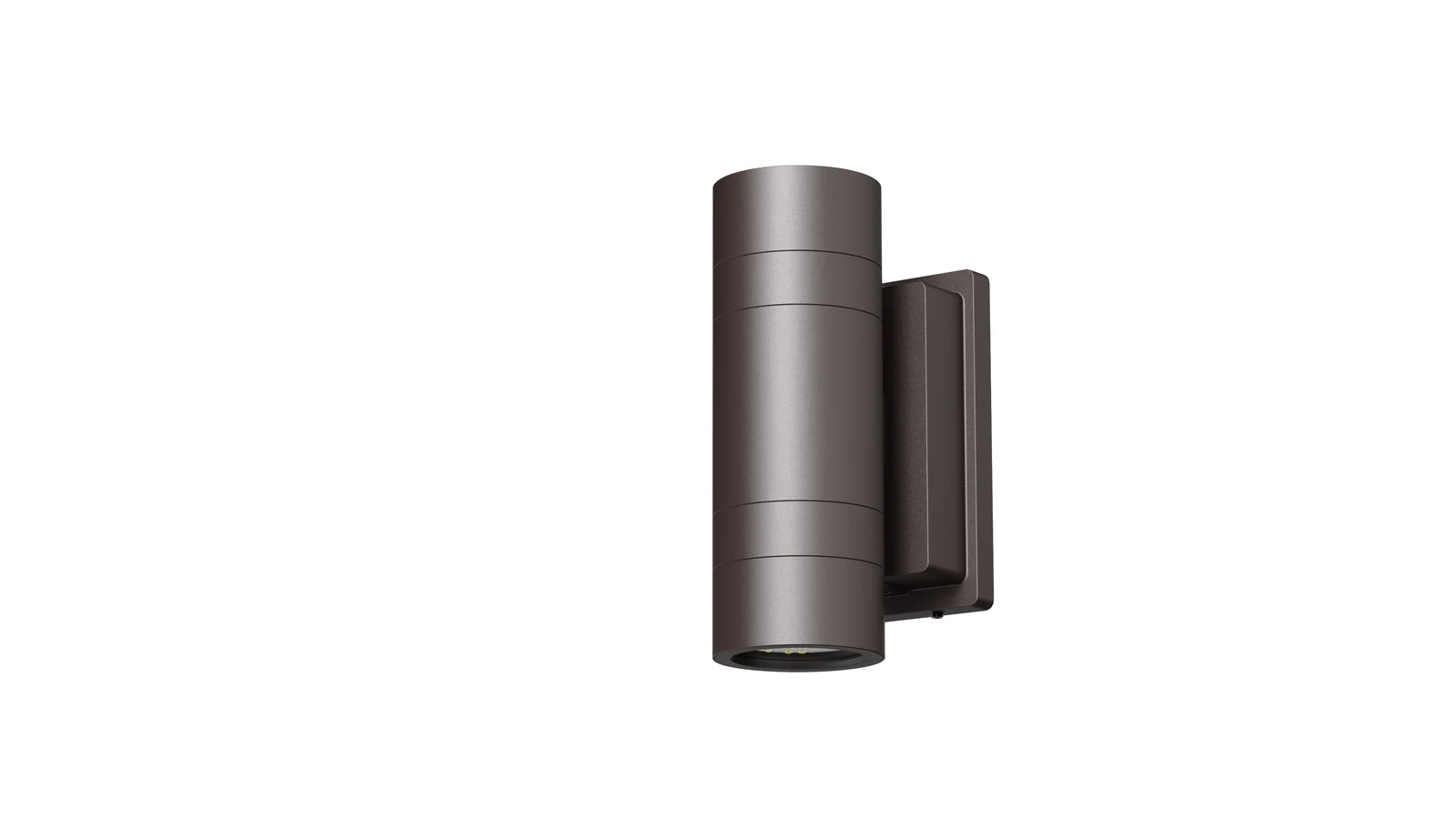

Aura Series PRO
16 configs from 4 cylinders.

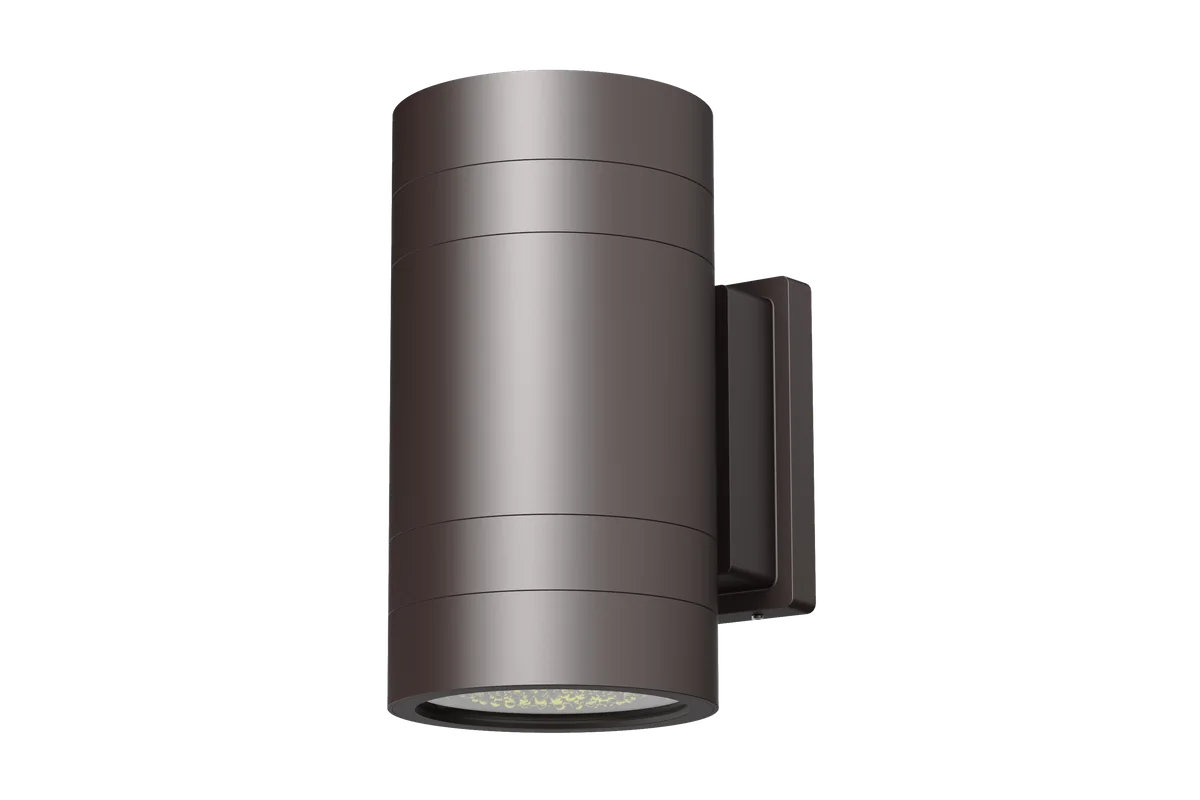

Specification-Grade LED Cylinder Wall Sconce on the luxoⒶRCH outdoor line — architectural accent + perimeter lighting for hospitality, Class-A office facades, retail entries, hospital exteriors, and high-rise corridors. Four cylinders cover 3" / 4" / 6"-D / 6"-R · 4-WATTSELECT × 3-CCTSELECT per housing — 16 specifiable configs from one orderable line. Up to 5,850 lm at 138 lm/W (LCWS45 peak). DualCast™ UP / FULL / DOWN distribution + beamⒶDJUST™ 50° / 60° / 70° field-set on 3 of 4 SKUs. wetⒶGUARD cast aluminum · 7-yr / 75,000-hr warranty — beats DLC Premium's 5/50 minimum by 2 yr + 25k hr.
Model Specifications
Download Data Sheet| WATTSELECT | Lumens | Efficacy | HID Equiv. | CCTSELECT |
|---|
Dimensions
(4 cylinder housings · sizing from datasheet p5)HIGHLIGHTS & FEATURES
Five reasons Aura wins the architectural cylinder spec.
Spec-grade architectural cylinder for hospitality, Class-A office, retail entries, hospital exteriors. Five design choices that win against Lithonia WMCL, RAB LED Cylinders, Westgate, and Alcon Pavo / Cilindro on the bid sheet.
contrⒶLS
Dim and dusk-to-dawn. Two switches, no firmware.
Aura keeps the controls posture simple — no mesh, no gateway, no commissioning app. 0-10V dimming wired into the driver as an optional add — pair with any 0-10V dimmer, DALI gateway, or scheduling system. Photocell-Ready with the clever cap mechanic — cap installed = photocell OFF, cap removed = photocell ON. Contractor sets dusk-to-dawn at install with one swap. Need networked mesh + occupancy on the same perimeter? Spec Atlanta PRO wall pack + Anaheim ECO alongside Aura cylinders.
0-10V analog dimming optional on every Aura SKU — the dimming driver upgrades the standard non-dim driver in the same housing. Wire violet/grey 0-10V leads from the isolated driver to a 0-10V dimmer, DALI gateway, or scheduling system — smooth dim from 100% to ~10%. Driver: PF >0.90 · THD <20% across the dim range. Heat-isolated from the LED module — no thermal foldback at low-dim states, no flicker on rebound. Pair with quickⒶDAPT for occupancy + photocell + scheduling on the same gateway as Atlanta and Sentinel.
Discover 0-10V dimming →PHOTOMETRICS
Beam shape, by the WATTSELECT setting.
Datasheet page 4 publishes at-default lumens + efficacy at 4000K (peak-efficacy CCT) for every housing × every WATTSELECT cell — 16 spec-grade data points. LM-79 IES polar plots staged when the IES bundle is published — per-W × per-CCT × per-distribution-mode (UP / FULL / DOWN) for the full photometric matrix.
In the Box
Four components, factory-installed.

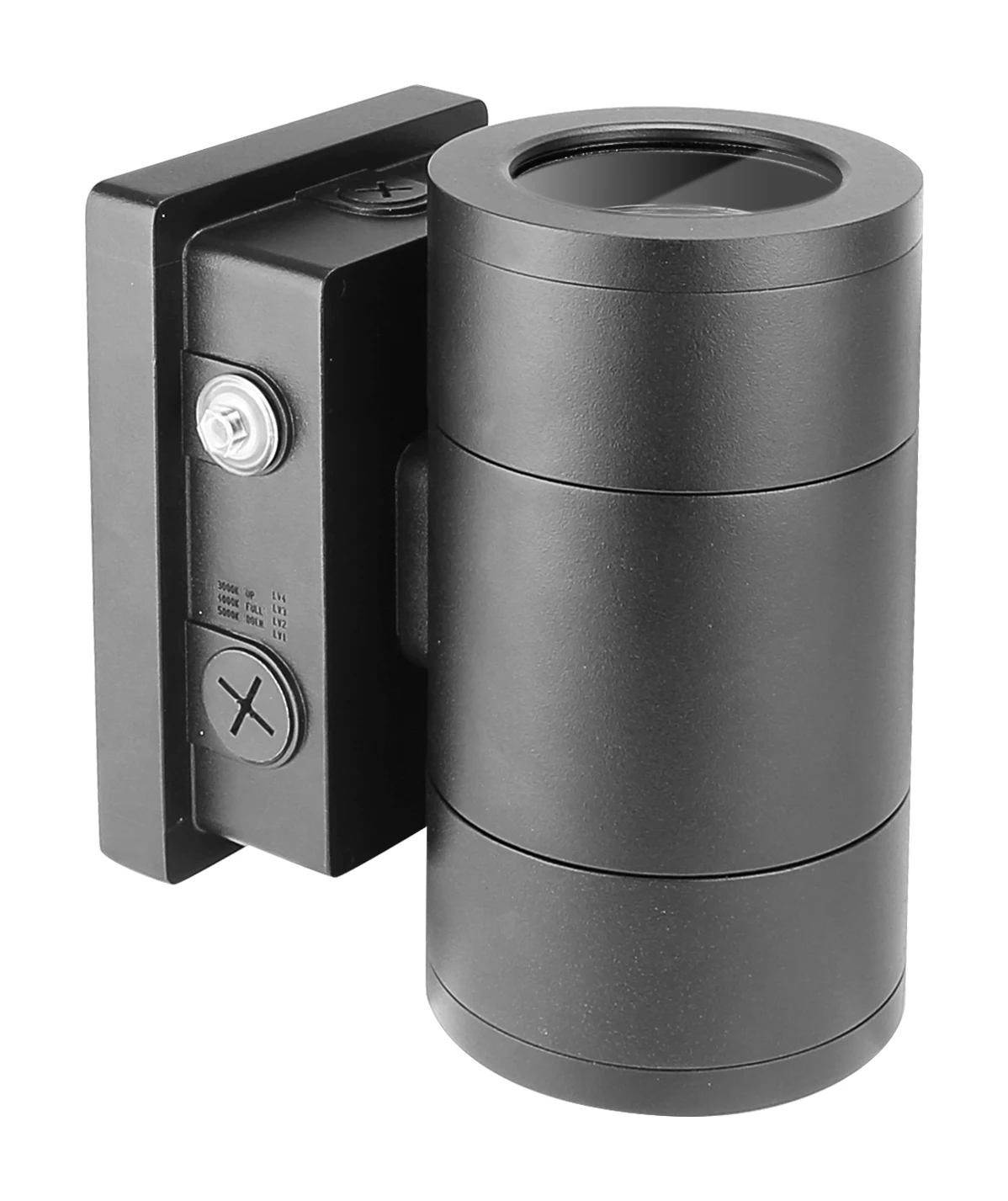

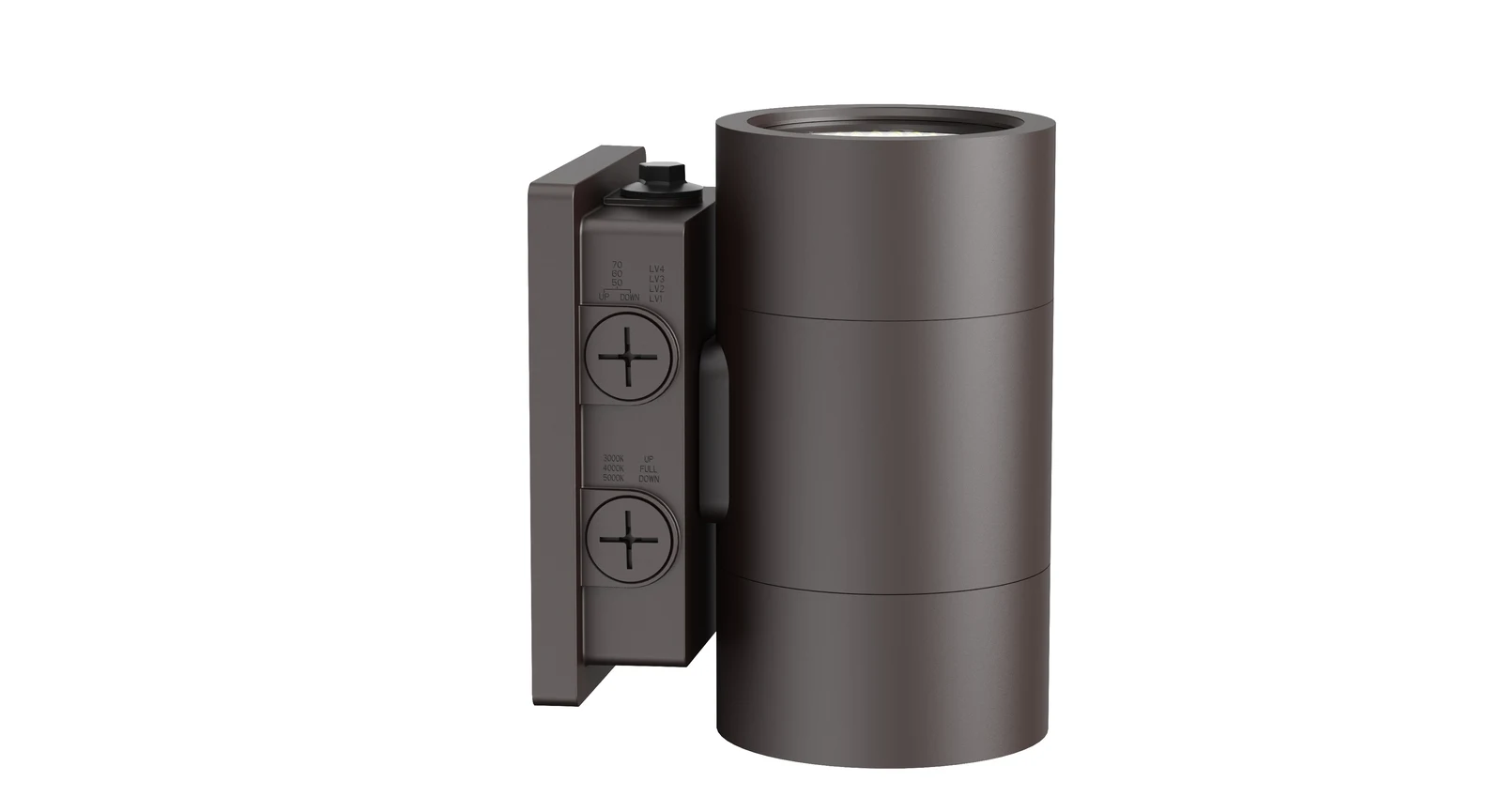

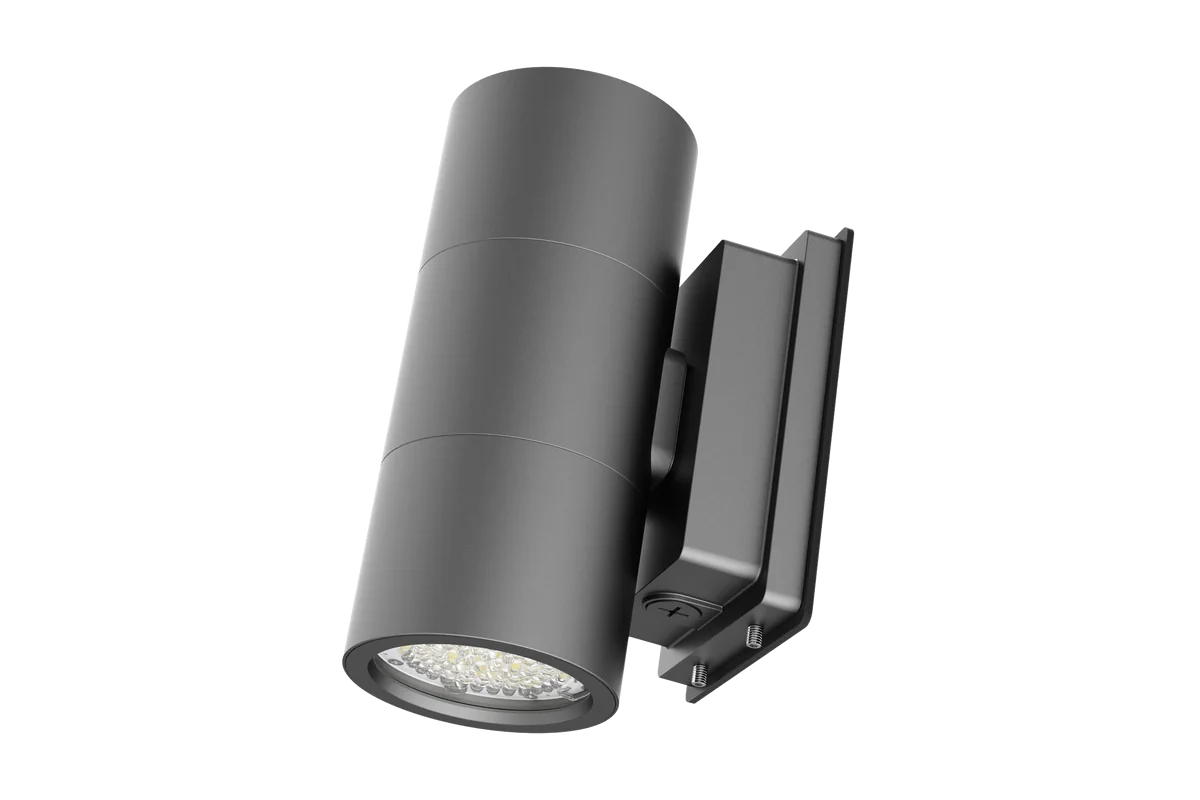

Every Aura ships with the prismatic translucent optic, the sealed cast-aluminum housing (wetⒶGUARD · −40°F to 122°F), a universal 120-277V driver with optional 0-10V dim upgrade, and the photocell-ready cap. All factory-installed — no upsell SKUs. Drop on the J-box, wire 120-277V, DIP-set wattage / CCT / distribution / beam, walk away.
Build Your Model

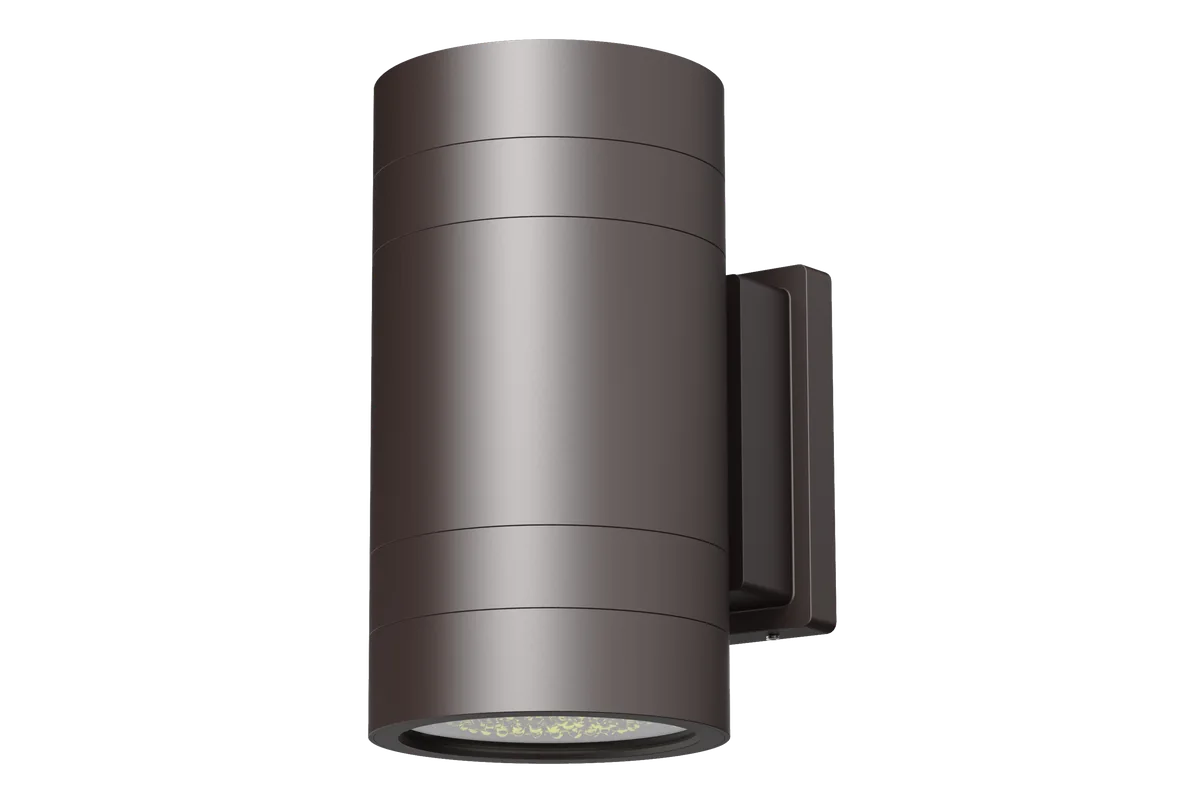

Configure Your Aura

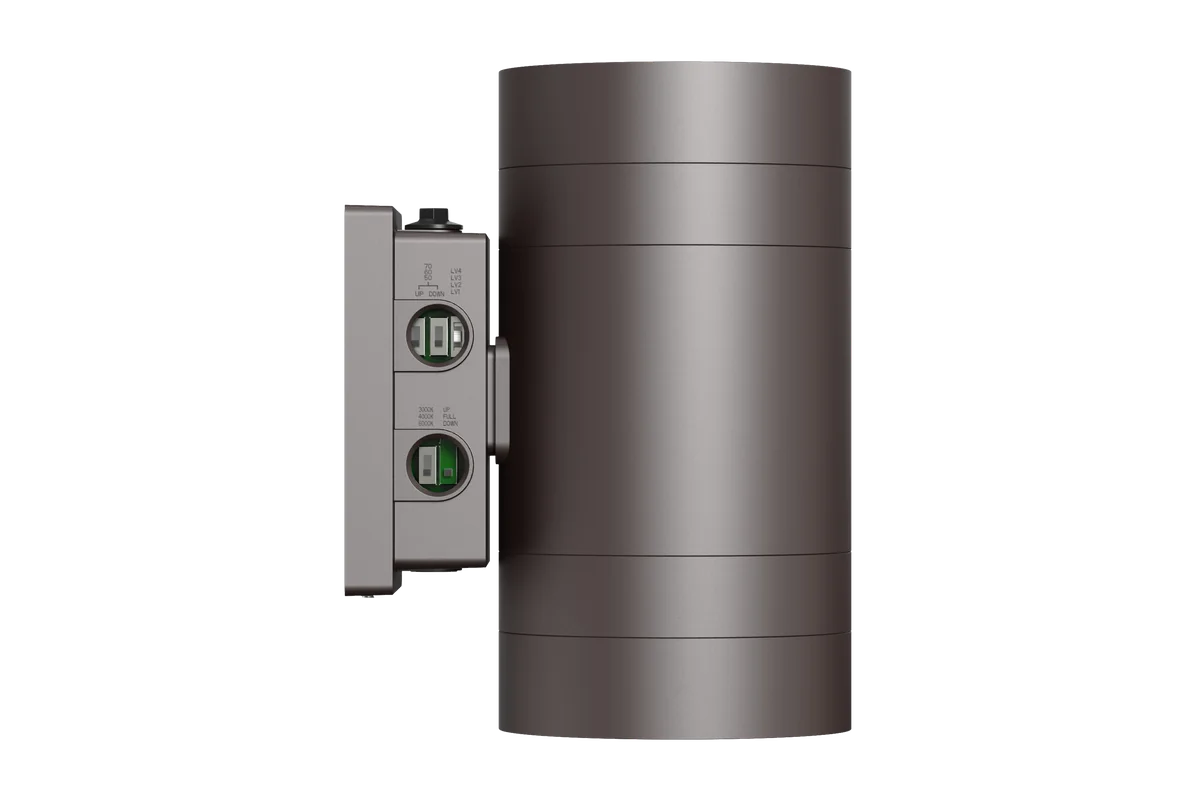

Selections build the SKU live. WATTSELECT + CCTSELECT + DualCast are DIP-set at install — they do not appear in the SKU. Required fields marked with *. See the legend for QS / MTO / DIP / LCK meanings.
Documentation & Resources
Datasheet and per-SKU submittal generator are LIVE; Installation Guide, IES bundle, Quick Sheet, and Sell Sheet ship as URLs drop. DLC SSL listing application status TBC — LCWS45 clears Premium 130 lm/W, LCWS24/30/36 clear Standard 100 lm/W. 7-year / 75,000-hour warranty beats the DLC Premium 5-yr / 50k-hr baseline by 2 years and 25,000 hours.
One cylinder. Four sizes.

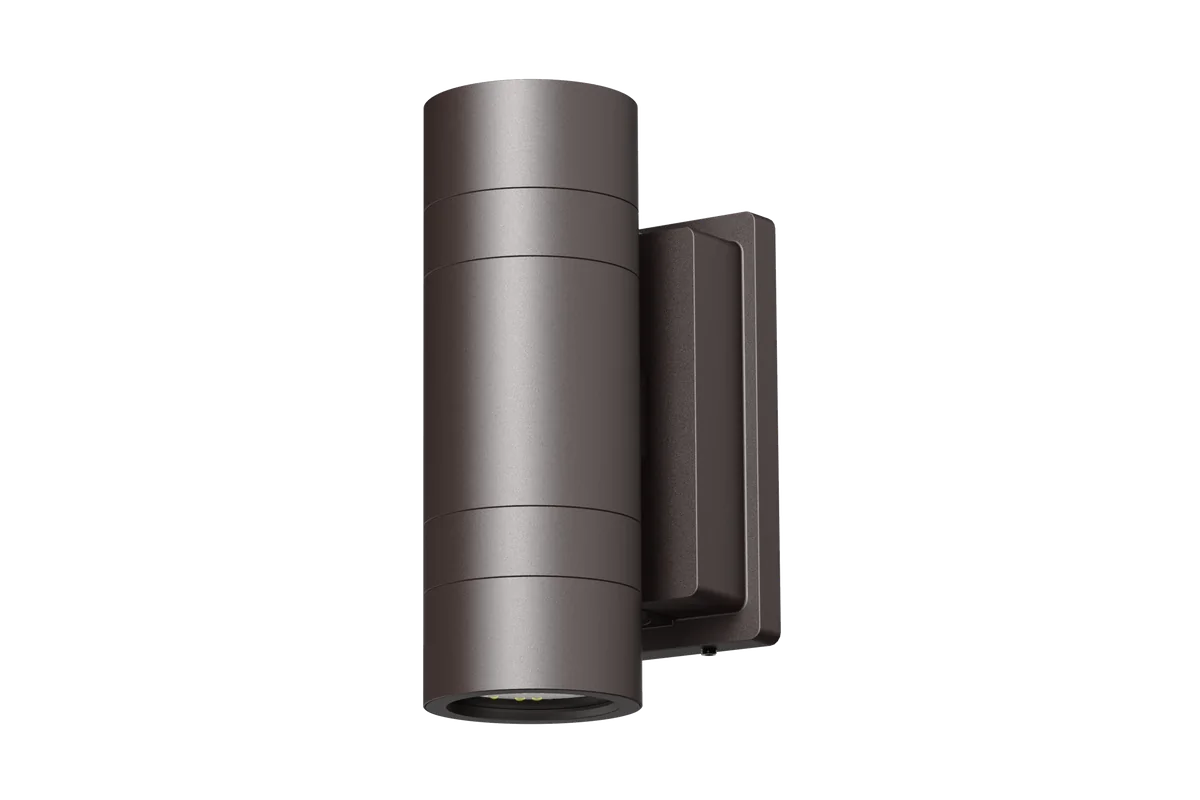

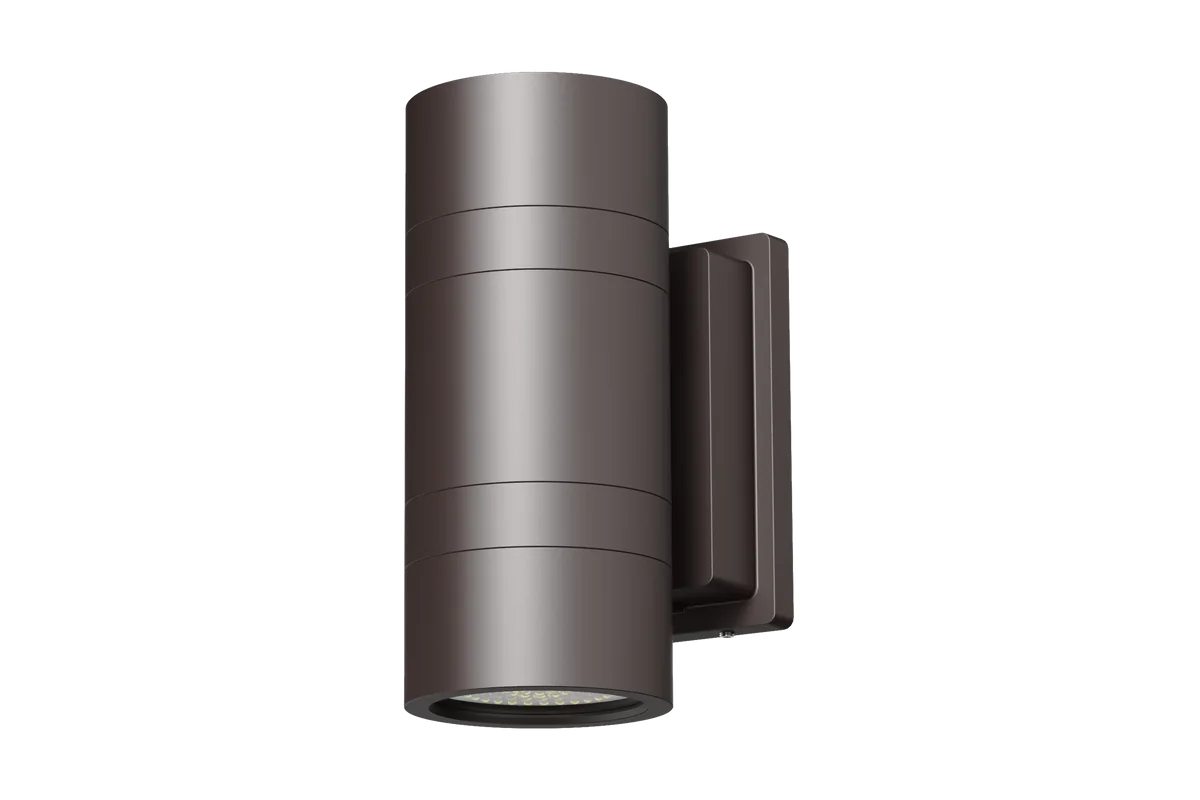

The luxoⒶRCH outdoor catalog ships four Aura cylinders on one J-box footprint — same wetⒶGUARD sealing, same prismatic optic geometry, same DualCast field-set, same factory. Pick by application + lumen target: 3" for narrow columns and small entries, 4" for hospitality + retail, 6" for facade washes, 6"-R for big-box perimeters and DLC Premium projects. LCWS45 is the only Aura housing that clears DLC Premium 130 lm/W — the rest of the line clears DLC Standard 100 lm/W (CFG-RBT-1 honest framing). Click any card to load that configuration into Section 9.
From the cylinder to the rest of the building.

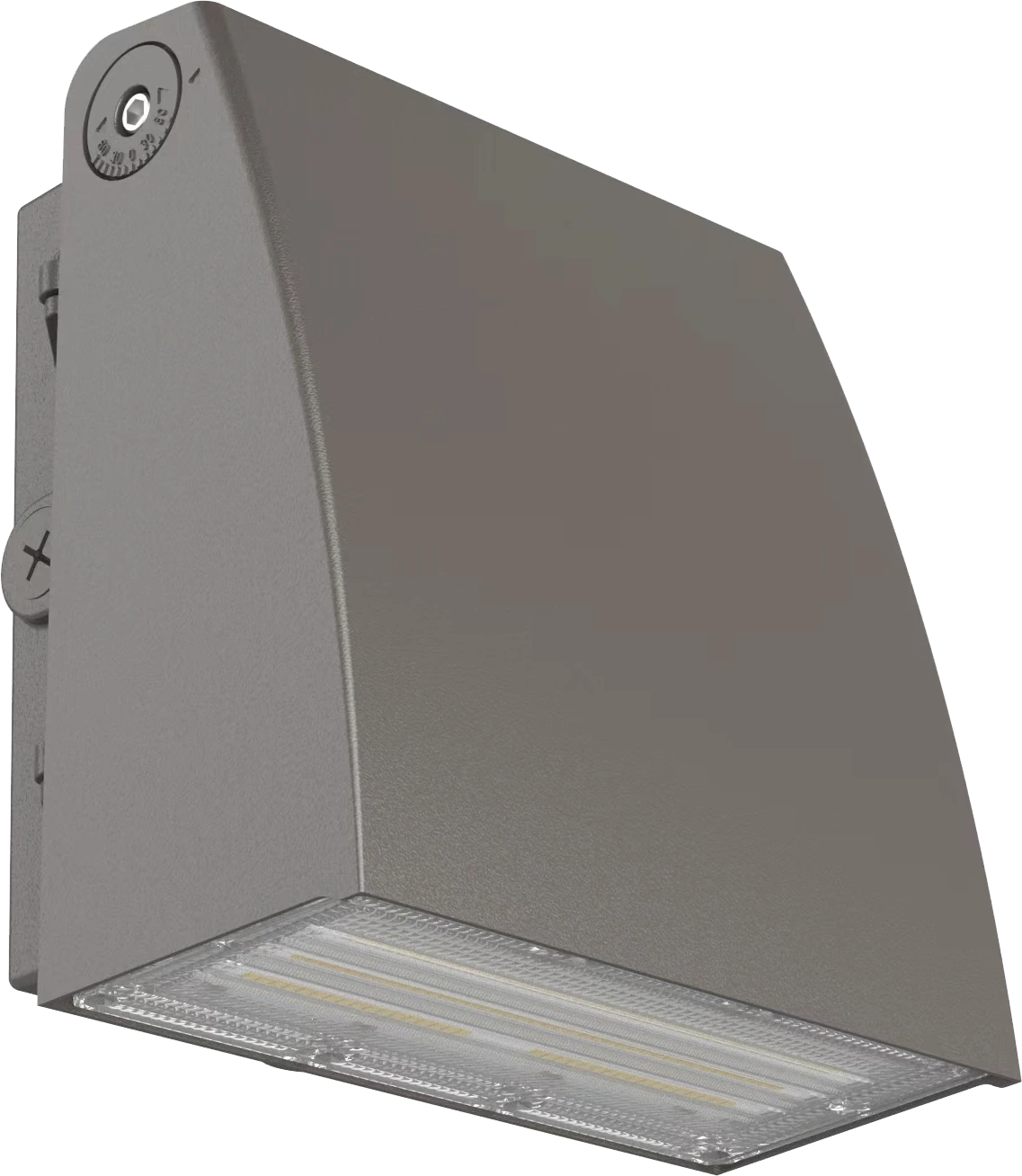

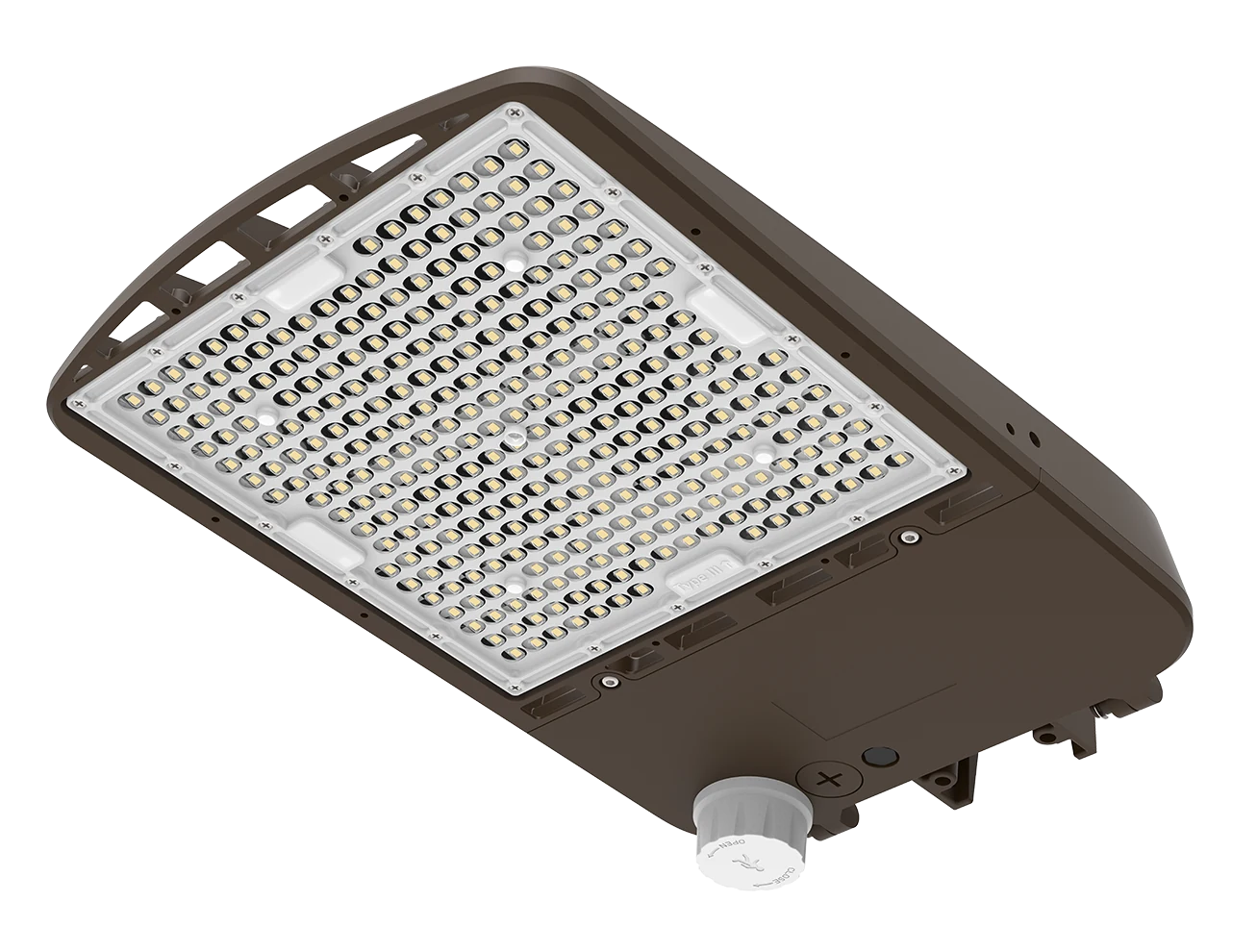

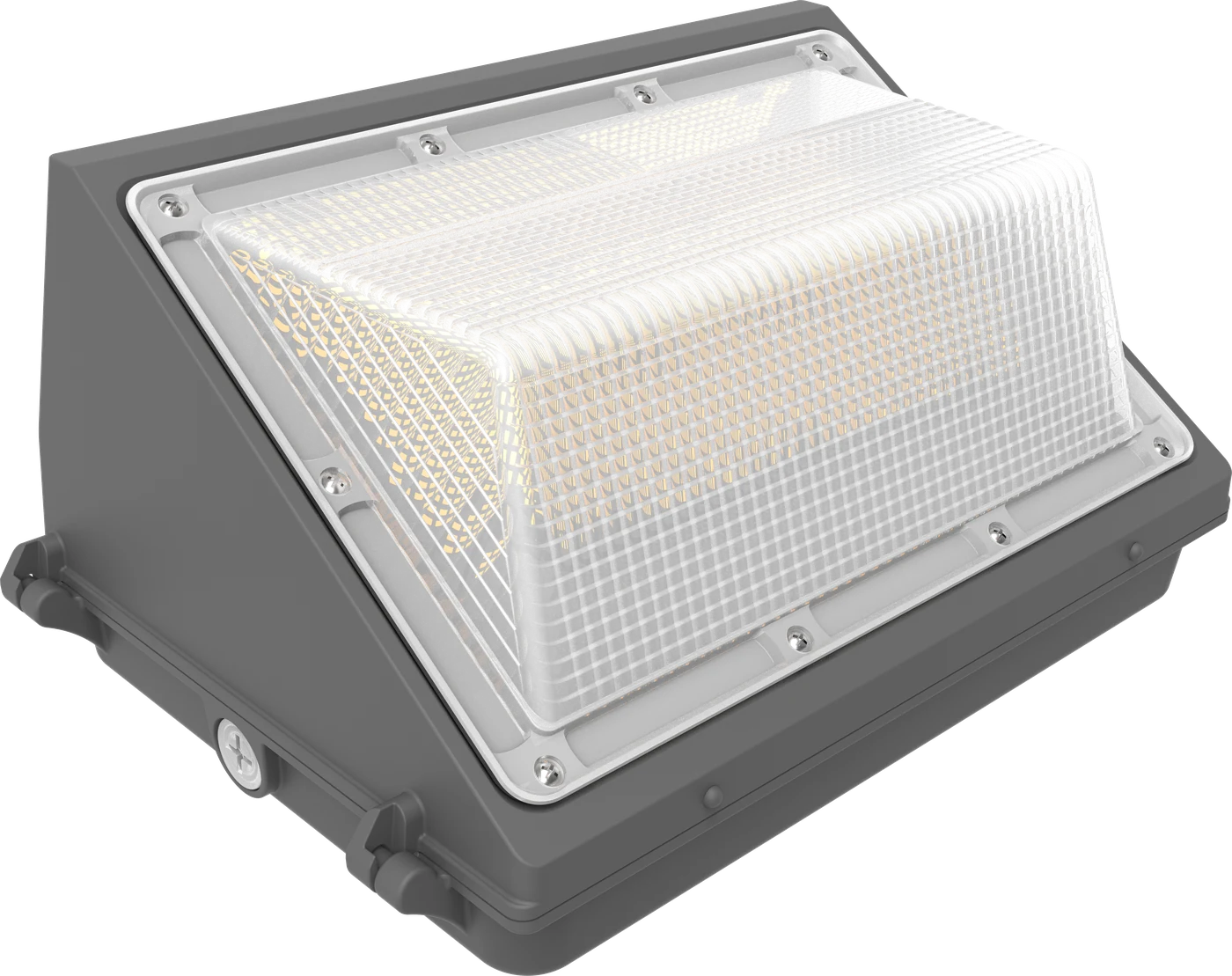

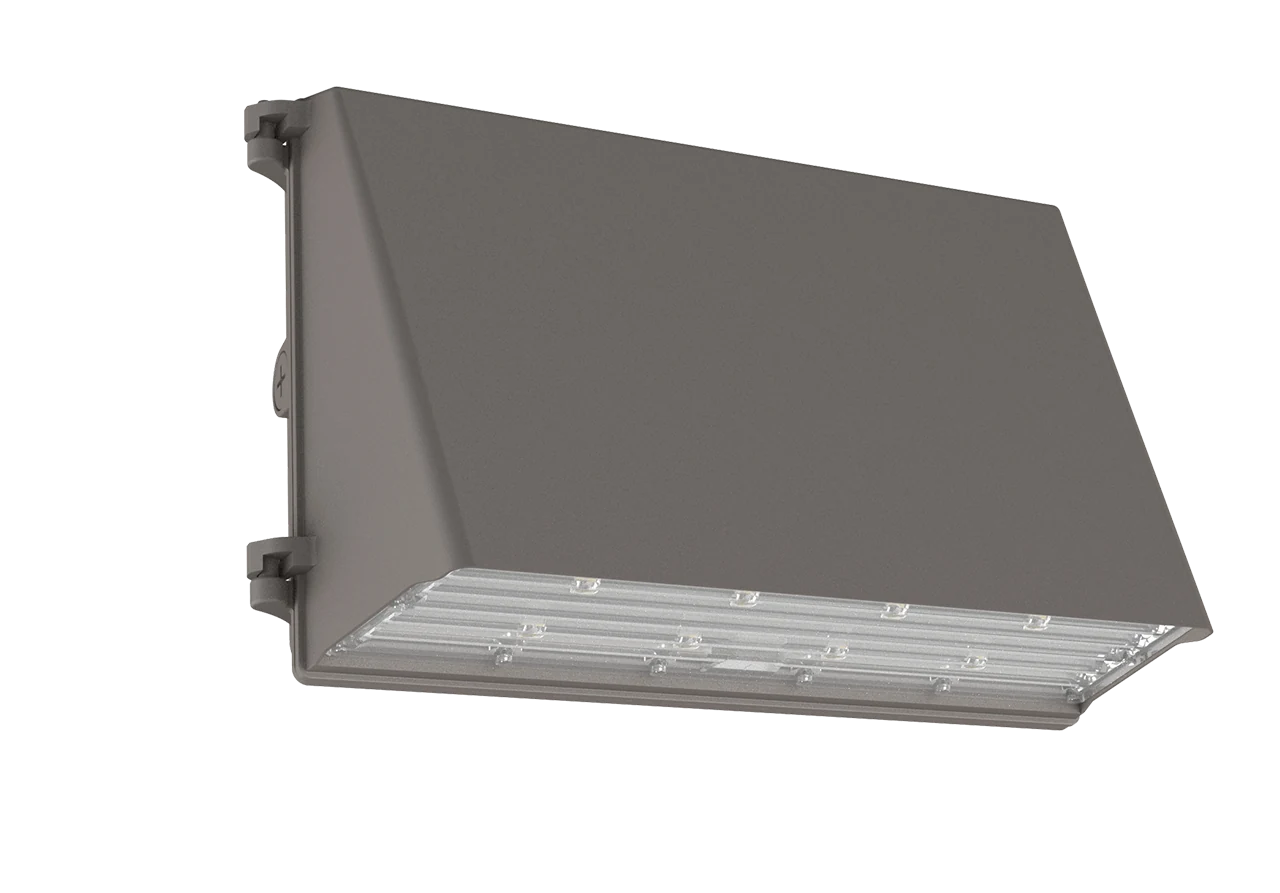

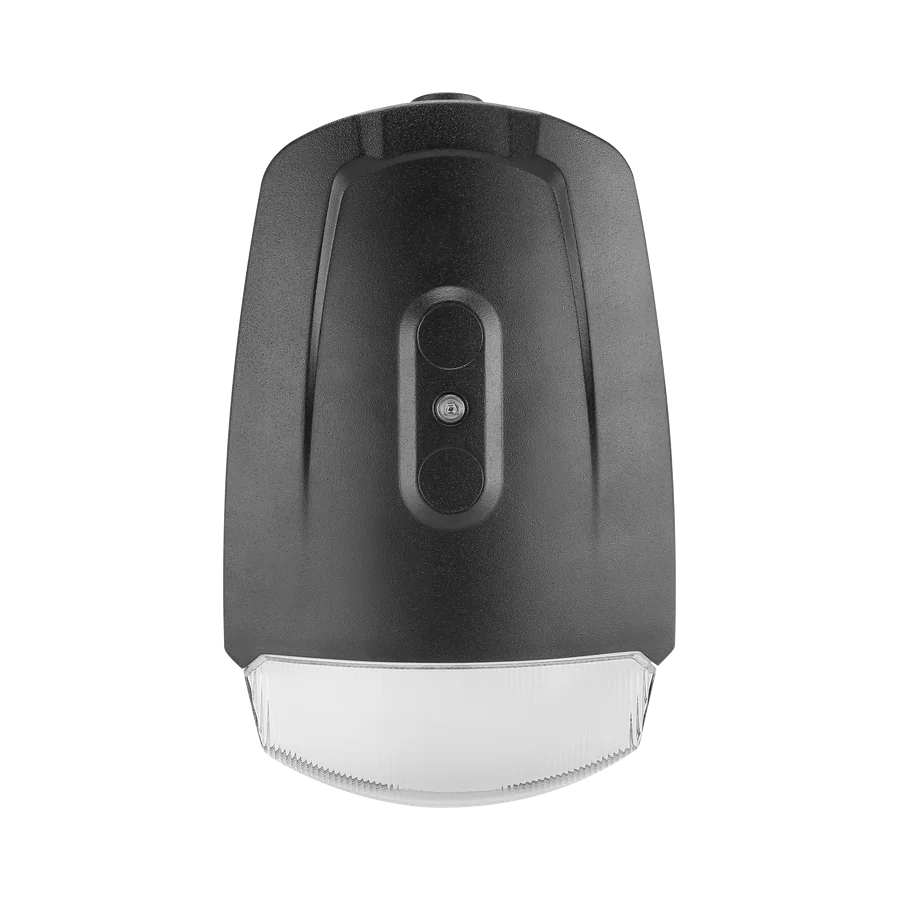

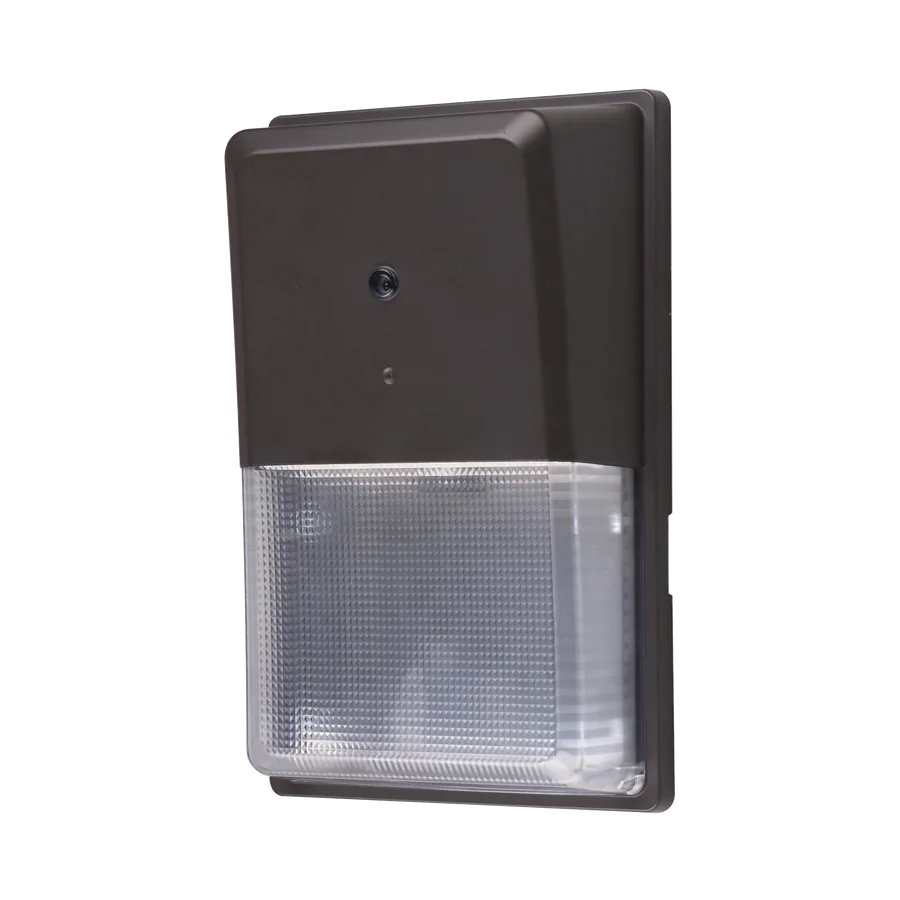

Aura cylinders light the entry, the facade, the perimeter columns. These four cross-line fixtures cover the rest of the project — perimeter wall packs, parking-lot shoeboxes, fçade-wash floods, pedestrian bollards. Same engineering language, same warranty path, same factory.
Direct line to your regional rep.
Five US warehouses ship in 2–3 days. Layouts back in 48 hours. Quotes, samples, rebate matches: same-day reply. Architectural cylinder applications (hospitality entries, retail perimeters, hospital exteriors) hand off to specification engineering — you get a person, not a portal.
7-year warranty. Premium efficacy on the flagship.
7 years / 75,000 hours beats DLC Premium’s 5/50 baseline by 2 yr + 25k hr — Lithonia WMCL, RAB, Hubbell SPI all ship 5-year at this tier. LCWS45 at 138 lm/W clears DLC Premium 130 with 8 lm/W headroom; LCWS24/30/36 clear DLC Standard 100 lm/W. CRI 80 clears Premium 70. Color-shift < 180K beats DLC’s 200K. DLC SSL listing application pending across the line — no QPL ID claimed yet.
