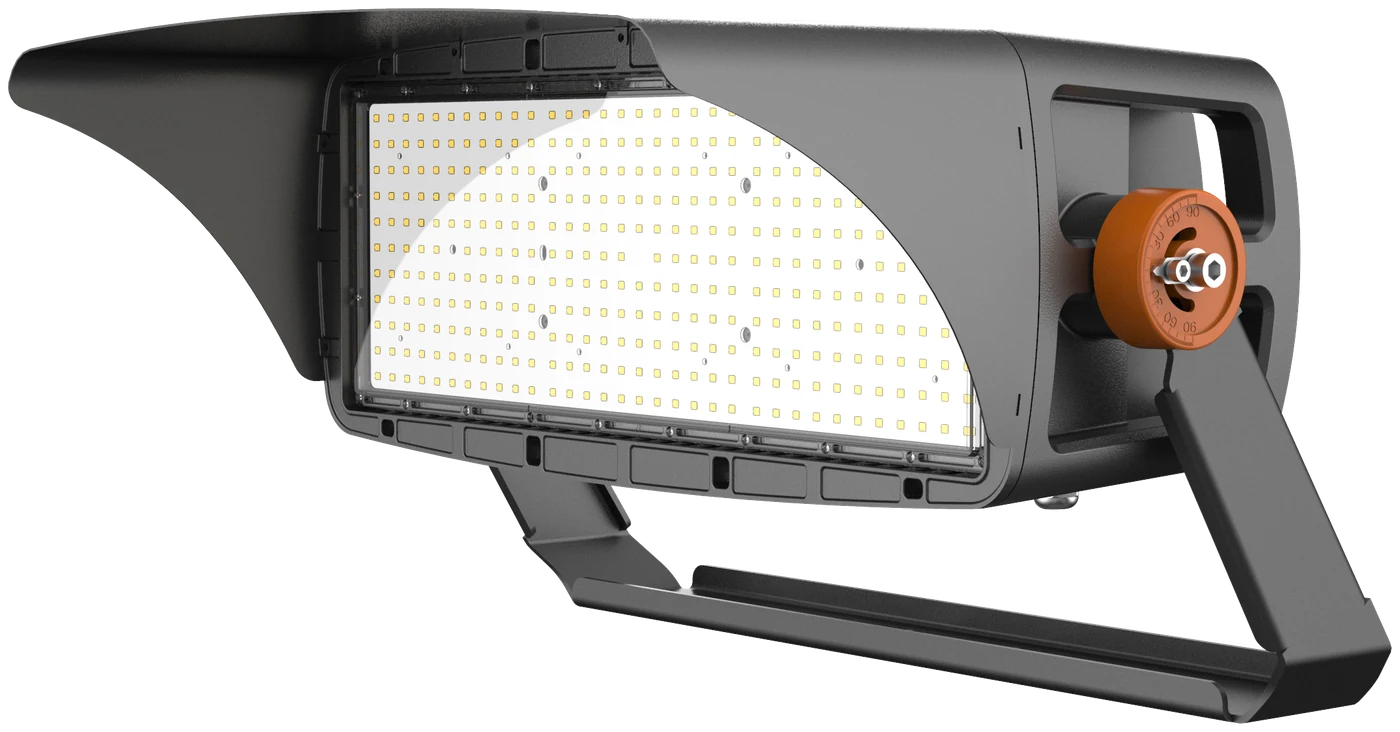

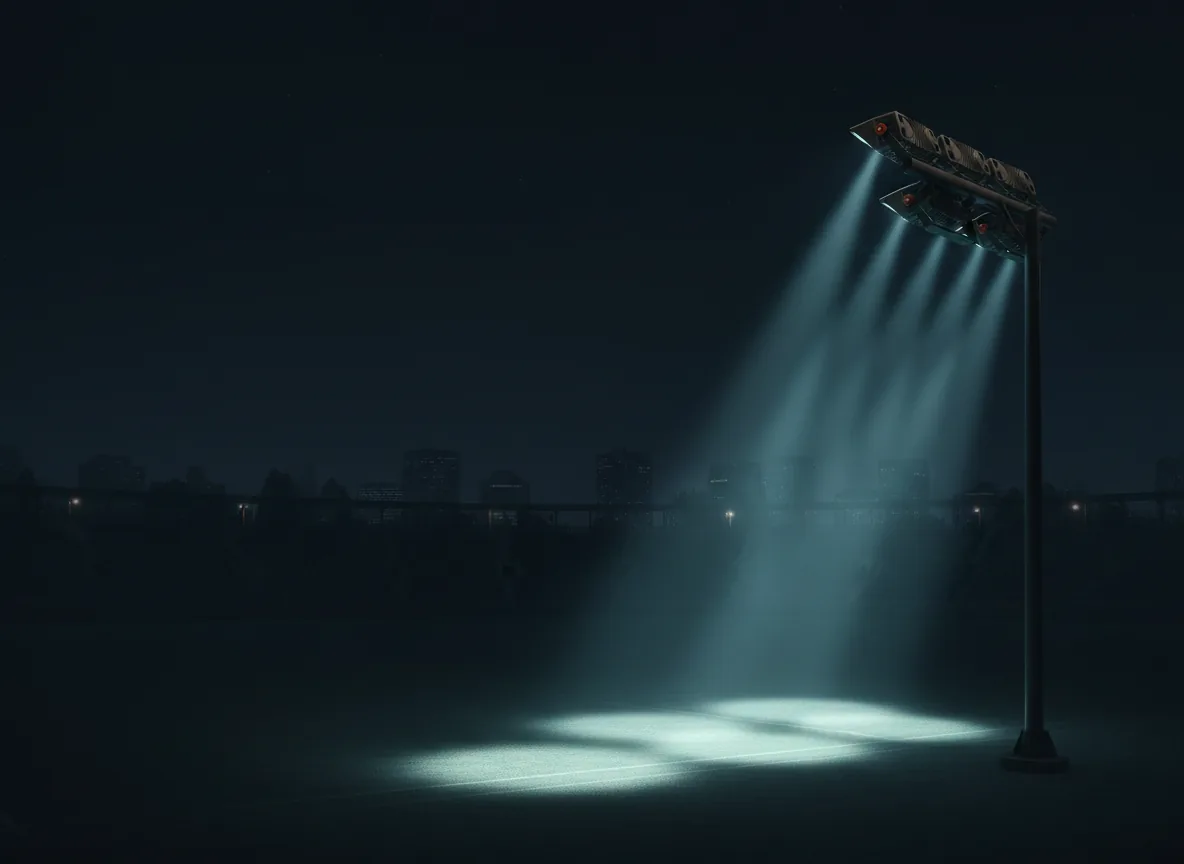

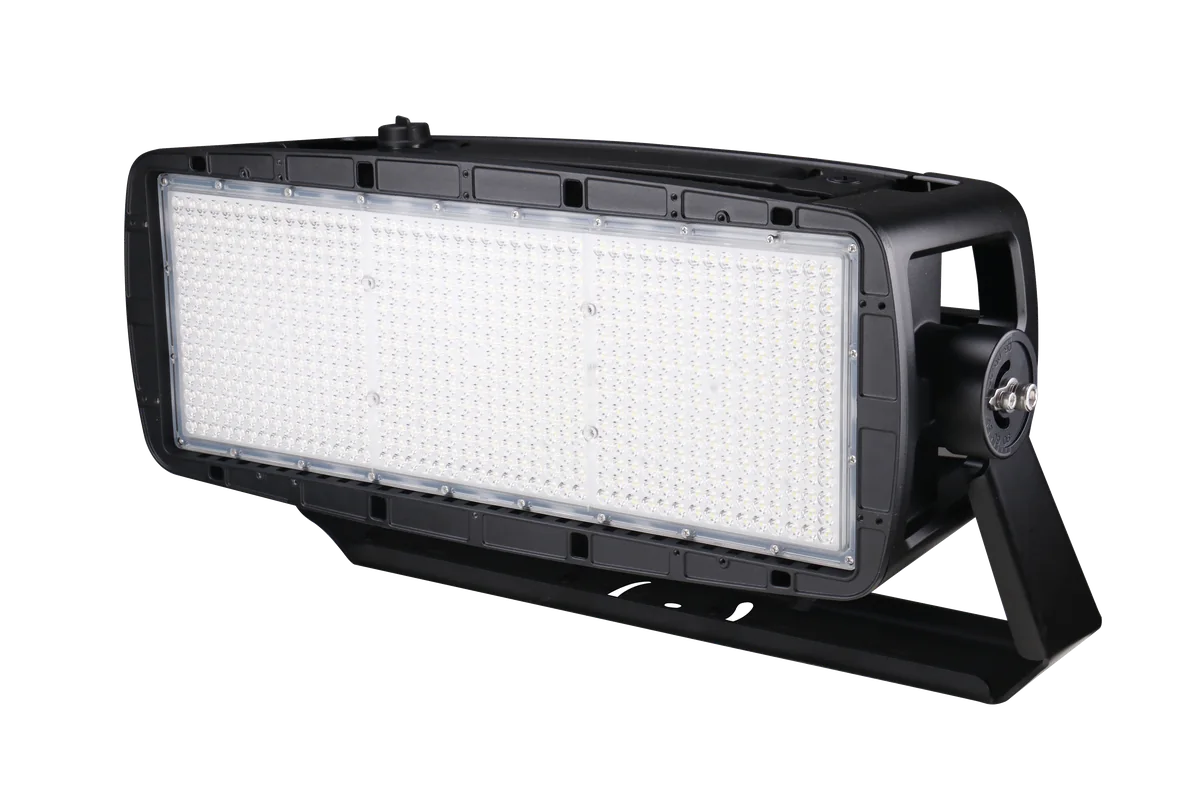

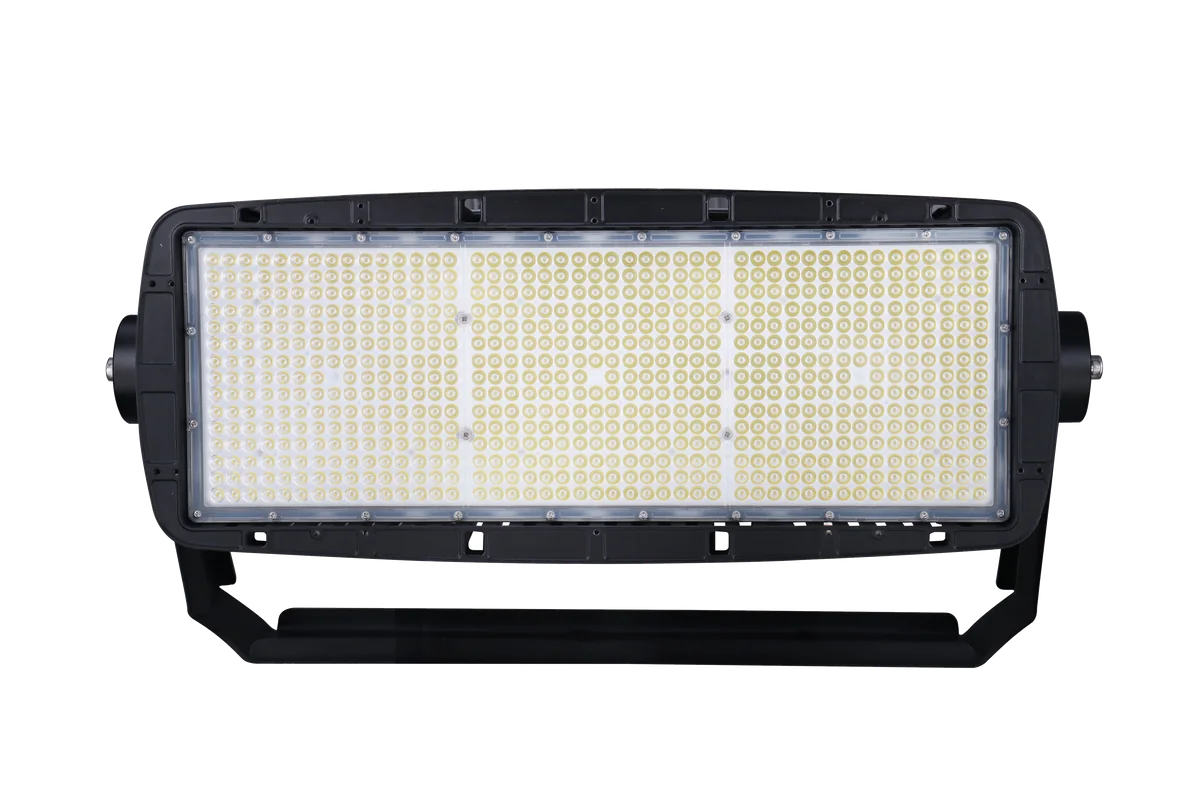

Illuminator LED Sports Light
Light the field. Aim it from the ground.

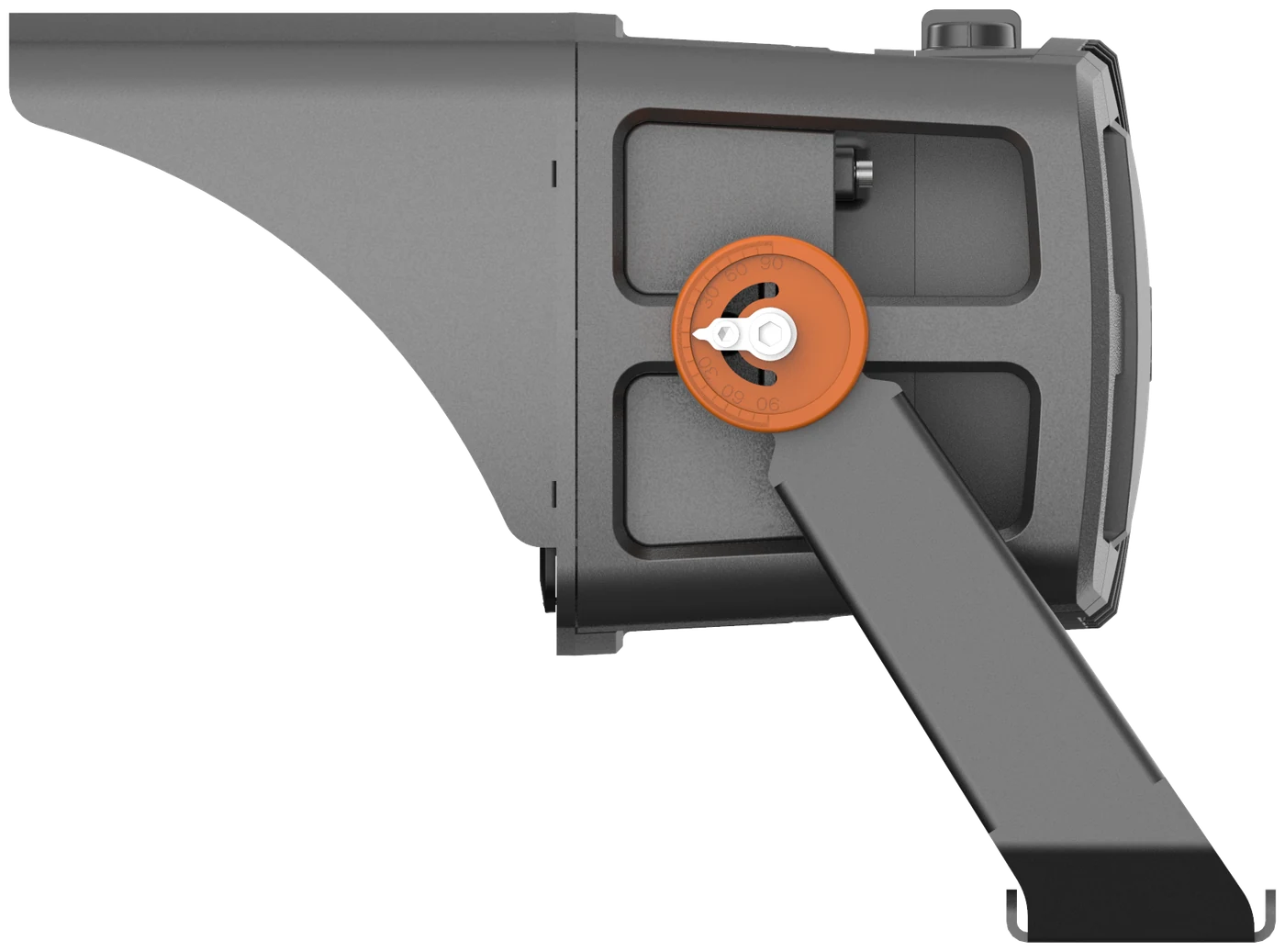

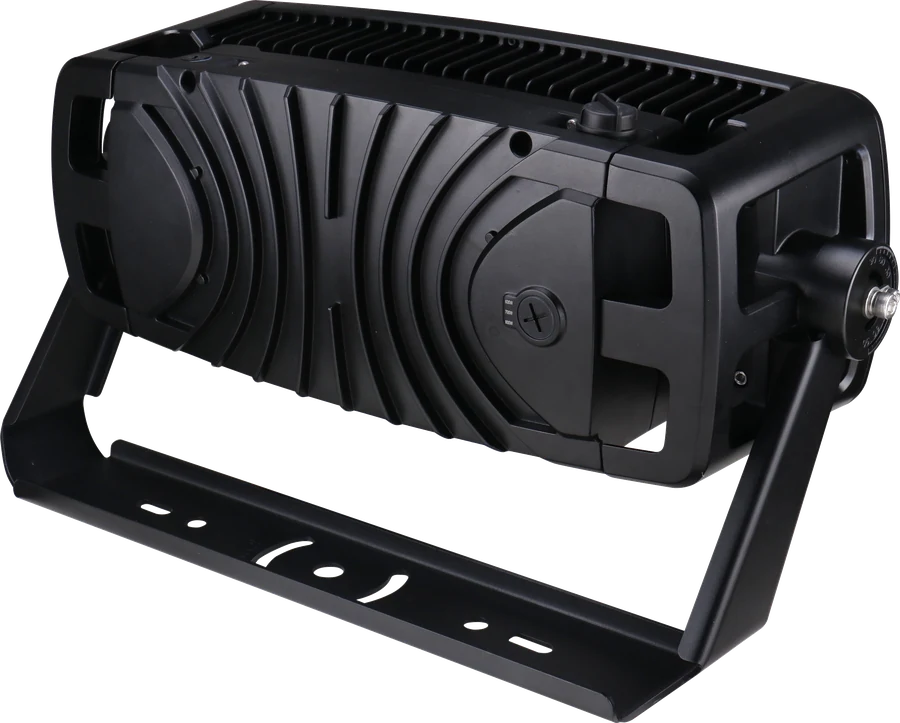

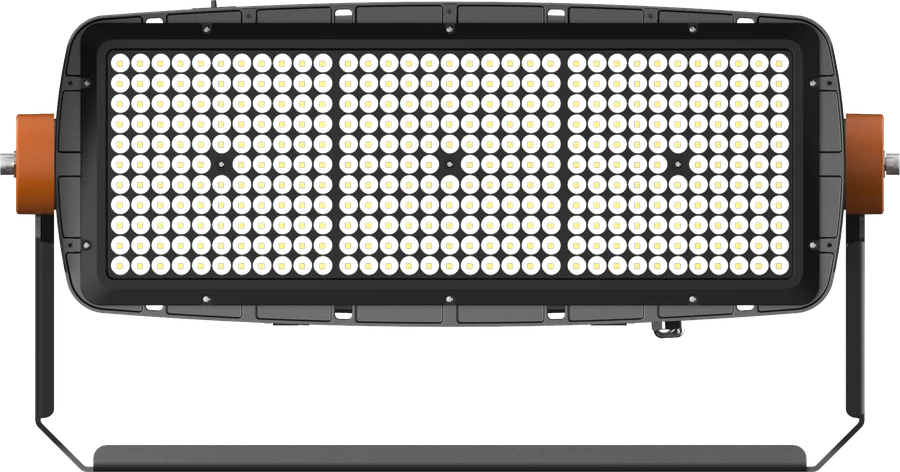

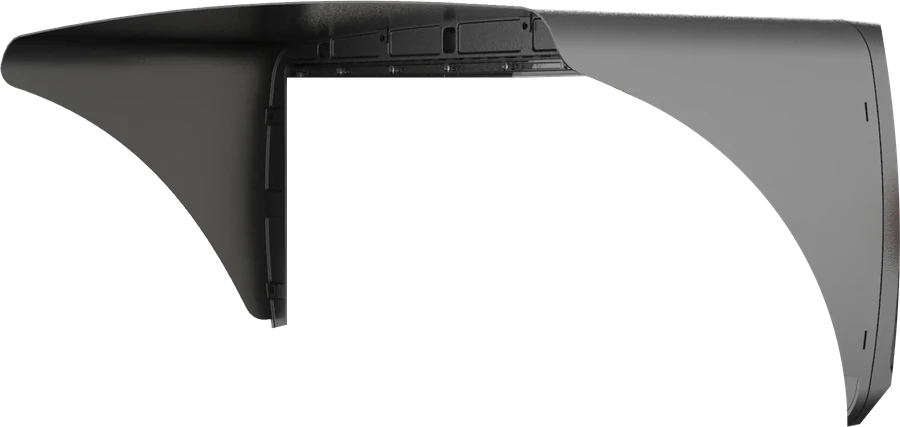

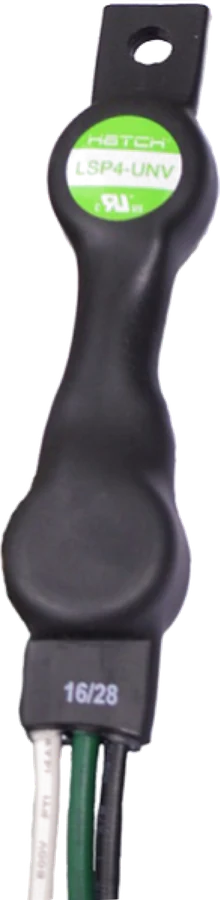

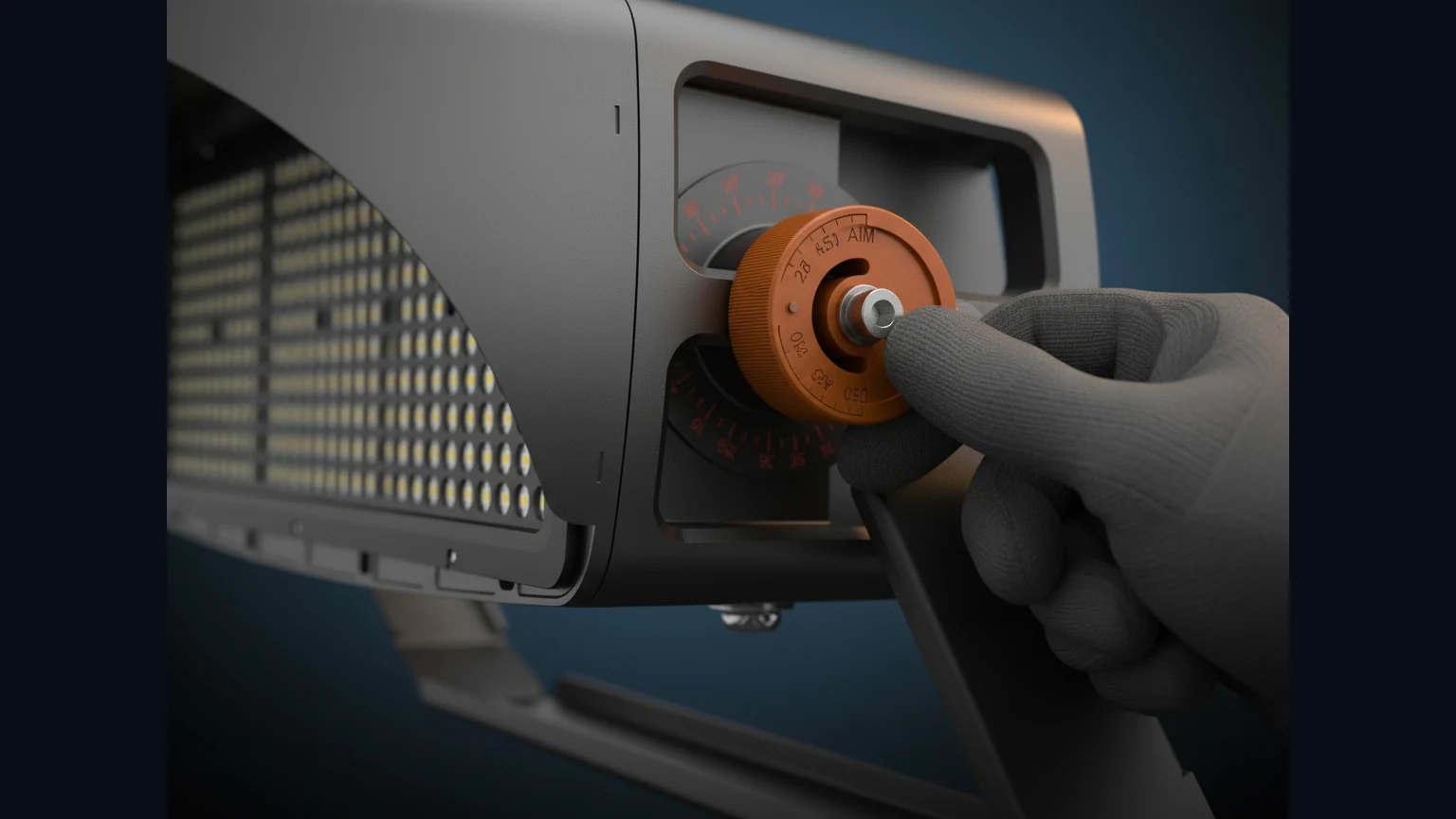

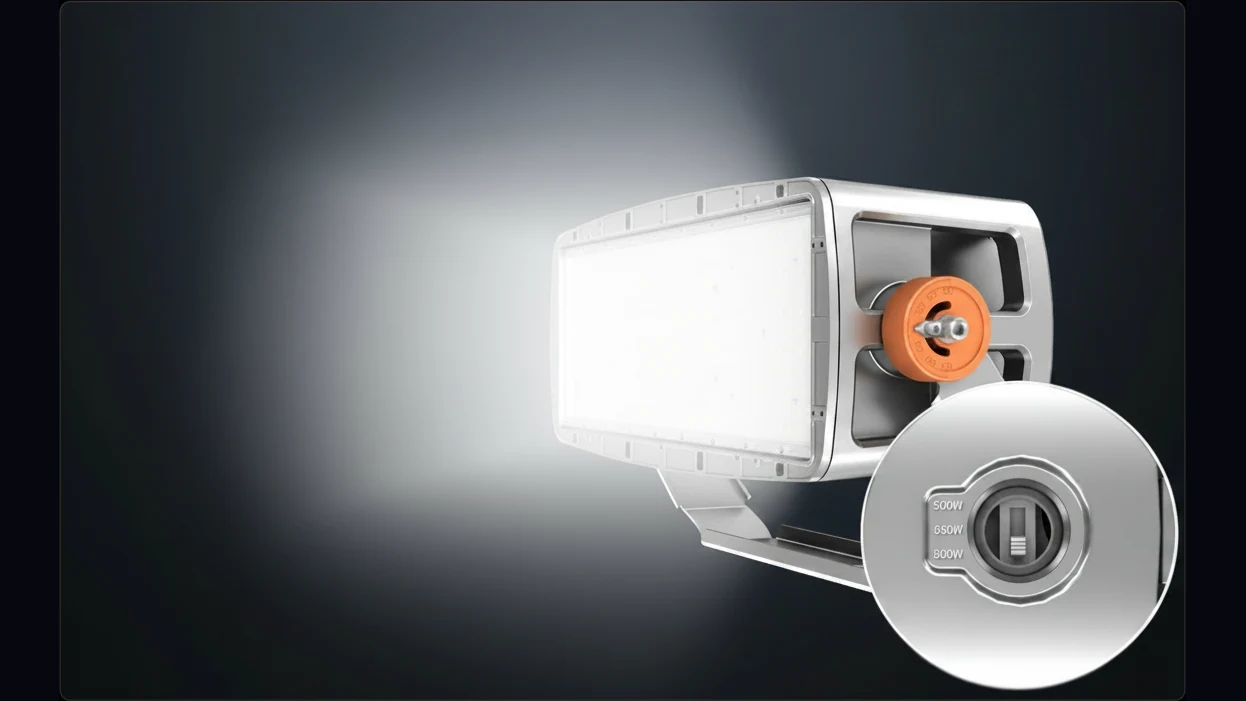

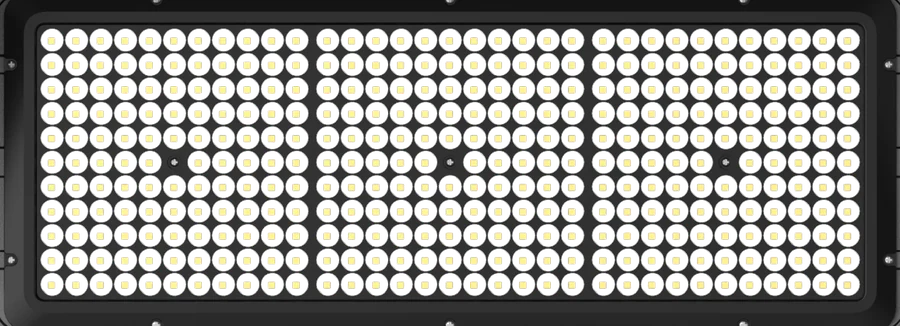

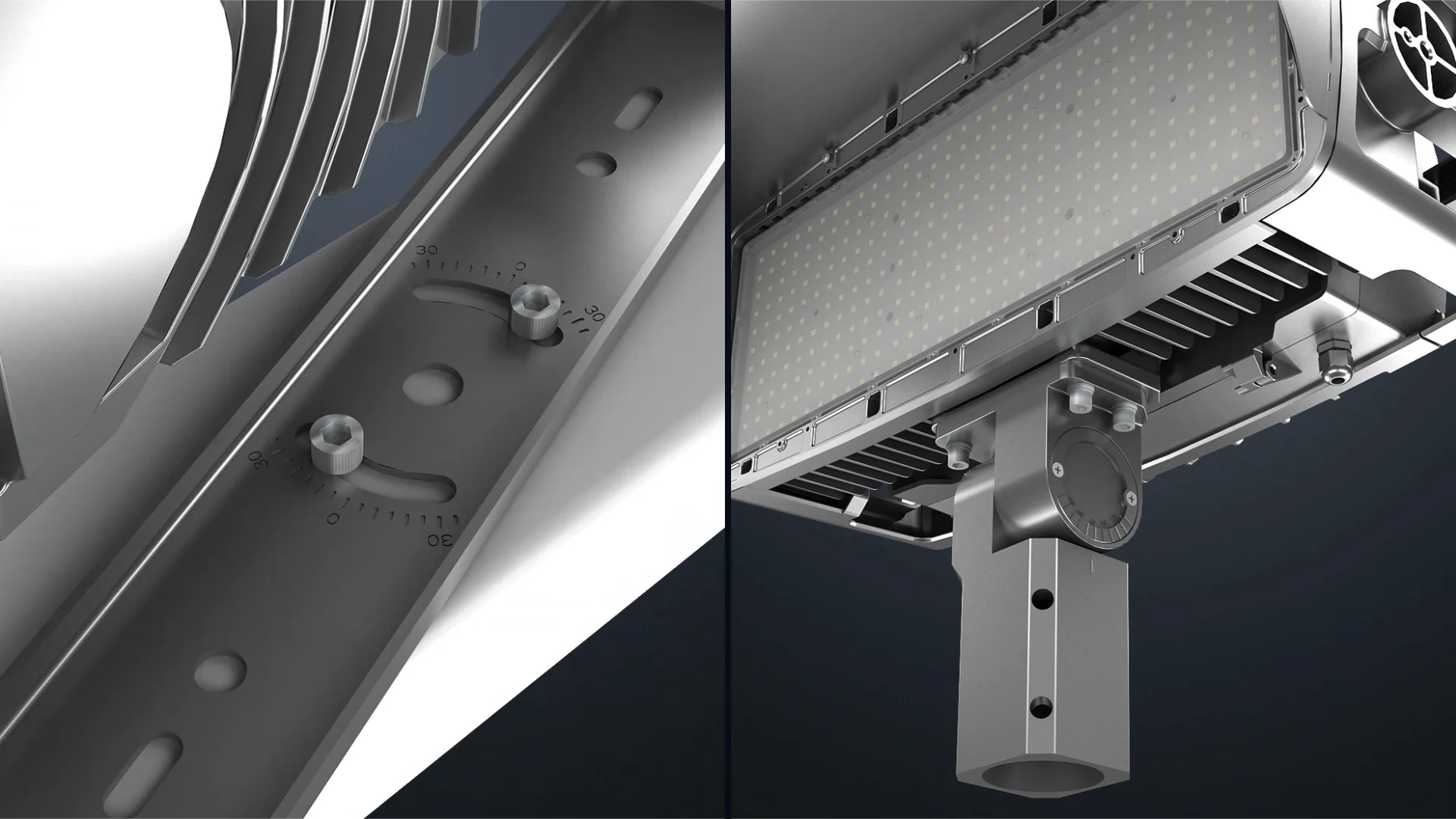

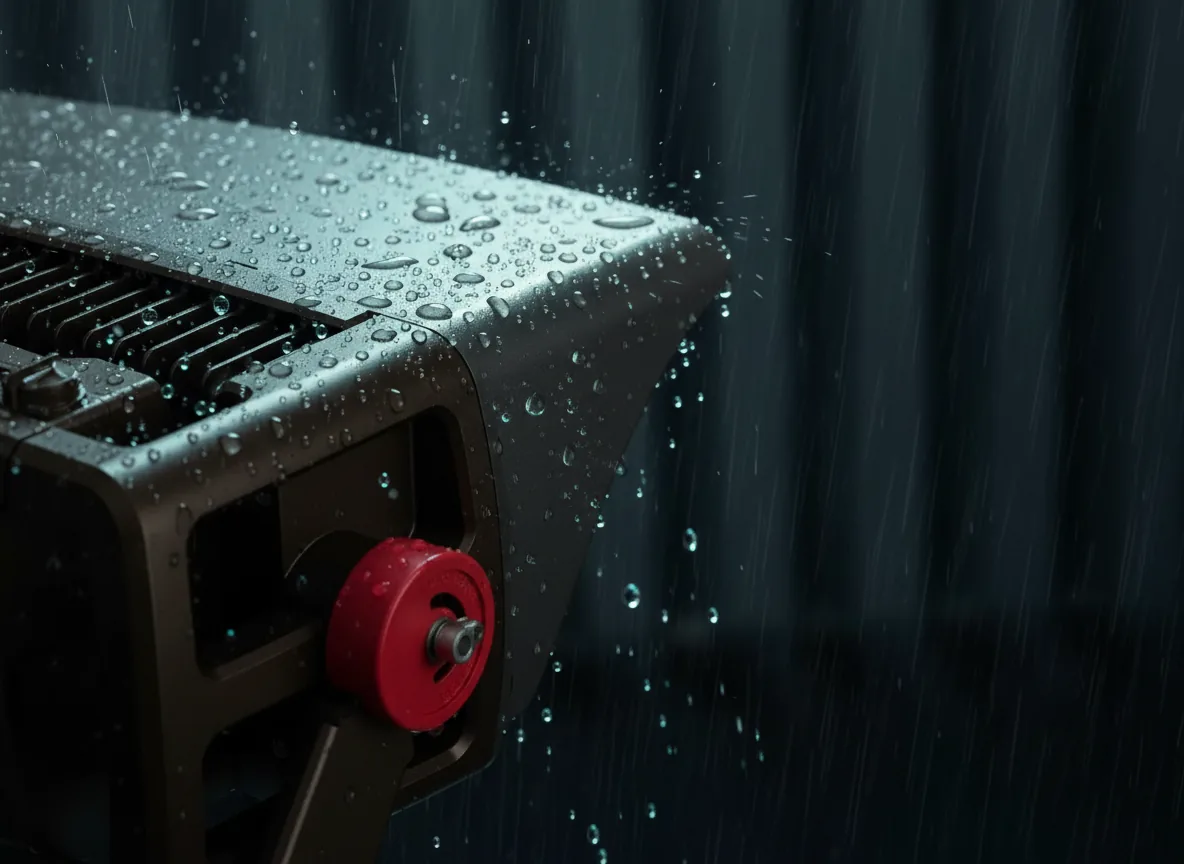

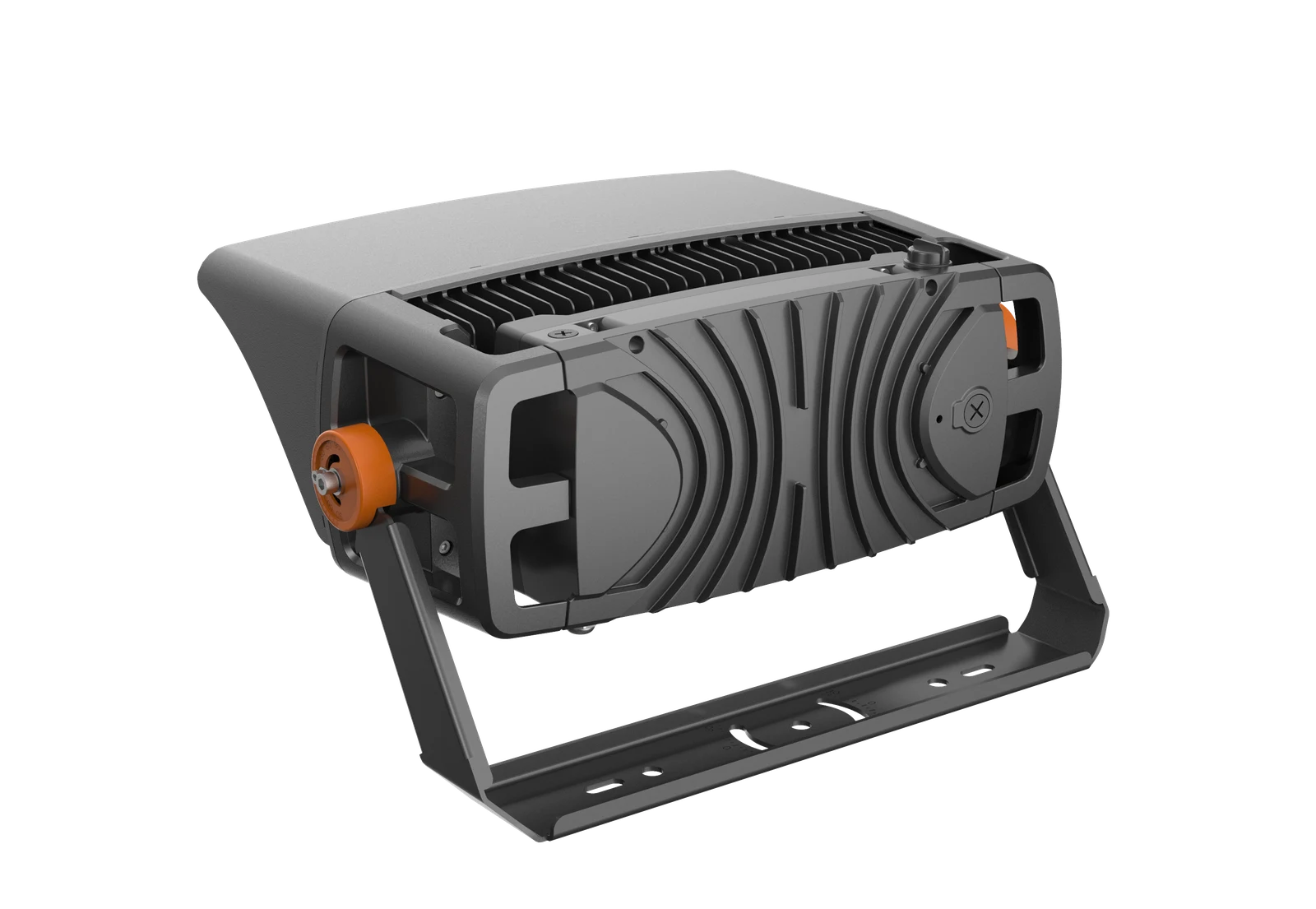

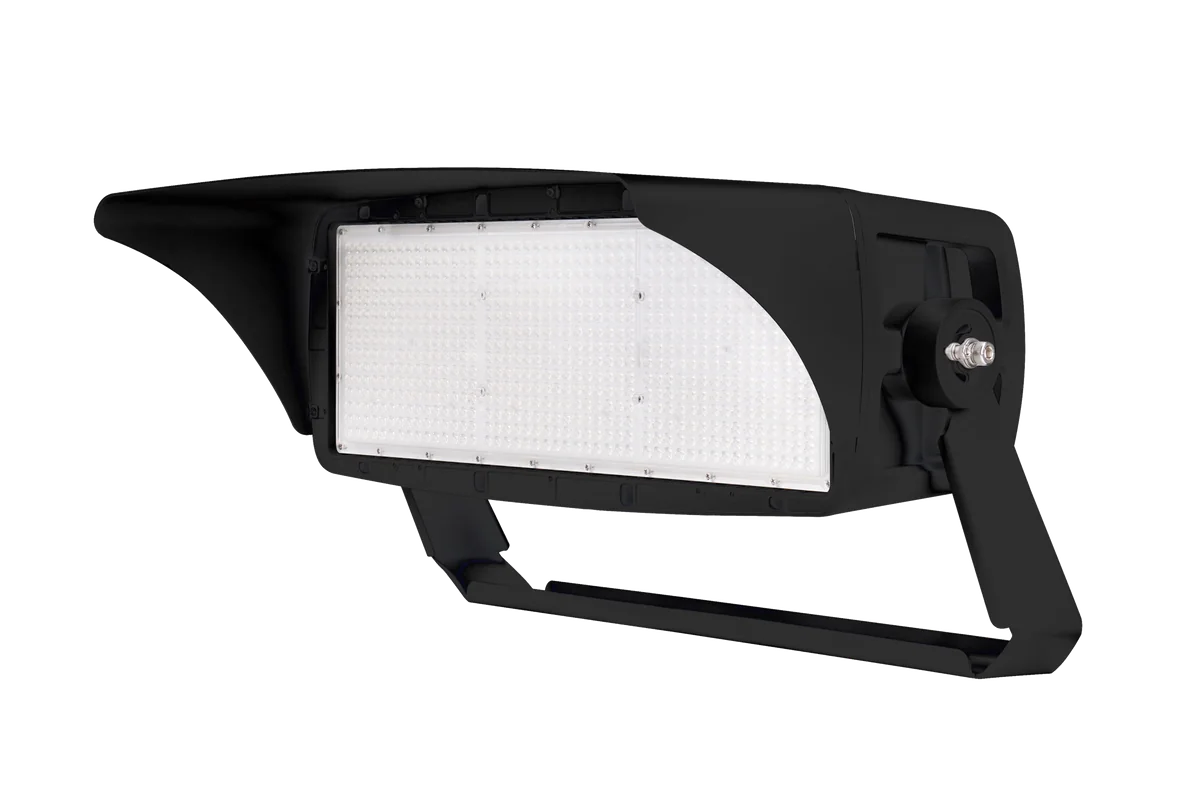

A sports light for stadiums, school and municipal fields, 400 to 800 W in two housings. Wattage is a switch on the fixture; 35° NEMA 3 optics are standard, with 15° to 90° kits that swap in the field, plus a glare visor and shield. A trunnion is in every number, and a 90° pivot hinge with angle marks speeds aiming. IP65, IK08, 10 kV surge, −40 °F to 113 °F.
cULus Listed
Documentation & Resources
Model Specifications
| WATTselect | Watts | Lumens | CCT | lm/W |
|---|
★ Default settings. Lumens at 5000K: the datasheet at the reduced steps; † ALG's measured file where it reads higher: LSPL600 at 600 W with the 20° kit, as no 35° file exists for it, and LSPL800 at 700 and 800 W, 35°. The 4000K numbers are rated 60,000 / 74,000 / 87,000 lm (LSPL600) and 89,400 / 102,000 / 112,000 lm (LSPL800).
Engineering
What you set before it goes up, how you aim it, and what it takes outside.

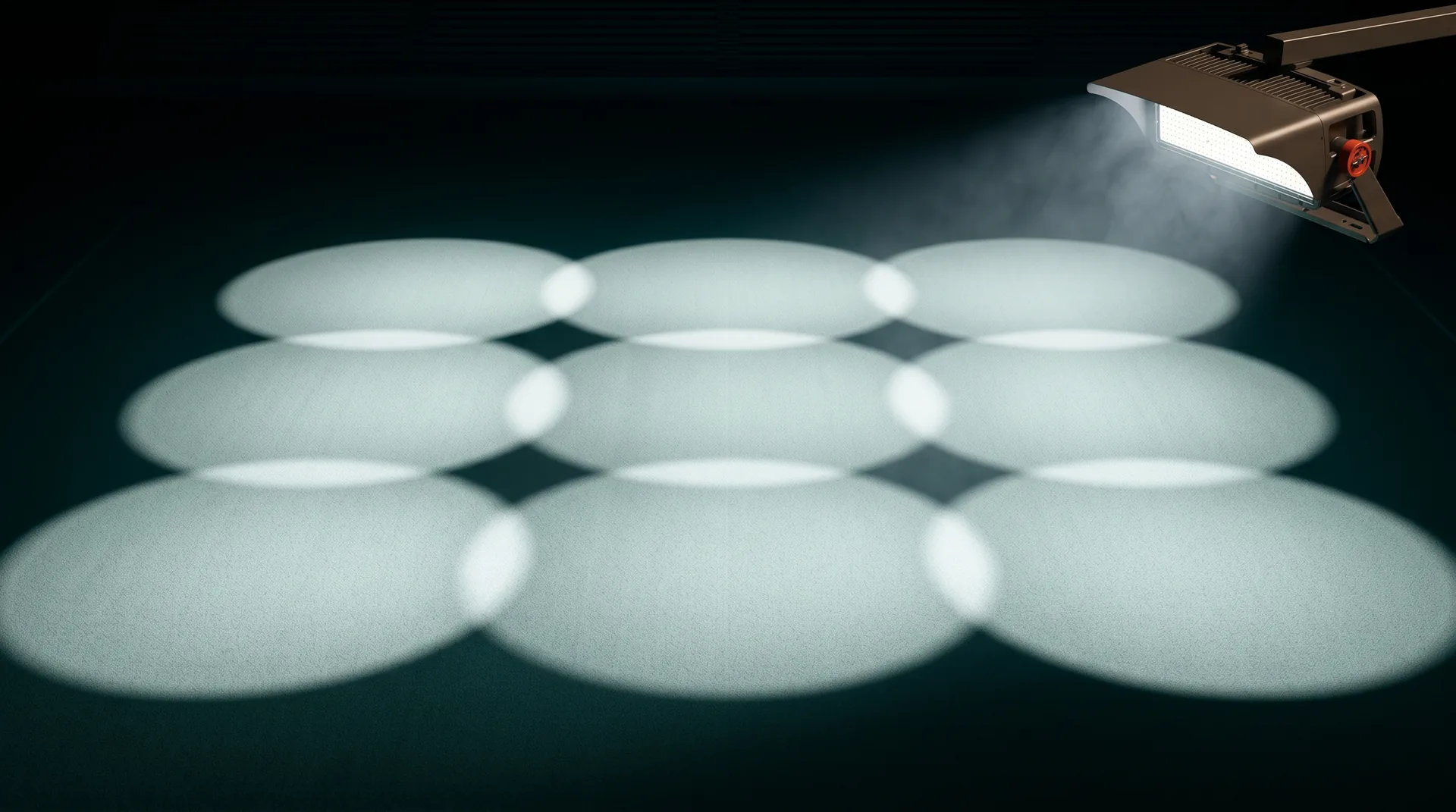

Photometric Distribution
Engineered Accessories

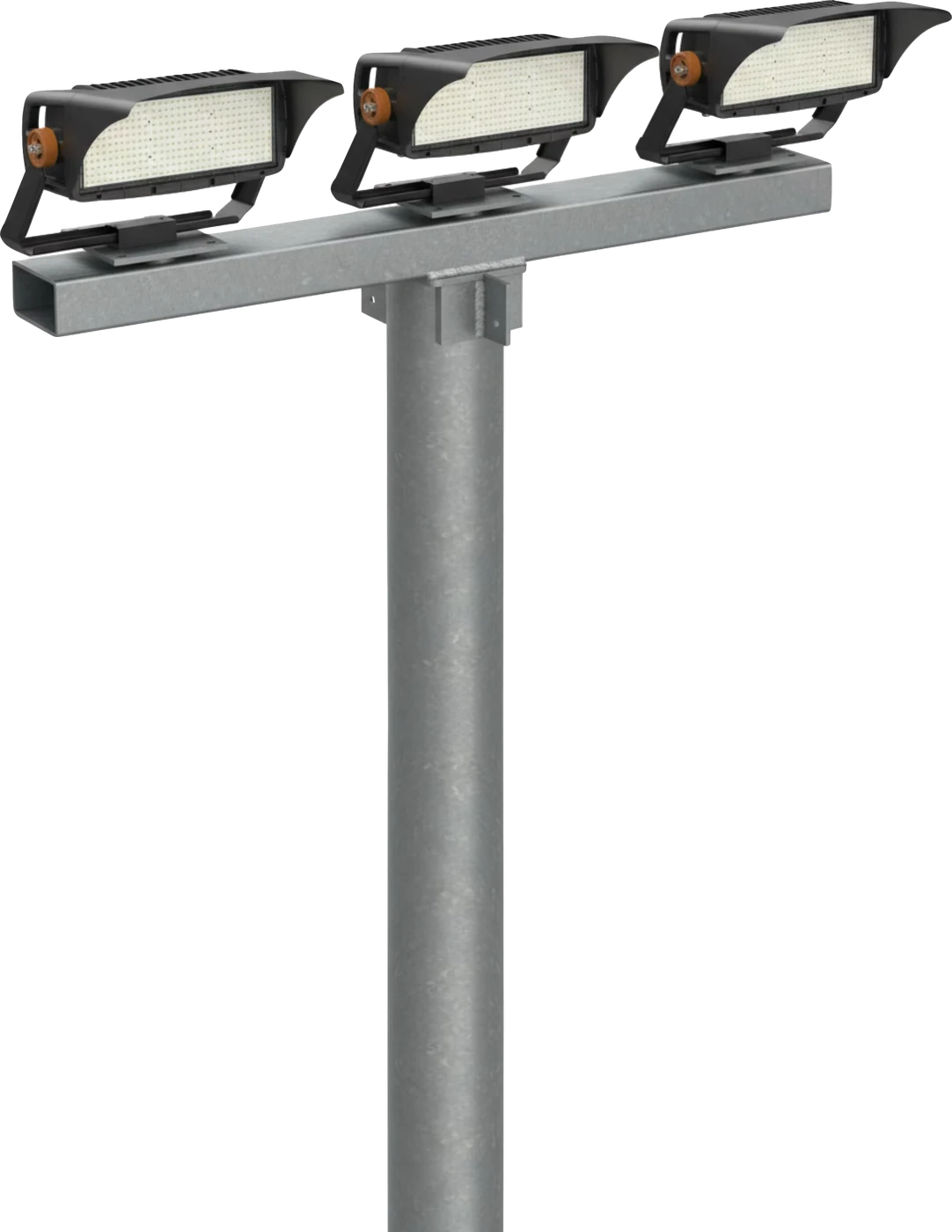

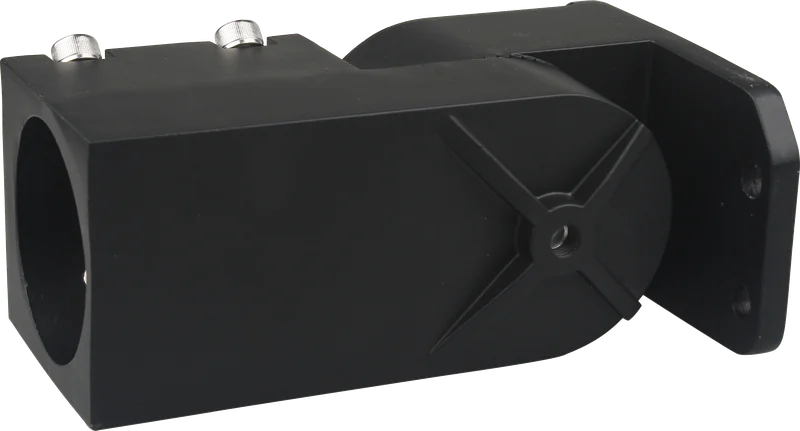

Tenon adaptors, multi-head adaptors, bullhorns and brackets for square and round poles, drawn and dimensioned: Pole-Mount Accessories Catalog (PDF).
Build Your Illuminator.
Your Catalog Number

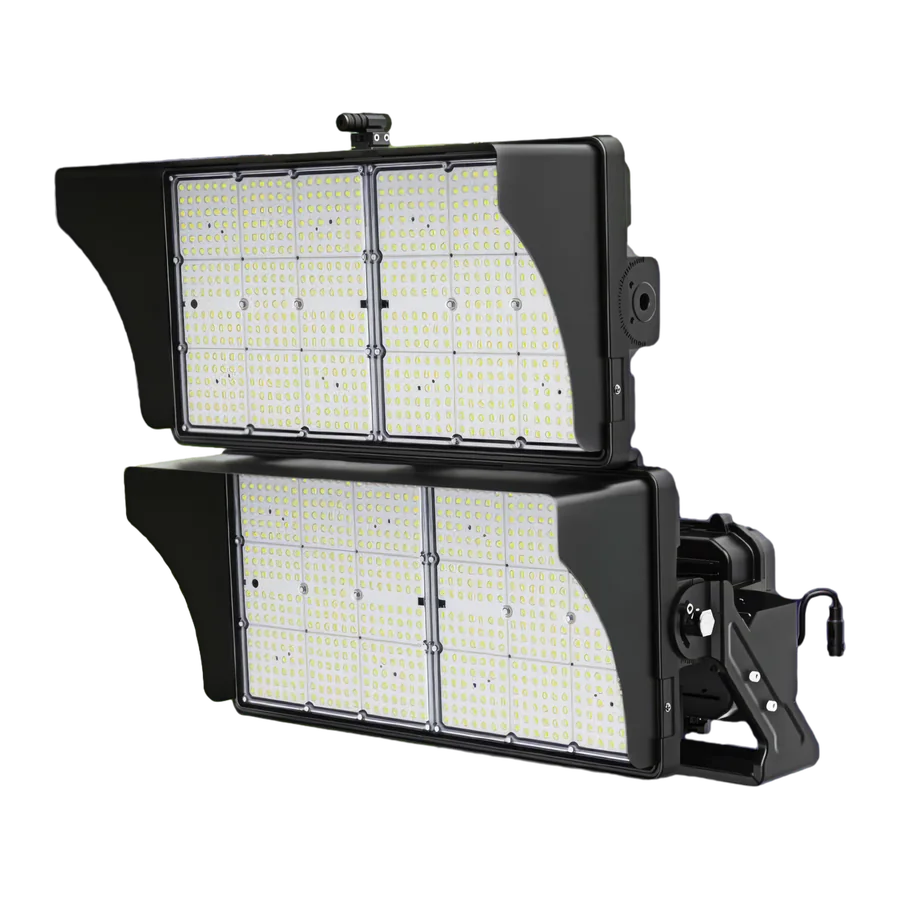

Flood & Sports Family

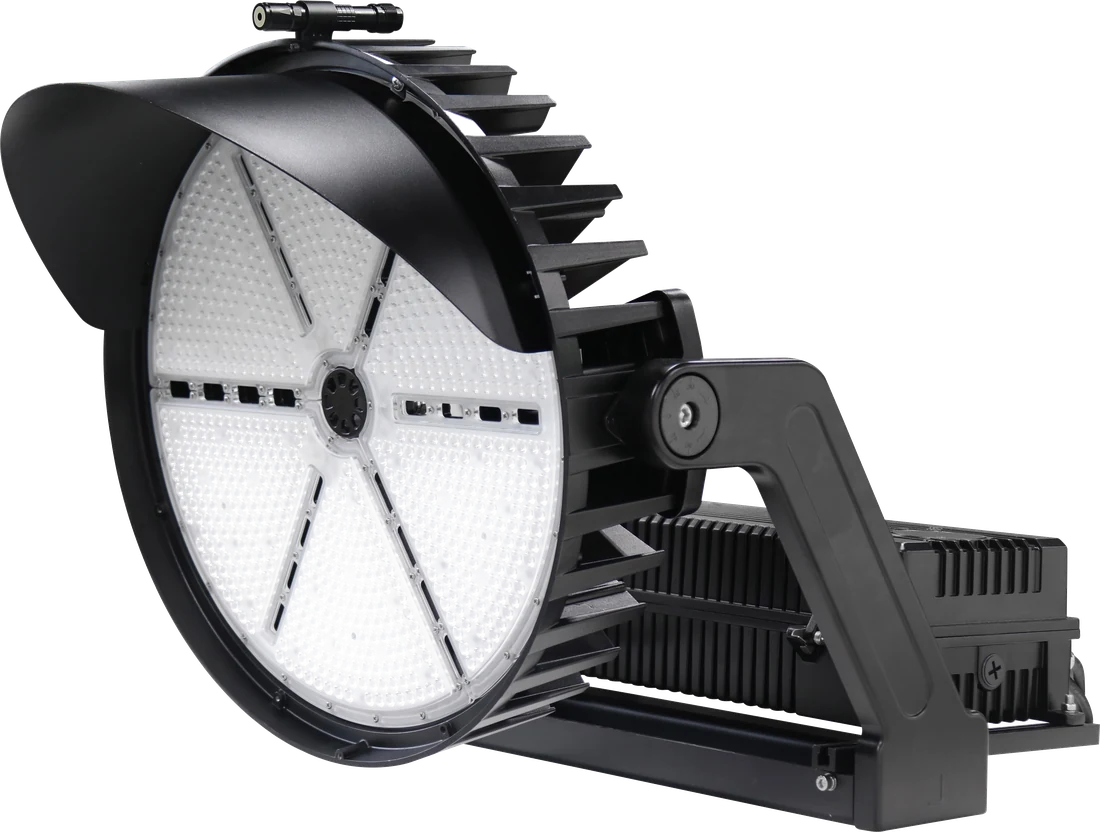

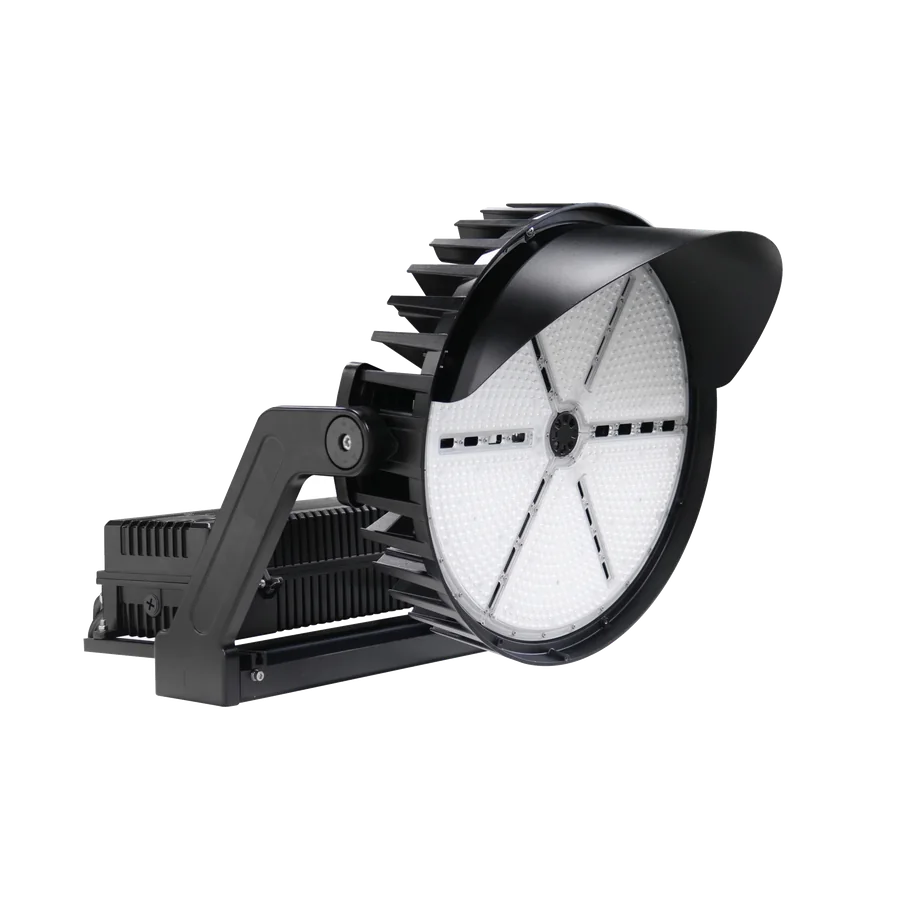

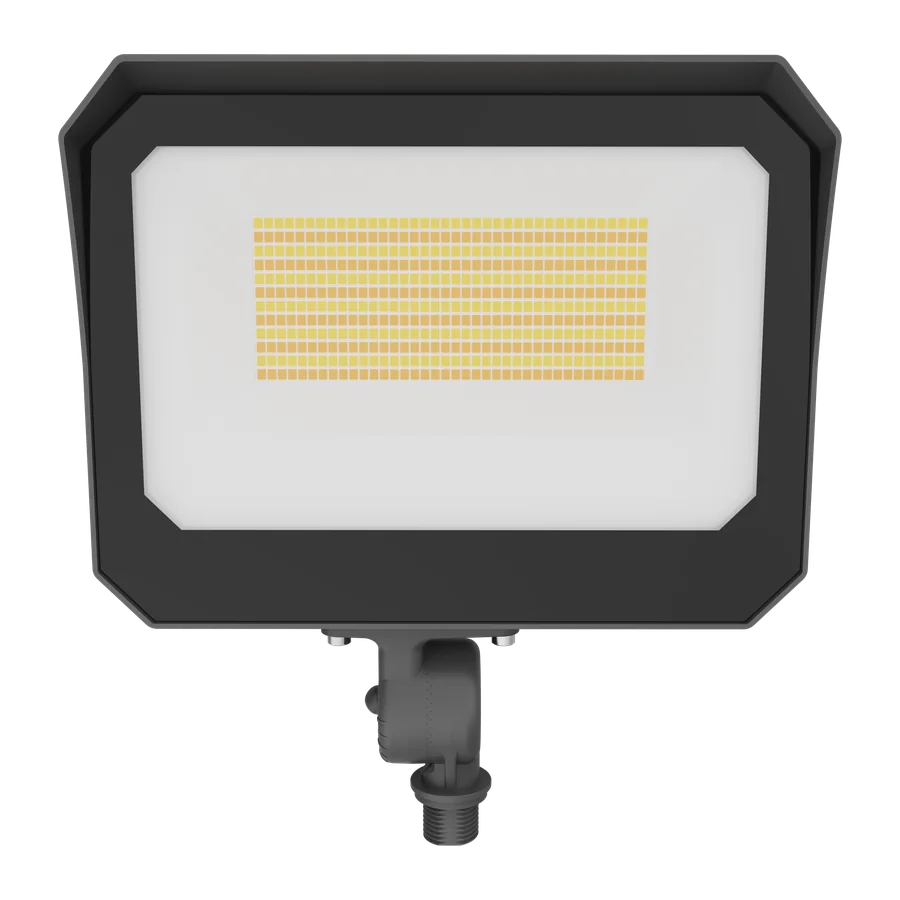

Illuminator is the PRO+ sports light, two housings to 800 W. Radiator runs three generations up to 1200 W and RGB; Everest is the flood.
Send us the site plan.
We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.
Light the field. Aim it from the ground.
Two housings to 800 W, optics that swap in the field, glare control and a hinge you can aim from the ground. Send us the site plan and ALG runs the layout.
