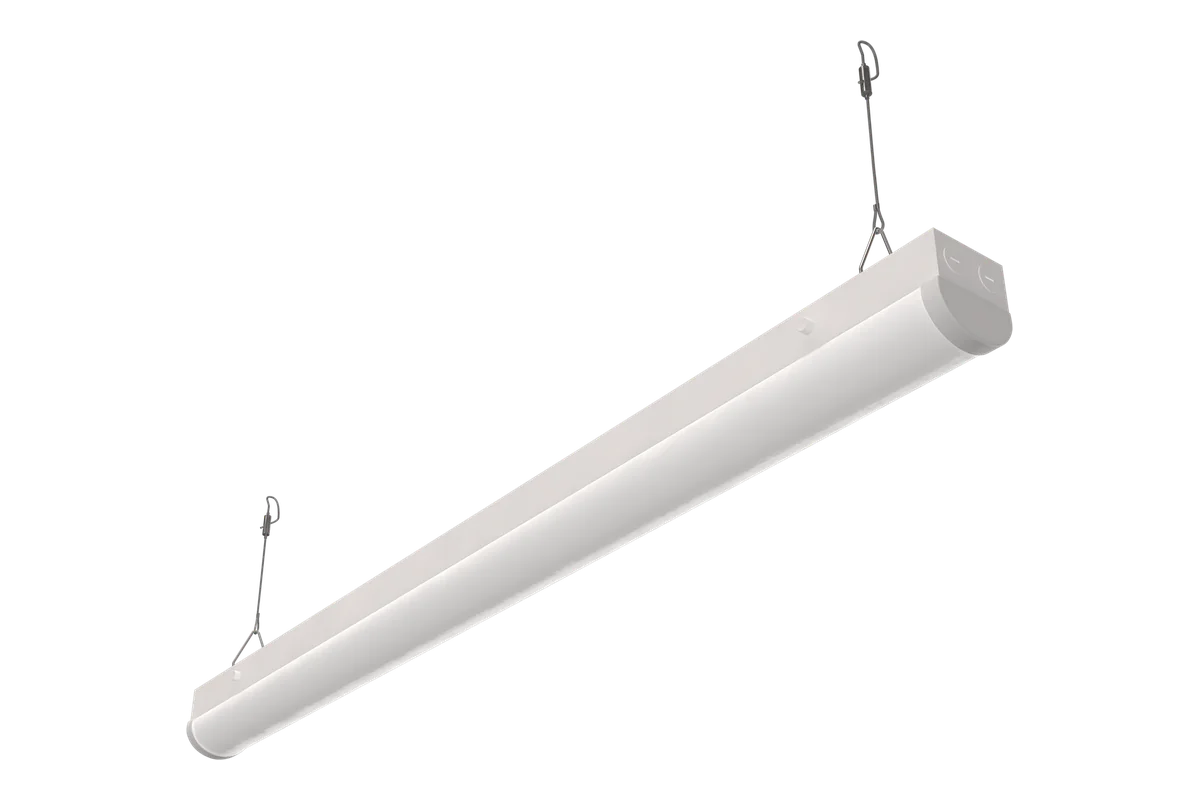

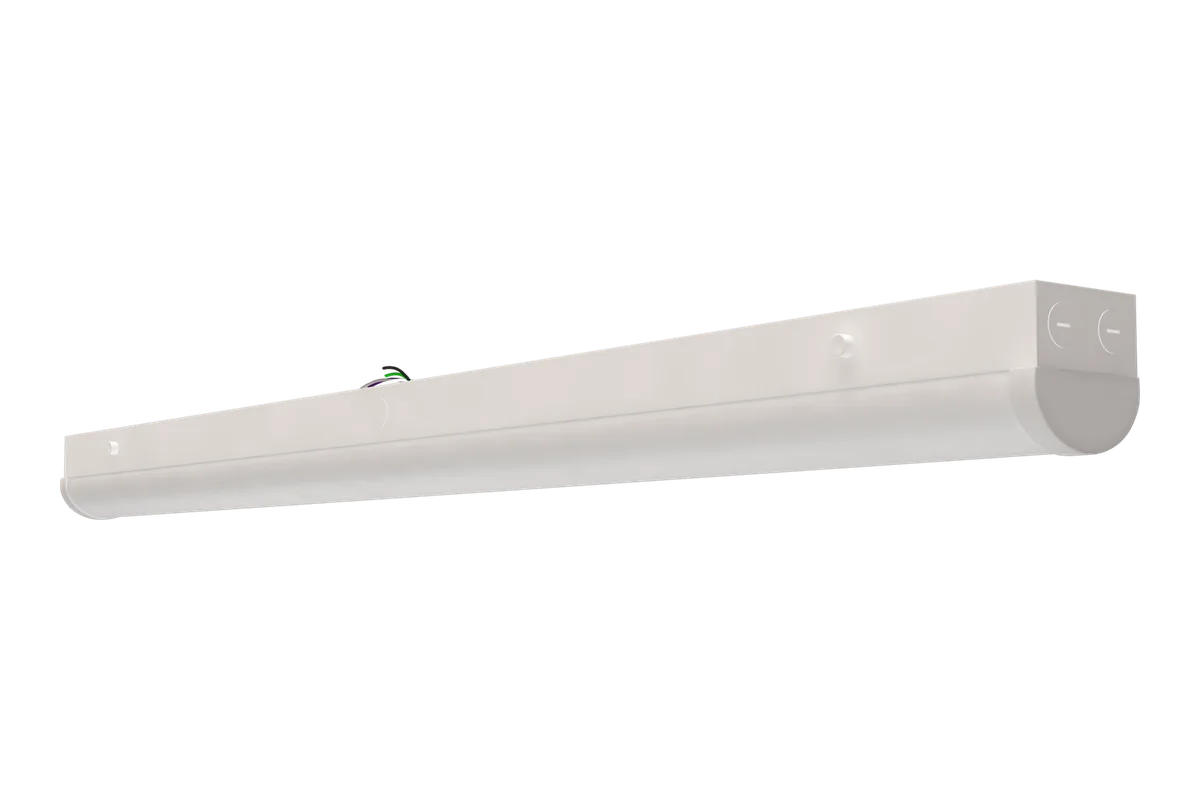

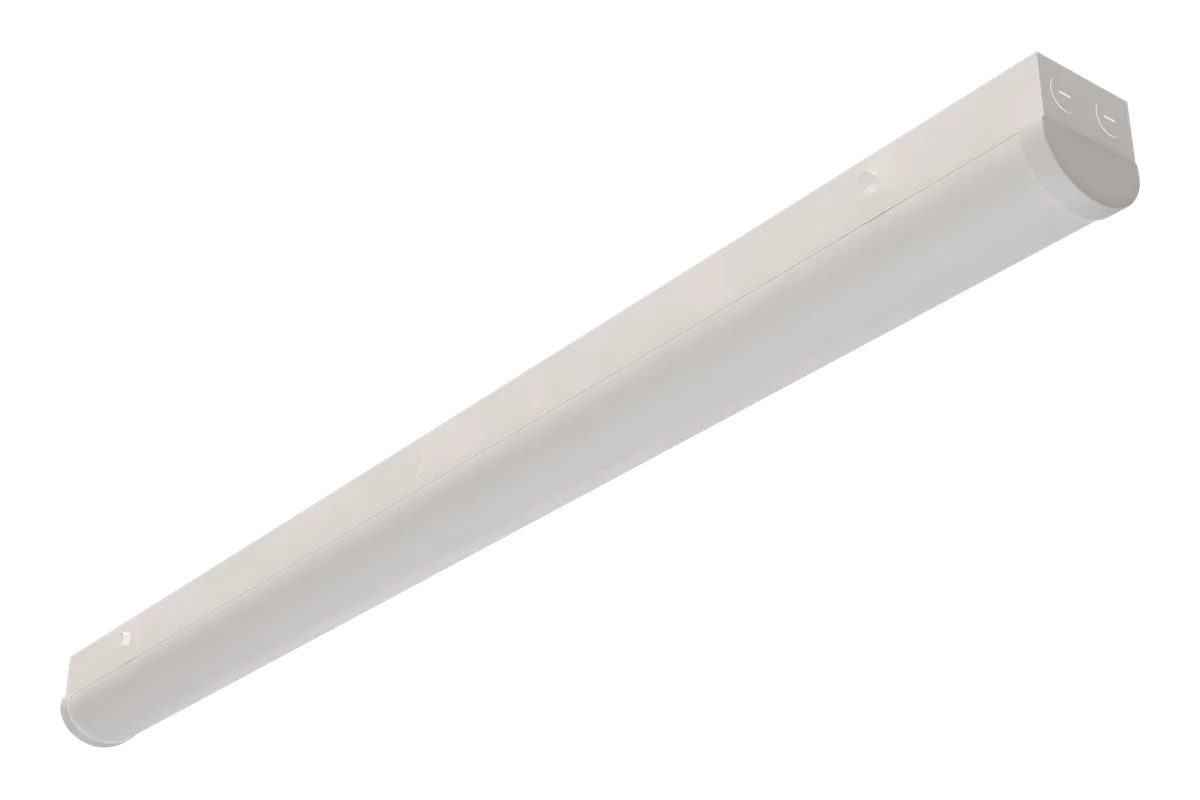

Vanguard is the ECO LED strip, in 2, 4 and 8 ft with a round frosted diffuser. Three wattages and three color temperatures are switches set at install. Output runs up to 11,600 lumens and 145 lm/W. The 8 ft folds in half to ship. A sensor receptacle on every build, cULus listed for damp locations. The first-generation Vanguard-I carries on in 2 and 8 ft, up to 11,700 lumens at 90 W.
★ Default settings. The datasheet prints lumens at the top step only — 2 ft 3,375 / 3,625 / 3,500 lm, 4 ft 5,400 / 5,800 / 5,600 lm, 8 ft 11,200 / 11,600 / 11,600 lm at 3000 / 4000 / 5000K — so the lower steps show a dash. Measured files are in Photometrics.

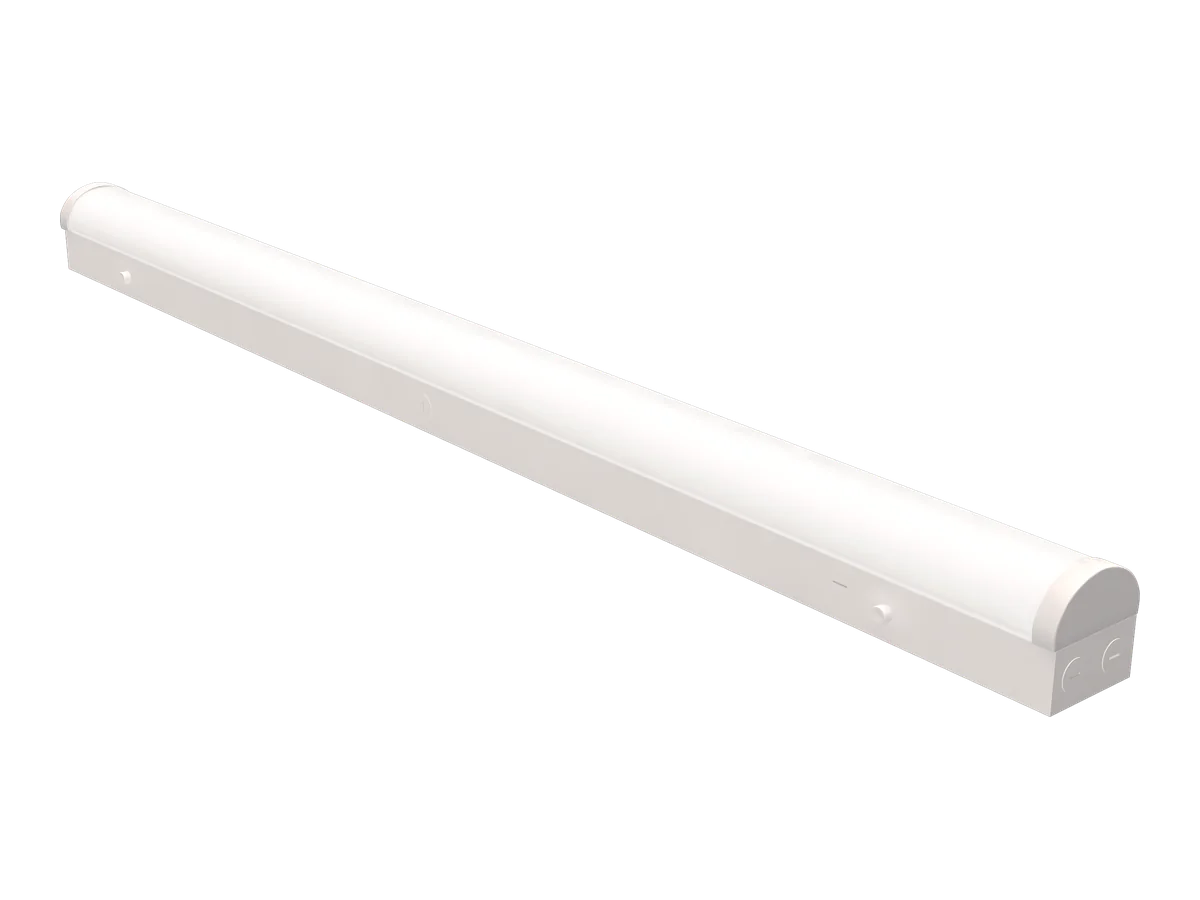

The first Vanguard, in 2 and 8 ft. Wattage and color temperature are switches on the driver, set at install; 120–277 V with 0–10V dimming. The 8 ft HM runs up to 90 W and 11,700 lumens.
Vanguard-I · CCTselect 3500, 4000 or 5000K on every number
Top output
8 ft · High Performance Max
Catalog numberLLSN3W-xx-8S3-HM
WATTselect
64 / 75 / 90 W
Lumens
8,320 / 9,750 / 11,700 lm
Sensor
No receptacle
8 ft · Sensor-Ready
Catalog numberLLSN3W-xx-8S3-H2
WATTselect
40 / 50 / 64 W
Lumens
5,200 / 6,760 / 8,320 lm
Sensor
Receptacle built in · MSM-HTI/126P1/BLS or /NLC
2 ft · Sensor-Ready
Catalog numberLLSN3W-xx-2S3-H2
WATTselect
10 / 15 / 24 W
Lumens
1,300 / 1,950 / 3,120 lm
Sensor
Receptacle built in · MSM-HTI/126P1/BLS or /NLC
2 ft · 20 W
Catalog numberLLSN20-xx-2S3-H
Wattage
20 W, fixed
Lumens
2,600 lm
Sensor
No receptacle
8 ft
Catalog numberLLSN3W-xx-8S3-H
WATTselect
40 / 50 / 64 W
Lumens
5,200 / 6,760 / 8,320 lm
Sensor
No receptacle
Dimensions2 ft 23.97 × 2.95 × 3.26 in · 2.4 lb8 ft 95.98 × 2.95 × 3.26 in · 7.2 lb

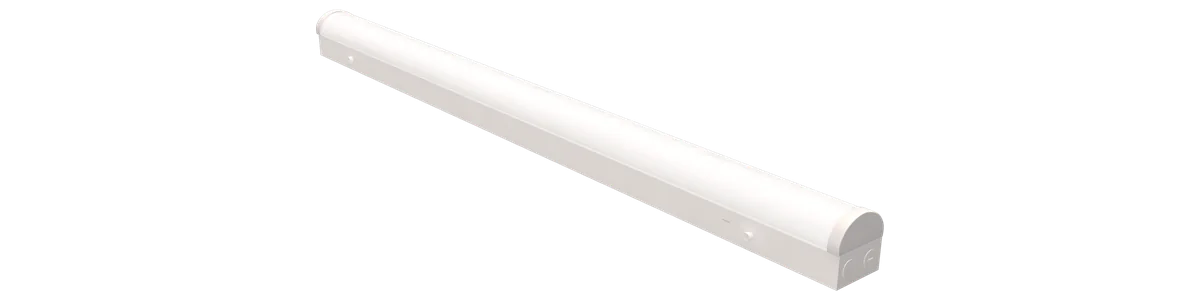

Order Vanguard-I numbers with “xx” as shown. Color temperature is a switch on the fixture, so one number covers 3500, 4000 and 5000K. The configurator below builds Vanguard.
Engineering
What you set at install, how it goes up, and what is inside.
Vanguard is the ECO strip. Hallmark is the PRO+ strip. retroⒶRCH-L1 is the kit for a strip already on the ceiling.
You are here
LLSN · ECOVanguardVanguard, the ECO strip. 2, 4 and 8 ft with a round frosted diffuser; the 8 ft folds to ship.145 lm/W · 5 yr / 50,000 hrSubmittal Sheet →Product Details · this page

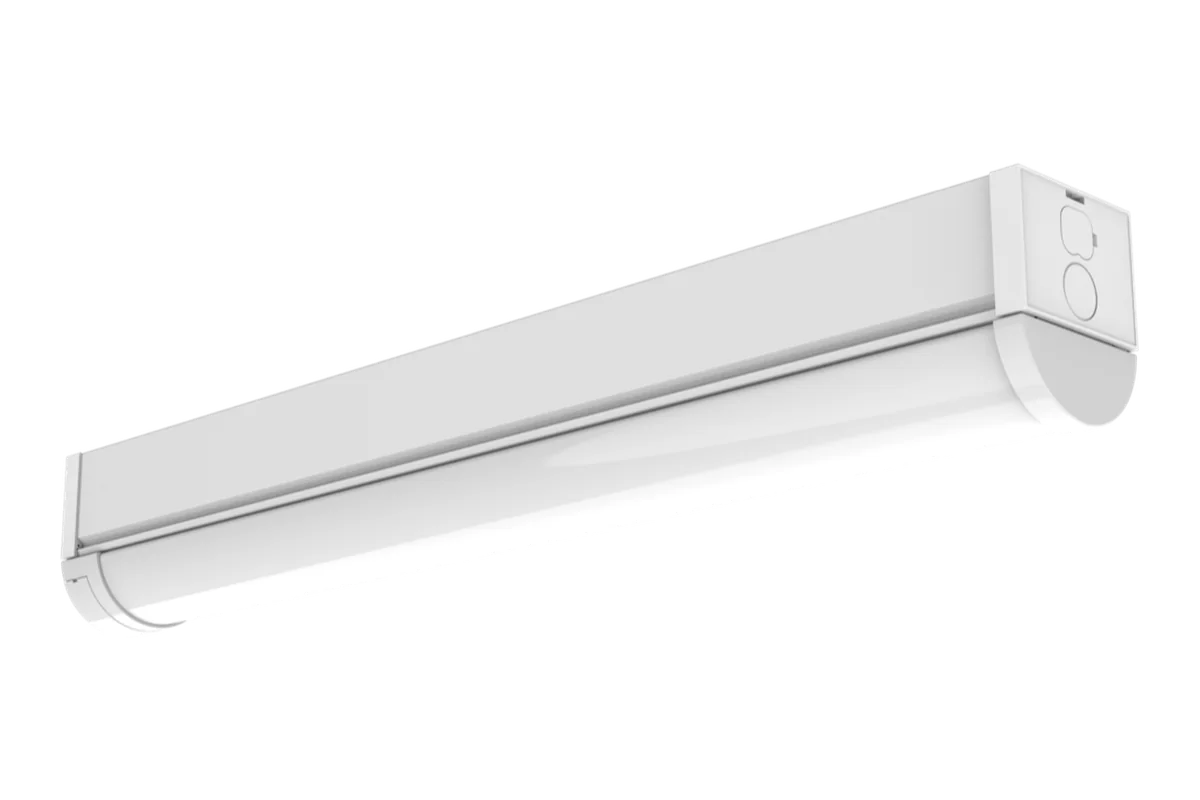

LLSN · PRO+HallmarkThe spec-grade strip. 2, 4 and 8 ft, four field-swap lenses, white or black, up to 12,500 lm.7 yr / 75,000 hrDownloads →Product Details →

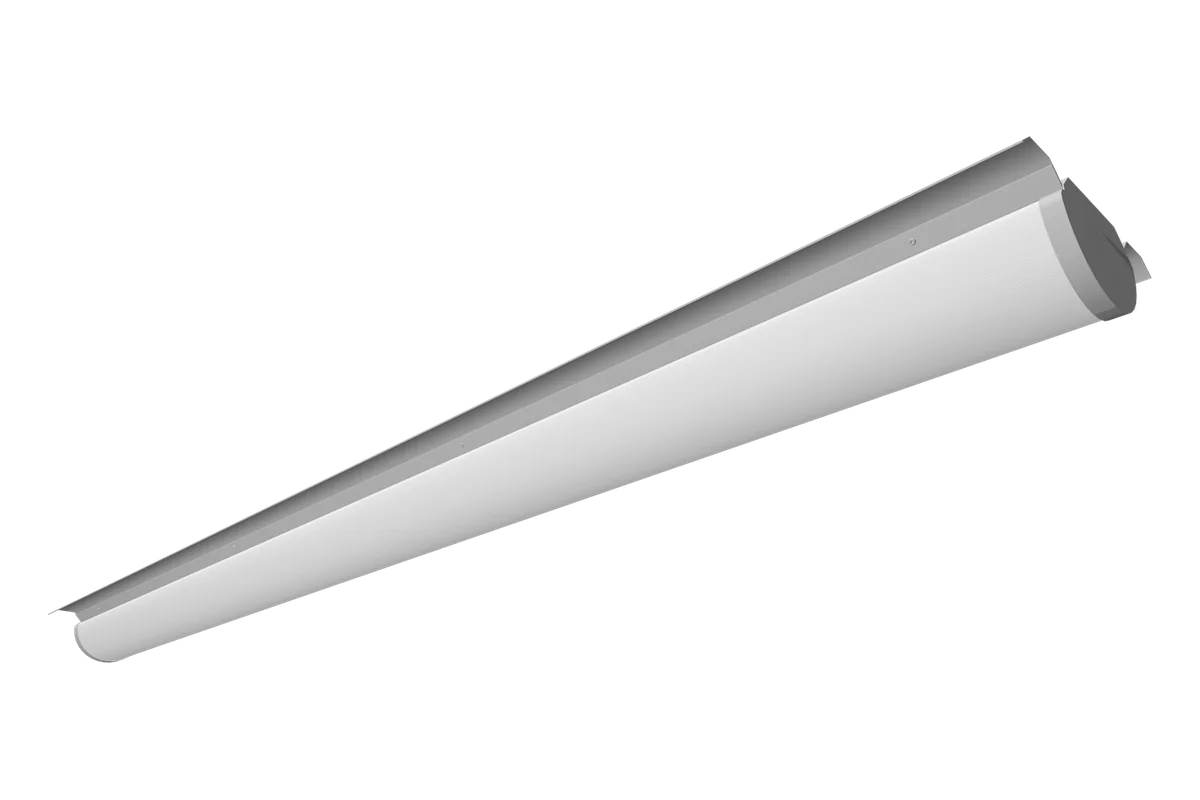

LLSR · PROretroⒶRCH-L1The strip retrofit kit. It goes into a 4 or 8 ft fluorescent strip that stays on the ceiling.7 yr / 75,000 hrDownloads →Product Details →
Specifier Support
Send us the floor plan.
We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.
cULus Listed
