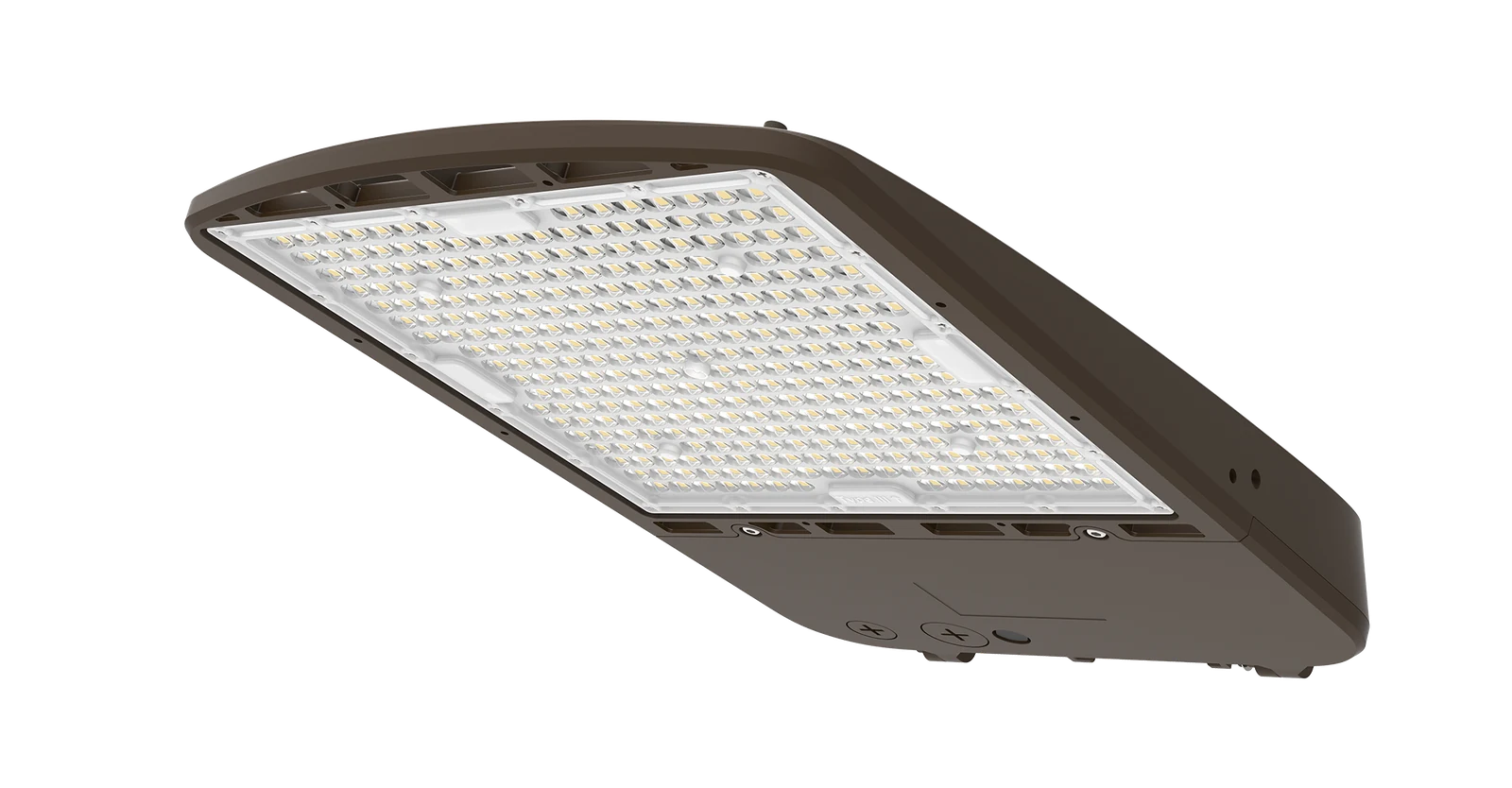

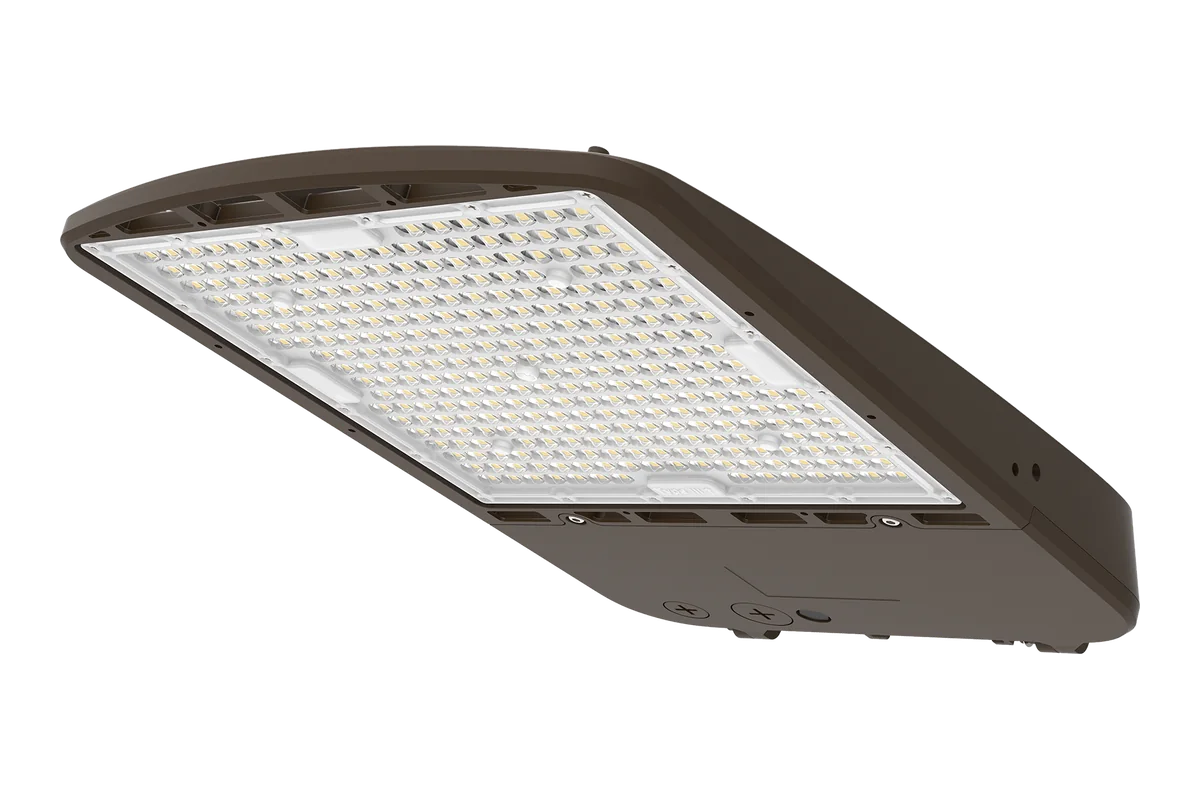

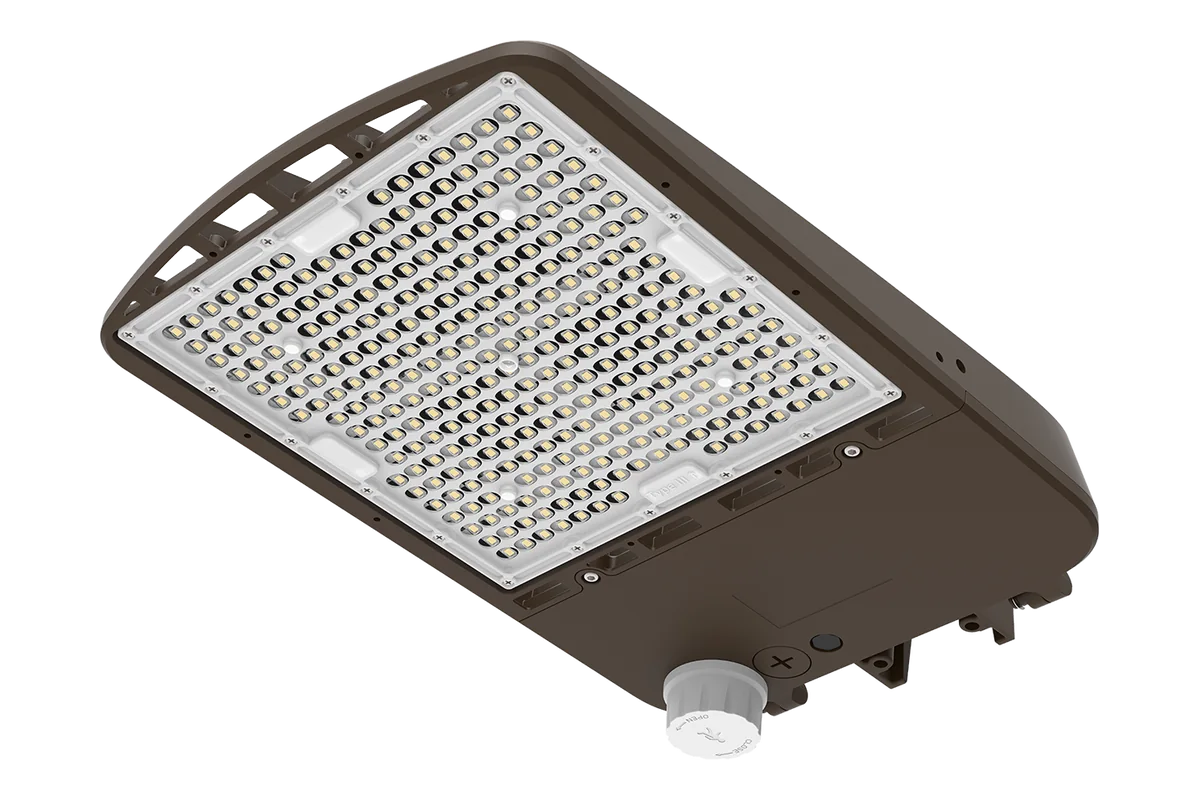

Heritage Series ECO
Contractor-Grade LED Area Light.
ECO tier of the luxoⒶRCH LSBX shoebox family — same chassis as Liberty PRO and Rosetta-III PRO+. Spec’d for parking lots, façades, and roadways.
Two housings cover 70–300W (replaces 250–1000W MH). Field-set wattage and CCT at install · 3000K / 4000K / 5000K.

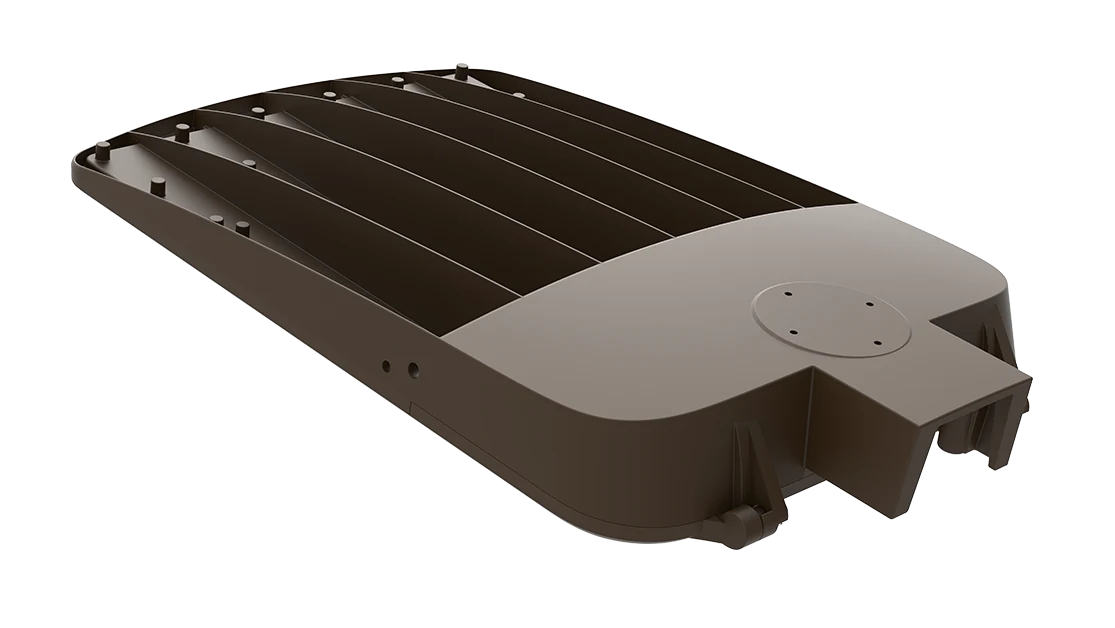

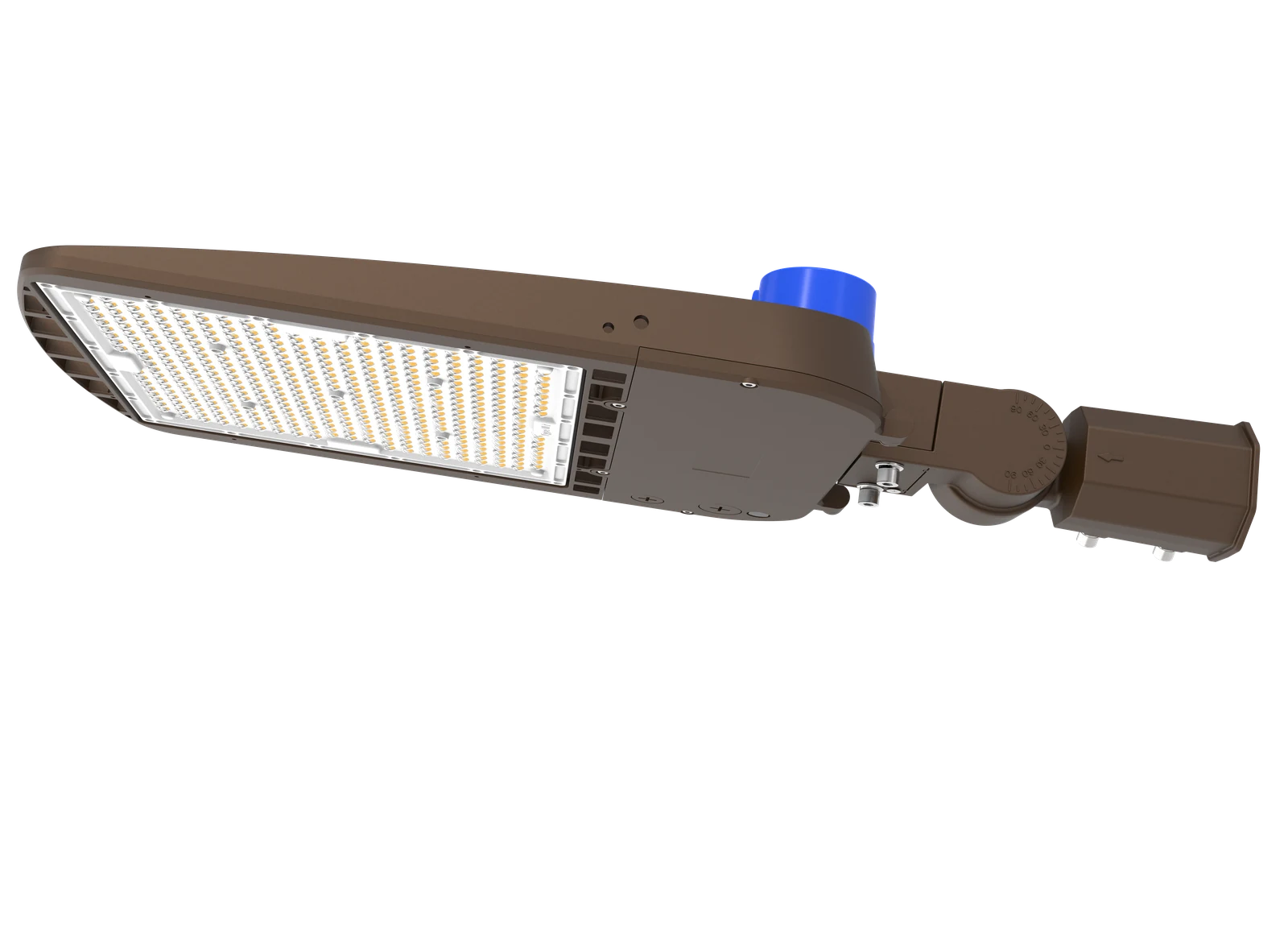

Die-cast aluminum, IP65, −40°F to 113°F, 6KVA surge built-in (10/20kA inline optional). contrⒶLS-Ready · /BLS bi-level or /ACS Bluetooth Mesh + cloud (DLC NLC pending) — uncommon at this tier.
Model Specifications
Download Data Sheet| WATTSELECT | Lumens | Efficacy | HID Replacement | CCTSELECT |
|---|
Dimensions

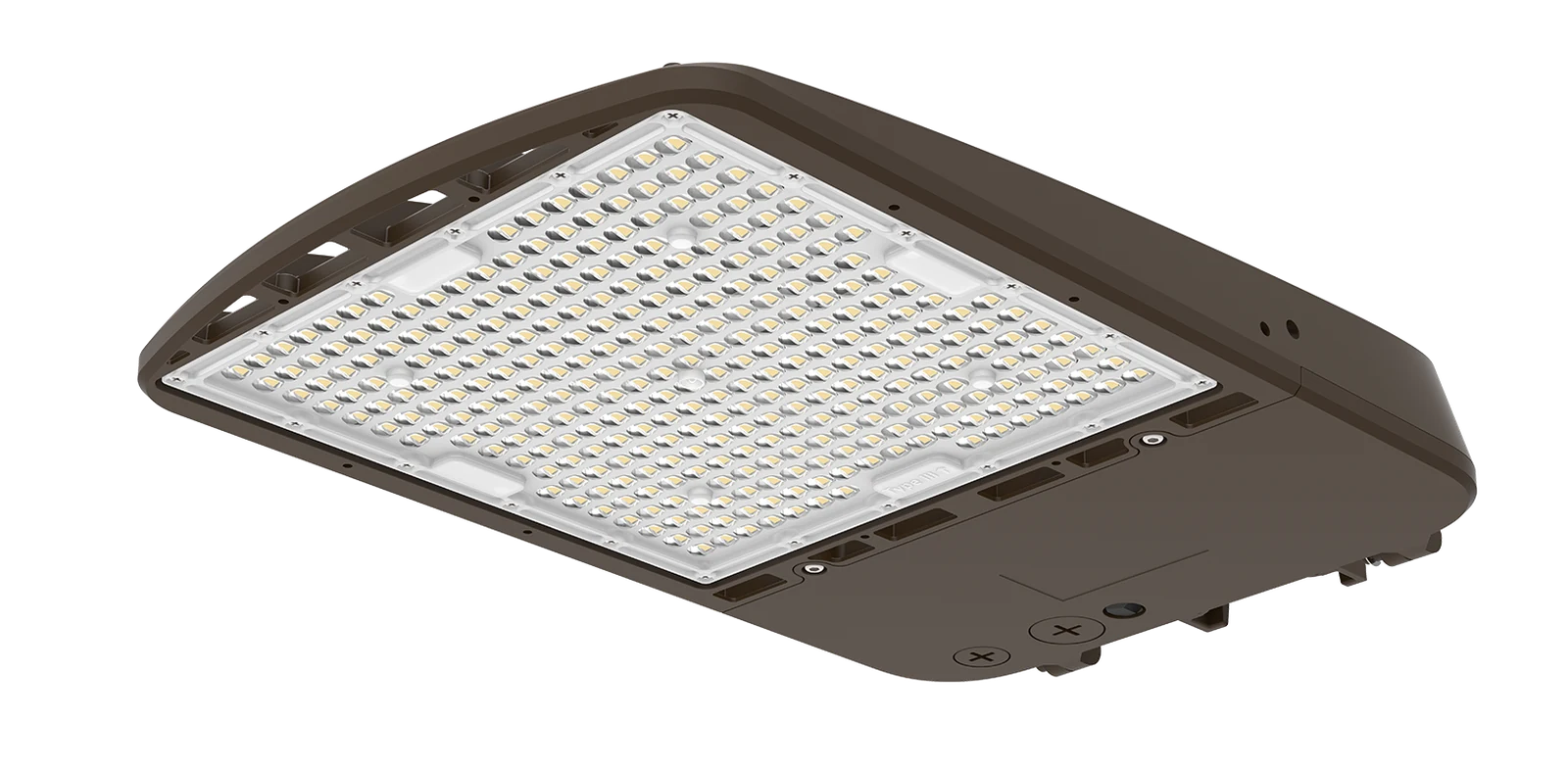

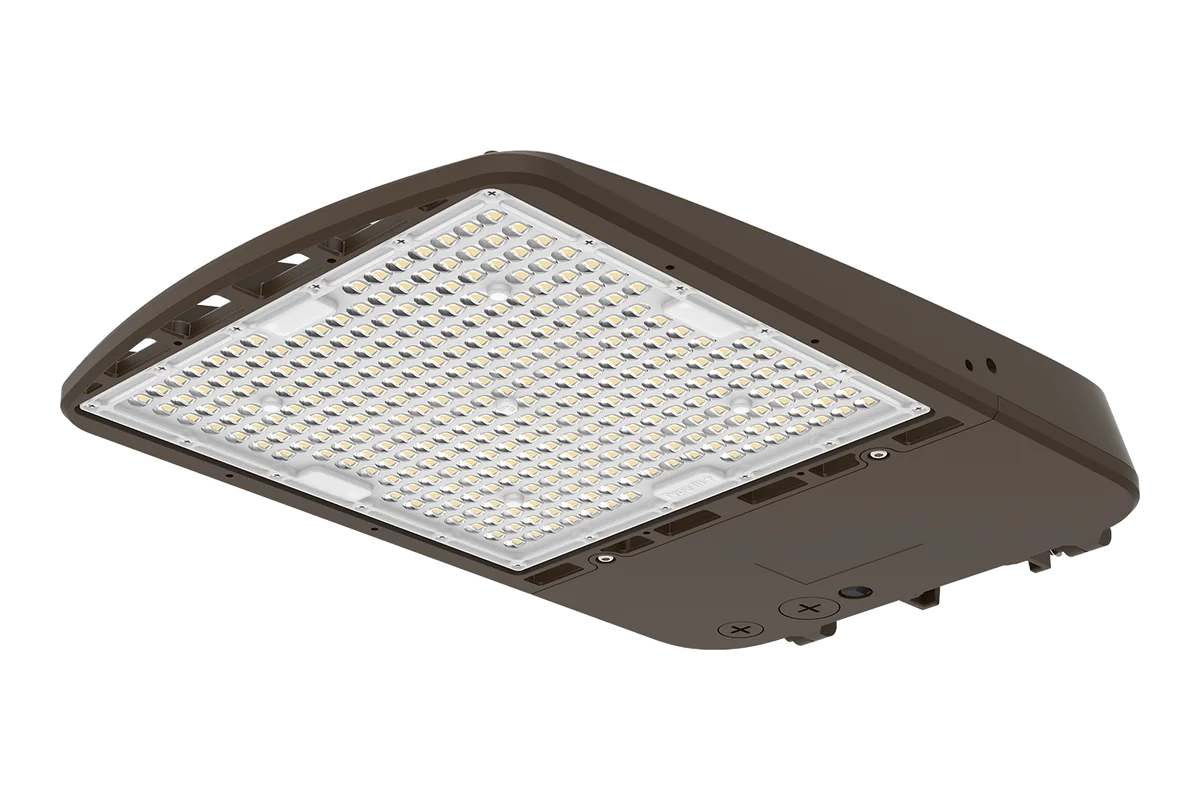

(both housings share the 2.37-in slim depth · footprints differ)
HIGHLIGHTS & FEATURES
Five reasons Heritage punches above its echelon.
Heritage is the ECO tier of the LSBX shoebox family — the volume / value play that doesn't apologize for being volume / value. Five design choices that earn the line on bid sheets against RAB ALED, Keystone XFit, Lithonia DSX0, and the Amazon-tier private-label fixtures the contractor is actually choosing between.
contrⒶLS
Three controls platforms. ECO-grade ticket.
One housing, three controls platforms — pick what the project needs.
contrⒶLS Bi-Level for occupancy bi-level without networking.
contrⒶLS by ⒶCS for Bluetooth Mesh + cloud SaaS (DLC NLC pending).

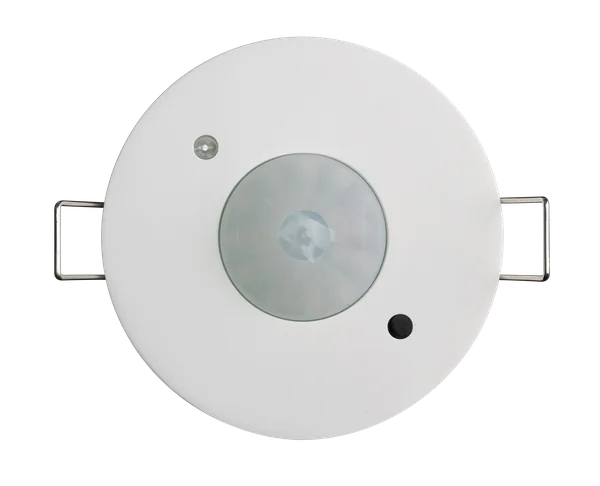

contrⒶLS by SILVAIR for SIG-qualified, vendor-neutral, gateway-free enterprise mesh.
All three drop in via /MSP-XXX ordering codes on the same Heritage housing — no install changes. ECO competitors (RAB A17, Keystone XFit, private-label) ship dim-driver only. Carrying ⒶCS + SILVAIR side-by-side at ECO pricing is the protocol-flexibility lever Heritage shares with the PRO siblings on the LSBX family.

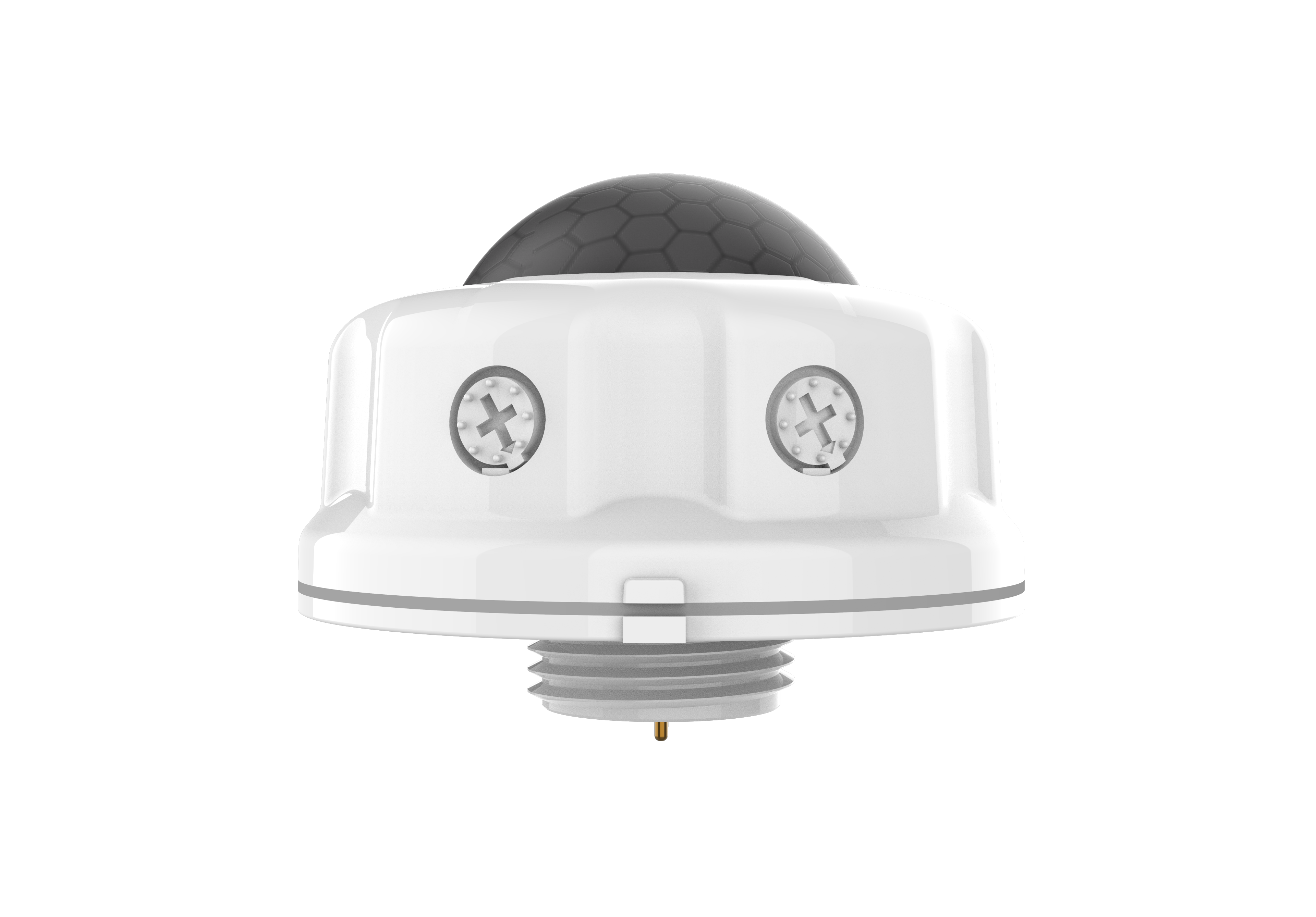

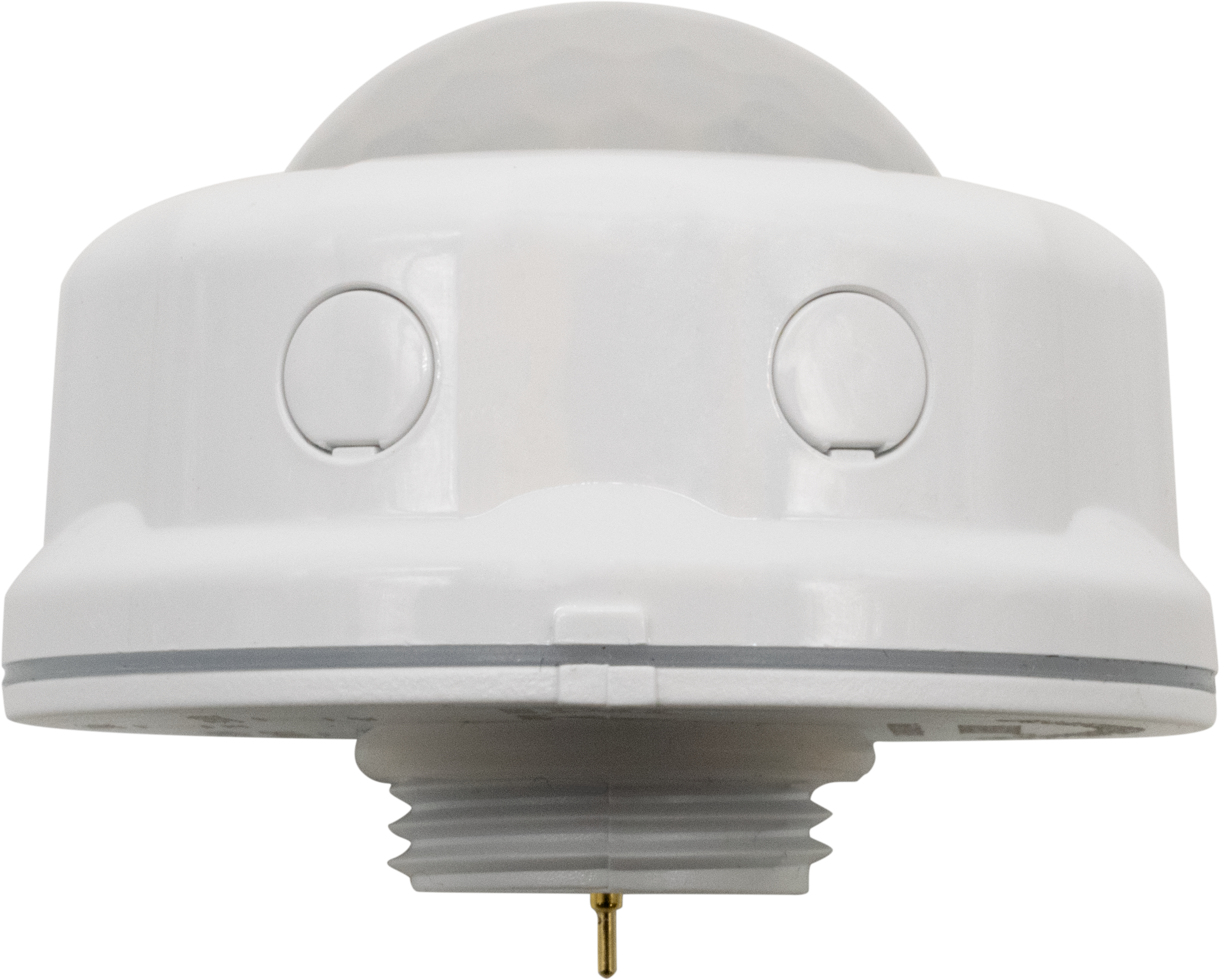

Two PIR bi-level variants — IR-remote commissioned, no gateway, no IT. /BLS standard auto high/low switching · /BLS-5D adds 5 manual dials for site-tuned thresholds. Both: PIR · 49-ft mount · 10-15Vdc · IP65 · UL. Commissioning via optional RM-06S IR remote (45-ft range · 2× AAA · IP20). Drives Title 24 §140.7 / IECC §C405.2 / ASHRAE 90.1 bi-level credits — no third-party sensor BOM line, no networking. Daylight-harvest capable: adjust lux threshold (>50 lux), preset standby, 3× press to enable. The spec when occupancy bi-level is enough.
PHOTOMETRICS
Beam shape, by the WATTSELECT setting.
Real LM-79 measured photometric data for both Heritage housings — 18 IES test points staged across LSBX3W150 + LSBX3W300 × 70 / 100 / 150W or 200 / 240 / 300W × 3000K / 4000K / 5000K. Toggle the housing class, the WATTSELECT setting, and the CCT below to see how the Type-III darkⒶRCH distribution and lumen output change at each cell. Heritage splits its 150 lm/W datasheet rating cell-by-cell — measured efficacy ranges from 127 lm/W (300W @ 3000K) to 175 lm/W (70W @ 4000K). 4000K is the peak-efficacy CCT across every wattage on every housing. Download the IES bundle →
LSBX3W150-3H1-UD3-RB3-150W-50K_IESNA2002.IES (LM-79 measured) In the Box
Three components, factory-installed.

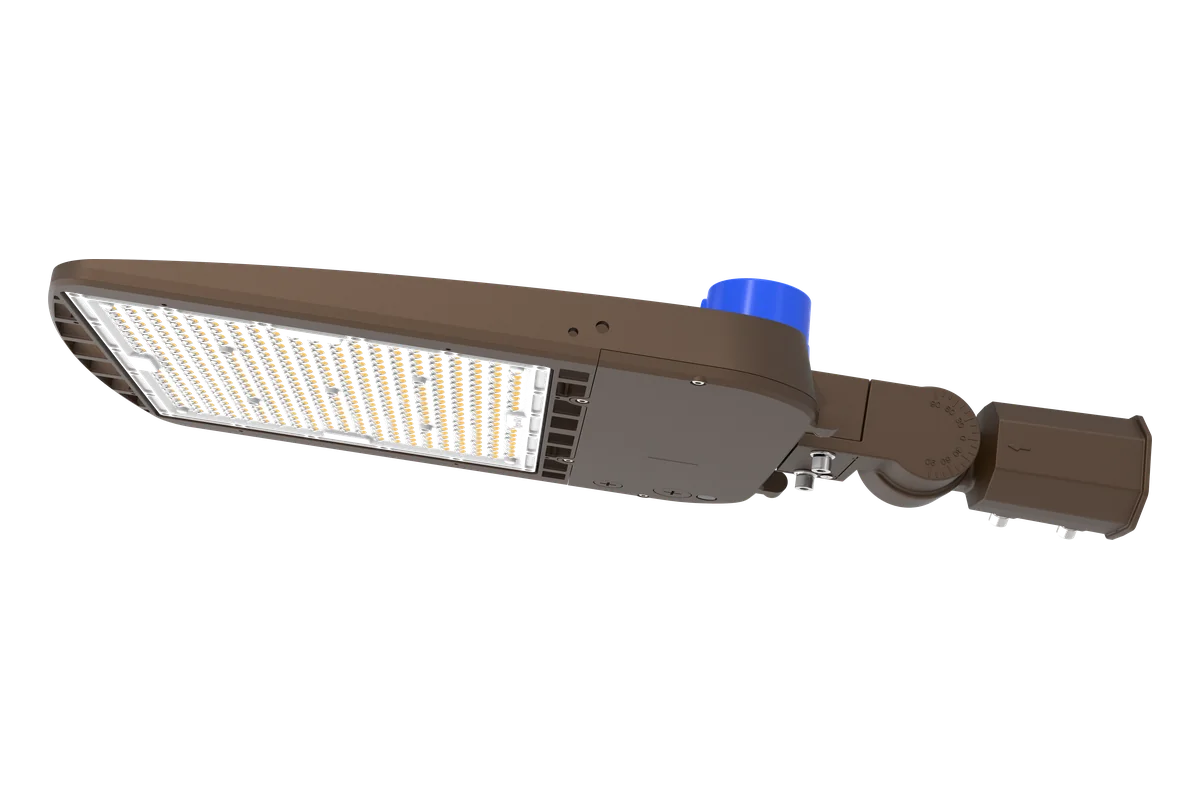

Every Heritage ships with Type-III darkⒶRCH optic (UV-stab polycarbonate · Dark Sky compliant), 0-10V dim driver on universal 120-277V + 6KVA surge (H 277-480V MTO on LSBX3W300), and the 3-pin photocell receptacle (ANSI C136.10) with shorting cap. All factory-installed — no upsell SKUs. Drop on the bracket, wire to the J-box, DIP-set wattage and CCT, walk away.
Accessories
Engineered Accessories

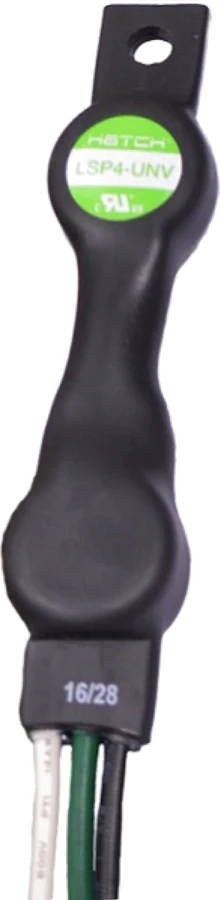

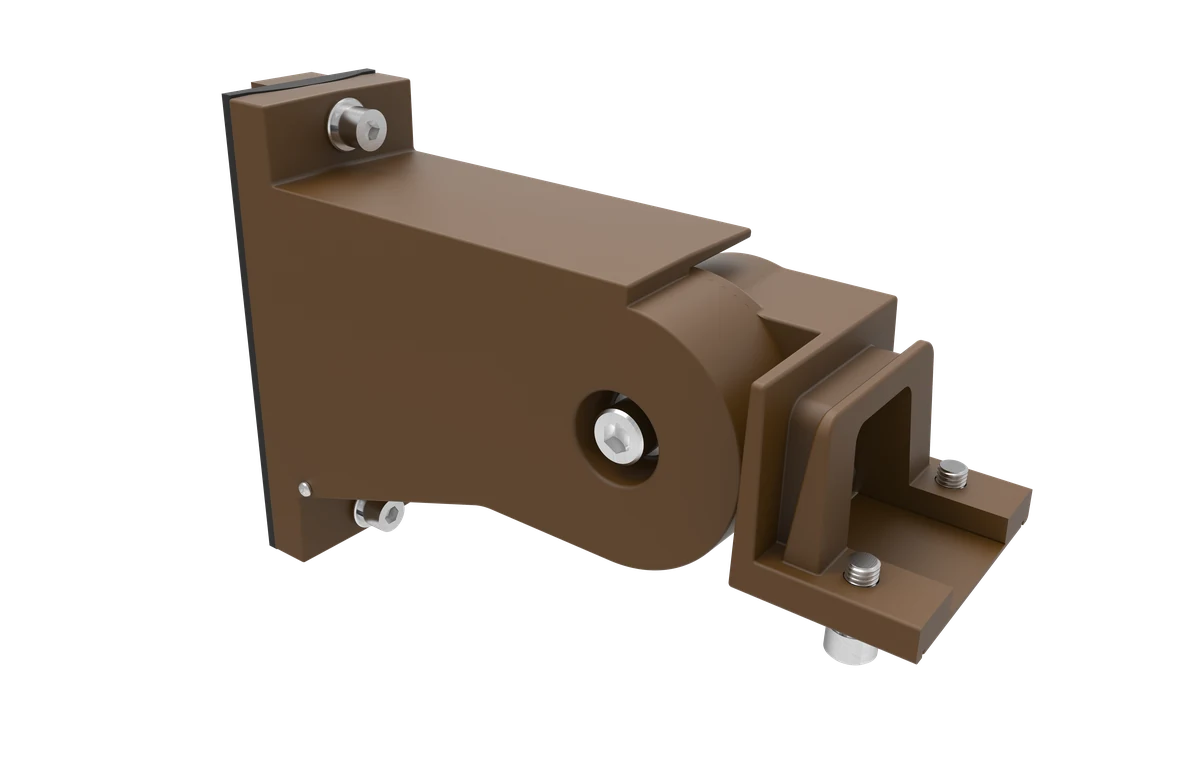

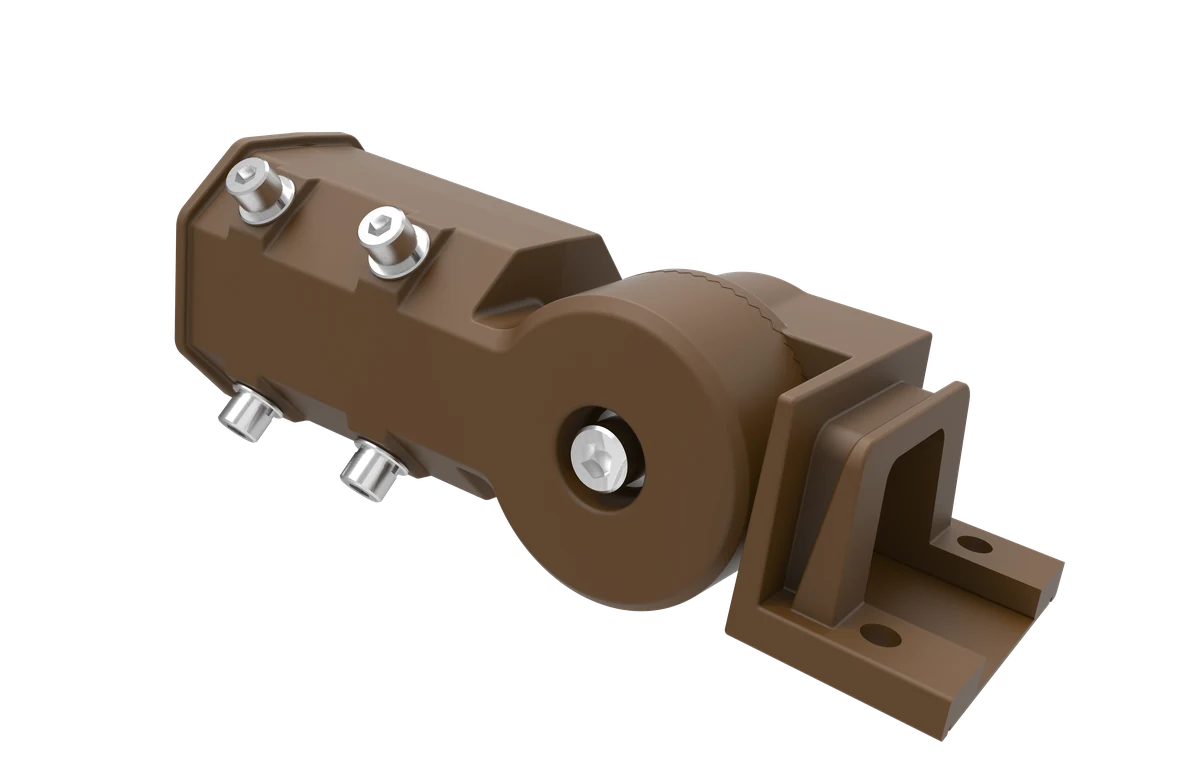

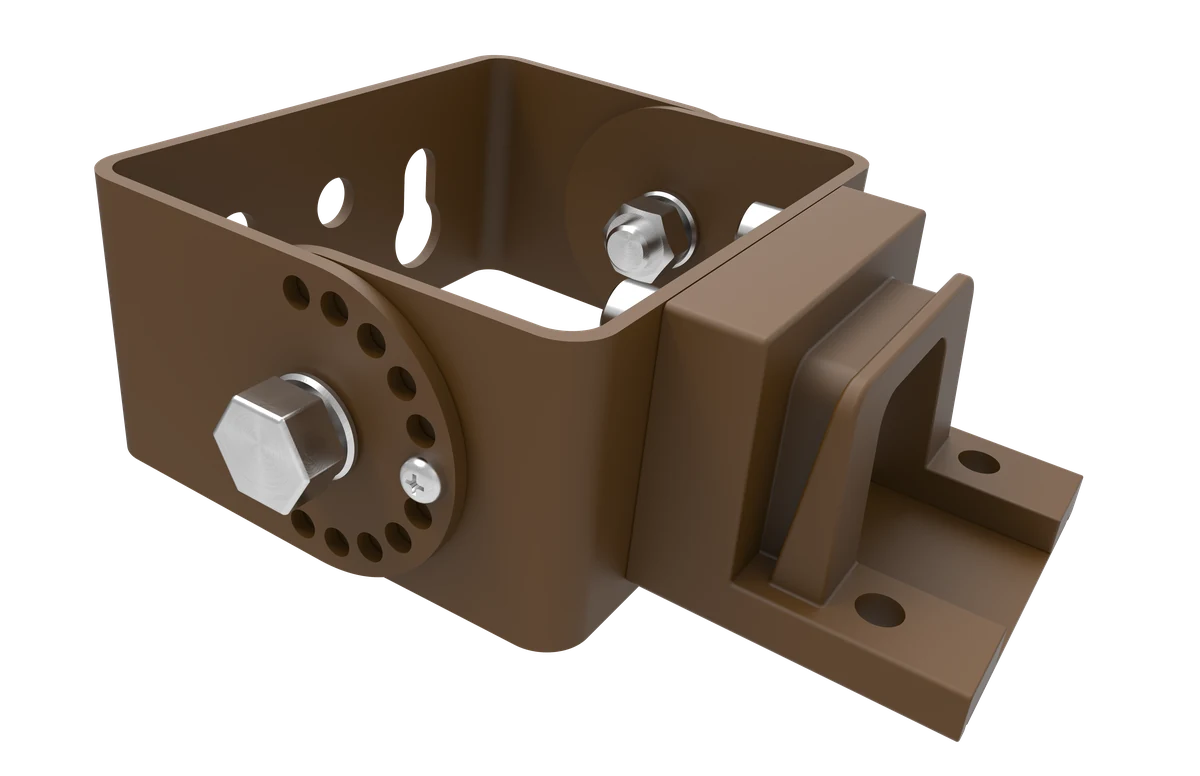

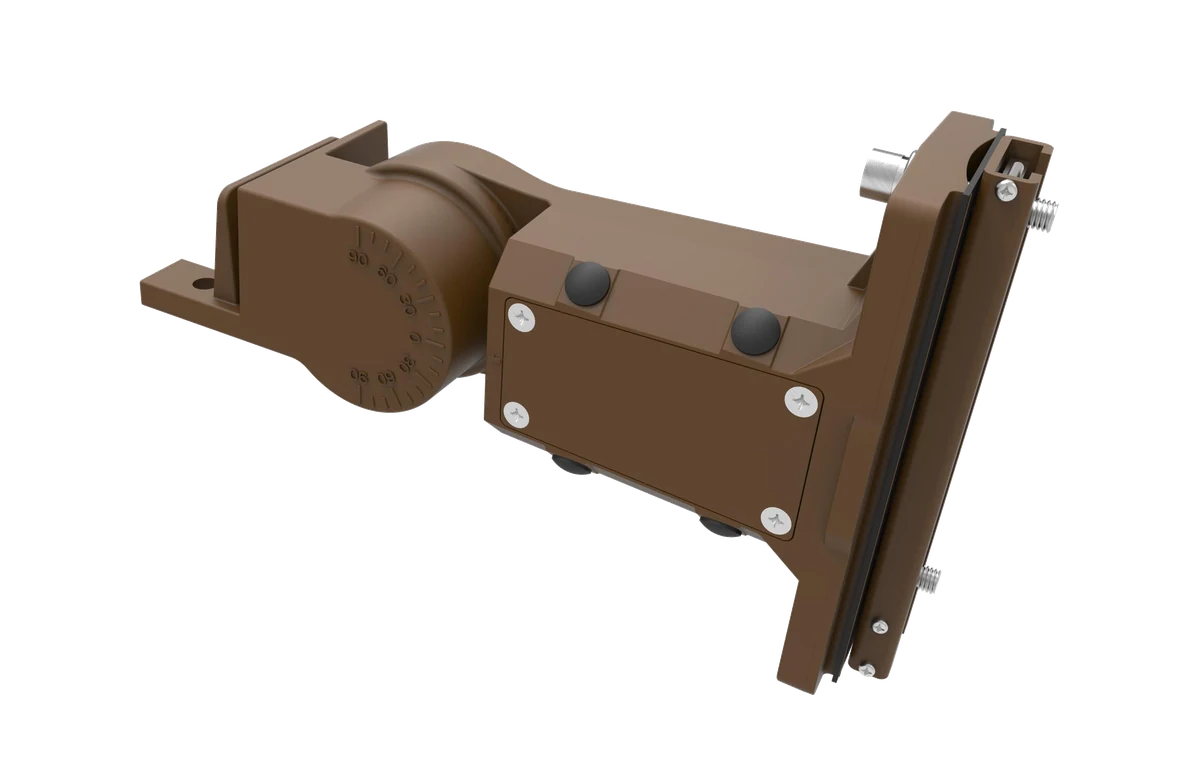

contrLS sensors, photocell, mounts, in-line surge, multi-fixture tenon adapters — factory-matched to the LSBX housing, Quick-Ship unless noted. Drill template PDFs live inside each Mount card’s modal.
Drill Pattern

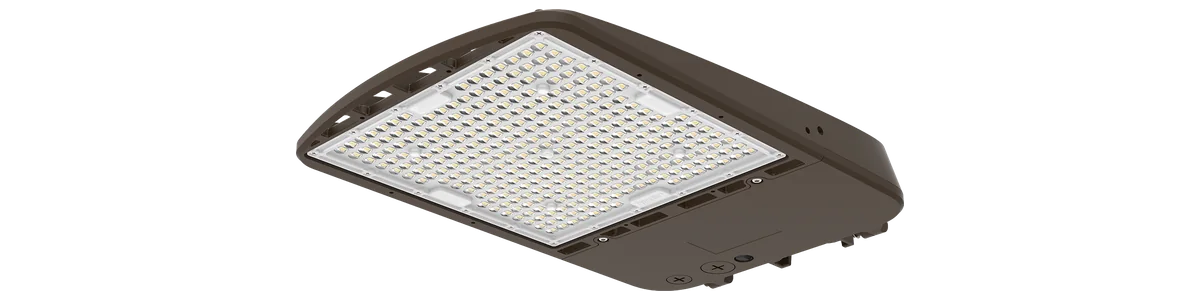

Build Your Model
Configure Your Heritage
Selections build the SKU live. WATTSELECT + CCTSELECT are DIP-set at install — they do not appear in the SKU. Required fields marked with *. See the legend for QS / MTO / DIP / LCK meanings.
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify the Heritage shoebox — datasheet, installation guide, the full 18-file IES bundle (2 housings × 3 WATTSELECT × 3 CCT · better coverage than the Pathfinder + Navigator bundles), and a per-SKU submittal generator that mirrors your Section 9 configuration including the Quick Pick catalog combos. DLC SSL listing for the luminaire and the DLC NLC version for the /ACS controls module are both still in application — rebate paperwork tracks alongside the applications, and the rebate-center link below is honest about the status rather than implying confirmed listings.
/BLS bi-level, /ACS Bluetooth Mesh, and /NLC SILVAIR./BLS IR-remote, /ACS Bluetooth Mesh join sequence, and /NLC SILVAIR Bluetooth Mesh pairing flow. Surge protection and respirator pressure-management seating verification included./RS · /TN · /UA · /SF mount · /PS photocell · /BLS · /BLS-5D · /ACS · /NLC sensor), all on a single 4-page PDF. Defaults to LSBX3W150-3H1-UD3/RB3 at 150W / 5000K / Dark Bronze · 120-277V — your Section 9 selections (or Quick Pick combo) override at runtime, including DIP-set WATTSELECT and CCTSELECT values that surface as “Field-set at install” rather than baked into the SKU.One mounting system. Three tiers.

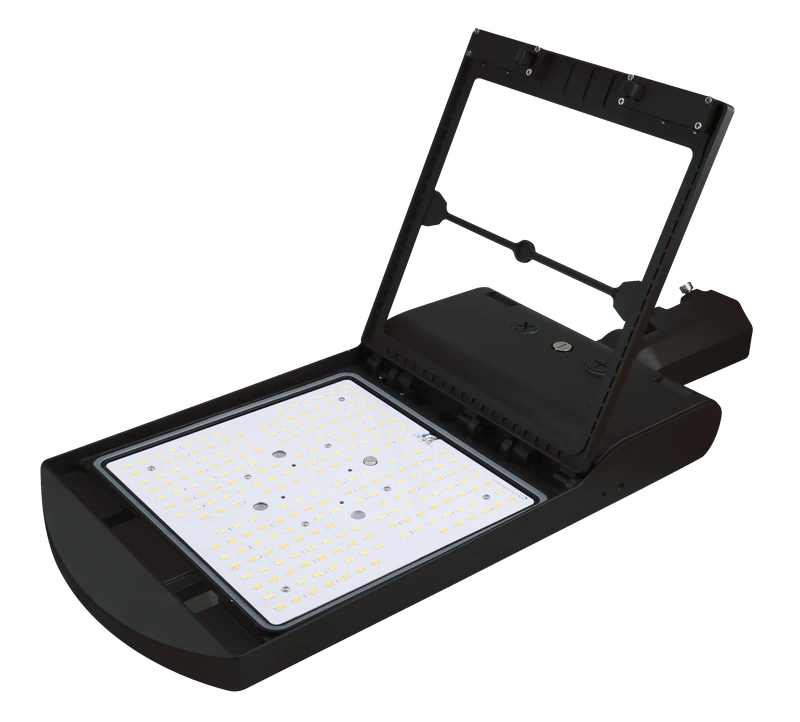

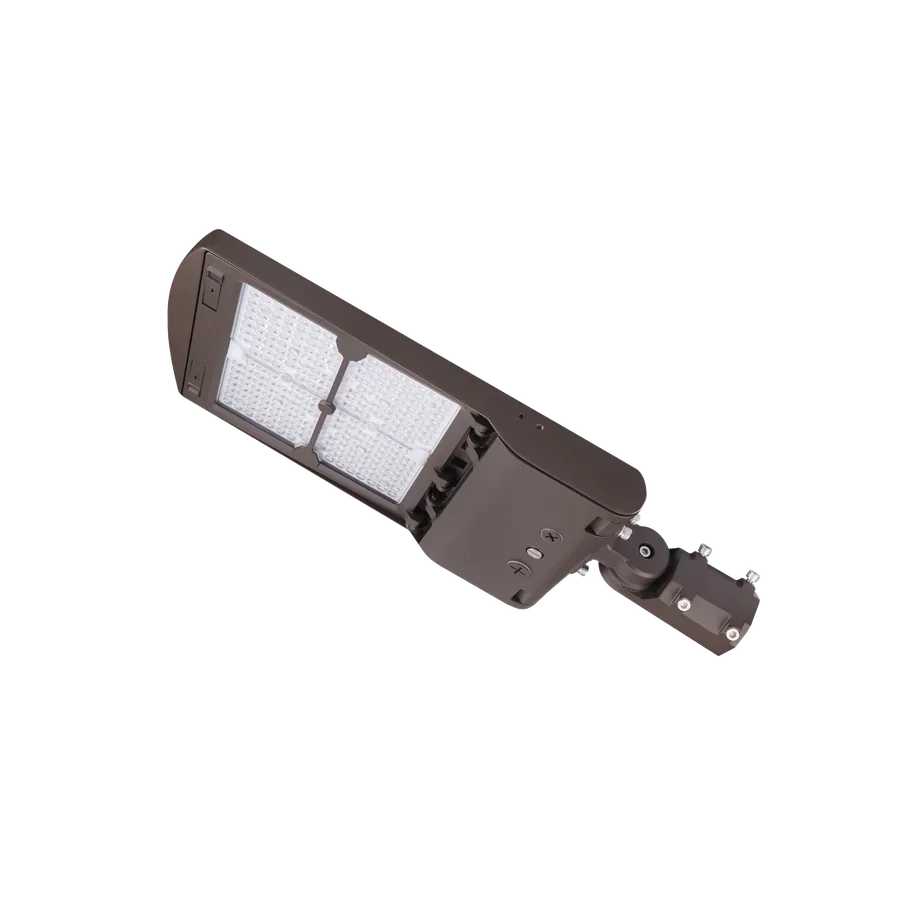

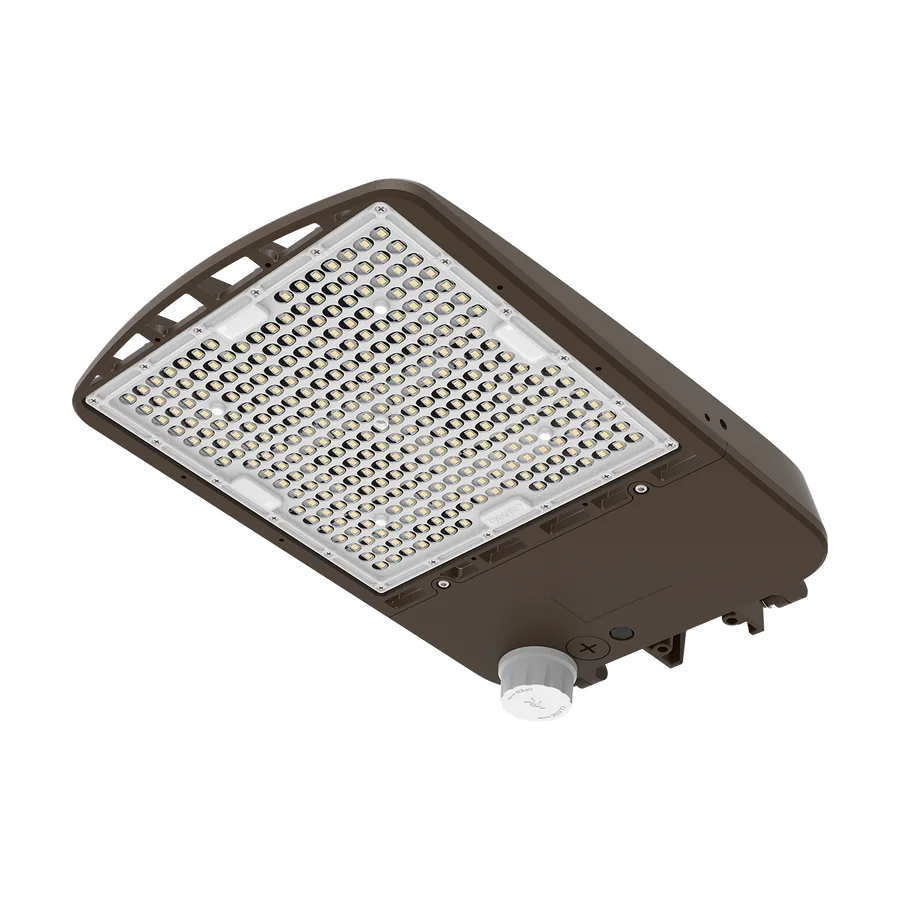

The luxoⒶRCH outdoor catalog ships three shoebox SKUs on the LSBX family — Heritage (this page · ECO), Liberty (PRO), and Rosetta-III (PRO+). All three share the same housing chassis and mounting hole pattern — distributors stock fewer hardware variants, contractors install the same way regardless of tier, and project managers can ladder up or down without changing the photometric language. Pick by project spec, not by tier: Heritage for ECO budget + contractor-grade build, Liberty for PRO modular-optics + 7-pin NEMA controls, Rosetta-III for PRO+ BeamLogic™ adaptive optic + 10-year warranty. DLC SSL listing varies by SKU — see each PDP's rebate section for current QPL standing.
/BLS, /ACS Bluetooth Mesh, or /NLC SILVAIR mesh. 6KVA surge built-in · IP65 · −40°F to 113°F. The product on this page.
LSBX-L1/OT2–/OT5). Glare shields in Black or Dark Bronze. 7-pin NEMA receptacle (/PCS/UM7) for DALI-2 / D4i. TAA-Compliant Mexico variants (/TAA) for federal, GSA, Buy America.
/TAA) standard for federal / GSA / Buy America.
From the parking lot to the building face.

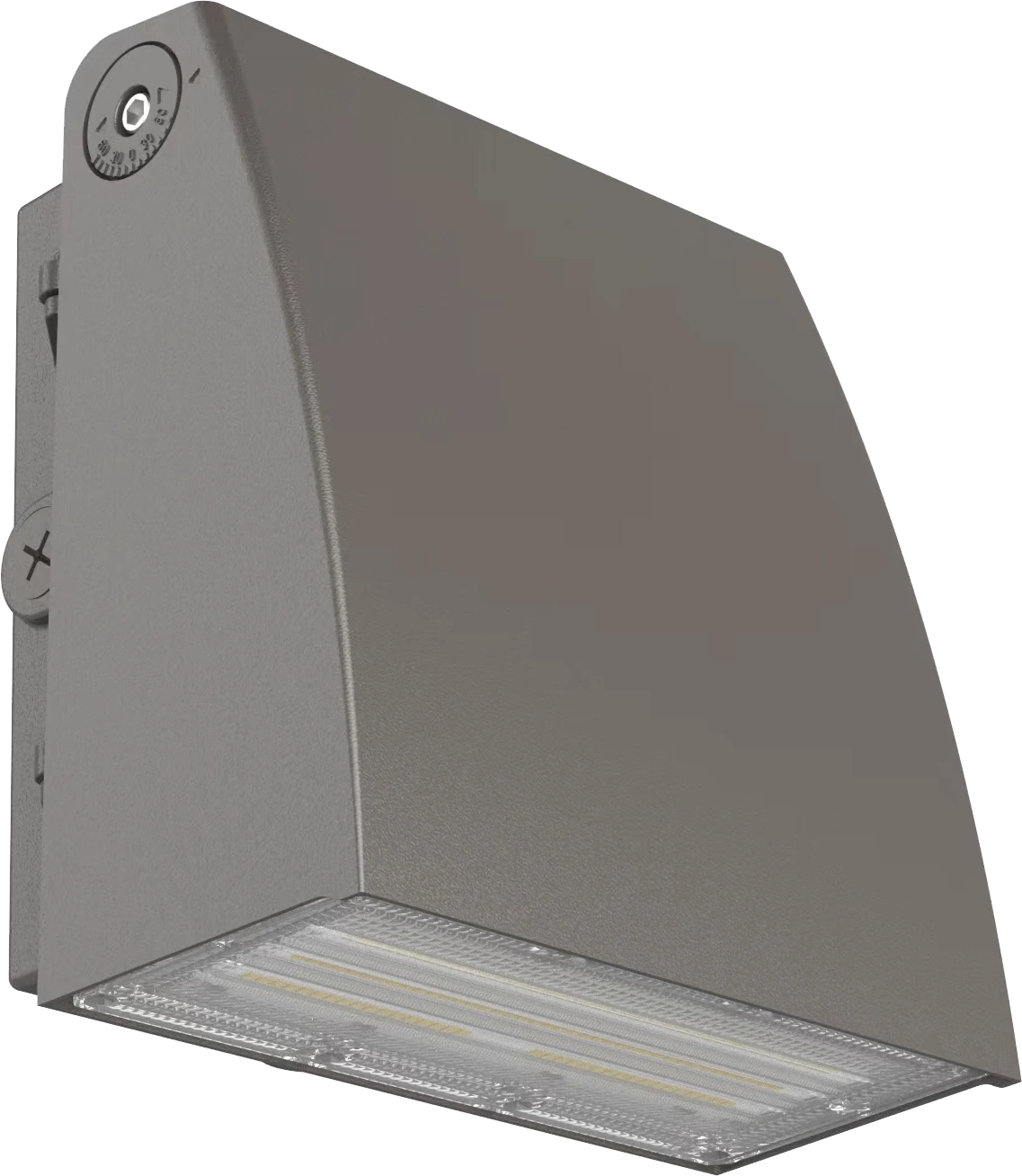

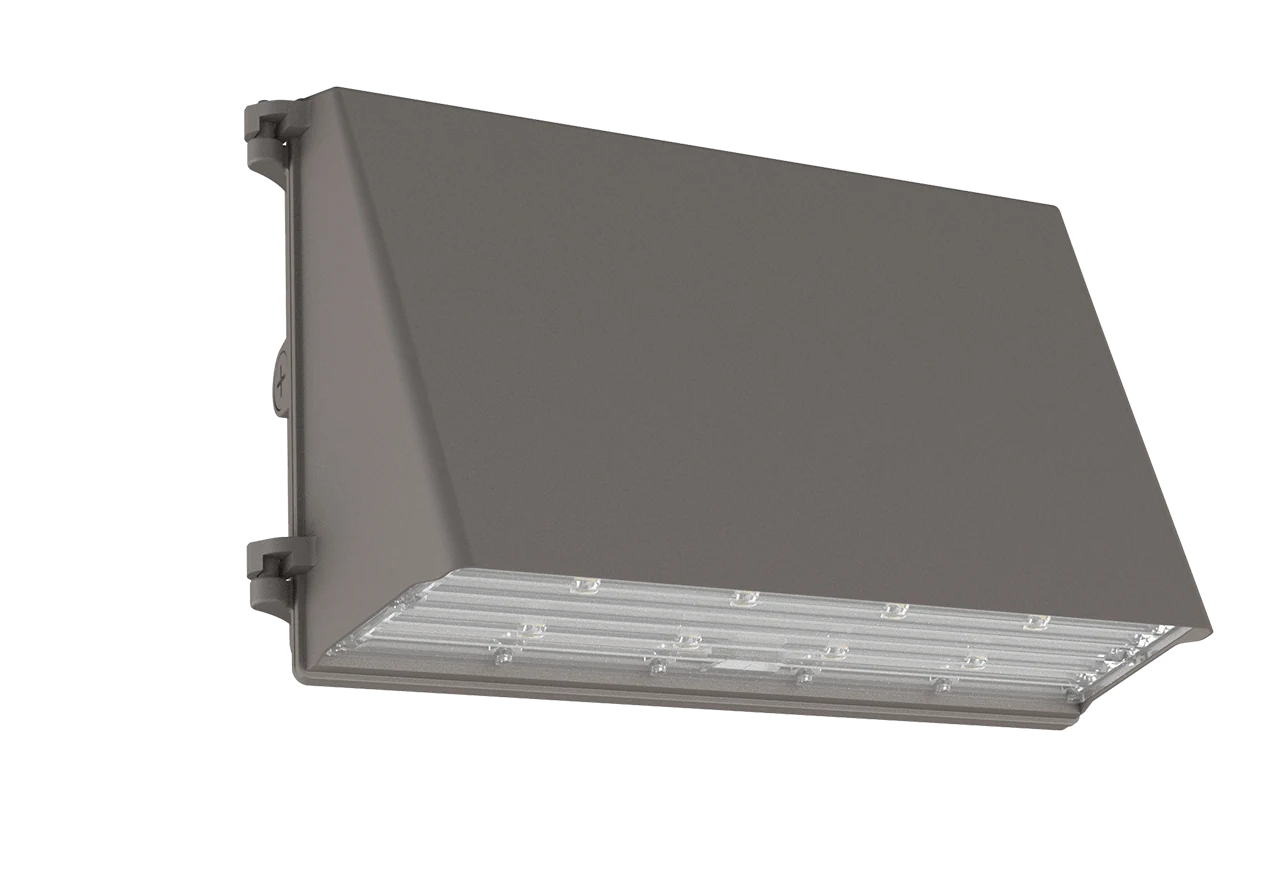

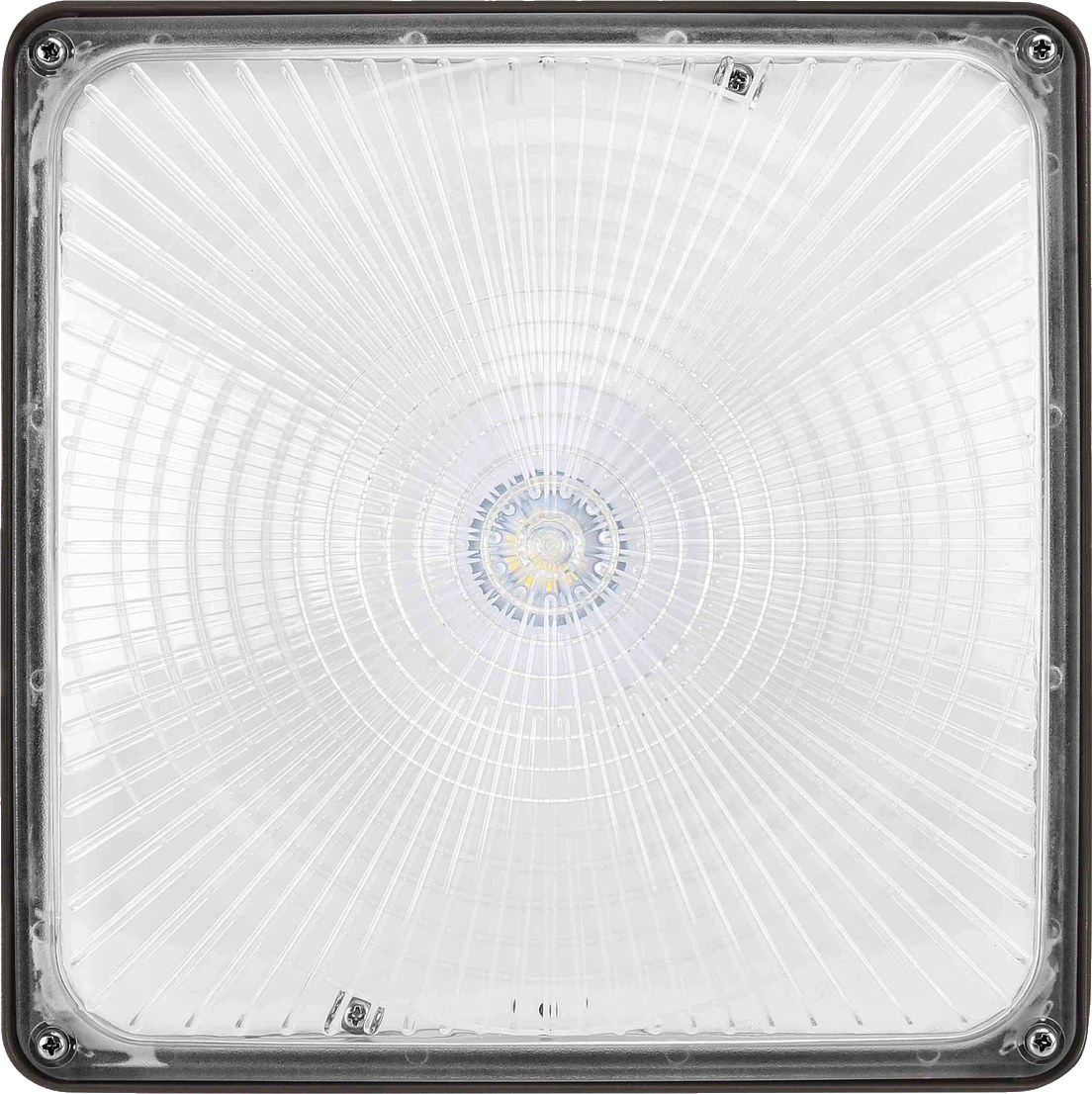

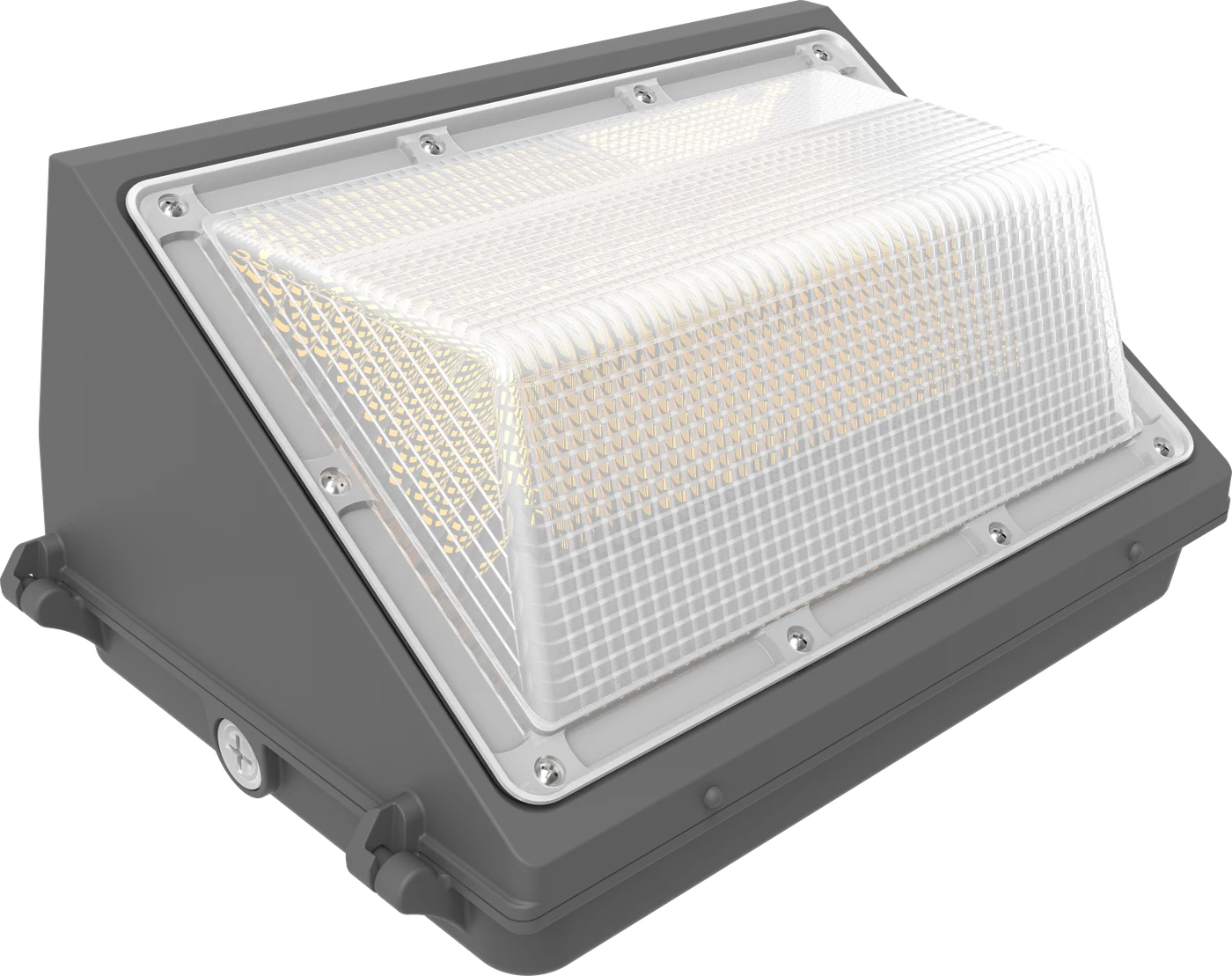

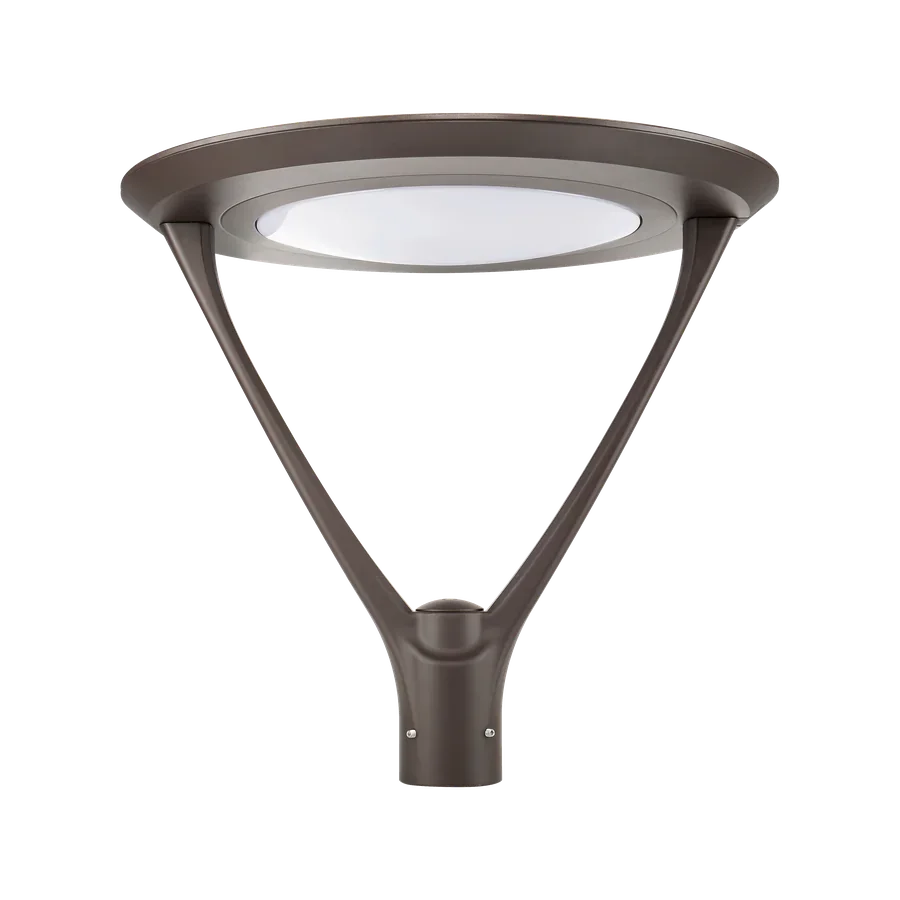

Heritage lights the parking lot. These four cross-line fixtures cover the rest: canopy overhead, perimeter wall packs, fçade-wash flood, pedestrian bollards. Same engineering language, same warranty path, same factory.
/ACS Bluetooth Mesh path as Heritage.
Direct line to your regional rep.
Five US warehouses ship in 2–3 days. Layouts back in 48 hours. Quotes, samples, rebate matches: same-day reply. Networked-controls commissioning (ⒶCS + SILVAIR Bluetooth Mesh) hands off to controls engineering — you get a person, not a portal.
DLC-grade numbers without the DLC-grade price.
Spec-grade numbers at ECO pricing. 150 lm/W clears the DLC Premium 130 floor with 20 lm/W of headroom. CRI > 80 clears the 70-CRI minimum by 10. Color-shift < 180K beats DLC’s 200K consistency requirement. Second path: /ACS in DLC NLC application — once qualified, an NLC rebate stacks on the SSL rebate. Honesty markers: 5-yr / 50,000-hr warranty matches DLC Premium minimum but doesn’t lead (RAB ALED’s 10-yr does). SSL + NLC applications pending — we won’t pre-print a QPL ID we don’t have.
