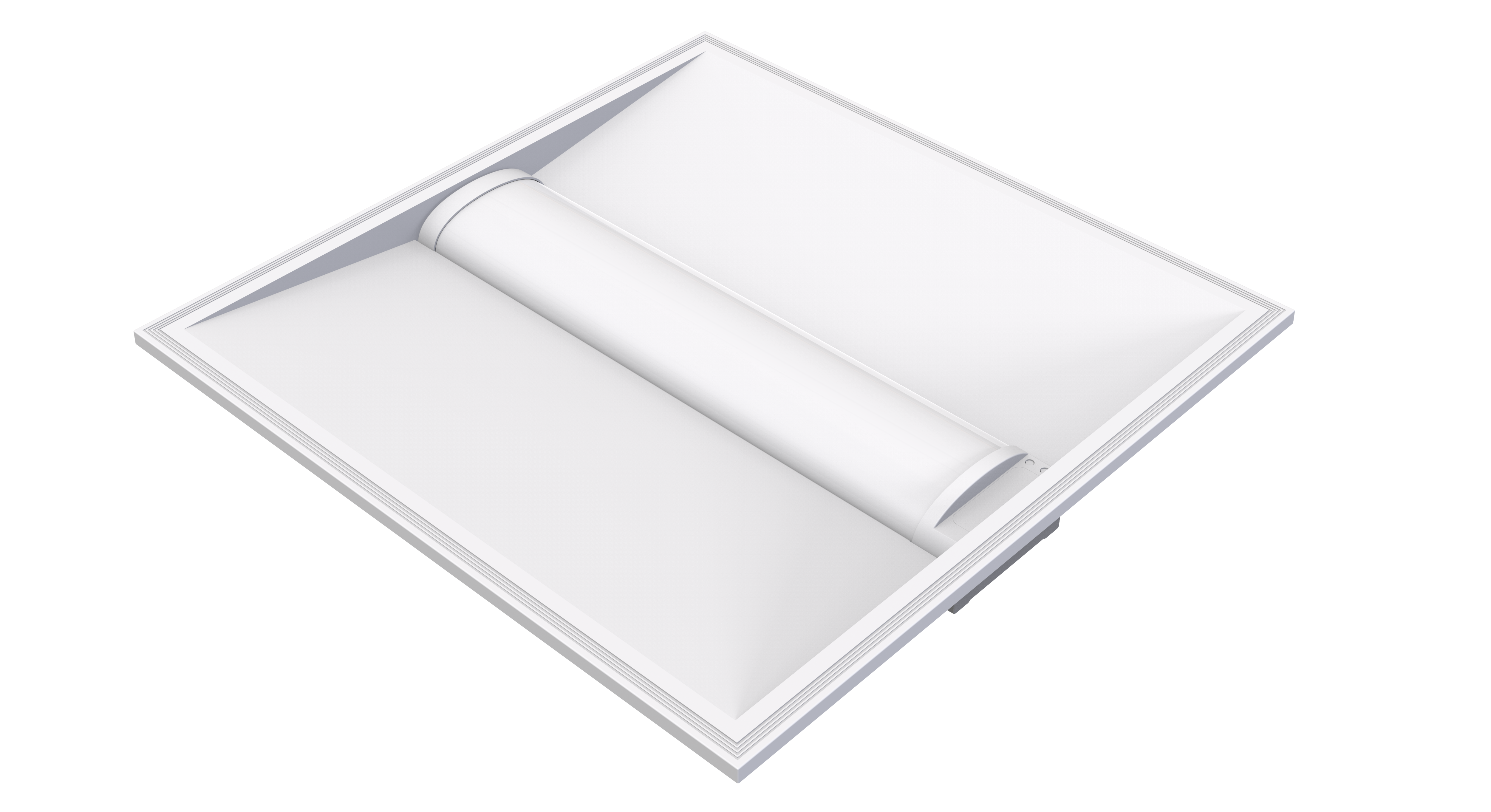

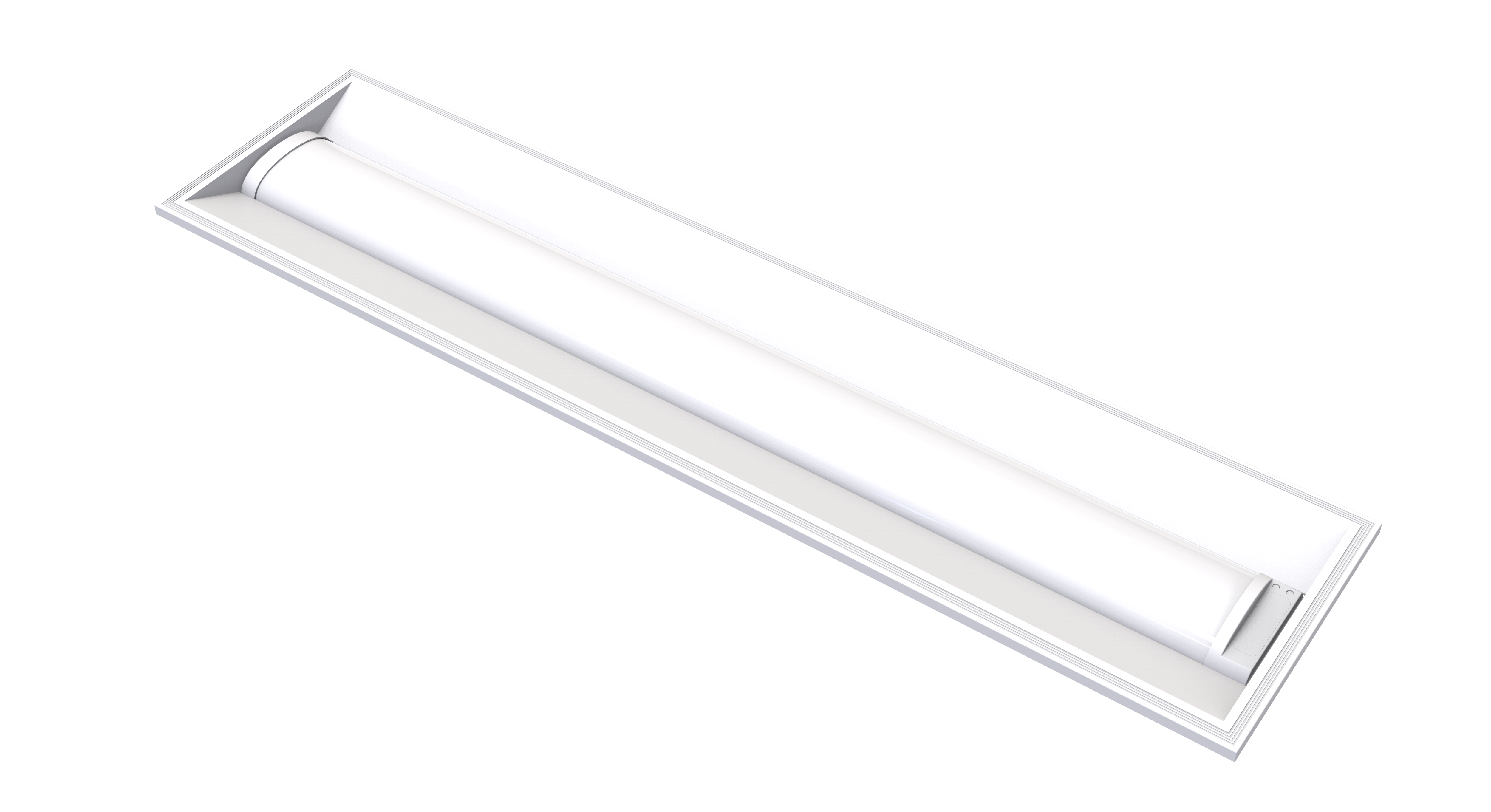

Luxmark LED Troffer

Four wattages. Four color temperatures. Set in the field.

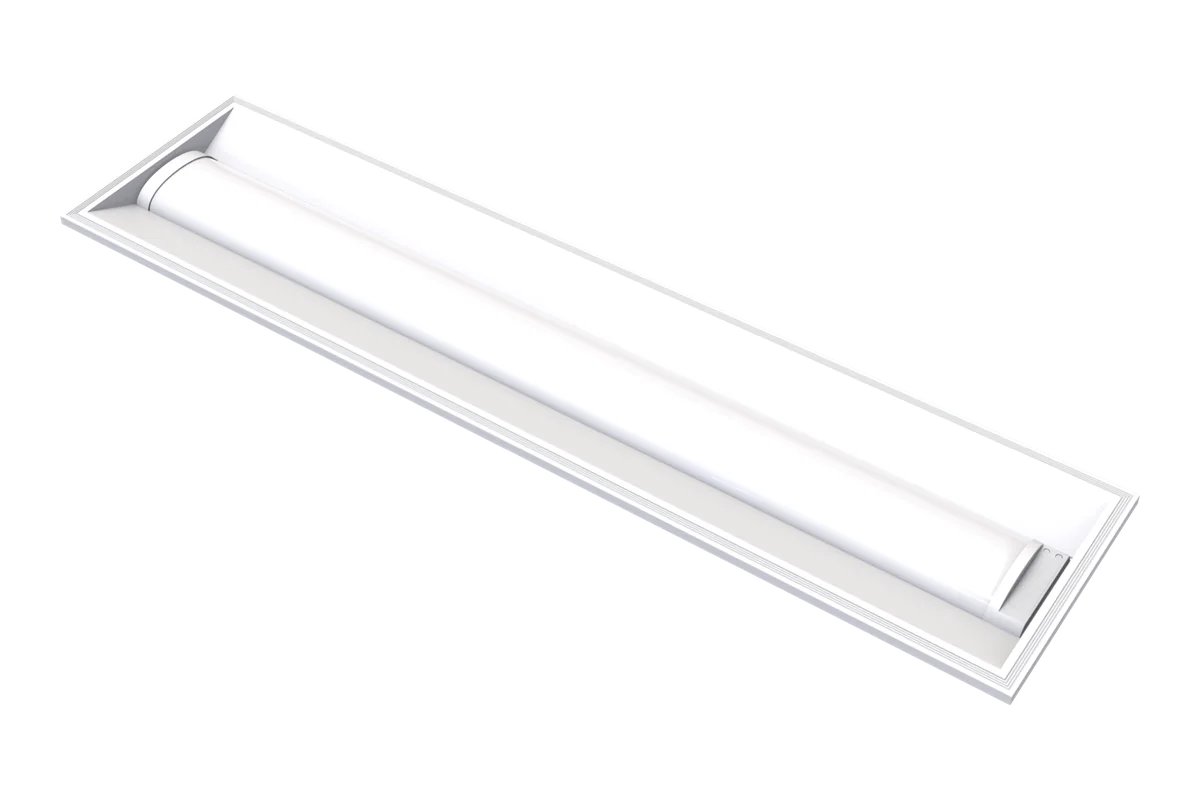

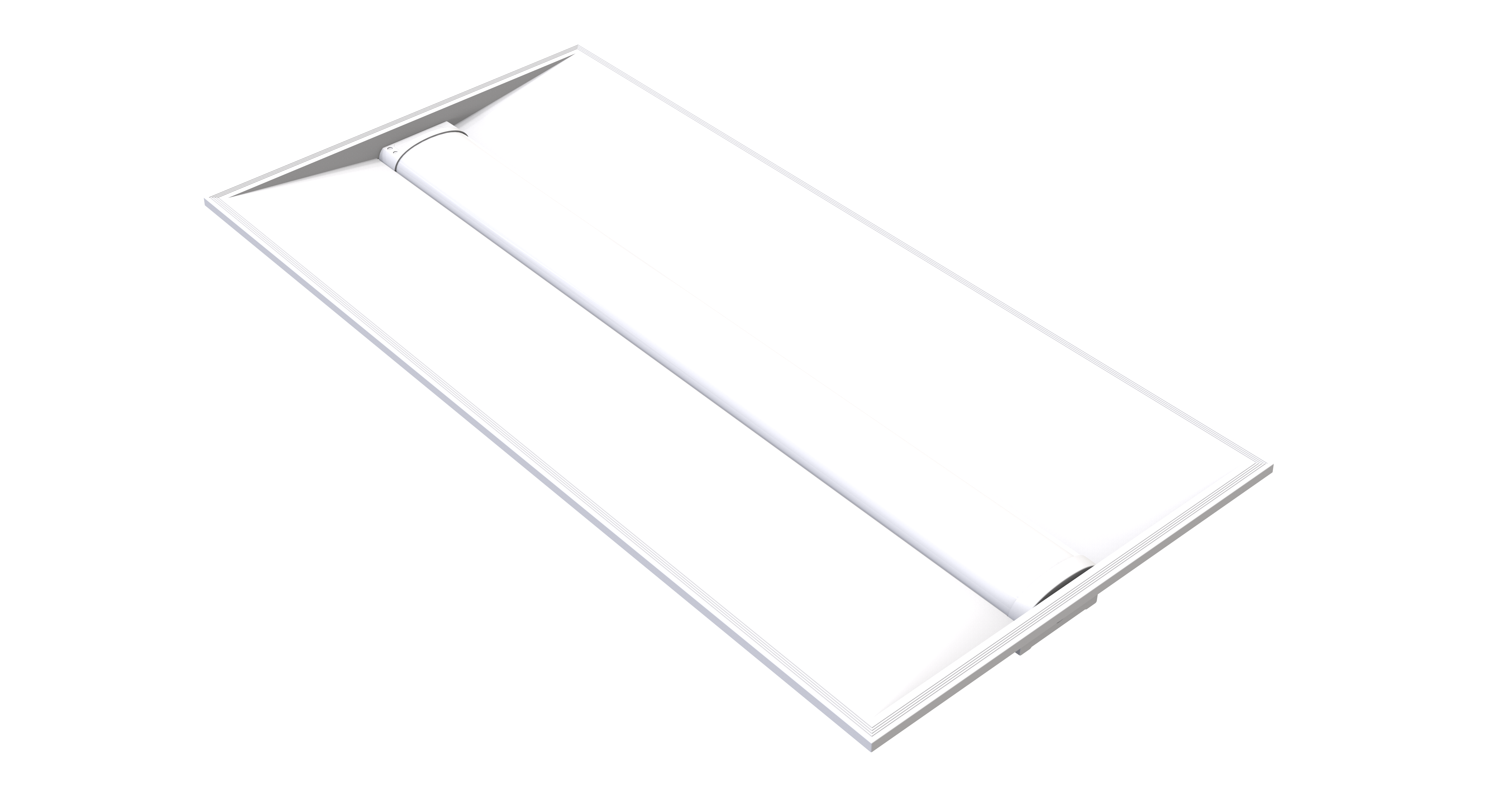

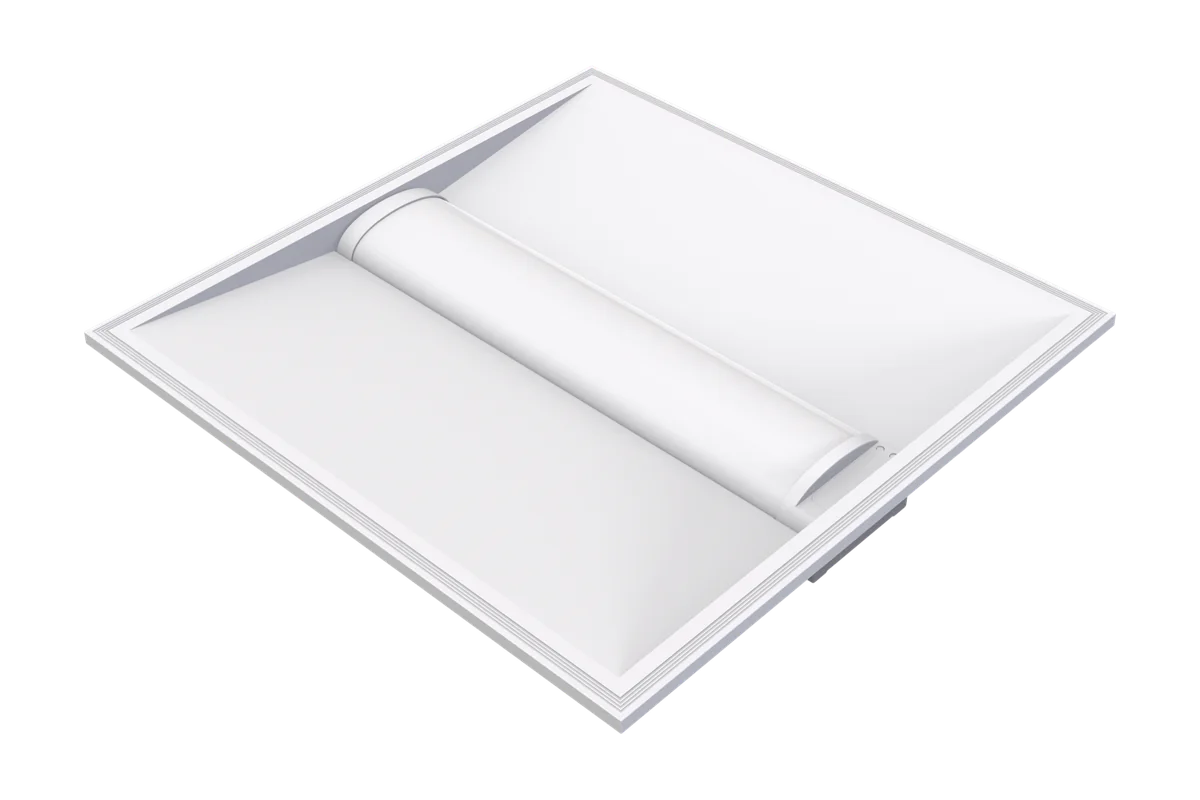

A spec-grade center-basket LED troffer for 1×4, 2×2 and 2×4 grid ceilings. Four wattages and four color temperatures are switches on every fixture, sixteen settings in one catalog number, at up to 137 lm/W measured. A sensor snaps into any build; an emergency driver goes in with /EM08. DLC Premium, 7-year warranty.

Specification Sheet IES Files Installation Guide Configure For Lead Time

Input Watts20–50 W

Lumensup to 6,456

Efficacyup to 137 lm/W

Ideal applications

Offices

Schools

Healthcare

4-WATTselect

4-CCTselect

Center Basket

dropⒶCEIL

contrⒶLS-Ready

constⒶNT-Ready

DampGuard

cETLus Listed

DLC Premium

Damp Location

FCC

RoHS

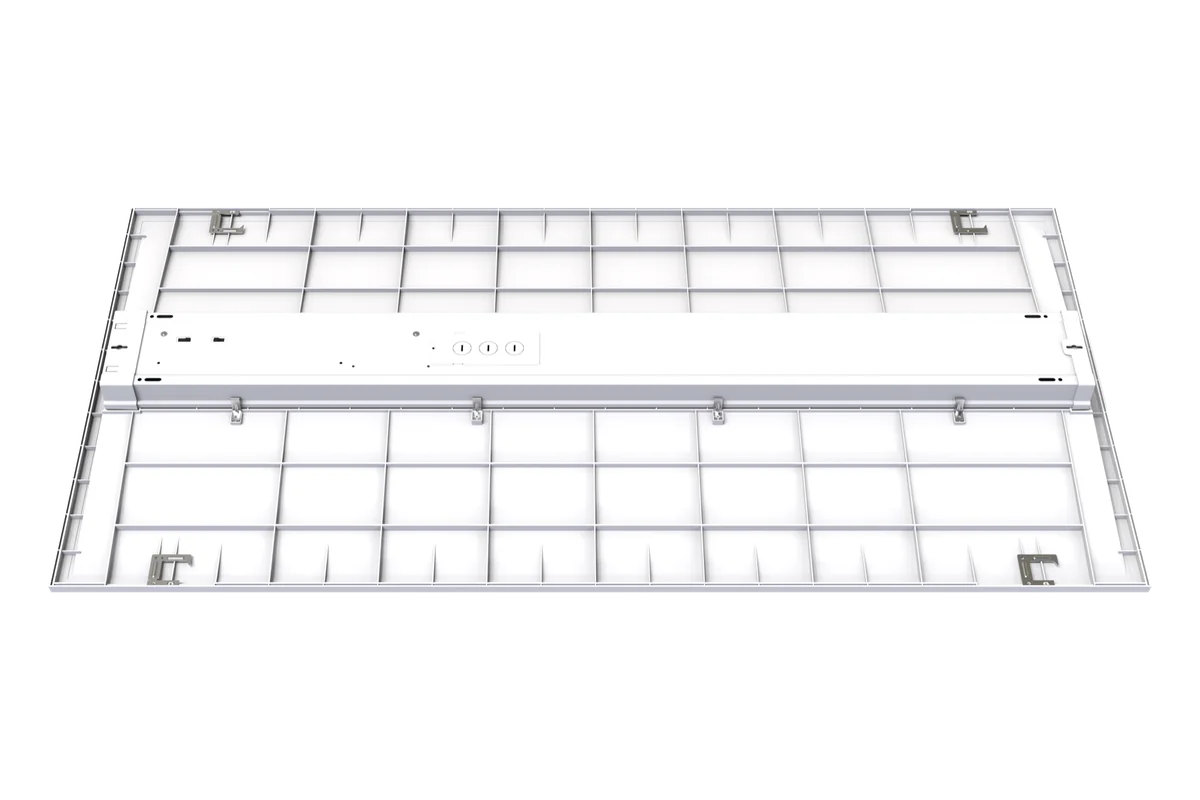

Luxmark LED troffer, back view with the light engine on the reflector

Documentation & Resources

Documents

Data SheetPDF Quick SheetPDF Sell SheetPDF Installation GuidePDF IES Photometric FilesIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the floor plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

WATTselect	Watts	Lumens	CCTselect	lm/W

★ Default settings. † Measured: ALG's file at that step, 5000K, which reads above the datasheet's 125 lm/W. 2×2 values follow the datasheet. All 48 files are in Photometrics.

ApplicationIndoor · lays into a 1×4, 2×2 or 2×4 grid, or surface or suspended with a kitOffices, schools, hospitals, commercial buildings

ConstructionSteel housing and reflector · white prismatic PC diffuser2.83″ deep · 2835 LEDs on an aluminum heat sink

Optics120° nominal, center basketMeasured 107° × 119° (1×4), 116° × 105° (2×2), 107° × 120° (2×4) at 50 % of peak

Dimensions—

Operating temp32 °F to 104 °FIP20 · damp location · IC rated

Electrical120–277 V · 0–10V dimming · PF >0.9 · flicker-free · CRI >80Starts in under 0.5 s

LifeL70 at 50,000 hr93.1 % lumen maintenance at 6,000 hr

Warranty7 yr · 75,000 hrLight output, color stability and the driver

Full Data Sheet Installation Guide

Engineering

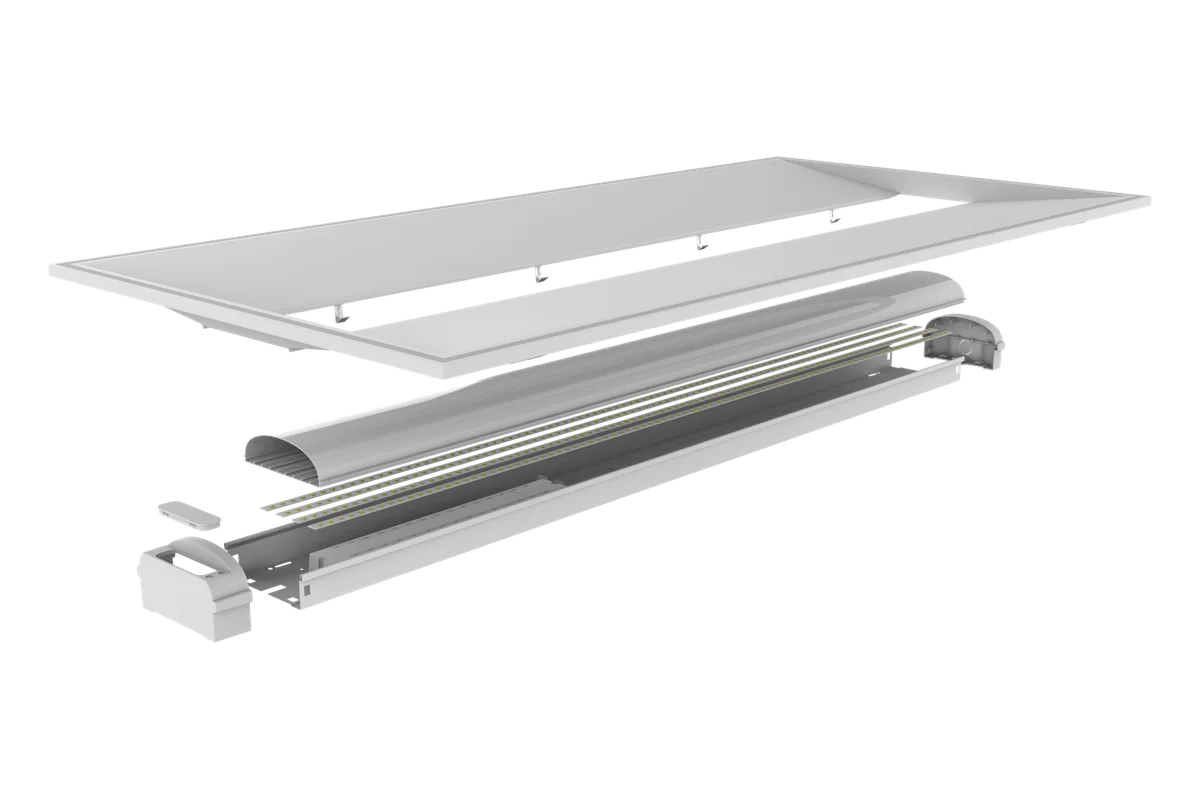

What sits behind the diffuser, what you set at install, and how it goes up.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

Full IES Library

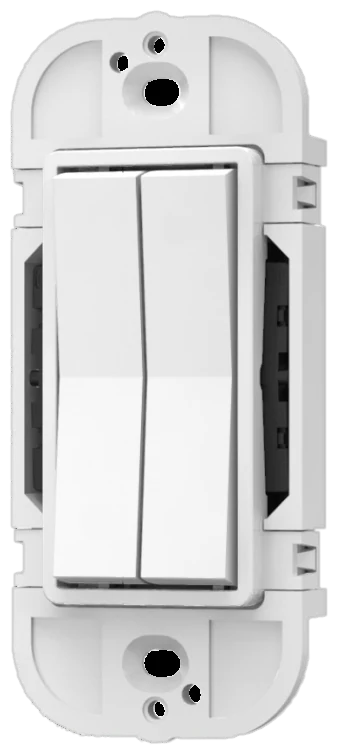

Engineered Accessories

Configurator

Build Your Luxmark.

Required *

Size—

Wattage rangeset by the size—

Voltagethe one voltage built—

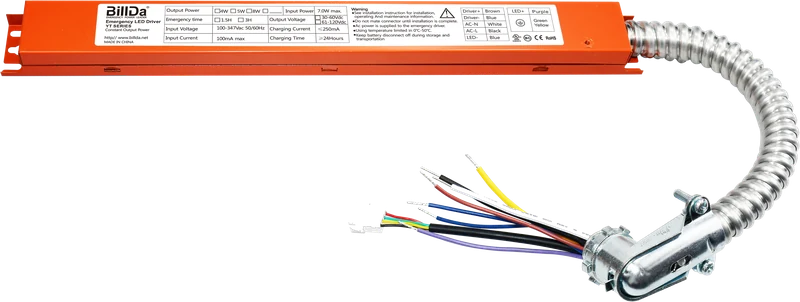

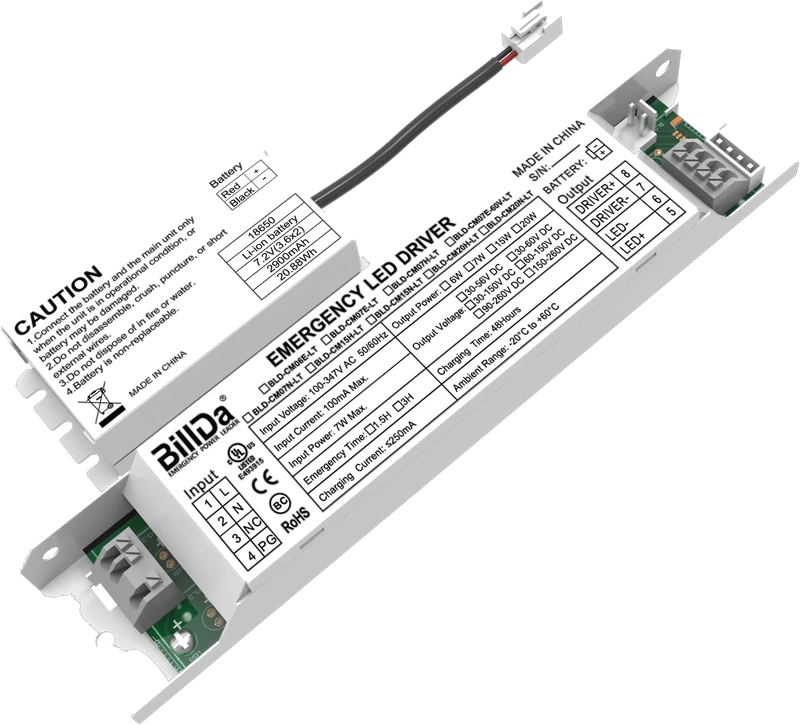

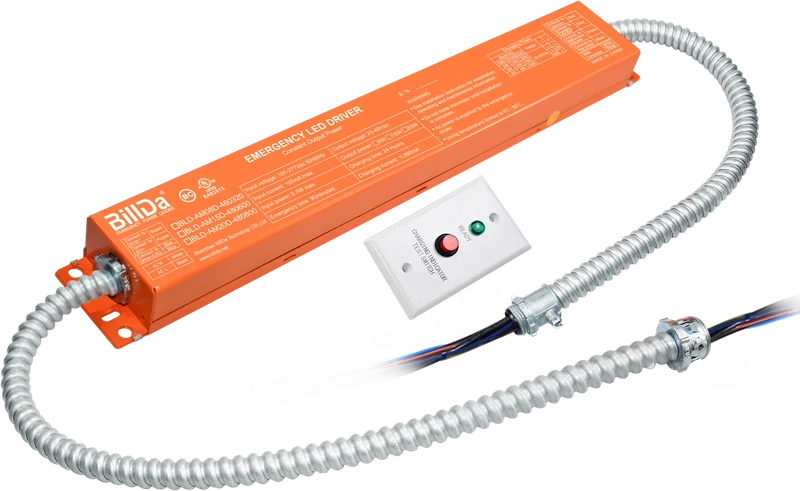

Emergency—

Dip switchesset on the driver · not in the part number—

Optional

MountT-bar clips on every troffer—

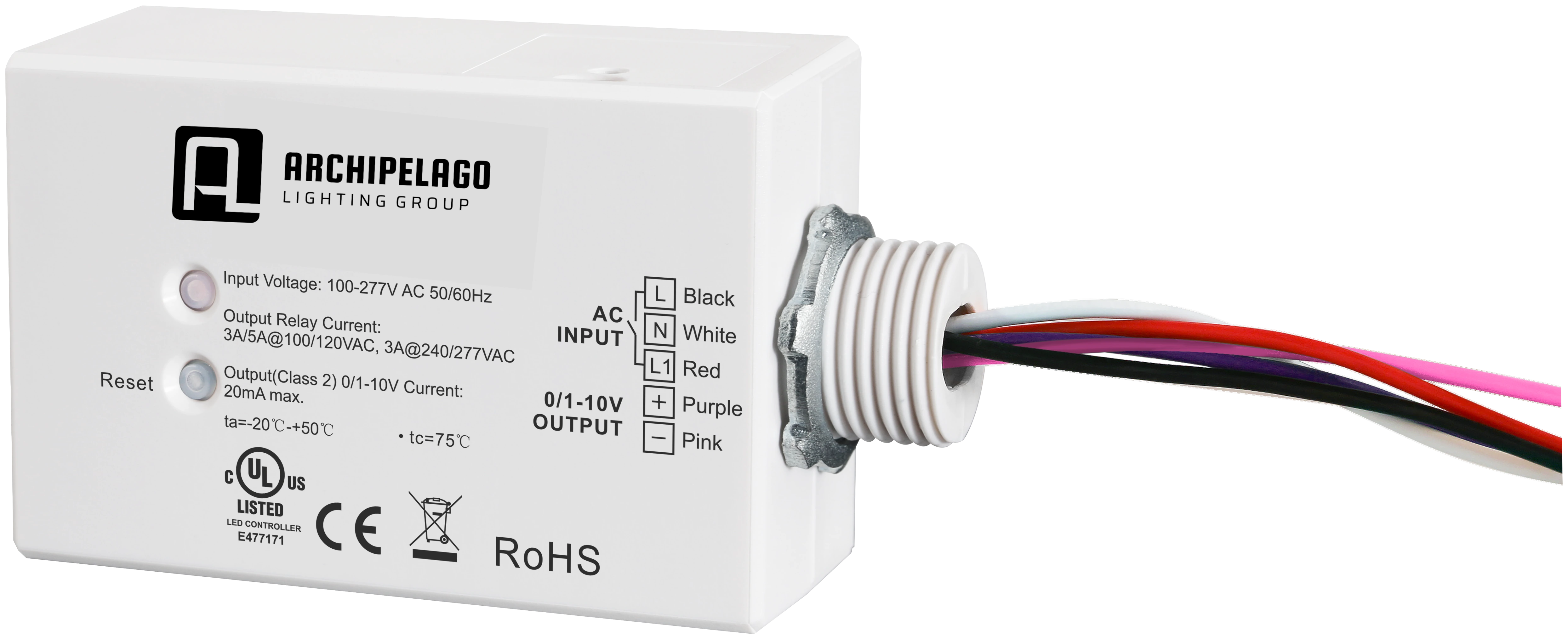

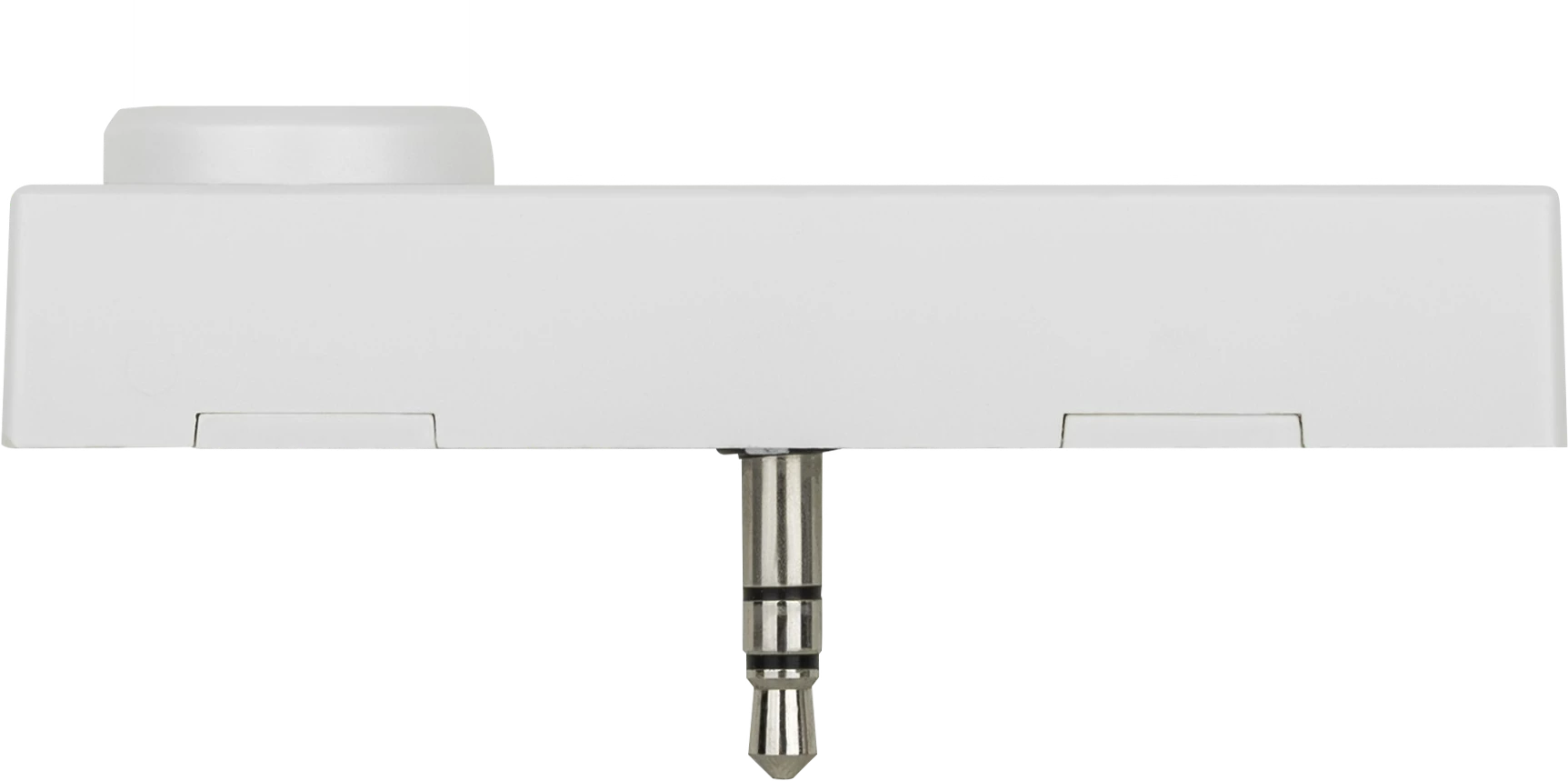

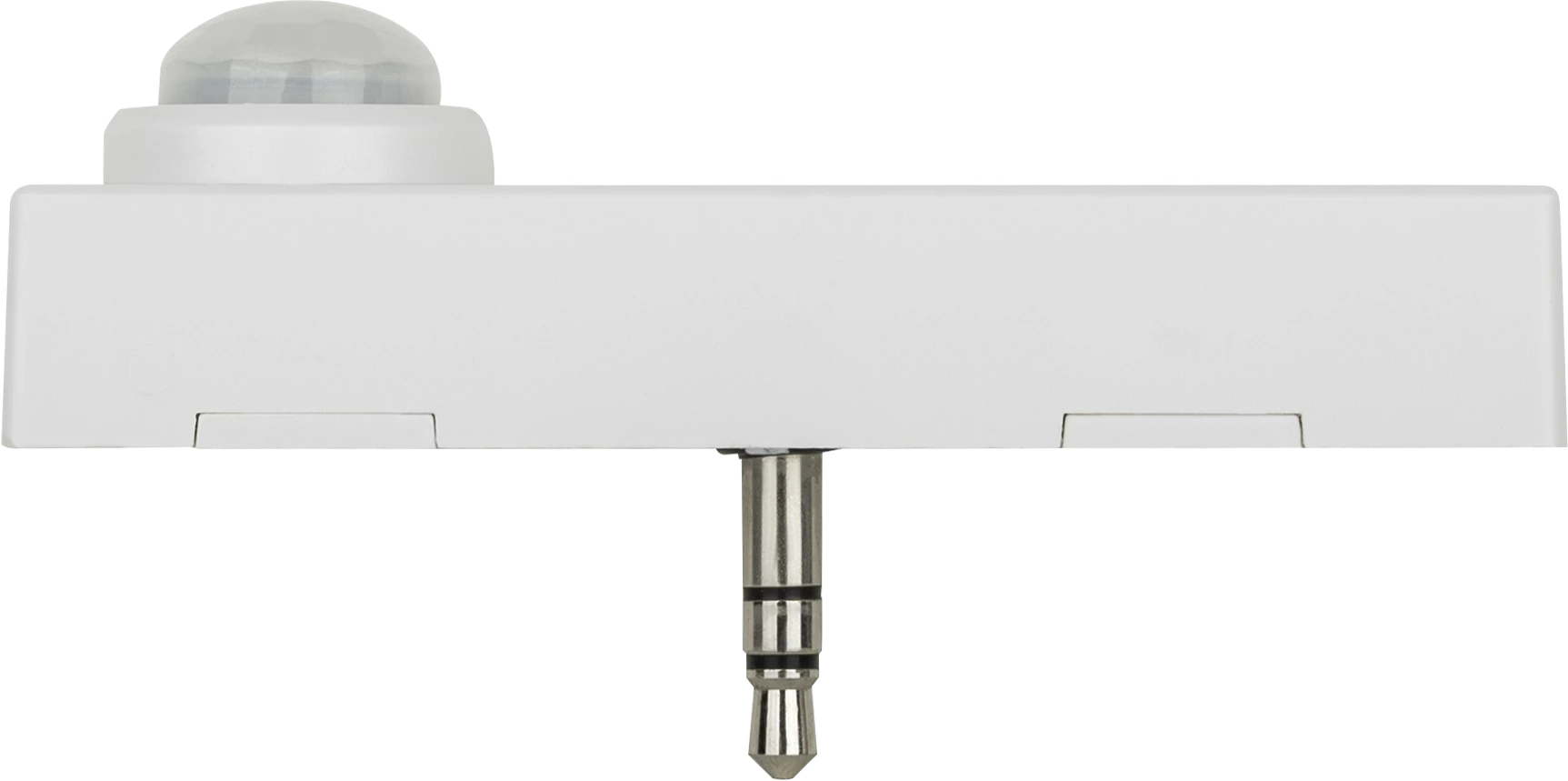

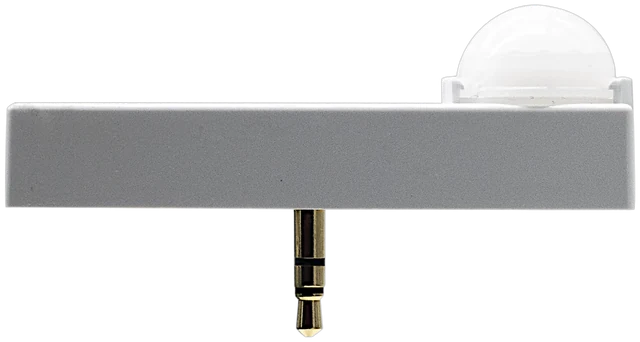

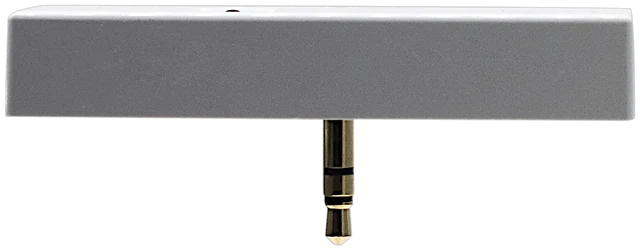

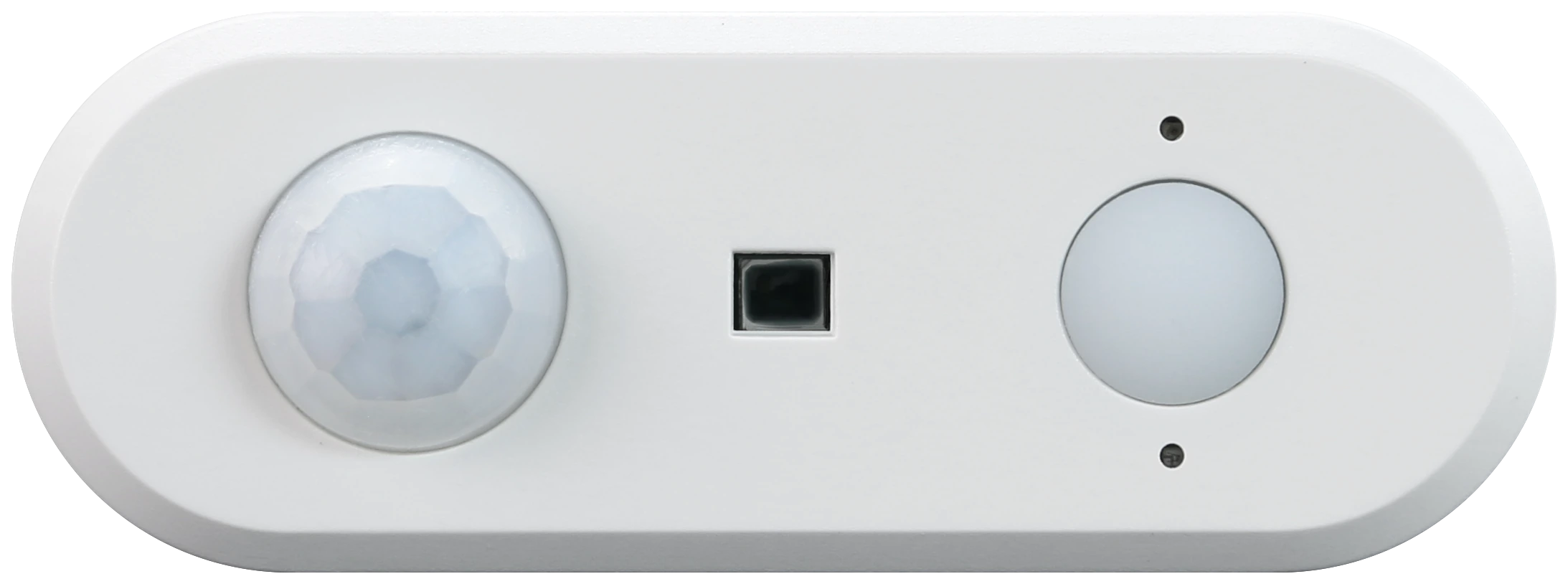

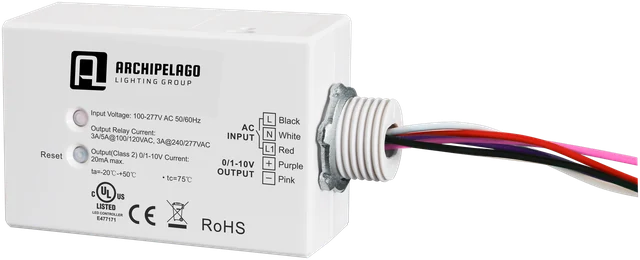

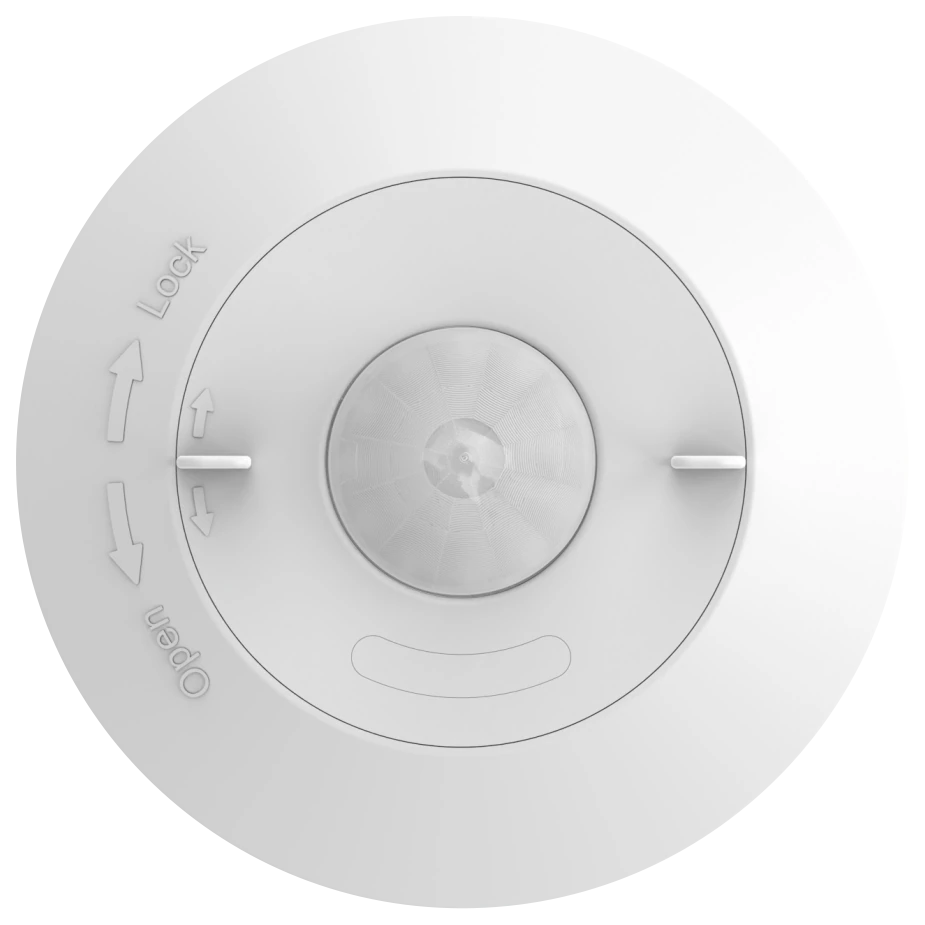

Sensorsnaps into every build—

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingscETLus Listed (US & Canada) · damp location · IC rated · DLC Premium · FCC · RoHSDLC Premium, SSL v5.1: QPL S-KCR25U (1×4), S-1EYSL3 (2×2), S-C8ZO2F (2×4). Confirm program eligibility in Rebate Center before specifying.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

Troffer Family

Luxmark is the spec-grade troffer. proⒶRCH-T is the ECO troffer for the same grids; retroⒶRCH-T1 puts a center basket into a troffer already in the ceiling.

You are here Luxmark LED center-basket troffer

LPVT · PRO+ Luxmark The spec-grade troffer: four wattages and four CCTs on every fixture, up to 6,456 lm. 7 yr / 75,000 hr Installation Guide → Product Details · this page

LPVT · ECO proⒶRCH-T The center-basket troffer for new grid ceilings. 1×4, 2×2 and 2×4, 18–44 W. TAA · 7 yr / 75,000 hr Downloads → Product Details →

retroARCH-T1 LED retrofit troffer door kit

LPVR · ECO retroⒶRCH-T1 The same center basket as a door kit for a fluorescent troffer already in the ceiling. TAA · 5 yr / 50,000 hr Downloads → Product Details →

Specifier Support

Send us the floor plan.

We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.

3 BDLayout turnaround

FreePhotometric layout

Find A Rep Request A Layout

Rebates

DLC Premium, every size.

All three Luxmark sizes are DLC Premium under SSL v5.1, and each listing covers the emergency build. Rebate Center shows what your utility pays and what it needs. Send us the ZIP and we pull the active program and the forms.

137lm/W · measured

DLCPremium · v5.1

16settings per troffer

Open Rebate Center
