LDLL Lunar Eclipse Series PRO
Trimless Surface-Mount Puck · Black-Only · IP65 Wet

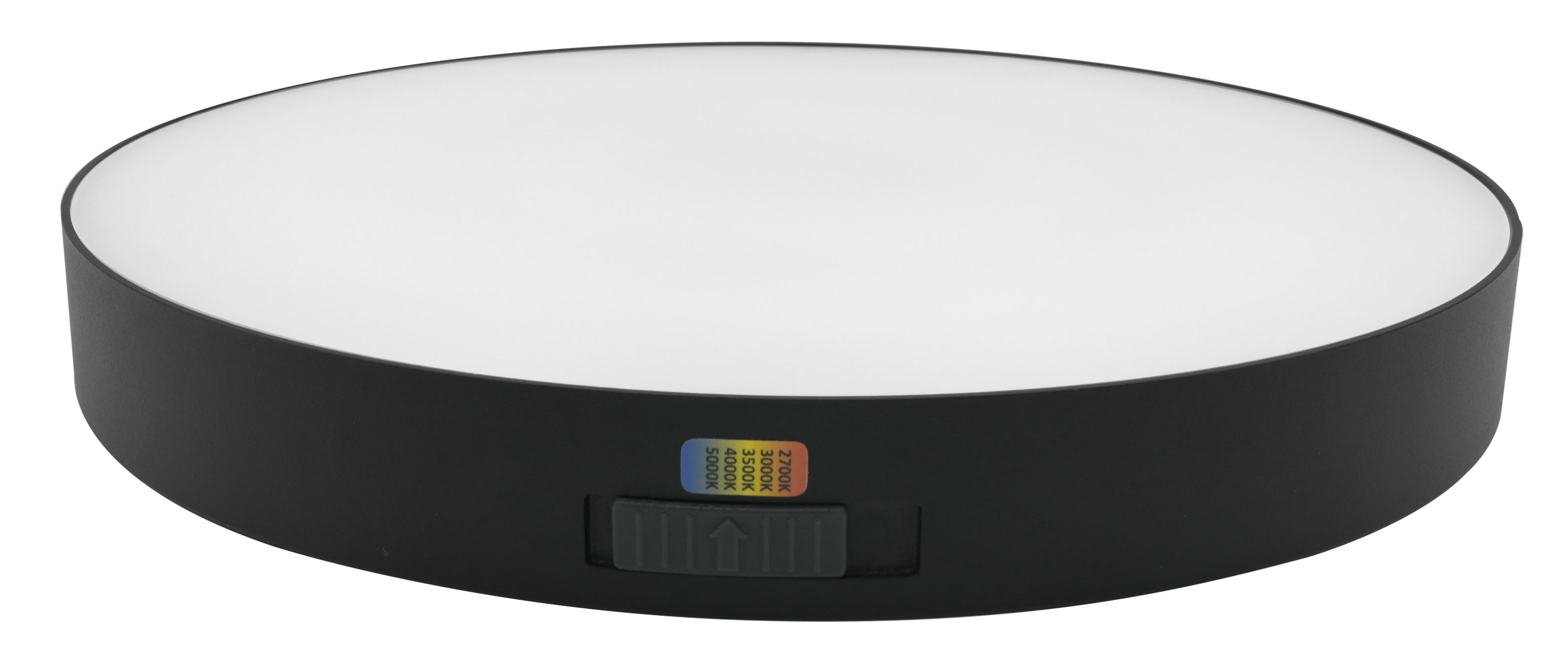

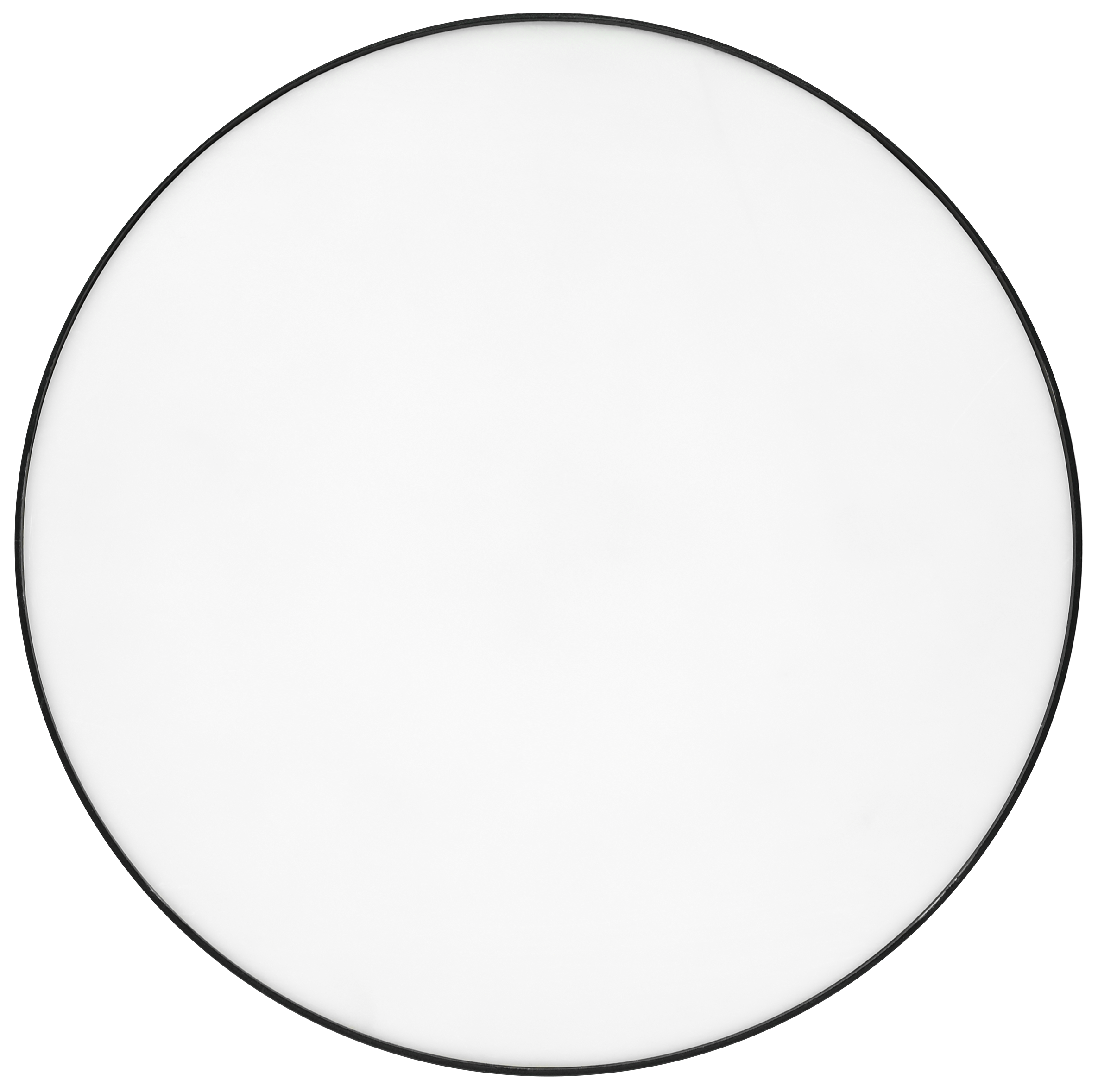

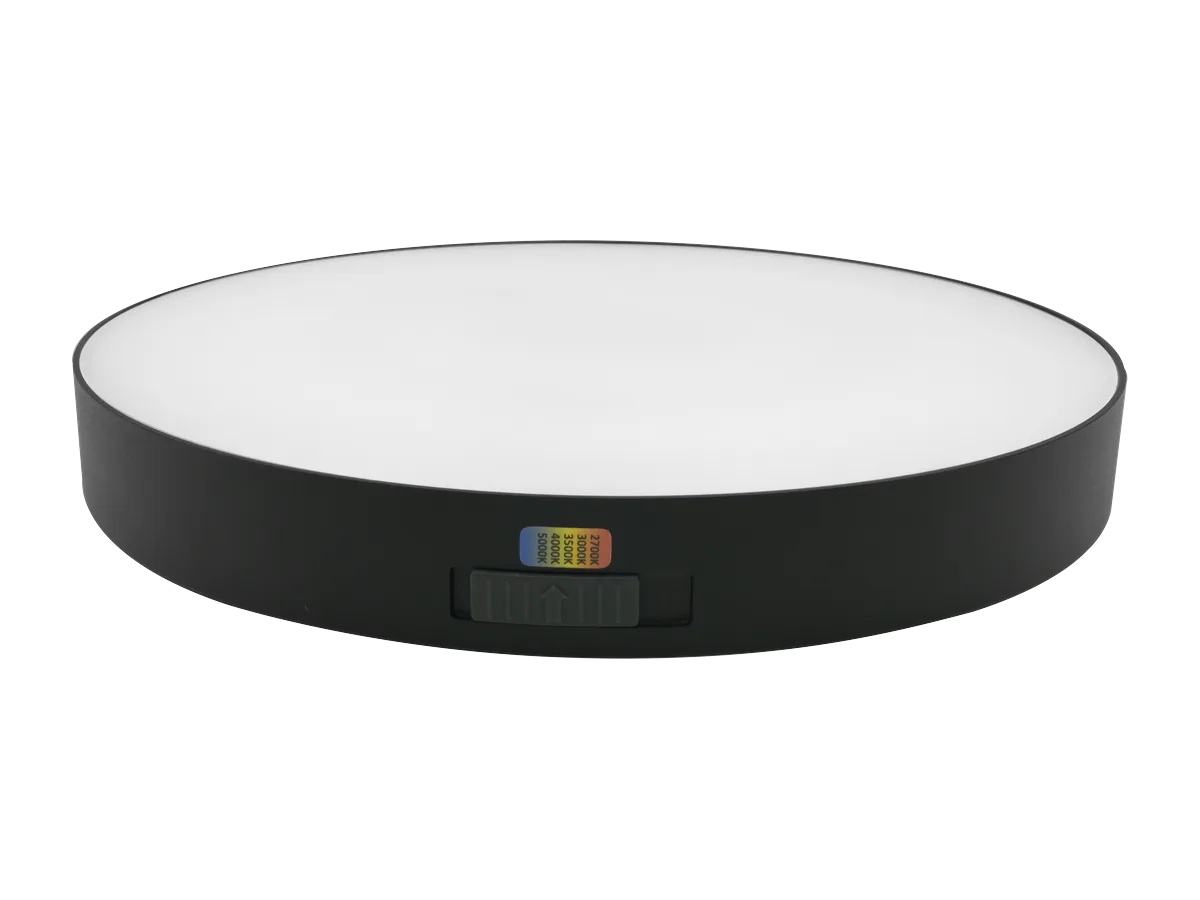

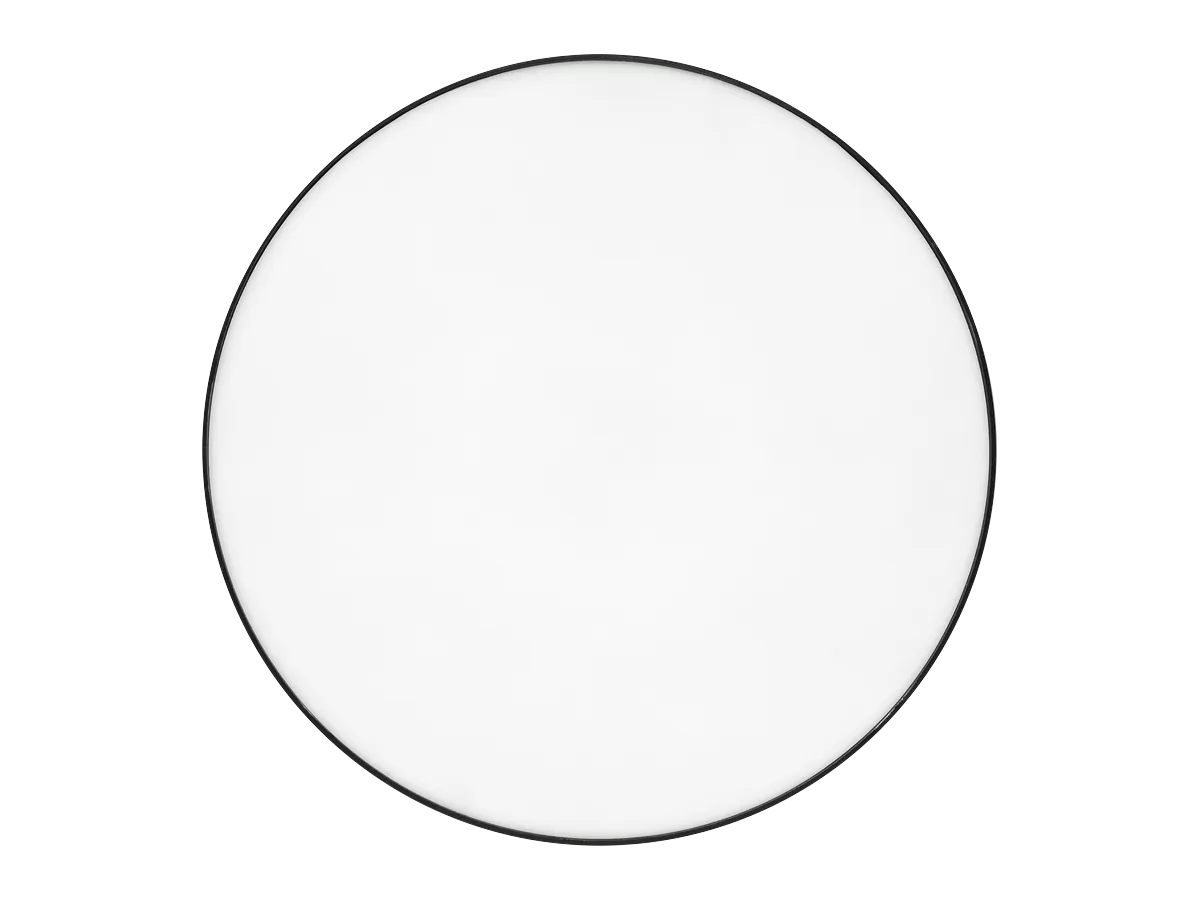

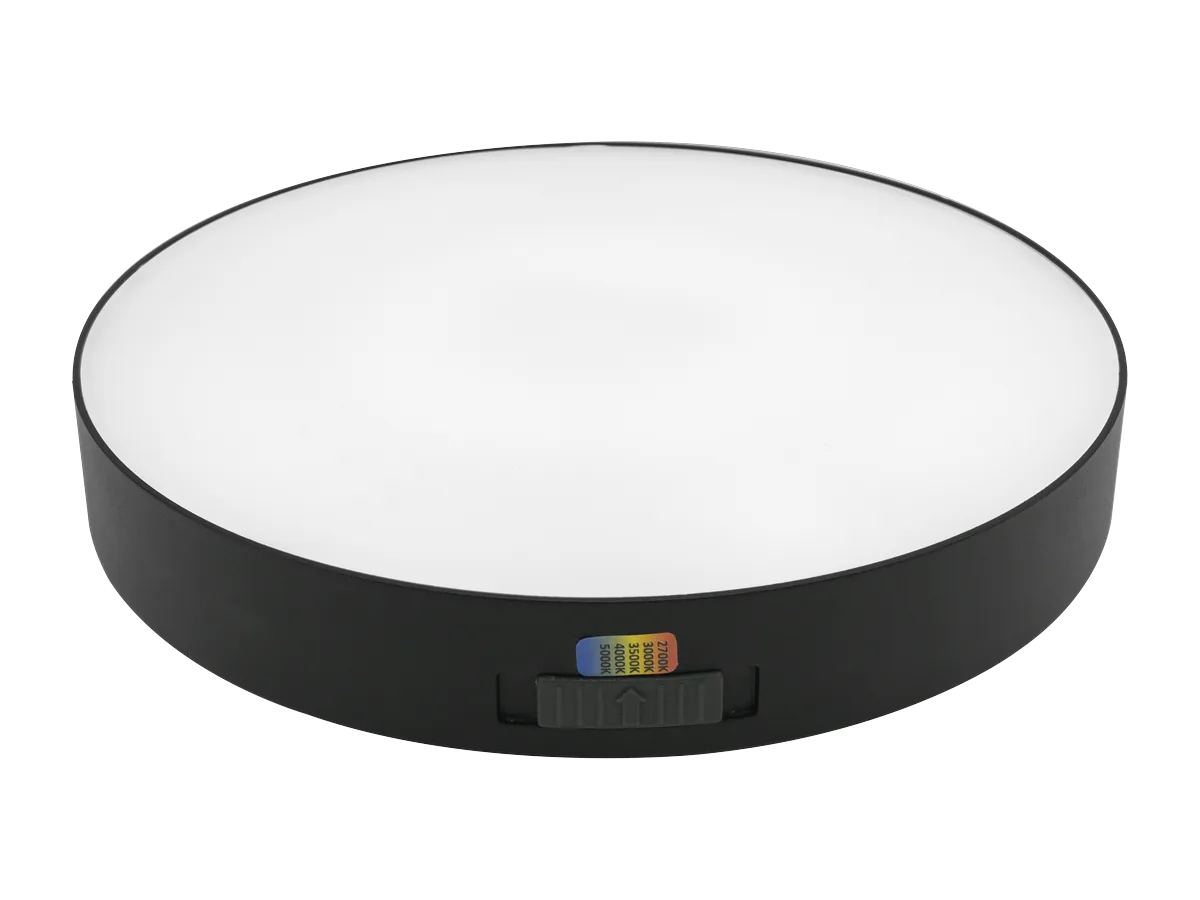

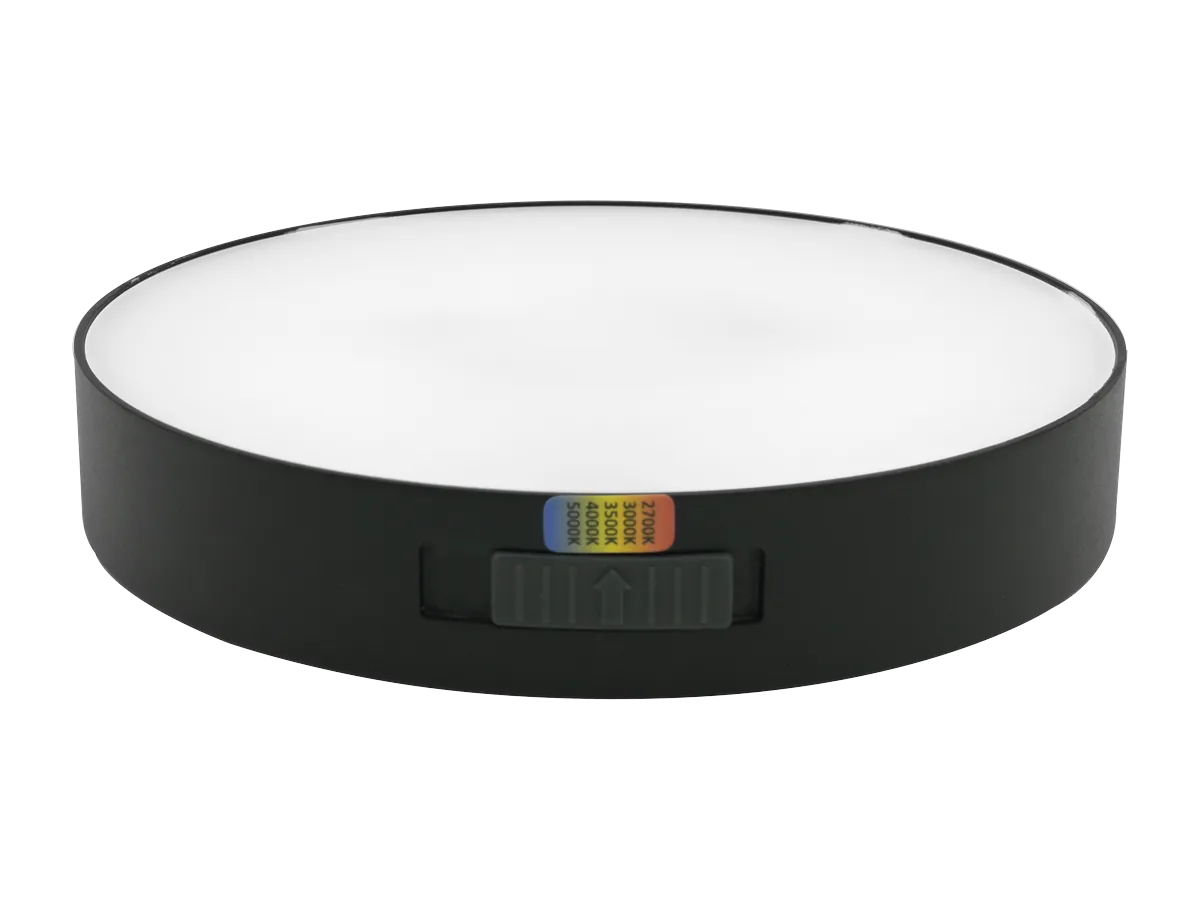

The LDLL Lunar Eclipse is the trimless multi-family surface-mount puck downlight rated IP65 — same edge-lit driverless architecture as Eclipse-II, hits up to 103 lm/W at 0.79″ deep. Driverless AC-direct architecture, edge-lit PMMA optic, 5-CCTselect (2700–5000K), CRI ≥90. Five sizes (5″ / 7″ / 9″ / 11″ / 13″), Round only. Two finishes (W/B). JA8-2022 / Title 20 / Title 24 / ETL / Damp-listed. DLC listed and FCC certified — the wet-rated black sister of the Eclipse-II family.
Model Specifications
Download Data Sheet| Watt | Lumens | lm/W | CCT | Voltage |
|---|
Dimensions
(For the selected size)Highlights & Features
IP65 wet-rated. DLC listed. Trimless. Black only.
Driverless AC-direct · 5-CCT · edge-lit PMMA · truⒶCOLOR™ 90+ CRI · black-only · WetGuard™ IP65 · CA compliance. 1-Pin Bi-Level Sensor in §5.
constNT & contrLS
Same contrⒶLS by ⒶCS Bluetooth-Mesh ecosystem as Eclipse-II.

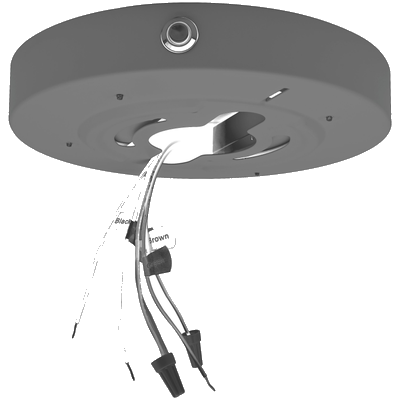

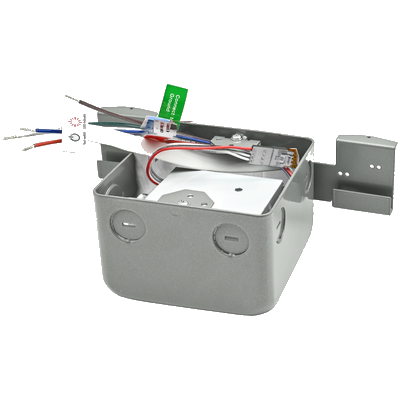

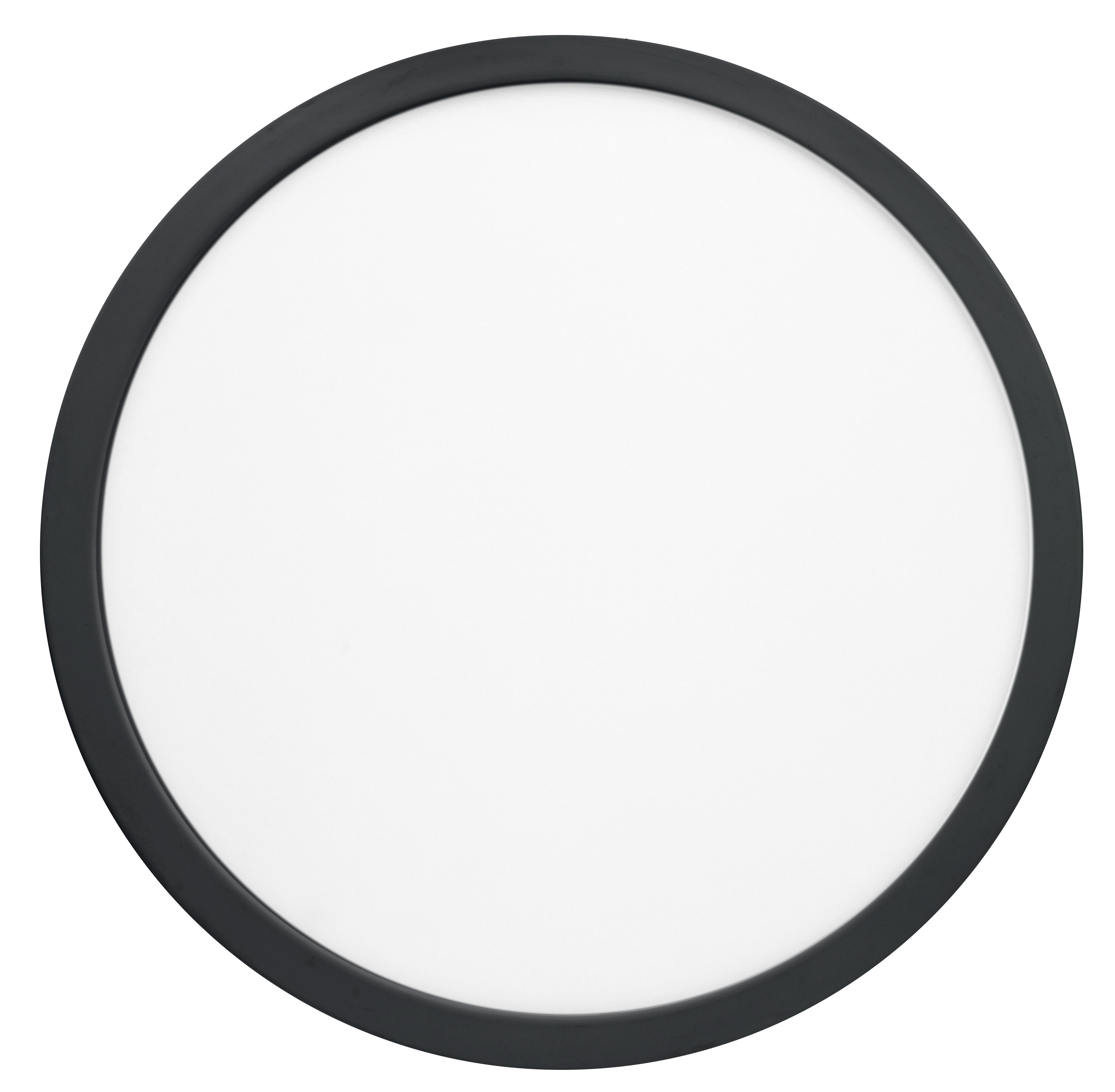

Same Eclipse-II canonical constⒶNT + ⒶCS ladder: CRCU-EM24/JBM universal-mount 24W EMB · CRC6-EM24/JBS/W,B 6″ Single-Cover EMB (white + black finishes) · MSP-20CM 20-ft ⒶCS PIR · MSP-40CM 40-ft ⒶCS PIR · MSX-LV20 LV controller · 50WM kinetic switch. No 1-Pin port — for native bi-level, spec Eclipse-II 7″/9″ with LDLL-E2/MSP/W.
Bluetooth-Mesh ceiling-mount PIR with 20-ft maximum mount height — wide-angle 360° coverage for in-unit living, leasing offices, lobby zones, and small amenity rooms with ≤20 ft ceilings. Lunar Eclipse joins the broader contrⒶLS by ⒶCS ladder when the project goes networked. Commissioned via the ⒶCS by ALG App (iOS / Android). 120-277Vac universal · UL listed · IP20 indoor.
See all controls & accessories →Photometric Distribution
Wide-flood 120° beam from the edge-lit PMMA optic.
Edge-Lit Technology delivers an even 120° distribution — one beam shape, twenty-five lumen cells (five sizes × five CCTs). Pick the size and CCT below; peak candela, total lumens, and the IES filename update with the selection. Note: the polar plots below are synthesized from the Datasheet lumen matrix using a 120° wide-flood cosine model. The 25 real IES files are on disk and will replace these once the WorkDrive bundle URL is registered.
LDLL0918-E2-4000K.IES
The Lunar Eclipse ecosystem.
Drop-in companions for the LDLL Lunar Eclipse — the full constNT 6-SKU field-install & quick-install EMB ladder, and the contrLS by CS Bluetooth-Mesh sensor + controller + kinetic switch lineup. Every accessory ships with the same ETL / JA8 / Damp pedigree as the luminaire.
Configure Your Lunar Eclipse

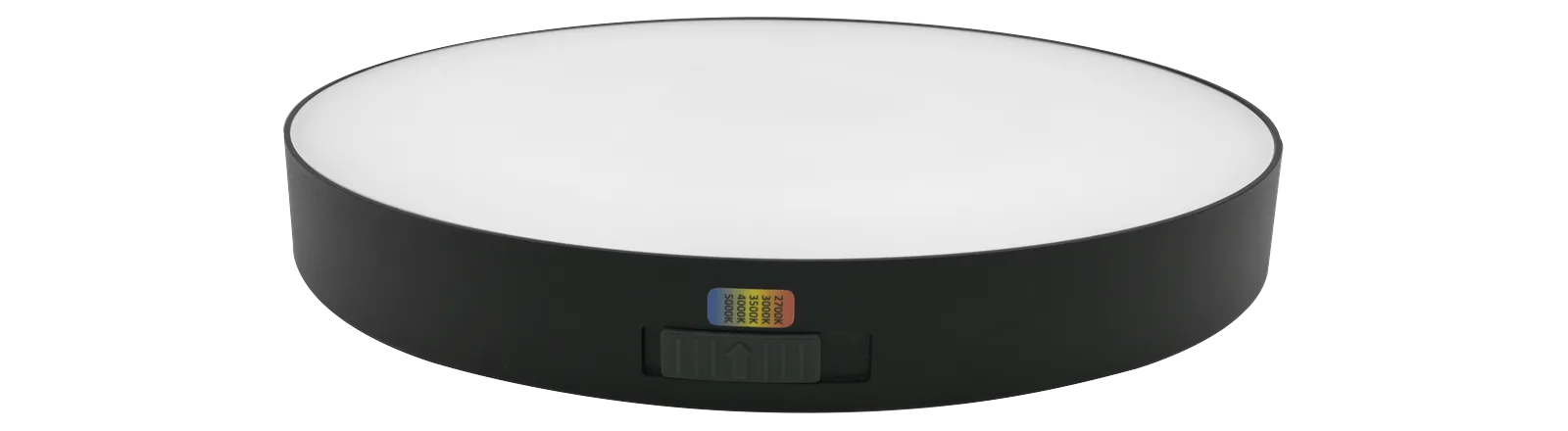

Selections build the LDLL Lunar Eclipse SKU live. ★ default · QS QuickShip · 5-CCT on dip (not SKU) · Round only · Square = Eclipse-II
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify the Lunar Eclipse — from the data sheet on day one to the IES files on the bid sheet to the warranty statement at closeout.
The full multi-fMILY collection.

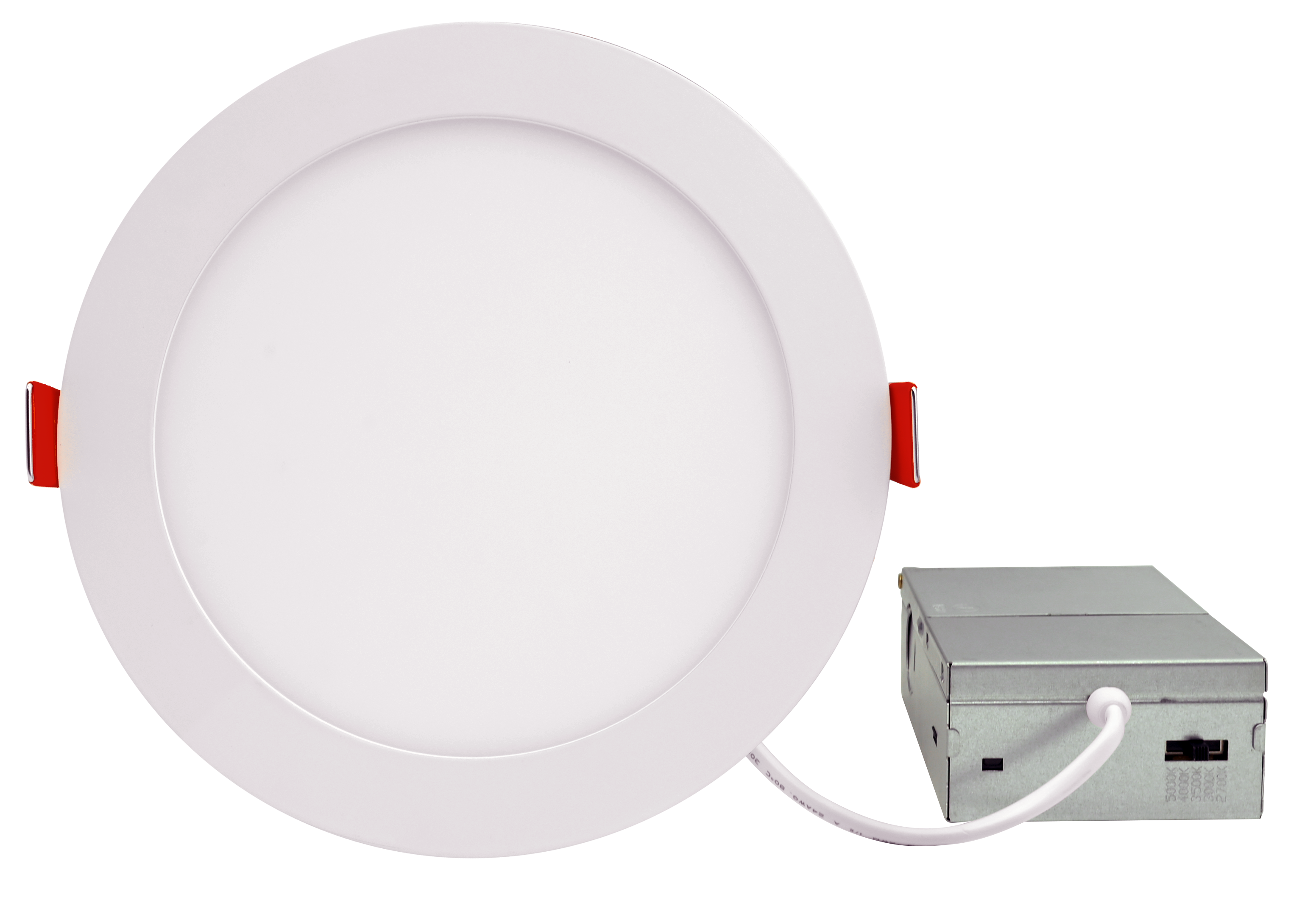

Lunar Eclipse is one luminaire in a thirteen-product collection engineered specifically for multi-family residential — in-unit living, corridors, baths & wet locations, and common amenity zones. Same factory, same CS controls platform, same JA8 / Title-24 / Damp-Location pedigree across every tier. If Lunar Eclipse isn't the right fit for a given zone, one of these is.
For the whole property.

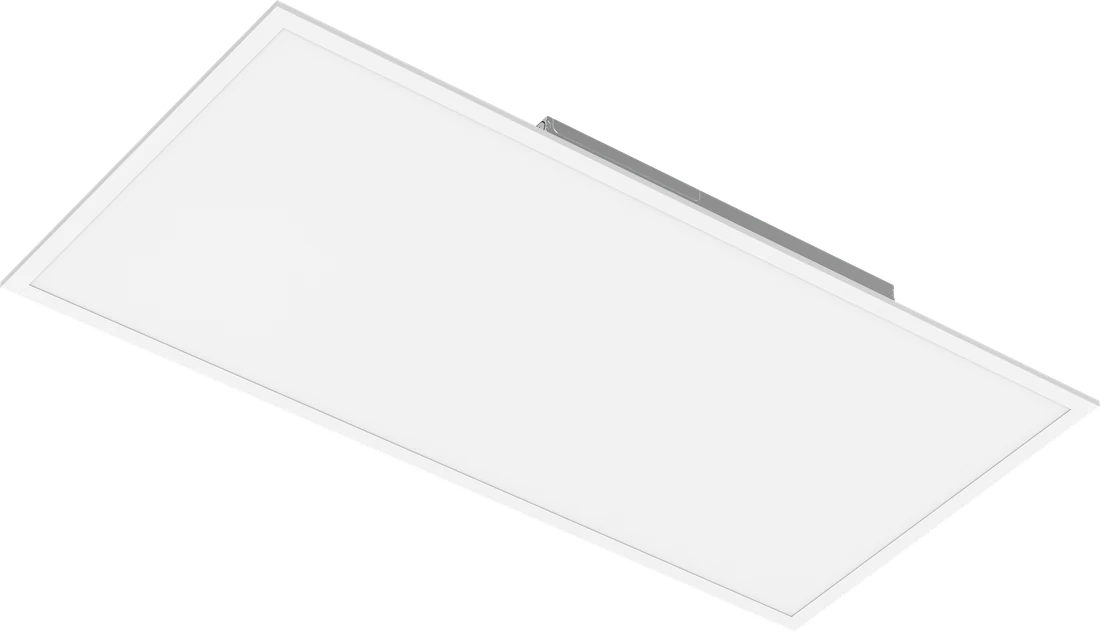

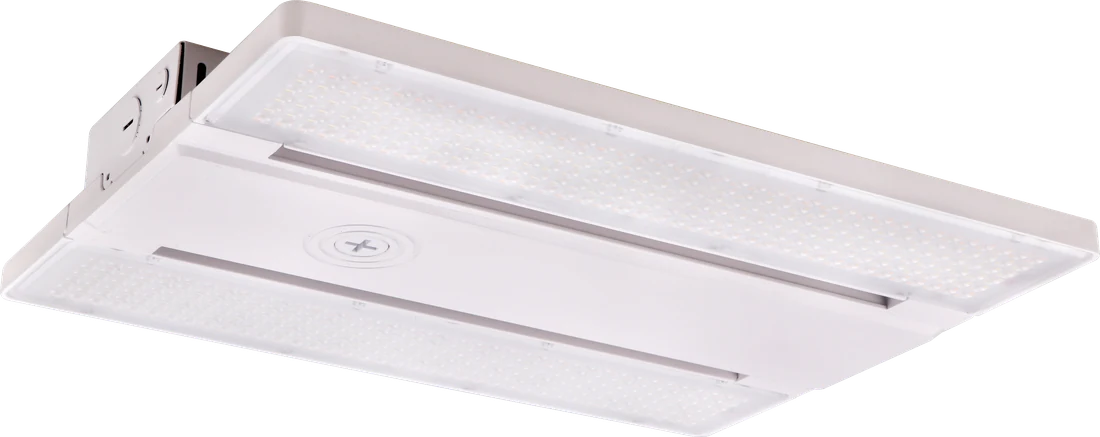

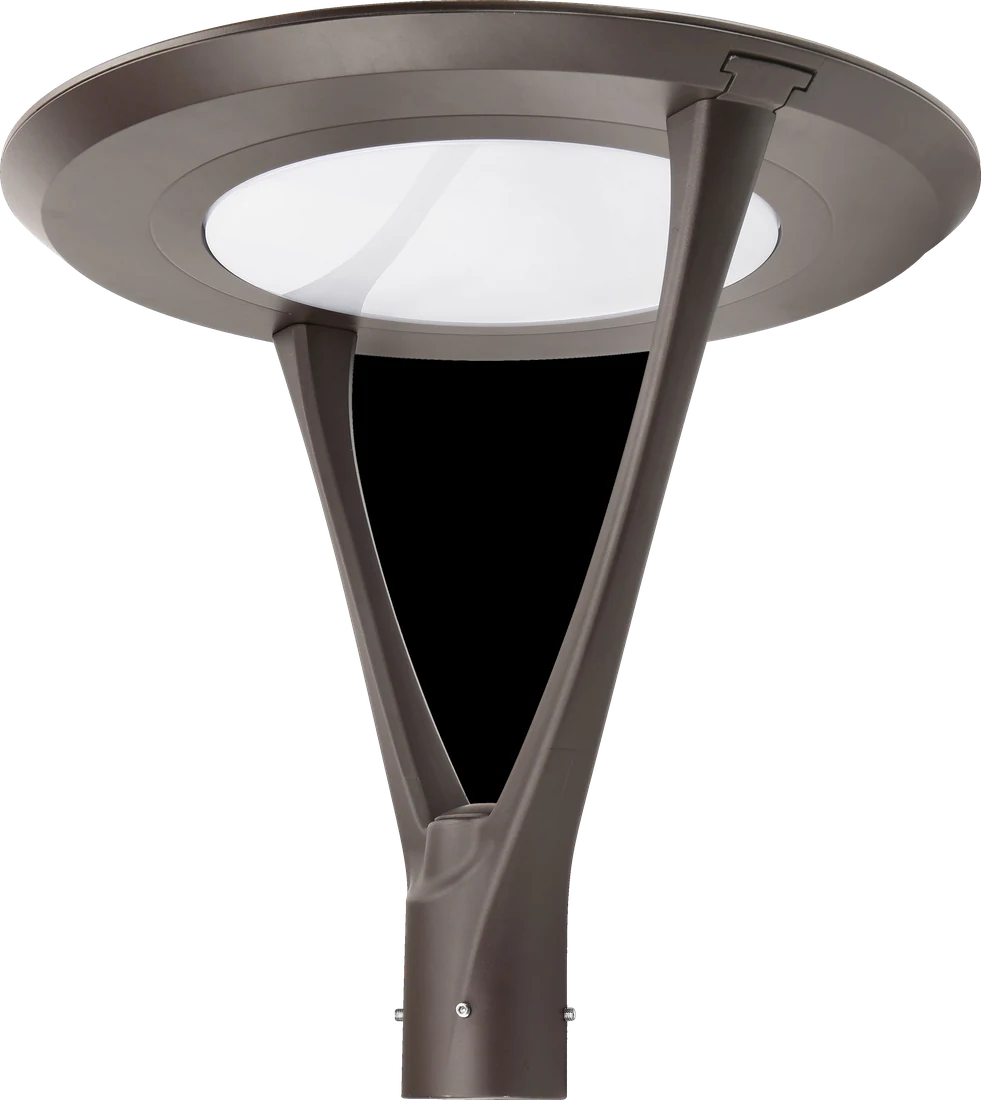

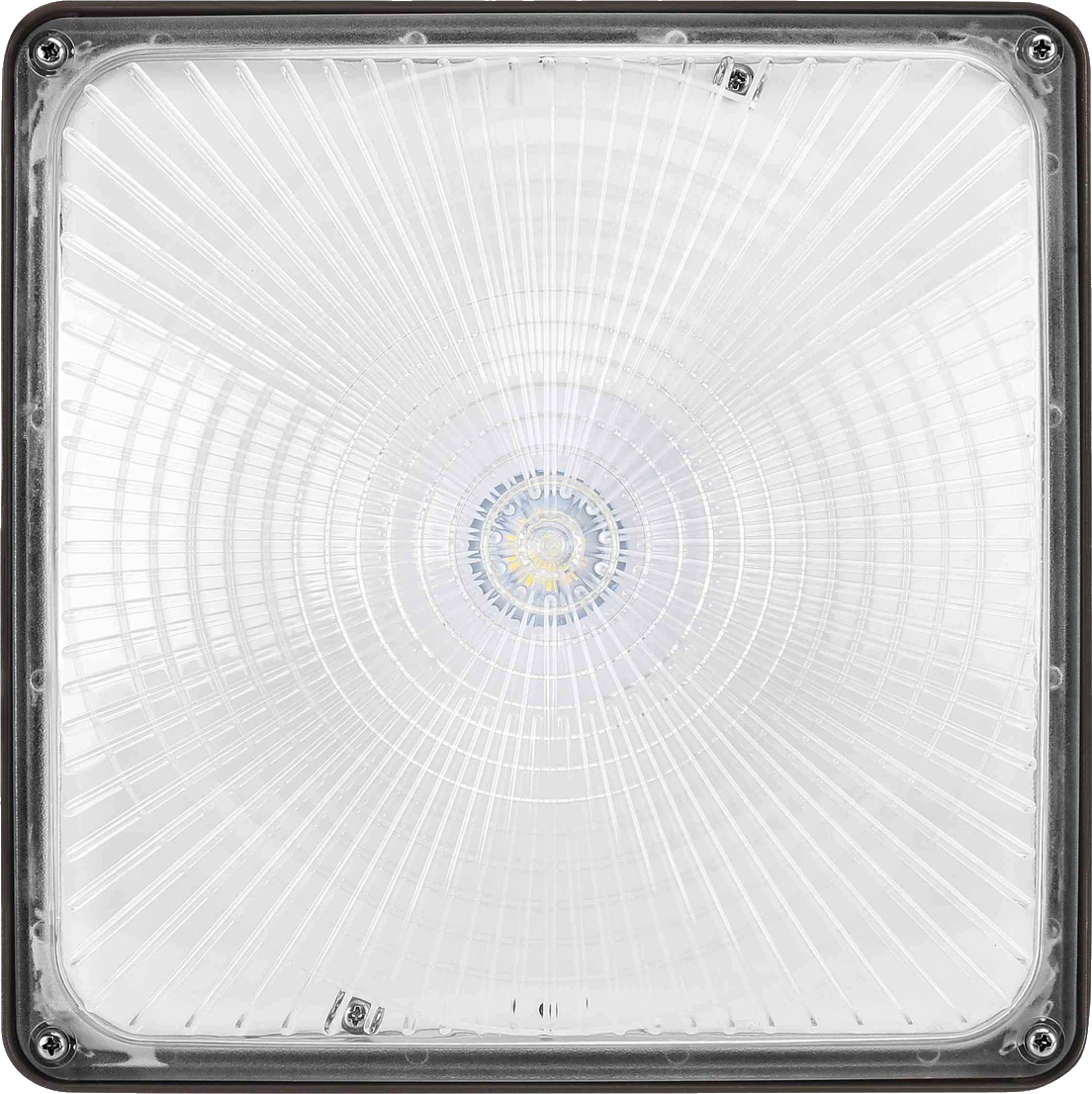

Lunar Eclipse handles black-spec ceilings — wet-rated bath, exterior covered porch, parking-garage soffit, designer A&D residential. These cross-line fixtures handle everything else on the property — parking lot, walkways, garage, leasing office — same CS controls platform, same factory, same warranty. Specify them together for a single-source multi-family package.
Built for turn-over speed.
Hundreds of thousands ship from five US warehouses — 2-3 day QS lead means a unit refurb between tenants doesn't wait on lighting. Layouts back in 48 hours, quotes and rebate matches reply same business day. 24-pack contractor cartons standard.
Stack the California rebates.
Lunar Eclipse is JA8-2022 listed and Title-24 Part 6 compliant — the hooks that unlock CalEnergyWise, PG&E / SCE / SDG&E utility rebates, and HUD multi-family programs. Typical offset on a property-wide retrofit: 20-50% of fixture cost. We'll match your APN and pull the paperwork.
