LLHB · lamparⒶRCH PRO

Titan LED Linear High Bay

One platform. 85 to 600 watts.

Up to 88,800 lumens and up to 157 lm/W, DLC Premium, in five classes from 85 W to 600 W. Wattage and color are dip switches set at install, and the aisle, medium and wide optics swap in the field. Sensor-ready, with a /TAA build on every wide-optic configuration.

Specification Sheet IES Files Installation Guide Configure For Lead Time

Input Watts85–600 W

Lumensup to 88,800

Efficacyup to 157 lm/W

Ideal applications

Warehouse & Distribution

Manufacturing

Racking Aisles

3-WATTselect

2-CCTselect

OpticⒶDAPT

DLC Premium

contrⒶLS-Ready

surgeⒶRMOR

DampGuard

DLC Premium

cULus Listed

Damp Location

FCC

RoHS

TAA

Titan LLHB155 LED linear high bay, 155 W class, from below

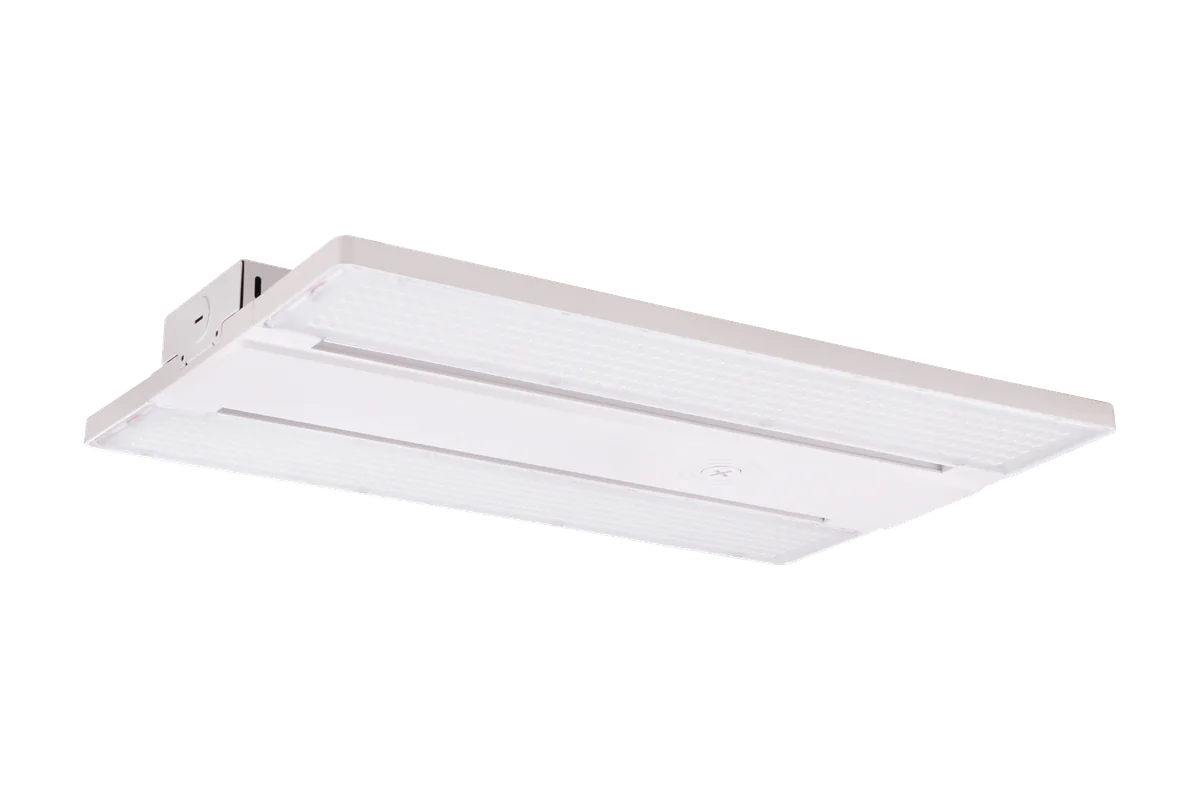

Titan LLHB320 LED linear high bay, 320 W class, three-quarter view

Titan LED linear high bay lens and optics

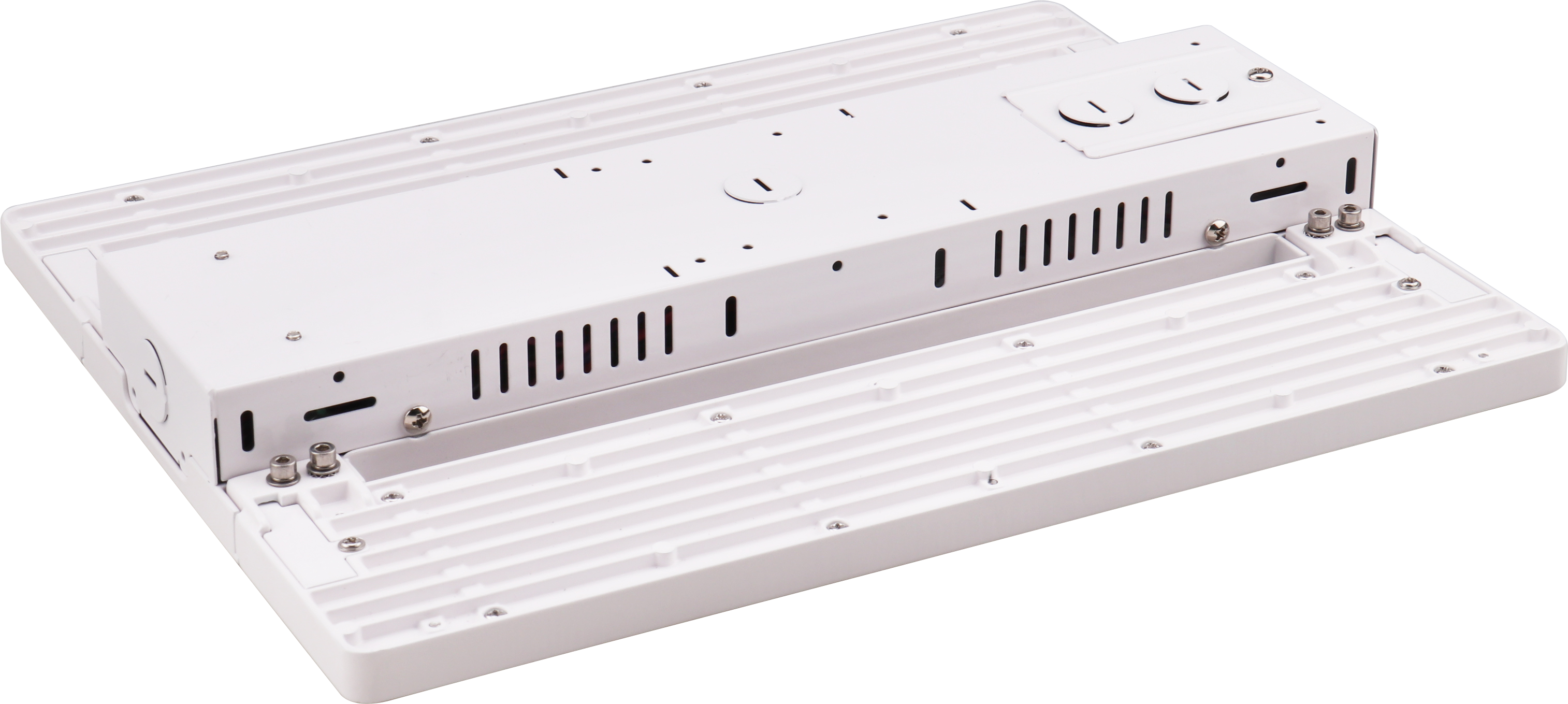

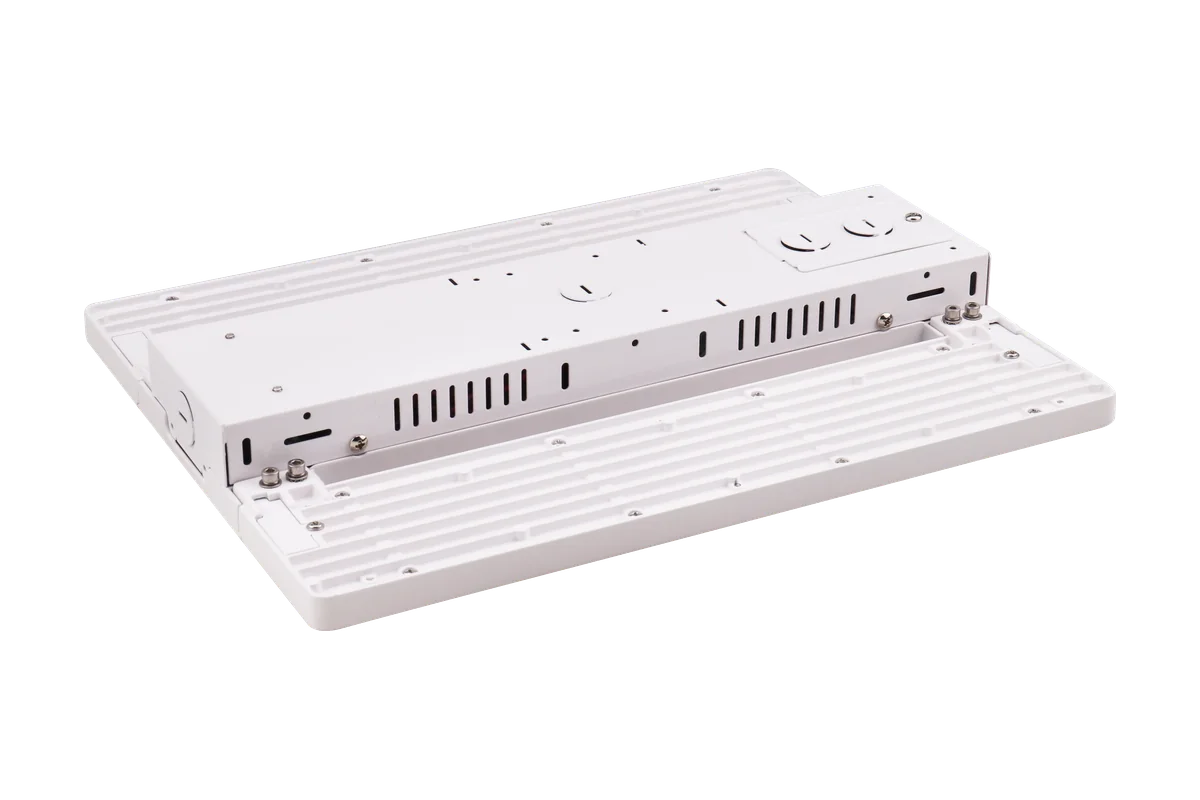

Titan LED linear high bay from above, driver compartment and J-box knockouts

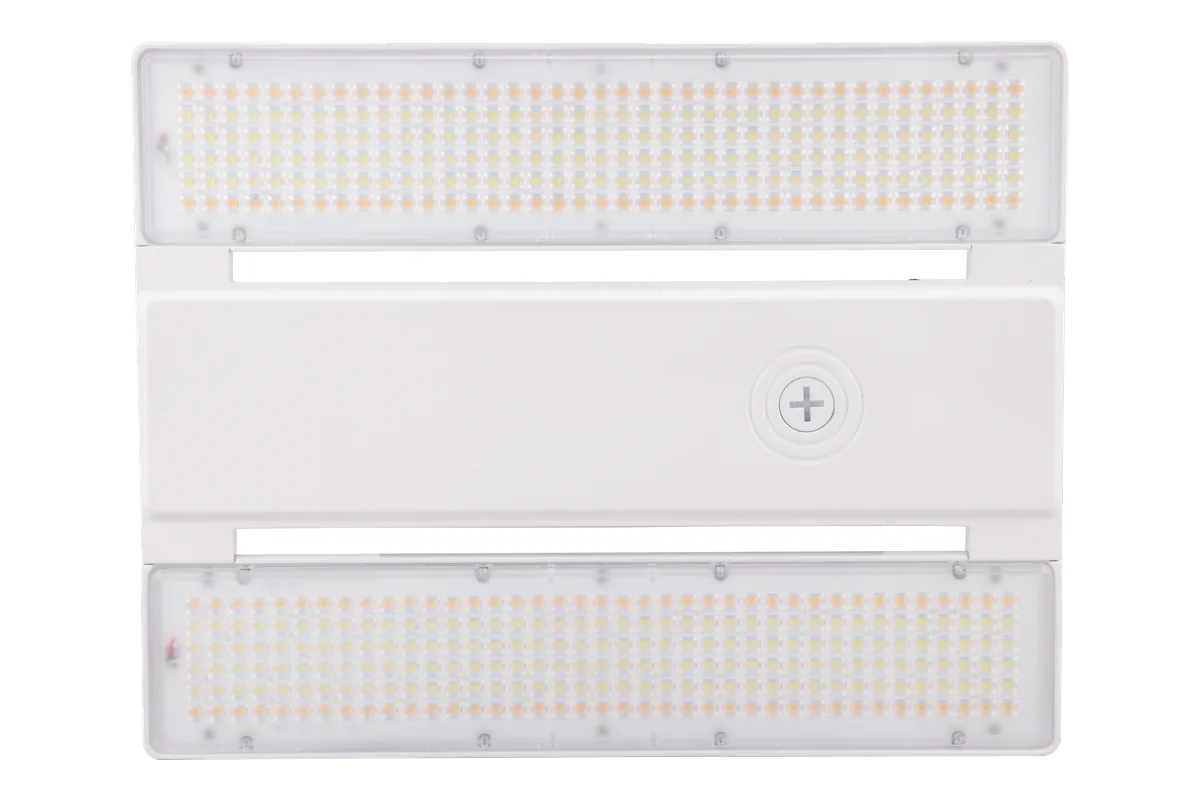

Titan LED linear high bay boards and sensor port, top-down

Documentation & Resources

Documents

Data SheetPDF Quick SheetPDF Sell SheetPDF Installation GuidePDF IES Photometric FilesIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the floor plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

WATTselect	Watts	Lumens	CCTselect	lm/W

★ Default settings. Lumens and lm/W are the datasheet's; the highest measured file reads 157 lm/W (320 W class, 4000K, 277 V).

ApplicationIndoor · PRO linear high bay · ceilings to 50 ft

ConstructionDie-cast aluminum, iron-phosphate coat with rust inhibitorUV-stabilized polycarbonate lens · white finish

Optics/O9090 wide 90×90 ★ · /O6565 medium 65×65 · /O4090 aisle 40×90Field-swappable kits for 155–400 W · ±15 % · UGR <28

Dimensions—

Operating temp−40 °F to 140 °F−22 °F to 140 °F with a sensor · 32 °F to 122 °F with emergency backup · damp location

Electrical120–277 V (UT) · 277–480 V (HT, not 600 W)0–10V dimming 0–100 % · PF ≥0.9 · THD ≤15 % · 6 kV surge · CRI >80

Warranty7 yr · 75,000 hrExtended warranty available · 90 % output at 50,000 hr

Full Data Sheet Installation Guide

Engineering

How it hangs, what you set at install, and what swaps in the field.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

Full IES Library

Engineered Accessories

Configurator

Build Your Titan.

Required *

WATT class—

Voltage—

Optic—

Build—

Dip switchesset on the fixture · not in the part number—

Optional

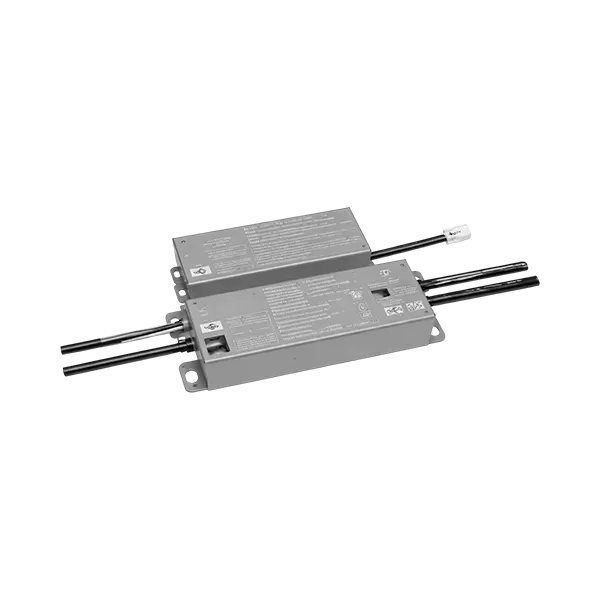

Emergencyfactory-installed · J-box included—

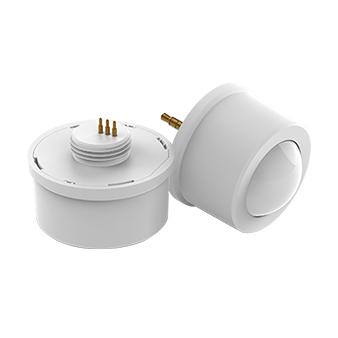

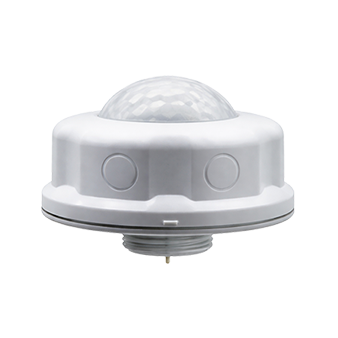

Sensorplugs into the fixture port—

Mounting kitcable in the carton · 155–400 W—

Wire guardmatched to the class · 155–400 W—

Surgein-line · matched to the voltage—

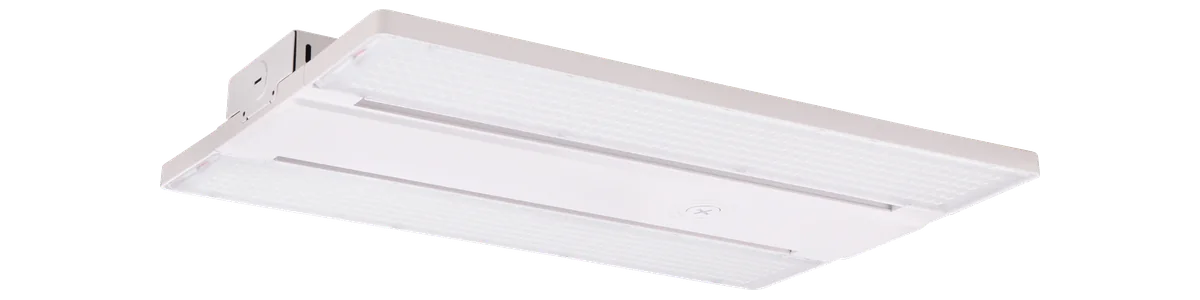

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingsDLC Premium · cULus Listed (US & Canada) · damp location · FCC · RoHS · TAA optionCheck Rebate Center for the DLC QPL ID of your catalog number before you specify.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

High-Bay Family

Titan is the PRO linear bay. Apollo is the ECO linear bay. Jupiter and Icarus are the round bays.

You are here Titan LLHB PRO linear high bay

LLHB · PRO Titan The PRO linear bay. 85 W to 600 W in five classes, and the optic swaps in the field. Up to 88,800 lm · 7 yr / 75,000 hr Specification Sheet → Product Details · this page

LLHB · ECO Apollo 64–410 W in four classes. Up to 61,500 lm at 167 lm/W, 1.65 in deep. 5 yr / 50,000 hr Specification Sheet → Product Details →

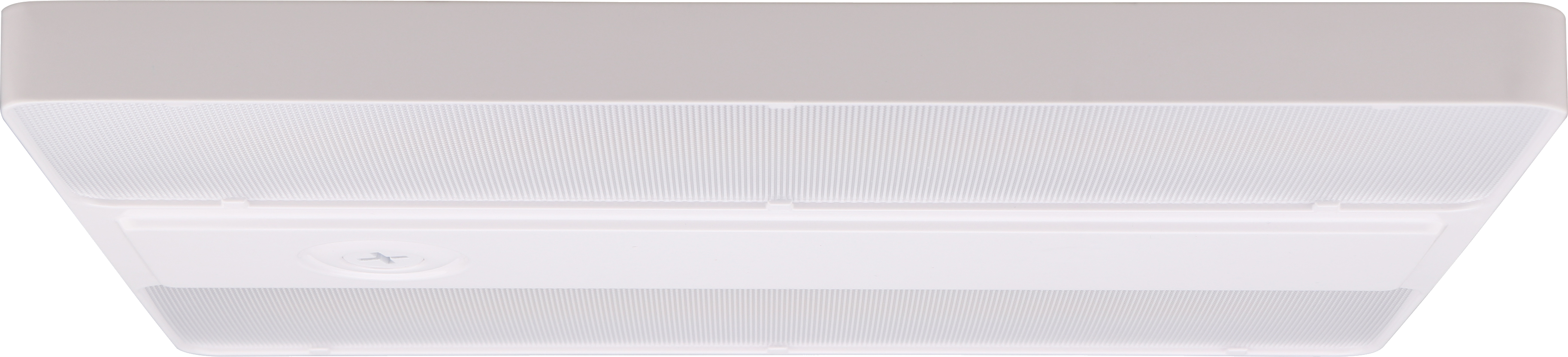

Tiny compact linear high bay, discontinued

LLHB · ECO TinyDiscontinued Apollo replaced it. The specs stay up so an installed fixture can still be matched. Superseded by Apollo Archived Spec Sheet → Product Details →

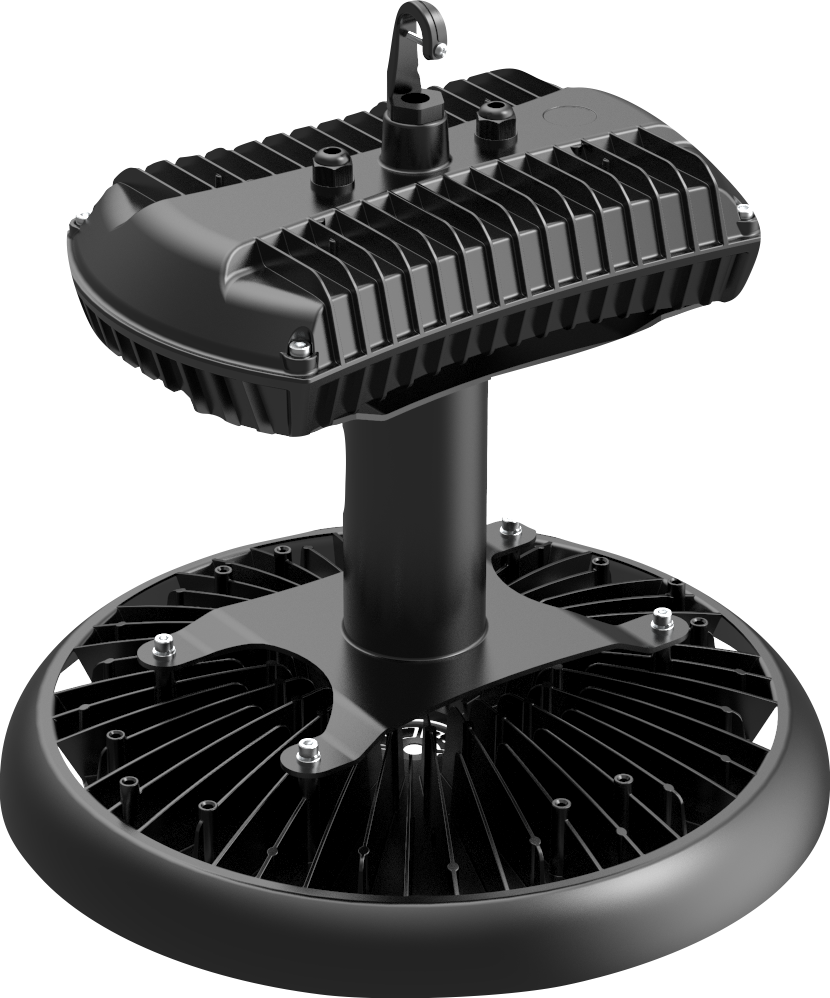

LRHB · PRO Jupiter The PRO round bay. Four housings from 100 W to a 400 W model, IP65 and wet location. Up to 67,200 lm · 7 yr / 75,000 hr Specification Sheet → Product Details →

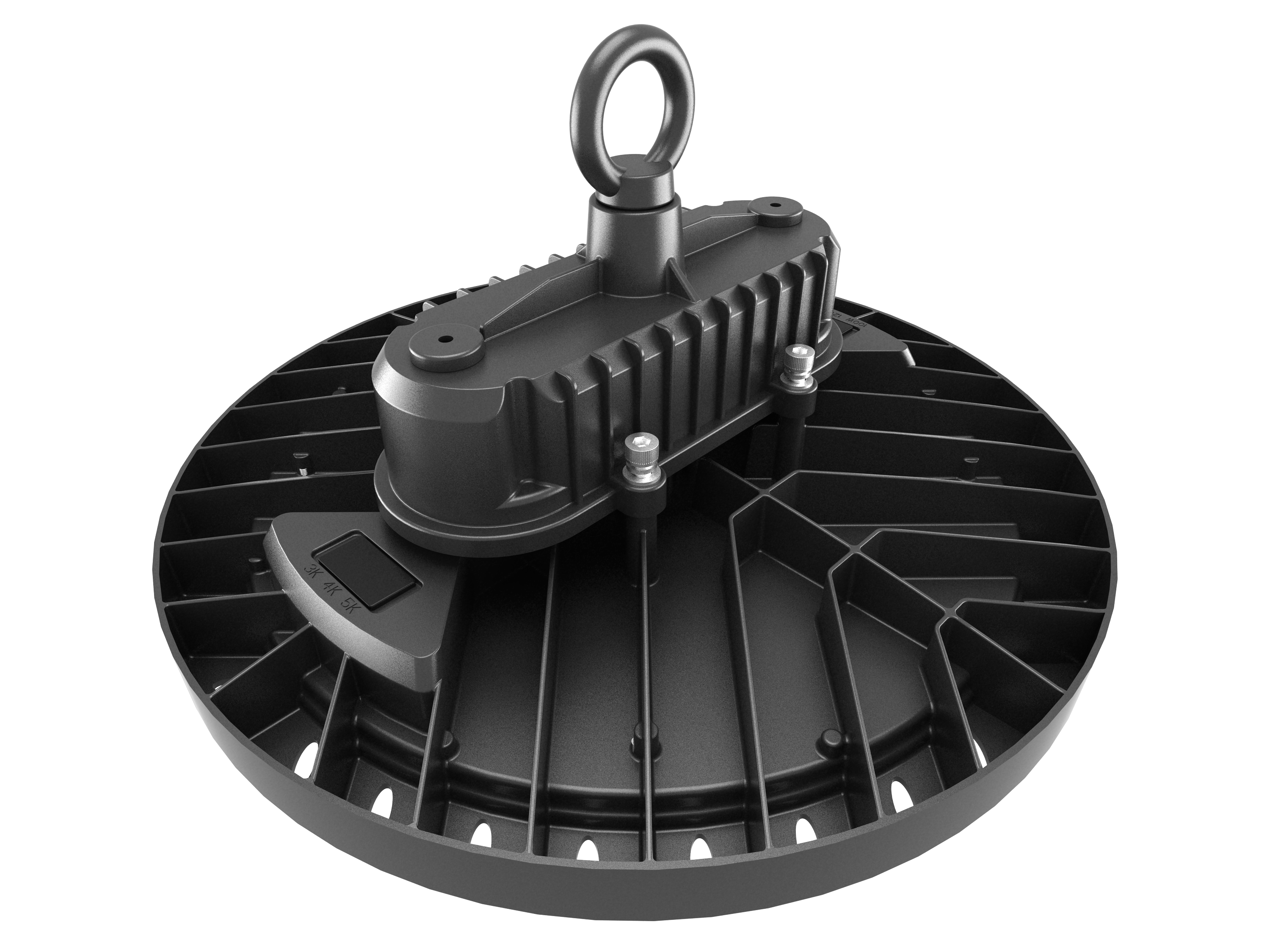

LRHB · ECO Icarus The ECO round bay. Three die-cast housings from 100 W to 300 W, IP65. Up to 41,400 lm · 5 yr / 50,000 hr Specification Sheet → Product Details →

Specifier Support

Send us the floor plan.

We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.

3 BDLayout turnaround

FreePhotometric layout

Find A Rep Request A Layout

Rebates

Premium rebate tier, PRO build.

Titan is DLC Premium — the tier most utility programs pay the higher rebate on. Check Rebate Center for the DLC QPL ID of your catalog number before you specify. Send us the ZIP and we pull the active program and the forms.

157lm/W highest measured

DLCPremium

85–600 WOne family

Open Rebate Center
