retroⒶRCH-L1 LED Strip Retrofit

The strip stays. The kit goes in.

A strip retrofit kit for the 4.25″ and 5.25″ T8/T12 fluorescent strips already on the ceiling. The housing stays; a strip bracket goes in and the gear tray, its driver pre-wired, hangs from it. Wattage and color temperature are switches on the driver, up to 12,000 lumens. Four kits, every one DLC listed, 7-year warranty.

Specification Sheet IES Files Installation Guide Configure For Lead Time

Input Watts18–90 W

Lumensup to 12,000

Efficacy130 lm/W

Ideal applications

Offices

Schools

Healthcare

WATTselect

3-CCTselect

retroⒶFIT

constⒶNT-Ready

DampGuard

cETLus Listed

DLC Listed

Damp Location

FCC

RoHS

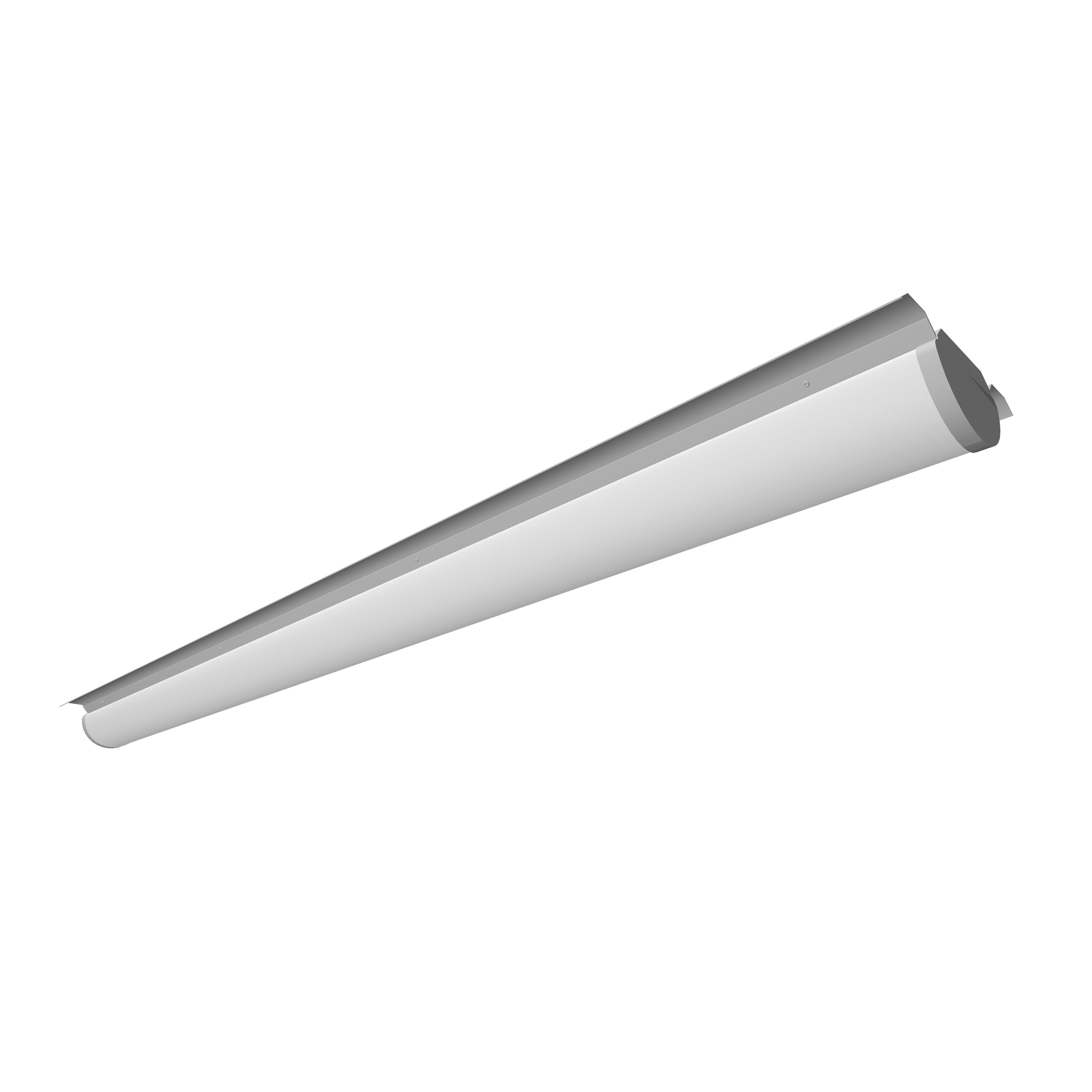

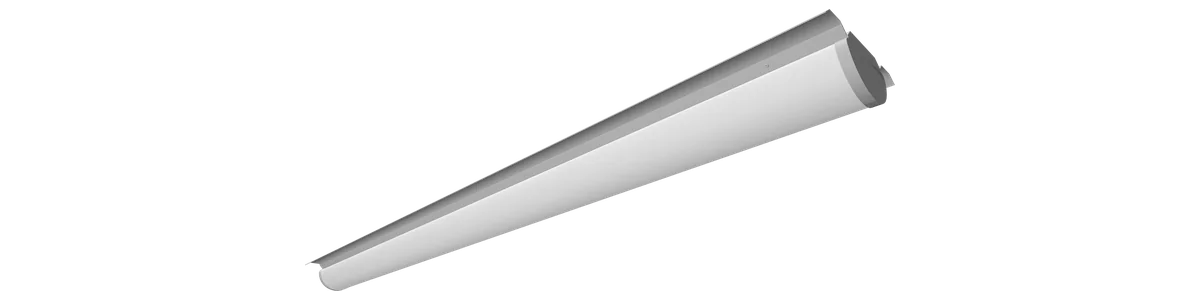

retroARCH-L1 LLSR LED strip retrofit kit with the frosted lens

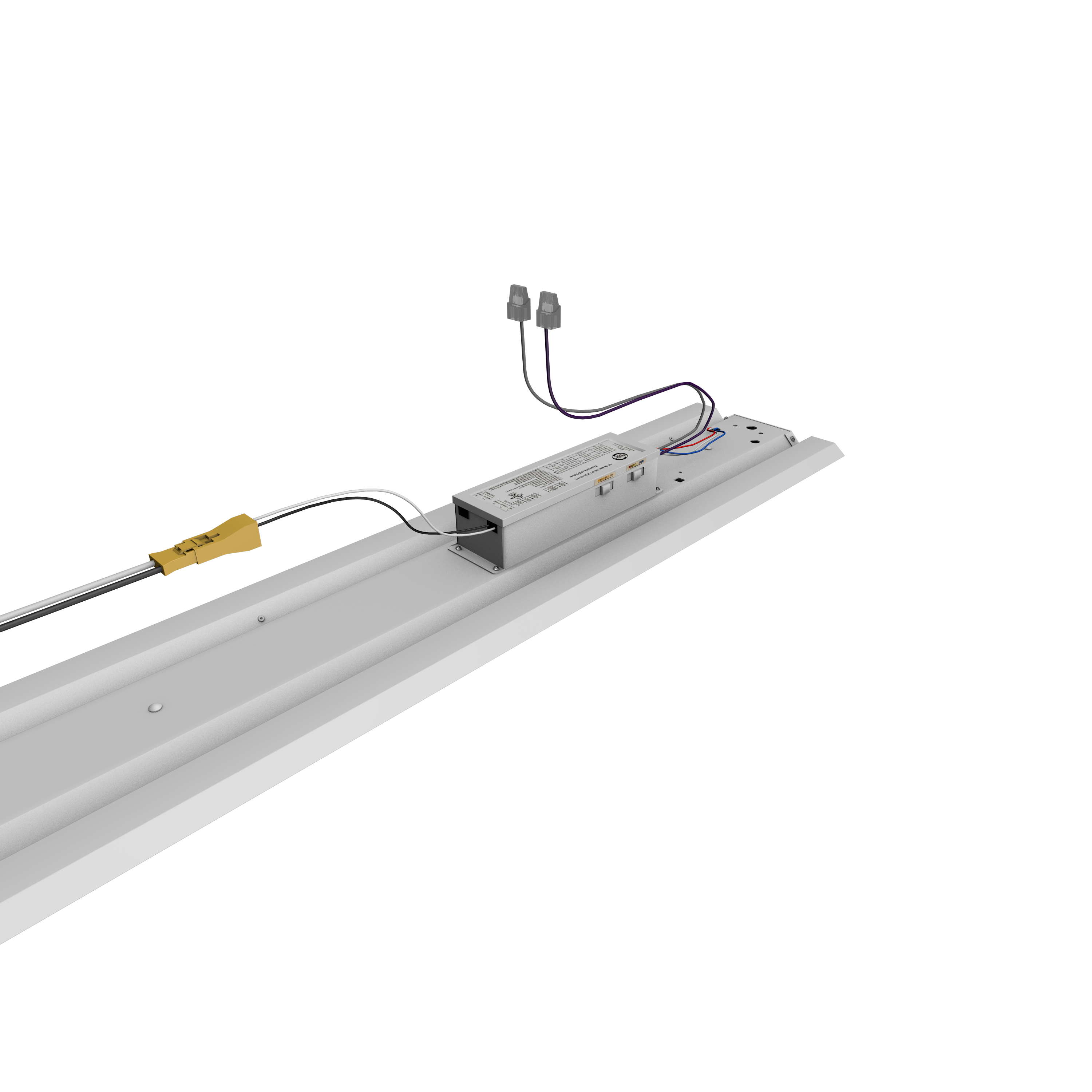

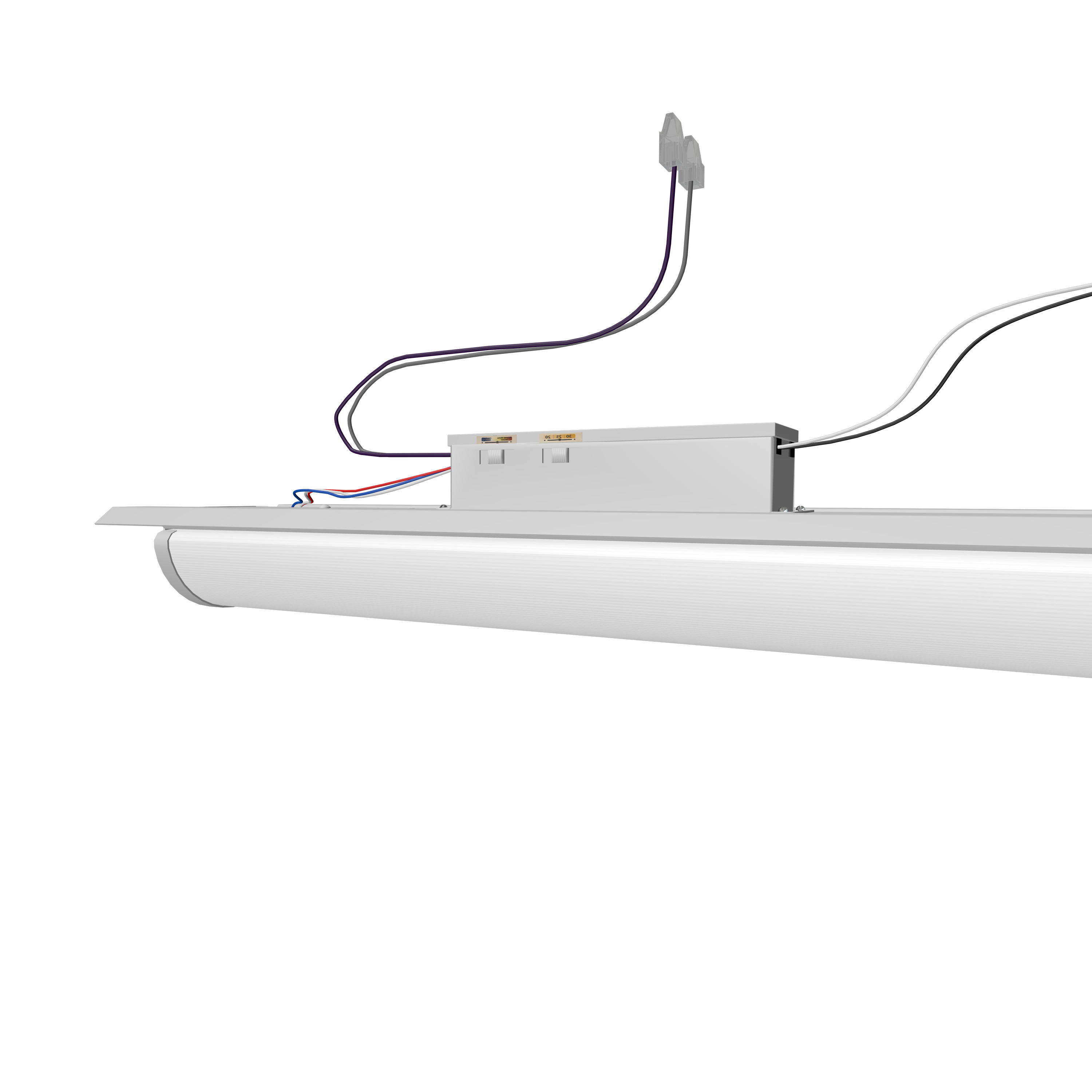

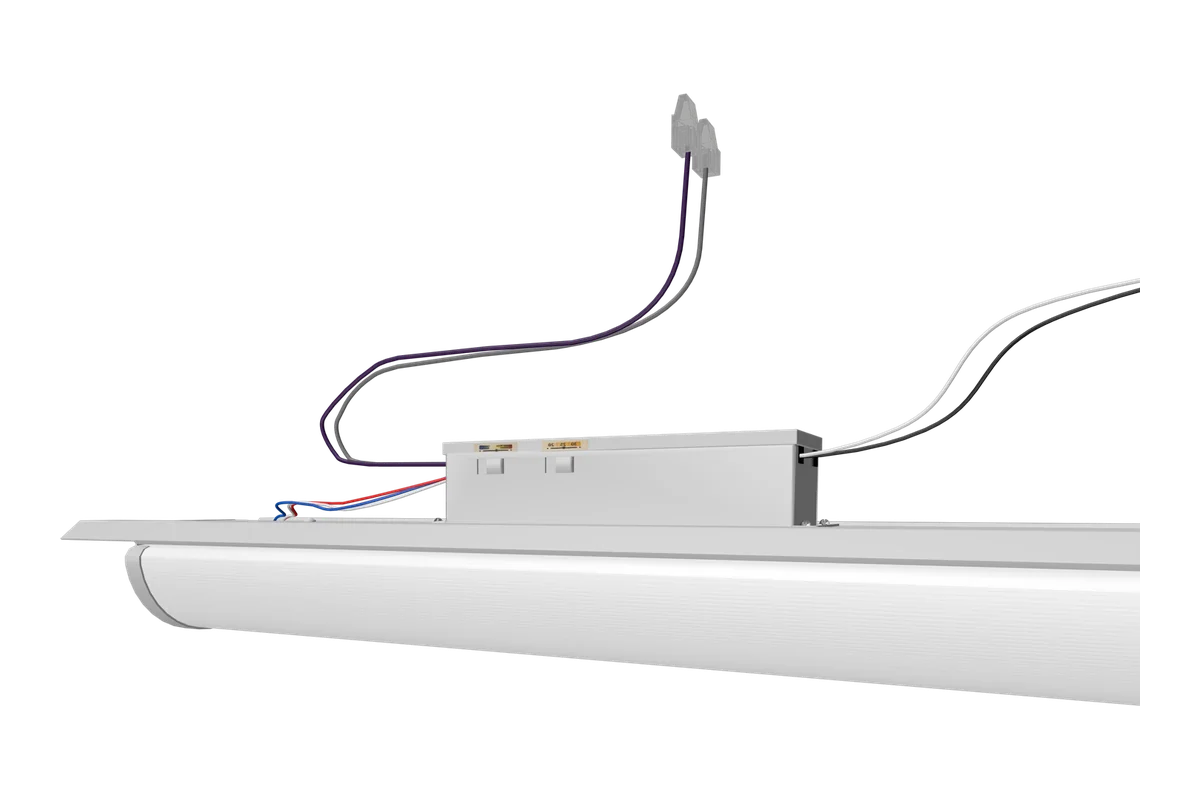

retroARCH-L1 gear tray with the driver pre-wired

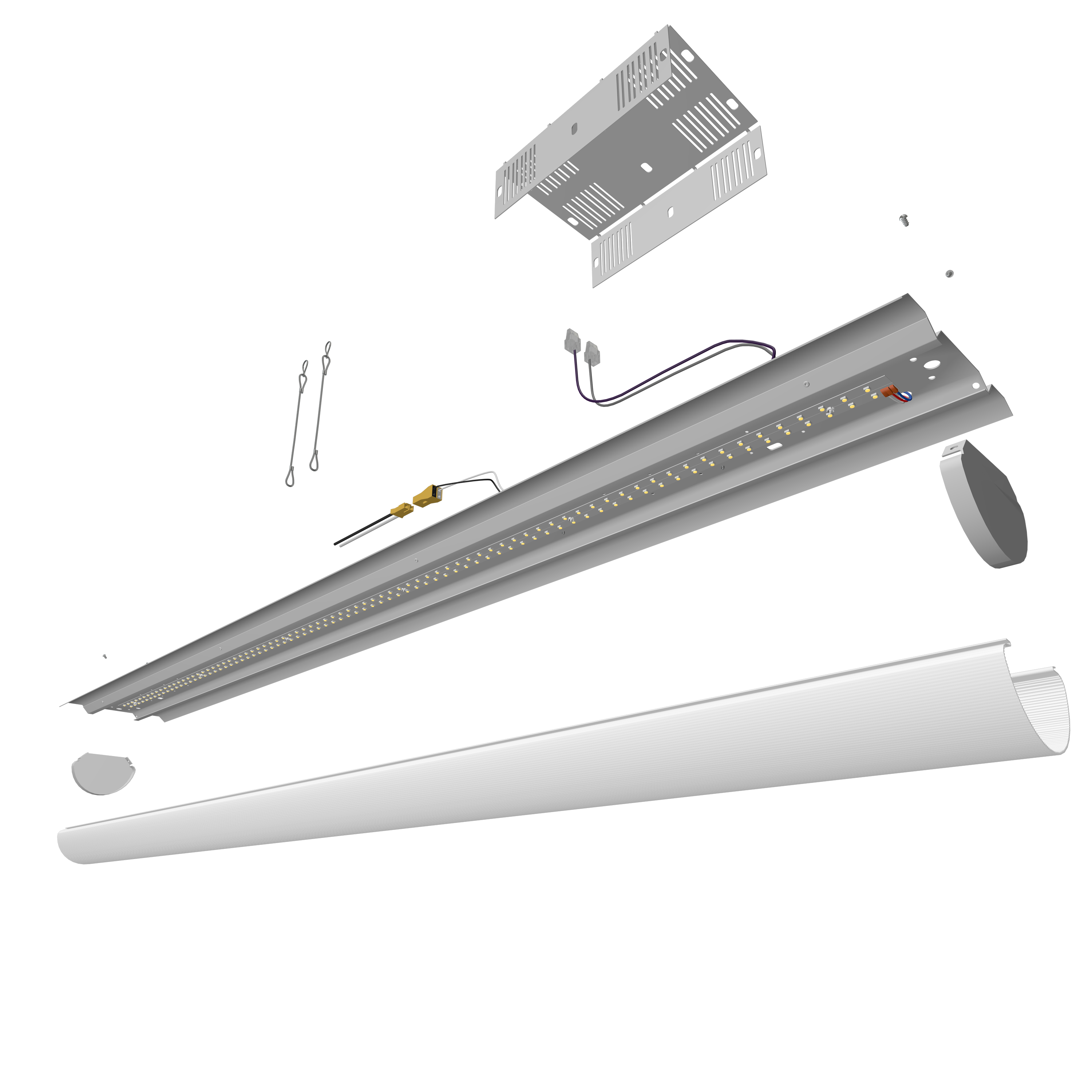

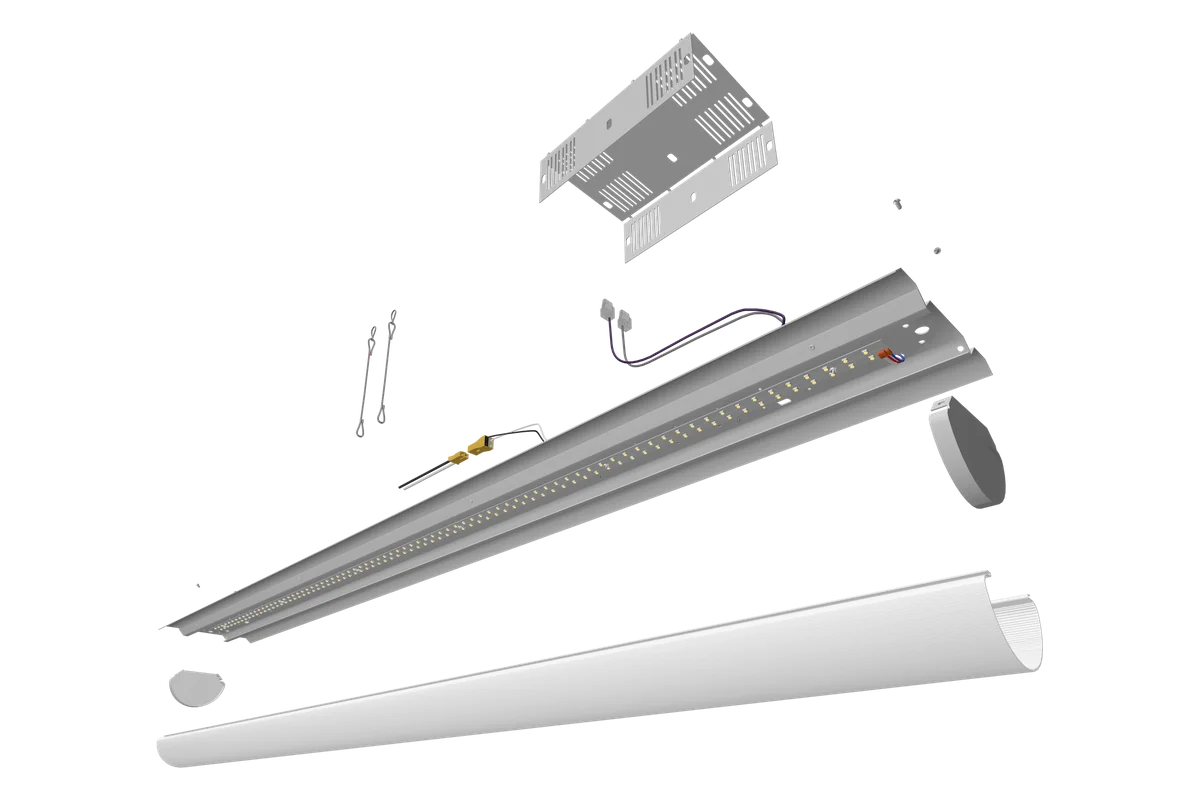

retroARCH-L1 parts: strip bracket, gear tray and frosted lens

Documentation & Resources

Documents

Data SheetPDF IES Photometric FilesIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the floor plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

WATTselect	Watts	Lumens	CCTselect	lm/W

★ Default settings. Lumens and lm/W are the datasheet's; the 444 and 888 steps are the DLC listings', with lumens printed for the top step only. The measured file (4 ft ES3) reads 134 lm/W in a host strip.

ApplicationIndoor · retrofit of a 4 ft or 8 ft fluorescent stripOffices, schools, hospitals, commercial buildings, stairwells

Construction6063 aluminum frame · aluminum circuit board · frosted lensGear tray with the driver pre-wired

FitStandard 4.25″ and 5.25″ T8/T12 strip channelsThe host housing stays on the ceiling

OpticsFrosted lensMeasured 98° × 127° at 50 % of peak (4 ft ES3, in a host strip)

Dimensions—

Operating temp−4 °F to 122 °FIP40 · damp location

Electrical120–277 V · 0–10V dimming · PF >0.9 · THD <15 % · CRI >80

Warranty7 yr · 75,000 hrExtended warranty available

Full Data Sheet Installation Guide

Engineering

How it goes into the strip on the ceiling, what you set on the driver, and what comes in the carton.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

Full IES Library

Engineered Accessories

Configurator

Build Your retroⒶRCH-L1.

Required *

Kit—

Bundleset by the kit—

Voltagethe one voltage built—

Dip switchesset on the driver · not in the part number—

Optional

Emergencyits own line item—

Ceiling sensorⒶCS · no port needed—

Power packⒶCS controller—

Wall switchⒶCS · kinetic—

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingscETLus Listed (US & Canada) · damp location · DLC Listed (Standard) · FCC · RoHSCheck Rebate Center for the DLC QPL ID of your catalog number before you specify.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

Strip Family

retroⒶRCH-L1 is the kit for a strip already on the ceiling. Hallmark and Vanguard are new strips.

You are here retroARCH-L1 LED strip retrofit kit

LLSR · PRO retroⒶRCH-L1 The strip retrofit kit. It goes into a 4 or 8 ft fluorescent strip that stays on the ceiling. 7 yr / 75,000 hr Installation Guide → Product Details · this page

LLSN · PRO+ Hallmark The spec-grade strip. 2, 4 and 8 ft, four field-swap lenses, white or black, up to 12,500 lm. 7 yr / 75,000 hr Downloads → Product Details →

LLSN · ECO Vanguard Vanguard, the ECO strip. 2, 4 and 8 ft with a round frosted diffuser; the 8 ft folds to ship. 145 lm/W · 5 yr / 50,000 hr Downloads → Product Details →

Specifier Support

Send us the floor plan.

We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.

3 BDLayout turnaround

FreePhotometric layout

Find A Rep Request A Layout

Rebates

DLC listed, all four kits.

Every retroⒶRCH-L1 kit on this page is on the DLC QPL (Standard). Check Rebate Center for the DLC QPL ID of your catalog number before you specify. Send us the ZIP and we pull the active program and the forms.

130lm/W datasheet

DLCStandard

7 yr75,000 hr warranty

Open Rebate Center
