retroⒶRCH-T1 LED Retrofit Troffer Kit

The troffer stays. The basket goes in.

A center-basket LED door kit for 1×4, 2×2 and 2×4 fluorescent troffers. The host housing stays in the ceiling; the hinged body hangs from two end brackets and latches shut. Three wattages and three color temperatures are switches on the driver. Sensor-ready and emergency builds, TAA-compliant.

Specification Sheet IES Files Submittal Sheet Configure For Lead Time

Input Watts18–44 W

Lumensup to 5,636

Efficacyup to 128 lm/W

Ideal applications

Offices

Schools

Healthcare

3-WATTselect

3-CCTselect

retroⒶFIT

Center Basket

contrⒶLS-Ready

constⒶNT-Ready

DampGuard

cETLus Listed

Damp Location

FCC

RoHS

TAA

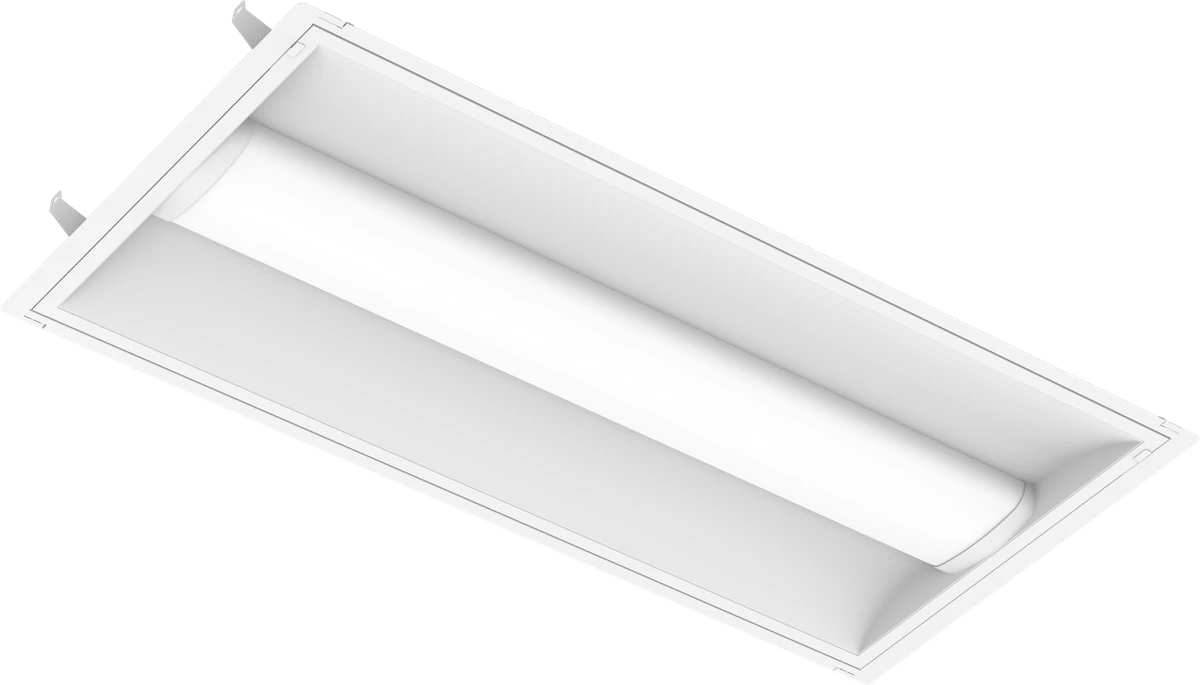

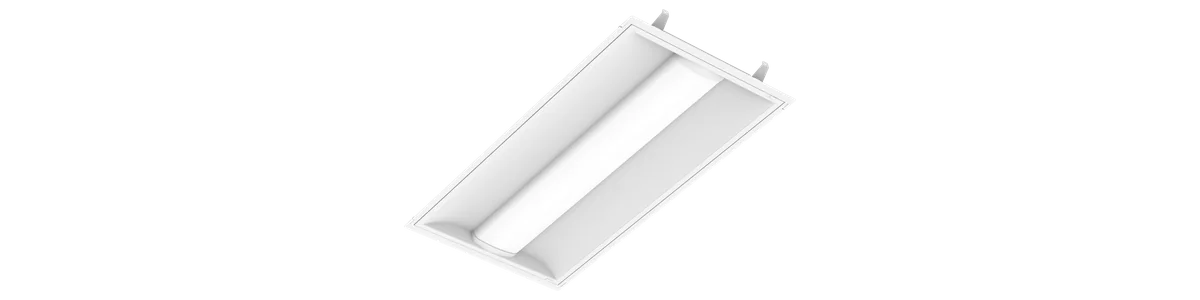

retroARCH-T1 LPVR24 LED retrofit troffer door kit, 2x4

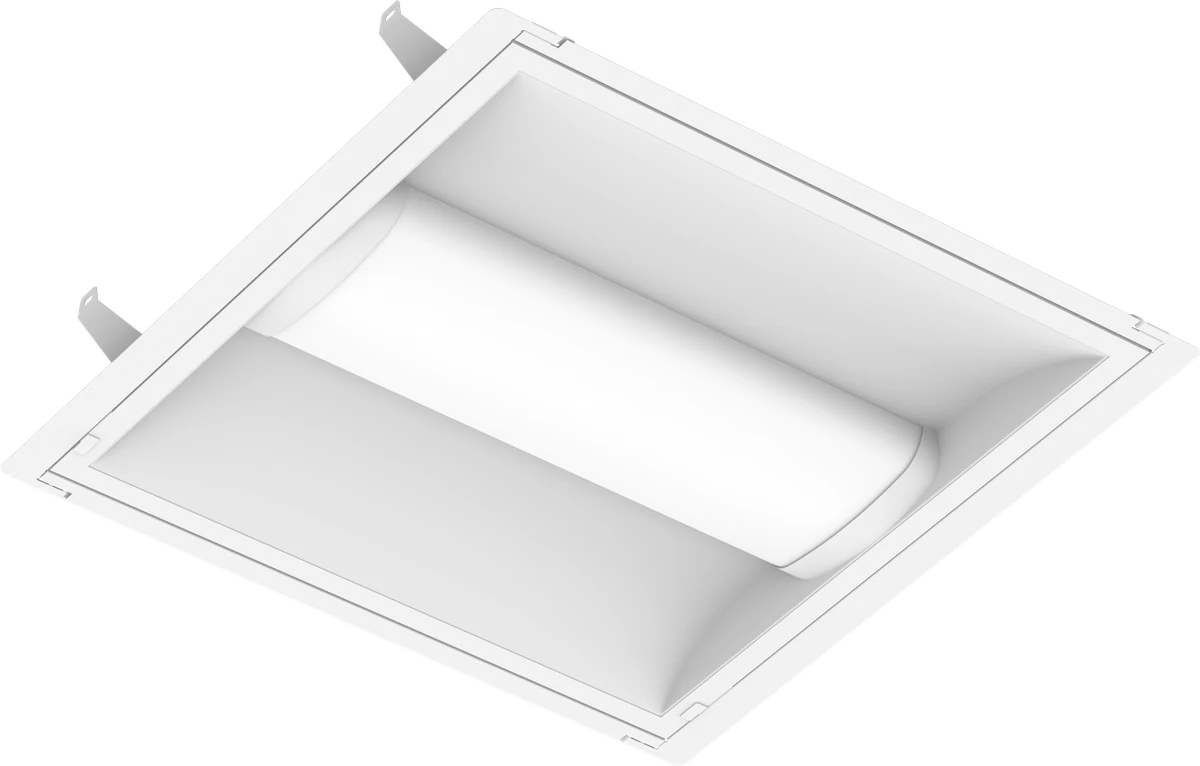

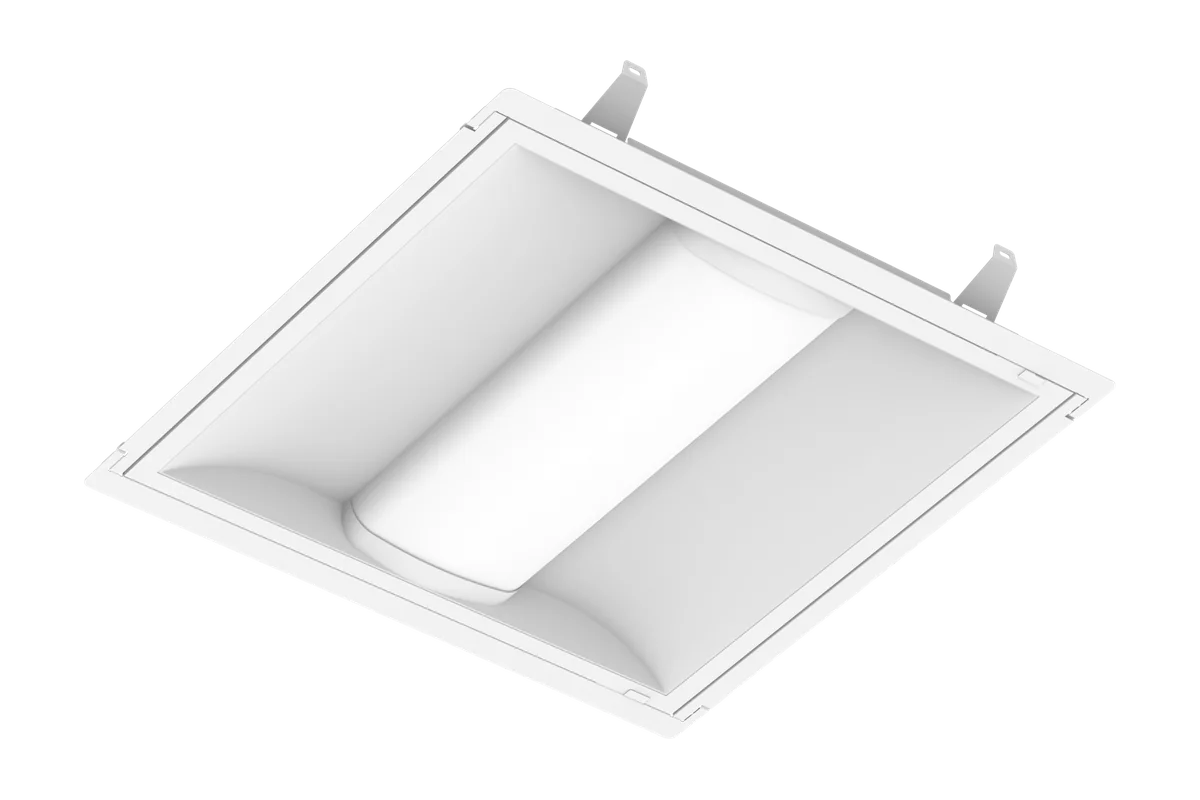

retroARCH-T1 LPVR22 LED retrofit troffer door kit, 2x2

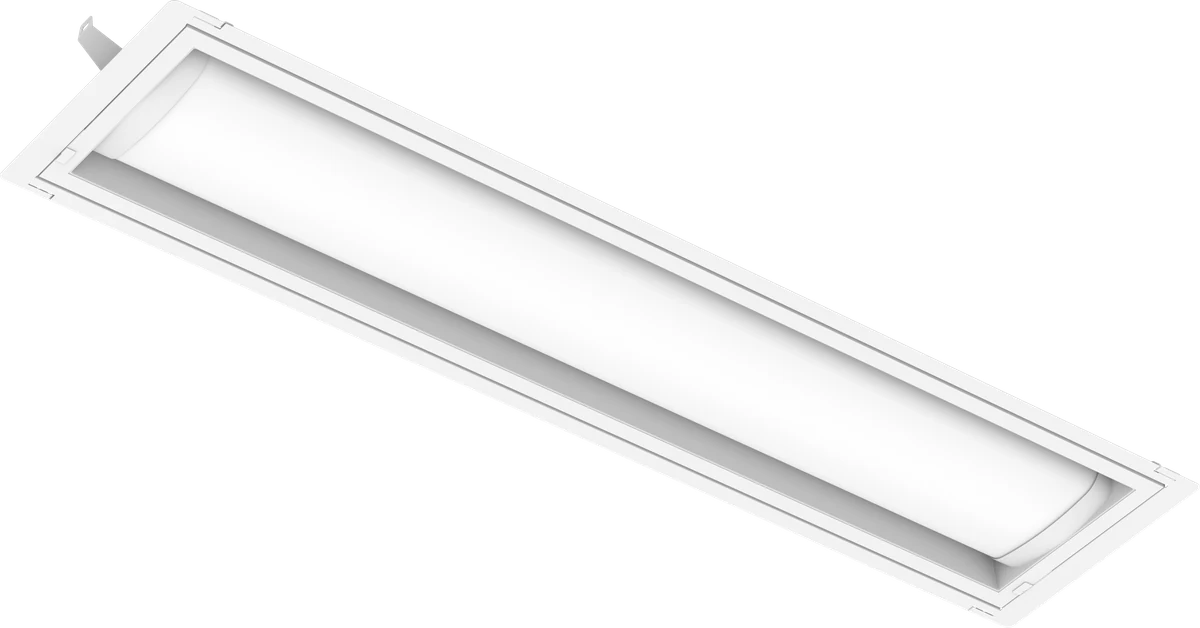

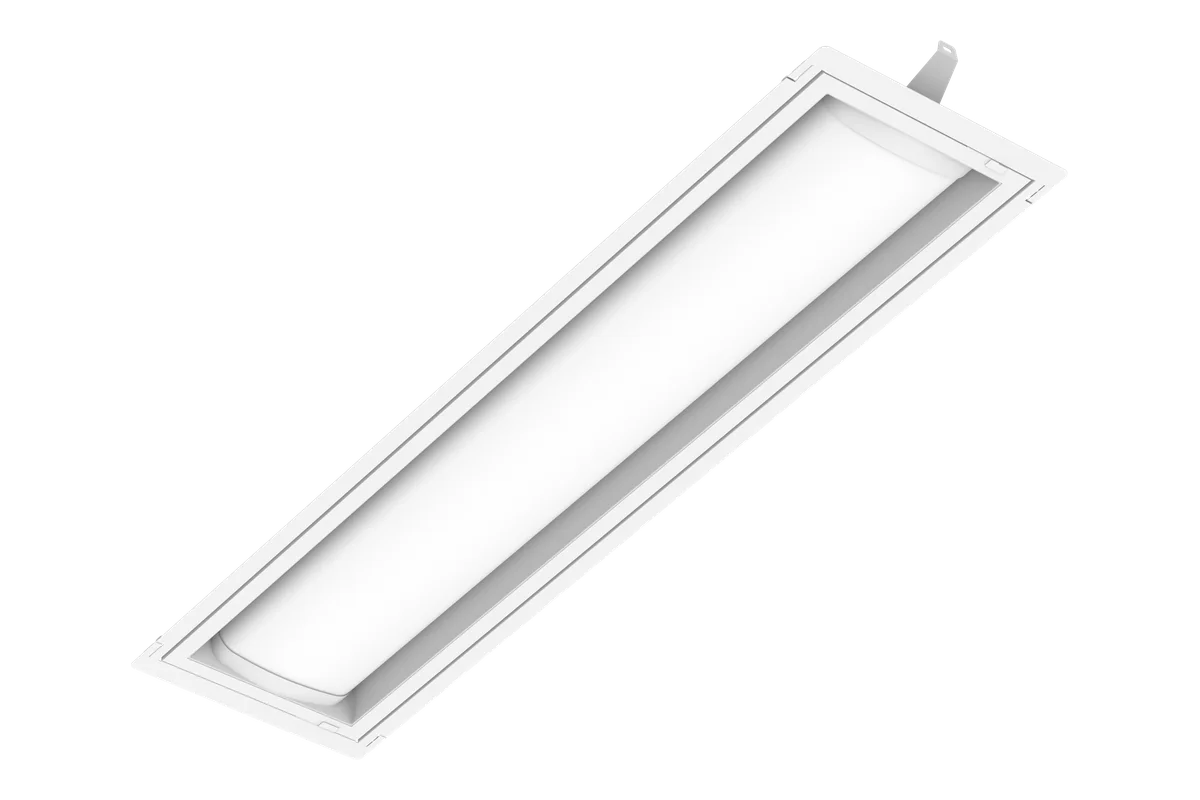

retroARCH-T1 LPVR14 LED retrofit troffer door kit, 1x4

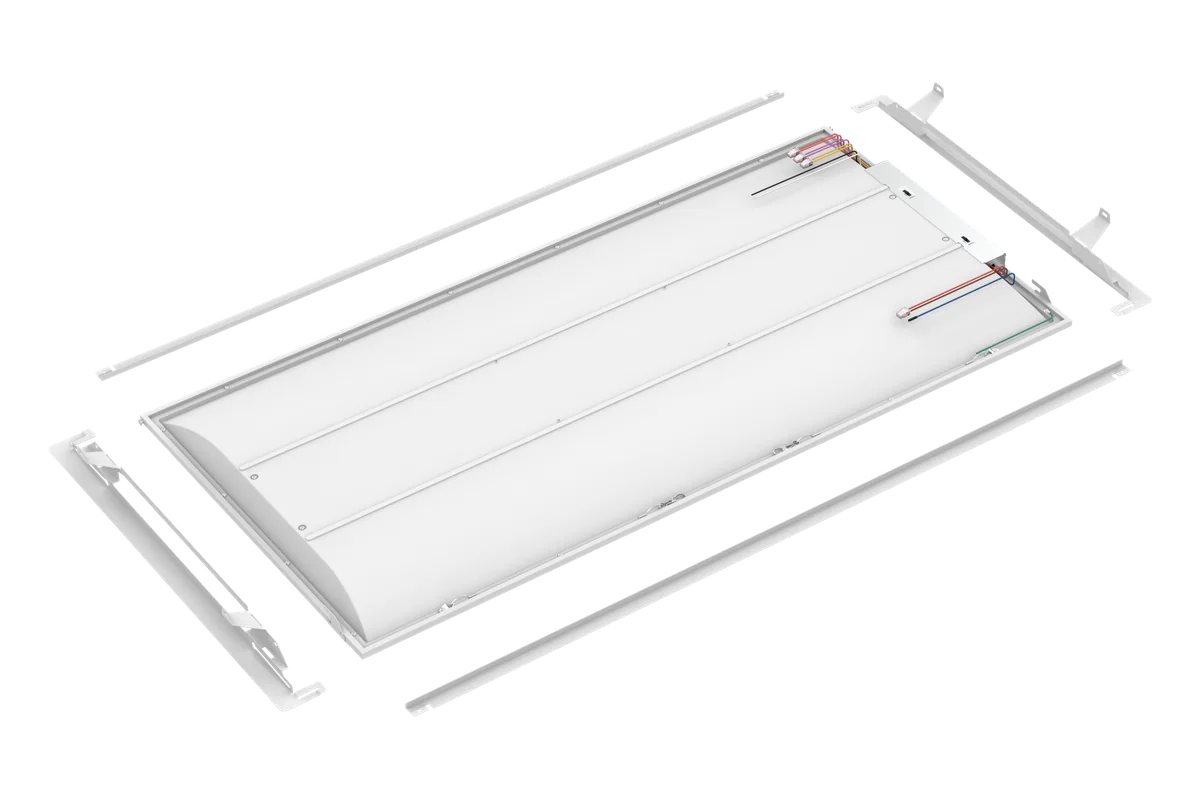

retroARCH-T1 door kit with its end brackets and trim brackets

Documentation & Resources

Documents

Data SheetPDF Quick SheetPDF Sell SheetPDF IES Photometric FilesIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the floor plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

WATTselect	Watts	Lumens	CCTselect	lm/W

★ Default settings. † Measured: ALG's file at the top step, 3500K, 120 V, which reads above the datasheet. The 1×4 file reads 4,369 lm, below the datasheet, so the datasheet stands. Every file is in Photometrics.

ApplicationIndoor · retrofit of a 1×4, 2×2 or 2×4 fluorescent grid trofferThe host housing stays in the ceiling and must be suitable for conversion

ConstructionSPCC steel body, white · PMMA center basket · aluminum trimHinged door frame, latched at each end

Optics120° nominal, center basketMeasured 114° × 115° (1×4), 119° × 112° (2×2), 121° × 114° (2×4) at 50 % of peak

Dimensions—

Operating temp−4 °F to 104 °FDamp location · IC rated

Electrical120–277 V · 0–10V, dim-to-off · PF ≥0.9 · THD ≤20 % · flicker <5 % · 1 kV surge · CRI >80, R9 ≥0

LifeL70 at 50,000 hr95.8 % lumen maintenance at 6,000 hr

Warranty5 yr · 50,000 hrLight output, color stability and the driver

Full Data Sheet Submittal Sheet

Engineering

How it goes into the old troffer, what you set at install, and what you can build in.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

Full IES Library

Engineered Accessories

Configurator

Build Your retroⒶRCH-T1.

Required *

Size—

Voltagethe one voltage built—

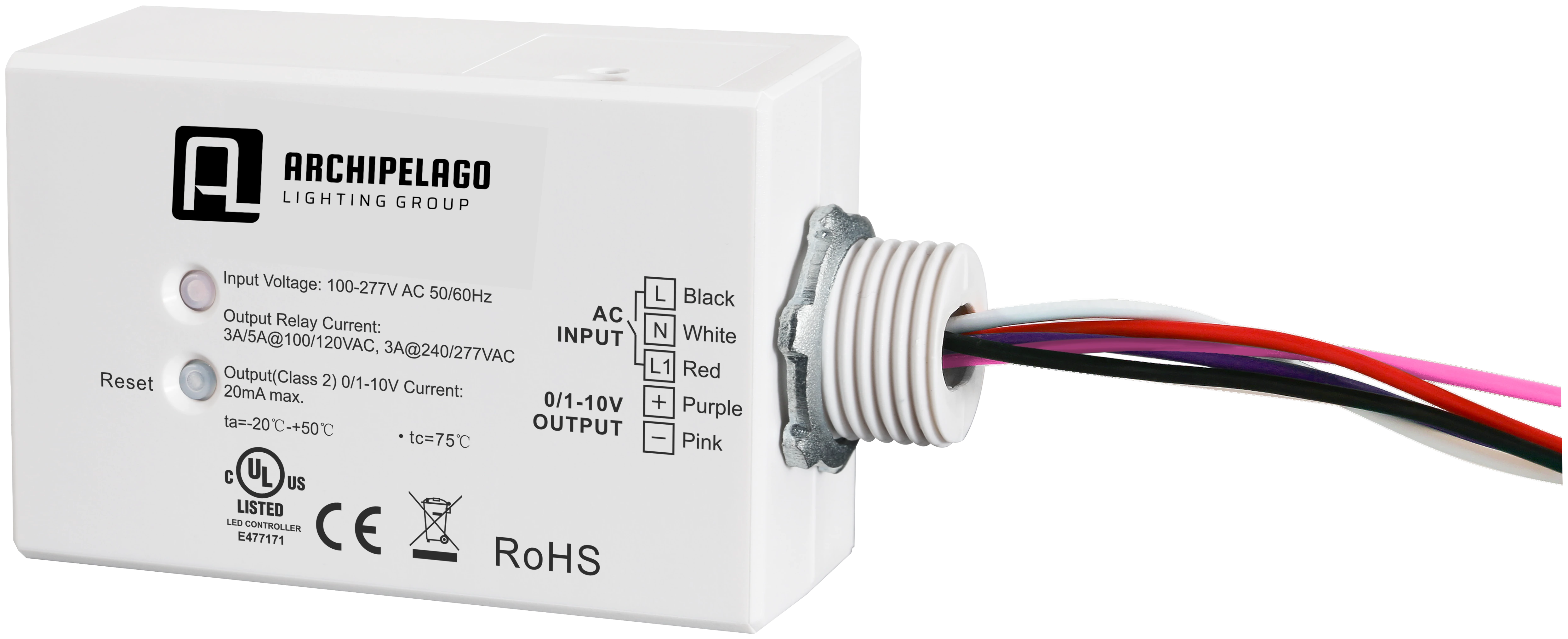

Sensor port—

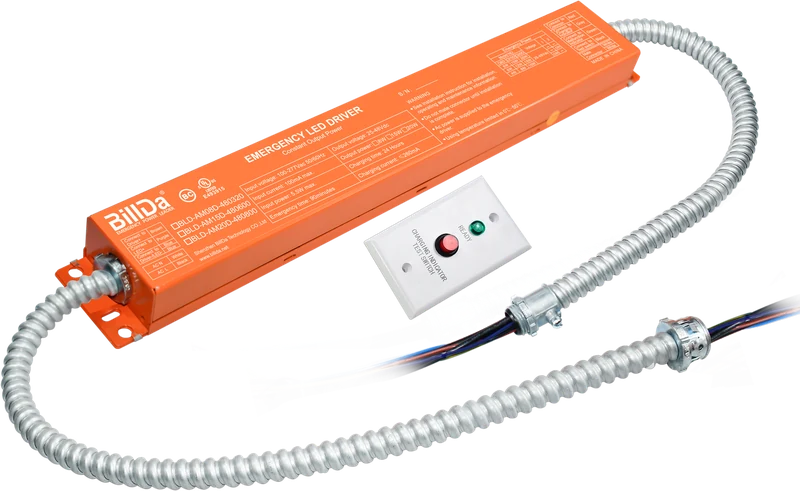

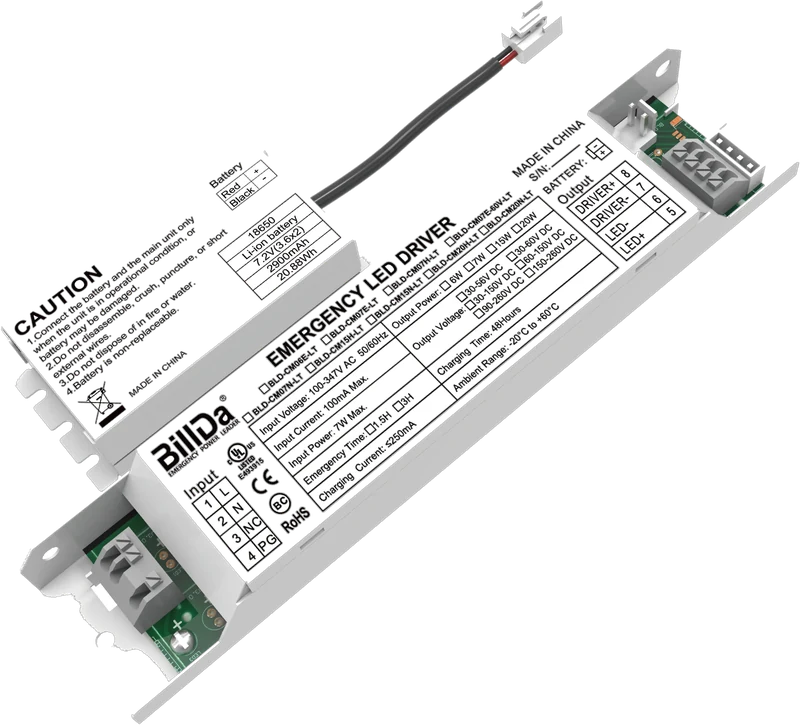

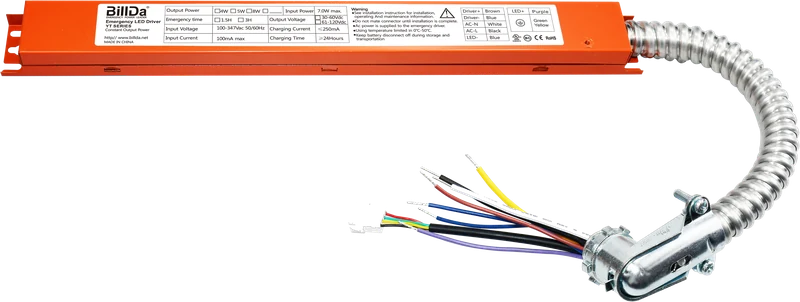

Emergency—

Dip switchesset on the driver · not in the part number—

Optional

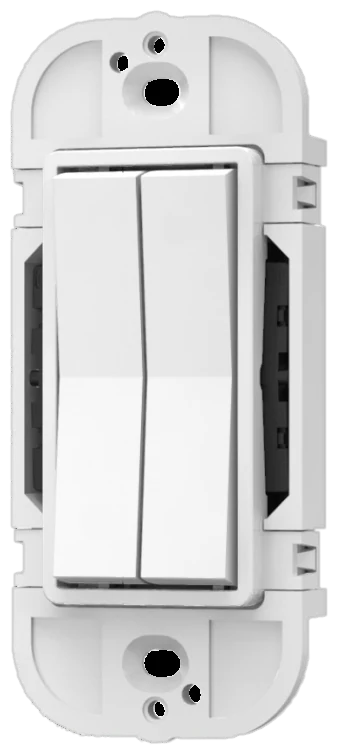

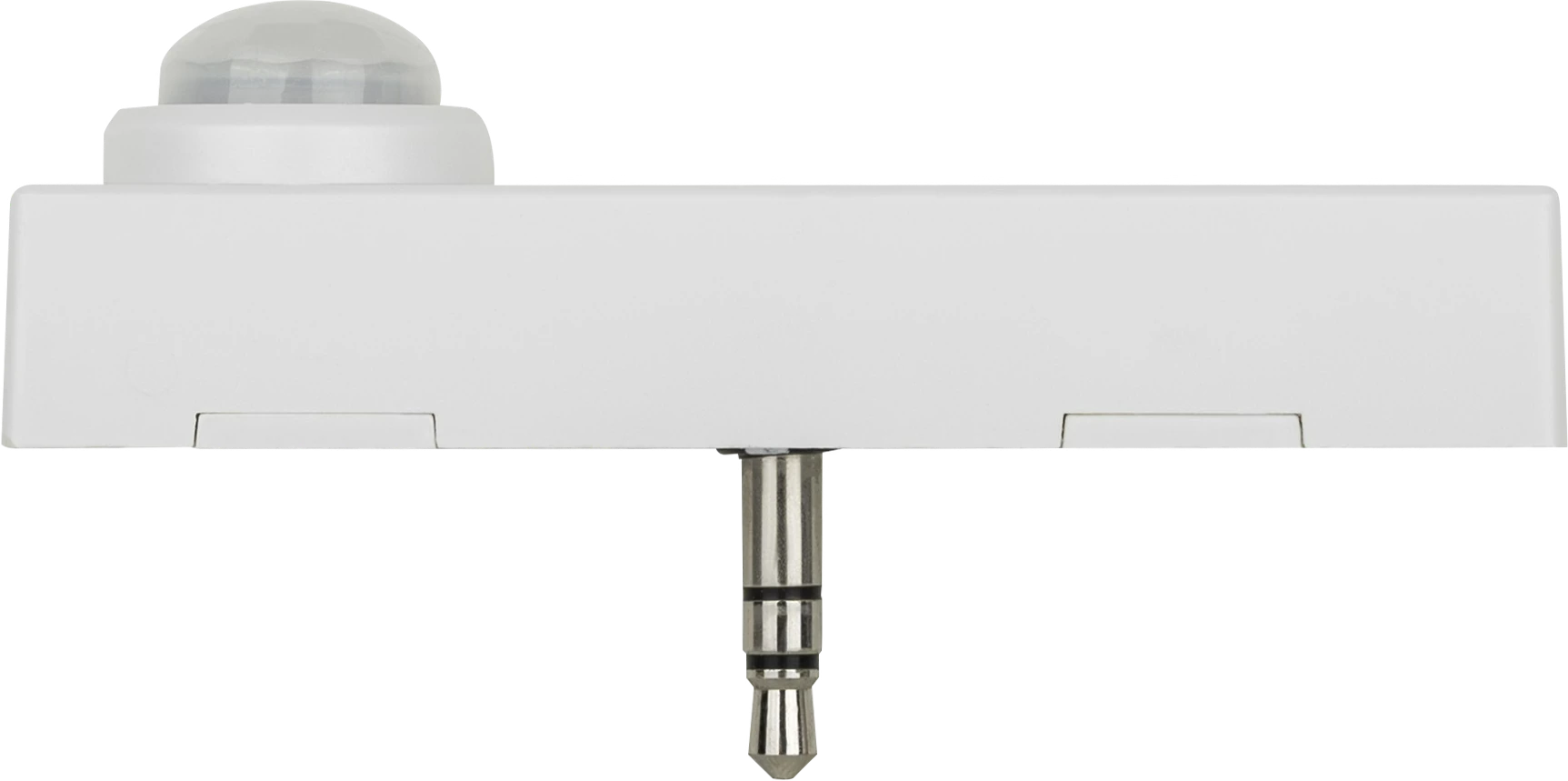

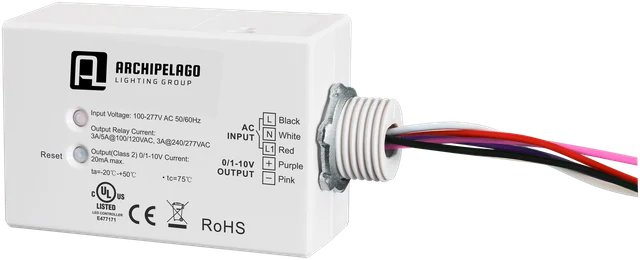

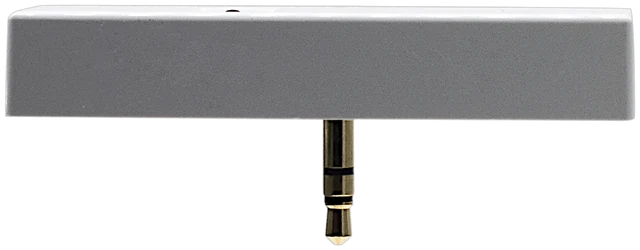

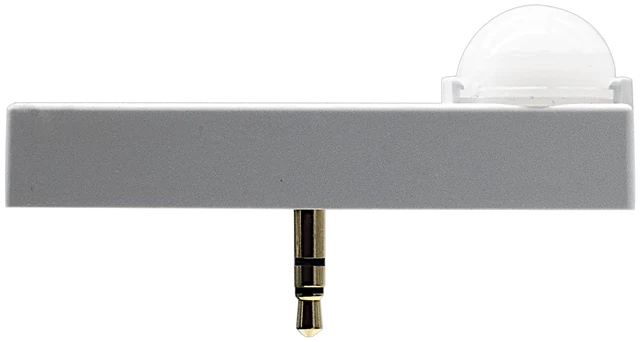

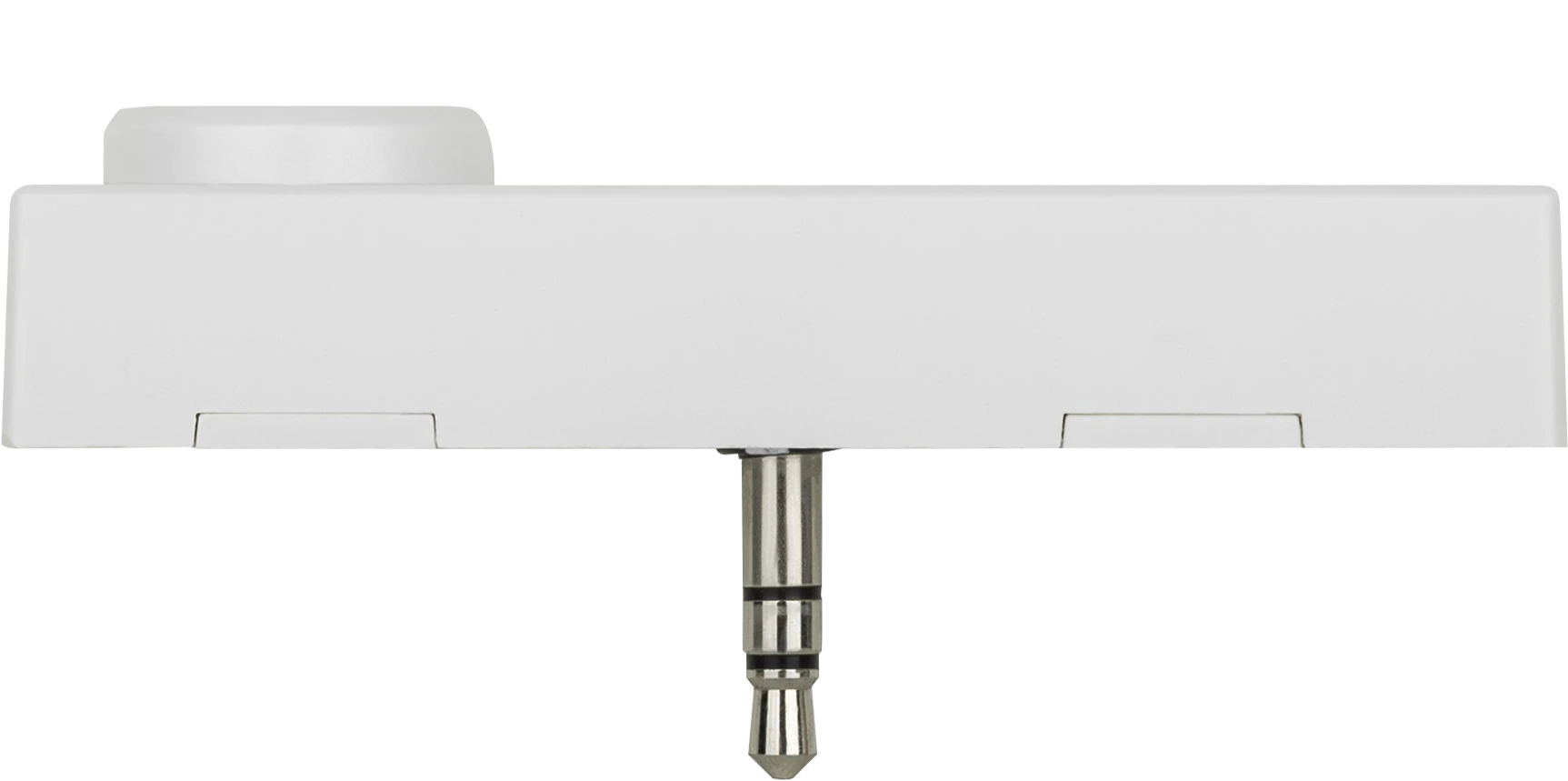

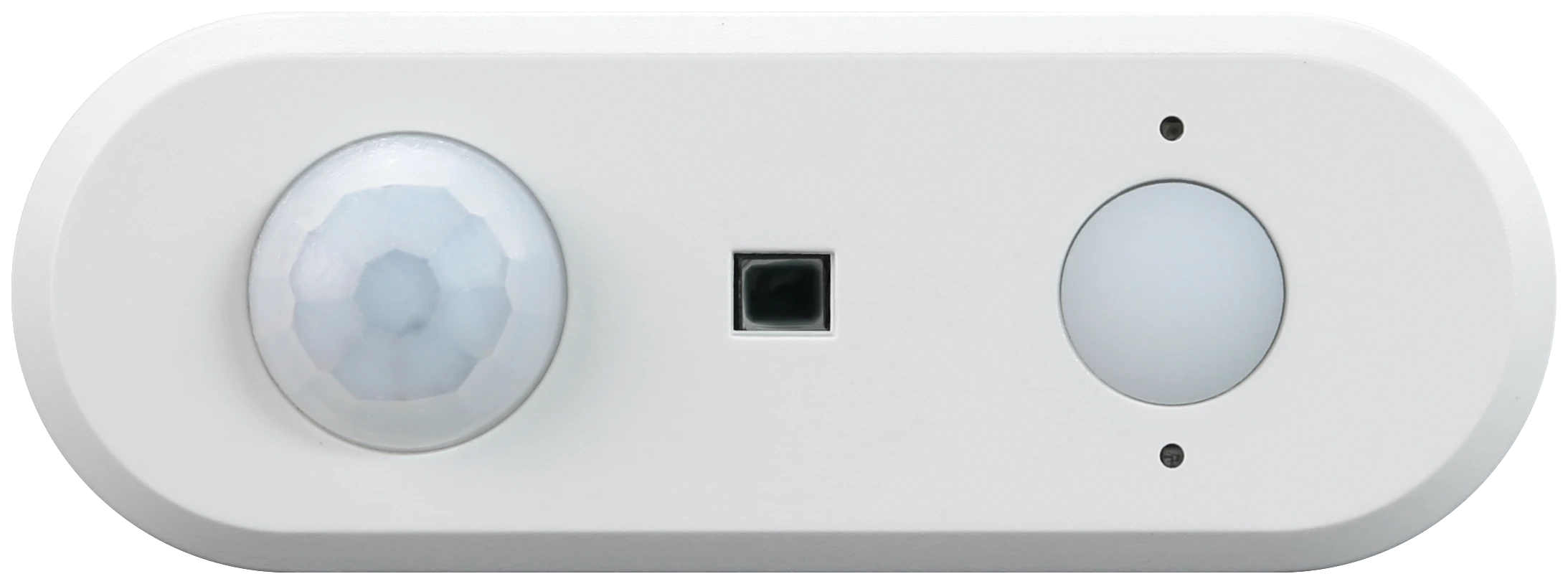

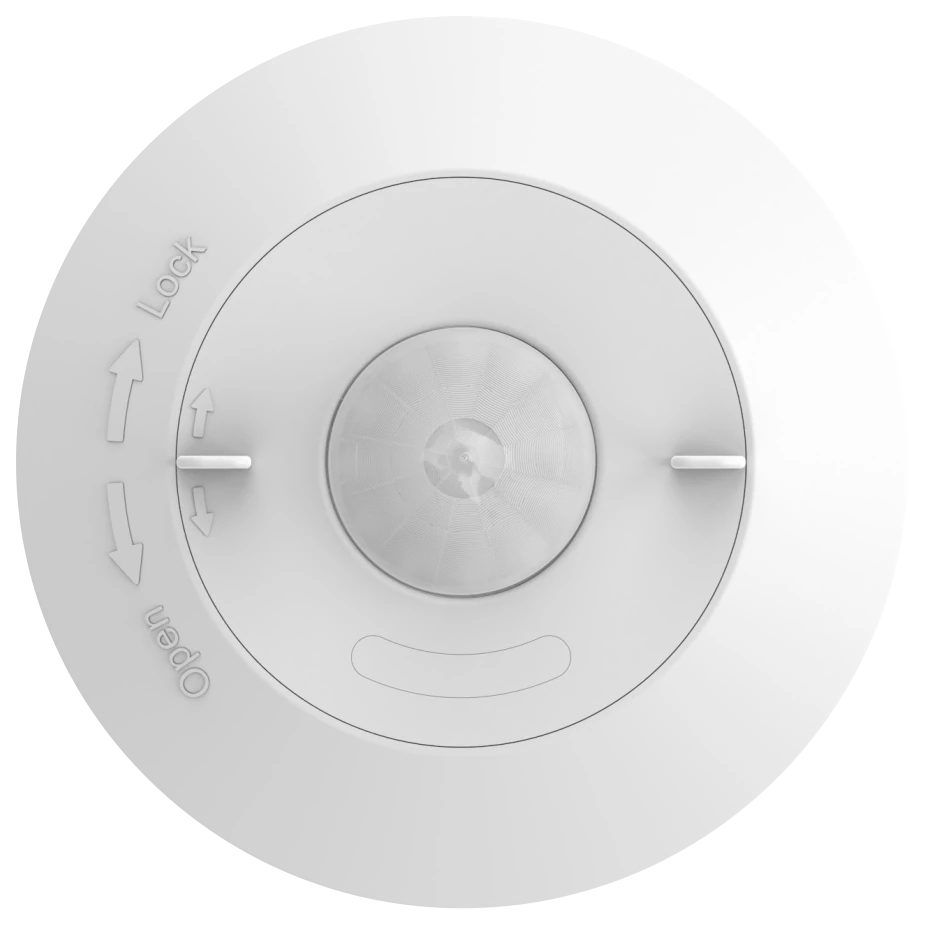

Sensorplugs into the /SR port—

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingscETLus Listed (US & Canada) · damp location · IC rated · FCC · RoHS · TAANot on the DLC QPL — check program eligibility in Rebate Center before specifying.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

Troffer Family

retroⒶRCH-T1 puts the center basket into a troffer already in the ceiling. proⒶRCH-T is the same design as a new troffer; Luxmark is the spec-grade troffer.

You are here retroARCH-T1 LED retrofit troffer door kit

LPVR · ECO retroⒶRCH-T1 The same center basket as a door kit for a fluorescent troffer already in the ceiling. TAA · 5 yr / 50,000 hr Submittal Sheet → Product Details · this page

LPVT · ECO proⒶRCH-T The center-basket troffer for new grid ceilings. 1×4, 2×2 and 2×4, 18–44 W. TAA · 7 yr / 75,000 hr Downloads → Product Details →

LPVT · PRO+ Luxmark The spec-grade troffer: four wattages and four CCTs on every fixture, up to 6,456 lm. 7 yr / 75,000 hr Downloads → Product Details →

Specifier Support

Send us the floor plan.

We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.

3 BDLayout turnaround

FreePhotometric layout

Find A Rep Request A Layout

Rebates

Check the program first.

retroⒶRCH-T1 is not on the DLC QPL, and most utility programs ask for a listing. Rebate Center shows what your utility pays and what it needs. Send us the ZIP and we check before you specify.

128lm/W · measured

5 yr50,000 hr warranty

3 sizes1×4 · 2×2 · 2×4

Open Rebate Center
