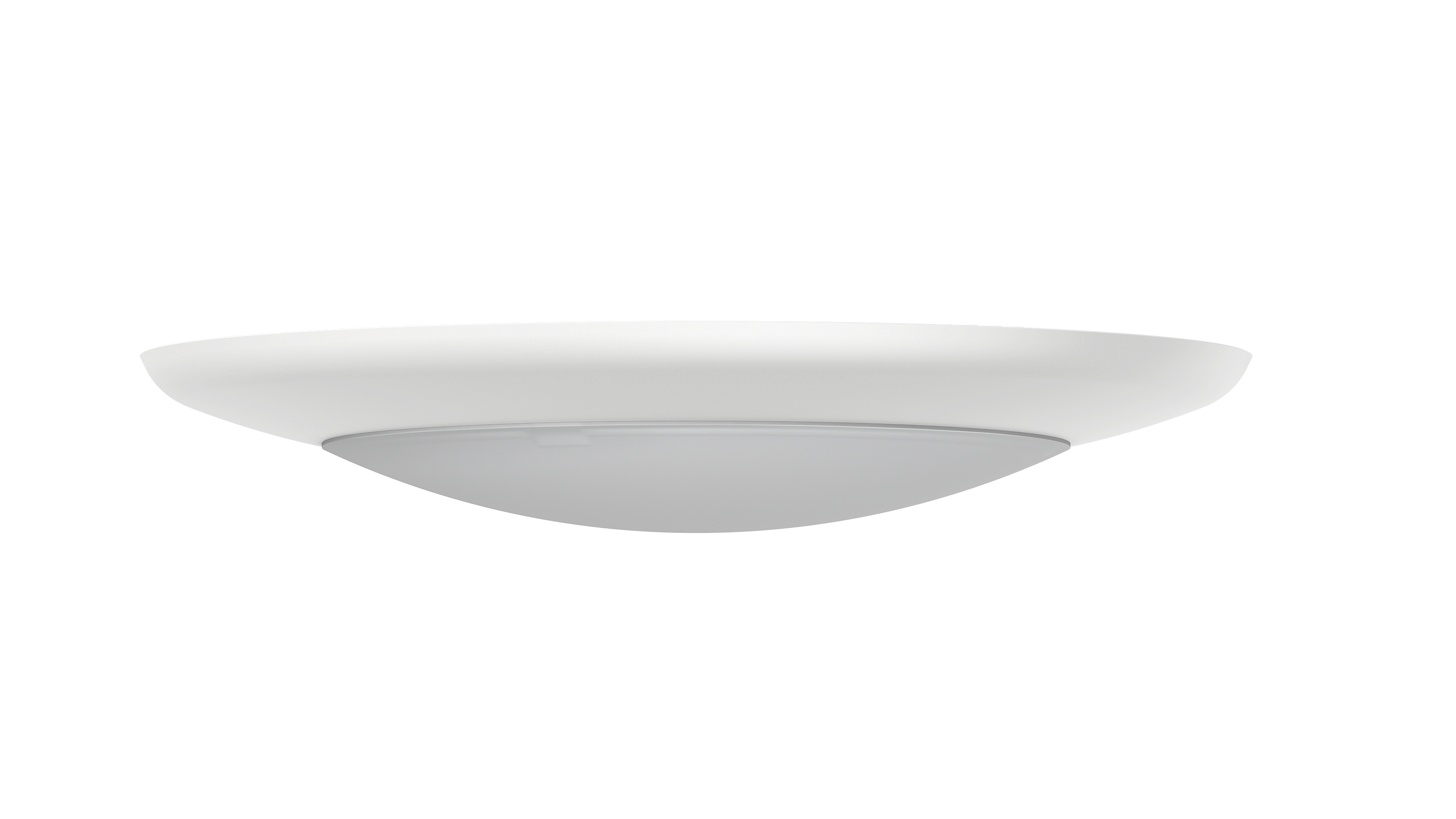

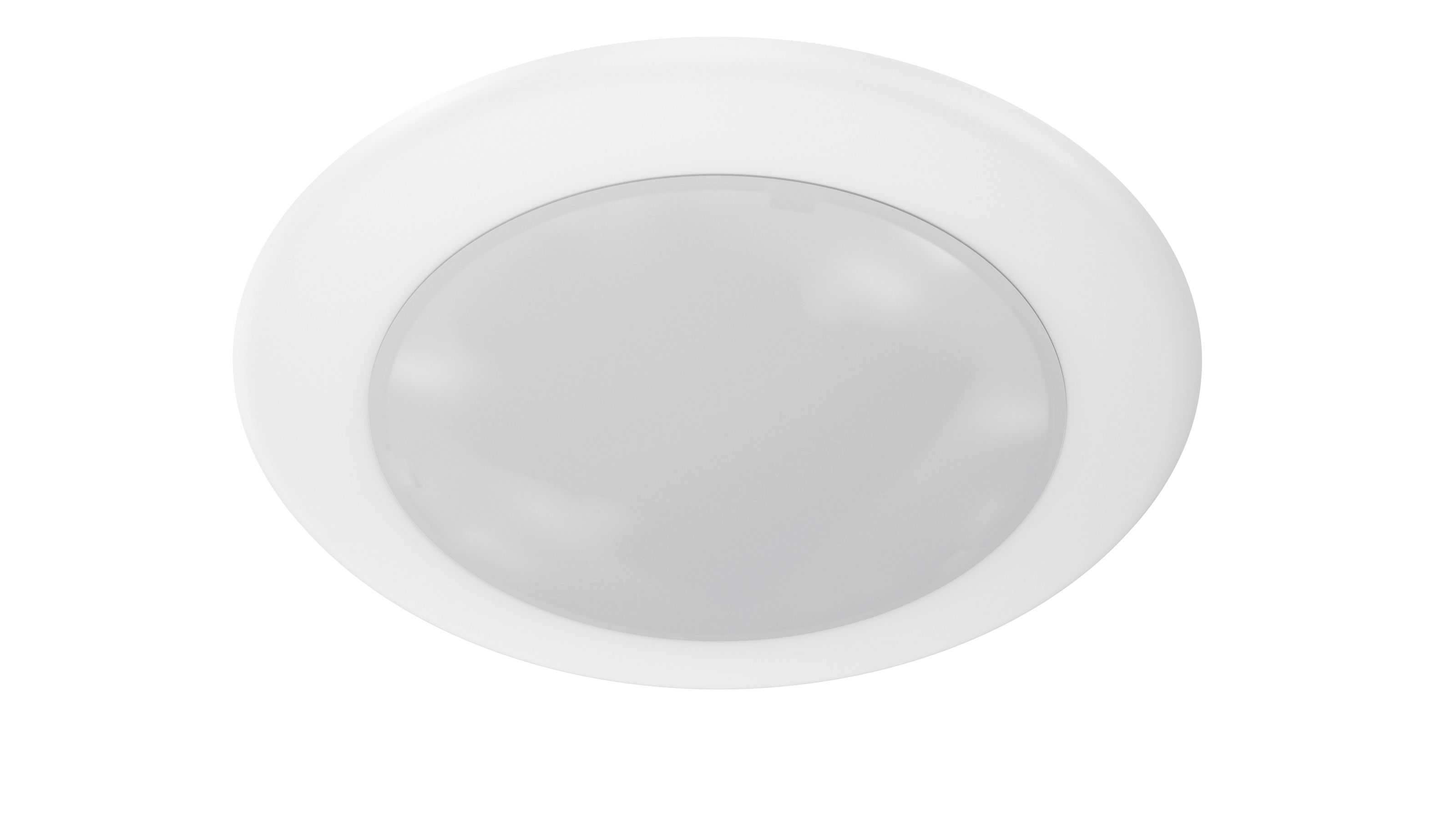

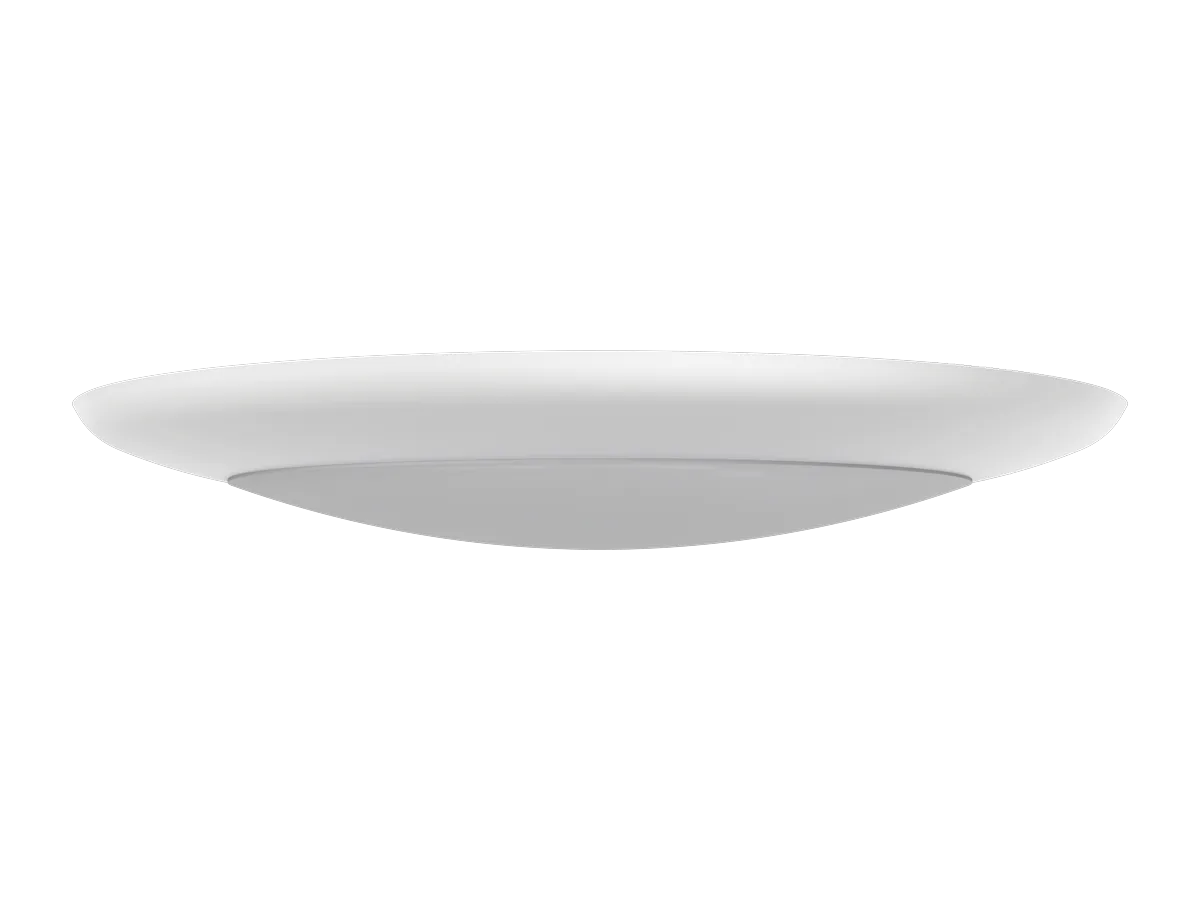

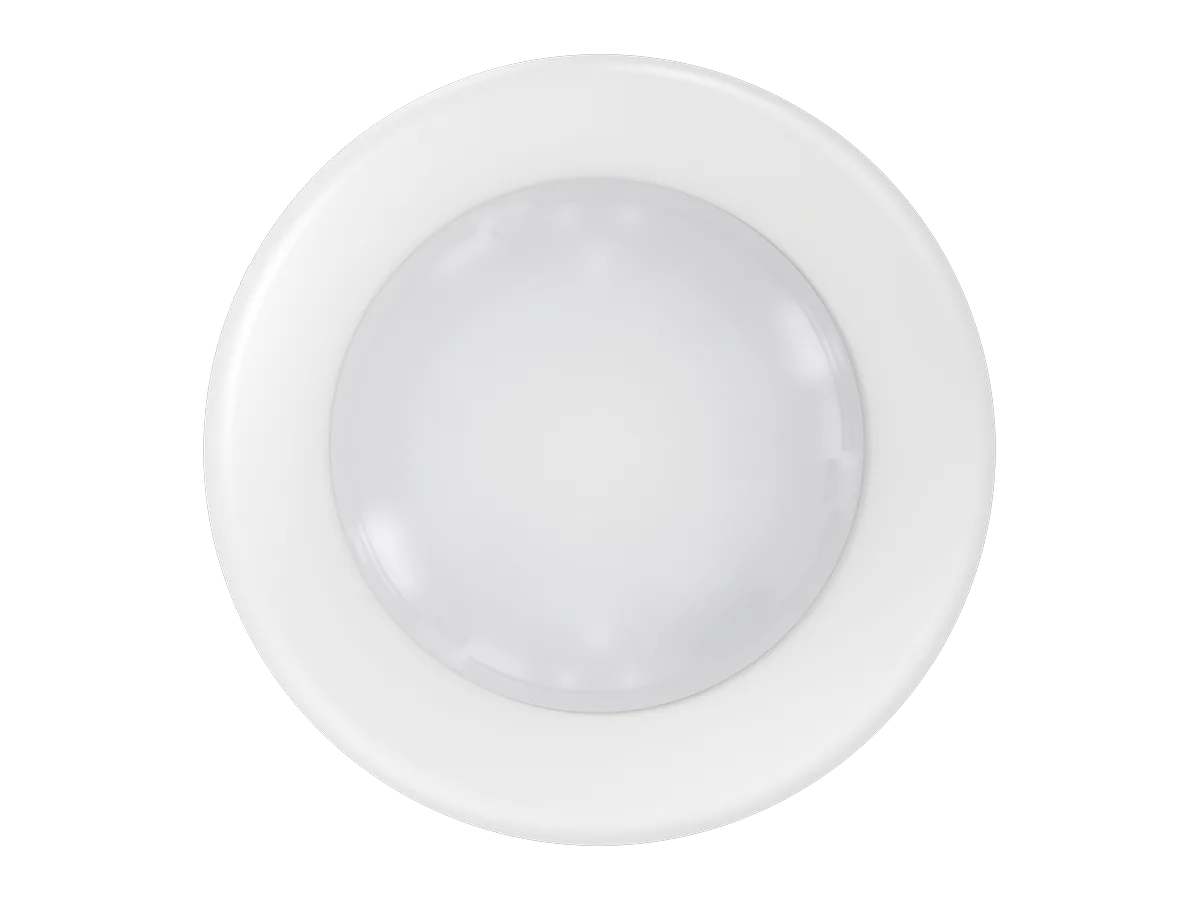

LSMT eCrescent Series ECO

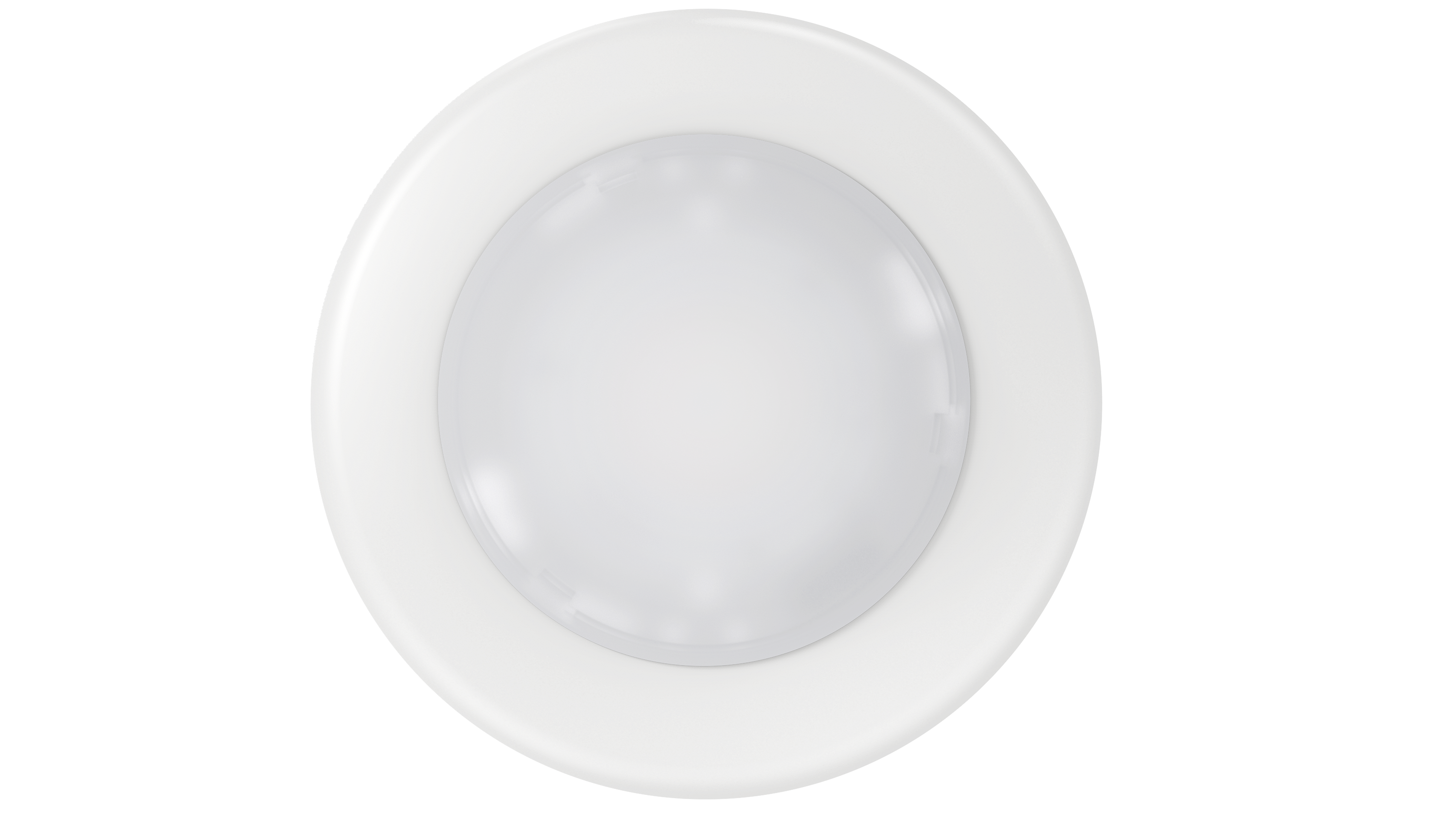

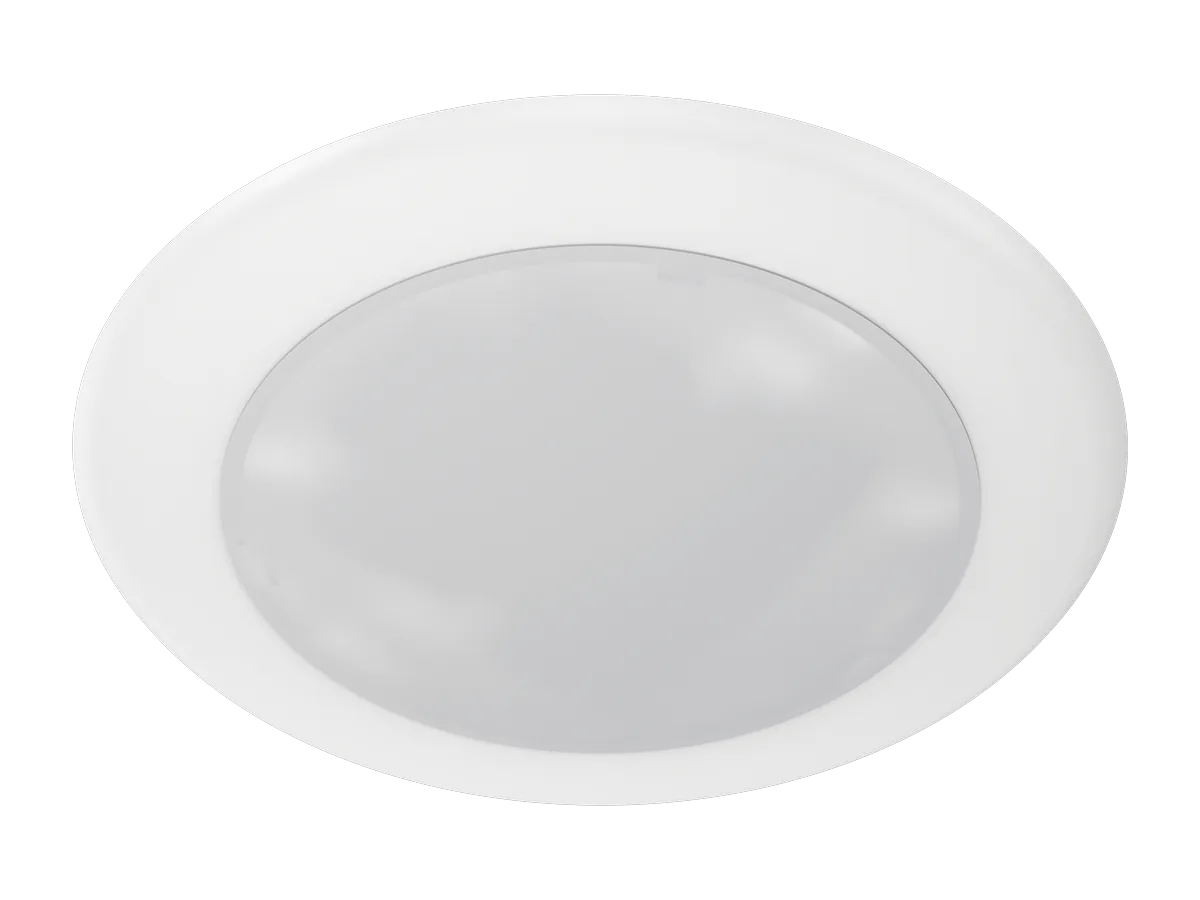

Surface-Mount Disk Downlight · 4″ + 6″ · IP65 Wet · Built-in PIR Option
The 5-in-1 disk that earns its place. One SKU stacks IP65 wet · 5-CCT (2700–5000K) · built-in PIR option (10s/1min/10min hold) · EM-driver compat · dual install (J-box OR 5″/6″ can retrofit · kit included). 4″ (10W) + 6″ (15W) · 90+ CRI · ETL / ENERGY STAR / JA8-2022 · 24-pack contractor carton. Performance on a budget.
Model Specifications
Download Data Sheet| Watt | Lumens | lm/W | CCT | Voltage |
|---|
LSMT615-S5E/P) ships with a second dip-switch for selectable hold time (10s / 1min / 10min) — see Section 5. CRI ≥90 across the entire matrix per SellSheet badge. 24-pack contractor cartons (/24PK suffix) are packaging variants of the same fixture, not separate SKUs.Dimensions
(For the selected size)Highlights & Features
Seven amplifiers no value-tier disk stacks together.
IP65 · 5-CCT · PIR option · EM compat · dual install · 24-pack. Six features on one ECO-tier SKU.

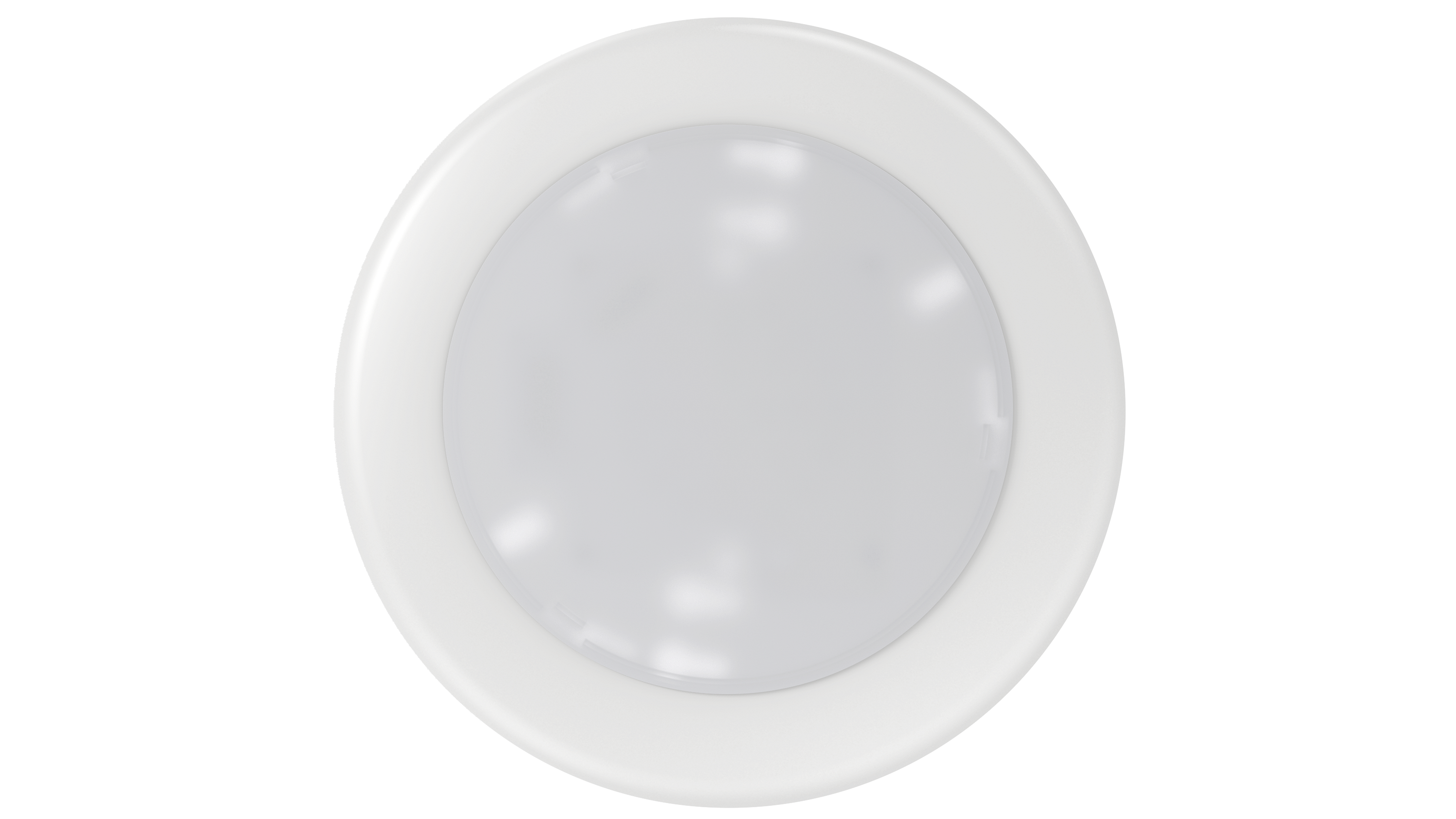

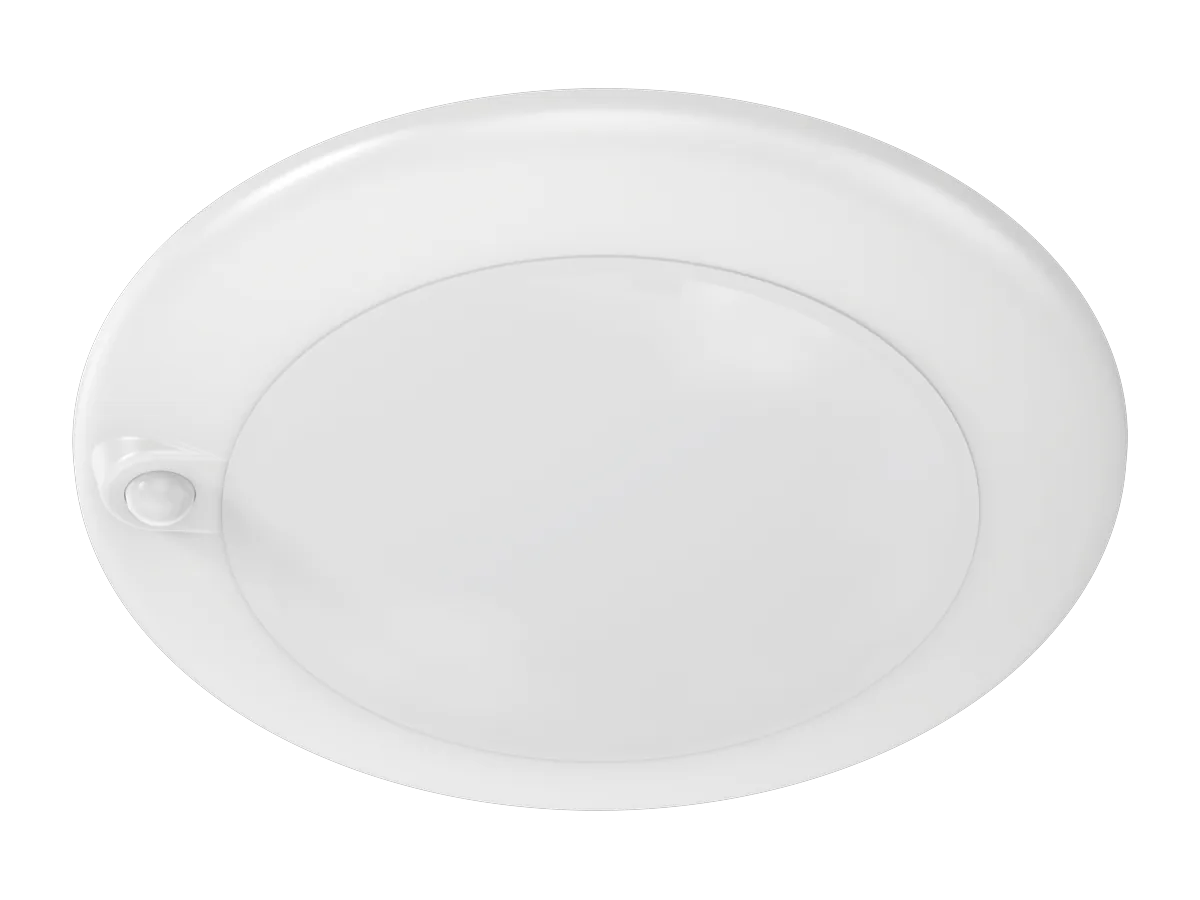

Built-in PIR · The /P Variant
10 seconds. 1 minute. 10 minutes. You pick.

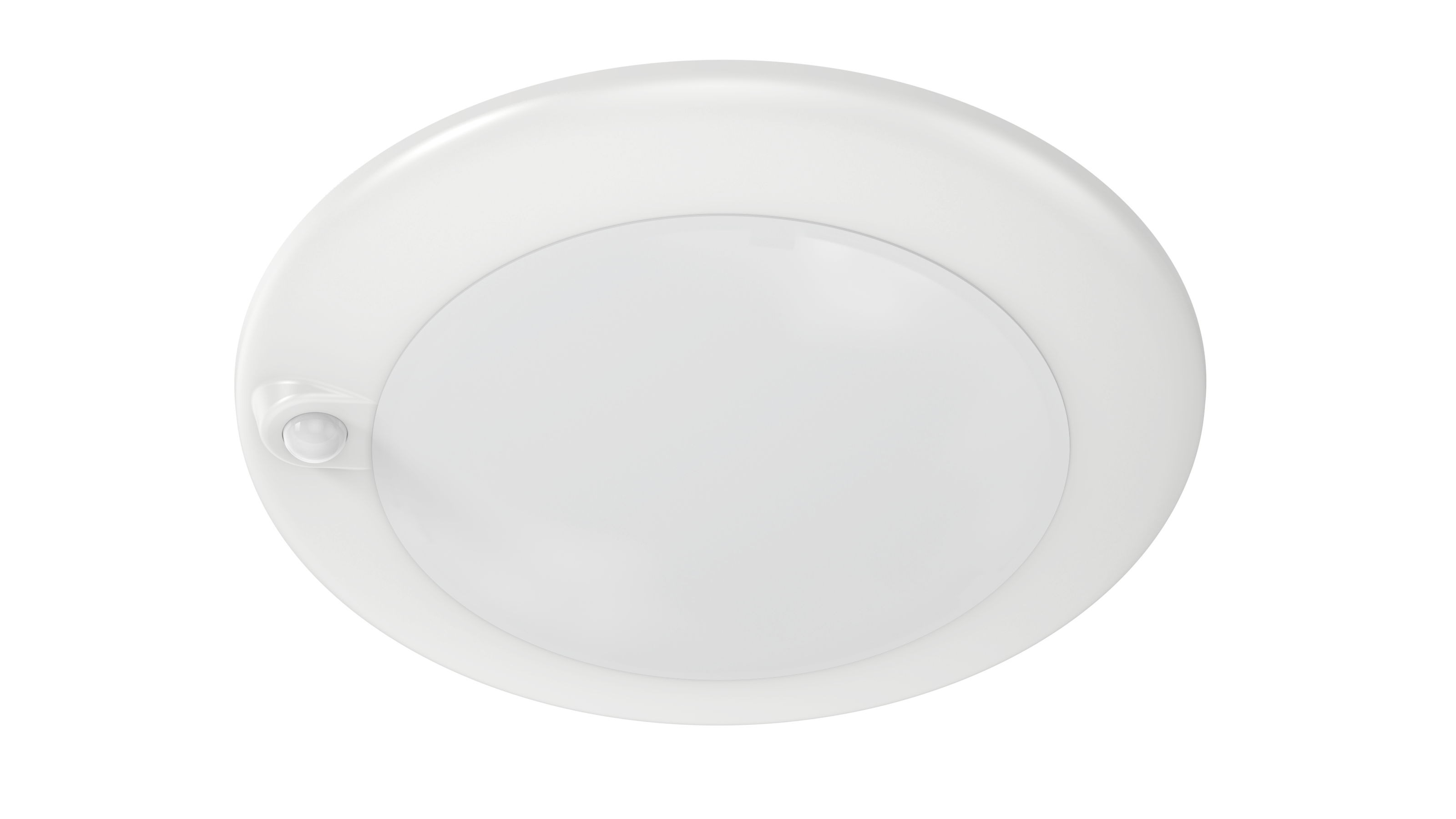

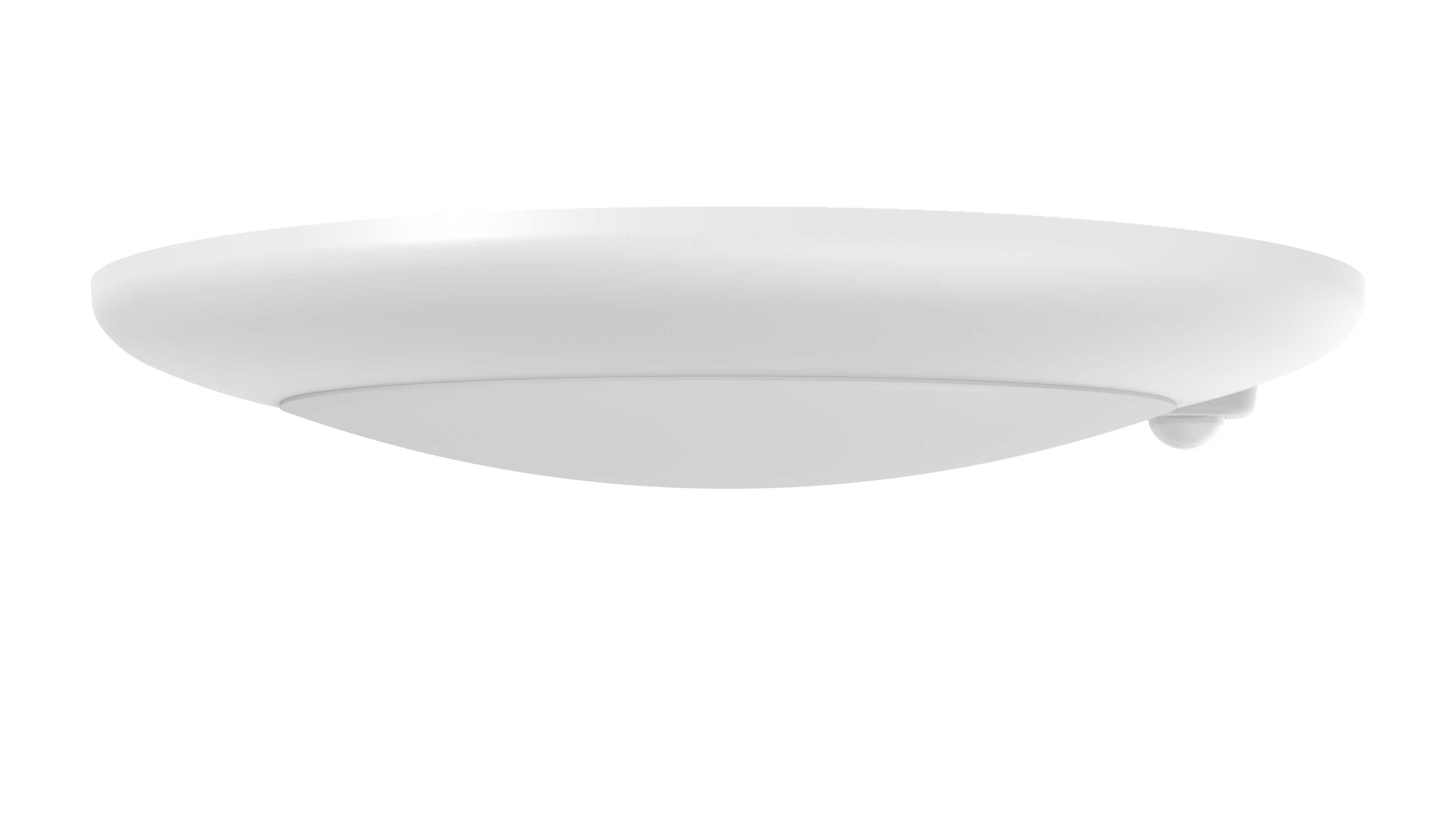

Order the LSMT615-S5E/P variant and the disk arrives with a factory-integrated PIR motion sensor at the rim plus a second dip switch on the back — three selectable hold positions covering the full multifamily occupancy spectrum. No power-pack. No low-voltage controller. No wall-switch sensor. One SKU, one install, three behaviors. The standard LSMT615-S5E ships without a sensor — pair with a wall-switch occupancy sensor or wire to an EM driver for code-required egress (see Section 7).

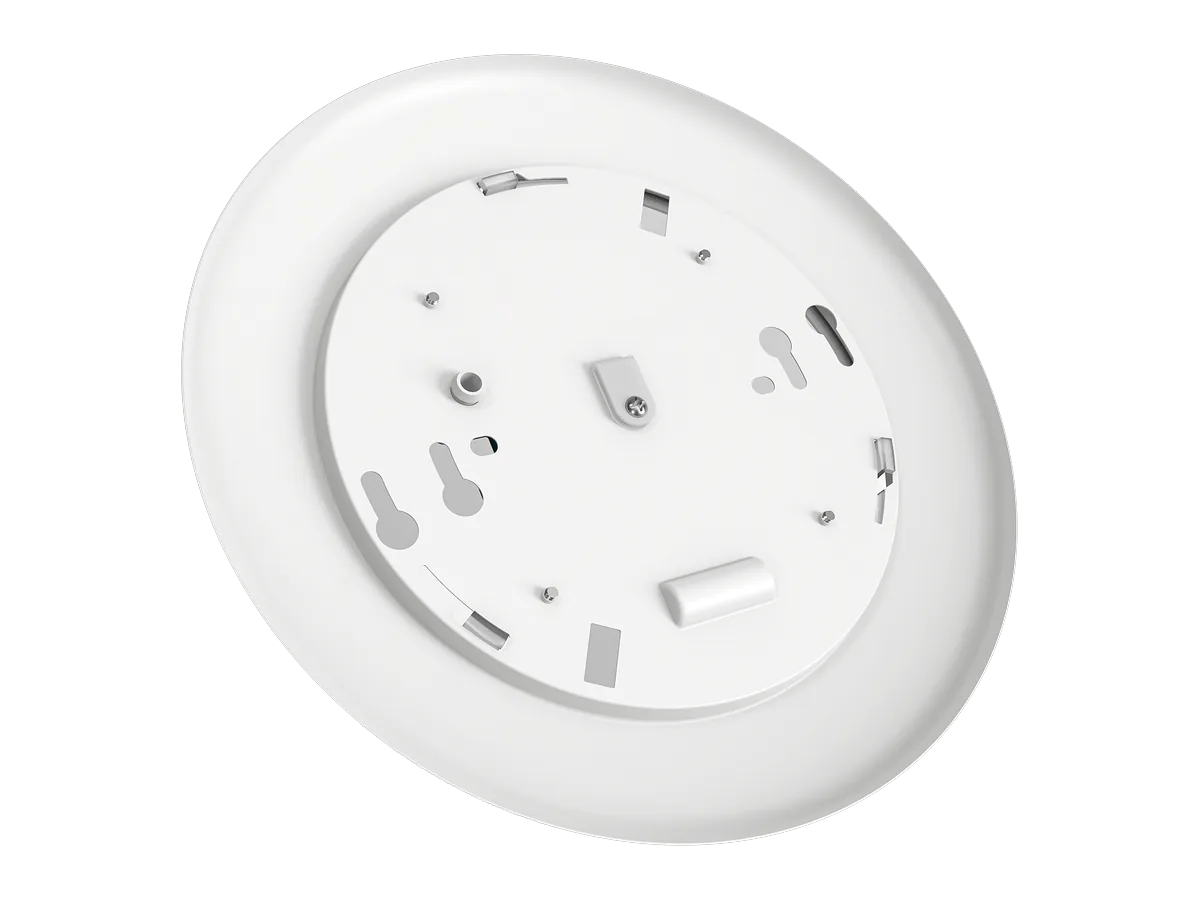

10-second hold — flick on, off when you leave. The right pick for storage closets, mechanical rooms, utility rooms, IT closets, and trash chutes — anywhere a brief lighting cycle matches a brief occupancy cycle. Saves the most energy of the three settings (PIR-triggered lighting in storage spaces averages ~35% of always-on burn). Set position 1 on the back-of-disk dip switch before fixture install — flip the lens off, toggle, flip back on, done.
See EM drivers, conversion kit & dimmers →Photometric Distribution
120° even back-lit beam. Two sizes, five CCTs.
eCrescent ships a single 120° wide-flood beam from the back-lit polycarbonate diffuser — one beam shape, ten lumen cells (two sizes × five CCTs). Pick the size and CCT below; peak candela, total lumens, and the IES filename update with the selection. The polar plots below are synthesized from the Datasheet lumen matrix using a 120° wide-flood cosine model; 10 real IES files (5 per size) ship on disk under /IES/LSMT{4|6}{10|15}-S5 ({CCT}K)_IESNA2002.IES — legacy S5 filename suffix, photometric output identical to the S5E eCrescent SKUs. WorkDrive bundle URL pending engineering registration.
LSMT410-S5 (4000K).IES
Three things in the box. Eleven things in the catalog.

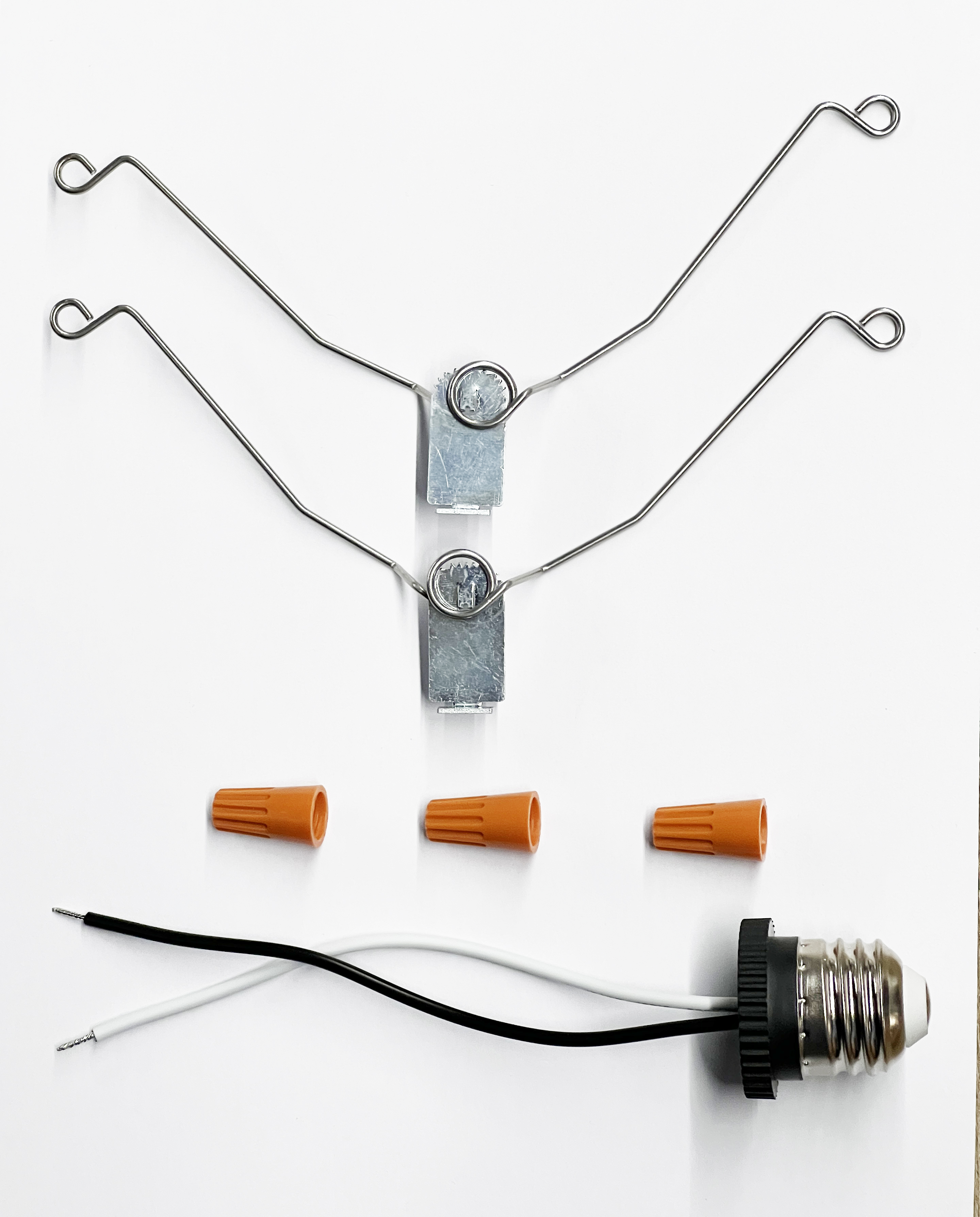

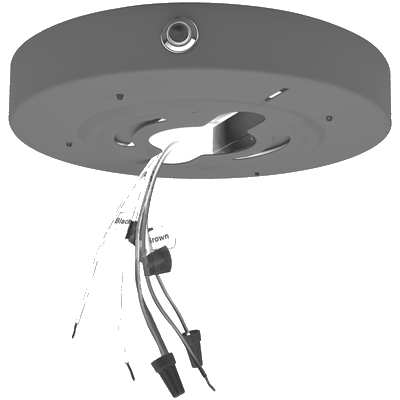

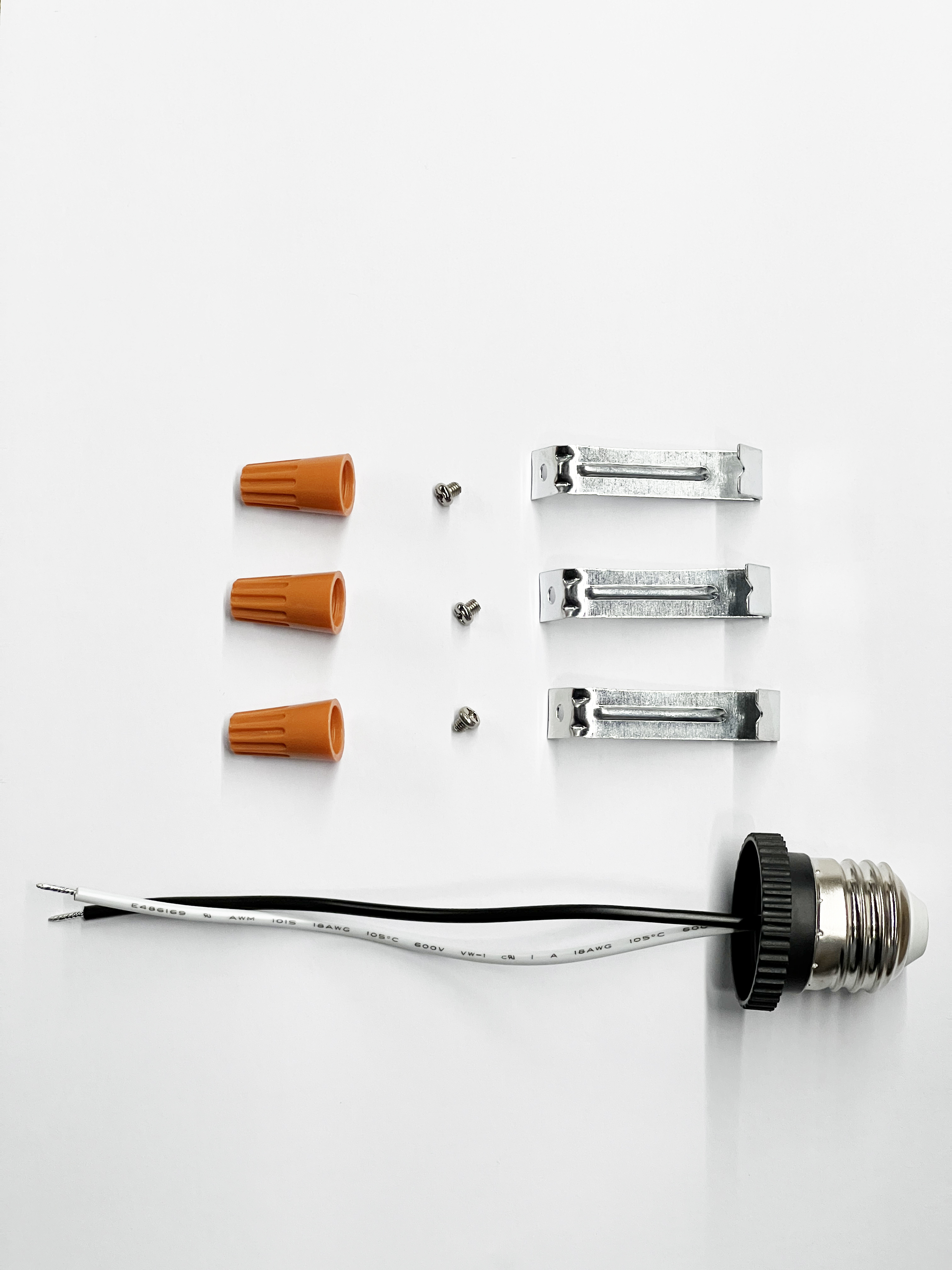

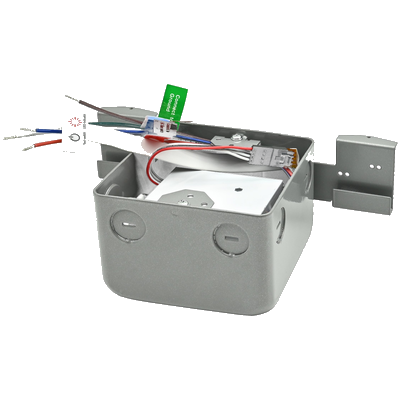

The eCrescent's value-tier story isn't just the fixture — it's the conversion kit + mounting hardware that ship in every box, the five constNT EM drivers that let you bring code-egress lighting down to ECO pricing, the full Leviton + Lutron approved-dimmer ladder for matched-dimmer compatibility, and the 24-pack contractor cartons at multifamily-friendly $/unit.
Configure Your eCrescent
Size + Sensor + Pack → one of 5 SKUs.
★ default · QS QuickShip · /P=6″ only · /24PK excludes PIR · PIR hold on back-of-disk dip (§5)
Documentation & Resources
Everything specifiers, contractors, and property managers need to spec, install, and certify the eCrescent — data sheet, sell sheet, install guides, and the live submittal generator. WorkDrive URLs for the 5 source PDFs are pending engineering registration.
LSMT410-S5E + LSMT615-S5E.The full multi-fMILY collection.

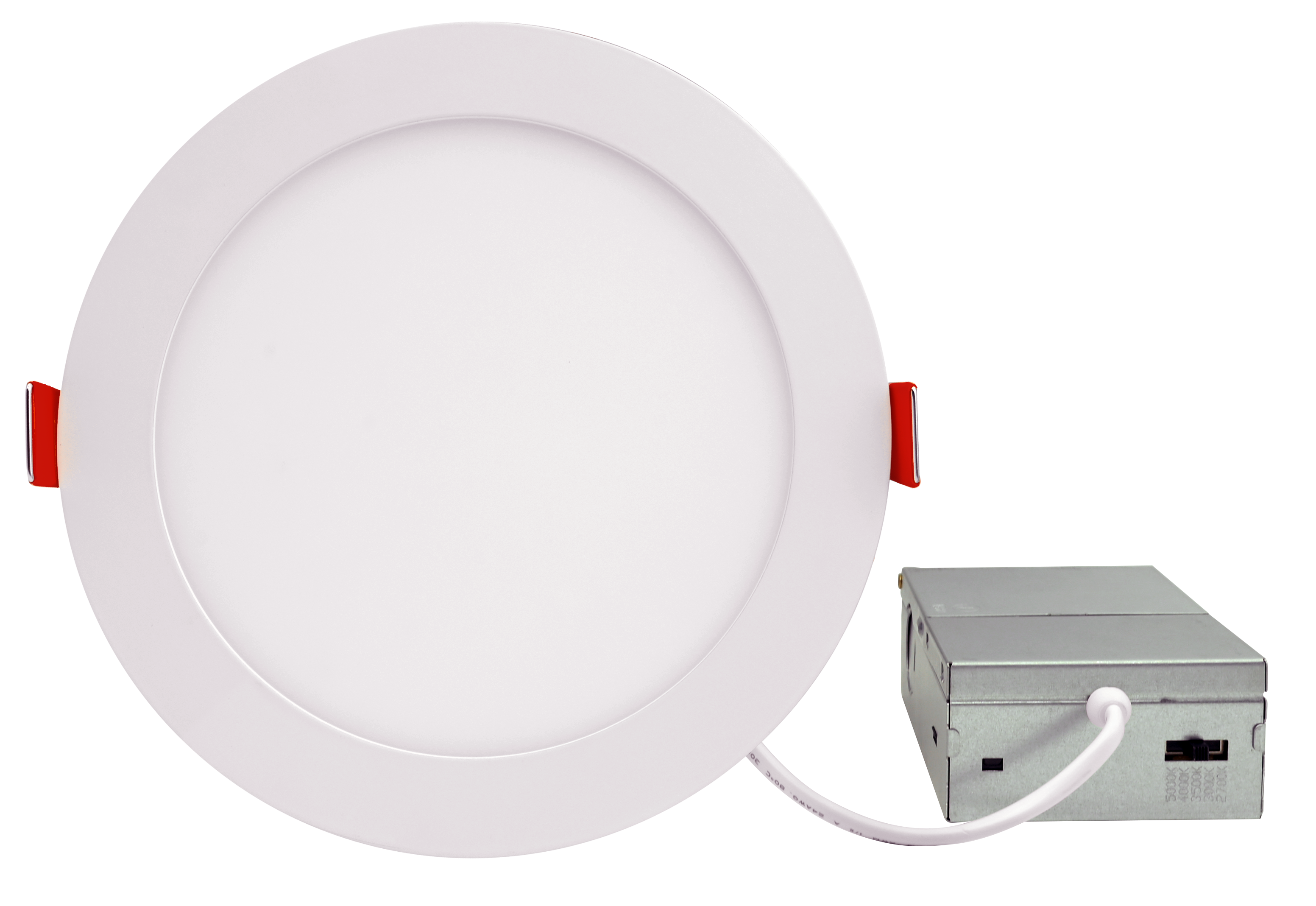

eCrescent is one luminaire in a thirteen-product collection engineered specifically for multi-family residential — in-unit living, corridors, baths & wet locations, and common amenity zones. Same factory, same CS controls platform, same JA8 / Title-24 / Damp-Location pedigree across every tier. If eCrescent isn't the right fit for a given zone, one of these is.
For the whole property.

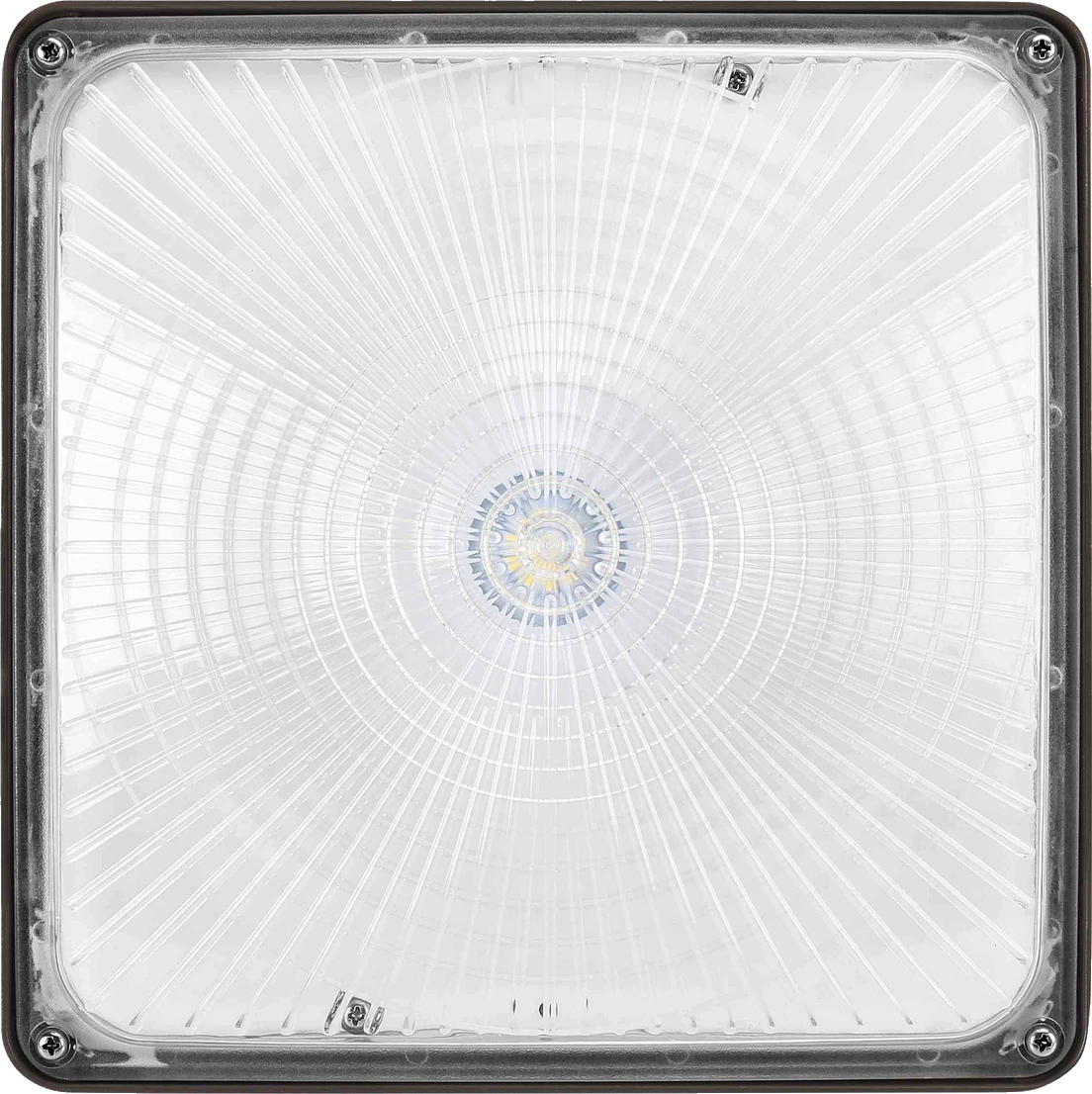

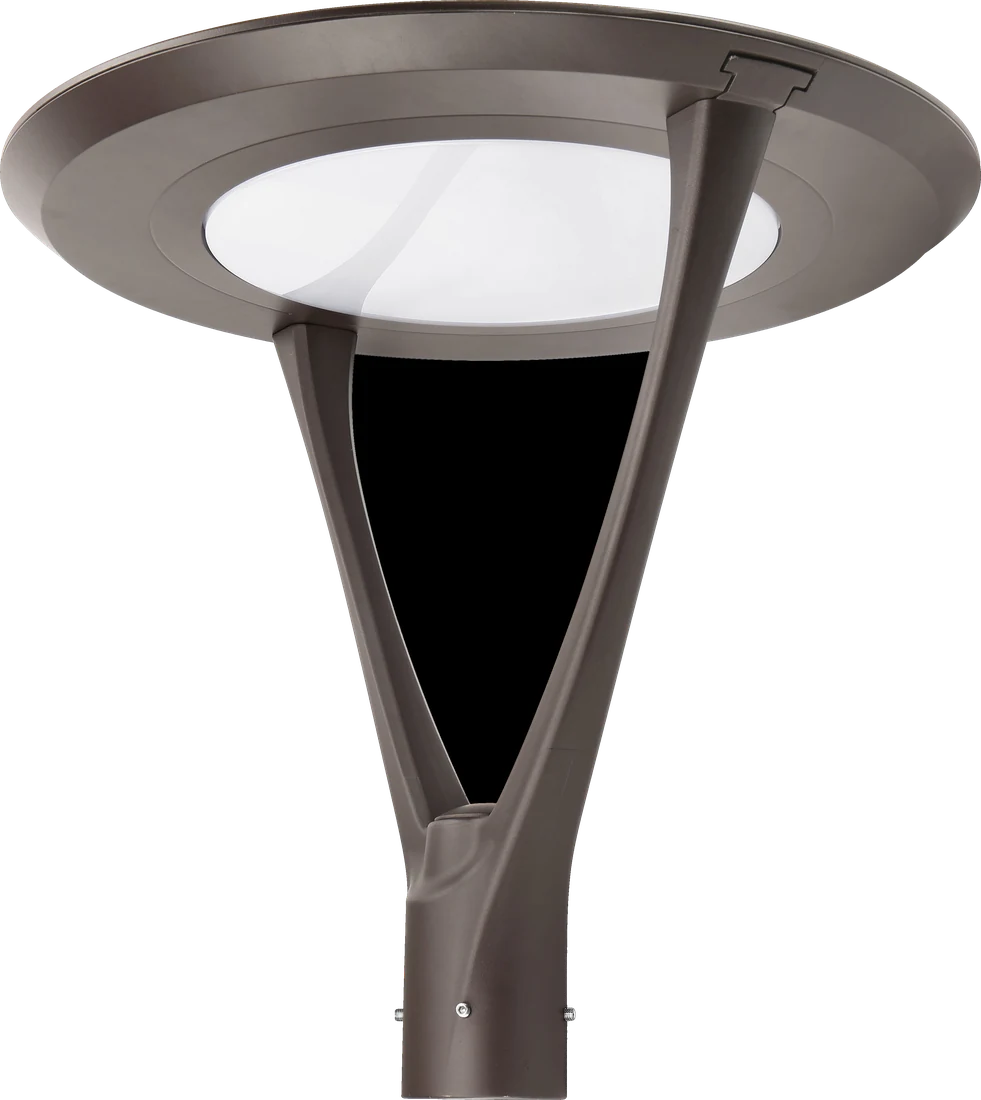

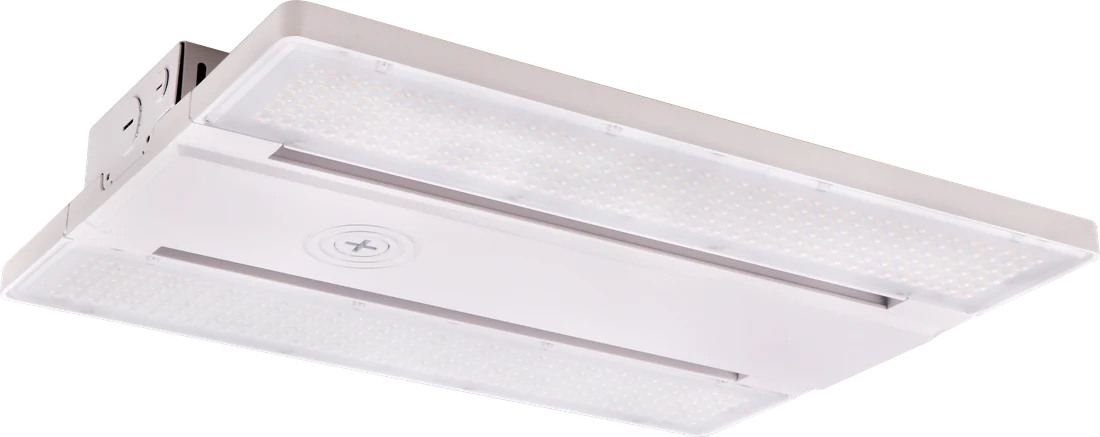

eCrescent handles the indoor + wet-zone ceilings — corridors, hallways, balcony soffits, entries, patios, baths, and code-egress paths. These cross-line fixtures handle everything else on the property — parking lot, walkways, garage, leasing office — same CS controls platform, same factory, same warranty. Specify them together for a single-source multi-family package.
Built for turn-over speed.
Hundreds of thousands ship from five US warehouses — 2-3 day QS lead means a unit refurb between tenants doesn't wait on lighting. Layouts back in 48 hours, quotes and rebate matches reply same business day. 24-pack contractor cartons standard.
Stack the California rebates.
eCrescent is JA8-2022 listed and ENERGY STAR certified — the hooks that unlock CalEnergyWise, PG&E / SCE / SDG&E utility rebates, and HUD multi-family programs. Typical offset on a property-wide retrofit: 20-40% of fixture cost (eCrescent is ECO tier — not DLC, so commercial rebate ladders that require DLC don't apply; ENERGY STAR + JA8 paths do). We'll match your APN and pull the paperwork.
