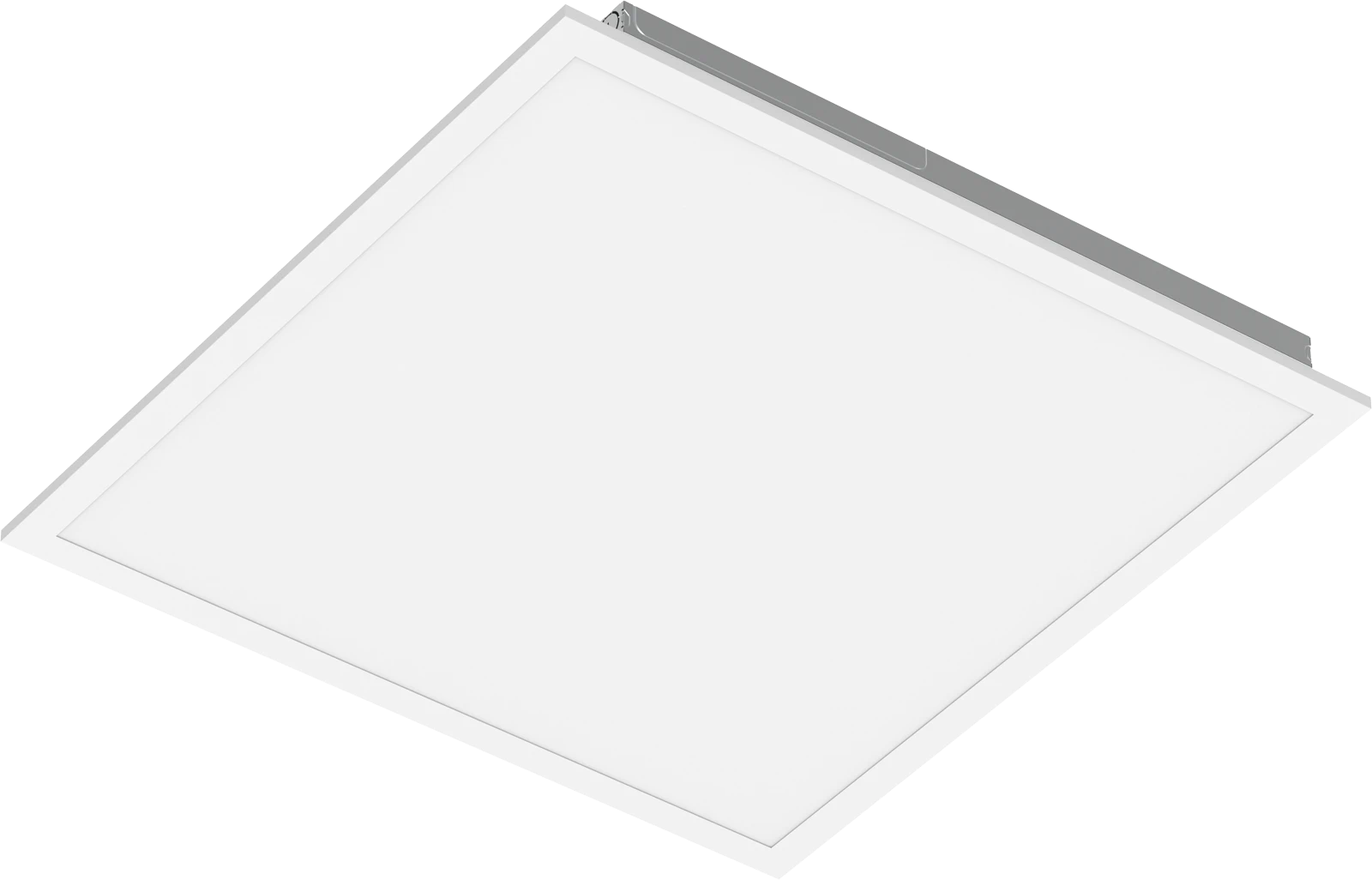

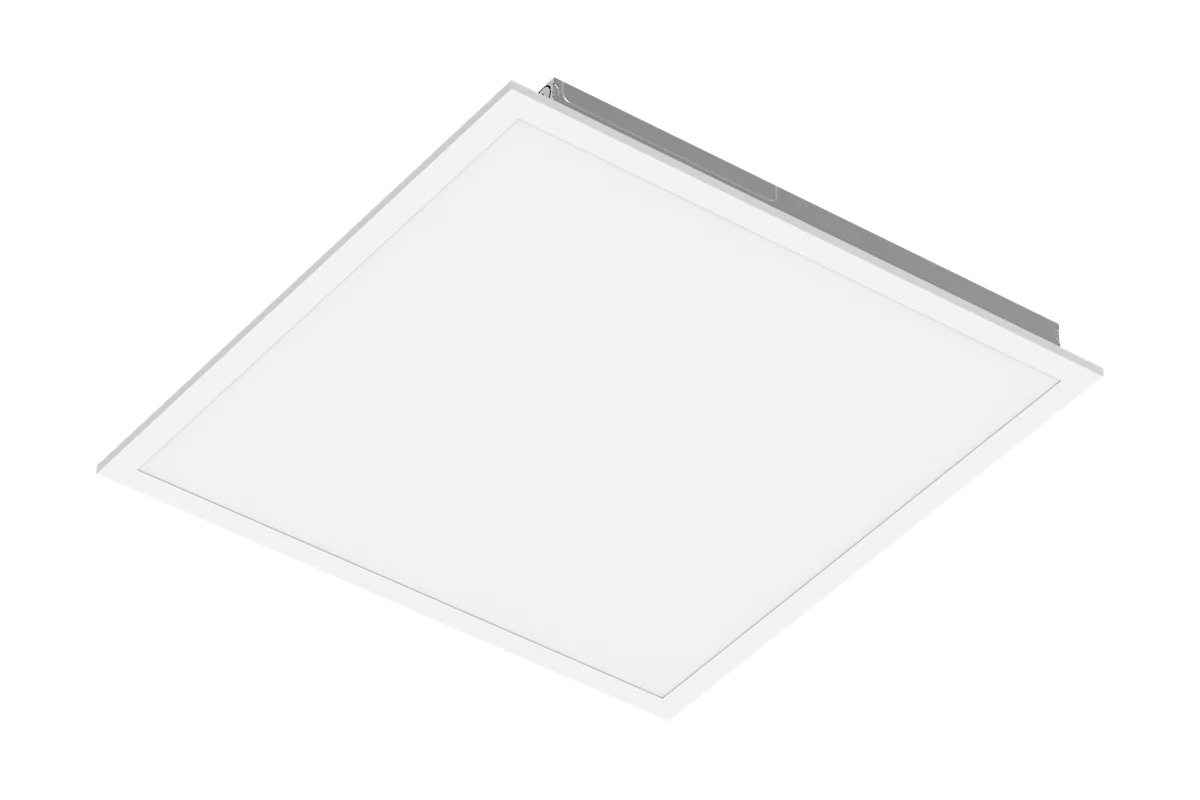

proⒶRCH LED Back-Lit Panel

Back-lit. Set in the field.

A back-lit LED flat panel for 1×4, 2×2 and 2×4 grid ceilings, in two series. proⒶRCH-II sets three wattages and three color temperatures on the driver; proⒶRCH-III sets five of each, 2700K to 5000K, at up to 130 lm/W. Order it sensor-ready, with an emergency battery built in, or both. NSF/ANSI 2 food zone, DLC listed, TAA-compliant.

Specification Sheets IES Files Installation Guide Configure For Lead Time

Input Watts20–50 W

Lumensup to 6,500

Efficacyup to 130 lm/W

Ideal applications

Offices

Schools

Healthcare

3 / 5-WATTselect

3 / 5-CCTselect

Back-Lit

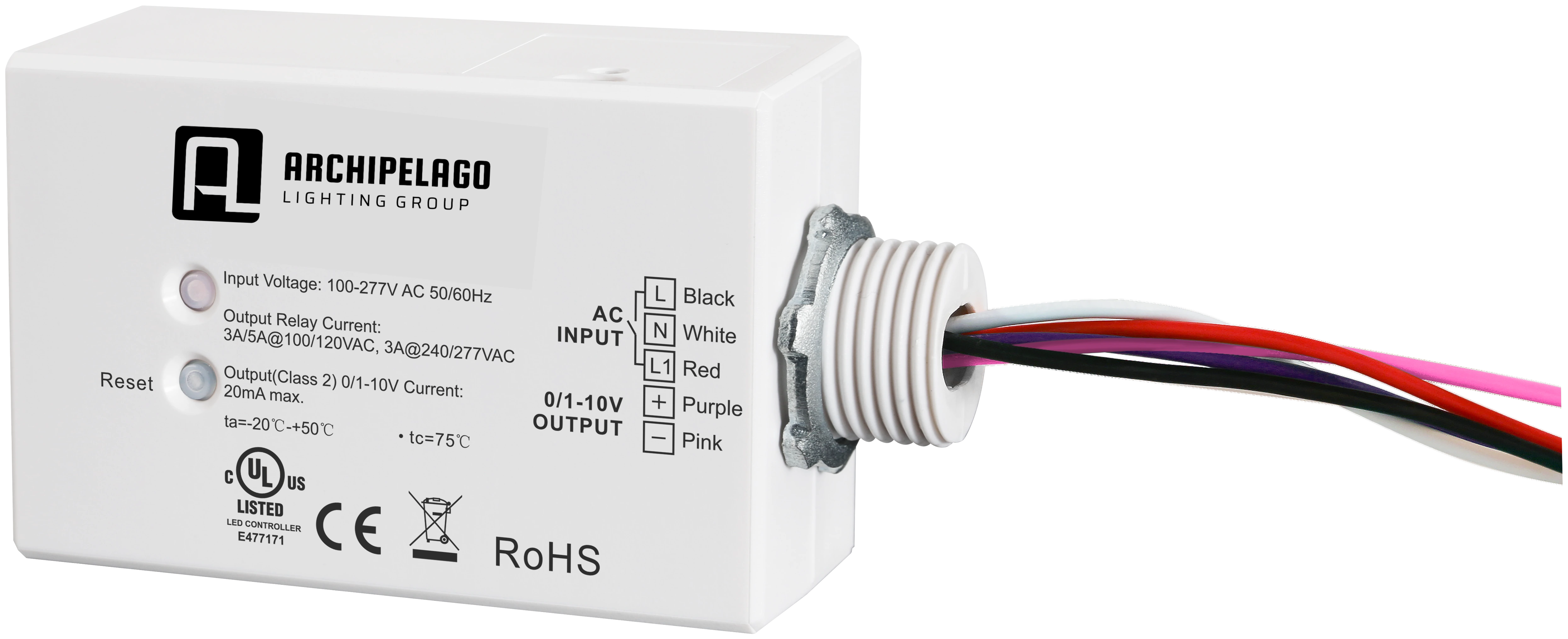

contrⒶLS-Ready

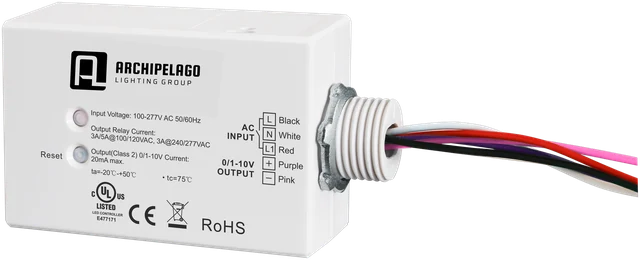

constⒶNT-Ready

DampGuard

NSF Food Zone

cETLus Listed

DLC Listed

NSF/ANSI 2

Damp Location

FCC

RoHS

TAA

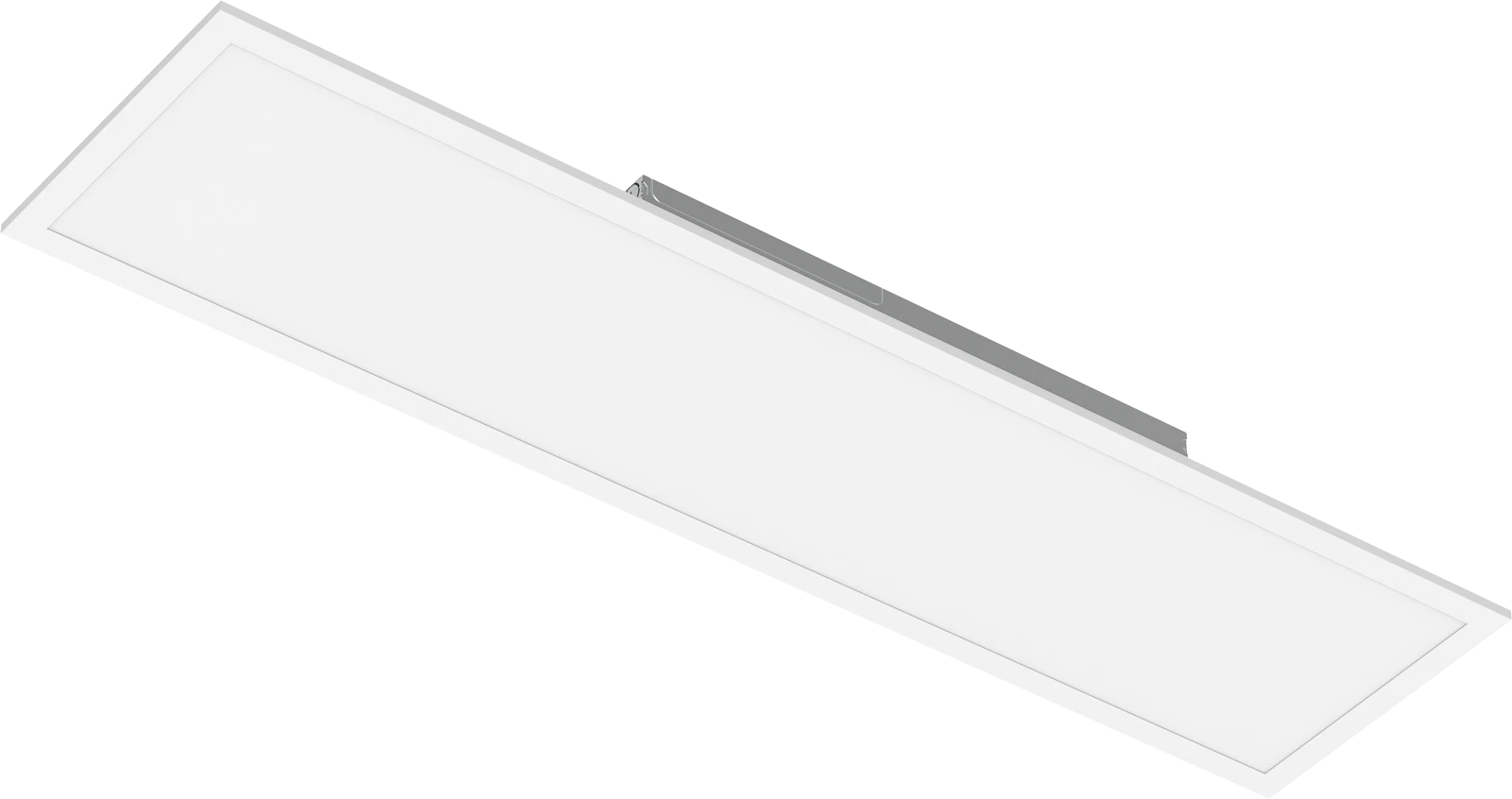

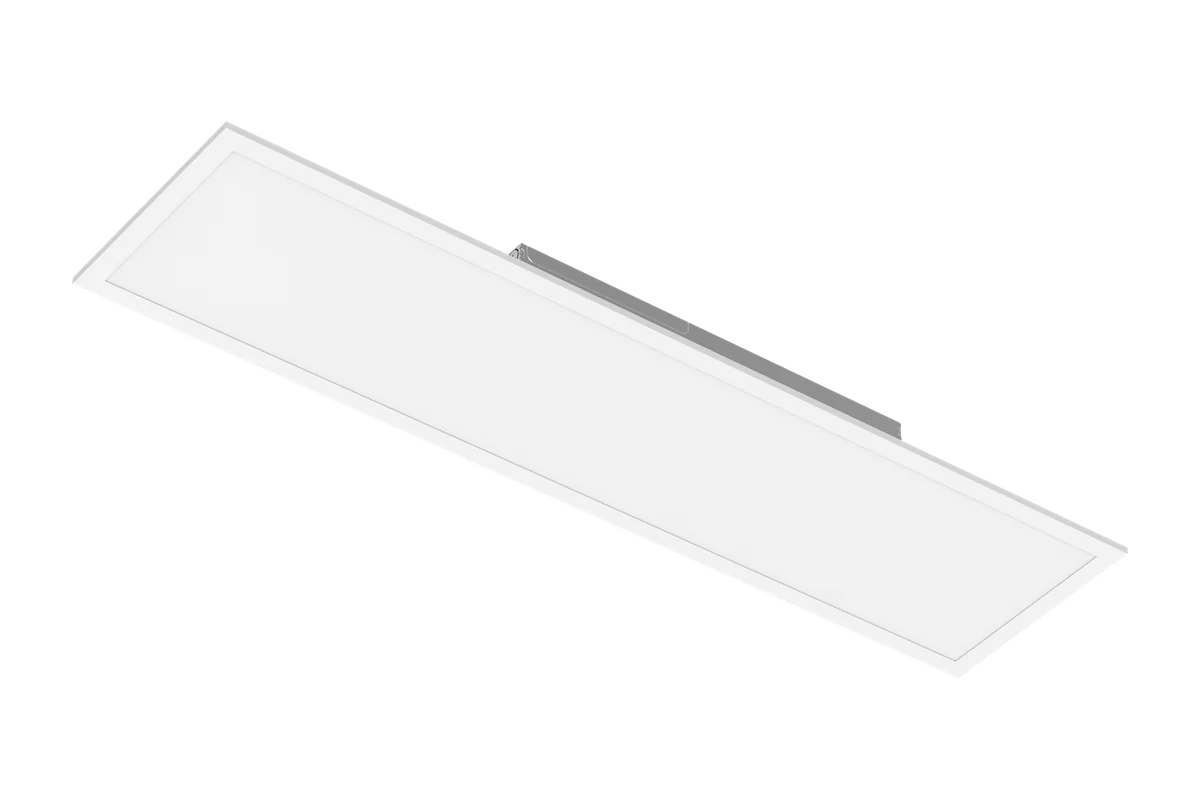

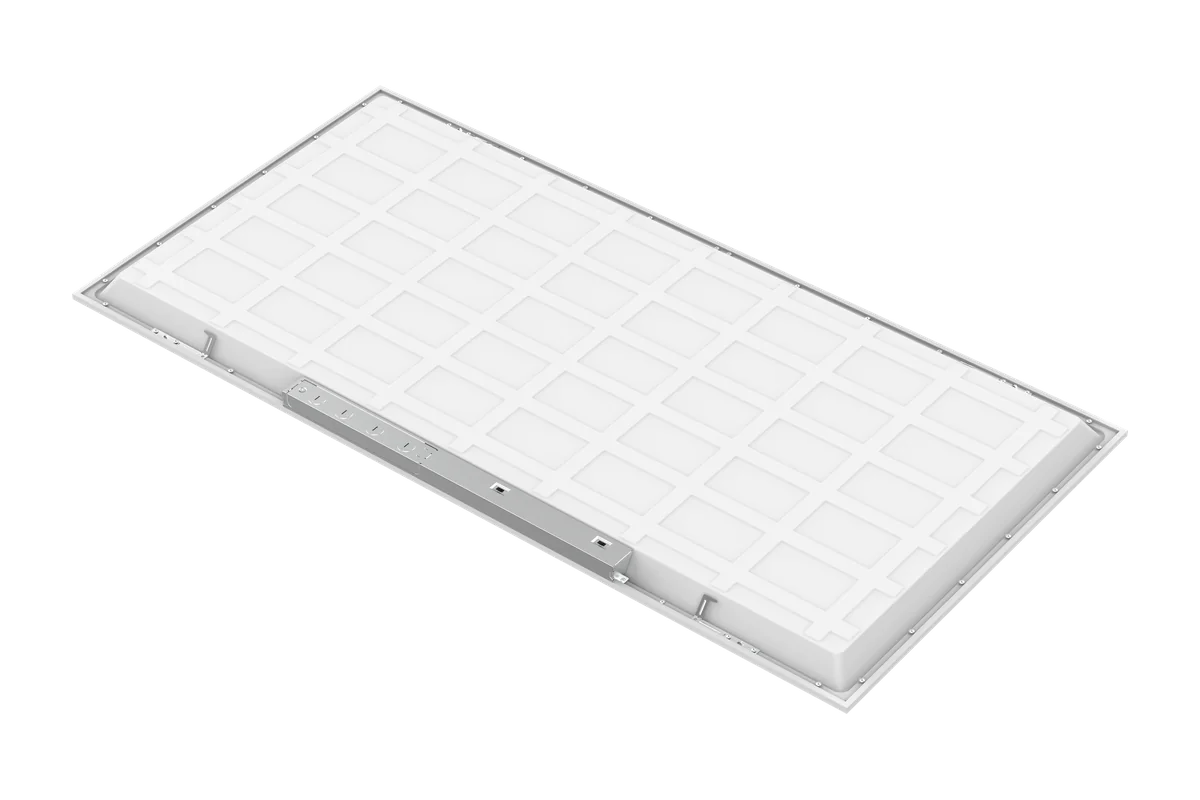

proARCH LED back-lit panel, back view of the LED board

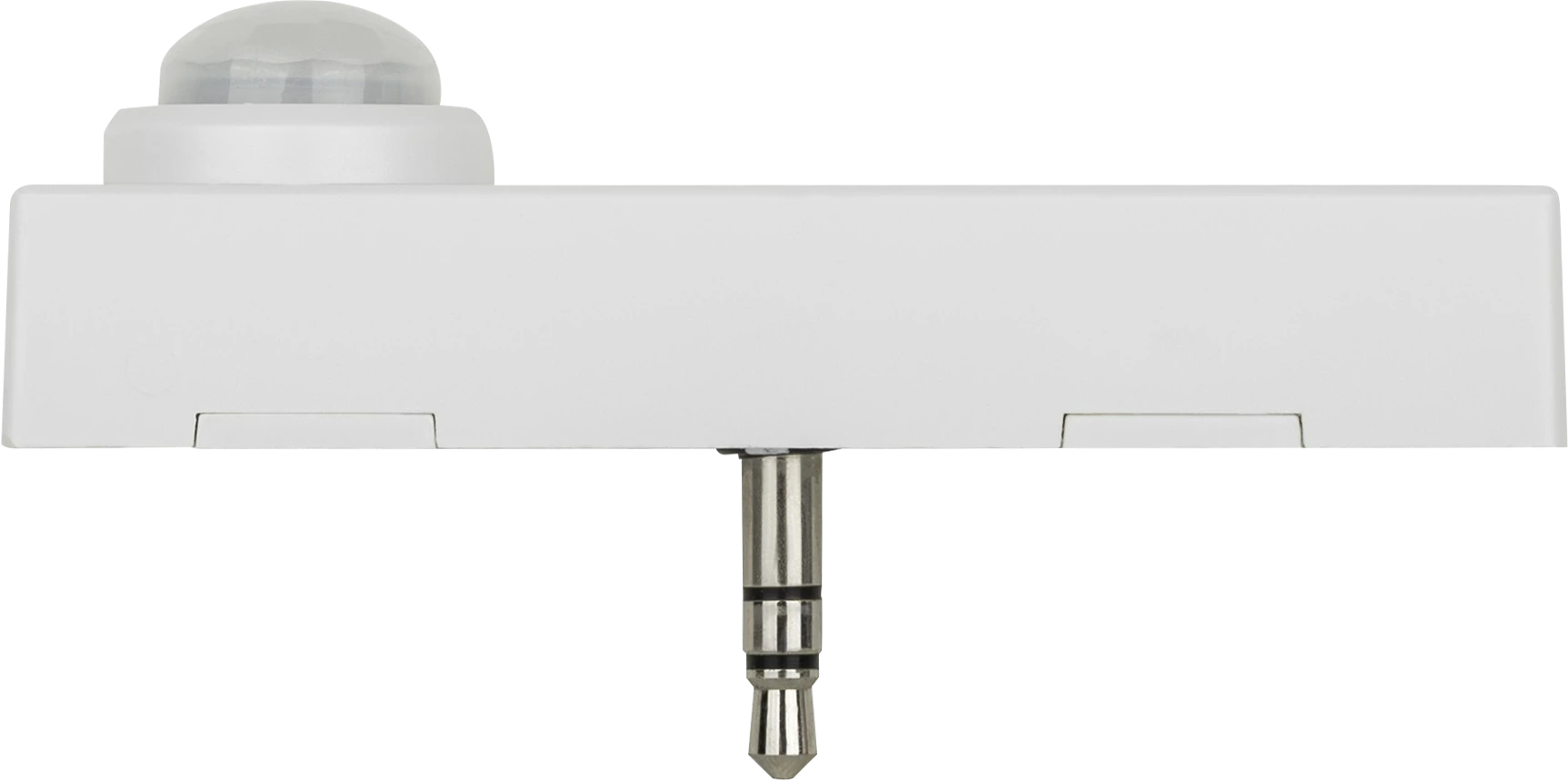

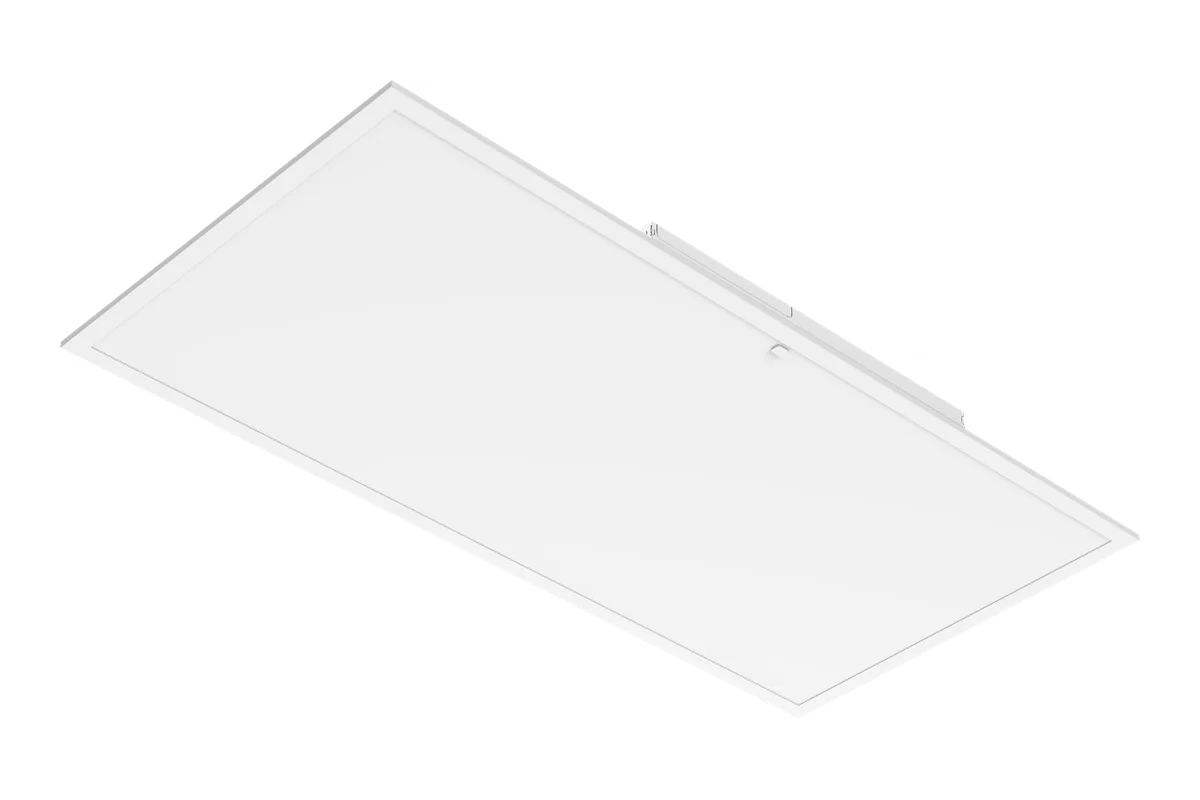

proARCH LED back-lit panel with the /SR sensor port

Documentation & Resources

Documents

Data Sheet · proⒶRCH-IIPDF Data Sheet · proⒶRCH-IIIPDF Quick Sheet · proⒶRCH-IIPDF Quick Sheet · proⒶRCH-IIIPDF Sell Sheet · proⒶRCH-IIPDF Sell Sheet · proⒶRCH-IIIPDF Installation GuidePDF IES Photometric FilesIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the floor plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

WATTselect	Watts	Lumens	CCTselect	lm/W

★ Default settings. proⒶRCH-II figures are its DLC v6.0 listing (125 lm/W); proⒶRCH-III figures are its datasheet (130 lm/W). Measured files are in Photometrics.

ApplicationIndoor · recessed in a grid ceiling, or flange, surface or suspended with a kitOffices, schools, healthcare, food-service areas

Construction6063 aluminum frame · LEDs behind a diffuse lens1.4″ deep · white

Optics120° uniform distributionMeasured 114–122° at 50 % of peak

Dimensions—

Operating temp−1.4 °F to 113 °FIP40 · damp location · IC rated

Electrical120–277 V · 0–10V dimming to 10 % · PF >0.9 · THD <25 % · flicker <5 % · CRI >80Starts in under 0.5 s

LifeL90 at 75,000 hr97.8 % lumen maintenance at 6,000 hr

Warranty7 yr · 75,000 hrLight output, color stability and the driver

Series II Data Sheet Series III Data Sheet Installation Guide

Engineering

What sits behind the lens, what you set at install, and how it goes up.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

Full IES Library

Engineered Accessories

Configurator

Build Your proⒶRCH.

Required *

Series—

Size—

Voltagethe one voltage built—

Sensor port—

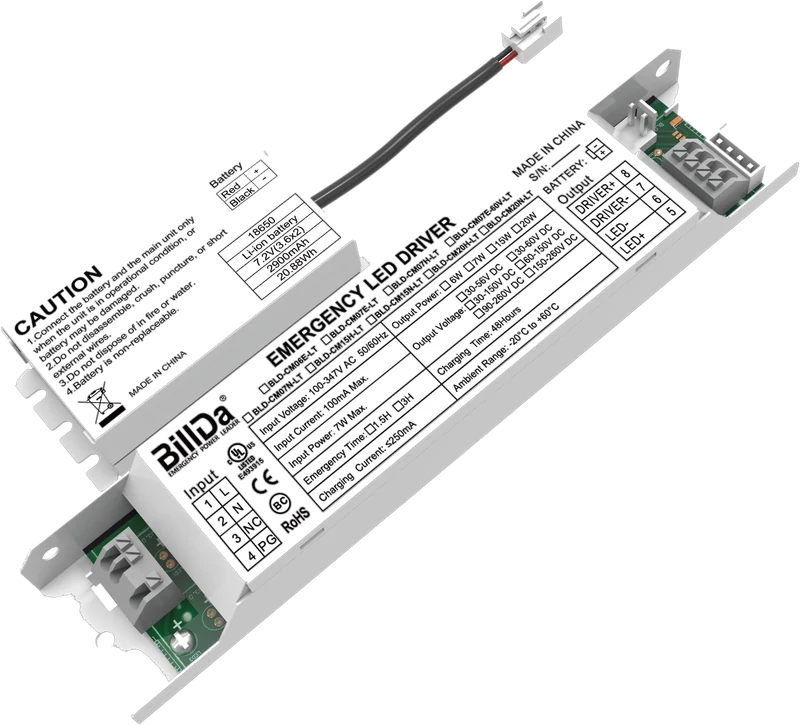

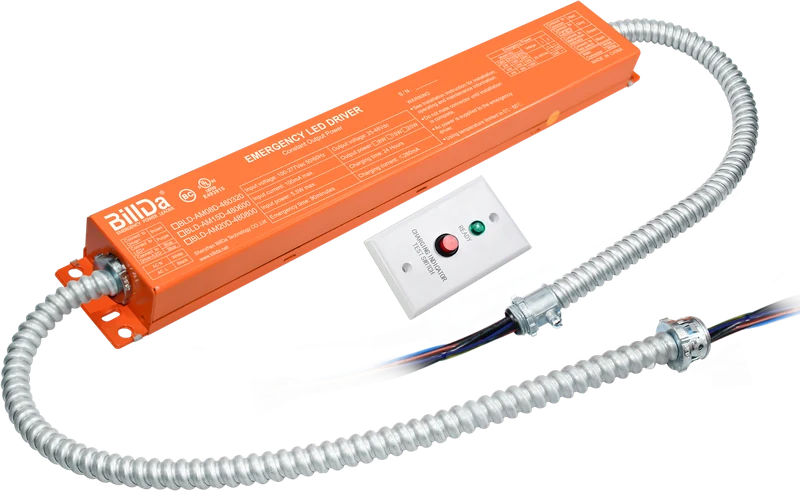

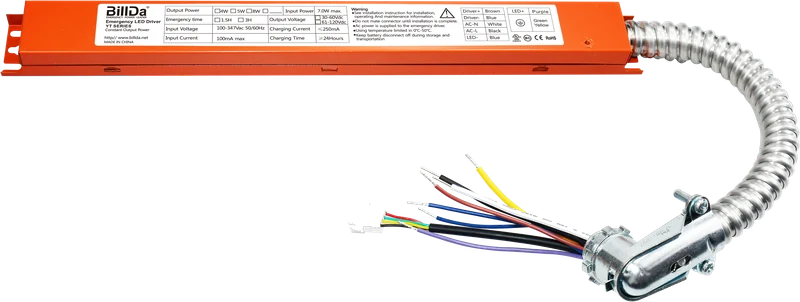

Emergency—

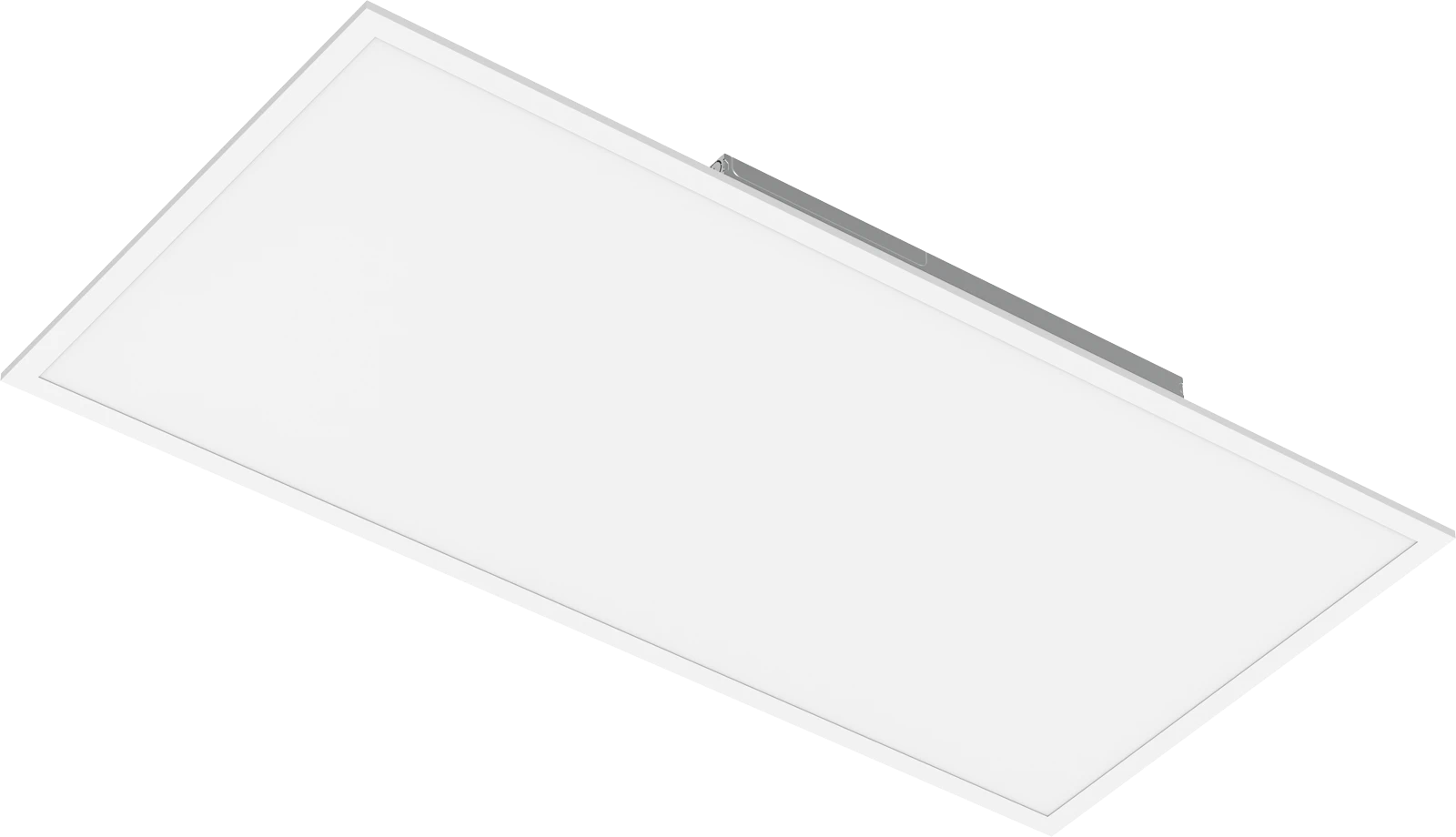

Dip switchesset on the driver · not in the part number—

Optional

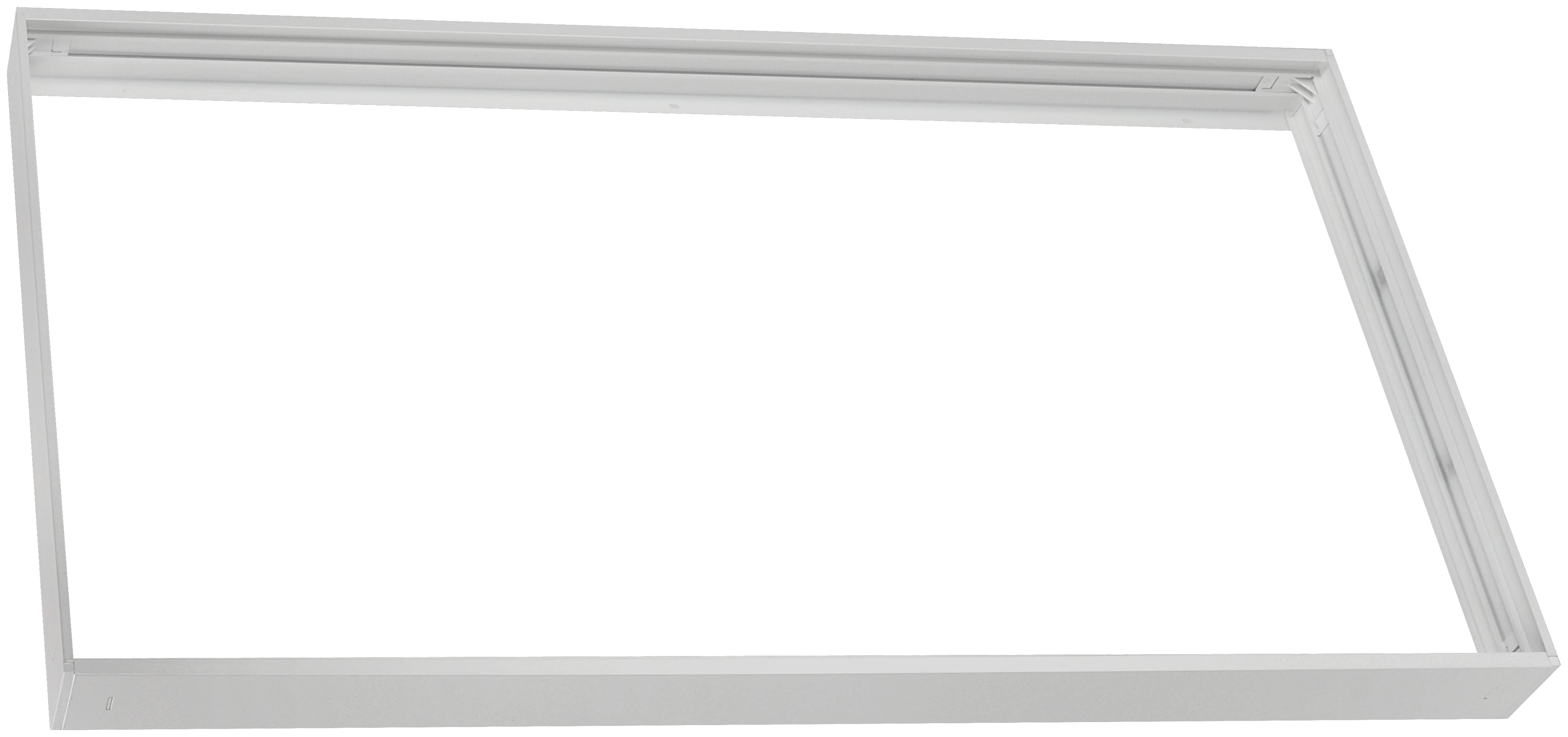

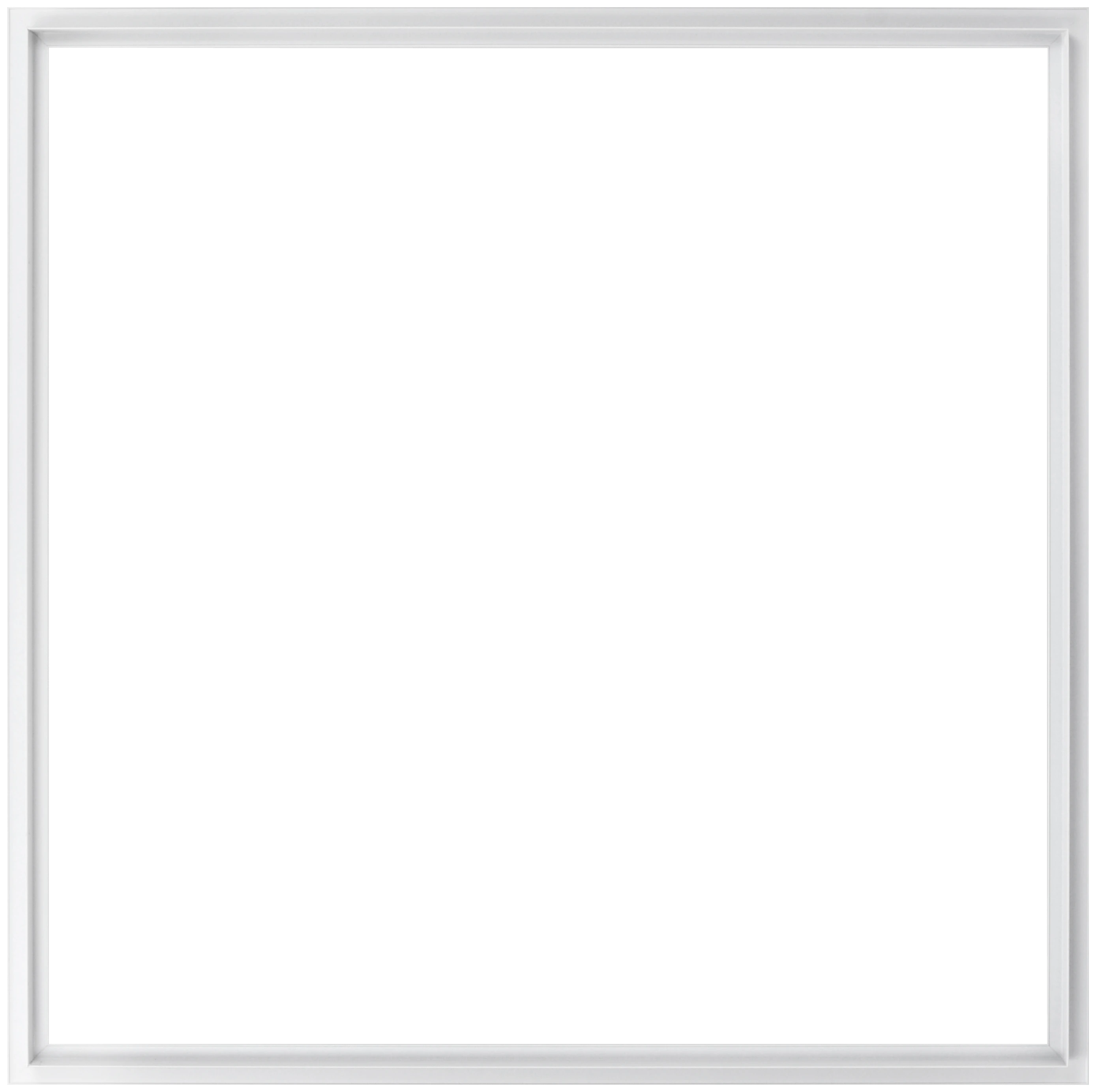

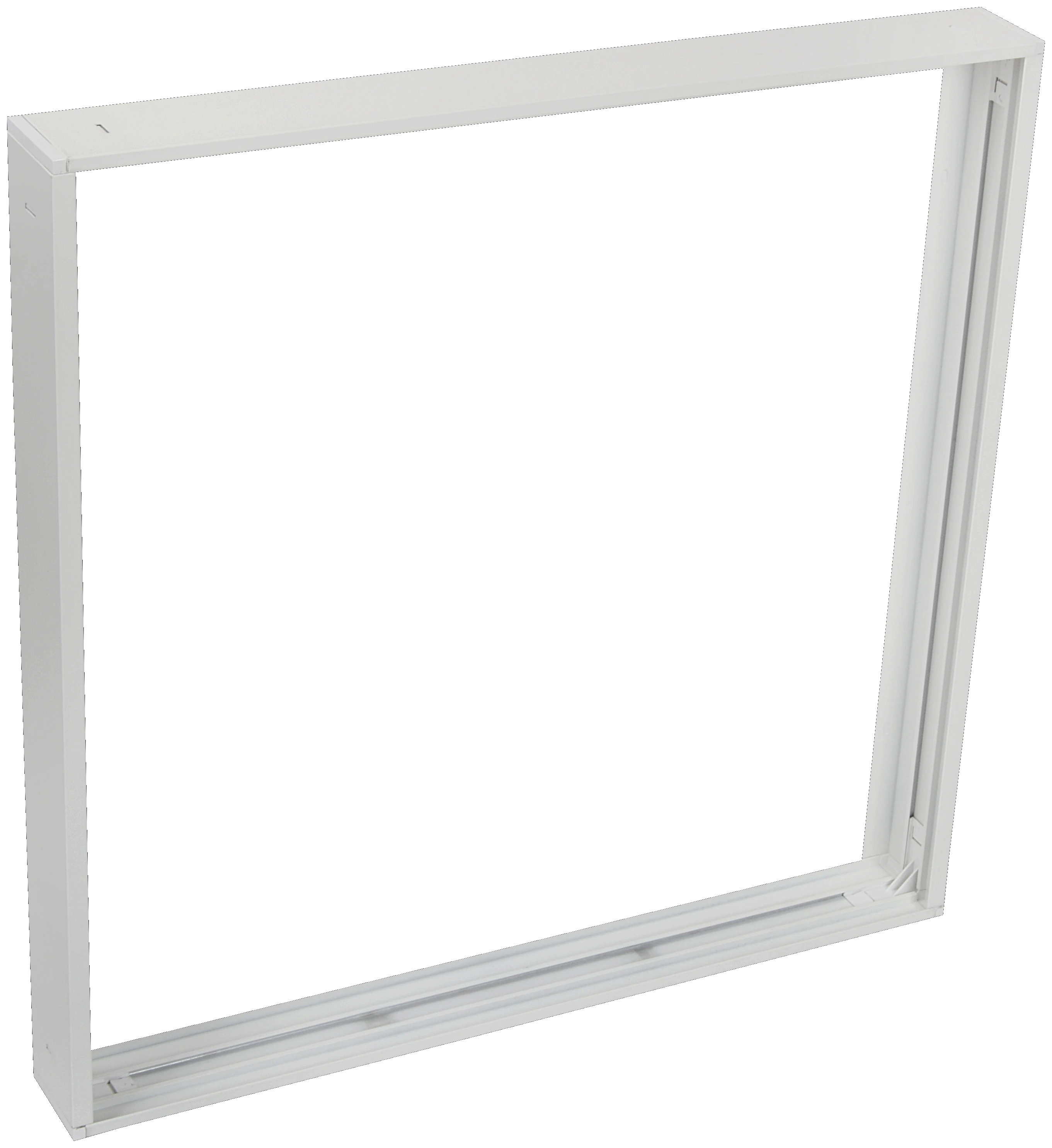

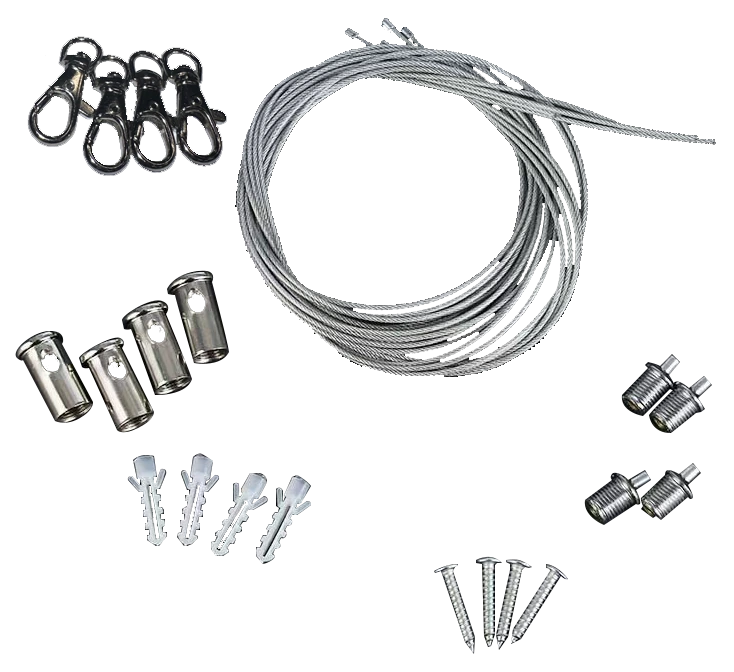

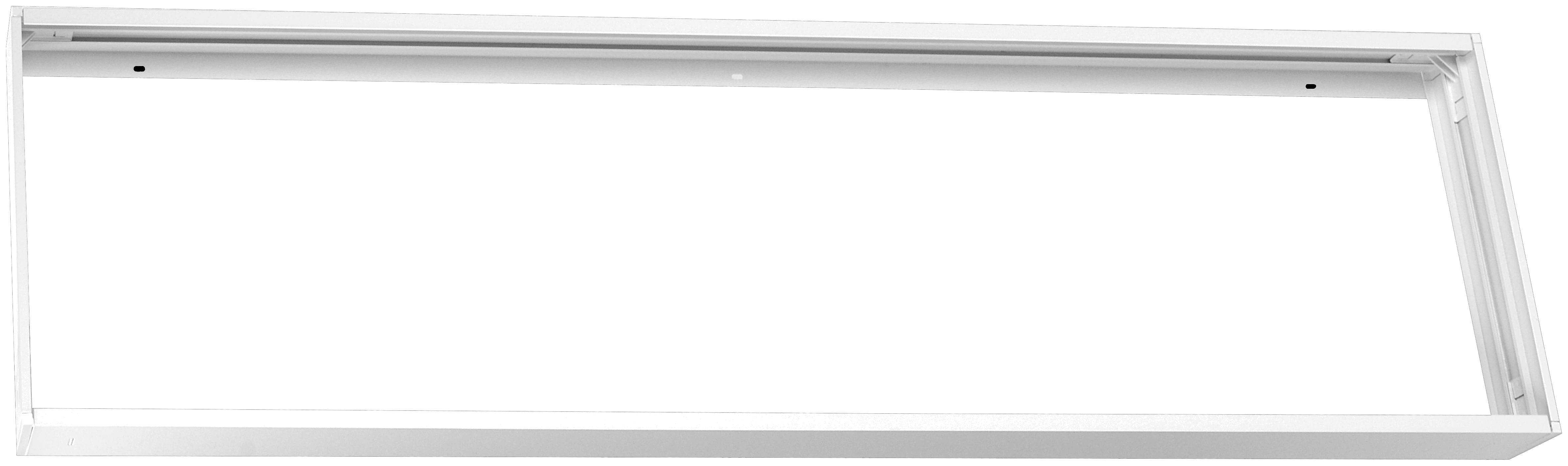

Mountgrid brackets in the carton—

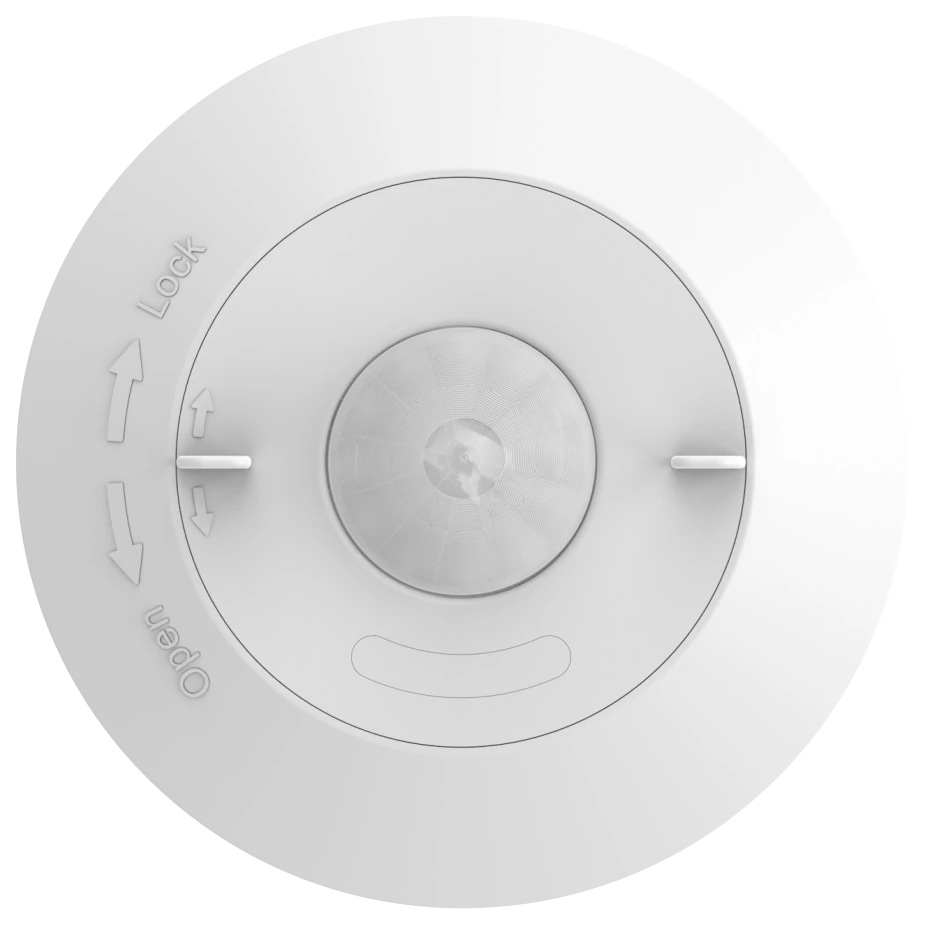

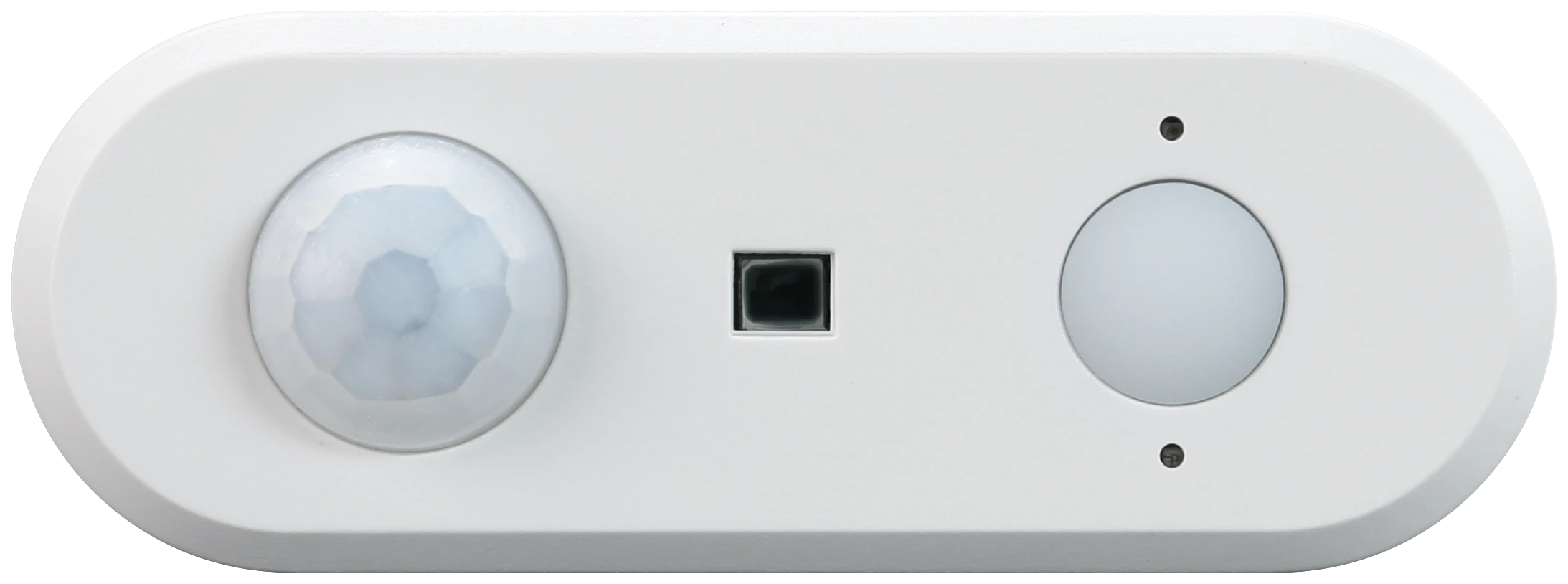

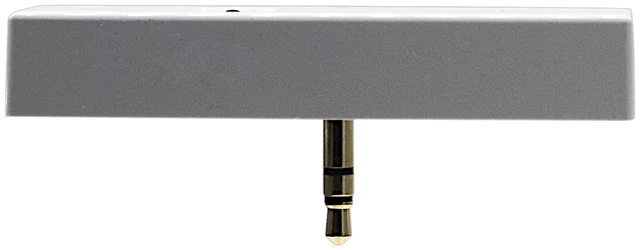

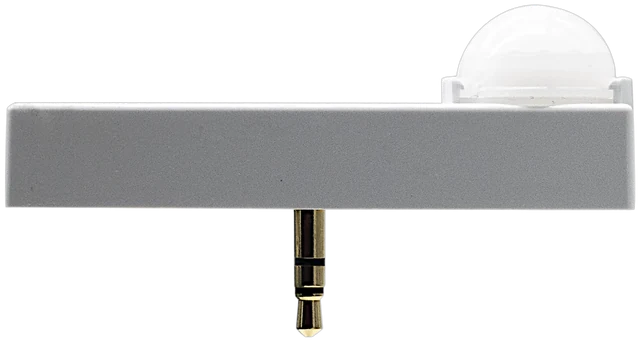

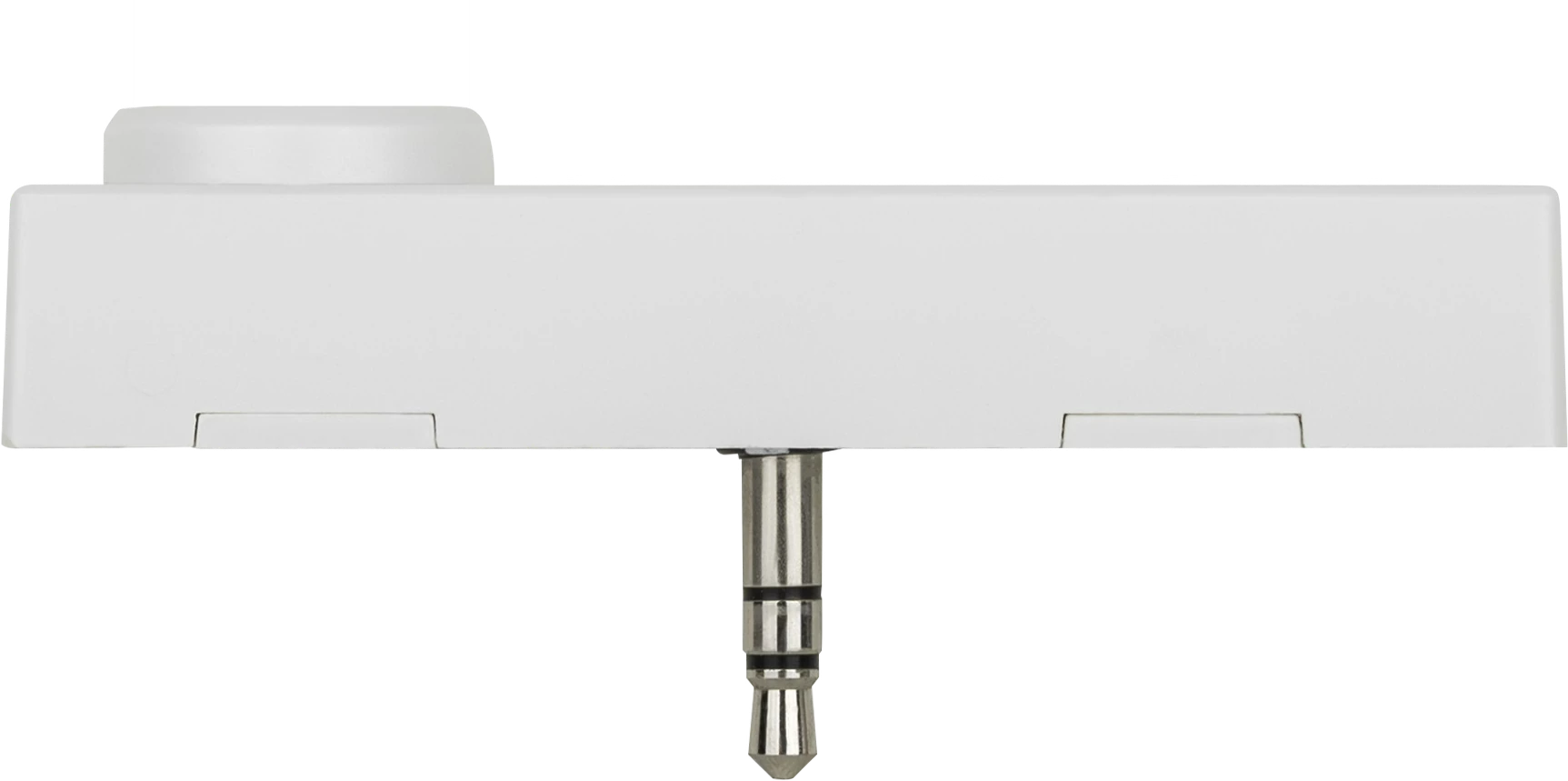

Sensorplugs into the /SR port—

Your catalog number

Your Catalog Number

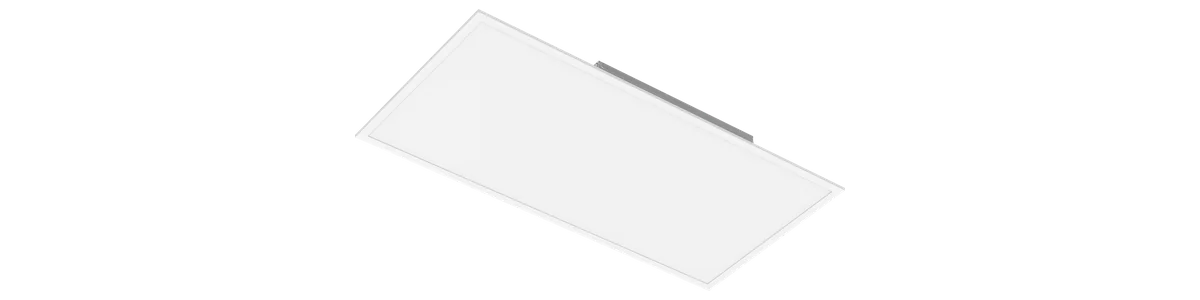

Catalog number
