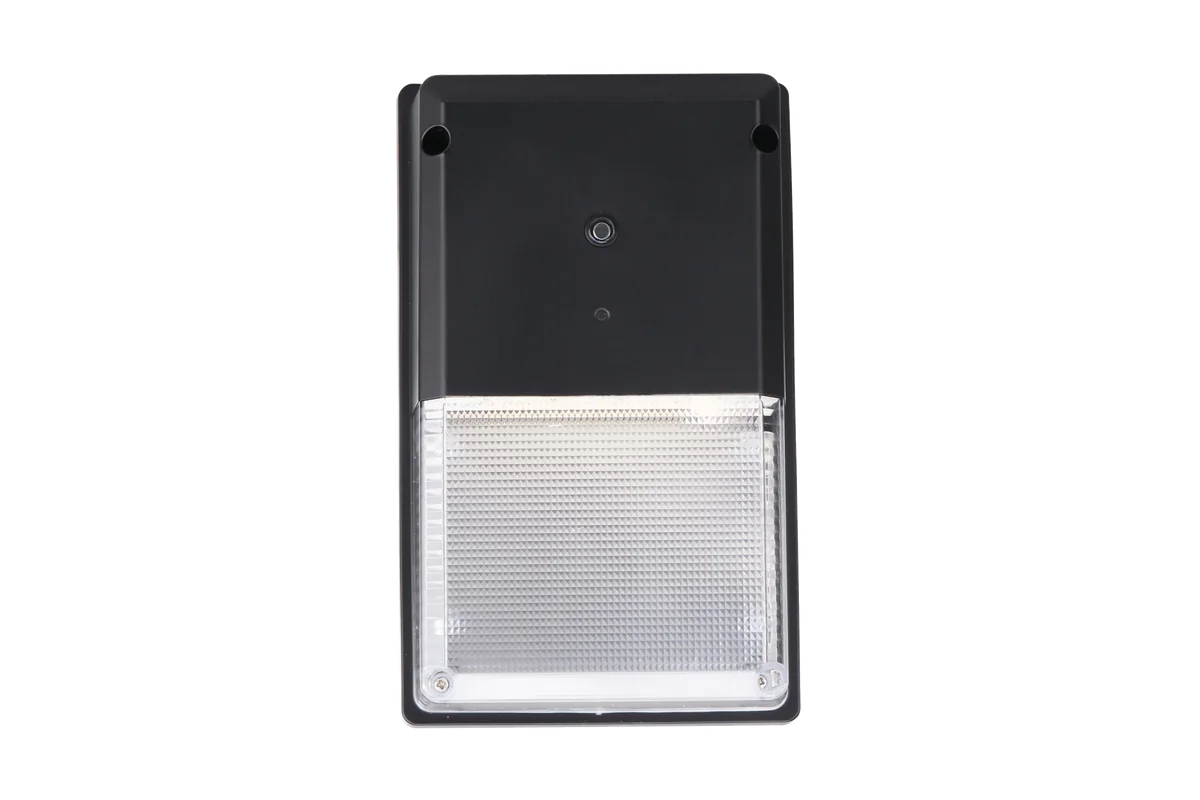

Ramparts Series ECO
Ramparts: Compact wall pack. Photocell included.
The entryway-grade upgrade for legacy 60–100W HID wall packs. Single SKU, integrated photocell standard, drop-in to a standard 4" J-box — Ramparts ships dusk-to-dawn ready, no controls package required. Field-selectable wattage (10 / 15 / 20W) and CCT (3000K / 4000K / 5000K) cover shed walls, barn doorways, side-entry doors, walk-up canopies, and small commercial entries. Up to 2,750 lm at 20W · 4000K (139 lm/W peak), surgeⒶRMOR™ 2.5kV, thermalⒶRMOR™ −40°F to 122°F, 5-year warranty.
Model Specifications
Download Data Sheet| Watt | Lumens (5000K default) | lm/W | CCT | Voltage |
|---|---|---|---|---|
| 10W | 1,340 lm | 134 lm/W | 3000K · 4000K · 5000K | 120-277V Universal |
| 15W | 2,010 lm | 134 lm/W | 3000K · 4000K · 5000K | 120-277V Universal |
| 20W ★ | 2,650 lm | 134 lm/W | 3000K · 4000K · 5000K | 120-277V Universal |
Dimensions
(Single envelope · LWPE20)
HIGHLIGHTS & FEATURES
Five reasons to drop the legacy HID.
Ramparts is the entryway-grade upgrade for legacy 60–100W HID wall packs — single SKU, integrated photocell, drop-in to a standard 4" J-box. Five design choices that make it worth the swap, no controls package required.
contrⒶLS
Photocell, pre-installed.
The simplest controls story in the wall pack line. Every Ramparts ships with the photocell installed and wired from the factory — automatic dusk-to-dawn operation, no controls package to add, no commissioning visit, no central panel. The fixture turns on at sundown and off at sunrise on its own. Title 24 + ASHRAE 90.1 compliant out of the box, no separate line item on the BOM.

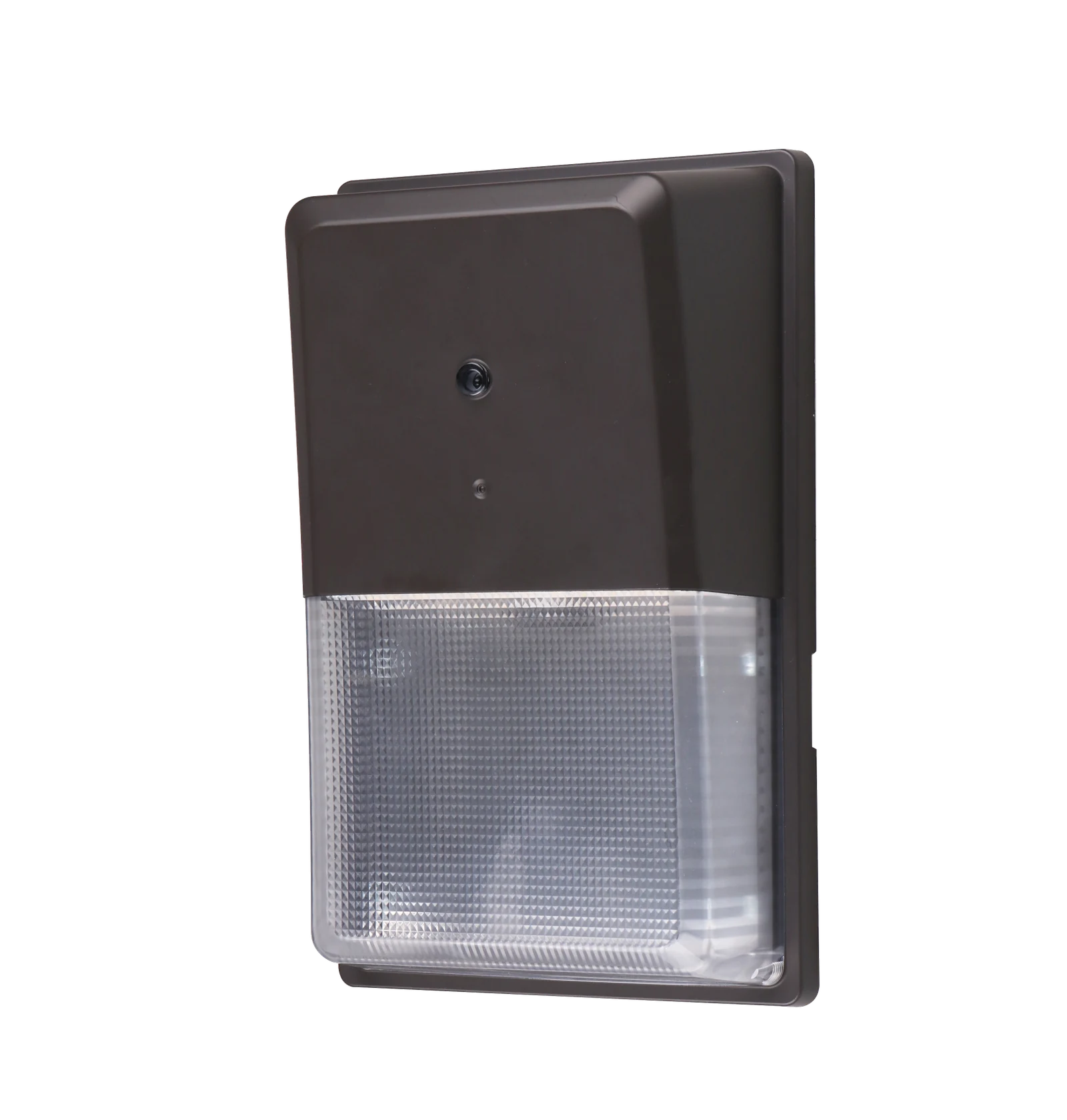

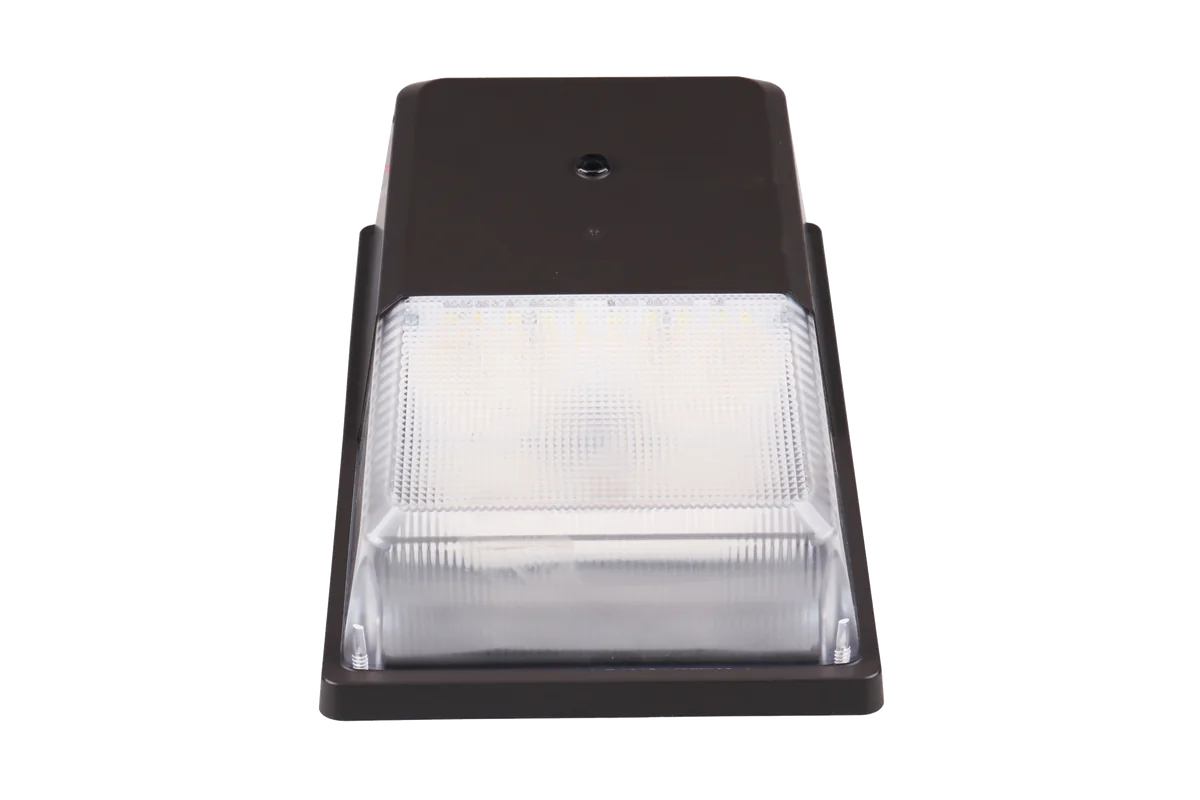

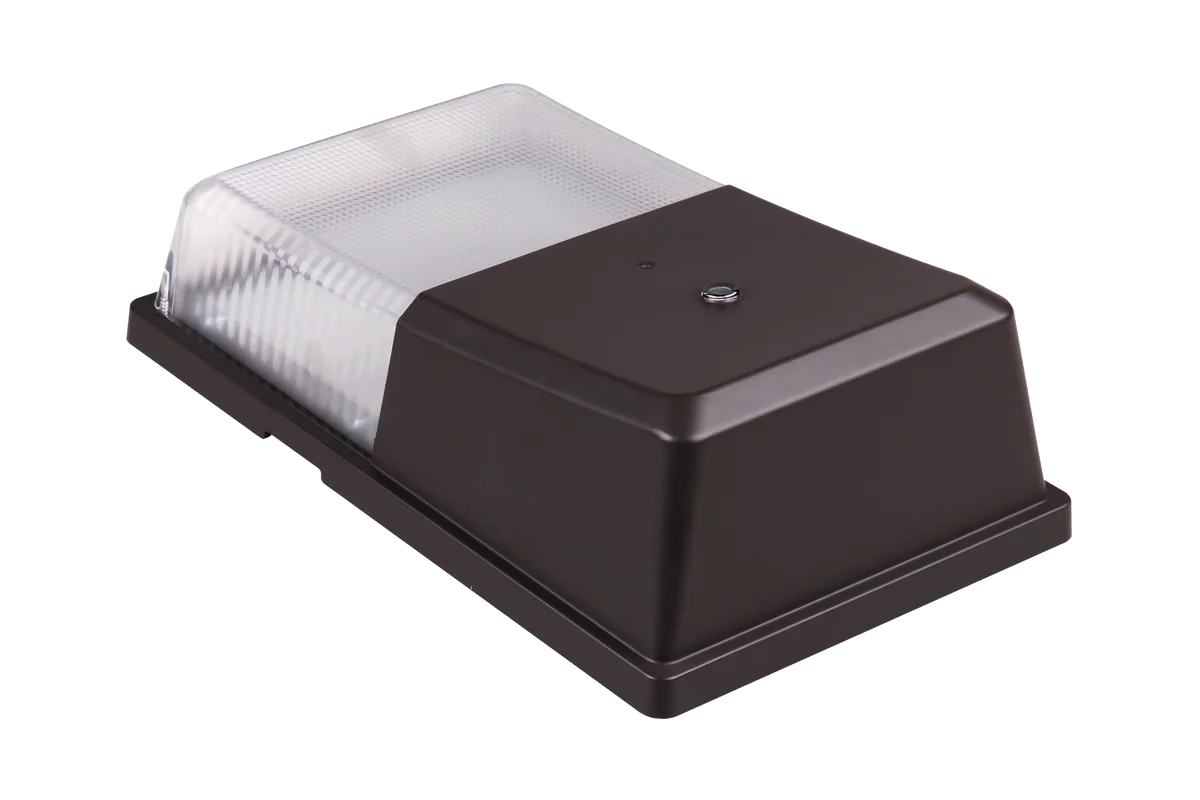

Integrated photocontrol ships pre-installed at the factory and wired into the driver — automatic on/off at sundown without an external photocell to spec, a controls package to add, or a commissioning trip. Drop the fixture in, wire 120-277V to the J-box, and walk away. The photocell sensor lives on the top face of the housing (visible to the right) and uses a low-light threshold to trigger ON at dusk and OFF at sunrise. No bi-level dimming, no microwave occupancy sensor, no upgrade path — Ramparts is the simplest controls story in the line by design.
Discover Photocell controls →Photometric Distribution
Beam shape, generated from the IES file.
Real luminous distribution from Ramparts' certified IES test reports — peak candela, beam profile, and total lumen output update with the WATTSELECT setting. Both planes shown: C0–C180 (forward / back) and C90–C270 (side-to-side). The asymmetric forward-bias on the C0–C180 curve is the 103° prismatic at work — wide, even façade illumination with minimal back-throw.
In the Box
Three Components, One SKU

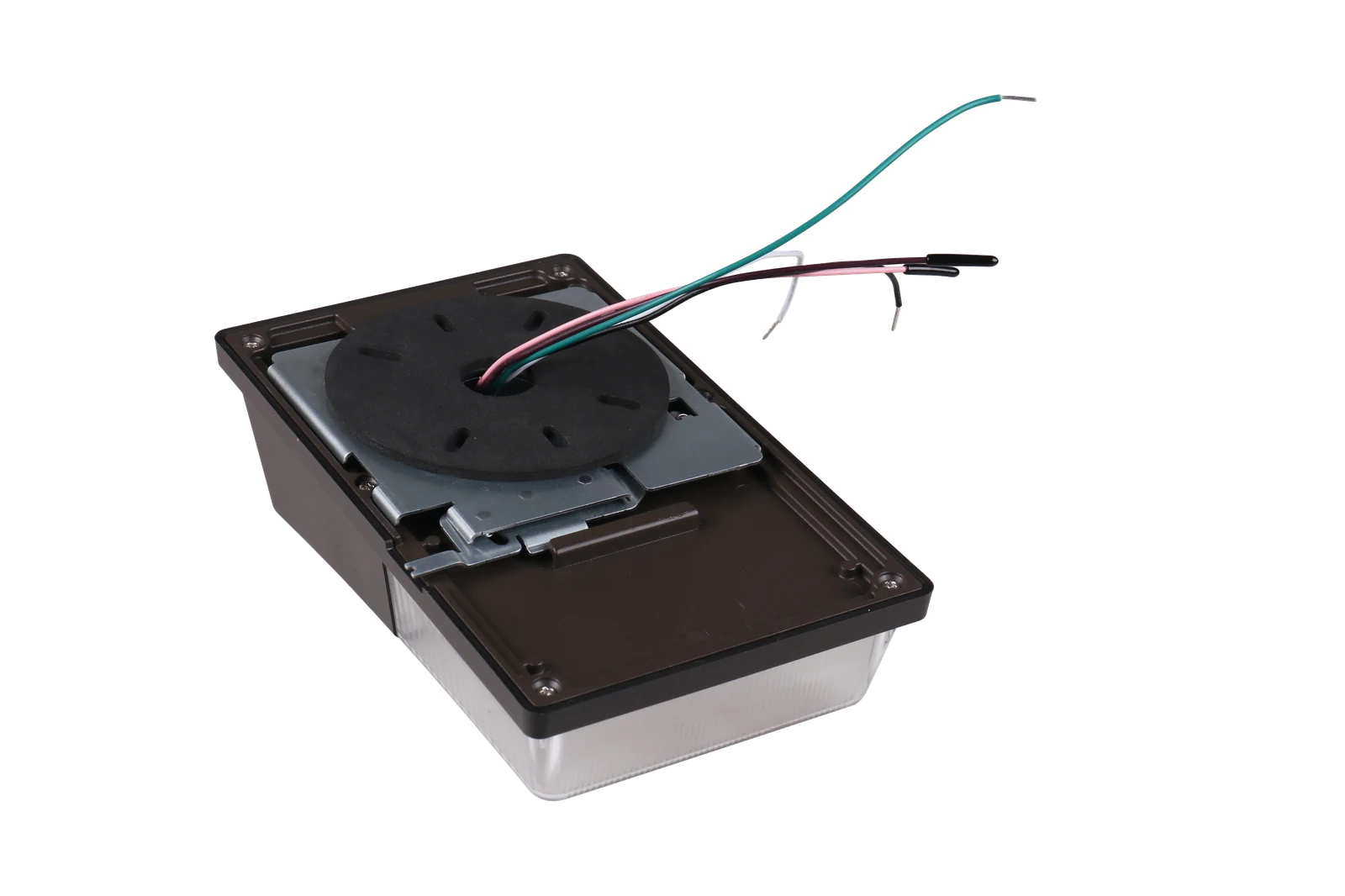

Ramparts ships complete. Three integrated components in the box — integrated photocell, mounting junction box, and wet location gasket — all factory-installed, all included in the base price. No /PSB suffix to add for dusk-to-dawn (it's standard). No EM module to spec (Ramparts is a non-egress entryway product). No separate accessory line items on the PO.
Build Your Model

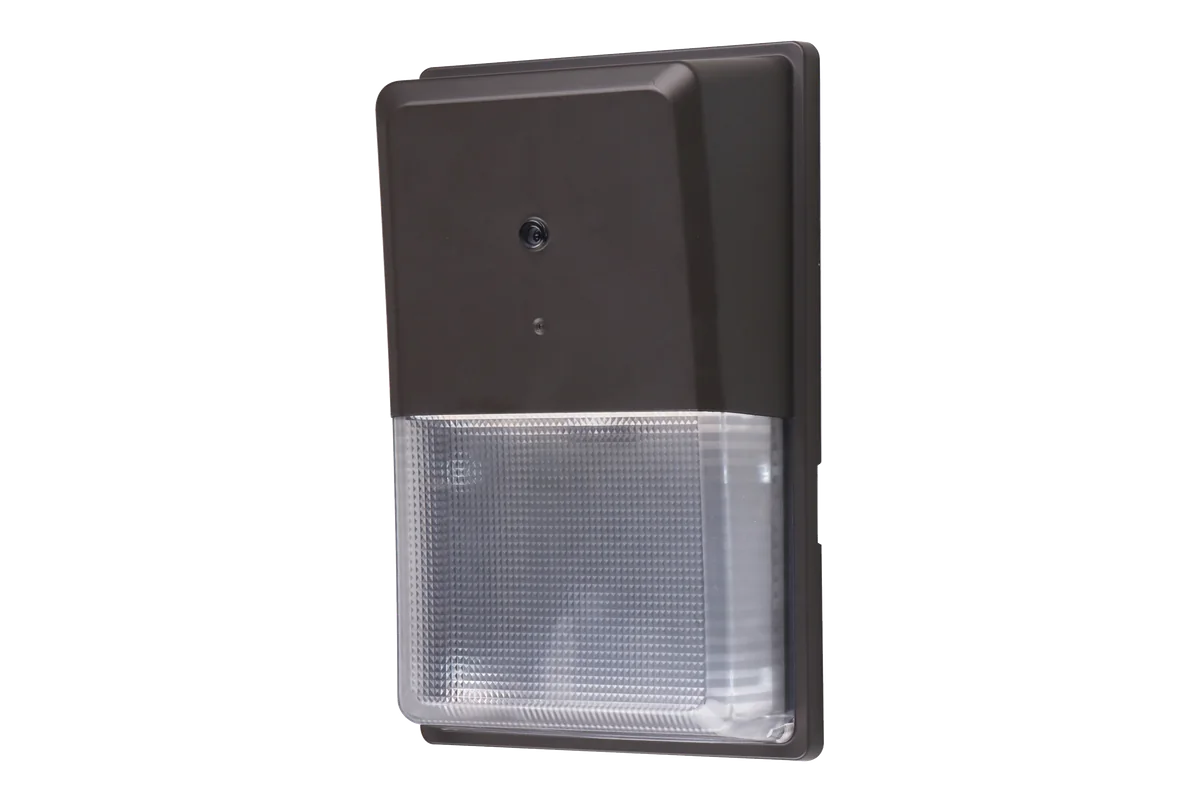

Configure Your Ramparts

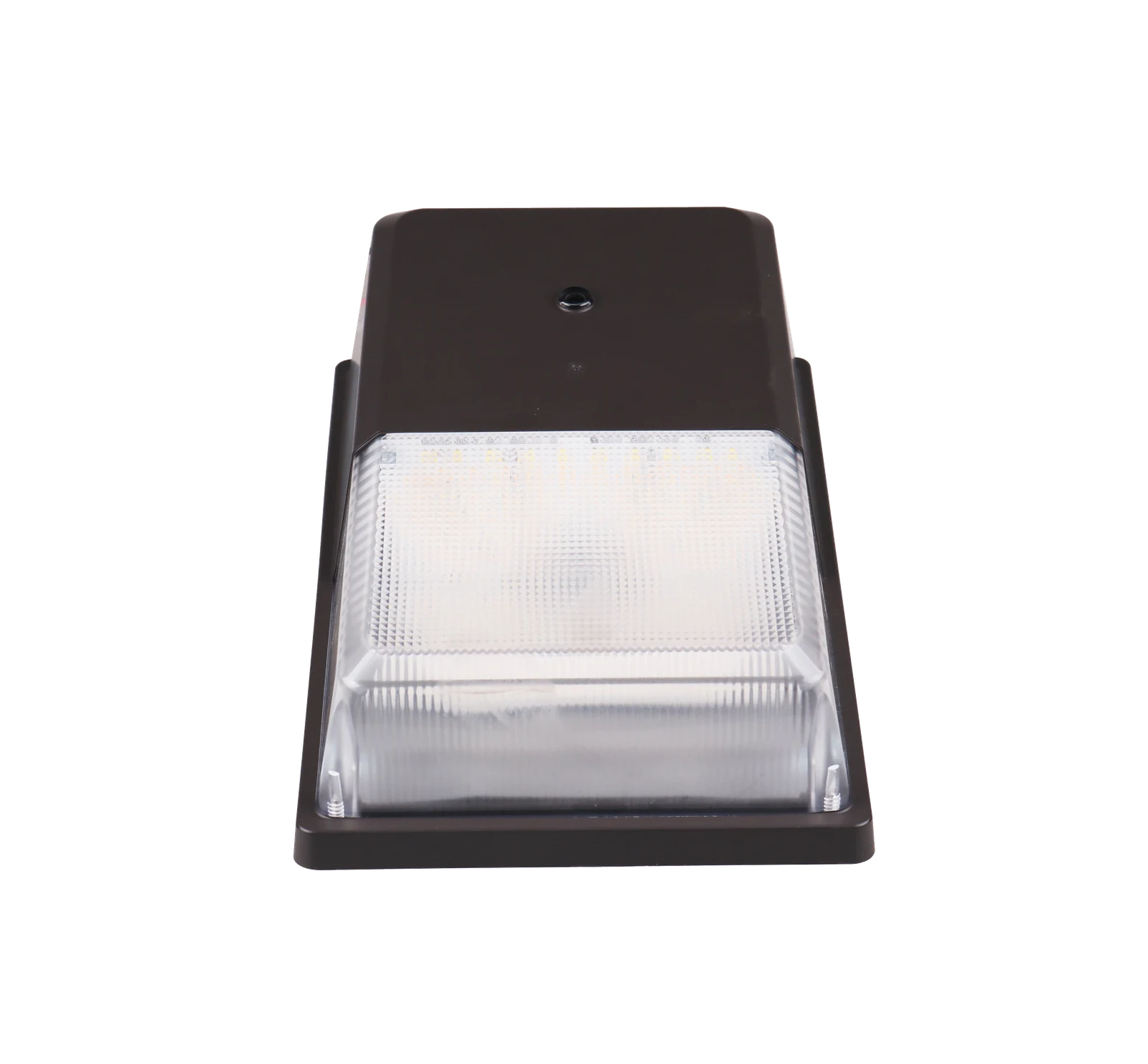

Selections build the SKU live. Wattage + CCT are DIP-set at install — they do not appear in the SKU. Required field marked with *. See the legend for QS / DIP / LCK meanings.
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify the Ramparts — datasheet for the spec book, IES library for AGi32 / DIALux / Visual / Revit, and a per-SKU submittal generator that mirrors your Section 9 configuration.

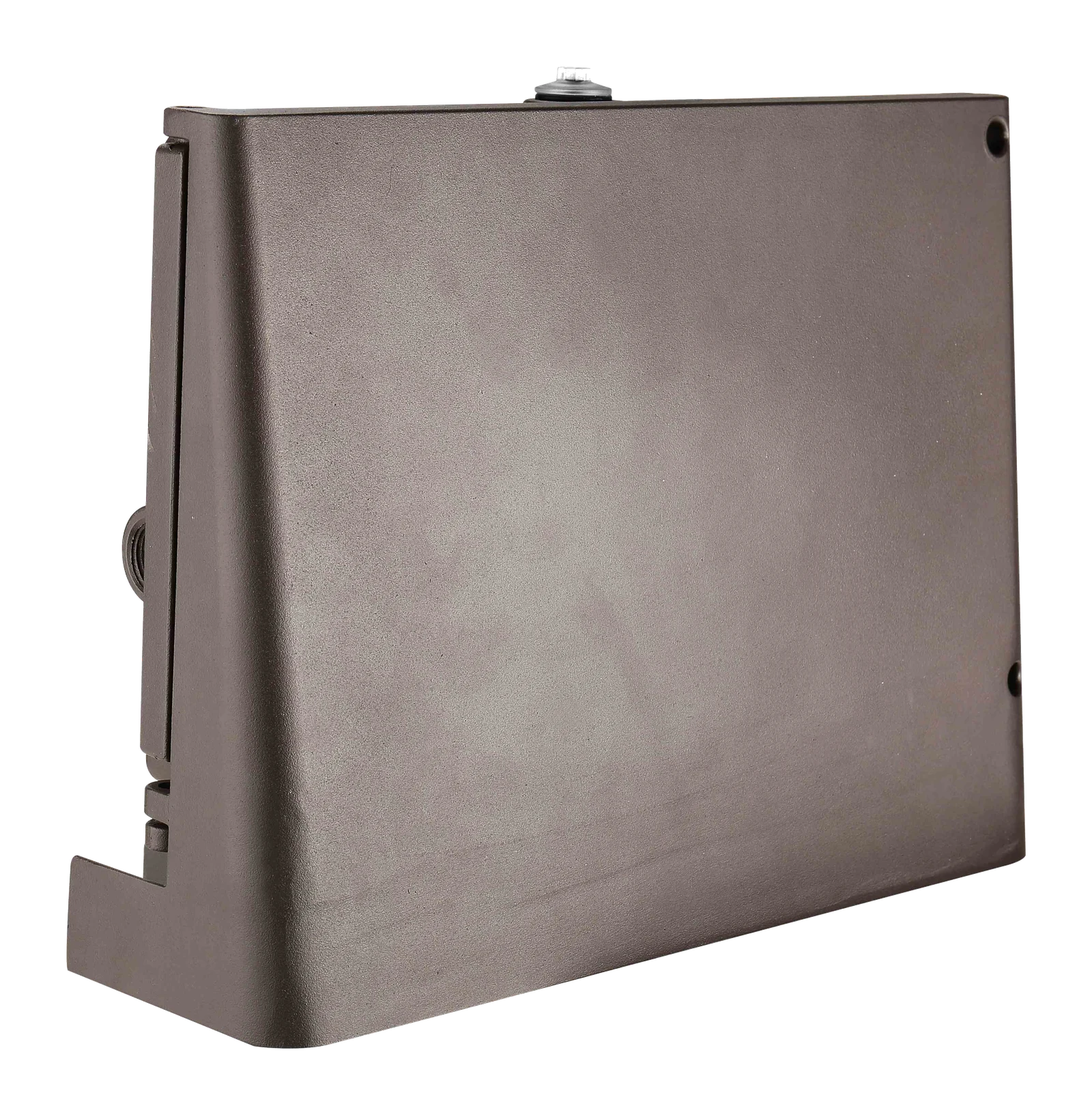

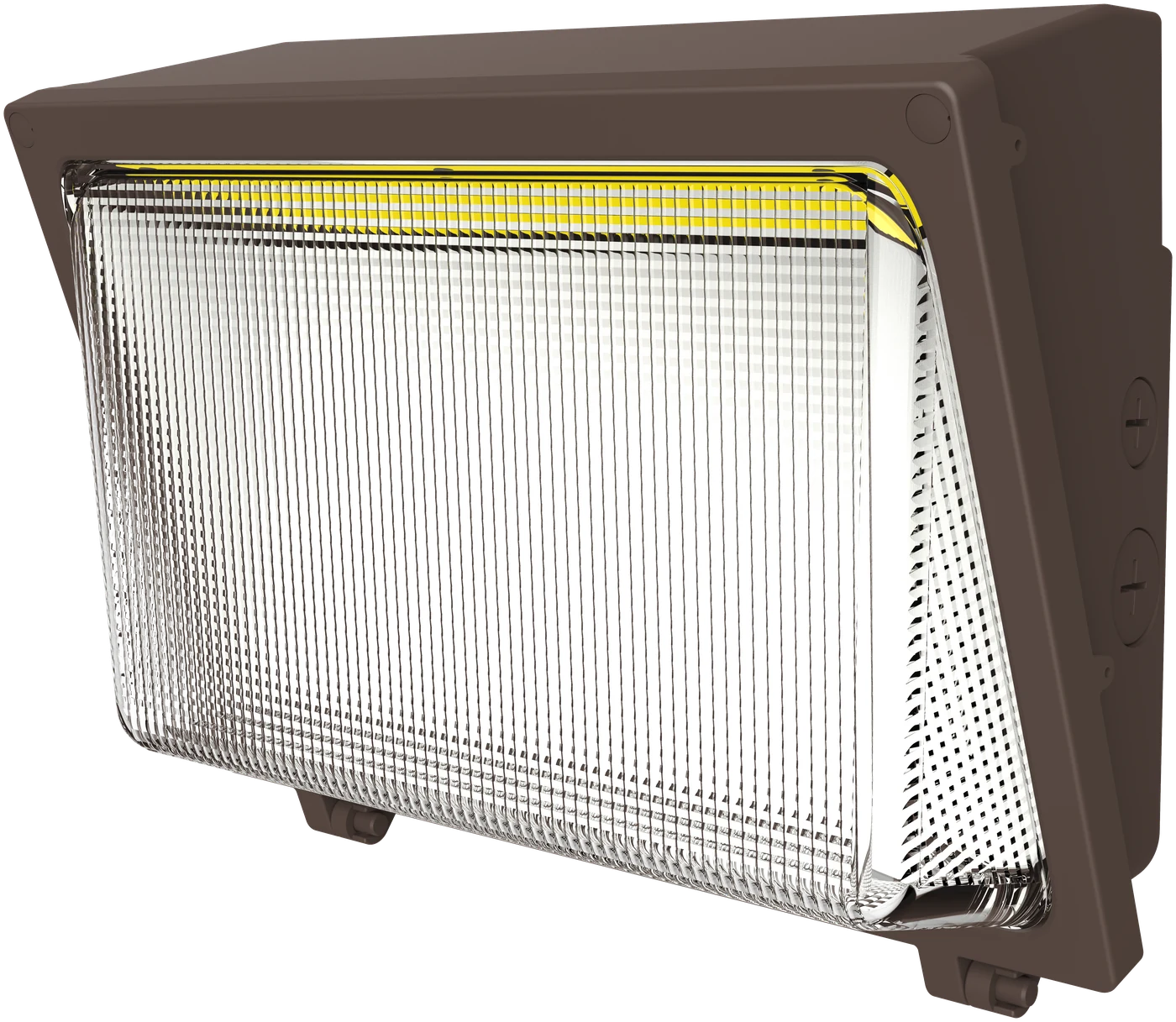

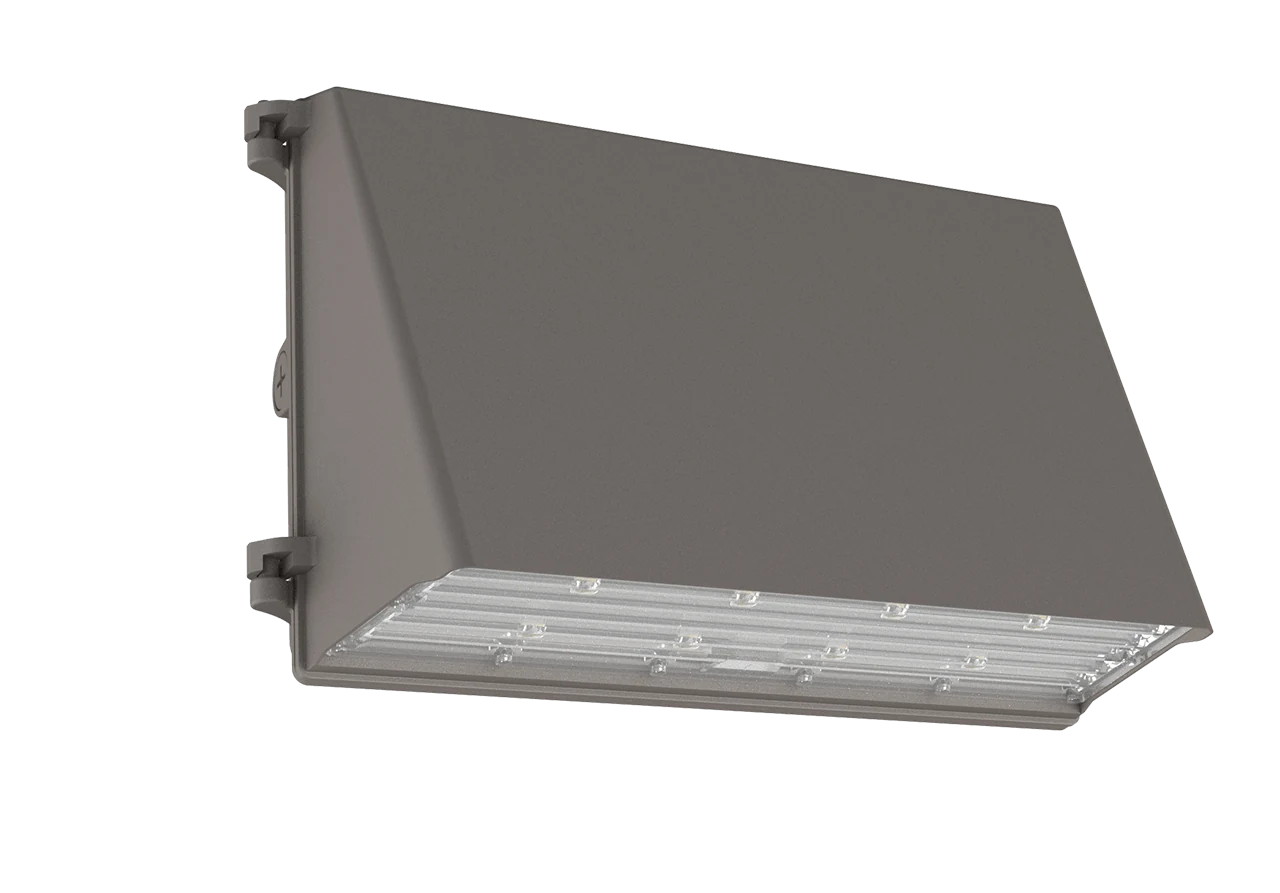

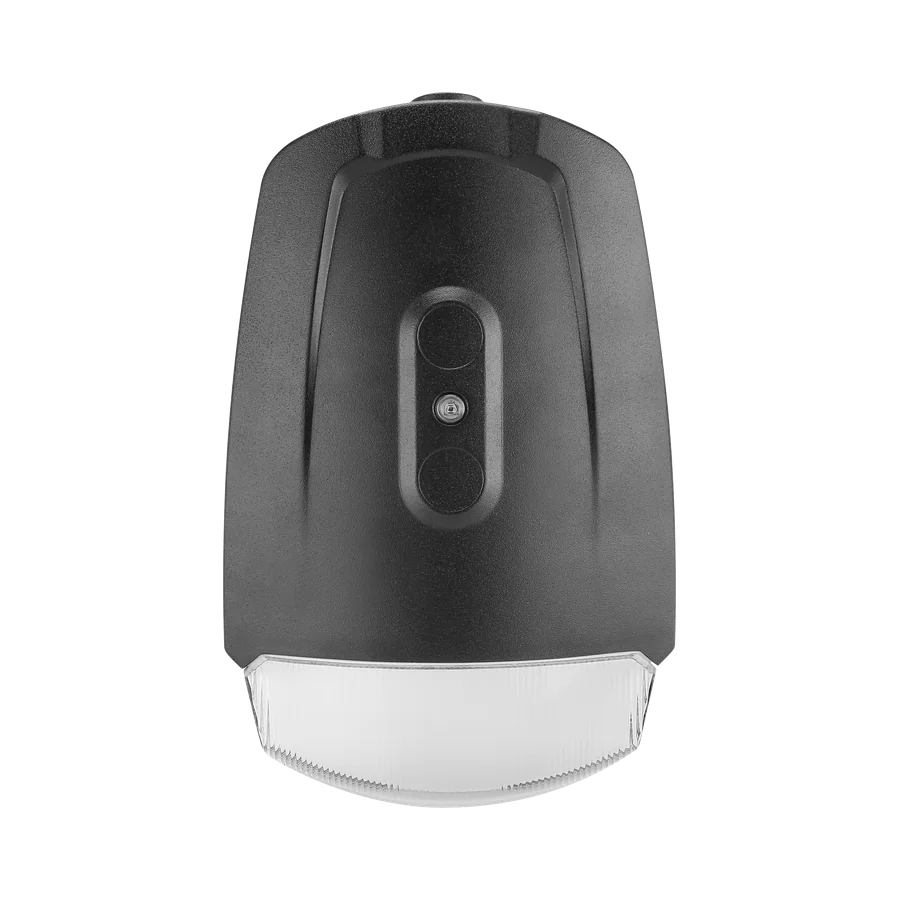

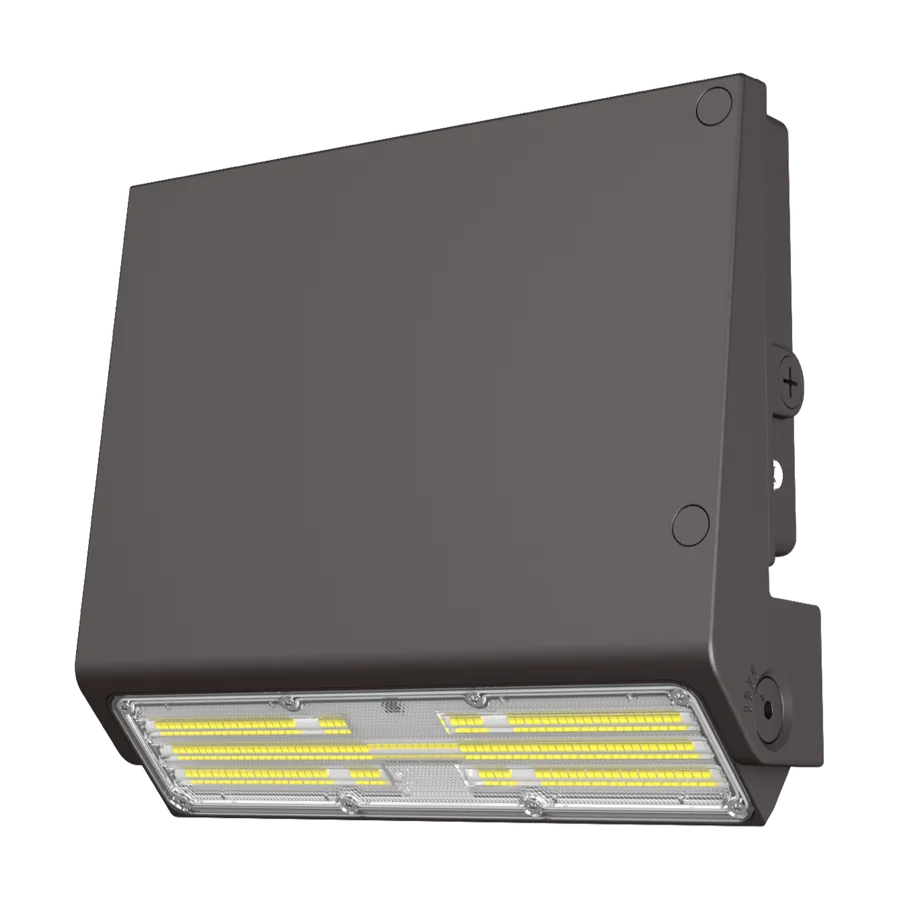

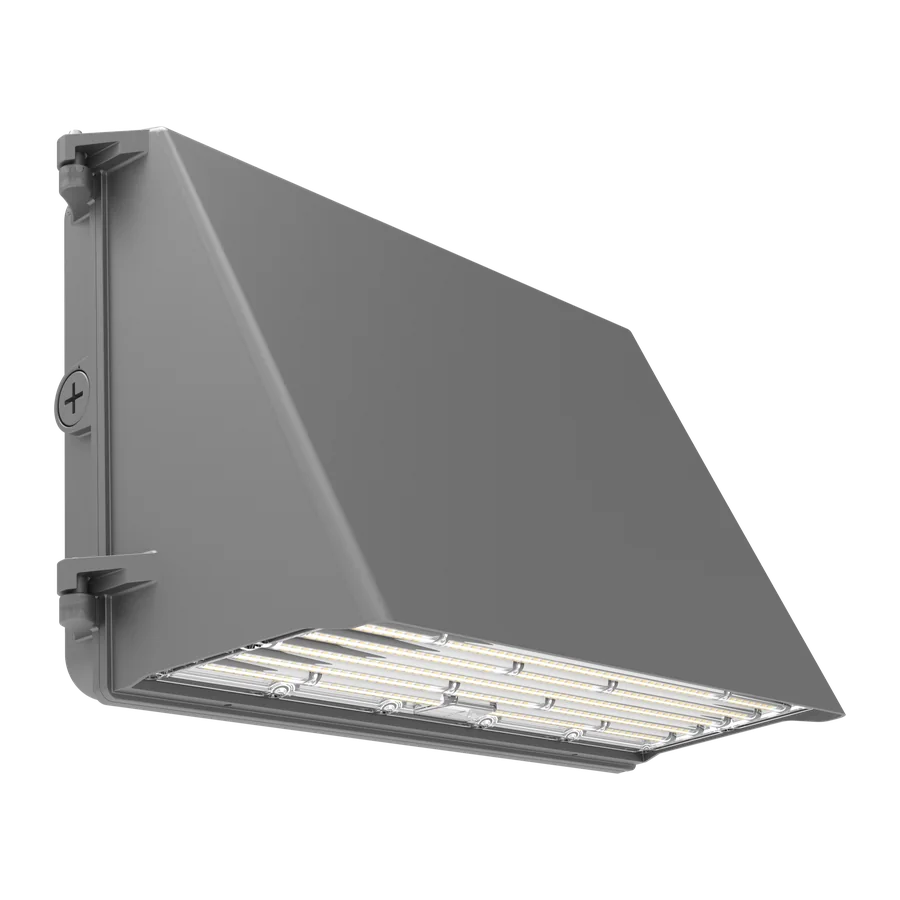

Meet the Wall Pack Family.
Ramparts is the entry point — the simplest spec in the luxoⒶRCH wall pack line, sized for entryways and shallow facades. If the project needs more lumens, full-cutoff aesthetics, or field-adjustable distribution, these siblings share the same engineering language, the same controls platform, and the same factory.
From the parking lot to the front door.
Ramparts owns the entryway. These cross-line fixtures handle every other point along the path — same engineering language, same warranty, same factory. Spec them together for a coherent lighting package across the whole property.
Direct line to your regional rep.
Five US warehouses ship in 2–3 days. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. No portal-as-the-only-channel: you get a person.
Stack the rebates.
Even at the ECO price point, Ramparts is DLC-eligible — qualifying for utility rebate programs that typically offset 15–40% of project cost. multi-family and small-commercial projects with multiple entryways frequently clear the per-fixture rebate threshold. We'll match your project to active programs in your ZIP and pull the paperwork.
