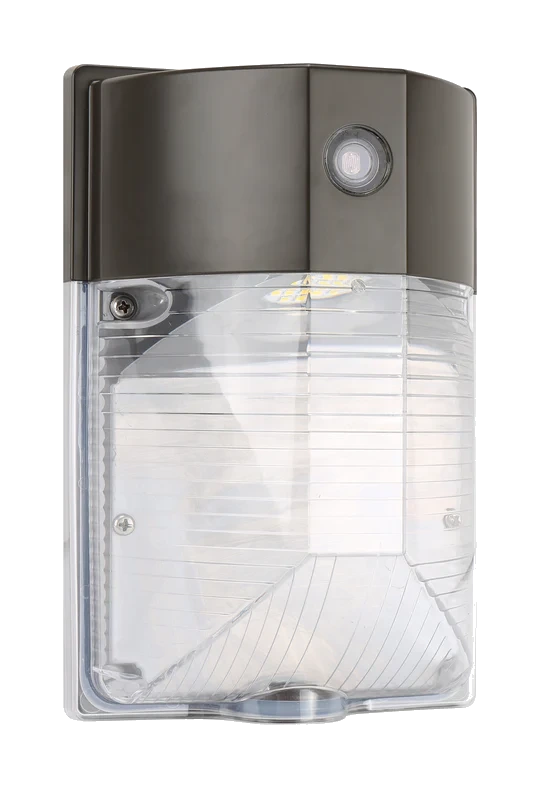

FIELD-SET
Emergency 4 W battery, over 700 lm, self-testing · Photocell with ON/OFF switch · 3-CCTselect 3000 / 4000 / 5000K · Clear high-impact lens · IP65
ARCHIPELAGO
Lighting Group
Electrical & Optical
| Input voltage | 120–277V |
| Input current | 10 W: 0.08 A at 120 V · 20 W: 0.17 A at 120 V |
| Power factor / THD | PF >0.90 · THD <20 % |
| Dimming | None |
| CRI | 80 |
| Emergency | 4 W battery · over 700 lm · 190 min at 64–104 °F, 100 min at −4 °F |
| Self-test | Every 30 days; 90-minute test every six months; test button with status LED |
| Wiring | Red unswitched line (charging) · black switched line · white neutral |
| CCT | Set by switch on the fixture · not encoded in the catalog number |
Construction & Environment
| Housing | Die-cast aluminum · Black or Dark Bronze |
| Lens | Clear, high-impact, weather-resistant |
| Operating ambient | −4 °F to 104 °F (set by the battery) |
| Location | cULus Listed · wet location · IP65 |
| Mounting | Two-piece: back plate to an outlet box or the wall, housing hangs on · max 12 ft |
| Warranty | 5-year / 50,000-hour limited |
cULusWet LocationIP65
ARCHIPELAGO
Lighting Group
Bill of materials — this build
| # | Item | Selection | Catalog number | On the order |
|---|
Wattage and finish are the catalog number; the photocell and the emergency battery are in every number. Color is set on the fixture and is not in it.
Every fixture catalog number
Accessories — ordered separately
ARCHIPELAGO
Lighting Group
04 · Photometrics & Dimensions
Beam angle (50 % of peak)
—
Dimensions
No DLC listing is claimed for this family. Rebate Center shows what your utility pays and the forms it needs, by ZIP.
Full IES library:
