LCDL · Astra PRO
One SKU. 1,100+ configs. CRI 90+.

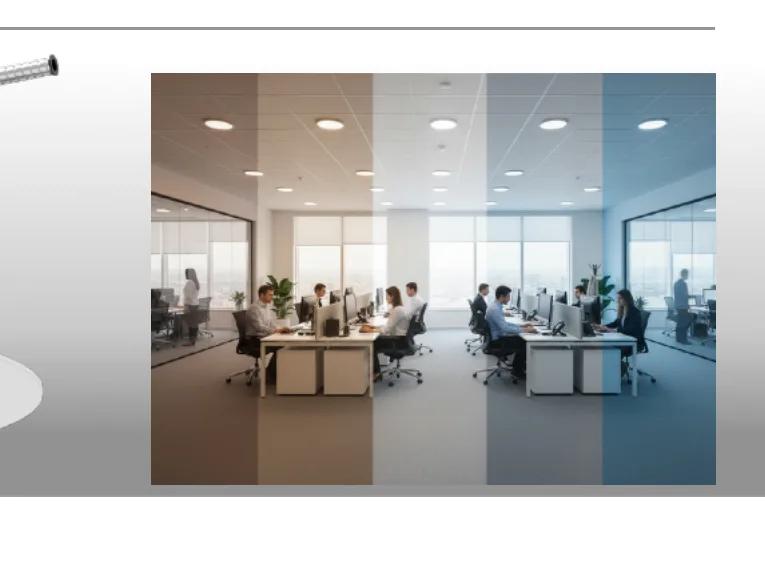

CRI 90+ truⒶCOLOR at every CCT (2700K through 5000K), four field-swappable beam angles per SKU, Round + Square trims in 5 finishes, all from one driver module — collapsing 100+ part numbers into a 3-SKU family spec with ~1,100 field configurations.
Model Specifications
Download Data Sheet| 3-WATTselect | Lumens | lm/W | 5-CCTselect | Beam Range |
|---|
Dimensions
(For the selected aperture)
Engineering In Motion
See the Astra in action.
Five short clips covering the features that matter on the spec — 5-CCT truⒶCOLOR, 3-WATTselect, tri-mode dimming, and twist-on installation.
Spec the beam. Stock one fixture.

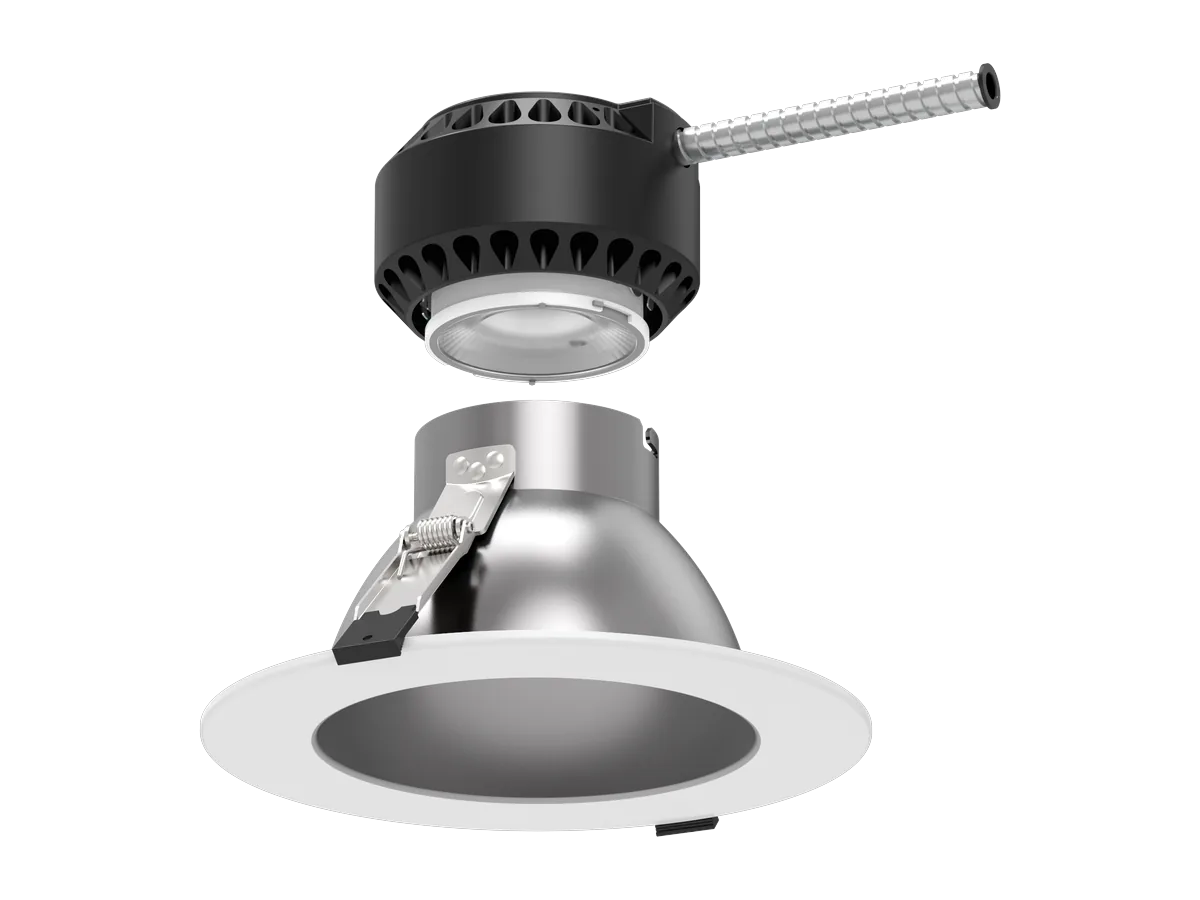

Each Astra driver module ships with an interchangeable reflector library — twist off the current beam, twist on the next. DMS0815 + DMS1830 carry four distributions from 24° to 60°; DMS3050 carries 36° to 65° for high-output commercial spaces. competing downlights requires a $15-30 NL05 / MD25 / WD45 lens-kit accessory; competing brands / category competitors / volume-tier ship one beam per part number. Pick a SKU and a beam below to see the application fit.
Highlights & Features
Astra wins the architectural spec-grade brief.

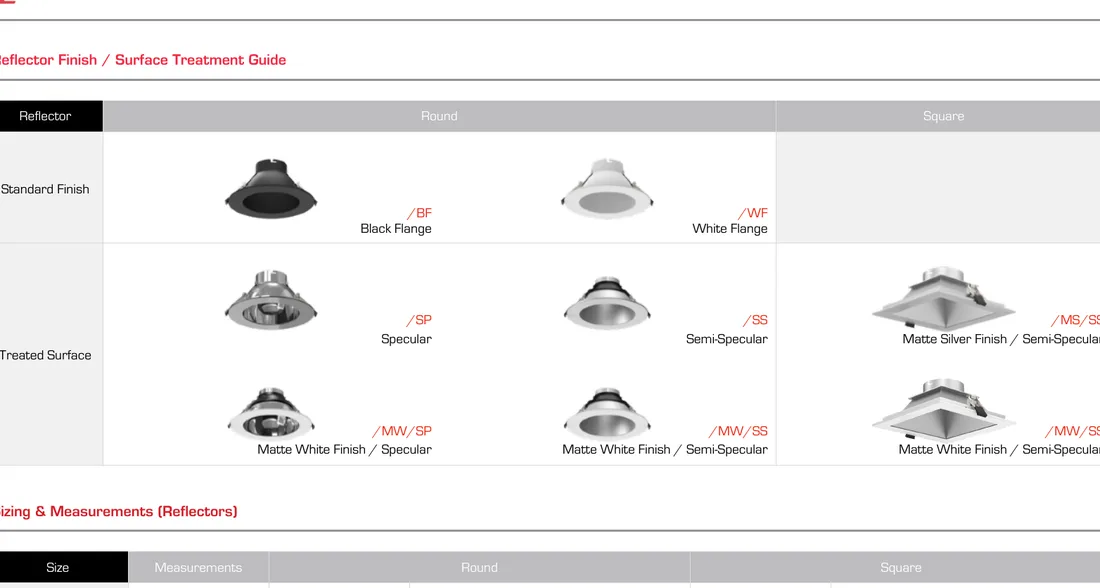

Seven highlights — CRI 90+ truⒶCOLOR™, 4 field-swappable beams per SKU, Round + Square in 5 finishes, Tri-Mode Dimming, ~1,100 configurations from 3 SKUs, Air-Tight + IP65 + 2.5kV Surge, and the full ⒶCS ecosystem.
contrⒶLS
Total Adaptive Control.

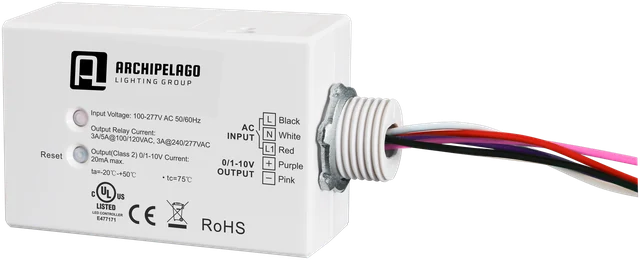

Every Astra ships contrⒶLS-Ready — Bluetooth Mesh via three ⒶCS devices for ceiling and J-box mount, plus TRIAC + ELV + 0-10V from one SKU on DMS0815 + DMS1830 with flicker-free 100% → 10% dimming. DLC NLC-qualified for the Title 24 § 130.1 rebate adder.

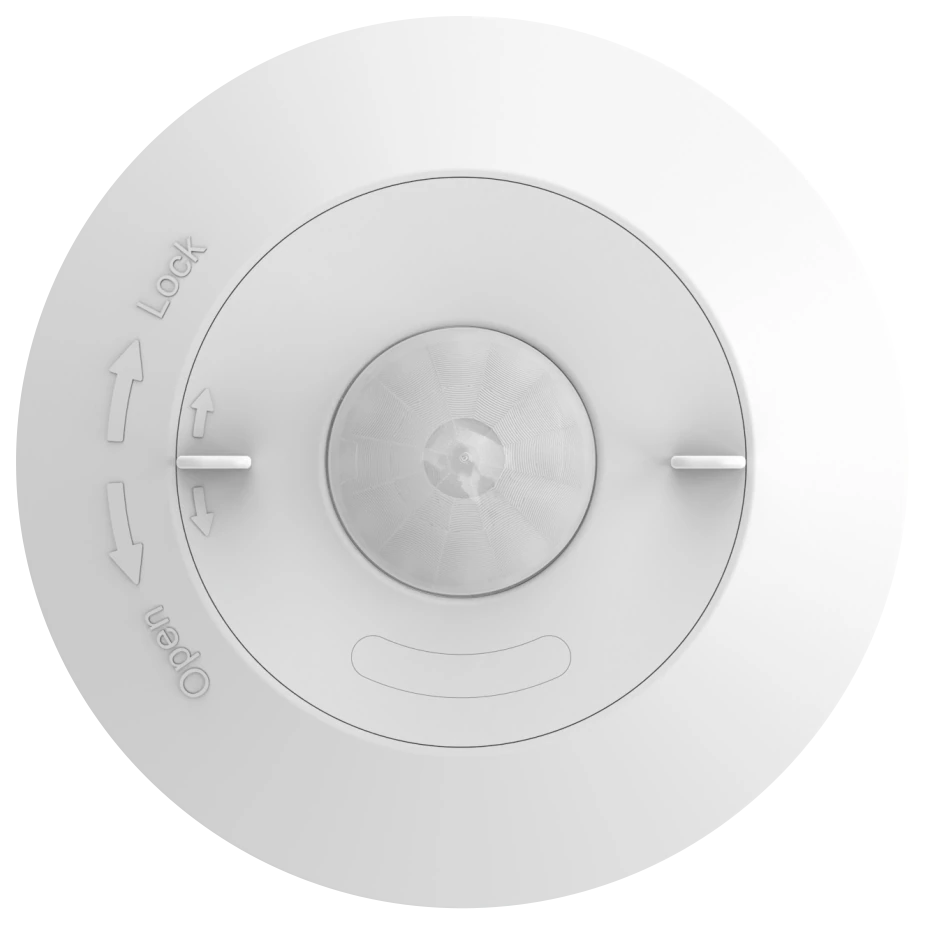

Wide-angle PIR ceiling sensor with 20 ft range — office, school, corridor, retail, and hospitality default. UL-Listed · IP20 indoor · 120-277V universal. Bluetooth Mesh commissioning via the AURA app. Pre-paired to the Astra driver out of the box. Made-to-Order through the standard ⒶCS accessory line.
Discover contrⒶLS →Photometric Distribution
Beam shape, rendered from the LM-79 IES file.
Real luminous distribution rendered directly from the LM-79 measured IES candela tables — no synthesis. The bundle covers DMS0815 (5 CCTs · 60° flood) + DMS1830 + DMS3050 across the 24° / 60° beam endpoints at 2700K and 5000K (28 LM-79 files). Intermediate CCTs and beam angles on DMS1830/DMS3050 ship as factory data on request.
LCDL-A1-DMS1830 60 degree 30W 5000K.IES
Engineered for the architectural spec install.

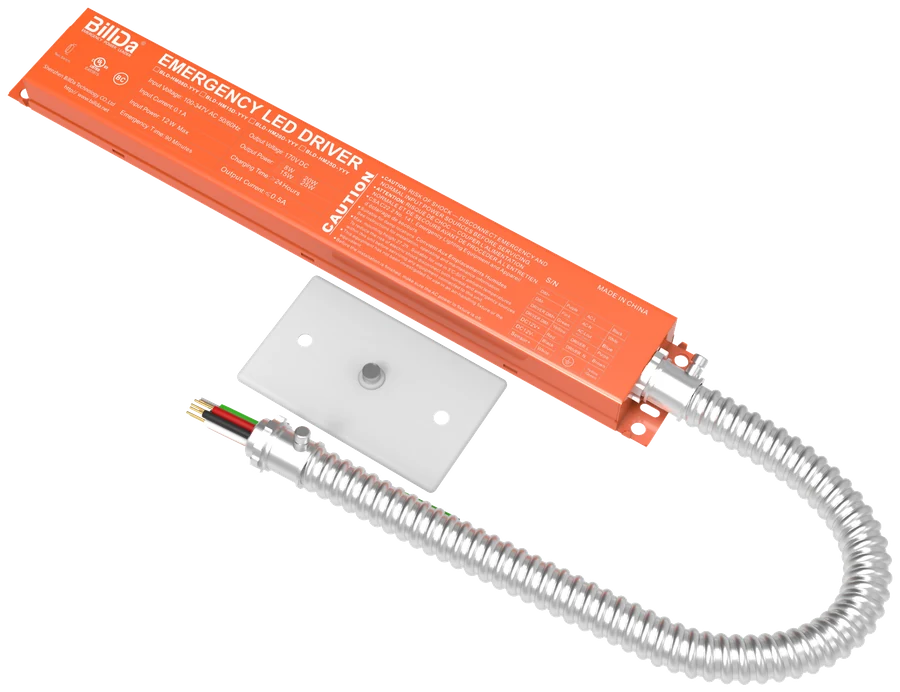

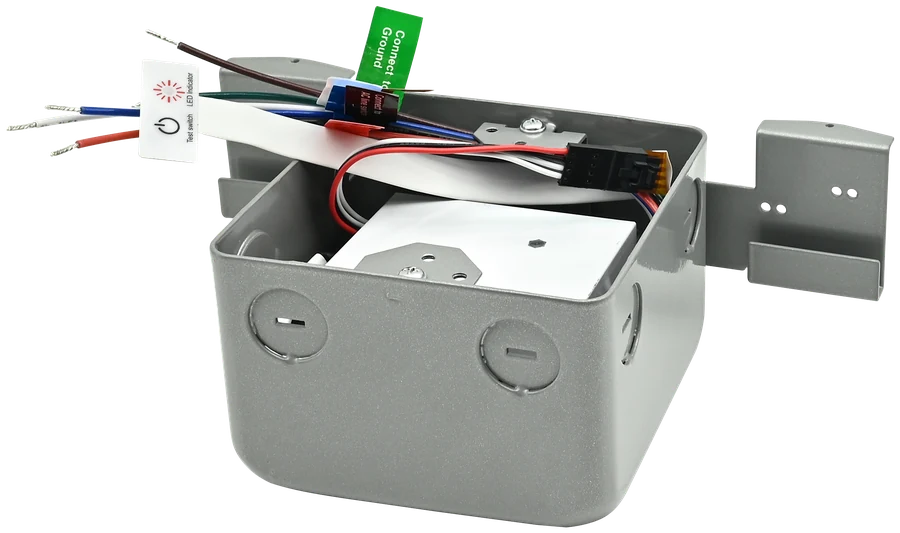

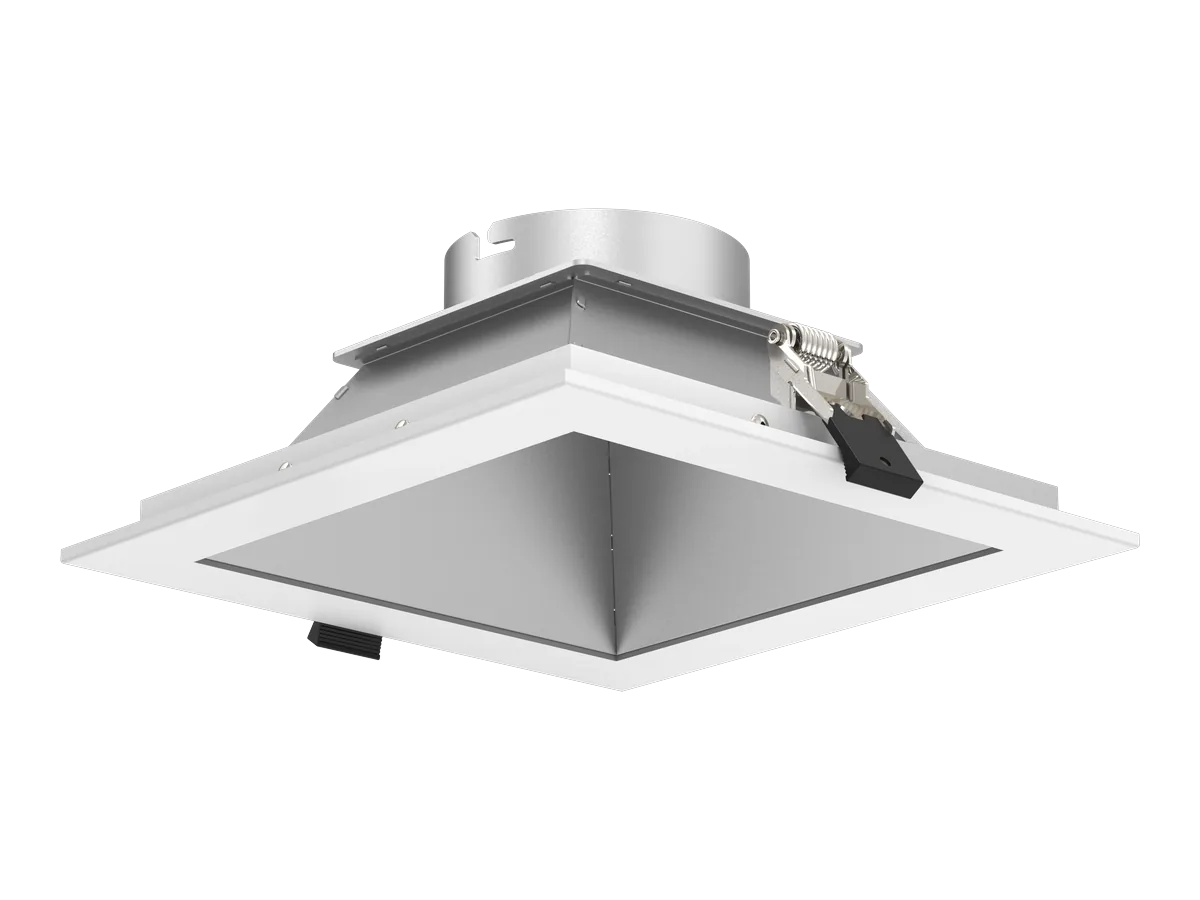

Nine factory-matched accessory categories complete the Astra install — Round + Square reflector trims, NCP and NCP/JCB new-construction plates, constNT emergency backup, and the contrLS by CS Bluetooth Mesh lineup.

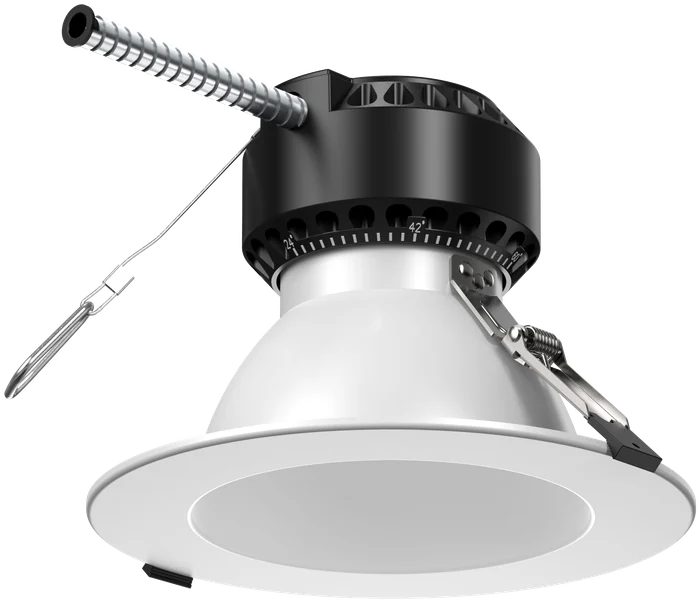

Configure Your Astra

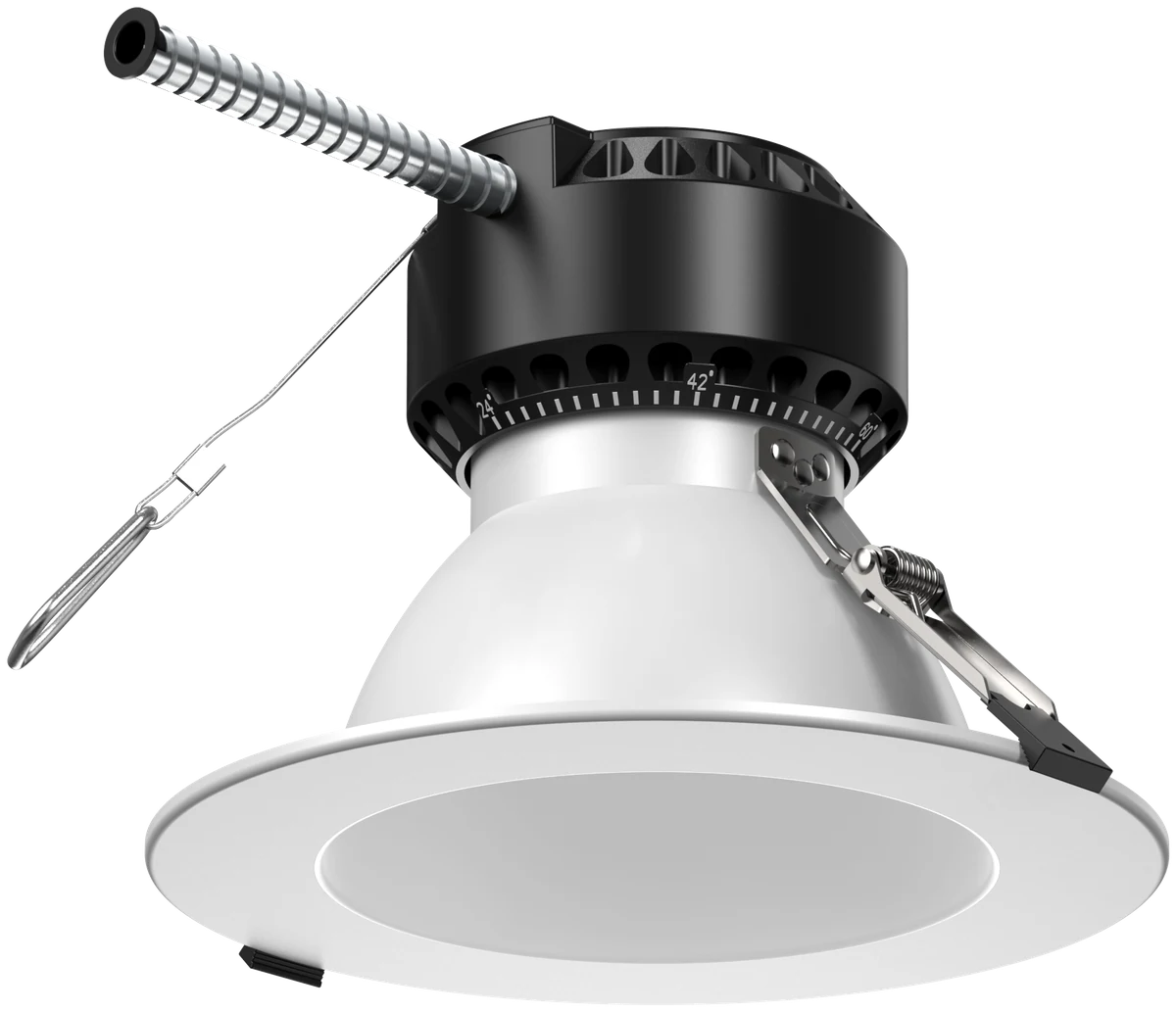

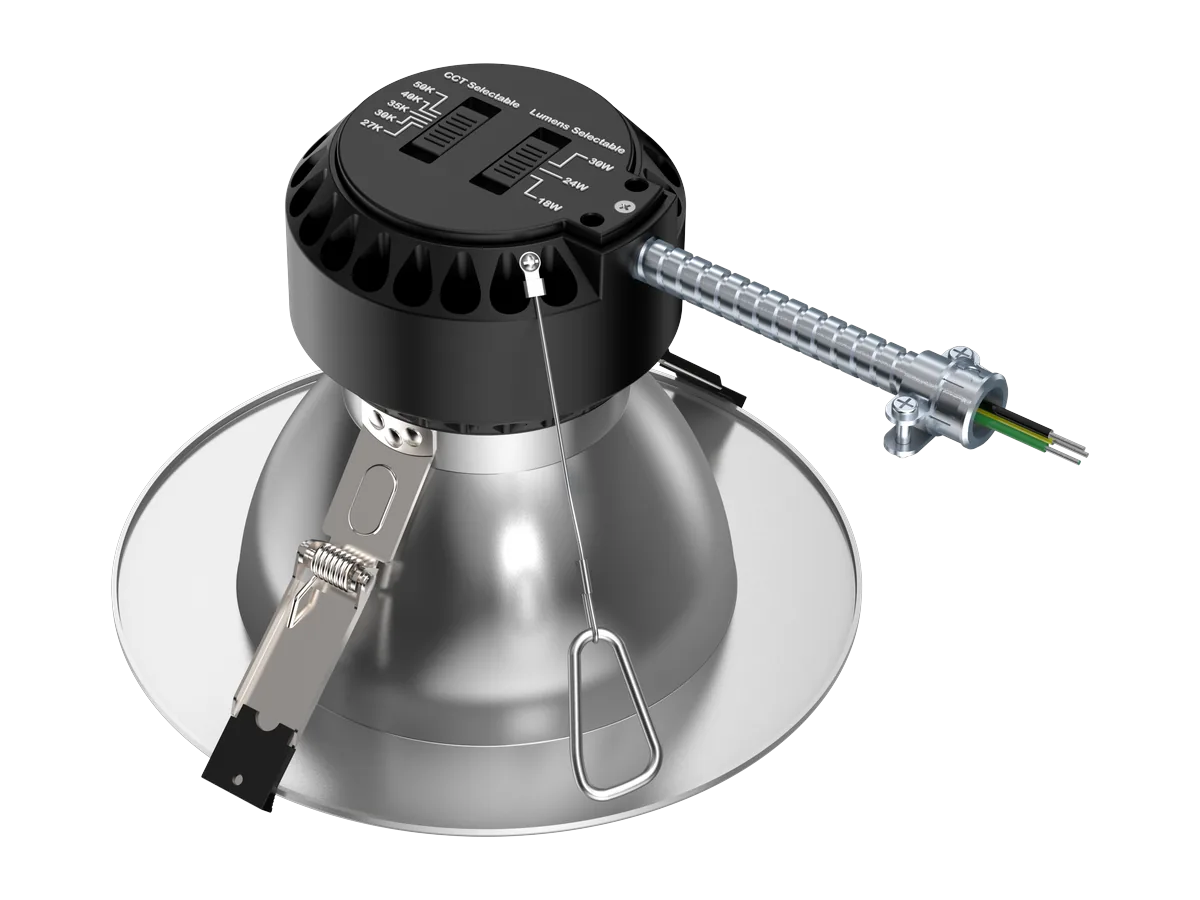

Pick a driver module, reflector shape, aperture size, and finish. The 3-WATTselect (8/12/15W · 18/24/30W · 30/40/50W) and 5-CCTselect (2700/3000/3500/4000/5000K) are dip-switch field-set on every fixture — not in the catalog SKU. CRI 90+ truⒶCOLOR™ at every CCT · Tri-Mode dimming on DMS0815/DMS1830 (0-10V on DMS3050) · Built-in 2.5kV surge. Required fields marked with *. See the legend below for ★ / QS / MTO meanings.
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify the Astra — datasheet, installation guide, IES bundle, and the configuration-stamped submittal PDF. 4 of 5 primary documents live on WorkDrive · IES Bundle URL pending.
Meet the LCDL Commercial Downlight Family.

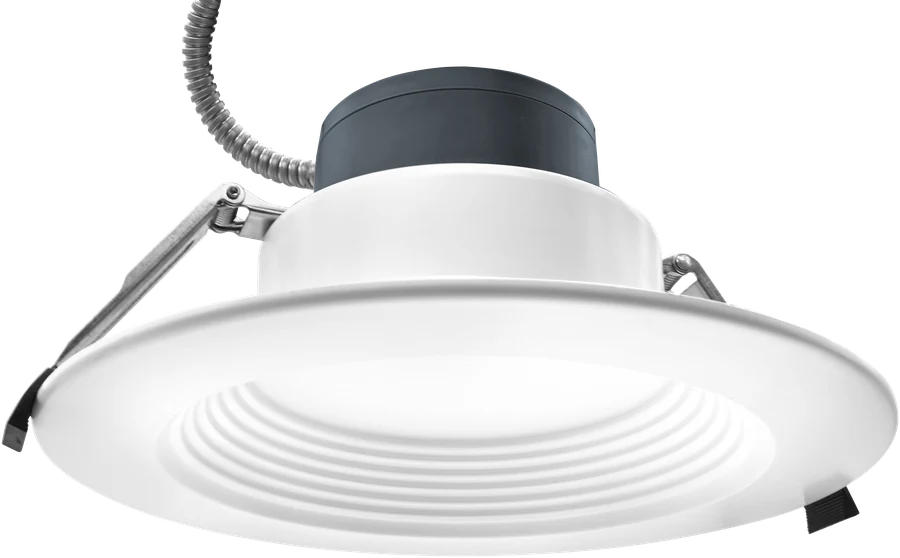

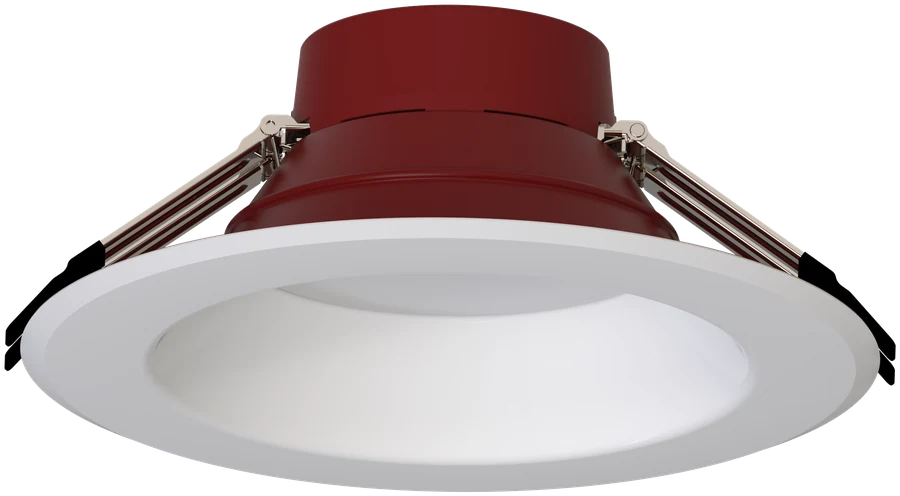

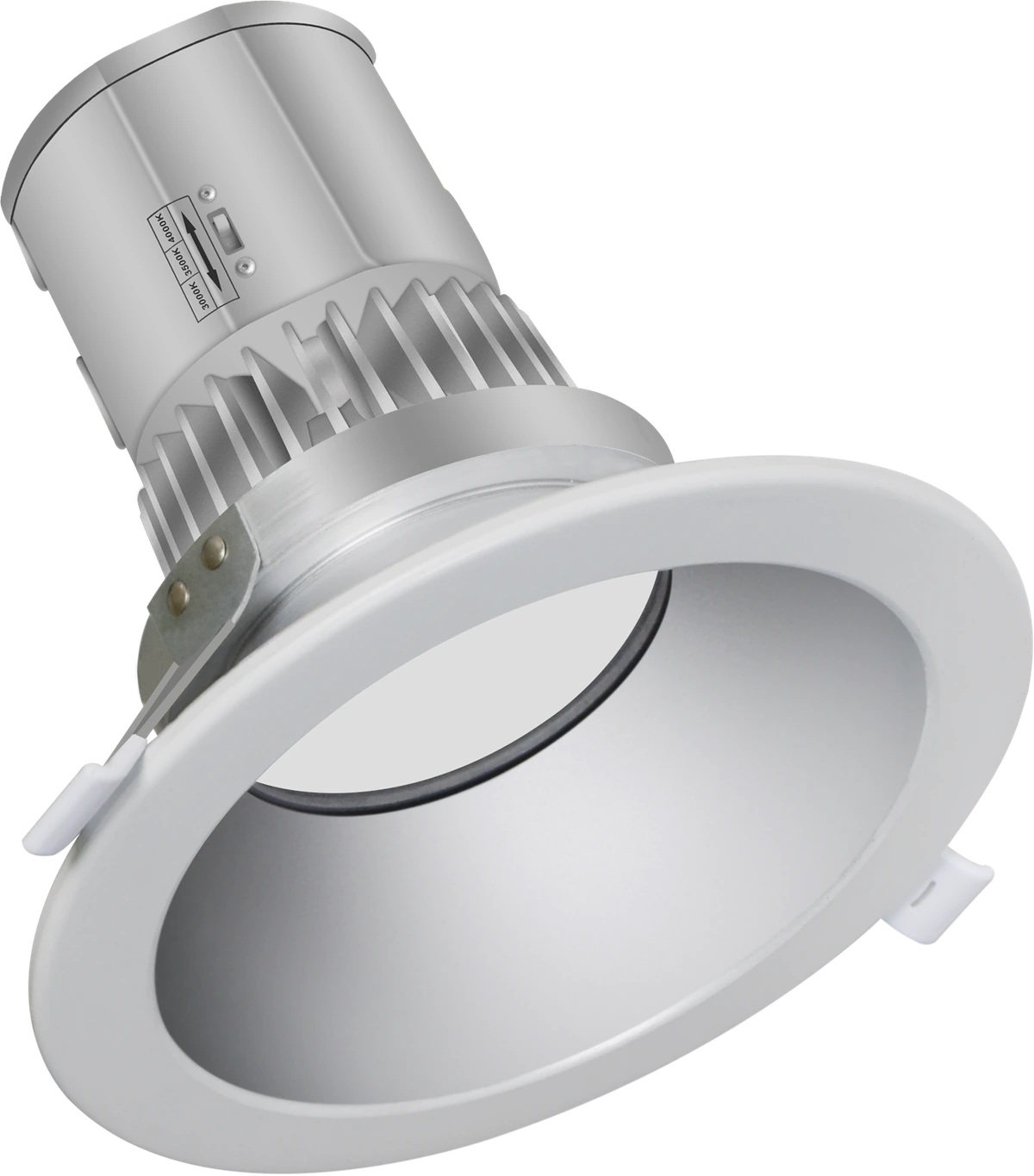

The Astra is the spec-grade architectural flagship of LCDL — CRI 90+ truⒶCOLOR™ at every CCT, 4 field-swappable beam reflectors per SKU, Round + Square + 5 finishes, 1,100+ field configurations from 3 catalog SKUs. If a project value-engineers down to the affordable ECO can-less, or escalates to a 2-hour fire-rated assembly, here are the LCDL siblings on either side — same 4-size aperture matrix, same constⒶNT EM ecosystem, same spec-grade install pattern.
For the complete commercial-architectural package.

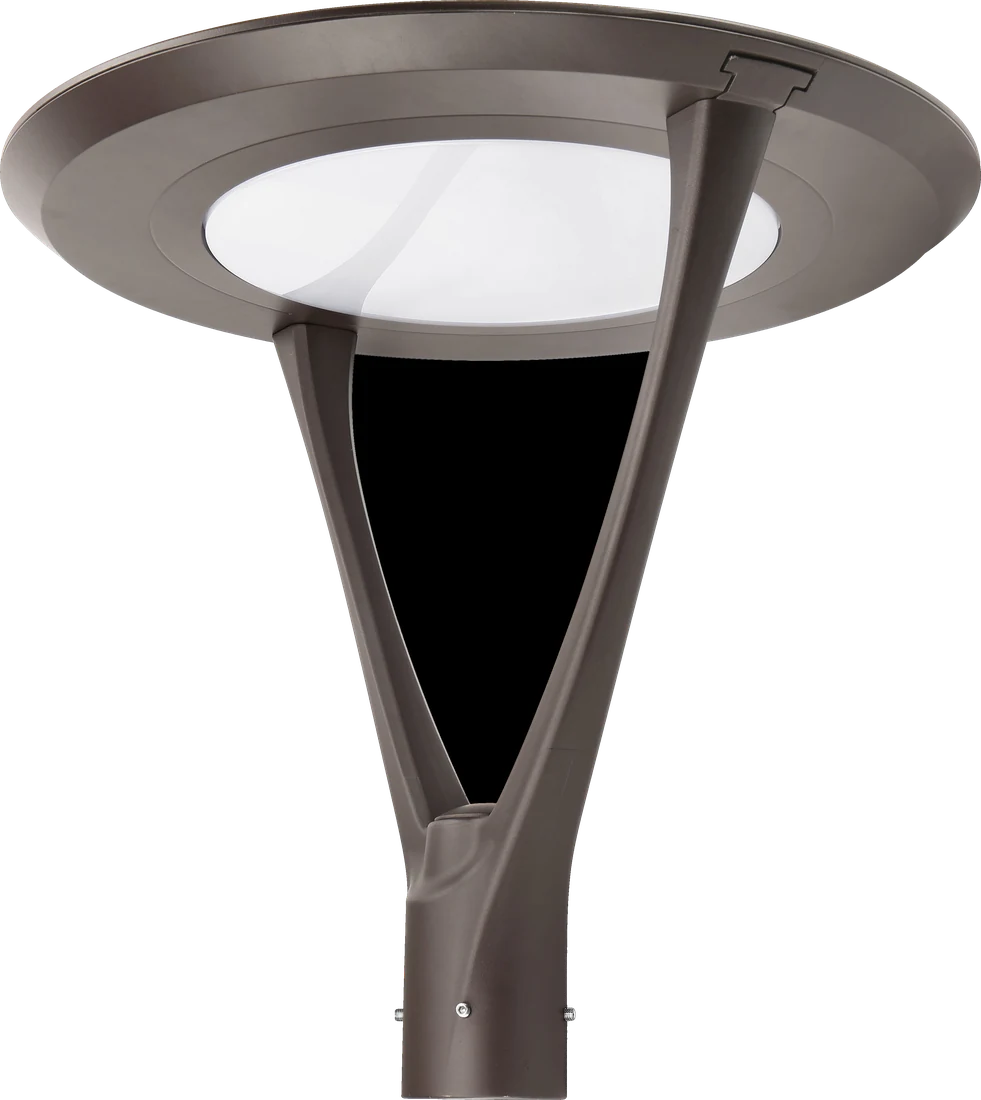

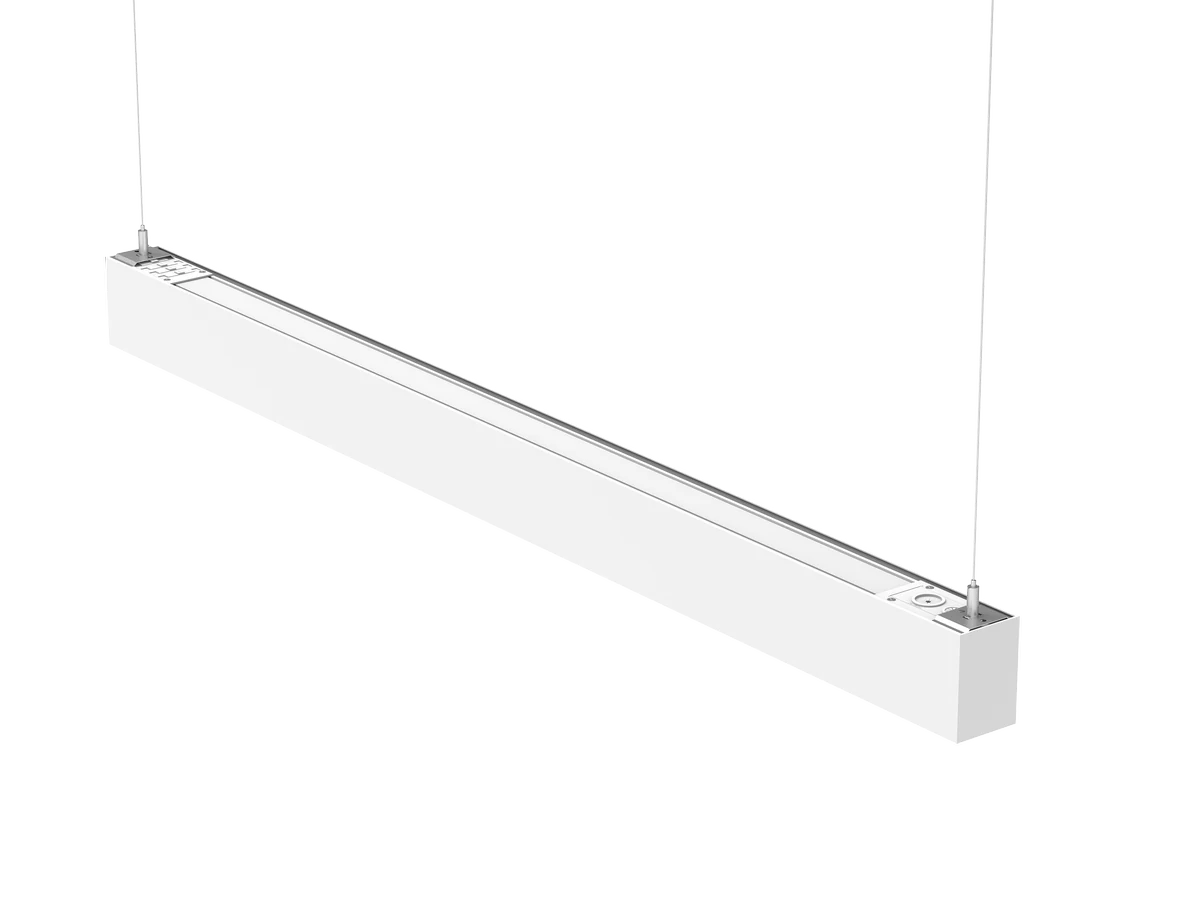

Astra handles the architectural downlight. These cross-line fixtures handle the rest of the building — same controls platform, same constⒶNT EM ecosystem, same warranty promise, same factory. Specify them together for a coherent lighting package across the entire commercial-architectural envelope: pendants over the conference table, panels in the back rooms, post-tops in the plaza, strip lights in the parking deck.
Direct line to your regional rep.
Five US warehouses ship Astra QuickShip configurations in 3-5 days; treated-finish reflectors and ⒶCS sensors ship MTO in 4-6 weeks. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. No portal-as-the-only-channel: you get a person.
Stack the rebates.
The Astra qualifies for utility rebate programs at the DLC Listed tier (verification pending Rebate Center search per CFG-RBT-2 · published 95-100 LM/W efficacy clears the DLC Listed floor and approaches Premium). Add the contrⒶLS by ⒶCS Bluetooth Mesh ecosystem to qualify for the Title 24 § 130.1 NLC rebate adder — typically a $30-50/fixture stack on the base rebate.
