Navigator Series PRO
Two protocols. One canopy.

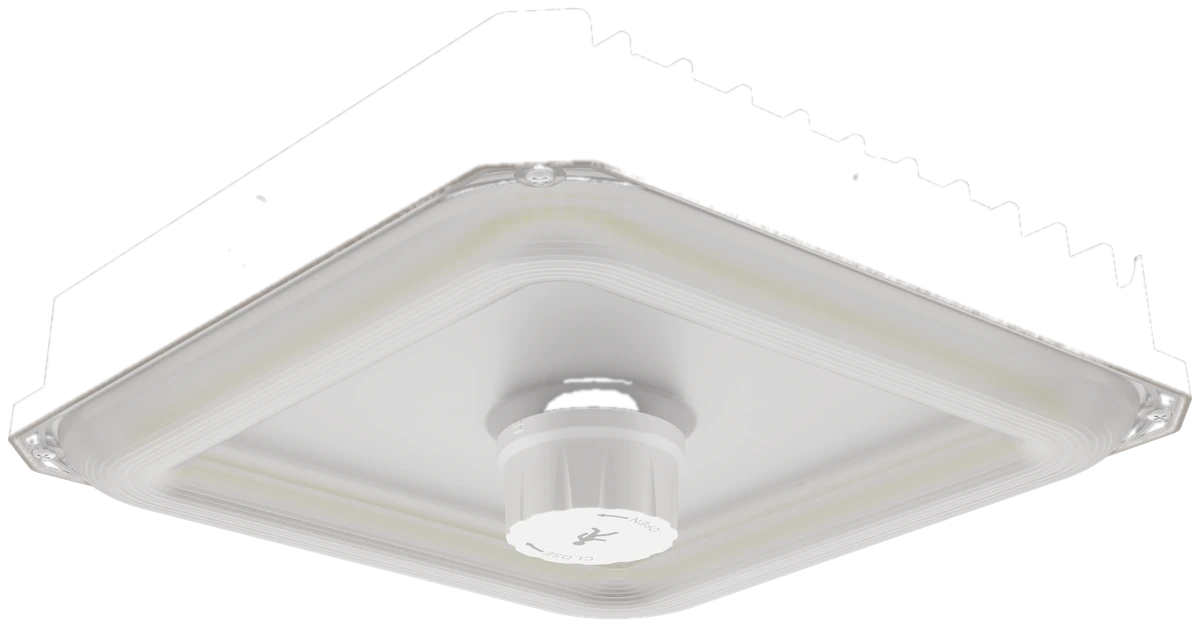

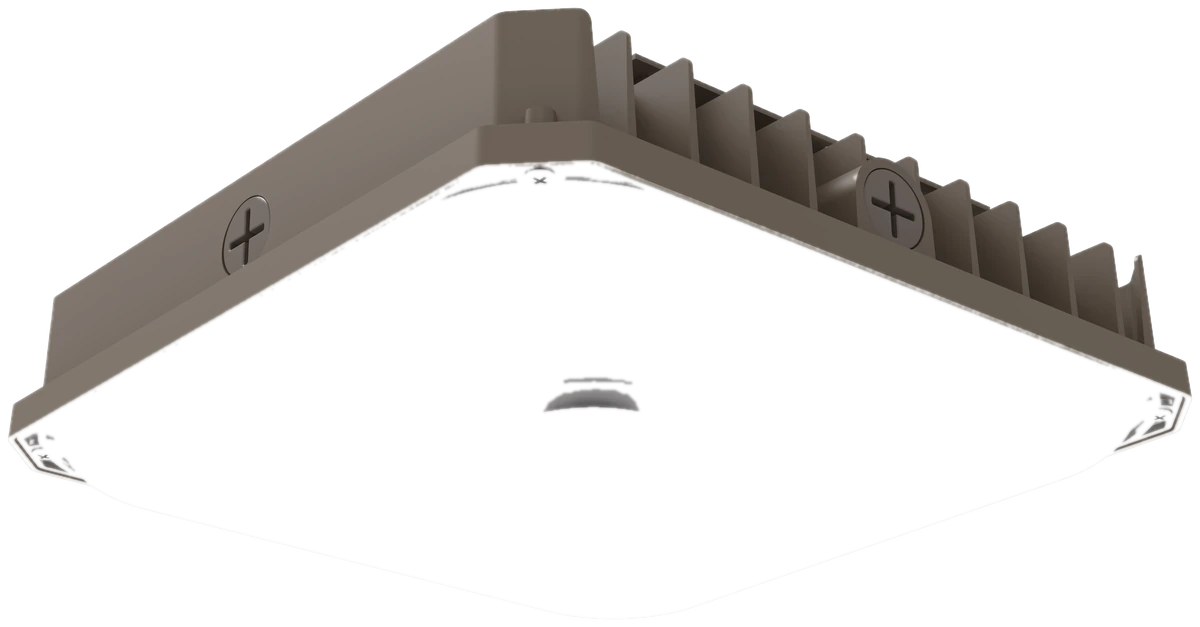

PRO canopy on the luxoⒶRCH LCNP family with the networked-controls option ladder — sibling to Pathfinder. Two housings: LCNP3W40 (20/30/40W · replaces 175W MH) · LCNP3W100 (60/80/100W · replaces 400W MH). Field-set wattage and CCT · 3500K / 4000K / 5000K. Reflector + refractor optic, >90% optical transmission, 140° wide-beam option. contrⒶLS sensor ladder: /MSP-BLS bi-level · /MSP-ACS DLC NLC Bluetooth Mesh + SaaS · /MSP-NLC SILVAIR SIG Mesh. Two networked-control protocols on one housing — ⒶCS and SILVAIR side-by-side, unique in the competitive set.
Model Specifications
Download Data Sheet| WATTSELECT | Lumens | Efficacy | HID Replacement | CCTSELECT |
|---|
Dimensions

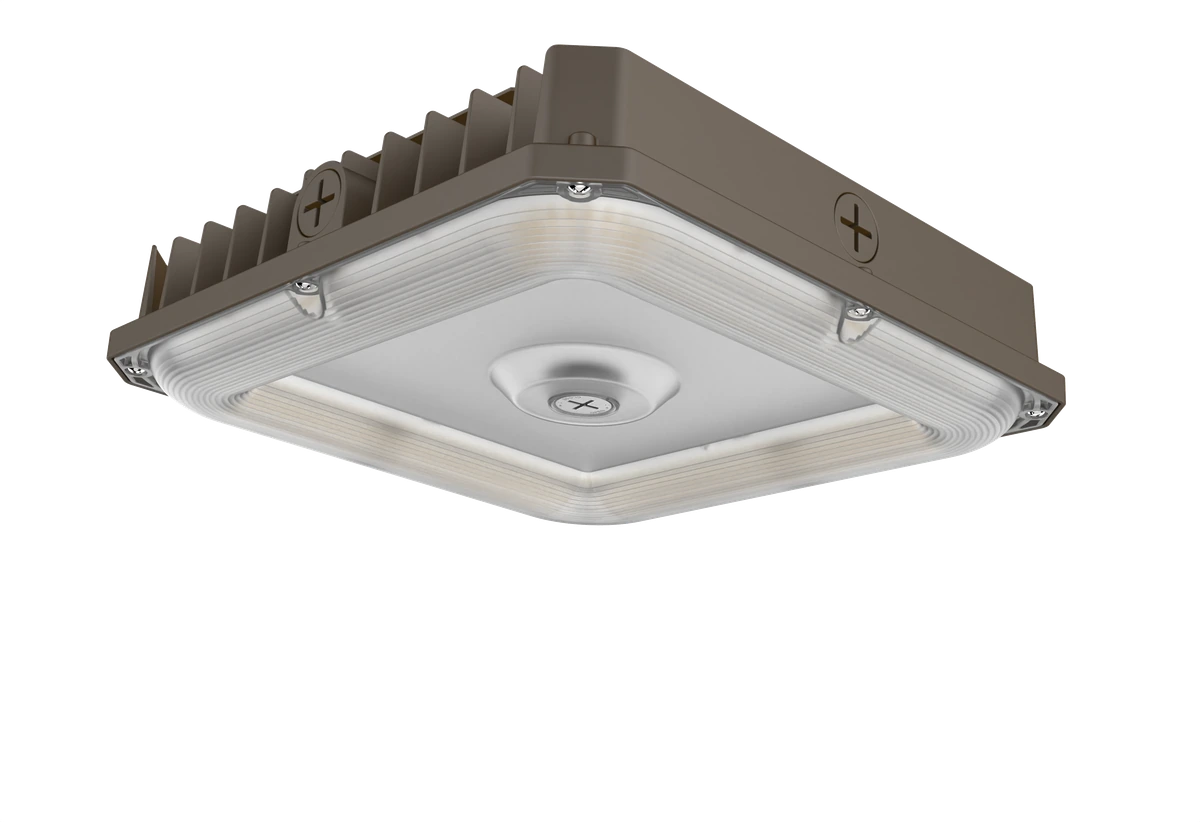

(both housings share the slim 2.73-in profile)
HIGHLIGHTS & FEATURES
Five reasons Navigator wins the controls-led canopy.
The PRO canopy when controls — DLC NLC, Bluetooth Mesh, SaaS, networked daylight — lead the bid sheet. Five design choices that win against Lithonia VCPGX nLight, Cooper Lumark RPGC WaveLinx, and Cree IG Bluetooth.
contrⒶLS
Three controls platforms. One canopy.
One housing, three controls platforms. contrⒶLS Bi-Level for occupancy bi-level without networking. contrⒶLS by ⒶCS for DLC NLC-qualified Bluetooth Mesh + cloud SaaS. contrⒶLS by SILVAIR for SIG-qualified, vendor-neutral, gateway-free enterprise mesh. Only LED canopy that ships ⒶCS DLC + SILVAIR SIG side-by-side — Cooper Lumark RPGC, Lithonia VCPGX, RAB can’t match at this tier.

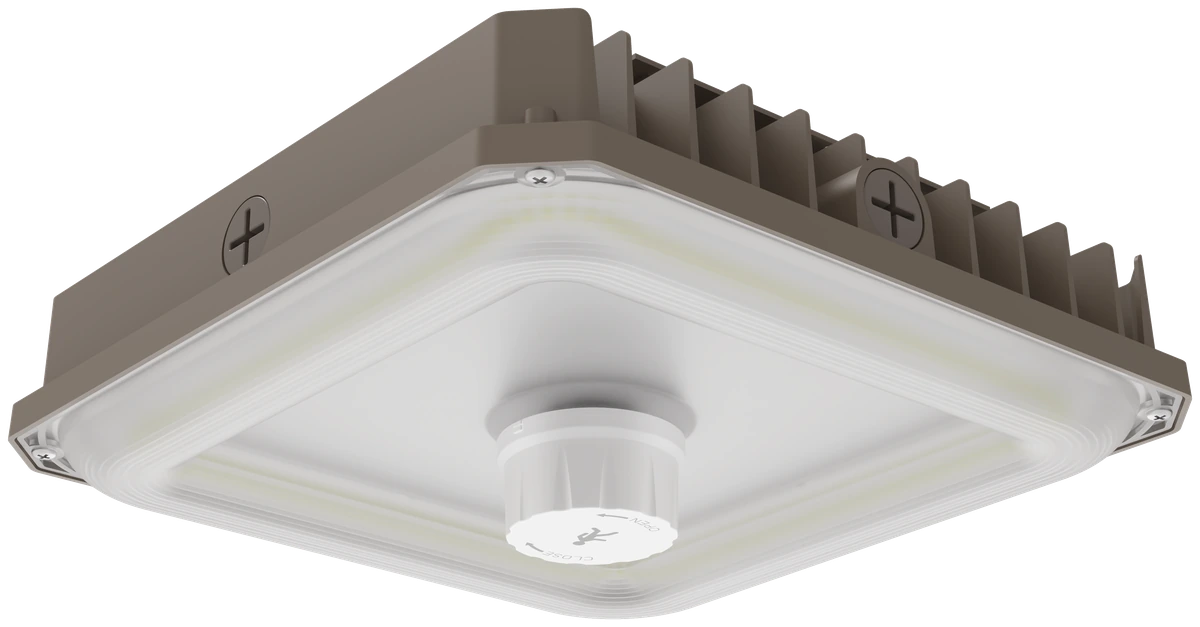

Two PIR bi-level variants — IR-remote commissioned, no gateway, no IT. /MSP-BLS auto high/low switching · /MSP-BLS-5D adds 5 manual dials for site-tuned thresholds. Both: PIR · 30-ft mount · 12-24Vdc · IP65 · UL. Commissioning via optional RM-95 IR remote (45-ft range · 2× AAA · IP20). Drives Title 24 §140.7 / IECC §C405.2 / ASHRAE 90.1 bi-level credits — no third-party sensor BOM. Daylight-harvest capable: adjust lux threshold (>50 lux), preset standby, 3× press to enable.
PHOTOMETRICS
Beam shape, by the WATTSELECT setting.
LM-79 photometric data for both housings — 6 IES test points across LCNP3W40 + LCNP3W100 × 3500K / 4000K / 5000K. Toggle housing class and CCT below to see beam shape and lumen output per setting. Navigator measures above 120 lm/W datasheet rating on every cell — peak 143 lm/W at 4000K. Download the IES bundle →
LCNP3W40-3N1-UD-50K_IESNA2002.IES (LM-79 measured) In the Box
Three components, factory-installed.

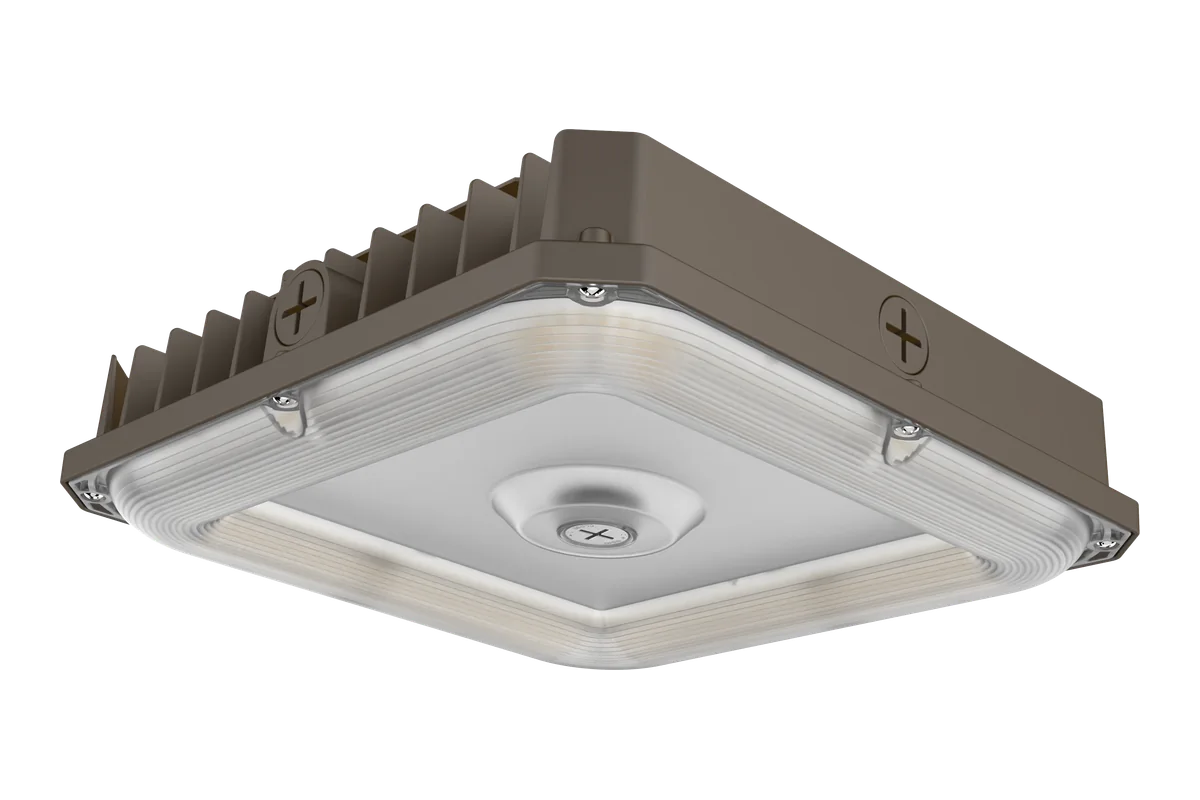

Every Navigator ships with reflector + refractor optic (UV-stabilized polycarbonate · >90% transmission · 140° beam), 0-10V dim driver on universal 120-277V (HV 277-480V MTO), and the external quick-mount plate with wetⒶGUARD silicone seal. All factory-installed — no upsell SKUs. Drop on the canopy or stem-hang, wire to the J-box, DIP-set wattage and CCT, walk away.
Build Your Model

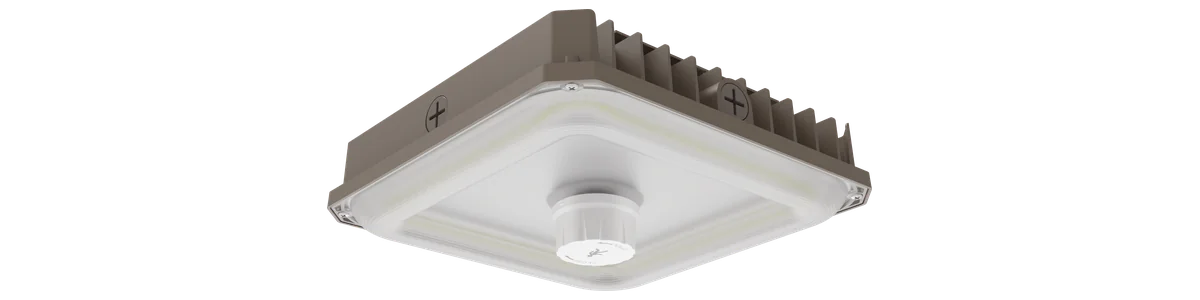

Configure Your Navigator
Selections build the SKU live. WATTSELECT + CCTSELECT are DIP-set at install — they do not appear in the SKU. Required fields marked with *. See the legend for QS / MTO / DIP / LCK meanings.
Documentation & Resources
Datasheet, installation guide, Navigator IES bundle, and per-SKU submittal generator mirroring Section 9. DLC SSL (luminaire) + DLC NLC (/MSP-ACS module) applications in flight — rebate paperwork tracks the timeline. Rebate Center link is honest about status, not confirmed listings.
/MSP-ACS (DLC NLC) and /MSP-NLC (SILVAIR Bluetooth Mesh)./MSP-ACS network commissioning checklist (DLC NLC join sequence) and /MSP-NLC SILVAIR Bluetooth Mesh pairing flow./EM08 · /EM20 · /MSP-{BLS|BLS-5D|ACS|NLC}), all on a single 4-page PDF. Defaults to LCNP3W100-3N1-UD at 100W / 5000K / Dark Bronze · 120-277V — your Section 9 selections override at runtime, including DIP-set WATTSELECT and CCTSELECT values that surface as “Field-set at install” rather than baked into the SKU.Two PRO canopies. Pick the one that fits the spec.

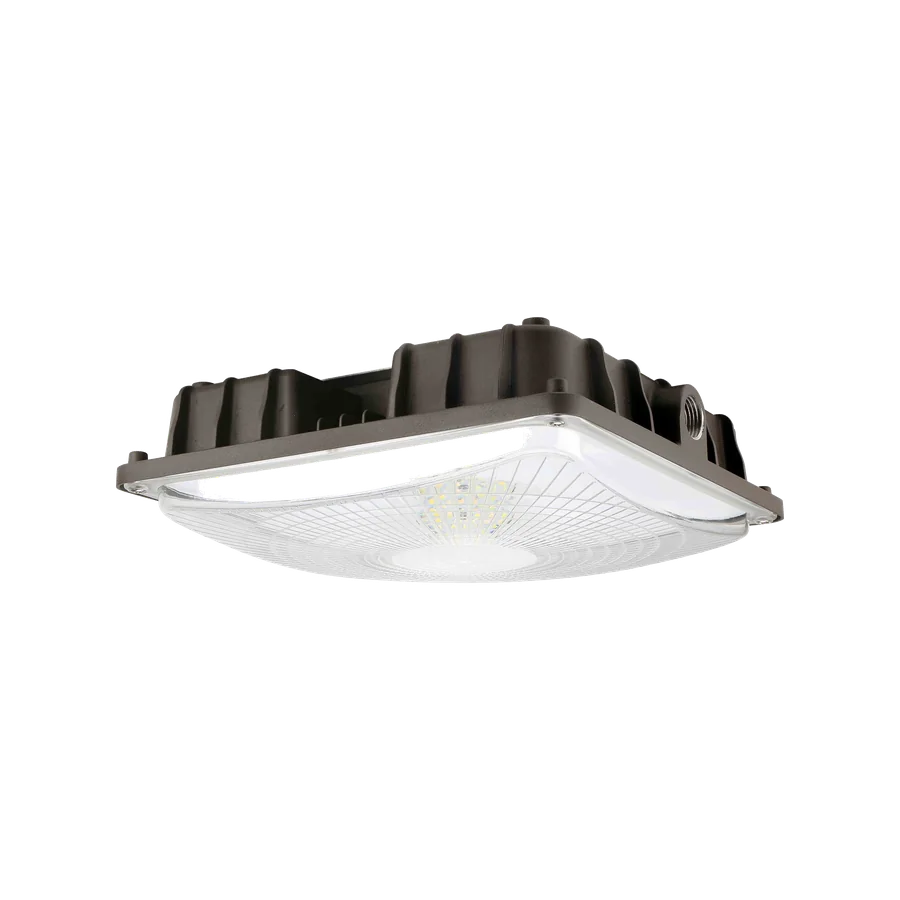

Two PRO canopy SKUs on the luxoⒶRCH LCNP family — Navigator (this page) + Pathfinder. Both IP65 wet-location, 0-10V dim driver standard on universal 120-277V. Differ on networked controls/CRI/beam (Navigator leads) vs. efficacy/warranty (Pathfinder leads). DLC SSL status varies — see each PDP’s rebate section.
/MSP- ladder. The product on this page.

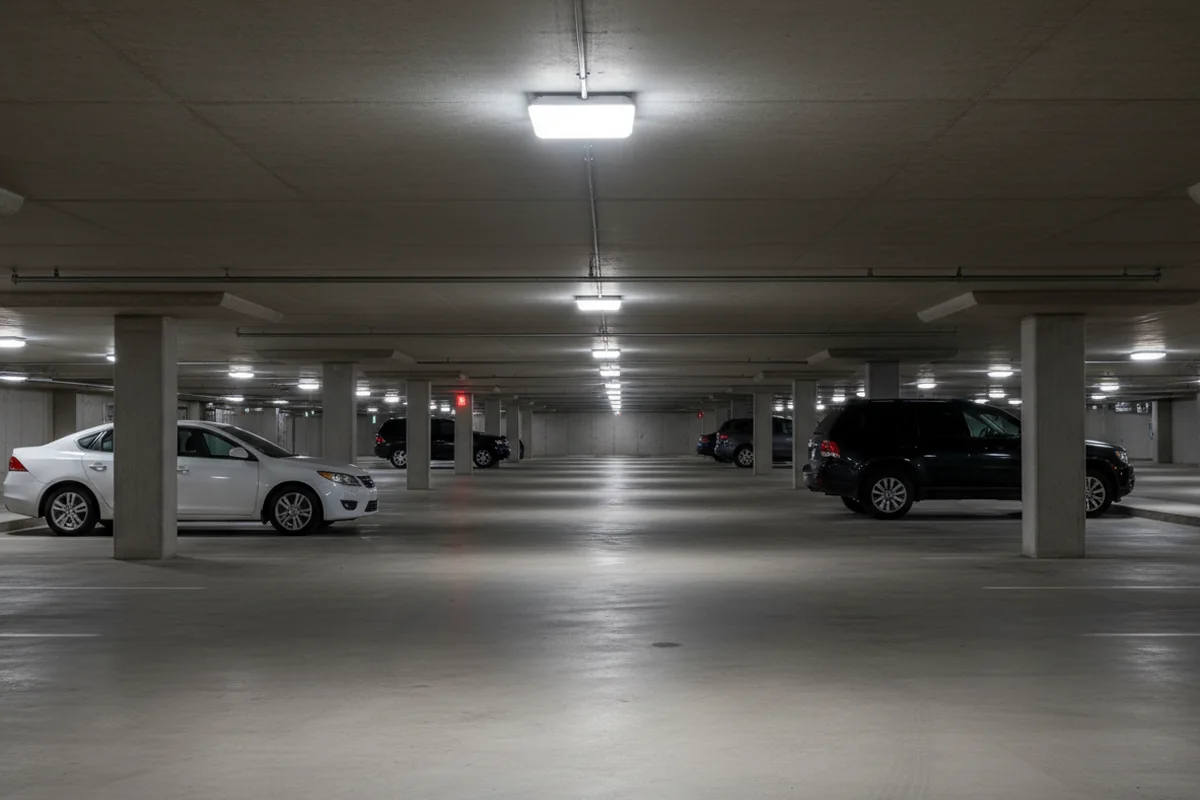

/BLS integrated photocell + /EM05 emergency battery. Pick Pathfinder when the project's spec leads with efficacy or warranty — parking-garage retrofit, school soffit, drive-through with 24-IN-1 economics.
From the canopy to the parking lot.
Navigator lights the canopy with networked controls + higher-CRI optic. These cross-line fixtures cover the rest: perimeter wall packs, parking-lot poles, façade-wash flood, agricultural utility area light. Same engineering language, same warranty path, same factory.
Direct line to your regional rep.
Five US warehouses ship in 2–3 days. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. Networked controls commissioning (ⒶCS join sequence + SILVAIR Bluetooth Mesh pairing) gets a dedicated controls-engineering hand-off — no portal-as-the-only-channel: you get a person.
Two rebate paths in one canopy — when the controls module qualifies, you stack.
Navigator's rebate angle is the controls path: /MSP-ACS in DLC NLC application — once qualified, unlocks a stackable NLC rebate on top of SSL (a path Pathfinder's 0-10V can't access). At 120 lm/W typical, Navigator clears DLC Standard 100 with margin (Premium 130 is Pathfinder's lane). CRI >80 clears Premium 70 · 5-yr / 50k-hr warranty matches Premium minimum. DLC SSL also in application — no pre-printed QPL ID.
