LPVT · PROⒶRCH · PLANOⒶRCH PRO+

LPVT · proⒶRCH-T ECO

Two DLC programs. One SKU.

Two wattage classes, one center-basket platform. T1 STANDARD covers 18-44W; T2 HIGH-OUTPUT covers 20-50W (up to 6,500 lm). One SKU class qualifies for two DLC rebate envelopes (Ambient + Low-Bay). 1 kV surgeⒶRMOR + thermalⒶRMOR -20°C + TAA Mexico baked in.

Max Lumens: 6,500 lm (T2 LPVT24 · 50W) Efficacy: 125 LM/W flat Warranty: 5 yr · 50k hr

Ideal Applications

Warehouse

Industrial

Gym

Retail

3-WATTSELECT

3-CCTSELECT

DUAL-LISTED

SURGEⒶRMOR

TAA COMPLIANT

DampGuard ThermalⒶRMOR · -20°C ConstⒶNT-Ready ContrⒶLS-Ready

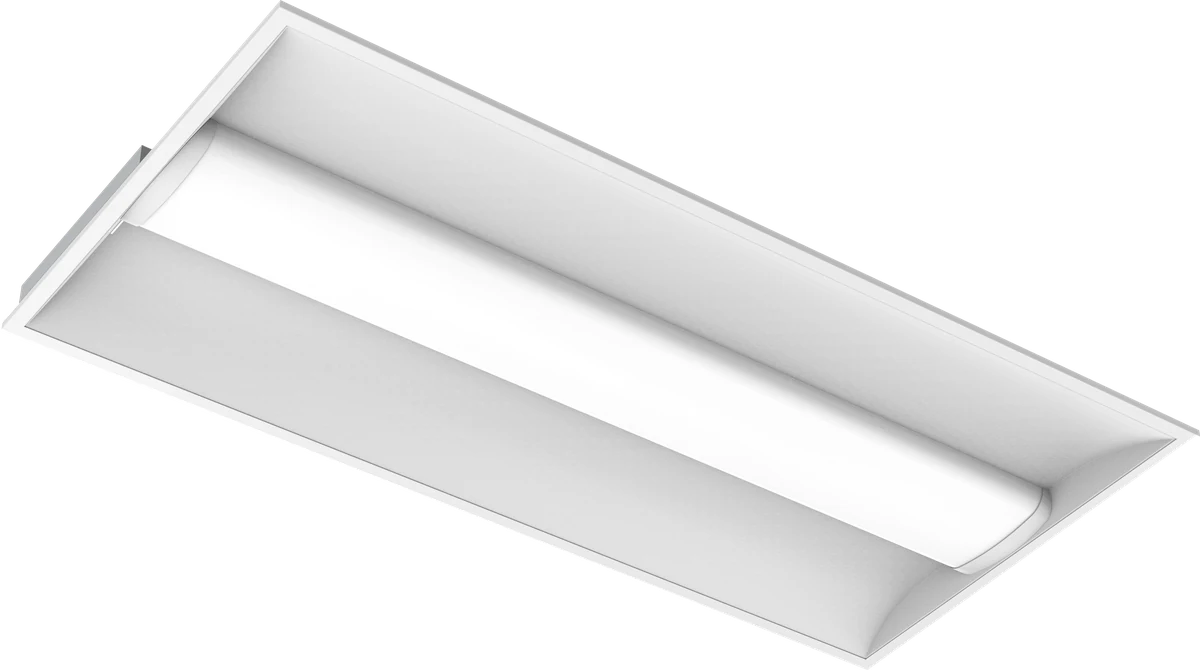

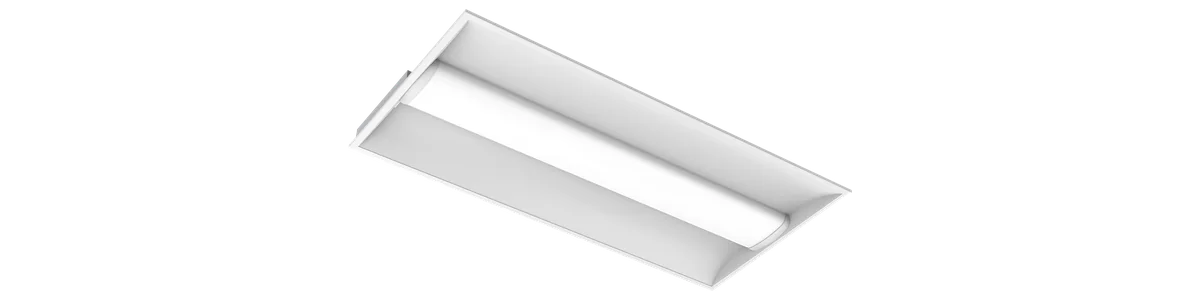

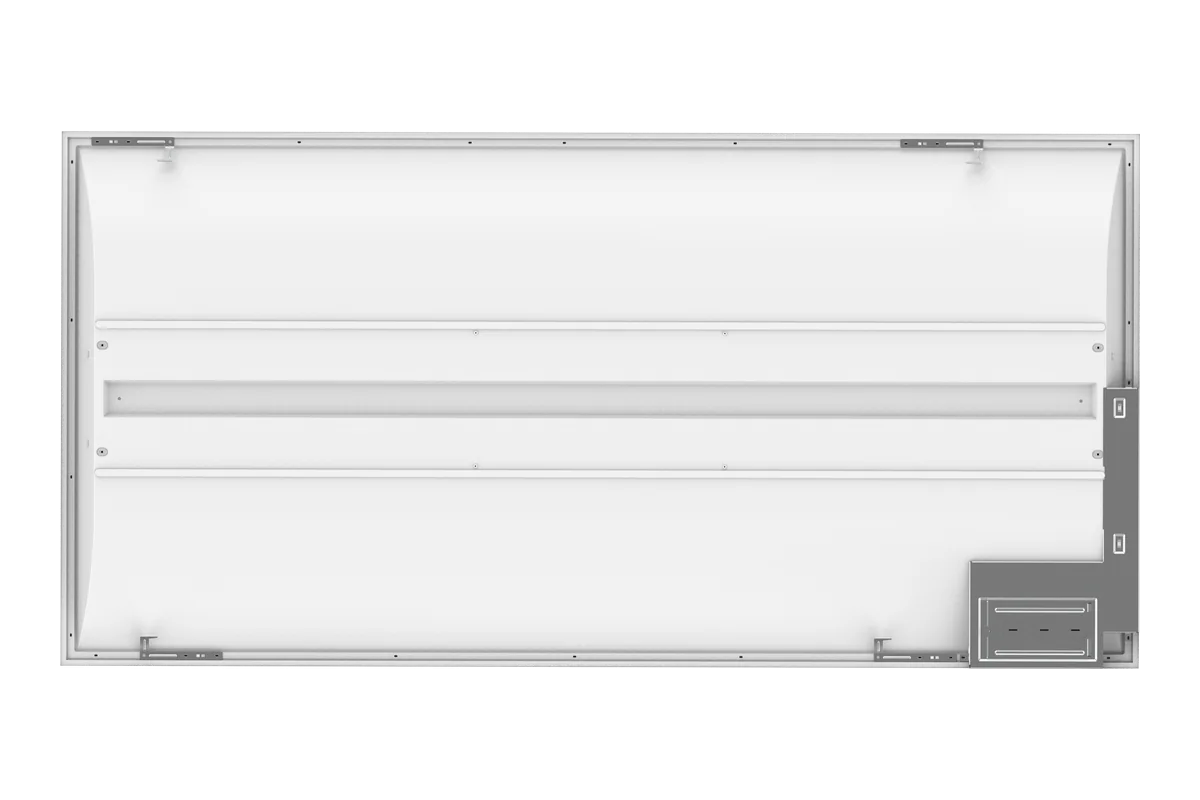

LPVT24 proⒶRCH-T · 2×4 center-basket troffer · 3/4 angle hero

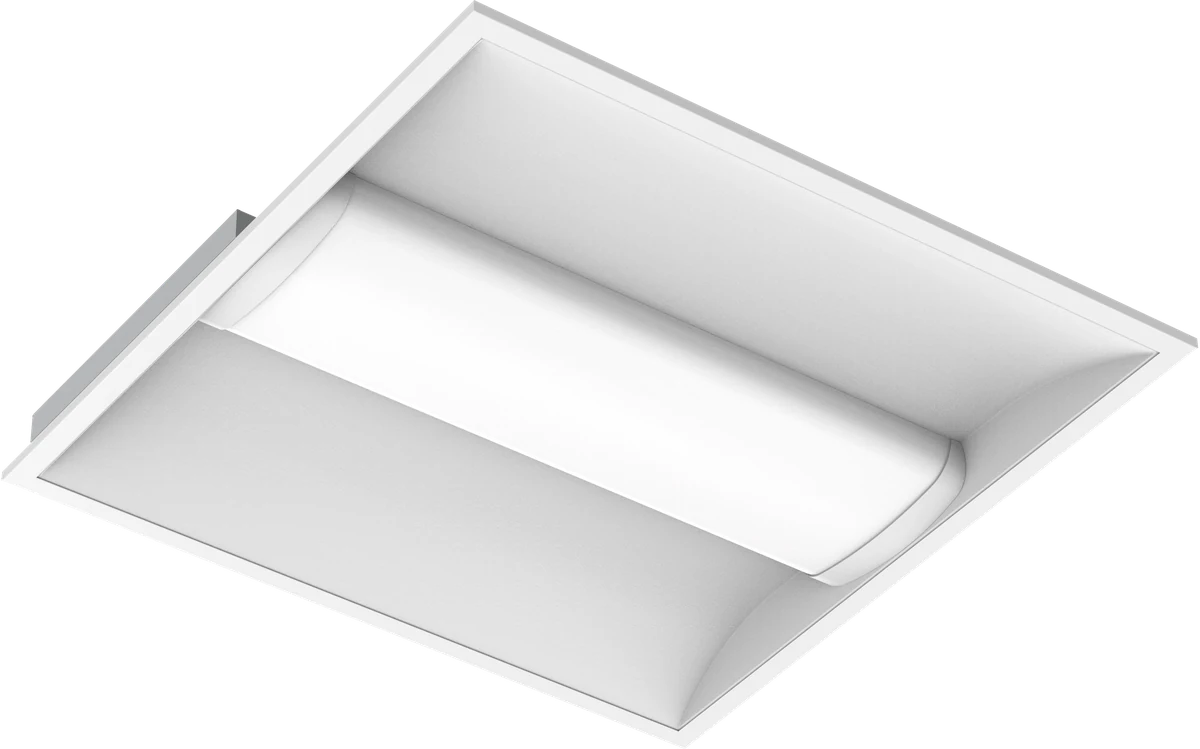

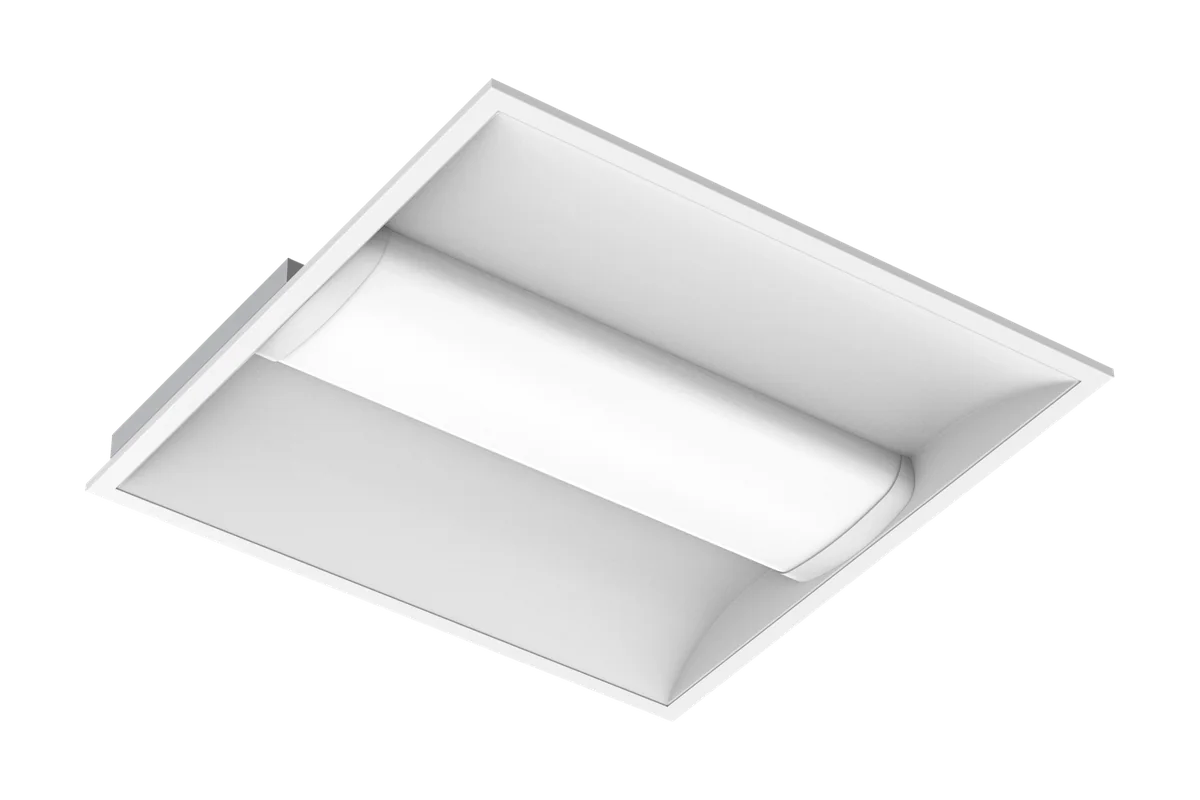

LPVT22 proⒶRCH-T · 2×2 center-basket troffer · 3/4 angle hero

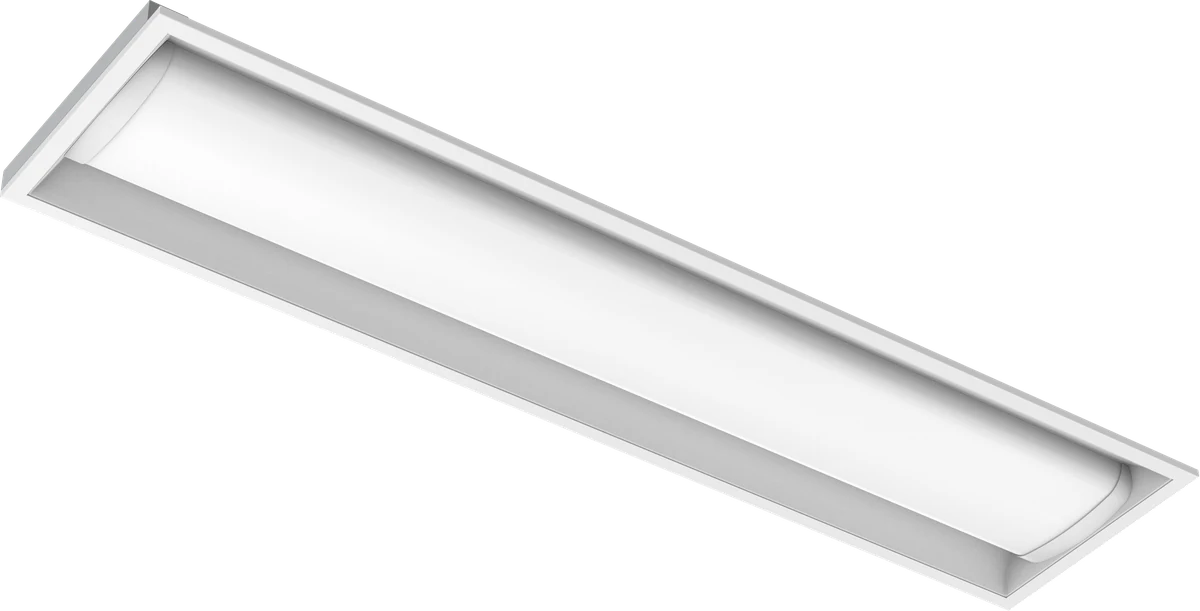

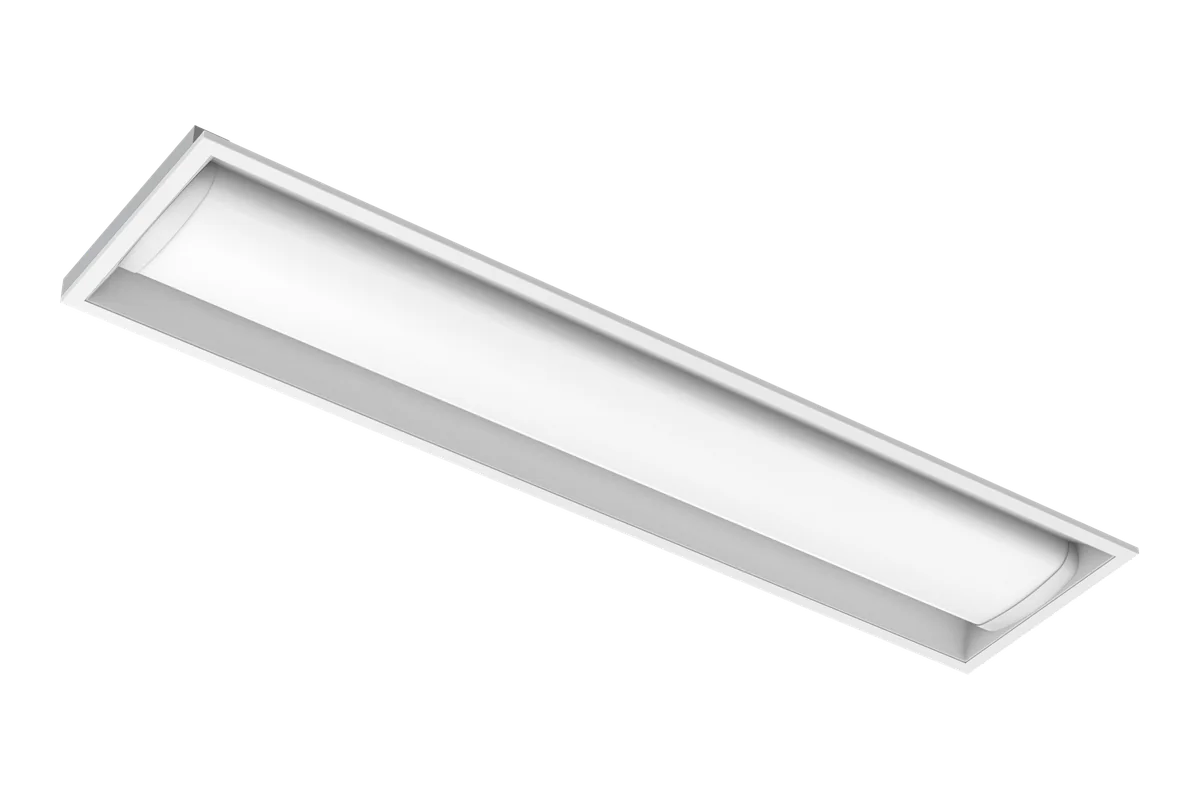

LPVT14 proⒶRCH-T · 1×4 center-basket troffer · 3/4 angle hero

cULus

DLC Listed

FCC

RoHS

Model Specifications

Download Data Sheet

Application

Indoor · Commercial Troffer

Form Factor

1×4 · 2×2 · 2×4 Recessed troffer · T-bar grid drop-in · 2.83″ depth flat

Distribution

120° uniform · Lambertian White prismatic PC diffuser · shadow-free dual-array LED

Location Rating

Damp Location · -20°C / 40°C DampGuard · UL Damp · IP20 indoor · thermalⒶRMOR cold-start

Warranty

5 yr · 50k hr Limited Liability

Class:

3-WATTselect	Lumens	lm/W	3-CCTselect	Status

★ Default WATTselect setting · ★ on HIGHEST WATT per datasheet pg 2 (max lumen output). Field-adjustable via 3-position DIP switch on the driver. Lumens measured per datasheet pg 2. 18 real LM-79 IES files on disk (T1 default WATTselect only · 3 sizes × 3 CCTs × 2 voltages · LM-79 EVERFINE GO-2000B 2023-09). 125 LM/W constant efficacy across the full WATTselect dial — competitors slope down at the low end. T2 IES bundle pending — awaiting ALG release. CCT options: 3500K / 4000K / 5000K (no 3000K · heads up: warm-CCT projects route to Luxmark or premium-tier center-basket troffers). CRI >80 R9≥0 (commercial-ambient tier · heads up: not 90+ spec-grade · spec-grade projects route to Astra-I). 0-10V Dim-to-Off · flicker <5% (IEEE 1789-2015). Voltage 120-277V Universal (108-305V wide). 1 kV surgeⒶRMOR standard (IEC/EN 61000-4-5). thermalⒶRMOR -20°C to 40°C. DLC Premium Dual-Listed Ambient + Low-Bay — verification pending Rebate Center per CFG-RBT-2.

Dimensions

(For the selected size class)

planoRCH Production · TAA Made in Mexico

Inside the Factory.

Robotics handle every precision station. Humans handle every QC pass. The floor behind QuickShip and the /TAA Made-in-Mexico stamp.

T1/T2 Class × 3-WATTselect × 3-CCTselect · Dip-Switch Configuration

Pick the class. Pick the size. Pick the watt & CCT.

Pick the class, size, watts, and CCT. 45 install configs across 5 SKU classes.

Class

SKU Class

3-WATTselect

3-CCTselect

Typical Application

Low-bay industrial · tall-ceiling warehouse 15-25 ft mount · high-output retail — 5000K cool daylight at 6,500 lm covers ground-plane footcandles competitors need 2 fixtures for

Install Lumens

6,500lm

Efficacy

130LM/W

SKU Fragment

MXP2/W50/C50

LPVT24-MXP2/W50/C50 — proⒶRCH-T2 HIGH-OUTPUT · 50W at 5000K · 6,500 lm · 130 LM/W · 2×4 low-bay single-fixture coverage. DLC Dual-Listed · 1 kV surgeⒶRMOR · TAA Mexico.

□

Warehouse

T1 35-44W at 12-15 ft · T2 50W for 15-25 ft tall-ceiling · DLC Low-Bay on T2

△

Industrial

Plant floors · QA labs · T2 50W tall-ceiling · thermalⒶRMOR -20°C · surge vs forklift / compressor spikes

Gym

Drop-ceiling sports · ball-strike-rated PMMA · T1 35W on 2×2 grid

◎

Retail

Sales floors · warm 3500K ambient · T2 40W on 2×2 grid · back-of-house + USPS / GSA leases

Field-Tunable · 15 Configurations Per Fixture

Set the watt. Pick the color. Stock one SKU.

Three WATTselect positions × five CCTselect positions on every Solstice fixture = 15 lighting outputs from one SKU. The contractor sets watt and color on-site with two DIP switches — no SKU change, no return trip to the supply house. Volume-tier competitors split CCT range across multiple SKUs (volume-tier downlights) or fix the wattage at one value (volume-tier downlights); Solstice gives the spec writer all 15 from a single line item.

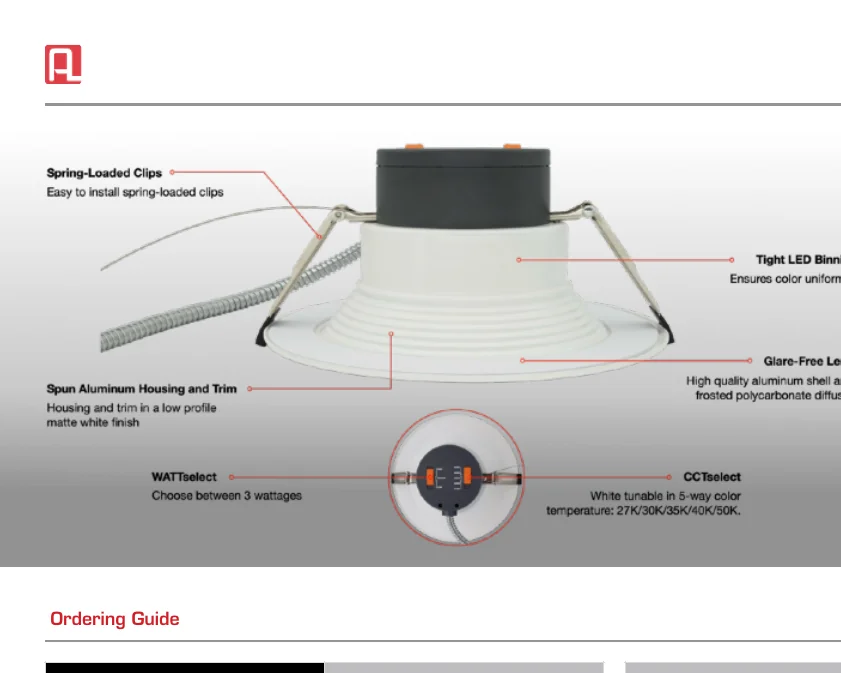

LCDL Solstice cutaway with WATTselect and CCTselect dial labels

The two dials sit on the back of the housing — accessible during install before the trim ring goes on. Set them once on the job site; the fixture remembers the setting for the life of the install.

Try it · pick a watt and a CCT

LCDL6 · 6" · default tab

3-WATTselect

5-CCTselect

Resolved SKU

LCDL6-1222CS

Lumens

2,200lm

Efficacy

100LM/W

CCT

5000K

Color preview

Default = 22W ★ · 5000K ★ (datasheet-bolded). Switch tabs in §2 above to see LCDL4 / LCDL8 / LCDL10 watt tiers; the 15-CCT range stays constant across all four sizes.

Configurations per SKU

3 WATTselect × 5 CCTselect — every fixture, every size, no exceptions

Return trips to the supply house

Contractor changes watt or CCT on-site at install — no swap-out, no restock

5×

SKU-line consolidation

vs volume-tier downlights (3-CCT split into 2 SKUs) and volume-tier downlights (separate phase-cut + 0-10V SKUs)

Highlights & Features

proⒶRCH-T: the industrial-grade center-basket troffer.

Six highlights you'll feel from bid sheet to commissioning — DLC Dual-Listed rebate stack, 6,500 lm T2 peak, 1 kV surgeⒶRMOR standard, TAA Made-in-Mexico, 45 field configs, and thermalⒶRMOR -20°C cold-start.

— Bid-Sheet Hammer

DLC Dual-Listed Ambient + Low-Bay.

One SKU class qualifies under both DLC utility rebate programs. Stop forking BOMs into a corridor + low-bay track — proⒶRCH covers both lanes from one part number. Max the $/fixture rebate stack on a single bid sheet.

High Output

T2 hits 6,500 lm at 125 LM/W.

The T2 HIGH-OUTPUT class on 2×4 delivers 6,500 lm at 50W — one fixture covers the ground-plane footcandles that take two units at the 12-25 ft low-bay mount. DLC Low-Bay rebate qualifies on T2 output.

Surge

1 kV surgeⒶRMOR. Standard.

IEC/EN 61000-4-5 1 kV surge protection baked into every MXP1 / MXP2 driver — no price-up suffix. The volume-spec answer for warehouses with forklift, compressor, and welder spikes hitting the panel.

Procurement

TAA Compliant. Baked into MXP1/MXP2.

Made in Mexico ships TAA-eligible by default — covers GSA leases, USPS retrofits, DoD installs under the Trade Agreements Act. One proⒶRCH bid sheet covers commercial + federal procurement lanes.

Warranty

5-year / 50,000-hour warranty.

5-yr · 50,000-hr L70 · DLC Premium baseline. Extended 10-yr available on the same SKU class — one part number, two warranty horizons.

Configurable

45 field configs. 5 SKU classes.

T1 STANDARD on 1×4 / 2×2 / 2×4 plus T2 HIGH-OUTPUT on 2×2 / 2×4 — 45 field-set positions from 5 base SKUs. Contractor sets watt + CCT via dip-switch at install. One platform, one accessory ecosystem, one bid sheet.

Cold-Start

thermalⒶRMOR -20°C to 40°C.

-20°C cold-start standard on MXP1 + MXP2 — the answer for cold warehouses, parking garages, and mezzanine retrofits where typical center-basket troffers quit at 0°C.

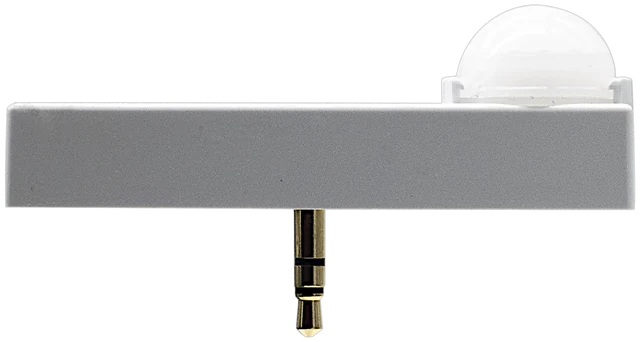

MSP-BLS · PIR Bi-Level standalone sensor head · MSP-HTI/08P1/BLS fixture-mount module

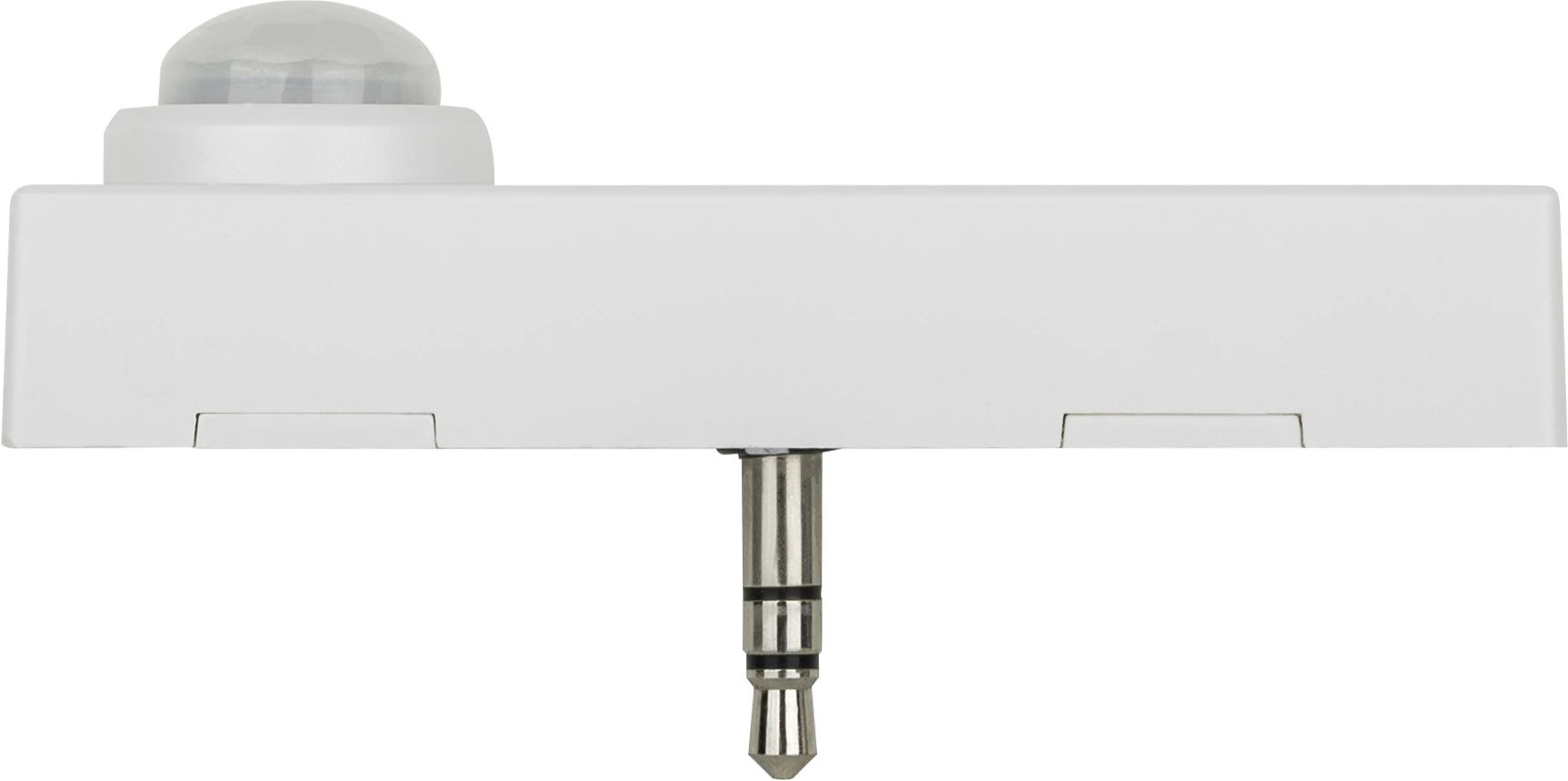

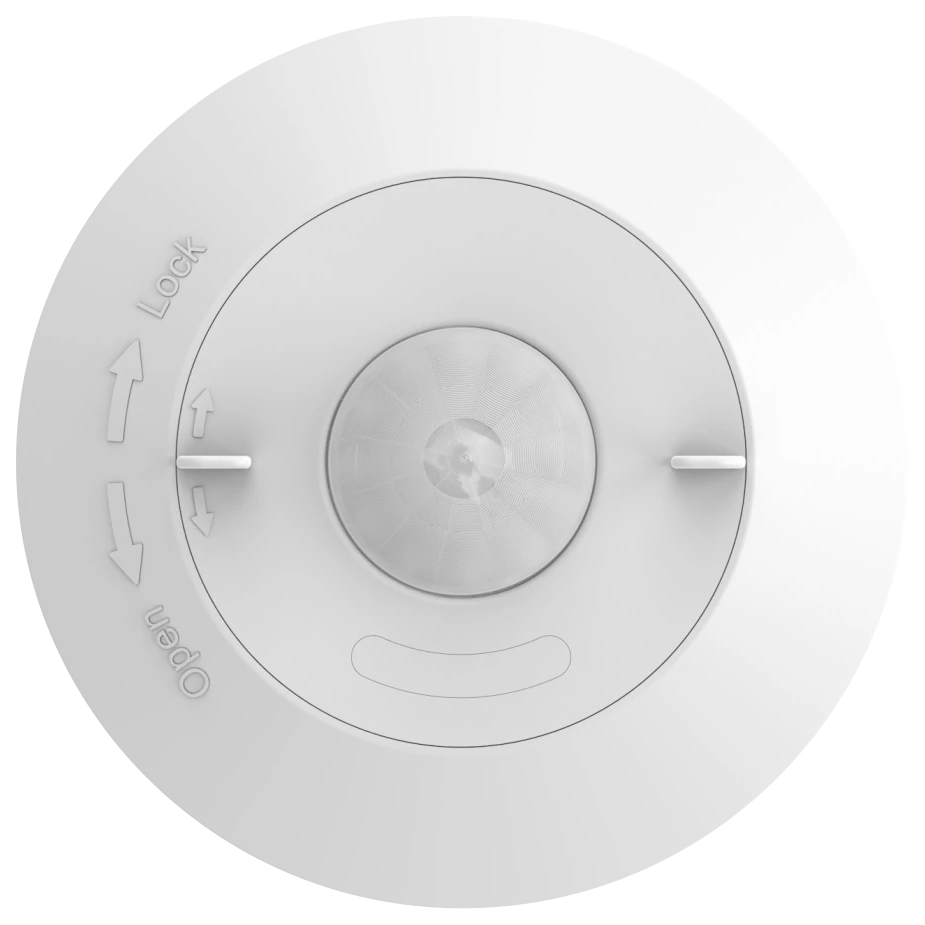

MSP-ACS · 8FT fixture-mount ⒶCS PIR sensor · MSP-SRI/903P1/ACS

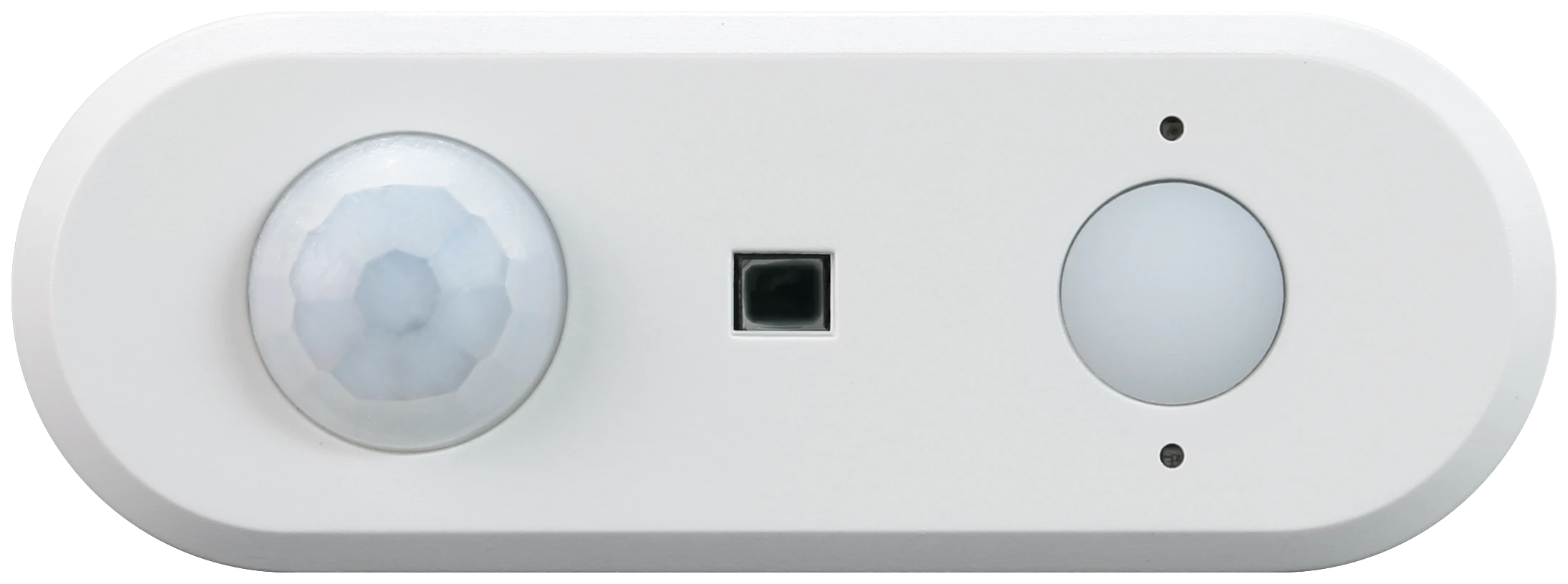

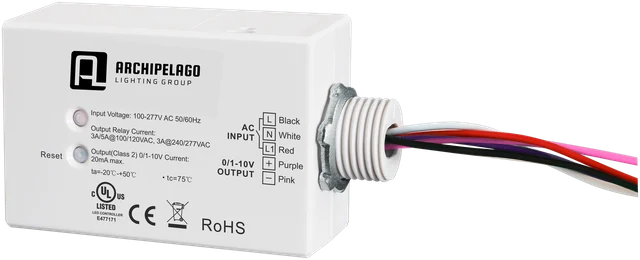

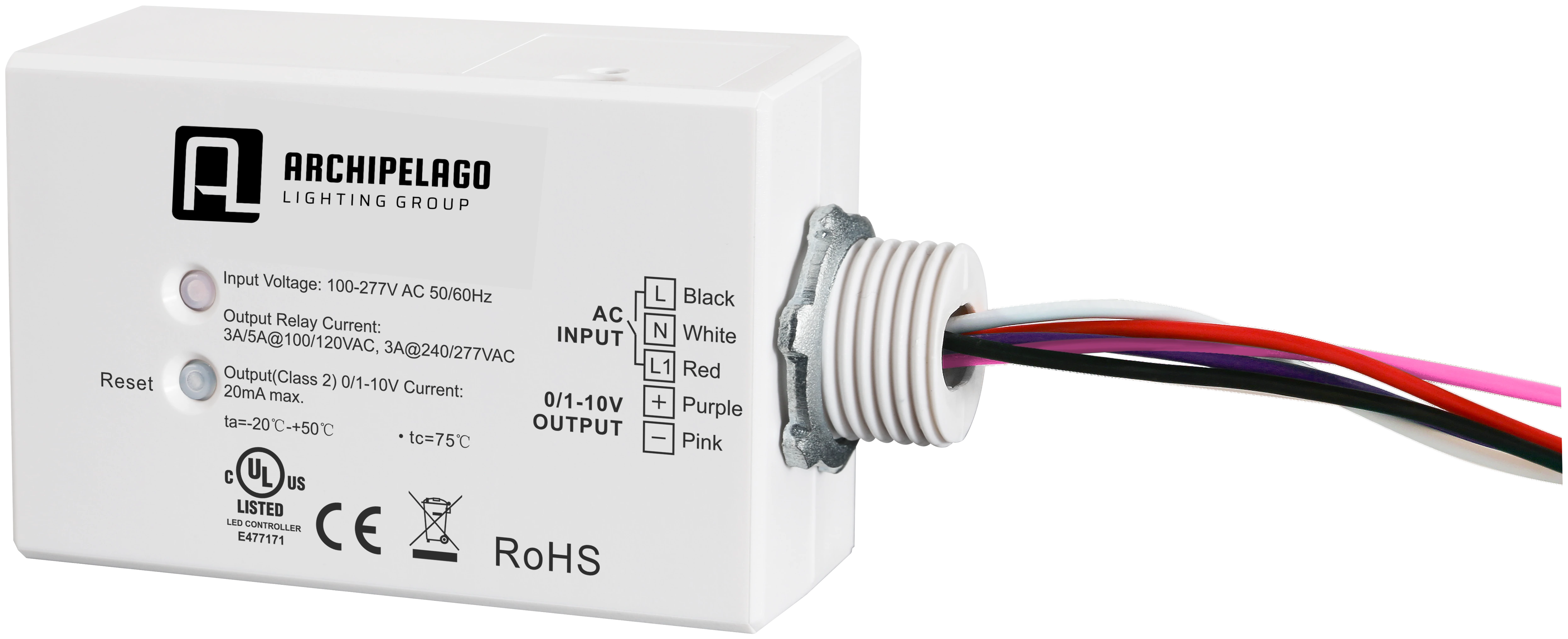

MSP-HTI-NLC · SILVAIR Bluetooth Mesh PIR sensor · MSP-HTI/08P1/NLC compact fixture-mount

contrⒶLS

Total Adaptive Control.

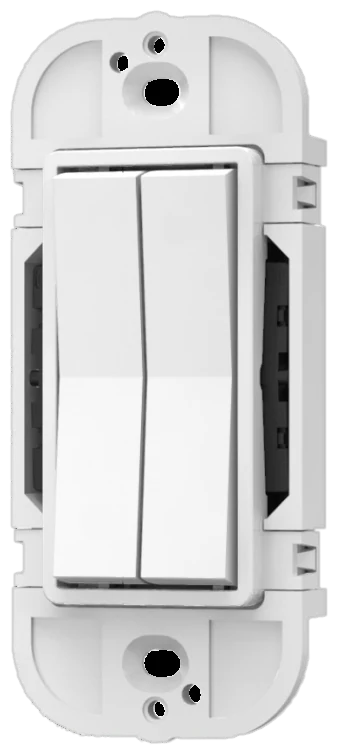

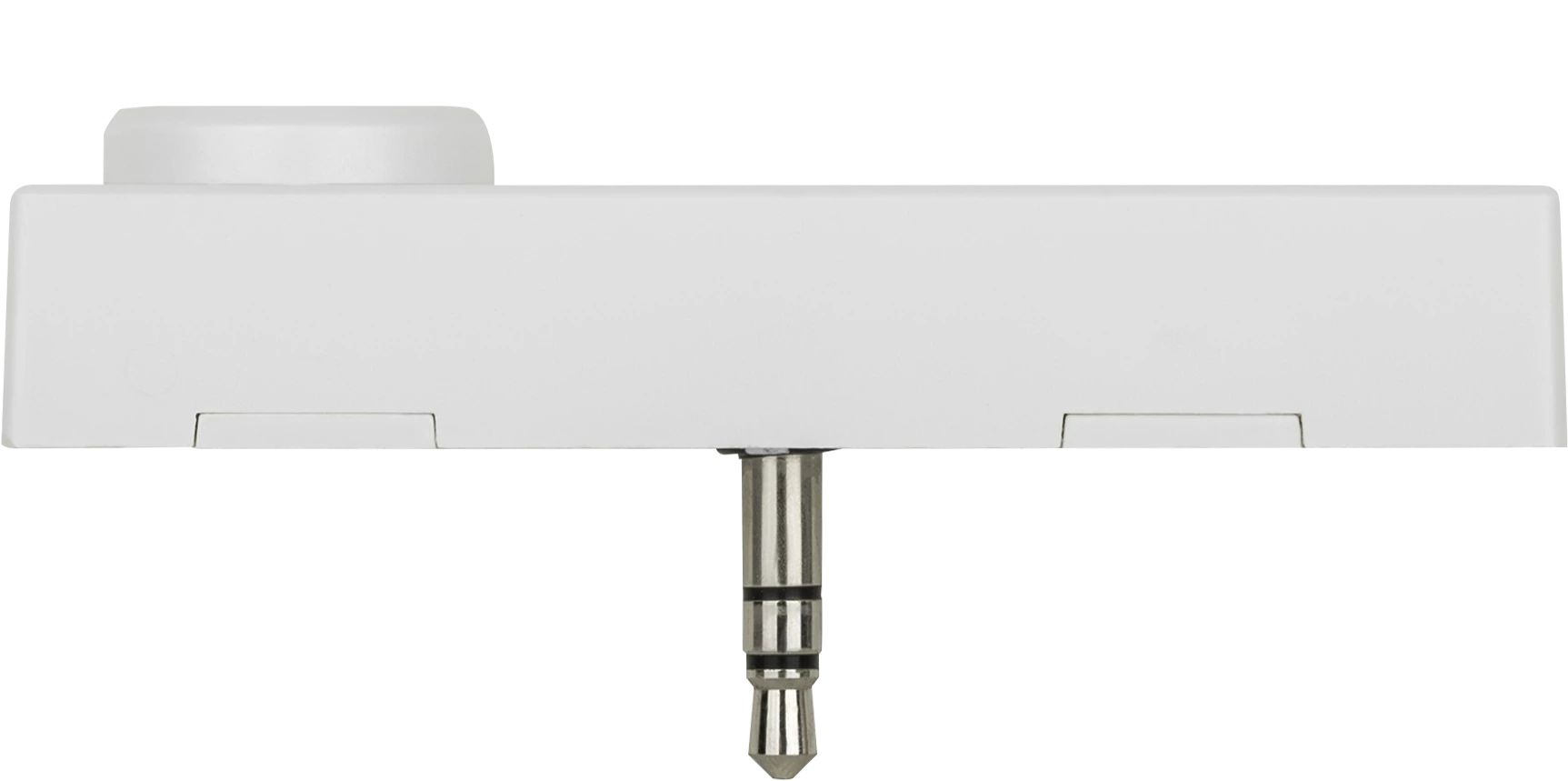

One /SR port, three commissioning paths — Bi-Level standalone for drop-in code compliance, ⒶCS Bluetooth mesh, or SILVAIR enterprise mesh. Both DLC rebate envelopes covered from a single fixture.

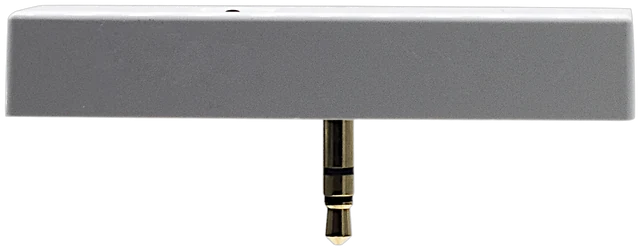

Two-stage hardwired bi-level — full output on occupancy, dimmed standby on vacancy. No commissioning, no gateway, no app. PIR (MSP-BLS) or Microwave (MSM-BLS) · 13′ fixture-mount.

Discover contrⒶLS →

Photometric Distribution

Beam shape, rendered from the LM-79 IES file.

Every plot renders directly from LM-79 measured IES candela tables — no interpolation. Wide 120° Lambertian from the white prismatic PMMA diffuser. Pull the IES bundles into AGi32 / Visual / DIALux — what you see is what your model gets.

Class

SKU Class

WATTselect

CCTselect

LPVT proⒶRCH-T LPVT24 measured polar photometric distribution · 120-degree Lambertian troffer distribution from white prismatic PMMA diffuser

Peak Candela

—

Total Lumens

—

Distribution & DLC Listing

120° WIDE WHITE PRISMATIC PC CRI >80 DAMP LOCATION DLC PREMIUM · DUAL-LISTED

Wide 120° Lambertian from the white prismatic PMMA diffuser — shadow-free, 100% downward emission. DLC Premium Dual-Listed in Ambient + Low-Bay categories. CRI >80 standard at every CCT.

Test Lab Source

IESNA LM-79 / LM-80 · EVERFINE GO-R5000 · 2025-11
Troffer 2x4 120V 44W 5000K_IESNA2002.IES

Download IES Bundles · T1 (18 files) + T2 (6 files) · AGi32 / Visual / DIALux ready

Accessories

Engineered Accessories

Engineered to preserve DLC Dual-Listed rebate eligibility — every contrLS sensor is DLC NLC-qualified, every constNT emergency driver is UL 924 listed.

Build Your Model

Configure Your proⒶRCH-T

Pick Dimensions, then Class. Each selection unlocks the next field. SKU resolves live as you go. T1 ships all 3 sizes; T2 ships 2×2 + 2×4 only. DIP-switches are field-set at install. Required fields marked with *. See the legend below for ★ / QS / MTO meanings.

0 of 4 required selected

Required

Build the fixture SKU · ★ defaults · WB locks

Dimensions* —

Class* —

3-WATTselect · ship-default (non-default ships as WB factory lock)* —

3-CCTselect · ship-default (non-default ships as WB factory lock)* —

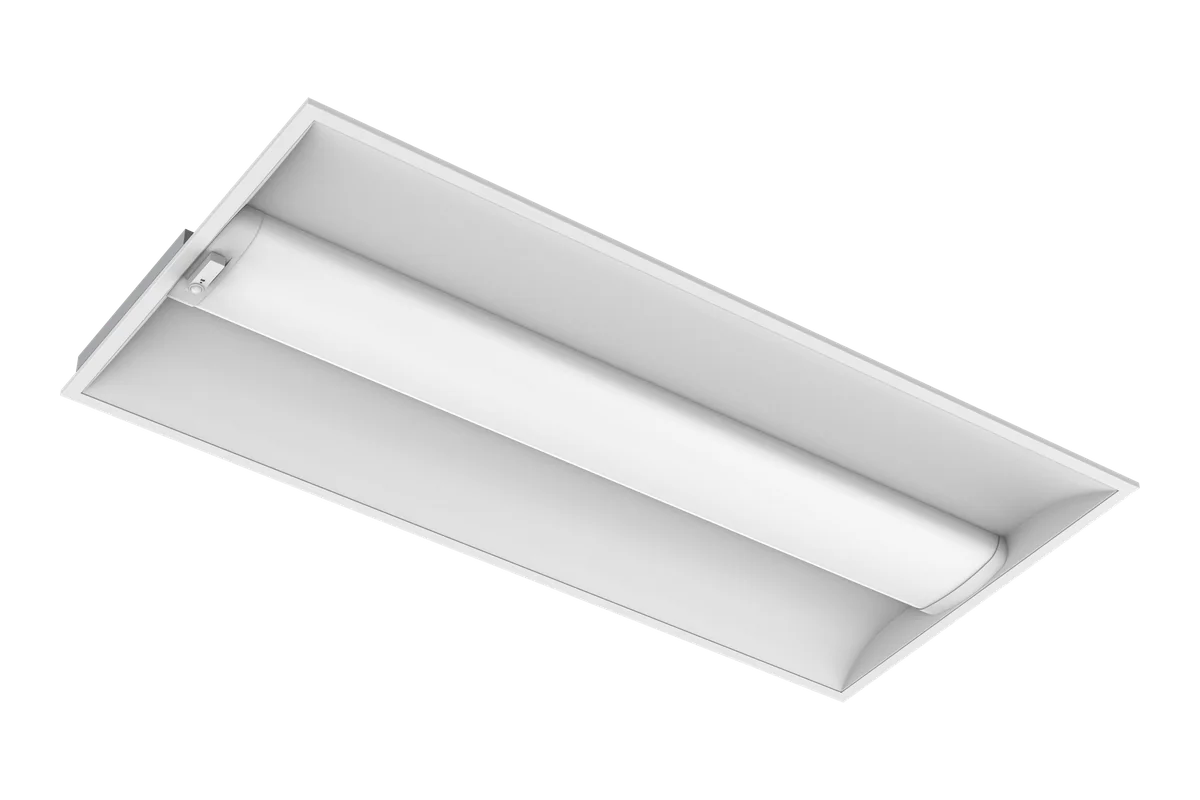

Sensor-Ready Port (adds /SR suffix · enables fixture-mount contrⒶLS sensors) —

Optional

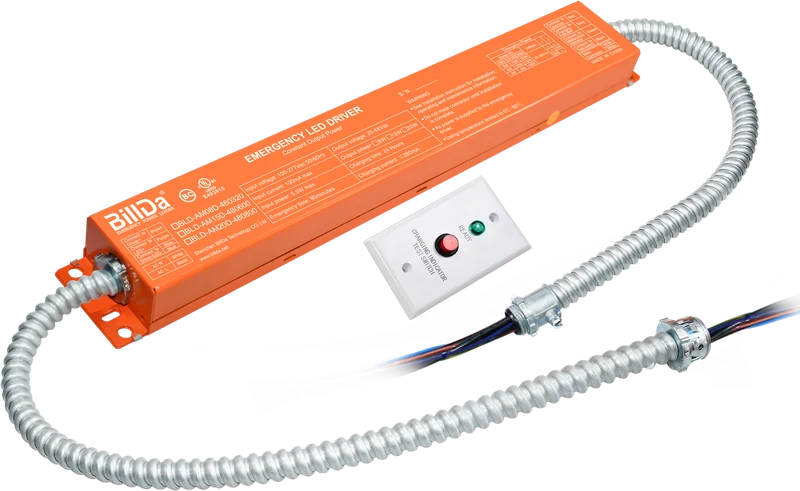

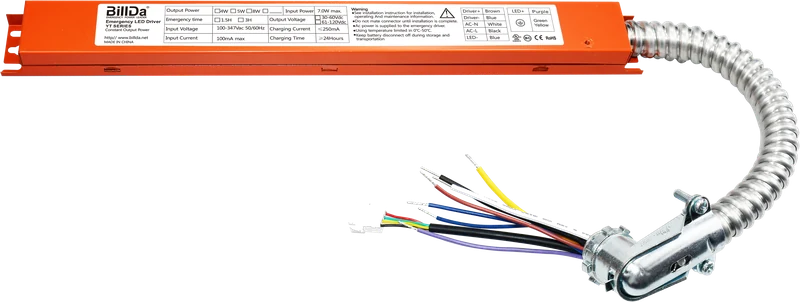

Add accessories · 16 across 3 categories

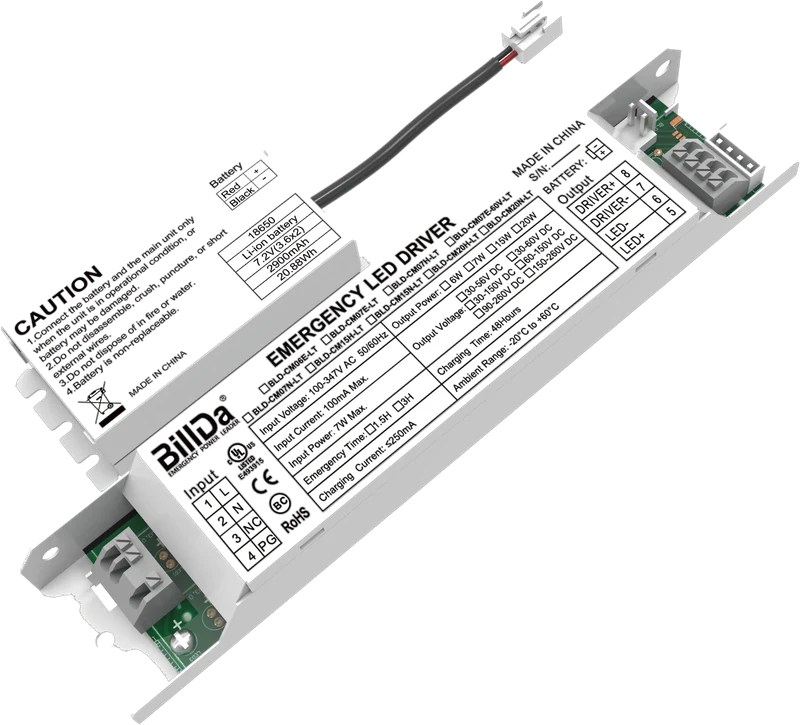

constNT · Emergency Battery (BOM add-on · per datasheet pg 3) —

contrLS · Sensor / Controller (per datasheet pg 3 + pg 7 · requires /SR for fixture-mount) —

Wiring Whip (all dimensions · contractor labor save) —

★ Factory-default ship configuration

QuickShip · 3-5 day lead

Made-to-Order · 4-6 week lead

Workbench · 1-3 week lead (dedicated factory lock)

Estimates · not guarantees · subject to availability · confirm before committing.

Live Preview LPVT24 proⒶRCH-T · 2×4 center-basket troffer · default Live Preview · swaps with Dimension chip

Resolved SKU

LPVT[14|22|24]-[MXP1|MXP2][/W##][/C##][/SR]


            — deriving ship tier —

Max Lumens

—

Efficacy

—

WATTselect

—

CCTselect

—

Form Factor

—

Lifetime

L70 @ 50,000 hrs

Warranty

5 yr · 50k hr

Compliance

DLC Premium Dual-Listed · IP20 Damp · TAA

Configuration incomplete. Pick Class (Step 0) + Dimension (Step 1) to unlock pricing & submittal generation.

Pricing & Availability Generate Submittal PDF Request a Layout

Documentation

Documentation & Resources

Everything specifiers, contractors, and project managers need to spec, install, and certify the proⒶRCH-T — from the datasheet to the LM-79 IES bundle to the configuration-stamped submittal PDF.

PDF Spec sheet · 8 pages · 3.6 MB

Data Sheet

Complete proⒶRCH-T product specifications — wattage tables, dimensions, ordering guide, accessory ecosystem, and certification listings.

Download Rev. 2025-Q4

PDF Install guide · pending

Installation Guide

Step-by-step T-bar grid drop-in, J-Box wiring, DIP-switch commissioning, EM battery harness, and /SR sensor mount procedures.

URL pending · supplier to provide Pending upload

PDF Marketing · pending

SellSheet

Customer-facing marketing collateral — configurable-troffer hero pitch, application pillars, and bid-sheet hooks for rep partners.

URL pending · supplier to provide Pending upload

ZIP 18 IES · T1 default WATT

IES Photometric Bundle

Bundled IESNA LM-63 photometric files for every wattage / CCT combination — drop into AGi32, Visual, DIALux, or Revit for layout simulation.

Download LM-79 · 2023-09

Generated 4-page submittal

Submittal Sheet

Generate a project-stampable submittal package from your current configuration — SKU, photometric data, dimensions, and certifications, all on a single PDF.

Open & Print Reads §9 Configurator

Quick Links

Rebate Center · DLC Tier (verify · Troffer category) Warranty Statement · 5-Year / 50,000-Hr

planoRCH Indoor Ambient Family

Meet the planoⒶRCH family.

proⒶRCH-T is the Dual-Listed industrial center-basket troffer. Three cross-series companions cover the rest of the indoor ambient envelope — proⒶRCH back-lit panel for slim-profile grids, Astra-I commercial downlight for architectural pin-spots, Luna architectural linear for open-office pendant runs.

LPVT · planoⒶRCH · PRO+ You Are Here LPVT proⒶRCH-T · 2×4 center-basket troffer · You Are Here

LPVT · proⒶRCH-T PRO+

proⒶRCH-T

Dual-Listed industrial center-basket troffer. 45 field configs across 5 SKU classes. 1 kV surgeⒶRMOR + thermalⒶRMOR -20°C + TAA Mexico baked in.

LPVT14/22/24 · T1 18-44W + T2 20-50W · 125+ LM/W · DLC Premium Dual-Listed

Currently viewing

LBLP · planoⒶRCH · PRO

LBLP · proⒶRCH PRO

proⒶRCH

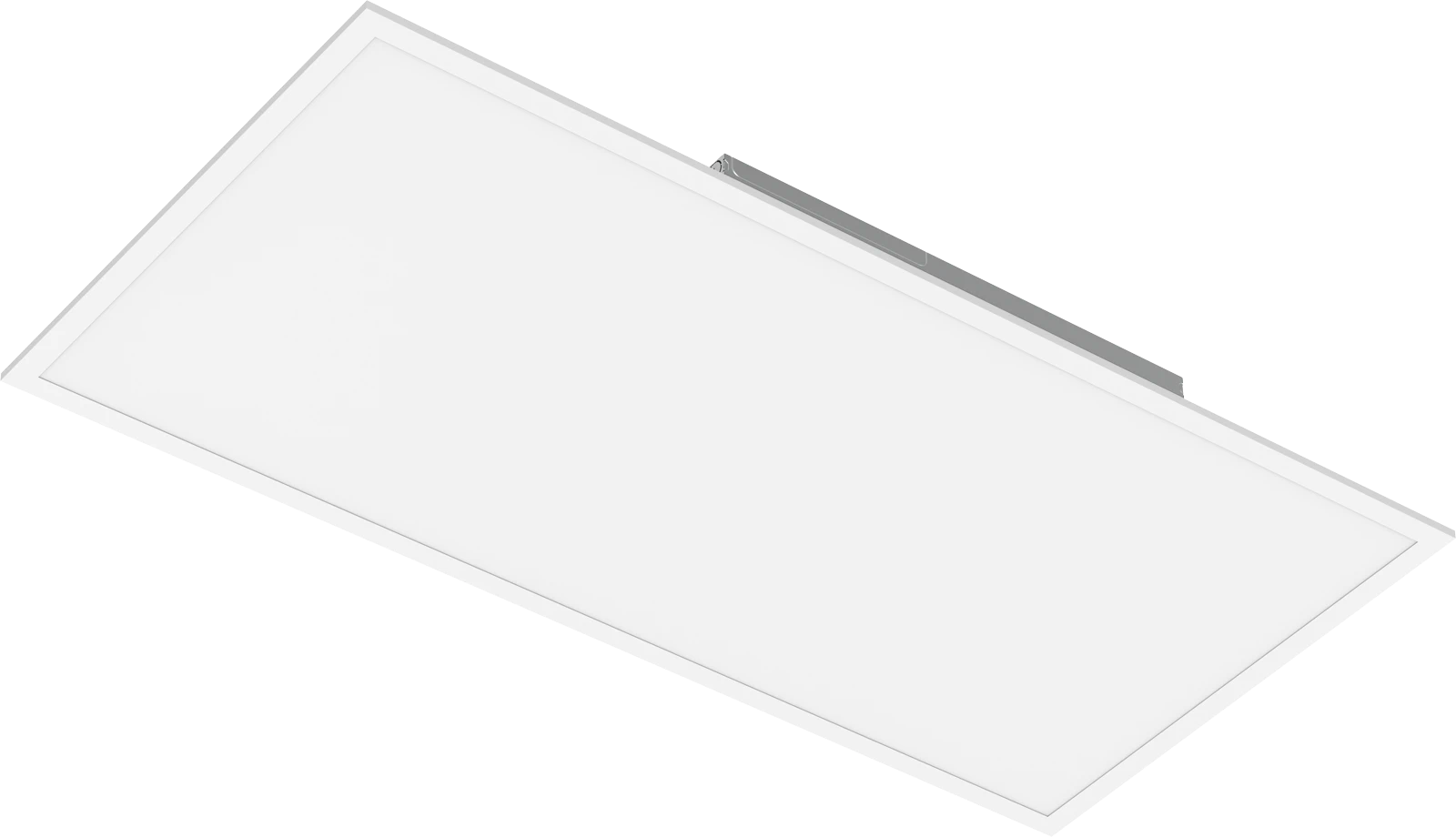

Slim 1.4″ back-lit panel. DLC Dual-Listed Ambient + Low-Bay. Same proⒶRCH lineage in edge-lit form for slim-profile drop-ceiling grids.

1×4 / 2×2 / 2×4 · 20-50W · 130 LM/W · 7-yr

View proⒶRCH →

LCDL · planoⒶRCH · PRO+

LCDL · Astra-I PRO+

Astra-I

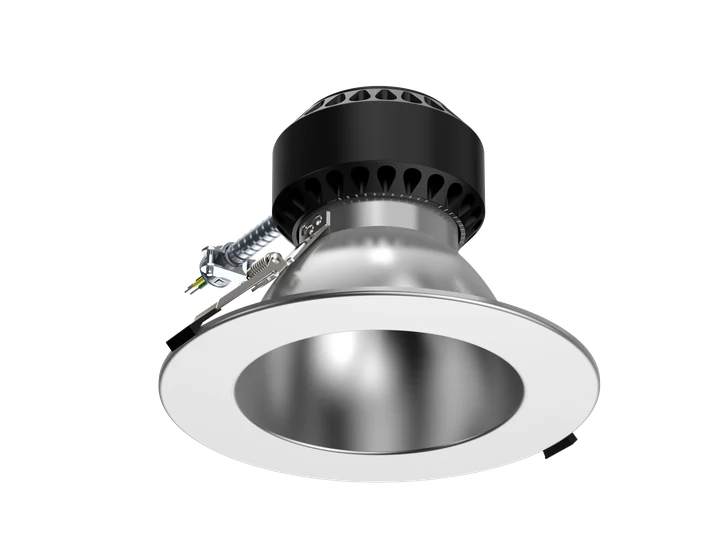

Architectural commercial downlight. 24°-65° adjustable beam · CRI 90+ truⒶCOLOR. Pin-spots, conference rooms, lobby zones — where proⒶRCH covers the open grid.

800-4,650 lm · 8-50W · 4″/6″/8″/10″ · CRI 90+

View Astra-I →

LUXA · planoⒶRCH · PRO

LUXA · Luna PRO+

Luna

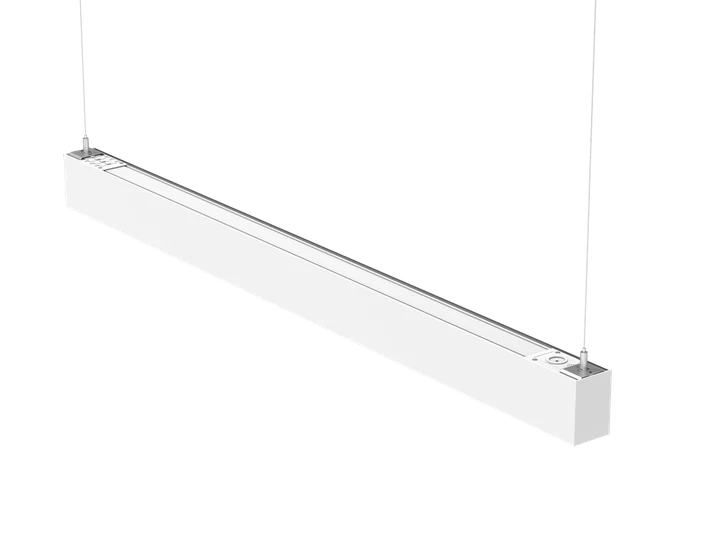

Architectural linear pendant. continuⒶRUN joiners up to 1,000W per circuit. Open-office suspended runs where proⒶRCH covers the ceiling grid.

2FT-8FT · 3-WATTselect · 3-CCT · CRI 90+ · DLC Premium

View Luna →
