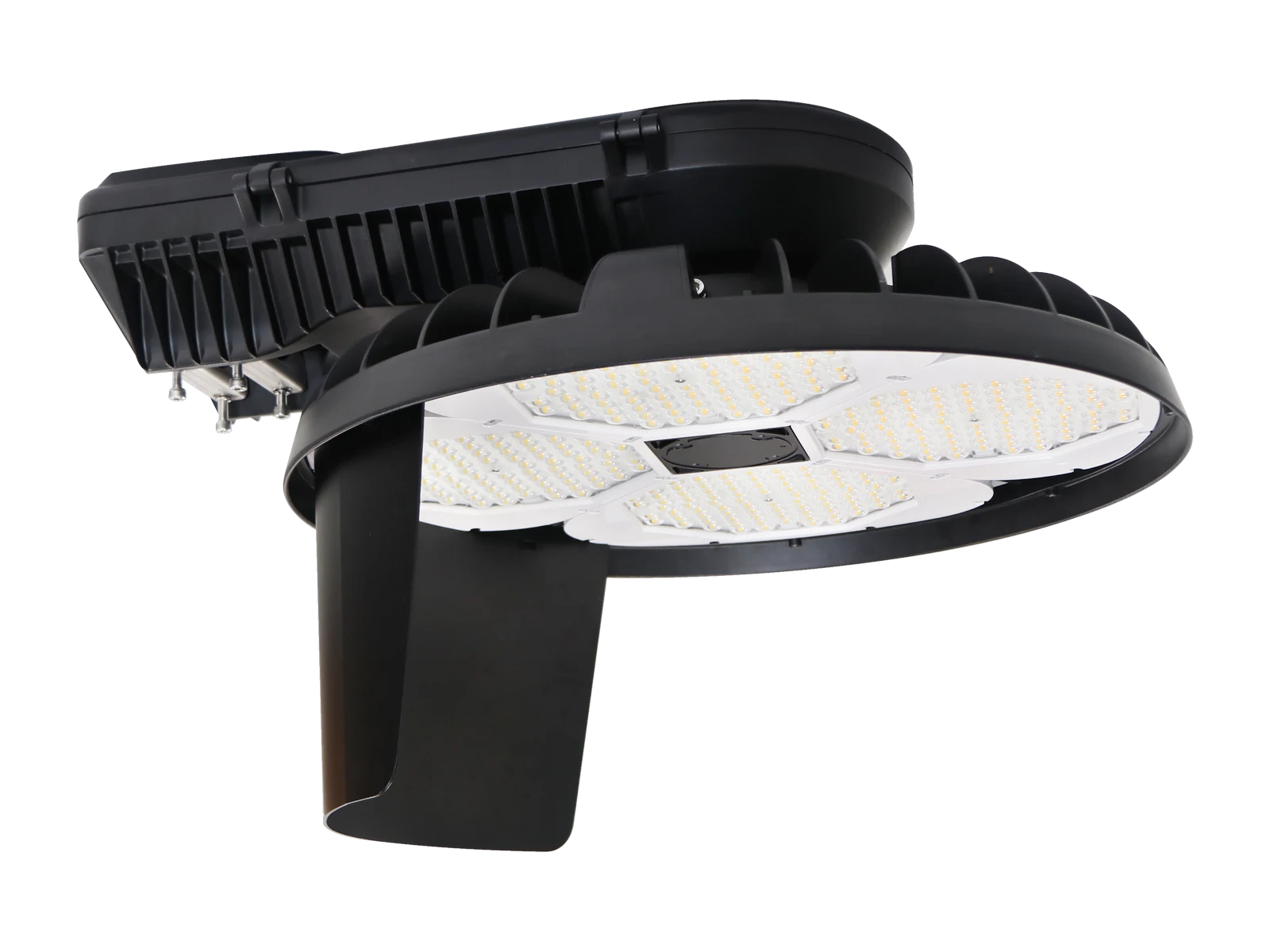

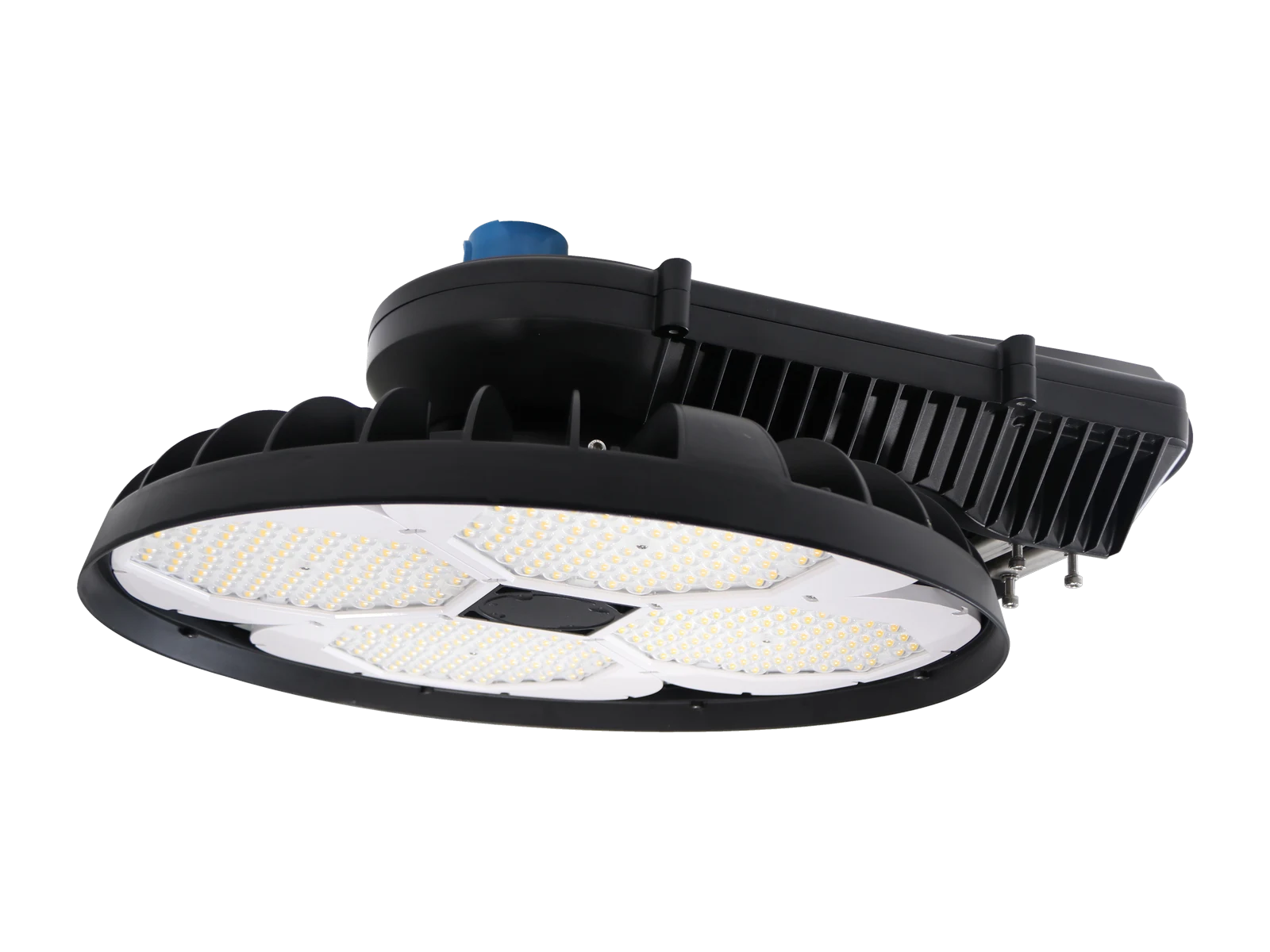

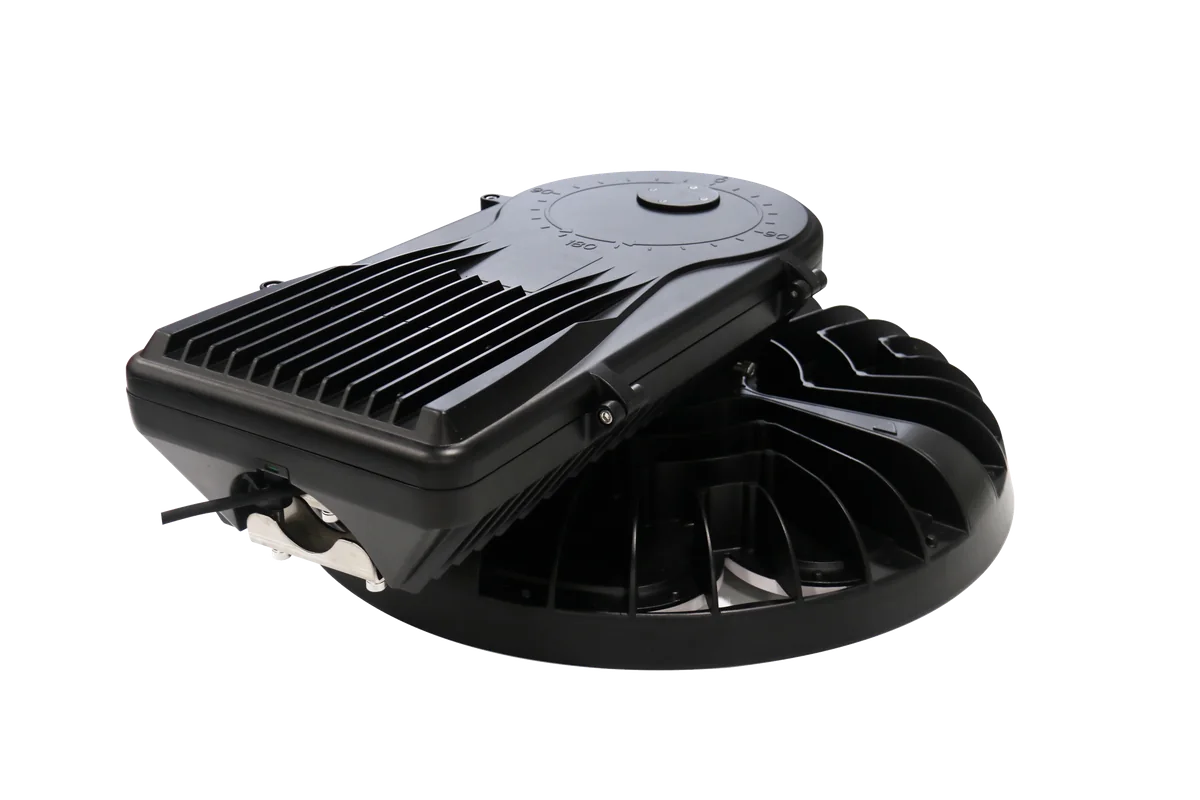

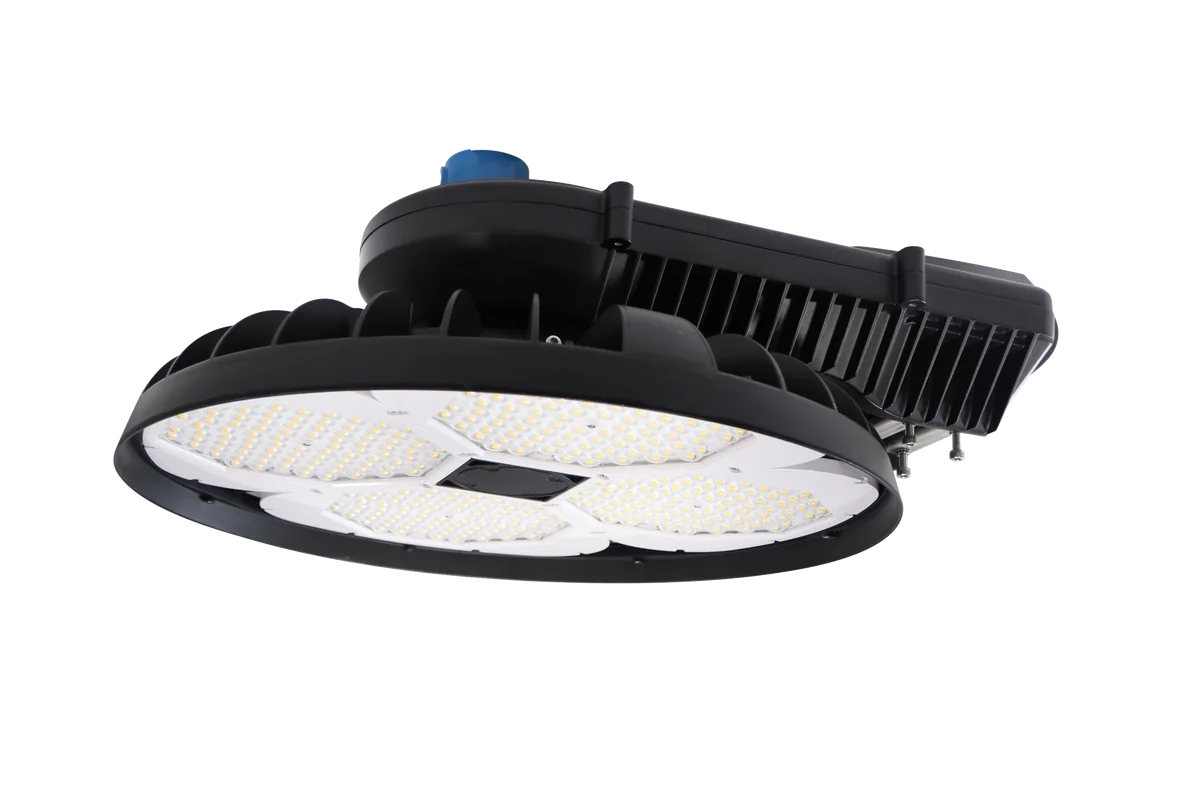

OmniMax LED High Mast Light
Light the whole yard from one ring.

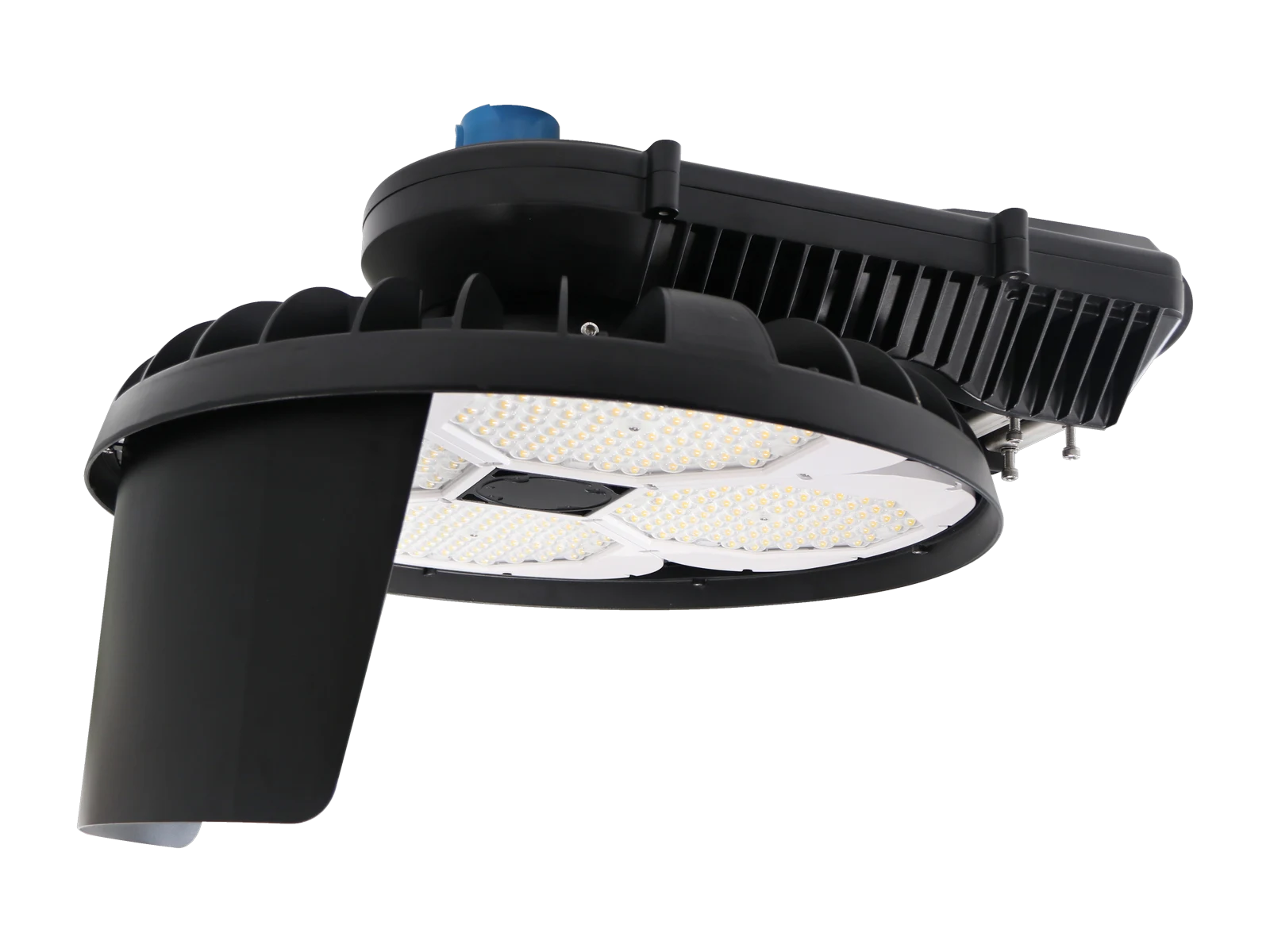

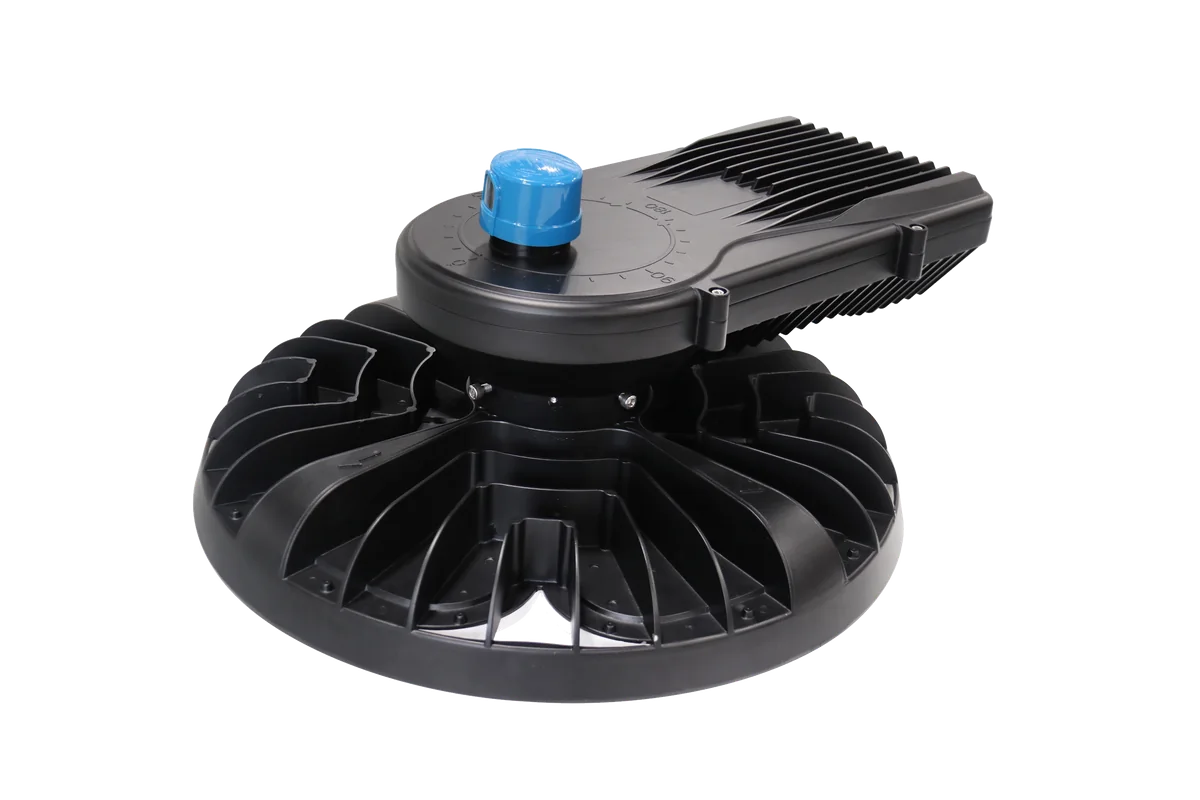

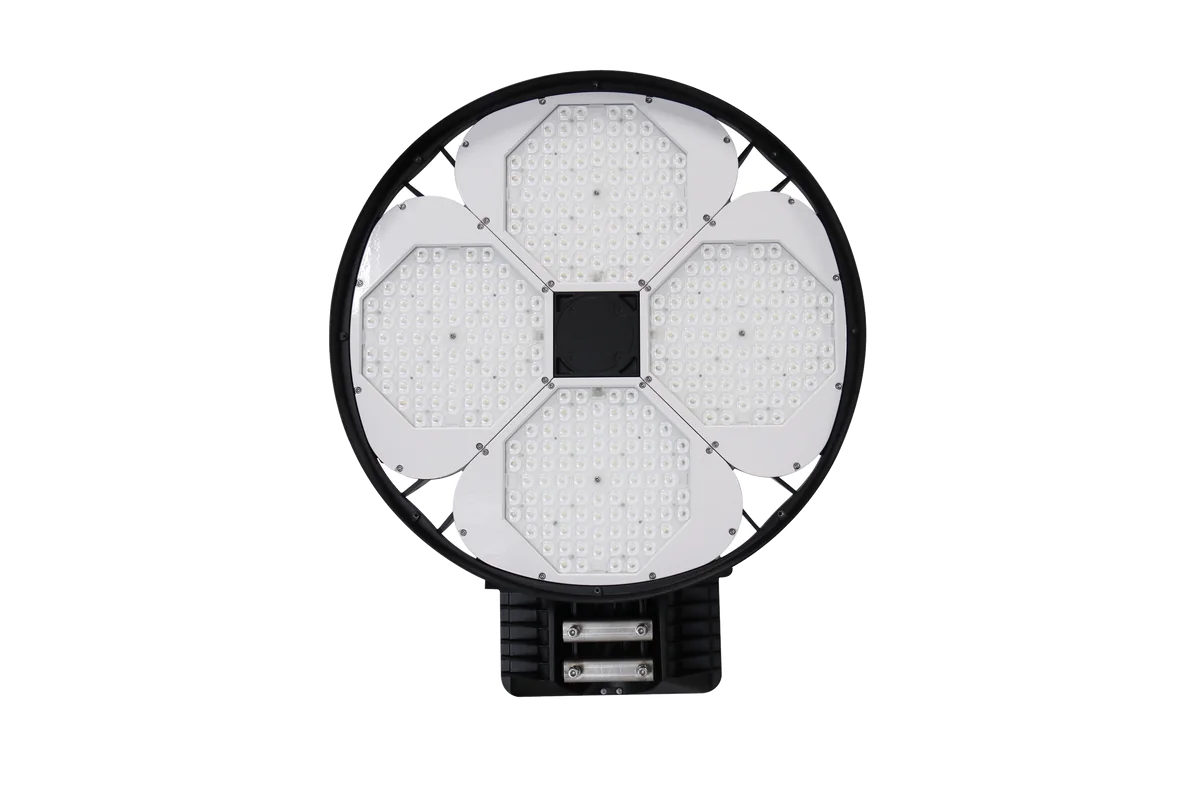

A high mast luminaire for ports, highways and yards, in a 500 or 750 W class. An eight-step dial behind the door sets the output on site, and the Type V optic turns 165° either way, so each head on a ring can take its own sector. Up to 106,500 lm at 5000K. IP65, 10 kV surge, −40 °F to 113 °F, 24/7.
cULus Listed
Documentation & Resources
Model Specifications
| WATTselect | Watts | Lumens | CCT | lm/W |
|---|
★ Full output, the factory setting. Lumens and efficacy are rated at full output only, at 5000K; the dial's lower steps are rated by wattage. ALG's files are 4000K tests of the 120–277 V build: 74,279 lm at 521.5 W (LHMF8W500) and 106,370 lm at 766.6 W (LHMF8W750), tested at 120 V.
Engineering
What the dial sets, how the optic aims, how the head mounts, and the light it puts down.
Photometric Distribution
Engineered Accessories
Build Your OmniMax.

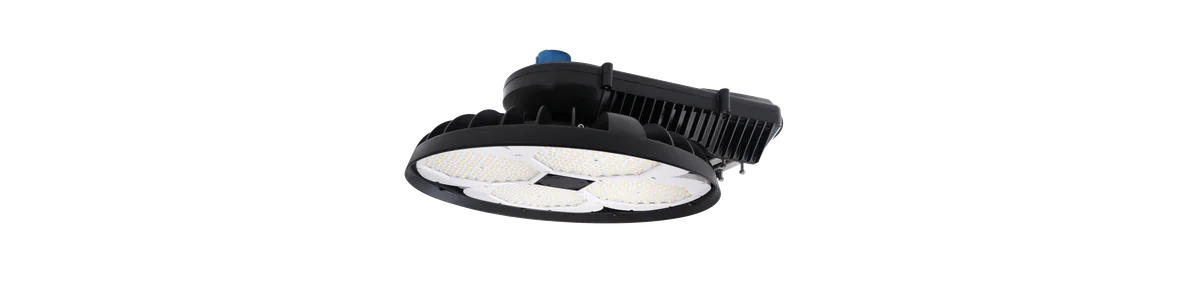

Your Catalog Number
Roadway & High Mast

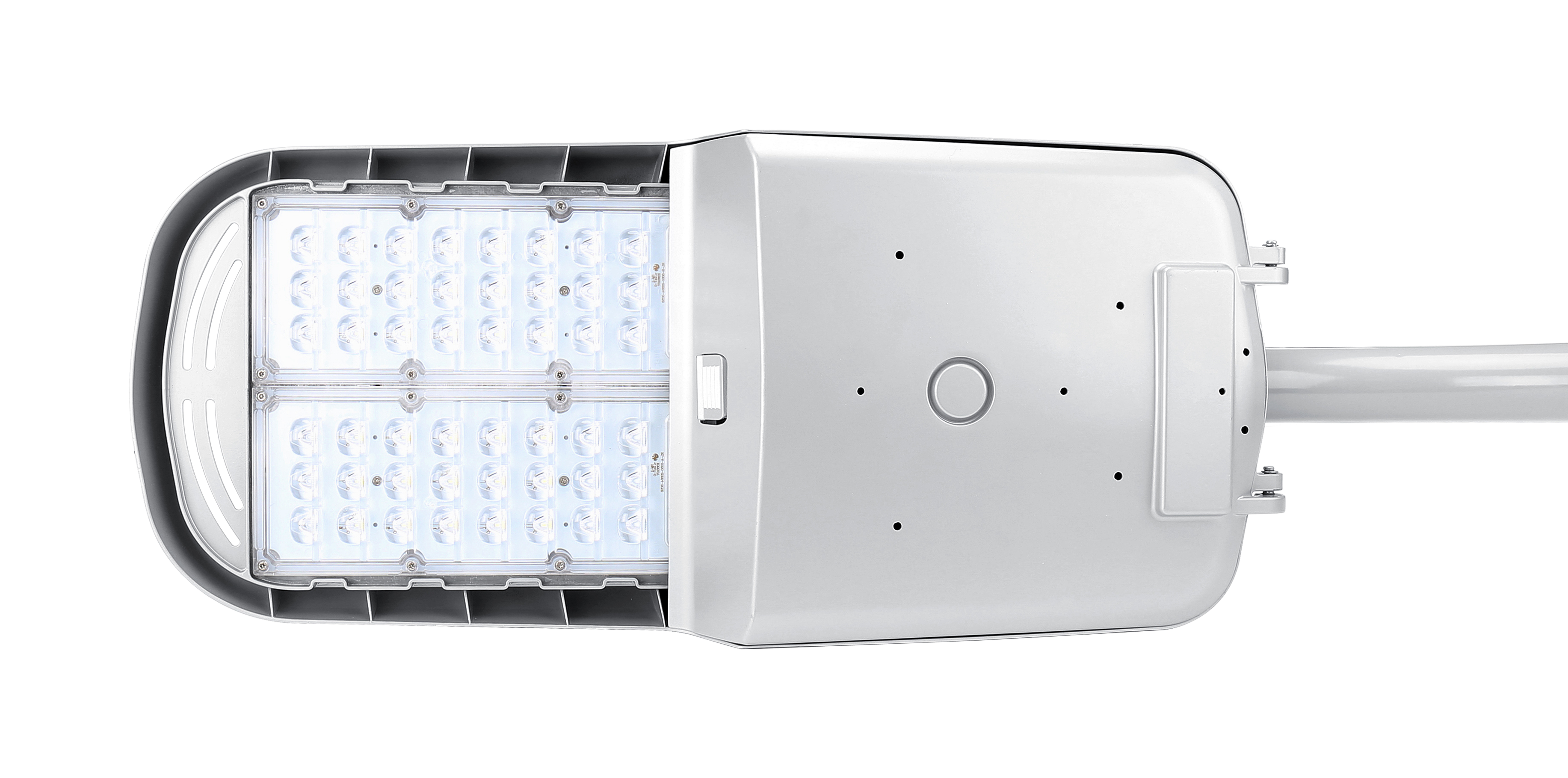

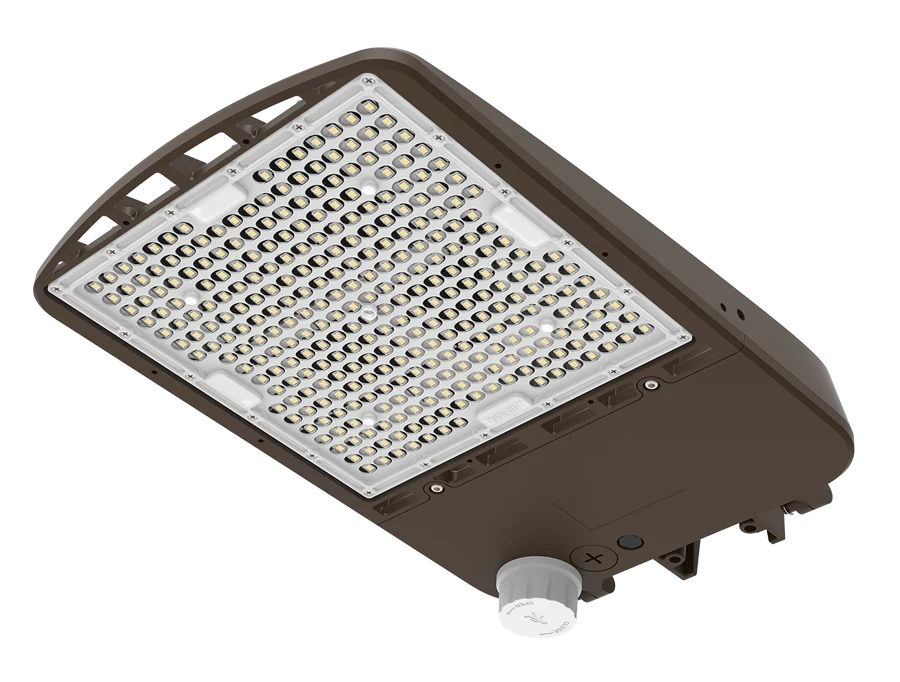

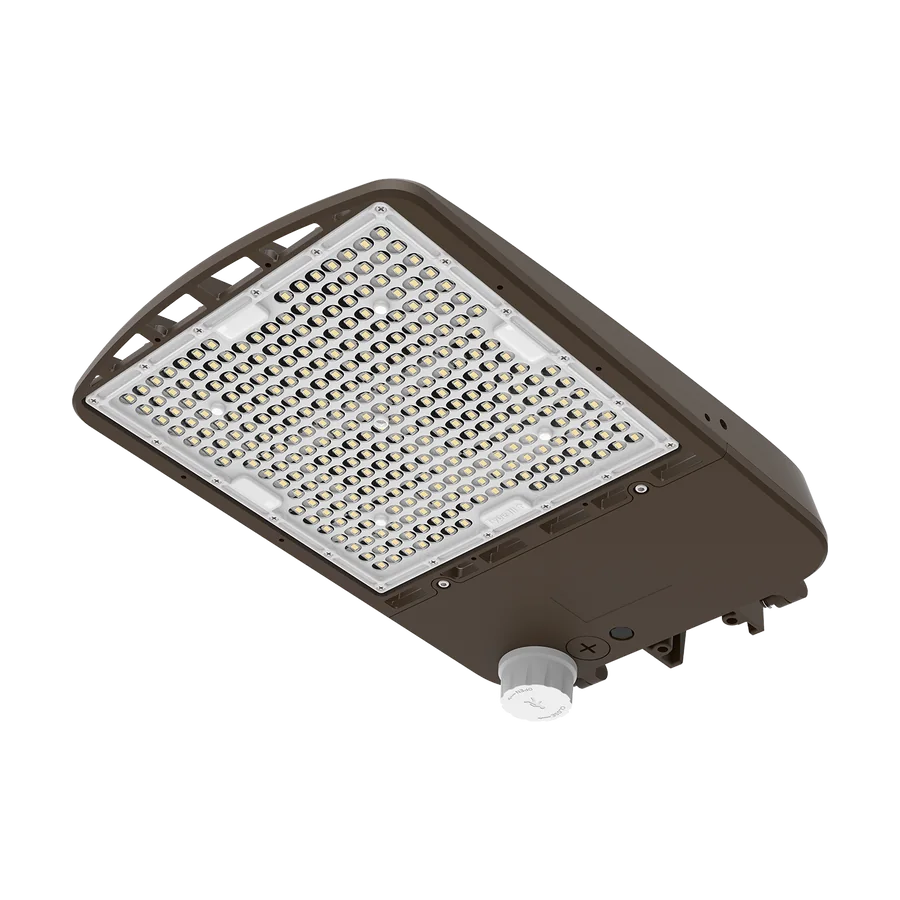

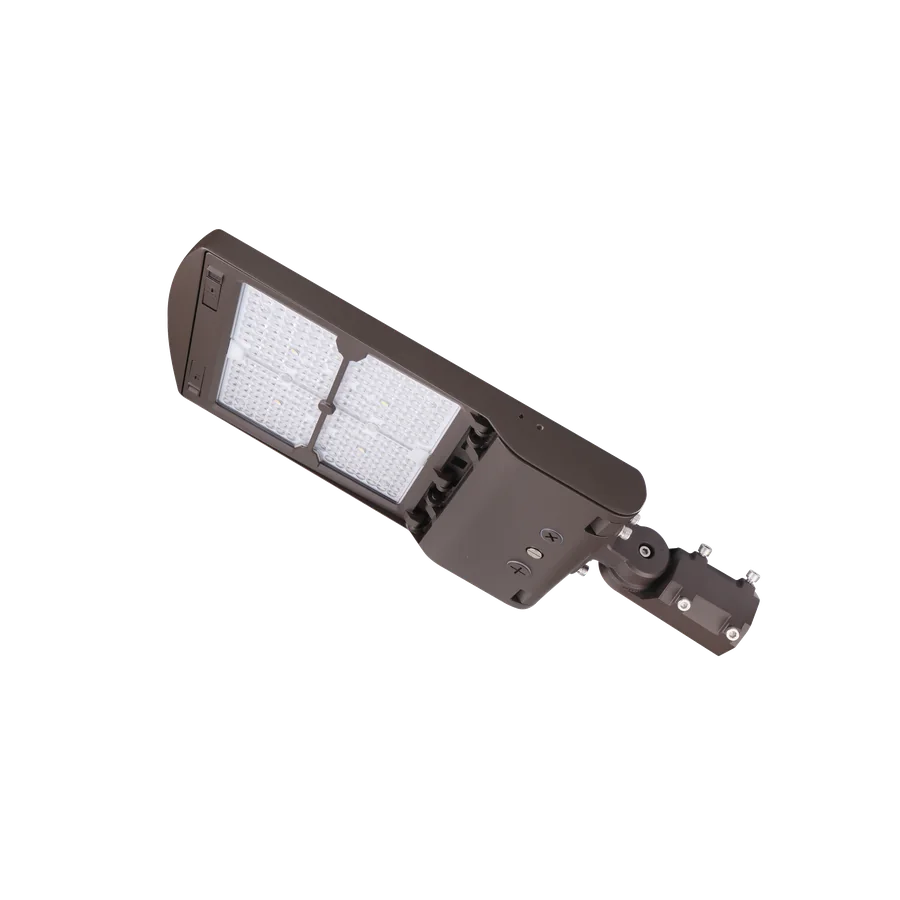

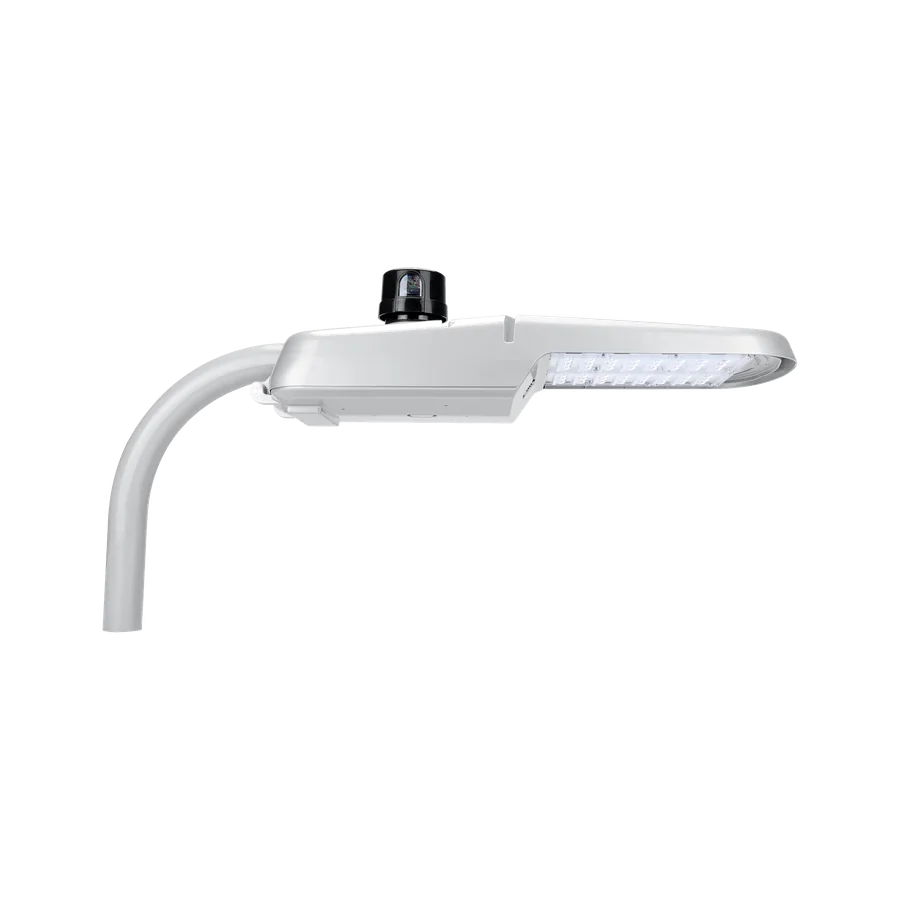

OmniMax lights wide yards from a high mast. Abbey lights the road from a mast arm; Heritage and Liberty are the area lights for lots and drives.
Send us the site plan.
We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.
Light the whole yard from one ring.
Eight output steps, a Type V optic that turns 165°, and TAA builds where the job calls for them. Rebate Center shows what your utility pays.
