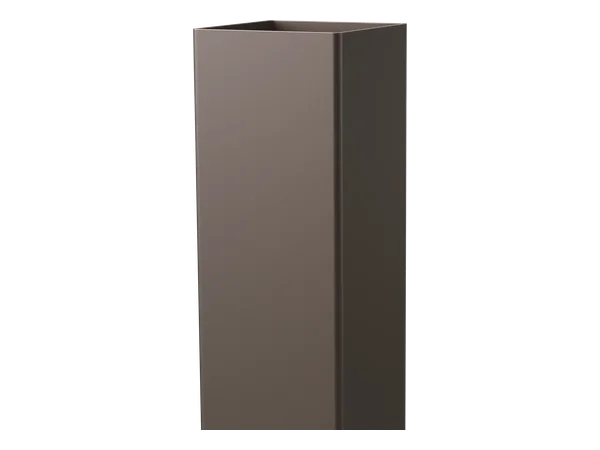

Straight steel poles, round or square, 10 to 30 ft, on an anchor base or direct burial.
Adaptors and bullhorns put one to four heads on top.
Choose by EPA at the site’s wind speed, 80 to 150 mph.
EPA = maximum ft² at 90 mph, 1.3 gust factor; every speed from 80 to 150 mph is in EPA Ratings. The model is the first part of the catalog number. Custom height: add /CL## (finished height, ft) to the next taller pole; it is cut from the top at an added charge and keeps that pole’s EPA.
ApplicationOutdoor · site and area lighting polesParking lots, roadways, campuses, retail and site lighting
ConstructionWelded steel tube, 42,000 psi minimum yield11 GA = 0.120″ wall · 7 GA = 0.179″ wall · round or square, straight
Base—
In the boxAnchor base: 4 L‑hook anchor bolts (2 nuts, 2 washers each), positioning plate, two‑piece base cover, rainproof top capDirect burial: rainproof top cap and handhole cover · nothing else to order to stand the pole
Pole topRainproof top capAdd a 2‑3/8″ OD tenon adaptor (SQRD), then a multi-head adaptor (SQR2 · SQR3 · SQR4) or a bullhorn (LSBX-RB · RL) on its tenon; or factory side drilling. Each is its own line
Side of pole2‑3/8″ OD horizontal tenon bracketSQRD-SQ: square pole or wall · SQRD-SQR: round or square pole, or wall · its own line
Custom heightCut from the top of the next taller pole/CL## = finished height in ft · handhole and base, or buried section, as built · added charge per pole
Every anchor base pole ships complete: the anchor bolts, the positioning plate, the base cover and the top cap come with it. There is nothing else to order to stand it up.

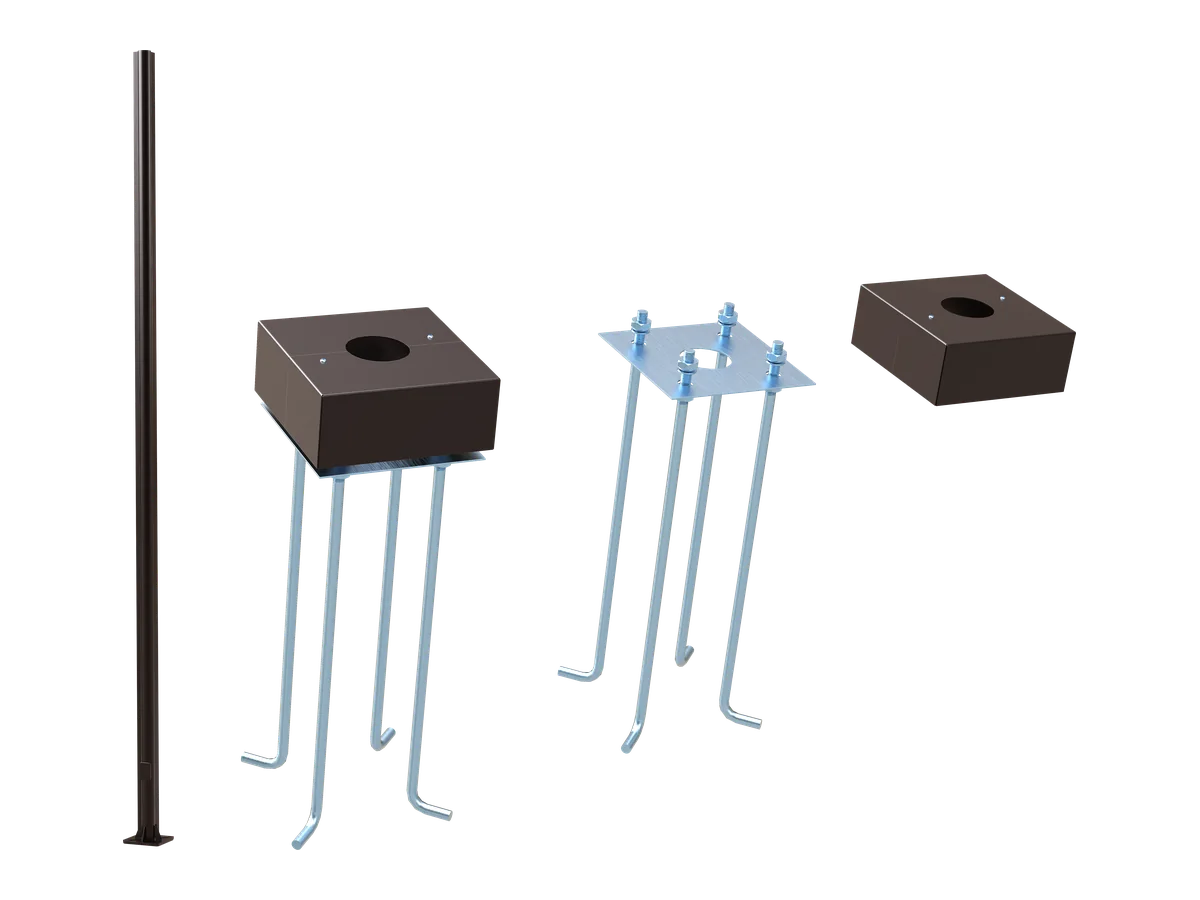

The pole, the anchor kit and the base cover, as they ship. The plate and cover are cut for a round or a square pole.
4 · Included

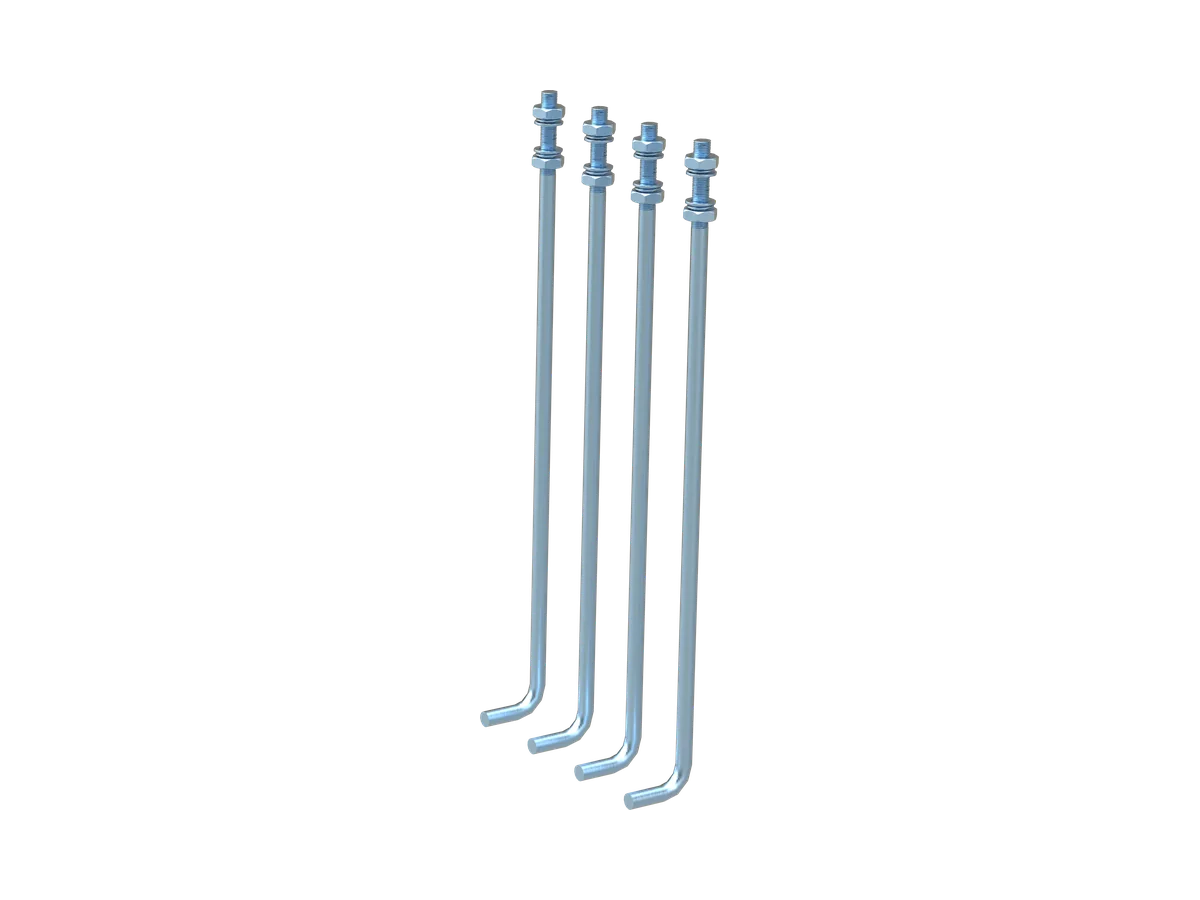

L‑Hook Anchor Bolts
Each with 2 nuts and 2 washers, sized to the pole: ¾″ × 17″ × 3″ up to 1″ × 36″ × 4″.
1 · Included

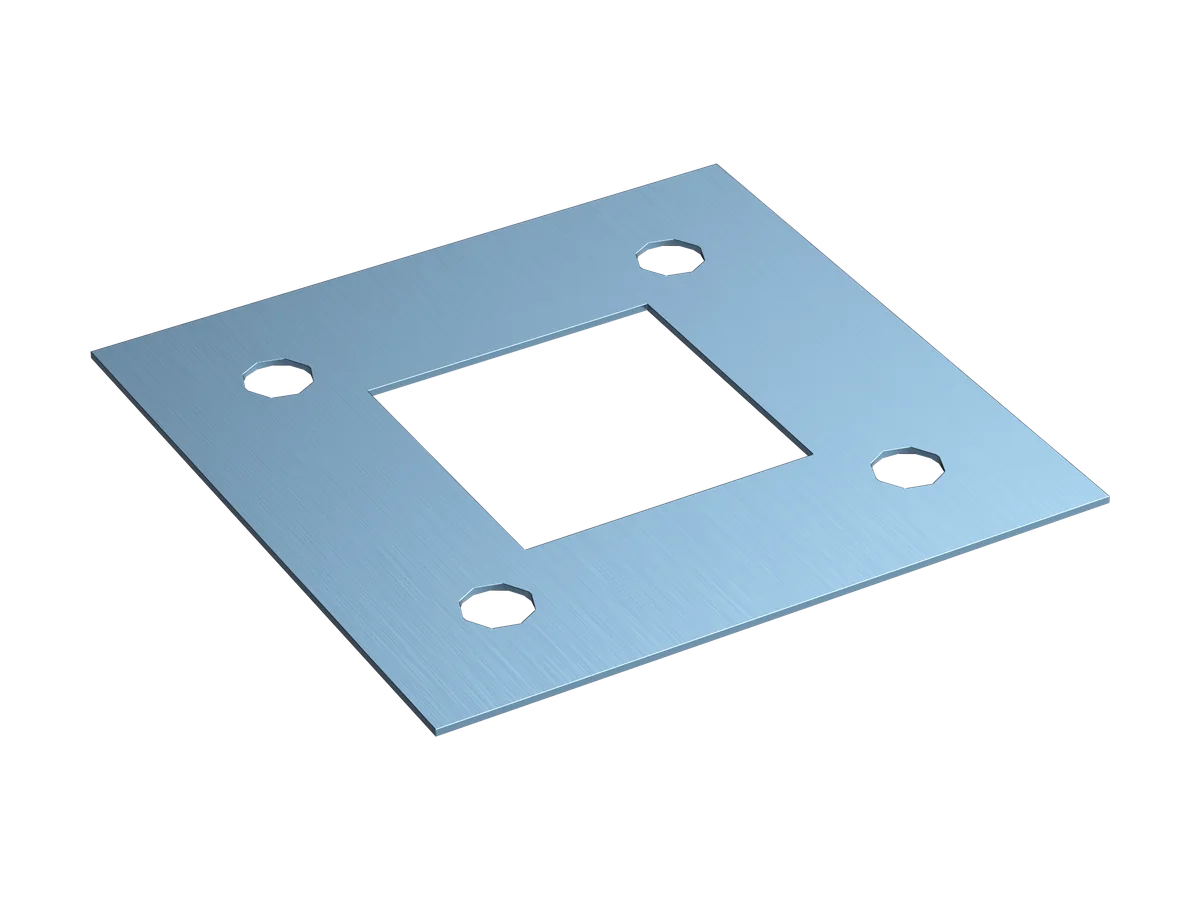

Positioning Plate
Holds the bolt circle true while the foundation is poured.
1 · Included

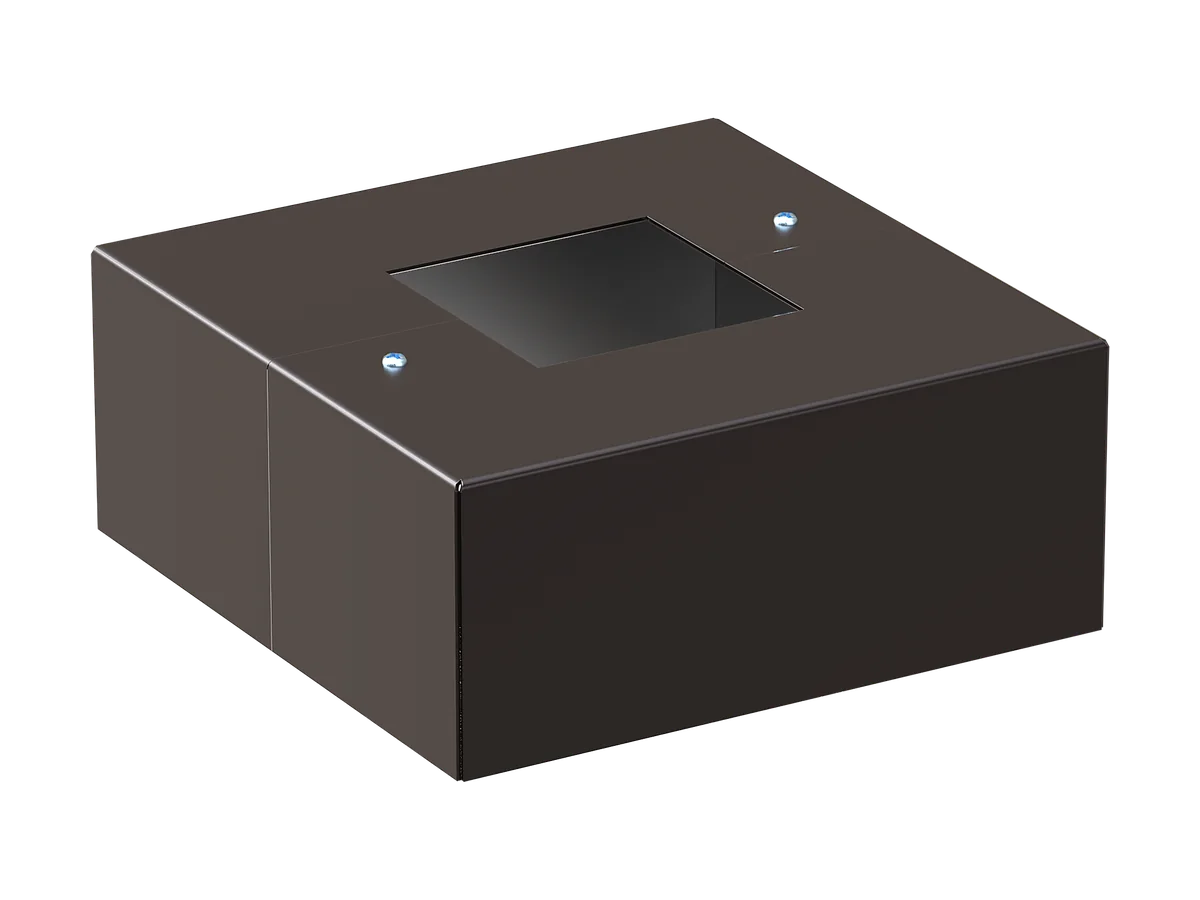

Two‑Piece Base Cover
Closes over the base plate and the leveling nuts once the pole is plumb.
1 · Included
Rainproof Top Cap
Closes the top of the pole when no tenon goes on it, and the cut end of a custom height.
Direct burial poles ship with the rainproof top cap and the handhole cover; set in the ground, they need no bolts, plate or base cover.
Engineering
What comes in the box, how it stands, and what goes on top.
EPA Ratings
Maximum EPA in ft² and fixture weight in lb at each basic wind speed, 1.3 gust factor. Enter what the pole carries and the site’s wind speed; every pole that holds it is marked.
Every head, bracket and adaptor, added up.
Every head, bracket and adaptor, added up.
From the governing code map for the site.
Poles that carry it
—
— = not rated at that speed. Direct-burial ratings are for the shaft at grade, the same as the anchor-base pole of the same height above grade; burial depth, backfill and soil are by the engineer of record. A custom-height pole takes the rating of the standard pole it is cut from. Bracket EPA is not published, so leave margin for it. Foundation size, depth and reinforcement are by the project engineer of record.
Tenons, Bullhorns & Brackets
Each part is its own order line. A multi-head adaptor, a bullhorn or the yoke adaptor sits on the tenon adaptor, so order both. Ask ALG to confirm the bullhorn fit with your fixture before you order. Count every head and bracket toward the pole’s EPA.
Tenon adaptors, multi-head adaptors, bullhorns and brackets for square and round poles, drawn and dimensioned: Pole-Mount Accessories Catalog (PDF).
Configurator
Build Your Pole.
Required *
Mounting—
Shape—
Height—
Custom heightoptional · cut from the top · added charge—
Shaft · Wallonly what is built for the height—
Finish—
Optional
Tenon adaptorits own line · matched to the pole—
Multi-head adaptorits own line · on the tenon—
Bullhornits own line · on the tenon · fit confirmed by ALG—
Side bracketits own line · a head below the top—
Other finishits own line · per foot of pole—
Foundations are by others. Check the pole’s EPA at the site’s wind speed before you order.
Your catalog number
Your Catalog Number
Catalog number
LP411G-20SSquare pole · anchor base+Tenon adaptorFor a head on top+Multi-head or bullhornTwo to four heads+Side bracketA head below the top
Height—
Shaft—
Weight—
EPA at 90 mph—
Base—
In the box—
RatingsEPA from 80 to 150 mph, 1.3 gust factorFoundation design and local code compliance are by the project engineer of record.
The poles carry the outdoor heads. Liberty slips onto a tenon or bolts to an arm; Symmetry and Unity sit on a pole top through the same tenon adaptors.
You are here

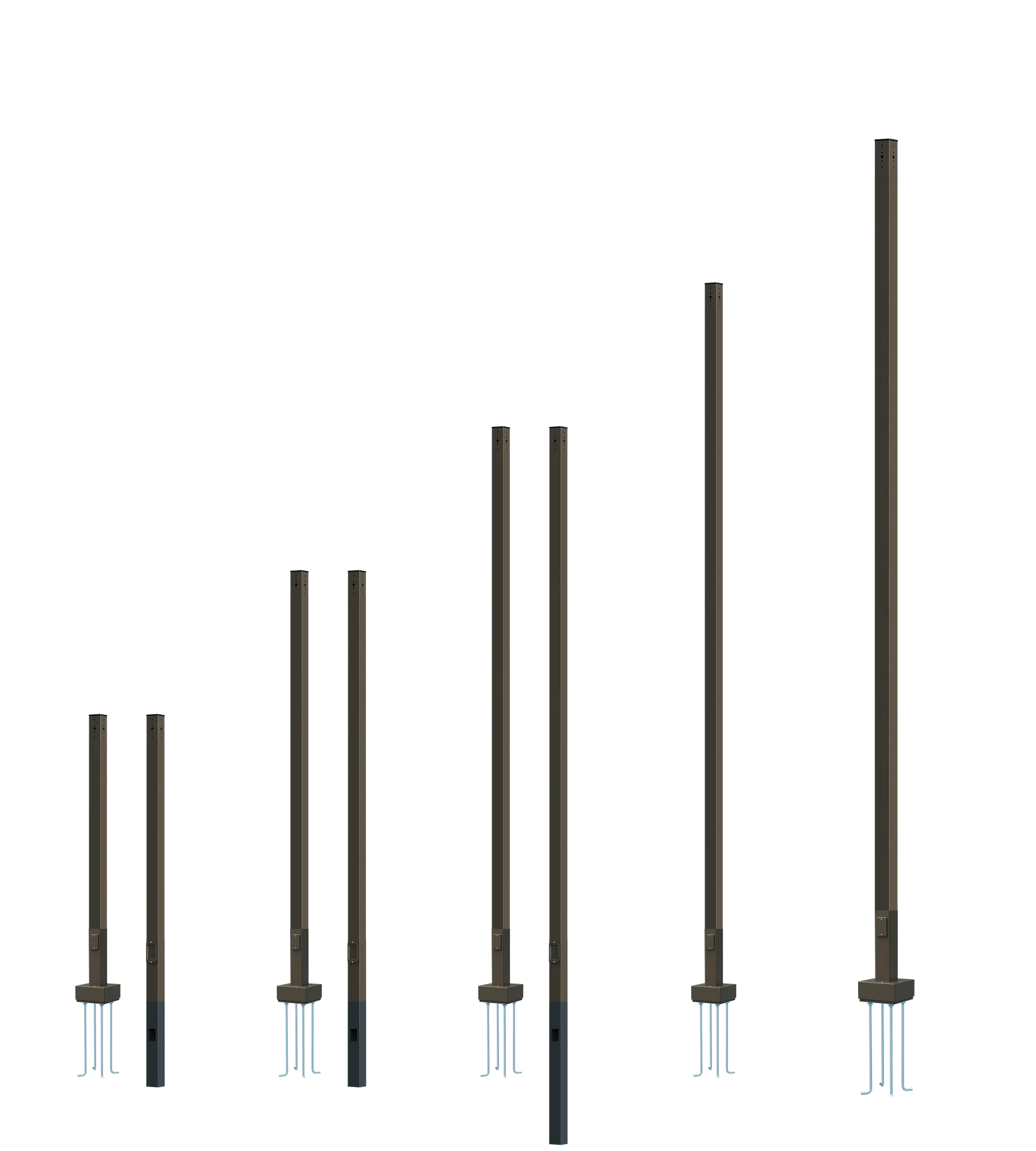

LP · cityⒶRCHSteel PolesRound or square, 10 to 30 ft, on an anchor base or set in the ground, with the tenons and bullhorns that carry the heads.EPA rated · 80–150 mphAnchor Base Data Sheet →Direct Burial Data Sheet →

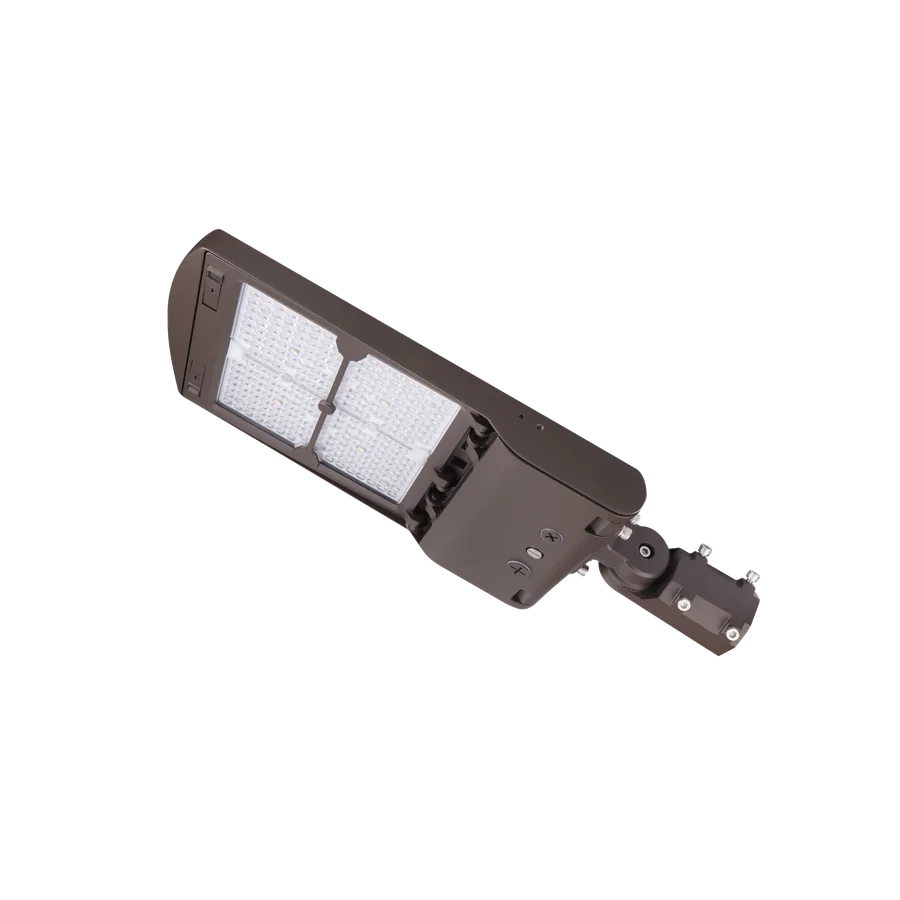

LSBX · PROLibertyFive housings from 50 to 450 W, with optics that swap by hand.Vertical tenon or horizontal armDownloads →Product Details →

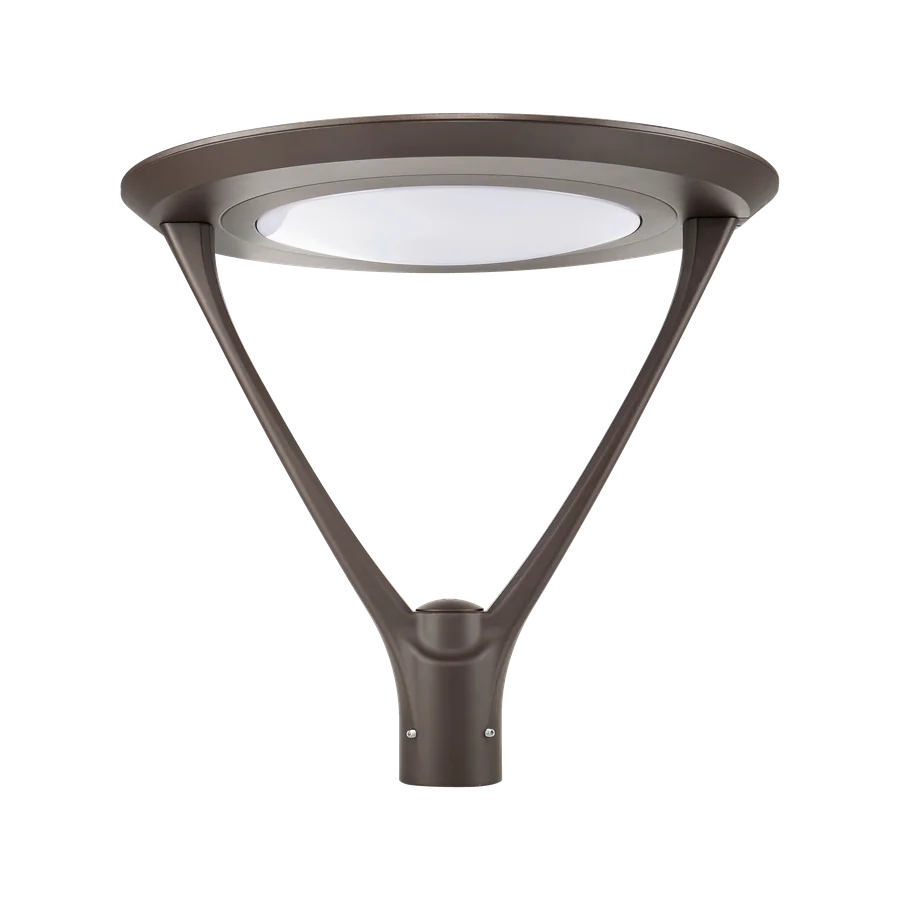

LPTP · PROSymmetryThe post top with a luminous disc, 36 to 160 W, frosted or BeamLogic.2‑3/8″ to 3″ pole topDownloads →Product Details →

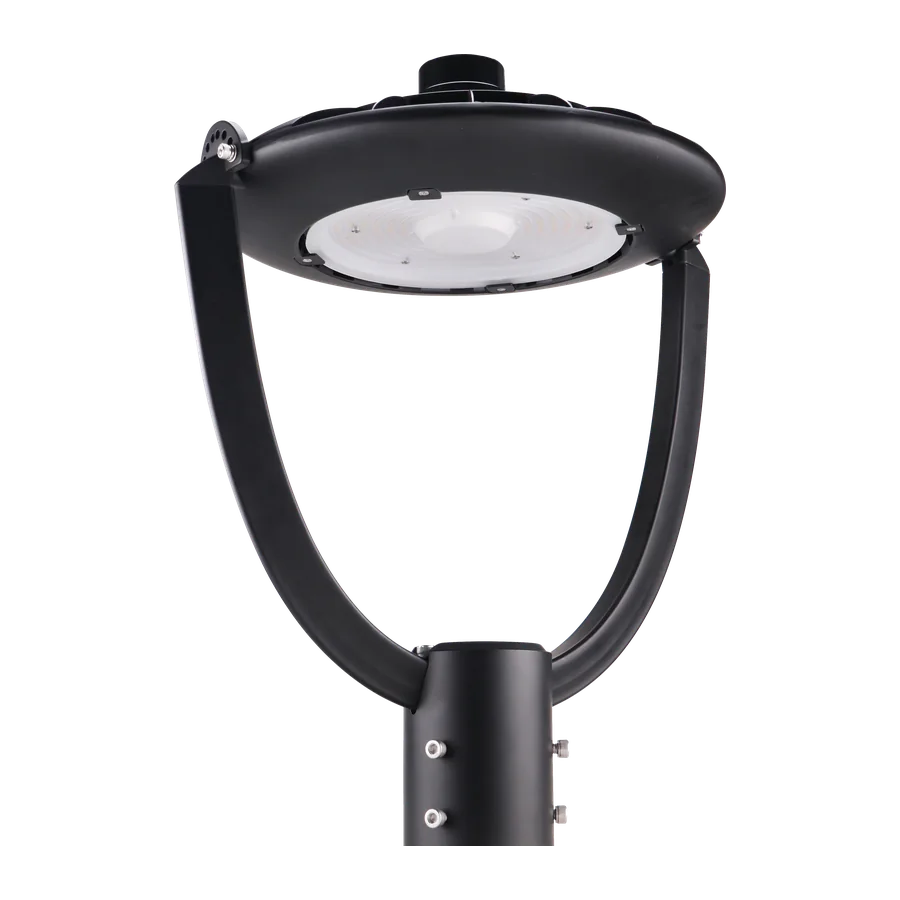

LPTP · ECOUnityA 360° post top that folds flat to ship, 35 to 150 W.2‑3/8″ to 3″ pole topDownloads →Product Details →
Specifier Support
Send us the site plan.
We run the layout free and send it back in three business days — fixture count, spacing, foot-candles.
Add the EPA of every head, bracket and adaptor, read the site’s basic wind speed from the governing code map, and choose a pole rated at or above the total.
