LV3P · Eureka PRO
Wash-down vapor tight. Replaces 2,000W metal halide.

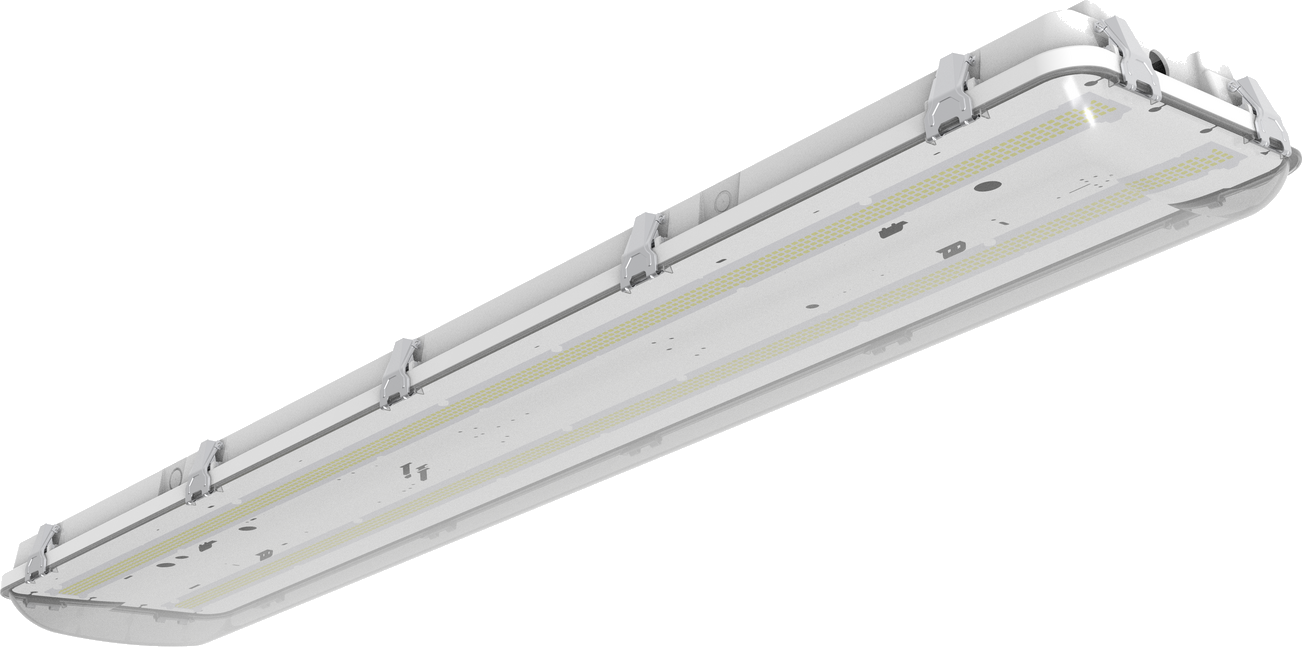

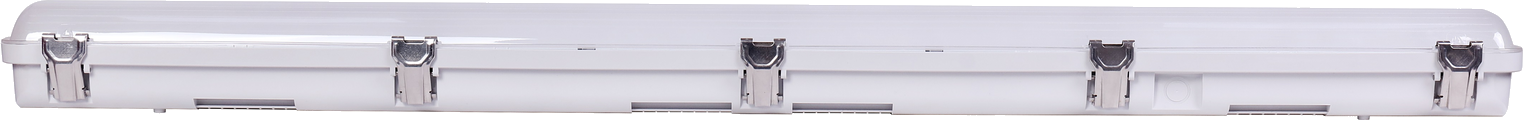

LV3P Wash-down Vapor Tight · 2FT / 4FT / 8FT · impact-resistant polycarbonate · stainless latches. 4FT high-bay 39,000 lm @ 250W · 156 LM/W — 2,000W metal-halide replacement · 5-10× the lumen ceiling of value-tier vapor-tights. 3-WATTSELECT × 3-CCTSELECT dip-switch. IP66 · NEMA 4X · UL 94-5VA · NSF · UL Wet. contrⒶLS-Ready — Bi-Level (BLS sensor) + blueⒶRCH™ SIG Mesh paths · EM08/EM20 backup. 7-yr · 100,000-hr L70 · DLC Premium.
_nobg.png)
Model Specifications
Download Data Sheet| Model | Watt | Lumens | lm/W | CCT | Voltage |
|---|
Dimensions

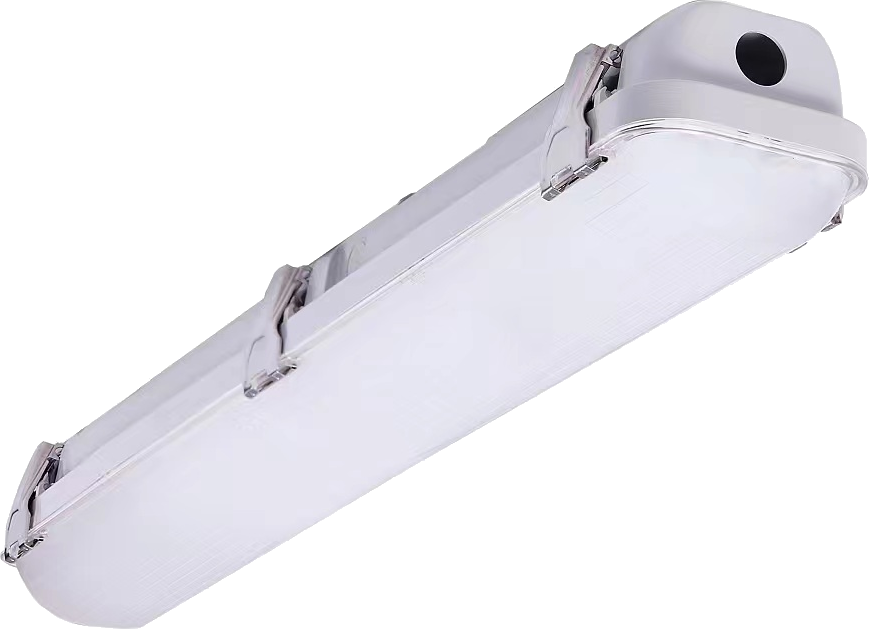

LV3P2 · 2FT · 25.59" L × 4.17" W × 3.27" H · 3-WATTSELECT (15W | 17W | 20W) · 3-CCTSELECT (3500K / 4000K / 5000K) · IP66 NEMA 4X polycarbonate
Engineering In Motion
See the Eureka in action.
Two short clips on the engineering that earns the PRO Specification-Grade badge — the IP66 washdown protection sealing the polycarbonate housing against water-jet spray, and the industrial-application context showing the fixture under operating conditions across washdown bays, factory floors, and agricultural barns.
Highlights & Features
Eureka: Highlights & Features
Three angles anchored against the volume-tier linear-strip competitive set. Install speed, configuration flexibility, and reliability triad with concrete numbers from the datasheet.
contrⒶLS-Ready
Two paths to controls compliance.
Eureka ships contrⒶLS-Ready with two distinct control paths per the LV3P datasheet — pick the one that fits the project's commissioning budget and compliance requirement. Bi-Level drops a standalone microwave sensor on the integrated port for no-controller occupancy + step-dim (ASHRAE 90.1 + Title 24 compliance, zero commissioning). blueⒶRCH™ SIG Mesh upgrades the same fixture to fully networked Bluetooth Mesh wireless control by Silvair — occupancy, daylight harvesting, scene, and energy reporting from one commissioning app. Same fixture, same sensor port, two control ceilings.
Standalone microwave occupancy sensor with built-in step-dim control — MSM-HTI/001/BLS (Hi-bay Ti-type · 39FT detection at high-bay mount · IP66 to match the Eureka housing). No gateway, no controller, no commissioning app. Wires to the integrated sensor port at install; occupancy + bi-level step-dim out of the box. The ASHRAE 90.1 + Title 24 zero-commissioning compliance path for projects that don't need networked control.
Discover contrⒶLS Bi-Level →Photometric Distribution
Beam shape, generated from the IES file.
Real luminous distribution rendered directly from the certified IESNA LM-79 test reports — pick a length (2FT / 4FT / 8FT) to see the polar plot, peak candela, and total lumen output. Eureka ships a single diffused polycarbonate lens across all SKUs, so the beam profile is constant per length (the photometric trace is identical across 3500K / 4000K / 5000K — CCT changes color, not distribution). CRI >80 across all configurations.

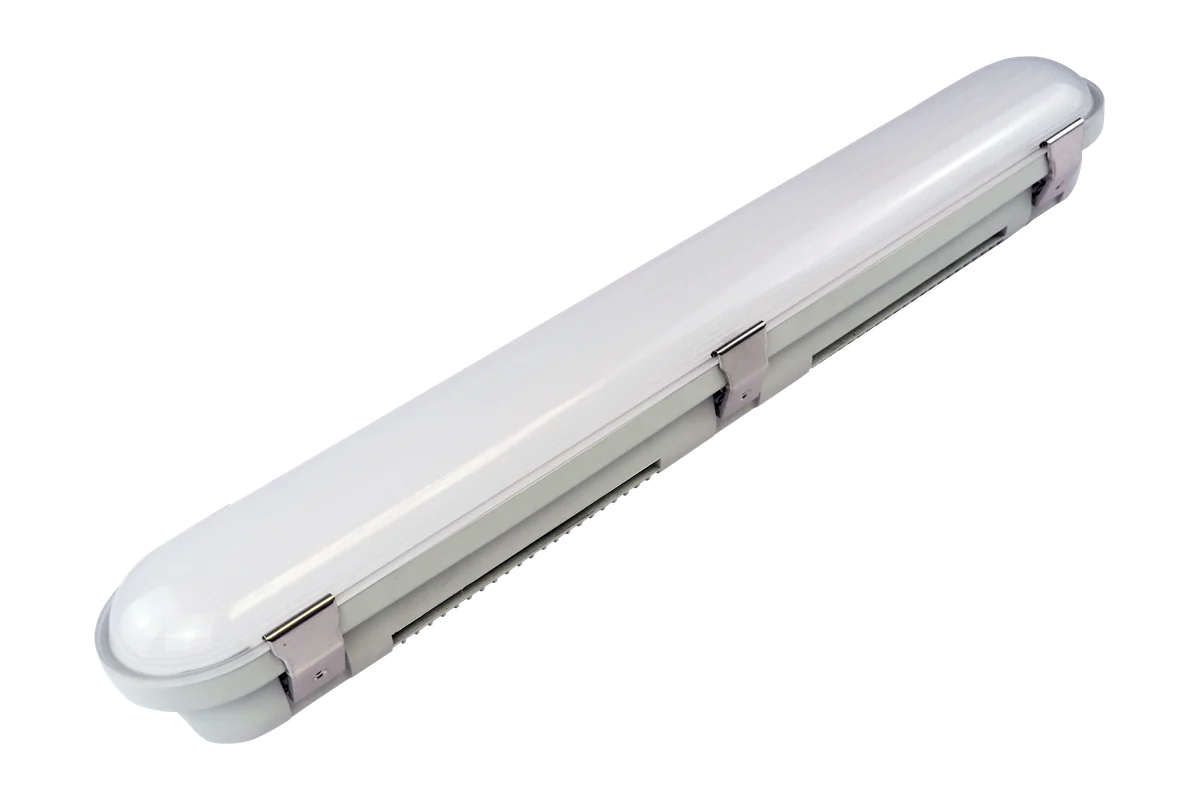

LV3P2-3E20-S3P/CS/RF · 5000K · max WATTSELECT
Full IES library released to WorkDrive 2026-05-05
In the Box
Everything that ships with every Eureka.

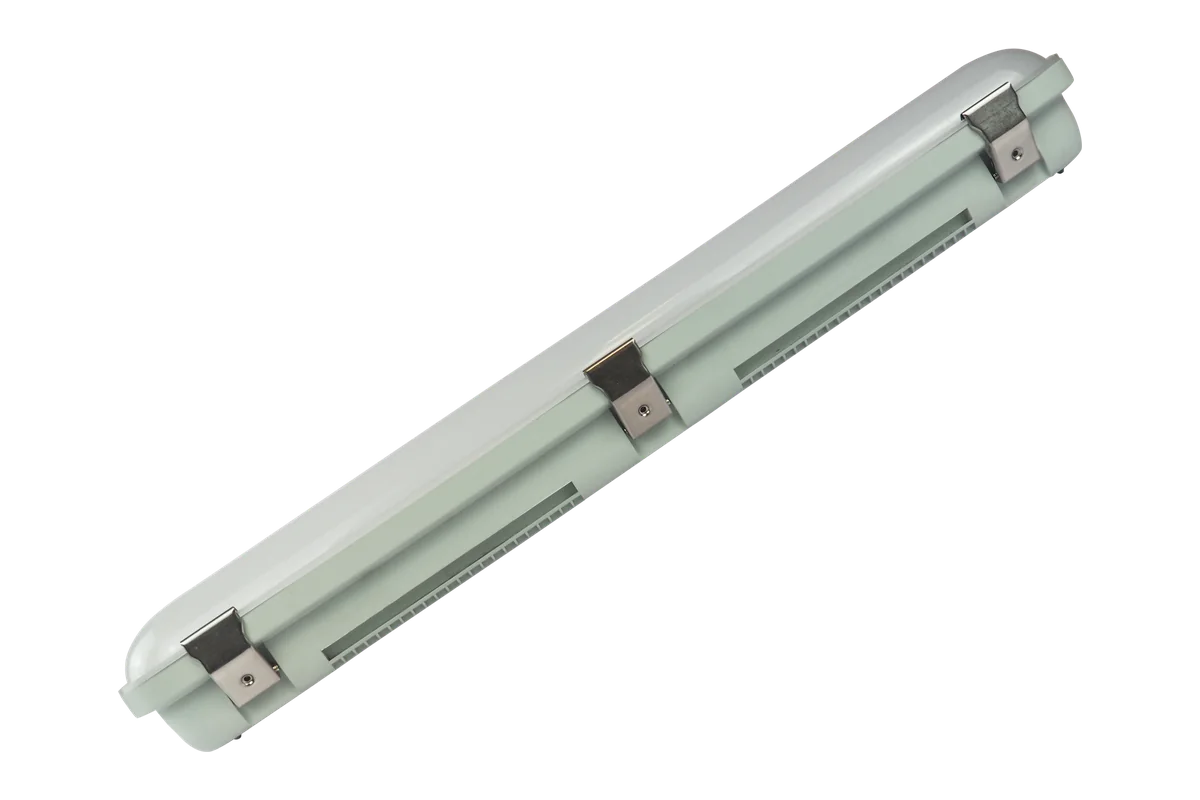

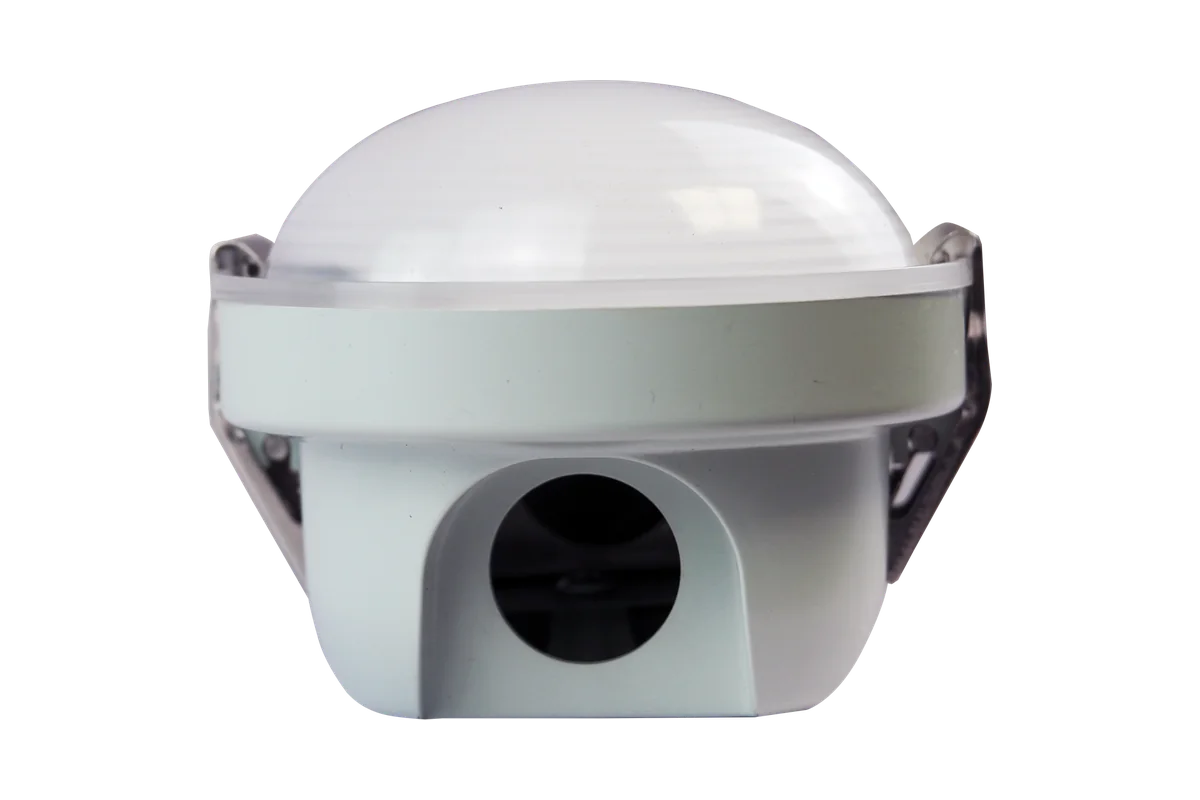

Every Eureka ships factory-assembled · Surface Mount Bracket (stainless snap-on) standard · stainless door latches · quick-install buckles · blueⒶRCH SIG Mesh paired in-driver. EM driver, BLS sensor, and 5 alt brackets per §8 selections.
Engineered Accessories
Five Eureka-compatible accessories per datasheet pg 4 · EM08-CMB/48 + EM20-CMB/260 battery backup · MSM-HTI/001/BLS microwave sensor (IP66 Hi-bay Ti) · Tamper-Proof + V-Hook stainless brackets. Full bracket suite (J-Box · Angle · V-Bracket) on datasheet pg 3.
5 cards above · 3 additional stainless mount brackets per datasheet pg 3 — J-Box Mount (pre-existing junction-box conversion) · Angle Mount (45°/90° wall-angle install) · V-Bracket (alternative suspension geometry) — ship as separate §8 SKUs alongside Tamper-Proof and V-Hook above. The Surface Mount Bracket ships standard with every Eureka per §7 In the Box. Hallmark’s 3-platform sensor matrix (BLS / CS / SILVAIR) does NOT apply — per datasheet pg 4, only the MSM-HTI/001/BLS microwave sensor is tested-compatible with the LV3P family (Eureka uses the blueRCH SIG Bluetooth Mesh control path · see §5 Controls).
Build Your Eureka.

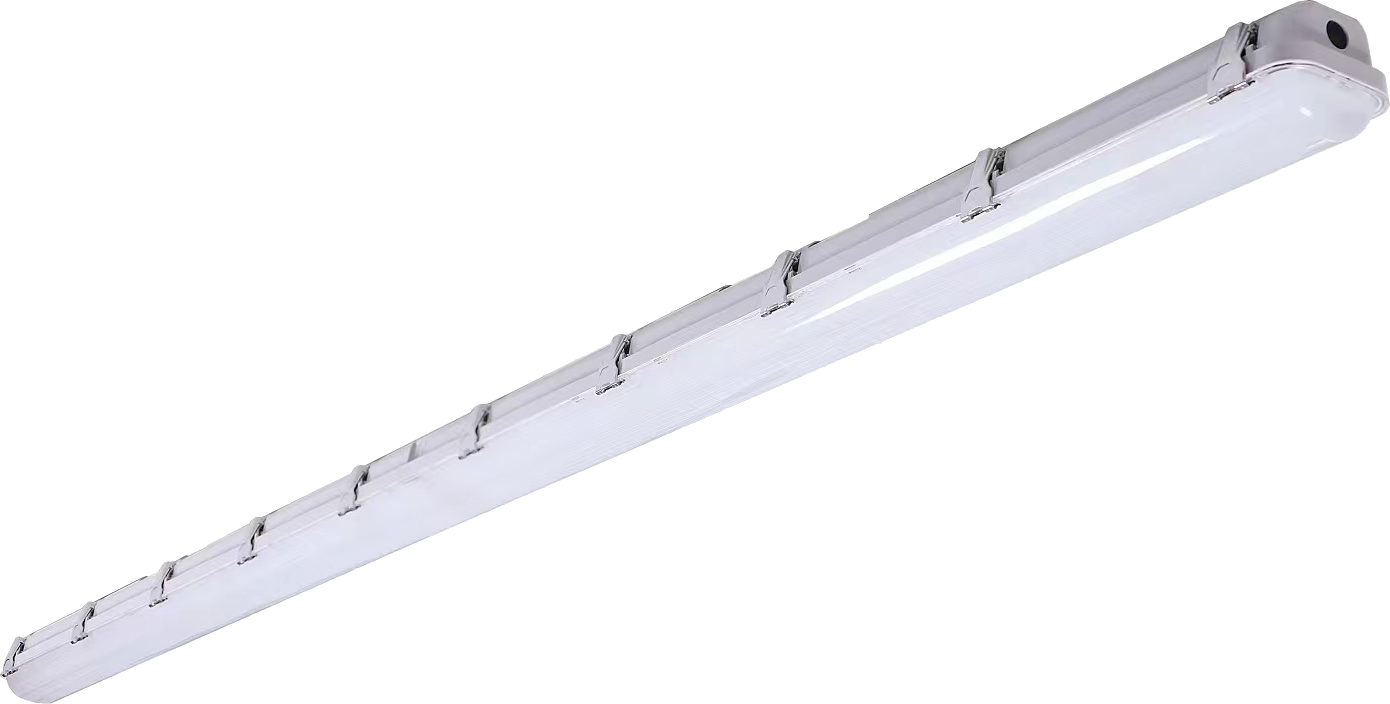

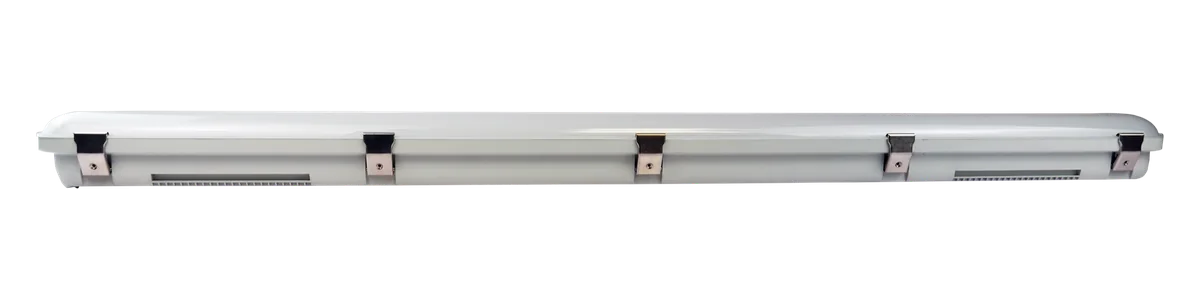

Pick length, optic, finish — LV3P SKU resolves live. 3 lengths (LV3P2 / LV3P4 / LV3P8) · 3-WATTSELECT · 3-CCTSELECT · 4 field-swap optics · B/W · DLC Standard + Premium
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify the Eureka — the contractor-grade datasheet covering all 16 WATTSELECT × CCTSELECT configurations, the stainless bracket installation guide, and the LM-79 IES library for every length-optic-CCT permutation.
Wash-down, new-build, retrofit, and high-bay.
Eureka is the lamparⒶRCH PRO-tier wash-down vapor-tight · IP66 NEMA 4X · up to 39,000 lm. Hallmark, retroⒶRCH-L1, and Titan cover the new-build linear-strip, fluorescent-retrofit, and linear high-bay paths. Four SKUs, one factory, one warranty language.
For the complete wash-down facility.
Eureka covers the wash-down envelope. Cross-line siblings handle outdoor truck-court + farm-yard, high-bay above the line, emergency egress, and exit signage. One brand · one warranty · one factory · one coherent food-plant / barn / gym package.
Wash-down specs in 48 hours. One regional rep.
Twelve US warehouses · 3-5 day ship on Eureka SKUs. Layout requests (linkable runs · IP66-maintained brackets · high-bay placement) come back inside 48 hrs. Quotes + samples + Rebate matches · same business day.
Stack DLC Standard + Premium.
DLC Standard + Premium across the LV3P family · ECO/QS SKUs at Standard (10-25% utility offset) · LV3P4-3E135 + LV3P4-3E250 high-bay at Premium (20-40% PRO-tier offset). Pair with 100,000-hr L70 — TCO clears on food-plant, gym, and barn installs. ZIP-match same day.
