LUXA · planoⒶRCH PRO+

Luna Specification-Grade LED Linear

One profile. Four ways to mount it.

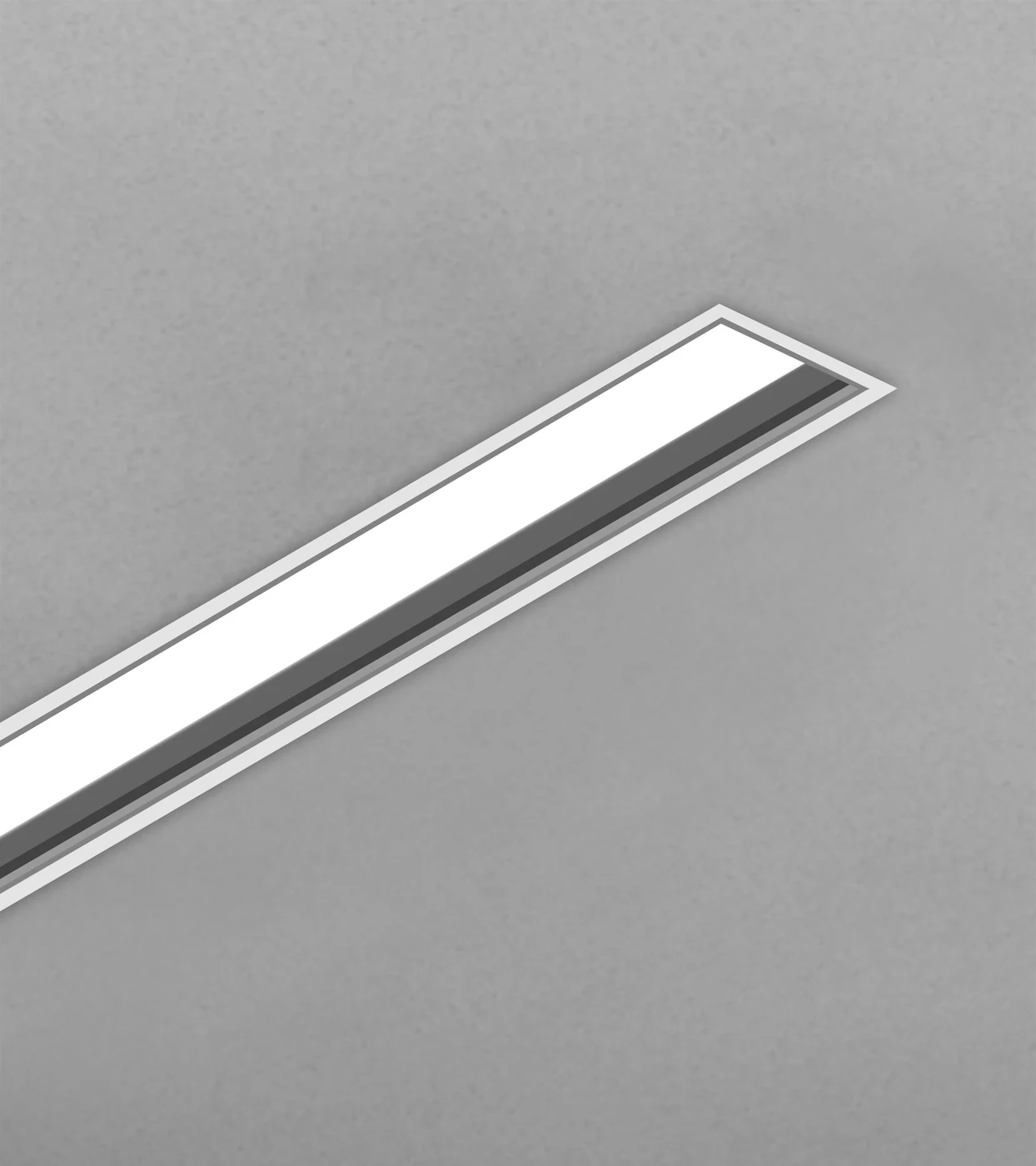

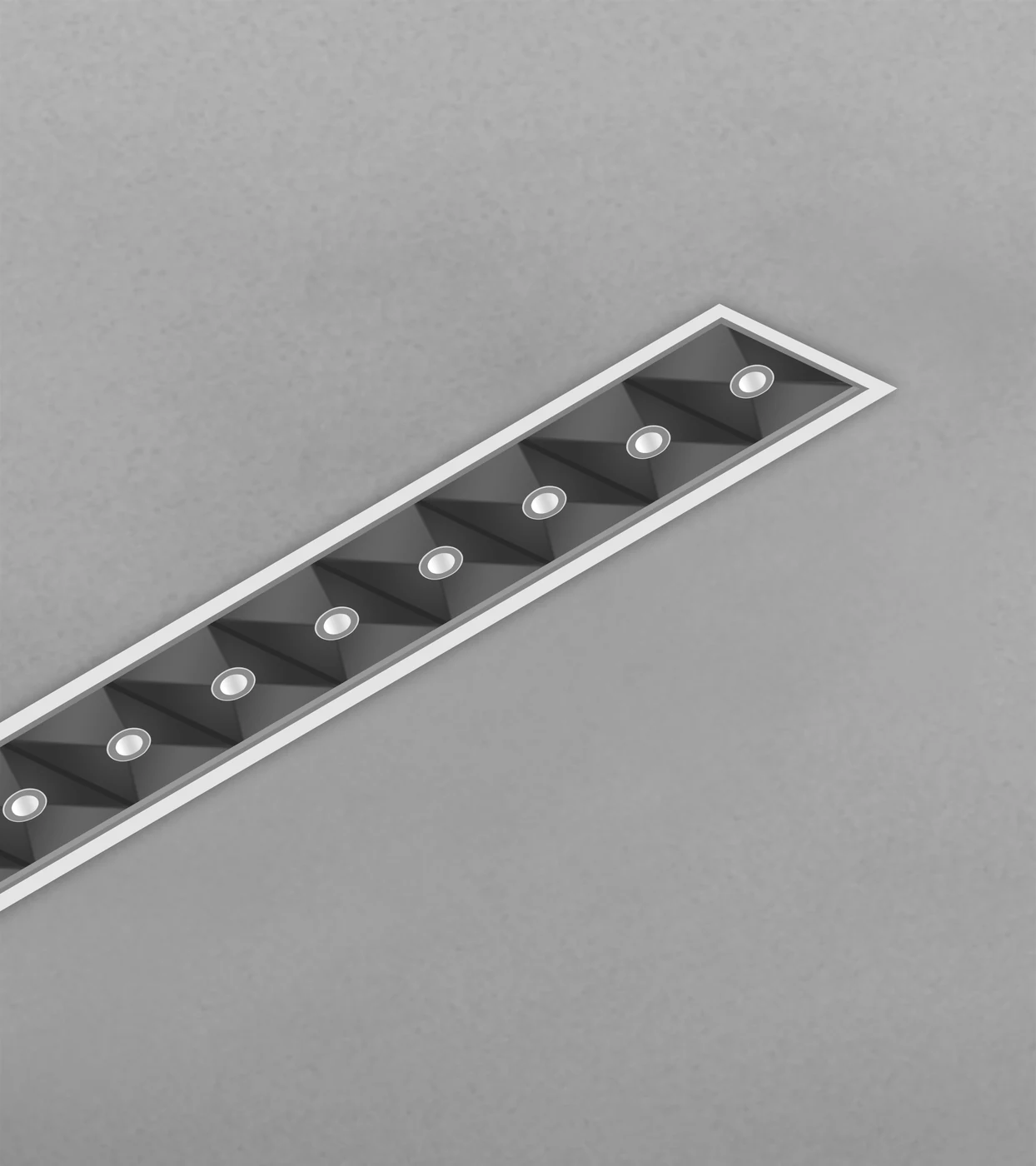

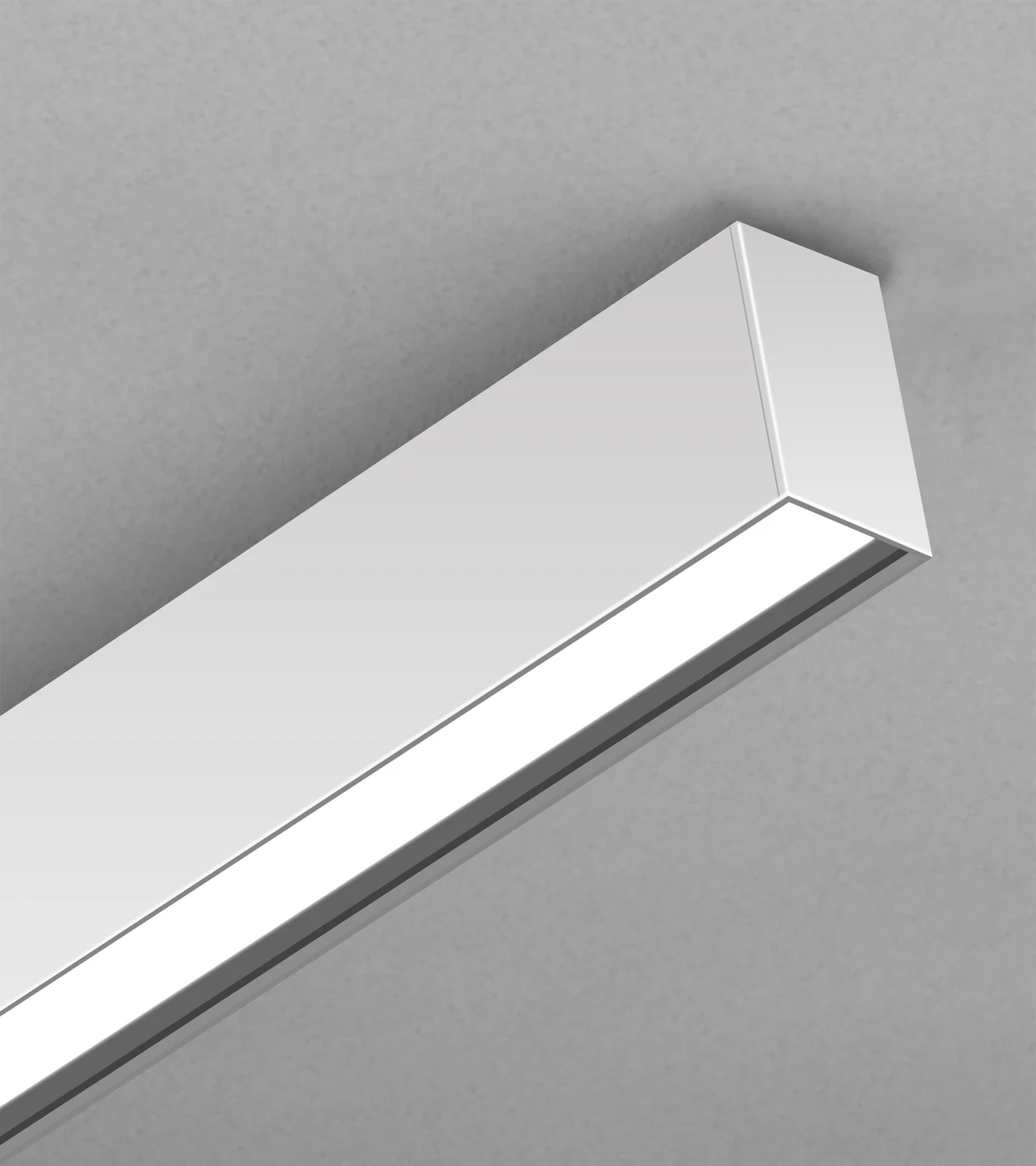

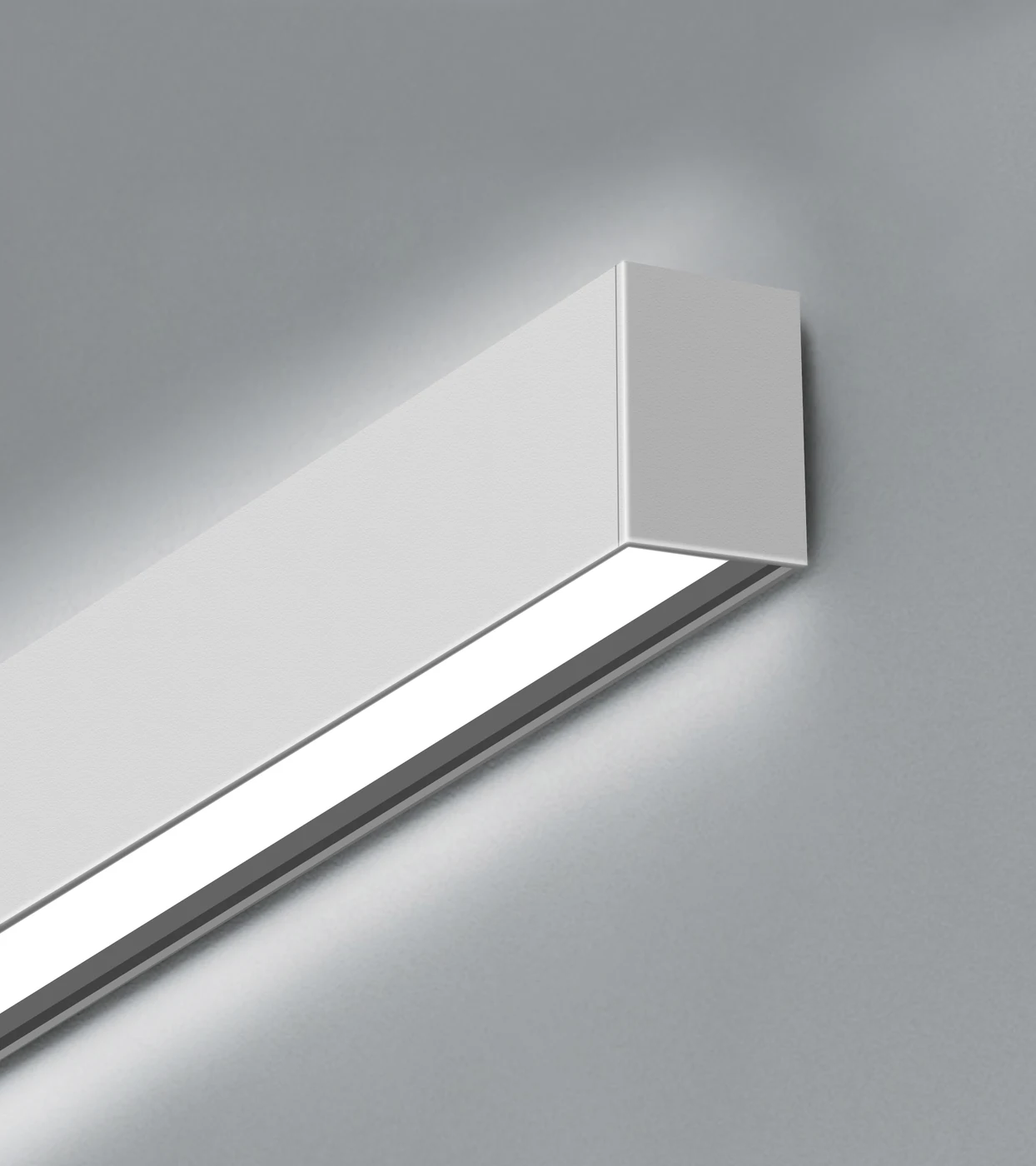

A spec-grade LED linear in 2, 3, 4 and 8 ft lengths, up to 110 lm/W at full downlight. Watts, color and the split between up- and down-light are switches on the fixture, and six optics swap in on site. The same 2.34″ profile hangs, recesses, surfaces or mounts to a wall. Order by length and finish; each mount kit is its own line.

Specification Sheet IES Files Installation Guide Configure For Lead Time

Input Watts10–80 W

Lengths2 / 3 / 4 / 8 ft

Efficacyup to 110 lm/W

Ideal applications

Office

Education

Healthcare

Hospitality

3-WATTselect

3-CCTselect

directⒶIM

opticⒶDAPT

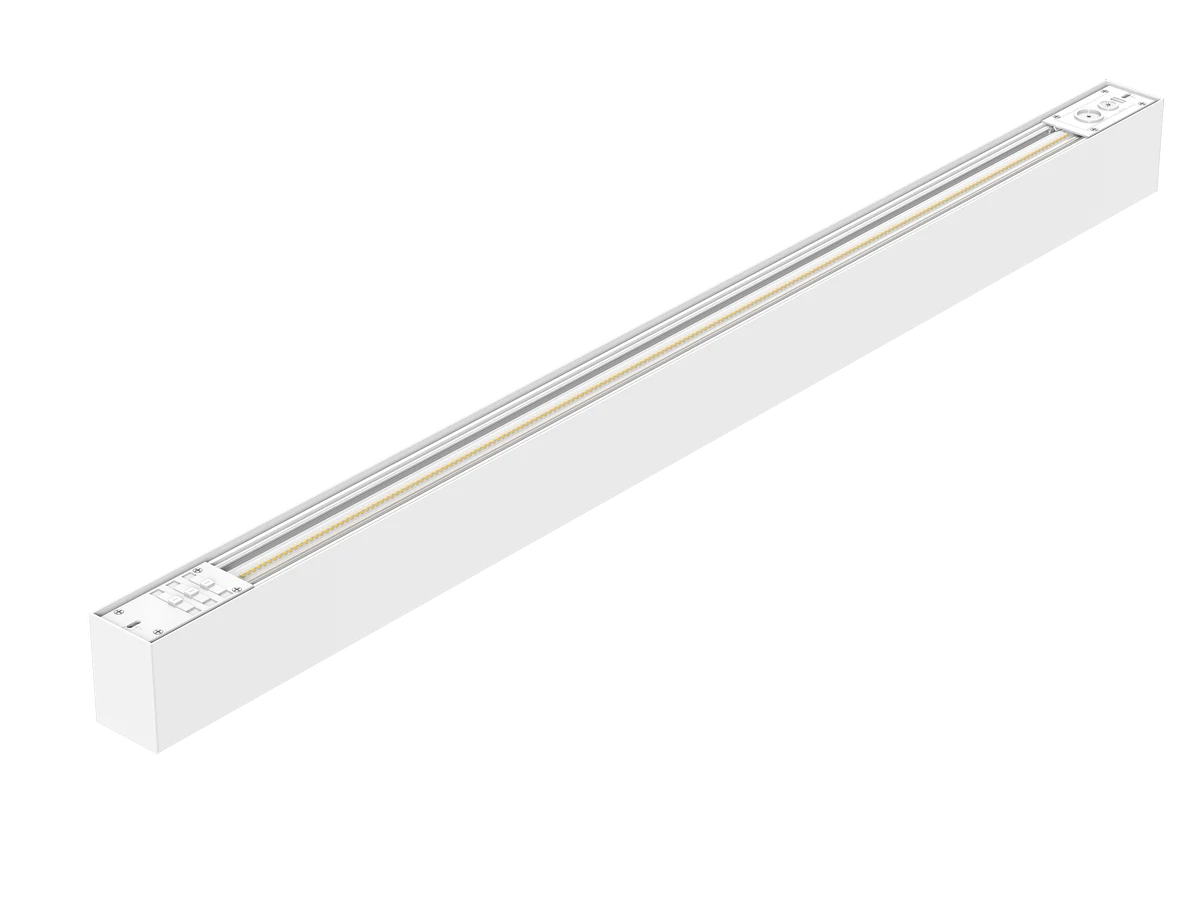

VersaⒶRCH

continuⒶRUN

DampGuard

UL Listed

Damp Location

RoHS

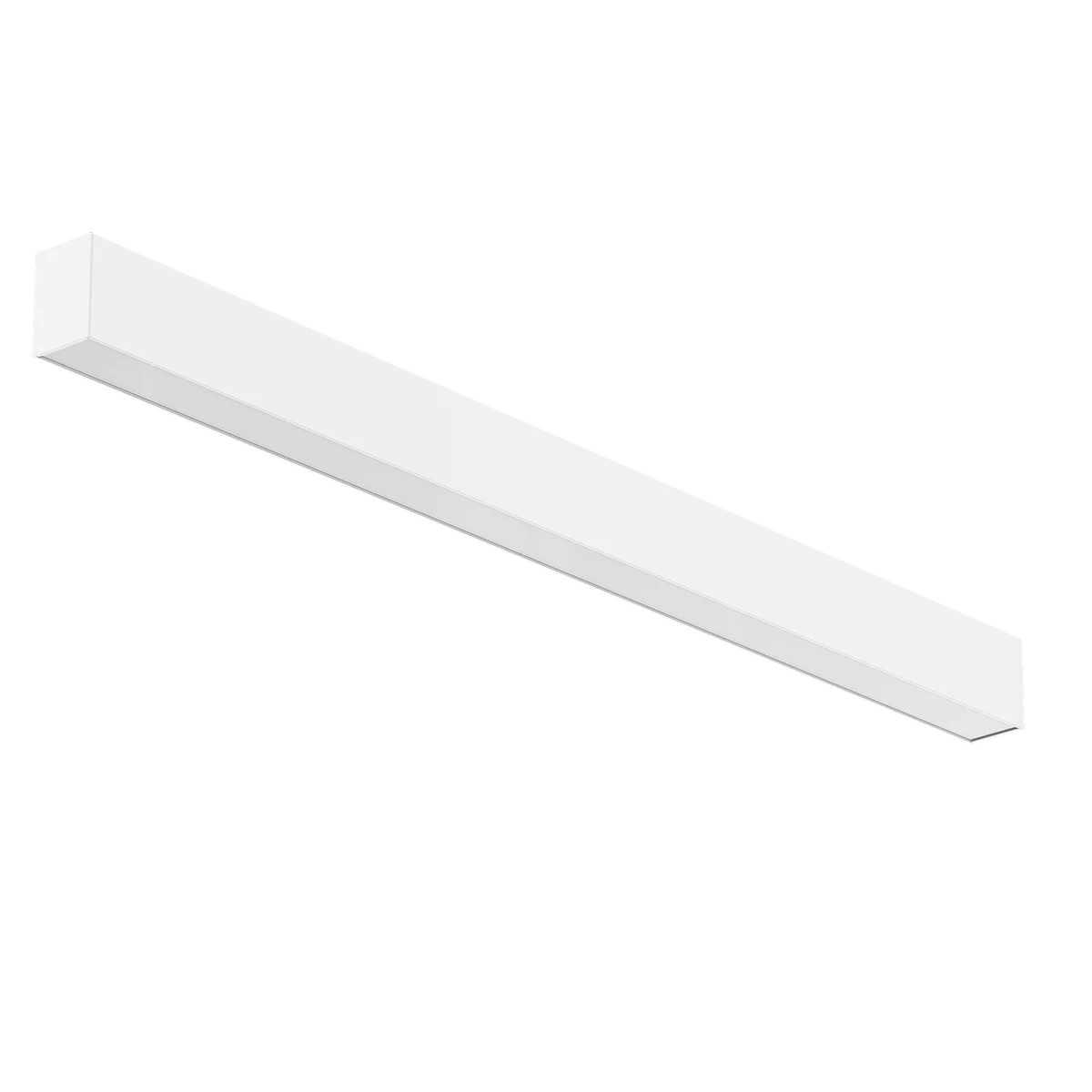

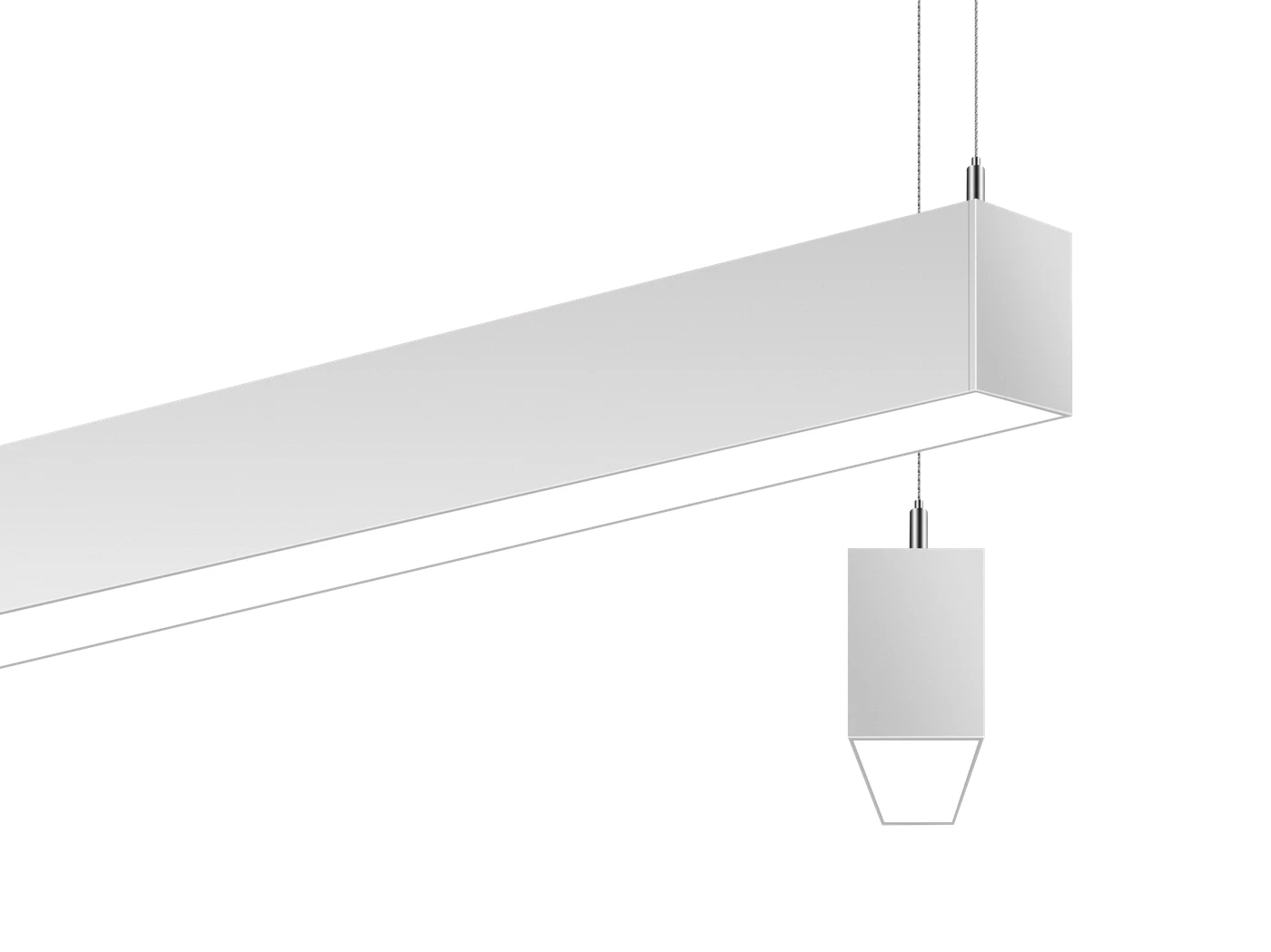

Luna 4 ft linear, white, hanging on aircraft cable

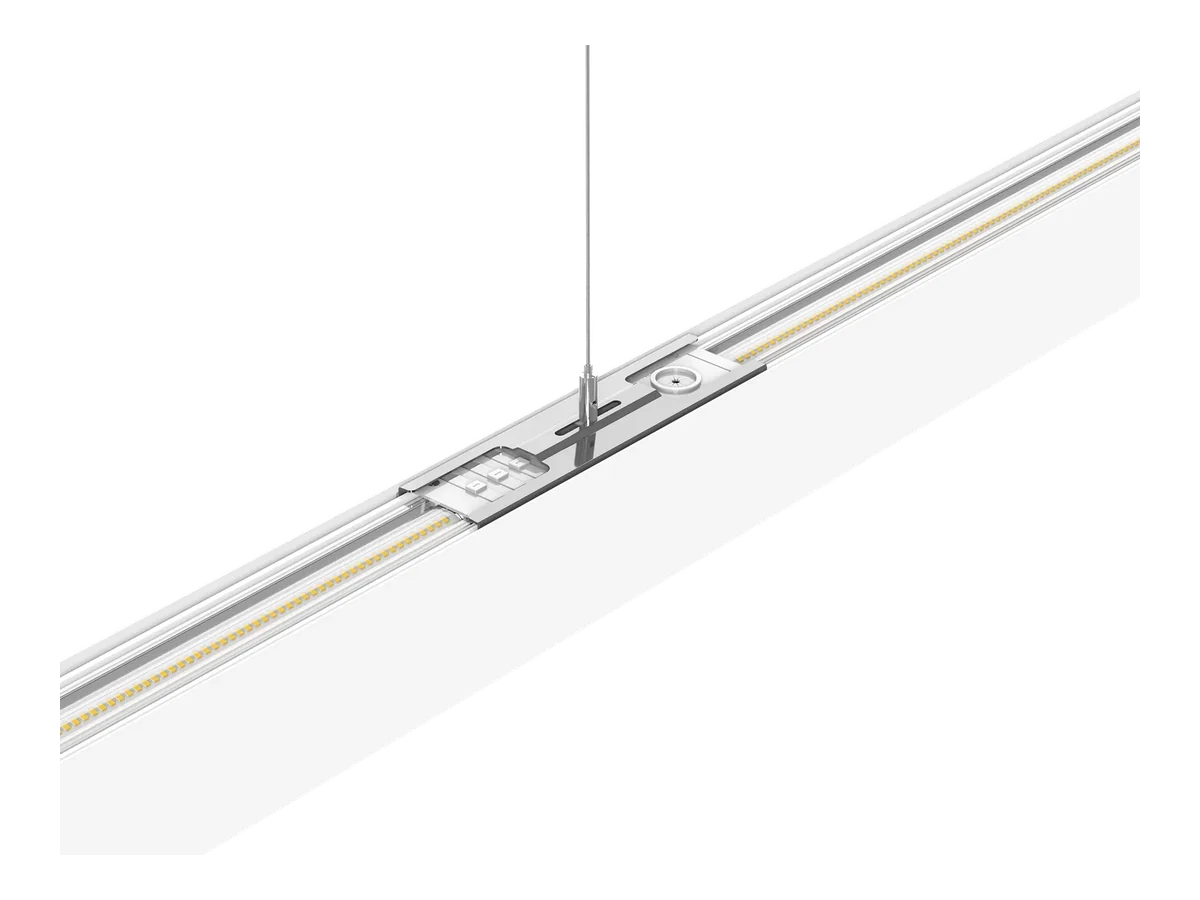

Two Luna fixtures joined in a straight run

Documentation & Resources

Documents

Data SheetPDF Installation GuidePDF Quick SheetPDF IES Photometric FilesIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the floor plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS by ⒶCSThe sensor, switch and controller Luna takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

Optic	Lumens	lm/W	Beam

★ Default. Measured at the top WATTselect step, 4000K and 100 % down. IES files for other settings are available on request.

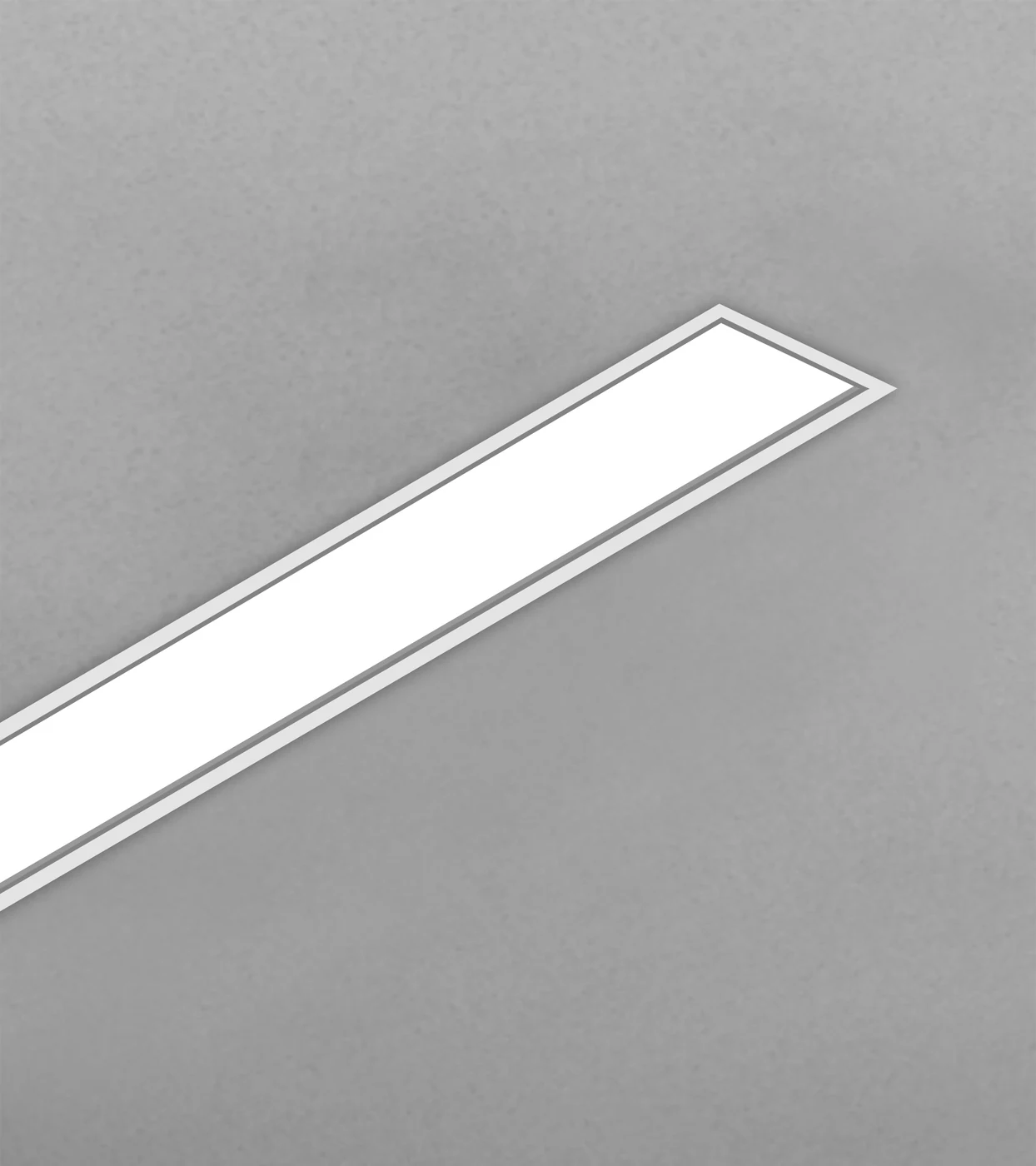

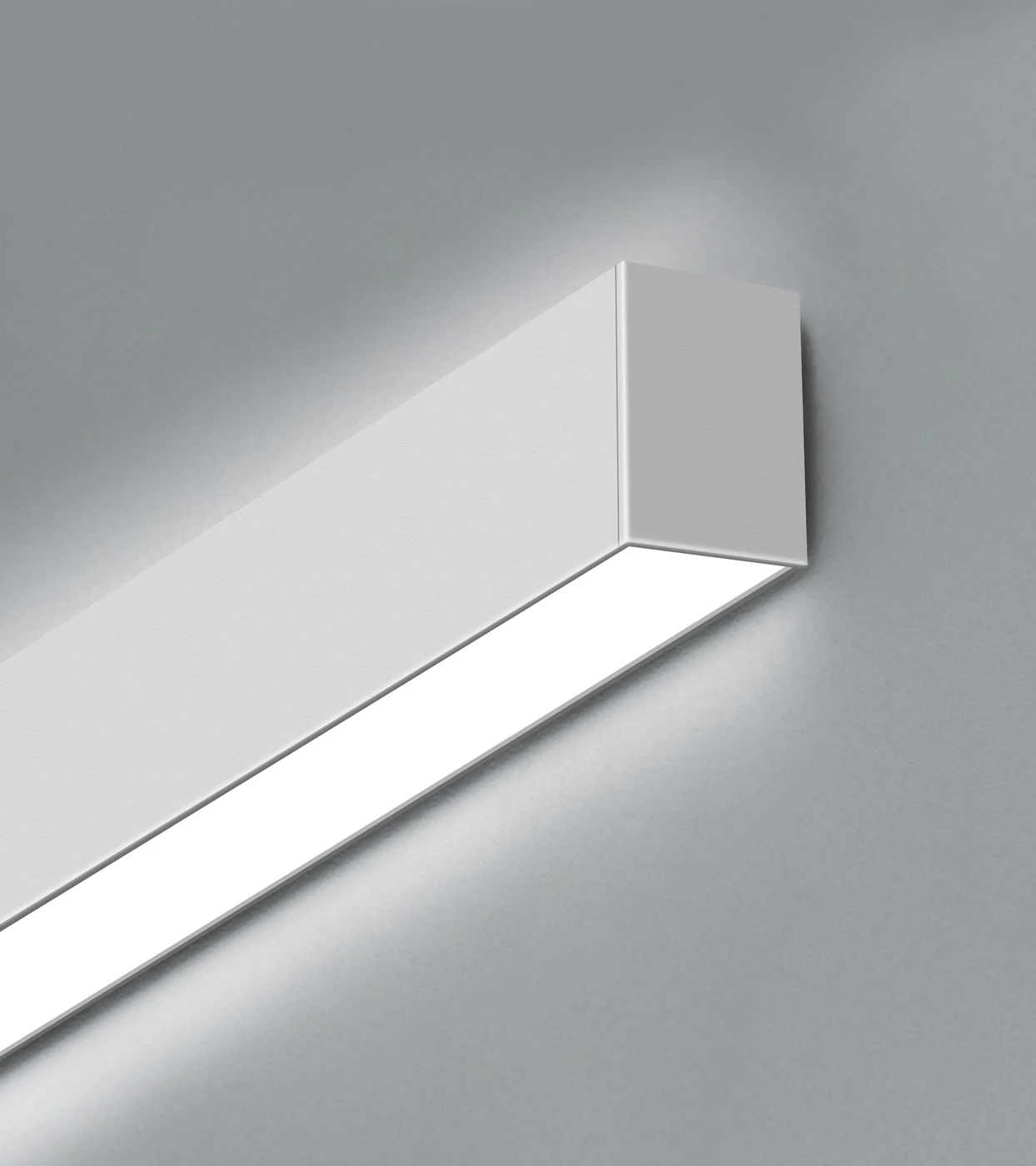

ApplicationIndoor · specification-grade linear · pendant, recessed, surface or wall

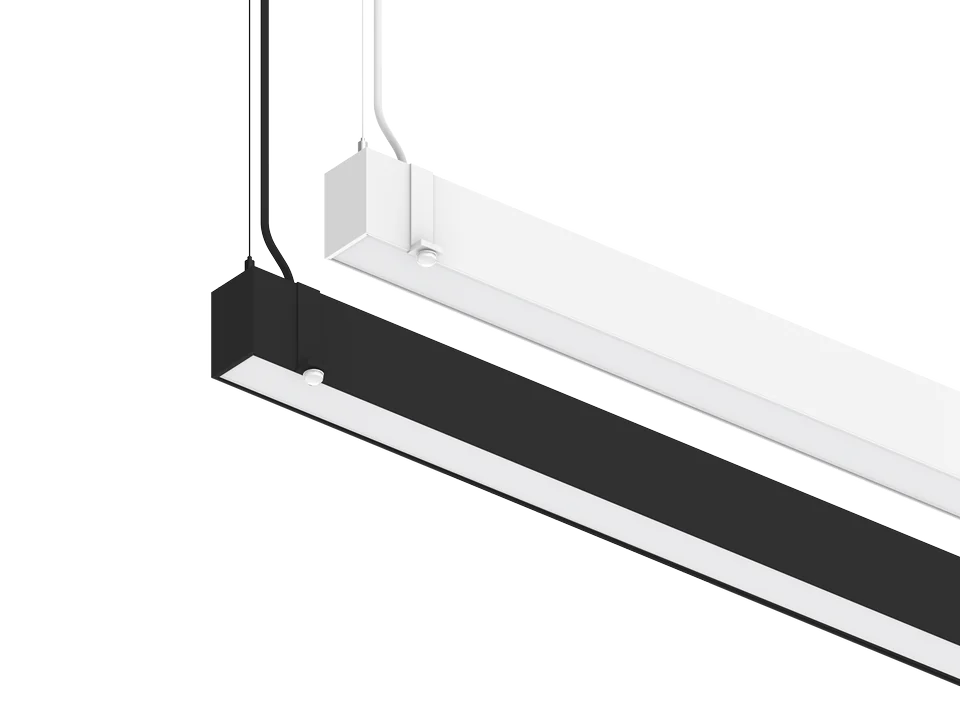

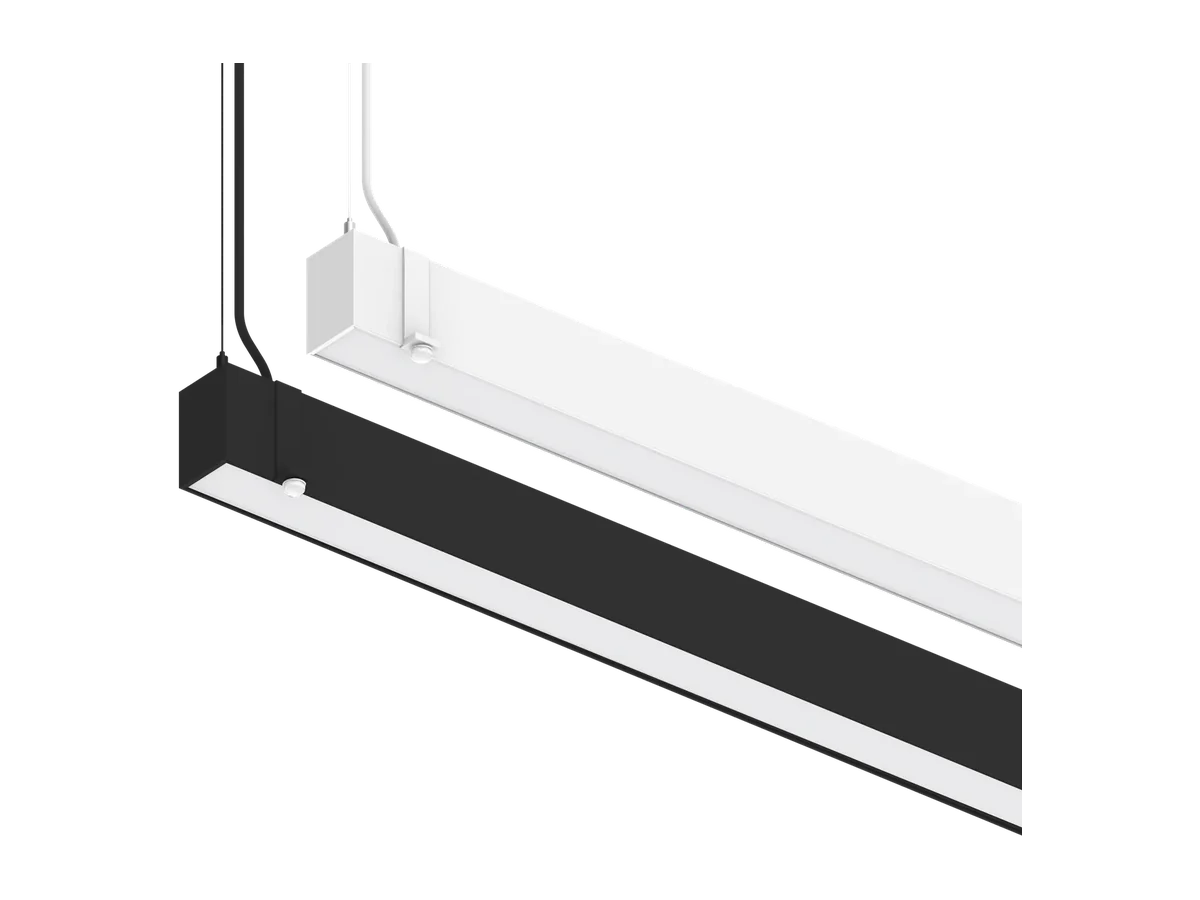

ConstructionExtruded aluminum, 2.34″ W × 3.46″ HWhite or black · the diffuser ships on the fixture

WATTselect—

Color3000 / 3500 / 4000K ★, set by switchCRI >80

Distribution7 settings, 100 % down to 100 % up, set by switchdirectⒶIM · recessed mounts run 100 % down

Dimensions—

Operating temp−4 °F to 104 °Fdamp location

Electrical120–277 V · 0–10V dimming to 10 % or 1 % · PF ≥0.9 · THD ≤20 %

RunscontinuⒶRUN · 400 W at 120 V · 1,000 W at 277 V

Warranty5 yr · 50,000 hr

Full Data Sheet Installation Guide

Engineering

What you set at install, how it mounts, and what swaps in on site.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

Full IES Library

Engineered Accessories

Configurator

Build Your Luna.

Required *

Length—

Finishblack in 2 and 4 ft—

WATTselecta switch on the fixture · not in the part number40 W

CCTselecta switch on the fixture4000K

Up-lightthe directⒶIM switch · share of light sent up0 % up

Mountingpicks the kits below · not in the part numberPendant

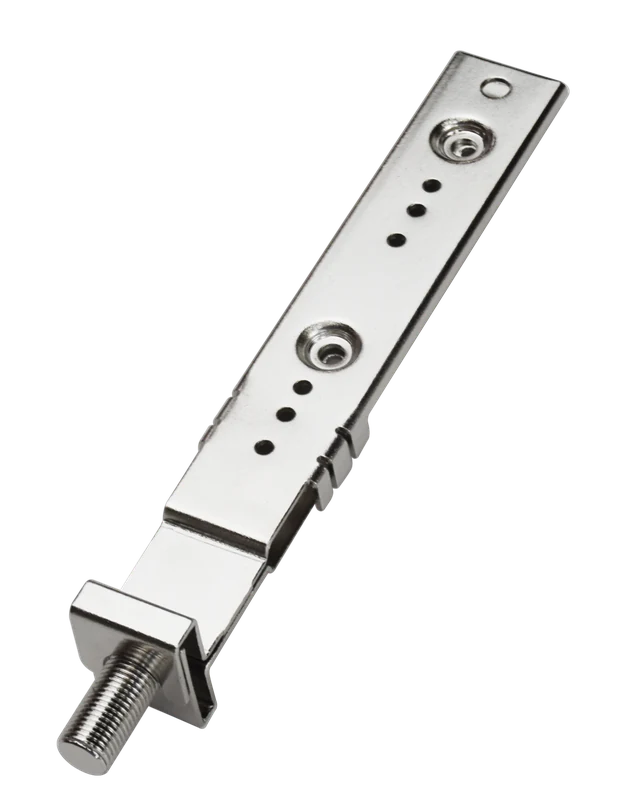

Mount kitits own line item · needed to install—

Optional

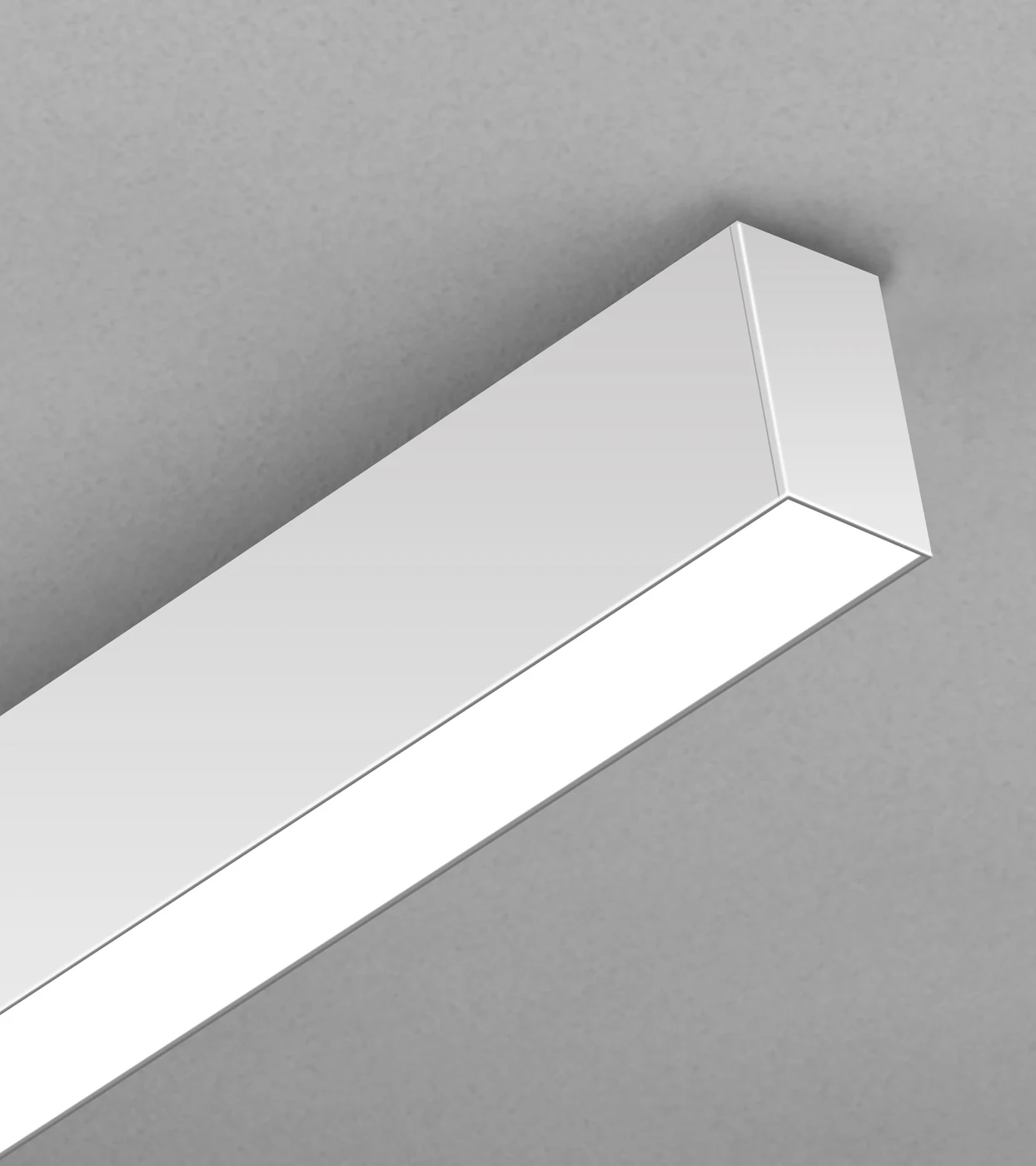

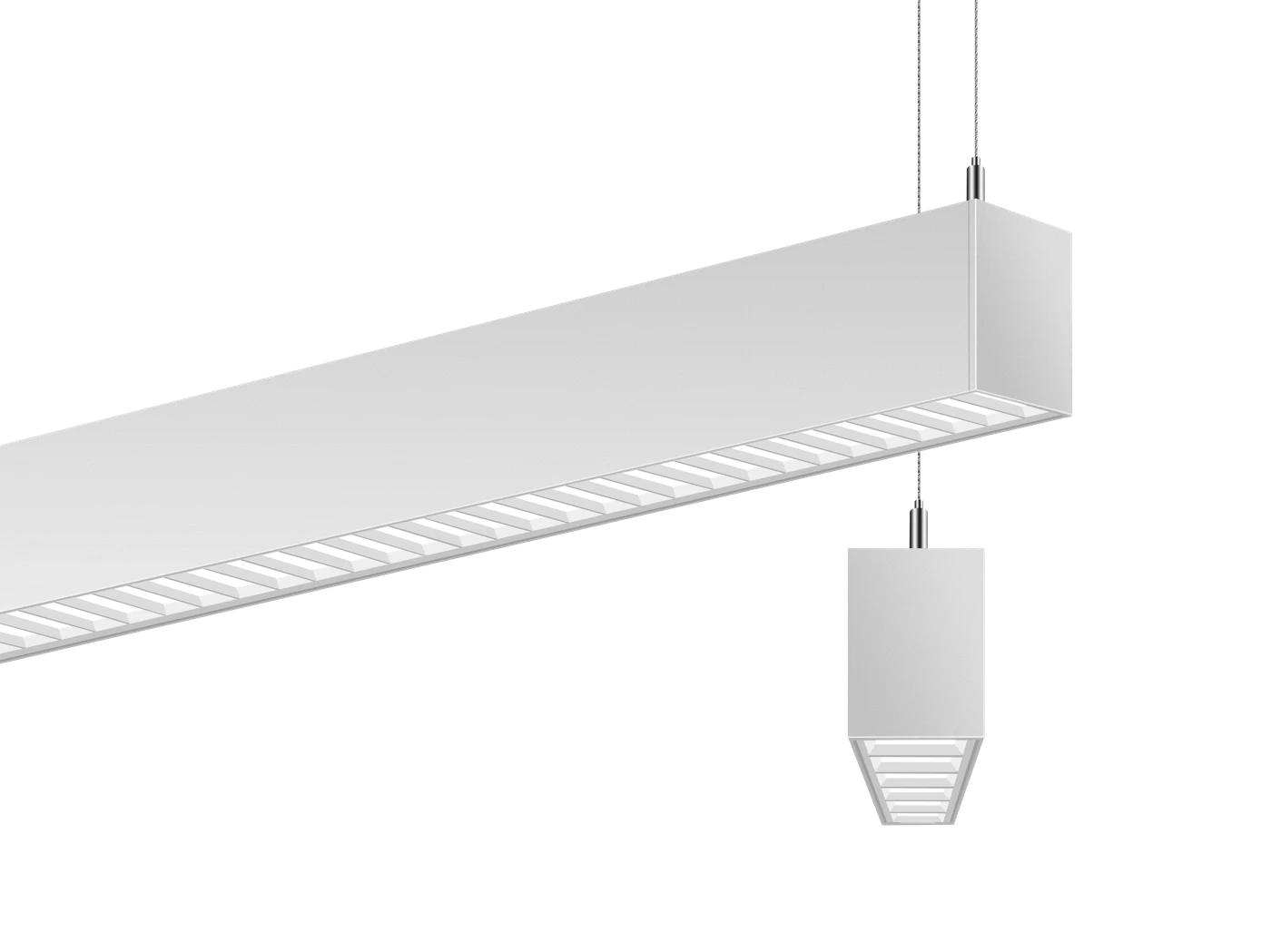

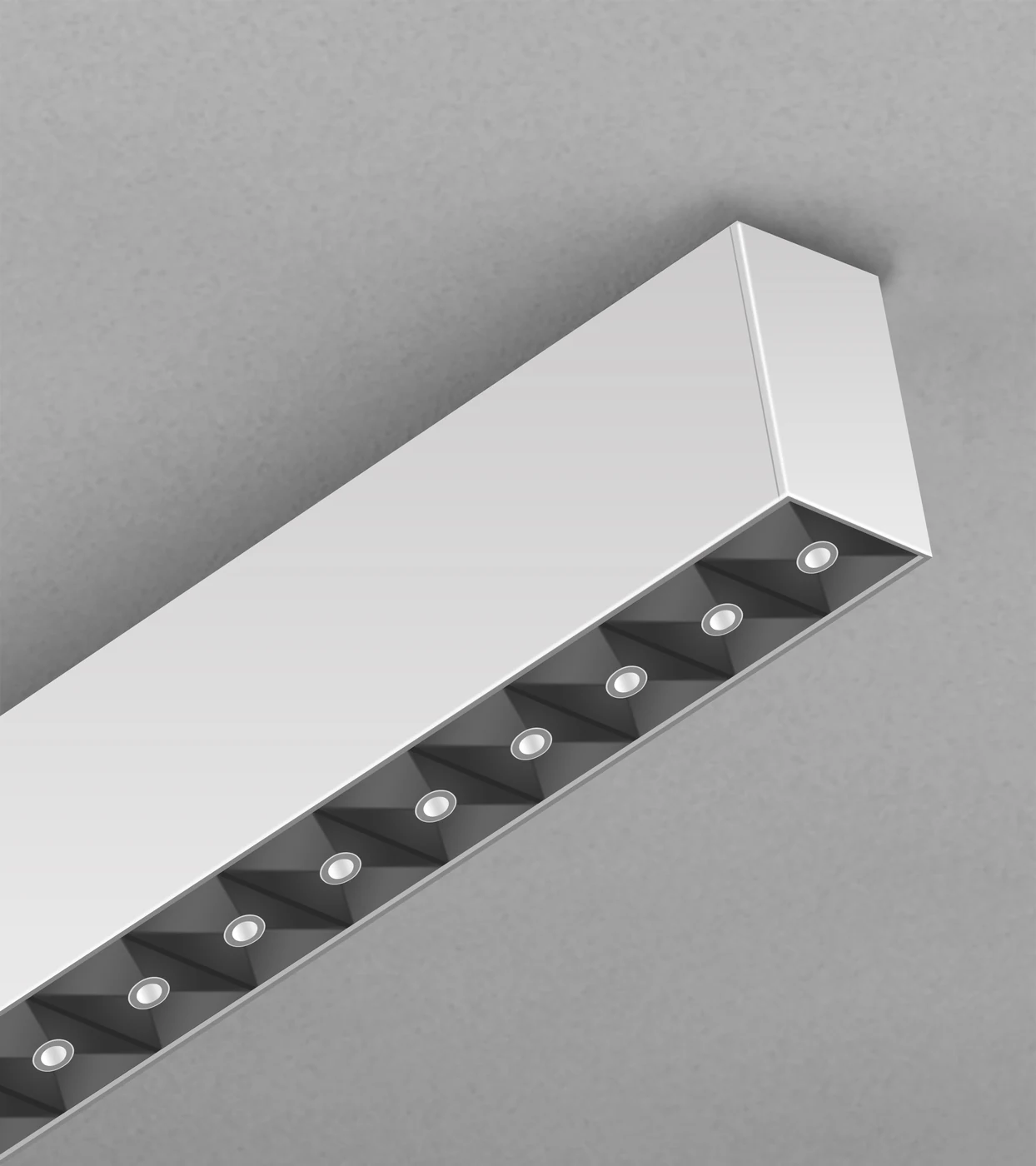

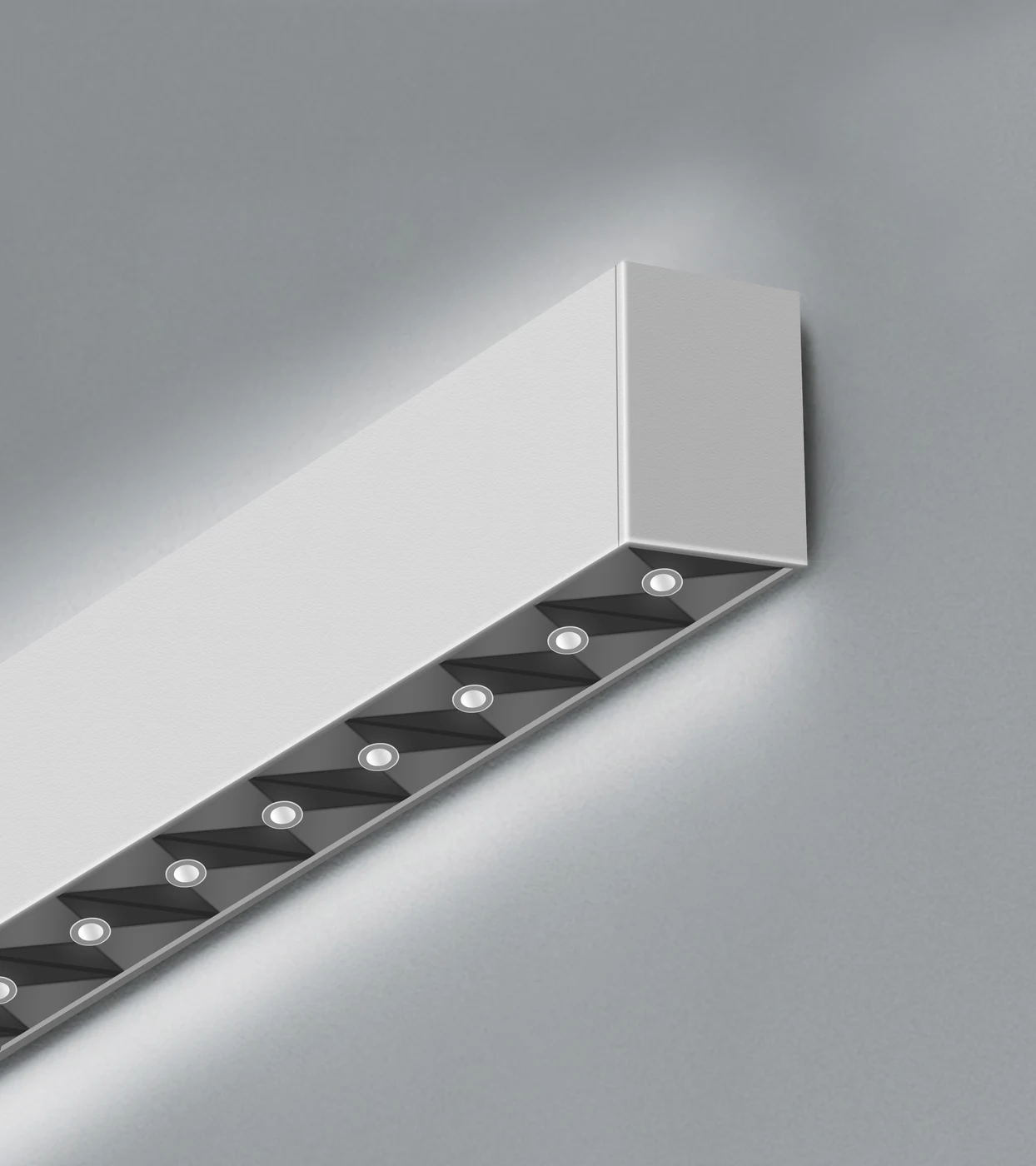

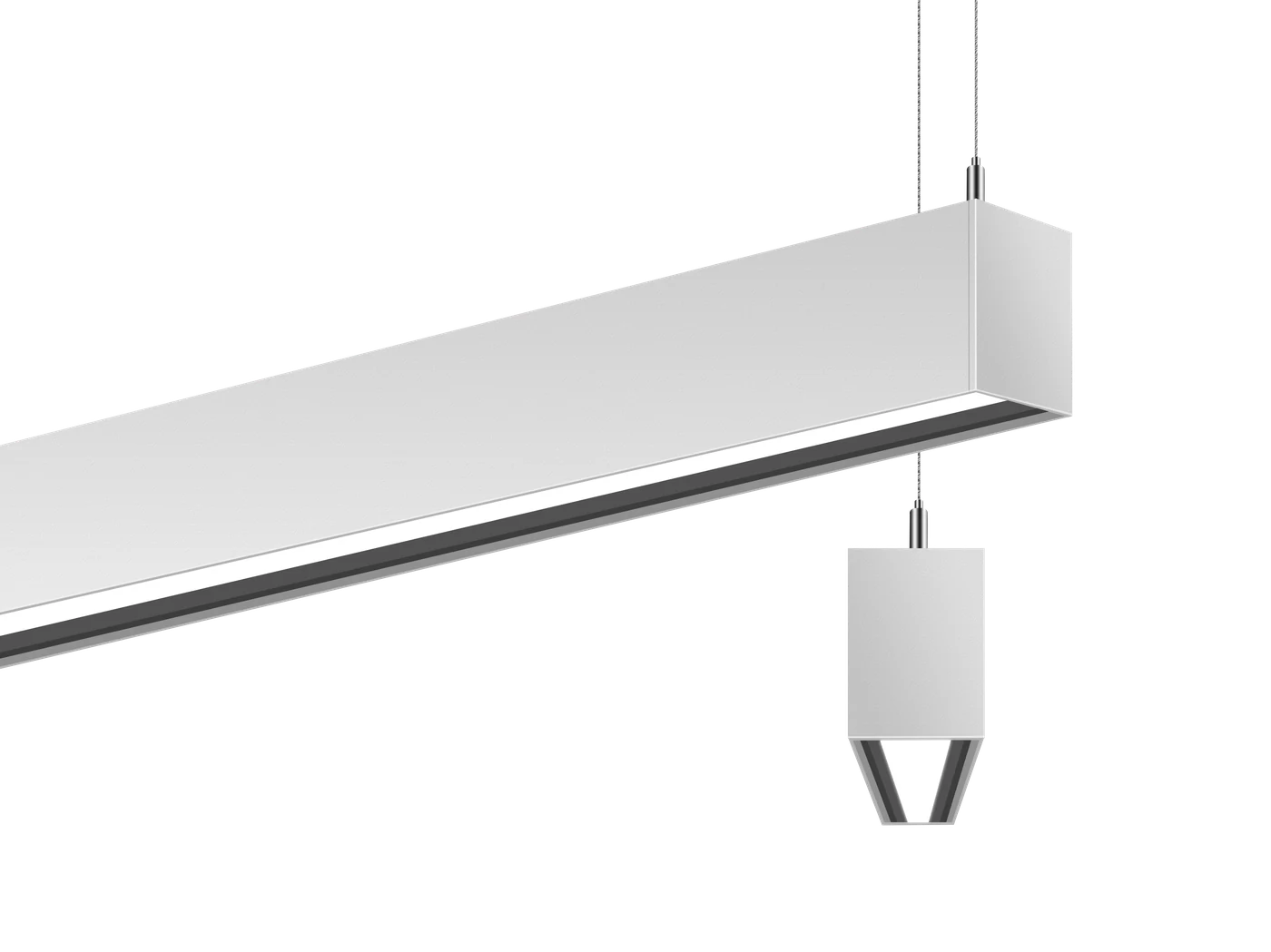

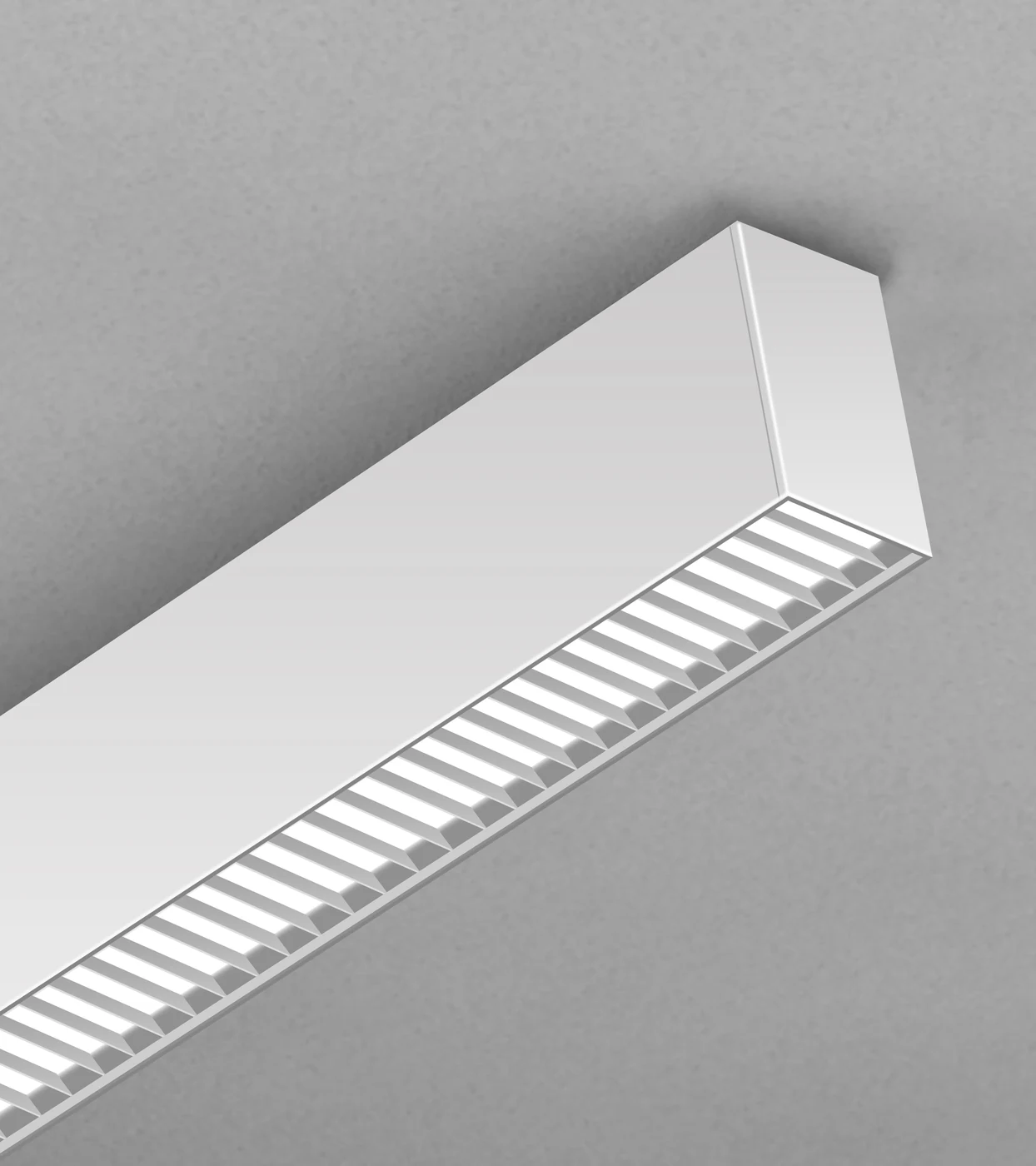

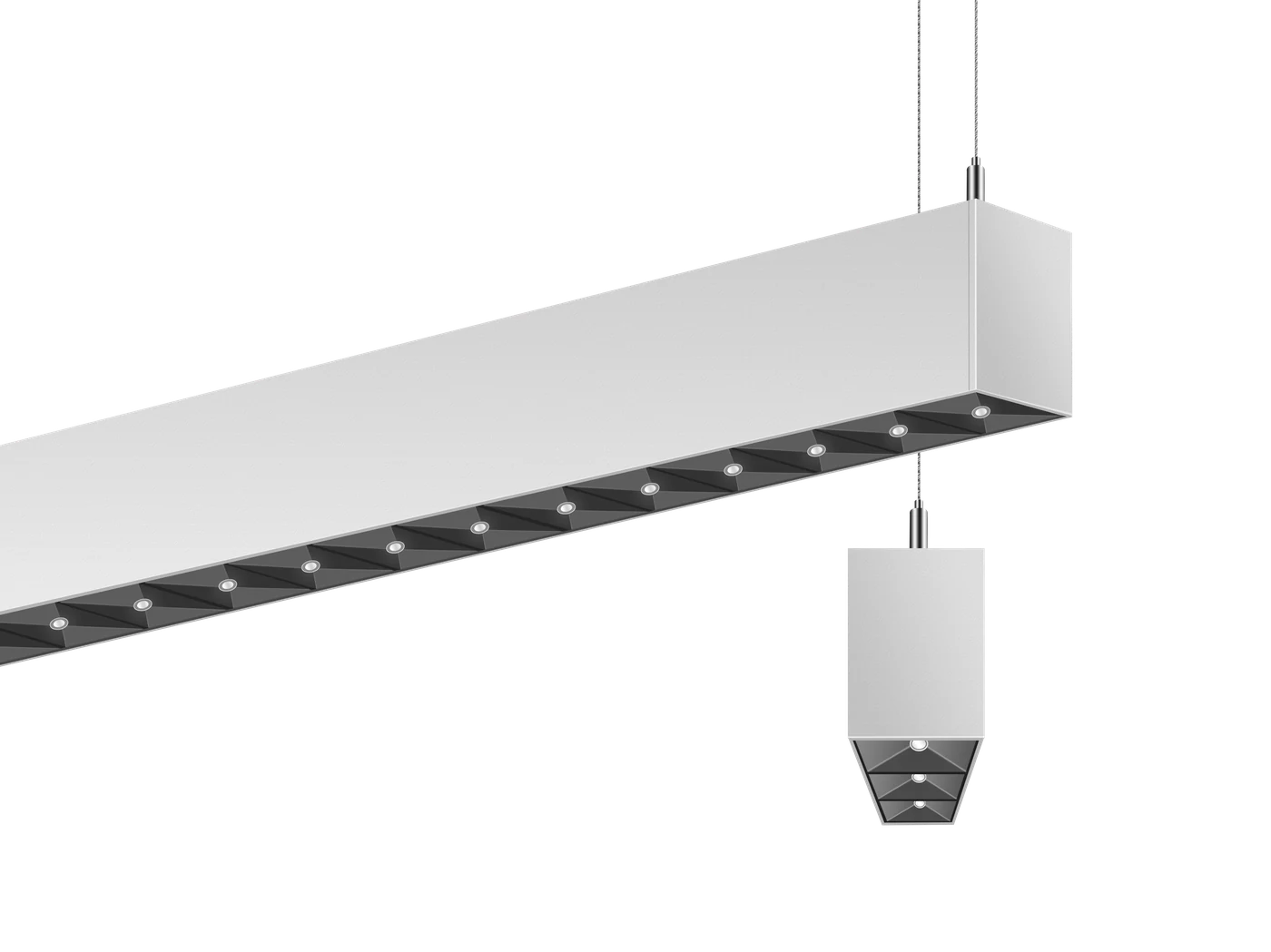

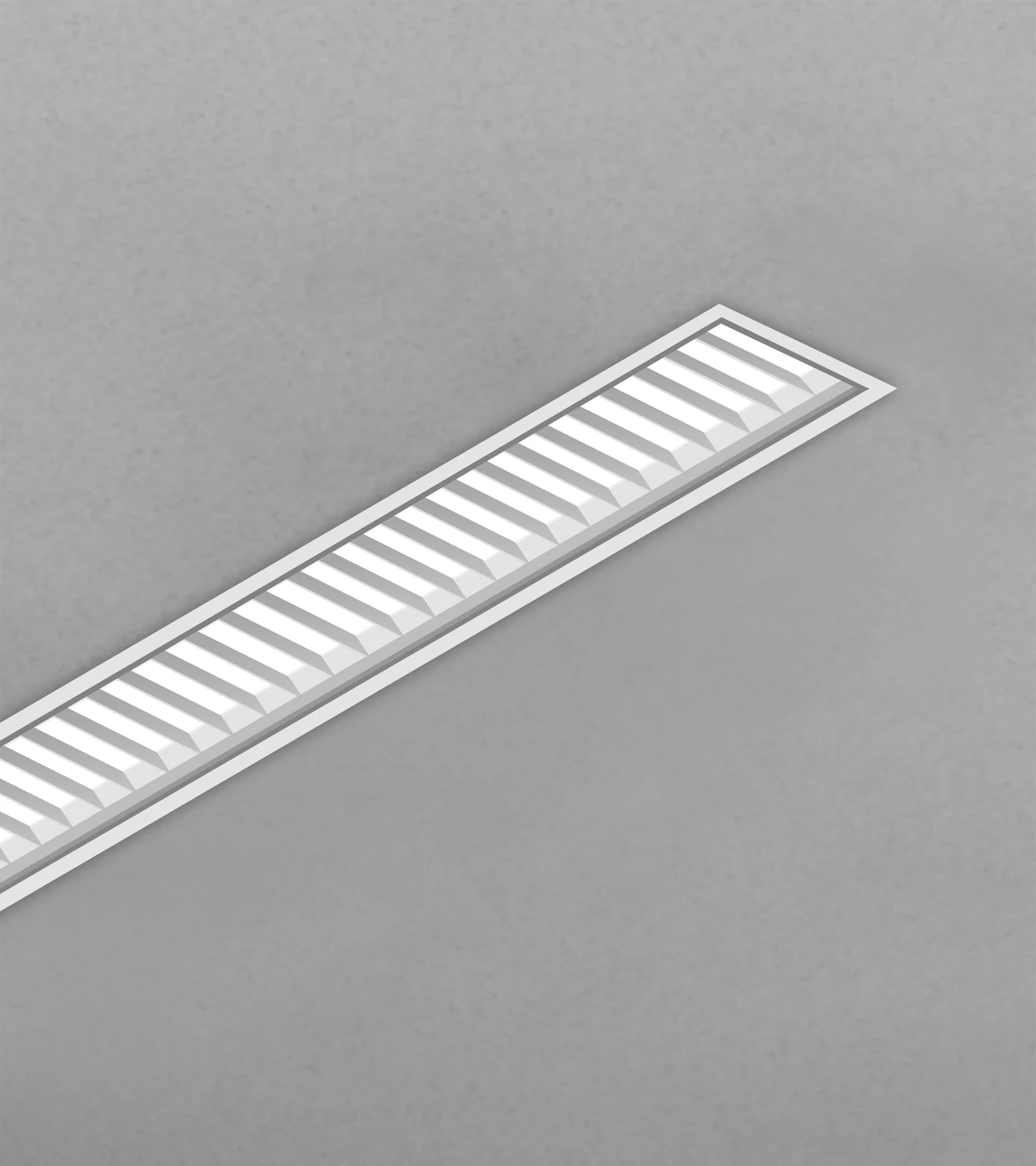

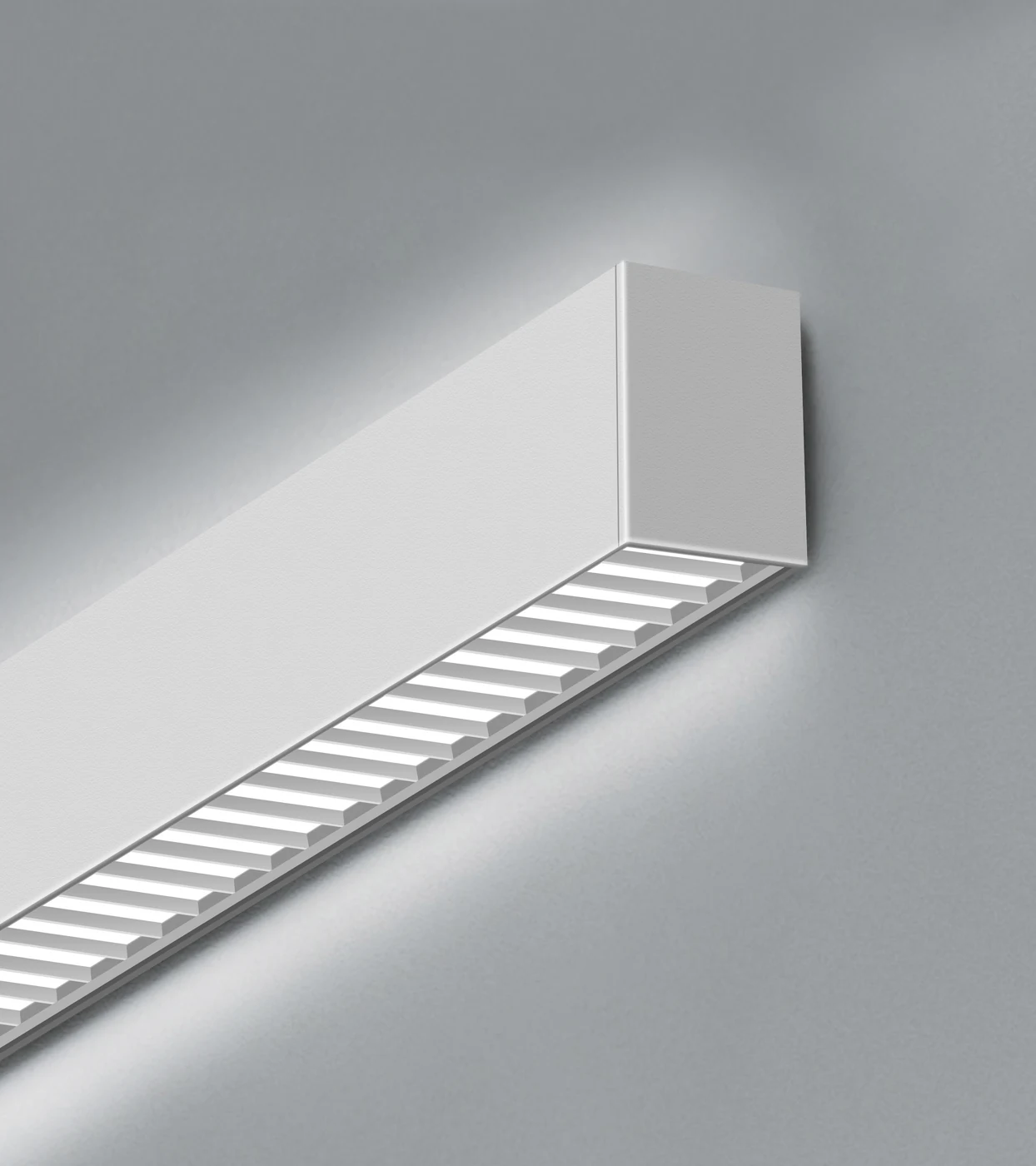

Opticits own line item · the diffuser ships on the fixture—

Lit joinerits own line item · white—

Non-lit joinerits own line item · white—

Canopypendant · finish follows the fixture—

Cord kitpendant · with aircraft cable—

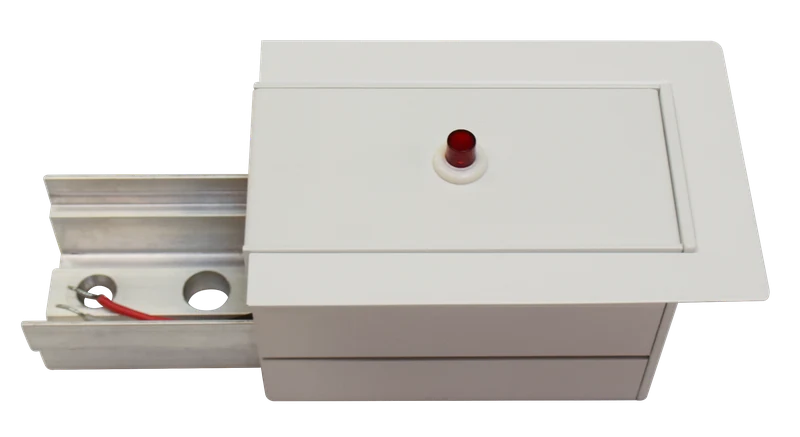

Emergencybuilt in at the factory · not recessed—

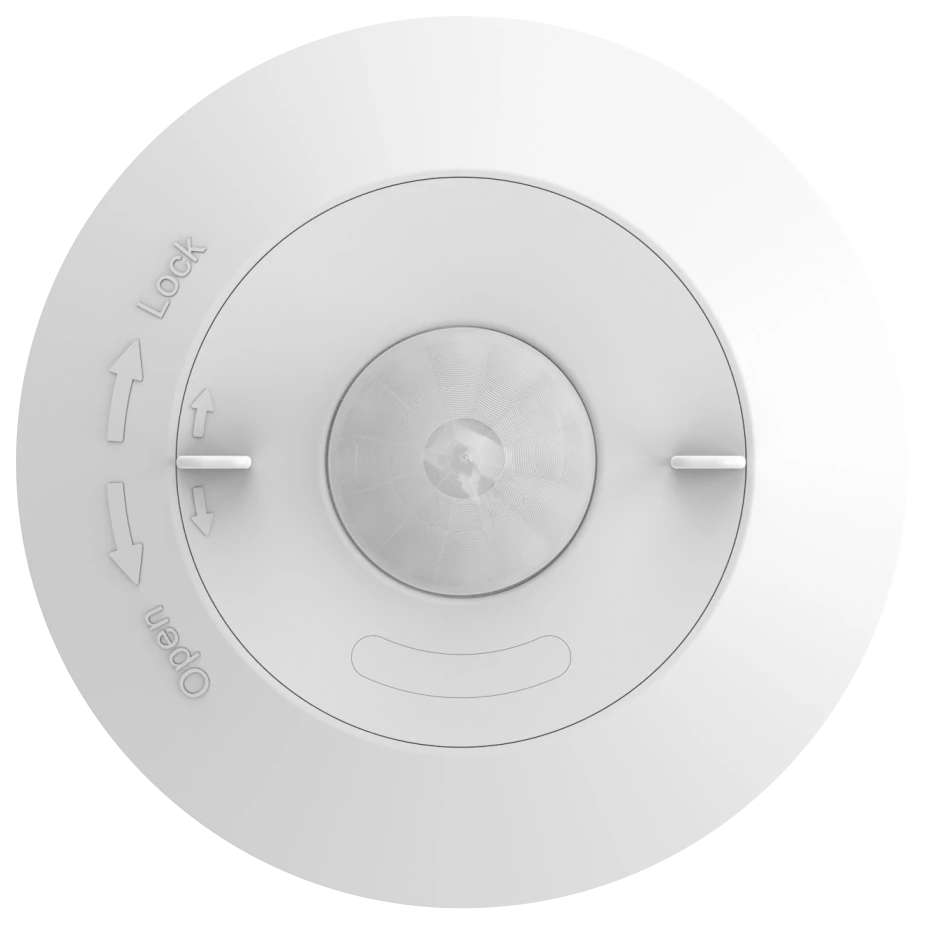

Sensorits own line item · by mounting height—

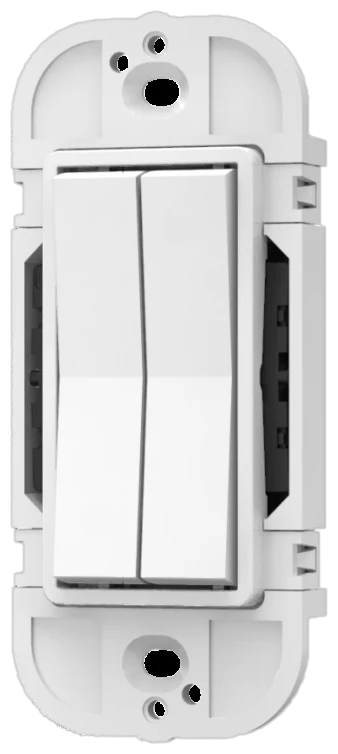

Wall switchits own line item—

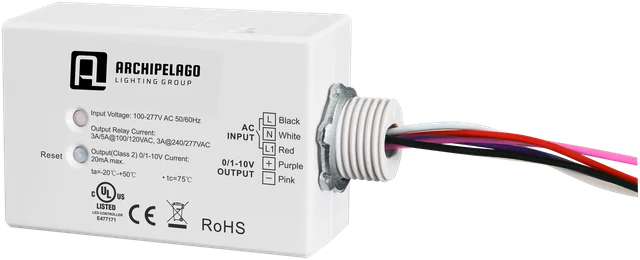

Controllerits own line item—

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingsUL Listed (US) · damp location · RoHSCheck Rebate Center for utility programs before you specify.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

planoⒶRCH Family

Luna is the PRO+ linear and Lara the ECO one. The panels and the downlight fill the rest of the room.

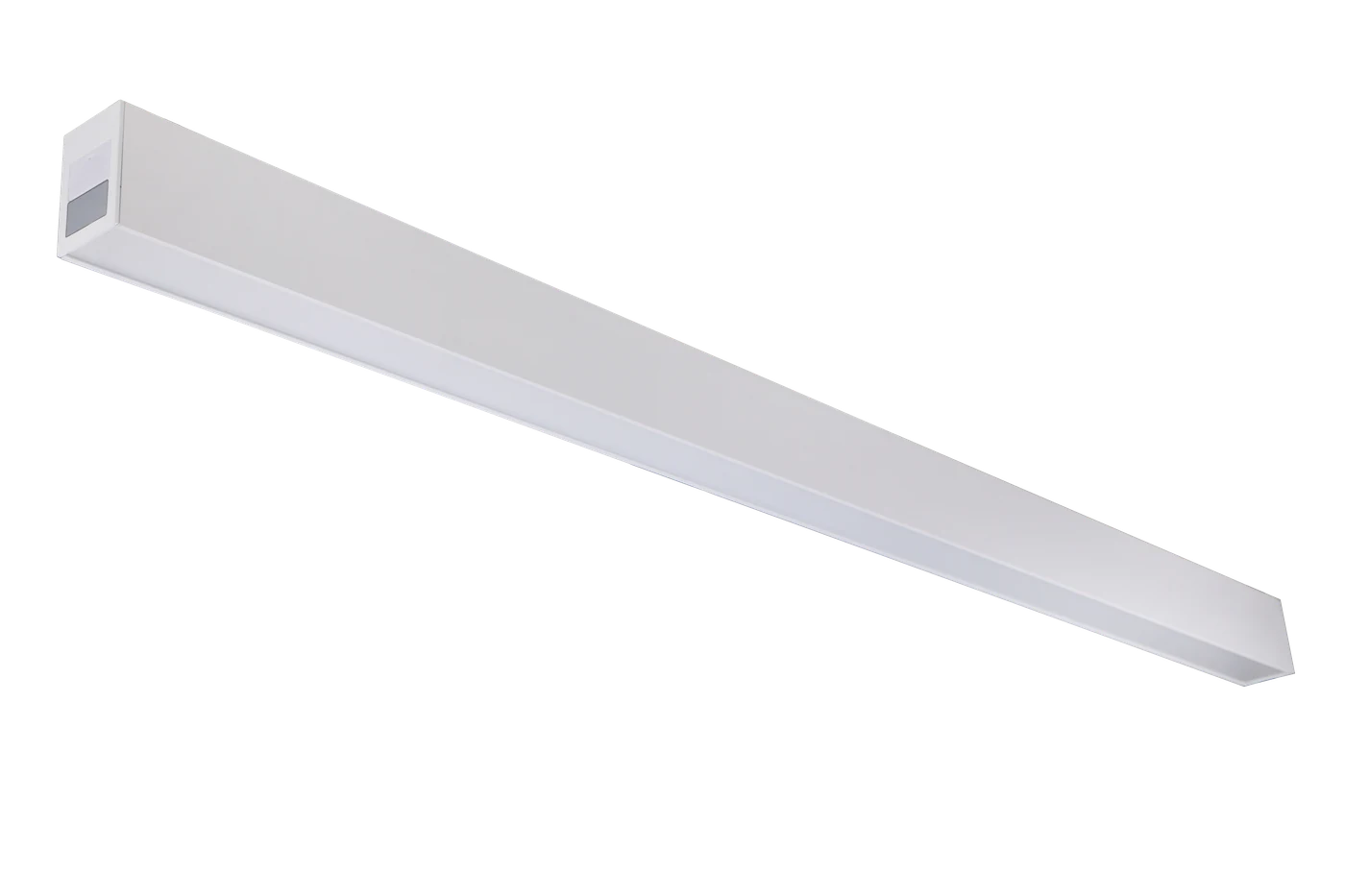

LUXA · ECO Lara The iron-bodied linear for long straight runs. 2, 4 and 8 ft, up to 137 lm/W. 2 / 4 / 8 ft Specification Sheet → Product Details →

You are here Luna specification-grade linear

LUXA · PRO+ Luna 2, 3, 4 and 8 ft. Pendant, recessed, surface or wall, with six optics that swap in on site. UL Listed · 5 yr / 50,000 hr Installation Guide → Product Details · this page

LPVT · PRO proⒶRCH-T A volumetric troffer for grid ceilings, where a pendant does not fit. 2×2 · 2×4 Specification Sheet → Product Details →

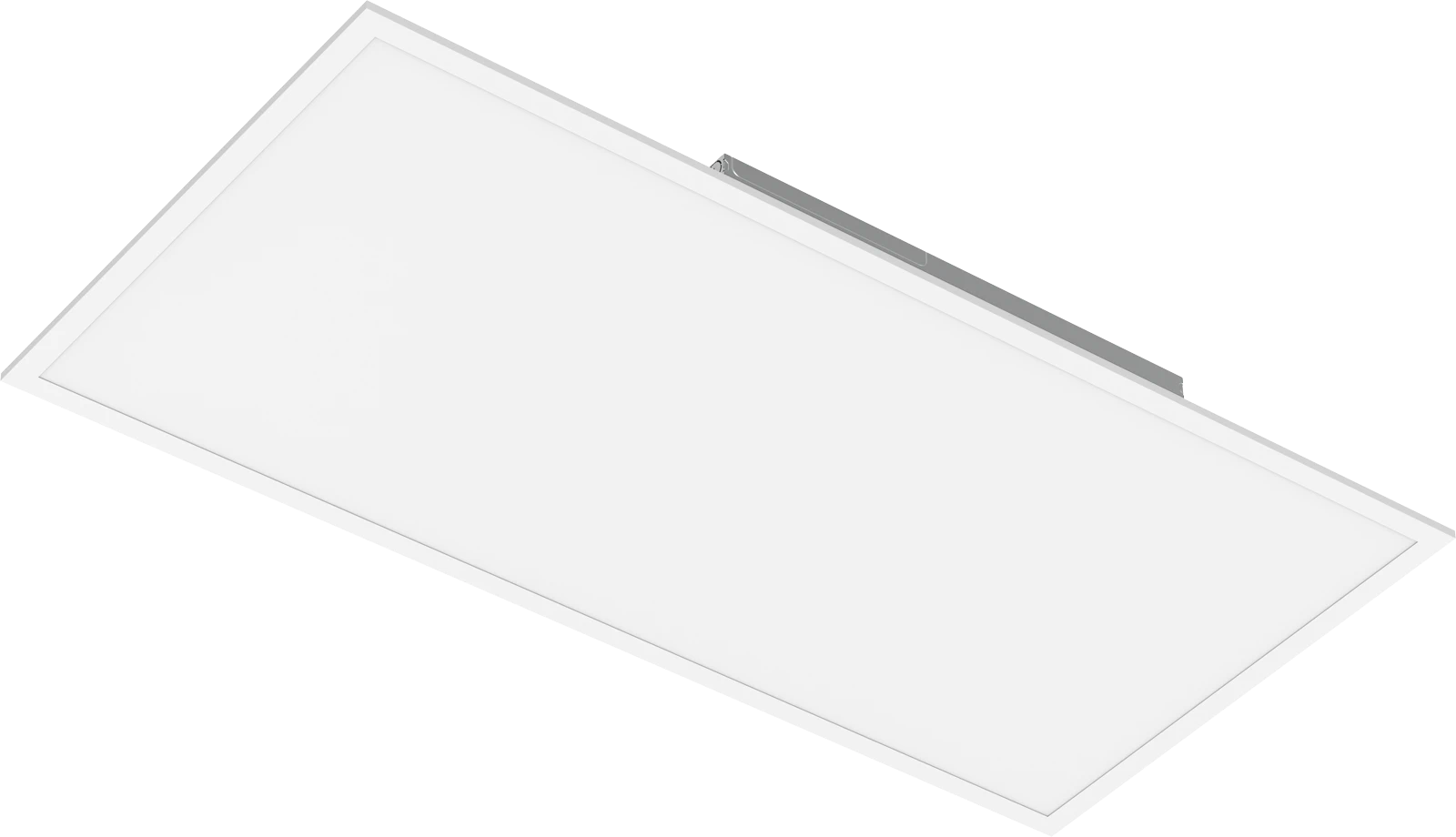

LBLP · PRO proⒶRCH A back-lit flat panel for grid ceilings in offices and classrooms. Back-lit panel Specification Sheet → Product Details →

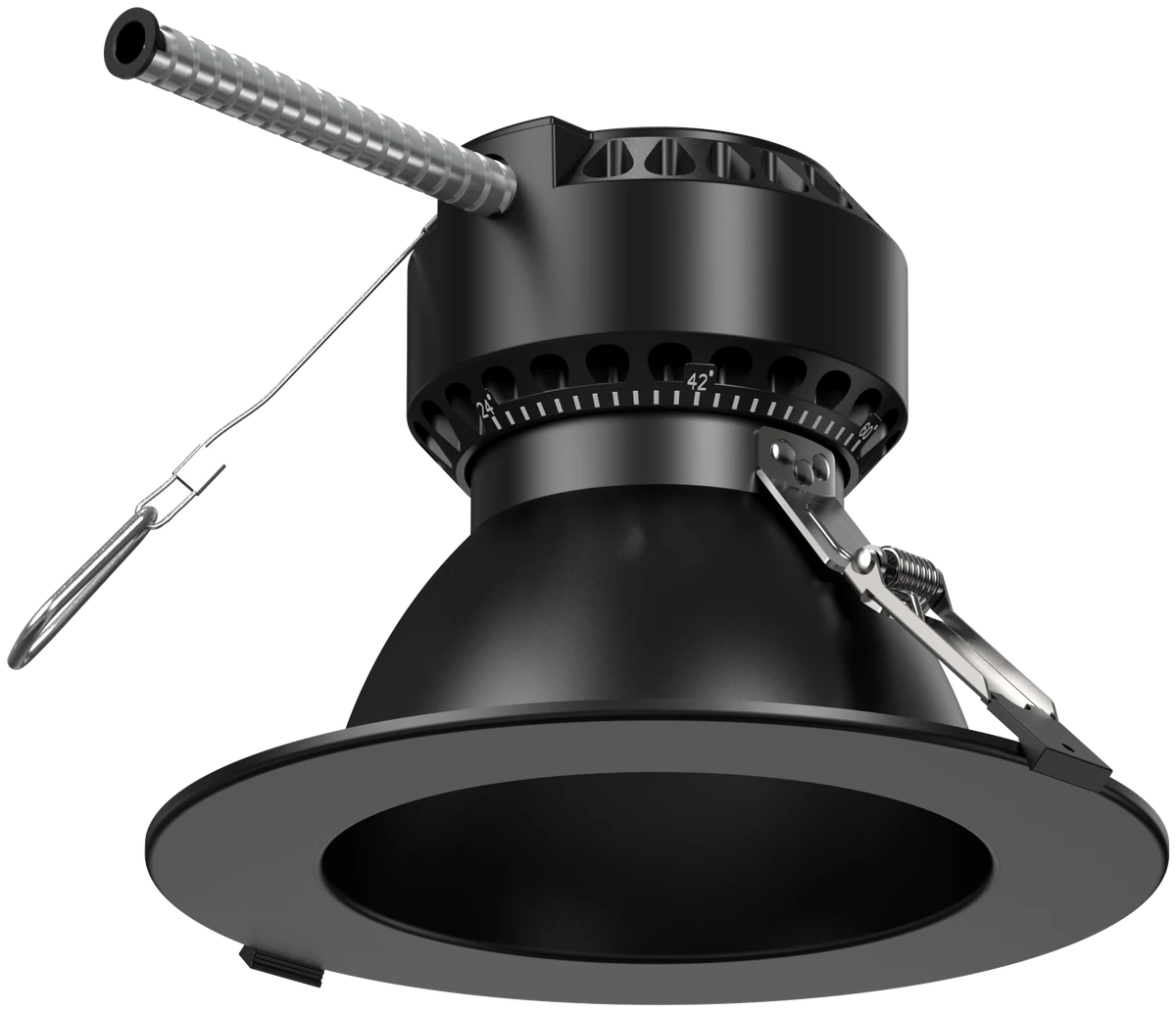

LCDL · ECO Solstice A can-less downlight for the entries, lobbies and restrooms around a Luna run. 4″ / 6″ / 8″ / 10″ Specification Sheet → Product Details →

Specifier Support

Send us the floor plan.

We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Quotes and rebate matches come back the same day.

3 BDLayout turnaround

Same dayQuote reply

Find A Rep Request A Layout

Rebates

Utility programs, checked for you.

Send us the job ZIP and your catalog number. We check which utility programs apply before you specify, and send the forms back with the answer.

110lm/W at full downlight

4Ways to mount

6Field-swap optics

Open Rebate Center
