Pathfinder Series PRO

Name: Pathfinder Series
Brand: Archipelago Lighting Group
Availability: InStock

24 configs. One SKU.

PRO canopy on the luxoⒶRCH LCNP family — sibling to the Atlanta PRO wall pack. Two housings: LCNP060 (25/36/48/60W · replaces 250W MH) · LCNP110 (45/65/90/110W · replaces 400W MH). Field-set wattage and CCT — 24 configs from one SKU. Up to 17,050 lm at 110W · 160 lm/W rated at LCNP060 peak. conduitⒶREADY 3-side ½" NPS knockouts · wetⒶGUARD silicone-sealed driver chamber · IP65. 7-yr / 75,000-hr warranty — beats DLC Premium's 5-yr floor by 2 years.

Input Watts: 25 – 110W Lumens: Up to 17,050 lm Efficacy: Up to 160 lm/W

Ideal Applications

Parking Garages

Awnings & Drive-Throughs

Schools & Soffits

Security Lighting

24-IN-1

160 LM/W

conduitⒶREADY

7-YEAR WARRANTY

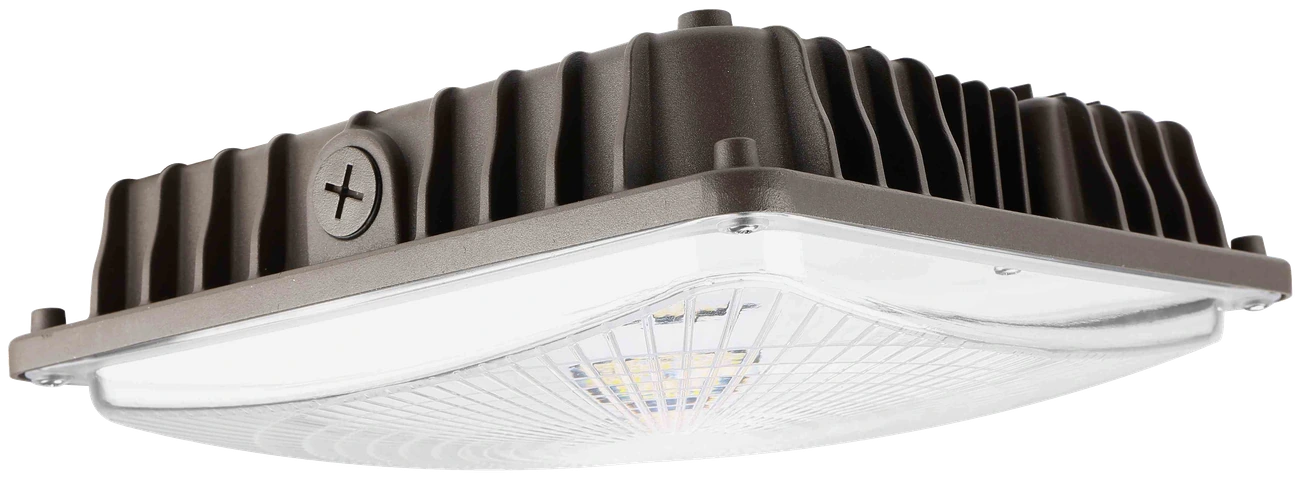

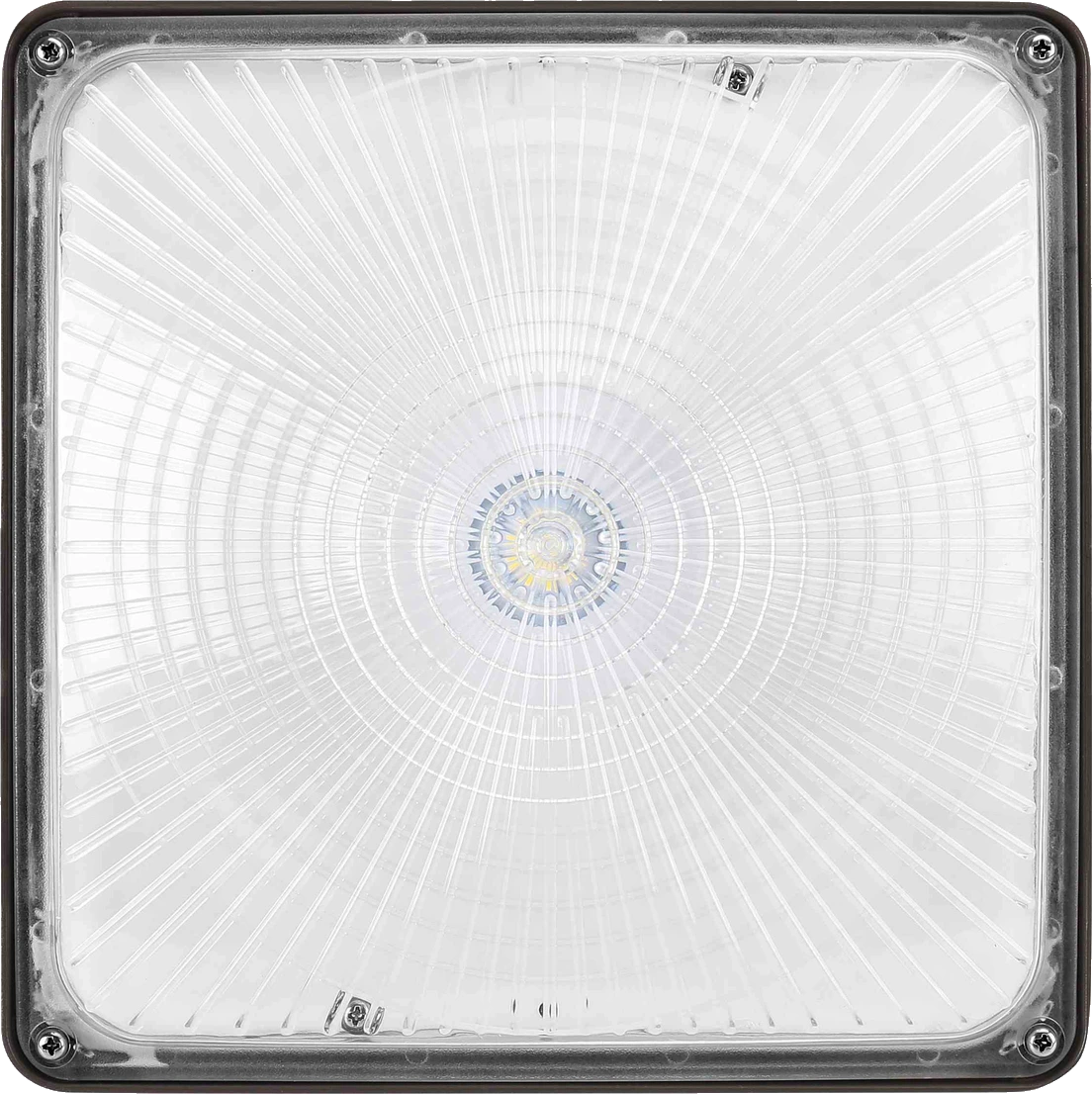

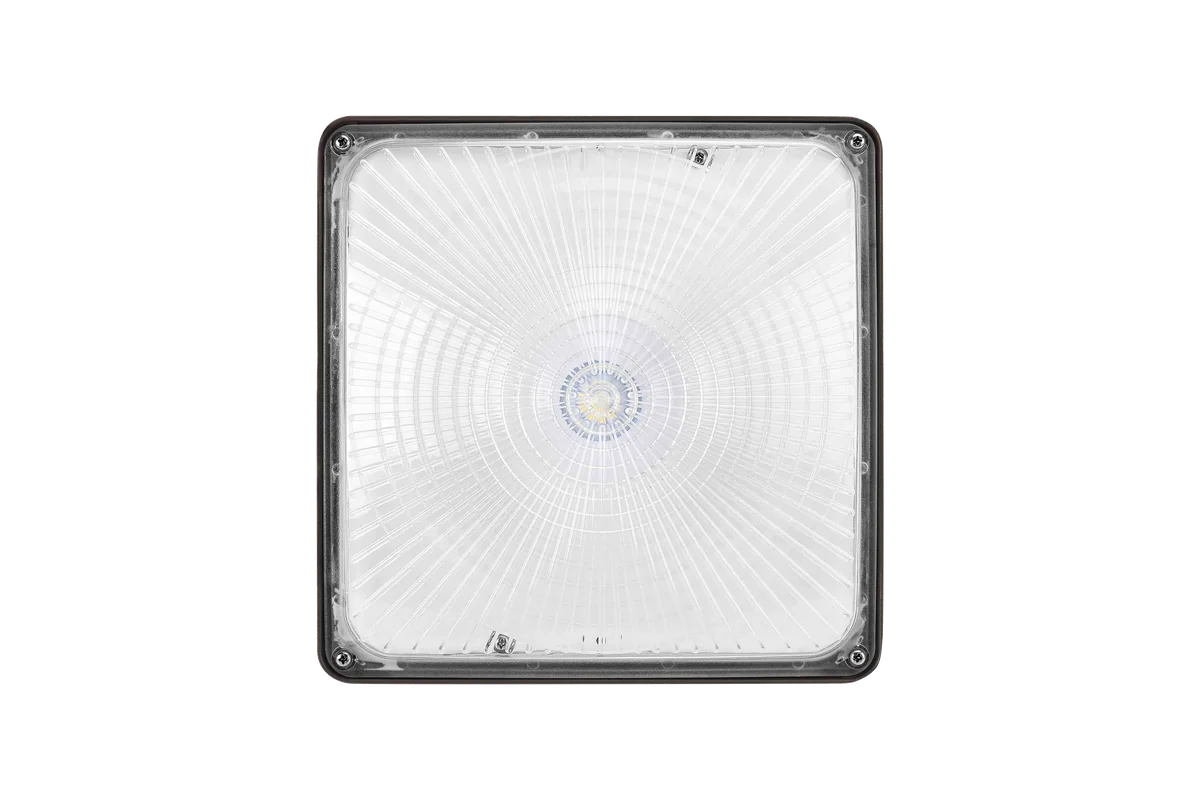

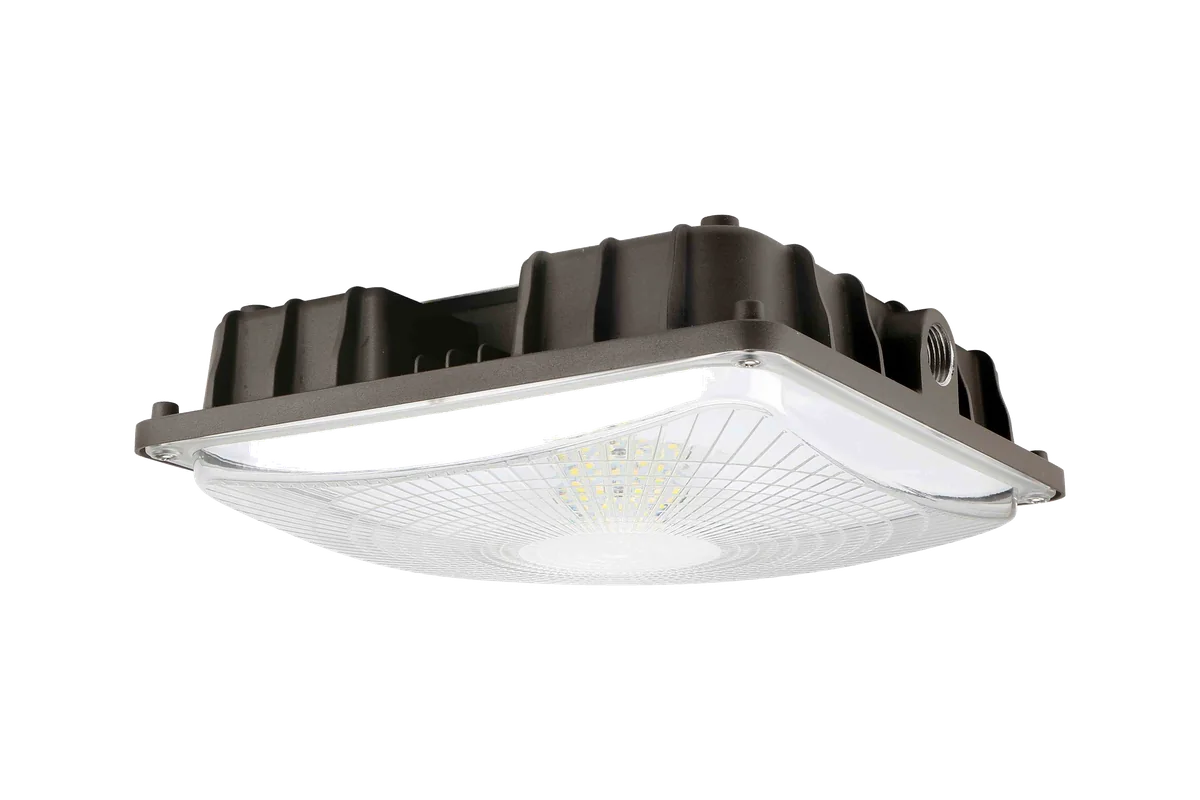

Pathfinder Series — front view of LCNP canopy fixture, square housing with prismatic acrylic lens covering the LED panel, dark bronze die-cast aluminum frame, marquee product shot

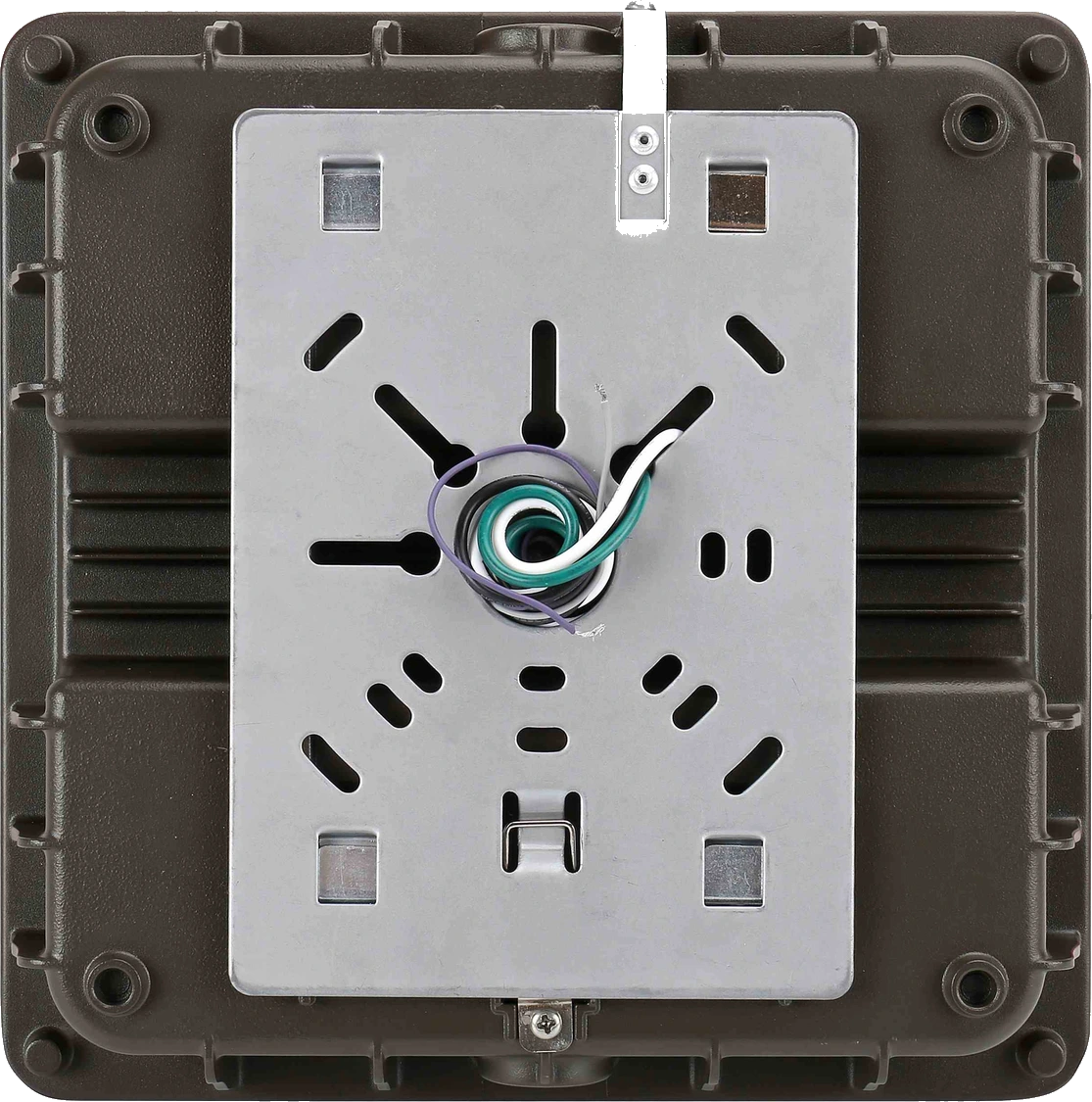

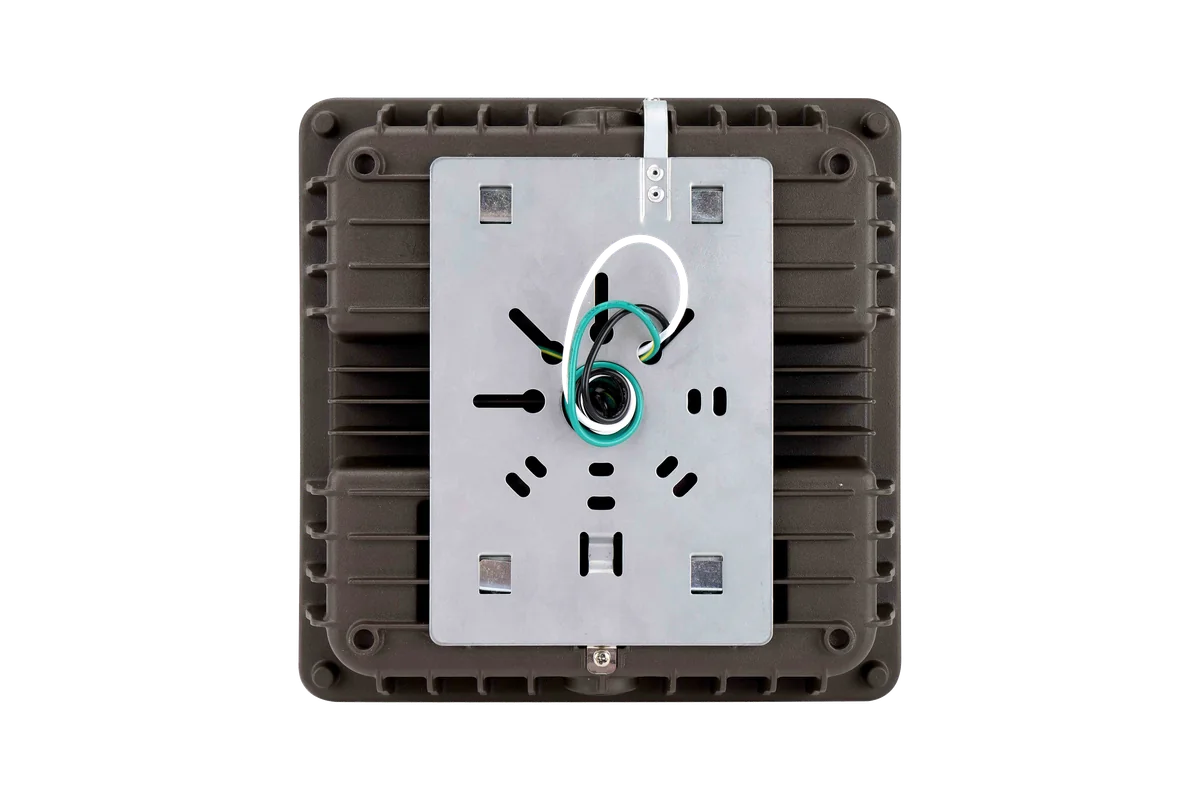

Pathfinder Series — 27/40W LCNP060 housing, back-angle three-quarter view exposing the driver-chamber lid and conduitⒶREADY ½-inch NPS knockouts on three sides

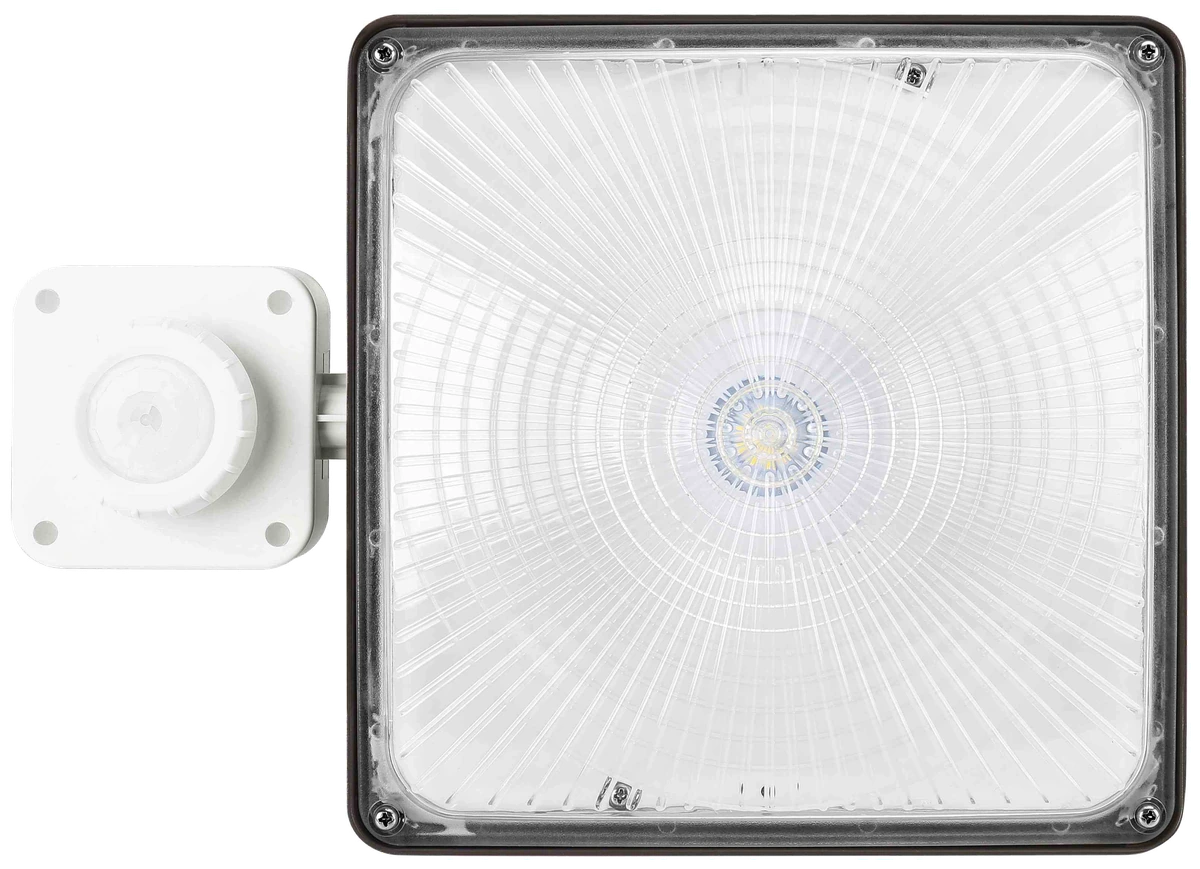

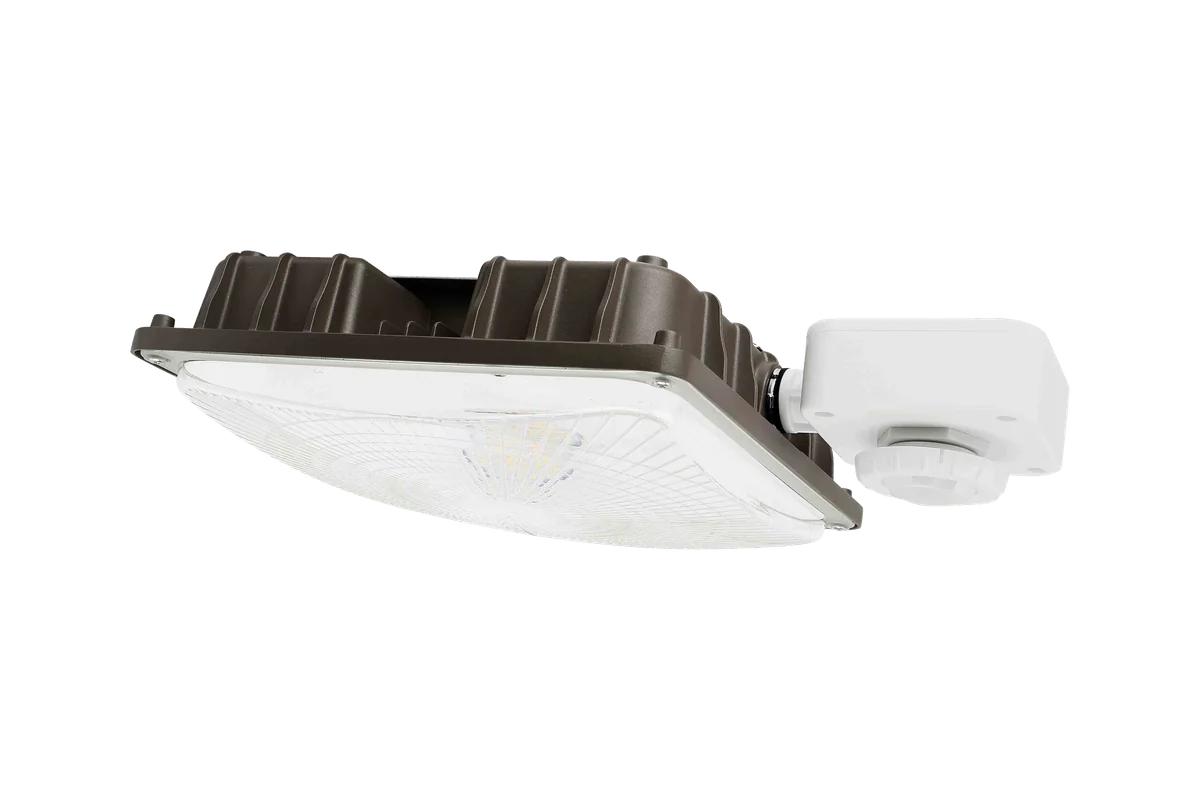

Pathfinder Series — contrⒶLS-Ready housing variant with integrated PIR motion sensor on the trim ring, low-mount canopy/soffit application

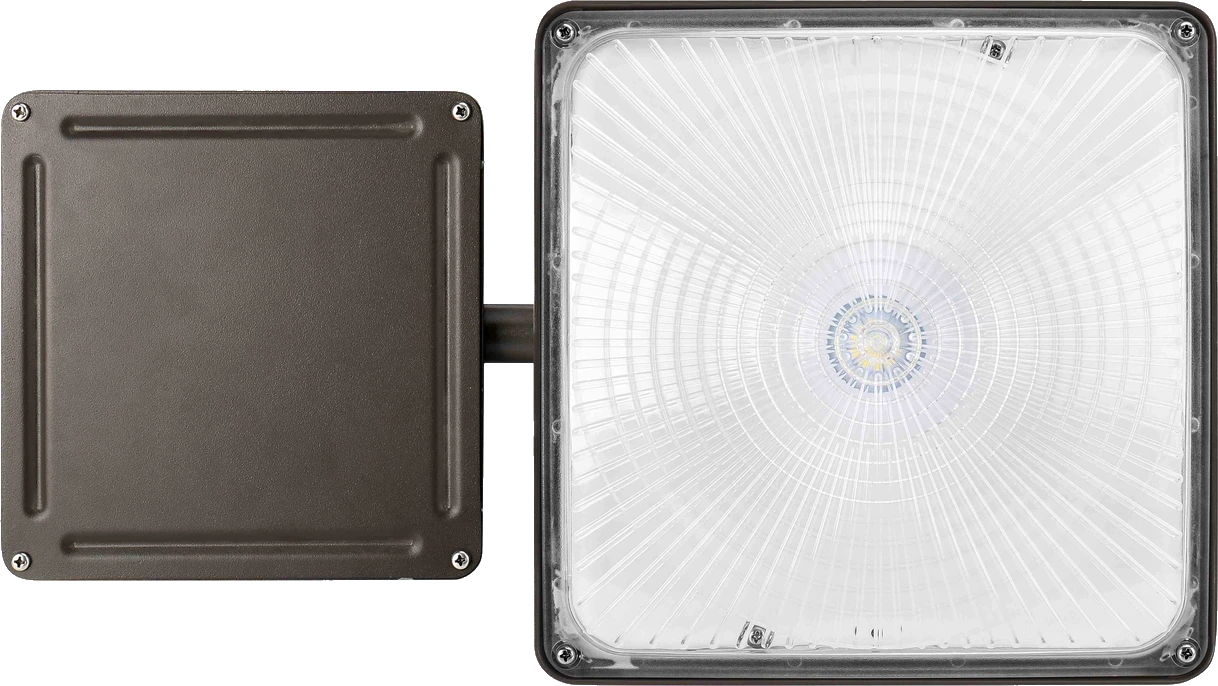

Pathfinder Series — constⒶNT-Ready housing variant with integrated emergency-battery backup module visible behind the driver-chamber lid, 90-minute egress runtime

UL Listed

DLC Listed

RoHS

Wet Location

Model Specifications

Download Data Sheet

Application

Outdoors · PRO Canopy & Soffit

Finish

Field-Set

24 configs / 2 SKUs 4-WATTSELECT · 3-CCTSELECT (DIP)

Weather Resistance

Wet Loc. IP65 · −40°F to 104°F · wetⒶGUARD

Warranty + Life

7-yr · 75k hr DLC Premium application pending

WATTSELECT	Lumens	Efficacy	HID Replacement	CCTSELECT

Dimensions

(both housings share the same envelope)

HIGHLIGHTS & FEATURES

Five reasons Pathfinder wins the PRO canopy bid.

One fixture, every drawing · every energy code · one stocking line. Five design choices that win against RAB VAN17/VAN34/GLED52, Cooper Lumark RPGC, and Lithonia VCPG/VCPGX/D-Series.

Pathfinder — front view of the LCNP canopy fixture, square housing with anti-UV prismatic acrylic lens covering the LED panel, marquee product shot for the SKU economics story

— Hero Highlight

24 configs. One fixture.

4-WATTSELECT × 3-CCTSELECT on internal DIPs across two housings — pick wattage and CCT at install. LCNP060: 25/36/48/60W (100-250W MH retrofit) · LCNP110: 45/65/90/110W (175-400W MH). RAB VAN ships 3-WATTSELECT · Lithonia VCPGX has 4-WATTSELECT but only one housing. Pathfinder collapses the spec lane to two orderable lines.

Pathfinder — 27/40W LCNP060 housing back-angle view exposing the driver-chamber lid · illustrative tile placeholder for the 160 lm/W peak efficacy story

Top of Class

160 lm/W. The efficacy ceiling for PRO canopy.

LCNP060: 160 lm/W at 60W (9,600 lm). LCNP110: 155 lm/W at 110W (17,050 lm). RAB VAN34 ~140 lm/W · Cooper Lumark RPGC 130-140 lm/W · Lithonia VCPGX ~130 lm/W. The 5-20 lm/W gap reads on the bid as fewer fixtures per garage level at the same foot-candle target. Sub-step LM-79 per W/CCT pending.

conduitⒶREADY

Surface OR pendant. Same fixture.

1/2" NPS conduit knockouts on three sides (top + L + R) + integrated 3/4" pendant-mount — same fixture, surface OR pendant. RAB VAN ships single-side conduit · Lithonia VCPG requires a mounting-specific SKU. Pathfinder collapses both deployments to one line.

Pathfinder — constⒶNT-Ready housing variant with integrated emergency-battery backup module visible behind the driver-chamber lid · illustrative tile placeholder for the EM and sensor option ladder

constⒶNT-Ready · contrⒶLS-Ready

EM and PIR. Factory-pre-installed, code-ready.

Same housing, two factory option add-ins. constⒶNT-Ready: factory-installed 5W / 800 lm / 90-min emergency battery (EMB05-CP/DB) — code-required egress for parking decks and stairwell canopies. contrⒶLS-Ready: integrated MSM-SDI/819/BLS bi-level microwave sensor (20-ft mount · IR-remote commissioned) — covers Title 24 §140.7 + IECC §C405.2 controls credits, no separate sensor BOM line.

wetⒶGUARD

IP65 wet-location. Sealed driver chamber.

wetⒶGUARD — ALG’s silicone-sealed construction across the luxoⒶRCH outdoor line. Fully-sealed die-cast aluminum driver chamber isolated from the LED panel · IP65 across −40°F to 104°F. Anti-UV prismatic acrylic lens. 75,000-hr life · industry-leading 7-yr warranty (RAB VAN, Lithonia VCPG, Cooper Lumark RPGC all ship 5-yr — Pathfinder adds 2 yrs).

contrⒶLS

Three controls layers. One canopy.

0-10V dimming standard on every SKU. Two factory option add-ins: constⒶNT — code-compliant emergency battery (5W / 800 lm / 90 min). contrⒶLS — bi-level microwave sensor, IR-remote commissioned (Title 24 §140.7 + IECC §C405.2 credits, no third-party BOM). One housing, three layers.

0-10V analog dimming standard on every Pathfinder SKU — both housings, all 4 wattage settings, no upgrade BOM. Wire violet/grey 0-10V leads to a dimmer, DALI gateway, or scheduling system — smooth dim from 100% to ~10%. Driver: PF >0.90 · THD <20% across the range. Heat-isolated from the LED module — no thermal foldback, no flicker on rebound. Pair with quickⒶDAPT for daylight + occupancy + scheduling on the same gateway as Atlanta and Sentinel.

Discover 0-10V dimming →

PHOTOMETRICS

Beam shape, by the WATTSELECT setting.

LM-79 photometric data for LCNP060 — 6 IES test points across 27 / 40 / 60W × 4000K / 5000K. Toggle wattage and CCT below to see beam shape and lumen output per setting. Datasheet “Up to” peaks remain the published spec; LM-79 measured numbers shown here are verified-to-date. Download the full IES bundle →

Staged LM-79 covers LCNP060 · 27 / 40 / 60W · 4000K + 5000K. Datasheet ladder (25 / 36 / 48 / 60W) reflects a current hardware revision — interim test points used here for the closest measured beam shape per WATTSELECT step. 3000K, the LCNP110 housing, and HD high-distribution variants live in the published IES bundle (linked above) — open with AGi32, DIALux, or Visual to verify the cell you need.

Pathfinder LCNP060 · 60W setting · 5000K · luminous intensity distribution · prismatic acrylic lens spreading the beam to wide-angle Type-V canopy distribution

PEAK INTENSITY

1,731 cd

downward throw at 60W · 5000K

LUMENS

8,062 lm

EFFICACY

134 lm/W

ACTUAL DRAW

60.3W (LM-79)

DISTRIBUTION

Wide downward · prismatic

IES FILE

LCNP60_5000K_UD.ies (LM-79 measured)

Beam shaped by the anti-UV prismatic acrylic lens — wide downward Type-V distribution optimized for canopy and soffit applications. Datasheet rated peak: 160 lm/W (LCNP060) / 155 lm/W (LCNP110). Highest LM-79 measured efficacy in this staged set: 142 lm/W (27W / 5000K UD). The full per-W / per-CCT IES bundle is published — verify your spec cell against the official files.

In the Box

Three components, factory-installed.

Every Pathfinder ships with the anti-UV prismatic translucent lens, a 0-10V dim driver on universal 120-277V, and the external quick-mount plate with wetⒶGUARD silicone sealing. All three are factory-installed — no upsell SKUs, no rep-desk add-ons. Drop the housing into the canopy, wire 120-277V to the J-box, DIP-set the wattage and CCT, walk away.


3 components included
 ·
0-10V dim · standard
 ·
EM + sensor optional (Section 6)


Build Your Model

Configure Your Pathfinder

Selections build the SKU live. WATTSELECT + CCTSELECT are DIP-set at install — they do not appear in the SKU. Required fields marked with *. See the legend for QS / MTO / DIP / LCK meanings.

6 of 6 SKU fields confirmed

SKU Fields

6 fields · 3 locked · 3 user-pickable

Housing Class *

CCTSELECT capability

Voltage

Pathfinder Series

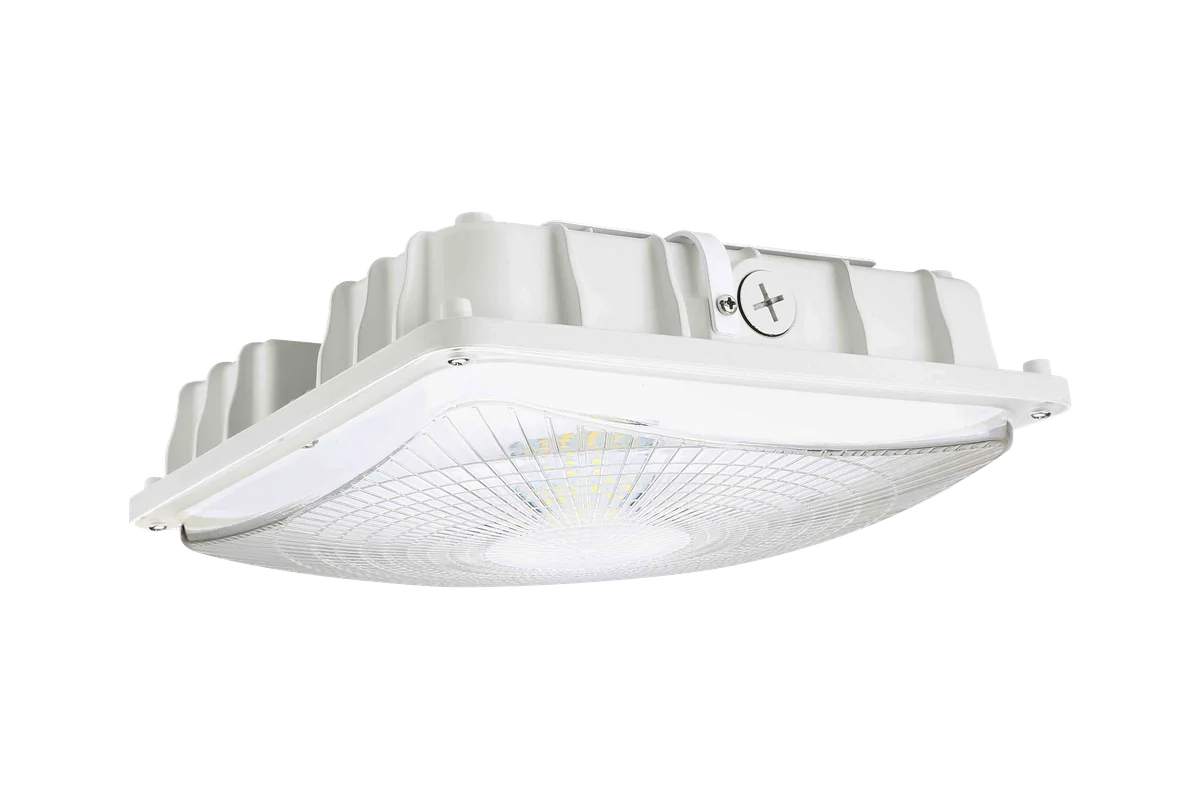

Finish *

Optional Accessories MULTI

/BLS + /EM05 are independent · order in SKU: /BLS before /EM05.

Field-Set at Install

DIP-controlled · not in SKU

WATTSELECT Preview DIP

CCTSELECT Preview DIP

Optional Accessories

Pick from the SKU column at left to append the accessory segment. Datasheet-published codes:

/BLSIntegrated Photocell — per James 2026-05-01 configurator spec /EM05EMB05-CP/DB emergency battery · 5W / 800 lm / 90 min

Standalone accessories (separate SKUs, not appended to the canopy):

MSM-SDI/819/BLSBi-level microwave sensor module (Section 6) RM-SD/100SIR remote controller for sensor commissioning

QS QuickShip — in stock · 2-3 day

MTO Made-to-Order · ~4-6 wk lead time

DIP Field-set at install · not in SKU

LCK Auto-selected · only option

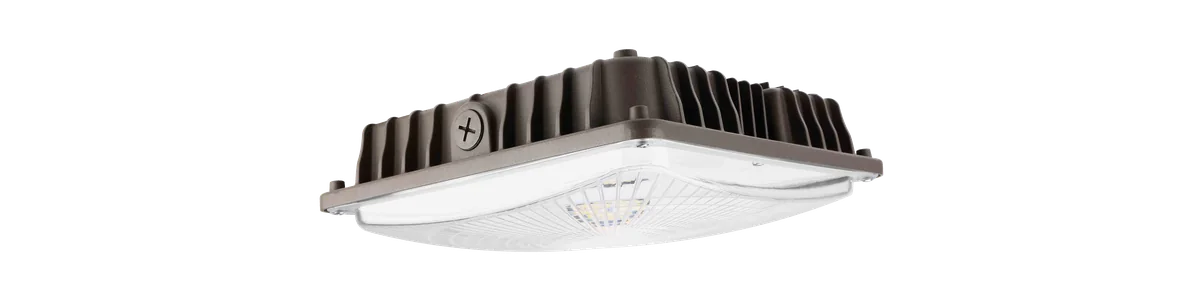

LCNP060 · DARK BRONZE Pathfinder LCNP060 — live preview · Dark Bronze

Catalog #

LCNP060-3CS/27VP1/DB

  — deriving ship tier —

Housing

LCNP060

CCTSELECT

3CS · 3000 / 4000 / 5000K

Voltage

120–277V (/27V)

Series

P1 · Pathfinder

Finish

Dark Bronze (QS)

Optional

— none —

Wattage (DIP)

60W

CCT (DIP)

4000K

Output

9,600 lm · datasheet rated 160 lm/W (LM-79 measured peaks at 142 lm/W — see Section 7)

Pricing & Availability Submittal Sheet Request Quote

Documentation

Documentation & Resources

Datasheet, installation guide, full 24-file IES bundle, and a per-SKU submittal generator mirroring Section 9. DLC Premium QPL listing in application — rebate paperwork tracks the timeline.

PDF ~1.4 MB · 5 pages

Data Sheet

Complete LCNP Pathfinder product specifications — both LCNP060 (25/36/48/60W) and LCNP110 (45/65/90/110W) housings, ordering guide, performance data tables, conduitⒶREADY 3-side knockout details, wetⒶGUARD construction notes, certifications, dimensions (9.52 × 9.52 × 3.19 in shared envelope), and the constⒶNT-Ready / contrⒶLS-Ready accessory ladder.

Download Rev. 2026-05

PDF Step-by-step

Installation Guide

Step-by-step installation — J-box surface mount, 3/4" pendant alternate, 1/2" NPS conduit knockout selection (3-side), wetⒶGUARD silicone-seal placement, threaded terminal wiring (L / N / Ground + 0-10V Dim+ / Dim−), 4-position WATTSELECT DIP + 3-position CCTSELECT DIP. The contractor reference for Pathfinder canopy installs.

Download 9-step procedure

IES 24-file bundle

IES Photometric Bundle

All 24 IES photometric files for the Pathfinder line — both housings (LCNP060 + LCNP110) × 4 WATTSELECT settings × 3 CCTSELECT settings. Open directly in AGi32, DIALux, or Visual for project-specific photometric layouts. Use the bundle to verify foot-candle targets per cell of the WATTSELECT × CCTSELECT matrix before committing the SKU.

Download Bundle LM-79 measured

Generated PDF · per SKU

Submittal Sheet

Generate a project-stampable submittal package from your current configuration — SKU, ordering matrix, dimensions, photometric polar plot, certifications, and the optional accessory breakdown (/BLS · /EM05), all on a single 4-page PDF. Defaults to LCNP060-3CS/27VP1/DB at 60W / 4000K / Dark Bronze · 120-277V — your Section 9 selections override at runtime.

Open Generator Reads Section 9 SKU

Quick Links

Quick Sheet · LCNP Pathfinder Sell Sheet — Pending Rebate Center · DLC Premium application pending Warranty Statement (7-Year · 75,000 hr)

CANOPY FAMILY

Two PRO canopies. Pick the one that fits the spec.

Two PRO canopy SKUs on the luxoⒶRCH LCNP family — Pathfinder (this page) + Navigator. Both IP65 wet-location, 0-10V dim driver standard on universal 120-277V. Differ on efficacy/warranty (Pathfinder leads) vs. networked controls/CRI/beam (Navigator leads). DLC Premium status varies — see each PDP’s rebate section.

LCNP · CANOPY · PRO You Are Here LCNP Pathfinder — PRO canopy with 4-WATTSELECT × 3-CCTSELECT field-set DIPs, anti-UV prismatic translucent lens, dark bronze finish, 7-year warranty

LCNP · Pathfinder PRO

Pathfinder

PRO canopy with the efficacy + warranty headline. 4-WATTSELECT × 3-CCTSELECT on 4-position + 3-position DIPs · 24 specifiable configs across two housings (LCNP060: 25/36/48/60W · LCNP110: 45/65/90/110W). Datasheet rated up to 160 lm/W. 7-year / 75,000-hour warranty (industry baseline at this tier is 5/50). conduitⒶREADY 3-side knockouts · 0-10V dim standard · optional /BLS integrated photocell + /EM05 emergency battery. The product on this page.

3,700–17,050 lm · 25 / 36 / 48 / 60W or 45 / 65 / 90 / 110W · 160 lm/W rated · 7-yr warranty · CRI >70

Currently viewing

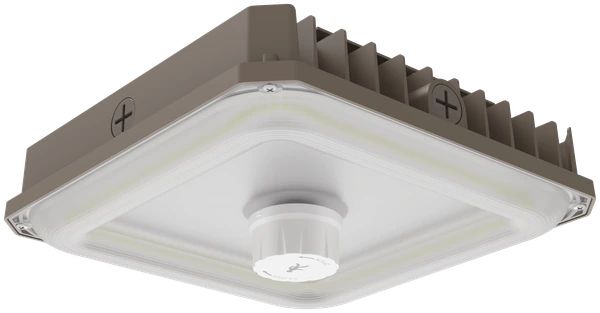

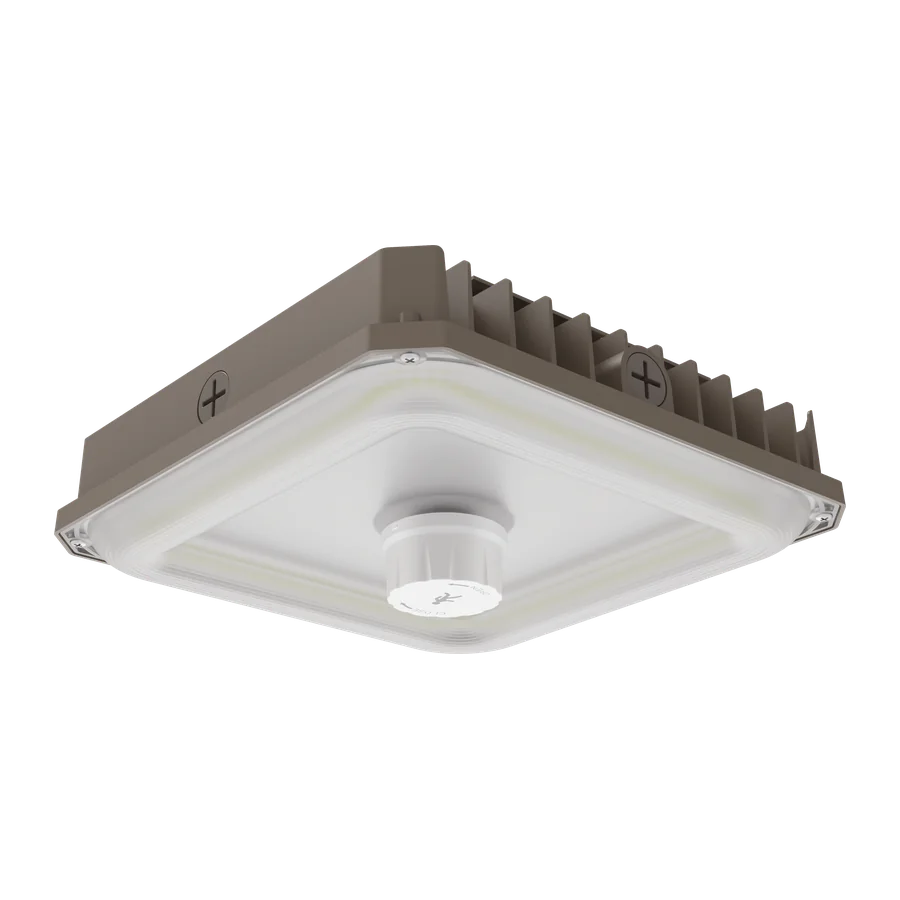

LCNP · CANOPY · PRO $LCNP Navigator — PRO canopy with 3-WATTSELECT × 3-CCTSELECT, reflector + refractor optic with 140° beam available, DLC ⒶCS networked controls and SILVAIR Bluetooth Mesh support, integrated photocell + bi-level PIR sensor variants$

LCNP · Navigator PRO

Navigator

PRO canopy with the networked controls + optical performance headline. 3-WATTSELECT × 3-CCTSELECT on 3-position DIPs · 9 specifiable configs across two housings (LCNP3W40: 20/30/40W · LCNP3W100: 60/80/100W). Reflector + refractor optic with >90% transmission and an available 140° beam angle. CRI > 80 (Pathfinder is >70). Controls integration: optional contrⒶLS by ⒶCS DLC-qualified networked lighting controls + contrⒶLS by SILVAIR SIG-qualified Bluetooth Mesh. Pick Navigator when the project's spec leads with controls or higher CRI.

2,400–12,000 lm · 20 / 30 / 40W or 60 / 80 / 100W · 120 lm/W typical · 5-yr warranty · CRI >80 · ⒶCS + SILVAIR

View Navigator →

Need a wall-mount fixture instead of a canopy? See Atlanta PRO wall pack (sibling-tier WATTSELECT × CCTSELECT on the LWPA family) — featured in the Round Out section below.

Round Out the Project

From the canopy to the parking lot.

Pathfinder lights the canopy. These cross-line fixtures cover the rest: perimeter wall packs, parking-lot poles, façade-wash flood, agricultural utility area light. Same engineering language, same warranty path, same factory.

LUXORCH · LWPA

Wall Pack · PRO

Atlanta

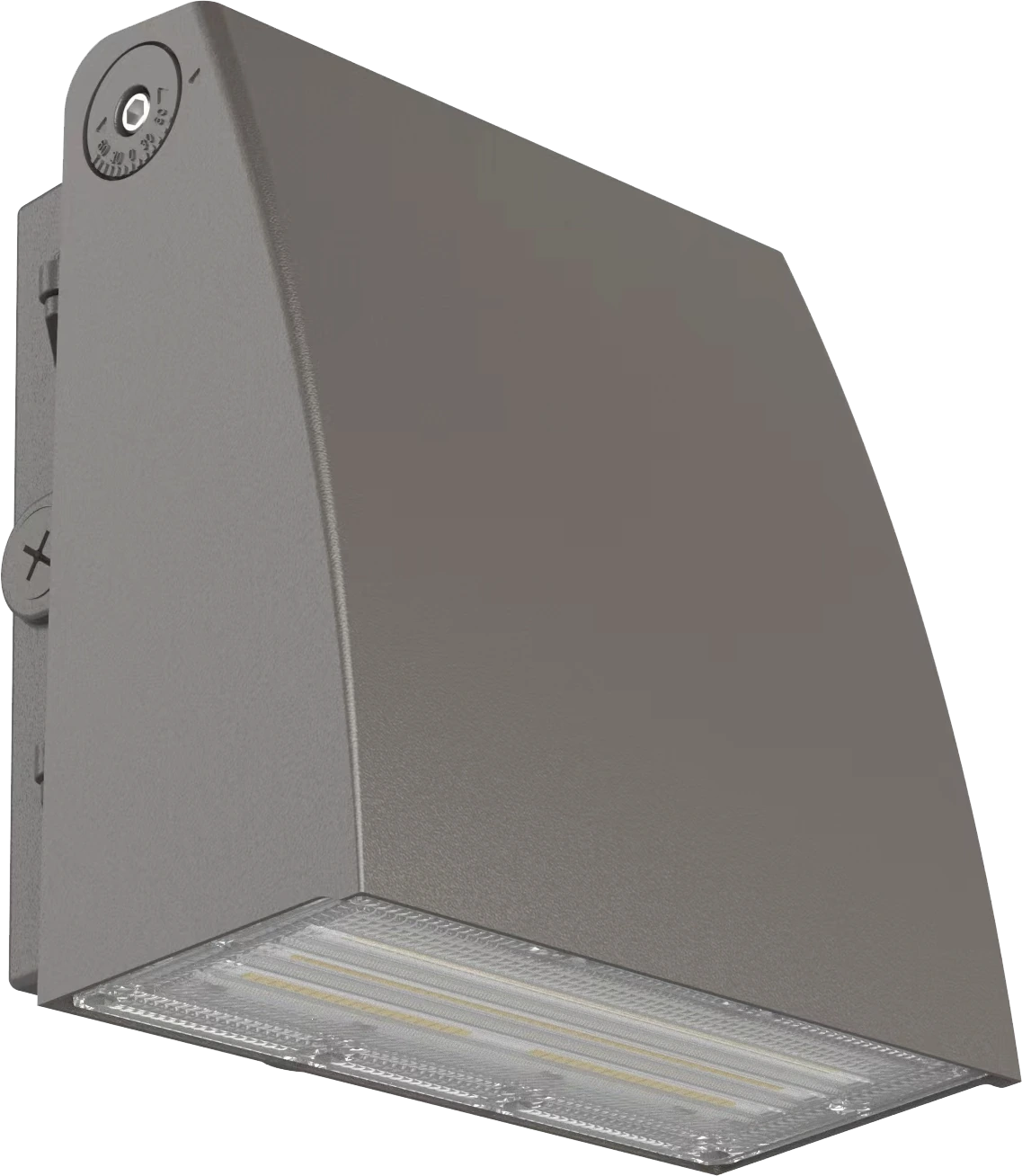

PRO adjustable wall pack — sibling on the LWPA family. 9 configs from one SKU (3-WATTSELECT × 3-CCTSELECT). DLC Listed (QPL S-7C27ZZ). Pairs with Pathfinder on perimeter walls — same controls language, same warranty path.

5,200–15,600 lm · 40 / 60 / 80 / 100 / 120W · DLC Listed · /PS standard

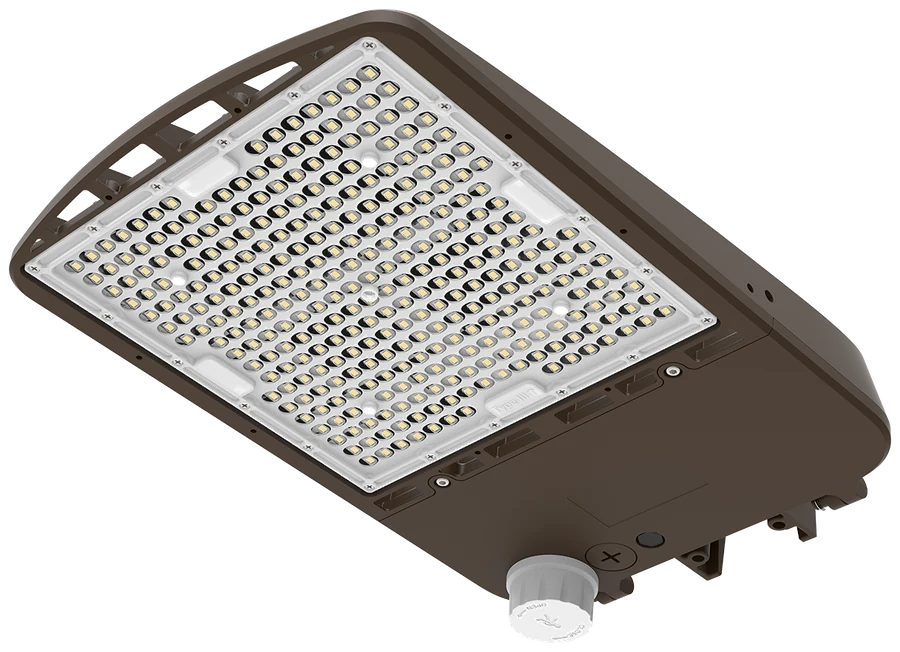

Pole-top area light for the parking lot. Type II / III / V optics · slip-fitter or trunnion mount. Pair Heritage on the lot poles + Pathfinder under the canopy — coherent design from open lot to covered drive-through to entry.

25,000–45,000 lm · 150 / 240 / 300W · IP65

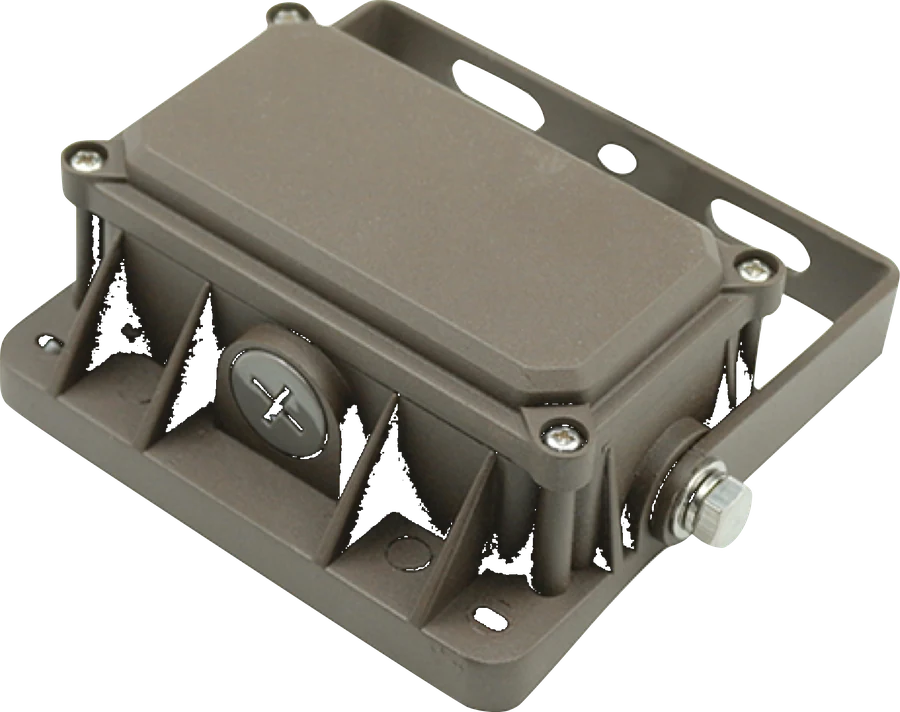

Outdoor flood for façade wash, signage uplight, architectural accent. Throws onto brand signs, monument walls, feature columns — same Dark Bronze finish path as Pathfinder.

5,000–13,500 lm · 45 / 65 / 100W · IP65

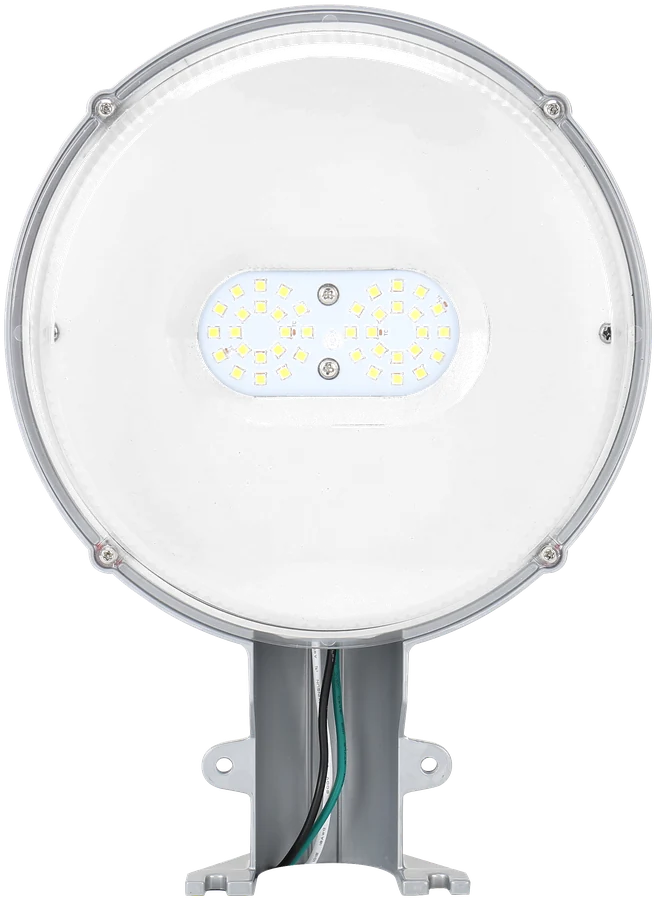

Self-contained area light for utility-pole installs, barns, agricultural perimeters, remote properties. Pair on perimeter poles + Pathfinder under any covered drive-through, equipment shed, or feed-store canopy.
