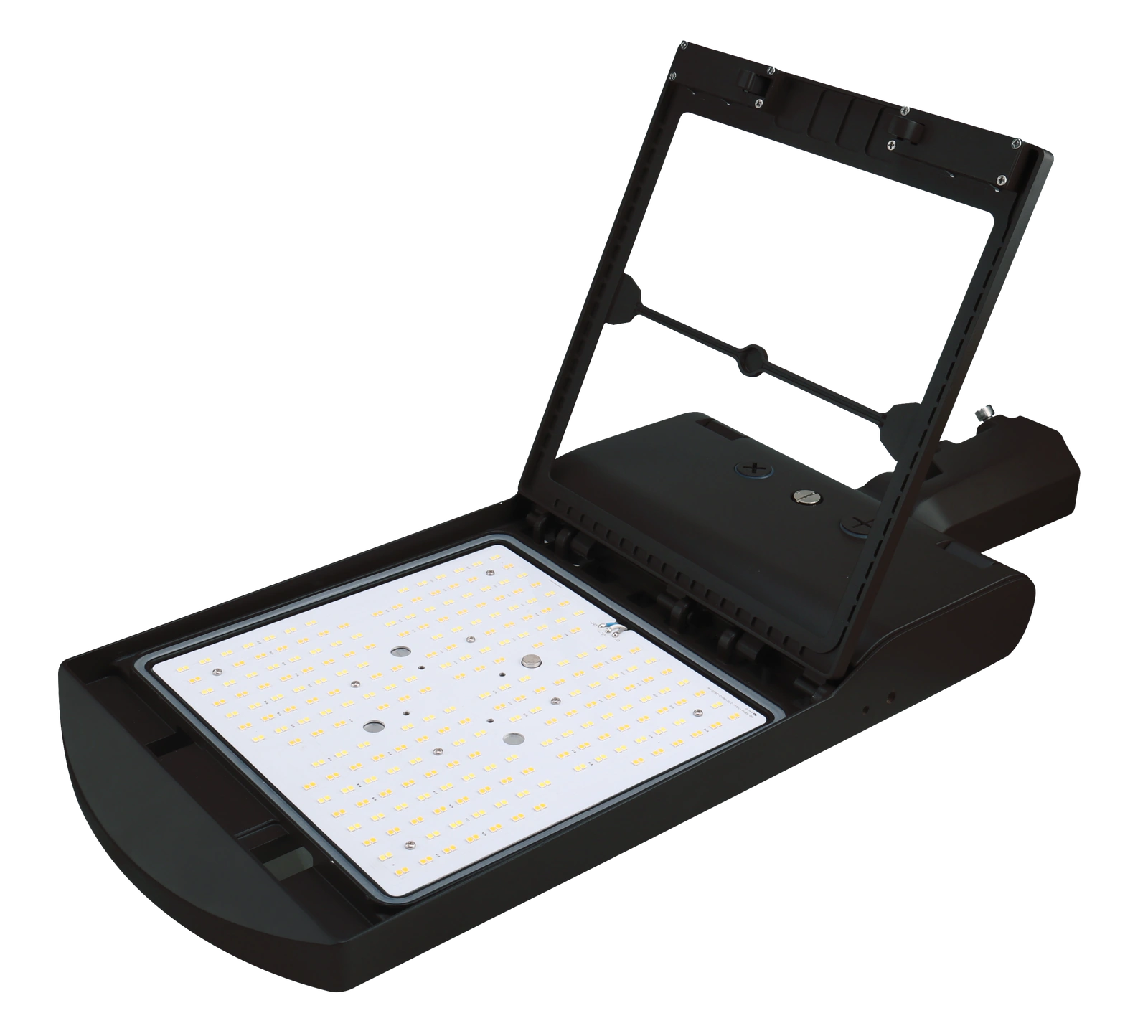

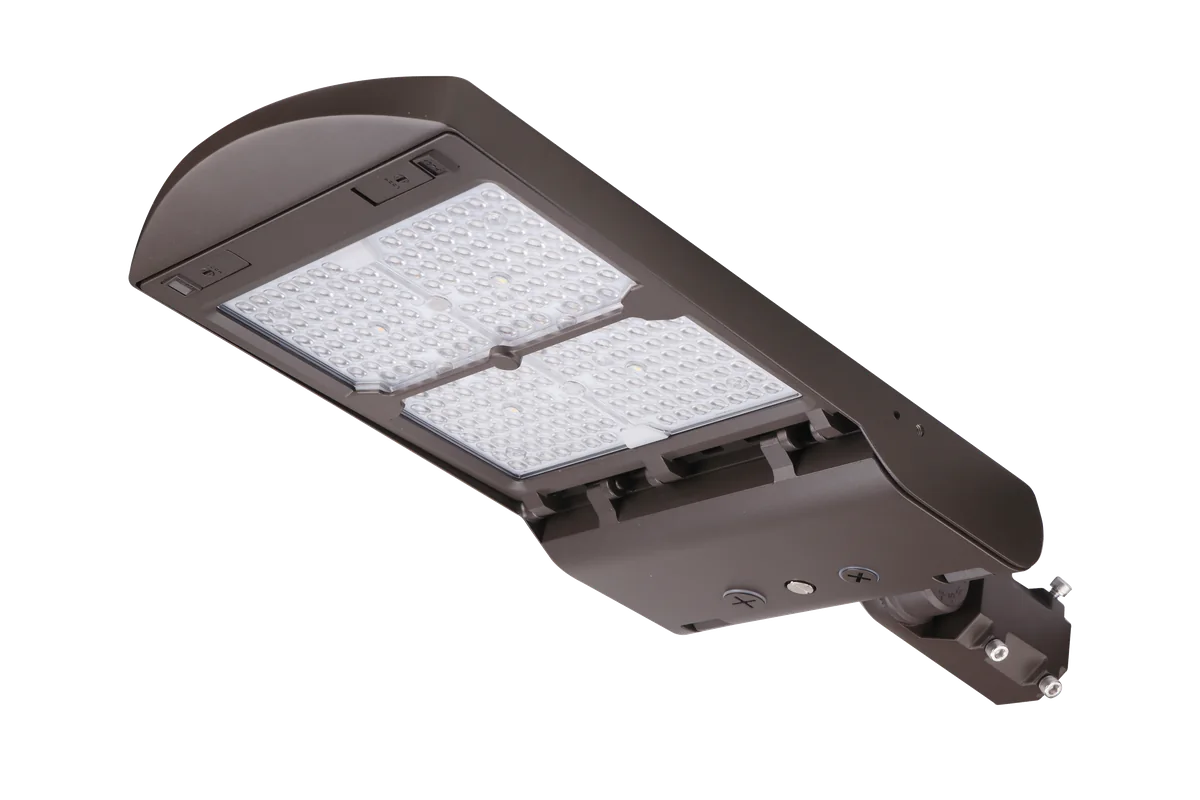

Liberty Series PRO
Field-Tunable Everything.
PRO tier of the luxoⒶRCH LSBX shoebox family. Engineered for parking lots, façades, roadways, campuses, and public areas where on-site flexibility decides the spec.
Five housings cover 50–450W (replaces 250W–2000W MH). Field-set wattage, CCT, AND magnetic tool-less optic swap at install — pop the lid, lift the optic, drop in a new distribution. No tools. No truck roll-back.
Die-cast aluminum, IP65, −40°F to 122°F, 6kV surge built-in (10/20kV inline optional). contrⒶLS-Ready · Bi-Level / /ACS Bluetooth Mesh / SILVAIR SIG Mesh on the same physical sensor — vendor neutrality without a hardware swap.
Change the optic. Not the fixture. In sixty seconds.
Liberty's optic is held by magnets — not fasteners. Pop the lid, lift the lens, drop in a different distribution. Type-II, Type-III, Type-IV, Type-V all interchangeable in the field. No tools. No truck roll-back. No re-spec when the as-built lighting layout shifts.

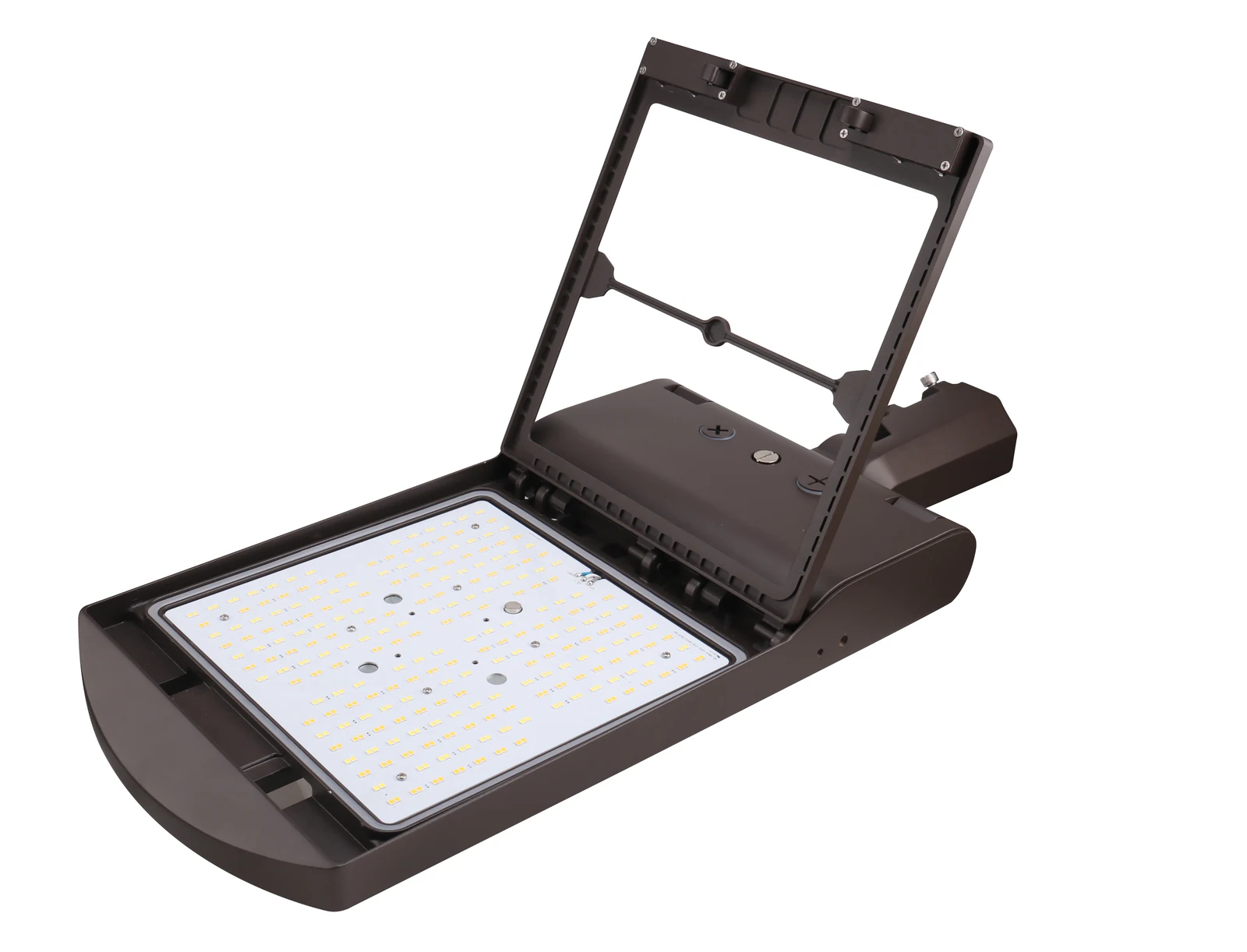

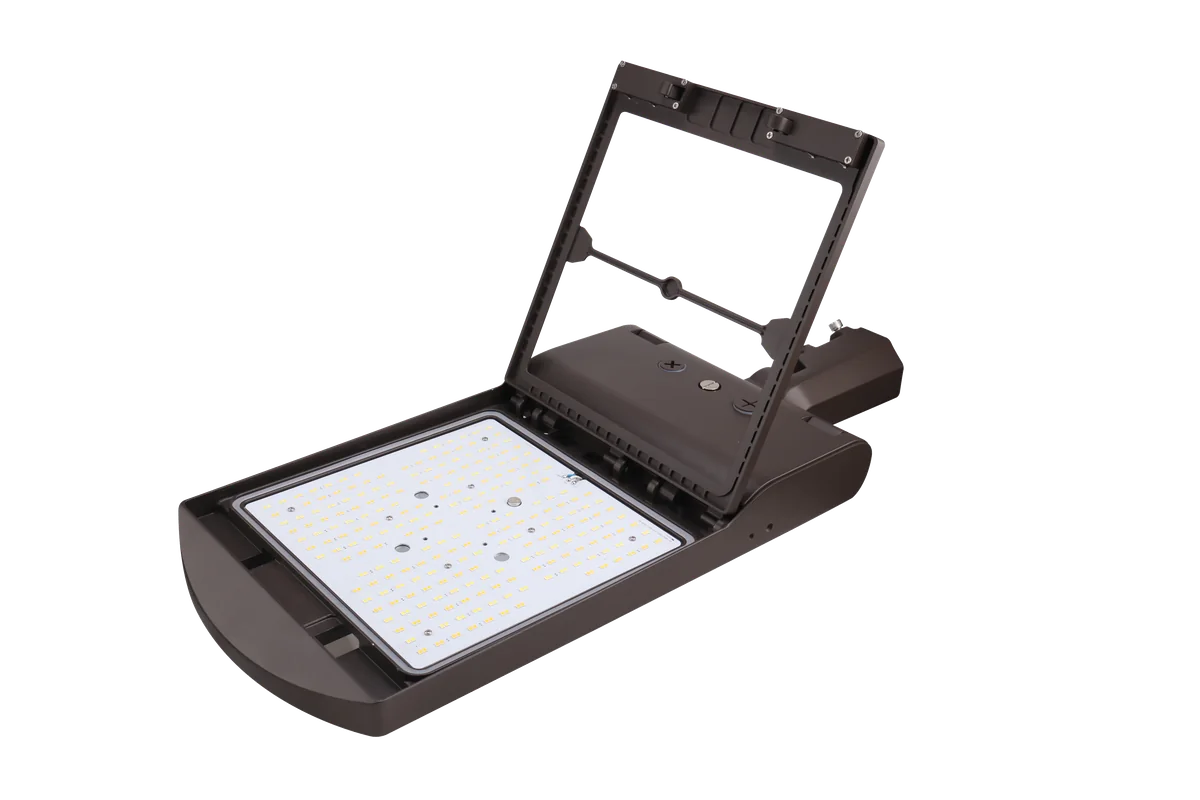

Magnetic-tab lid pops open by hand.
No tools required. The lid releases from the housing on a captive hinge so it can’t fall to the ground — helpful at 30 ft on a man-lift.

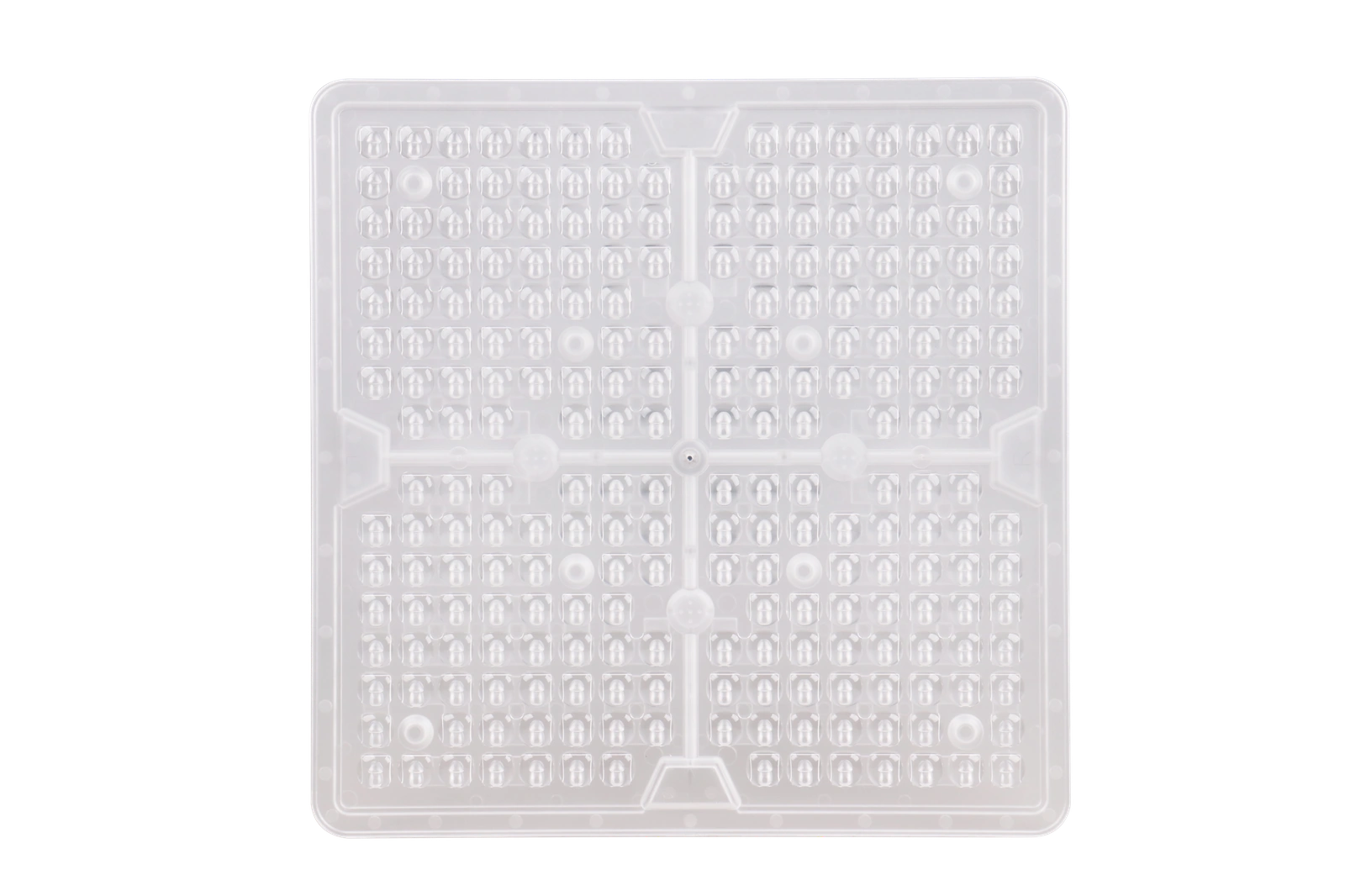

UV-stabilized polycarbonate refractor.
Standard ships with Type-III. Replacement OT3 / OT4 / OT5 modules sized per wattage class (100W / 200W / 300W / 450W) are QuickShip accessories — see Section 8b.

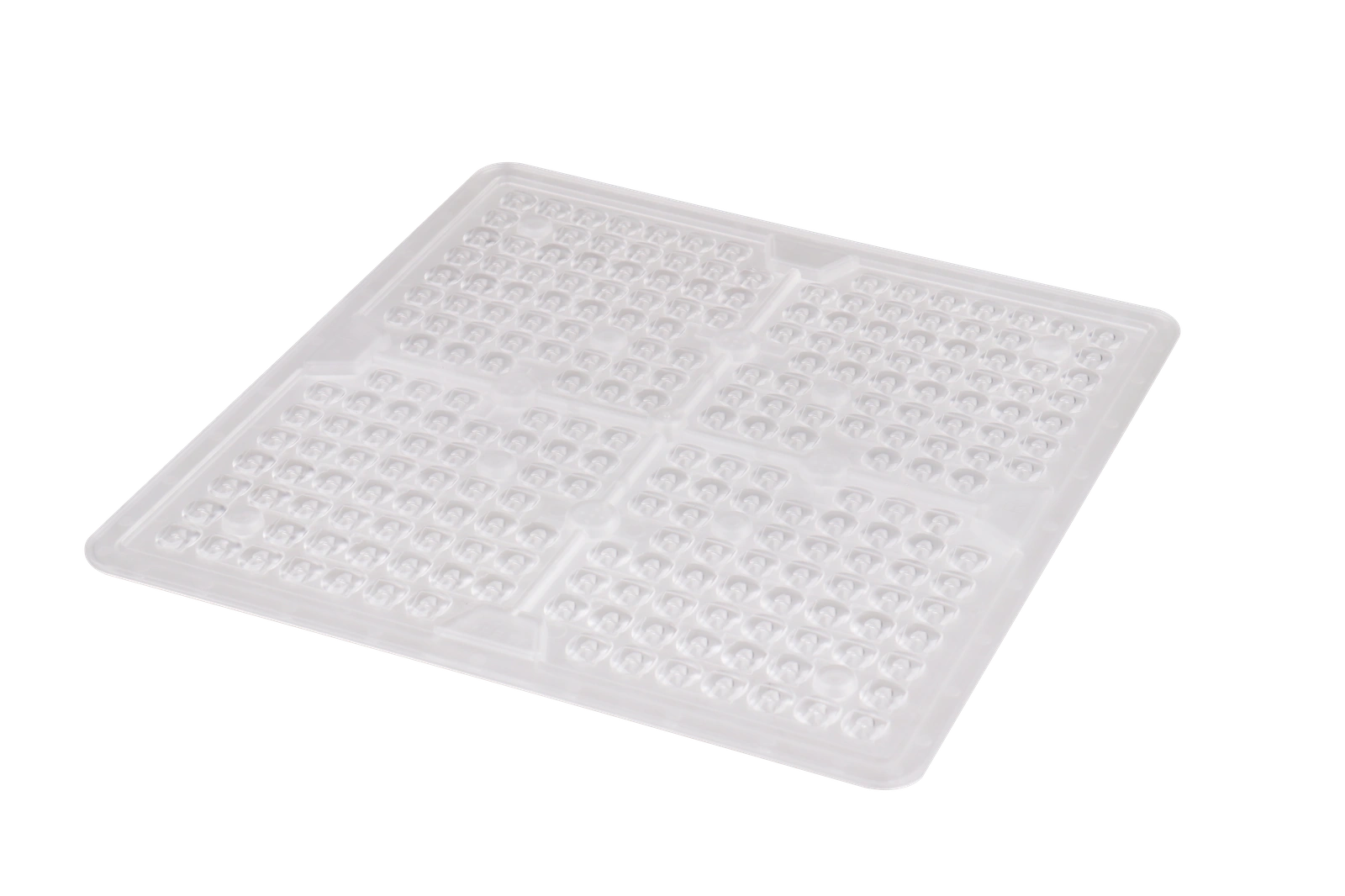

Magnets register · housing self-aligns.
The replacement lens snaps into the same registration points. Power-up, verify aim with the IES distribution change, close the lid. Total swap time: under 60 seconds per fixture.

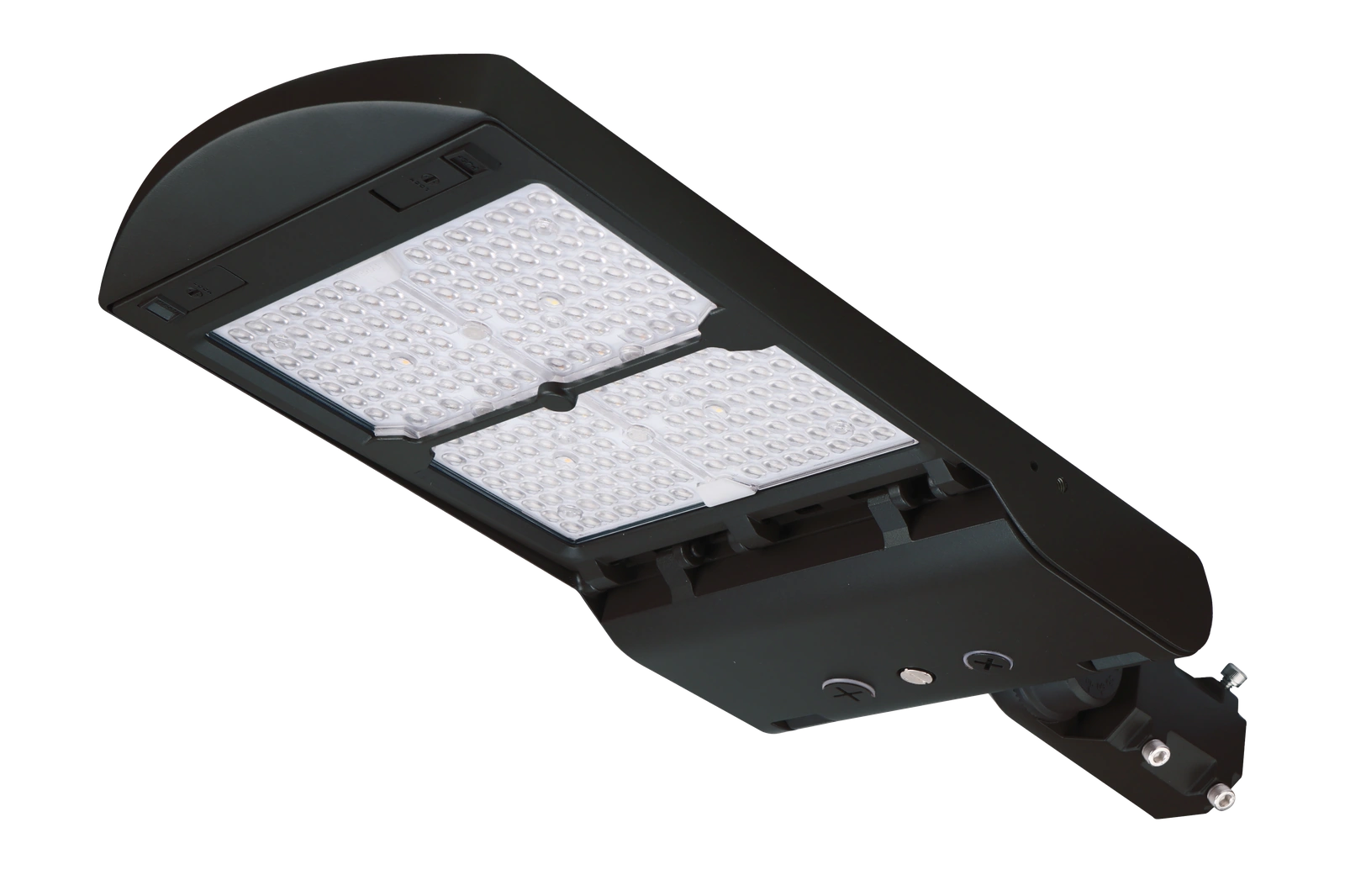

Five housings. One chassis. Field-set everything.

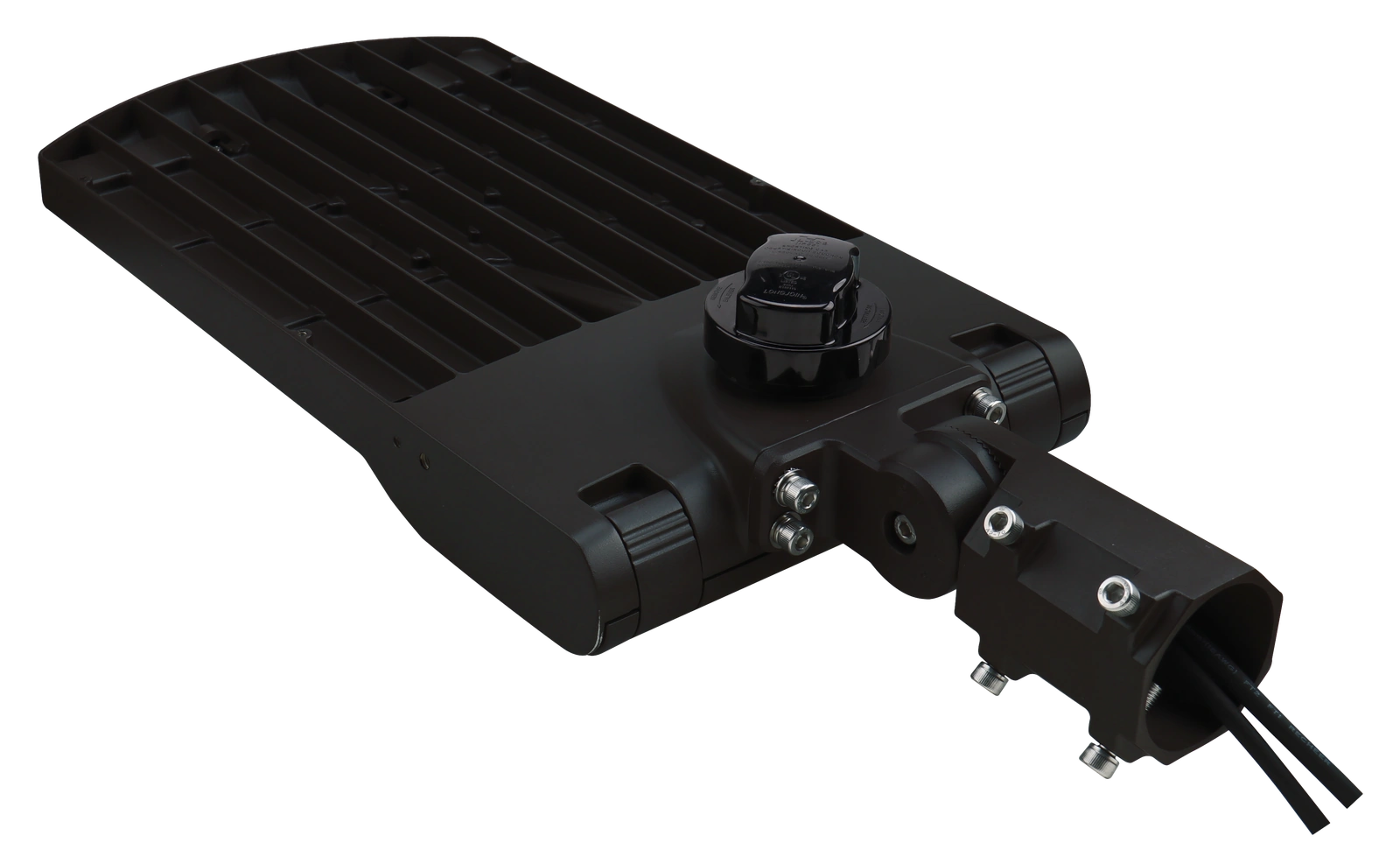

Step the housing class to the wattage you need — 50W → 450W in five stepped tiers replacing 250W → 2000W metal halide. Each housing carries a 3-position WATTSELECT DIP and 3-position CCTSELECT DIP · field-tunable at install without re-spec.
LSBX100 · 50 / 75 / 100W
| Watt | CCT | Lumens | lm/W | Voltage | CRI |
|---|
LSBX100-3CS-{U|H}L{D|B|W} + accessory adders /UA /OT4 /TAA.
Dimensions · LSBX100 / 150
| Mount | L | W | D |
|---|
Liberty, in motion.
36 seconds. Five proofs. Magnetic optic swap, four mount families, the IP65 water test (red dye for visibility), and a real parking-lot install at night.
What Liberty does that the rest of the category doesn't.
Six features that separate Liberty from Lithonia DSX1, Cooper Galleon, Cree XSP, RAB ALED, and the rest of the under-$500 area-light field. Lead is the magnetic optic swap — nothing else in the price tier productizes it.
Change the optic. Not the fixture.
Magnetic-retained polycarbonate optic lifts out by hand. Drop in Type II / III / IV / V in under 60 seconds at install — without tools, truck roll-back, or fixture re-spec when the as-built layout shifts. No competitor under $500 productizes this swap pattern.
- 4 IES distributions interchangeable on the same housing
- Rare-earth magnets register against ferrous targets
- OT3 / OT4 / OT5 replacement modules QuickShip per wattage class
Five housings. One chassis.
50W → 450W in five stepped tiers replacing 250W → 2000W metal halide. Step the housing class to your retrofit lane · field-set wattage with the 3-position WATTSELECT DIP.
- 9 wattage configs per housing · 45 SKUs total
- 3-CCTSELECT (3000K / 4000K / 5000K) on every housing

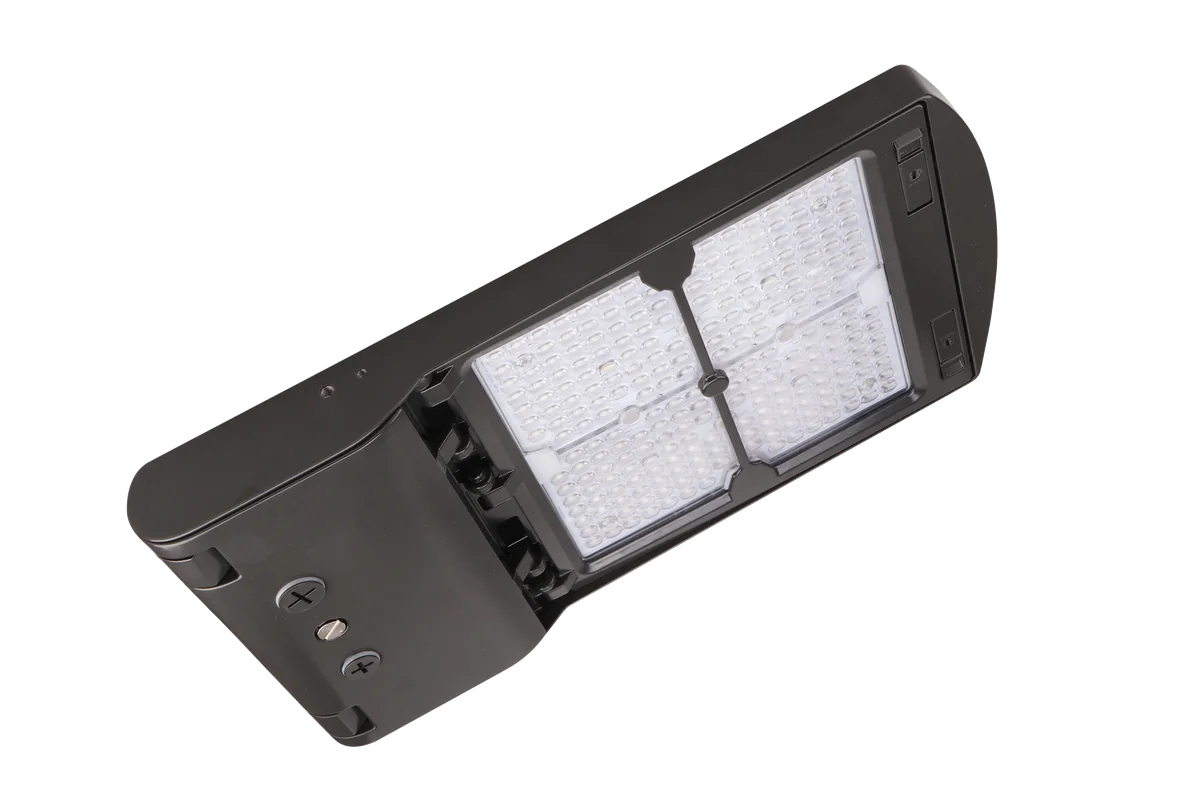

- Dark Bronze QS · Black / White / RAL on MTO
Vendor-neutral controls.
Same physical sensor runs Bi-Level PIR, ⒶCS Bluetooth Mesh, or SILVAIR SIG Mesh — firmware/protocol differs, hardware identical. No vendor lock-in.
- NLC-compliant · rebate-stack qualified (DLC NLC pending on /ACS)
- Field-commission via IR remote, BLE app, or SIG-conformant tool
- Multi-vendor BMS integration without proprietary gateway
True U0 sky-glow reduction.
Dark-sky-conscious optical design with true U0 architecture — minimizes uplight to support IDA-zone deployments. Field-swappable optics keep the U0 rating regardless of distribution choice.
- Type-III / IV / V all darkRCH-compliant
- BUG rating per IES TM-15 ready (varies by distribution)
- IDA zone-1 to zone-3 spec lanes · no uplight component
Built to outlast the install.

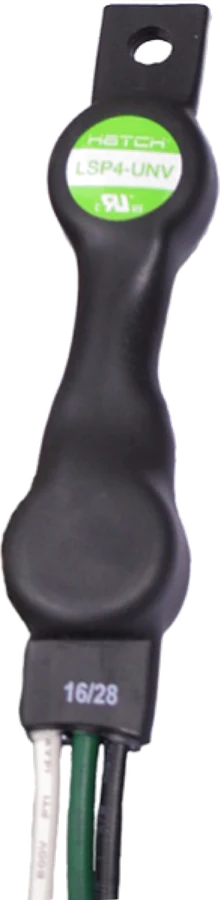

6 kV surge baseline built-in · optional 10 / 20 kV inline SPD for harsher electrical environments. IP65 wet-location sealing · -40°F to 122°F operating envelope.
- Pressure-equalization vent prevents seal failure on thermal cycle
- Die-cast aluminum housing · LM-80 / TM-21 thermal management
- LM-79 IES bundle: 5 housings × 3 distributions = full matrix coverage
Above the category baseline.
7-year / 75,000-hour warranty — above the 5-yr / 50kh category baseline. TAA-compliant Made-in-Mexico configurations available on every housing class for federal, state, and DOT spec eligibility.
- cULus listed · DLC tier targeting Premium (QPL ID pending)
- RoHS · LM-79 / LM-80 / TM-21 tested by independent lab
- Color shift <180K over warranty period per ANSI C78.377
contrⒶLS
Three controls platforms. ECO-grade ticket.
One housing, three controls platforms — pick what the project needs.
contrⒶLS Bi-Level for occupancy bi-level without networking.

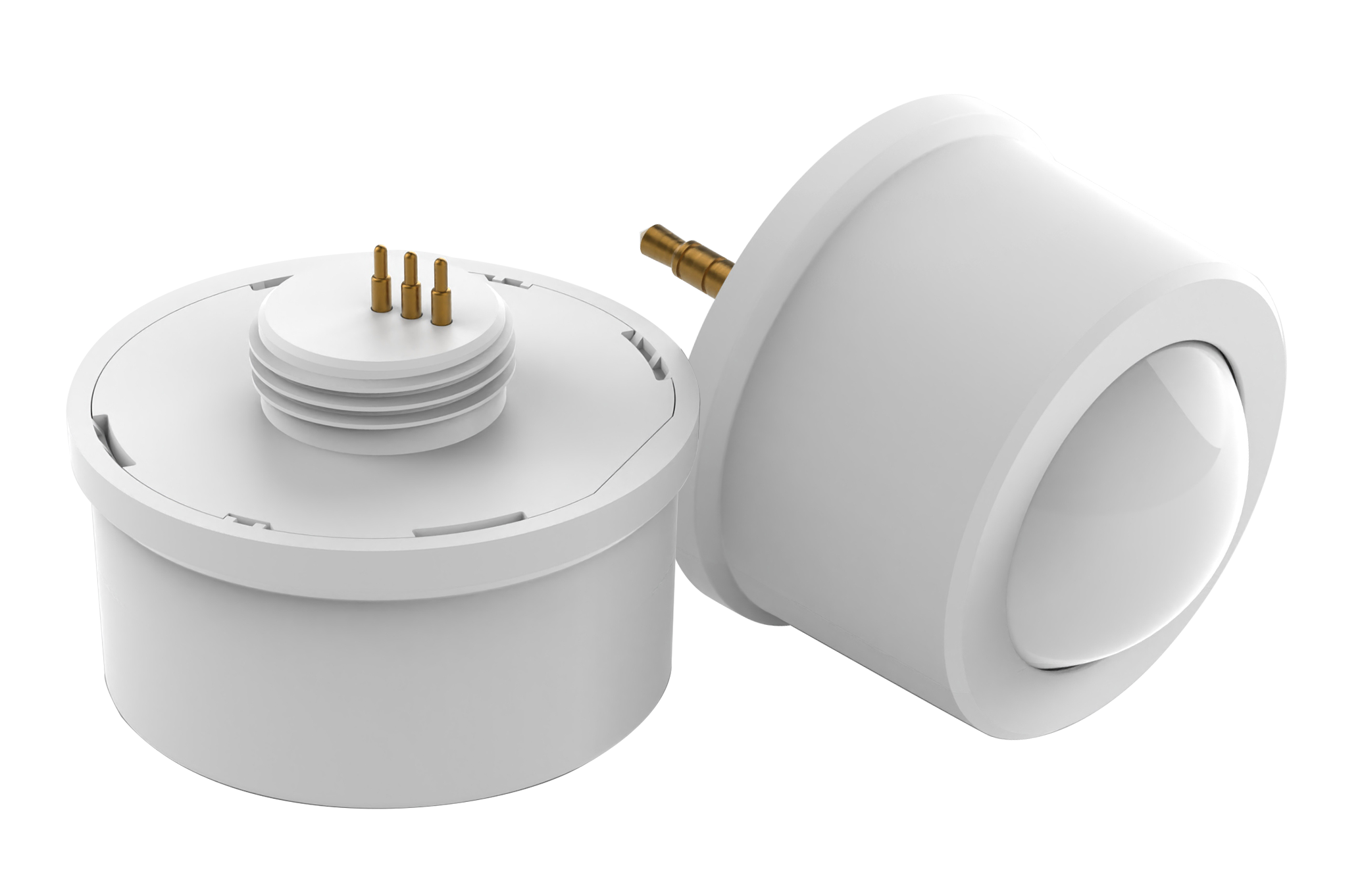

contrⒶLS by ⒶCS for Bluetooth Mesh + cloud SaaS (DLC NLC pending).
contrⒶLS by SILVAIR for SIG-qualified, vendor-neutral, gateway-free enterprise mesh.
All three drop in via /MSP-XXX ordering codes on the same Heritage housing — no install changes. ECO competitors (RAB A17, Keystone XFit, private-label) ship dim-driver only. Carrying ⒶCS + SILVAIR side-by-side at ECO pricing is the protocol-flexibility lever Heritage shares with the PRO siblings on the LSBX family.

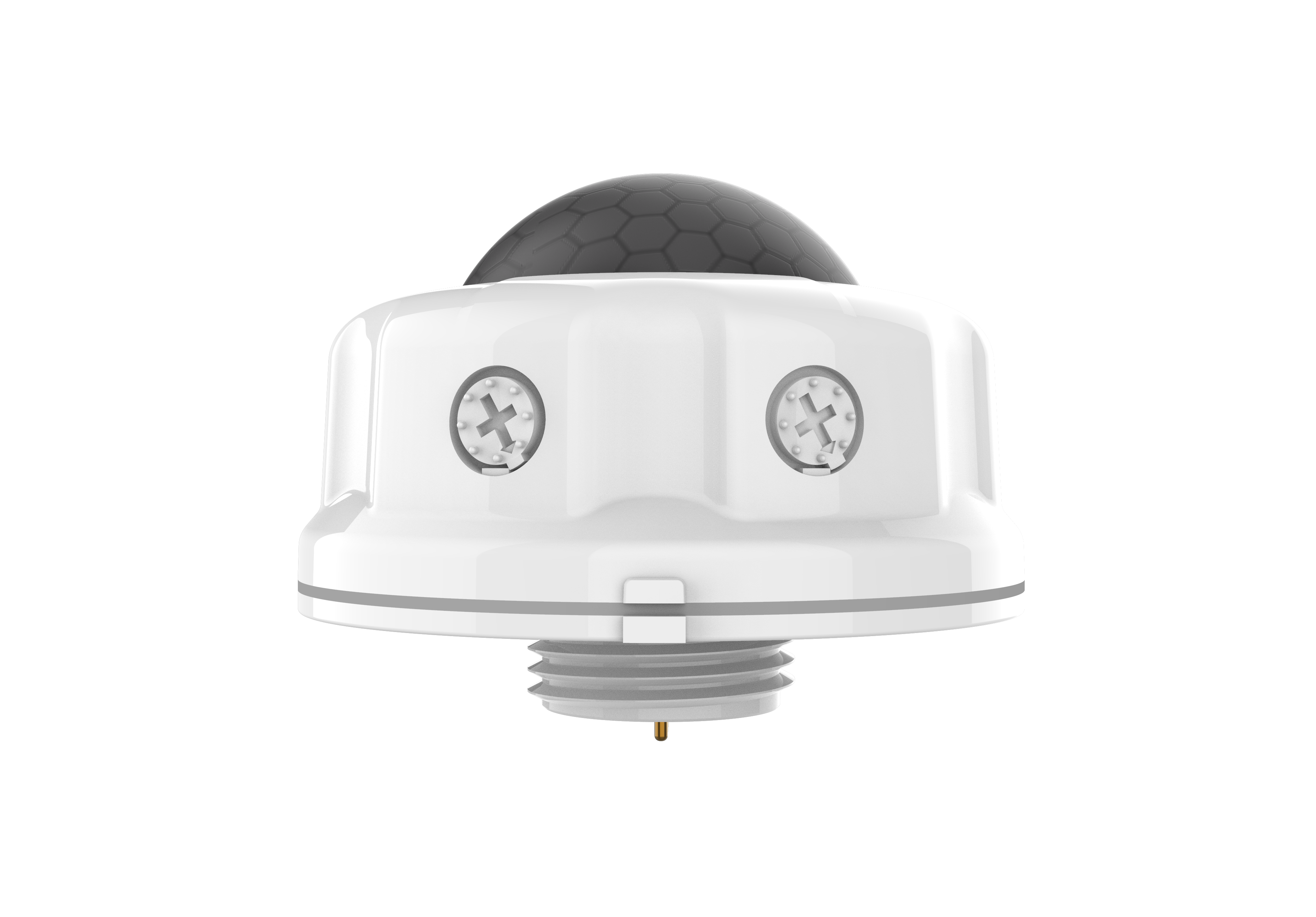

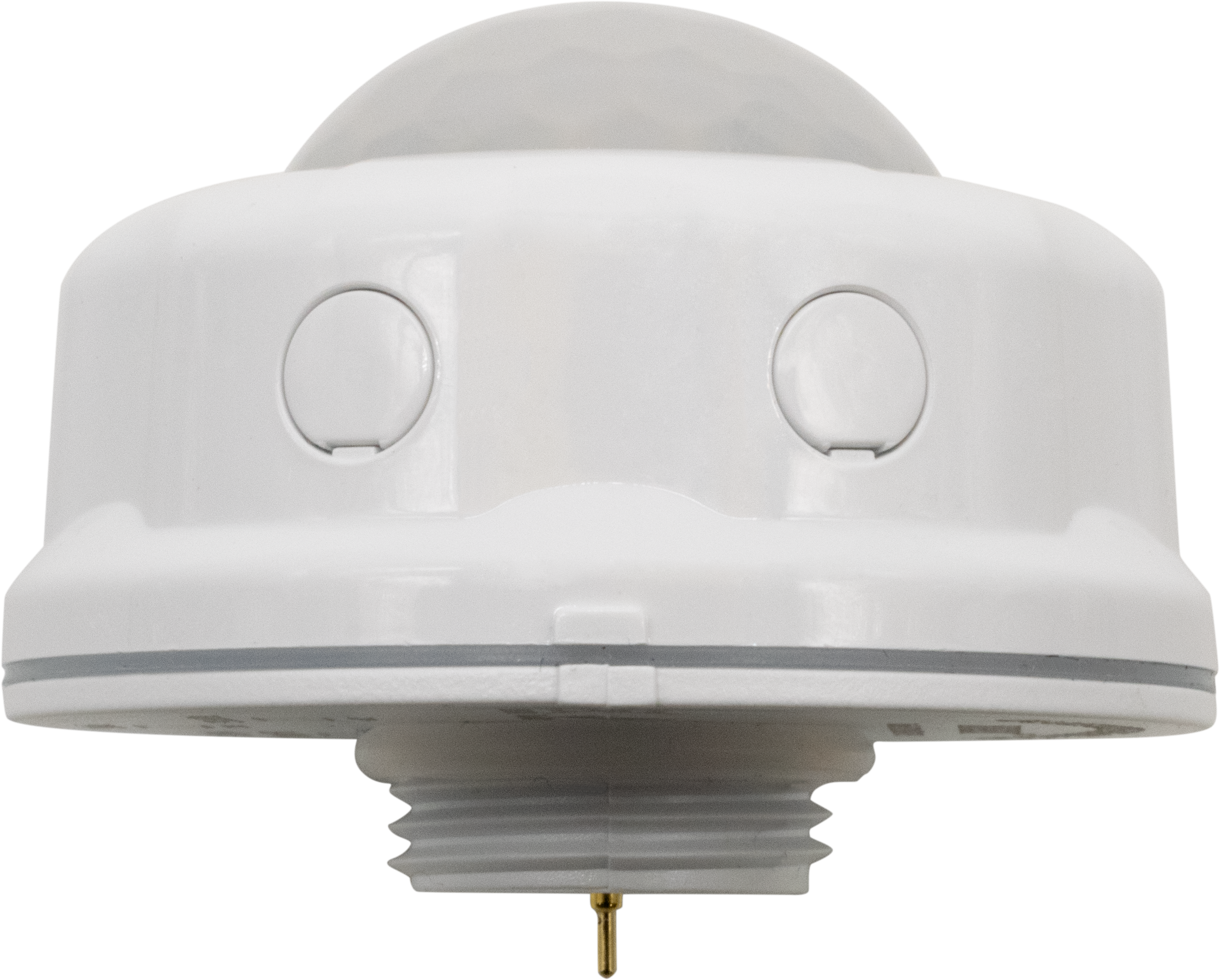

Two PIR bi-level variants — IR-remote commissioned, no gateway, no IT. /BLS standard auto high/low switching · /BLS-5D adds 5 manual dials for site-tuned thresholds. Both: PIR · 49-ft mount · 10-15Vdc · IP65 · UL. Commissioning via optional RM-06S IR remote (45-ft range · 2× AAA · IP20). Drives Title 24 §140.7 / IECC §C405.2 / ASHRAE 90.1 bi-level credits — no third-party sensor BOM line, no networking. Daylight-harvest capable: adjust lux threshold (>50 lux), preset standby, 3× press to enable. The spec when occupancy bi-level is enough.
Section 7 · Photometric Distribution
Beam shape, generated from the IES file.
Real luminous distribution at the selected housing class and optic. Each curve is rendered directly from the certified LM-79 IES test report — peak candela, total lumens, and beam profile reflect the actual measured output, not stated specs.
Three components, factory-installed.
Liberty ships with the photocell receptacle and sensor port pre-installed. Add the photocell or sensor accessory at any time without removing the fixture or running new wire.

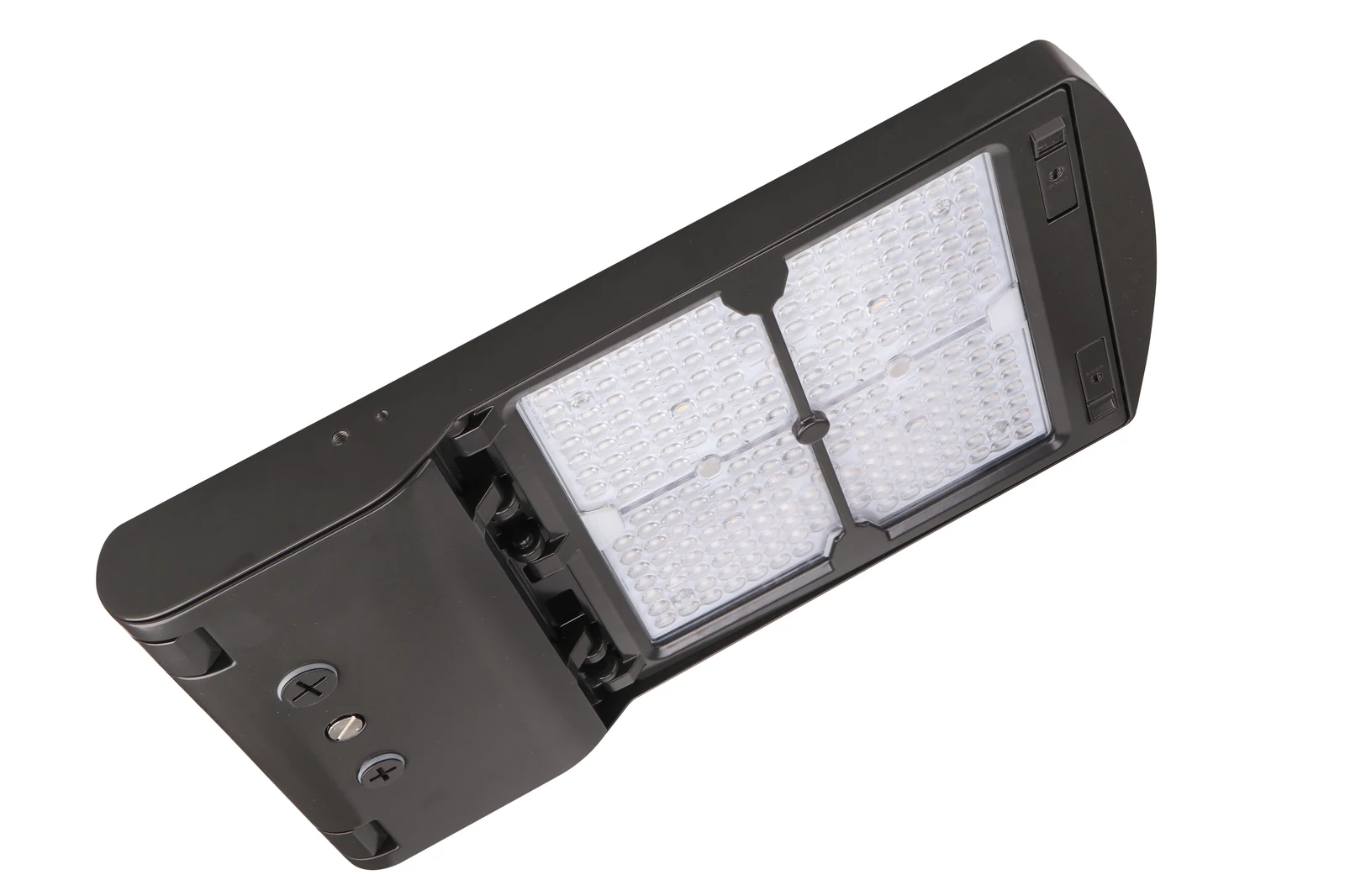

Liberty Fixture
Die-cast aluminum housing · LUMILEDS LED engine · 0–10V dim driver · Type-III optic pre-installed (field-swap to /OT4 or /OT5 per Section 8b) · 6 kV surge protection built-in · pressure-equalization vent prevents seal failure on thermal cycle.
- 3-WATTSELECT + 3-CCTSELECT DIPs accessible inside driver compartment
- IP65 wet-location listed · -40°F to 122°F operating
- cULus · RoHS · LM-79 / LM-80 / TM-21 tested by independent lab

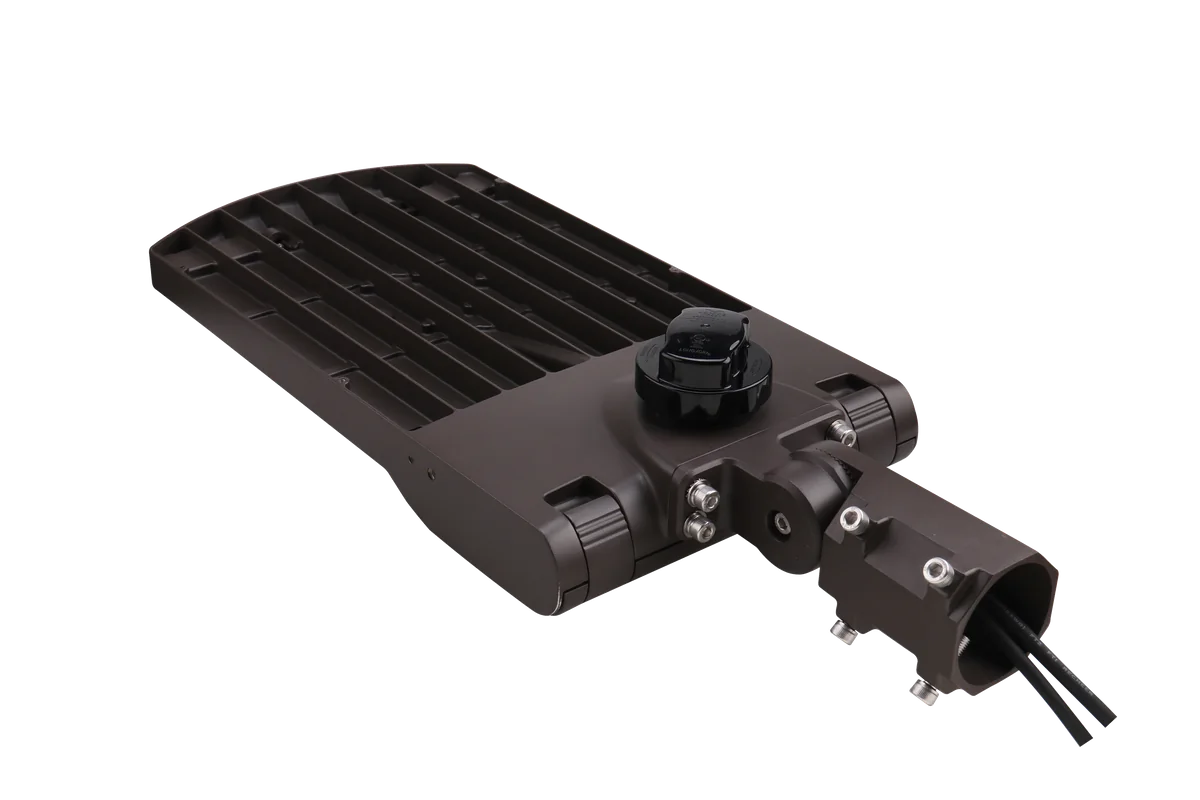

Receptacle w/ Shorting Cap
3-pin twist-lock receptacle on the housing top · ANSI C136.10-conformant. Ships with the shorting cap installed for normal operation. Remove the cap and twist in /UM3, /UM7, or /HM3 to enable dusk-to-dawn.
- No rewire · no fixture removal at install or upgrade time
- Compatible with all 3 Liberty photocell adders + standard NEMA twist-lock photocells
- Stacks with /BLS, /BLS-5D, /ACS, /NLC sensor adders independently
Sensor-Ready Port
Pre-cabled 3-pin / 7-pin sensor port on the housing · weatherproof connector ready for any contrLS module. Plug-and-play — no fixture removal, no low-voltage rewire when adding or upgrading occupancy sensing.
- Same physical port runs Bi-Level / ⒶCS Bluetooth Mesh / SILVAIR SIG Mesh
- Field-commission via IR remote, BLE app, or SIG-conformant tool
- Future-proof: swap protocols by swapping the sensor module · not the fixture
Accessories
Engineered Accessories

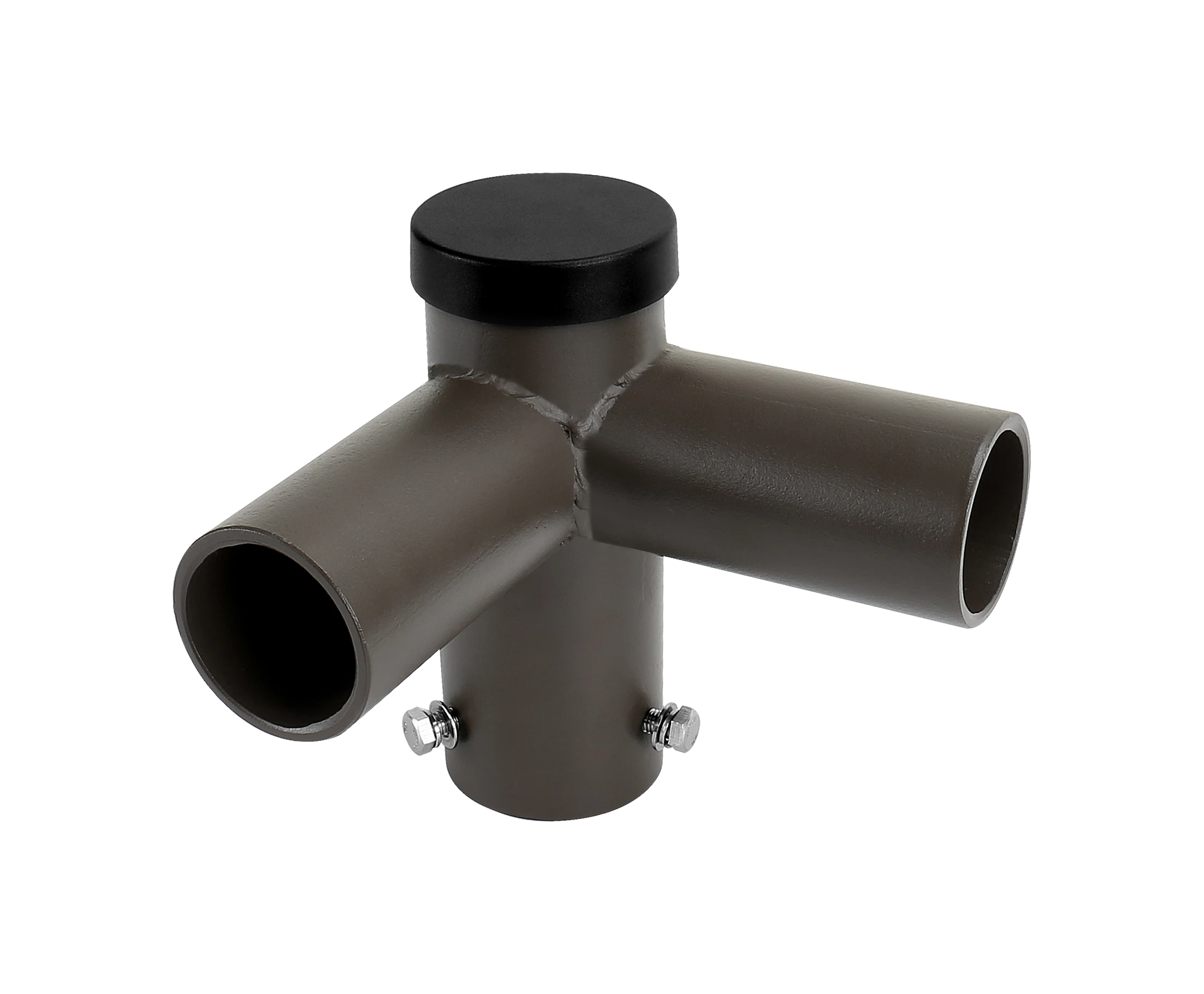

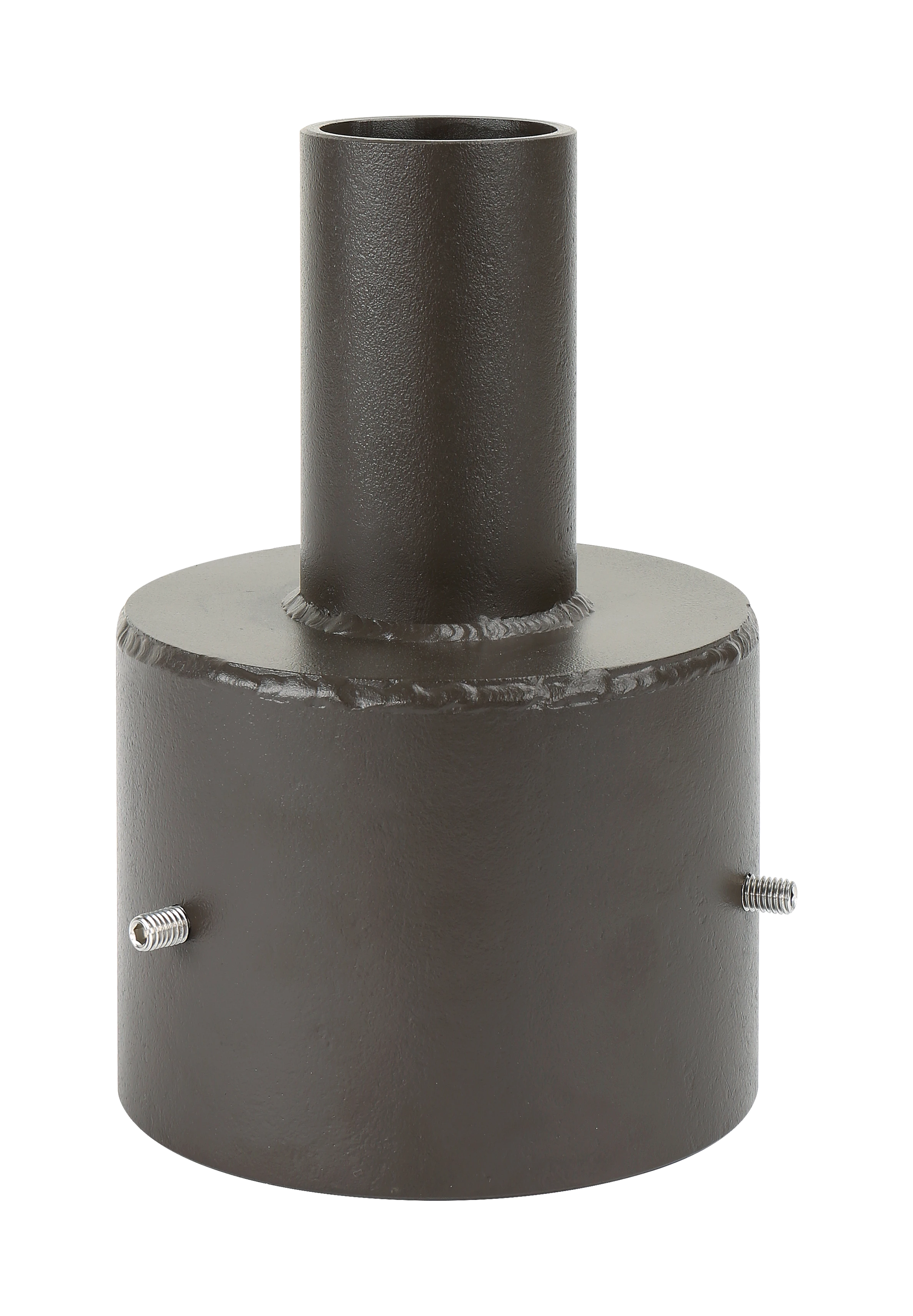

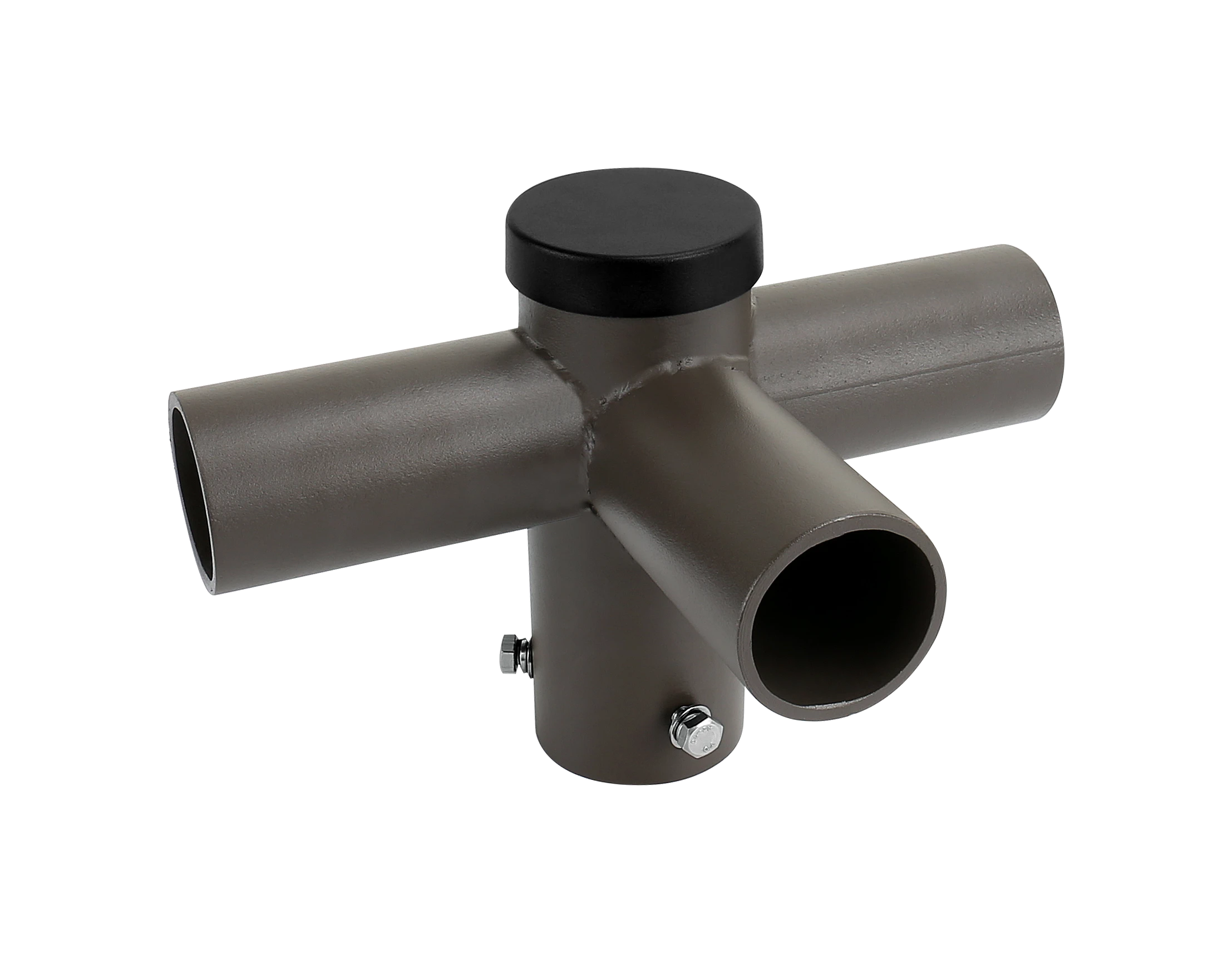

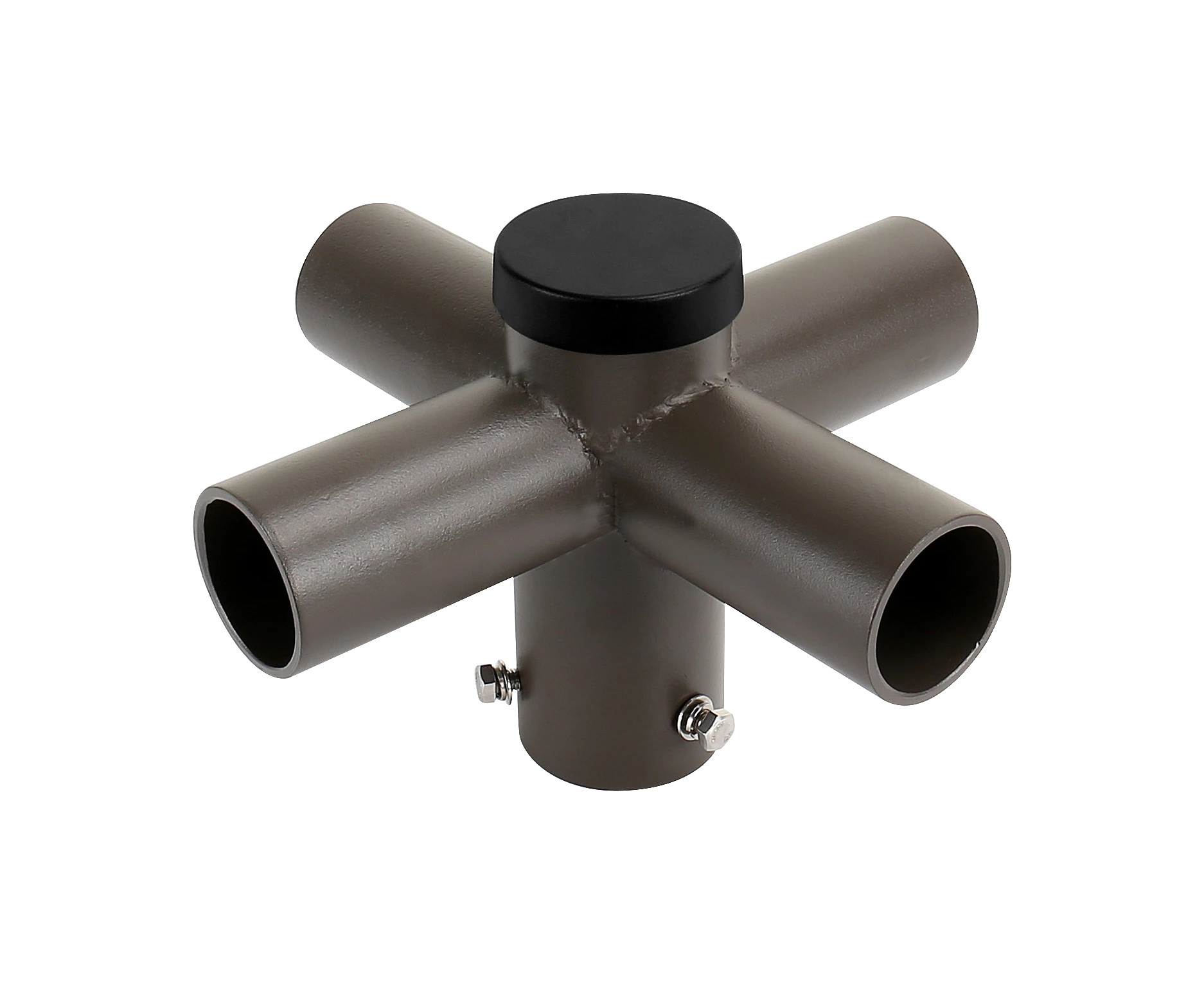

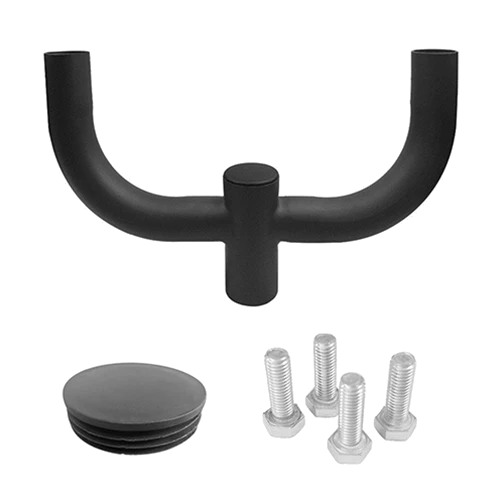

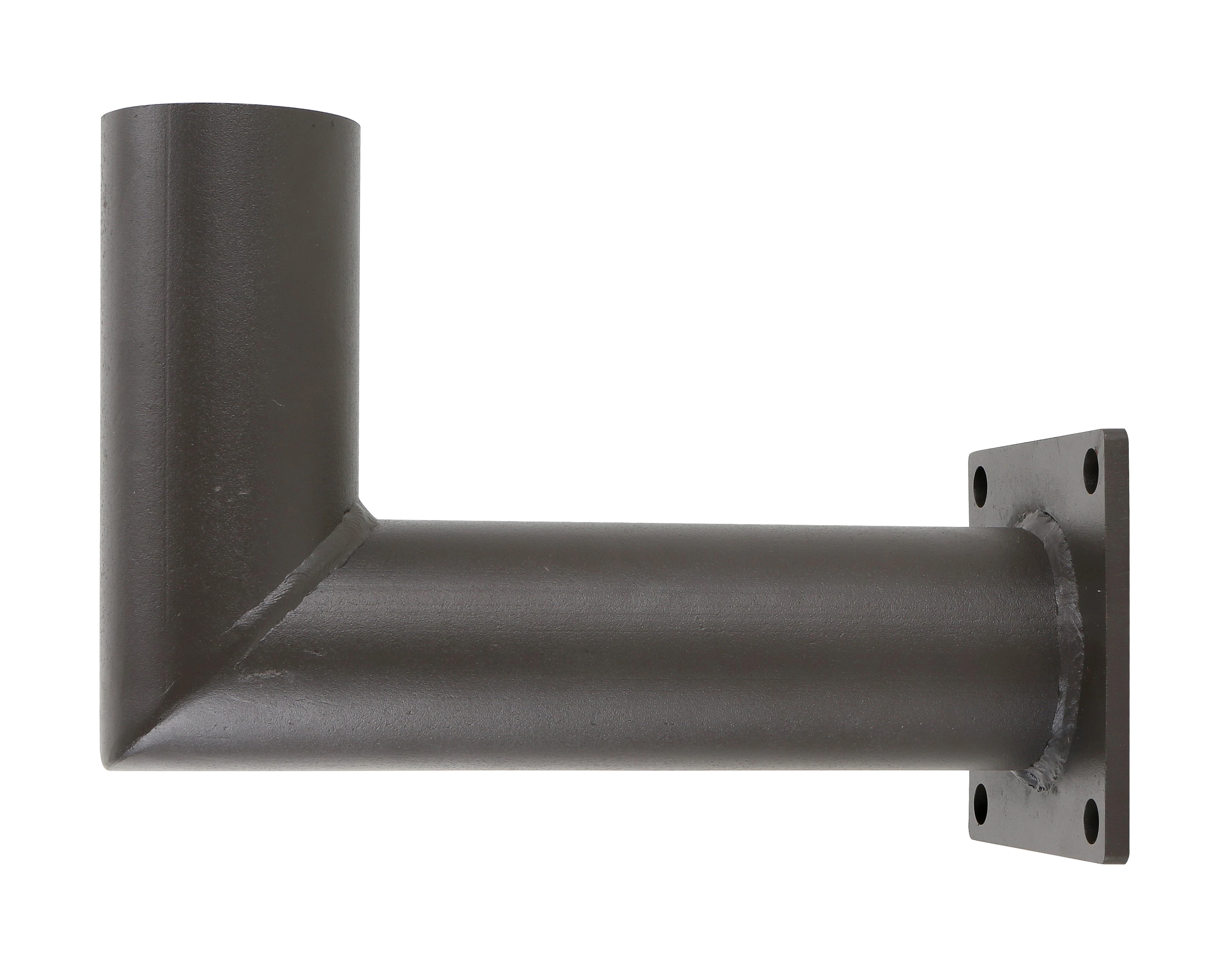

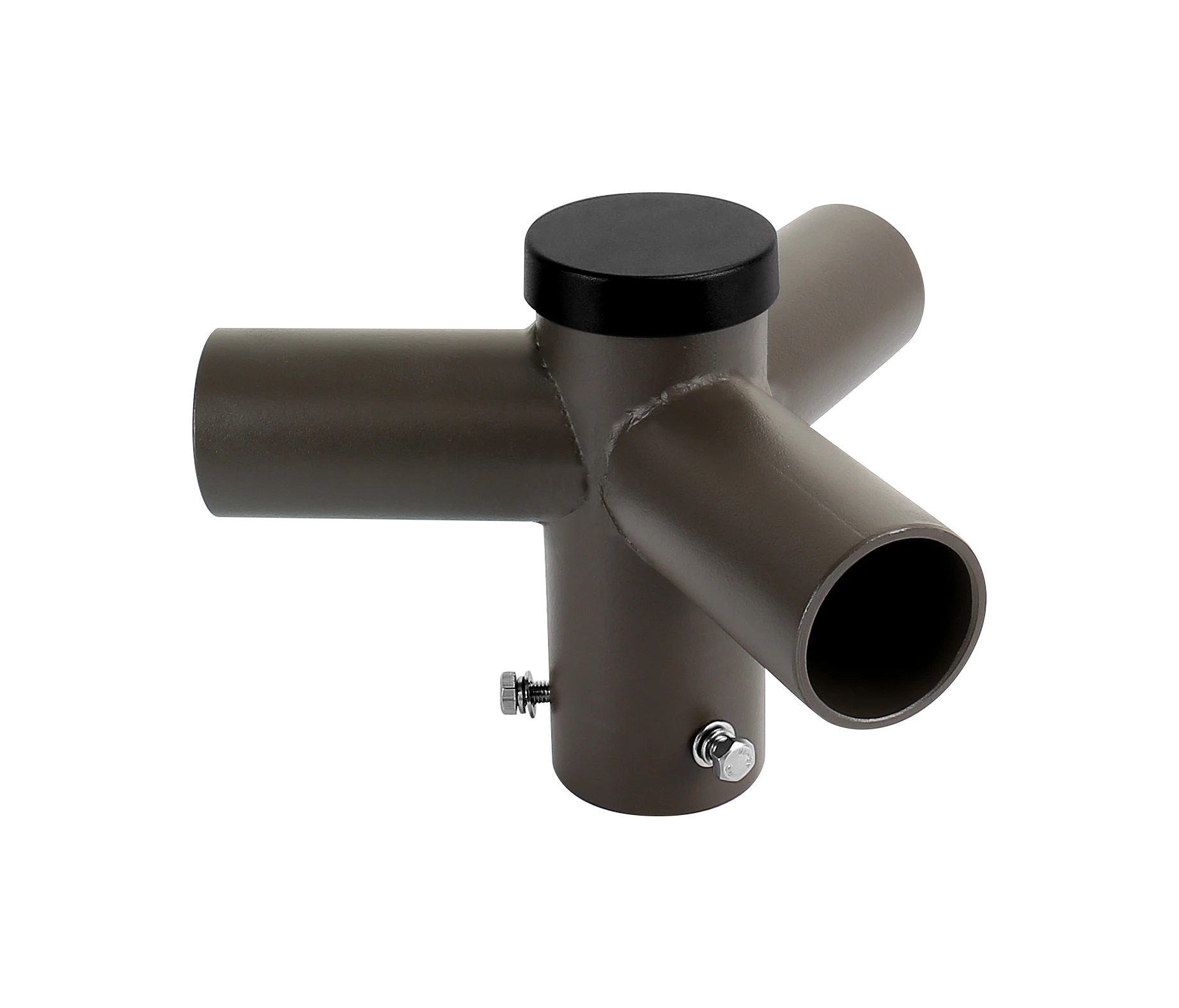

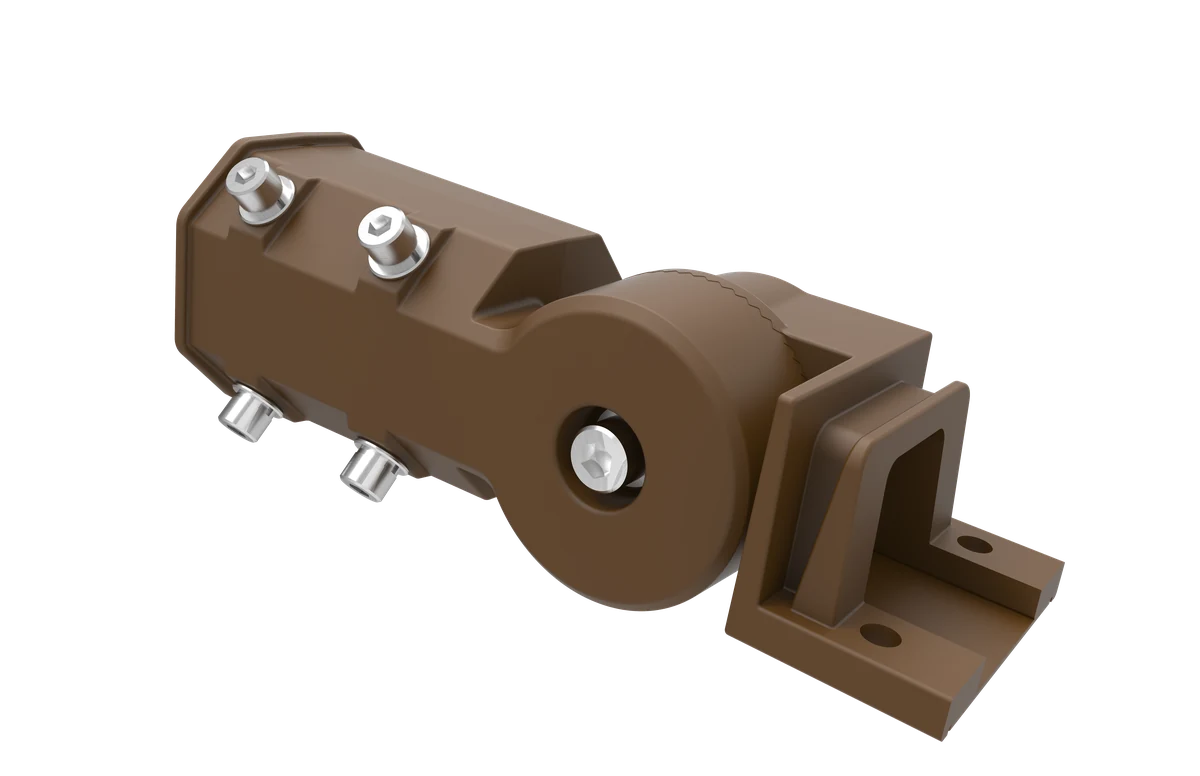

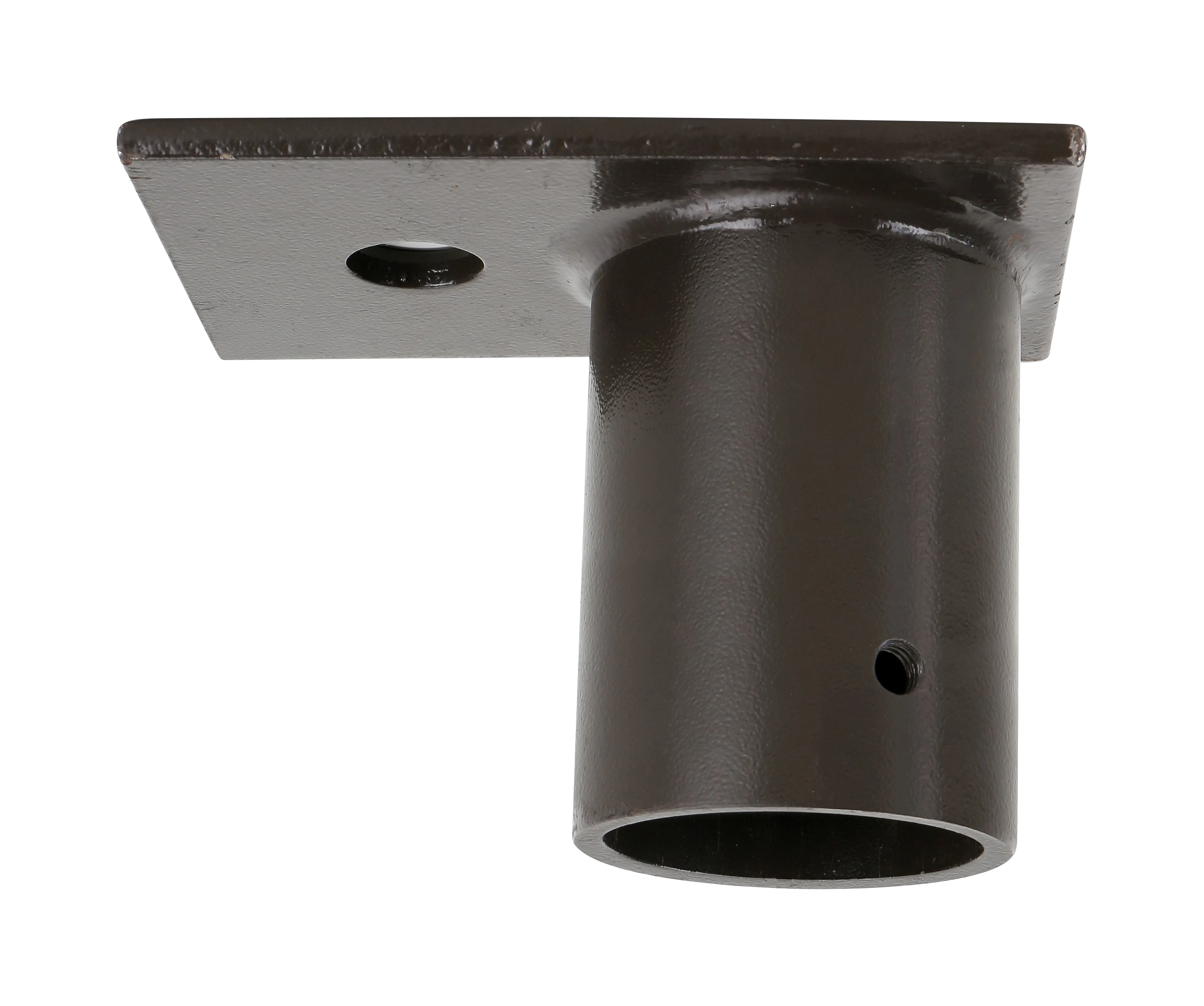

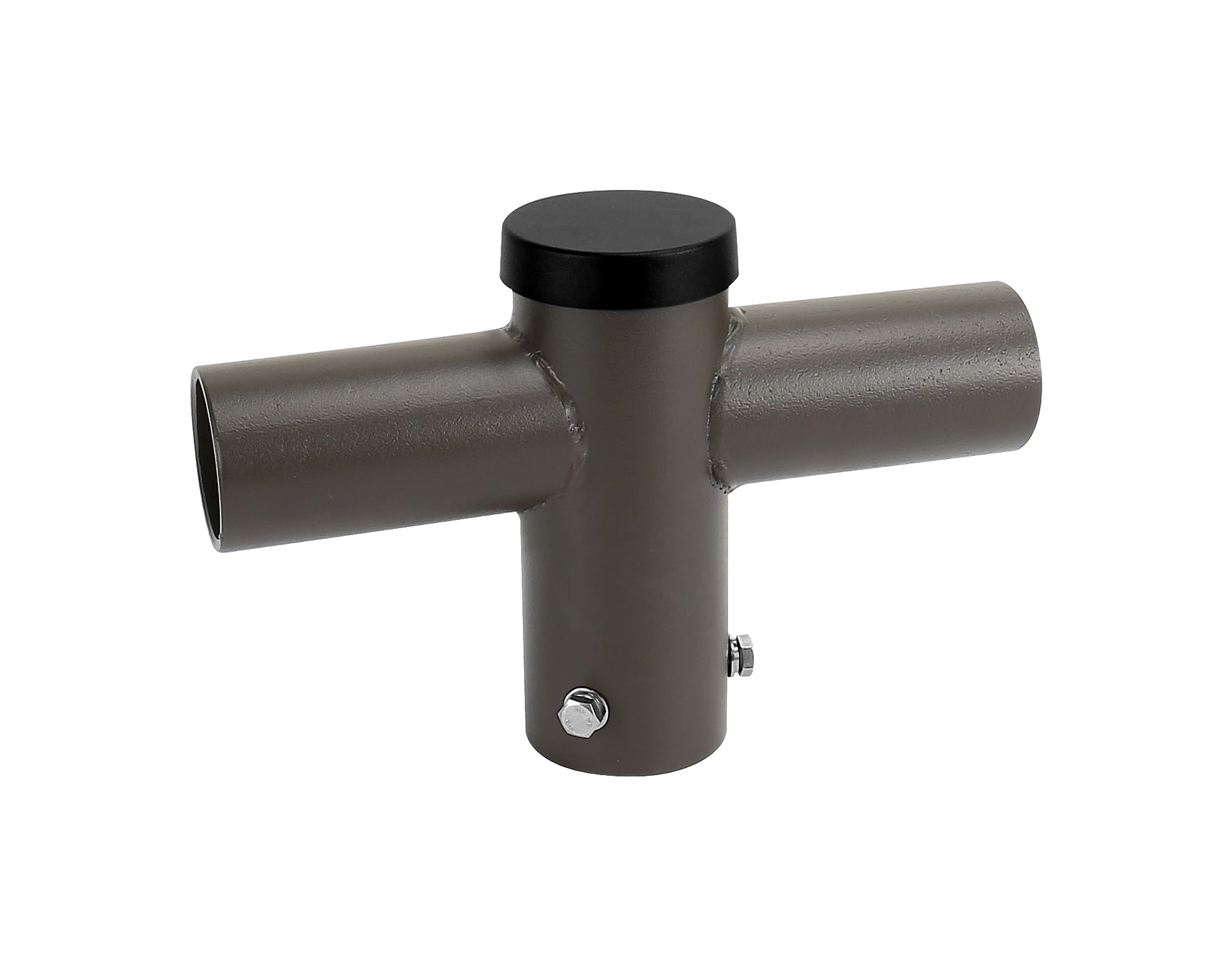

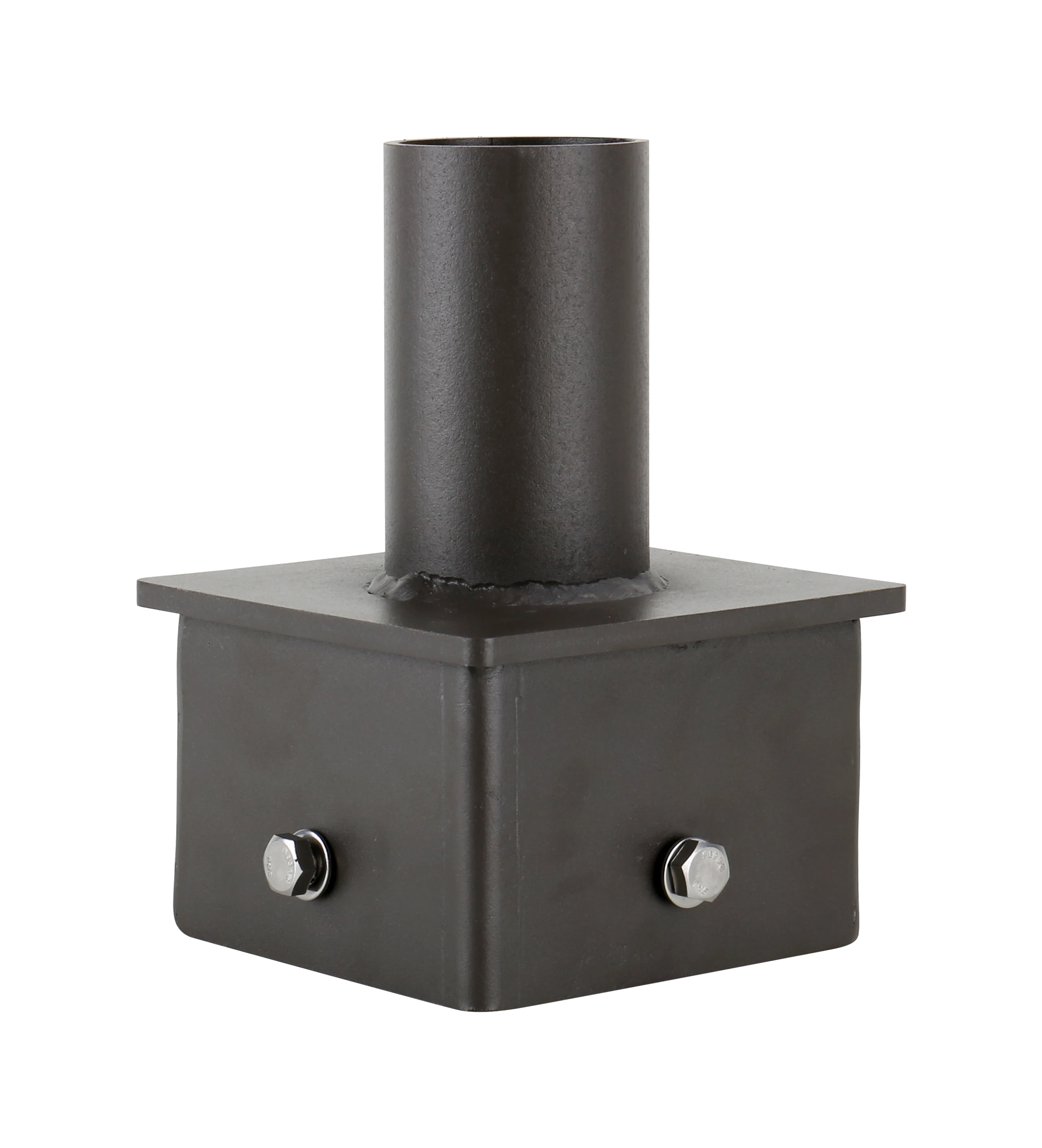

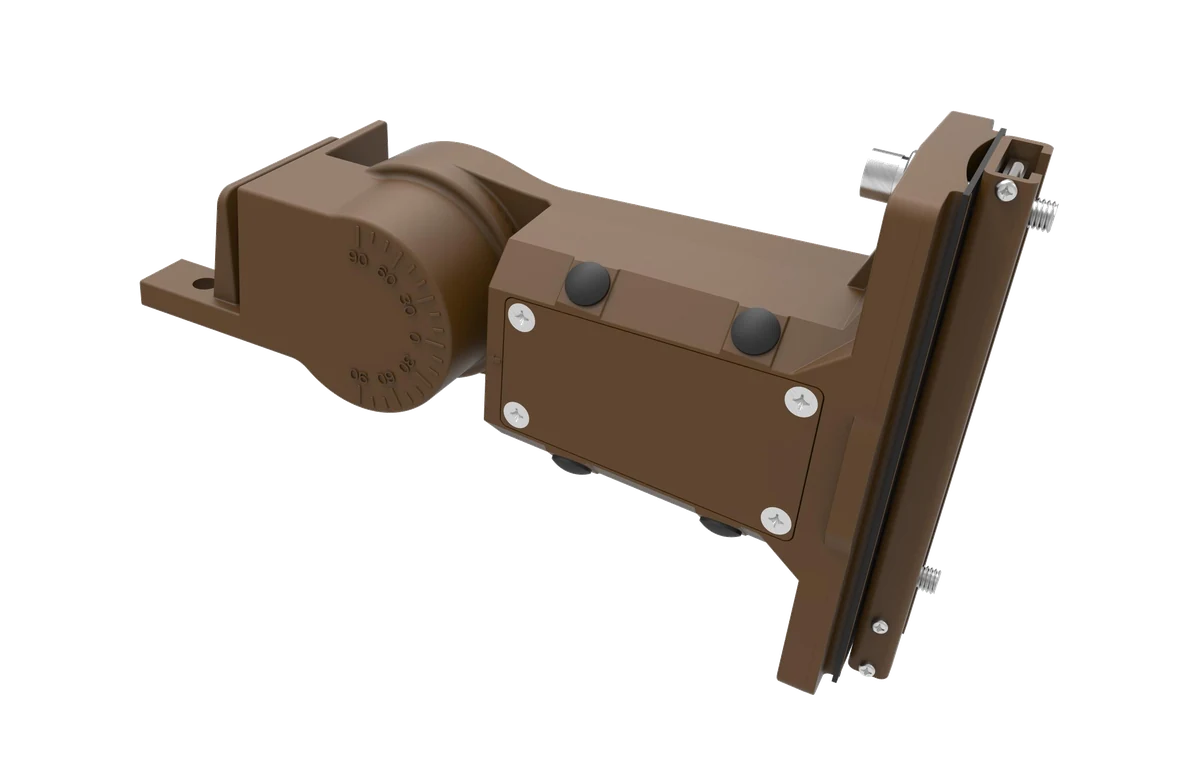

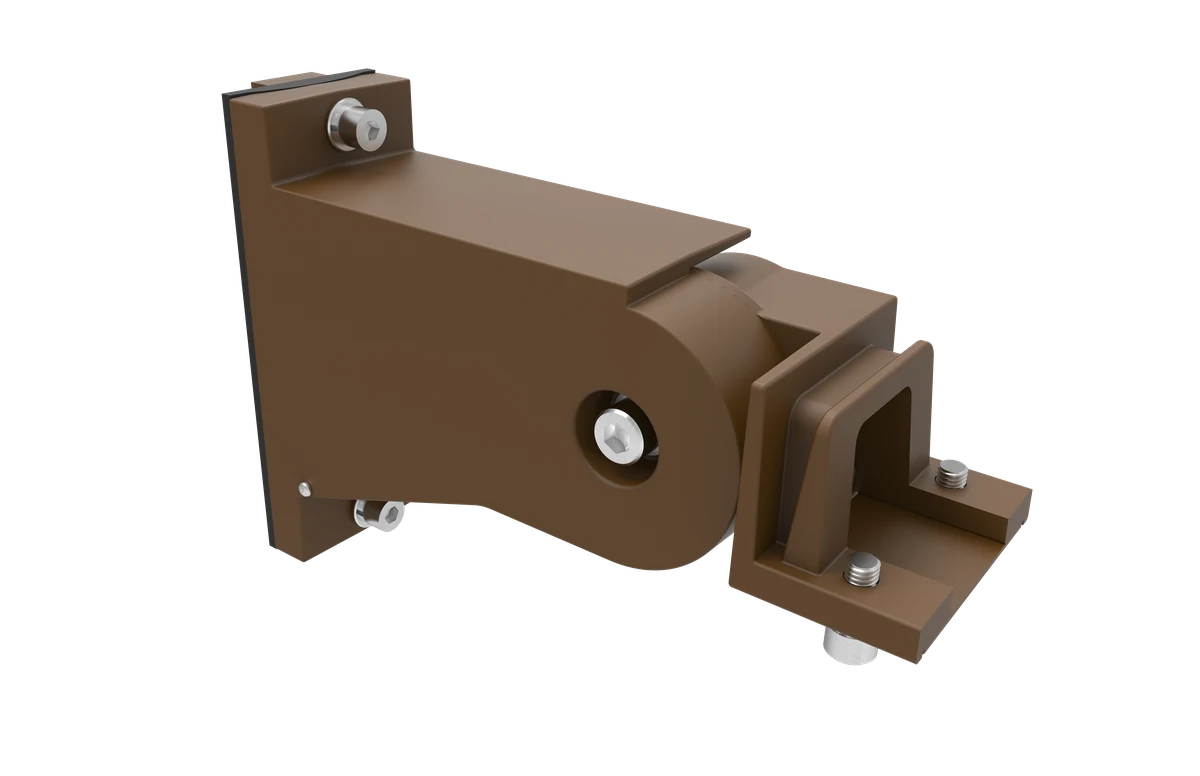

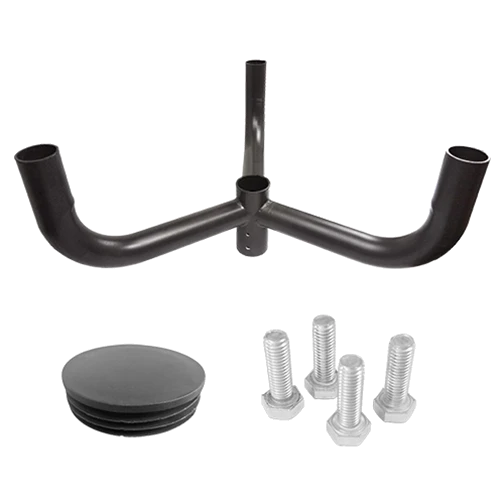

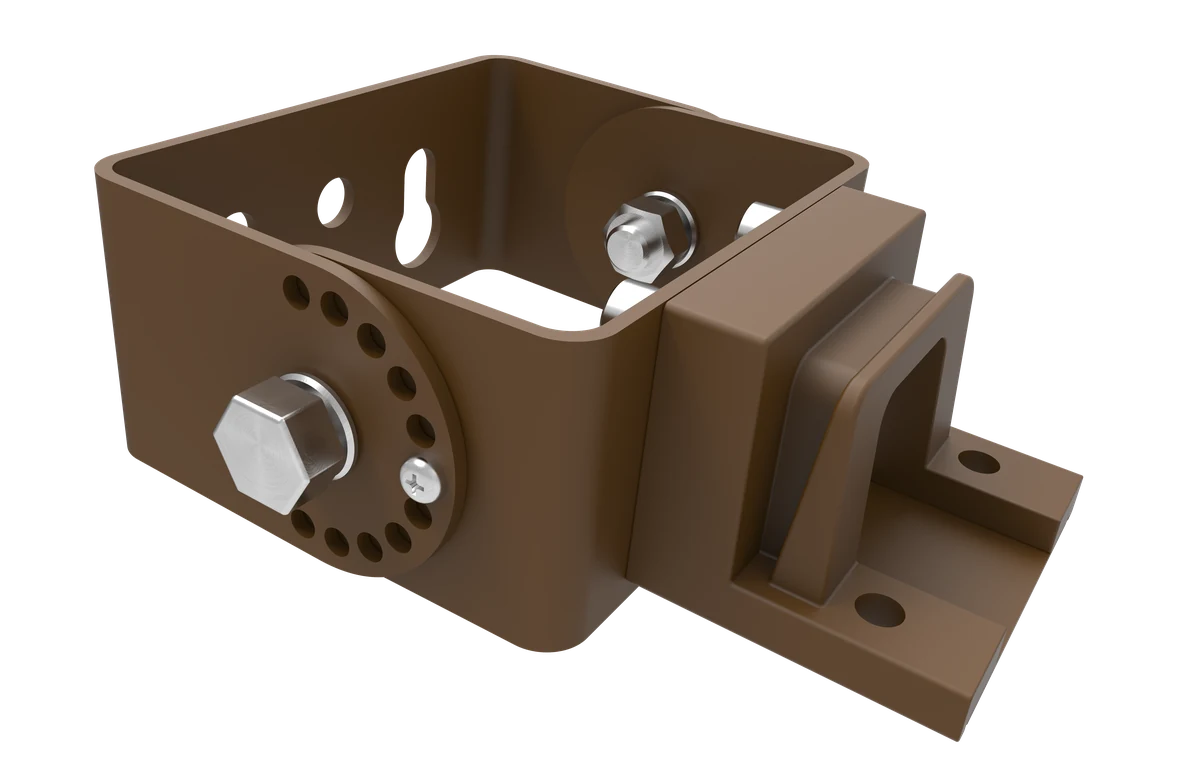

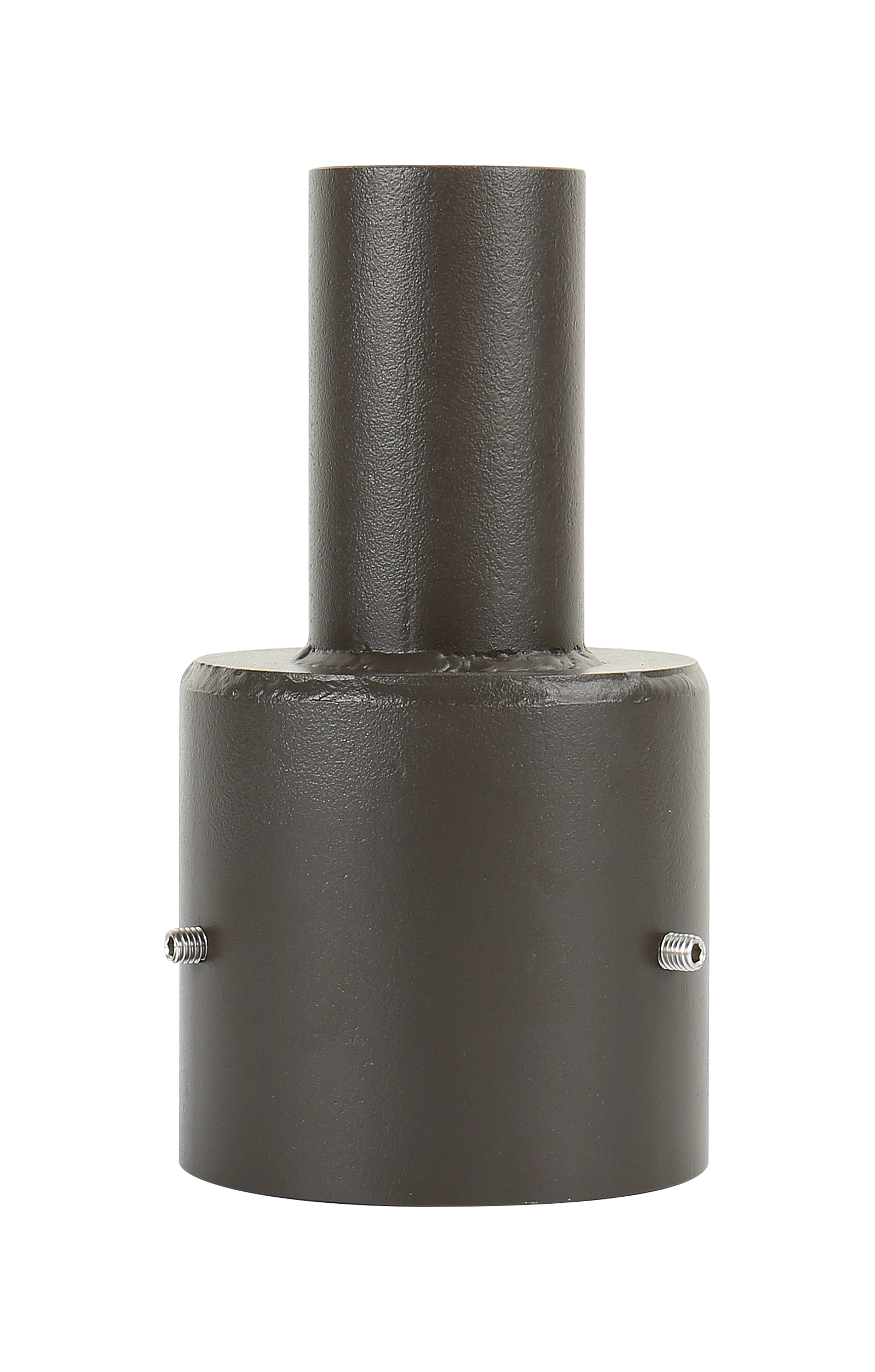

contrLS sensors, photocell, mounts, in-line surge, replacement optics, glare shields, multi-fixture tenon adapters — factory-matched to the LSBX housing, Quick-Ship unless noted. Polished drill patterns live inside each Mount card’s modal · built from the SNC OEM source CAD (DM / A&D / AM / FM brackets).
Drill Pattern

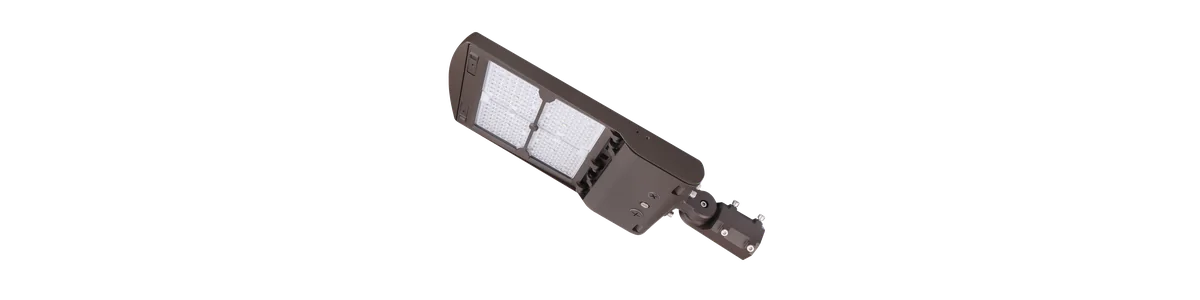

Build your Liberty.
Pick housing class · voltage · finish · mount · optic · controls. Live SKU updates as you go. Click Generate Submittal PDF when you’re ready — we’ll hydrate your spec sheet from the configuration.
One click to a pre-spec'd combo.
All four are real catalog SKUs from the active Liberty production list.
Spec sheets, install guides, IES files.
Five documents cover the Liberty product line. Datasheet, Install Guide, and IES bundle are staged on disk; Quicksheet and Sellsheet are pending content. WorkDrive external URLs flip to live as the dashboard refreshes.
Same chassis. Three tiers. One install sequence.
Liberty is the PRO tier of the LSBX shoebox family. Step down to Heritage for contractor-grade volume work, or step up to Rosetta-III for the premium feature set. Same mounting infrastructure, same accessory ladder, same install procedure across all three.

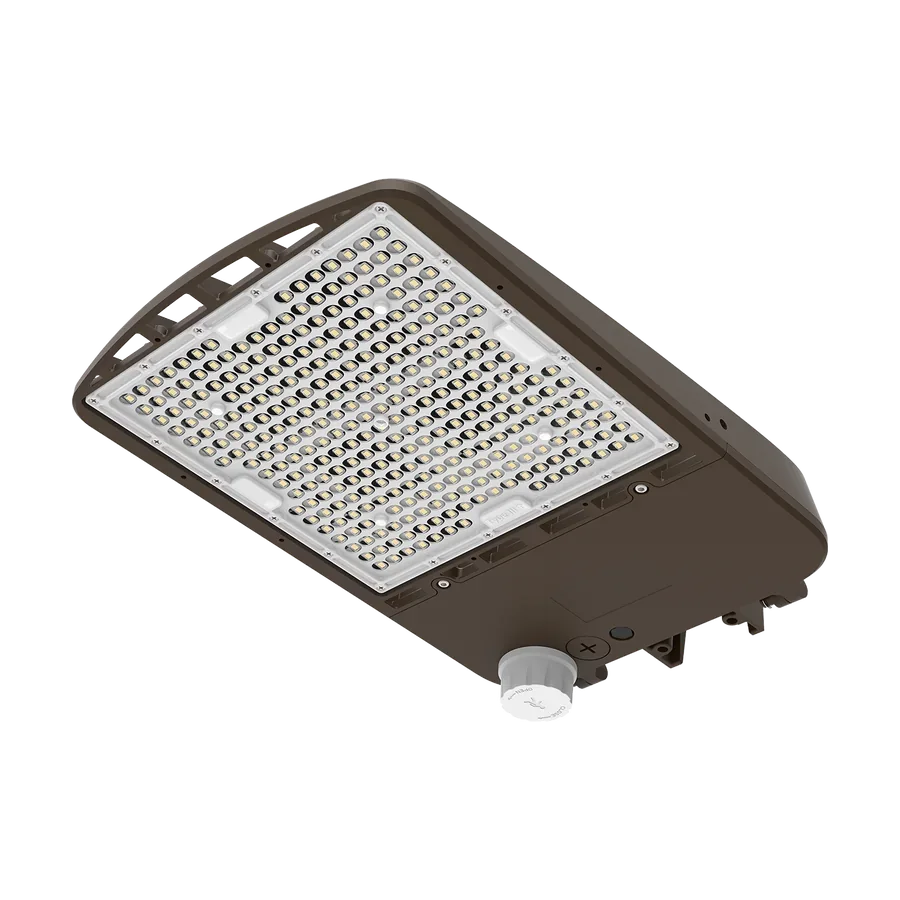

Heritage
Contractor-grade volume play. 2 housings cover 70–300W (replaces 250–1000W metal halide). Same chassis as Liberty · same mount system · same accessory ladder · lower spec lane for perimeter parking and roadway runs where you don't need the full PRO feature stack.
Rosetta-III
Premium spec lane on the same LSBX chassis. The PRO+ feature set adds tunable-white CCT, integrated DLC NLC mesh commissioning, and the highest-tier rebate stack qualification — for high-visibility entry-mast and architectural-perimeter installs where the lighting spec is part of the brand surface.
One click → 4-page stamped submittal.
Pre-spec'd PDF with your configured Liberty SKU, dimensional drawings, photometric polar plot, certifications, accessory ladder, and signature block. Hydrates from your Section 9 configurator state — change a chip, regenerate the PDF.
Generate Submittal PDFPremium-tier rebate-stack target.
DLC SSL application in flight · targeting Premium tier (140 lm/W floor cleared on every housing class except LSBX300 which sits at 146 — also above the 130 lm/W Premium bar). When QPL ID issues, Liberty stacks utility SSL + NLC rebates at the Premium rate.
ALG Rebate Center7-year / 75,000 hours.
Above the 5-yr / 50,000-hr category baseline. Color shift warranted at <180K over the warranty period (per ANSI C78.377). LM-79 / LM-80 / TM-21 tested by an independent lab — written claim, not a marketing number.
Warranty termsLab-tested. Spec-eligible.
cULus listed · DLC Listed (target Premium · QPL ID pending) · TAA-eligible Made-in-Mexico configurations available · RoHS compliant · IP65 wet-location · LM-79 / LM-80 / TM-21 · IES TM-15 BUG ratings ready.
Cert documentationReal engineers, same-day.
ALG application engineering helps with multi-fixture site design, photometric verification, and rebate-paperwork prep. Spec writers get a same-day response on Liberty configurations and cross-shop questions across the LSBX tier ladder.
