LWPF · luxoⒶRCH ECO

Guardian LED Wall Pack

The classic wall pack, kept slim.

A classic wall pack for building perimeters, entries and paths, 40 to 120 W and 5.37″ deep. Wattage and color temperature are switches on the fixture, and a photocell with an ON/OFF switch is in every number. A clear glass lens over a reflector and refractor throws the light forward. 130 lm/W, IP65, 6 kV surge.

Specification Sheet IES Files Installation Guide Configure For Lead Time

Input Watts40–120 W

Lumensup to 15,600

Efficacy130 lm/W

Ideal applications

Building Perimeters

Entryways

Security

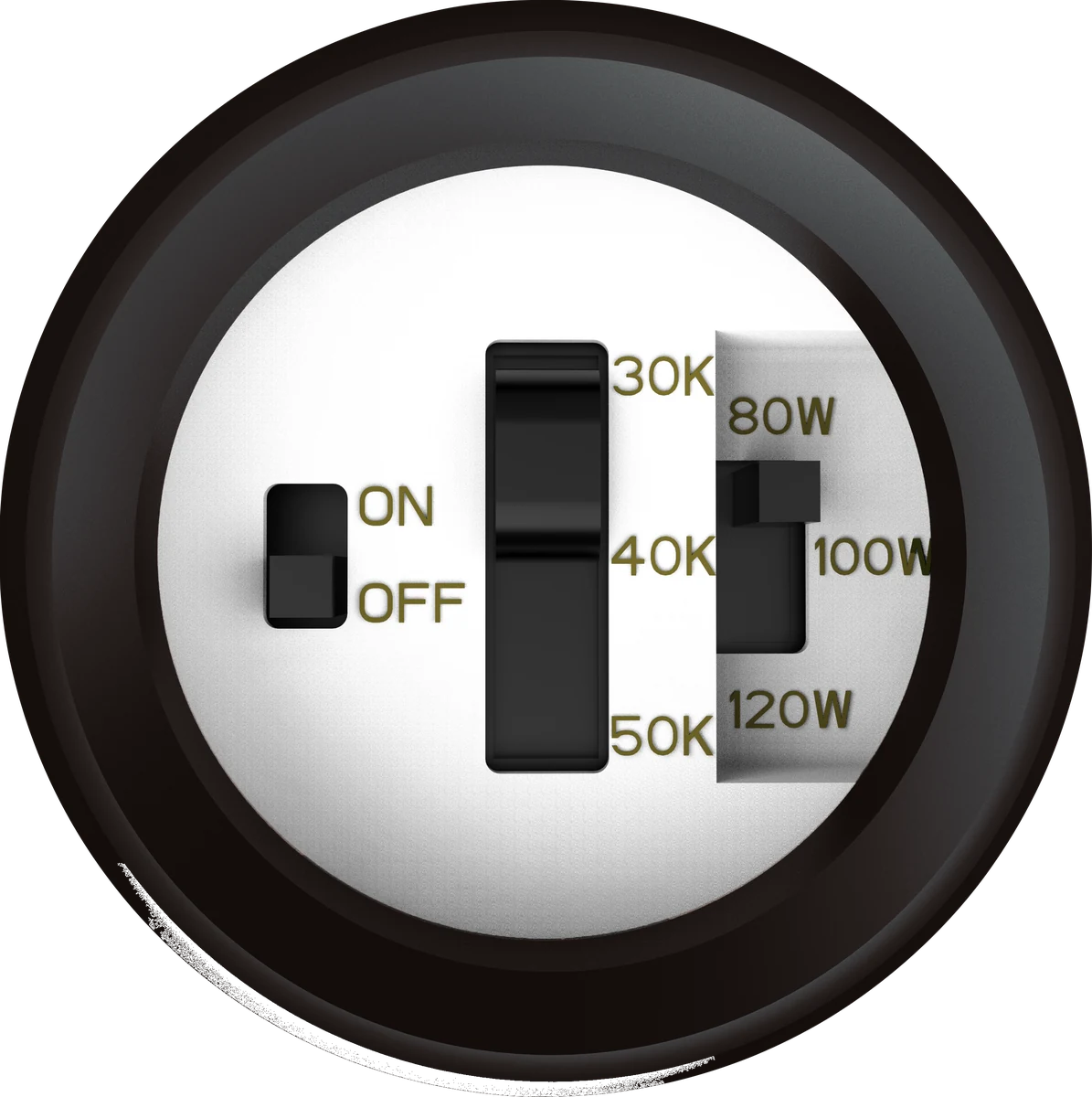

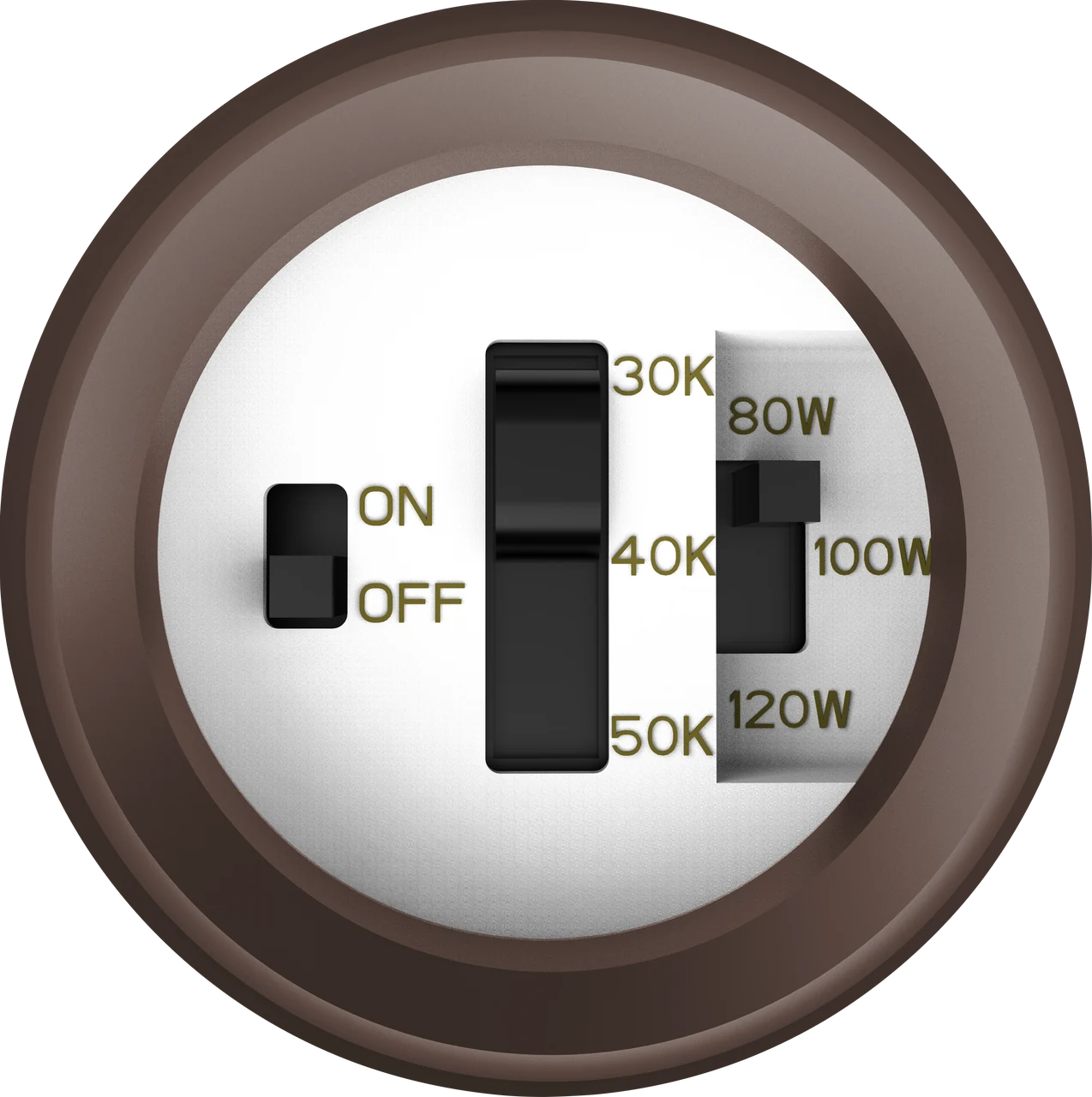

3-WATTselect

3-CCTselect

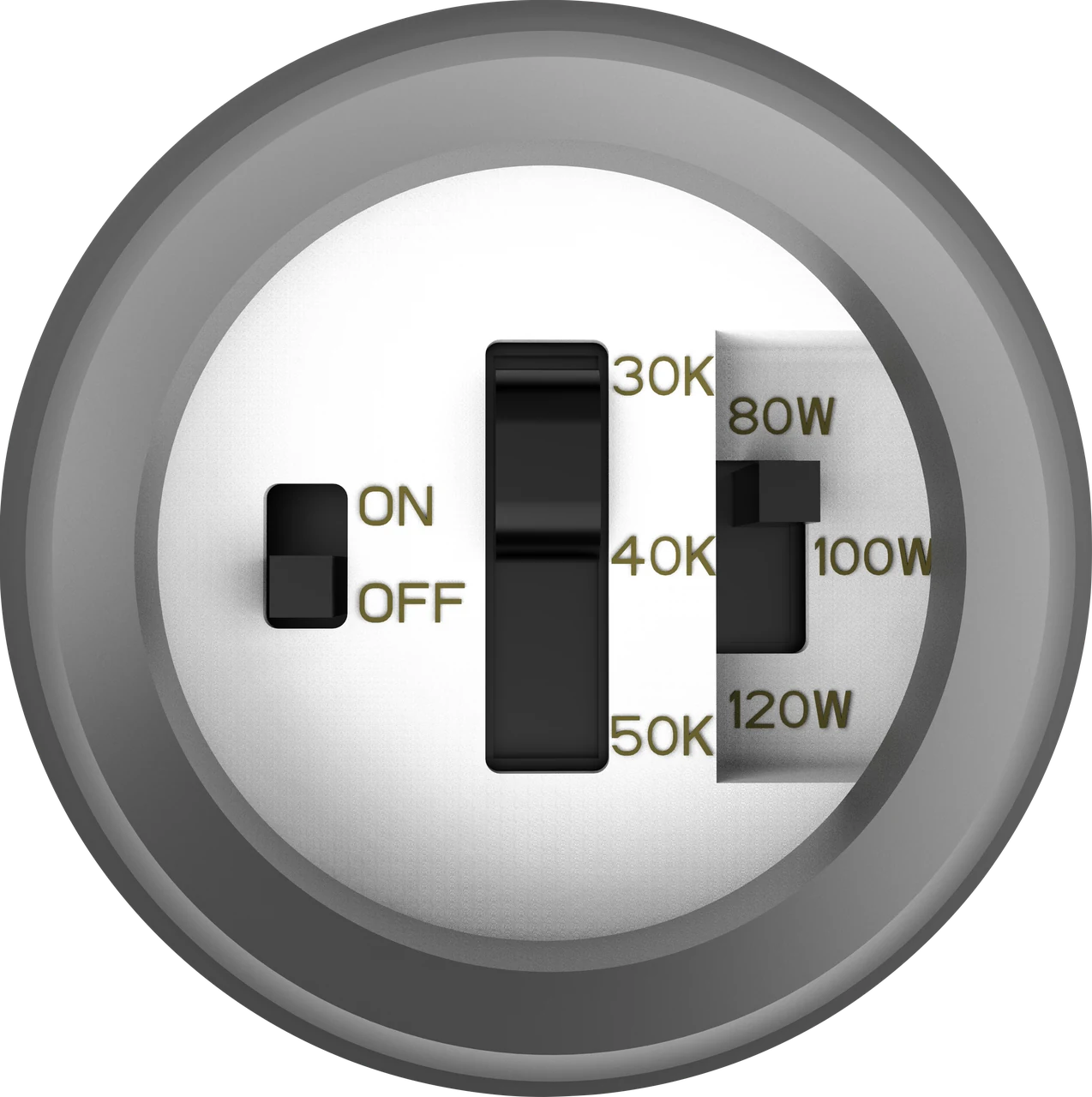

Photocell

Glass Lens

wetⒶGUARD

surgeⒶRMOR

cULus Listed

Wet Location

IP65

FCC

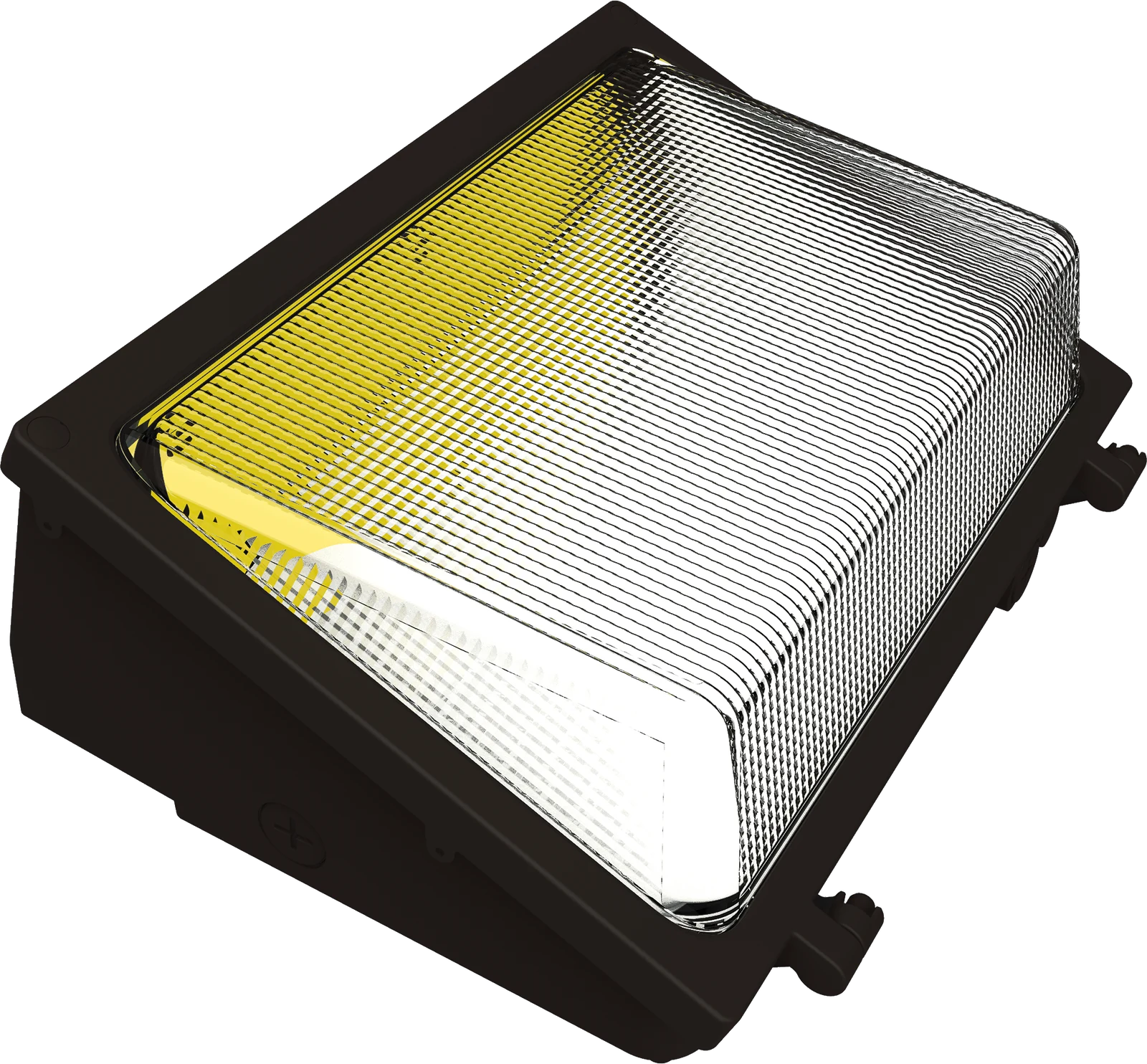

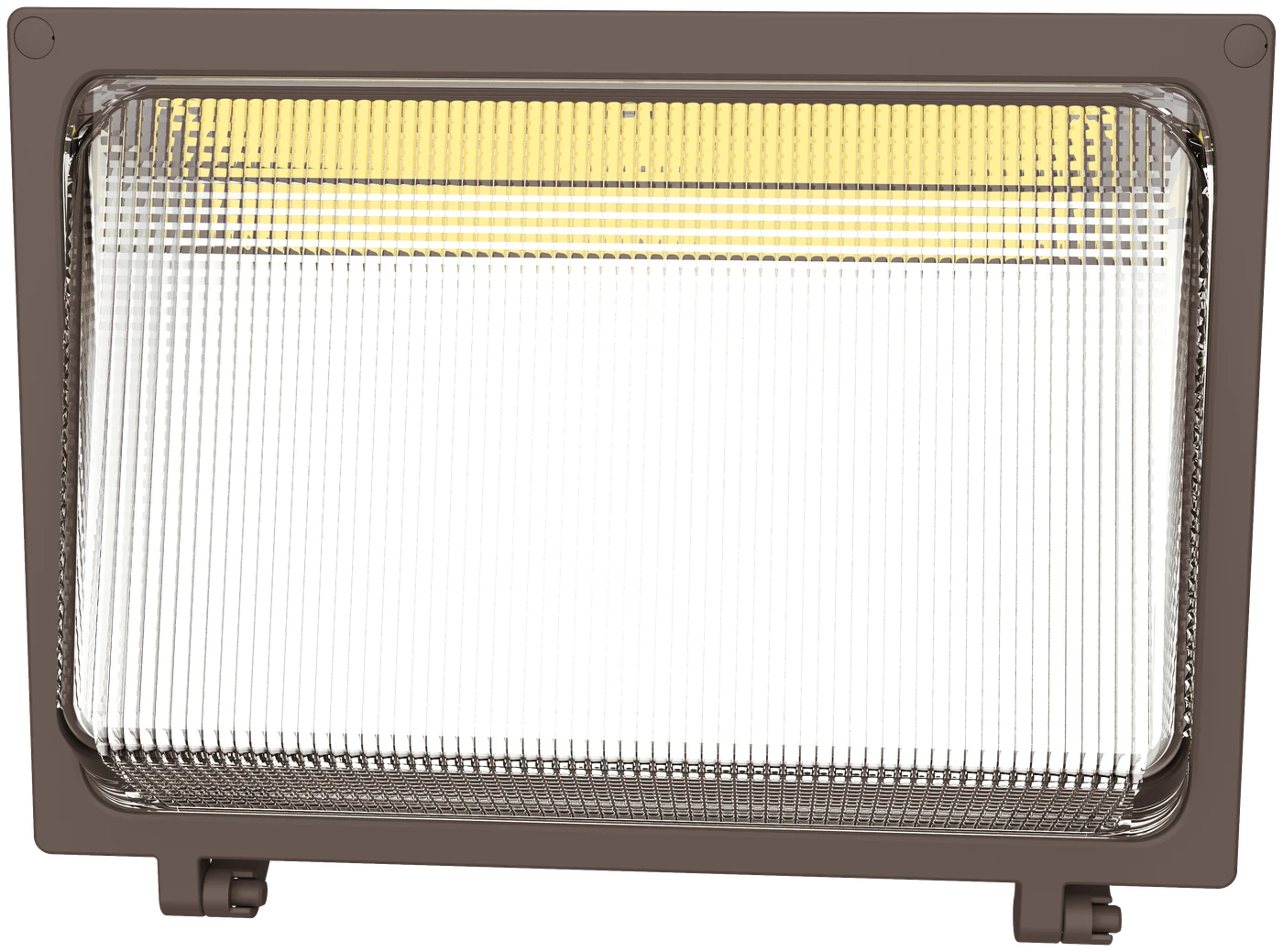

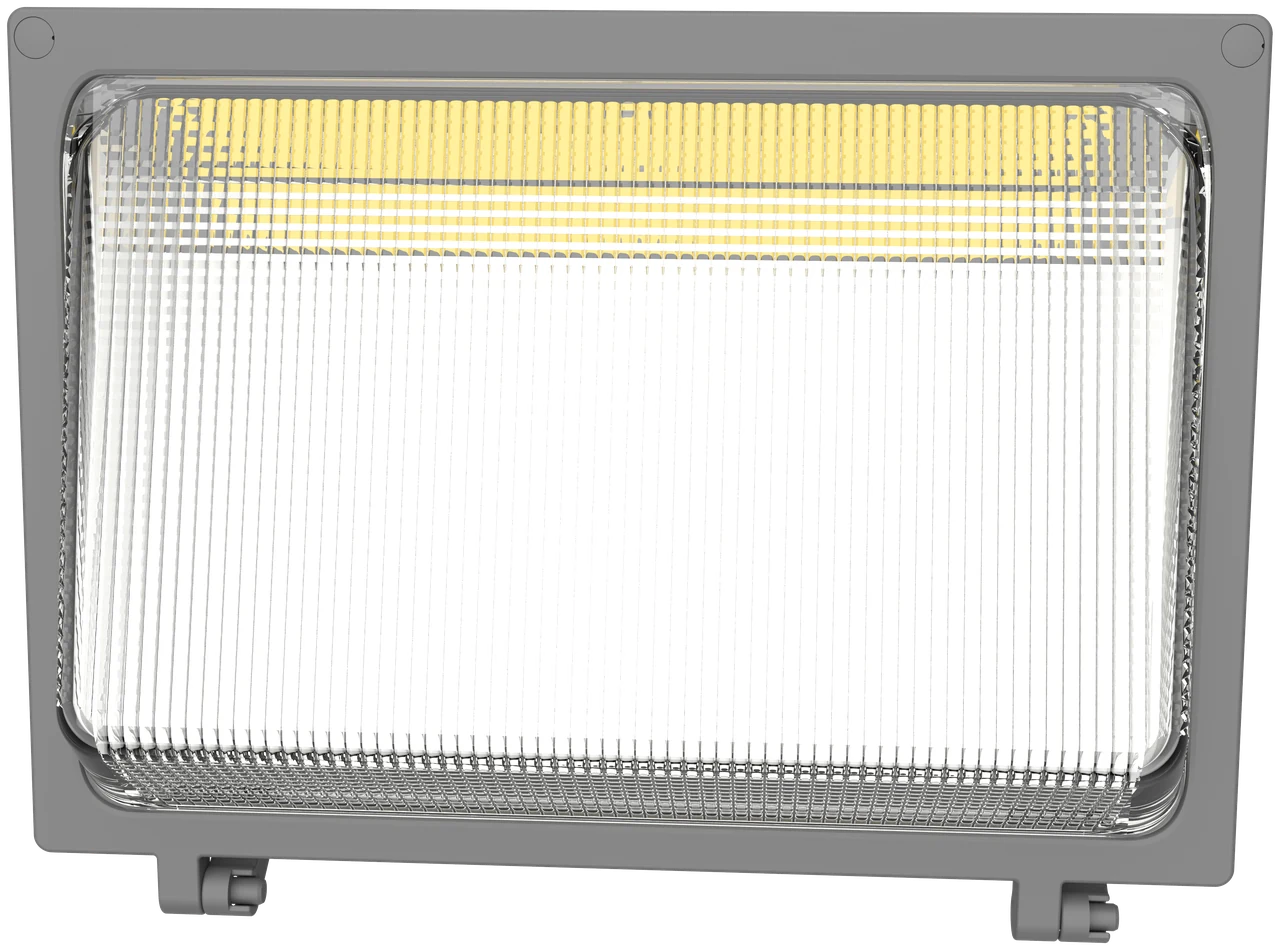

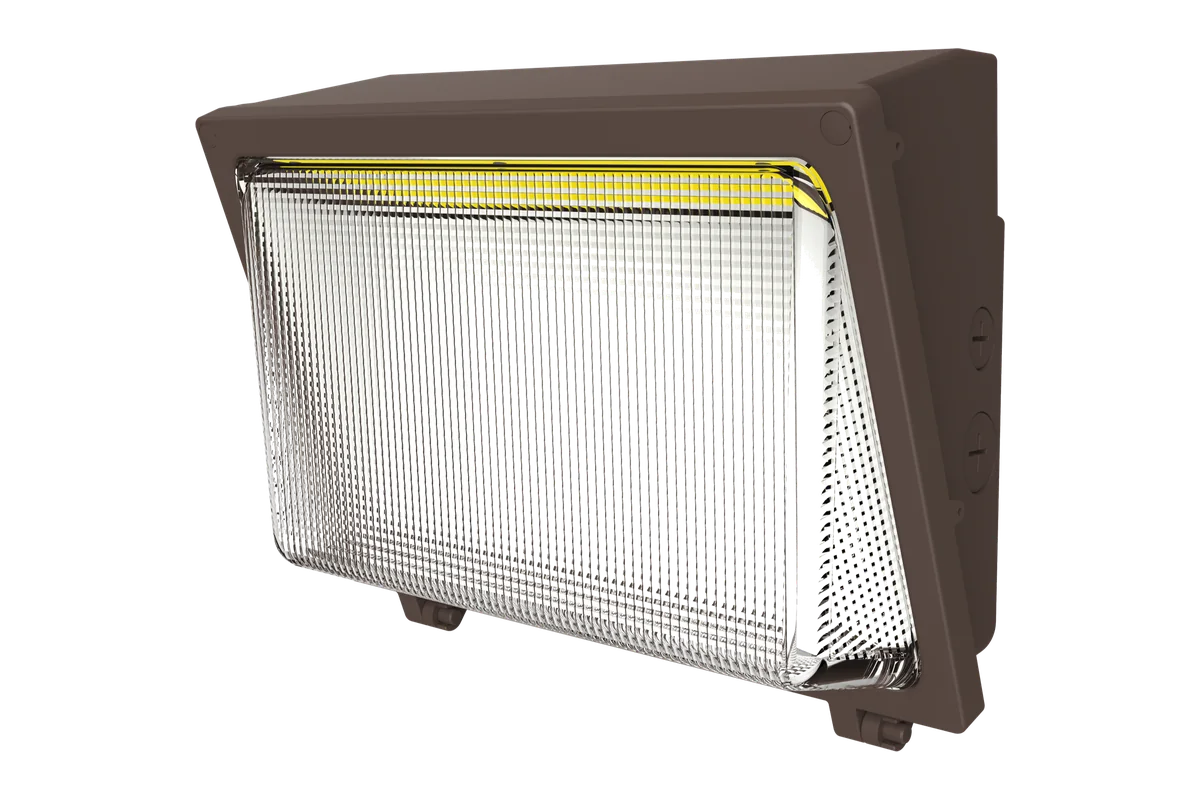

Guardian LED wall pack, Dark Bronze, front

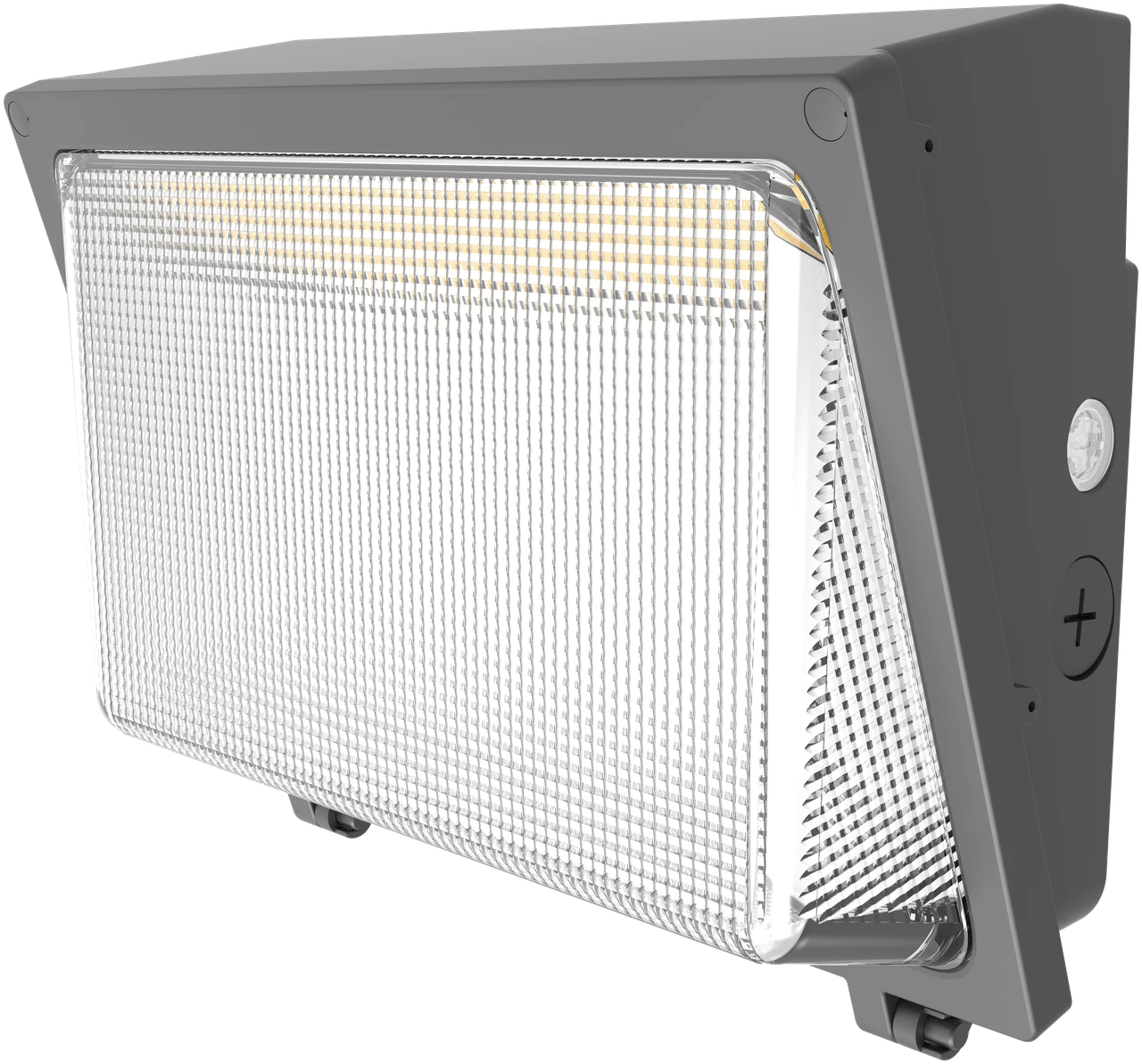

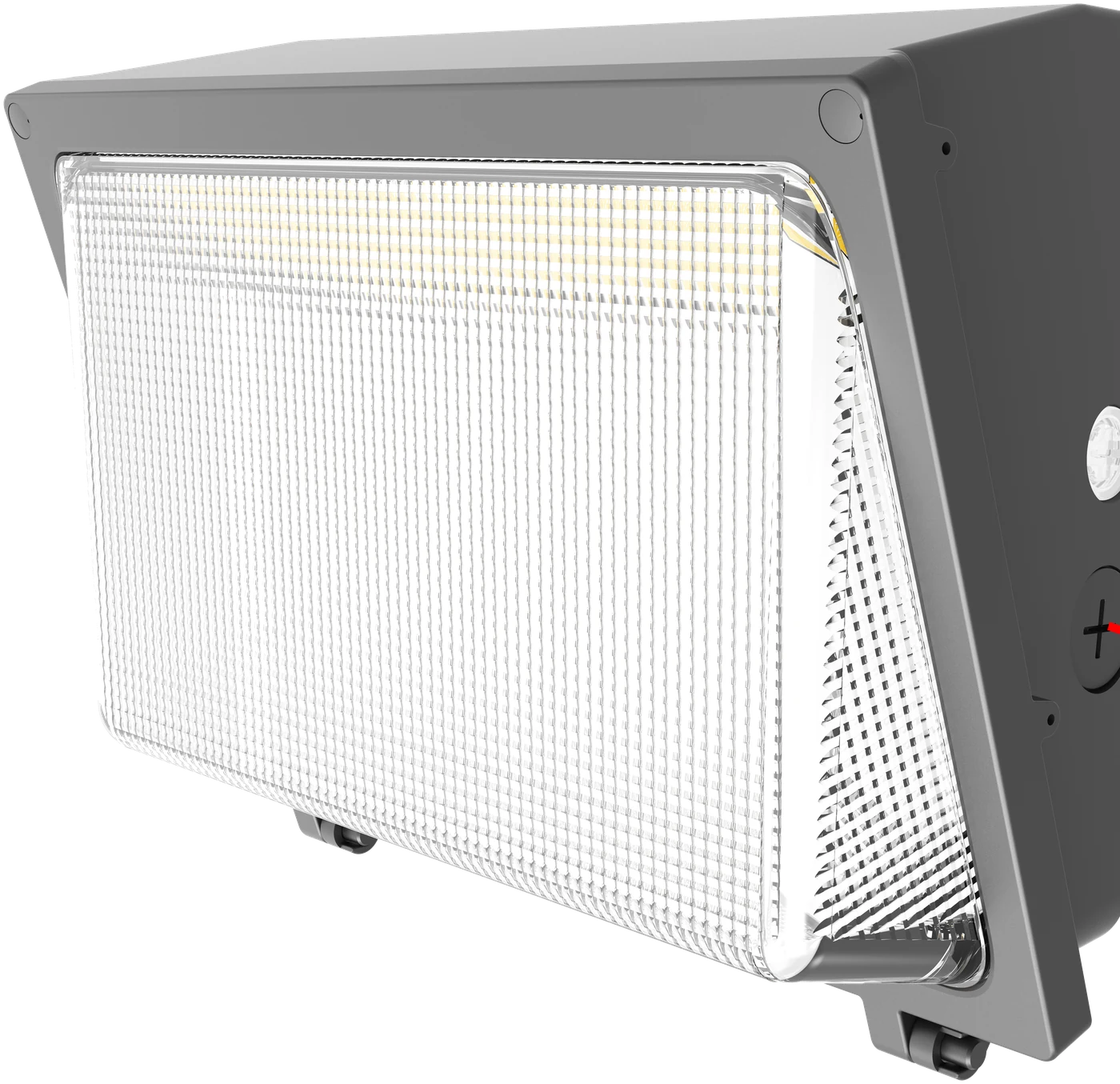

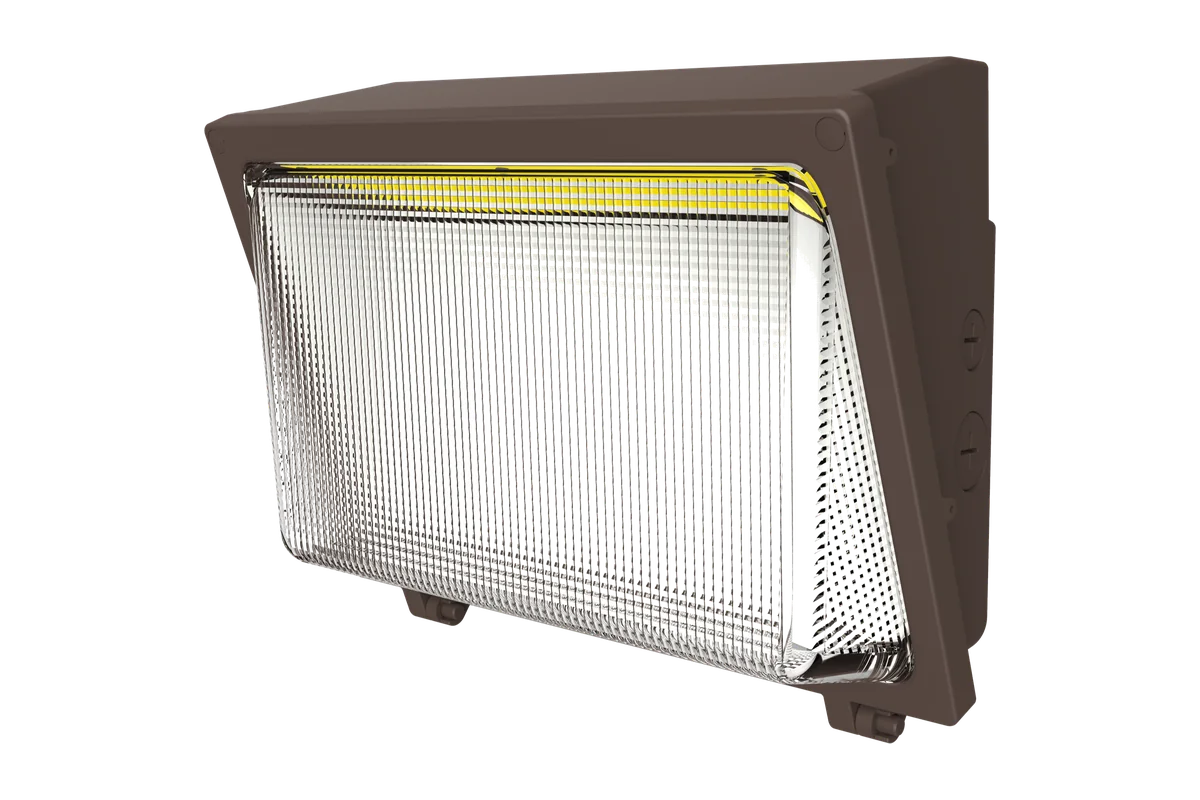

Guardian three-quarter view: the clear glass lens and the side plug over the switches

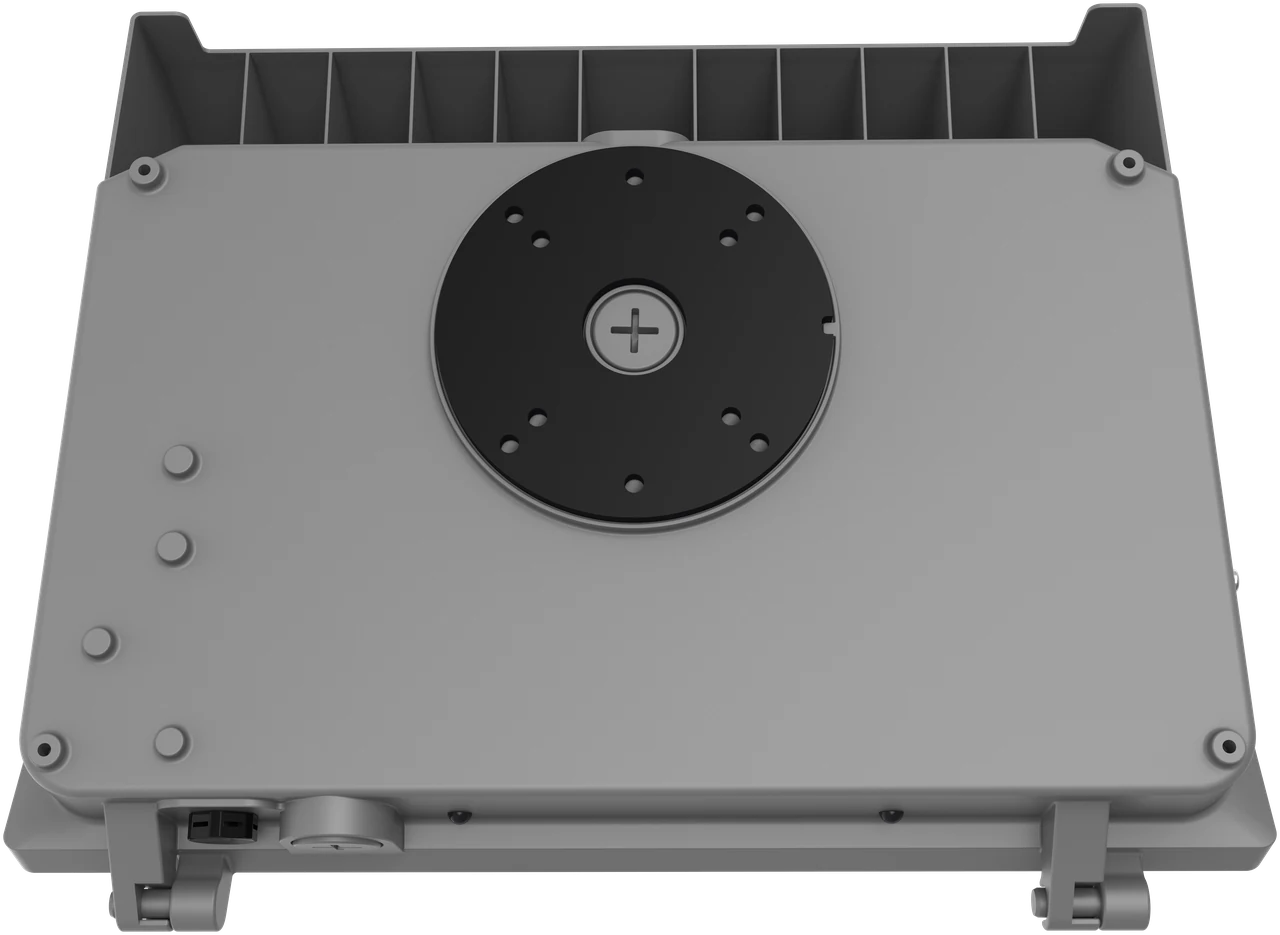

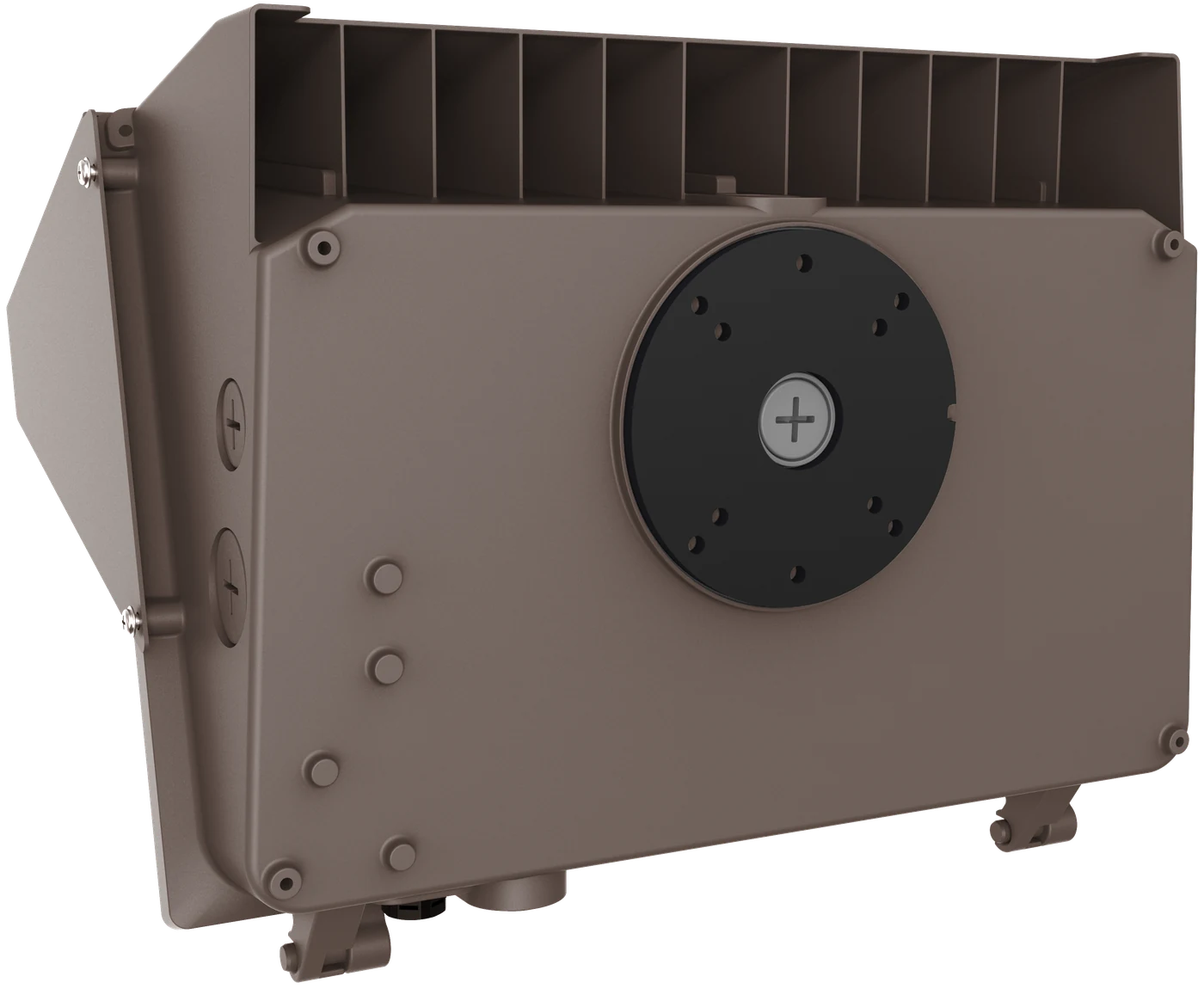

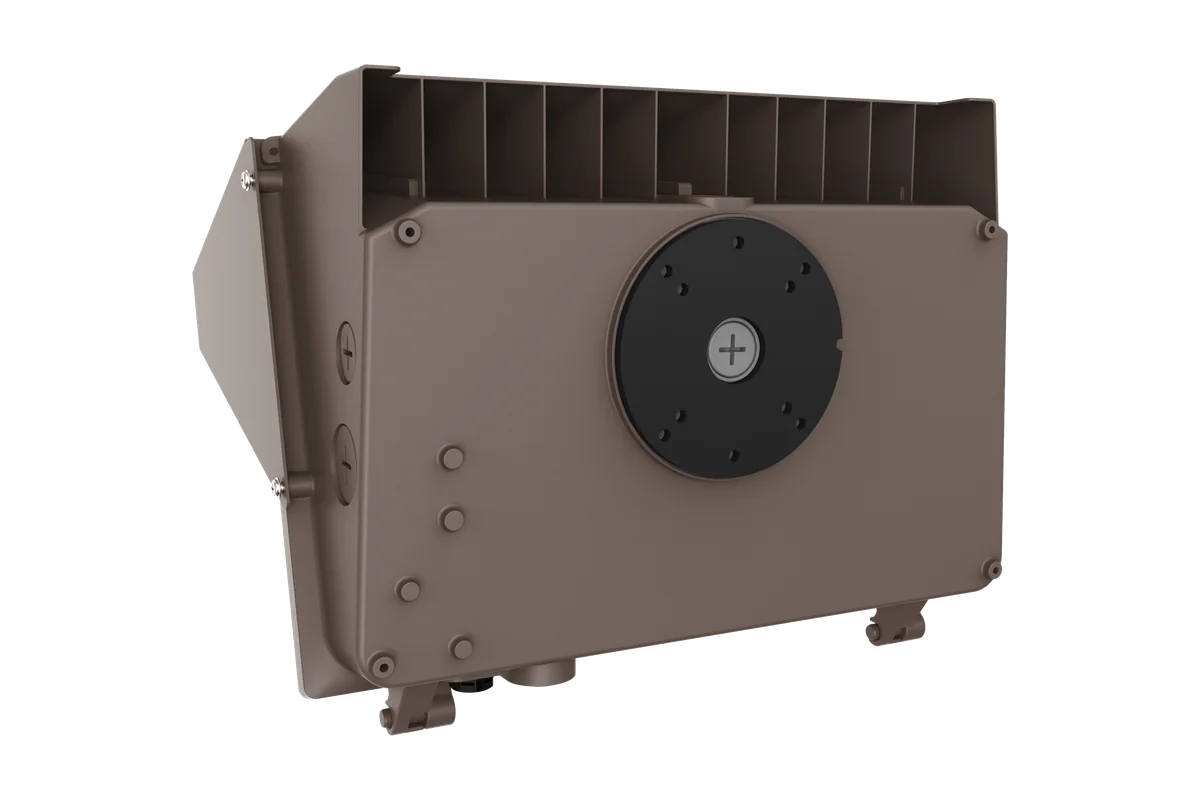

Guardian back: the J-box plate and cooling fins

Documentation & Resources

Documents

Data SheetPDF Quick SheetPDF Sell SheetPDF Installation GuidePDF IES Photometric FilesIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the site plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

WATTselect	Watts	Lumens	CCTselect	lm/W

★ Default settings. Lumens are rated: 130 lm/W at every step and color. ALG's measured files read at or below the rating (9,980 lm at 80 W and 15,092 lm at 120 W, LWPF812, 5000K) and are in the IES bundle.

ApplicationOutdoor · wallBuilding perimeters, entryways, pathways, security lighting

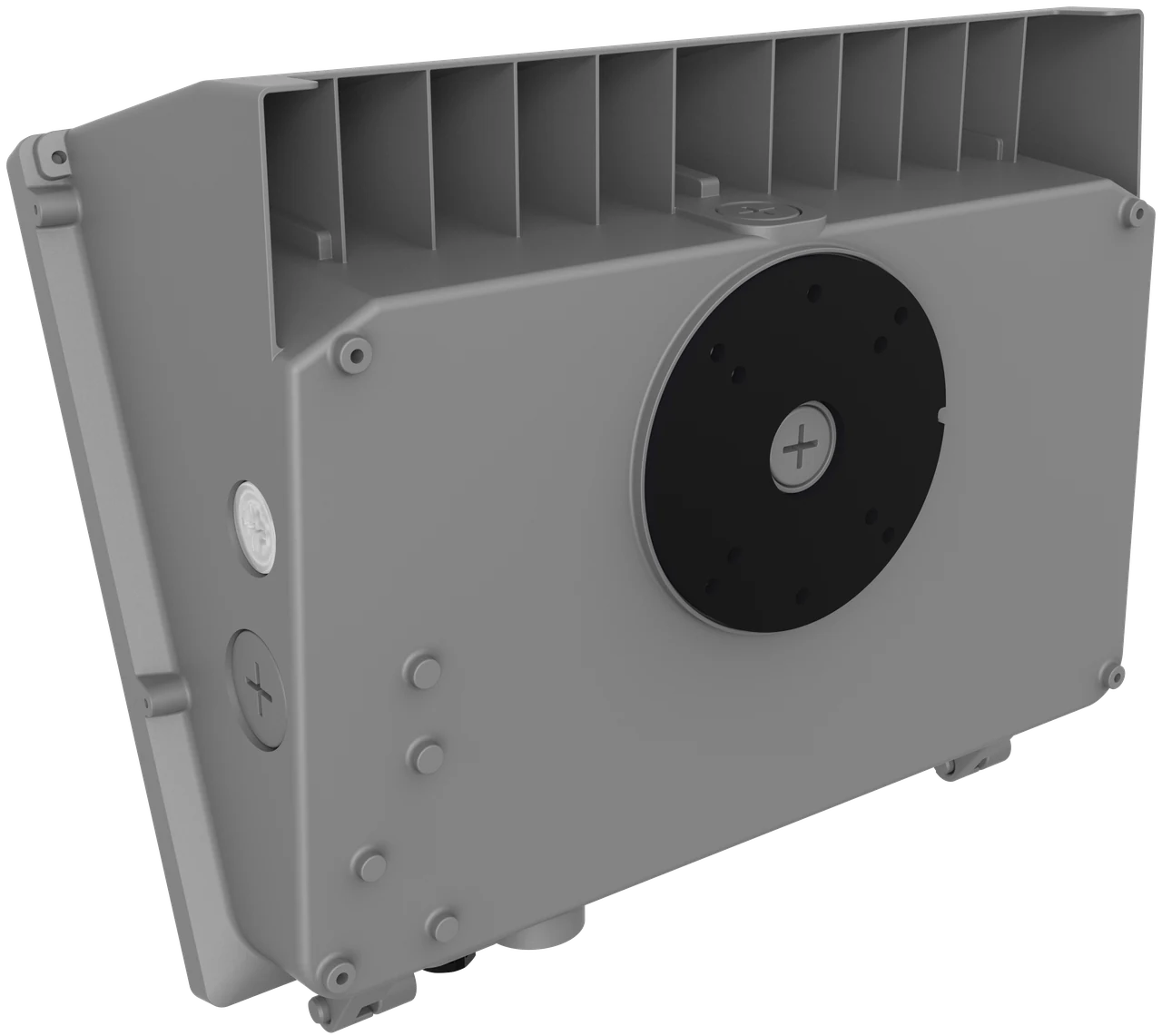

ConstructionTwo-piece die-cast aluminum · side-hinged doorDark Bronze or Black · thermally isolated driver chamber · built-in level

OpticsForward throw · clear glass lensUV-resistant glass, reflector and refractor · CRI 80 · measured 83° × 102°

Dimensions—

Operating temp−40 °F to 113 °FIP65 · wet location

Electrical120–277 V · 0–10V dimming · PF >0.9 · THD ≤20 % · 6 kV surge · photocell with ON/OFF switch

Warranty5 yr · 50,000 hr

Full Data Sheet Installation Guide

Engineering

What you set on the fixture, where the light goes, and how it holds up outside.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

Full IES Library

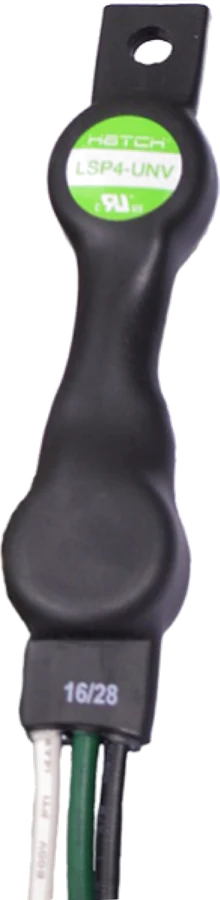

Engineered Accessories

Configurator

Build Your Guardian.

Required *

Housing—

Voltage—

Finishphotocell in every number—

Dip switchesset before install · not in the part number—

Optional

Dark sky shieldits own line—

Wire guardits own line—

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingscULus Listed · wet location · IP65 · FCCRebate Center shows what your utility pays and the forms it needs, by ZIP.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

Wall Pack Family

Guardian is the ECO classic wall pack. Sentinel is the PRO, with emergency builds; Anaheim and Atlanta round out the wall packs.

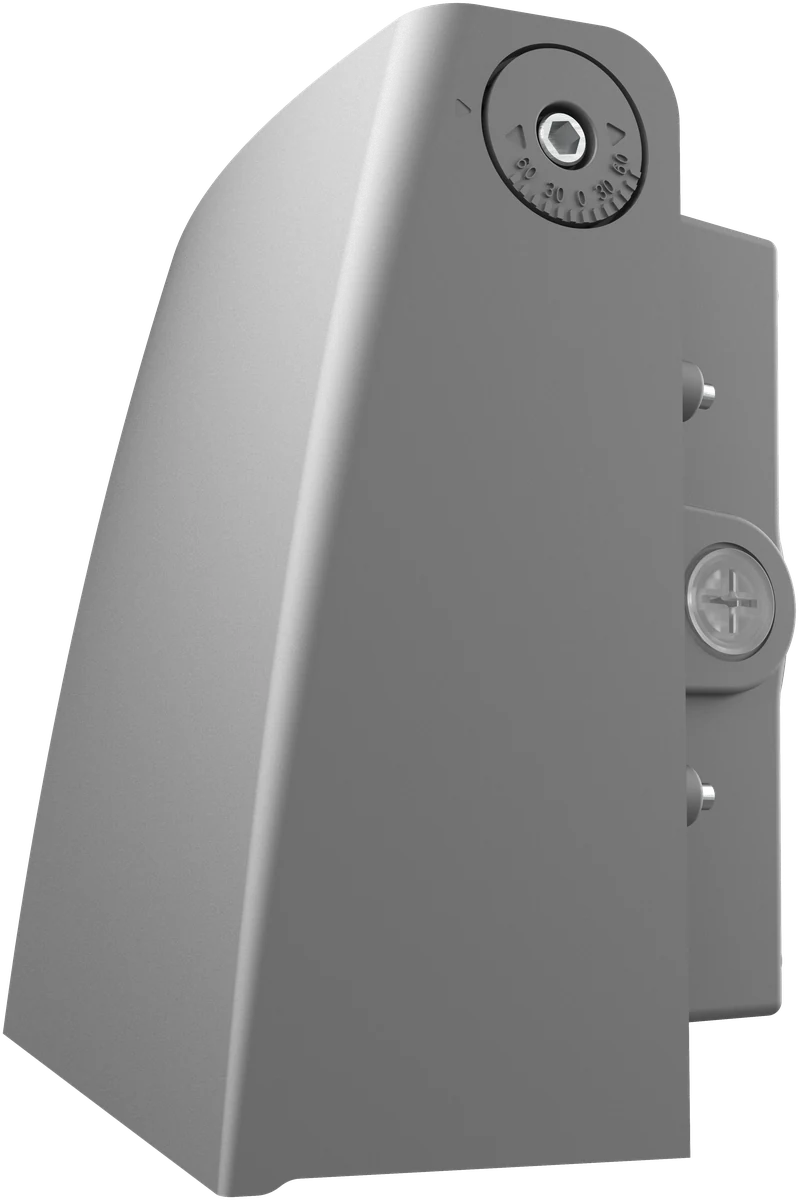

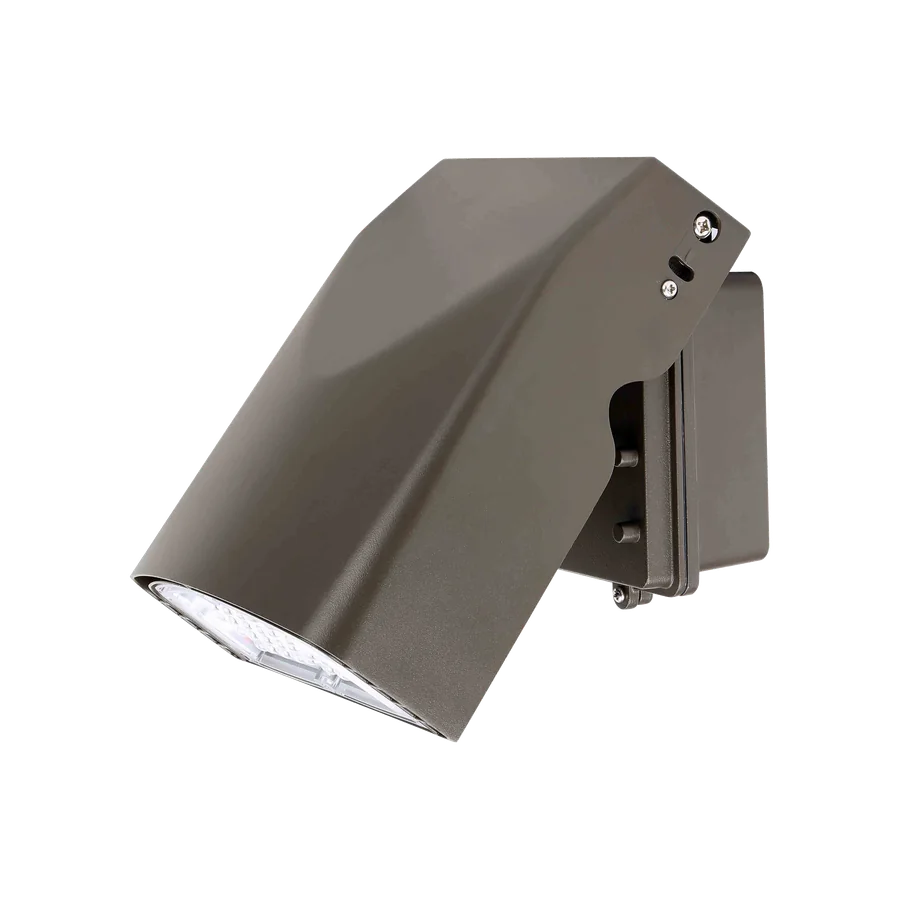

LWPA · ECO Anaheim The wall pack you aim: two housings, 20 to 80 W, a head that tilts 0° to +90°. Wet location · 7 yr / 75,000 hr Specification Sheet → Product Details →

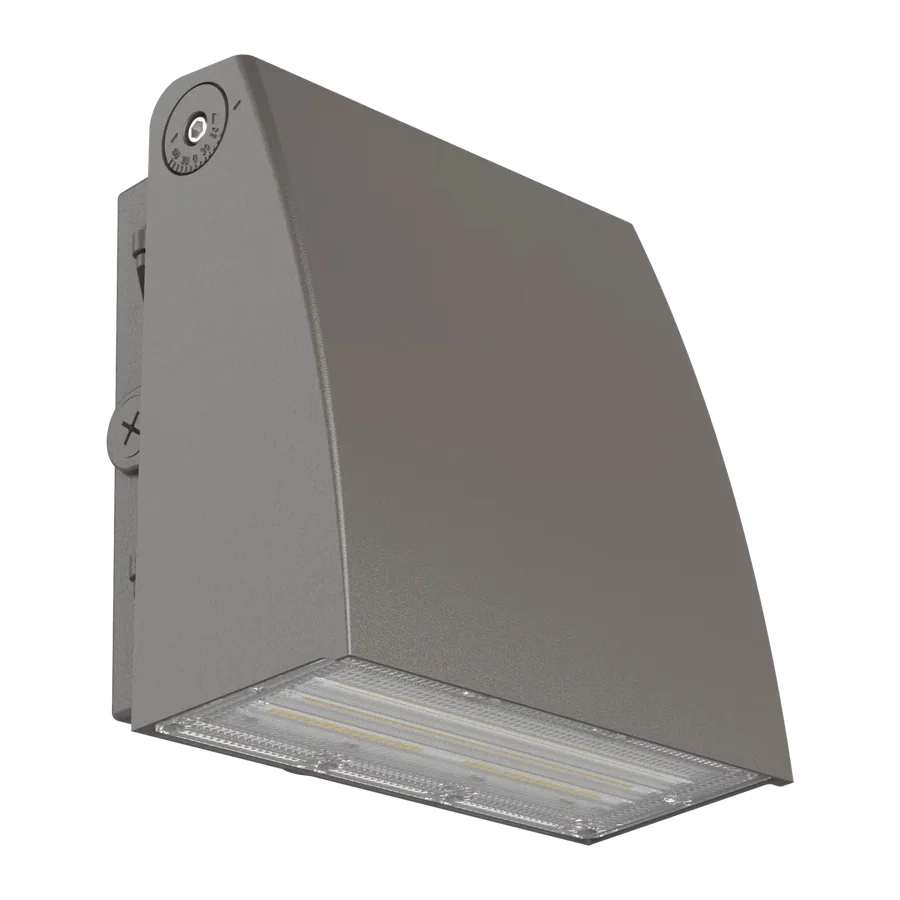

LWPA · PRO Atlanta The adjustable wall pack with watts and color on switches: two housings, 40 to 120 W, a photocell in both. Wet location · 5 yr / 50,000 hr Specification Sheet → Product Details →

You are here Guardian LED wall pack

LWPF · ECO Guardian The slim classic wall pack: two housings, 40 to 120 W, a glass lens and a photocell on every number. IP65 · 5 yr / 50,000 hr Specification Sheet → Product Details · this page

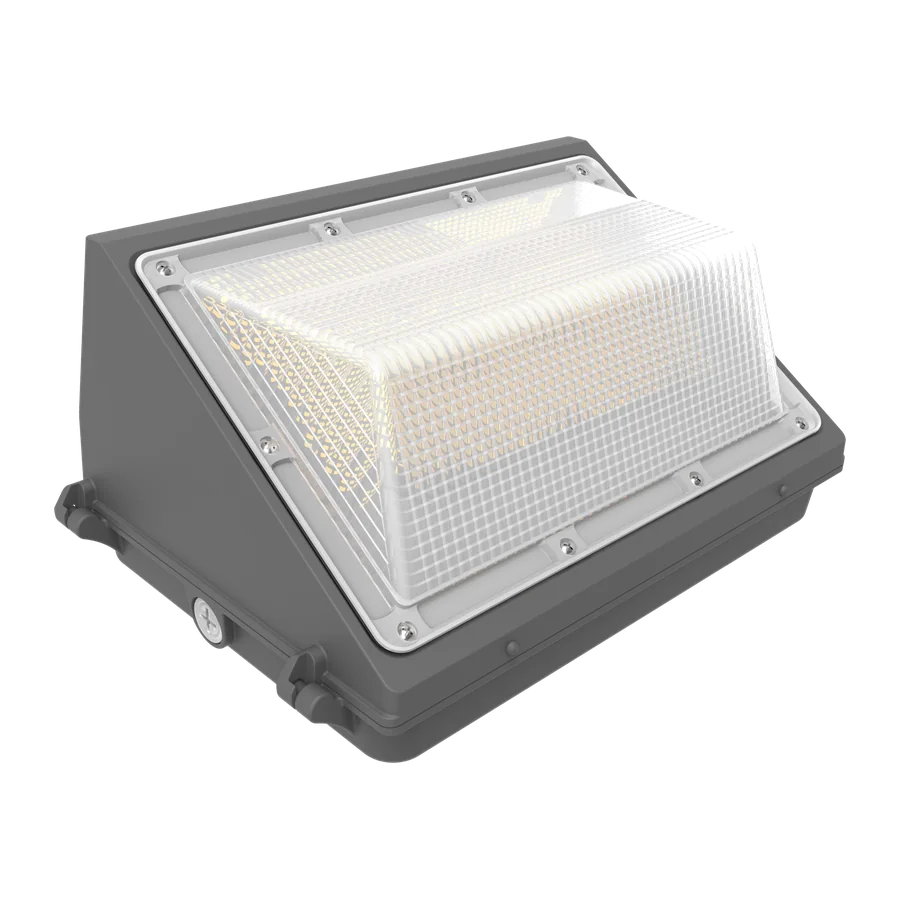

LWPF · PRO Sentinel The classic wall pack in three housings, 20 to 120 W, with 8 W emergency builds and a photocell on every number. IP65 · 5 yr / 50,000 hr Specification Sheet → Product Details →
