LTRK · planoⒶRCH ECO

Trackstar LED Track Head

Two outputs, five colors, one zoom.

Trackstar is the ECO LED track head for retail, galleries and hospitality. Wattage and five color temperatures are switches set at install, and the beam zooms by hand from 20° to 50°. It turns 350°, tilts 90°, and fits H-Type track in matte black or white. DLC Premium, CRI above 90, up to 2,800 lumens.

Specification Sheet IES Files Submittal Sheet Configure For Lead Time

Input Watts10–30 W

Lumensup to 2,800

Beam20–50° zoom

Ideal applications

Retail

Galleries

Hospitality

3-WATTselect

5-CCTselect

beamⒶDJUST

truⒶCOLOR

350° · 90° Aim

H-Type Track

DampGuard

DLC Premium

UL Listed

Damp Location

FCC

RoHS

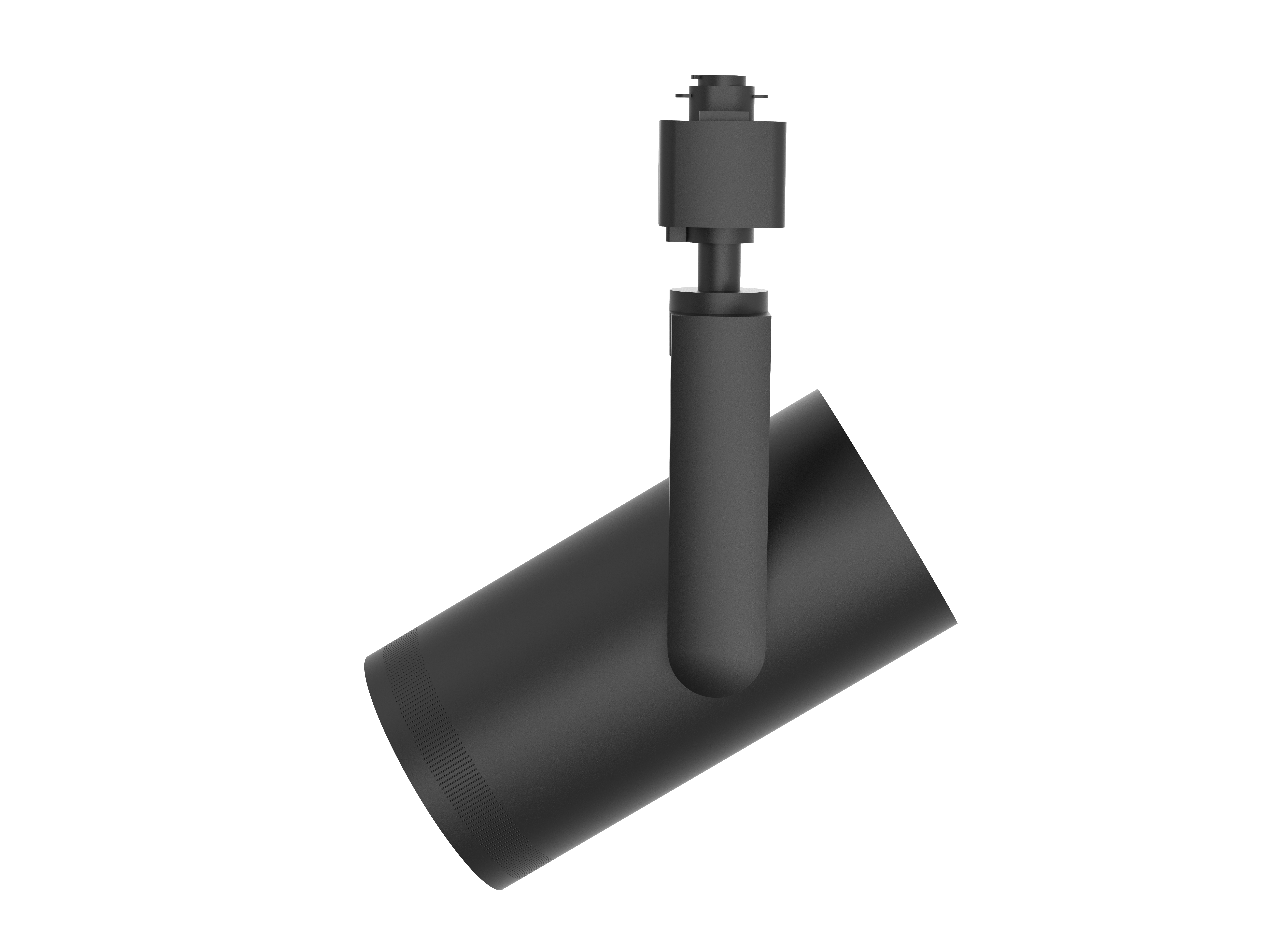

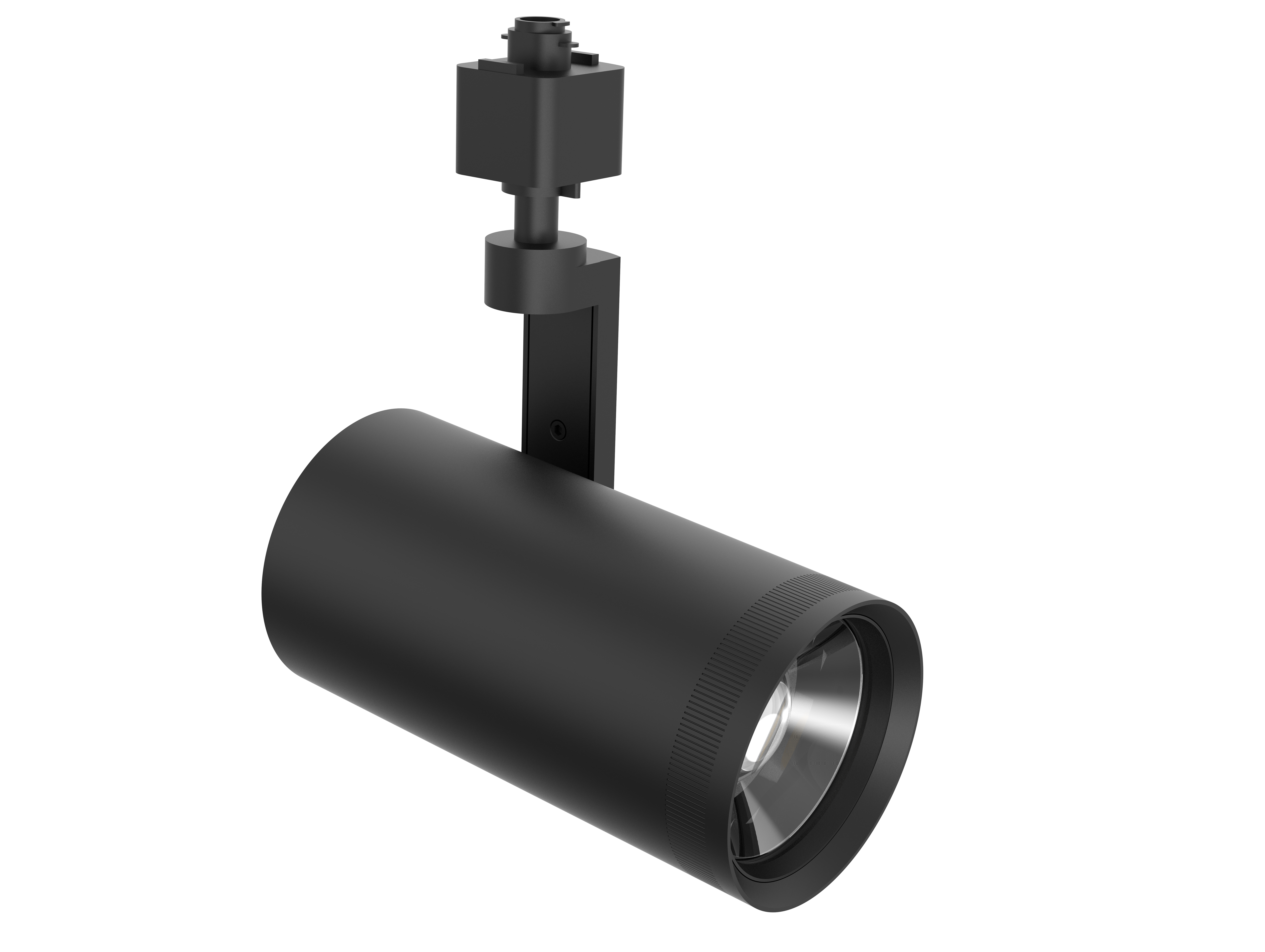

Trackstar LED track head in matte black, three-quarter view

Trackstar LED track head in white, three-quarter view

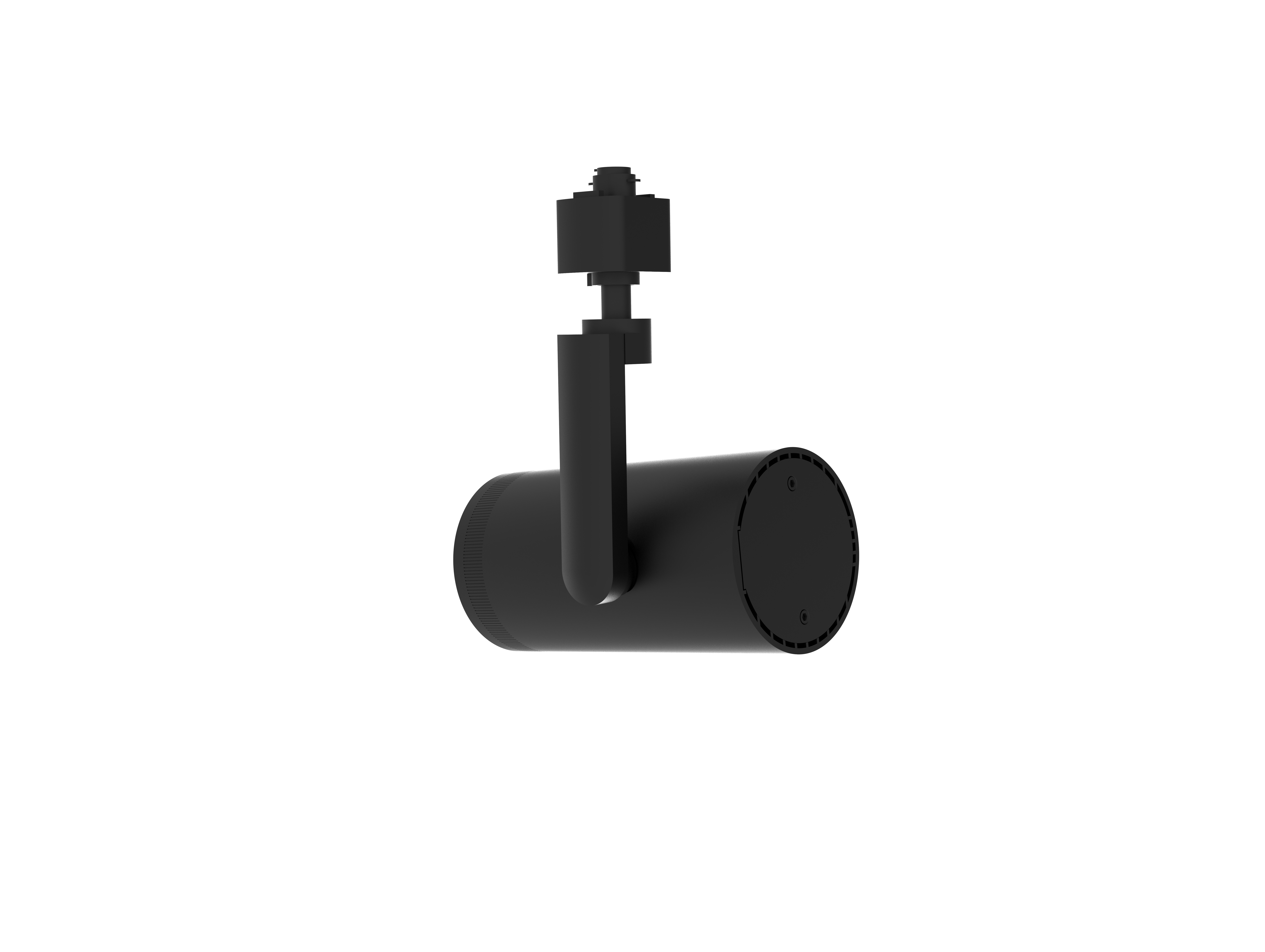

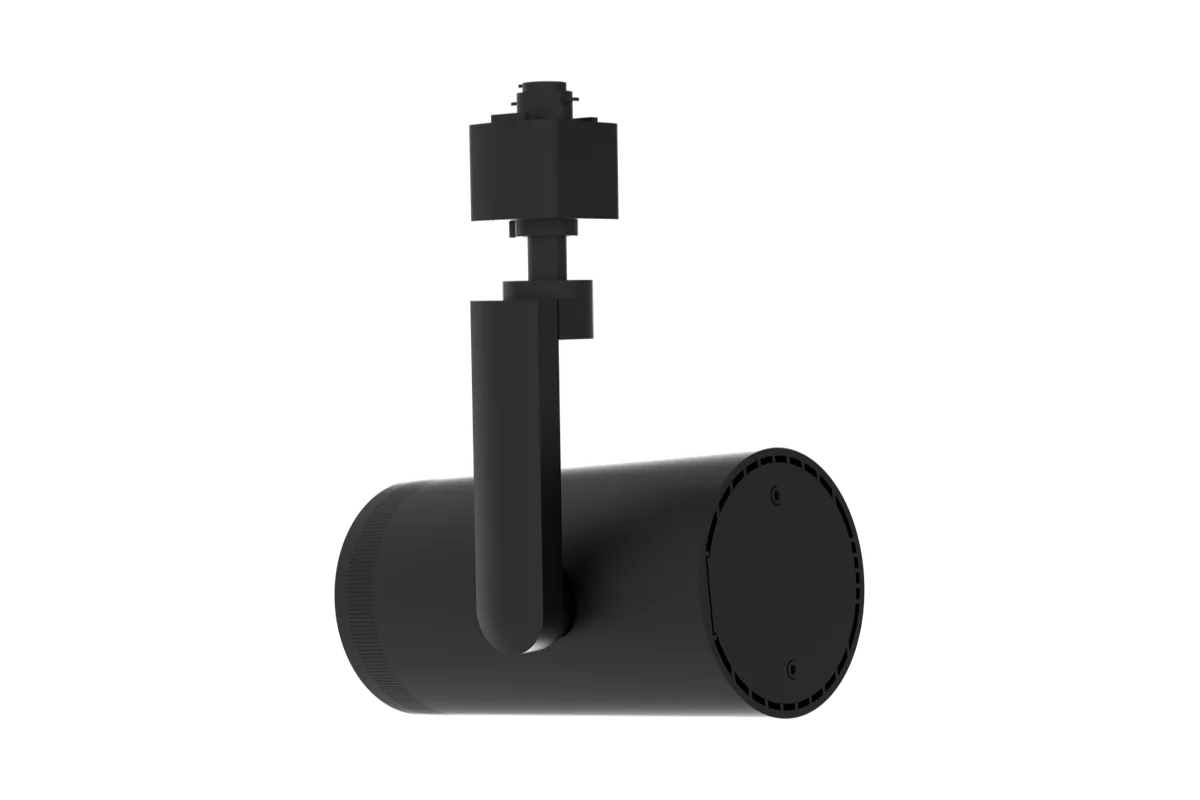

Trackstar LED track head in matte black, side view

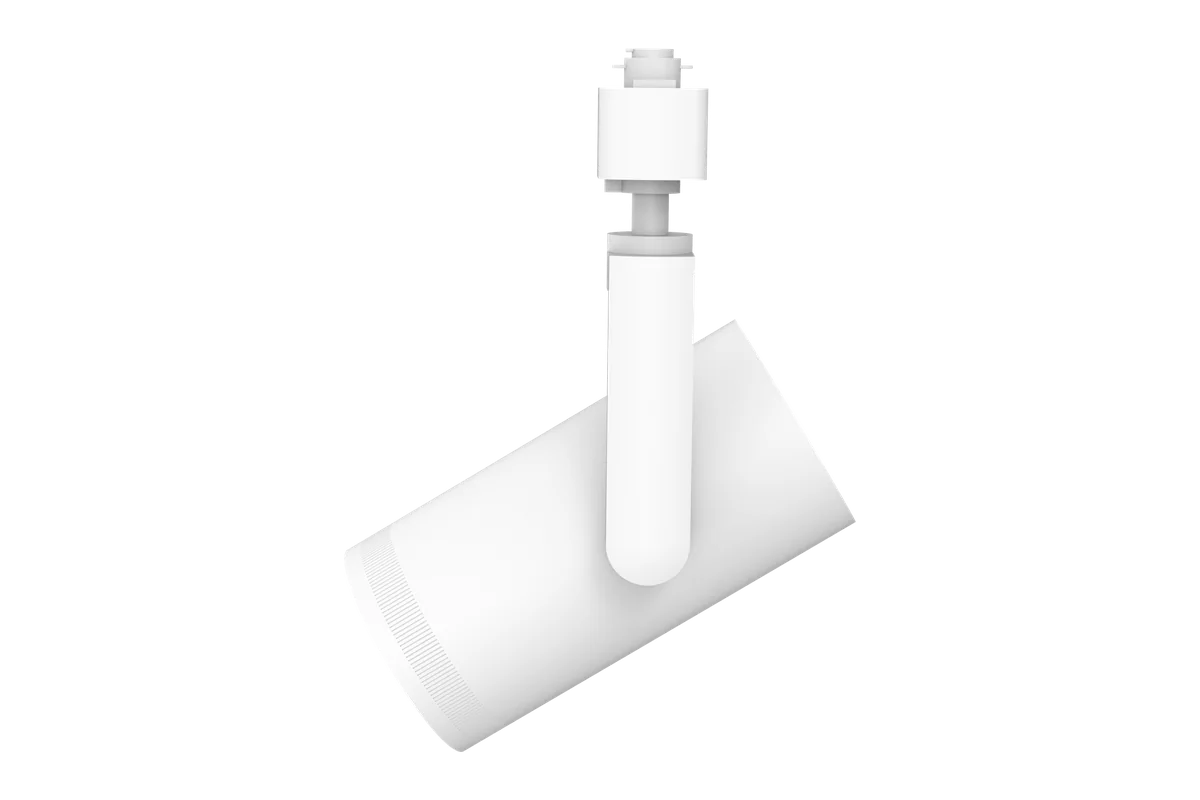

Trackstar LED track head in white, rear view

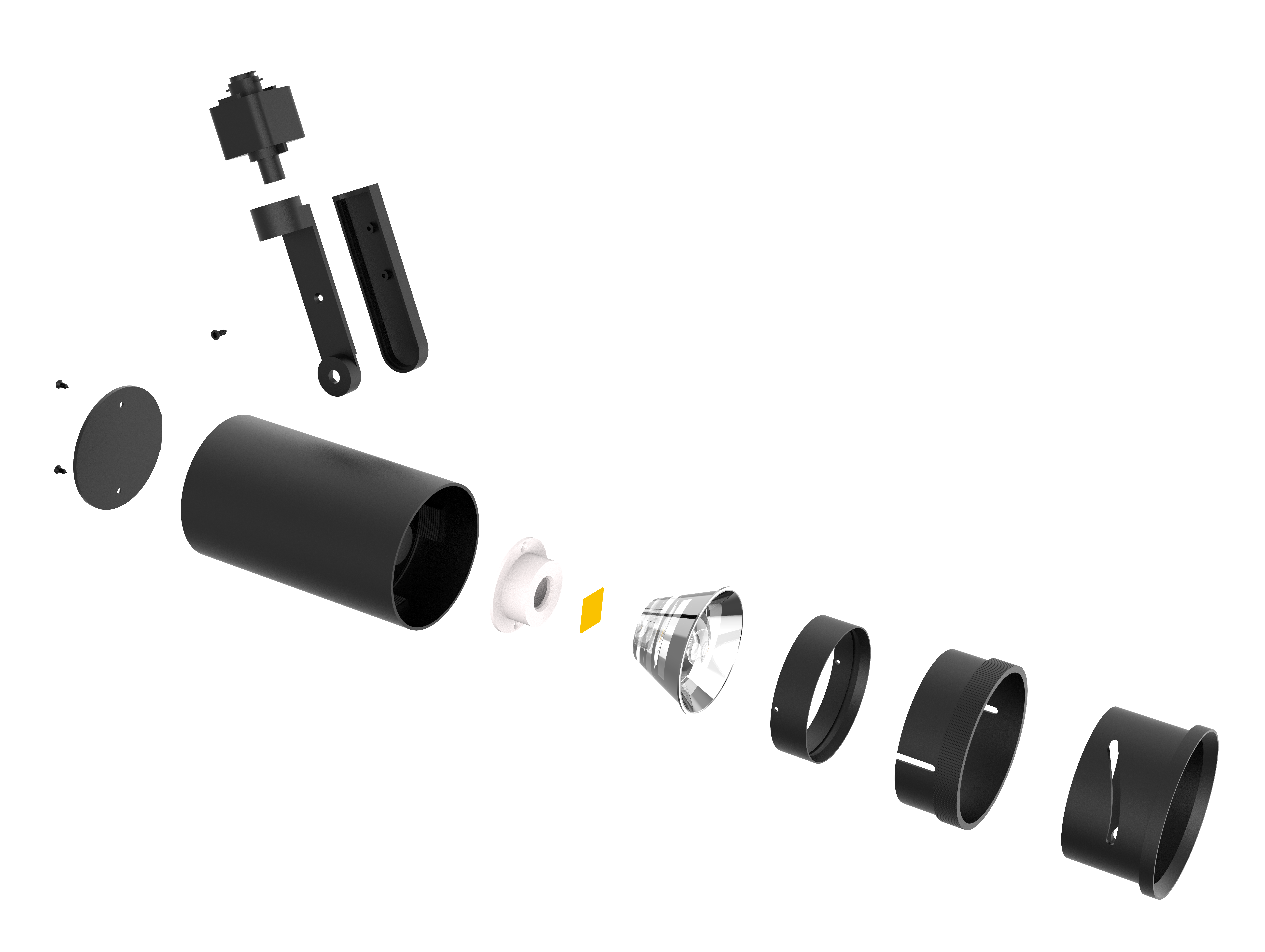

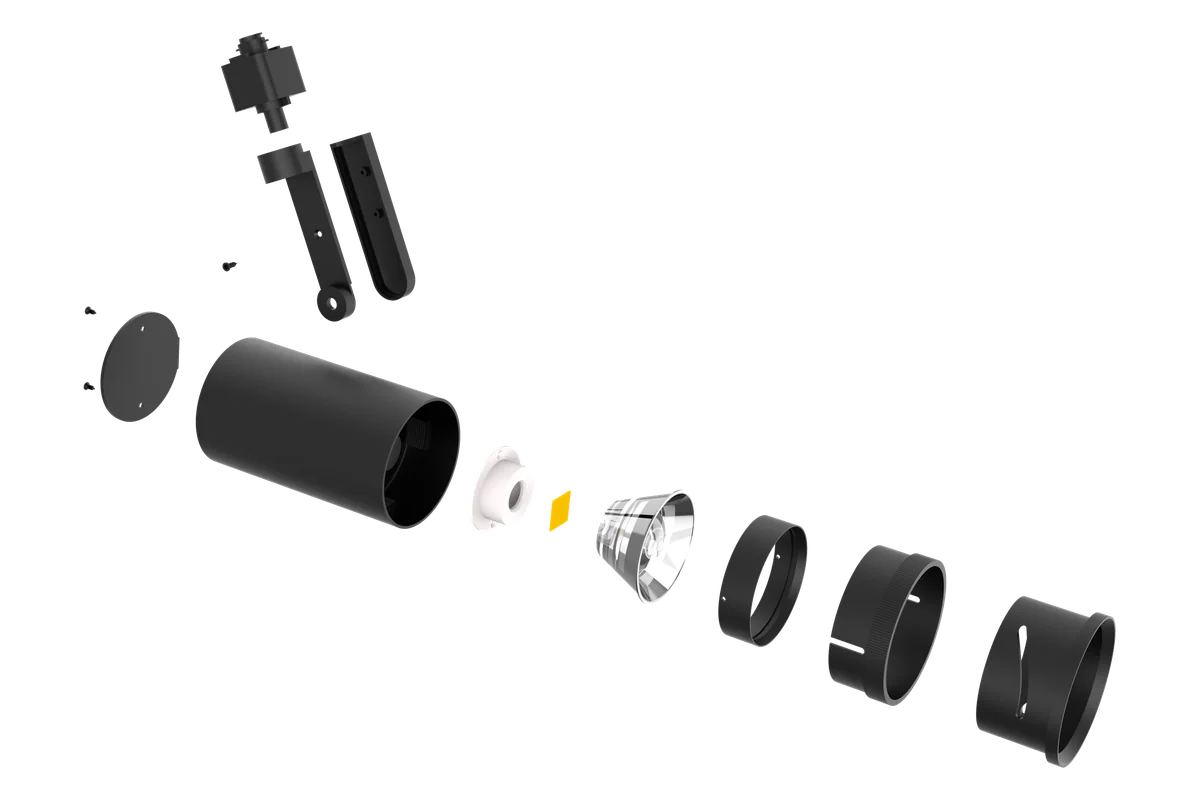

Trackstar LED track head, exploded view of the housing and optic

Documentation & Resources

Documents

Data SheetPDF Quick SheetPDF Sell SheetPDF IES Photometric FilesIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the floor plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

WATTselect	Watts	Lumens	CCTselect	lm/W

★ Factory default: the top step and 5000K. The datasheet prints one lumen figure per step for all five CCTs. Measured LTRK3W20 files read lower than the datasheet and DLC figures. All measured files are in Photometrics.

ApplicationIndoor · retail, galleries, hospitality, residential

ConstructionDie-cast aluminum · matte black or white powder coatH-Type adapter fitted · 350° horizontal rotation, 90° vertical tilt

OpticsAdjustable 20–50° zoomCRI >90 · 3-step MacAdam · measured 20–22° to 51–64° at 50 % of peak

Dimensions—

Operating temp−40 °F to 104 °FIndoor · damp location

Electrical120 V AC, 50/60 Hz · PF >0.9Watts and CCT set by switch at install

Warranty5 yr · 50,000 hrLimited warranty

Full Data Sheet Submittal Sheet

Engineering

What you set at install, how it aims, and what it is made of.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

Full IES Library

Engineered Accessories

Configurator

Build Your Trackstar.

Required *

Output class—

Beamzoomed by hand at install—

Finishtrack parts match it—

Voltagethe one voltage built · not in the number—

Switchesset on the head · not in the part number—

Optional

TrackH-Type · surface—

ConnectorL and X in black only—

End cap—

Monopointone head, no track—

Pendant mountfor a run that hangs—

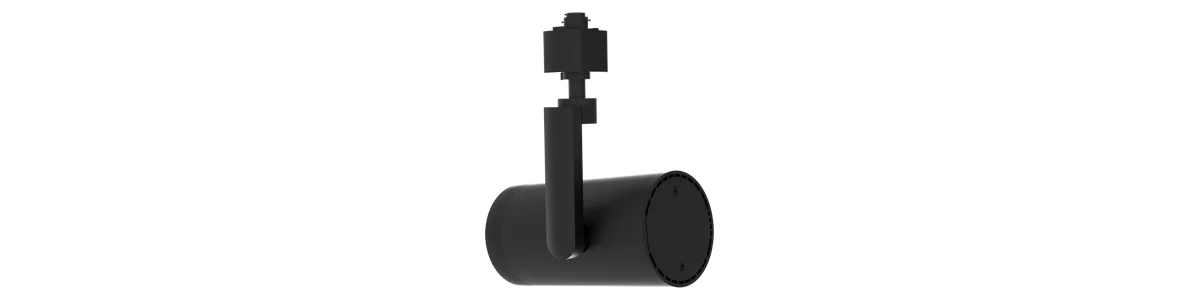

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingsDLC Premium · UL Listed · damp locationDLC QPL S-H9K7WP (LTRK3W20) and S-Y52ZWG (LTRK3W30) — confirm program eligibility in Rebate Center before specifying.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

planoⒶRCH Family

Trackstar is the track head of planoⒶRCH. proⒶRCH is the back-lit flat panel; retroⒶRCH-P1 is the kit for a troffer already in the ceiling.

You are here Trackstar LED track head

LTRK · ECO Trackstar The LED track head. Two output classes, five color temperatures and a 20–50° zoom, in black or white. 5 yr / 50,000 hr Submittal Sheet → Product Details · this page

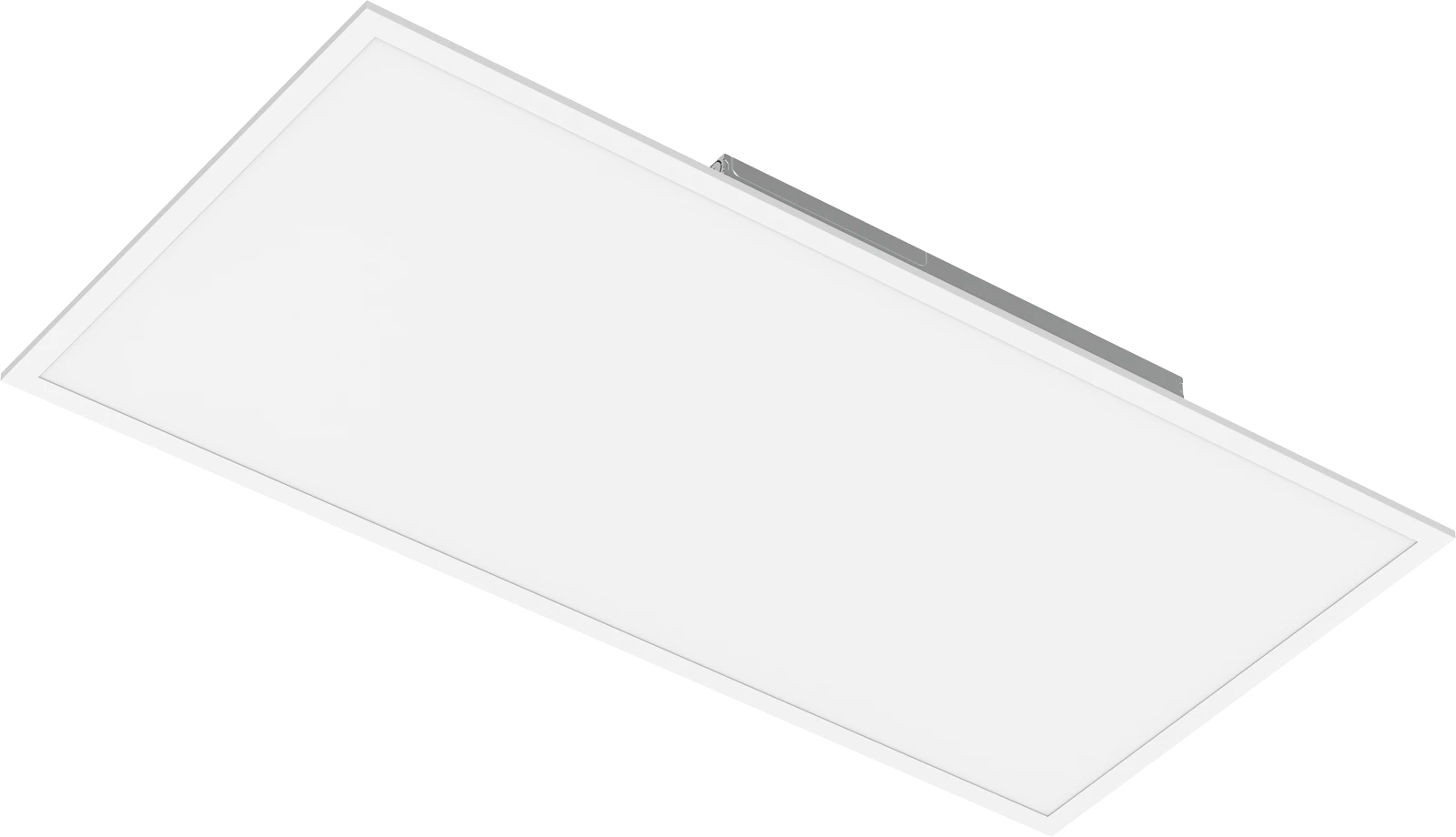

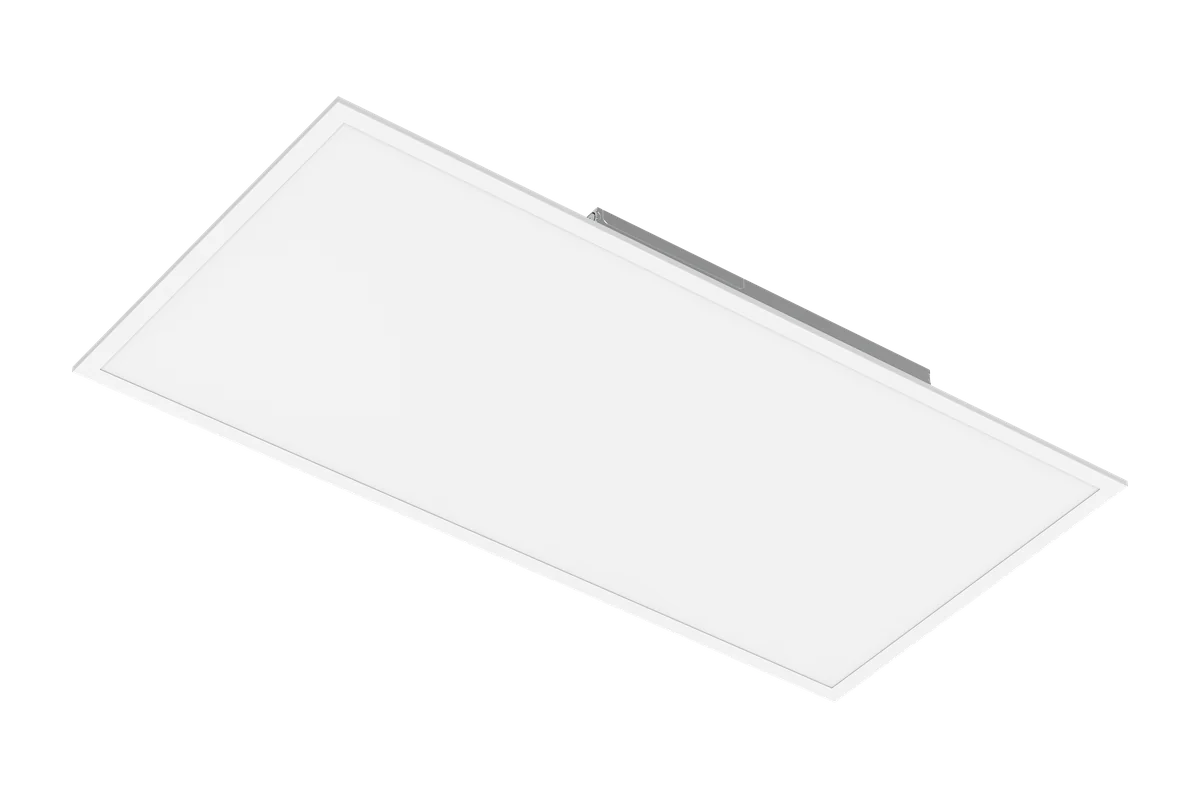

LBLP · ECO · PRO proⒶRCH The back-lit flat panel. 1×4, 2×2 and 2×4 in two series, up to 6,500 lm. NSF · 7 yr / 75,000 hr Downloads → Product Details →

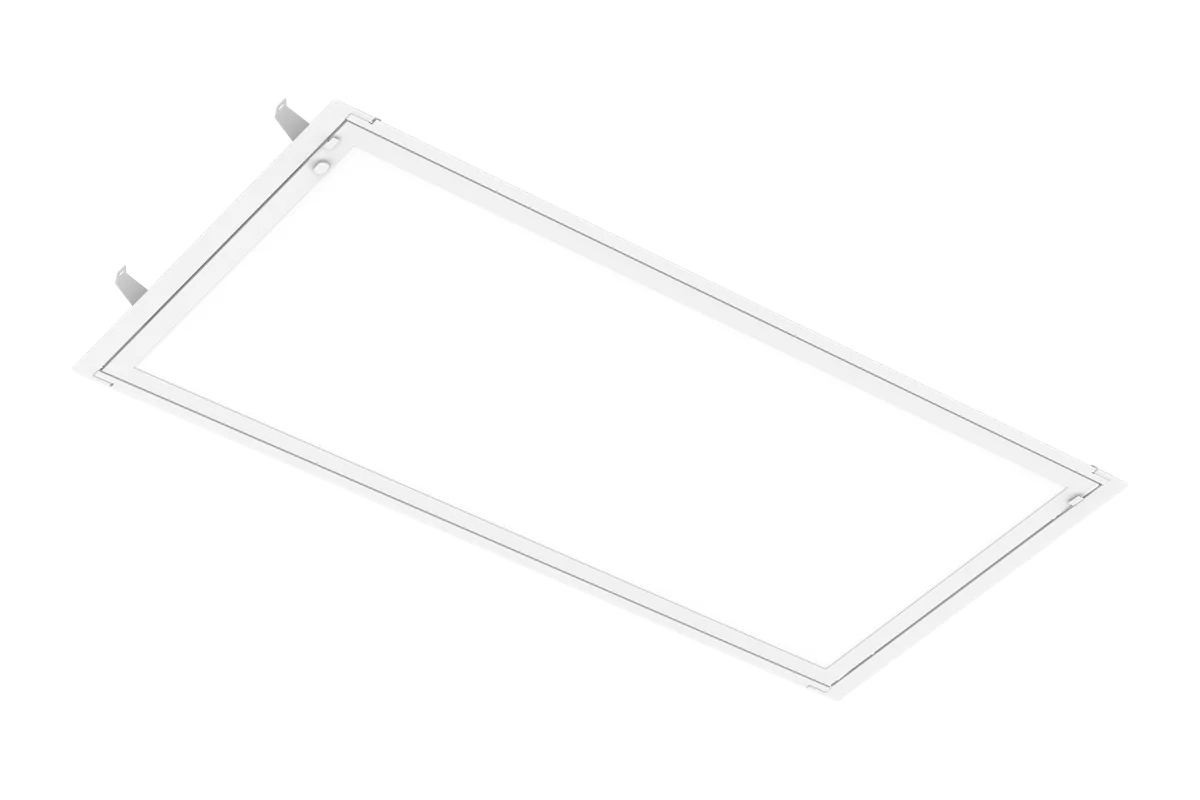

LBLR · PRO retroⒶRCH-P1 The back-lit panel as a kit that goes into a troffer already in the ceiling. 18–44 W. NSF · 5 yr / 50,000 hr Downloads → Product Details →

Specifier Support

Send us the floor plan.

We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.

3 BDLayout turnaround

FreePhotometric layout

Find A Rep Request A Layout

Rebates

Premium on the QPL.

Both Trackstar classes are DLC Premium. Rebate Center shows what your utility pays for a track head and what it needs. Send us the ZIP and we check before you specify.

PremiumDLC, both classes

5 yr50,000 hr warranty

90+CRI

Open Rebate Center
