Radiator LED Sports Light

Three generations, from 5700K to RGB.

A sports light in three generations on one page: Radiator-I at 850 or 1200 W in 5700K; Radiator-II from 300 to 1200 W with wattage on a switch, 4000K or 5000K, optic kits from 20° to 80° and drivers that can move to the pole base; and Radiator-III in RGB for show lighting. IP65, wet location, 0–10V dimming.

Specification Sheet IES Files · Radiator-II Installation Guide Configure For Lead Time

Input Watts300–1200 W

Lumensup to 170,400

Efficacyup to 157 lm/W

Ideal applications

Sports Fields

Stadiums

Parks

3-WATTselect

showⒶSYNC RGB

proⒶPTICS

Glare Visor

Remote Drivers

wetⒶGUARD

surgeⒶRMOR

cULus Listed

Wet Location

IP65

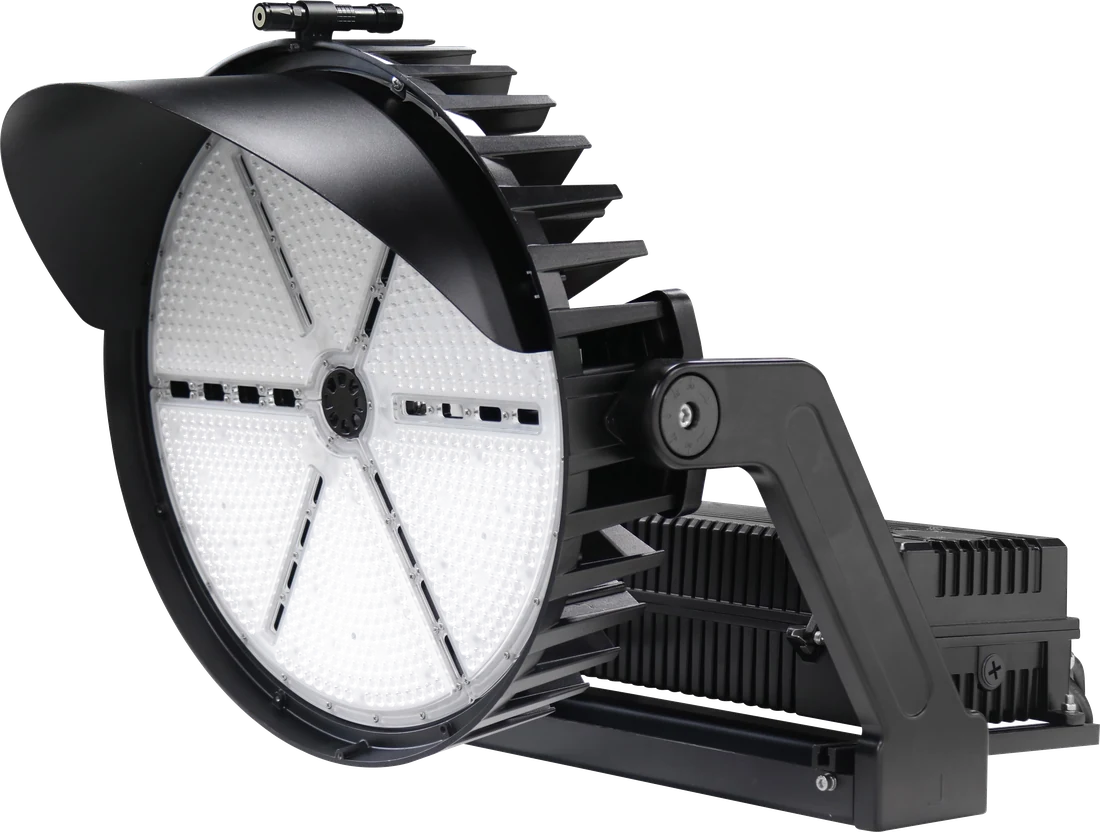

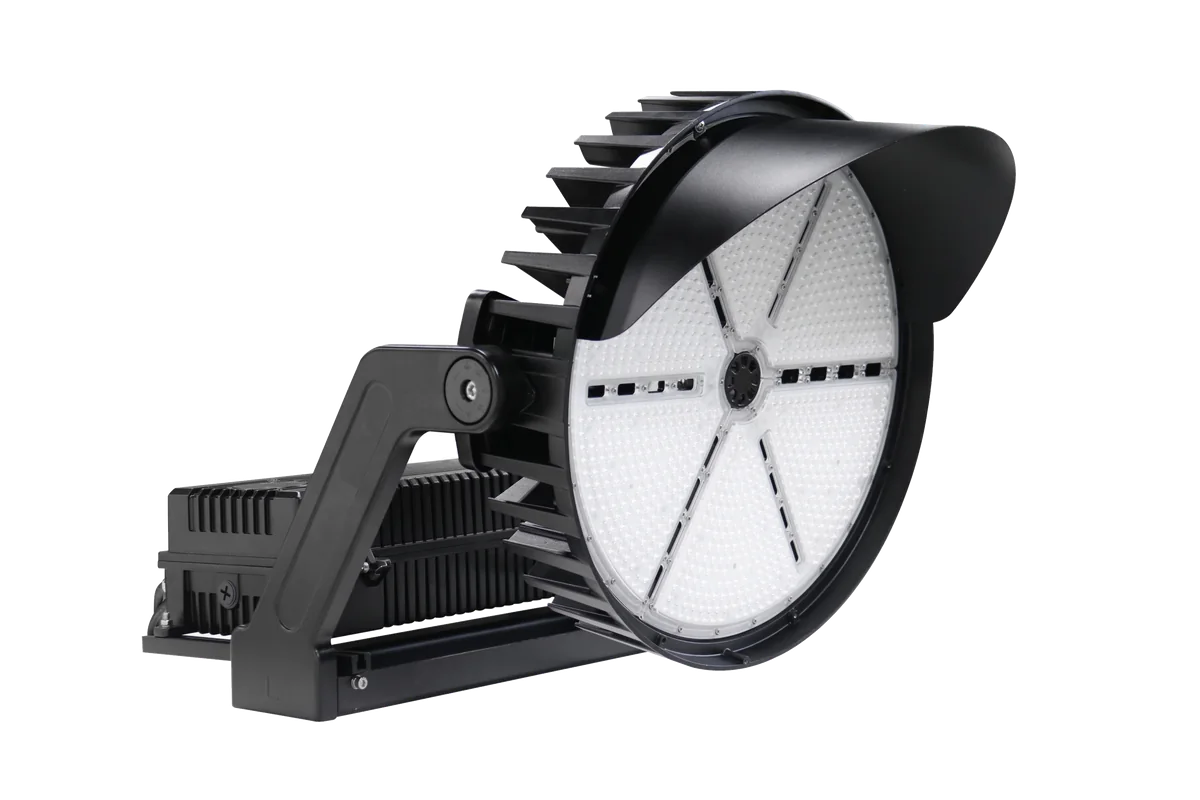

Radiator-II LED sports light with the LSPL-R2/GV600 glare visor and its driver on the arm

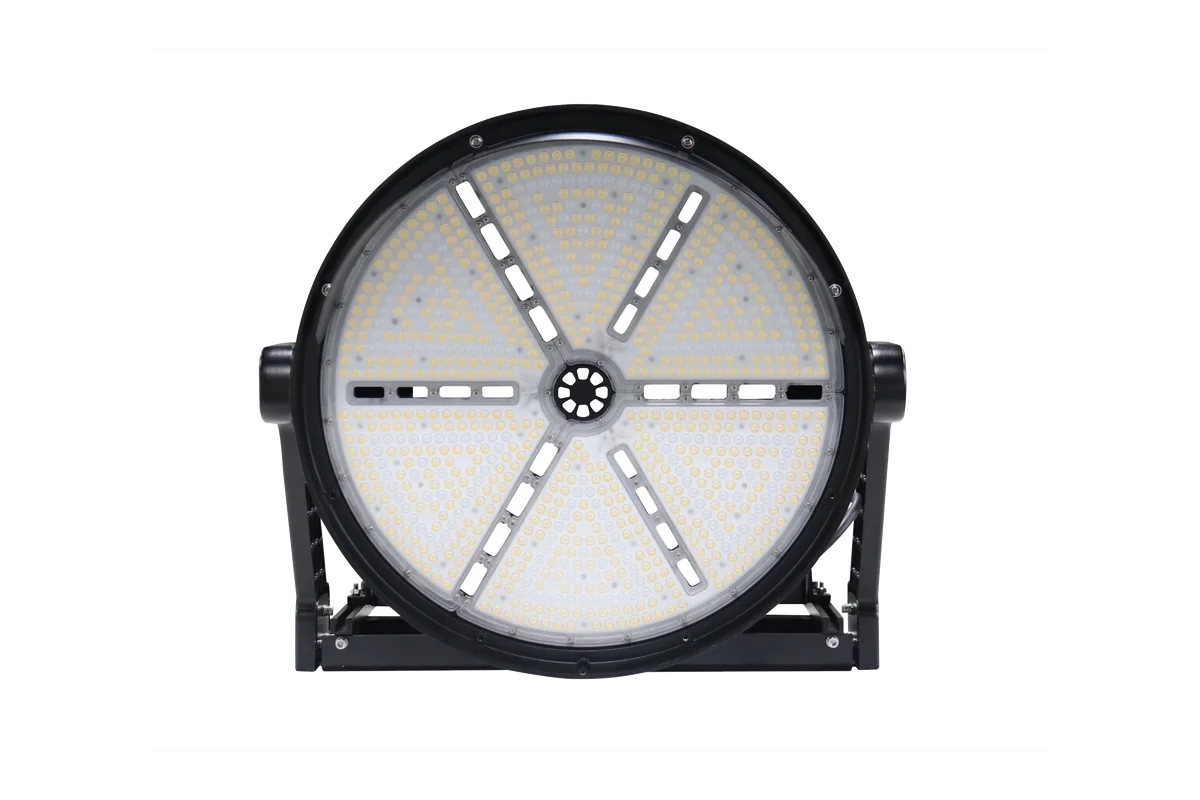

Radiator-II from the front: the round lens on its trunnion

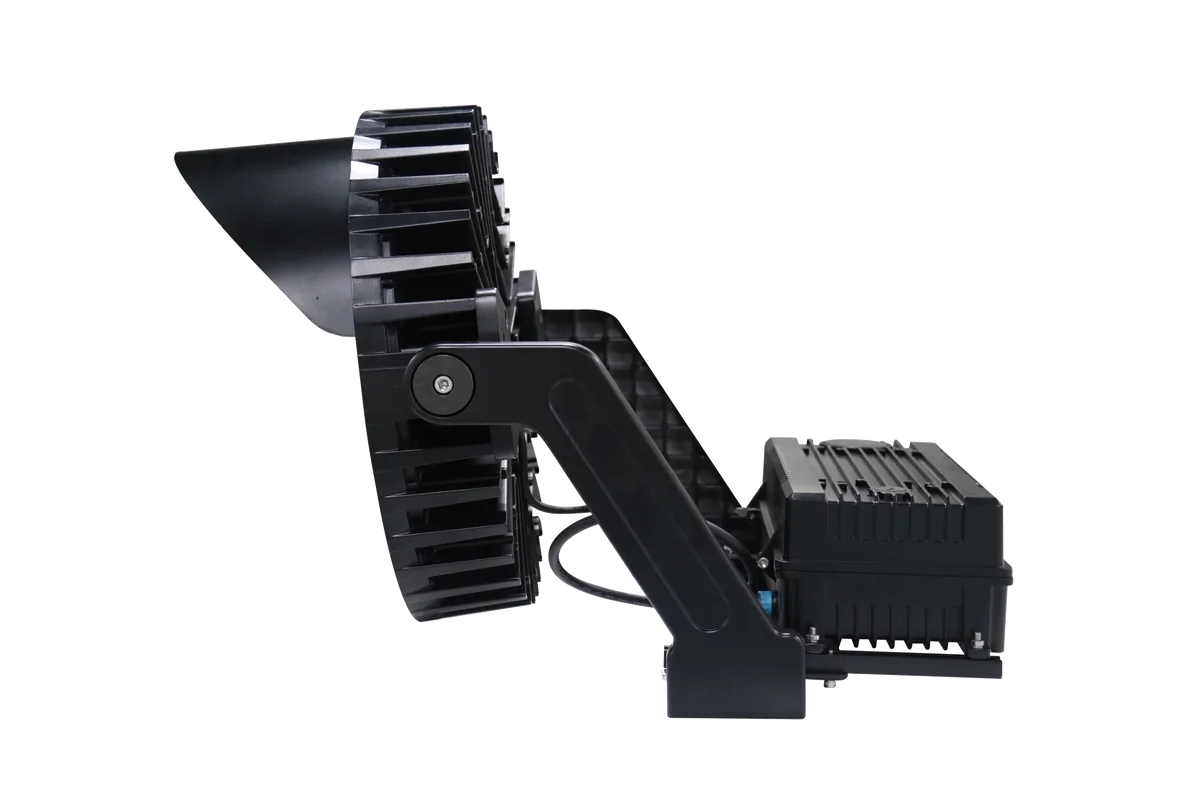

Radiator-II from the side: visor, finned housing and driver

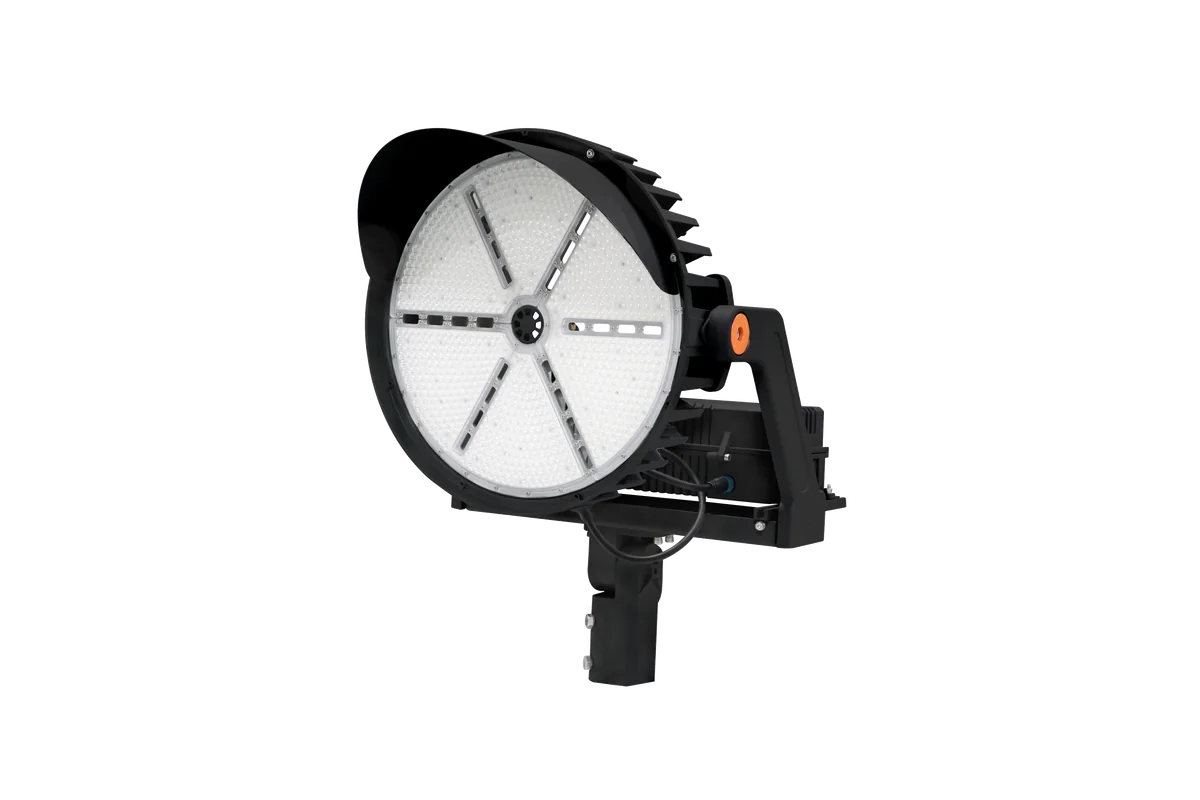

Radiator-II on the LSPL-R2/SF600 slip-fitter, with the glare visor

Documentation & Resources

Documents

Data SheetPDF Quick Sheet · Radiator-IPDF Quick Sheet · Radiator-IIPDF Quick Sheet · Radiator-IIIPDF Sell Sheet · Radiator-IPDF Sell Sheet · Radiator-IIPDF Sell Sheet · Radiator-IIIPDF Installation GuidePDF Pole-Mount Accessories CatalogPDF IES Photometric Files · Radiator-IIIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the site plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

WATTselect	Watts	Lumens	CCT	lm/W

★ Default settings. Radiator-II LSPL600: † ALG's measured files with the standard 30° optic at every step; its 4000K numbers are rated 81,600 lm at 600 W. LSPL1200 is rated 170,400 lm at 1200 W; its lower steps are not printed. Radiator-I is rated at 5700K. Radiator-III is RGB: red 14,000, green 11,000 and blue 2,000 lm.

ApplicationOutdoor · sportsStadiums, school and college fields, parks and recreation, perimeter and security; RGB for venue shows

ConstructionDie-cast aluminum · Black · trunnionRadiator-II: PC lens and glass · Radiator-I and III: power box on the arm

Optics20° NEMA 3H×3V (I) · 30° NEMA 4 (II) · 30° NEMA 4H×4V (III)Radiator-II kits 20° to 80° · CRI 70

Dimensions—

Operating temp−40 °F to 113 °FRadiator-II · Radiator-I and III to 122 °F · IP65 · wet location

Electrical120–277 V or 277–480 V (II) · 200–480 V (I) · 120–277 V (III) · 0–10V dimming · PF ≥0.9 · THD ≤20 %Surge: 10 kV L/N-PE, 6 kV L-N (II) · up to 40 kV (I) · up to 20 kV (III)

Warranty10 yr · 100,000 hrExtended warranty available

Full Data Sheet Installation Guide

Engineering

Three generations, what you set on Radiator-II, where its drivers can go, and how it holds up outside.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

IES Files · Radiator-II

Engineered Accessories

Tenon adaptors, multi-head adaptors, bullhorns and brackets for square and round poles, drawn and dimensioned: Pole-Mount Accessories Catalog (PDF).

Configurator

Build Your Radiator.

Required *

GenerationR1 · R2 · R3 and housing, W—

Colorin the number—

Voltage—

Finishon a trunnion—

Build—

WATTselectRadiator-II · set before install · not in the number—

Optional

Optic kitRadiator-II · its own line · 30° is standard—

Glare visorRadiator-II · its own line—

Mountits own line—

Remote driversRadiator-II 600 W · its own line—

Extension cordRadiator-II · its own line—

Driver enclosureRadiator-II · its own line—

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingscULus Listed · wet location · IP65TAA: the Radiator-II numbers that end in /TAA. Rebate Center shows what your utility pays and the forms it needs, by ZIP.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

Flood & Sports Family

Radiator is the PRO sports light in three generations, up to 1200 W and RGB. Illuminator is the PRO+ sports light to 800 W; Everest is the flood.

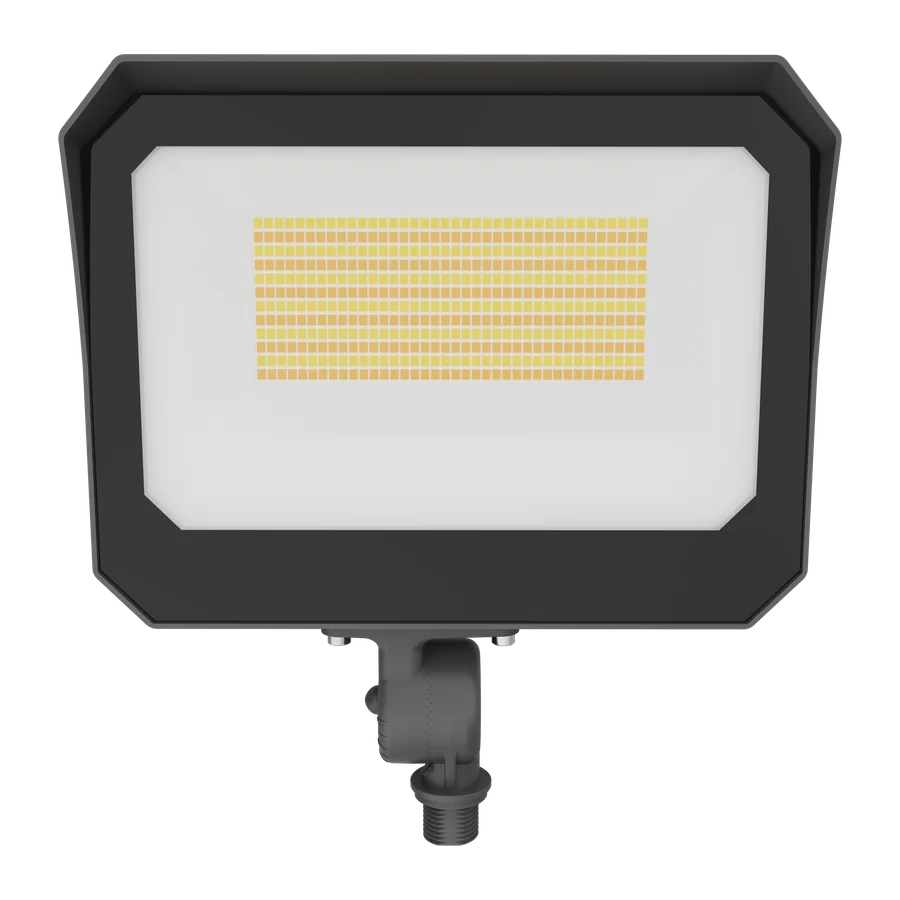

Everest LED flood light on a knuckle mount

LFLD · ECO Everest The flood light: three housings, 15 to 150 W, nine switch settings and a photocell in every number. 4 mounts · 5 yr / 50,000 hr Specification Sheet → Product Details →

LSPL · PRO+ Illuminator The sports light: two housings, 400 to 800 W, NEMA 3 optics that swap in the field. IP65 · 10 yr / 100,000 hr Specification Sheet → Product Details →

You are here Radiator LED sports light

LSPL · PRO Radiator The sports light in three generations: 5700K heads, a 300 to 1200 W workhorse, and RGB. IP65 · 10 yr / 100,000 hr Specification Sheet → Product Details · this page

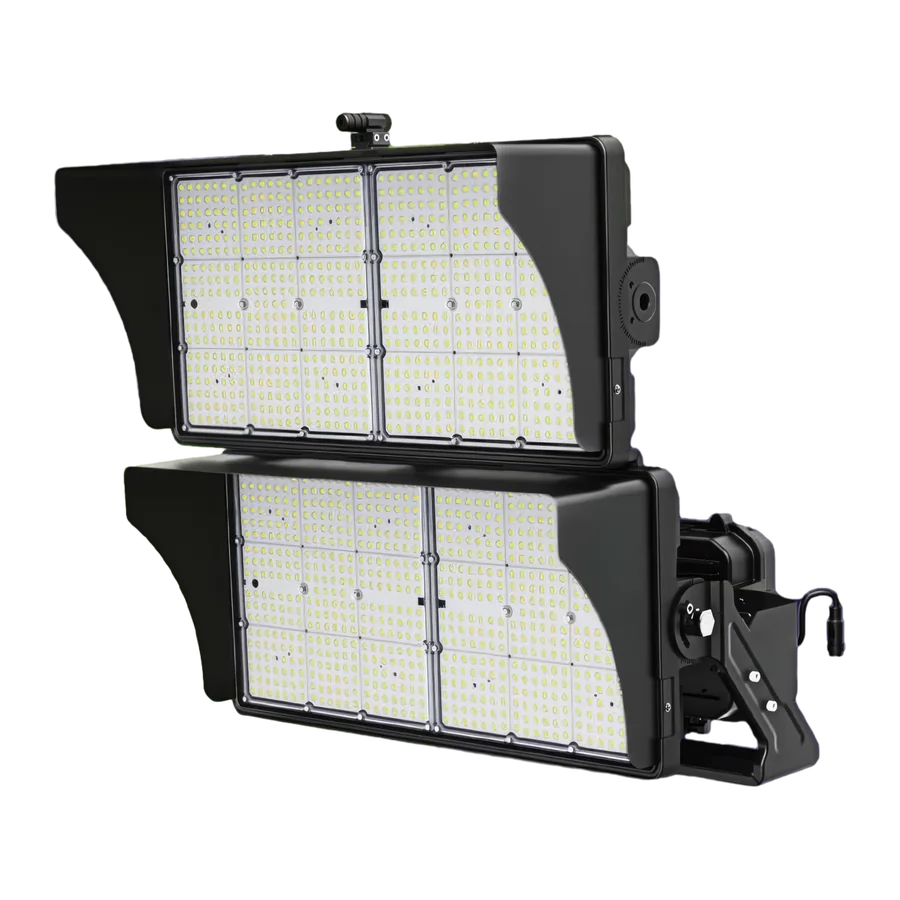

Beacon LED sports light, two-head large housing

LSPL · PRO+ Beacon The sports light: 600 to 1,200 W at 5700K, up to 172,453 lm, NEMA 4H×4V with a visor. TAA · 5 yr / 50,000 hr Specification Sheet → Product Details →

Specifier Support

Send us the site plan.

We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.

3 BDLayout turnaround

FreePhotometric layout

Find A Rep Request A Layout

Rebates

Three generations, from 5700K to RGB.

Fixed 850 and 1200 W heads, a 300 to 1200 W workhorse with optic kits and pole-base drivers, and an RGB head for show lighting. Send us the site plan and ALG runs the layout.

170,400lumens · Radiator-II

IP65wet location

10 yr100,000 hr

Open Rebate Center
