LLHB · lamparⒶRCH ECO

Apollo LED Linear High Bay

Big power. Compact profile.

Up to 61,500 lumens at 167 lm/W, DLC Premium, in four classes from 64 W to 410 W. The driver sits in its own compartment, separated from the LED board. Three ordered optics cover open floor, racking and narrow aisle. The driver and controls are field-serviceable. Optics are ordered on the catalog number.

Specification Sheet IES Files Configure For Lead Time

Input Watts64–410 W

Lumensup to 61,500

Efficacyup to 167 lm/W

Ideal applications

Warehouse & Distribution

Manufacturing

Racking Aisles

4-WATTselect

2-CCTselect

3 Ordered Optics

DLC Premium

contrⒶLS-Ready

surgeⒶRMOR

DampGuard

DLC Premium

UL Listed

Damp Location

FCC

RoHS

TAA

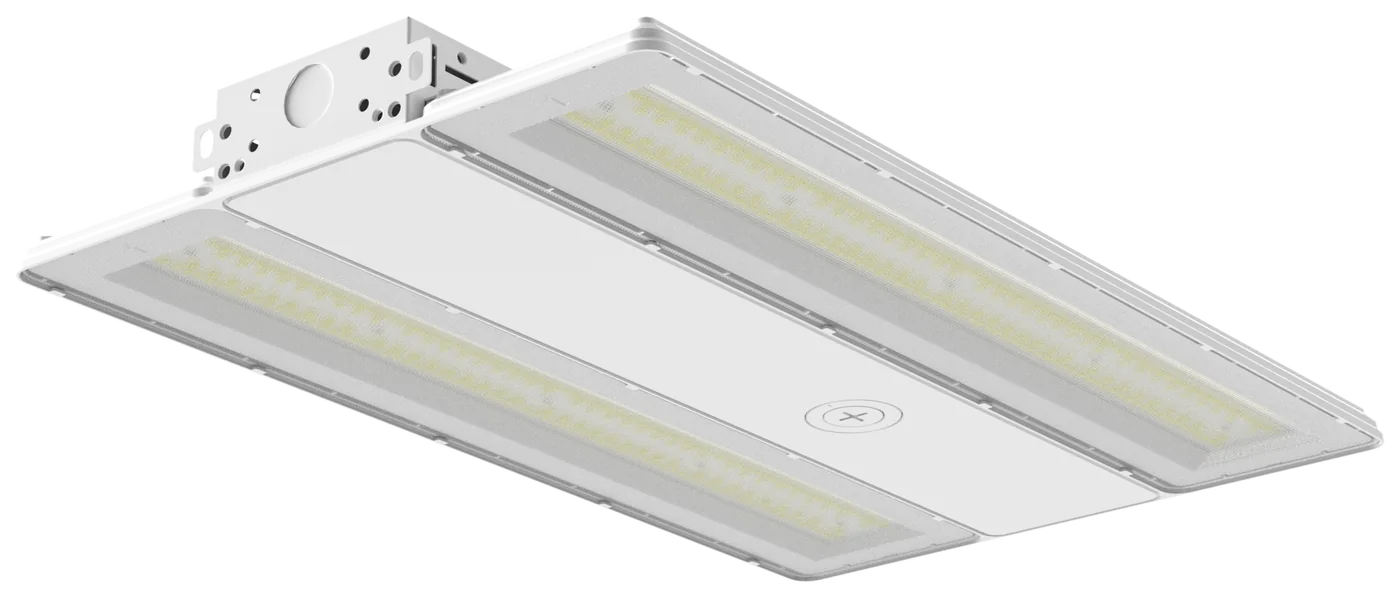

Apollo LLHB160 LED linear high bay, 160 W class, three-quarter view

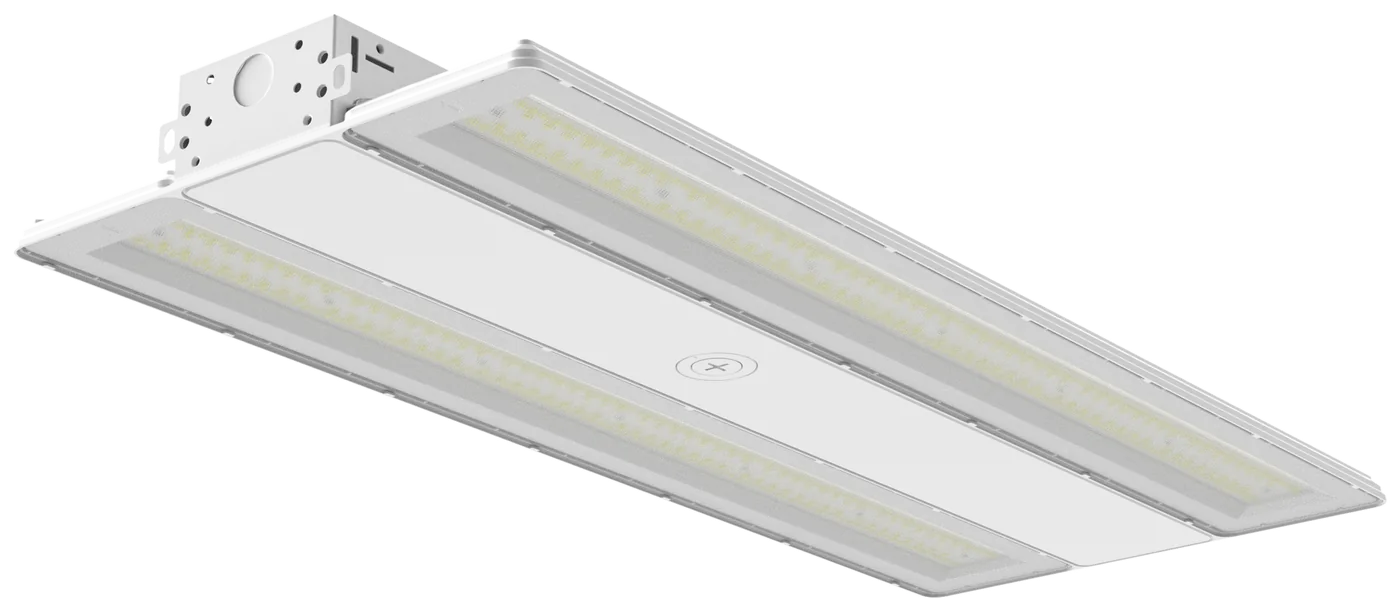

Apollo LLHB250 and LLHB300 LED linear high bay, 250 and 300 W classes

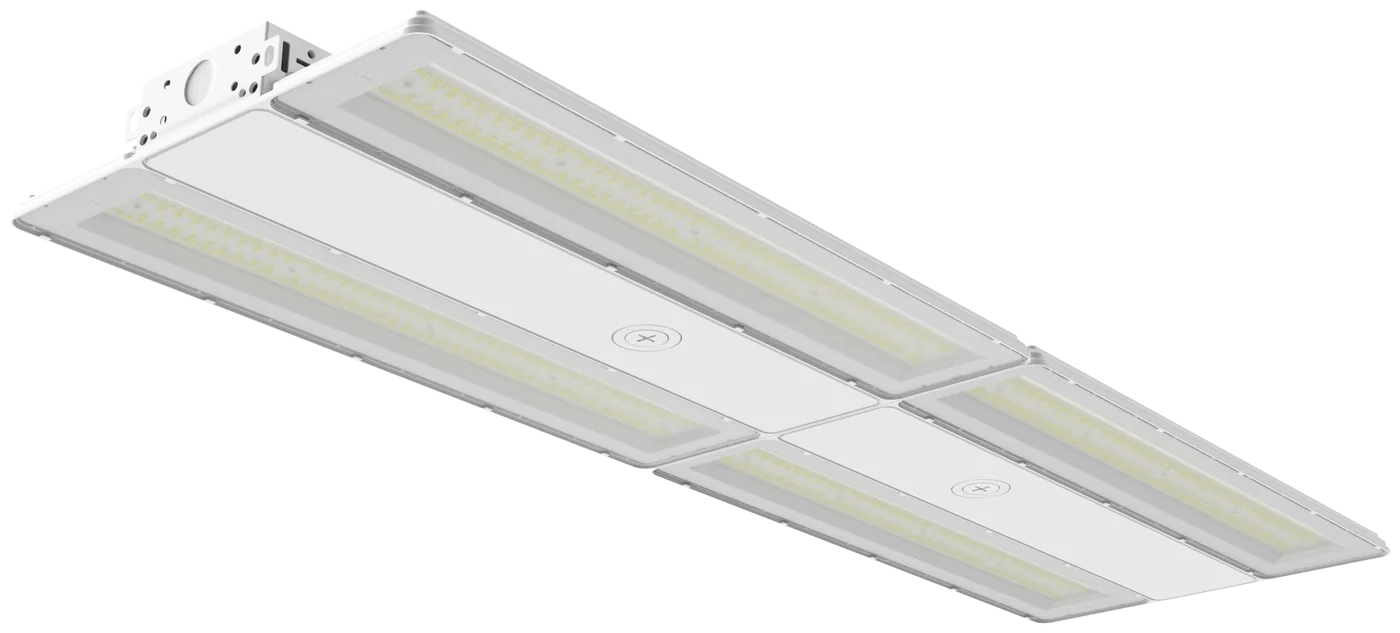

Apollo LLHB410 LED linear high bay with prismatic lens and general optic

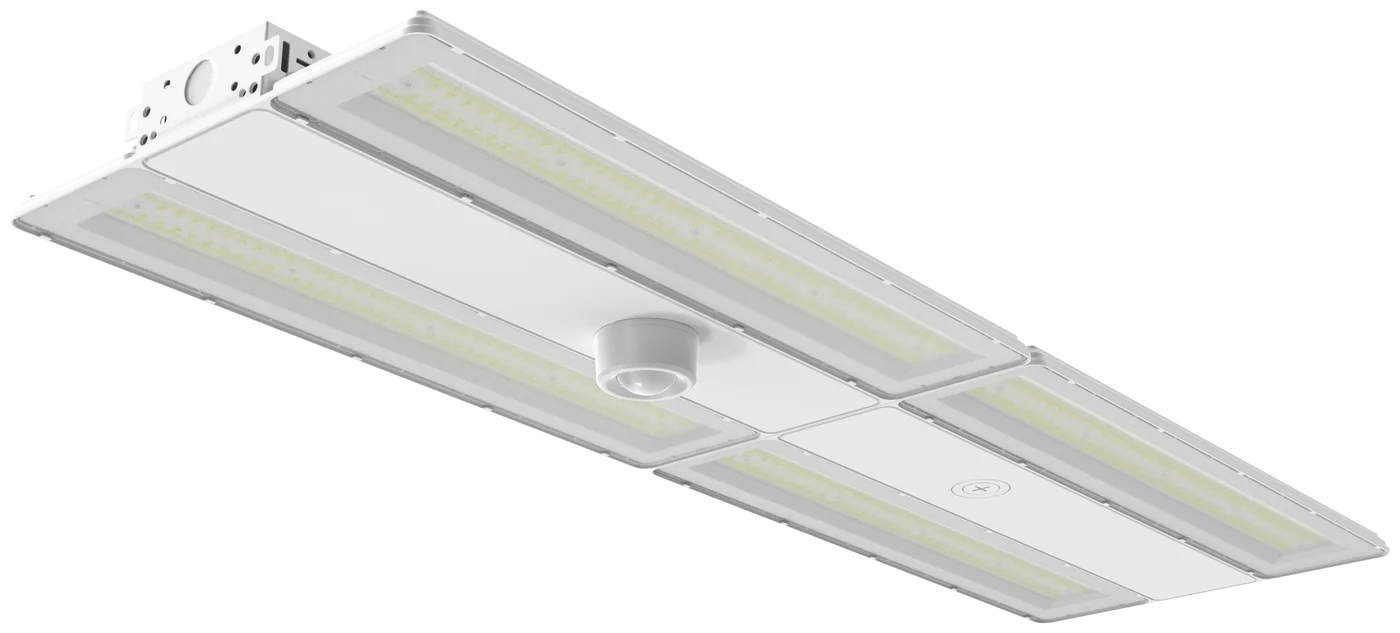

Apollo LLHB410 high bay with a plug-and-play occupancy sensor fitted

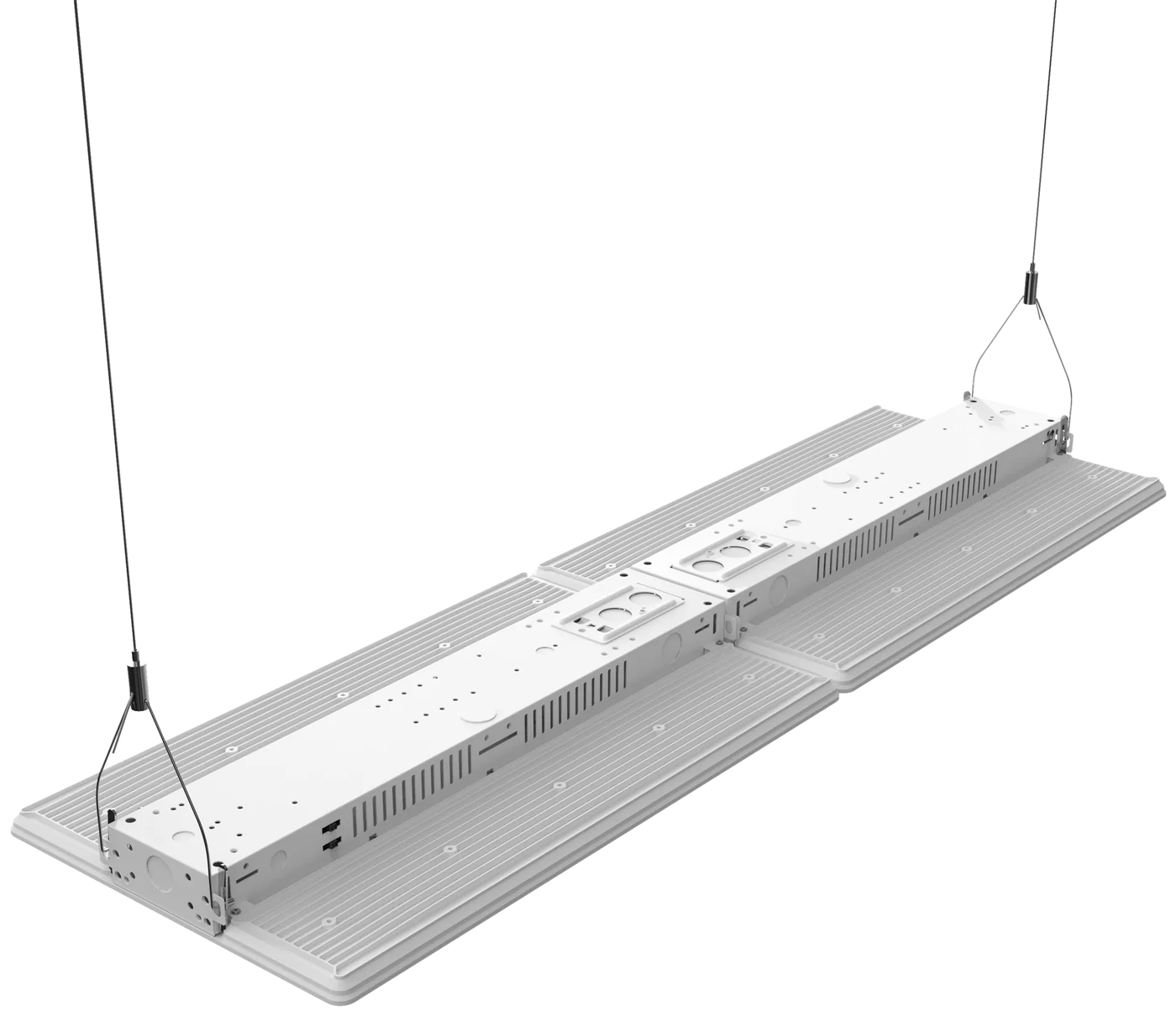

Apollo LLHB410 high bay suspended on the supplied aircraft cables

Documentation & Resources

Documents

Data SheetPDF Quick SheetPDF Sell SheetPDF Installation GuidePDF IES Photometric FilesIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the floor plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

WATTselect	Watts	Lumens	CCTselect	lm/W

★ Default settings.

ApplicationIndoor · ECO linear high bay · 20 ft+ mounting

ConstructionOne-piece die-cast aluminumDriver compartment separated from the LED board

Optics/GBA general 105×105 ★ · /ABA aisle 120×105 · /NBA narrow 95×35Ordered on the catalog number, not field-swapped

Dimensions—

Operating temp−40 °F to 122 °F104 °F with the /ABA aisle optic · damp location listed, not wet rated

Electrical0–10V dimming 100–10 % · PF >0.9 · THD <20 % · 6 kV surge · CRI >80

Warranty5 yr · 50,000 hr

Full Data Sheet

Engineering

How it hangs, what you set at install, and what bolts on.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

Full IES Library

Engineered Accessories

Configurator

Build Your Apollo.

Required *

WATT class—

Voltage—

Optic—

Dip switchesset on the fixture · not in the part numberLV4 · 4000K

Optional

EmergencyUL 924 · J-box built in—

Sensorplug-and-play · 12–24VDC—

Mounting kitcable included · pendant · surface ≤300 W—

Wire guardmatched to the class—

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingsDLC Premium · UL Listed damp location · FCC · RoHS · TAA compliantCheck Rebate Center for the DLC QPL ID of your catalog number before you specify.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

High-Bay Family

Apollo is the ECO linear bay. Titan is the same shape one tier up. Jupiter and Icarus are the round bays.

You are here Apollo LLHB410 linear high bay

LLHB · ECO Apollo 64–410 W in four classes. Up to 61,500 lm at 167 lm/W, 1.65 in deep. TAA · 5 yr / 50,000 hr Specification Sheet → Product Details · this page

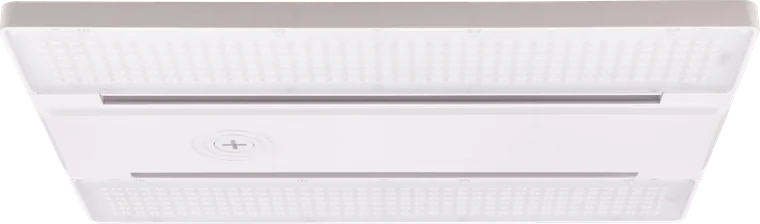

LLHB · PRO Titan The PRO linear bay. 85 W to 600 W in five classes, and the optic swaps in the field. Up to 88,800 lm · 7 yr / 75,000 hr Specification Sheet → Product Details →

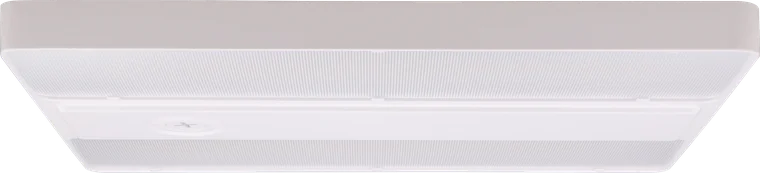

Tiny compact linear high bay, discontinued

LLHB · ECO TinyDiscontinued Apollo replaced it. The specs stay up so an installed fixture can still be matched. Superseded by Apollo Archived Spec Sheet → Product Details →

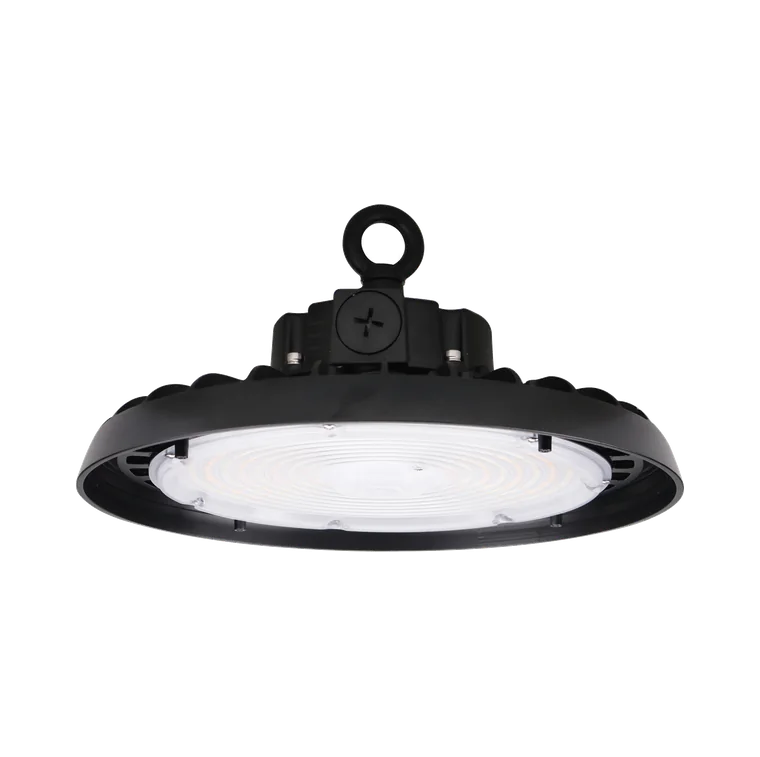

LRHB · PRO Jupiter The PRO round bay. Four housings from 100 W to a 400 W model, IP65 and wet location. Up to 67,200 lm · 7 yr / 75,000 hr Specification Sheet → Product Details →

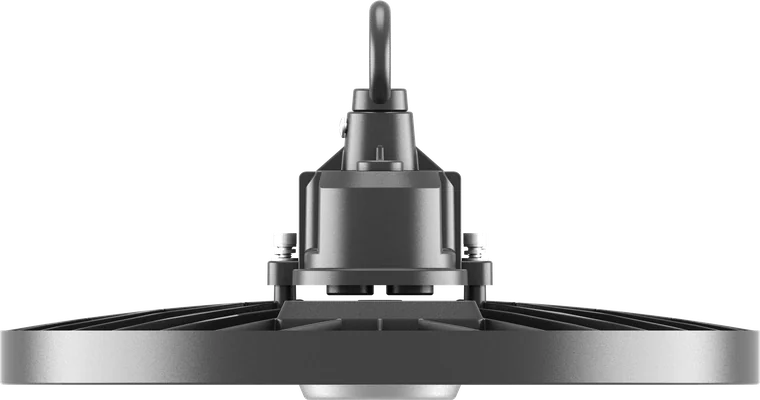

LRHB · ECO Icarus The ECO round bay. Three die-cast housings from 100 W to 300 W, IP65. Up to 41,400 lm · 5 yr / 50,000 hr Specification Sheet → Product Details →
