Anaheim Series ECO
The wall pack you aim.

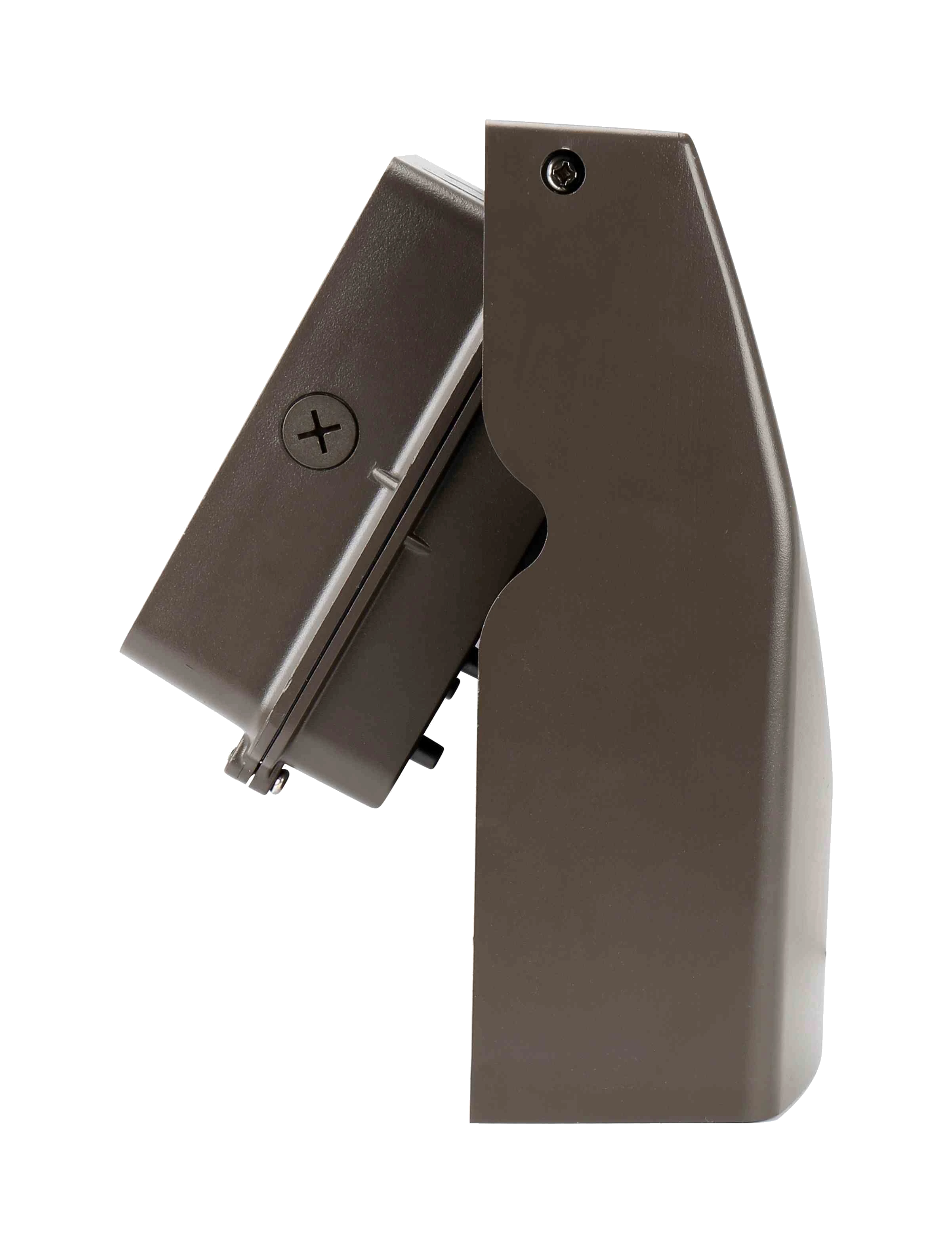

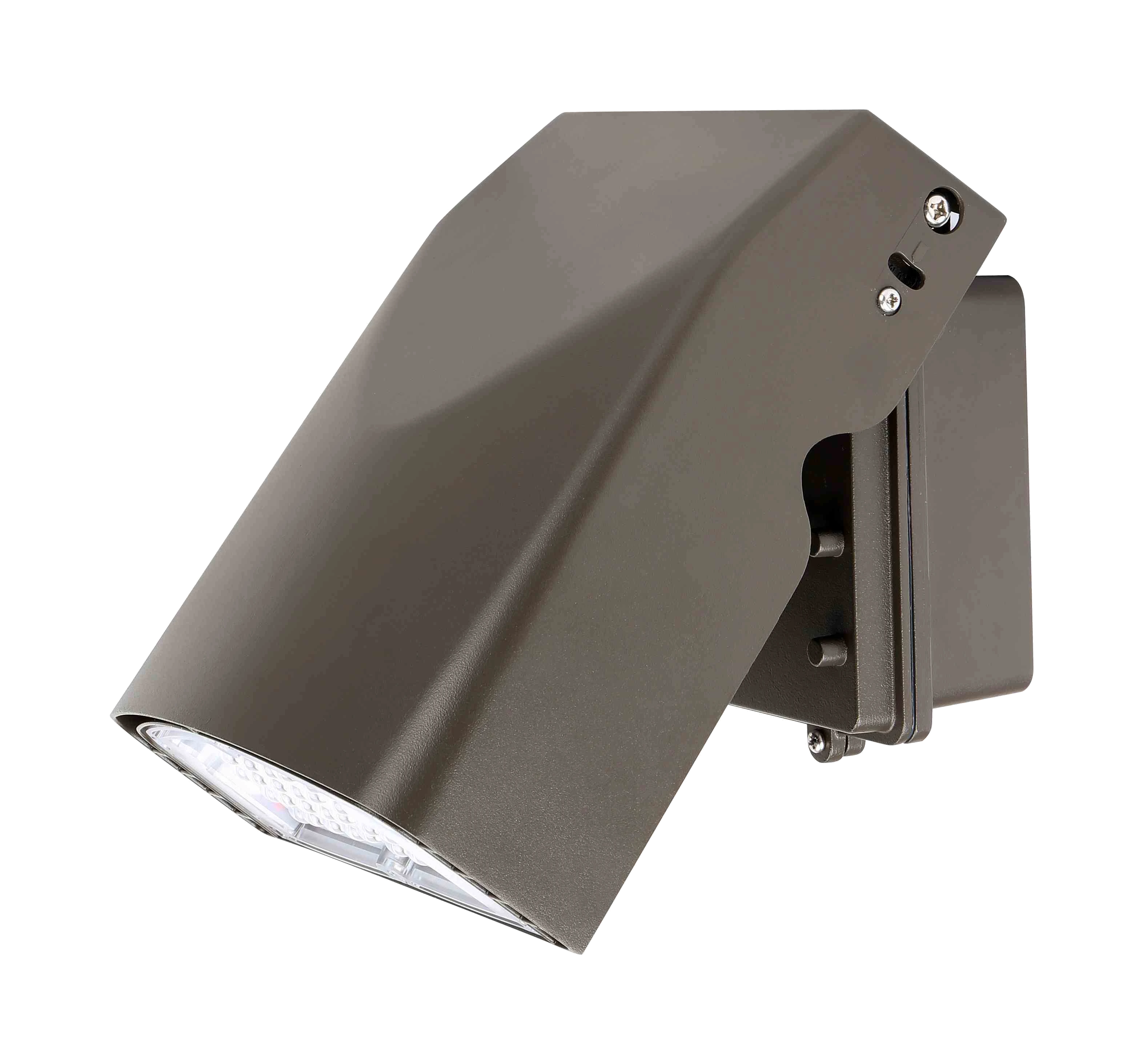

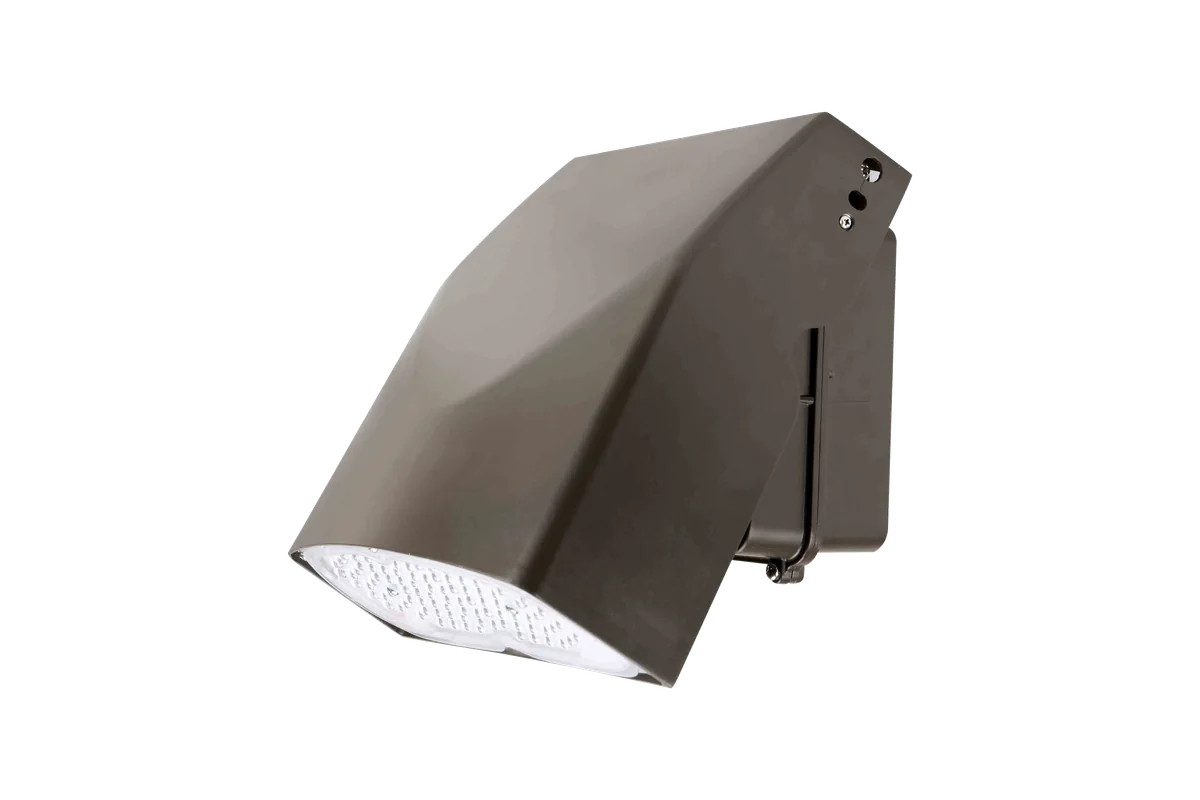

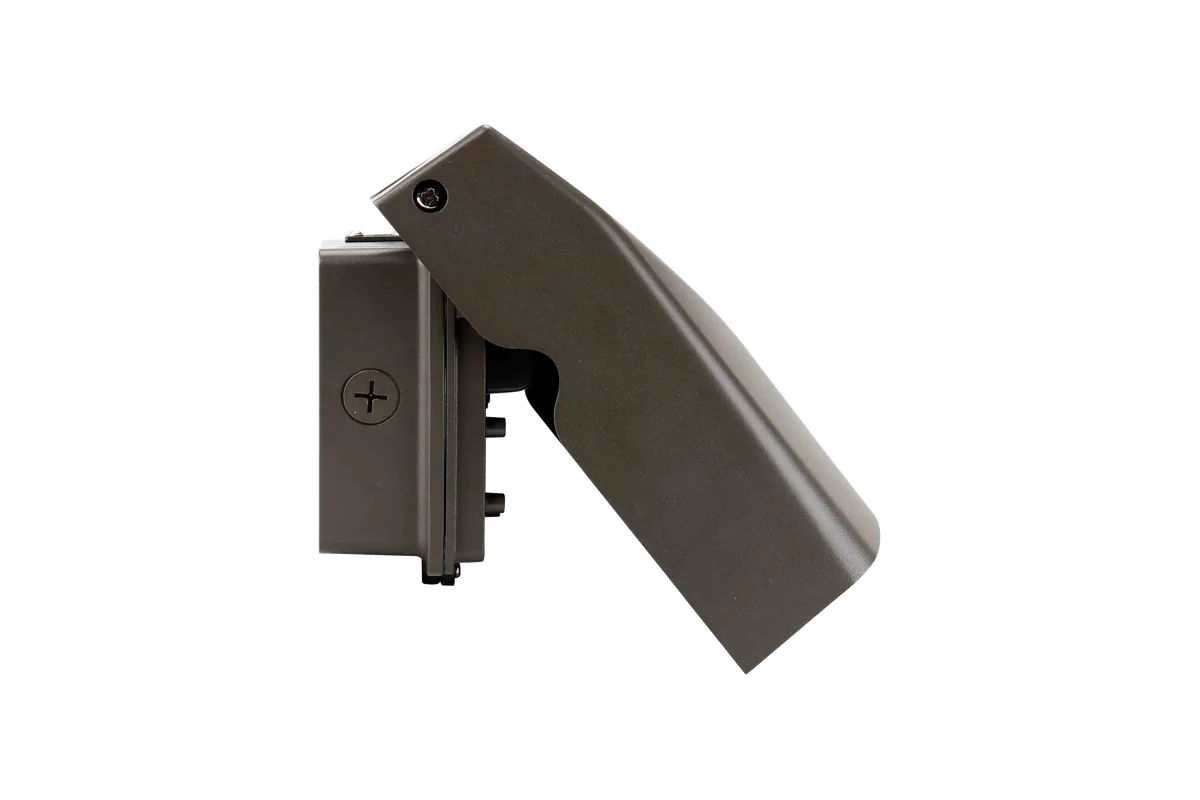

For perimeter walls, loading bays, parking edges, and stairway towers — jobs where the J-box stays put and the light has to point somewhere else. Five wattages — 12 / 27 / 40 / 67 / 80W, plus field-set multi-wattage S3N variants — drop in for 100W–800W metal halide. The head pivots 0°–90° on a protractor-marked side hinge, locked by a single screw. Aim once. Walk away. −40°F to +130°F, ANSI C136.31 3G vibration-rated, IP65, 7-year warranty against the industry's 5. 120-277V line-wide; 347-480V on LWPA40/67/80. 1-10V dimming standard. Optional /PA photocell.
Model Specifications
Download Data Sheet| CCT Setting | Lumens | Efficacy | CRI | HID Replacement | Voltage |
|---|
Dimensions
(Envelope scales with wattage — see datasheet rev)
HIGHLIGHTS & FEATURES
Five reasons Anaheim wins the bid.

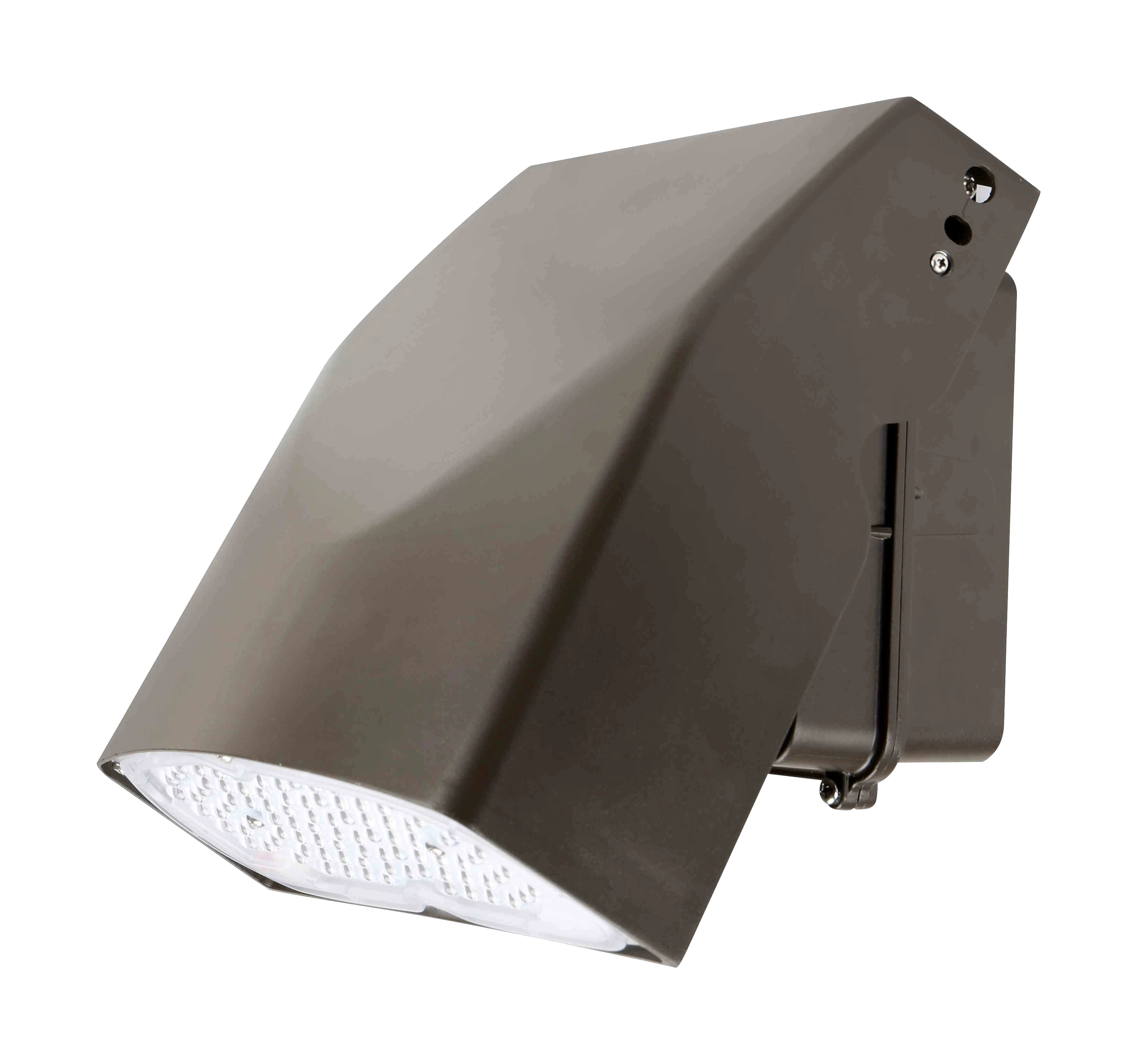

Anaheim is the adjustable-tilt wall pack for the jobs where the J-box is fixed and the light has to point somewhere else. Five design choices that earn it the spec on perimeter walls, parking edges, loading bays, and stairway towers — and that hold up against RAB SLIM, Lithonia TWR, and the contractor-channel field on the metrics that actually matter.
contrⒶLS
Dim it from your control system. Or add a photocell.
Two paths into Anaheim's controls integration. 1-10V dimming ships standard on every SKU — pair Anaheim with any 1-10V dimmer, DALI gateway, or central scheduling system and the perimeter walks down with the building.
For sites without a central control system, the optional /PA button-style photocell handles automatic dusk-to-dawn — checkbox it at the configurator, $15 BOM line, factory-installed.
1-10V analog dimming ships standard on every Anaheim SKU — no upgrade tier, no separate dimming variant, no extra BOM line. Wire the violet/grey 1-10V leads from the driver to your scheduling system, dimmer, or DALI gateway and Anaheim dims smoothly from 100% down to ~10% output. Pair with a quickⒶDAPT controller for occupancy + photocell + scheduling on the same gateway, or wire direct to a building management system. The driver is heat-isolated from the LED module — no thermal foldback at low-dim states, no flicker on the rebound. For sites without a central control system, see the /PA photocell tab.
PHOTOMETRICS
Beam shape, by the SKU.
Luminous intensity distribution measured on Gen-1 3000K IES test files. Beam shape is the same at 4000K and 5000K shipping CCTs — the LED optic doesn't change with phosphor. Toggle the CCT below to update the lumen, efficacy, and peak-intensity numbers for the as-shipping SKU.
LWPA40_3000K.ies (Gen-1 · scaled to 4000K) In the Box
Aim-ready, out of the box.

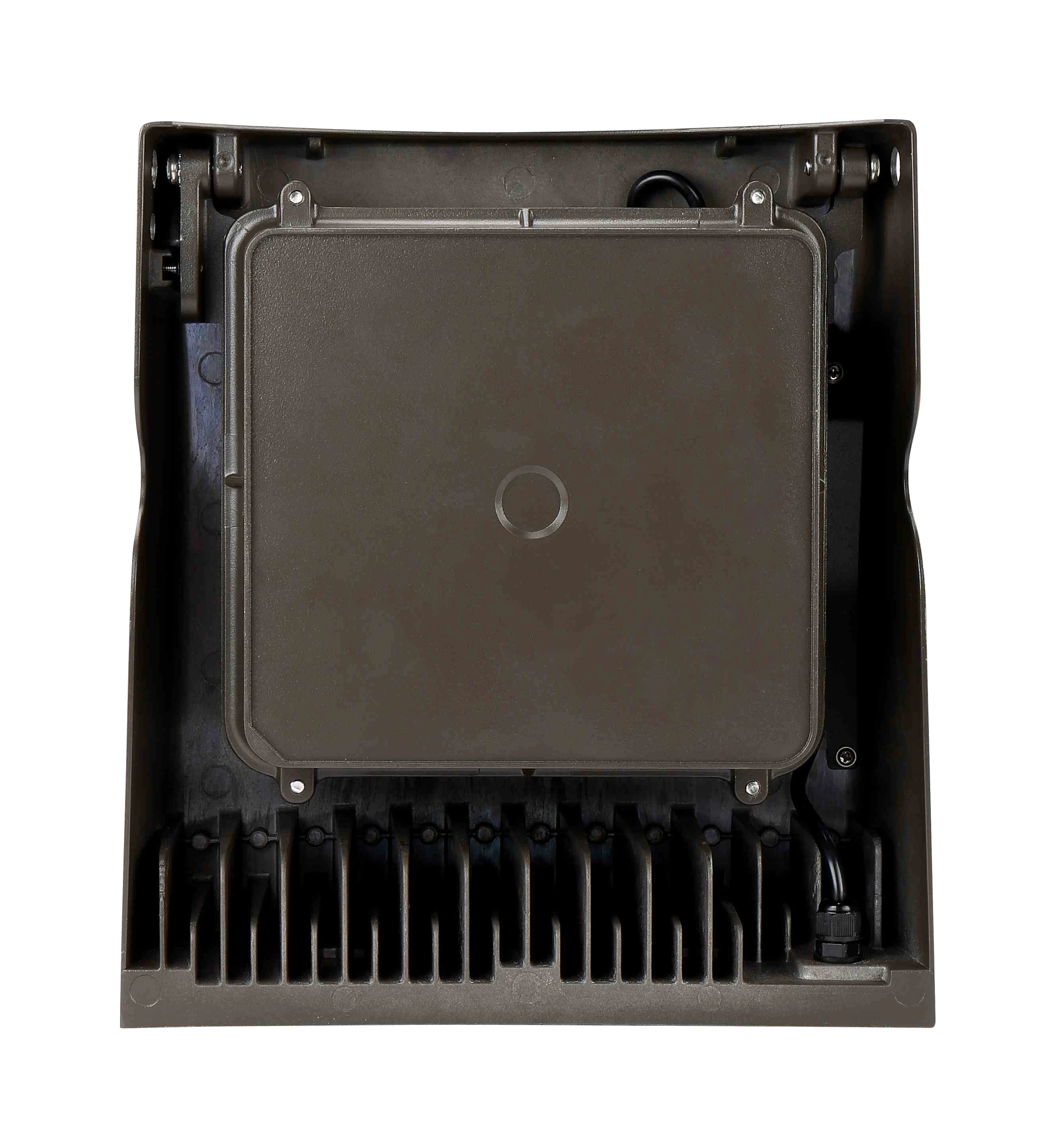

Three standard components ship on every Anaheim — tilt bracket with protractor-marked hinge, 1-10V dimming driver, and wall-mount J-box adapter with hardware. All three are factory-installed; none are upsell SKUs. Drop the fixture in, wire 120-277V (or 347-480V on LWPA40+) to the J-box, set the tilt angle, walk away.
Build Your Model
Configure Your Anaheim
Selections build the SKU live. S3N multi-watt and HV voltage are conditional — see availability matrix at right. Required fields marked with *. See the legend for QS / MTO meanings.
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify the Anaheim — datasheet, IES library, and a per-SKU submittal generator that mirrors your Section 9 configuration. v1 status: the WorkDrive URLs for Anaheim's PDF assets are still in upload by engineering — Submittal Generator is the only live asset on this page. Datasheet, IES library, and quick-link PDFs land in this grid as the spreadsheet populates.
Meet the Wall Pack Family.
Anaheim is the only adjustable-tilt fixture in the luxoⒶRCH wall pack ladder. When the project's geometry is fixed and the J-box is set, Anaheim's hinge does the aiming. When the spec moves to egress entryway, architectural facade, or full-cutoff DarkSky, the line scales up — same family code conventions, same controls integration, different geometry per the job.
Light the perimeter, then light the lot.
Anaheim aims the wall pack. These cross-line fixtures handle every other point along the property — same engineering language, same warranty path, same factory. Spec them together for a coherent lighting package across perimeter walls, parking lots, façade signage, and entryway canopies.
/PA —
automatic on at sundown, off at sunrise, no central control system required.
Direct line to your regional rep.
Five US warehouses ship in 2–3 days. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. No portal-as-the-only-channel: you get a person.
Stack the rebates — backed by a longer warranty.
HID retrofit chart maps each LWPA SKU to its metal halide wattage (LWPA40 → 175W MH · LWPA80 → 320W MH · line tops at 800W MH) — utility rebate programs read straight off the chart. 1-10V dim driver ships standard, qualifying for energy-code dimming credits. 7-year warranty (vs industry-baseline 5) backs 10-yr TCO modeling. DLC Premium QPL listing TBC at v1 — confirm with rep desk for per-SKU rebate eligibility.
