LRDW · Abbey PRO
Spec-grade roadway lighting, simplified—photocell-ready out of the box.

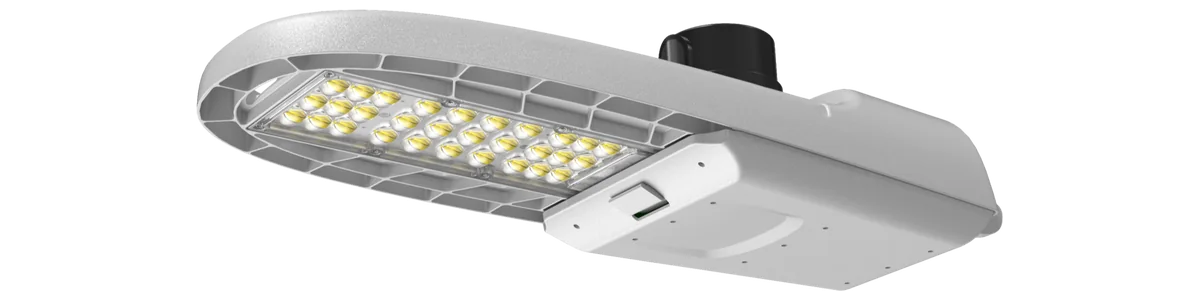

Abbey is the cityⒶRCH PRO roadway luminaire engineered for major streets, bike lanes, parking areas, and general area lighting. Abbey-II ships with a 4-WATTSELECT field-set DIP across 3 housings (40–300W) and peaks at 182 lm/W — top of the spec-mode LED roadway tier. Abbey-I delivers fixed-wattage 105W and 150W classes for utility-grade dusk-to-dawn deployments. Same heavy-duty die-cast aluminum housing, 3G vibration rating, coastal-rated anti-rust frame, and 10-year warranty across both variants.
Model Specifications
Download Data Sheet| Watt | Lumens | Efficacy | OpticⒶDAPT | CCT |
|---|
Anatomy

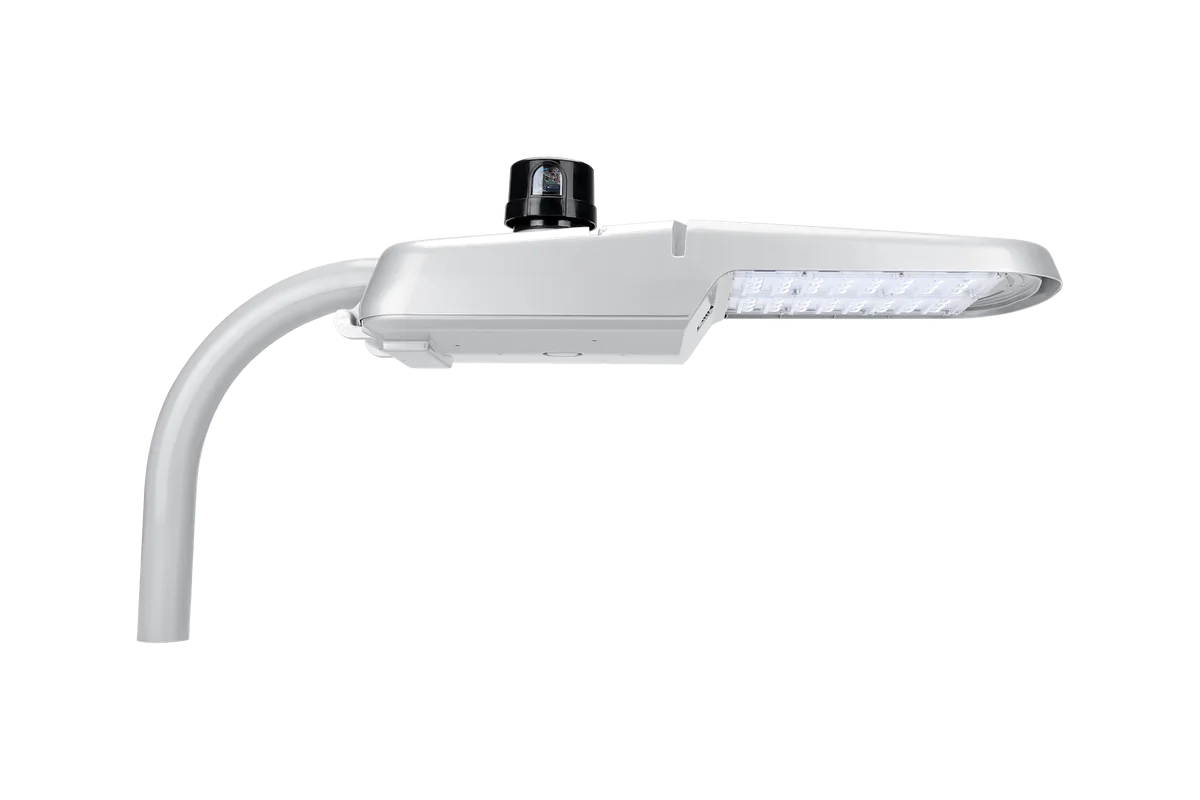

(Mast-arm slip-fitter mount · install guide page 1 reference)Highlights & Features
Abbey: one SKU on the shelf, four wattages on the pole.

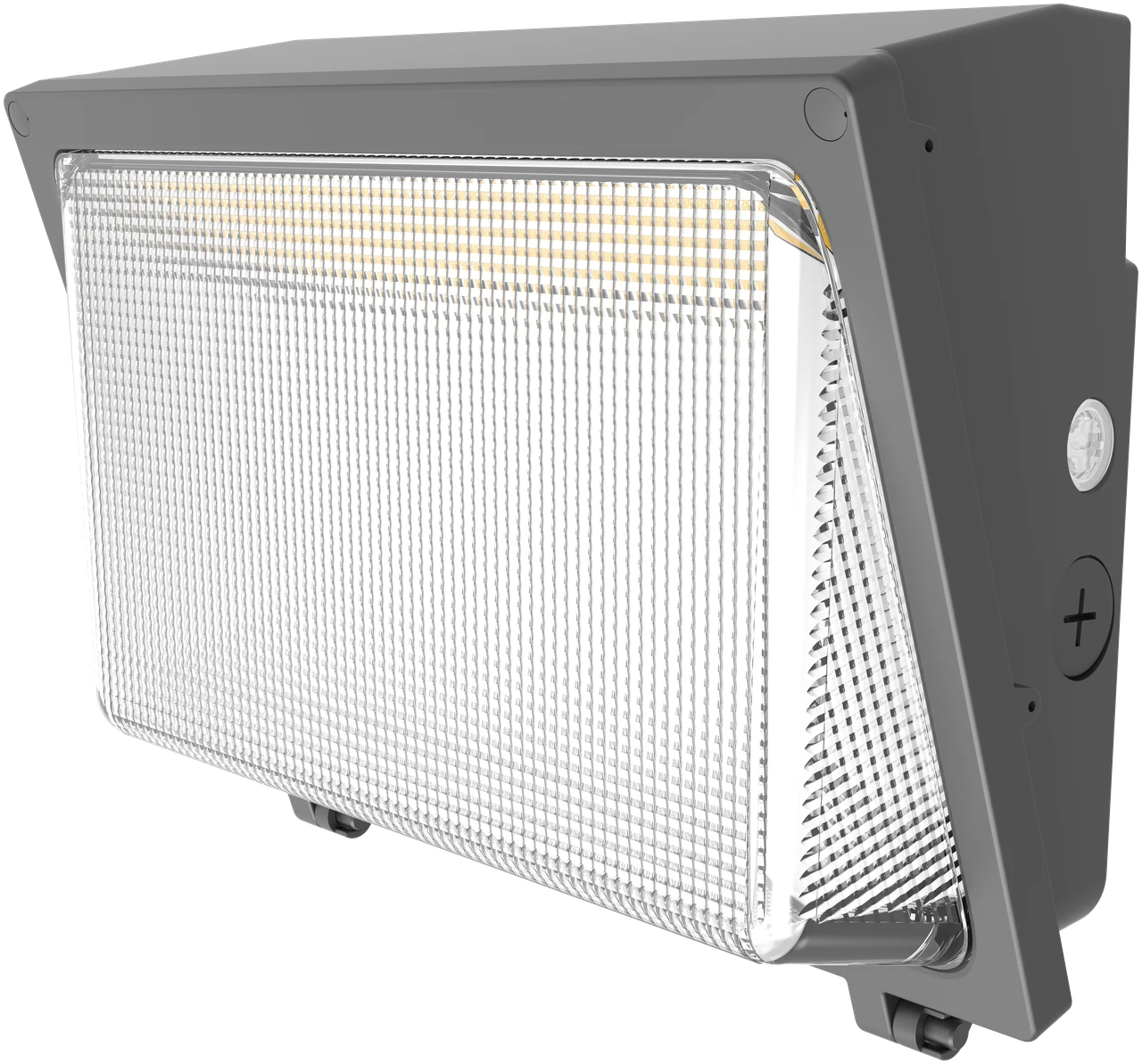

Five reasons Abbey wins the spec sheet — Abbey-II WATTSELECT, 182 lm/W peak efficacy, 3G-vibration coastal build, Title 24 §140.7 PIR-ready, and full TAA + ANSI C136.10 federal compliance.
Adaptive Controls
Photocell-led. PIR-ready. 0-10V dimmable.
Abbey ships with a vendor-neutral 3-pin (ANSI C136.10) twist-lock photocell receptacle on every housing. Add a field-installable PIR sensor for California Title 24 §140.7 occupancy compliance. Drive bi-level scenes with a 0-10V class-2 input — no gateway, no commissioning, no app required.
Photocell-Ready.

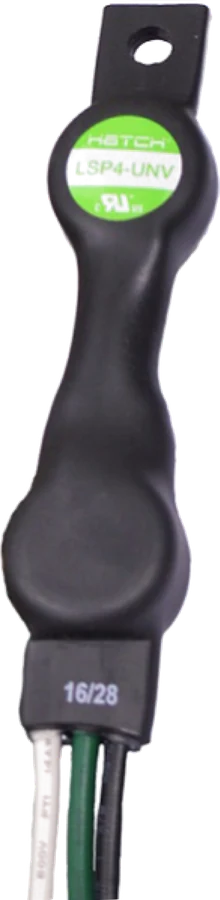

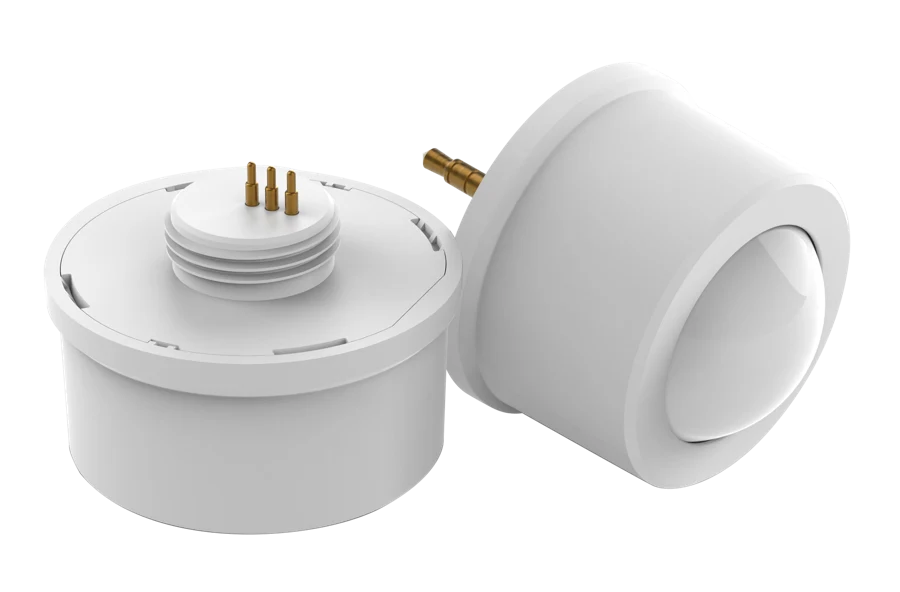

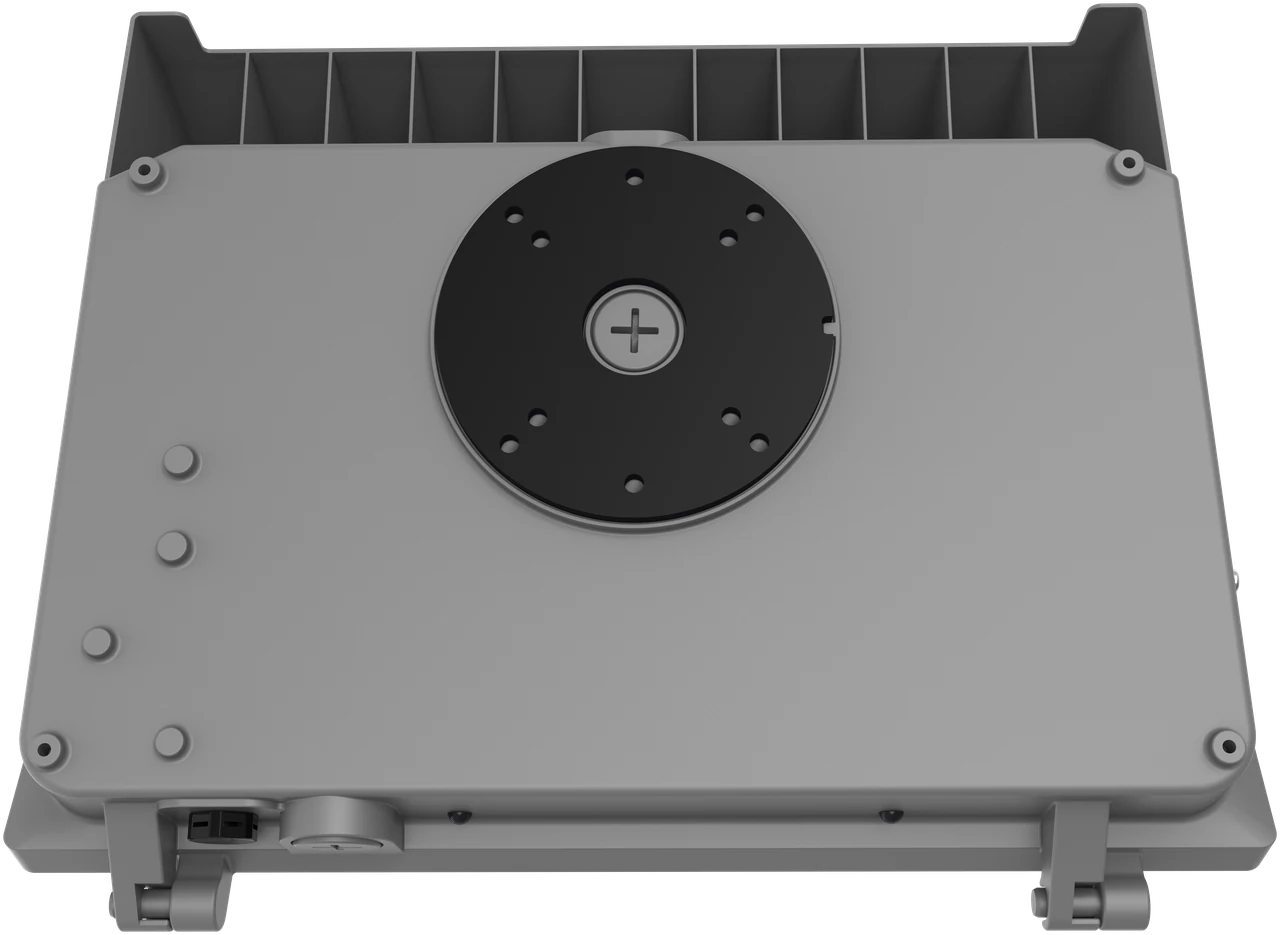

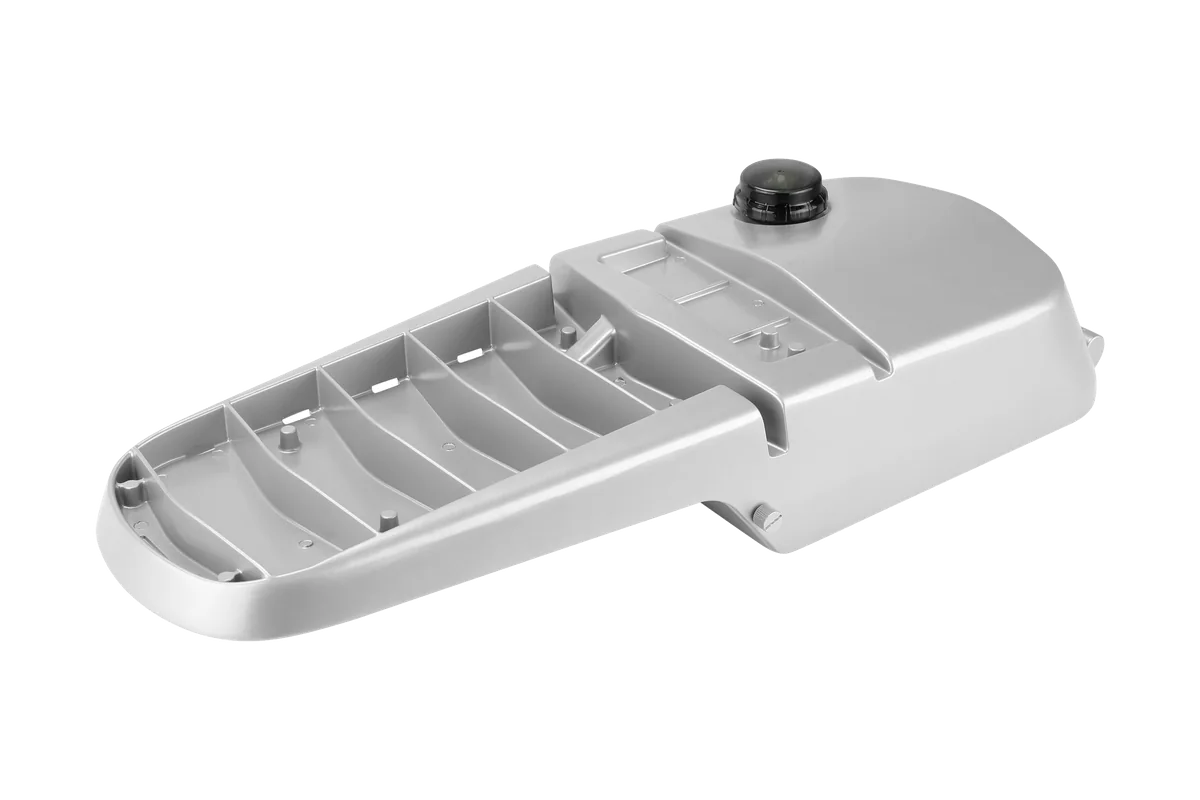

3-pin (ANSI C136.10) twist-lock receptacle on the housing top — standard on every Abbey-I and Abbey-II SKU. Optional 7-pin (ANSI C136.41) for NEMA-DIM controllers. Pair with any compatible photocontrol — ALG, standard fixture, proprietary controls system, Echelon — vendor-neutral by design.
- 3-pin (ANSI C136.10) — standard
- 7-pin (ANSI C136.41) — optional MTO
- Twist-lock retention · IP66 sealed
PIR Motion Sensor.

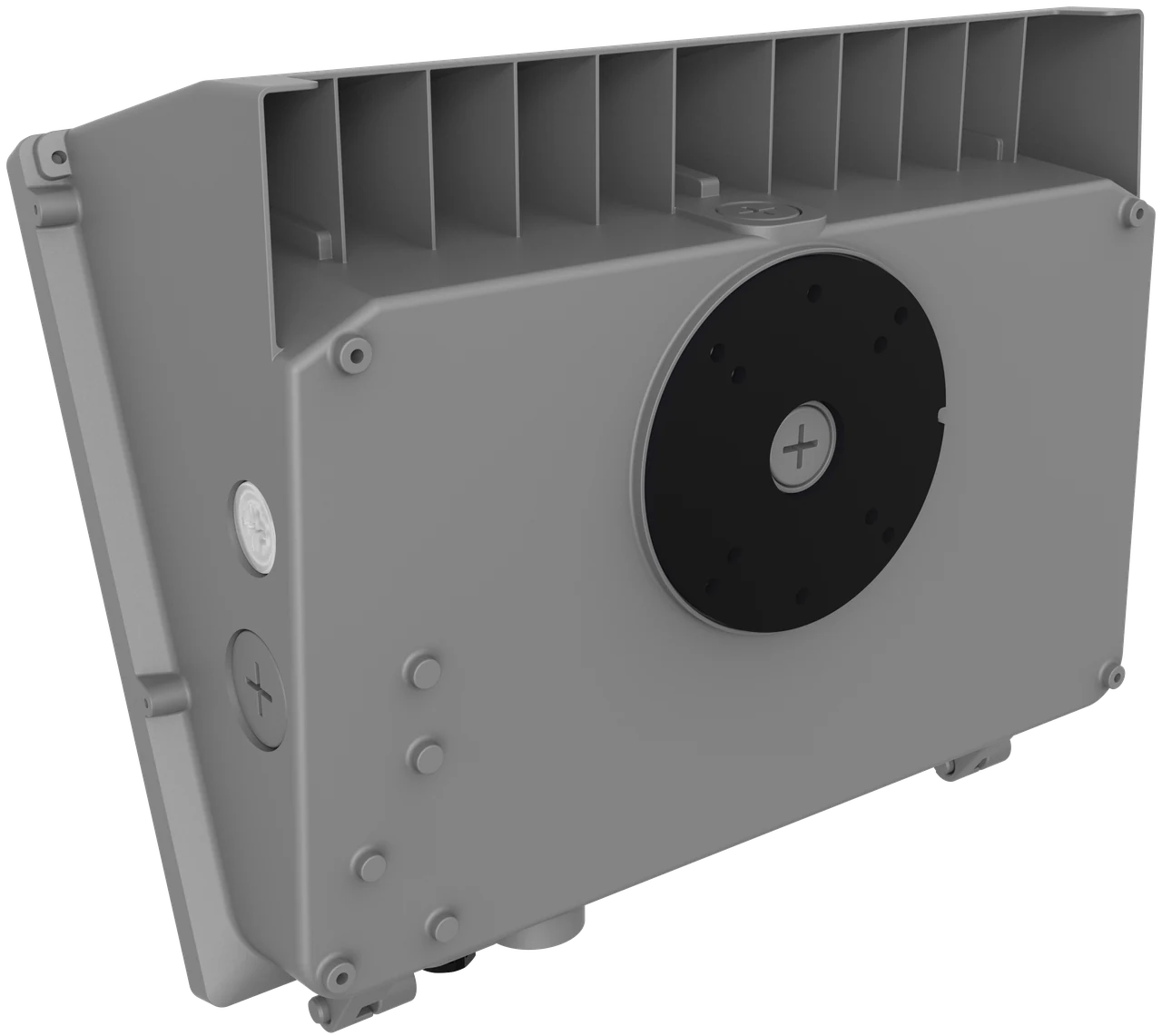

Field-installable bi-level PIR — full output on occupancy, dimmed standby on vacancy. Adjustable cut-off and hold time tune the schedule to roadway, pathway, or pedestrian use cases. Mounts to the housing underside and ships ready to wire.
- Title 24 §140.7 compliant
- ASHRAE 90.1-2016 occupancy reduction
- 8-12 ft mounting height · 360° detect
0-10V Class-2 Dimming.
Driver supports smooth 10%-100% dimming on a 0-10V class-2 control input. Source-or-sink compatible. Pair with any compliant relay panel, networked controller, wallbox dimmer, or DALI-to-0-10V gateway. No wireless mesh required.
- 10%-100% dim range · flicker-free
- Source-or-sink class-2 input
- Compatible with any 0-10V controller
No mesh, no gateway, no commissioning app. Abbey's controls surface is intentionally minimal — the photocell, the sensor, and the dimming line are the same tools your installer already carries on the truck.
Photometric Distribution
Beam shape, straight from the IES file.
Type-III roadway distribution rendered directly from the IESNA LM-79 test reports. Peak candela, total lumens, and BUG rating update as you switch housing class, CCT, and input voltage below — eight tested cells across the LRDW100 and LRDW150 platforms.
LRDW100-30-U3S_IESNA2002.IES
Engineering · Anatomy
Built once. Wired once. Maintained never.
Seven engineering details that make Abbey a one-and-done install — twist-lock photocell ready on every housing, IP66 driver compartment, ANSI C136.31 3G mast-arm with M10 set screws, and field- installable bird-guard for utility-corridor sites.

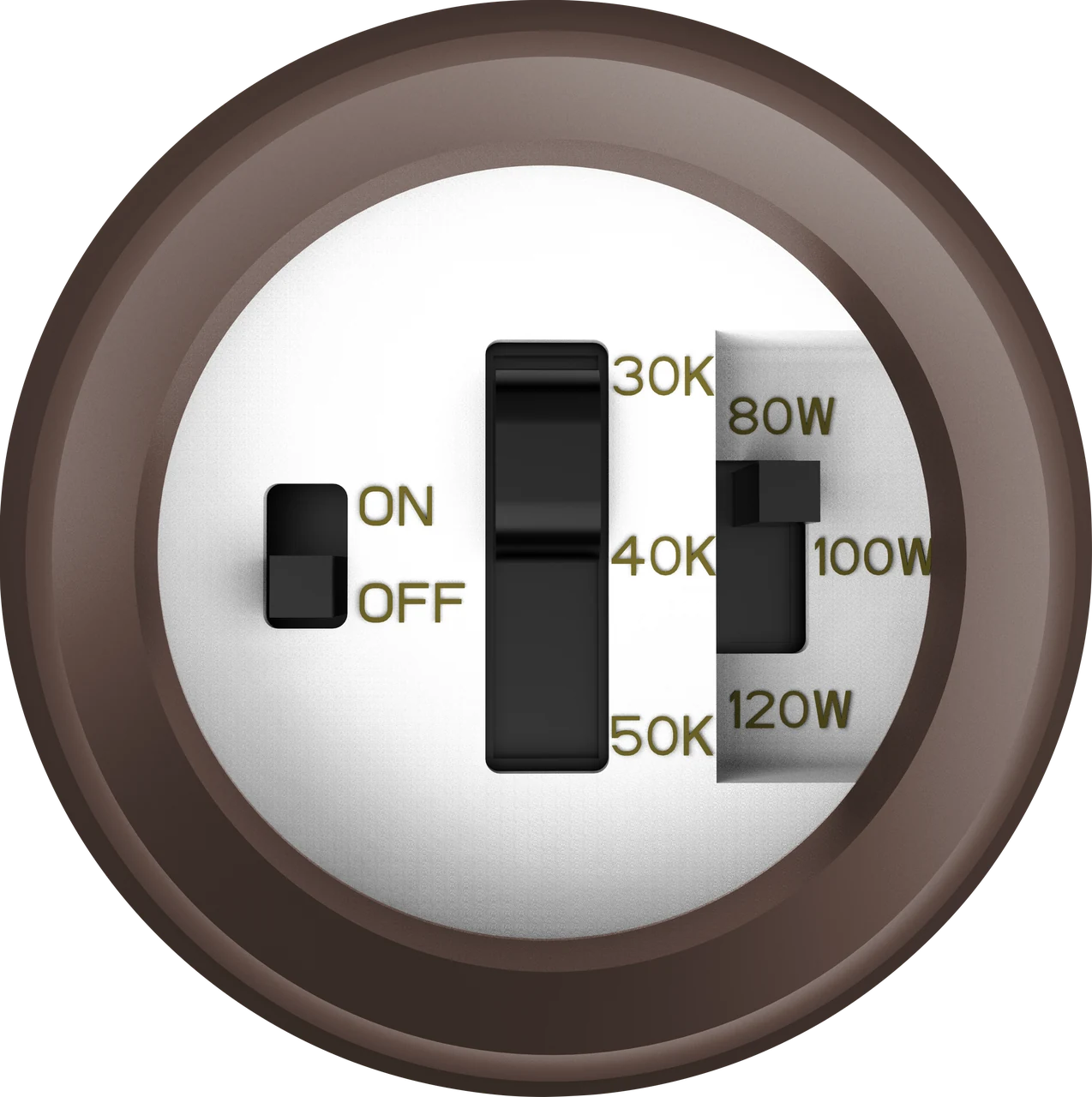

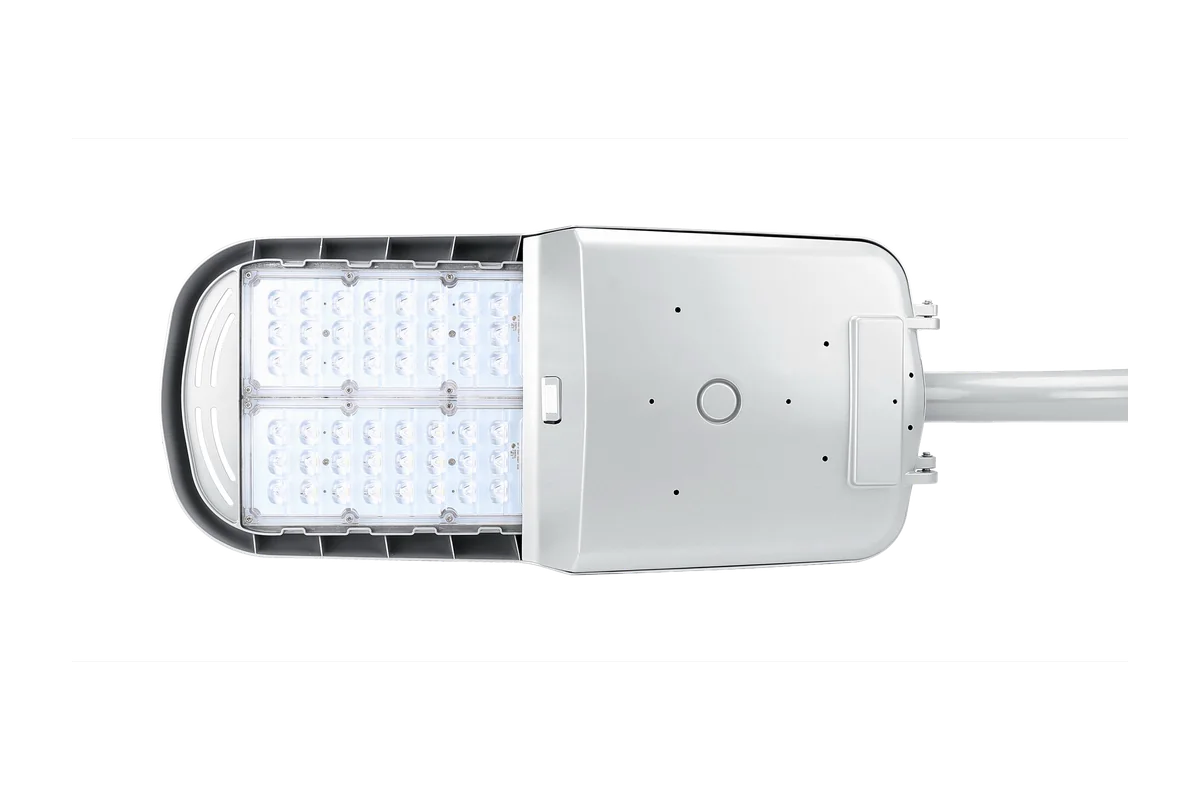

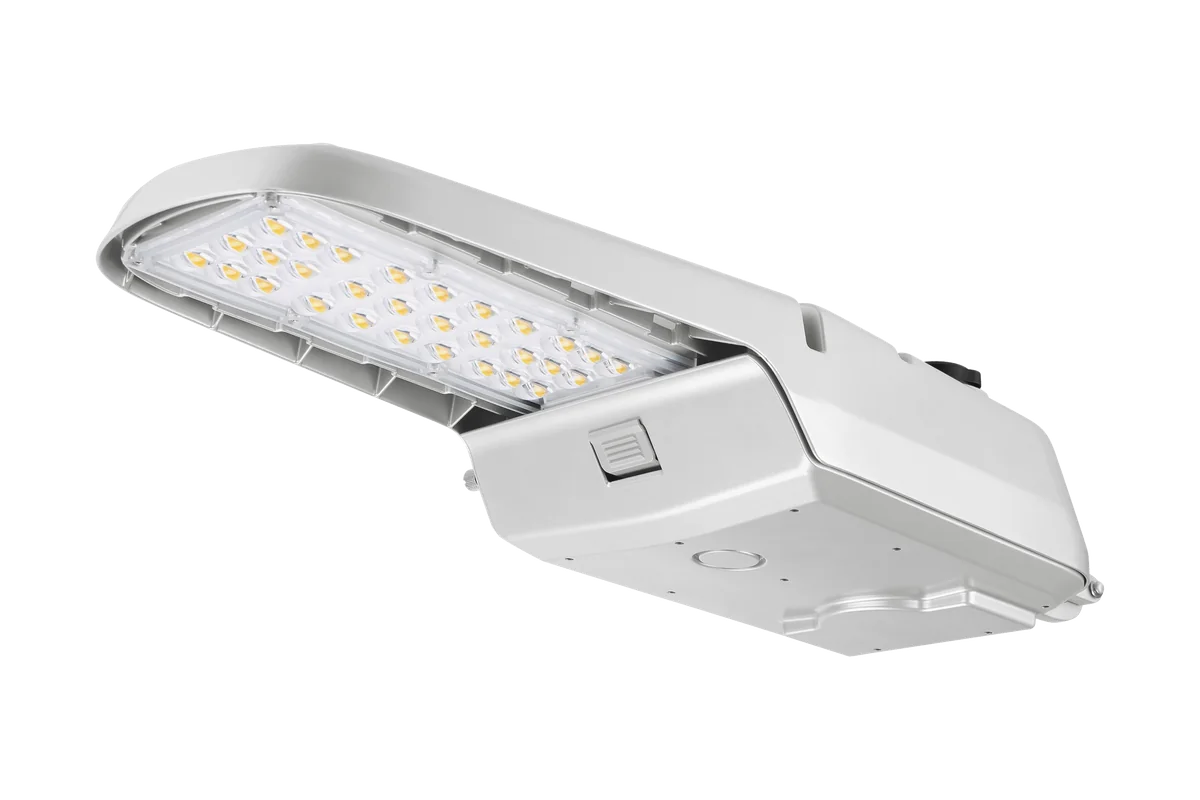

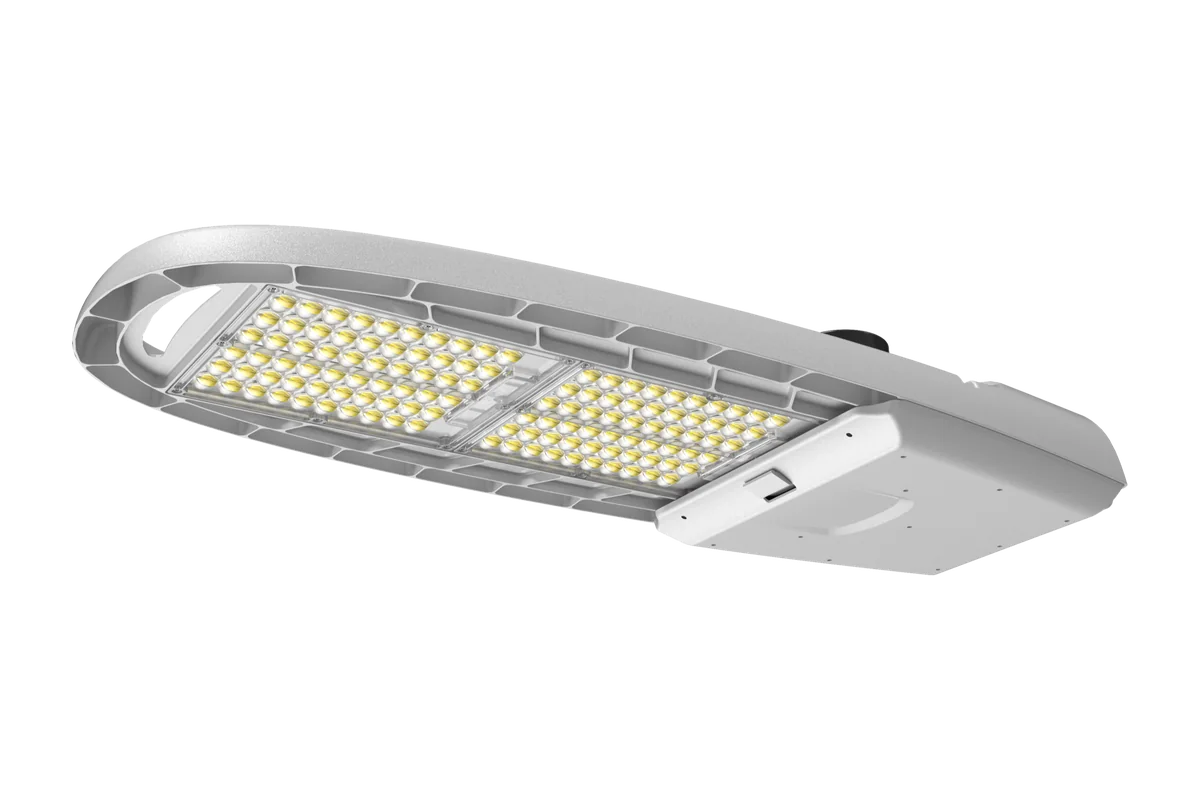

Same housing platform across LRDW100 (100W class) and LRDW150 (150W class). Abbey-II adds a 4-step WATTSELECT switch behind the access door — same external profile, same maintenance touchpoints.
Engineered Accessories
Tune Abbey to the exact site condition — twist-lock photocells for dusk-to-dawn scheduling, field-installable PIR for Title 24 §140.7 occupancy compliance, mast-arm reducers for non-standard pole tubes, and surge protection for utility-corridor installs.
Configure Your Abbey
Every option below maps to the LRDW Abbey order code. Selections build the SKU live — no checkout, no surprises. Required fields marked with *. Greyed-out chips are not selectable for the current variant. MTO chips (amber stripe) stay selectable — the stripe communicates lead time, not unavailability. See the legend in the Optional column for ★ / QS / MTO meanings.
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify Abbey — from the data sheet on day one to the IES bundle on the bid sheet to the TAA certificate on the federal RFQ.
Pedestrian to roadway, all in one line.

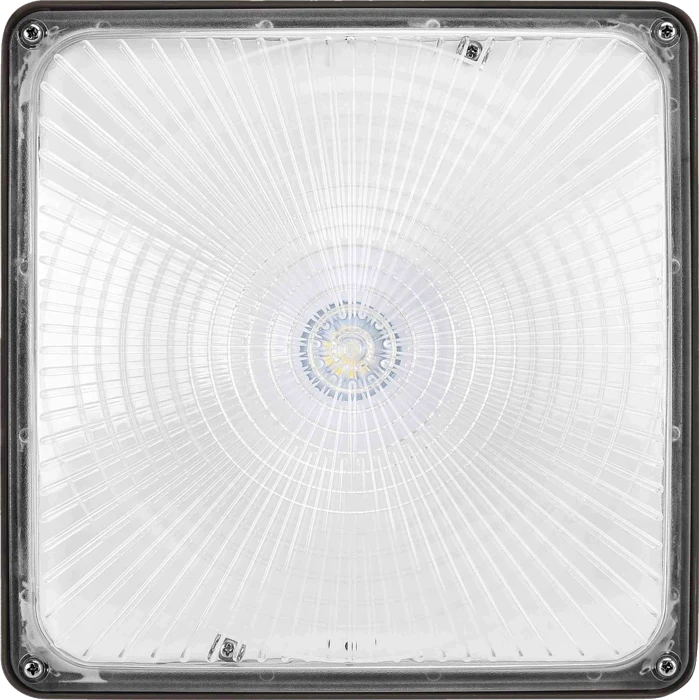

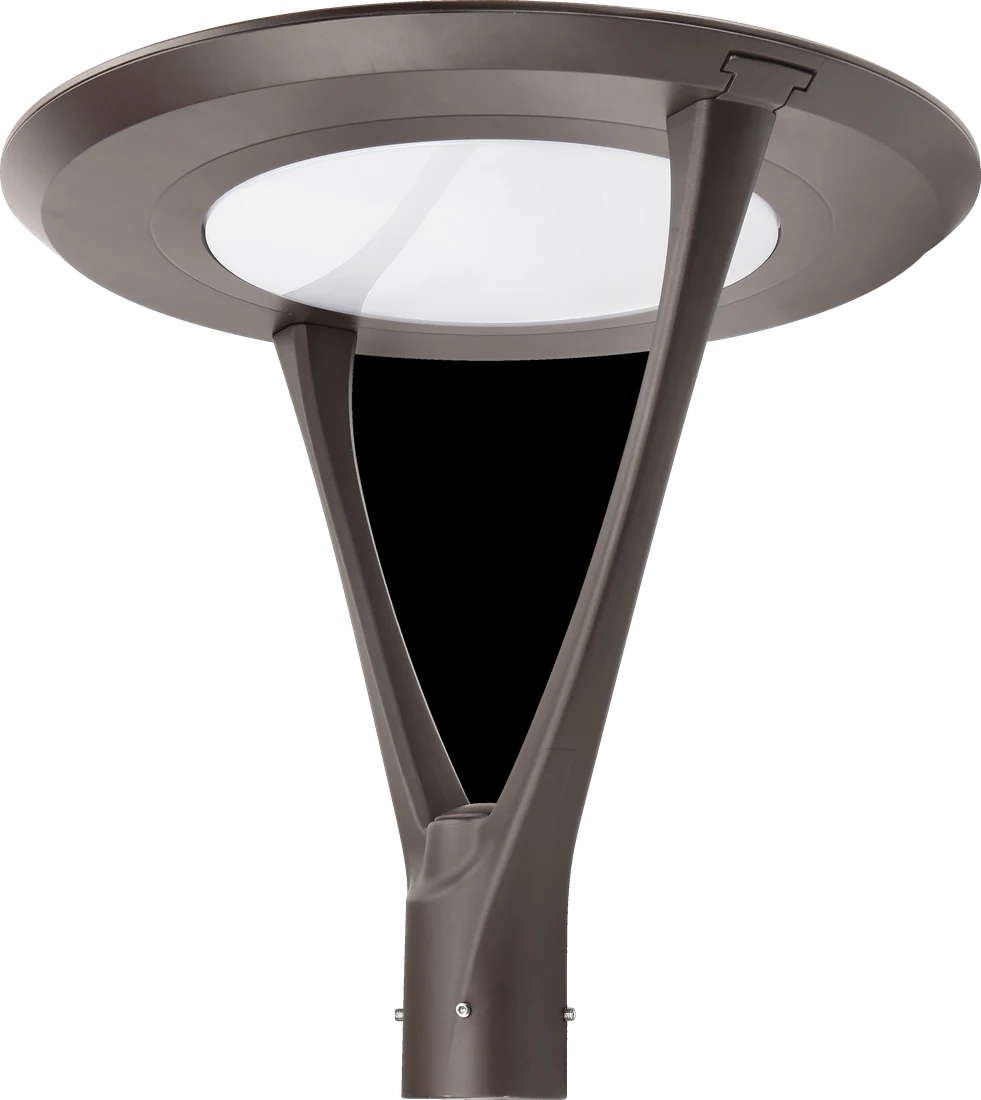

Abbey is the LRDW roadway anchor of the cityⒶRCH outdoor family. Pair it with cityⒶRCH post-tops for the sidewalks and bollards for the walkways — same controls vocabulary, same photocell receptacle, same coastal-grade build, all spec'd from one factory.
For the complete corridor.

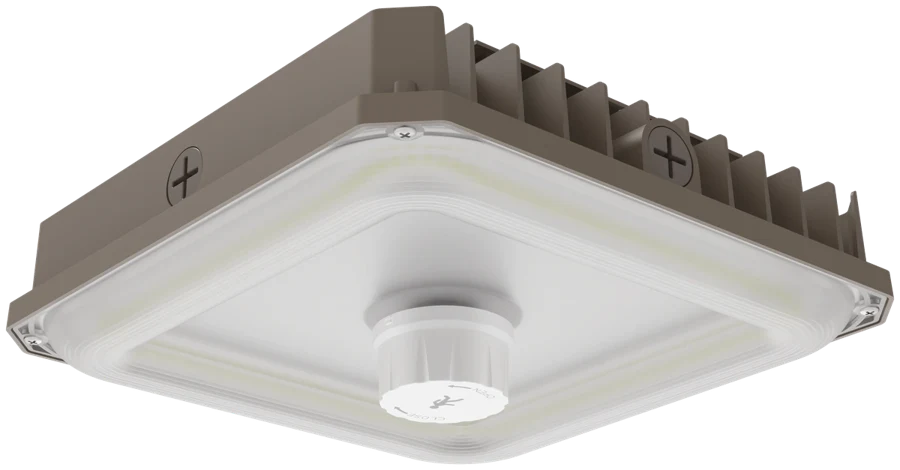

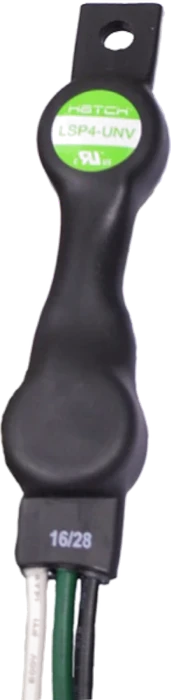

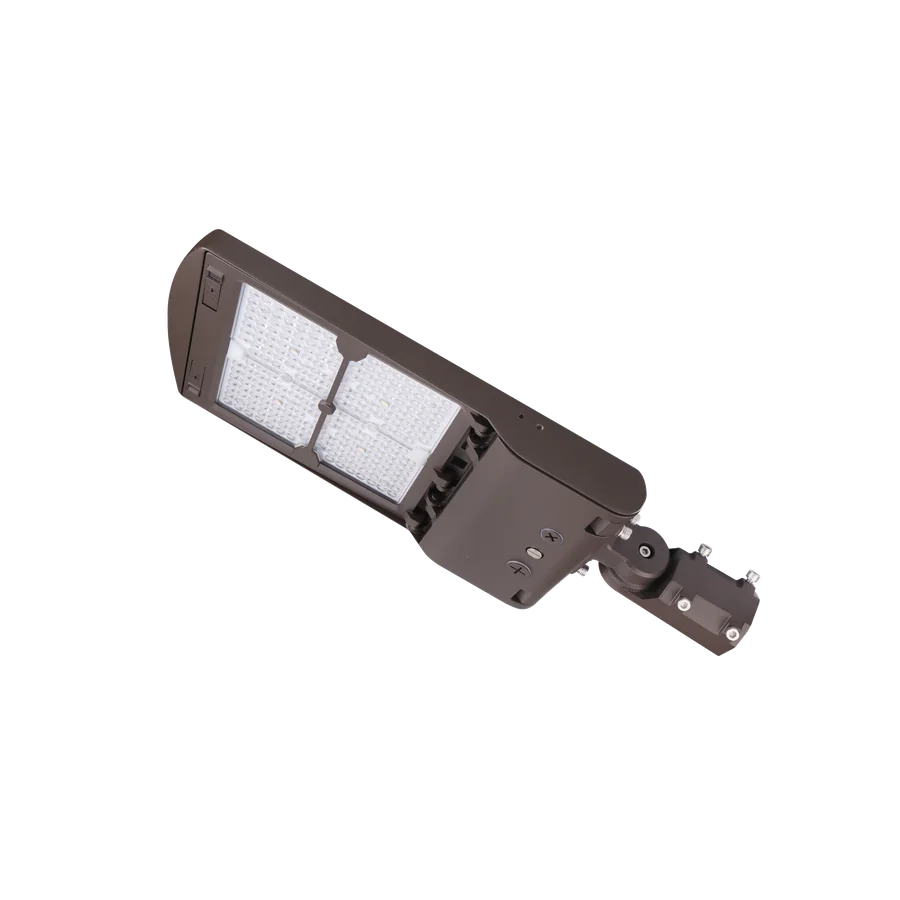

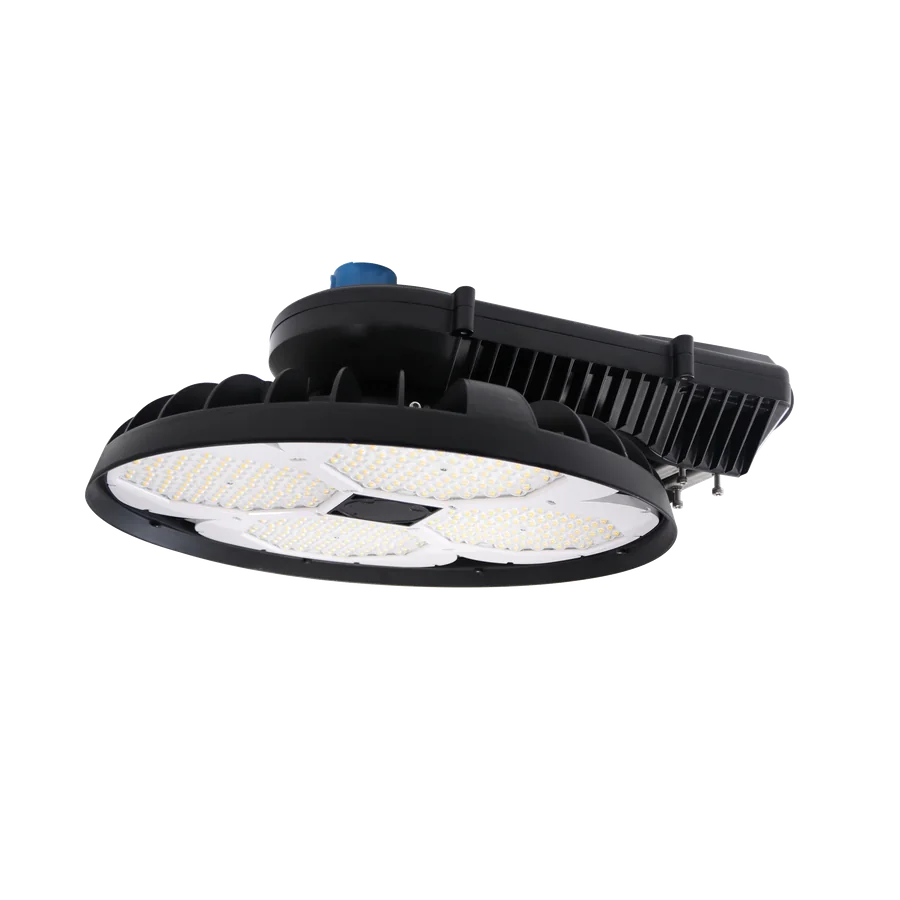

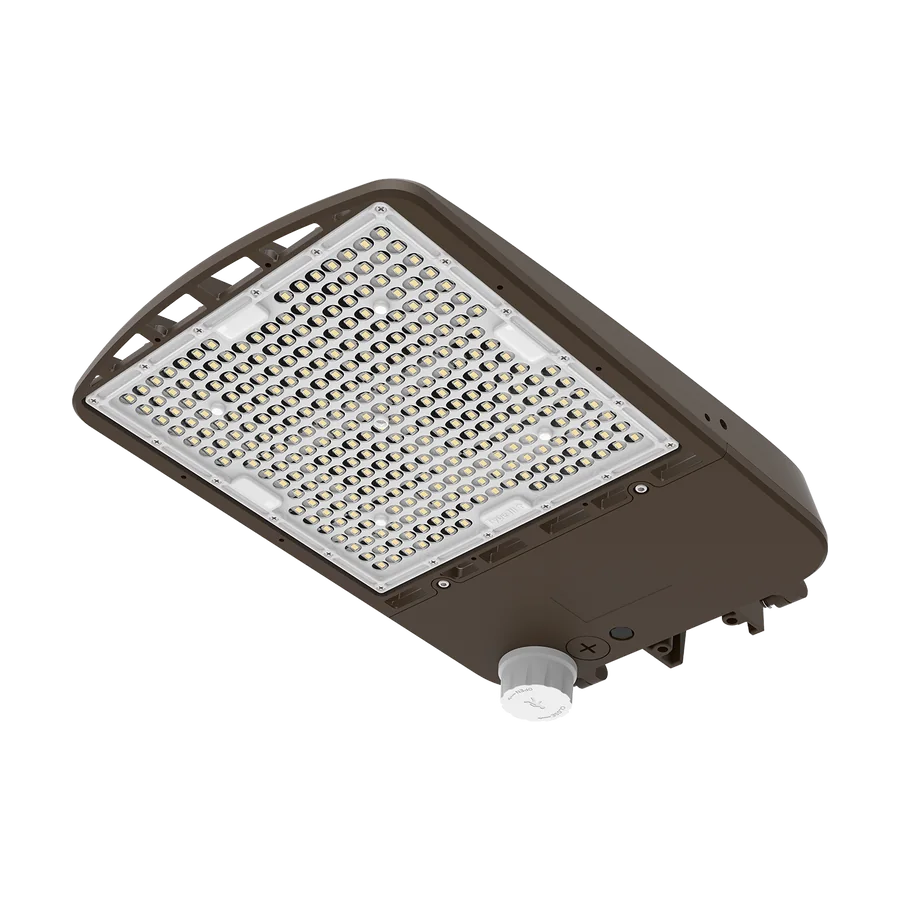

Abbey handles the road. These cross-line fixtures handle everything else around the install — pedestrian-scale lighting, controls, surge protection, and area / wall-pack coverage. Same factory, same warranty, same controls vocabulary.
Direct line to your regional rep.
Twelve US warehouses ship Abbey in 3-5 days. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. No portal-as-the-only-channel: you get a person.
Stack the rebates.
Abbey is DLC Listed (Standard) — qualifying for the broadest pool of utility rebate programs across roadway and parking-lot LED retrofits. We'll match your project to active programs in your ZIP and pull the paperwork.
