LUXA · planoⒶRCH ECO

Lara Architectural LED Linear

Long runs. Straight lines.

Up to 137 lm/W in 2, 4 and 8 ft lengths, with watts, color and up-light all set by switch on the fixture. An iron body keeps long suspended runs straight, and the joiners carry power through, up to 2,075 W on one 277 V feed. Two choices to order: length and finish.

Specification Sheet IES Files Configure For Lead Time

Input Watts10–80 W

Lumensup to 10,370

Efficacyup to 137 lm/W

Ideal applications

Office

Education

Healthcare

Retail

3-WATTselect

5-CCTselect

continuⒶRUN

directⒶIM

Iron Housing

DampGuard

cULus

Damp Location

FCC

RoHS

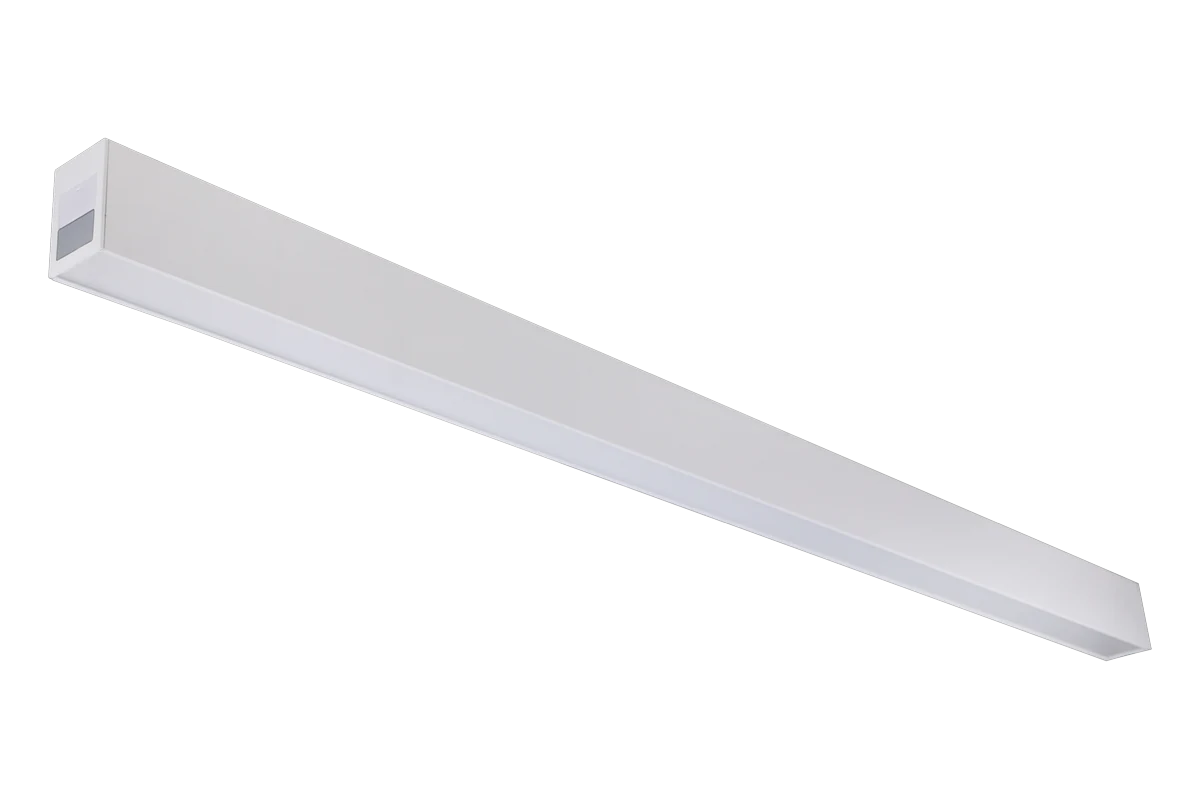

Lara LUXA4 4 ft architectural linear, white finish, three-quarter view

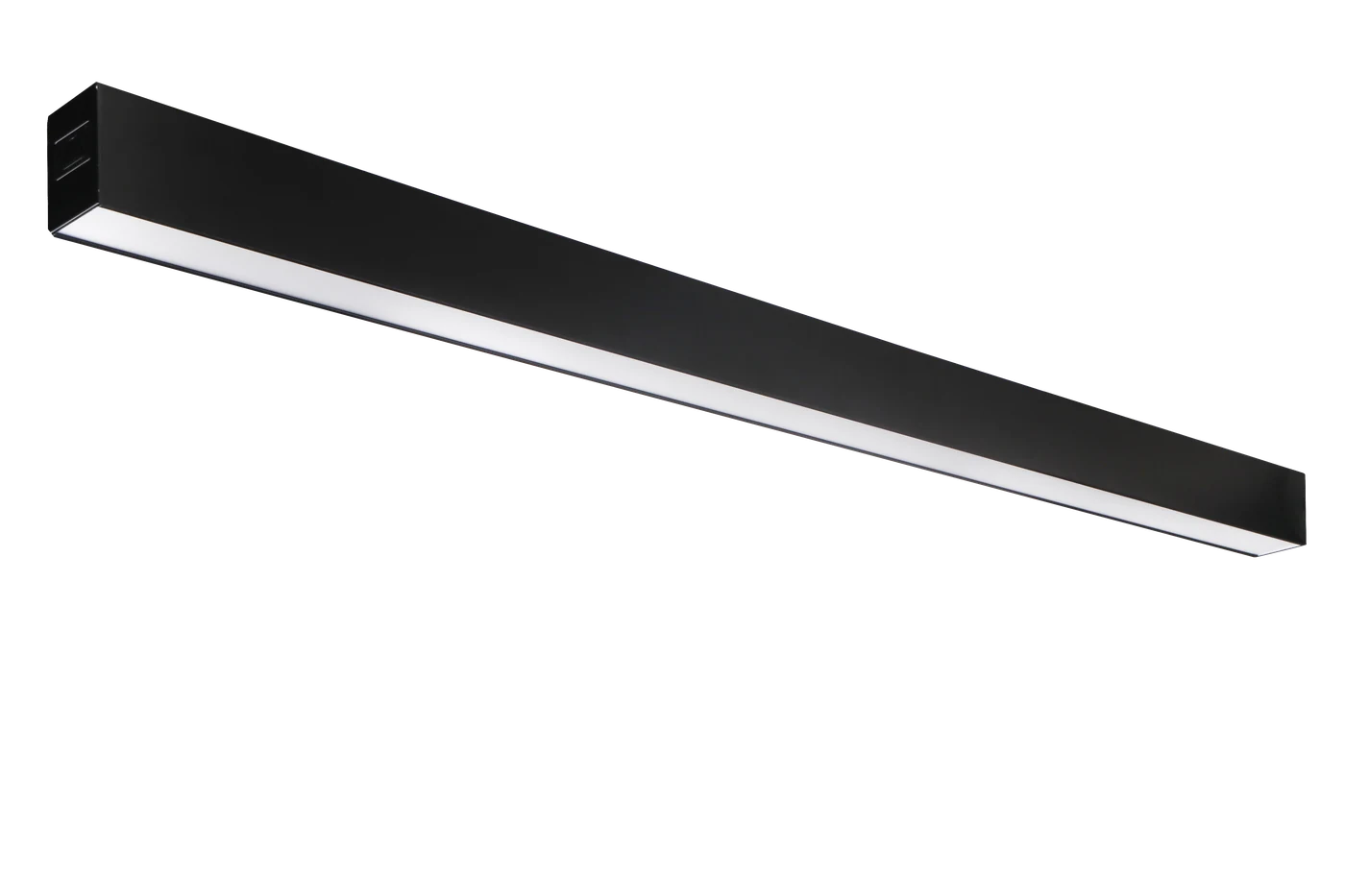

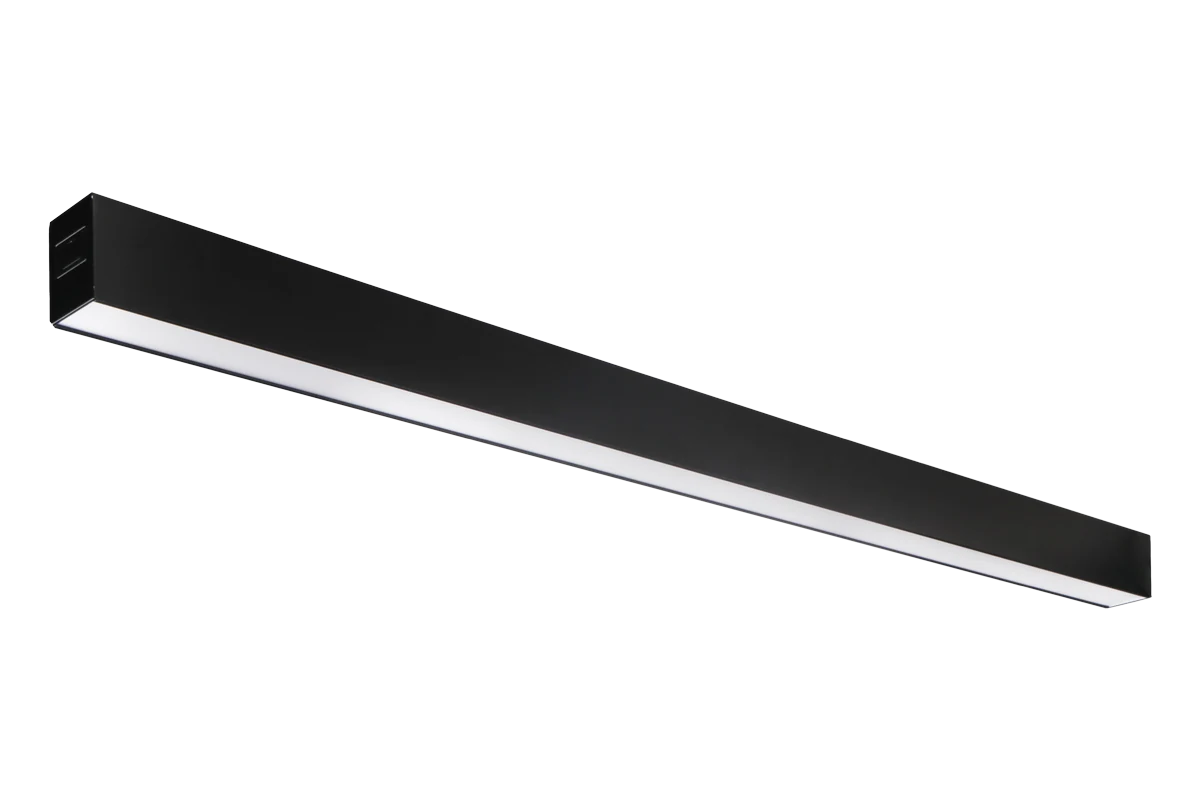

Lara LUXA4 4 ft architectural linear, black finish

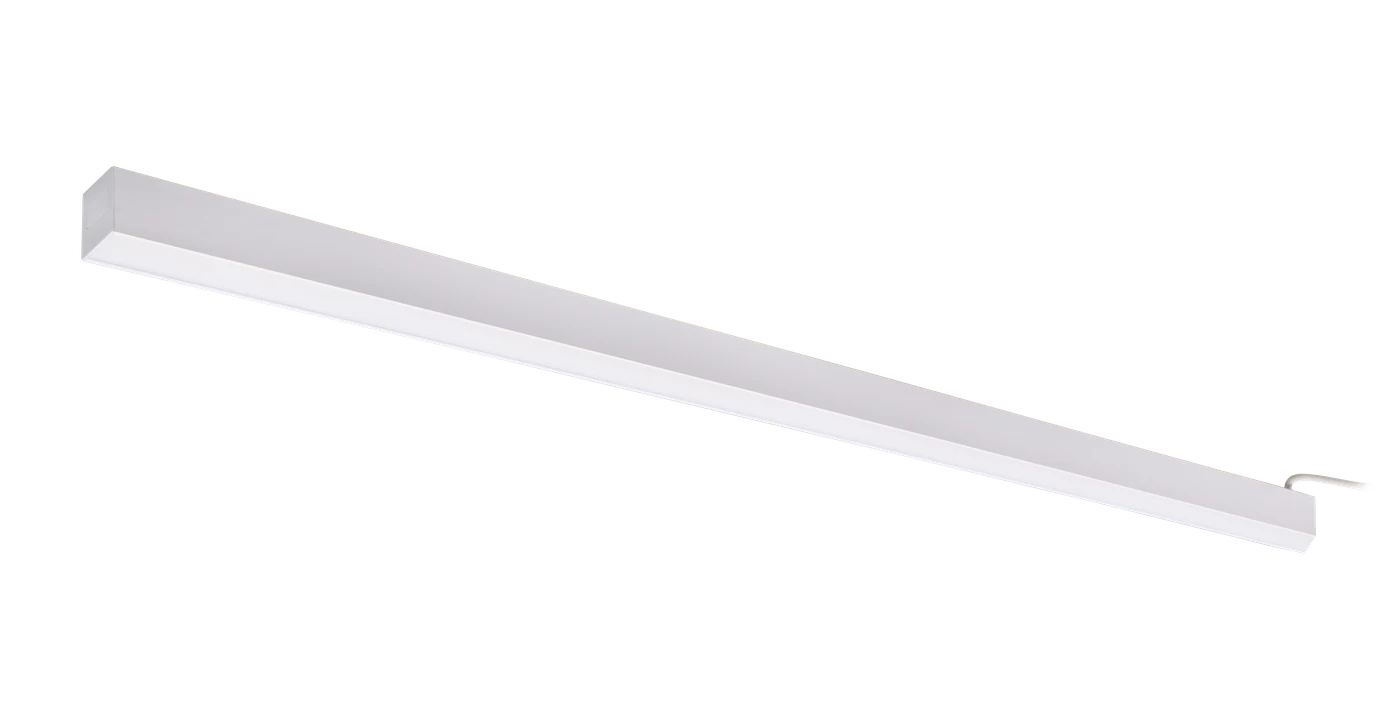

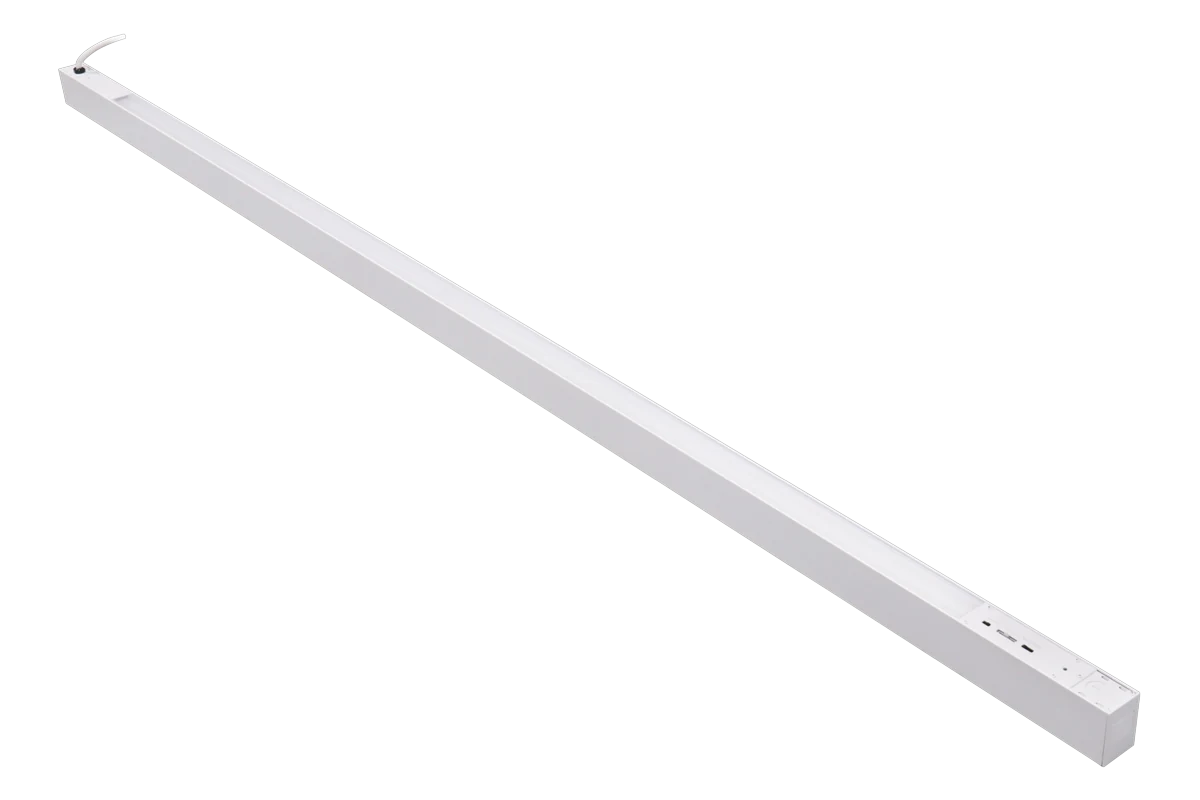

Lara LUXA8 8 ft architectural linear, white finish

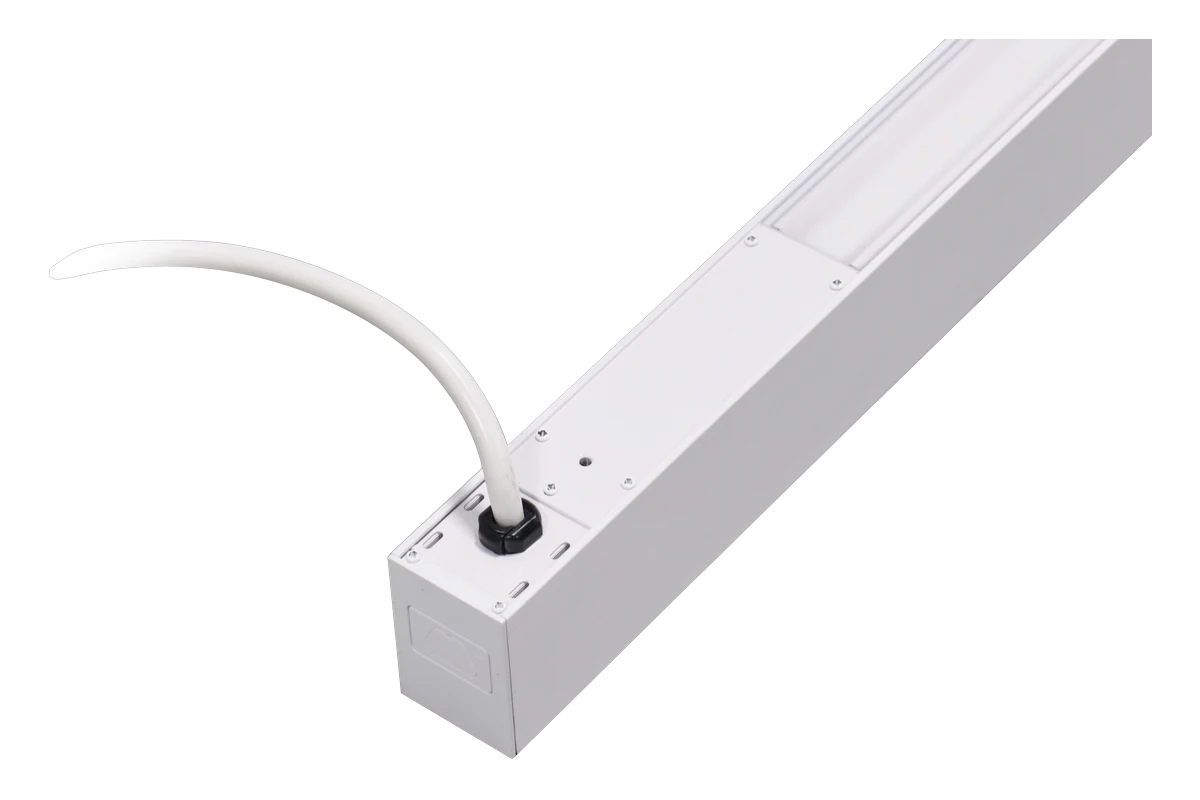

Lara feed end with the power cord leaving the housing

Documentation & Resources

Documents

Data SheetPDF Quick SheetPDF Sell SheetPDF IES Photometric FilesIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the floor plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS by ⒶCSThe sensor, switch and controller this fixture takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

WATTselect	Watts	Lumens	CCTselect	lm/W

★ Default settings. Lumens at 5000K and 0 % up.

ApplicationIndoor · ECO architectural linear · pendant runs

ConstructionIron housing, polyester powder coatWhite or black · frosted acrylic diffuser

Distribution0 / 10 / 15 / 20 % up, set by switchdirectⒶIM · 102° × 90° beam at 0 % up

Dimensions—

Operating temp−4 °F to 113 °Fdamp location · IP40

Electrical120–277 V · 0–10V dimming to 1 % · PF >0.9 · THD <20 % · CRI >80

RunscontinuⒶRUN · 900 W at 120 V · 2,075 W at 277 V

Warranty5 yr · 50,000 hrL90 at 50,000 hr

Full Data Sheet

Engineering

What you set at install, how it hangs, and how the run joins.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

Full IES Library

Engineered Accessories

Configurator

Build Your Lara.

Required *

Length—

Finish—

WATTselecta switch on the fixture · not in the part number40 W

CCTselecta switch on the fixture5000K

Up-lightthe directⒶIM switch0 % up

Optional

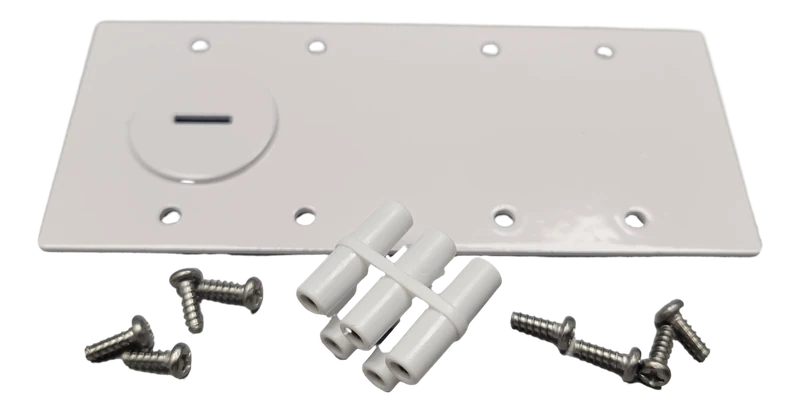

Joinerits own line item · L, T and X in white—

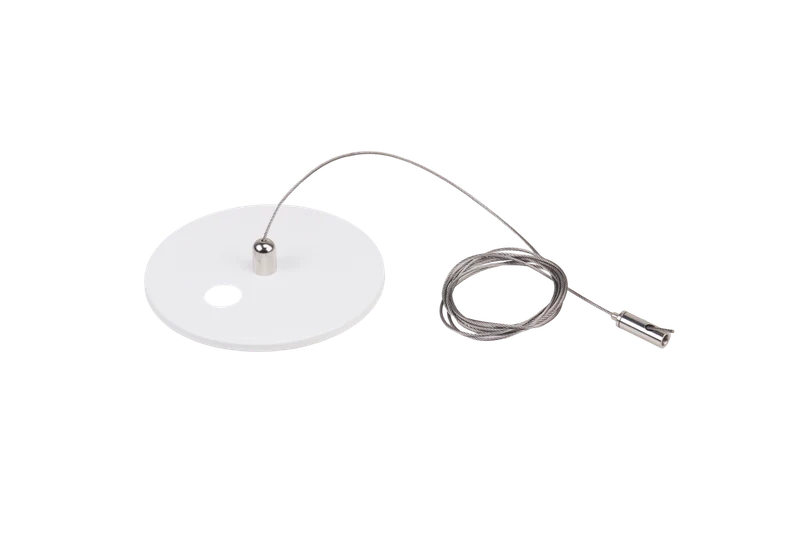

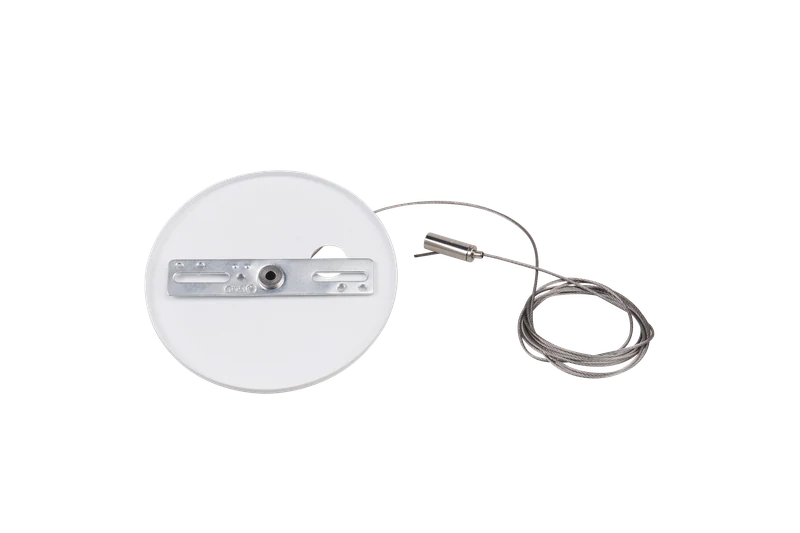

Canopyits own line item · finish follows the fixture—

Suspensionin every carton · adds nothing to the numberIncluded

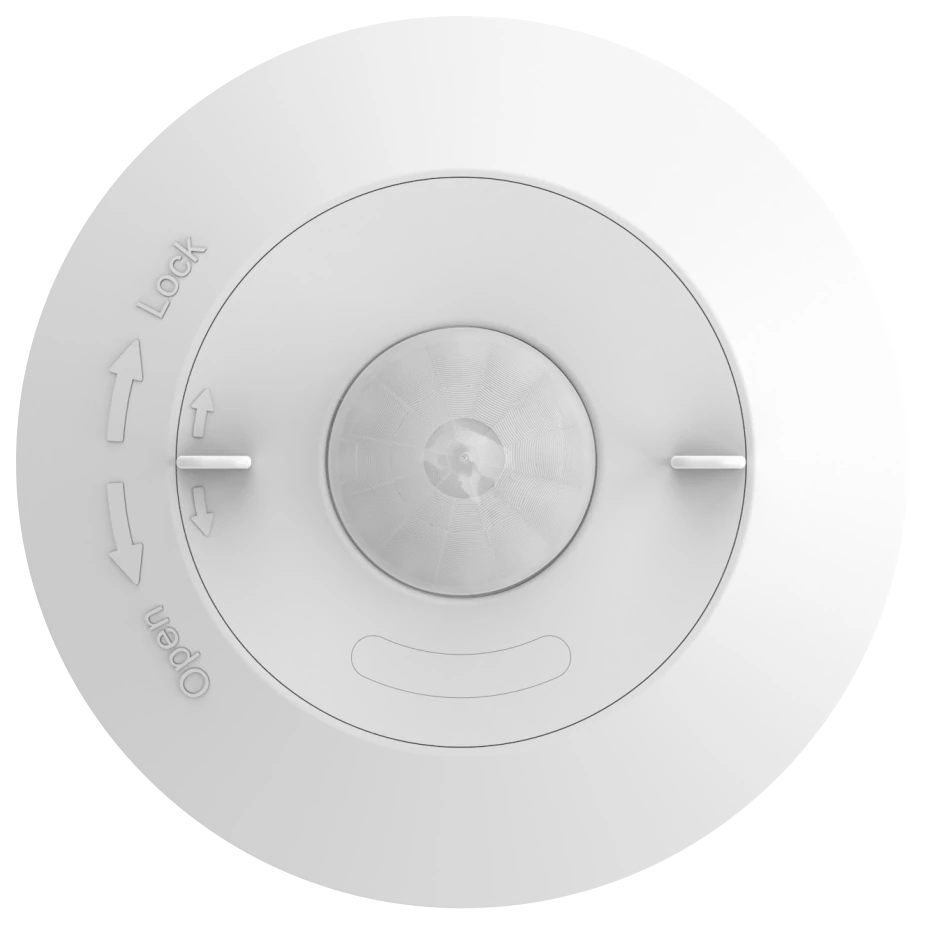

Sensorits own line item · by mounting height—

Wall switchits own line item—

Controllerits own line item—

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingscULus damp location · FCC · RoHSCheck Rebate Center for utility programs before you specify.

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

planoⒶRCH Family

Lara is the ECO linear and Luna the PRO+ one. The panels and the downlight fill the rest of the room.

You are here Lara architectural linear

LUXA · ECO Lara 2, 4 and 8 ft, 10–80 W. Up to 137 lm/W, and runs to 2,075 W on one feed. 5 yr / 50,000 hr Specification Sheet → Product Details · this page

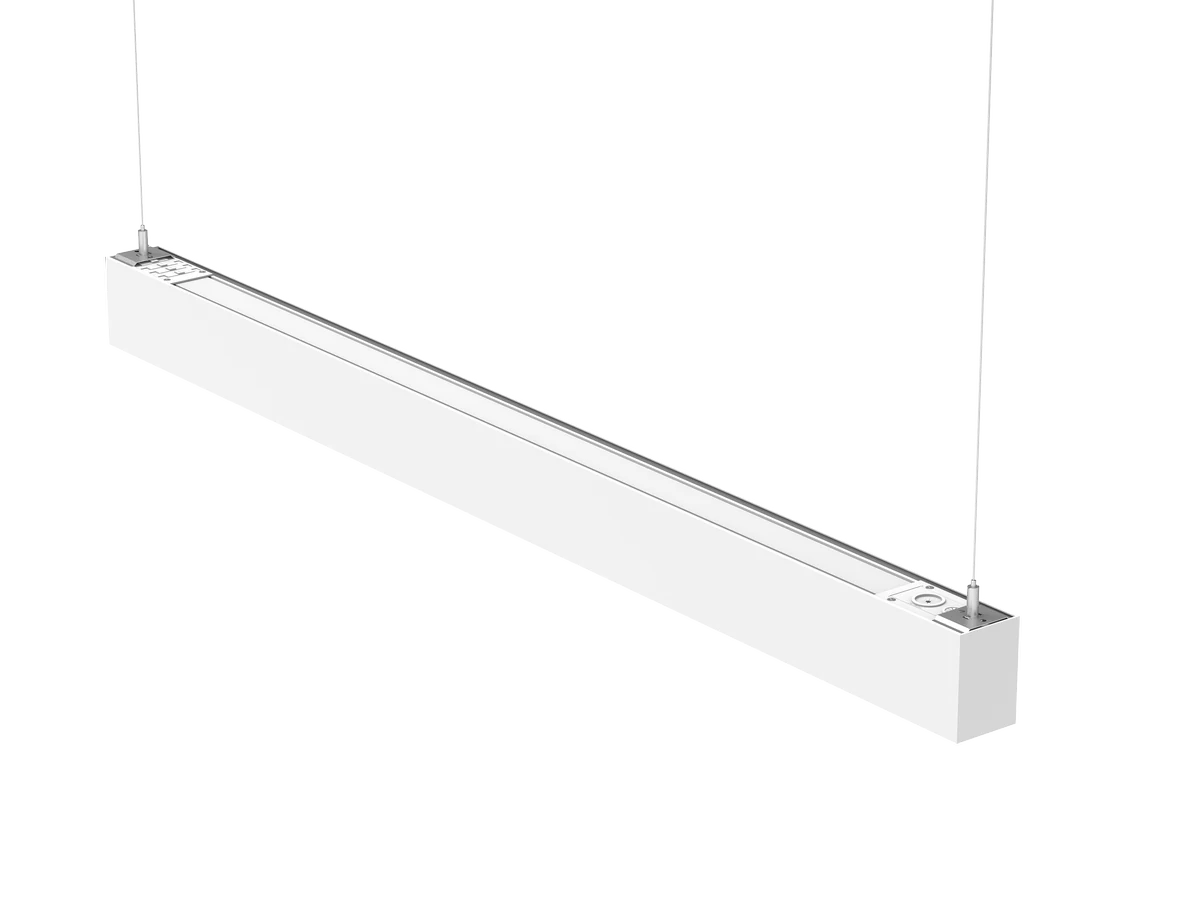

LUXA · PRO+ Luna The specification-grade linear, with a choice of optics. It mounts pendant, recessed, surface or wall. 2 / 3 / 4 / 8 ft Specification Sheet → Product Details →

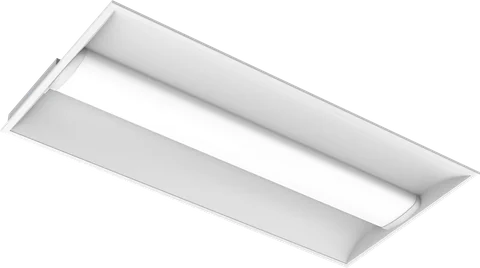

LPVT · PRO proⒶRCH-T A volumetric troffer for grid ceilings, where a pendant does not fit. 2×2 · 2×4 Specification Sheet → Product Details →

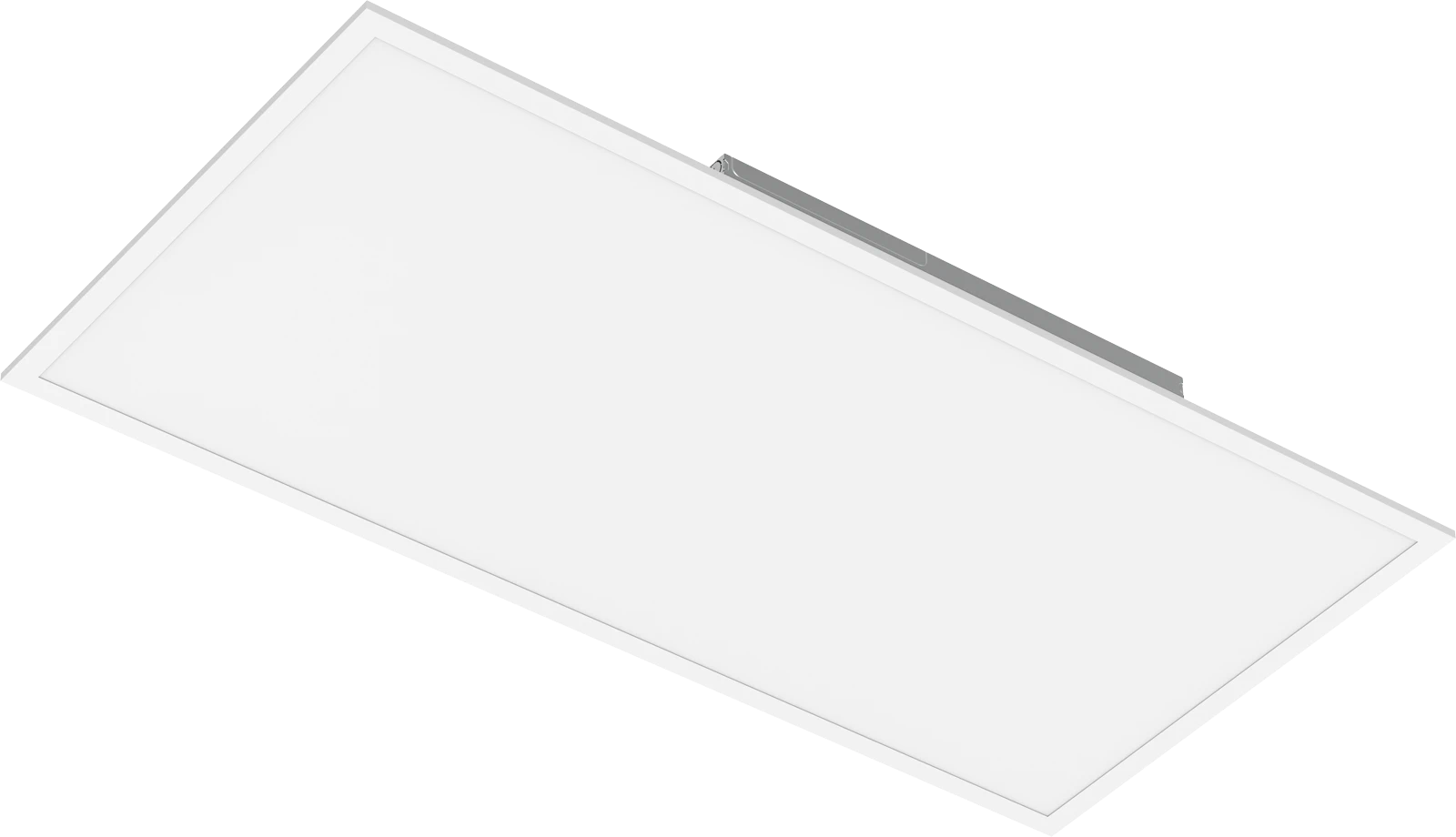

LBLP · PRO proⒶRCH A back-lit flat panel for grid ceilings in offices and classrooms. Back-lit panel Specification Sheet → Product Details →

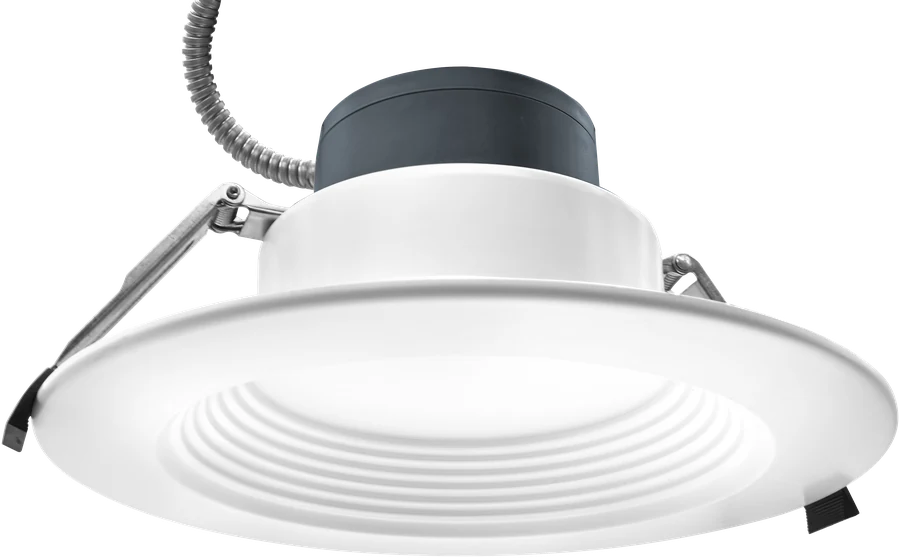

LCDL · ECO Solstice A can-less downlight for the entries, lobbies and restrooms around a Lara run. 4″ / 6″ / 8″ / 10″ Specification Sheet → Product Details →

Specifier Support

Send us the floor plan.

We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Quotes and rebate matches come back the same day.

3 BDLayout turnaround

Same dayQuote reply

Find A Rep Request A Layout

Rebates

Utility programs, checked for you.

Send us the job ZIP and your catalog number. We check which utility programs apply before you specify, and send the forms back with the answer.

137lm/W peak step

2,075 WRuns at 277 V

10–80 WOne family

Open Rebate Center
