FIELD-SET
3-WATTselect set before install · 3-CCTselect 3000 / 4000 / 5000K · Sloped top prismatic lens · Photocell with ON/OFF switch, every number · constⒶNT /EM08 · IP65
ARCHIPELAGO
Lighting Group
Electrical & Optical
| Input voltage | 120–277V, 50/60 Hz |
| Dimming | 0–10V |
| Power factor / THD | PF ≥0.9 · THD ≤20 % |
| Surge protection | 6 kV, on board |
| CRI | 70 |
| Controls | Photocell with ON/OFF switch, built in (/PS) |
| CCT and WATTselect | Set by switch on the fixture · not encoded in the catalog number |
Construction & Environment

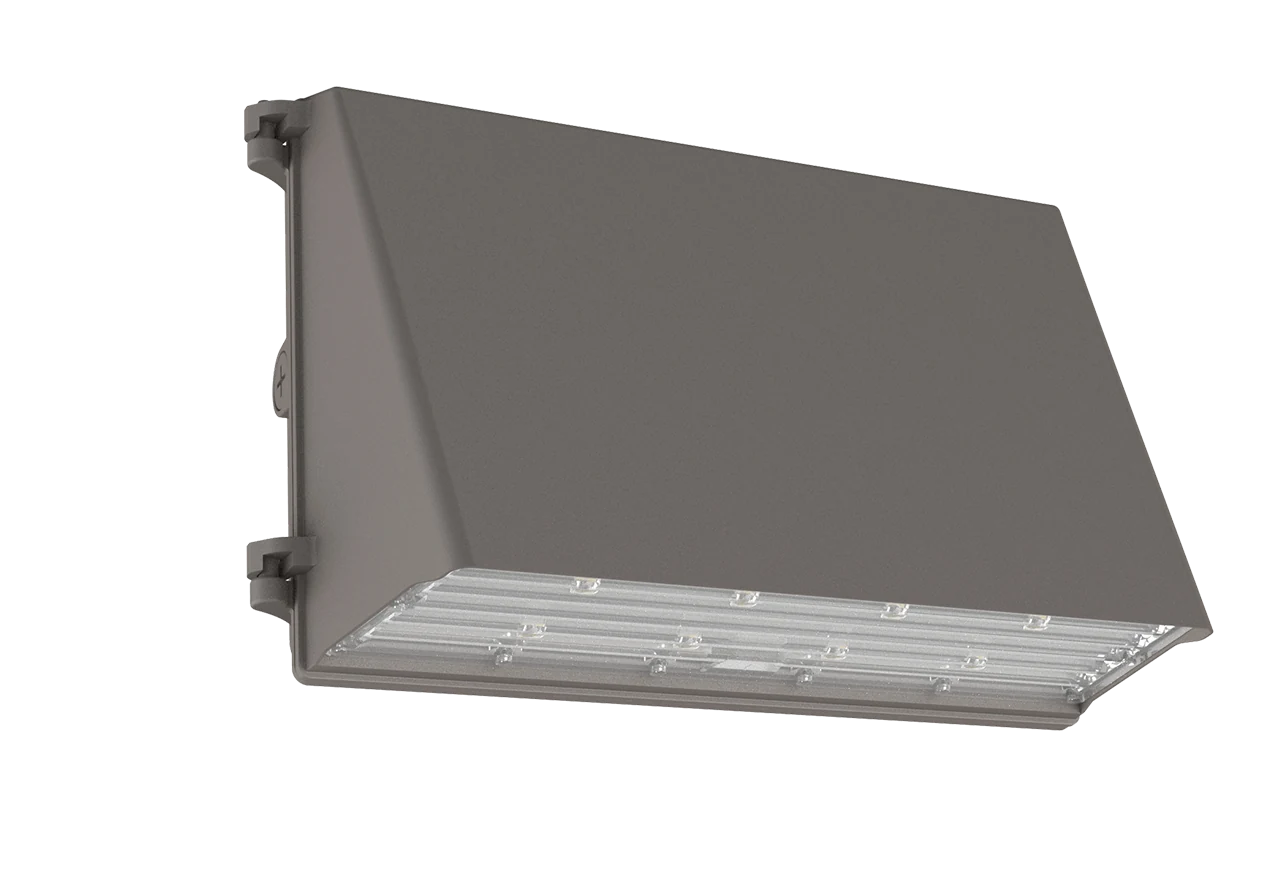

| Housing | Die-cast aluminum · sloped top · Dark Bronze, or White on the 120 W |
| Lens | UV-stabilized prismatic polycarbonate |
| Operating ambient | −40 °F to 113 °F |
| Location | cULus Listed · wet location · IP65 |
| Mounting | Wall surface or over a standard J-box |
| Warranty | 5-year / 50,000-hour limited |
cULusWet LocationIP65FCCRoHS
ARCHIPELAGO
Lighting Group
Bill of materials — this build
| # | Item | Selection | Catalog number | On the order |
|---|
Housing, finish and the emergency build are the catalog number; the photocell is in every number. Watts and color are set on the fixture and are not in it. The mounting plate is its own order line.
Every fixture catalog number
Accessories — ordered separately
ARCHIPELAGO
Lighting Group
04 · Photometrics & Dimensions
Beam angle (50 % of peak)
—
Dimensions
No DLC listing is claimed for this family. Rebate Center shows what your utility pays and the forms it needs, by ZIP.
Full IES library:
