ARCHIPELAGO
Lighting Group

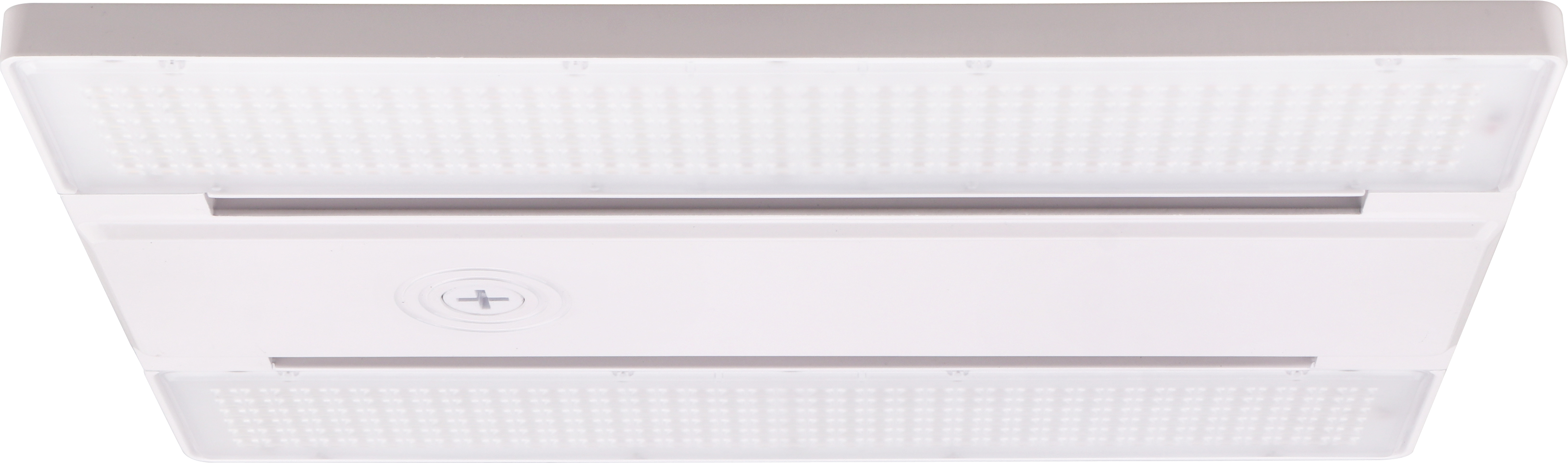

FIELD-SET
3-WATTselect set at install · 2-CCTselect 4000K / 5000K · OpticⒶDAPT field-swap optics · contrⒶLS-Ready sensor receptacle
ARCHIPELAGO
Lighting Group
Electrical & Optical
| Input voltage | 120–277V (UT) · 277–480V (HT, not the 600 W class) |
| Dimming | 0–10V, 0 to 100 % |
| Power factor / THD | PF ≥0.9 · THD ≤15 % |
| Surge protection | 6 kV line-to-neutral and line/neutral-to-ground, on the board · in-line 10 / 20 kV optional |
| CRI | >80 |
| Optics | Wide 90° × 90° · medium 65° × 65° · aisle 40° × 90° · ±15 % · UGR <28 |
| CCT and WATTselect | Set by dip switch at install · not encoded in the catalog number |
Construction & Environment
| Housing | Die-cast aluminum, iron-phosphate coat with rust inhibitor · white |
| Lens | UV-stabilized polycarbonate |
| Operating ambient | −40 °F to 140 °F · −22 °F to 140 °F with a sensor · 32 °F to 122 °F with emergency backup |
| Location | cULus Listed (US & Canada) · damp location |
| Lumen maintenance | 90 % output at 50,000 hr |
| Warranty | 7-year / 75,000-hour limited · extended terms offered |
DLC PremiumcULusDamp LocationFCCRoHSTAA option
ARCHIPELAGO
Lighting Group
Bill of materials — this build
| # | Item | Selection | Catalog No. | On the order |
|---|
Class, voltage, optic and /TAA are the catalog number. Watts and color are set on the fixture at install and are not in it. Each accessory is its own order line with its own catalog number; an emergency backup is installed at the factory with its J-box.
Every fixture catalog number
Accessories — ordered separately
ARCHIPELAGO
Lighting Group
04 · Photometrics & Dimensions
Beam angle (50 % of peak)
—
Dimensions
Check Rebate Center for the DLC QPL ID of your catalog number before you specify.
Full IES library:
