LRHB · lamparⒶRCH PRO

Jupiter LED Round High Bay

Round bay, two series, up to 400 watts.

Two series, one round bay. Jupiter-III: three housings from 90 to 300 W, up to 50,000 lumens at 163–178 lm/W, with wattage, CCT and a 70°, 90° or 110° beam on switches, and 277–480 V on every housing. Jupiter-II: four housings to a 400 W model, up to 67,200 lumens, DLC Premium, with a /TAA build. IP65, wet location and sensor-ready on both.

Jupiter-III Spec Sheet Jupiter-II Spec Sheet Configure For Lead Time

Input Watts90–400 W

Lumensup to 67,200

Efficacyup to 178 lm/W

Ideal applications

Warehouse & Distribution

Manufacturing

Gyms & Retail

3-WATTselect

3-CCTselect

BeamLogic · III

DLC Premium · II

Sensor-Ready

surgeⒶRMOR

WetGuard

DLC Premium

cETLus Listed

cULus

IP65

IK08

Wet Location

FCC

RoHS

TAA

DLC Premium, cETLus, FCC, RoHS and TAA: Jupiter-II. cULus and IK08: Jupiter-III. IP65 and wet location: both.

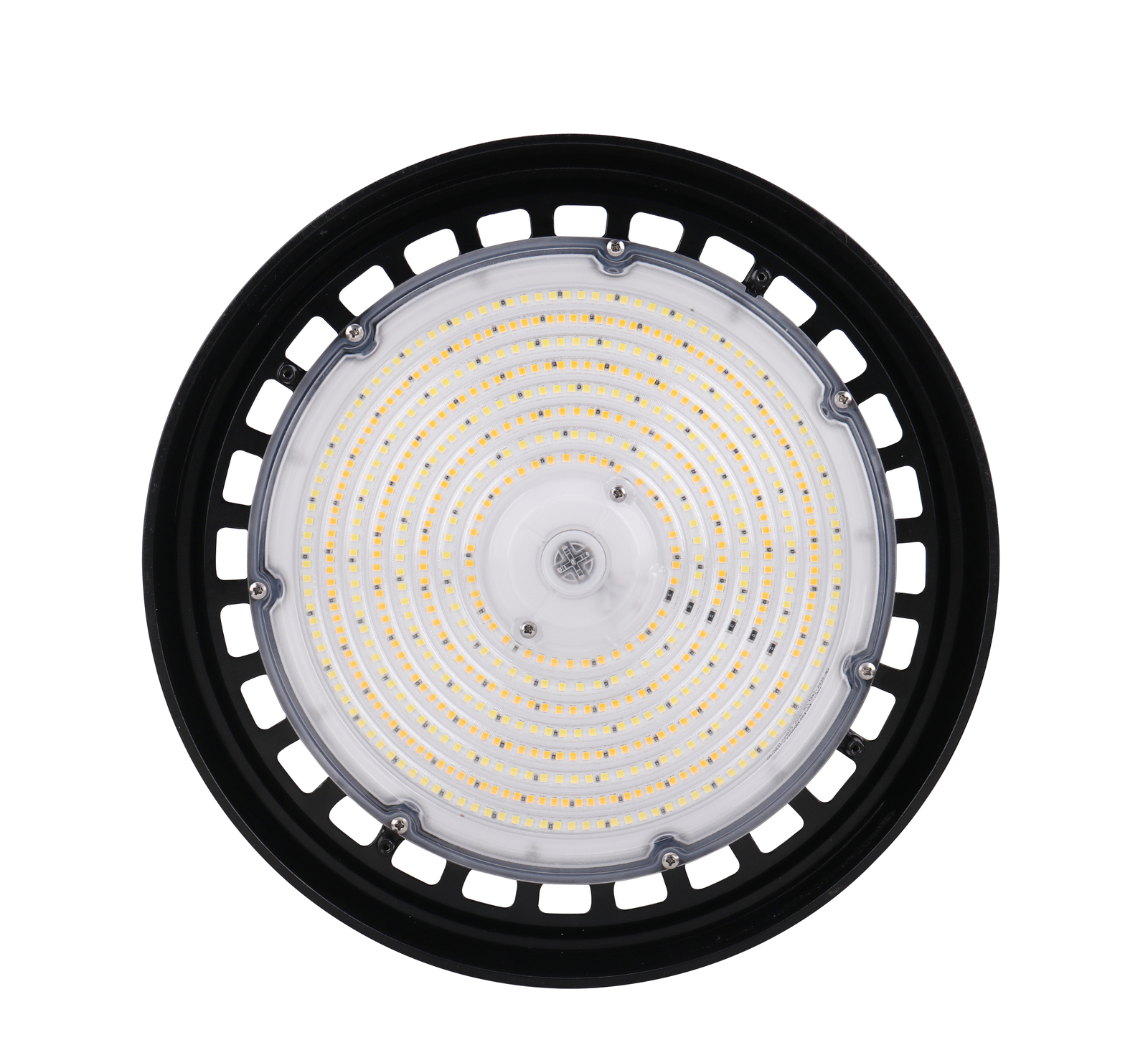

Jupiter-III LED round high bay, lens face with the plug-in sensor

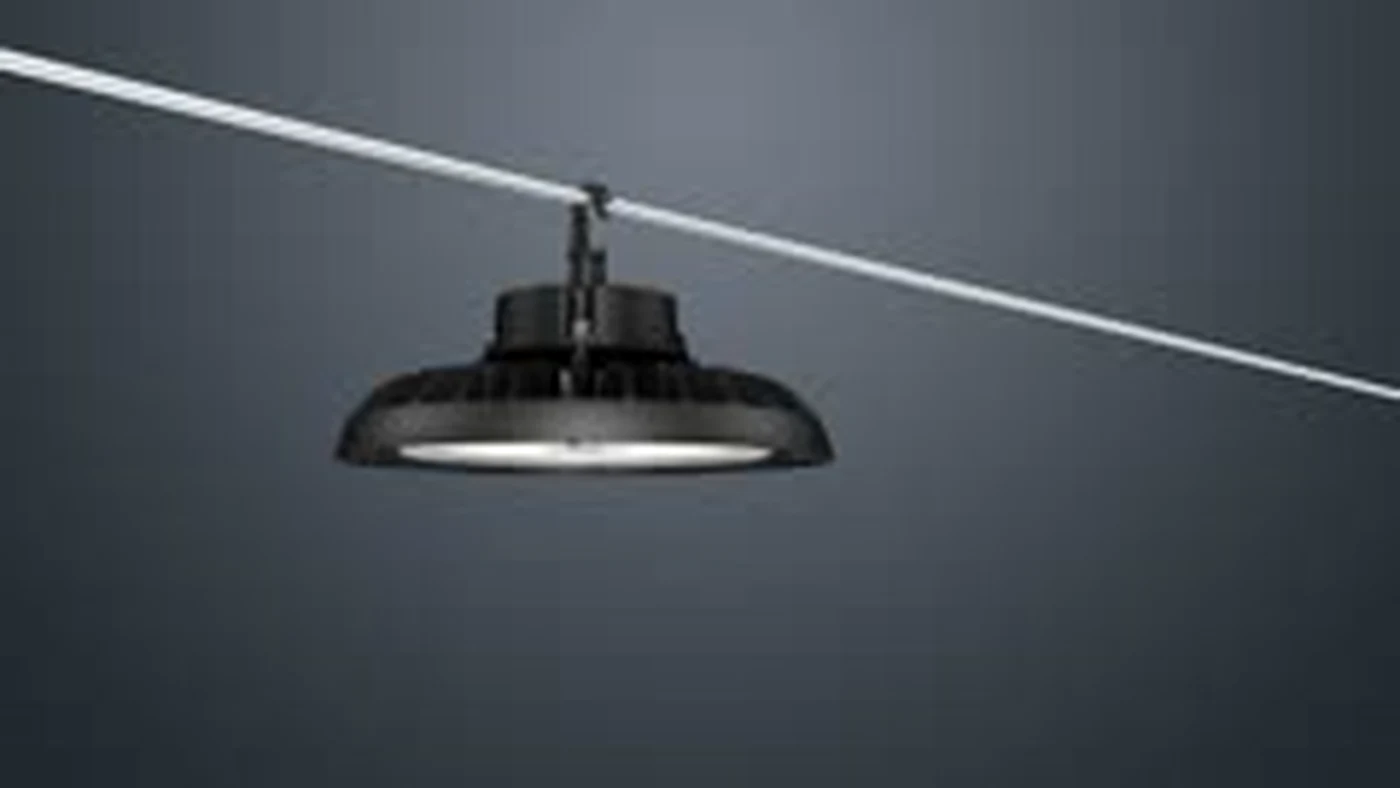

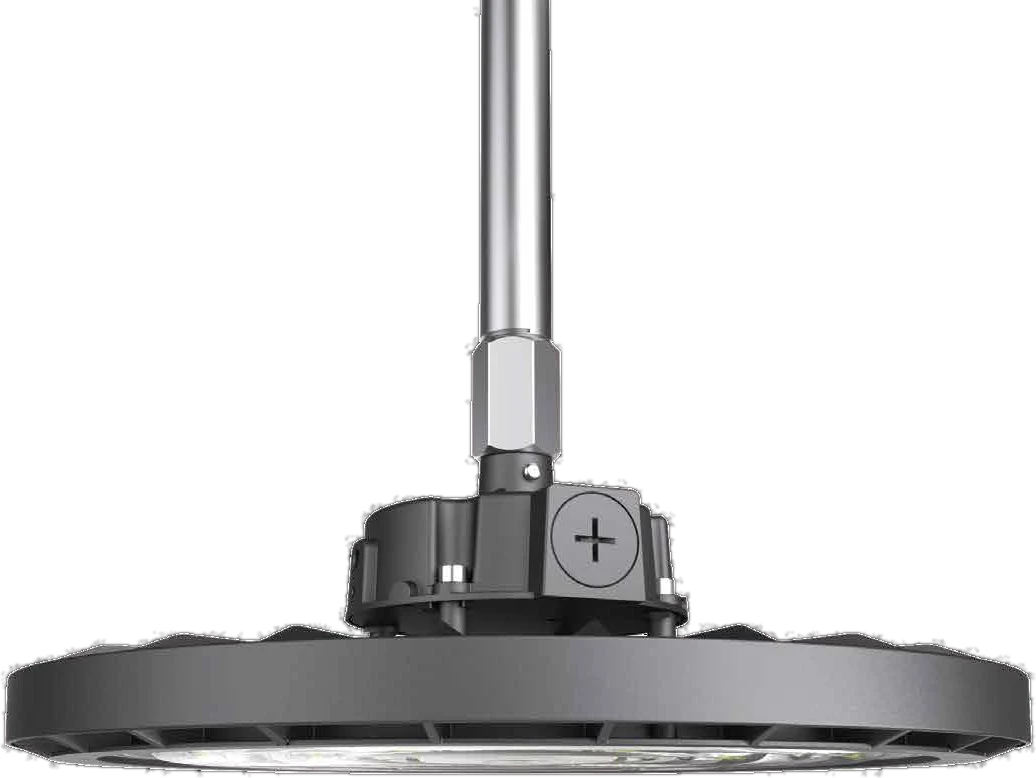

Jupiter-III LED round high bay on a conduit pendant

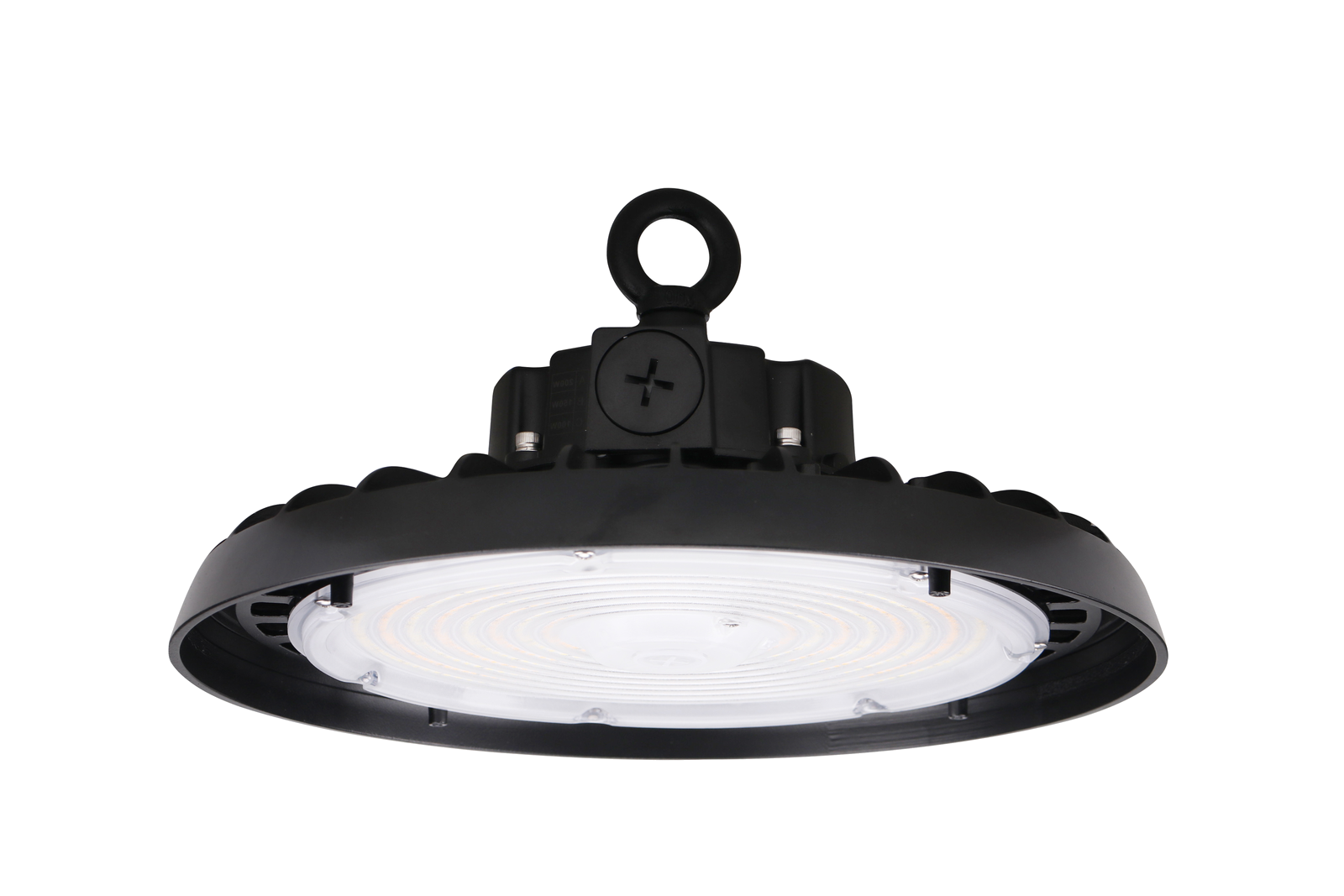

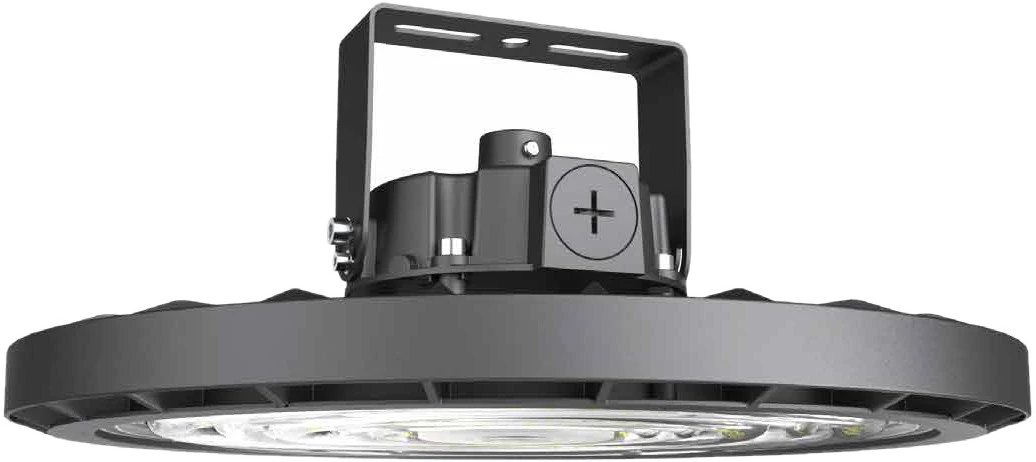

Jupiter-III LED round high bay on the U-bracket

Jupiter-II LED round high bay with the mount ring, side view

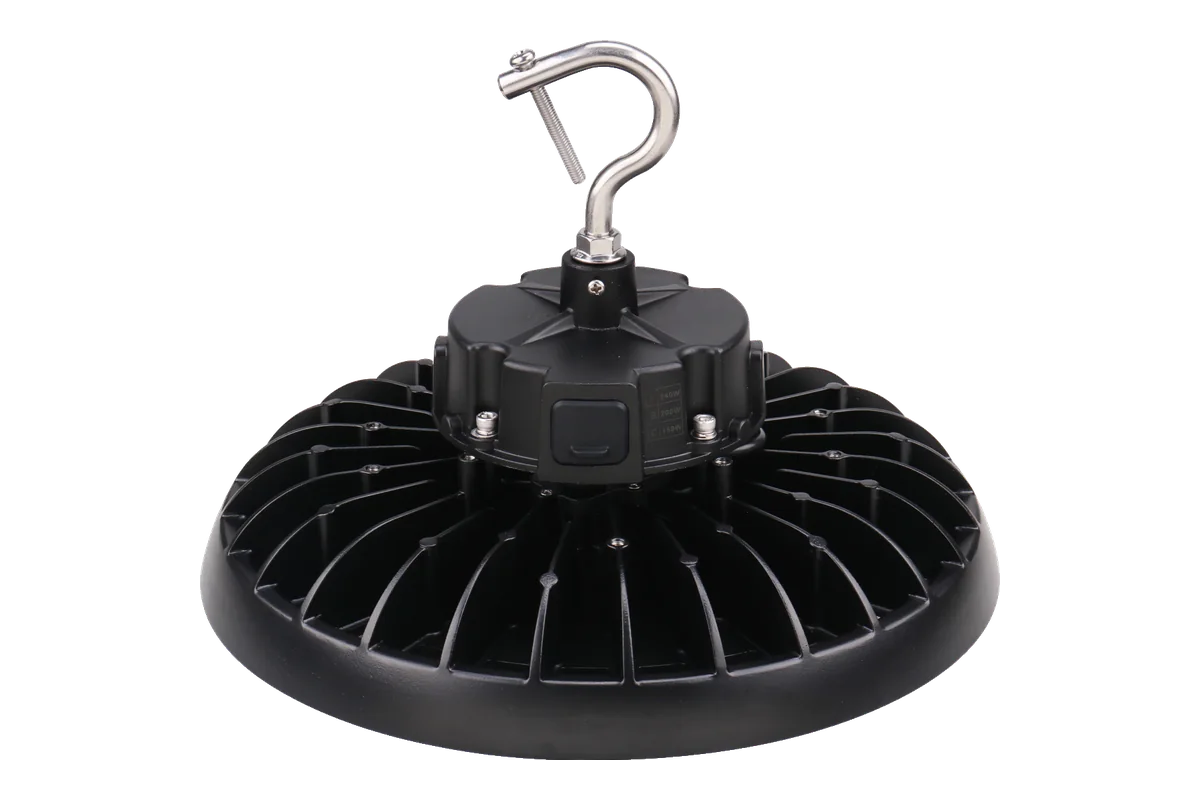

Jupiter-II LRHB240 LED round high bay on a stainless hook

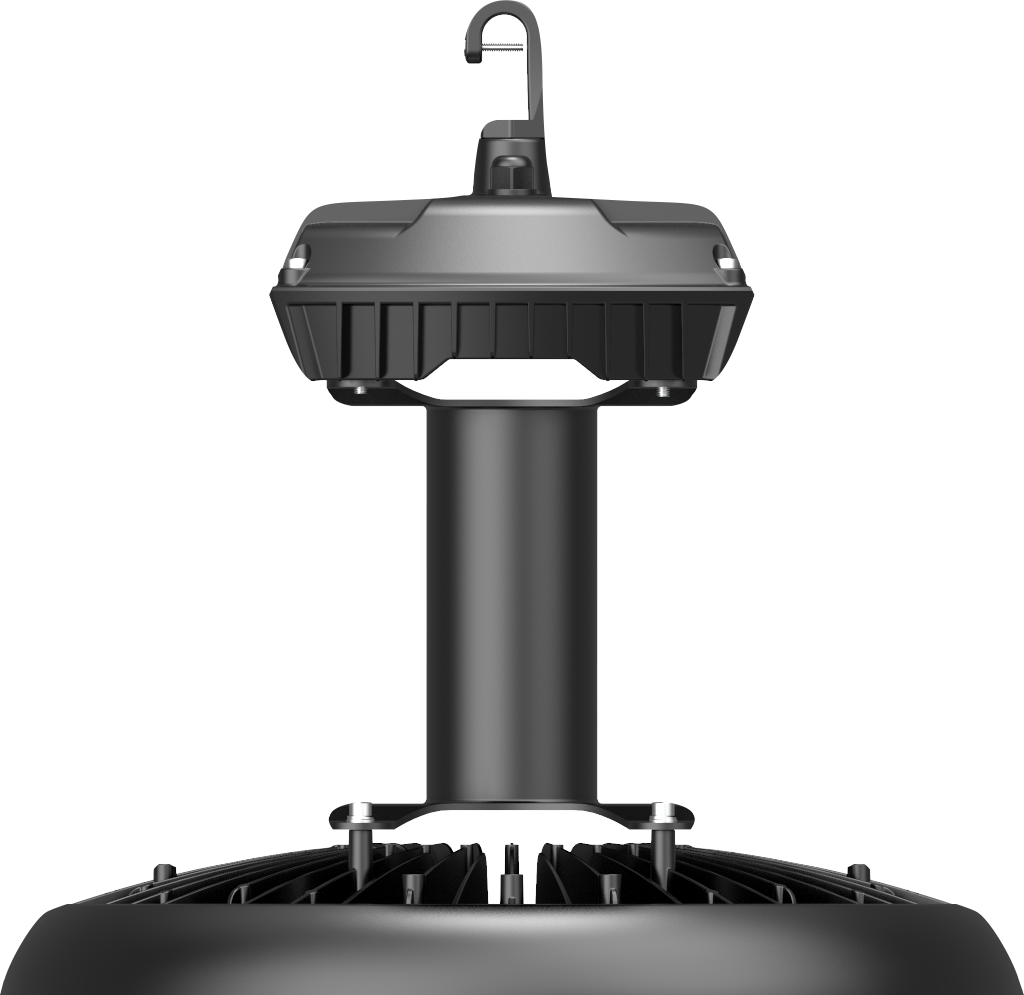

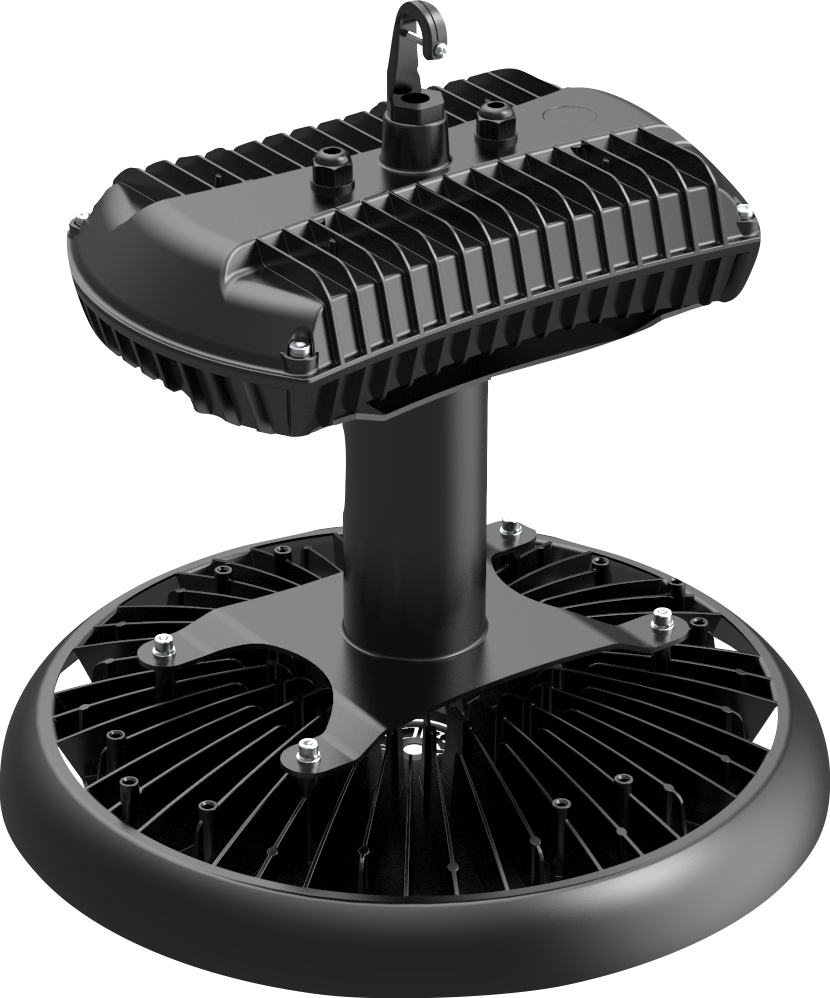

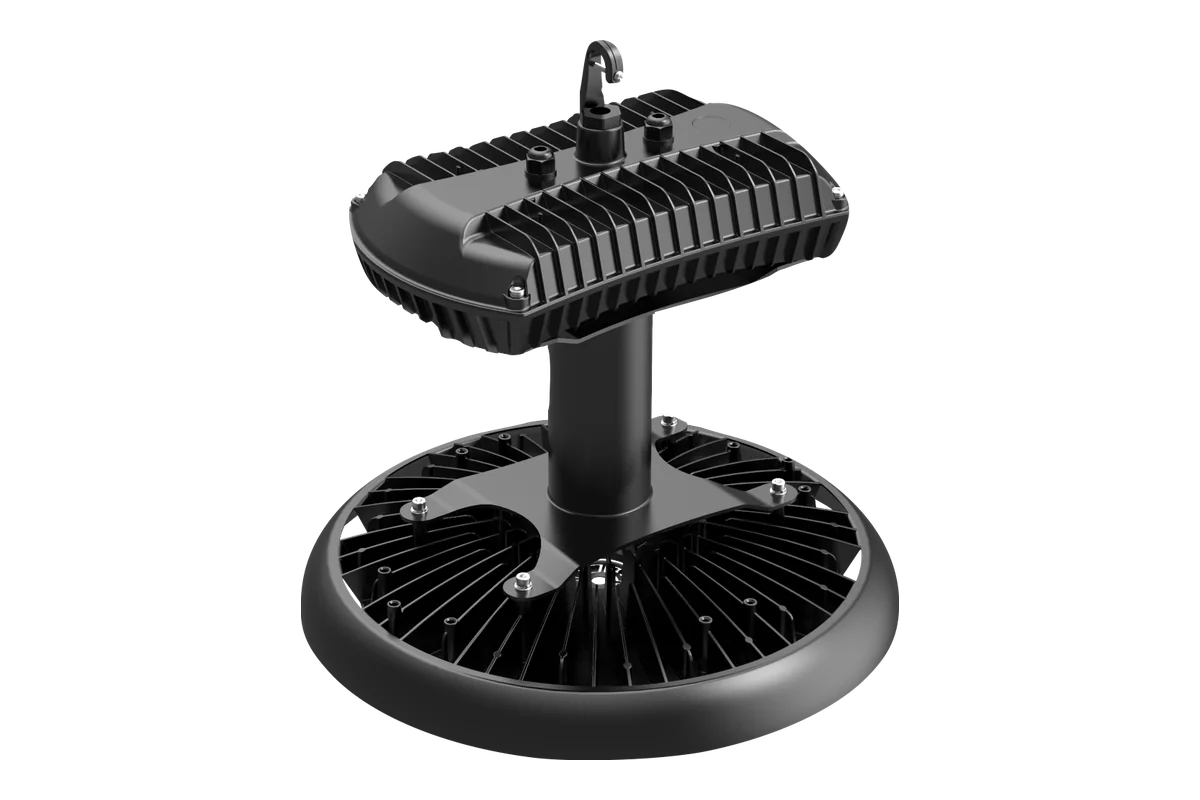

Jupiter-II LRHB400 LED round high bay, 400 W model with the driver on a stem

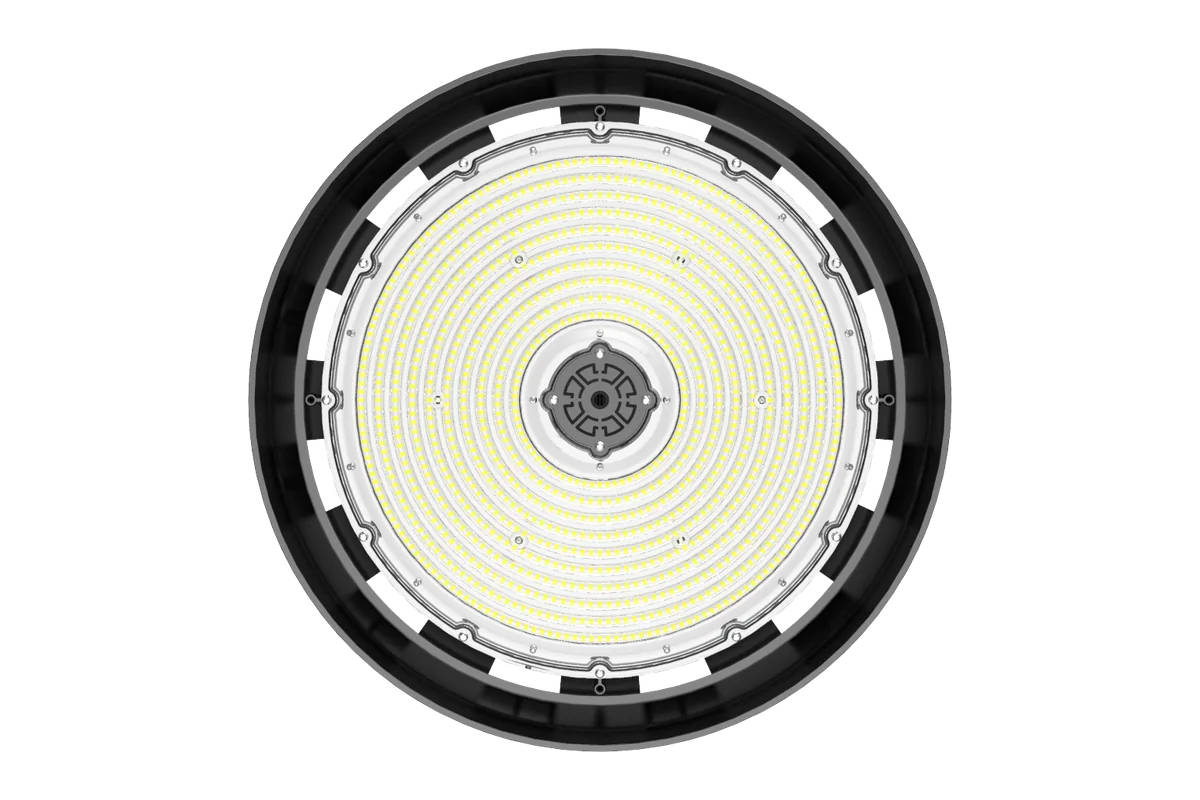

Jupiter-II LRHB400 LED round high bay lens face

Documentation & Resources

Documents

Data Sheet · Jupiter-IIIPDF Quick Sheet · Jupiter-IIIPDF Sell Sheet · Jupiter-IIIPDF Installation Guide · Jupiter-IIIPDF IES Files · Jupiter-IIIIES Data Sheet · Jupiter-IIPDF Quick Sheet · Jupiter-IIPDF Sell Sheet · Jupiter-IIPDF Installation Guide · Jupiter-IIPDF IES Files · Jupiter-IIIES Submittal PackageBuild

Tools & Support

Free Photometric LayoutSend the floor plan, get fixture count and foot-candles.3 business days Rebate CenterActive utility programs and the forms, by ZIP.Open contrⒶLS CompatibilityWhich heads and platforms this fixture takes.View

Warranty Statement Ask For Something Else Find A Rep

Model Specifications

WATTselect	Watts	Lumens	CCTselect	lm/W

Jupiter-III figures are its datasheet's, nominal at 4000K and 90°: 3000K reads about 10 % lower, 5000K 2–4 % lower, and 70° or 110° 2–6 % lower. Its measured files read 139–182 lm/W (Photometrics). The datasheet prints no factory switch setting.

ApplicationIndoor · PRO round high bay · three housings, 90–300 WJupiter-III · replaces up to 1,000 W metal halide

ConstructionDie-cast aluminum, corrosion-resistant powder coat · blackDriver separated from the LED board · prismatic PC lens, IK08 · IP65

OpticsBeamLogic 70° / 90° / 110°, set on the housing · UGR <28Measured 70–109° at 50 % of peak · reflector or drop lens through your ALG rep

Dimensions—

Operating temp−40 °F to 131 °F41 °F to 131 °F with the emergency battery · IP65 · wet location

Electrical120–277 V (27VJ3) or 277–480 V (48VJ3) · 0–10V dimming, 10–100 % · PF >0.9 · THD <20 % · 6 kV surge · CRI 80Supply wire rated 194 °F minimum

Warranty7 yr · 75,000 hrBoth series

Jupiter-III Data Sheet Jupiter-II Data Sheet

Engineering

How each series hangs, what you set at install, and what bolts on in the field.

Photometric Distribution

Peak Candela

—

Lumens

—

Beam Angle · 50 % of peak

—

Test Source

IESNA LM-63 / LM-79

Jupiter-III IES Files Jupiter-II IES Files

Engineered Accessories

Configurator

Build Your Jupiter.

Required *

Seriesboth sold side by side—

WATT class—

Colorin the catalog number—

Voltagein the catalog number—

Build—

Dip switchesset on the fixture · not in the catalog number—

Optional

Mountring standard on both—

Reflectorfield-install · by housing—

Guard or diffuserdiffuser needs a reflector—

Emergencyexternal · field-install—

Sensorin the receptacle—

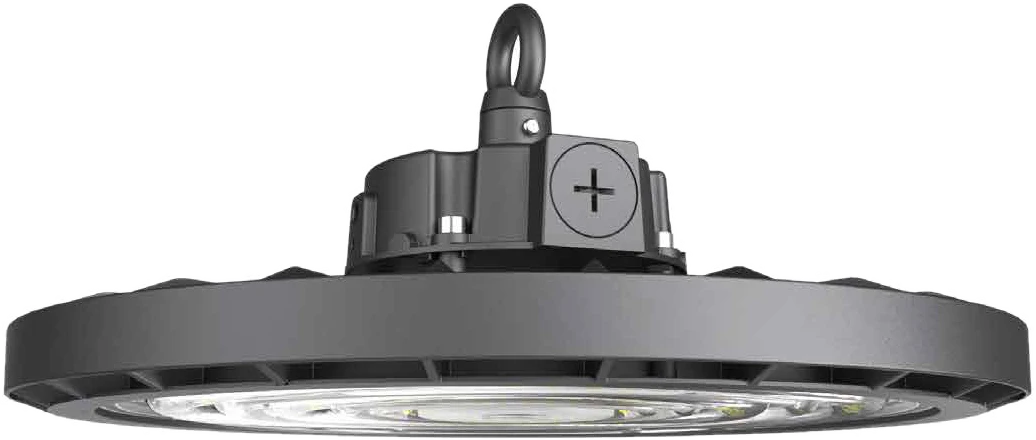

Your catalog number

Your Catalog Number

Catalog number

Output—

Efficacy—

Distribution—

Dimensions—

ListingscULus Listed · IP65 · wet location · IK08 lens

Generate Submittal Request A Layout

Get your pricing, check stock and more:

Distributors · Facility Teams I Buy From ALG Your account pricing and ordering, with your rep credited automatically. Sign In To ALG Shop Sales Representatives I’m an ALG Sales Rep Check stock and pricing for your accounts in AURA. Sign In To AURA Find A Rep

High-Bay Family

Jupiter is the PRO round bay in two series, and Millennium the 410 W PRO round bay for the tallest bays; Icarus is the ECO one. Apollo and Titan are the linear bays.

You are here Jupiter-III LRHB PRO round high bay

LRHB · PRO Jupiter The PRO round bay in two series: Jupiter-III, 90–300 W with BeamLogic and 277–480 V, and Jupiter-II, four housings to a 400 W model. Up to 67,200 lm · 7 yr / 75,000 hr Jupiter-III Spec Sheet → Jupiter-II Spec Sheet →

LRHB · PRO Millennium One 410 W housing for bays above 30 ft, with a four-step dial from 164 W and a 70°, 90° or 110° beam. Up to 72,000 lm · 7 yr / 75,000 hr Specification Sheet → Product Details →

LRHB · ECO Icarus The ECO round bay. Three die-cast housings from 100 W to 300 W, IP65. Up to 41,400 lm · 5 yr / 50,000 hr Specification Sheet → Product Details →

LLHB · ECO Apollo 64–410 W in four classes. Up to 61,500 lm at 167 lm/W, 1.65 in deep. 5 yr / 50,000 hr Specification Sheet → Product Details →

LLHB · PRO Titan The PRO linear bay. 85 W to 600 W in five classes, and the optic swaps in the field. Up to 88,800 lm · 7 yr / 75,000 hr Specification Sheet → Product Details →

Tiny compact linear high bay, discontinued

LLHB · ECO TinyDiscontinued Apollo replaced it. The specs stay up so an installed fixture can still be matched. Superseded by Apollo Archived Spec Sheet → Product Details →

Specifier Support

Send us the floor plan.

We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.

3 BDLayout turnaround

FreePhotometric layout

Find A Rep Request A Layout

Rebates

Premium rebate tier, PRO build.

Jupiter-II is DLC Premium — the tier most utility programs pay the higher rebate on. Check Rebate Center for the DLC QPL ID of your catalog number before you specify. Send us the ZIP and we pull the active program and the forms.

178lm/W · Jupiter-III

DLCPremium · Jupiter-II

90–400 WTwo series

Open Rebate Center
