LLHB · Tiny ECO
Contractor-Grade Linear High Bay
Tiny is the ultra-economy LED linear high-bay engineered to replace fluorescent and metal halide highbays in warehouses, industrial facilities, gyms, and retail backrooms. Compact die-cast aluminum housing, 6kVA dual-mode surge protection on-board, contrⒶLS-Ready sensor receptacle compatible with the full Bi-Level / ⒶCS / SILVAIR ecosystem, and TAA-Compliant Mexico-built variants. 141 lm/W out the door · L70 ≥ 100,000 hours · 7-Year warranty · replaces up to 2,000W metal halide.
Model Specifications
Download Data Sheet| Watt | Lumens | lm/W | CCT | Voltage |
|---|
Dimensions

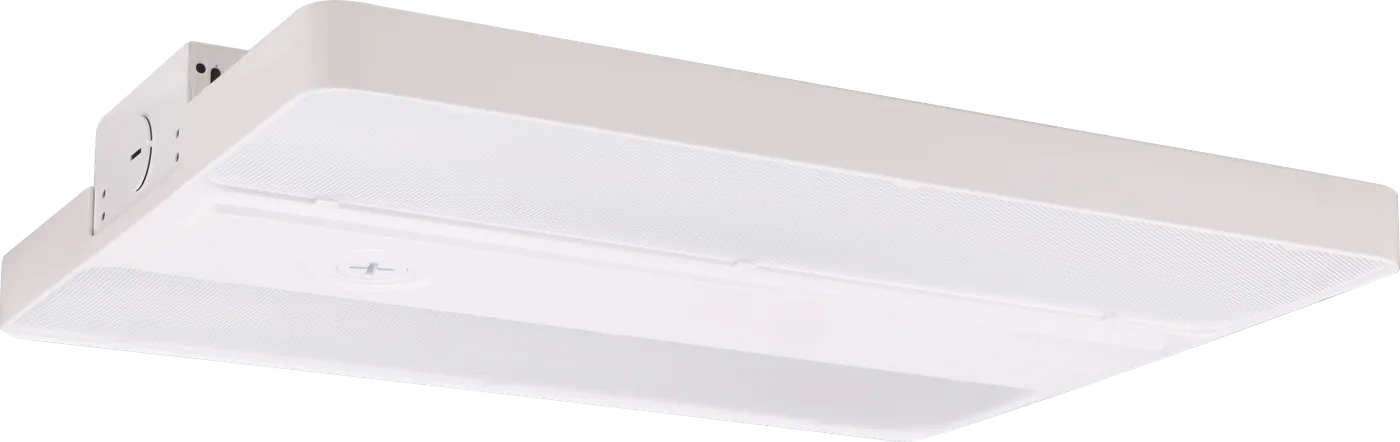

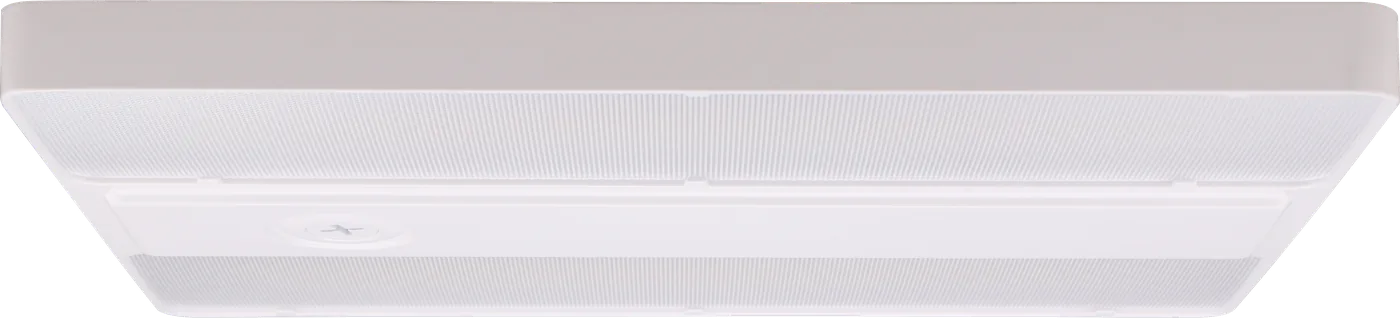

LLHB085-UT50 · 14.17 × 11.02 × 1.89 in · 4.41 lb · 6FT aircraft cables + V-hooks included
ENGINEERING IN MOTION
See Tiny in action.
Seven short clips spliced from the master promo — the industrial profile, four mount paths (aircraft cable, surface, pendant), the lit beauty shot, the sensor-ready receptacle, and a warehouse application in context.
Highlights & Features
Tiny: Highlights & Features
Three angles anchored to the contractor-grade retrofit — DLC LISTED economics, four-path install simplicity, and 7-year reliability with concrete numbers straight from the datasheet.
contrⒶLS
Total Adaptive Control.
Tiny ships contrⒶLS-Ready out of the box — same integrated sensor receptacle as Titan, same three-platform ecosystem. ECO tier does not mean fewer choices: Bi-Level for hardwired drop-in simplicity, ⒶCS for ALG's in-house Bluetooth Mesh + AURA app, or SILVAIR for DLC NLC-qualified enterprise deployments.
Drop-in occupancy + bi-level dimming — no commissioning, gateway, or app required. PIR (MSP-BLS) or microwave (MSM-BLS) sensors mount directly to the Tiny integrated sensor receptacle. IR remote (RM-HT/06S) for on-site commissioning. ASHRAE 90.1 and Title 24 occupancy reduction compliance out of the box.
Discover contrⒶLS →Photometric Distribution
Beam shape, generated from the IES file.
Real luminous distribution per wattage class — single 90°×90° wide-beam optic factory-installed across all 3 SKUs. Each curve renders directly from the certified IES test report at 5000K. Peak candela, beam profile, and total lumen output update with the selection below. CRI >80 across all variants.
In the Box
Everything that ships with every Tiny.
Every base SKU ships with suspension hardware ready out of the carton — no accessory adders required for a standard 6FT-cable hang on I-beam, strut, or joist. Sensor-Ready receptacle is integrated into the housing. Optional mount kits, sensors, EM driver, and surge adders ship per §8 selections.
Engineered Accessories
Bolt-on accessories factory-matched to the Tiny LLHB housing — emergency battery backup, the full contrLS sensor ecosystem, and three field-mount kits. The LLHB-T2/{PDM,SFM,SPM} mount kits are cross-compatible with the Titan PRO sibling.
Tiny ships fixed 90°×90° wide-beam · no field-swap optic ladder · no wire-guard SKUs · Step-Down Transformer (SDT-325 / SDT-465) and In-Line Surge (10SP-277 / 10SP-480 / 20SP-277 / 20SP-480) add 6 SKUs · pending v2 card-grid expansion
Build Your Tiny.
Pick wattage class and voltage — your SKU resolves live, your submittal generates instantly. 6 active SKUs · 3 wattage classes · fixed 90°×90° wide optic · fixed 5000K daylight · TAA-compliant Mexico-built variant on the 220W
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify the Tiny — from the contractor-grade datasheet on day one to the IES bundle on the bid sheet to the TAA certificate on the federal RFQ.
Meet the High-Bay Family.
Tiny is the ECO-tier compact linear high-bay in the lamparⒶRCH lineup — same engineering language and contrⒶLS-Ready receptacle as Titan (PRO linear) and the LRHB round-aperture siblings (Icarus PRO+ and Jupiter PRO) when round geometry beats linear.
For the complete industrial venue.
Tiny handles the high bay. These cross-line fixtures handle everything else — outdoor parking, indoor offices, emergency egress, and exit signage. Same controls platform, same warranty, same factory. Specify them together for a coherent lighting package across the whole industrial site.
Direct line to your regional rep.
Twelve US warehouses ship in 3-5 days. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. No portal-as-the-only-channel: you get a person.
Stack the rebates.
Tiny is DLC Listed across 5 of 6 active SKUs — qualifying for utility rebate programs that typically offset 15-30% of project cost on industrial high-bay retrofits. ECO-tier pricing plus rebate stacking is the volume-tier sweet spot. We'll match your project to active programs in your ZIP and pull the paperwork.
