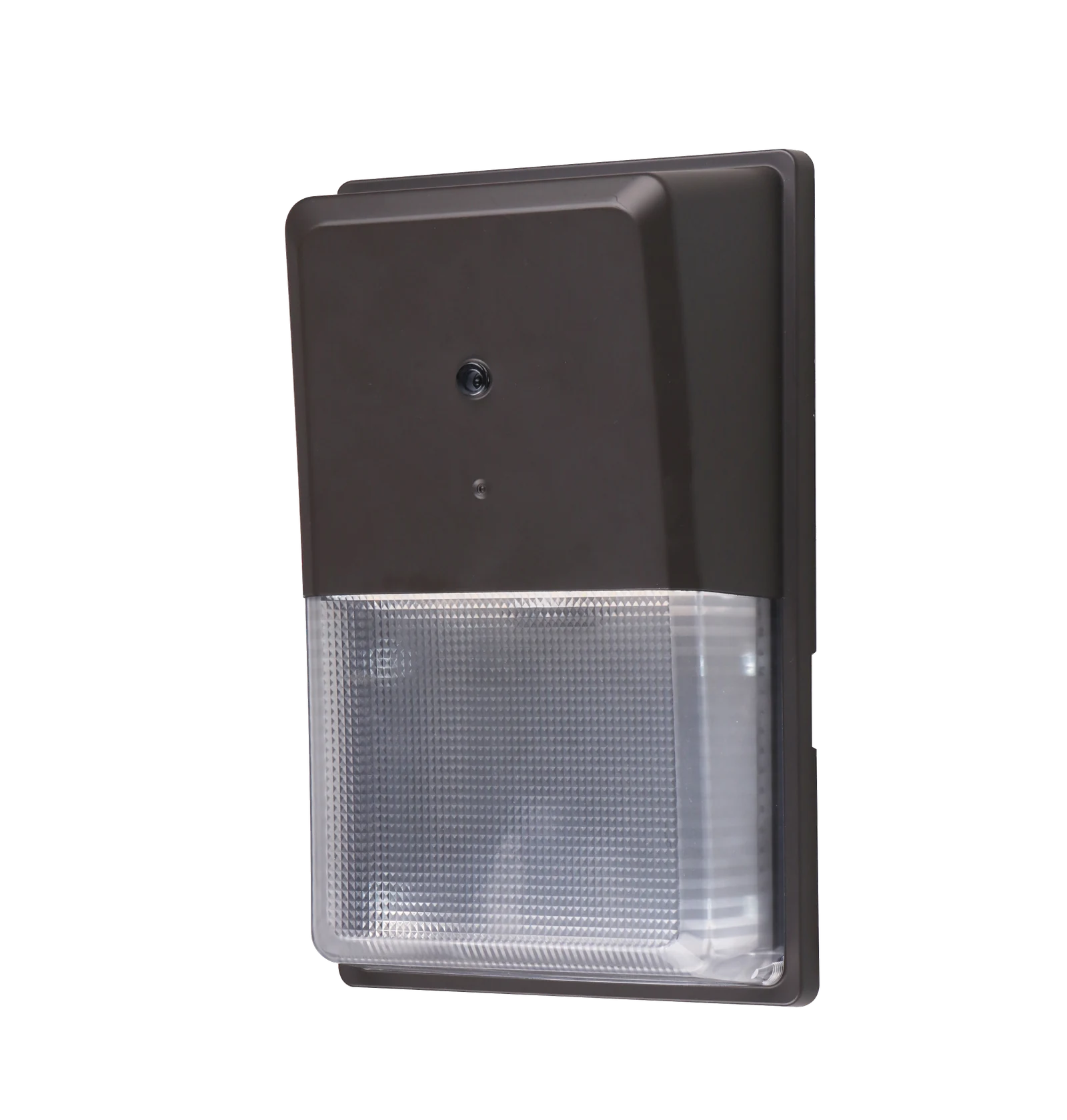

FIELD-SET
3-WATTselect 10 / 15 / 20 W set before install · 3-CCTselect 3000 / 4000 / 5000K · Photocell in both numbers · 0–10V dimming · Type III prismatic lens · IP65
ARCHIPELAGO
Lighting Group
Electrical & Optical
| Input voltage | 120–277V, 50/60 Hz |
| Dimming | 0–10V, standard |
| Power factor / THD | PF ≥0.9 · THD ≤20 % |
| Surge protection | 2.5 kV, L/N–PE and L–N |
| CRI | >80 · <7 SDCM |
| Controls | Photocell, built in (/PS) |
| CCT and WATTselect | Set by switch on the fixture · not encoded in the catalog number |
Construction & Environment
| Housing | Die-cast aluminum · Black or Dark Bronze |
| Lens | Matte prismatic |
| Operating ambient | −40 °F to 122 °F |
| Location | cULus Listed · wet location · IP65 |
| Mounting | Integrated back plate to a standard round or octagonal outlet box |
| Warranty | 5-year / 50,000-hour limited |
cULusWet LocationIP65
ARCHIPELAGO
Lighting Group
Bill of materials — this build
| # | Item | Selection | Catalog number | On the order |
|---|
The finish is the catalog number; the photocell is in both numbers. Watts and color are set on the fixture and are not in it.
Every fixture catalog number
Accessories — ordered separately
ARCHIPELAGO
Lighting Group
04 · Photometrics & Dimensions
Beam angle (50 % of peak)
—
Dimensions
No DLC listing is claimed for this family. Rebate Center shows what your utility pays and the forms it needs, by ZIP.
Full IES library:
