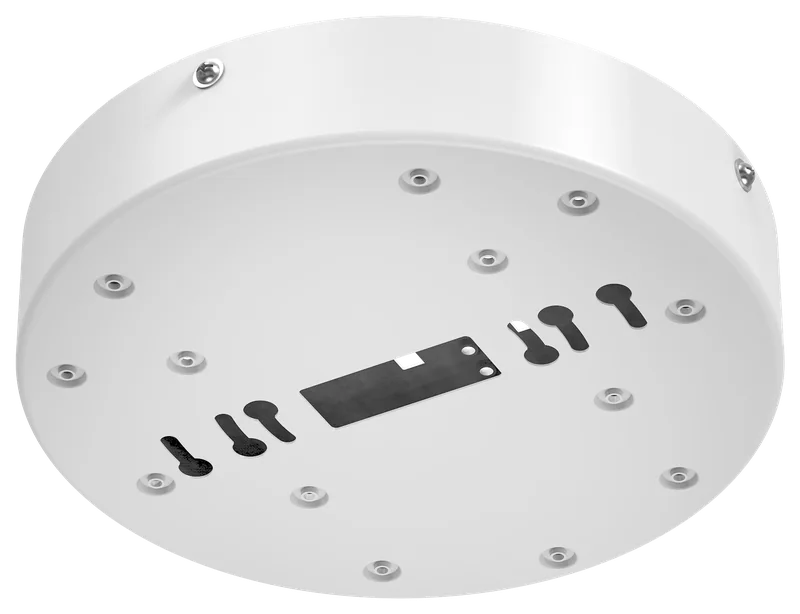

EM15-HMB/170DC/JB45Mounts the driver to a 4″ or 5″ junction box.
On the catalog numberEM · constⒶNTMid power
EM15-HMB/170DC LED Emergency Driver
15 W emergency driver for 170 V DC LED arrays.
Runs the LED array at 15 W for 90 minutes when the AC fails, and holds that output to the end instead of dimming as the battery drains. Universal 100–347 V AC input: one catalog number for every building voltage. Takes host fixtures up to 150 W. Installs at the factory or in the field, with a test switch and status light.
Emergency15W
Runtime90min
Input100–347V AC
Output170V DC
Host fixtures
planoⒶRCHPanel & downlight
tubulⒶRCHT8 lamps
Constant Power
Auto Transfer
Test Switch
100–347 V AC
Factory or Field
Damp Location
5-Yr Warranty
UL 924Listed
CSA C22.2 No. 141Listed
CEC Title 20Compliant
ChargingHMB · 170 V DC
EM15-HMB/170DCEmergency LED driver · UL 924
Input100–347 V AC
Output170 V DC
Power15 W
Runtime90 min
Downloads
Documentation & Resources
Specifications
Model Specifications
Emergency output15 W constant power · 90 minOutput holds for the full 90 minutes
Output170 V DCHost fixture up to 150 W or 4 A
Input100–347 V AC · 50/60 Hz100 mA max · 8.0 W max · PF > 0.50
BatteryLithiumRecharge 24 h · charge current 0–250 mA · 500 full cycles
DimensionsDriver 7.87″ L × 1.97″ W × 0.94″ HBattery case 6.50″ × 1.61″ × 0.98″
LeadsUL 2464 · 24 AWG · 300 V · 80 °C21.65″ leads
MountingSurface mountFactory or field installation · J-box kits available
Operating temp32 °F to 122 °FStorage 158 °F max
LocationDry or dampStandard unit: on request
ListingsUL 924 · CSA C22.2 No. 141CEC Title 20
Warranty5-year limitedDriver and battery
Engineering
When the power fails.
What it does when the power fails, how you test it, and how it goes in.
Holds 15 W for the full 90 minutes. The output does not taper as the battery drains.Rated output · 90 min
Senses AC loss on the unswitched hot and takes the LED array. When AC returns it hands the array back and recharges.No switch to throw
Red light on: charging. Off: running on battery. Use the switch for the monthly functional test.Remote test switches below
Cuts out on overcharge, over-discharge and short circuit.Recharge 24 h
100–347 V AC, 50/60 Hz. One catalog number for 120, 208, 240, 277 and 347 V circuits.One SKU per job
UL listed for installation at the factory or in the field. Same branch circuit as the AC LED driver.Install rule on the data sheet
EM15-HMB/170DC · Constant power
Performance
Emergency Performance
Rated emergency outputUL 924 minimum runtime
Rated output
15 W
Constant power
Runtime
90 min
UL 924 listed
Recharge
24 h
To full, after a discharge
Max host fixture
150 W
or 4 A, whichever comes first
Emergency lumens · estimate
15 W × 140 lm/W. An estimate, not a test result. Set the slider to your host fixture’s efficacy.
NFPA 101 §7.9.21 fc average, 0.1 fc minimum along the egress path.Allowed to fall to 0.6 fc average and 0.06 fc minimum by the end of 90 minutes. Lay the job out against the host fixture’s emergency photometrics.
