FIELD-SET

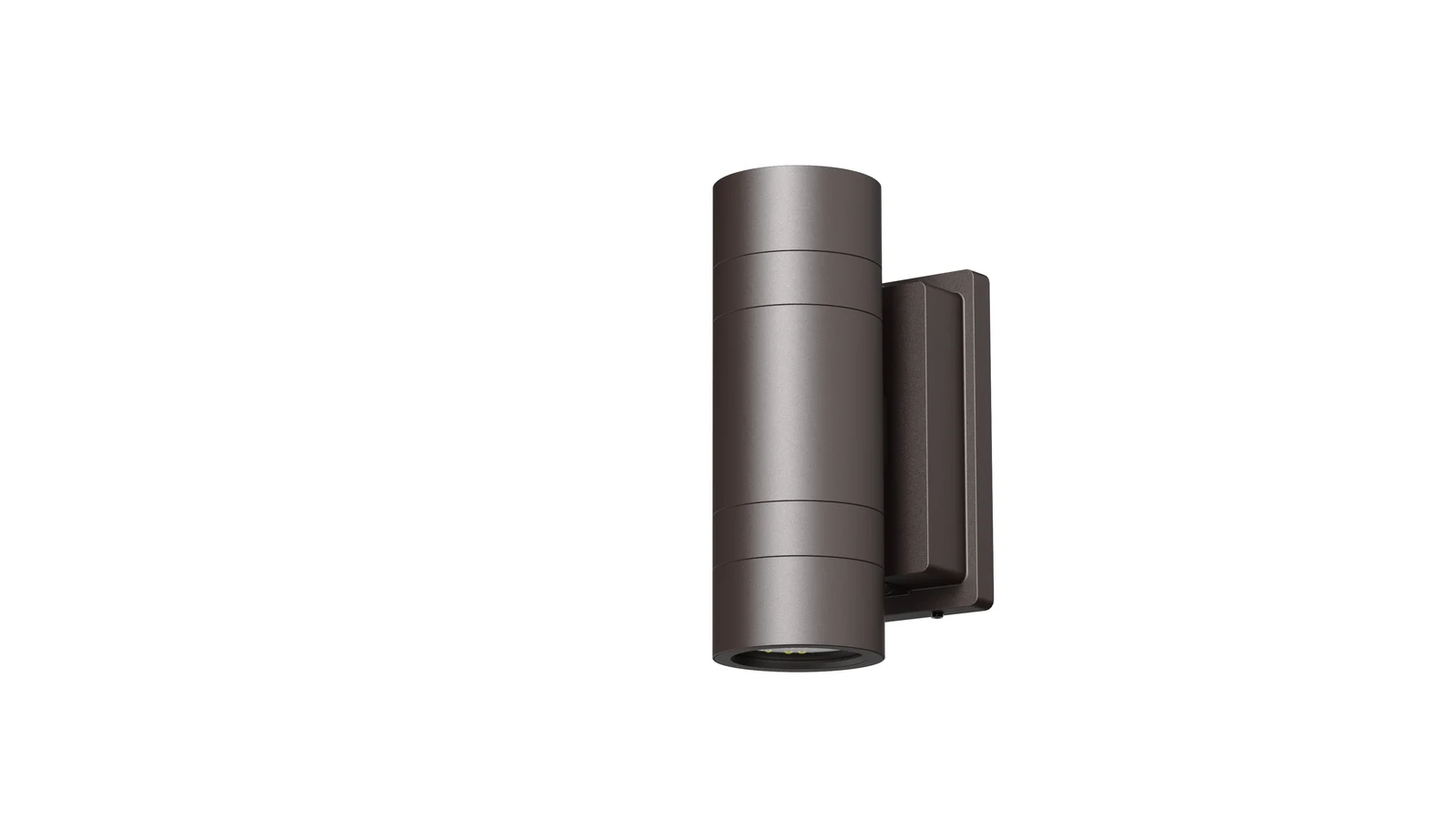

4-WATTselect four levels per housing · 3-CCTselect 3000 / 4000 / 5000K · DualCast up / full / down · beamⒶDJUST 50 / 60 / 70° (LCWS24, 30, 45) · Photocell under a cap · IP65
ARCHIPELAGO
Lighting Group
Electrical & Optical
| Input voltage | 120–277V, 60 Hz |
| Power factor / THD | PF >0.90 · THD <20 % |
| CRI | 80 |
| Dimming | 0–10V: ask ALG (no code in these numbers) |
| Controls | Photocell under a cap: on = off, removed = dusk to dawn |
| Field settings | Output level, CCT, UP / FULL / DOWN and beam: switches on the junction box, not in the catalog number |
Construction & Environment
| Housing | Sealed cast aluminum · Black polyester powder coat |
| Optic | Prismatic |
| Operating ambient | −40 °F to 122 °F (LCWS36: −22 °F to 122 °F) |
| Location | cULus Listed · wet location · IP65 |
| Mounting | Over a standard junction box · plate, EVA gasket, 2 × M6×20 set screws and safety cable supplied |
| Warranty | 7-year / 75,000-hour limited |
cULusWet LocationIP65
ARCHIPELAGO
Lighting Group
Bill of materials — this build
| # | Item | Selection | Catalog number | On the order |
|---|
The housing is the catalog number; Black is the only finish. Output, color, up/down and beam are set on the fixture and are not in it.
Every fixture catalog number
Accessories — ordered separately
ARCHIPELAGO
Lighting Group
04 · Photometrics & Dimensions
Beam angle (50 % of peak)
—
Dimensions
No DLC listing is claimed for this family. Rebate Center shows what your utility pays and the forms it needs, by ZIP.
Full IES library:
