Millennium LED Round High Bay
One round bay, up to 410 watts.

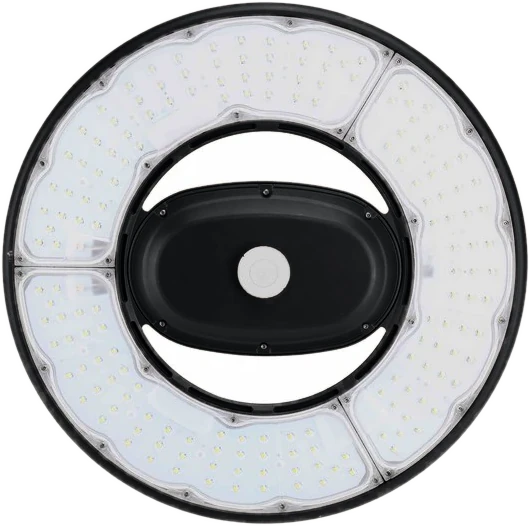

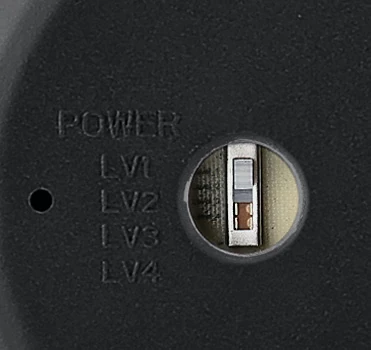

One 410 W housing for bays above 30 ft: up to 72,000 lumens at 176–189 lm/W. A four-step dial sets 164, 246, 328 or 410 W and a switch sets a 70°, 90° or 110° beam; 5000K, CRI 70, on 120–277 V or 347–480 V. DLC Premium, TAA on both catalog numbers, cULus wet location, sensor-ready.
cULus
TAADLC Premium: confirm the listing for your catalog number in Rebate Center. TAA on both catalog numbers.
Documentation & Resources
Model Specifications
| Dial step | Watts | Lumens | Max ambient | lm/W |
|---|
Nominal values, 5000K, at the four positions of the wattage dial; one catalog number covers every step and beam. No measured file is published yet for the 410 W housing with BeamLogic optics.
Engineering

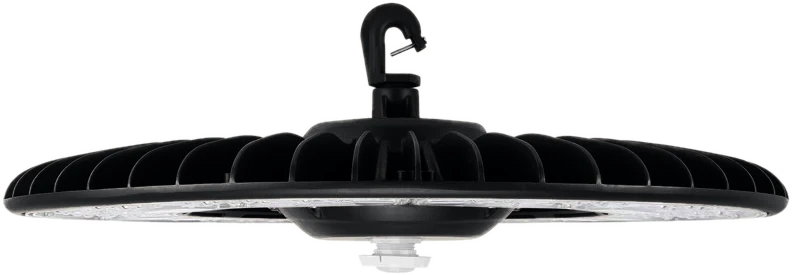

How it hangs, what you set at install, and what goes on through your ALG rep.
Photometric Distribution
No measured file is published yet for the 410 W housing with BeamLogic optics. Nominal lumens and efficacy for every step are in Model Specifications. For a layout, ask ALG.
Engineered Accessories
Build Your Millennium.
Your Catalog Number
High-Bay Family
Millennium is the 410 W PRO round bay for the tallest bays, Jupiter the PRO round bay in two series, and Icarus the ECO one. Apollo and Titan are the linear bays.
Send us the floor plan.
We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.
Premium rebate tier, PRO build.
Millennium is DLC Premium — the tier most utility programs pay the higher rebate on. Confirm the listing for your catalog number in Rebate Center before you specify. Send us the ZIP and we pull the active program and the forms.
