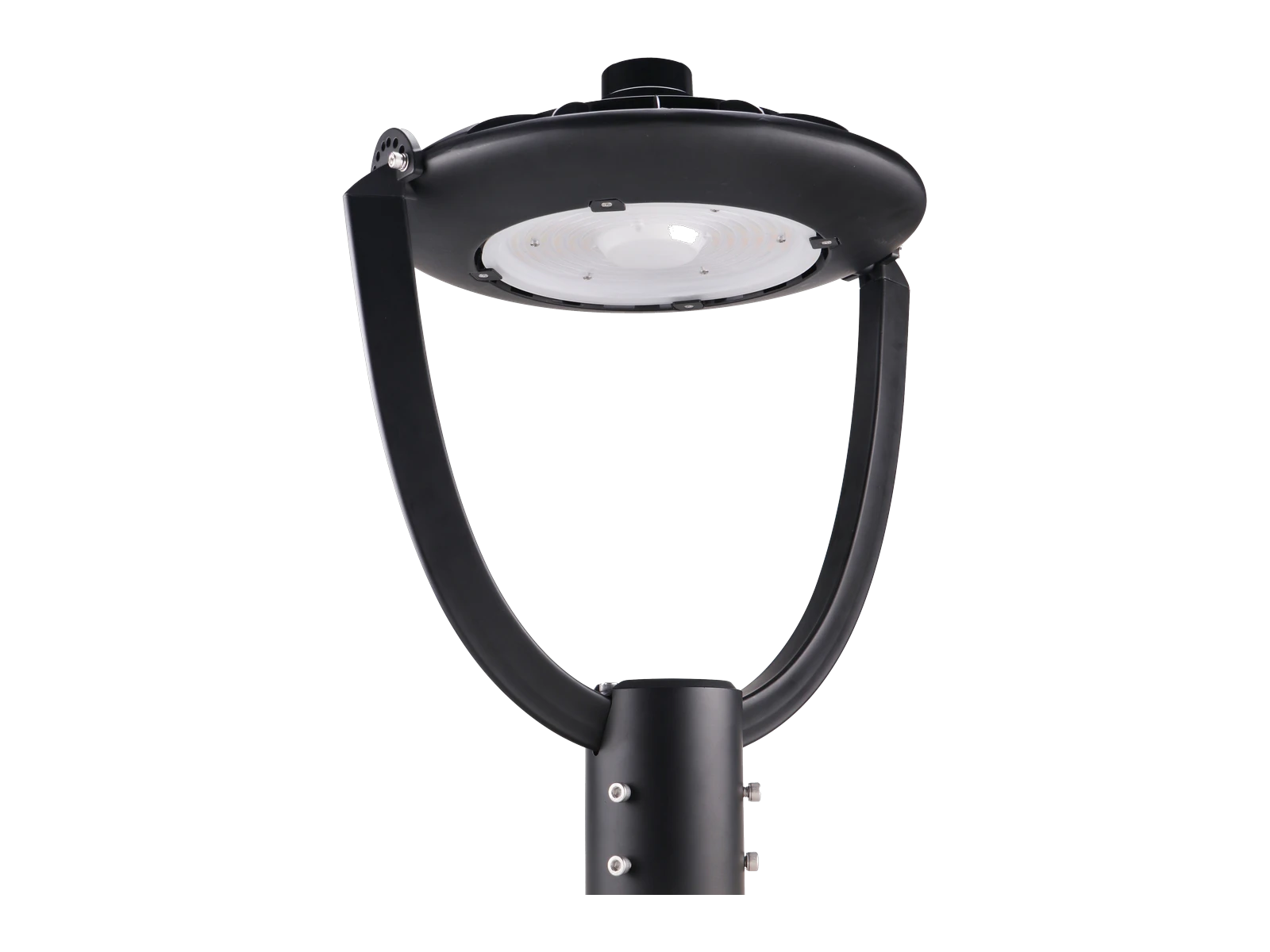

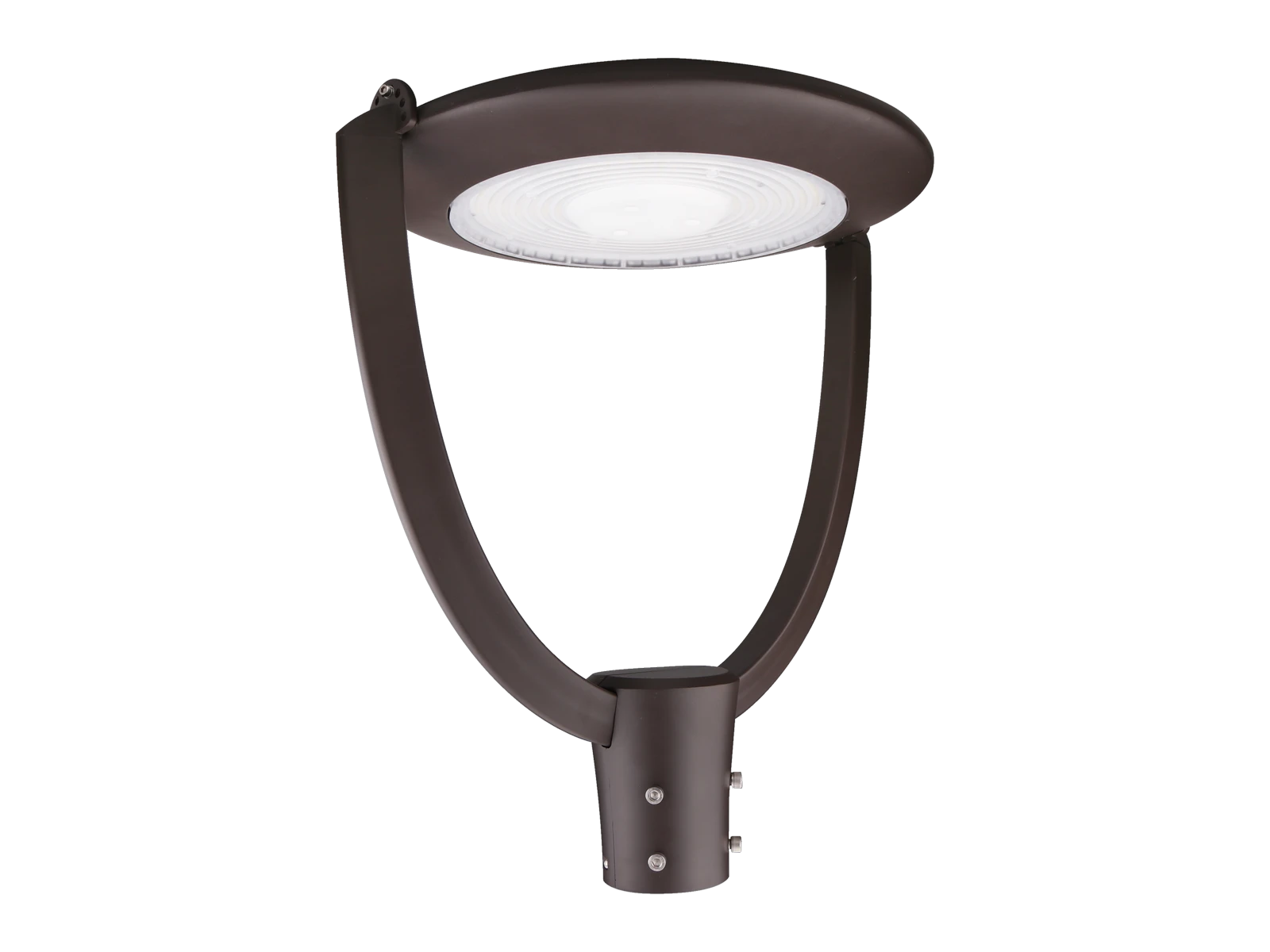

Unity LED Post Top
Light all the way around.

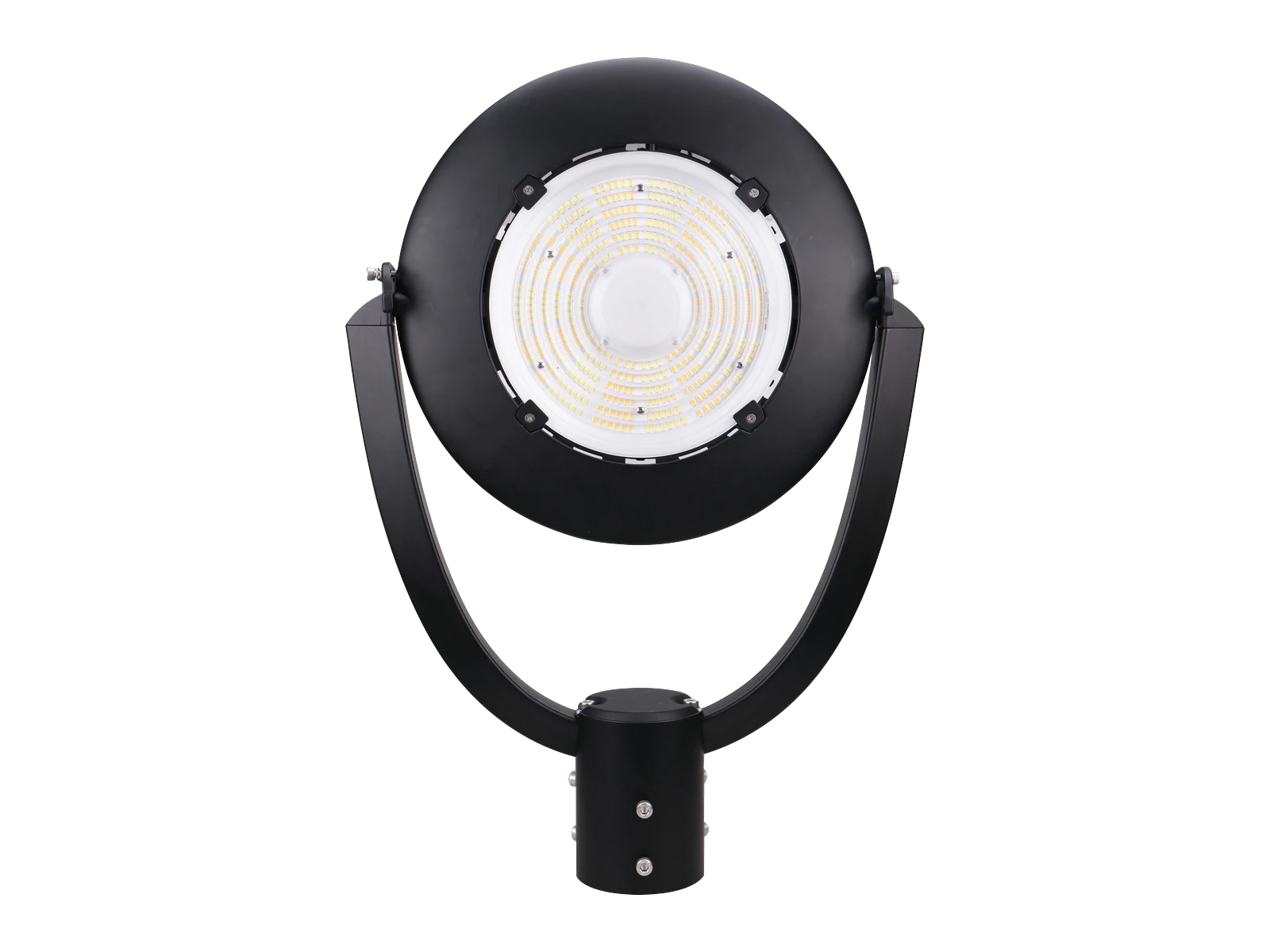

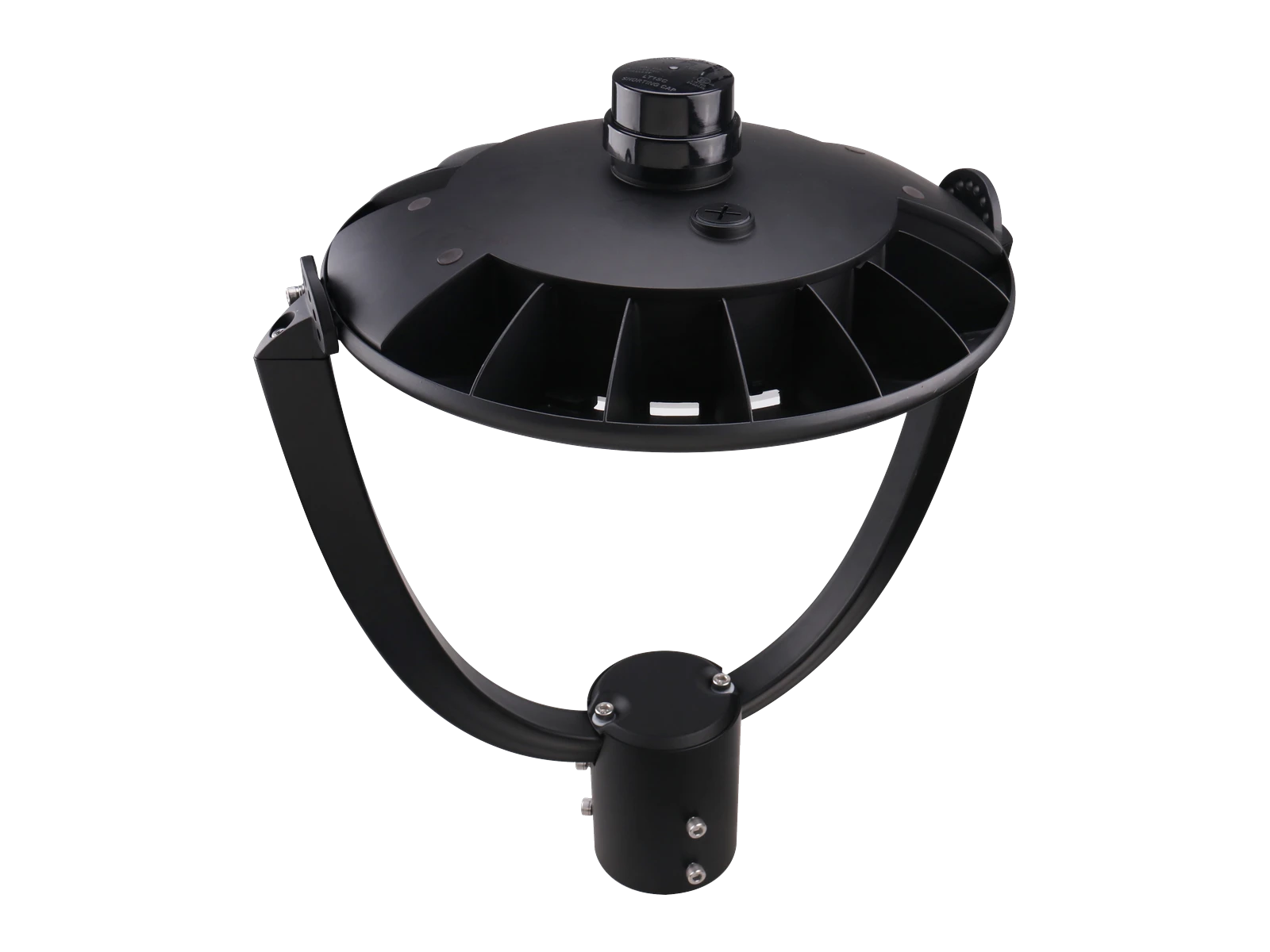

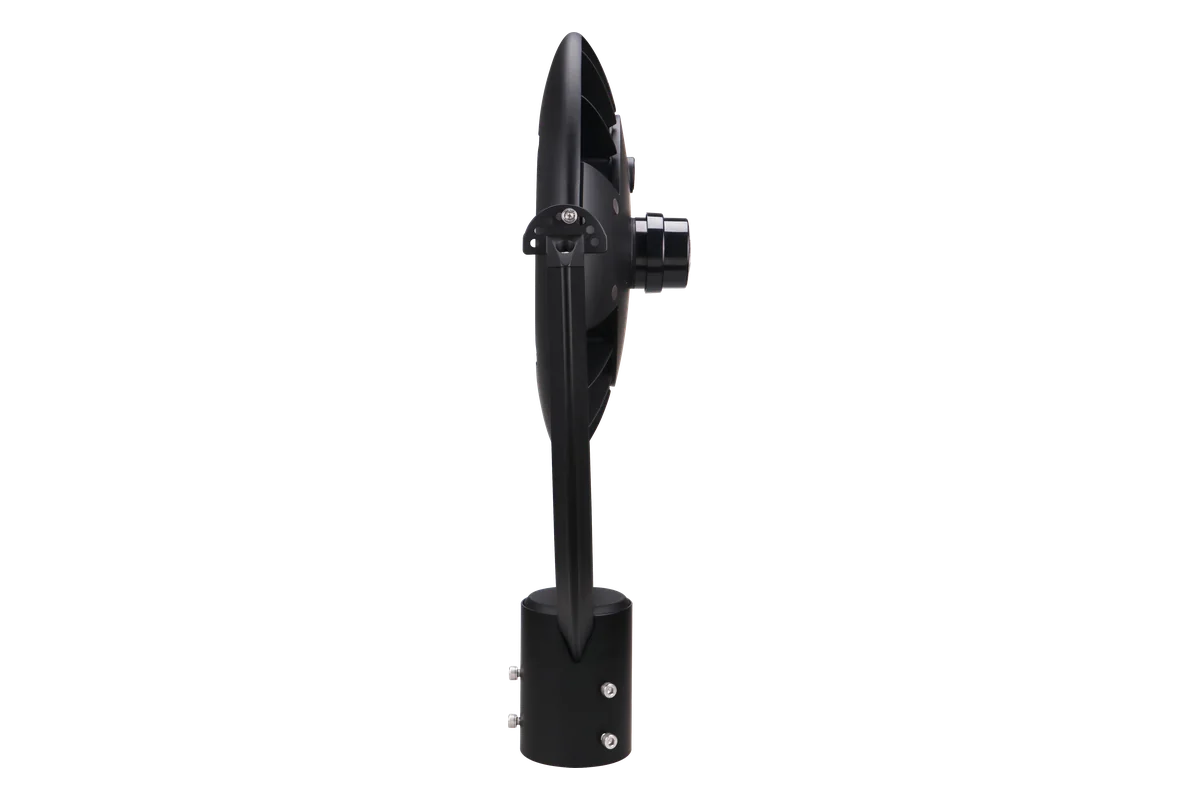

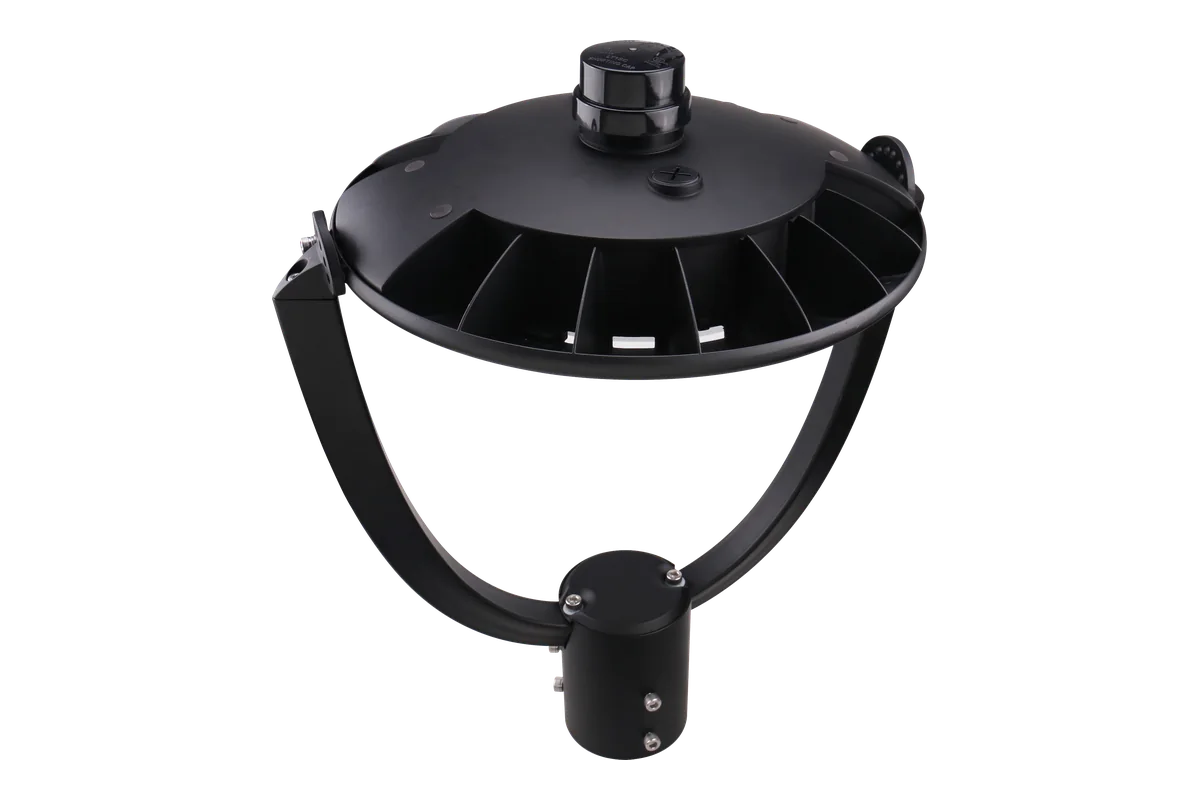

A 360° post top on a sweeping arch, 35 to 150 W, for pathways, greenbelts, plazas and campuses. Wattage and color temperature are one dip switch under the head; the head folds into the arch to ship. IP65, 6 kV surge, zero uplight, and the 75 W on the DLC QPL.
cULus Listed
Documentation & Resources
Model Specifications
| WATTselect | Watts | Lumens | CCTselect | lm/W |
|---|
★ Default settings (4000K: the datasheet marks none). Lumens from the datasheet; † measured: ALG's LM-79 file at that step (3000K), which reads above the datasheet. Both files are in Photometrics.
Engineering
What you set on the pole, how the light goes all the way around, and what keeps the weather out.
Photometric Distribution
Engineered Accessories
Tenon adaptors, multi-head adaptors, bullhorns and brackets for square and round poles, drawn and dimensioned: Pole-Mount Accessories Catalog (PDF).
Build Your Unity.

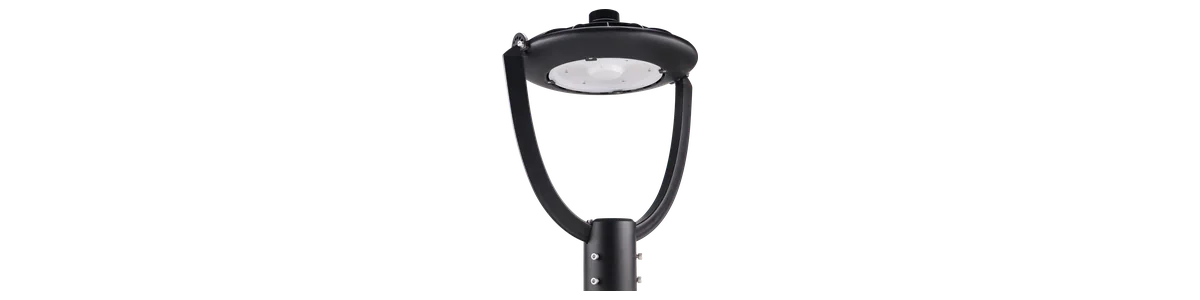

Your Catalog Number
Area & Post Top Family

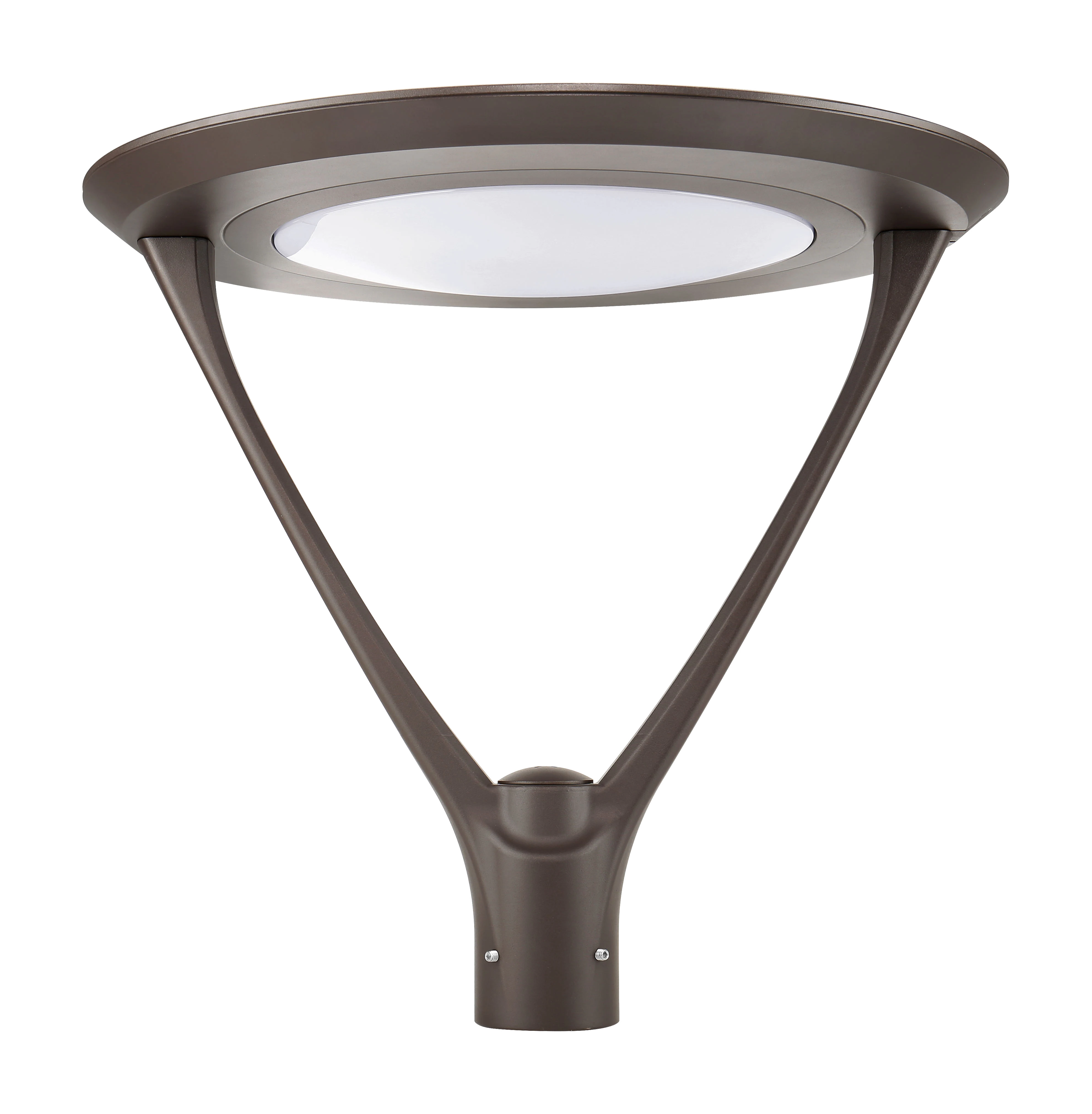

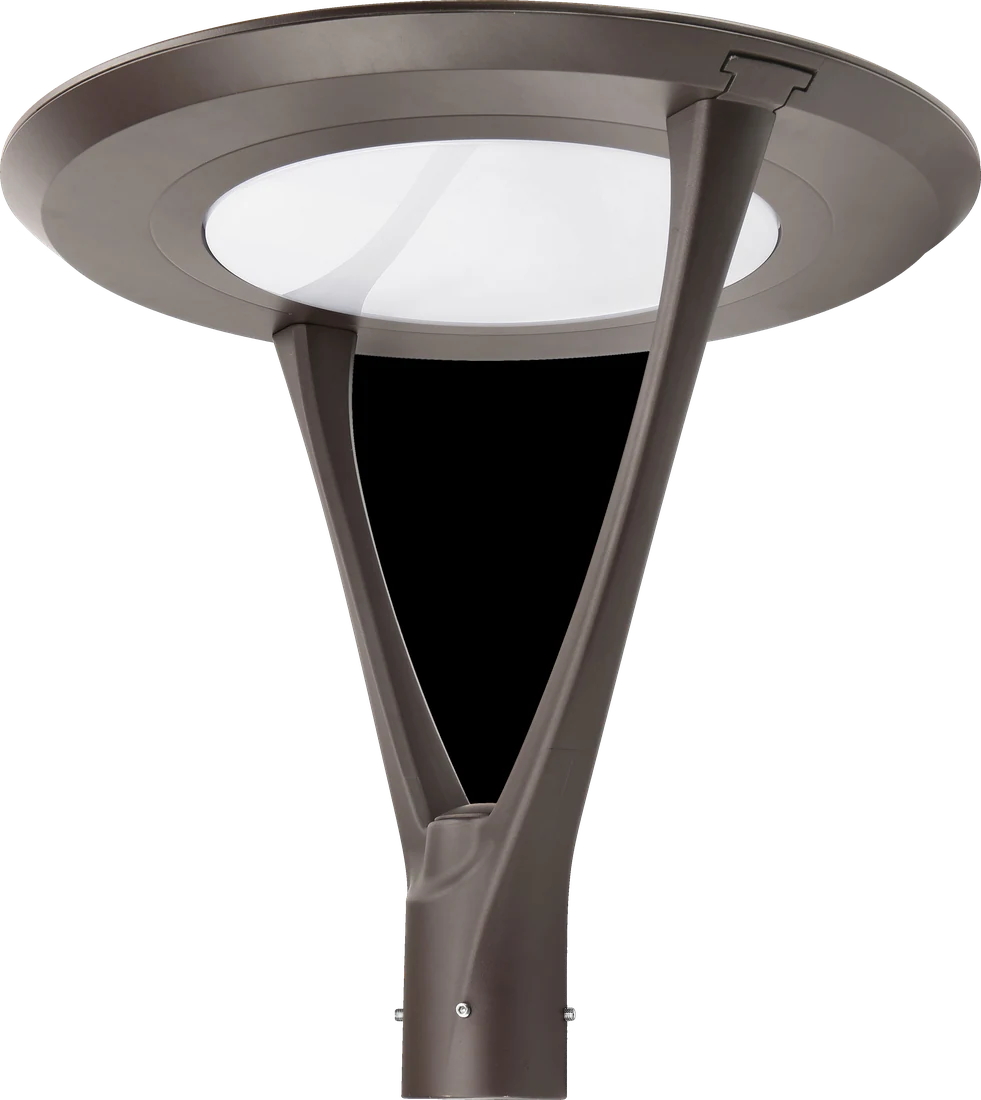

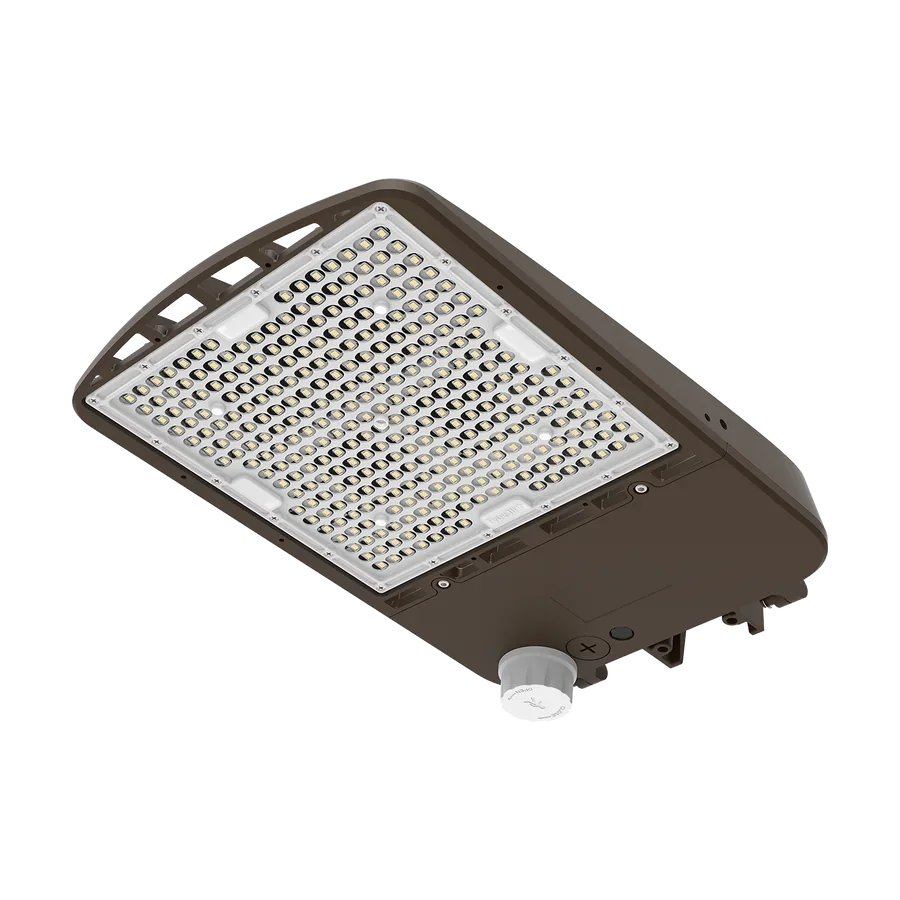

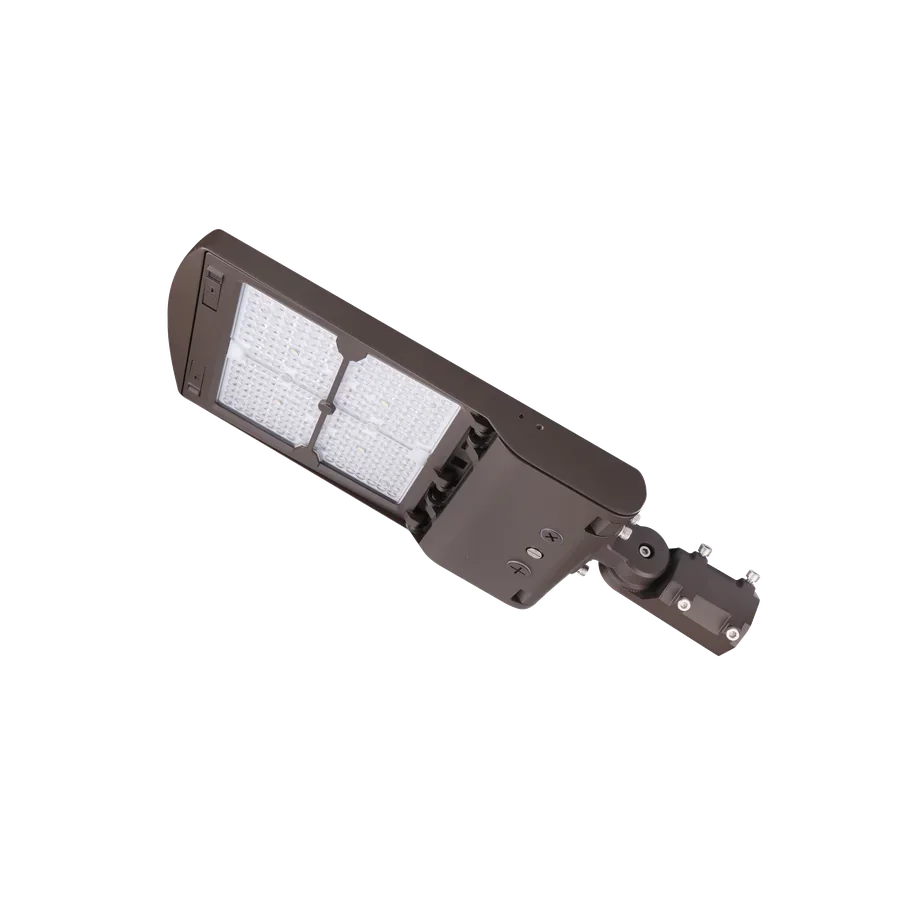

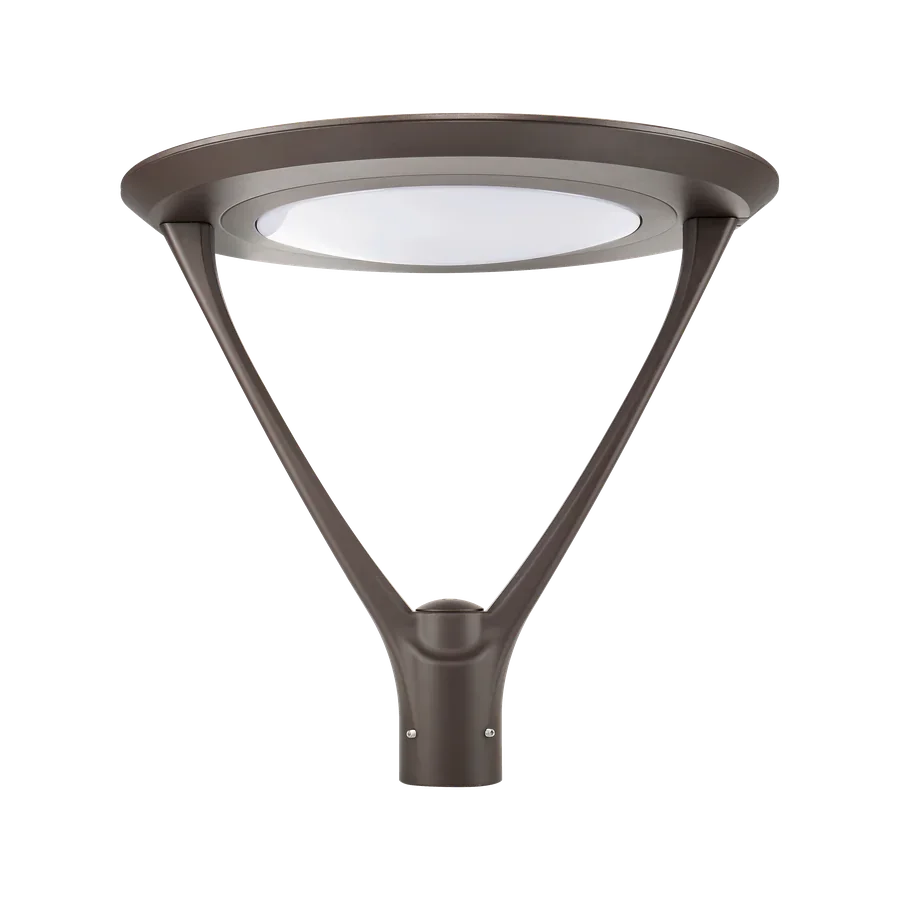

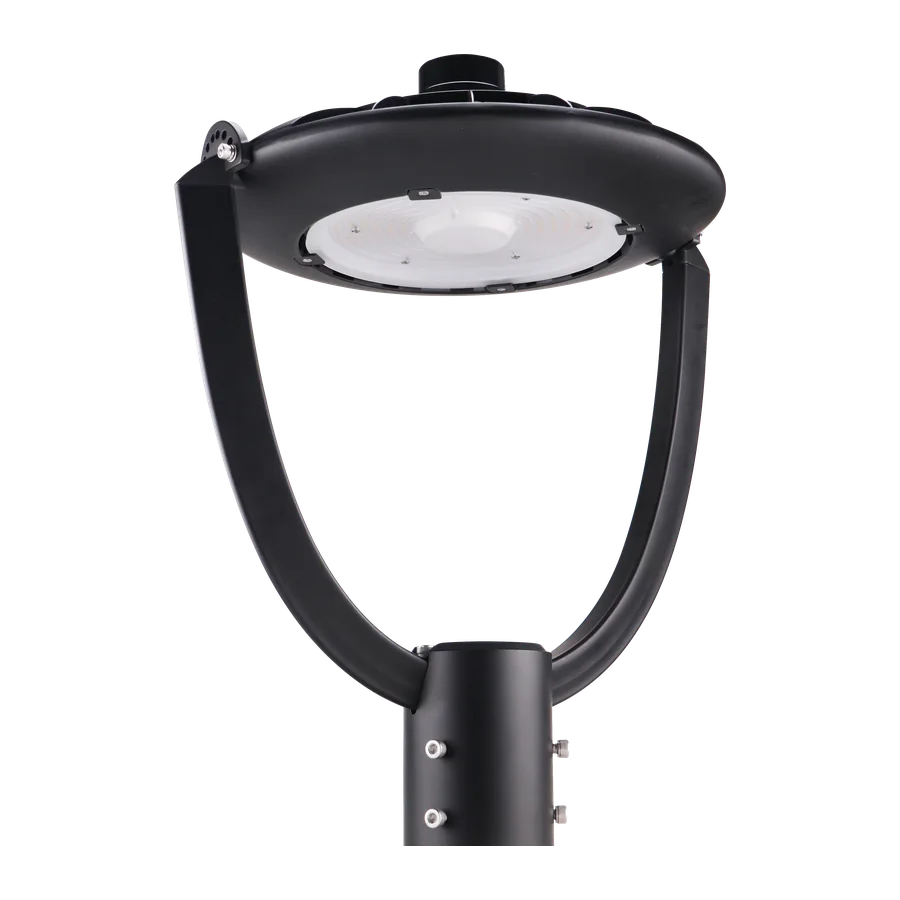

Unity is the 360° post top that folds flat; Symmetry is the post top with the lit disc. Heritage and Liberty are the shoeboxes for area lighting.
Send us the site plan.
We run the layout free and send it back in three business days — fixture count, spacing, foot-candles. Send the ZIP code too, and we match the rebate programs that apply.
Light all the way around.
360° frosted glass, zero uplight, and a head that folds to ship. Send us the site plan and ALG runs the layout; Rebate Center shows what your utility pays for the 75 W.
