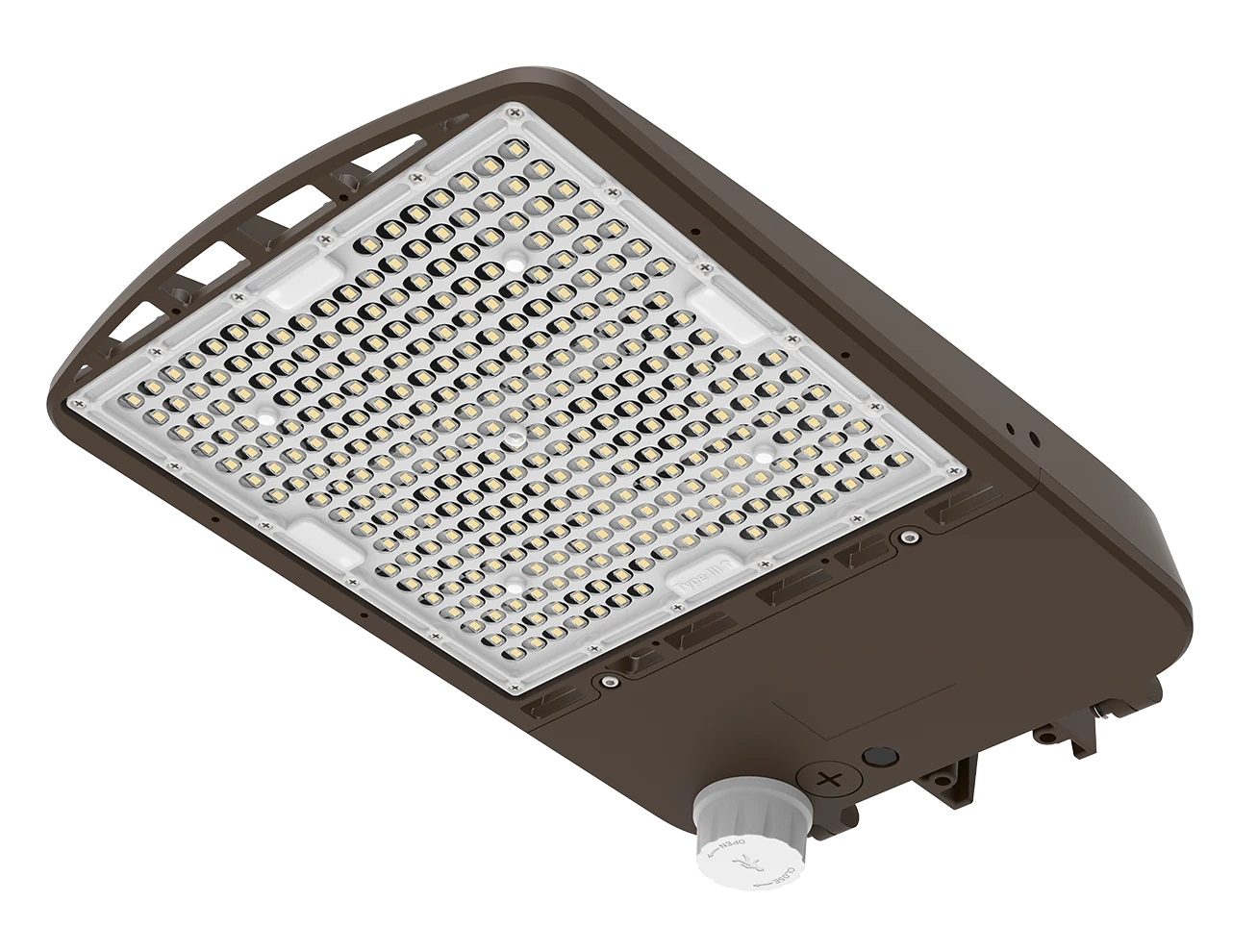

FIELD-SET
3-WATTselect set on the pole · 3-CCTselect 3000 / 4000 / 5000K · Type III darkⒶRCH, Dark Sky conforming · IP65 wet location · surgeⒶRMOR 6 kV
ARCHIPELAGO
Lighting Group
Electrical & Optical
| Input voltage | 120–277V · 277–480V on the 300 W |
| Dimming | 0–10V |
| Power factor / THD | PF >0.9 · THD <20 % |
| Surge protection | 6 kV built in · 10 / 20 kA inline optional |
| CRI | >80 |
| Distribution | Type III forward throw, Dark Sky conforming |
| CCT and WATTselect | Set by dip switch on the pole · not encoded in the catalog number |
Construction & Environment
| Housing | Two-piece die-cast aluminum · UV-resistant powder coat · Dark Bronze · hinged driver door |
| Lens | UV-stabilized polycarbonate |
| Operating ambient | −40 °F to 113 °F |
| Location | UL Listed (US) · wet location · IP65 |
| Controls | Photocell receptacle with shorting cap · sensor port |
| Warranty | 5-year / 50,000-hour limited |
UL ListedWet LocationIP65FCCRoHS
ARCHIPELAGO
Lighting Group
Bill of materials — this build
| # | Item | Selection | Catalog No. | On the order |
|---|
Housing, voltage, optic and the kit are the catalog number. Watts and color are set on the pole and are not in it. Each accessory is its own order line with its own catalog number; a kit number carries its mount, photocell and sensor.
Every fixture catalog number
Accessories — ordered separately
ARCHIPELAGO
Lighting Group
04 · Photometrics & Dimensions
Beam angle (50 % of peak)
—
Dimensions
No DLC listing is claimed for this family. Rebate Center shows what your utility pays and the forms it needs, by ZIP.
Full IES library:
