ARCHIPELAGO
Lighting Group · LCDL
Catalog Number
LCDL-A1/DMS1830/RF6/WF
Click to relabel for project
Project
Type
Catalog #
LCDL-A1/DMS1830/RF6/WF
Prepared By
Notes
Date
LCDL · Astra
Can-Less Commercial Downlight · planoⒶRCH PRO+ · light engine + interchangeable reflector · round 4, 6, 8 and 10 in · square 4, 6 and 8 in · up to 100 lm/W (datasheet) · 3-WATTselect · 5-CCTselect 2700K–5000K · CRI > 90 · wet location · IP65 · 7-year / 75,000-hour limited warranty.
LCDL Astra is the planoⒶRCH PRO+ can-less commercial downlight. A light engine twists and locks into an interchangeable reflector: round in 4, 6, 8 and 10 in and six finishes, or square in 4, 6 and 8 in. This catalog number is a complete kit, one line: the 18/24/30 W module with its reflector. Watts and color temperature are switches on the module: three WATTselect steps and five CCTs from 2700K to 5000K, all at CRI above 90; neither is in the catalog number. The beam is set in the field. Mounts, emergency batteries and the ⒶCS controls are each ordered as their own line.
Approved by
Date
archipelagolighting.com · LCDL Astra submittal · Specifications subject to change without notice
Die-cast aluminum module and trim · frosted PC lens, non-yellowing · can-less, spring clips
Location
Wet location · IP65 · air-tight / air-shut
Operating Temp
−40°F to +114°F ambient
Box Contents
Module · reflector · installation guide
LED & Optics
CCT (5-CCTselect)
2700K · 3000K · 3500K · 4000K · 5000K (default ★) · switch on the module
CRI
CRI > 90 at every setting (truⒶCOLOR)
Beam
Field-adjustable 24–60° (DMS1830)
Lumen Output
Datasheet, at 5000K: 18 W 1,800 lm · 24 W 2,328 lm · 30 W 2,850 lm
Efficacy
Up to 100 lm/W (datasheet, at 5000K) · 18 W 100 · 24 W 97 · 30 W 95
Driver & Electrical
Voltage
120–277V
3-WATTselect
3-position switch · top step ★ by default · 18/24/30 W
PF · THD
> 0.9 · < 20%
Dimming
0–10V, ELV or TRIAC
Surge
2.5 kV, built in
Controls & Emergency (optional, each its own line)
PIR Sensors
MSP-SRI/20CM/HD/ACS (up to 20 ft) · MSP-SRI/40CM/HD/ACS (up to 40 ft)
Wall Switch
MSZ-KPI/50WM/ACS · kinetic, self-powered
Controller
MSX-CTI/LV20/ACS · 100–277 V in, 0–10V out · all commissioned in the ⒶCS app
Emergency
EM15-HMB/170DC · 15 W, remote · CRCU-EM24/JBM · 24 W J-box, 120 V
Warranty
Warranty
7-year / 75,000-hour limited
Spec Footnotes · Lumens and efficacy: the datasheet's, at 5000K. IES files (bare module, no reflector, IESNA LM-79): on the product page. Utility programs: archipelagolighting.com/support/rebate-center/.
archipelagolighting.com · LCDL Astra submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 2 of 4
ARCHIPELAGO
Lighting Group · LCDL
Catalog Number
LCDL-A1/DMS1830/RF6/WF
Dimensions & Mounting
/RF6 · 6 in round reflector
Section · Side view (in)

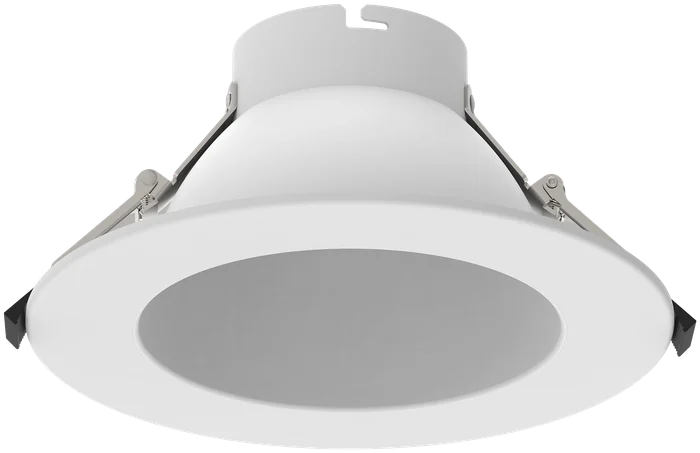

Render
Dimensions (selected reflector, datasheet)
Trim
8.58 in
Aperture
5.69 in
Cut-out
6.30 in
Recess
3.54 in
Assembled Height
6.14 in
Module
⌀ 4.3 in × 3.0 in · 20 in conduit
Mounting (each its own line)
Plate
LCDL-SE/NCP · new-construction plate, galvanized iron · spans joists or a T-grid · 4, 6, 8 and 10 in
Plate + J-box
LCDL-SE/JCB/NCP
J-box
LCDL-SE/JCB
archipelagolighting.com · LCDL Astra submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 3 of 4
ARCHIPELAGO
Lighting Group · LCDL
Catalog Number
LCDL-A1/DMS1830/RF6/WF
Ordering Information
27 complete kits · the 18/24/30 W module with a round or square reflector
Family · Series
LCDL-A1
Driver Module
DMS1830
Reflector
RF6
Finish
WF
Segment
Codes
LCDL-A1
Commercial downlight · Astra series
DMS1830
Driver module · 3-WATTselect 18/24/30 W · 5-CCTselect 2700K–5000K, 5000K ★ · set on the module
Round: BF black flange · WF white flange ★ · MW/SP matte white / specular · MW/SS matte white / semi-specular · SP specular · SS semi-specular. Square: MW/SS only
Photometric Data
DMS1830 bare module · 30 W · 5000K
The polar plot could not be drawn here. The full IES bundle is linked from the product page.
Total Lumens
—
Input Watts
—
Efficacy
—
Peak Candela
—
Beam Angle
—
Measured
Bare module, no reflector
Test Standard
IESNA LM-79 / LM-63
IES File
—
archipelagolighting.com · LCDL Astra submittal · Specifications subject to change without notice
Rev. 2026-10 · Page 4 of 4
ARCHIPELAGO
Lighting Group · LCDL
Catalog Number
LCDL-A1/DMS1830/RF6/WF
Accessory Bill of Materials
0 line items
These are separate line items ordered alongside the Astra kit — they are not part of its
catalog number. Order each line independently. This list holds only the options picked in the configurator on the
product page.
Order Code
Category
Description
