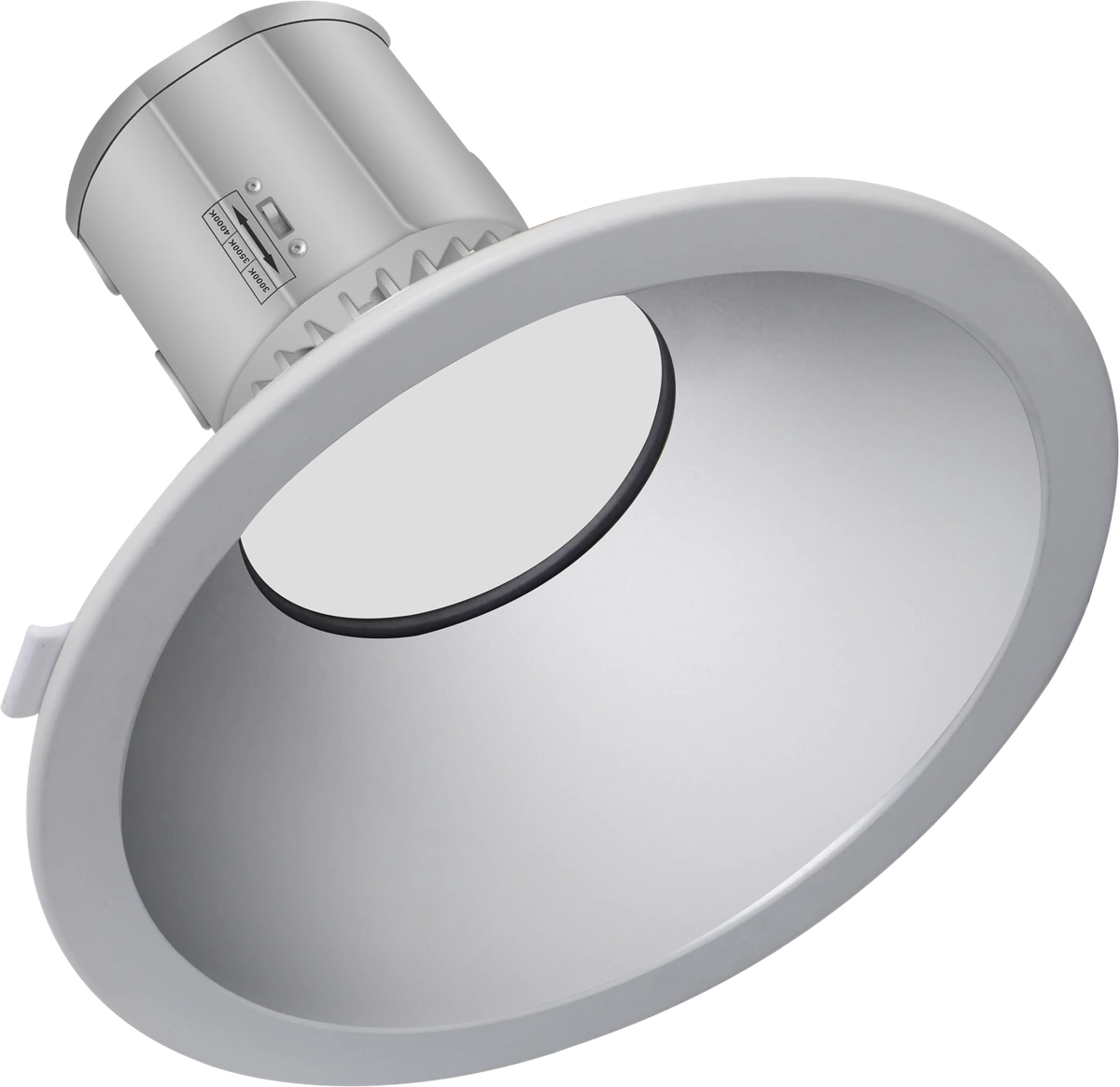

LCDL · Spectra PRO
6,180 lumens. 60W. 347V.

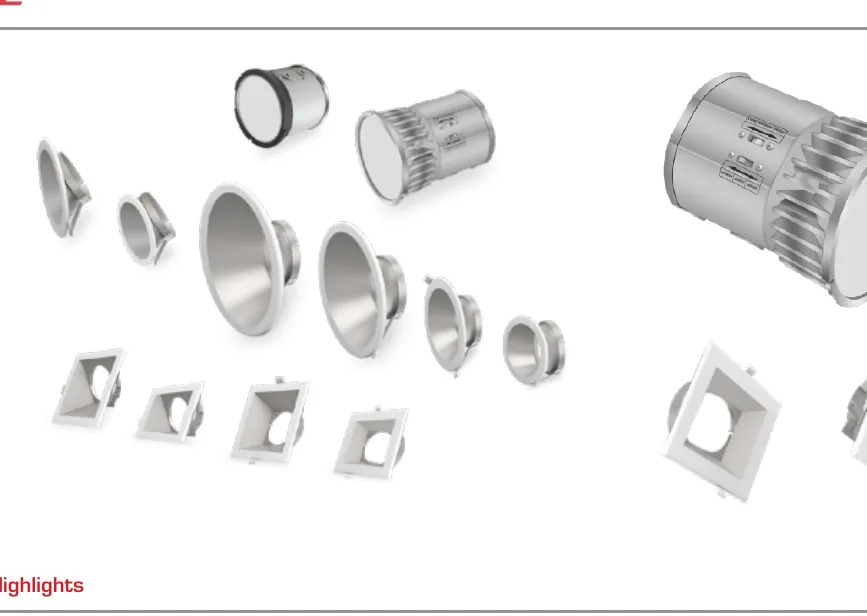

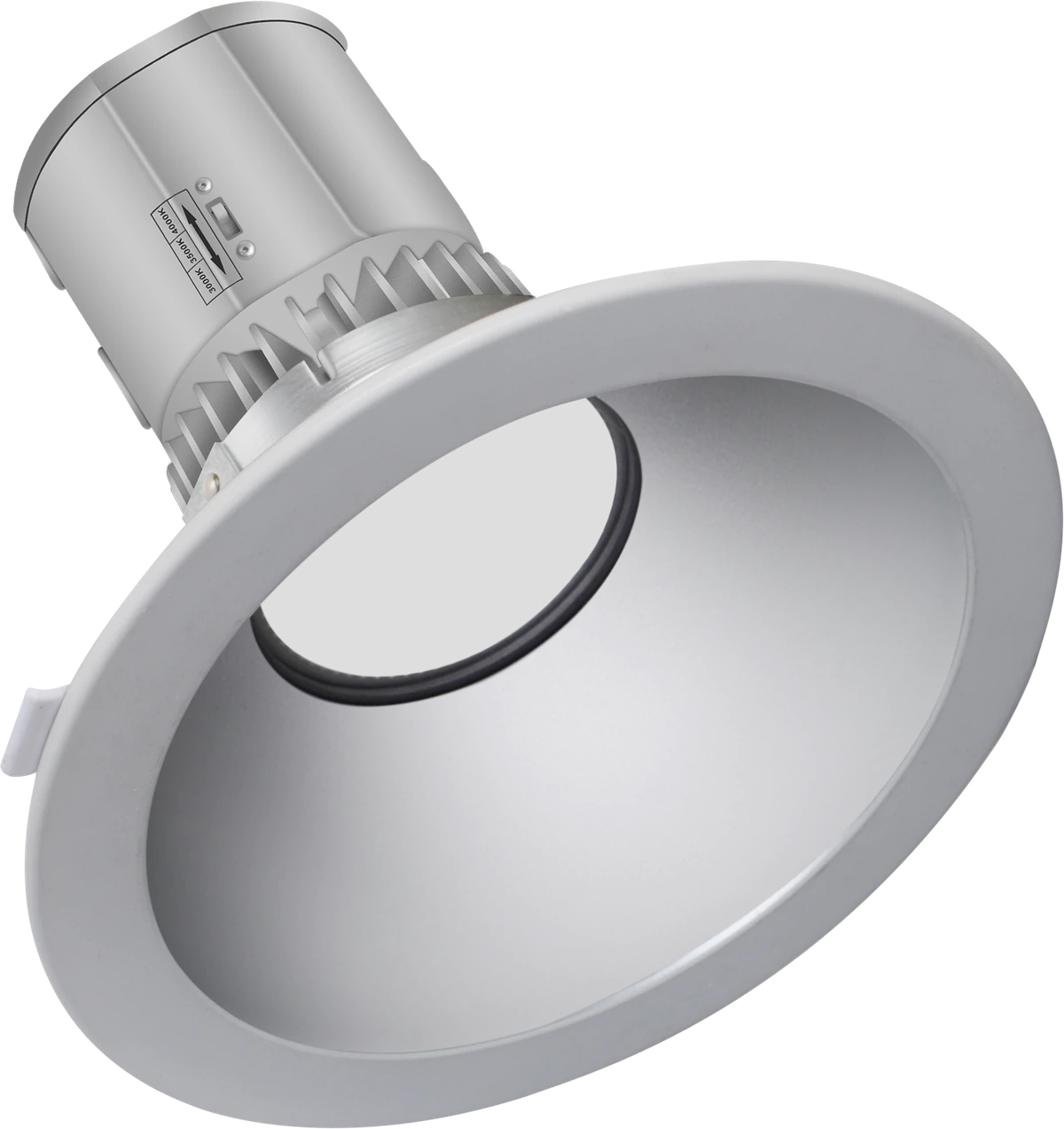

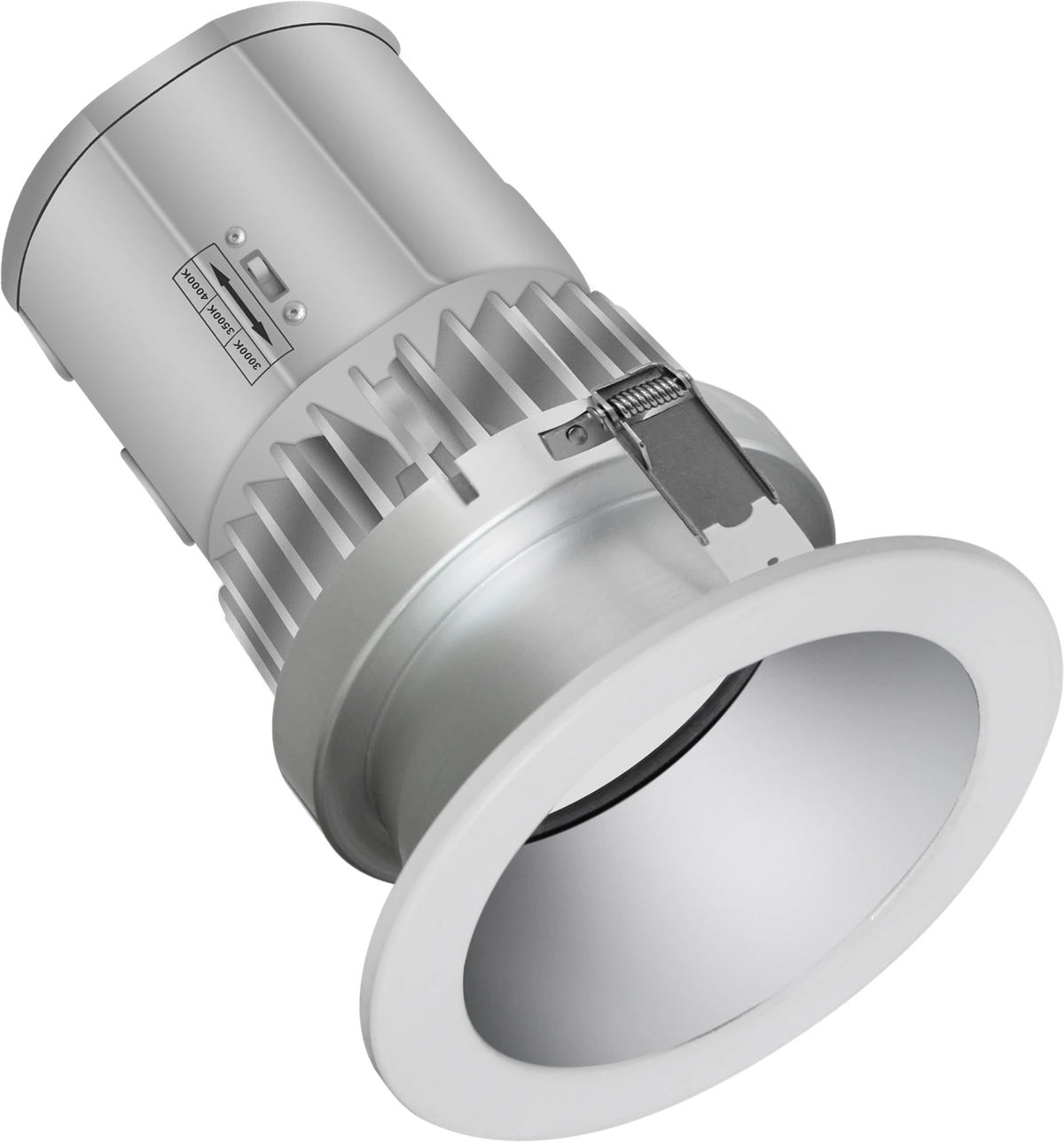

High-output commercial downlight with integrated J-Box — up to 6,180 lm @ 60W on a 120-347V universal driver. 4 apertures × 5-CCTselect × twist-lock modular interchange with separable J-Box for service. Tri-Mode Dimming. Title 24 §140.7 compliant.
Model Specifications
Download Data Sheet| 3-WATTselect | Lumens | lm/W | 3-CCTselect | Voltage |
|---|
Dimensions
(For the selected length)Spec the high-output. Stock one fixture.

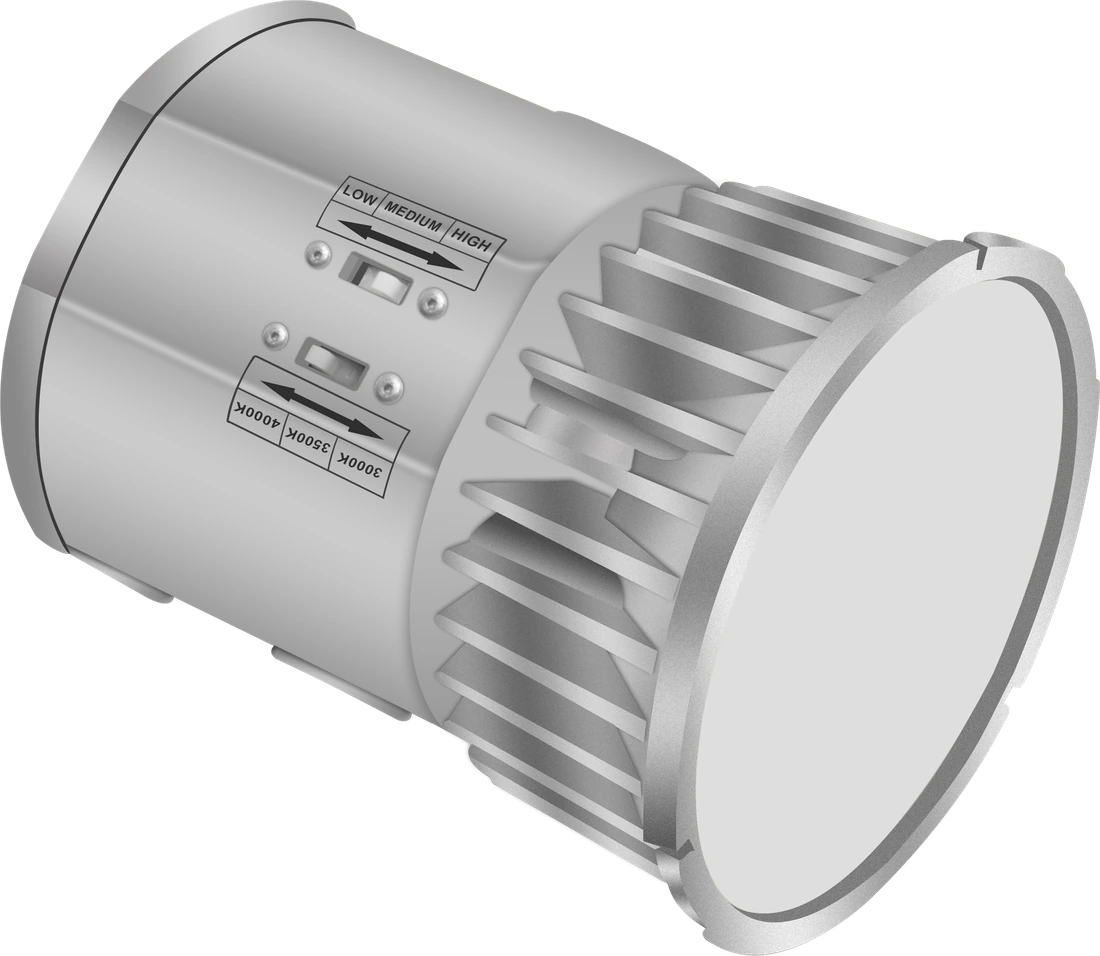

Three driver-module SKUs (DMS1020 · DMS2740 · DMS3060) × three WATTselect positions × three CCTselect positions = 27 field configurations from one catalog SKU family. The spec writer picks the driver-module wattage range on the bid sheet (10/15/20W for accent · 27/34/40W for general · 40/50/60W for high-output); the contractor sets the exact watt and color on-site with two DIP switches. DMS3060 hits 6,180 lm at 60W — the highest output in the LCDL family · 37% above competing brands SLD8's ~4,500 lm max at the same spec-grade price tier. 120-347V Universal voltage on DMS1020 + DMS2740 covers Canadian commercial 347V circuits competing brands SLD / volume-tier LDN require MTO at premium.
Highlights & Features
Spectra wins the high-output spec-grade brief.
Seven highlights — up to 6,180 lm @ 60W, 120-347V Universal voltage, Twist-Lock Modular with Separable J-Box, Tri-Mode Dimming, 27 configurations from 3 SKUs, Integrated J-Box + DampGuard™, and the full contrⒶLS by ⒶCS 4-device ecosystem.
contrⒶLS
Total Adaptive Control.

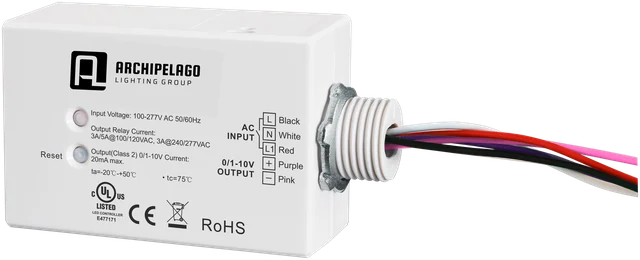

Every Spectra ships contrⒶLS-Ready — Bluetooth Mesh via 3 ⒶCS devices (MSP-20CM · MSP-40CM · MSX-LV20), plus TRIAC + ELV + 0-10V from one SKU with flicker-free dimming. DLC NLC-qualified for the Title 24 rebate adder.

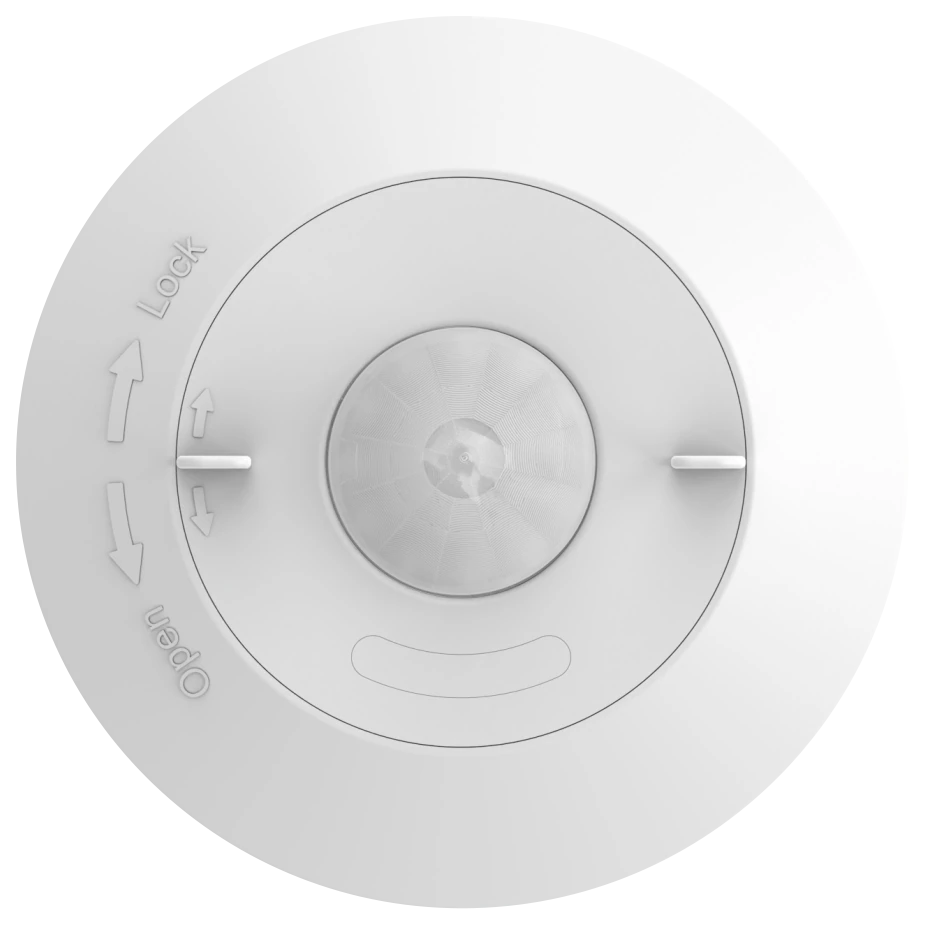

Wide-angle PIR ceiling sensor with 20 ft range — office, school, corridor, retail, and hospitality default. UL-Listed · IP20 indoor · 120-277V universal. Bluetooth Mesh commissioning via the AURA app. Pre-paired to the Spectra driver out of the box. Made-to-Order through the standard ⒶCS accessory line.
Discover contrⒶLS →Photometric Distribution
Beam shape, rendered from the LM-79 IES file.
Real luminous distribution rendered directly from 72 LM-79 measured IES candela tables — no synthesis. Bundle shipped 2026-05 covers every DMS1020 / DMS2740 / DMS3060 driver × every trim shape (Round, Square, Round Wall Wash, Square Wall Wash) × every aperture (4″/6″/8″/10″) × all 3 WATTselect positions, measured at 3500K.
DMS2740 + RF06 (40W).IES
Engineered for the high-output spec install.

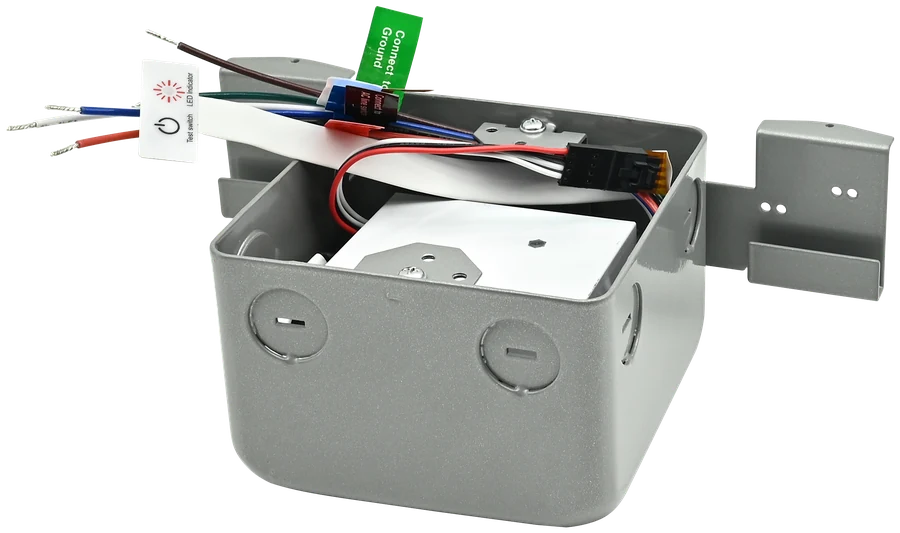

Ten factory-matched accessory categories complete the Spectra install — Round + Square reflector trims, NCP / NCP/JCB mounting plates, constNT backup, and the 4-device contrLS by CS Bluetooth Mesh lineup with the Spectra-only Kinetic Wall Switch.
Configure Your Spectra
Pick a driver module, reflector shape, aperture size, and finish. The 3-WATTselect (10/15/20W · 27/34/40W · 40/50/60W) and 3-CCTselect (3000/3500/4000K) are dip-switch field-set on every fixture — not in the catalog SKU. CRI 80+ standard · Tri-Mode dimming on DMS1020/DMS2740 (0-10V on DMS3060 high-output) · 120-347V Universal voltage on DMS1020/DMS2740 · 120-277V on DMS3060. Required fields marked with *. See the legend below for ★ / QS / MTO meanings.
Documentation & Resources
Everything specifiers, contractors, and project managers need to spec, install, and certify the Spectra — datasheet, installation guide, IES bundle, and the configuration-stamped submittal PDF. 1 of 5 primary documents live · 4 PDFs in production.
Meet the LCDL Commercial Downlight Family.

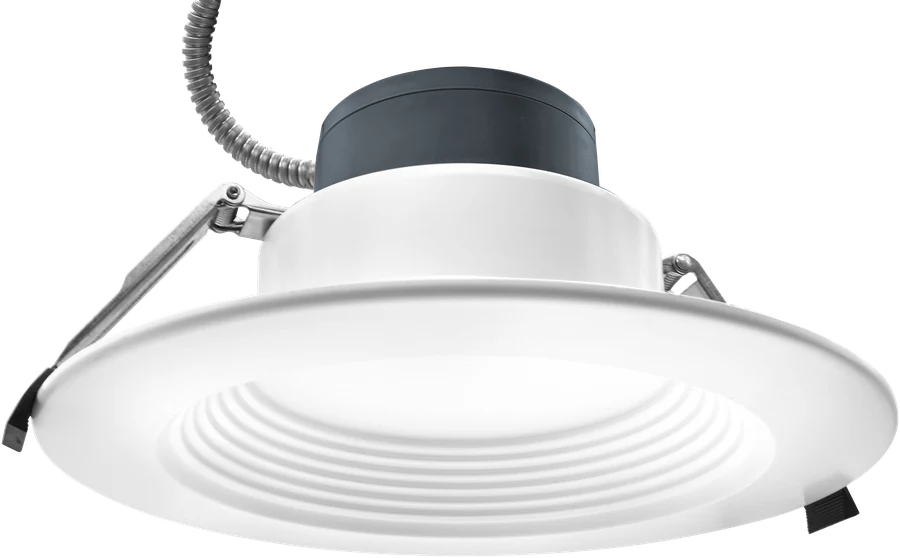

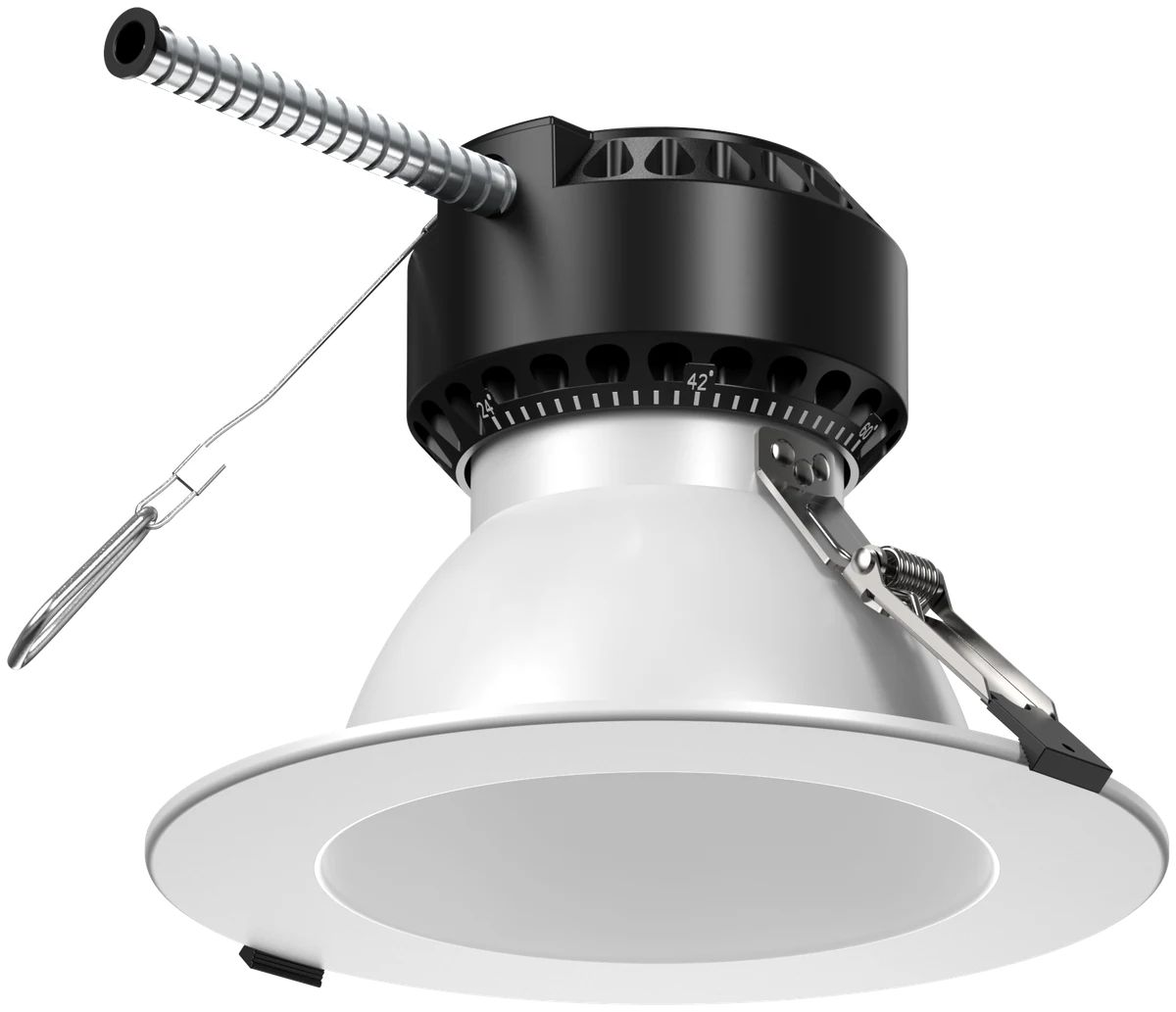

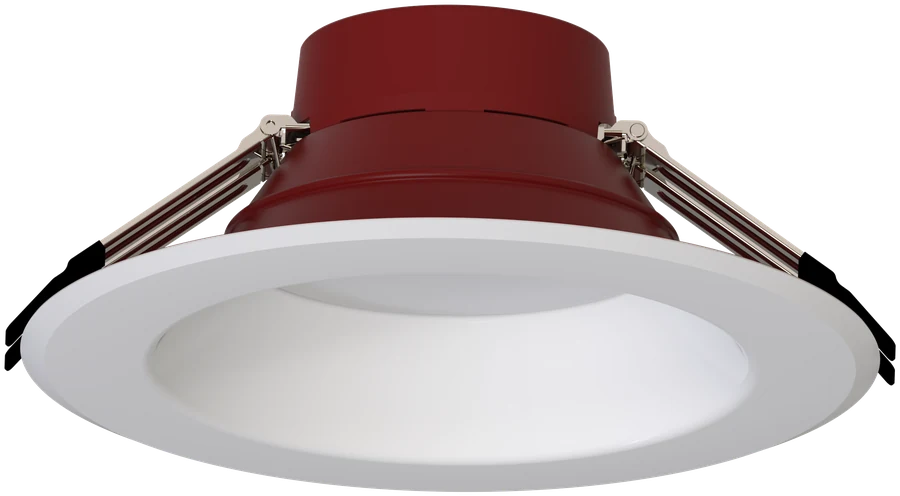

The Spectra is the high-output spec-grade workhorse of LCDL — up to 6,180 lm @ 60W on DMS3060, 120-347V Universal voltage covering Canadian commercial, Twist-Lock Modular + Separable J-Box for distributor inventory optimization, and the 3-device contrⒶLS by ⒶCS lineup (aligned with Astra sibling). If a project needs architectural adjustability + CRI 90+, drop down one tier to the Astra sibling. If the spec value-engineers to the affordable ECO can-less, or escalates to a 2-hour fire-rated assembly, here are the four LCDL siblings — same 4-size aperture matrix, same constⒶNT EM ecosystem, same spec-grade install pattern.
For the complete commercial-architectural package.

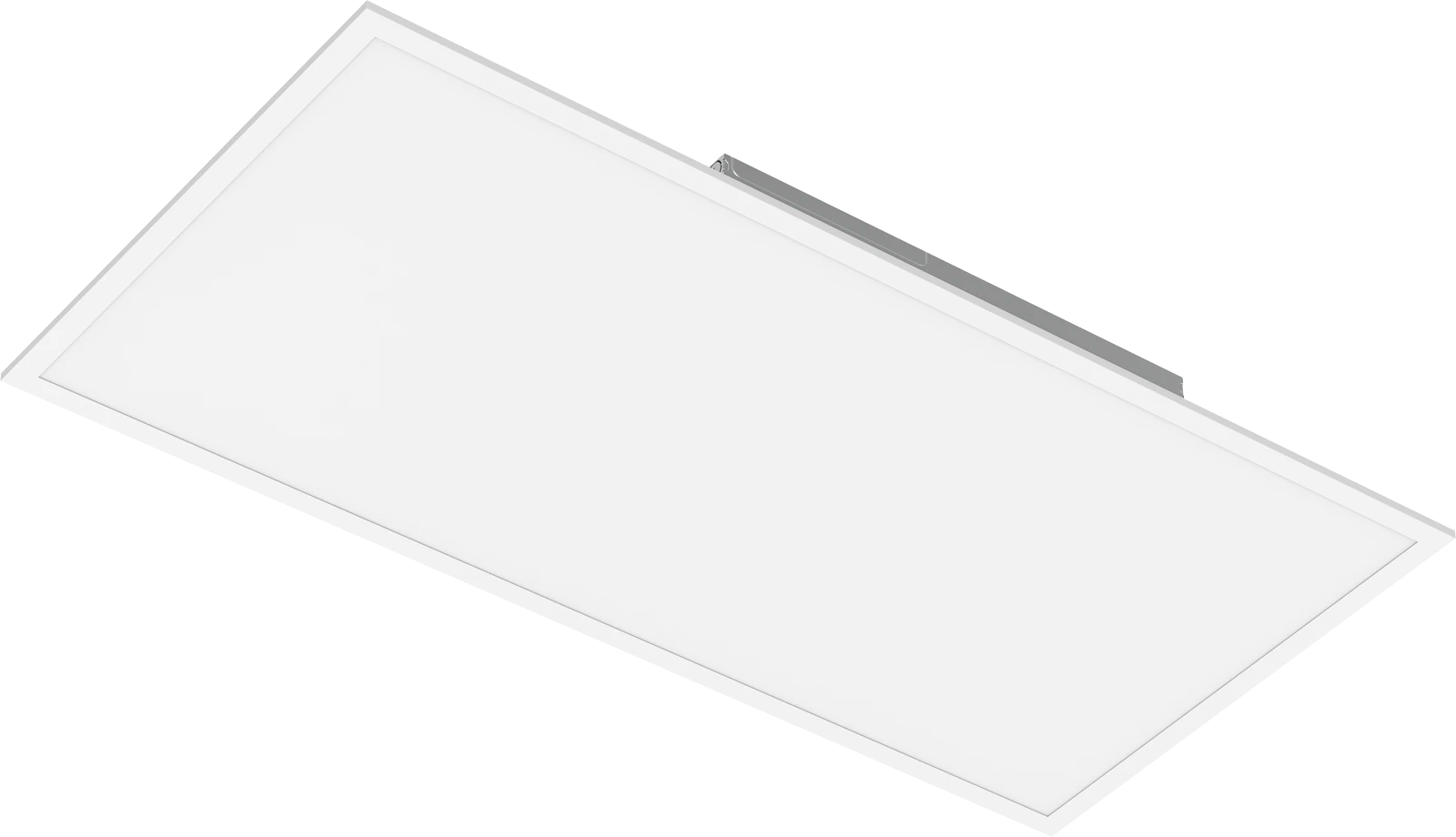

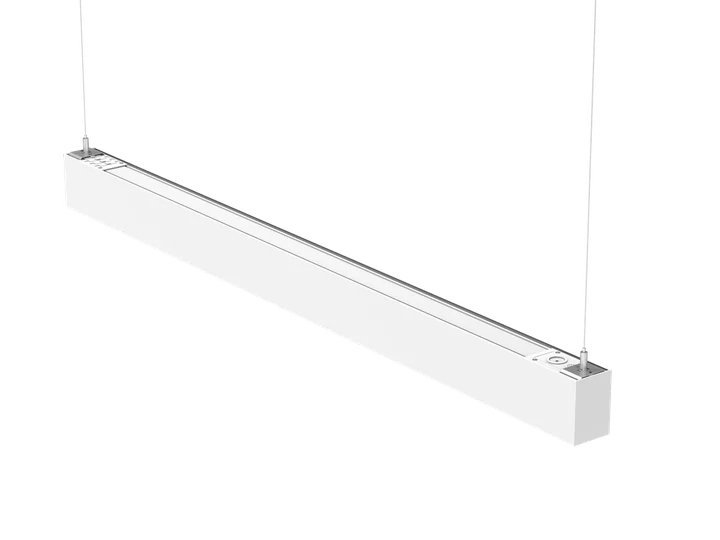

Spectra handles the high-output architectural downlight. These cross-line fixtures handle the rest of the building — same controls platform, same constⒶNT EM ecosystem, same warranty promise, same factory. Specify them together for a coherent lighting package across the entire commercial-architectural envelope: pendants over the conference table, panels in the back rooms, post-tops in the plaza, strip lights in the parking deck.
Direct line to your regional rep.
Five US warehouses ship Spectra QuickShip configurations in 3-5 days; surface-treatment reflectors (/SP /SS), Square shape, and ⒶCS sensors ship MTO in 4-6 weeks. Layout requests come back inside 48 hours. Quotes, sample requests, and rebate matches reply same business day. No portal-as-the-only-channel: you get a person.
Stack the rebates.
The Spectra qualifies for utility rebate programs at the DLC Listed tier (verification pending Rebate Center search per CFG-RBT-2 · datasheet is silent on DLC tier · published up to 100 LM/W efficacy clears the DLC Listed floor and approaches Premium). Add the 4-device contrⒶLS by ⒶCS Bluetooth Mesh ecosystem to qualify for the Title 24 § 130.1 NLC rebate adder — typically a $30-50/fixture stack on the base rebate.
