FIELD-SET

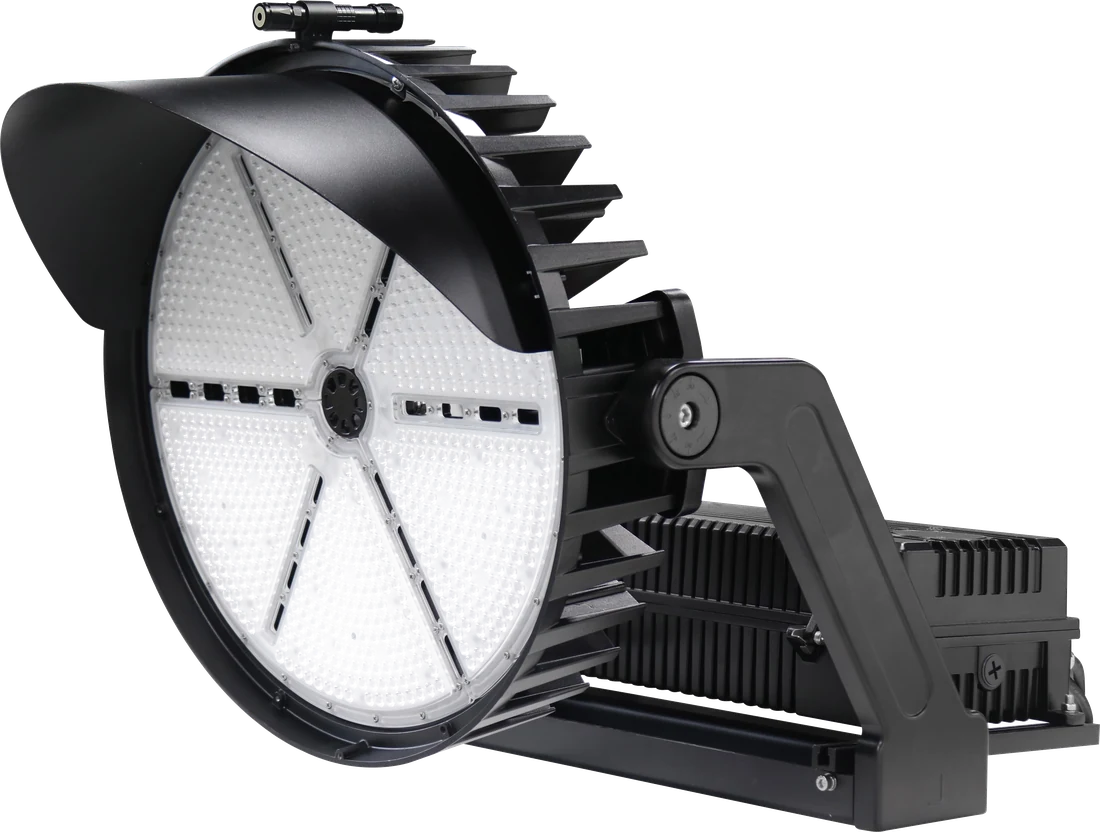

Three generations on one page · 3-WATTselect on Radiator-II · proⒶPTICS kits from 20° to 80° · Remote drivers at the pole base · showⒶSYNC RGB on Radiator-III · IP65
ARCHIPELAGO
Lighting Group
Electrical & Optical
| Input voltage | Radiator-I 200–480V · Radiator-II 120–277V (U) or 277–480V (H) · Radiator-III 120–277V |
| Dimming | 0–10V |
| Power factor / THD | PF ≥0.9 · THD ≤20 % |
| Surge protection | Radiator-II 10 kV L/N-PE · 6 kV L-N · Radiator-I up to 40 kV · Radiator-III up to 20 kV |
| CRI | 70 |
| Drivers | On the fixture; Radiator-II 600 W kits for the pole base, their own line |
| WATTselect | Radiator-II · set by switch on the fixture · not encoded in the catalog number |
Construction & Environment
| Housing | Die-cast aluminum · Black |
| Lens | Radiator-II: PC lens and glass |
| Operating ambient | −40 °F to 113 °F (II) · to 122 °F (I, III) |
| Location | cULus Listed · wet location · IP65 |
| Mounting | Trunnion in every number (B/TR) · slip-fitter (II) · yoke adaptor (I, III) |
| Warranty | 10-year / 100,000-hour limited |
cULusWet LocationIP65
ARCHIPELAGO
Lighting Group
Bill of materials — this build
| # | Item | Selection | Catalog number | On the order |
|---|
Generation, wattage, color, voltage, the optic on Radiator-I and III and the TAA build are the catalog number; the trunnion is in every number. Radiator-II watts are set on the fixture and are not in it. Optic kits, visors, mounts and remote-driver parts are their own order lines.
Every fixture catalog number
Accessories — ordered separately
ARCHIPELAGO
Lighting Group
04 · Photometrics & Dimensions
Beam angle (50 % of peak)
—
Dimensions
No DLC listing is claimed for this family. Rebate Center shows what your utility pays and the forms it needs, by ZIP.
Full IES library:
