ARCHIPELAGO
Lighting Group
FIELD-SET

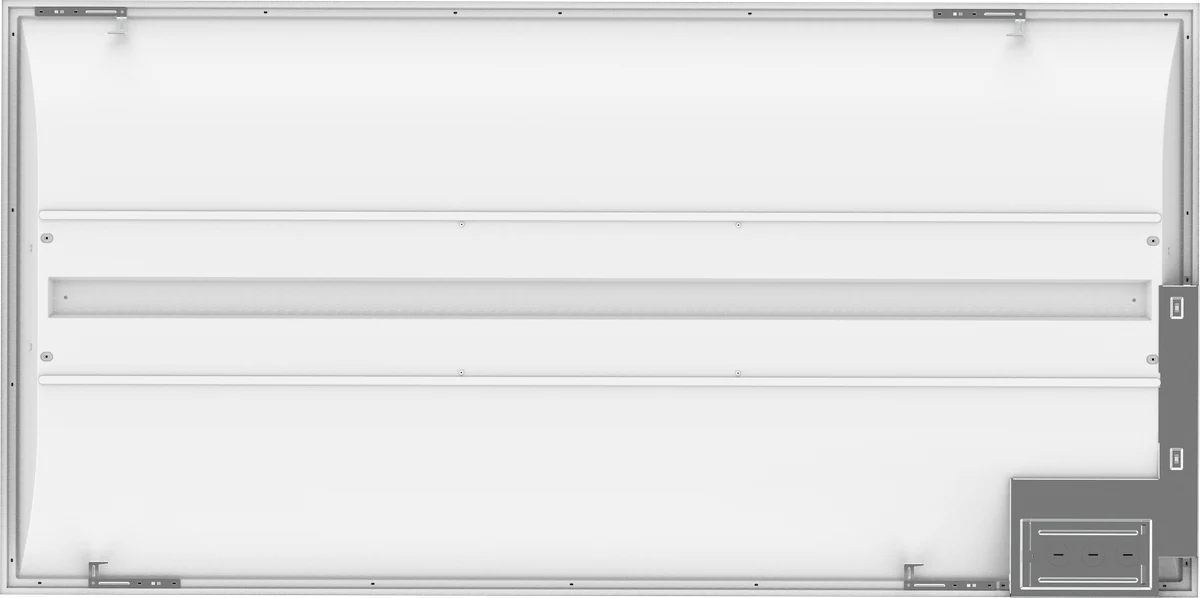

3-WATTselect set at install · 3-CCTselect 3500 / 4000 / 5000K · Center basket 120° · contrⒶLS-Ready with /SR · constⒶNT-Ready with /EM
ARCHIPELAGO
Lighting Group
Electrical & Optical
| Input voltage | 120–277V (108–305V) |
| Dimming | 0–10V, dim-to-off |
| Power factor / THD | PF ≥0.9 · THD ≤20 % |
| Flicker · surge | <5 % · 1 kV |
| CRI | >80 · R9 ≥0 |
| Distribution | 120°, center basket |
| CCT and WATTselect | Set by dip switch at install · not encoded in the catalog number |
Construction & Environment
| Housing | SPCC steel, white · PMMA center basket · aluminum trim · 1.42″ deep |
| Operating ambient | −4 °F to 104 °F |
| Location | cETLus Listed (US & Canada) · damp location · IC rated |
| Install | Lays into a 15/16″ T-bar grid · four safety retention brackets supplied |
| Warranty | 7-year / 75,000-hour limited |
DLC ListedcETLusDamp LocationFCCRoHSTAA
ARCHIPELAGO
Lighting Group
Bill of materials — this build
| # | Item | Selection | Catalog No. | On the order |
|---|
Size, /SR and /EM are the catalog number. Watts and color are set on the driver at install and are not in it. Each accessory is its own order line with its own catalog number.
Every fixture catalog number
Accessories — ordered separately
ARCHIPELAGO
Lighting Group
04 · Photometrics & Dimensions
Beam angle (50 % of peak)
—
Dimensions
DLC Listed, SSL v6.0: QPL S-C76CP7 (1×4), S-CCKR9P (2×2), S-1VW94C (2×4). Confirm program eligibility in Rebate Center before specifying.
Full IES library:
